Rear UCA bolt too big for spindle

Really bizarre -
I’m assembling the rear suspension - and it appears the 4.25” (5/8”) fits the alignment spacers nicely but is substantially greater in diameter than the hole in the spindle.

I’m assembling the MKV w/the spindles included in the kit.

There are no other bolts of that length in the IRS fastener kit and it would be odd to have a smaller bolt as the other parts clearly match the 5/8”.

Thoughts??

Thanks! (I didn’t find any other threads for this on the search (such as it is), which surprised me)

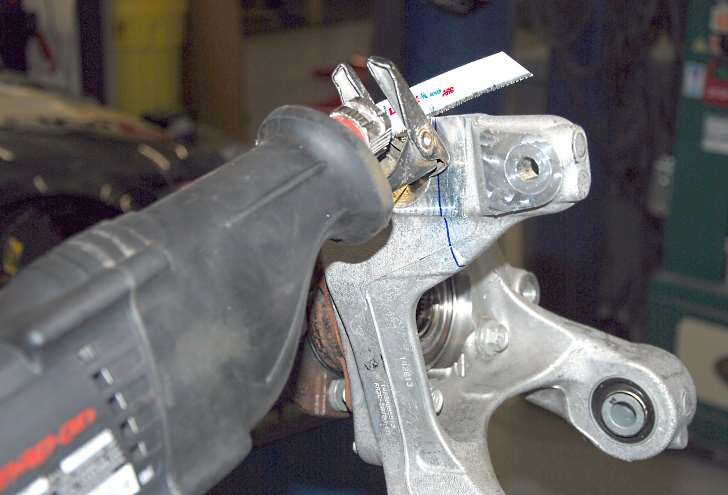

I am not sure how it works for the MK5 but on the MK4 the manual shows the ear you reference in the first picture needs to be cut off. From Page 84 of Mk4 Build Manual:

Attachment 215297

Best Regards, Andrew

Quote:

---

Originally Posted by AndrewIdaho

I am not sure how it works for the MK5 but on the MK4 the manual shows the ear you reference in the first picture needs to be cut off. From Page 84 of Mk4 Build Manual:

Attachment 215297

Best Regards, Andrew

---

I can't see how the MKV would be any different. That ear interferes with the wheel. I agree with Andrew I think that needs to be cut off, but check the manual or one of the other MK5 guys can chime in.

Quote:

---

Originally Posted by Blitzboy54

I can't see how the MKV would be any different. That ear interferes with the wheel. I agree with Andrew I think that needs to be cut off, but check the manual or one of the other MK5 guys can chime in.

---

Yes, sorry, my mistake - it was 30 pages earlier and I somehow thought I’d be exempt since all the parts came w/the kit.

Those forged arms look nice!
