NRG Quick Release Steering Hub Jig

Hello,
I am looking to see if anyone has a Steering Hub Jig that I can borrow to drill my holes out on my NRG quick release steering wheel. (or other advice on drilling out without a jig) As I understand it, I will need to counter sink the existing 6 hub screws (shortening or buying shorter screws) then drill out the hub attached NRG piece and then finally the steering wheel attachment to the removable part of the NRG release. Also, just wondering how most people cut out the center of the hub attachment for the NRG. I know Paul (EdwardB) used a router and dremel but I am unfortunately without a router.
Thanks in advance.

Quote:

---

Originally Posted by Slow and Slightly Angry

Hello,
I am looking to see if anyone has a Steering Hub Jig that I can borrow to drill my holes out on my NRG quick release steering wheel. (or other advice on drilling out without a jig) As I understand it, I will need to counter sink the existing 6 hub screws (shortening or buying shorter screws) then drill out the hub attached NRG piece and then finally the steering wheel attachment to the removable part of the NRG release. Also, just wondering how most people cut out the center of the hub attachment for the NRG. I know Paul (EdwardB) used a router and dremel but I am unfortunately without a router.
Thanks in advance.

---

If you have access to a 3d printer I can send you the 2 files for the jigs. If not PM me and we can work something out. I used a hack saw and a dremel. You can follow on my build thread at https://thefactoryfiveforum.com/show...l=1#post500156.

Thanks Scott.

I do often check in on your build but managed to miss that massive, super helpful, section.

Ill see if I know anyone who has a printer and let you know.

Thanks again

I did mine without a jig. Used a hack saw and file to cut the center out, marked the holes and drilled it with a drill press. There is a counter sink drill bit to make the counter sunk holes. The process takes a few hours but is not hard, the end result is worth the effort.
David W

I used a Dremel to cut away the NRG piece. Used a cutoff wheel and it slices through the aluminum pretty quickly. Cleaned it up with the sanding wheel, some files, and some sandpaper. I shipped my jigs off to another builder. Details on the install on Post #66 if the pictures help.

Or you could just buy the NRG double-d hub and not have to worry about any of that— https://www.amazon.com/gp/product/B00Y98AP1S. Mounts right to the steering shaft as is. Sure it costs a little extra, but seemed like a fair trade in terms of cost of time.

Quote:

---

Originally Posted by Slow and Slightly Angry

Hello,
I am looking to see if anyone has a Steering Hub Jig that I can borrow to drill my holes out on my NRG quick release steering wheel. (or other advice on drilling out without a jig) As I understand it, I will need to counter sink the existing 6 hub screws (shortening or buying shorter screws) then drill out the hub attached NRG piece and then finally the steering wheel attachment to the removable part of the NRG release. Also, just wondering how most people cut out the center of the hub attachment for the NRG. I know Paul (EdwardB) used a router and dremel but I am unfortunately without a router.
Thanks in advance.

---

I have a set of the jigs but the problem is they are in Florida and I am in Michigan until mid-October. If you still want them, sent me a pm.

Quote:

---

Originally Posted by Alphamacaroon

Or you could just buy the NRG double-d hub and not have to worry about any of that— https://www.amazon.com/gp/product/B00Y98AP1S. Mounts right to the steering shaft as is. Sure it costs a little extra, but seemed like a fair trade in terms of cost of time.

---

Sorry I did not provide my full details. I have the RT turn signal setup, so I'm not sure that hub will work.

Quote:

---

Originally Posted by Slow and Slightly Angry

Sorry I did not provide my full details. I have the RT turn signal setup, so I'm not sure that hub will work.

---

Got it— then yes it's unclear if that would work. Although I still suspect it might— the hub is designed to work with an older production Ford Mustang vehicle with turn signals and such, so there is a possibility it could be nearly compatible. But who knows.

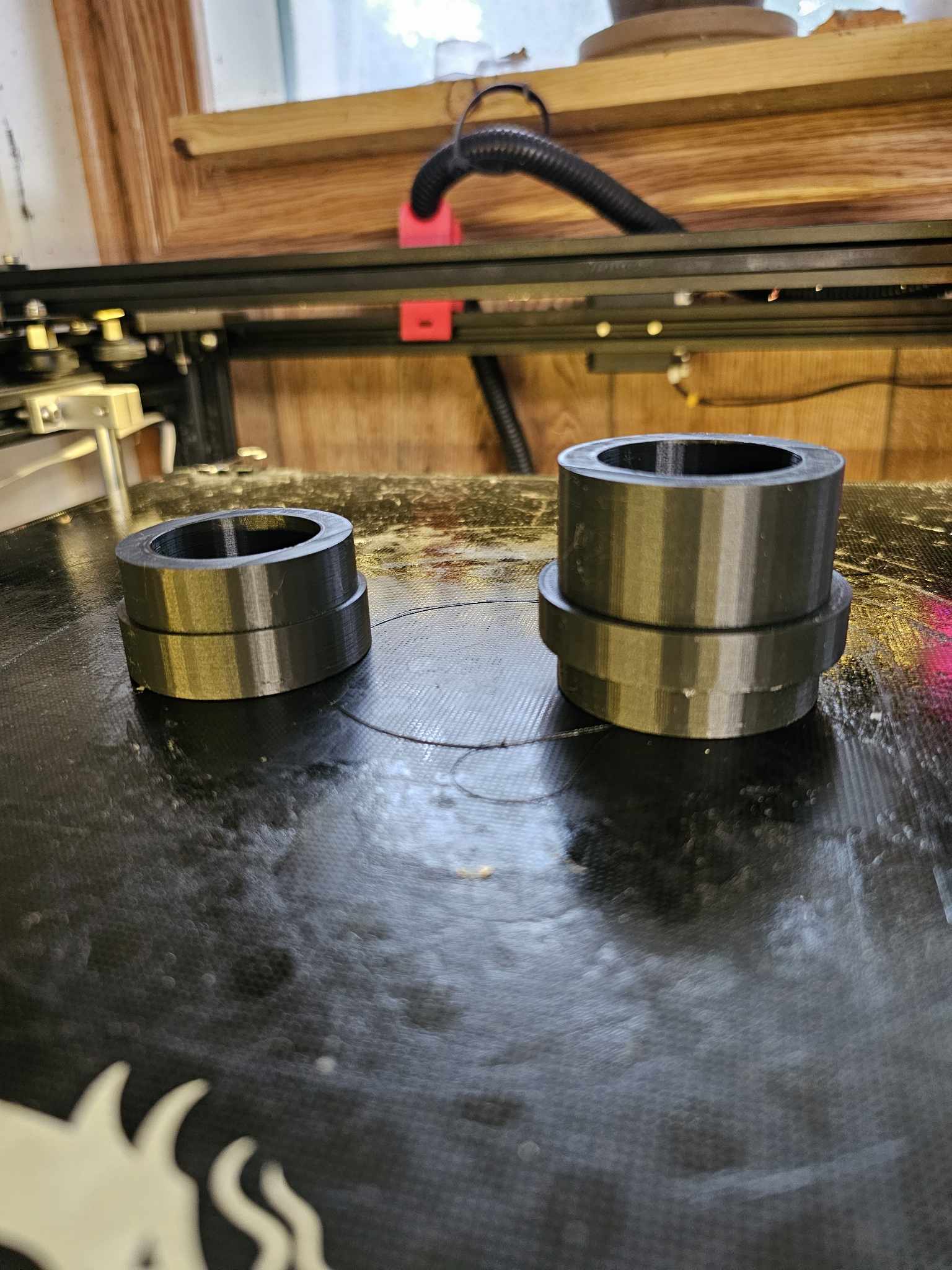

Got the jigs printed by an old colleague of mine.
Thanks again for the CAD files Scott!Attachment 188224

Quote:

---

Originally Posted by Slow and Slightly Angry

Got the jigs printed by an old colleague of mine.
Thanks again for the CAD files Scott!Attachment 188224

---

Offer them up to the next guy when your done with them. Pay it forward!!!

Will do!

For future reference, if anyone is looking for a set of the 3D printed jigs, I have a pair courtesy of Namrups. DM me if you need them.

Hi, just an update. I mailed these to Jespinosa Jespinosa in July, 2024. Not sure if he still has them.
