2 Post Lift Points

I know the 2 main frame tubes are safe to lift the car. Are the square tubes in the back okay? How about the frame tubes in front of the foot boxes? Just don’t want to drop the car or bend something.

I only lift the car from the 4" tubes. My lift had a narrow or wide setup option. I went narrow, and my lift's front arms are just able to get under the tubes in a forward enough position to be safe.

Yes, they will fully support the car

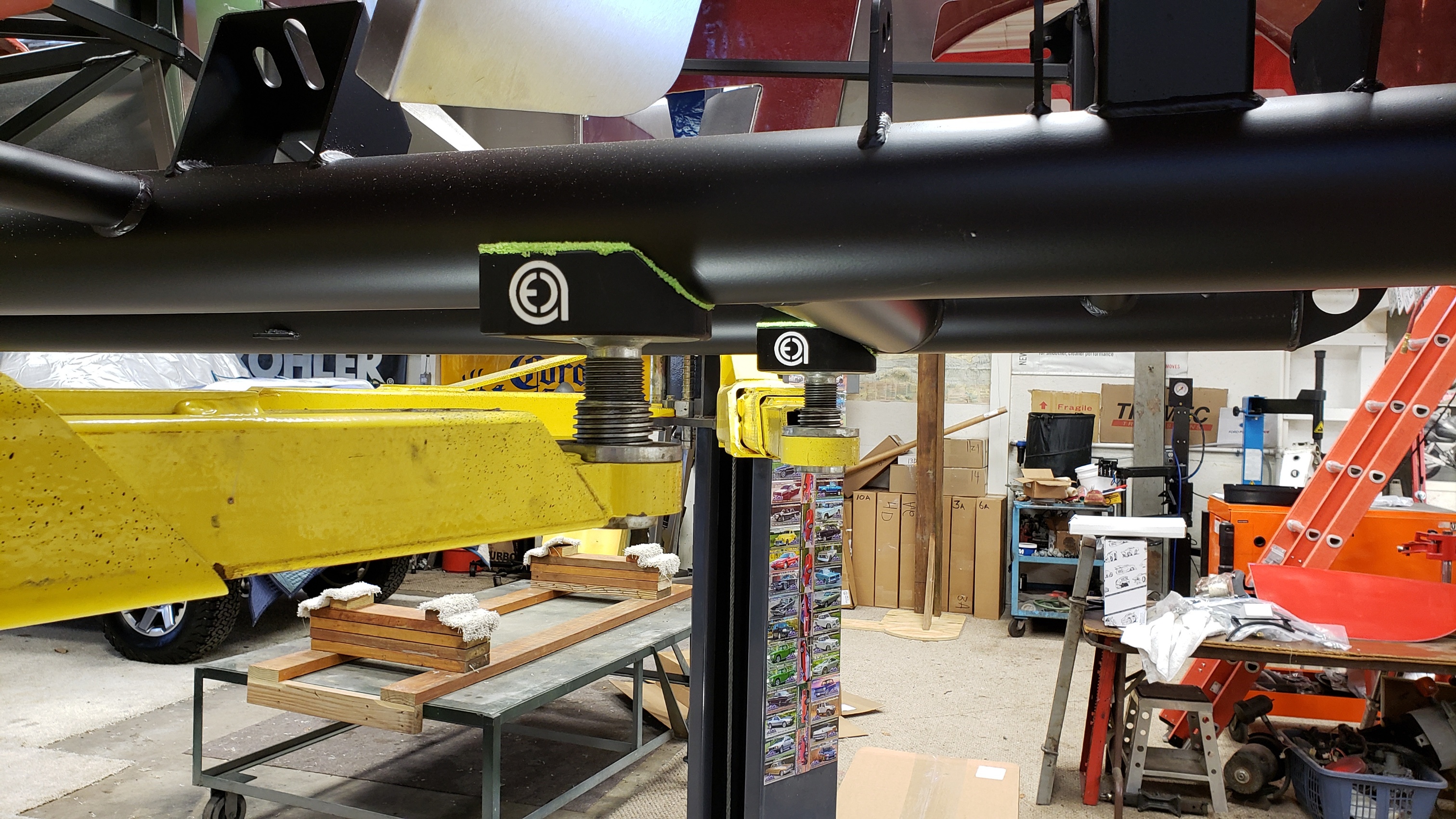

I designed these and had them 3d printedAttachment 166936Attachment 166936

When you say 'square tubes in the back' I 'think' you don't mean any of the tubes around the trunk right?
Attachment 166950

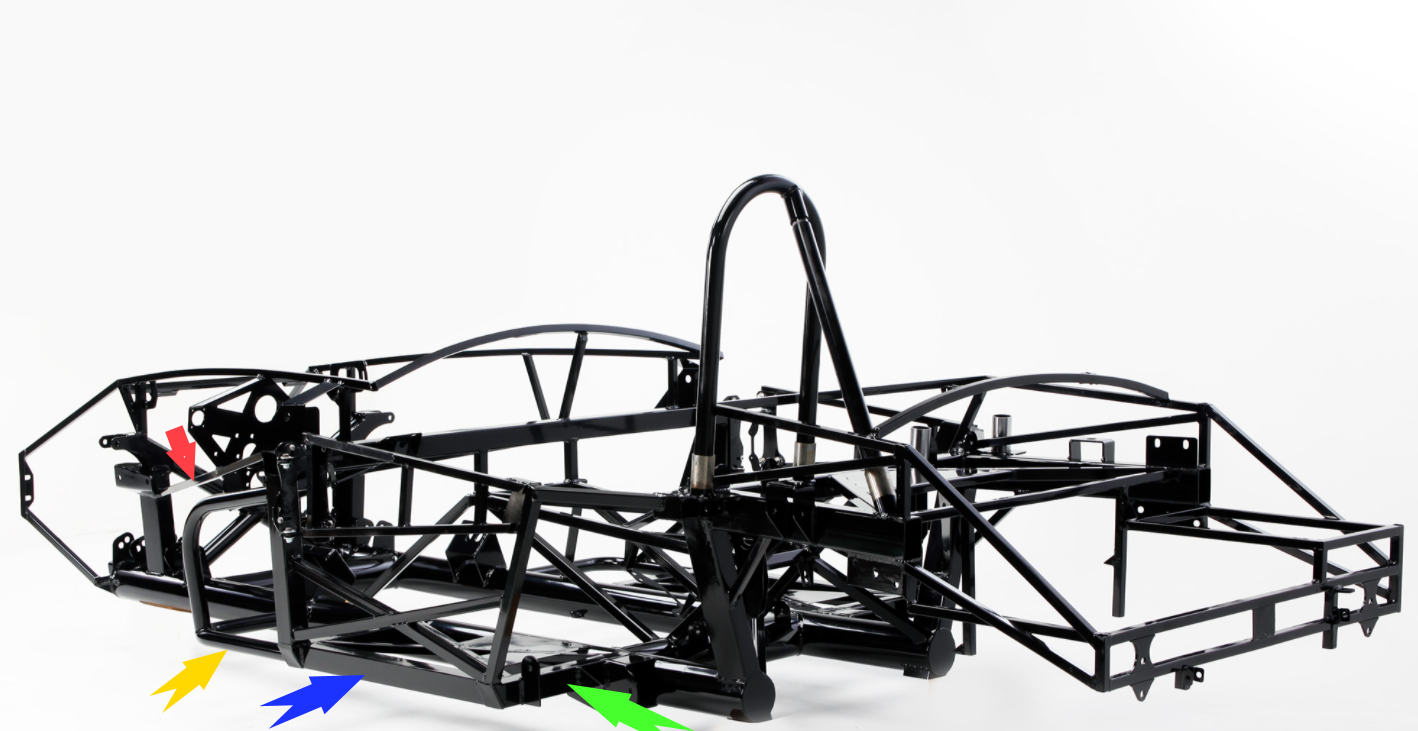

The square tube (2"x2"?) green arrow is good. I always jacked my MkII at the blue arrow but the MkIV body covers it. The footbox tube, yellow arrow would be fine also but it is up inside the aluminum floor pan. Sorry you need to click the pic to make it larger.

Quote:

---

Originally Posted by CraigS

When you say 'square tubes in the back' I 'think' you don't mean any of the tubes around the trunk right?
Attachment 166950
The square tube (2"x2"?) green arrow is good. I always jacked my MkII at the blue arrow but the MkIV body covers it. The footbox tube, yellow arrow would be fine also but it is up inside the aluminum floor pan. Sorry you need to click the pic to make it larger.

---

Thanks, yes NO trunk tubes. I should have said round tubes where foot box drops down, not at the firewall.
