Matt in MN's Roadster

Last Winter John Ibele was good enough to give my daughter and I a quick lesson in powder coating(thanks again John!). I really was intrigued with the process and ordered up an Eastwood kit, some powder (black in flat, semi, and gloss) and started playing around with it. I would say about 80% of the items come out right the first time 10% need a touch of paint to cover some small nook, and 10% need to be stripped and coated again. Those numbers are improving but I'm pretty happy with the results. But there has been a bit of learning.

First... Acid. I tried using Muriatic Acid to strip the chrome from parts. It worked in some cases. In others it dissolved the pot metal that was under a thin layer of some other metal. So for anyone else out there the Lemans cap (I did not ruin), the mirror post, and the lock bases are pot metal... Don't use Muriatic Acid to clean or un-coat them.
https://photos.smugmug.com/Home/9999..._143433-X2.jpg

The bubbles mean something is happening it if looks like it's boiling pull out whatever is in there.

https://photos.smugmug.com/Home/9999..._143438-X2.jpg

Actual Metal parts come out great
https://photos.smugmug.com/Home/9999..._143441-X2.jpg

Pot metal... Yikes
https://photos.smugmug.com/Home/9999..._130410-X2.jpg

One of the skills I'm getting better at is making funking hooks to haning the parts on. Here is a front turn signal bezel.
https://photos.smugmug.com/Home/9999..._162954-X2.jpg

Anyway I have about 10 more parts to do and 1 to re-do and then on to the next thing. The Windshield and headlight bezels are to big for my oven so those will get sent out.
https://photos.smugmug.com/Home/9999..._181446-X2.jpg

Well 5 weeks since I wrote an update. Not a lot of progress at the moment. A lot of life keeping me out of the shop. I'm sure a lot of folks here know what that's like.

I did get the tire tires install on the wheels. Nitto NT555 G2s. For some reason I didn't take a photo of them out, but the shop wrapped the tire/wheels in bags and I thought it looked funny in the back of the truck.

https://photos.smugmug.com/Home/9999..._101450-X2.jpg

I also fitted all the accessories, plugs, and sensors to the engine. Later I also got the belt installed again I forgot the photo.

https://photos.smugmug.com/Home/9999..._105439-X2.jpg

https://photos.smugmug.com/Home/9999..._105445-X2.jpg

Also I had an issue thinking 3 dimensionally and cut the hole for my dimmer switch in the dead pedal I made on the bottom.

https://photos.smugmug.com/Home/9999..._101607-X2.jpg

I guess that lets me say that I make'm nice because I make them twice.

https://photos.smugmug.com/Home/9999..._103007-X2.jpg

https://photos.smugmug.com/Home/9999..._103014-X2.jpg

https://photos.smugmug.com/Home/9999..._122839-X2.jpg

https://photos.smugmug.com/Home/9999..._130047-X2.jpg

Unfortunately my Black and Decker rotary tool gave up and died. And they don't make it any more. It was my 3rd one in 24 years bummer. The Harbor freight one was 20 bucks so I picked on up. So far so good. I bought an actual Dremel a few years ago and it was the worst of the lot and lasted just a few months.

https://photos.smugmug.com/Home/9999..._122842-X2.jpg

Finally we made one attempt to marry the Engine and the transmission. And by attempt I mean 2 hours of wrangling. We had a gap of less than 1/16th of an inch but couldn't push it in any further. The instructions say not to draw it in with the bolts so we pulled it a part to try again another day. I looks like the centering ring might have some imperfections so I'm thinking of polishing the inside of the ring and looking for any imperfections on the TKX where the ring/transmission should slide onto. It was so close to being on I am pretty sure that the splines line up. So the other think was going to look at was maybe the pilot bearing.

Pretty good day on the roadster. Finally got the engine and transmission bolted together. Took quite a bit of effort. Gave up on using the floor jack and suspended it from the engine hoist. Way easier. Also putting the motor on dolly was nice for moving it around and lining things up.

https://photos.smugmug.com/Home/9999..._105923-X2.jpg

And bolted together

https://photos.smugmug.com/Home/9999..._123808-X2.jpg

I also cut out 6 1/8 steel spacers for the transmission. I've read that to get the pinion angle folks are using 5/8-3/4 inch spacers. So no I just need to drill a few holes and coat them and they are ready to use when we drop the motor and trans in.

https://photos.smugmug.com/Home/9999..._151112-X2.jpg

Also a few weeks ago I got all the brackets, accessories, belt, and thermostat housing lined up and installed but I didn't take a snap. So here it is now.

https://mattglaeser.smugmug.com/Home...er/i-DPcvsd7/A

I also did a bunch of small things as well.
-Fixed a Zerk Fitting on the lower control Arm (Drivers side not that it matters)
-Powder coated one of the headlight trim rings
-Powder coated the dead pedal
-Fixed the Koolmat on the driver's footbox
-Reinstalled the now powder coated trunk brackets

I also broke a couple banjo bolts.. oops.

I'm enjoying reading through your build. Some great work done and I'm definitely stealing the 3M strip caulk idea to seal seams in the aluminum. Keep it up!

Quote:

---

Originally Posted by JMD

I'm enjoying reading through your build. Some great work done and I'm definitely stealing the 3M strip caulk idea to seal seams in the aluminum. Keep it up!

---

For sure! I bought a 15 foot roll of butyl 'rope tape' on Amazon for $12. It's been awesome for filling in seams, especially in the upper trunk side wall area.

Quote:

---

Originally Posted by gbranham

For sure! I bought a 15 foot roll of butyl 'rope tape' on Amazon for $12. It's been awesome for filling in seams, especially in the upper trunk side wall area.

---

I actually had not thought about that area yet. I'll keep that in mind. Good hint.

Ok still moving slow. Found the right bolts for the transmission mount. I find it strange these aren't in the instructions that come from 1/2 - 13 x 1.25 of 1.5

I finished the spacers for the transmission mount to transmission support. I created 6 1/8 inch spacers so I can stack them for whatever I need. I probably spent as much on drill bits as It would have cost to just order Forte's parts.

https://photos.smugmug.com/Home/9999..._192711-X2.jpg

After some powder coating in the sandwich oven
https://photos.smugmug.com/Home/9999..._205919-X2.jpg

Next I've always liked the look of wrapped headers. So I bought some stainless steal Fox Body headers and gave it a go. I think they came out pretty good. I'll do the J-pipes too soon.

Anyone else prep parts at the breakfast table?
https://photos.smugmug.com/Home/9999..._212501-X2.jpg

https://photos.smugmug.com/Home/9999..._223035-X2.jpg

https://photos.smugmug.com/Home/9999..._234909-X2.jpg

I also greased the Zirk fittings on the front end, adjusted a power cable that was getting in the way in the transmission tunnel, and took the car off the dolly and on to jack stands. I just need to test fit the trans support, do a couple things on the brakes, put the wheels on and drop the car onto wheel dollies and I'll be ready to drop the engine in.

Also last weekend we had an open house at the Garage Condo Complex. Here was my version of a factory five 'in progress' display.
https://photos.smugmug.com/Home/9999..._082328-X2.jpg

Got a lot of attention even though there were a lot of exotic cars to look at. Ferraris, Lambos, Lotuses, a Gullwing Mecedes, one family owns a whole building that has something like 100 Corvettes.

Attachment 202814Attachment 202815

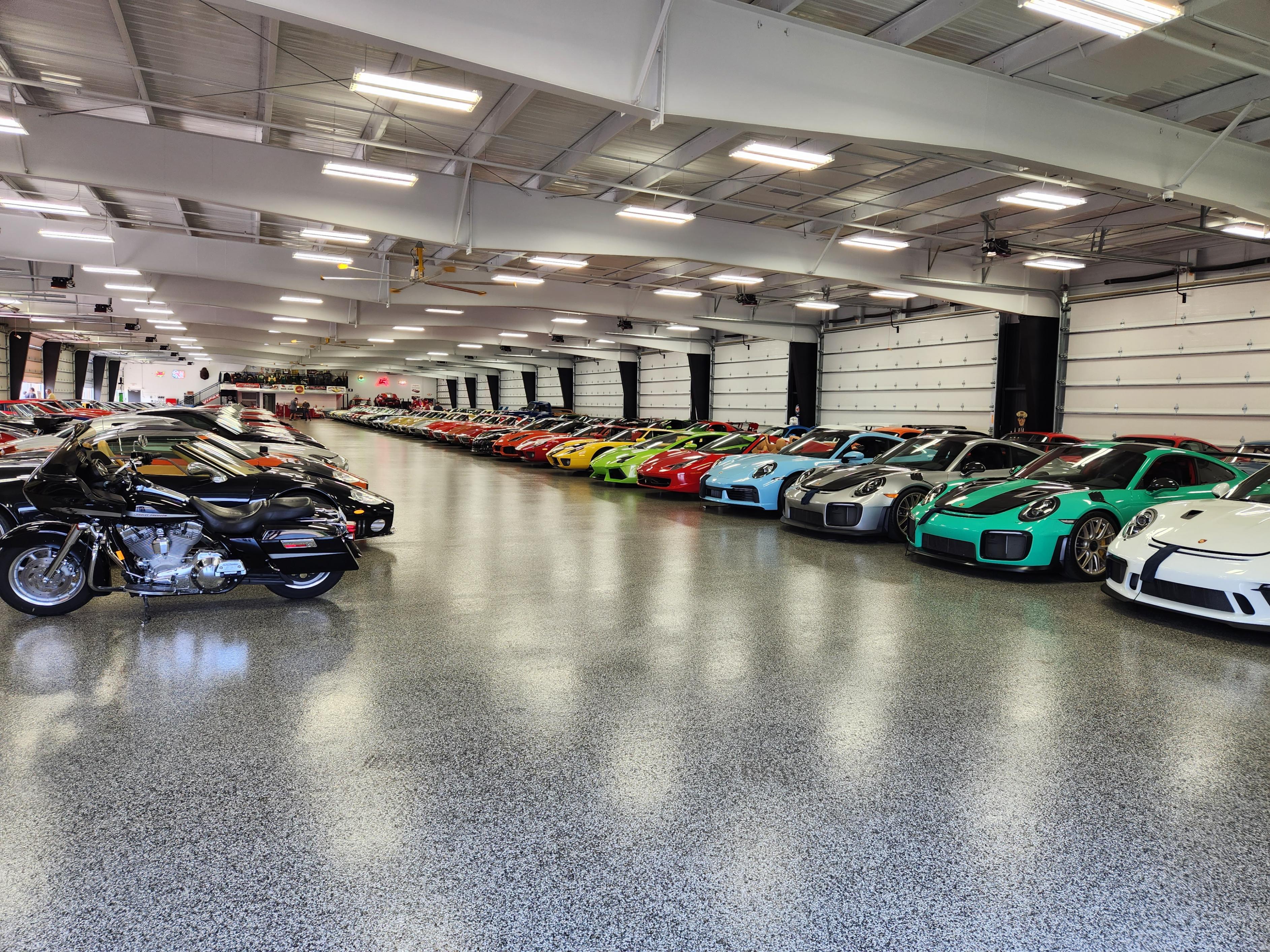

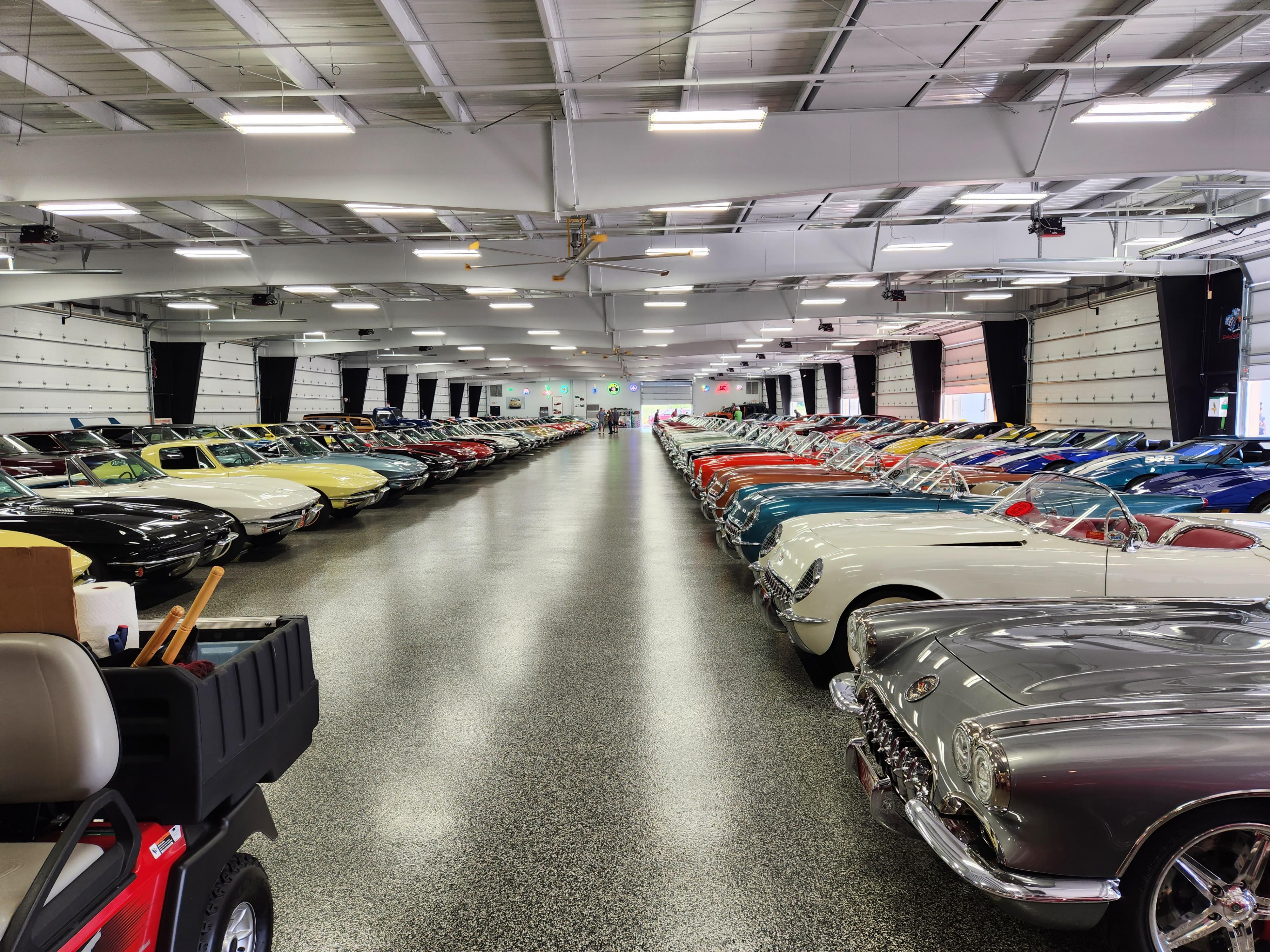

Here a couple shoots of the garage i talked about in the prevous post. Sad thing is none of it ever gets driven.

I got a little more shop time this weekend. I test fit the Transmission support under the chassis. It will take a little work to get on of the front bolts in but should be doable without modification.

What was a lot of fun and satisfying was putting the Lemans cap back together. Started with a lot of freshly powder coated parts.

https://photos.smugmug.com/Home/9999..._120411-X2.jpg

Top Done
https://photos.smugmug.com/Home/9999..._122102-X2.jpg

https://photos.smugmug.com/Home/9999..._122114-X2.jpg

Add the bottom

https://photos.smugmug.com/Home/9999..._123511-X2.jpg

https://photos.smugmug.com/Home/9999..._123601-X2.jpg

Next put the trunk and hood handles back together

https://photos.smugmug.com/Home/9999..._125449-X2.jpg

https://photos.smugmug.com/Home/9999..._130130-X2.jpg

I was going to put the indicators together. They are pressure fit ordinally and don't seem to hold at the moment. I might try bend the metal out slightly or I might just use super glue. Also notice the powder didn't stick on one of the bezels so it needs to be stripped and redone.

https://photos.smugmug.com/Home/9999..._130416-X2.jpg

https://photos.smugmug.com/Home/9999..._130422-X2.jpg

Another evening meal of exhaust wrapping.
https://photos.smugmug.com/Home/9999..._205923-X2.jpg

https://photos.smugmug.com/Home/9999..._235152-X2.jpg

Well I was hoping to get the engine for the last month but life keeps me from it for now maybe this weekend fingers crossed. So I have progressed on a few things.

I put in the support/fix from FF for the power steering rack.
https://photos.smugmug.com/Home/9999..._165624-X2.jpg

Finally figured out the correct bolt size for the transmission mount (1/2 inch). They are a little long but since I'm using a GPS Speedo should be fine.
https://photos.smugmug.com/Home/9999..._170357-X2.jpg

Used some DEI Sealer on the wrapped J-pipes and Headers and cured them in the toaster oven.
https://photos.smugmug.com/Home/9999..._135539-X2.jpg

https://photos.smugmug.com/Home/9999..._135514-X2.jpg

Re-powder coated the front indicator bezels and put them together with the lenses. I'm not super happy with the Silone I'm going to try using a clay modeling knife to clean that up, but otherwise ok.
https://photos.smugmug.com/Home/9999..._140804-X2.jpg

Assembled the Shifter after powder and the tail lights
https://photos.smugmug.com/Home/9999..._141622-X2.jpg

https://photos.smugmug.com/Home/9999..._103110-X2.jpg

Got the car on its wheel and onto wheel dollies for engine/tran install.
https://photos.smugmug.com/Home/9999..._121150-X2.jpg

Mocked up the radiator and shroud
https://photos.smugmug.com/Home/9999..._142650-X2.jpg

Had to trim the bottom of the shroud
https://photos.smugmug.com/Home/9999..._153414-X2.jpg

I also trimmed off the extra square tube ground it down and primed the grind in prep for using the breeze upper kit.
https://photos.smugmug.com/Home/9999..._151258-X2.jpg

https://photos.smugmug.com/Home/9999..._112020-X2.jpg

https://photos.smugmug.com/Home/9999..._112018-X2.jpg

Got a little help from the girls today. First while waiting for my friend to come by so we could drop the motor in we put some rivnuts in the Breeze fan shroud.

https://photos.smugmug.com/Home/9999..._102030-X2.jpg

They took turns

https://photos.smugmug.com/Home/9999..._102856-X2.jpg

https://photos.smugmug.com/Home/9999..._103204-X2.jpg

Then we hoisted the engine up and took the feet off I had put on it for the time being.

https://photos.smugmug.com/Home/9999..._112301-X2.jpg

power tools make everyone smile

https://photos.smugmug.com/Home/9999..._113041-X2.jpg

Once my friend 'little' Jon (he's 6' 8" and probably won't be comfortable in the Roadster) showed up we got to work putting the engine in. It wore my youngest out pretty quick.

https://photos.smugmug.com/Home/9999..._115844-X2.jpg

https://photos.smugmug.com/Home/9999..._115854-X2.jpg

At the end of the day the motor was in. Probably around an hour and a half of efforts. Having done one I could do the next in 1/2 the tie I think. We were being cautious and debating each move. Pretty much un-eventful to be honest. I'm having a bit of trouble with on bolt on the transmission mount so I'll get my tap out and see if I can clean it up tomorrow. It also took us a while to figure out a way to pull the passenger side of the motor up in order to locate the tab/stub of the engine mount on the drivers side. The answer a ratchet strap.

Two notes:
1.) I would recommend buy a good engine balancer/leveler not the harbor freight one. It is a one time use tool. The plastic handle was worthless, and the metal part of the handle was bent by the time we were done. I oiled the thread pretty good so there wasn't much resistance. It's just so cheaply made.
1.1) I have the extended firewall. I think I would have the crank for the balancer/leveler on toward the front of the engine next time. It got really close to the fire wall.
2.) Also I would suggest if you are buying or renting a hoist get one that's legs are 42" or less out side to out side on the legs. I wanted to leave the car on wheel dollies so we could move it around. But the legs stuck out to far and I had to put the car back on jack stands to be able to get the legs under the car.

https://photos.smugmug.com/Home/9999..._141747-X2.jpg

https://photos.smugmug.com/Home/9999..._141752-X2.jpg

Now that the engine is in there are a ton of smaller jobs to complete. So over the week I could sneak away to the shop for an hour here and there.

First I installed the transmission support and mount.
https://photos.smugmug.com/Home/9999..._184940-X2.jpg

Next I installed the clutch cable - it took a little trial and error to get the tension right.

https://photos.smugmug.com/Home/9999..._184947-X2.jpg

https://photos.smugmug.com/Home/9999...204322b-X2.jpg

Another evening I installed the Starter. Unfortunately a washer next to the starter bolt hole interfered with the starter. So I took it off and ground it out a little and everything went together easy.

https://photos.smugmug.com/Home/9999..._190419-X2.jpg

https://photos.smugmug.com/Home/9999..._191820-X2.jpg

https://photos.smugmug.com/Home/9999..._200215-X2.jpg

More small jobs completed

The Alternator is wired up. I wish I had looked at this closer before installing the alternator. I probably would have re-clocked it to put the wiring out from under the brackets. But it worked out ok.

https://photos.smugmug.com/Home/9999..._200153-X2.jpg

https://photos.smugmug.com/Home/9999..._200200-X2.jpg

Attached the Holley Sniper Throttle Body.
https://photos.smugmug.com/Home/9999..._200456-X2.jpg

Adjusted the wiring and connected the Water Temp, Oil Pressure, and Oil Temp sensors
https://photos.smugmug.com/Home/9999..._204322-X2.jpg

Finally job completed for the week was installing the headers.
Sprayed the gaskets with copper sealer
https://photos.smugmug.com/Home/9999..._143058-X2.jpg

it wasn't fun installing the headers. There is almost no room to get a wrench on the bolts, I couldn't get a socket on there. if it comes off again maybe I'll try studs instead. I figured this job would take 20 min and I wrestled with it for an hour and half or more. But that is a common occurrence on this project.

https://photos.smugmug.com/Home/9999..._155920-X2.jpg

https://photos.smugmug.com/Home/9999..._155930-X2.jpg

Pretty solid week getting things going. I also started on the cooling system and should get it at least fitted this week. Once that is done I'll move on to the mechanical throttle cable.

I used studs with 12 point nuts on my headers and they worked great. I don't think I would even attempt using bolts.

Quote:

---

Originally Posted by Mike.Bray

I used studs with 12 point nuts on my headers and they worked great. I don't think I would even attempt using bolts.

---

Yeah it was a one-time show. It won't happen again. But they are on now. And yes 12 point would be amazing. That would have saved so much cussing, sweating, and crying.

Now that the engine is in there are so many things I can do. I've been sneaking out to the shop over lunch, while the kids are in hockey tryouts, for an hour in the evenings, etc. So I feel like I'm making a lot more progress than I have in a while. Along with some of the other small jobs I posted about earlier I've also been plugging away at installing the Radiator.

Previously I posted about fitting the shroud and cutting off the quarter steel. I did get all the Breeze goodies shroud, upper hinge, lower cooling hose kit, lower cooling hose bracket, and lower support kits. I didn't do things in the exact order in the instructions but I think things came out pretty good.

After cleaning up the cross bar (forgot to get a pick of it all repainted) I fit the hinge and drilled the 4 bolt holes.
https://photos.smugmug.com/Home/9999..._135358-X2.jpg

My oldest tapped the bolt holes and cut out the card board and covered the radiator fins. I then drilled the holes in the upper and lower radiator support.
https://photos.smugmug.com/Home/9999..._141126-X2.jpg

https://photos.smugmug.com/Home/9999..._160610-X2.jpg

Then I fit the shroud and hinge, drilled them out, and bolted it all together.
https://photos.smugmug.com/Home/9999..._193534-X2.jpg

https://photos.smugmug.com/Home/9999..._193558-X2.jpg

Next I bolted the radiator temporarily to the cross bar using a floor jack to support the bottom.
https://photos.smugmug.com/Home/9999..._181639-X2.jpg

https://photos.smugmug.com/Home/9999..._181645-X2.jpg

I then adjusted the angle as close to 51 degrees as I could and used zip ties to hold the radiator in place. After that I started to fit the lower support. Sliding the hose over the bar, marking the seems for the tank on both sides, and cutting the hose to accommodate the welds.

https://photos.smugmug.com/Home/9999..._190359-X2.jpg

https://photos.smugmug.com/Home/9999..._190407-X2.jpg

After that I remeasured the angle of the radiator and fit the lower support bar in place. The results look pretty good.
https://photos.smugmug.com/Home/9999..._114808-X2.jpg

Then everything got a good coat of paint.
https://photos.smugmug.com/Home/9999..._115617-X2.jpg

https://photos.smugmug.com/Home/9999..._115657-X2.jpg

Then I carefully put everything back togehter and mounted the radiator
https://photos.smugmug.com/Home/9999..._183832-X2.jpg

https://photos.smugmug.com/Home/9999..._195510-X2.jpg

https://photos.smugmug.com/Home/9999..._195518-X2.jpg

I also made a rock guard with some aluminum flat stock and stainless steal mesh. Fist I measured everything. Then cutout the frame and laid it out.
https://photos.smugmug.com/Home/9999..._132236-X2.jpg

I tried using a lot of painters tape to keep everything in place as I drilled through the upper and lower frame. It worked pretty well on 3 sides. On the forth there was some slippage and a few holes got a bit wonky. No well will probably ever notice but I'm sure it will drive me just a little crazy. Not enough to buy more metal and do it again.

https://photos.smugmug.com/Home/9999..._185212-X2.jpg

Laid out the frame and cut the mesh. It was completely square so I ended up trimming, and trimming, and trimming again to get it right.
https://photos.smugmug.com/Home/9999..._125014-X2.jpg

Popped the mesh between the top and bottom frame, rivetted everything up and boom it's ready to go. I will note a couple things. I had to use longer rivets to fit through everything, but they were to long so I took the rotary tool and cut them down. Also I over lapped the corners so on the top frame the longer aluminum pieces were the vertical pieces while the bottom from they were the horizontal. I think this gave it a pinch more structure. All in all it's a pretty solid piece.

https://photos.smugmug.com/Home/9999..._194511-X2.jpg

I still have to paint it and do final install, but here is the test fit
https://photos.smugmug.com/Home/9999..._085932-X2.jpg

A few other bits I got done this week.
Received and installed the power steering fitting from Breeze. I really don't like the length of the hose that came with the kit. I might have to see about getting some a little shorter.
https://photos.smugmug.com/Home/9999..._101911-X2.jpg

Installed the dip stick.

https://photos.smugmug.com/Home/9999..._201254-X2.jpg

And also got the Drive shaft installed.
https://photos.smugmug.com/Home/9999..._204717-X2.jpg

Next up will be doing the cooling hoses, heater hoses, drive shaft safety loop, and the bigger project will be setting up the mechanical throttle linkage.

A little more work went into getting all the cooling and heating hoses figured out.

The lower hose is the kit from Breeze and went in pretty simply. I do need to drill and tap a couple holes for the bracket on the x member but it looks really nice.
https://photos.smugmug.com/Home/9999..._143025-X2.jpg

https://photos.smugmug.com/Home/9999..._143045-X2.jpg

Then I tried using the hose from IE 427s video but it didn't work out as well for me. I think he was using a generic radiator so that could have been the difference. I ended up using a NAPA 9543. Worked perfectly. Two Cuts and it slips on the kit T filler (once I removed the hoses already on there)

https://www.youtube.com/watch?v=1CVTZ9tXNSw

https://photos.smugmug.com/Home/9999..._121640-X2.jpg

https://photos.smugmug.com/Home/9999..._121648-X2.jpg

https://photos.smugmug.com/Home/9999..._121656-X2.jpg

Next I used Breeze fittings and Fragola premade lines and ran the power steering. I just need to finish with a little rubber hose section on the return.
https://photos.smugmug.com/Home/9999..._122145-X2.jpg

https://photos.smugmug.com/Home/9999..._122157-X2.jpg

https://photos.smugmug.com/Home/9999..._122149-X2.jpg

I put in the heater hoses including the shut-off valve.
https://photos.smugmug.com/Home/9999..._124505-X2.jpg

https://photos.smugmug.com/Home/9999..._124501-X2.jpg

I also finished the wiring for the fan and installed the overflow tank.
https://photos.smugmug.com/Home/9999..._133816-X2.jpg

Lots of trial and error + I bought an extra hose to cut up, but overall a nice couple hours of work.

Good progress, Matt! You've got a nice clean engine bay taking shape. Your radiator screen turned out great; looks even better when PC'd black (too big for my toaster oven, so that was part of my last load to my powder coater before he closed up shop).

Good luck with the throttle linkage.

My Fuel Log came today from summit. I'm going to run a Sniper Stealth 4150. If differs from the original sniper in that it does not have built in pressure regulator and the computer is on the pass side rather than front (both changes I hear the new Sniper 2 has). Also it looks more like a 4150 carb. Anyway a 4150 fuel system is 3/8 or so inches to short. But a Holley Ultra/XP kit fits perfectly. Kind of a pain trial and erroring a few kits till I found one that fits.

Additionally I found some nice aluminum spacers to control the heater hoses.

https://photos.smugmug.com/Home/9999..._203356-XL.jpg


https://photos.smugmug.com/Home/9999..._203406-XL.jpg

This has been a project I've been looking forward to for a long time. I don't know why this one intrigued me so much. After seeing John Ibele's car a couple years ago I was fascinated by the mechanical linkage. So finally having my engine in I could tackle.

The first thing I noticed is the instructions and most of the forum posts I found online had installed it with the Wilwood Pedal box. I'm using an 87-93 Fox body foot box I bought from a drag racer and restored. So when I was first mocking it all up I noticed I could not have the lever arms work above the rotating bar. The clutch quadrant gets in the way.

Not the best pic but you can see the rod getting jammed on the quadrant.
https://photos.smugmug.com/Home/9999..._191912-XL.jpg

Additionally there is some pressed/formed steal in the pedal box that gets in the way.
https://photos.smugmug.com/Home/9999..._191924-XL.jpg

But I did find this post where someone had created a mechanical throttle linkage and they were using a 98 foot box (not sure what other years this covers).https://www.ffcars.com/threads/mecha...-block.289014/
In this post they had the arms hanging down under the rotating bar. I played with this a little and it seemed to work except for that bit of the steel in the way I mentioned before. So I got the harbor freight version of a Dremel out and went to town. After which I spent and hour with a file as there was one angle I couldn't get.

https://photos.smugmug.com/Home/9999..._204352-XL.jpg

https://photos.smugmug.com/Home/9999..._191955-XL.jpg

After that it was pretty much the same job as everyone else. Cut some holes, play with the angles until you can get full movement without interference, tap the rods that connect the pedal and throttle to the linkage, and assemble. I did have some aluminum tubes with a larger ID I could slip on and off the connections to get the sizing right buy cutting them progressively shorter.

https://photos.smugmug.com/Home/9999..._203539-XL.jpg

https://photos.smugmug.com/Home/9999..._204249-XL.jpg

https://photos.smugmug.com/Home/9999..._210804-XL.jpg

The tapping took forever. First I did it as a test with the cutoff pieces to verify the tap size 1/4 - 28. So I tapped 3 holes instead of 2 and I went in as far as the tap would go. It was challenging because if I didn't back out often enough the tap would get jammed by debris and spin in the vice. I was really worried about squishing the tubes and didn't want to crank the vice down too much.

https://photos.smugmug.com/Home/9999..._093633-XL.jpg

https://photos.smugmug.com/Home/9999..._094000-XL.jpg

https://photos.smugmug.com/Home/9999..._110004-XL.jpg

https://photos.smugmug.com/Home/9999..._110008-X2.jpg

https://photos.smugmug.com/Home/9999..._125616-X2.jpg

I didn't get a photo but I also had to drill out and insert spring pins into the arms. Forte had pilot holes so this process was pretty straight forward. I took the rotating rod out of the car and did the end inside the footbox. Then I put the rod back in set everything else up and did the spring rod in the engine bay. Hopefully this assembly doesn't need to come out because it will be a PIA. For anyone else trying to figure it out I used a 1/8" drill bit and the used the spring rods supplied with the kit.

I also wire brushed the the push rod/tubes to give them a fun finish. I'll coat them in Everbrite next time I'm working on the car. Anyway I'm super happy with how it all came out. It was a fun 'Detour' of a project and it took me about 7+ hours to get the way I wanted (not including google time). The funny thing is most of it will be hidden as I'm going to mount the brake reservoir to the fire wall. The bracket will be like 5.5 inches I think. But that is a couple weeks away next I'm going to fit the top and outside of the foot box so I can paint and take down my paint booth for the winter (need the room for storage).

Nothing too exciting this weekend. I fit the drivers footbox aluminum so I can get the painted and take down my paint booth and store our other car for the winter. I wish I had fit these before putting the firewall in. I have the FFMETALS extended firewall it was a pain to keep working the panel in and out from under the firewall. Small lesson learned.

First I did the outer wall with the weird little extension pieces.
https://photos.smugmug.com/Home/9999..._120349-X2.jpg

I might have gone a little rivet happy...
Next I fit the top panel with the access to the footbox

https://photos.smugmug.com/Home/9999..._113317-X2.jpg

https://photos.smugmug.com/Home/9999..._123733-X2.jpg

Onto the gap for the 3/4 steal.

https://photos.smugmug.com/Home/9999..._130217-X2.jpg

https://photos.smugmug.com/Home/9999..._132404-X2.jpg

And here is a everything fitted and cleco'd

https://photos.smugmug.com/Home/9999..._134009-X2.jpg

I did mess up a little with the panel with foot box access. After I fit everything I was going to add rivetnuts so I could pull the access on and off as needed. But I measured wrong and chews some holes in the main panel. I was kind of pissed at myself and initially figured I was out some money to order new panels. However over night I thought about it and figured I could make a new cover that is longer, cut out the bad metal, and put the rivetnuts further back. I didn't take a photo of the screw up as I mad that I screwed up just by being impatient.

here is the panel cleaned up you can see in on corner it's now rounded that is where one of the rivetnuts was originally.

https://photos.smugmug.com/Home/9999..._195438-X2.jpg

I flattened the old cover and traced it on a piece of scrap aluminum I had.
https://photos.smugmug.com/Home/9999..._195807-X2.jpg

https://photos.smugmug.com/Home/9999..._201205-X2.jpg

I used some 2x4s as a make sift metal brake.
https://photos.smugmug.com/Home/9999..._202702-X2.jpg

In the end it came out perfectly keeping me on schedule and well I kinda of stopped trying to keep to a budget.
https://photos.smugmug.com/Home/9999..._202702-X2.jpg

https://photos.smugmug.com/Home/9999..._205455-X2.jpg

I did a little more trimming after this last photo just to line up the back of the cover with the panel but I'm happy with the fix.

Keep in mind that you might not be able to reach all those rivnuts once the body is on. Try to take a look at some of the pics of cobras w/ the hoods up to see just how many you might be able to access. I only used 3-4 rivnuts to hold that panel on, and made a "gasket" with some sound deadening material I had left over.

Quote:

---

Originally Posted by egchewy79

Keep in mind that you might not be able to reach all those rivnuts once the body is on. Try to take a look at some of the pics of cobras w/ the hoods up to see just how many you might be able to access. I only used 3-4 rivnuts to hold that panel on, and made a "gasket" with some sound deadening material I had left over.

---

That is great advice. I did make an assumption there. I guess I can adjust when I do body fitting (hopefully in late winter/early spring)

Hi Matt,

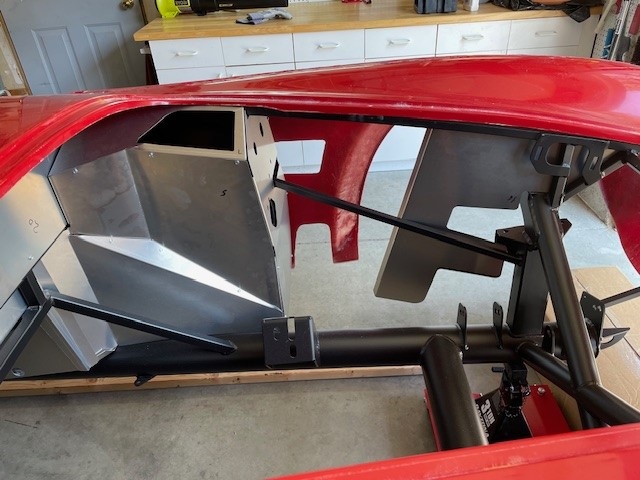

I am enjoying following your thread. I received my MK4 in late July and I am slowly progressing (panel fitting in prep for powder coating). When I first got my kit I took some body on pictures to help remind me where interference may occur. Attached is my picture of the DS foot box that might help with your access panel question.
Attachment 205886

Best Regards, Andrew

Quote:

---

Originally Posted by AndrewIdaho

Hi Matt,

I am enjoying following your thread. I received my MK4 in late July and I am slowly progressing (panel fitting in prep for powder coating). When I first got my kit I took some body on pictures to help remind me where interference may occur. Attached is my picture of the DS foot box that might help with your access panel question.
Attachment 205886

Best Regards, Andrew

---

Thanks Andrew! I think this confirms all but one of the screws will be accessible so that is good. For looks maybe I'll cut the head off a screw and JB weld it to the panel.

It's been a while since the last update. I spent two weekends at the shop doing fall to winter prep and not a lot on the Roadster. A lot of the work I'm doing is minor clean up things.
-Wired the Hi/Low head light switch
-Painted the panels fitted in the previous posts
-Filled fluids
-Put on the radiator rock gaurd
https://photos.smugmug.com/Home/9999..._111909-X2.jpg

-Finished installing and wiring the horns
https://photos.smugmug.com/Home/9999..._111904-X2.jpg

-Powder coated and painted my mirror
https://photos.smugmug.com/Home/9999..._161646-X2.jpg

https://photos.smugmug.com/Home/9999..._161652-X2.jpg

-Started working on footbox vents
I got these 3 inch Marine Butterfly Damper http://www.go2marine.com/
https://photos.smugmug.com/Home/9999..._113022-X2.jpg

I then copied John Ibele's idea on how to activate the Damper cutting out these weird shaped plates
https://photos.smugmug.com/Home/9999..._183017-X2.jpg

i then took the ends off some cheap amazon throttle cables, got a few aluminum tubes and here we go. I think they turned out pretty good.
https://photos.smugmug.com/Home/9999..._183731-X2.jpg

I'll post them again once I powder coat everything.

This weekend I made lot of progress on getting the Holley Sniper and HyperSpark ignition set up.

First I put in some riv-nuts and mounted the control box on the PS foot box.
https://photos.smugmug.com/Home/9999..._155328-X2.jpg

Next I removed the Fuel pump relay from the sniper power harness. I plan to use the smaller blue signal wire to activate the RF harness relay as I had already wired that to the fuel pump last summer.
https://photos.smugmug.com/Home/9999..._111839-X2.jpg

Then I de-pinned most of the outputs on the alternate output harness
https://photos.smugmug.com/Home/9999..._112150-X2.jpg

https://photos.smugmug.com/Home/9999..._112701-X2.jpg

however I did have to come back and add the brown lead for the tach output... ooops. no biggie it snapped right back in. I have weather tech plugs on order to seal the connector up.

Unfortunately that is all the phots I have as I didn't feel the engine compartment is ready for it's close up but should be next time I get out there to wrap up this part of the wiring. But I did most of the wiring between the components. Control box to Sniper, Sniper to Distributor, Ignition power, Water Temp, Ignition signal to gauge, and control box to coil. All I have left to do is fish the control wiring through the dash from the cab, cut the fuel pump signal into the inertia switch ground, and wire the positive and negative powers to the 8 gauge cables I ran from the battery last summer.

Once that is done I'll put the battery in and do some initial tests and setup. Then I just need my exhaust from Gas'N (ordered in August so hopefully here by xmas) and I can attempt a first start!

On a side note I also switched out the flashers for the LED flashers. Not a big job but one that was on the board for nearly a year so time to wrap those up.
https://photos.smugmug.com/Home/9999..._111930-X2.jpg

Last post was a little over a month ago. I have been steadily chipping away at various items. Just no big sub-quests or projects to speak of. I was hoping to do a first start over a holiday break but I'm waiting on some parts that will come the end of January. Maybe I can still get it in by Presidents day so 2 years from delivery.

So First off I powder coated the dampers for my foot box vent. I also found some nice vent cover/louvers for them (I'll get a pick once installed). I haven't installed them yet as I was focused on doing the Sniper/Hyper Spark/Under hood wiring.

https://photos.smugmug.com/Home/9999..._105905-X2.jpg

Next I found this hose on Amazon with a lot of different formed bends in it to connect the return hose for the power steering.
https://mattglaeser.smugmug.com/Home...er/i-NQbxjKG/A

Not sure what happen to the photo of the cut piece installed.

I did finish the wiring for the above mentioned Sniper/Hyper Spark/Under hood setup. One particular PIA was hiding all the extra wire in the Sniper harness and putting in a distribution block for both Positive and Negative direct connections to the battery. i just need to run the handheld controller into the cab and it's done.

https://photos.smugmug.com/Home/9999..._202715-X2.jpg

I installed weather pack connectors on the front indicators, headlights, tail lights, and all harness endpoints. I know this was recent hot topic on the forum but I expect to drive in gel coat a while and possibly take the body off a few times prior to paint. I've had great luck with them in the past so I went a head and installed them. There may end up being a little extra wiring but I'll just zip tie it together to shorten it.

https://photos.smugmug.com/Home/9999..._164647-X2.jpg

After that I riveted in a few smaller aluminum items. The little cutout on the trans tunnel and the brackets for the cables that will operate the footbox vents.
https://photos.smugmug.com/Home/9999..._144443-X2.jpg

https://photos.smugmug.com/Home/9999..._144448-X2.jpg

Finally for this post I used some left over sound deadening/heat shield on the outer DS footbox in preparation for carpet. I have the breeze kit but didn't like how that piece fit so used up the rest of the other stuff.

https://photos.smugmug.com/Home/9999..._160308-X2.jpg

The on area I have been able to spend a little time on while jumping from other minor tasks was the trans tunnel and cover.

I installed the gear shifter so I could sit in the car and make Vroooommm Vrooooom noises and POWER shift.

https://photos.smugmug.com/Home/9999..._170231-X2.jpg

After a good time winning some races in my head I mocked up where the shifter aluminum and bezel should go. Painted, riveted, and Rivet Nutted everything together.

https://photos.smugmug.com/Home/9999..._191006-X2.jpg

https://photos.smugmug.com/Home/9999..._140728-X2.jpg

https://photos.smugmug.com/Home/9999..._140705-X2.jpg

I cut some 3/16 x 4 inch rolled rubber to attach to the panel immediately in front of the tunnel cover and to the end of the tunnel cover to keep rocks and gunk from coming through small seems left when I trimmed the cover to make it removable.

https://photos.smugmug.com/Home/9999..._143637-X2.jpg

https://photos.smugmug.com/Home/9999..._144933-X2.jpg

https://photos.smugmug.com/Home/9999..._140702-X2.jpg
