Hobby: this is some really interesting data. There is an "interesting" artifact in section 13 and 19. There is maximum sustained G's in both of those turns, yet the oil pressure starts to increase before the g-forces drop. Might that be because as the pressure drops, so does the flow, and the volume in the oil pan is actually increasing during the last part of the turn (oil flows back, but less being pumped out) enough that it is reaching the pick-up again? If that is really what is happening, might that give you a clue on how to proceed?

I only included Oil Pressure and Lateral G force in the graph to make it easy to read, but when I also include throttle position and brake force I can see that the slight rise in oil pressure before the the left hand turn events is caused by jumping out of the throttle and onto the brakes very hard. I concluded this causes extreme front to back sloshing in the oil pan, combined with a dramatic drop in load on the engine causes those "interesting" artifacts. I do not belief there is any harm as there is no real drop in oil pressure , just some instability.

Impressive g force numbers.

Any theory as to what was exceptional about the drop to 10 psi? The other data points were in the drop to 40+/- psi for roughly the same g pull.

Quote:

---

Originally Posted by Dave 53

Impressive g force numbers.

---

Thanks but I'm not near the limit yet. Still in the brake-in / testing phase. ;)

Quote:

---

Originally Posted by Dave 53

Any theory as to what was exceptional about the drop to 10 psi? The other data points were in the drop to 40+/- psi for roughly the same g pull.

---

Yes I do actually. That is turn #9. It is an uphill zero camber left hand corner. So basically the worst combination of factors making the oil run from the pickup!

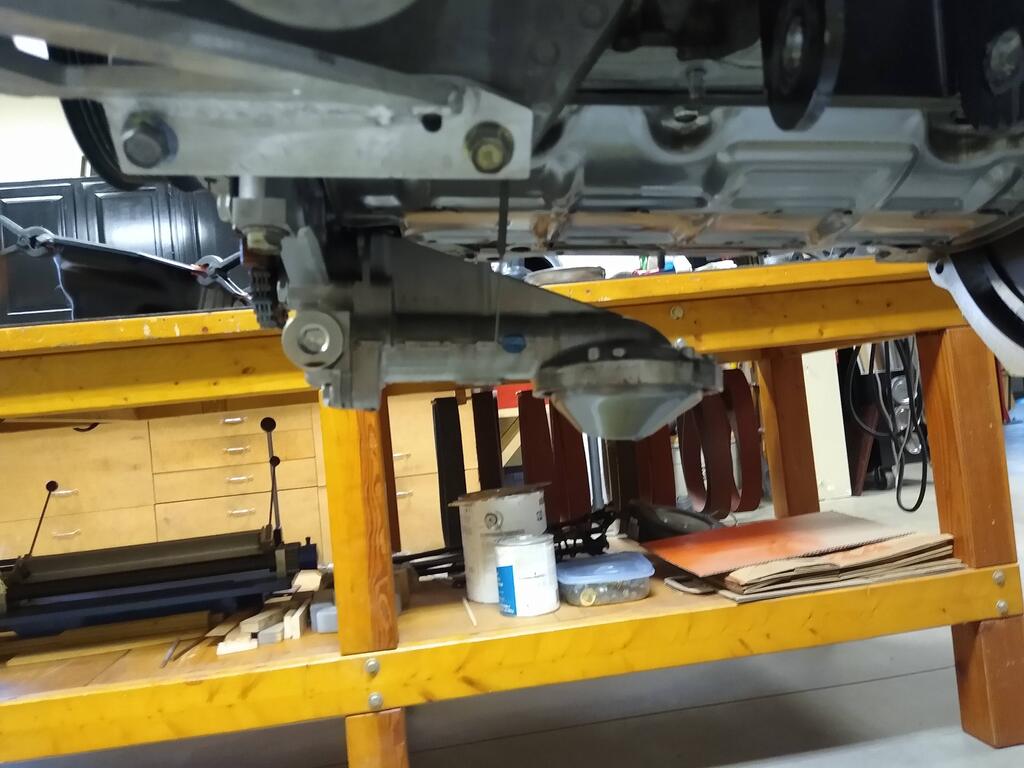

I hate cutting up good (expensive) parts, but you've got to do what you've got to do to make things work.

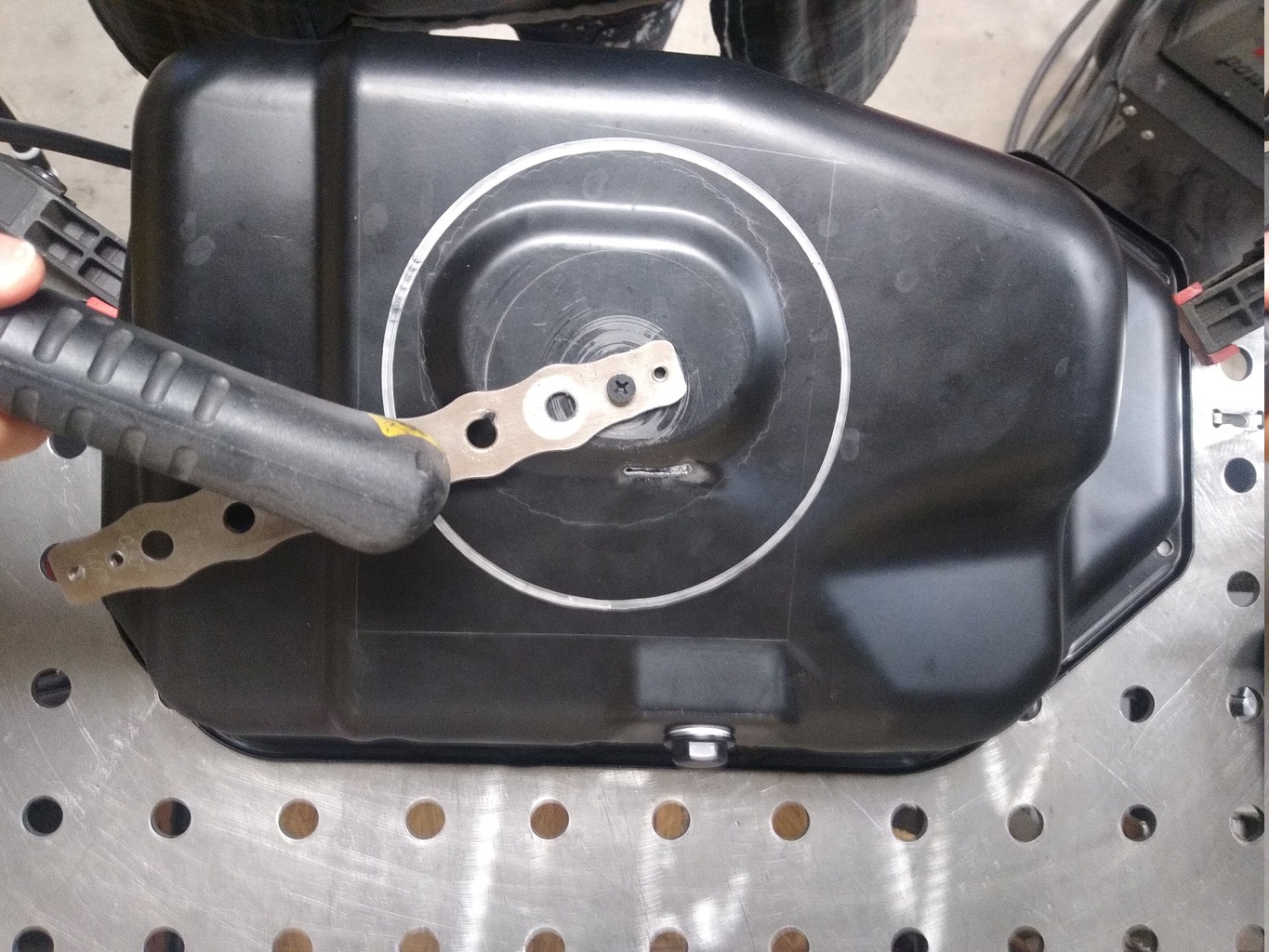

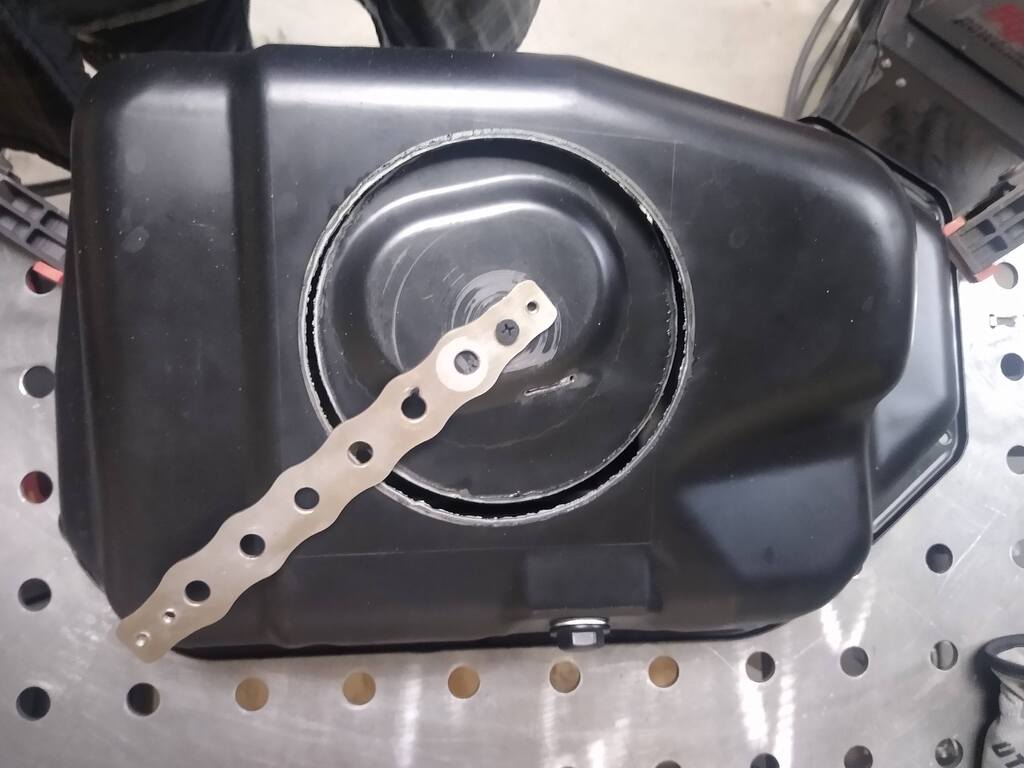

Here I'm using a plasma cutter with a circle cutting tool to cut out a 5.5" circle under the oil pickup. Next I'll fabricate a new bottom approximately 2" lower than the original one. Think of it like putting a steel dog dish over the hole and welding it up! This will give me almost a quart of extra oil around the pickup.

Attachment 193977Attachment 193978Attachment 193979

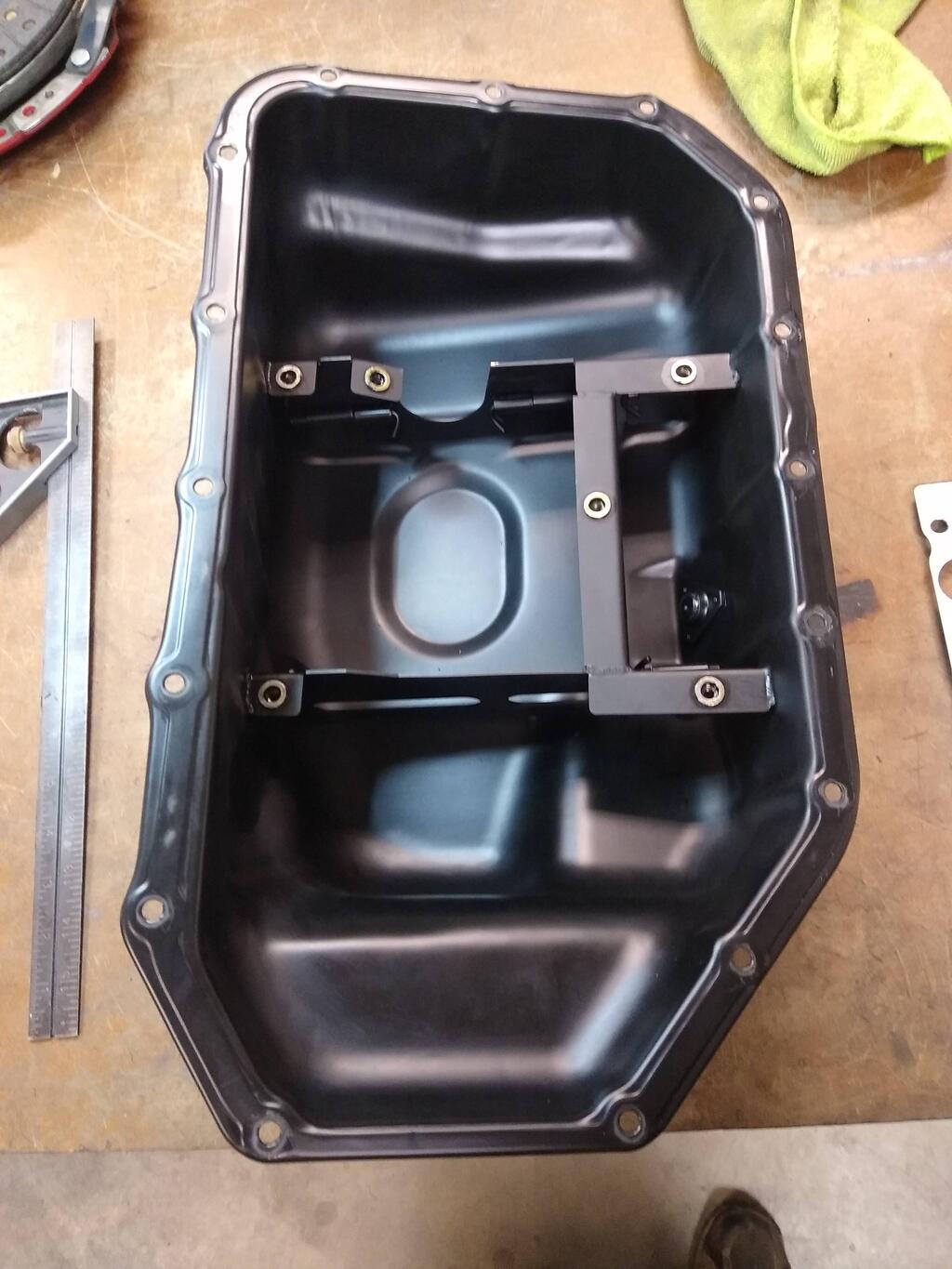

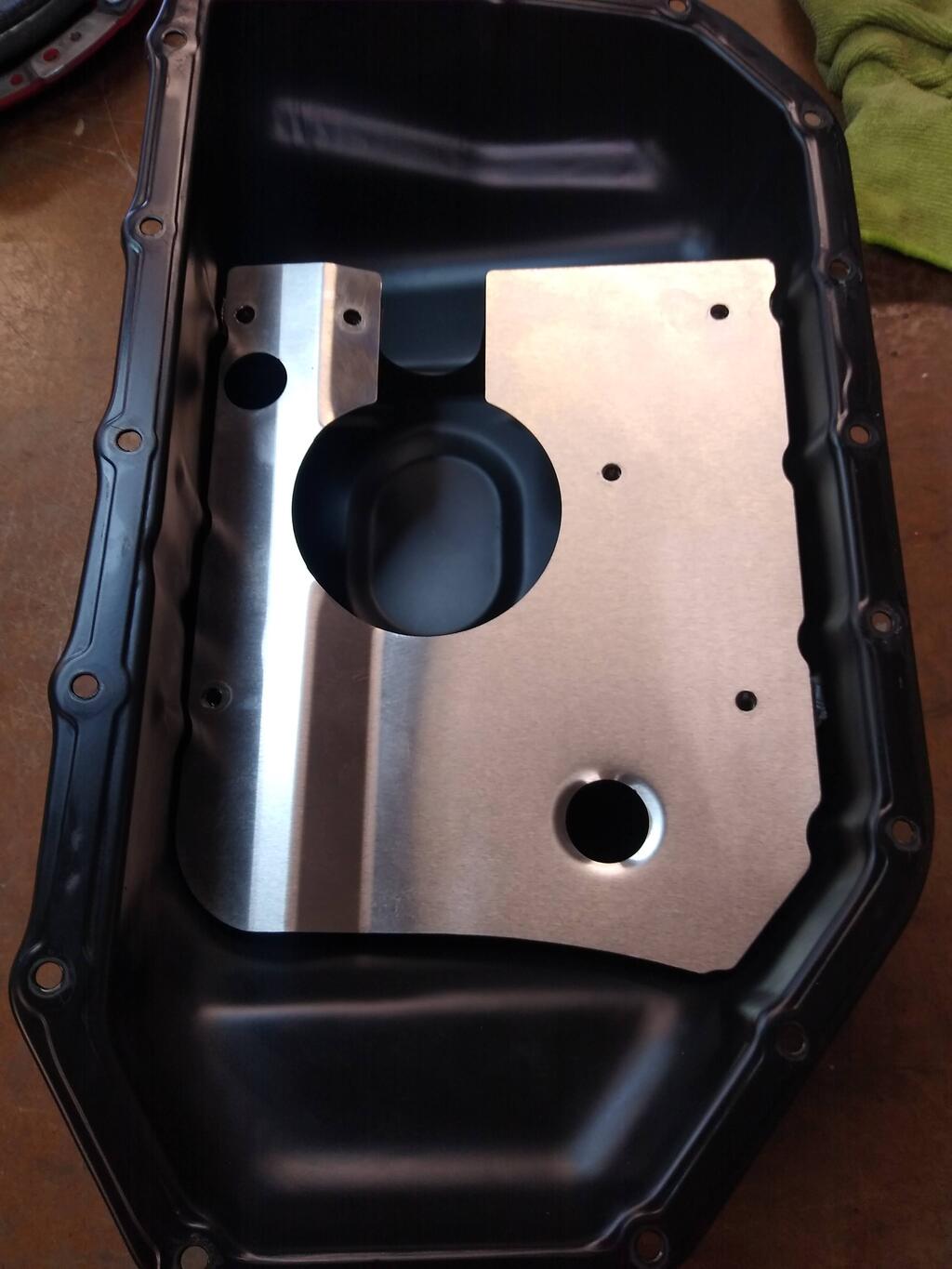

Finished up fabricating the oil pan modifications today. This is the pan before I modified it. It has a nice stainless top plate that covers the trap doors and baffles. Notice how the oil pickup is cast directly into the oil pump that hangs below the engine block.

Attachment 194255 Attachment 194254 Attachment 194256

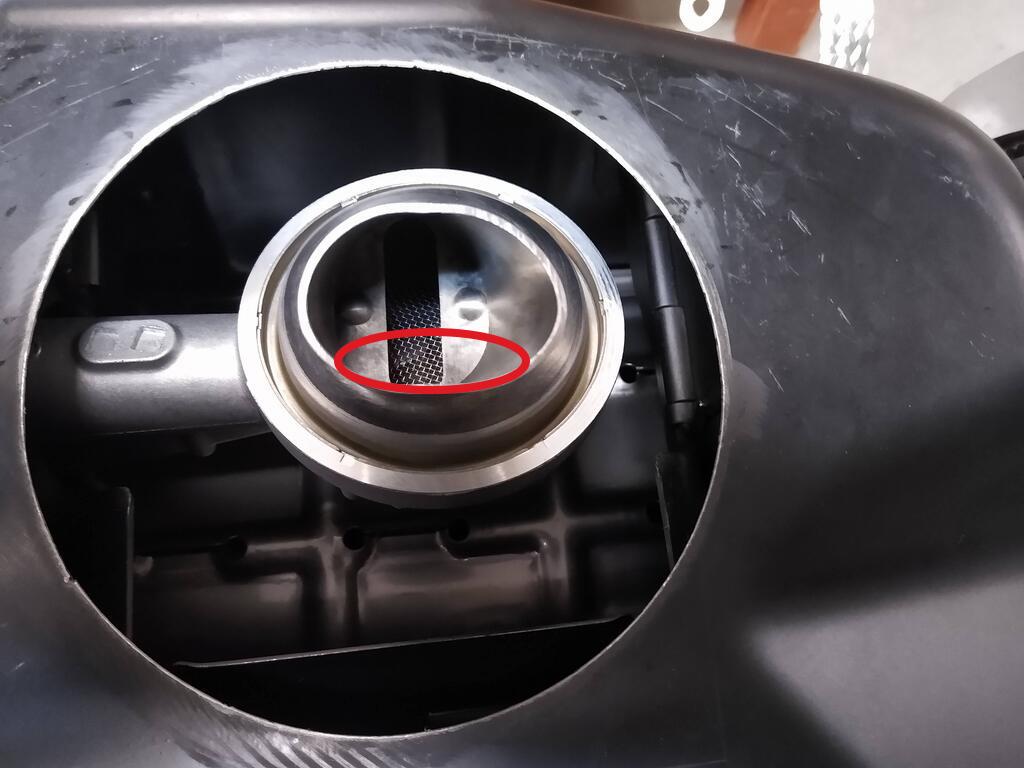

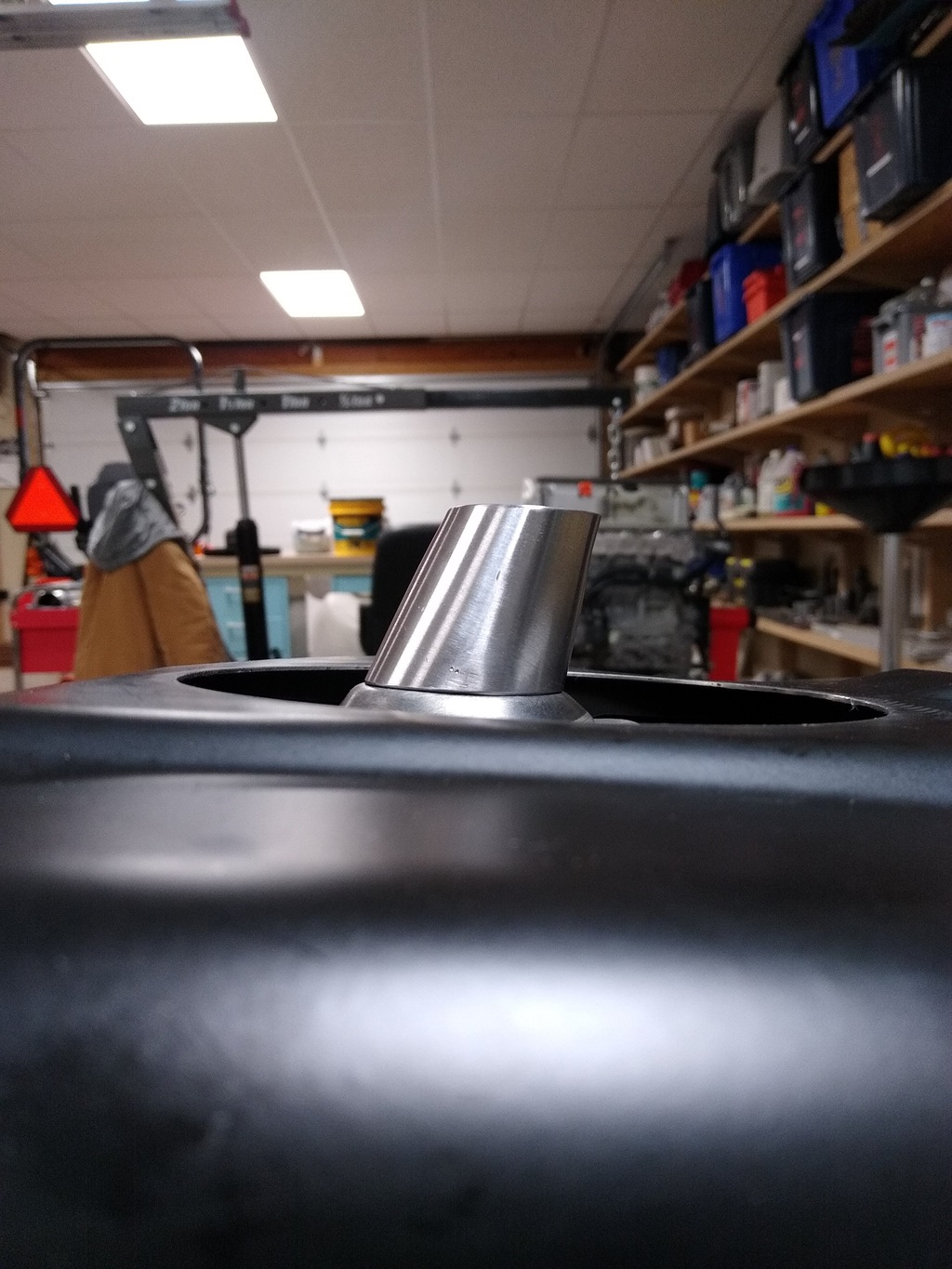

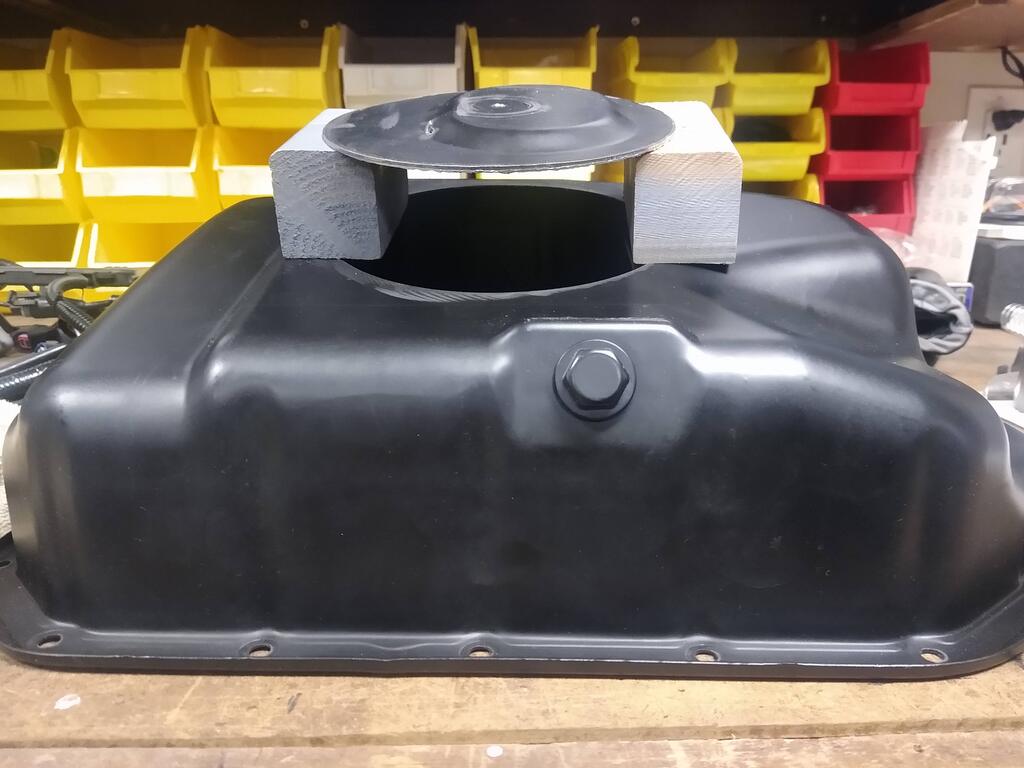

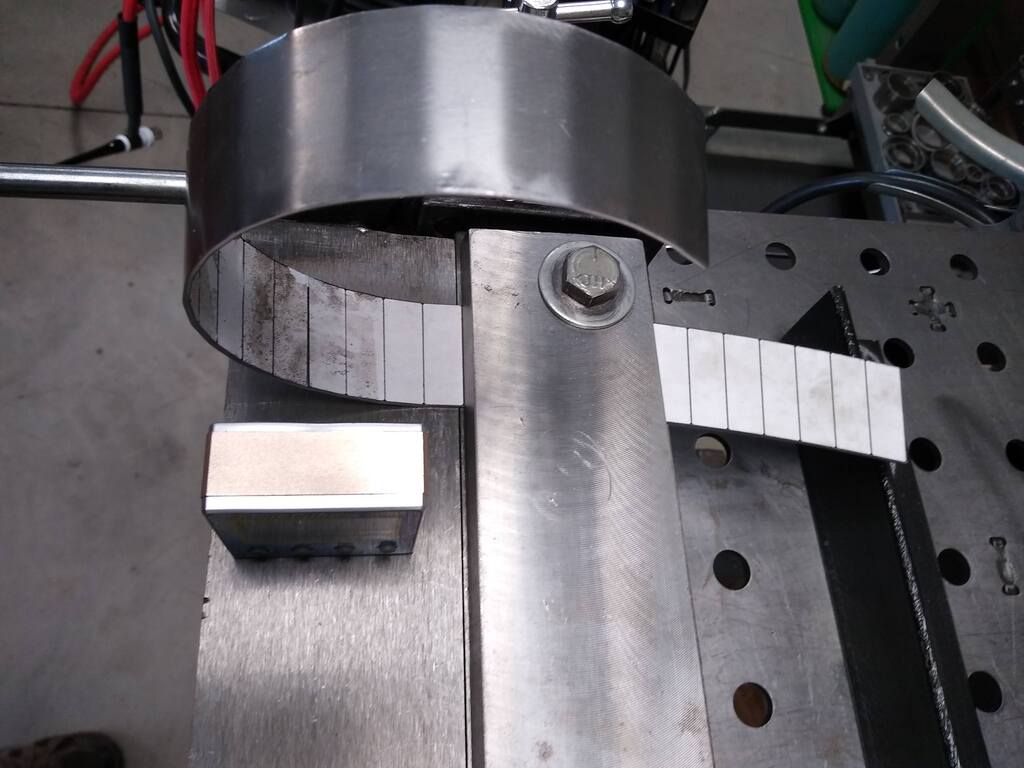

After cutting out a 6" section directly below the oil pickup, I fabricated an interesting extension that moves the pickup closer to the pan center. The original location favored right hand turns which would have been hard braking in a FWD Honda. The red oval represents the new pickup opening location after I weld a cover on the pickup. Note how it is oriented 90 degrees compared to the opening in the factory pickup. This corresponds to the fact that I am running the engine 90 degrees compared to the factory orientation.

Attachment 194258 Attachment 194257

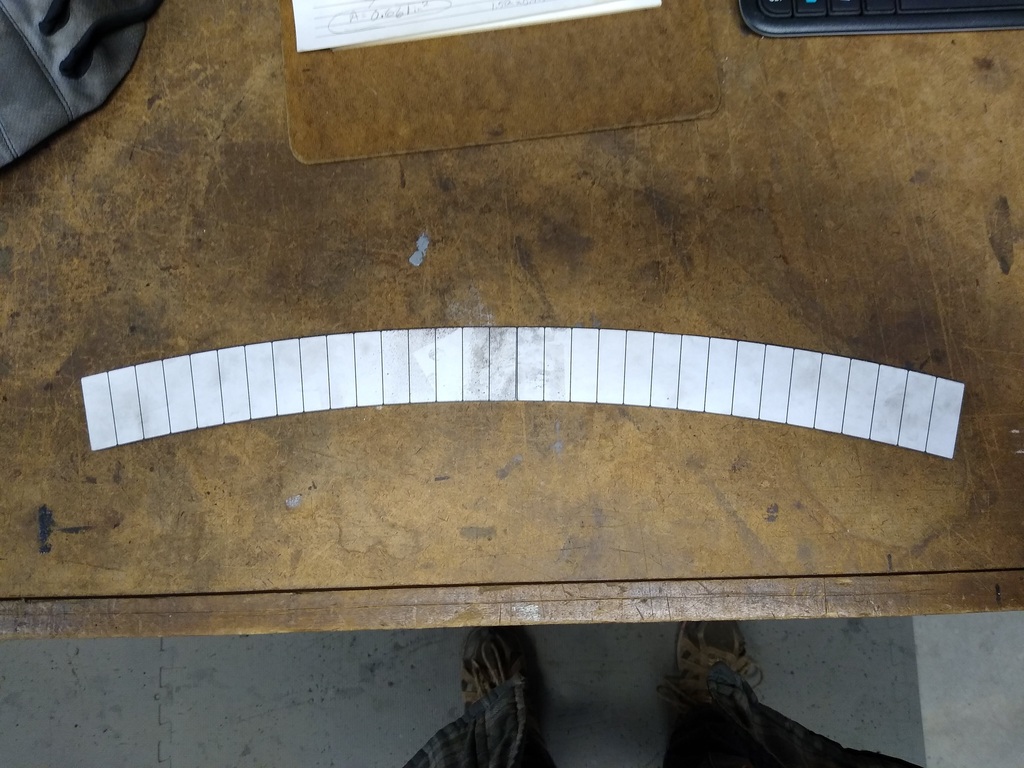

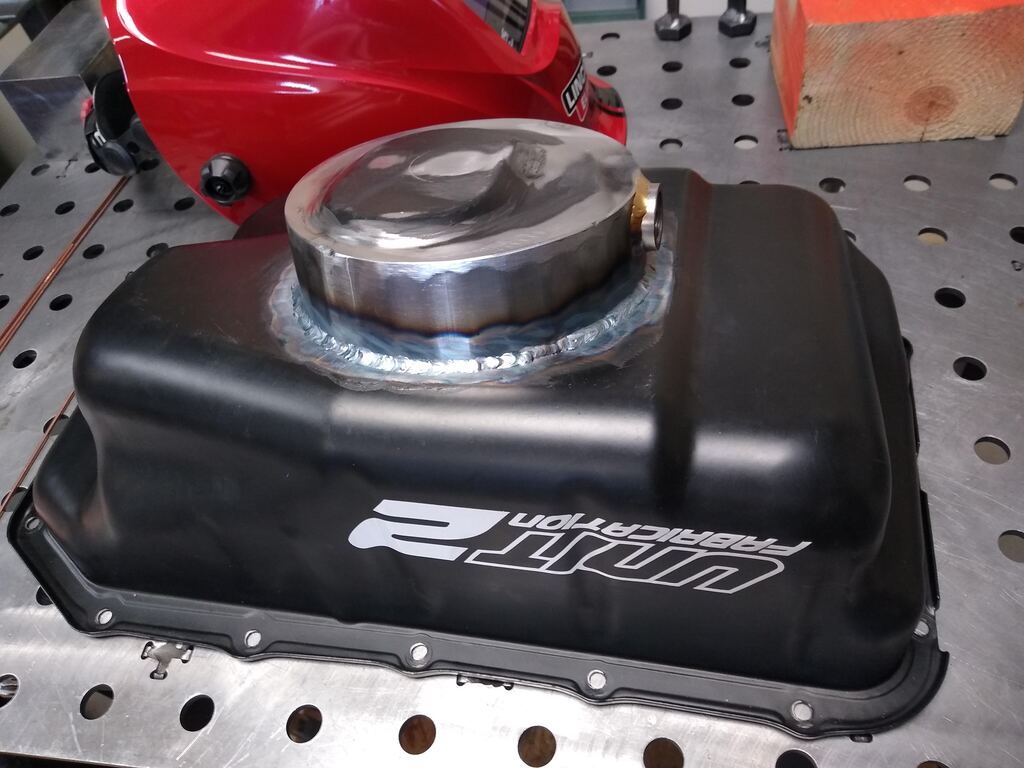

Finally I needed to make a short cone to connect the pan to the now deeper bottom. I used the 6" section I cut out of the pan and rotated it 90 degrees to use as the new base.

Attachment 194259 Attachment 194260 Attachment 194261

Tomorrow I'll add some paint to make it pretty once again.

Nice work. Glad you caught this before it went badly!

Nice work...

I added an accusump to my rotrex K24 RWD after seeing similar oil pressure fluctuations. Solved the problem.

There is a ton of power to be had by altering the VVT.. You will need to modify the inlet cam gear to allow about 40 degrees of advance ( pistons hit valves at 45 degrees). The AEM tuning file I sent you will give you a good starting point on the cams... I had 406RWHP from mine!


Keep up the good work.

Quote:

---

Originally Posted by 7ish

Nice work...

I added an accusump to my rotrex K24 RWD after seeing similar oil pressure fluctuations. Solved the problem.

---

Glad I found this before any damage occurred and hoping my mods solve my oil pressure issues.

Quote:

---

Originally Posted by 7ish

There is a ton of power to be had by altering the VVT.. You will need to modify the inlet cam gear to allow about 40 degrees of advance ( pistons hit valves at 45 degrees). The AEM tuning file I sent you will give you a good starting point on the cams... I had 406RWHP from mine!


Keep up the good work.

---

I added the 50 degree intake cam wheel this winter. I clayed an identical spare motor I have to check the piston to valve clearance and at the full 50 degrees advance I still had 0.070" clearance so I chose not to mechanically limit the the advance as many people do. I will get to the dyno this spring to see how much more power I can get!

IMHO you should keep it @328 whp. No more than 350.

Quote:

---

Originally Posted by Sgt.Gator

IMHO you should keep it @328 whp. No more than 350.

---

More not better?

Ed

Quote:

---

Originally Posted by Sgt.Gator

IMHO you should keep it @328 whp. No more than 350.

---

I want to find the safe limit and then I can de-tune to a reliable level. Plus I hate leaving free HP on the table ;)

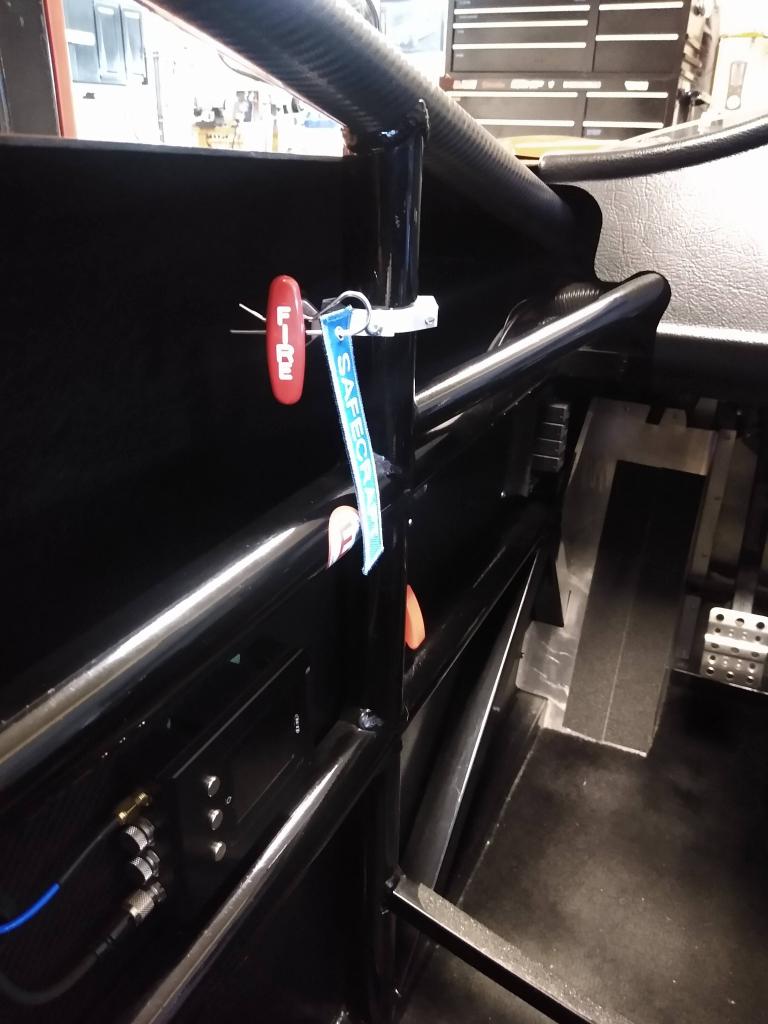

While waiting for spring I made some finishing touches to the car. I added an on board fire suppression system and finally cut the rear deck to fit the Honda motor.

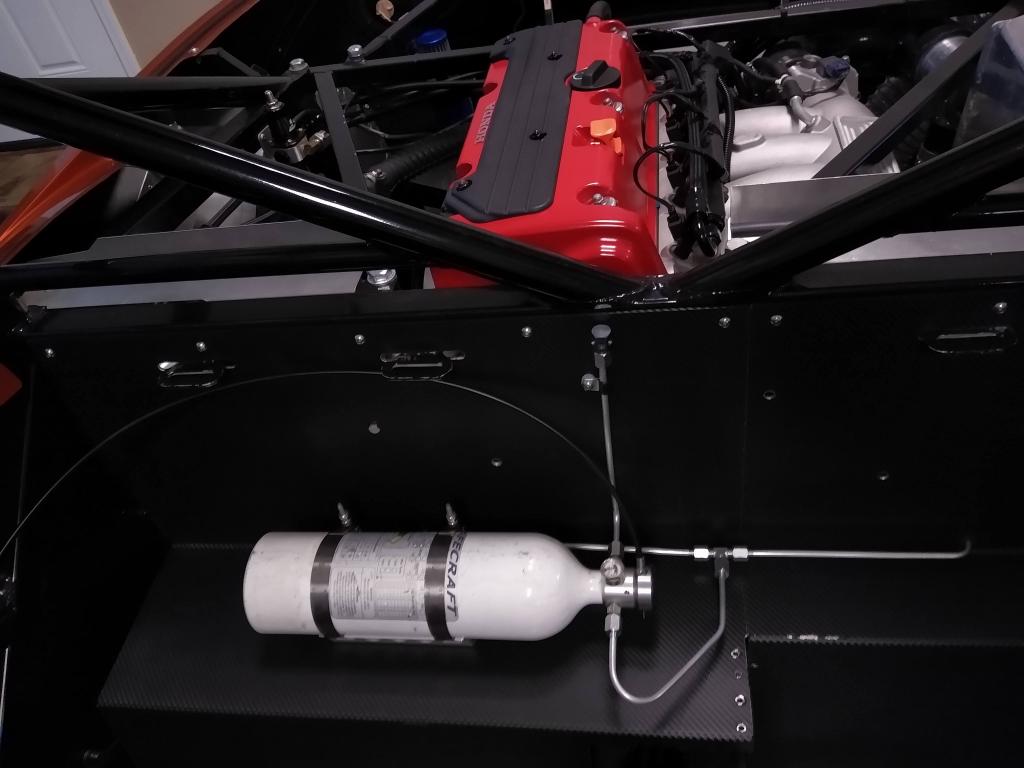

Here is an overview shot with the seats out so you can see the fire suppression system and notched out rear deck lid.

https://thefactoryfiveforum.com/atta...8&d=1707928419

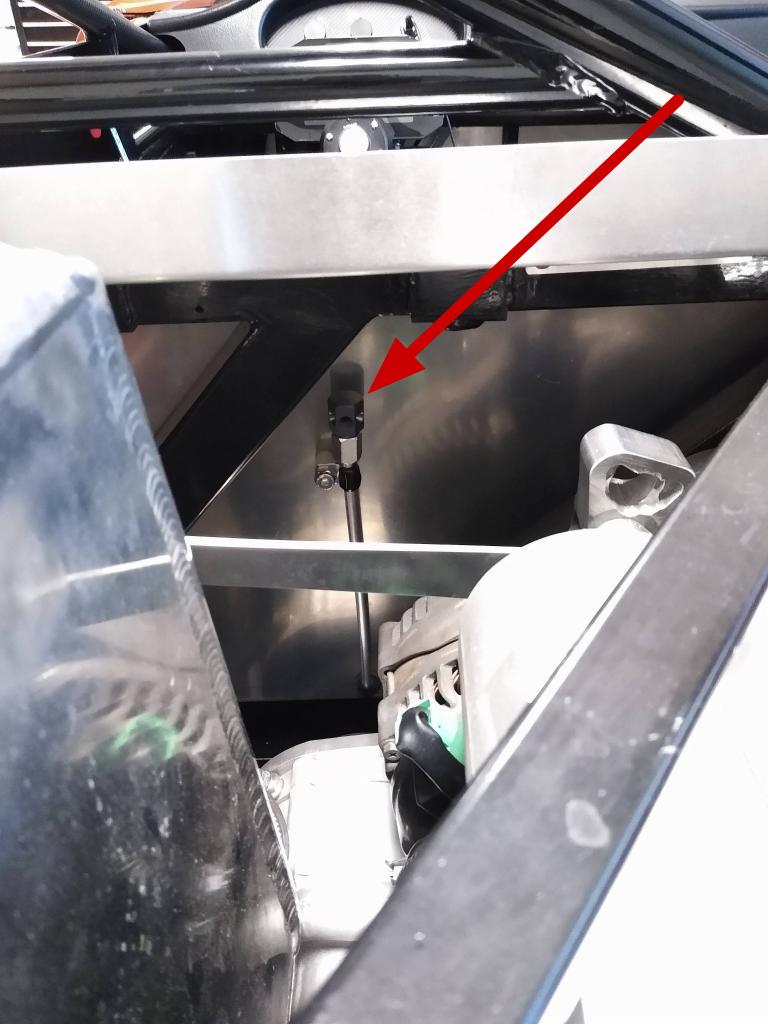

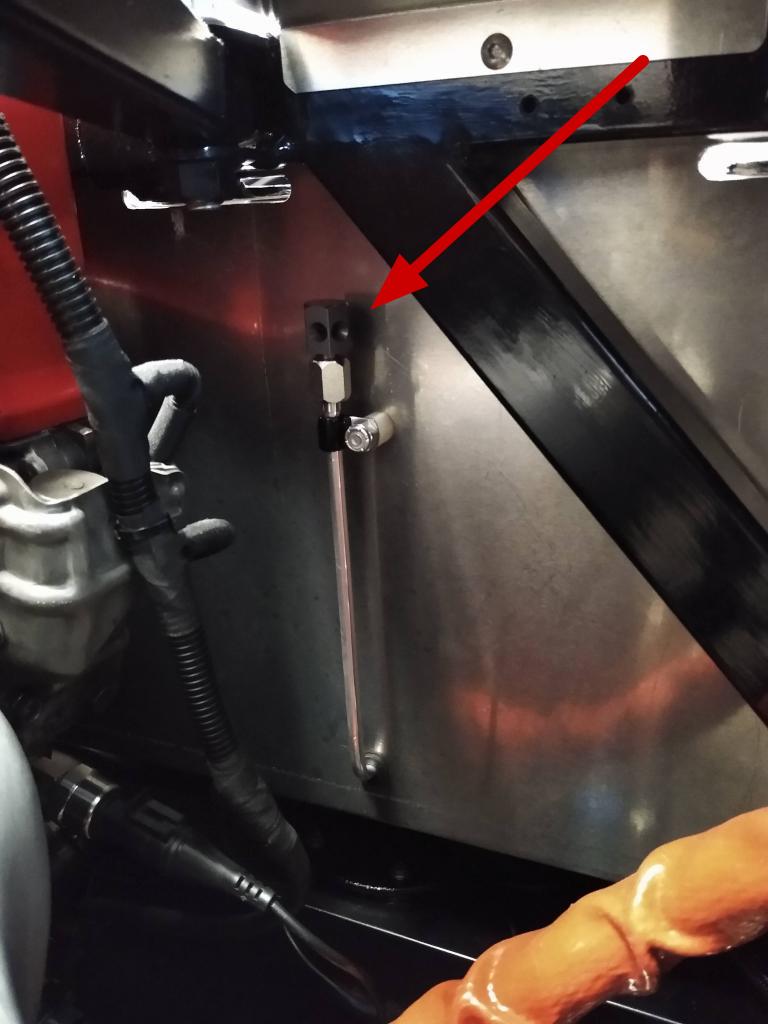

There are three output nozzles for the Halon fire system. One points into the passenger compartment between the driver and passenger. There are two more nozzles in the engine bay. One on the exhaust side and one on the intake side. I designed it so that the entire system is attached to the aluminum firewall bulkhead pieces. This makes removal easy as taking out the firewall also removes the fire system without having to take it all apart.

Attachment 195669 Attachment 195671 Attachment 195672 Attachment 195673

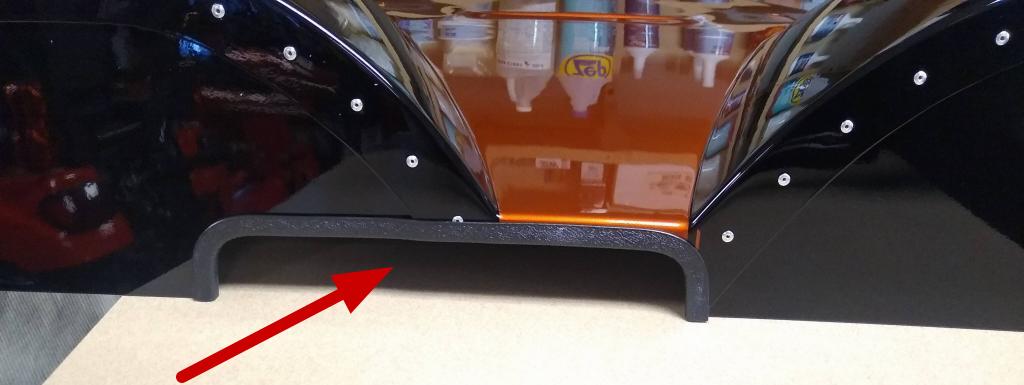

The rear deck lid needed 1.75" notched out between the rear humps to give enough clearance for the top of the motor to poke through.

Attachment 195670

Some of you may remember that I discovered a low oil pressure problem late last year while digging into my telemetry data from 2023. It showed up in hard left hand turns where the pressure would drop. It was worst in turn #9 at Watkins Glen where the pressure would dip to around 10 psi briefly.

Over the winter I redesigned the wet sump oil pan and pickup to hopefully fix the issue.

I just got back from my first track day and reviewed the data. Looks like the oil system modifications have worked beautifully. :)

In the screen shot below you can see the oil pressure varies from about 72 to 78 psi everywhere on track. Highlighted is the same spot on track where the pressure dropped to around 10 psi last year and it is now 75 psi.

I'm putting this one in the win column!

https://thefactoryfiveforum.com/atta...0&d=1715513058

Great News. Can't wait to hear about the rest of the track day. It is such a great feeling to be able to focus on the driving.....

This is interesting.

For anyone buying a Subaru 6MT and using the transmission tag to lookup the gear ratios be advised. The values listed on multiple web site are NOT always correct. A while back I purchased a JDM 6 Speed out of Legacy Spec B car (Tag #TY856WVBAA). According to RaliSpec's online PDF of Subaru transmissions it should have had the following gear ratios.

1st 3.636 / 2nd 2.235 / 3rd 1.521 / 4th 1.137 / 5th 0.971 / 6th 0.756

What my transmission really had was these ratios. While 1st was the same, every other gear was different.

1st 3.636 / 2nd 2.375 / 3rd 1.762 / 4th 1.346 / 5th 1.063 / 6th 0.842

It would not have been so bad if not for the fact that I purchased and installed a different 5th / 6th gear set based on the ratios I thought I had. Unfortunately I scrapped the original 5th / 6th gears so I had to purchase a new set :(.

I've had this transmission apart 4 times now and never actually counted the gear teeth to know for sure the ratios. Now I know and I have put it back to stock and my gear indicator works perfectly.

These are the close ratios I wanted in the first place so I guess it's all good. Just wish I didn't have to purchase two sets of 5th / 6th gears that I didn't need!

Per the builder (ZF Design), I've got 3.636 / 2.235 / 1.761 / 1.346 / 1.062 / 0.842 Final drive 3.9.

He took off the Subaru tag and now I'm "ZFD1273". I'm certain my ratios are different than the original gears in the case.

The 2.235 2nd gear seemed really good for autocross. I've only done one autocross, but I was able to hold 2nd gear when others had to go to 3rd gear (or I was just that much slower, but I had respectable times).

The 3rd gear 1.761 works really well for the "slow sharp" turns. With the old 5 speed, I had several high revving 2nd gear exits with a nearly immediate upshift to 3rd. Now I can take those turns in 3rd gear.

But, I'm feeling the highway gas milage drop with the 0.842 6th gear.

These at track car gear ratios! When I'm street driving, I usually skip 2nd and 4th gear.

I finally made it back to VIR racetrack. The first time I was there was with a group of 818's and it didn't go so well. I really only got a few laps in when I damaged my transmission, ending the event for me. That was also when I was running the EZ36 flat 6 Subaru engine.

This time things went much better. The Honda swapped 818R performed flawlessly. The only issue I had for the whole 2 day event was the left rear Hoosier developed a bulge on day 2. Luckily I had a set of Continental Extreme Contact Force tires with me as backup tires and was able to quickly swap them out and continue lapping.

It was 90+ degrees both days so quite warm, especially for early June. Lap times are not anything to write home about, but as what I consider a first time here I was happy with my performance.

This is a great facility, I highly recommend it if you are able.


https://youtu.be/wUA-43Y6exc

Nice!

You've got me itching for a track day in my 818. July 6 at Thunderhill Raceway 5 mile. Been spending most of my time this year on 24 Hours of Lemons stuff. Finished a 25 hour race a couple of weekends ago which was a blast.

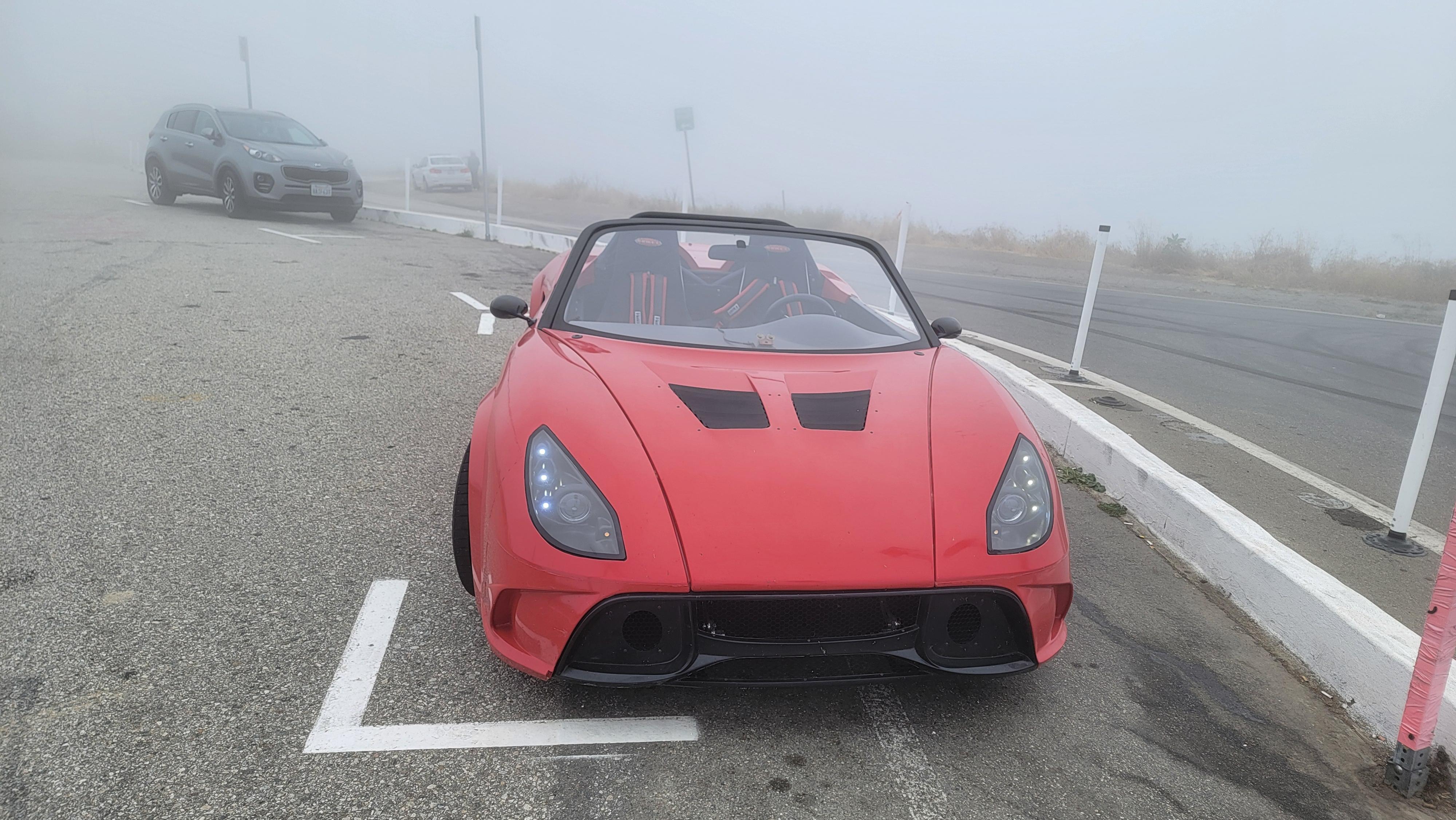

Thought I'd post this nice pic of the car before it got all dirty and covered in rubber streaks!


https://thefactoryfiveforum.com/atta...6&d=1750805437

I mentioned in an earlier post I had to swap tires while at VIR recently. My driver rear developed a bulge in the tread, not in the sidewall which is where you usually get them.

You can see in the pic below a clear bulge in the profile shot. This is with zero pressure in the tire also! Anyone have an idea what can cause this?

https://thefactoryfiveforum.com/atta...0&d=1750806362


Also of interest is that the tire slipped on the wheel. When mounted the race shop puts a line on the tire where the valve stem is. In the pic below you can see how much the bead has slipped on the rim. This happened on both rear tires but not on the front tires.

https://thefactoryfiveforum.com/atta...9&d=1750806362

Sticky tires, MONSTER TORQUE, Low pressure combined? Did both rears slip? Or just the one with the bulge?

In sidewall or tread, the non-elastic component of the tire is fiber or steel plies. The common failure definition is ply separation. By that one has to assume the fiber strands broke or lost bond to the rubber and the fiber is not holding the elastic material in place. Without trauma like heat or impact, the failure must be a manufacturing defect.
I expect if you request a warranty replacement, admitting to the race application would disqualify your claim.
On slipping bead to rim, was the bead installation lube appropriate? It should be air dry water-based and approved for this application. Are the wheels bead-lock type?
jim

Quote:

---

Originally Posted by Rob T

Sticky tires, MONSTER TORQUE, Low pressure combined? Did both rears slip? Or just the one with the bulge?

---

Sticky yes, monster torque definitely NOT, pressures were 34 hot. And yes both tires experienced the bead slip.

Quote:

---

Originally Posted by J R Jones

In sidewall or tread, the non-elastic component of the tire is fiber or steel plies. The common failure definition is ply separation. By that one has to assume the fiber strands broke or lost bond to the rubber and the fiber is not holding the elastic material in place. Without trauma like heat or impact, the failure must be a manufacturing defect.
I expect if you request a warranty replacement, admitting to the race application would disqualify your claim.
On slipping bead to rim, was the bead installation lube appropriate? It should be air dry water-based and approved for this application. Are the wheels bead-lock type?
jim

---

Wheels are not bead lock. I'm going to assume it was the bead lube. These are older tires so I'm not even going to try to get a replacement. I already ordered up a replacement used tire so I can get some more use out of the set.

Flip the rears left to right and they will slip back into place! Did they slip in the direction of braking or acceleration? I would think the biggest forces to cause slipping on the rim would be the fronts under braking. I'll start marking my valve stem position as you have done.

I've been screwing on oil filters for 45 years and never had one come loose. But on my last oil change, the filter was as loose as one can be without leaking! I've started marking the filter with a paint line. During my pretrack inspection I did a couple of days ago (Thunderhill 5 mile July 6) the Jesus nut that holds the rear lower lateral control arms to the spindle had loosened 1/4 turn and it had 3 drops of red. I had one of those nuts come off on track even though pretrack inspection, it passed the witness paint test. I emptied an entire tube of red on the bolt after I found a replacement nut and if I have to cut that nut off some day, so be it. They absolutely need lots of thread lock and would be better with a castle nut. Witness paint once exposed my rear axle bolt loosening 1/8 turn. When I retightened, it was 1 1/8 loose! They needed a little snugging after every session. They now have castle nuts. Worth the effort to drill the axles so that they don't need to be checked after every session.

Quote:

---

Originally Posted by Dave 53

Flip the rears left to right and they will slip back into place! Did they slip in the direction of braking or acceleration? I would think the biggest forces to cause slipping on the rim would be the fronts under braking. I'll start marking my valve stem position as you have done.

---

Oddly enough they are both in the direction of accelerating. There is no way my car puts out enough torque to spin the tries on the rims! The fronts didn't move a bit.

I've always had an issue with wind buffeting my helmet around at speeds above 127 mph. It was so bad that at the end of the back straight at Watkins Glen, about 140 mph, that I could not see the braking markers. I just went by muscle memory I guess.

I decided to make a new windscreen with an extended section for the driver. The hope was that it would push the air stream up just enough to alleviate the buffeting at high speed while minimizing the drag introduced. I could not find the nice smoked poly-carbonate type sheeting that FFR made the original windscreen out of locally so I had to make do with clear acrylic easily found at your local big box home store (Lowe's in my case). After a bit of fiddling around scoring the sheet I was able to snap off the unwanted sections and arrive at my final shape.

The FFR windscreen goes straight across. I added a raised section in front of the driver. VIR was the first test of the new windscreen and it went well. I reached a top speed of 139.1 mph on the back straight and had perfect vision as my helmet was not being violently shook about as before. In mid July I'm back to Watkins Glen where I'm confident it will work well.


https://thefactoryfiveforum.com/atta...8&d=1751031142


https://thefactoryfiveforum.com/atta...9&d=1751031142

Any other R drivers have an issue with wind buffeting? If so, how did you address it?

I have a slight problem with wind buffeting, but I am only getting to about 115 at CMP. I bought a Zamp helmet with chin spoiler, duck bill spoiler and a wing like part on the back. All of those things are stick on. They all help. The weirdest thing I had happen was a piece of tire rubber from the car in front of my at Buttonwillow at about 120. I saw it, but could not react, and it hit me square in the face shield. It was about the size of a quarter. Left a "skid mark" on my tear sheet....

I was at Watkins Glen on 7/15/2025 and in the first session of the day the car was twitchy the whole session and culminated in a lovely pirouette in turn 8. Turns out that in my eagerness to get out on track for the first session I neglected to check my cold tire pressures. Well that didn't turn out so well! Hot pressures taken after the spin showed that the driver side rear was 41 psi and the the others were 34 psi. Made for very odd handling, the car was darty under hard braking and the rear kept wanting to step out in the corners, which it never does.

Check your pressures first!

https://youtu.be/nAS6o78yZSc

Whoa! I almost had to change my pants just watching that one! Had a similar experience once with a 911 Porsche. Same issues and tire pressure.

Been there, done that, but not tire pressure, just cold tires, cold air and a ton of power from the turbo at just the wrong time, always exiting a turn....

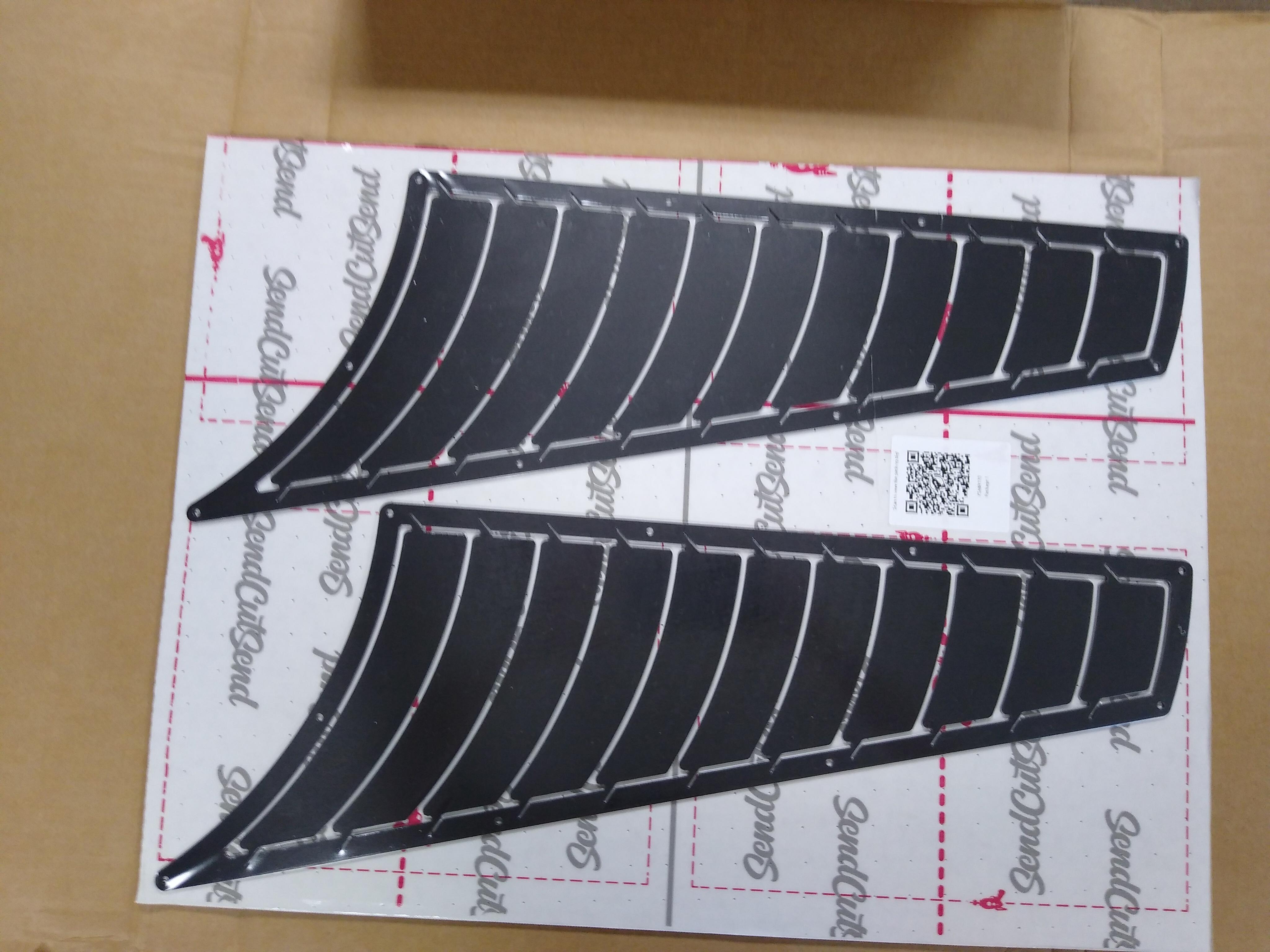

My new front fender vents just arrived from Send Cut Send. Black anodized 5052 aluminum, 0.100" thick. Can't wait to cut into the fenders to see how they look installed properly!

I could not find any pre-made that seemed right so I designed these up in CAD and had them made custom.

Attachment 216760
Attachment 216761

Those look awesome.

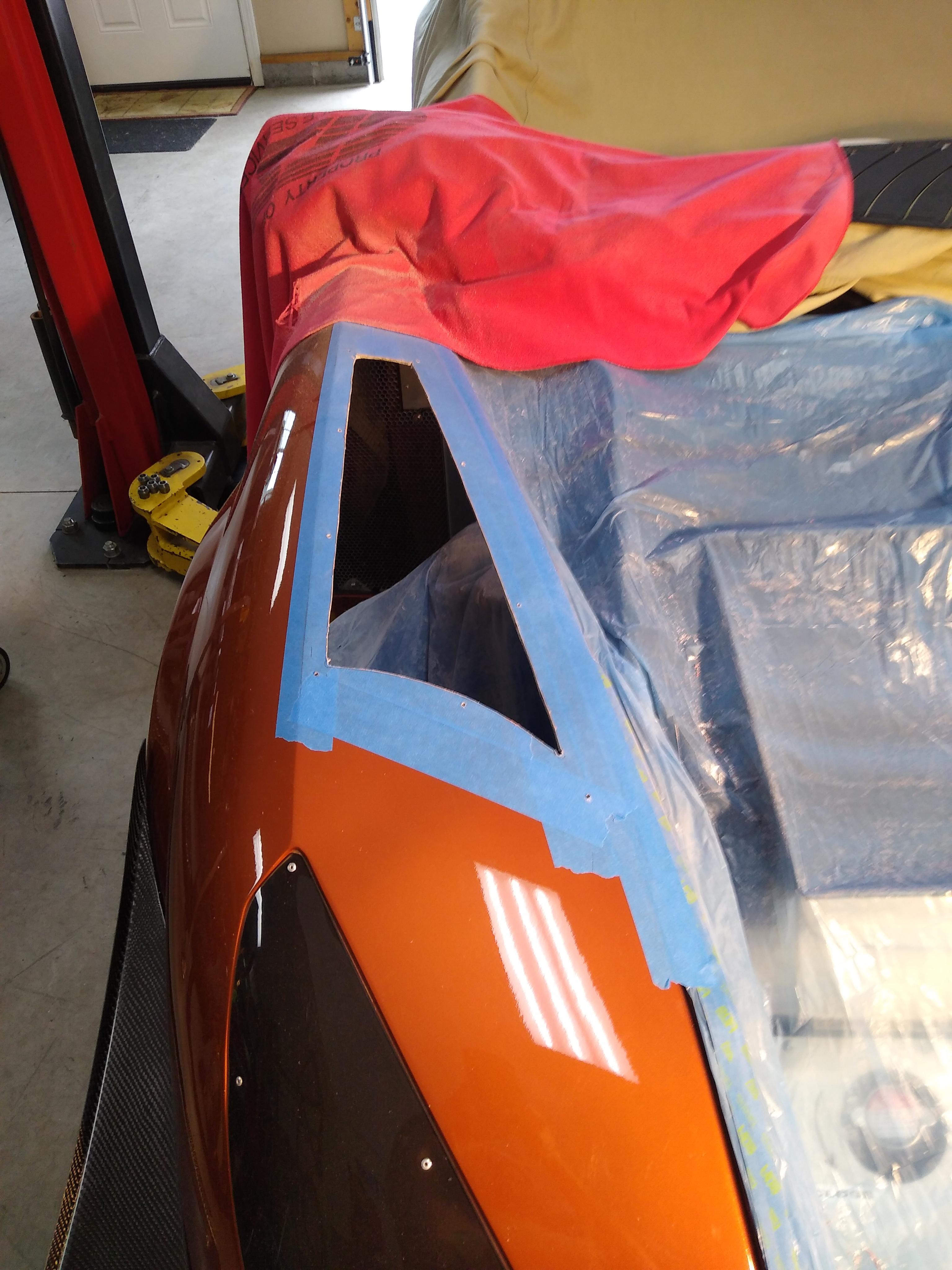

It's very nerve racking when you have to cut into your custom paint job for your next mod. Being very mindful and working slowly I was able to cut out both openings without damaging the surrounding paintwork.

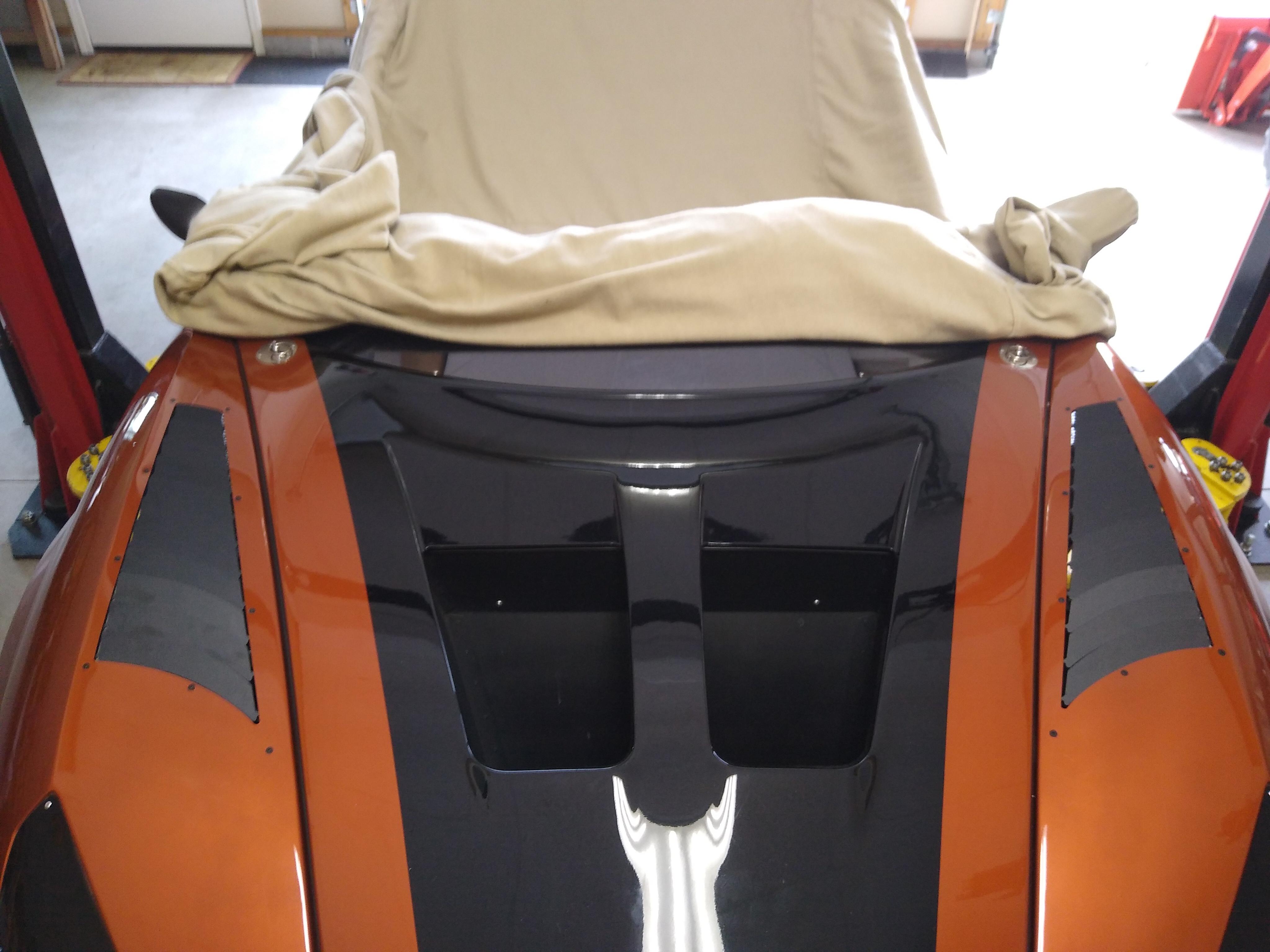

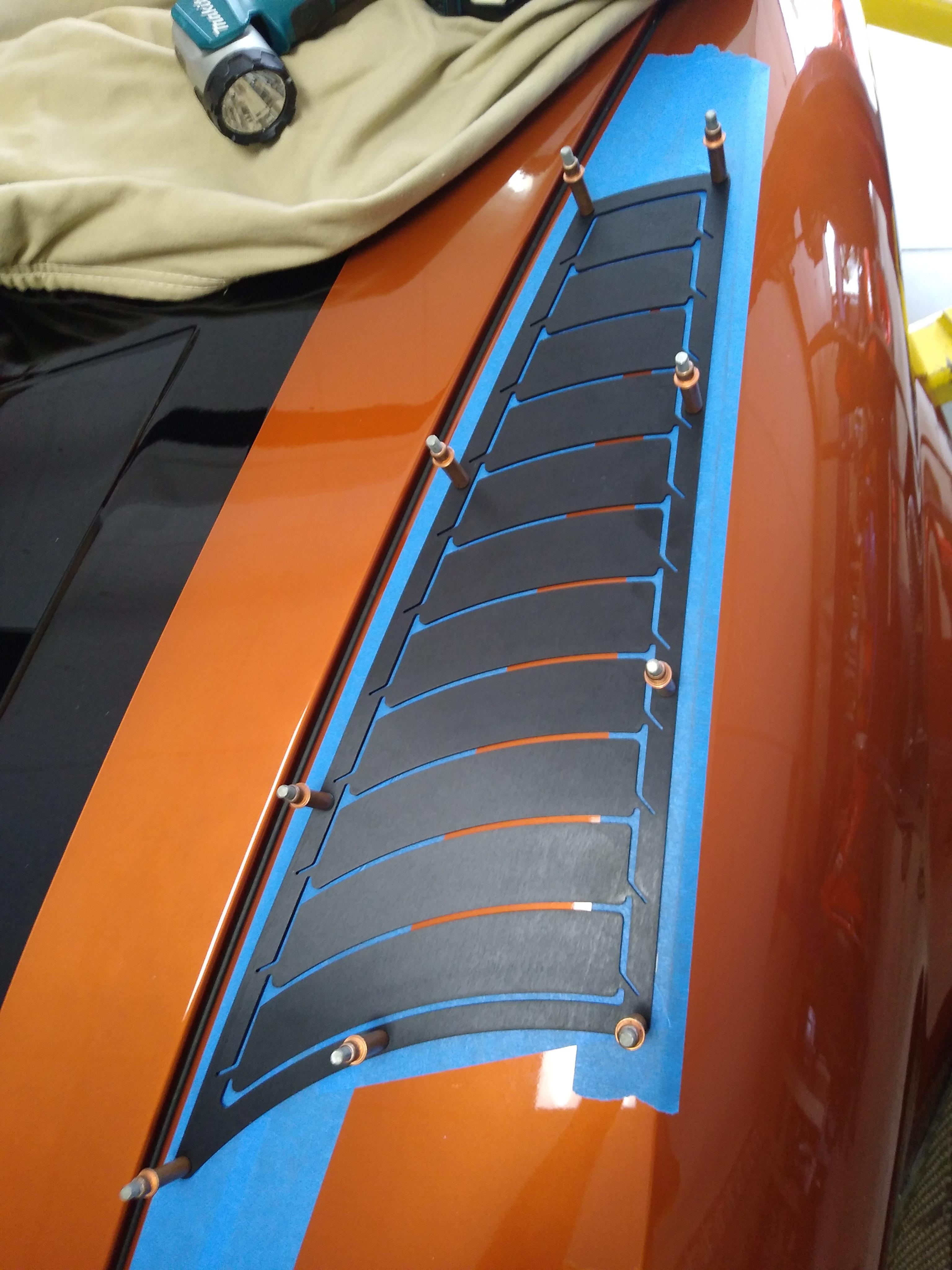

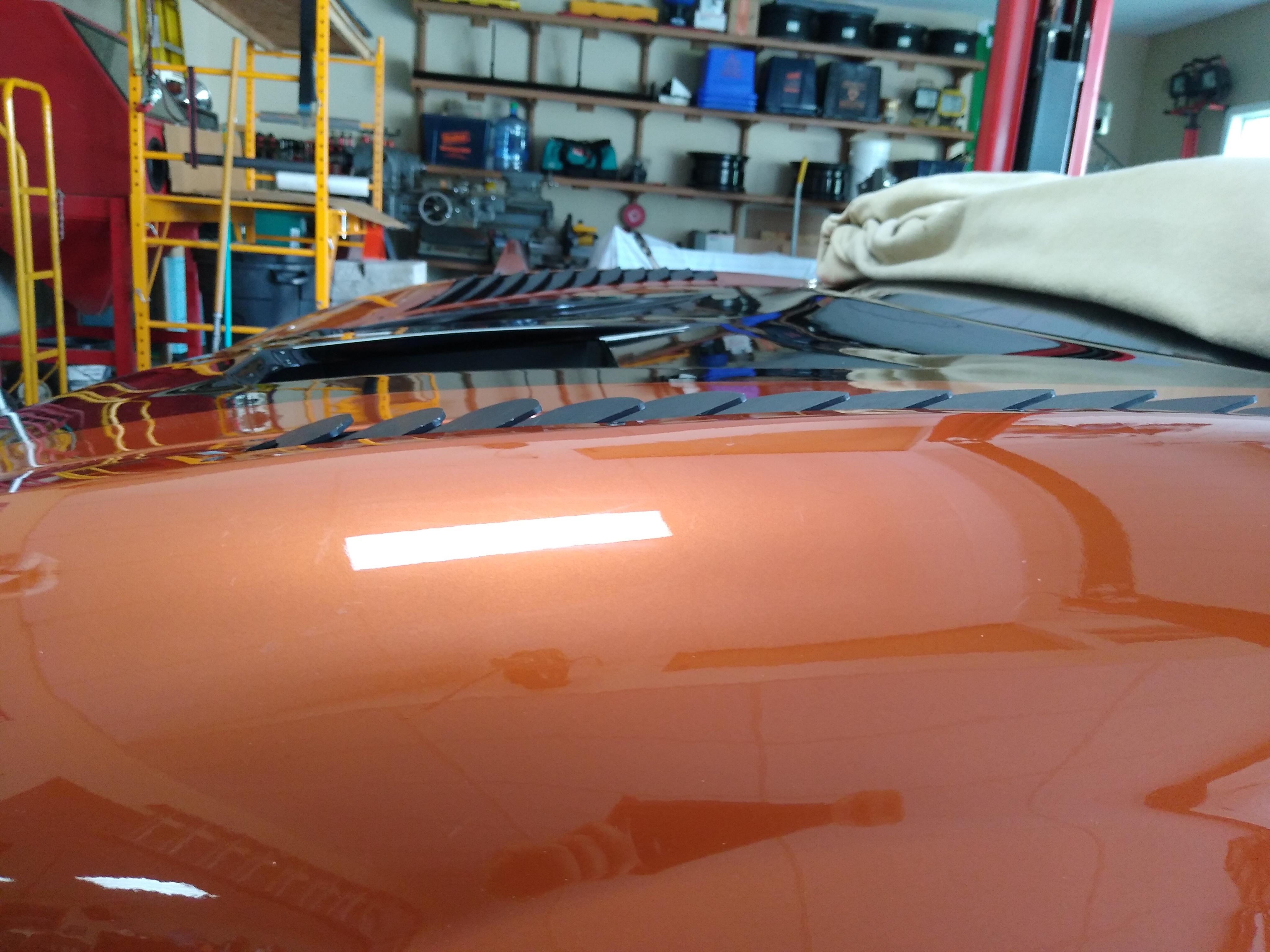

I have not bent the louvers yet. I laid them in place to get a feel for how they will look. Initially I decided to mount the louvers from the underside of the fender, but after seeing them mounted on top I'm not sure which way I'm going to go!

What looks better to you?

Attachment 217068 Attachment 217069 Attachment 217070 Attachment 217071

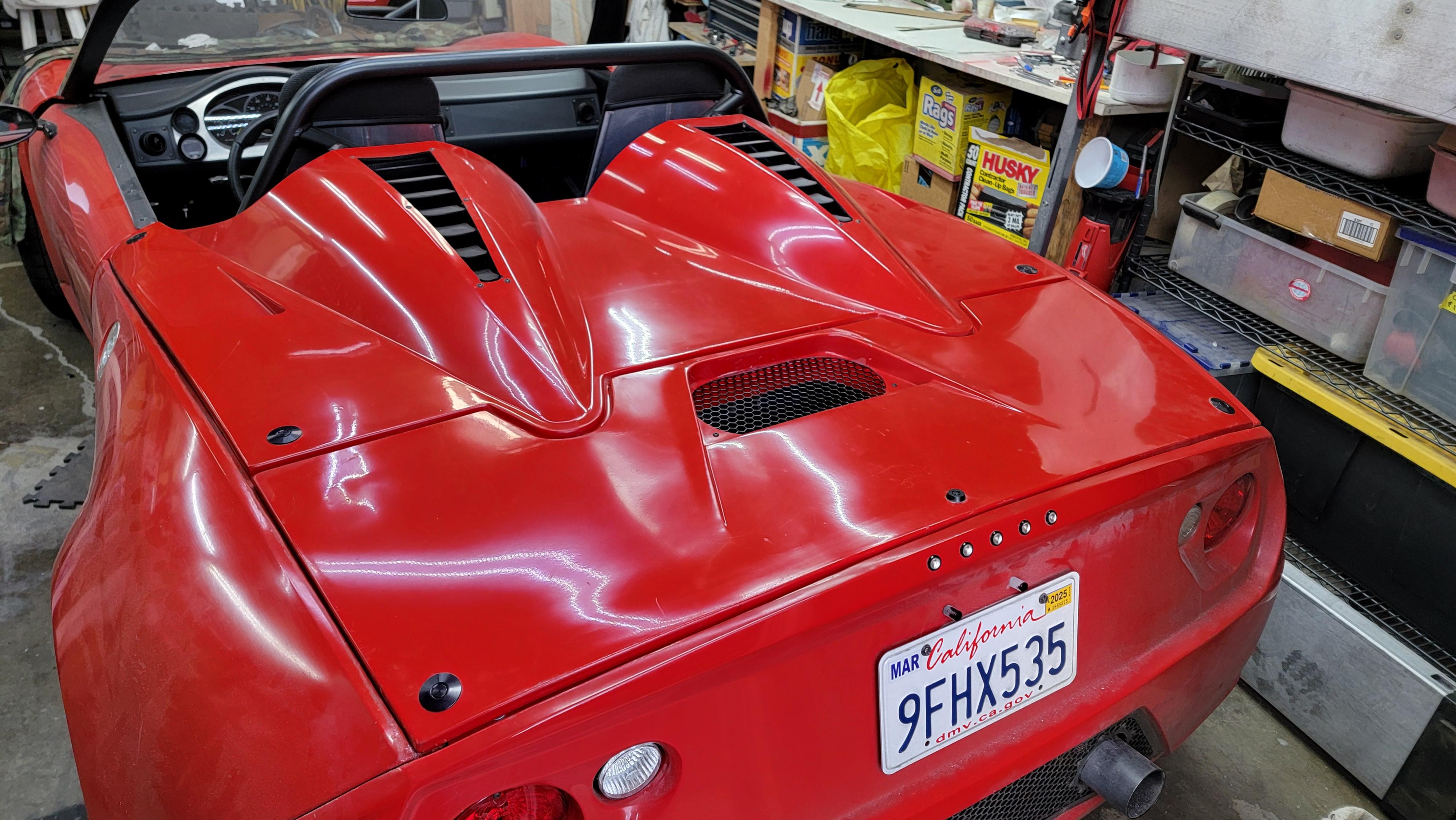

I don't have fender louvers, but I mounted my hood and hump louvers underneath and I really like how it looks.

Ed

Attachment 217073 Attachment 217077

By the way, the cutout in my trunk lid is flex ducted to my oil cooler.

I also have the hump louvers mounted underneath. I'll most likely do that again to match. Just thought they looks nice on top as well. Adds a clean hard line to the louvers.

I took an artist's brush and painted the cut edges black for finished look too.

Ed

As can be seen from the videos, the natural air flow at the trunk lid at about 70 mph is high pressure at the outside of the opening - low pressure in the engine compartment. AKA, cool air getting sucked INTO the engine compartment. This is where I put my oil cooler with fans which complements the natural air flow. The cooler seems to work very well.

But, I just added engine cover louvers before my last track day a couple of weekends ago at Thunderhill and my oil seems to be about 20 hotter! I haven't re-ran the yarn test, but I think engine cover louvers increased the air pressure in the engine compartment and now air flow is OUT of the trunk lid / oil cooler. So the fans are fighting the natural air flow of hot air! Not sure what to do! I might block them making them purely cosmetic! I need to re-run the yarn test first. Or at least do a back to back test of oil temp with louvers open vs taped over.

Problem is, my clutch went out at that track day and between work, Lemon's racing and Burning Man, I don't have time to deal with it until October.

https://youtube.com/shorts/Cr6Uyvaga...a4pn15YiNb0-6H
https://youtu.be/FUeFeJuv79E?si=SSXj5Z5rZICrD9_v

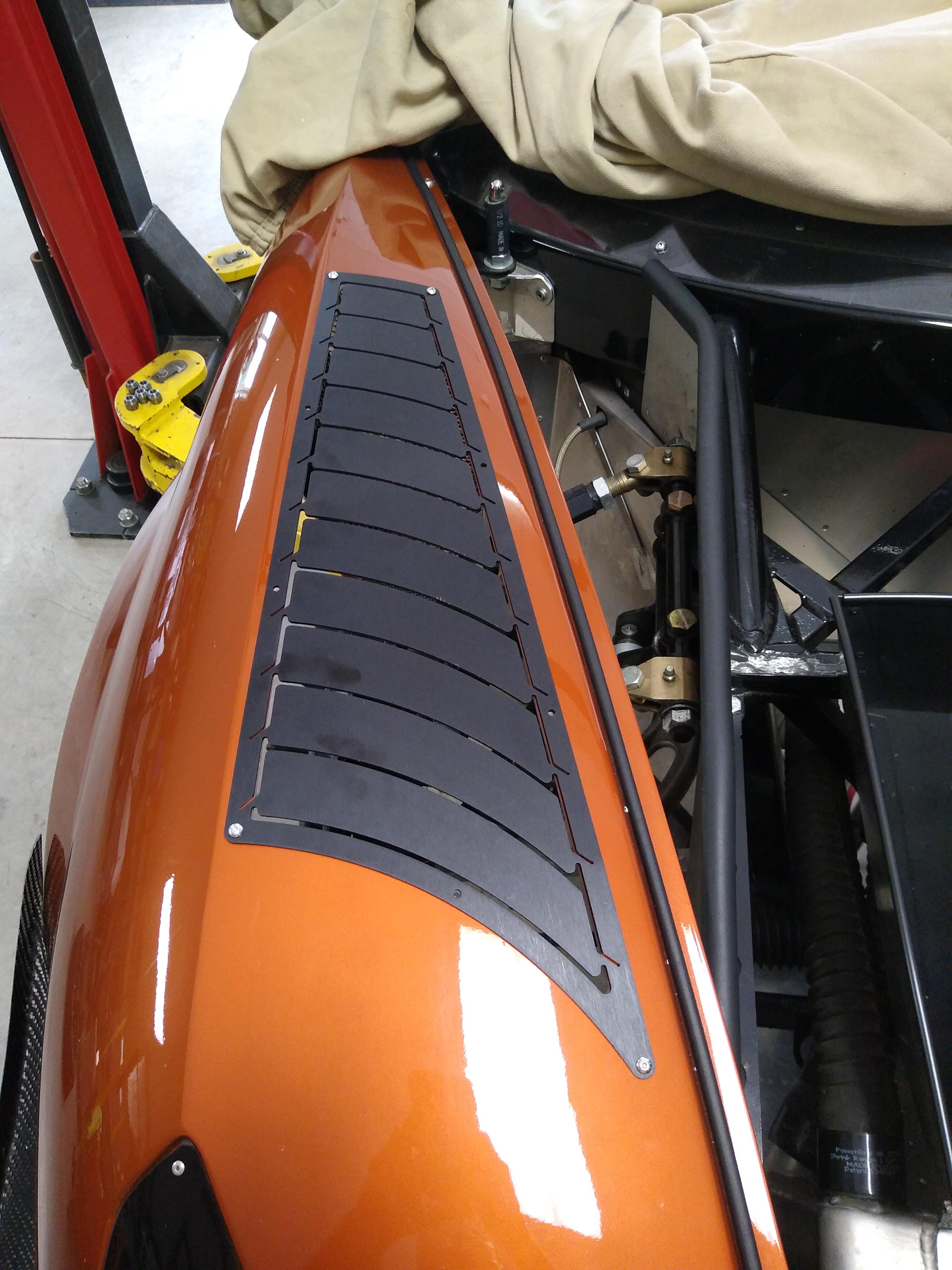

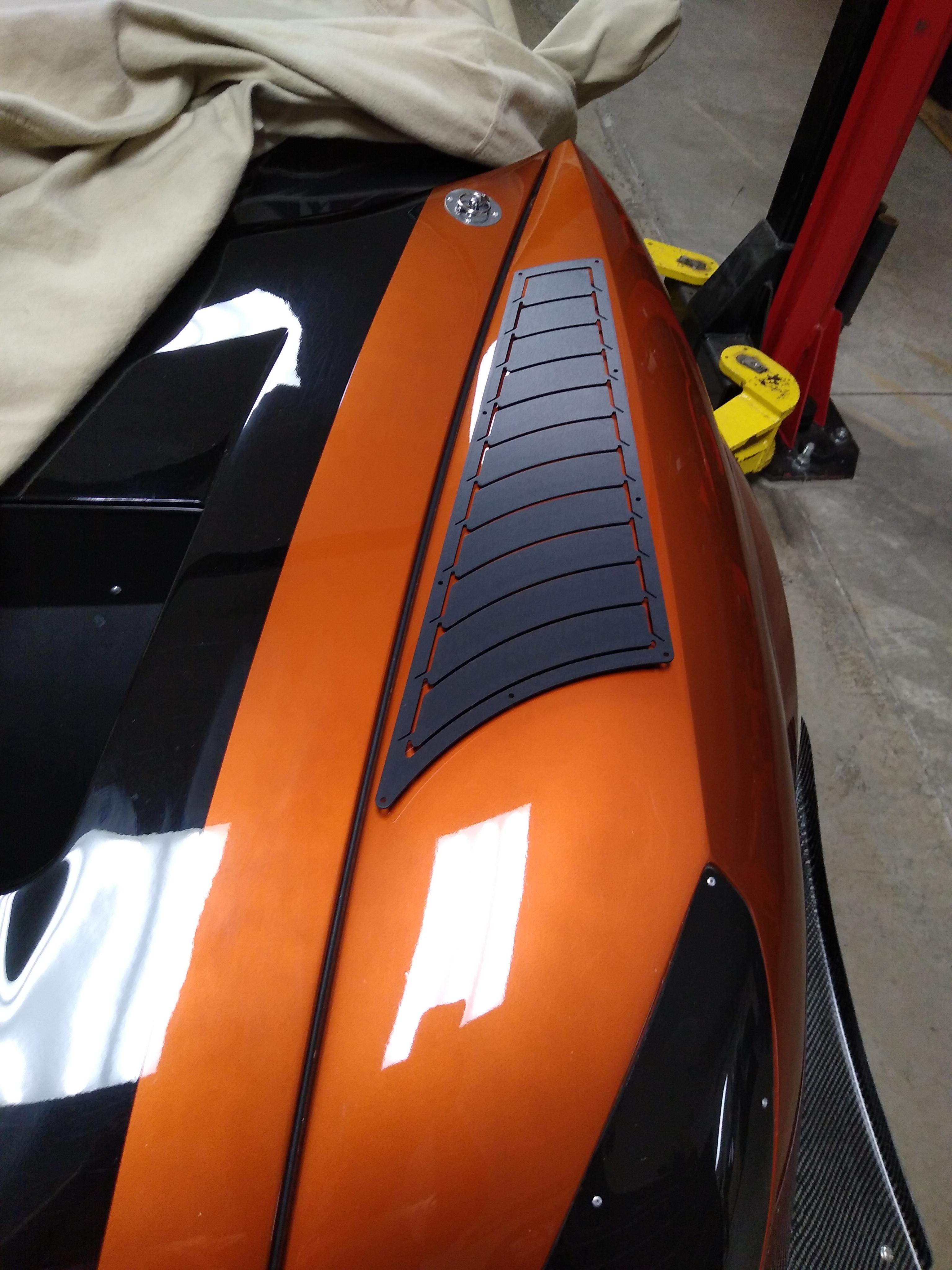

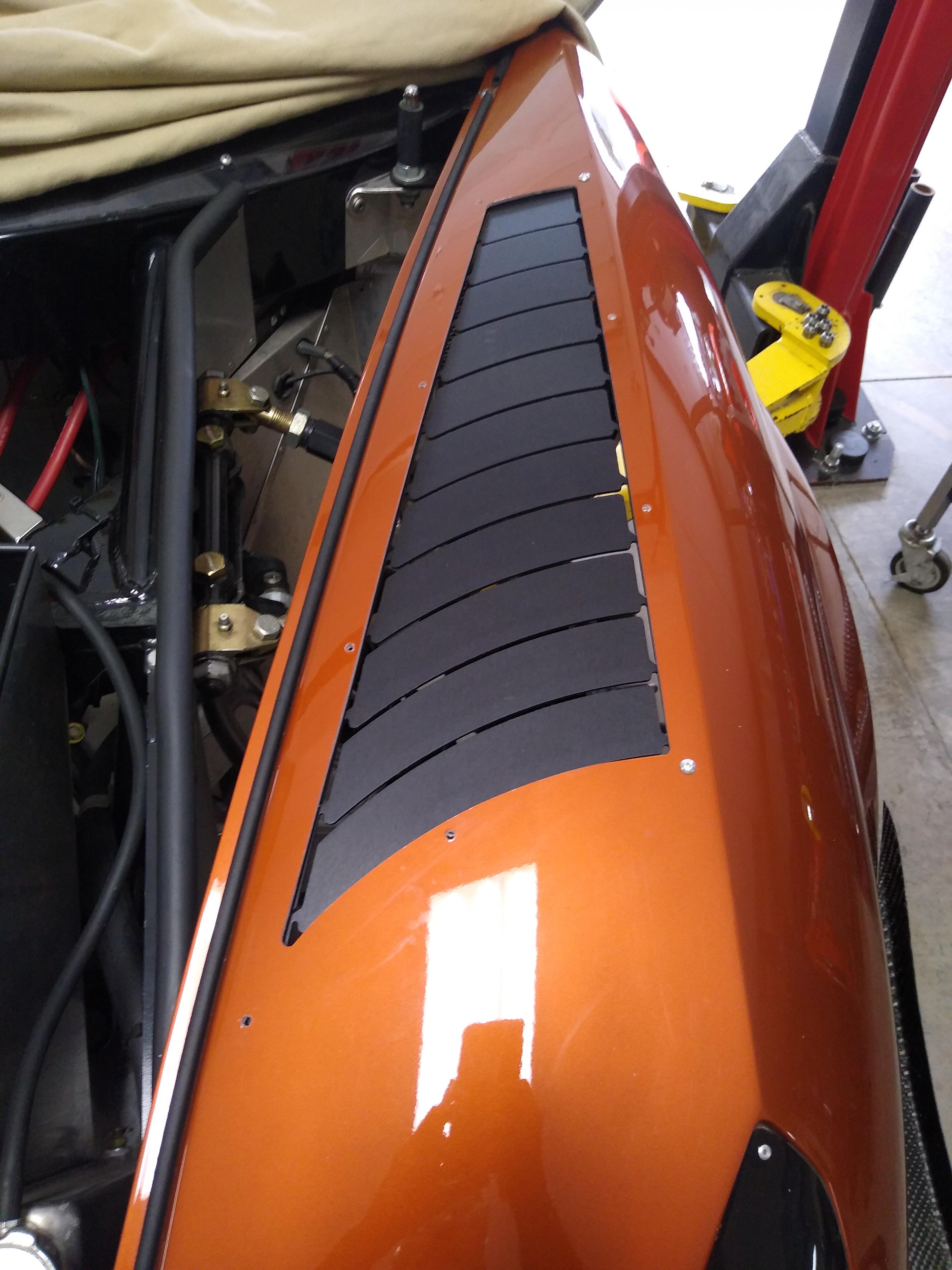

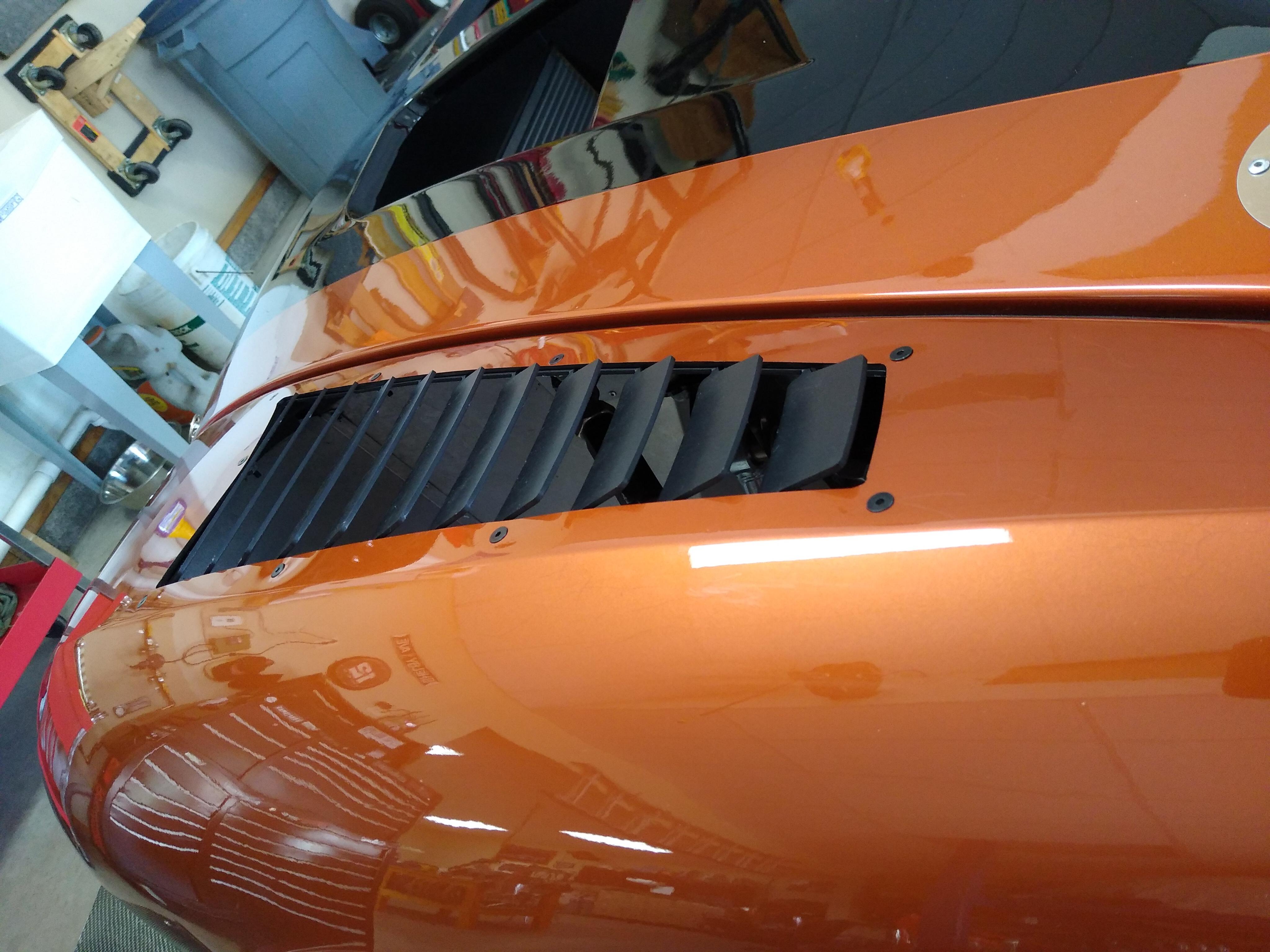

Front louvers are complete. I ordered special black stainless steel flat head socket cap bolts and countersunk them into the fiberglass. It gives it a nice clean look.

I'll see in September when I'm back at Watkins Glen if they make any noticeable difference in front end grip.

Attachment 217207 Attachment 217208 Attachment 217206
