The dismantler description stated it came out of a manual transmission car so it should be "standard" to us.Quote:
Originally Posted by Kbl7td
Printable View
The dismantler description stated it came out of a manual transmission car so it should be "standard" to us.Quote:
Originally Posted by Kbl7td

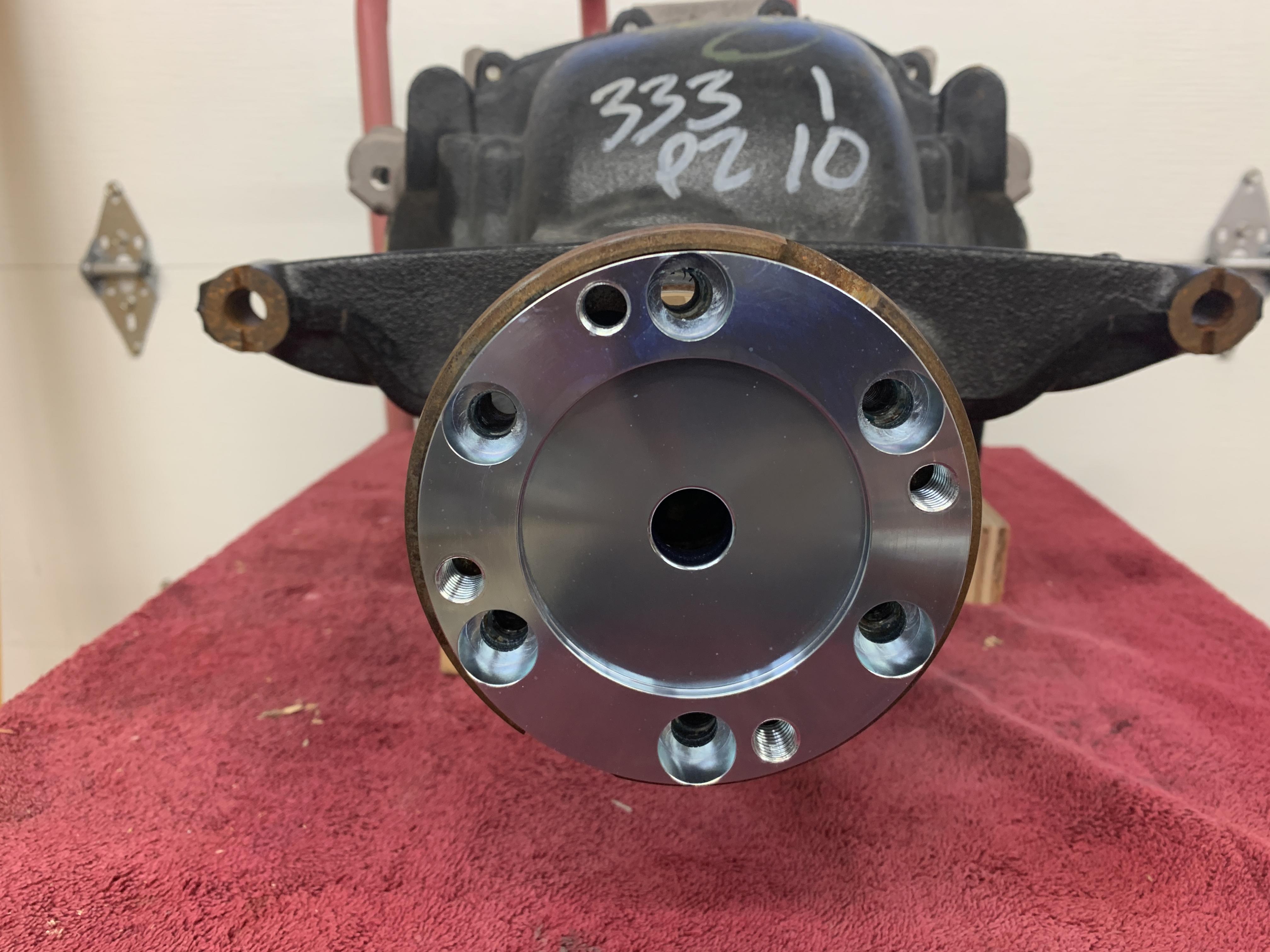

Good news is the supplied adapter with my kit fits:
Attachment 209503

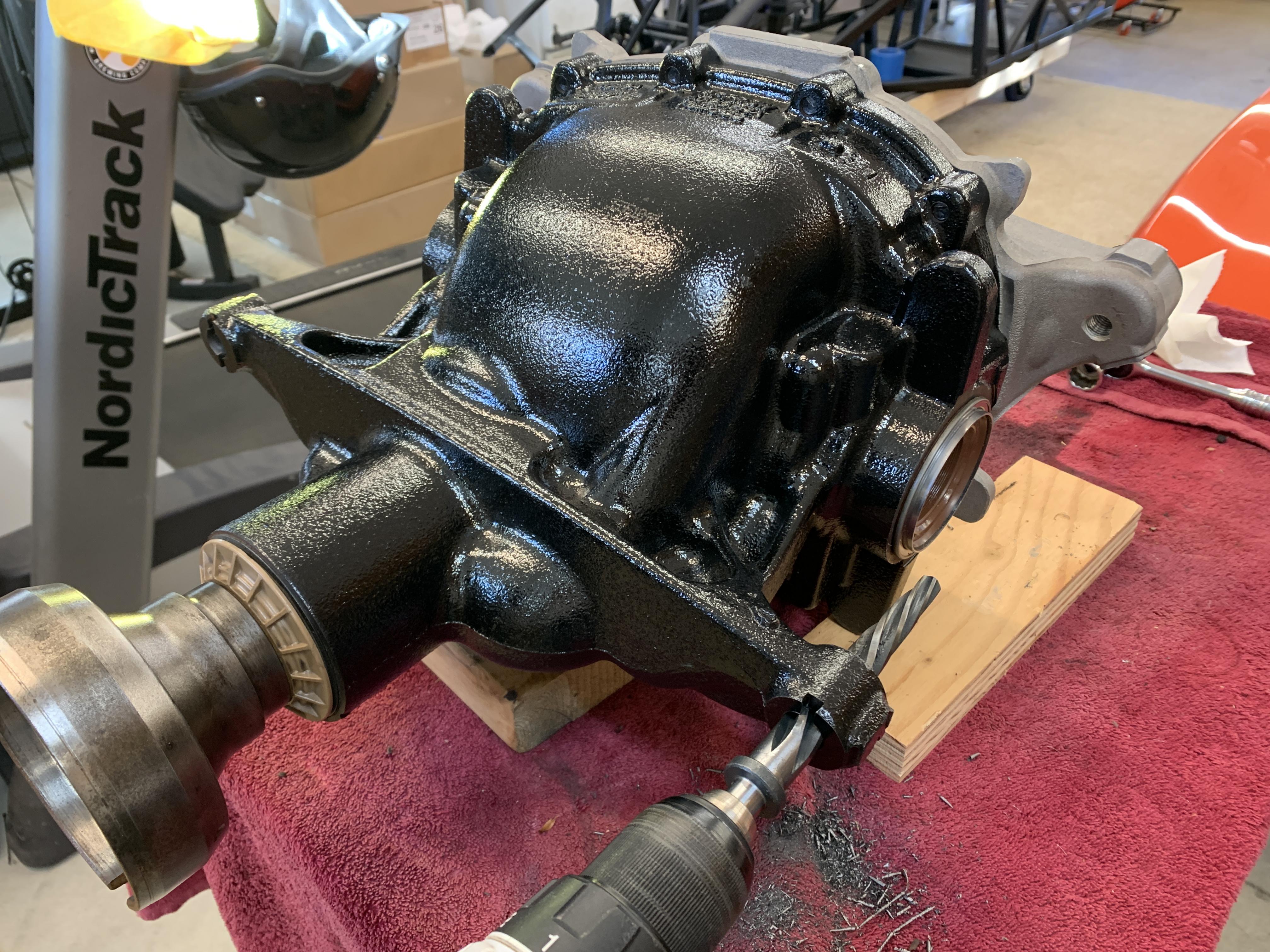

I am going to go ahead and replace the half shaft seals as well. One appears to have been leaking but hard to tell since wrecking yards tend to get carried away with their pressure washing. I wouldn't think these would be leaking in a 2024 with 14K miles but I guess you never know. Either way, inexpensive "upgrade" and easy to do while on the bench.
I know this is probably a long shot but thought I would throw it out there. My used seats came with brackets for a C6. After comparing them to Corbeau's website it looks like they us a generic frame and then customize the locations of the risers to suit a given vehicle. I think I can make them work but here's my ask:

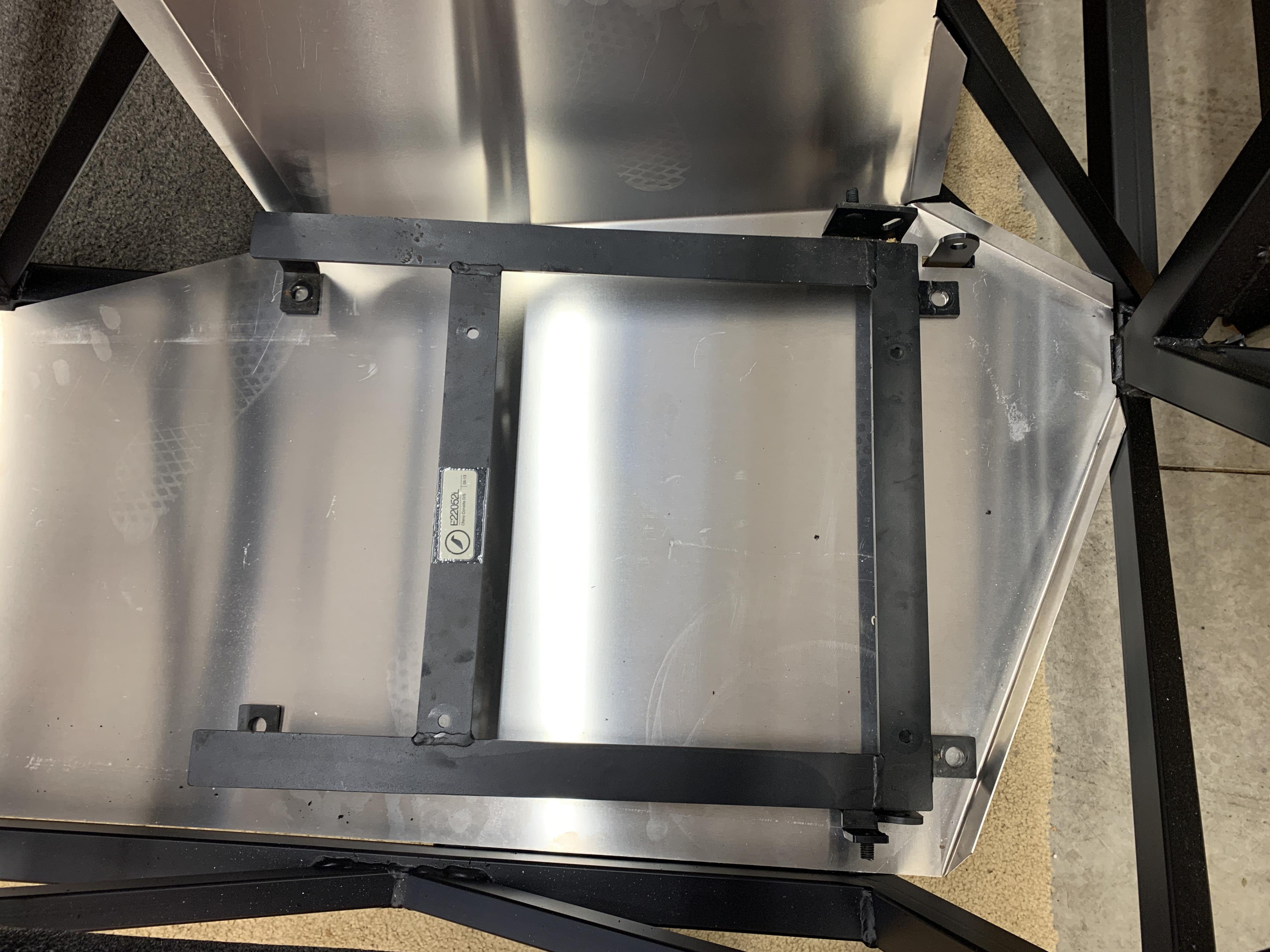

Can anyone provide feedback on how high the frame should be off the floor? These have rake to the rear and are about 2.5 inches high in the front and maybe 1 inch in the rear. I can cut and weld as needed, relocate the risers and make sure they bolt through the floor in the appropriate locations. The sliders are bolted tight to the seats and only add about 3/4" of overall height. Any feedback would be appreciated.
Attachment 209643
The back bottom of my Sparcos seats almost touch the floor. There is a balance between seeing over the dash and where your head lands relative to the side roll bar. I was trying to keep my head from hitting the side bar when sitting in them. I also had to cut some of the body, by the door, to get them to sit back far enough.
Thanks for the response. I have reviewed Paul B's. build thread extensively and I think his seats are the same way. Essentially sitting flat on the floor and using the built in reclination of the seat instead of anything built into the mounting brackets. I think I may just cut the risers off the brackets and work backwards until I find the sweet spot. I am not sure where the seat will land in relation to the harness mounts either.Quote:
Originally Posted by burchfieldb

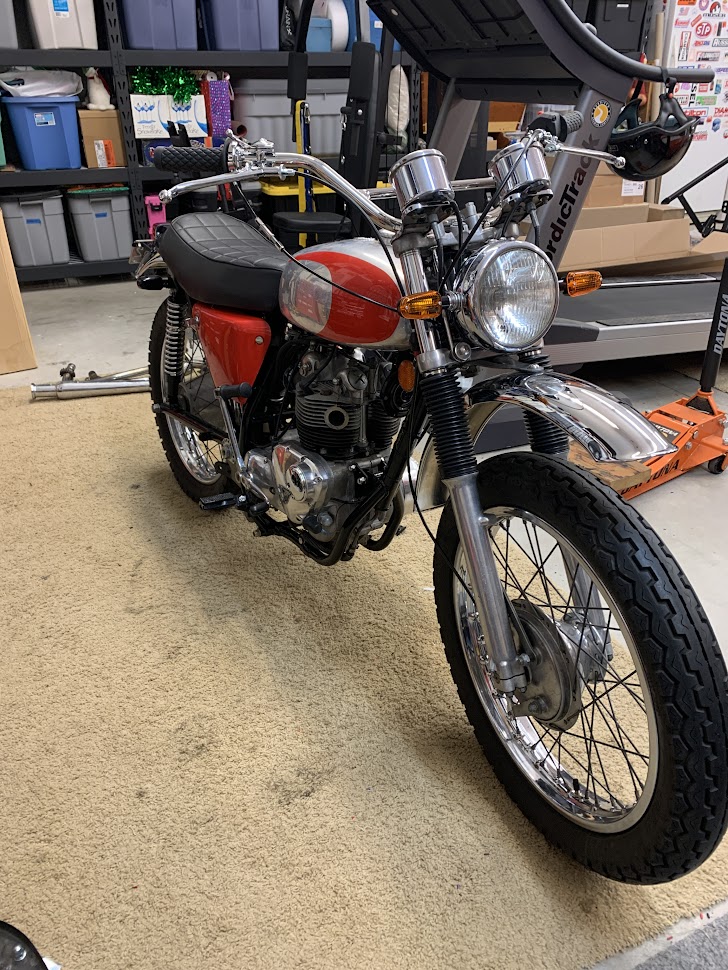

This is a bit of a hodge podge update. I am finally in the home stretch of my Triumph TR5T build. I committed to finishing this before becoming all consumed with the Coupe. Need to install the exhaust and plumb the fuel lines but probably ready for first start this week. A picture for proof and posterity:
Attachment 209740

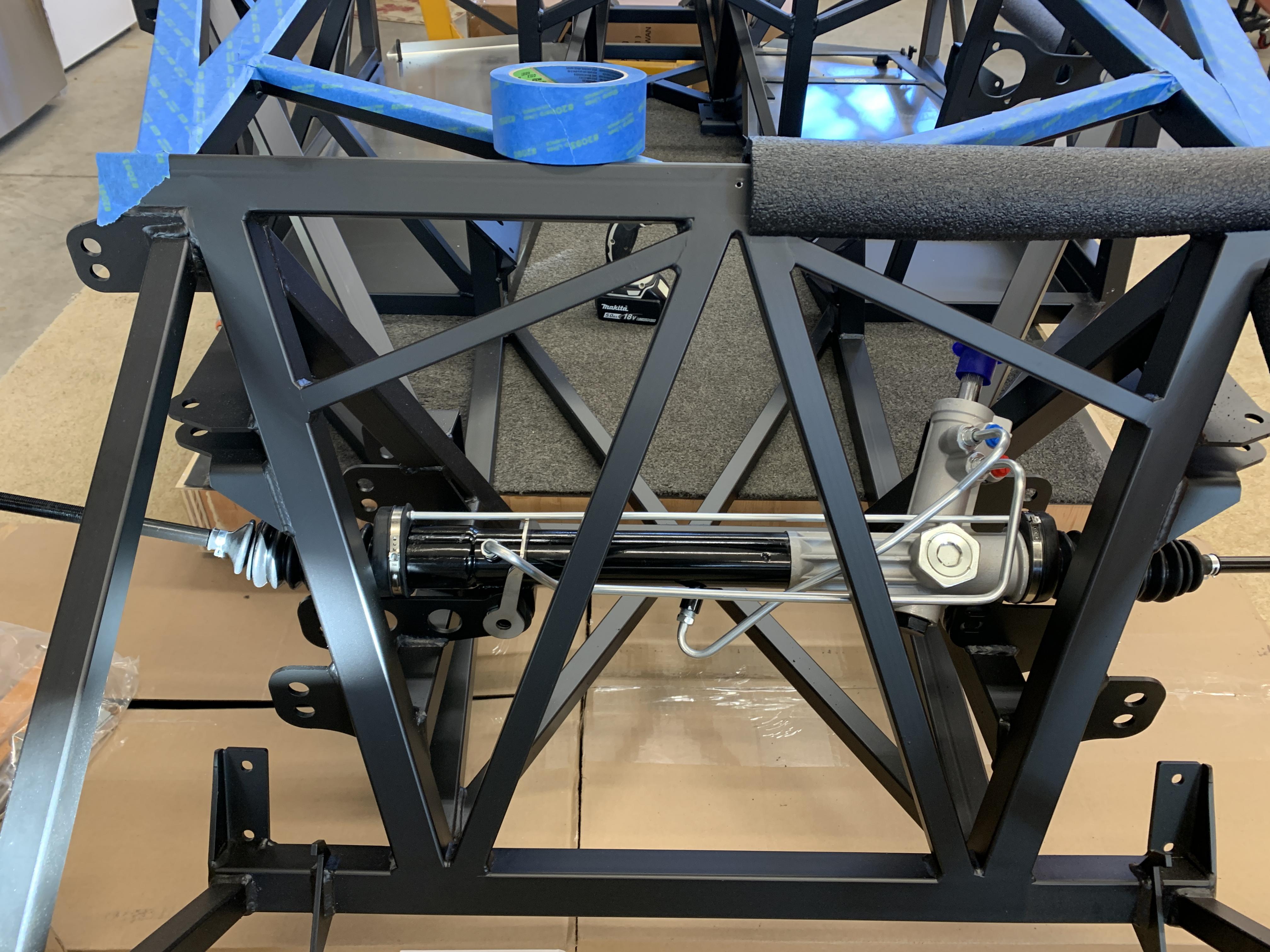

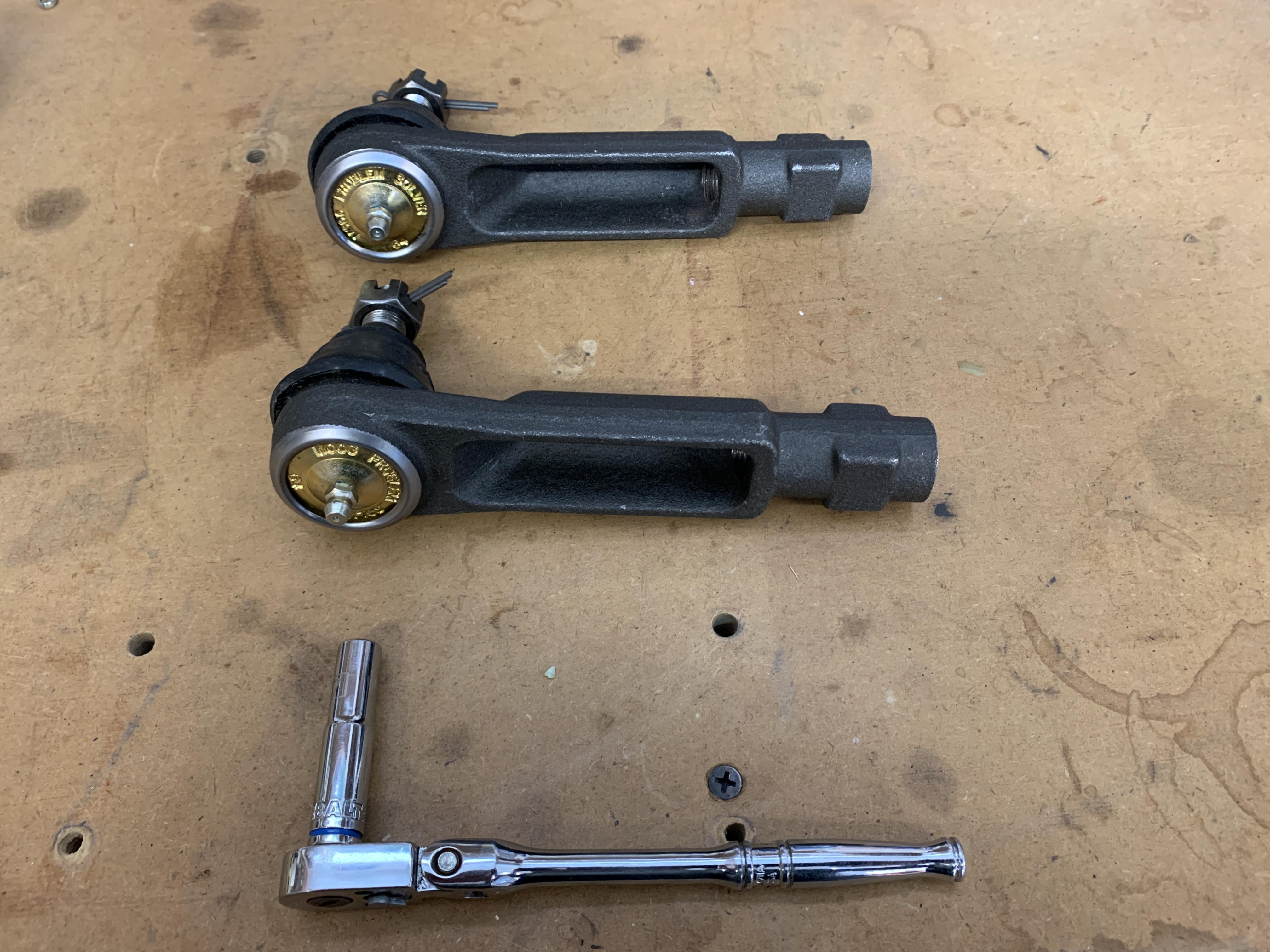

Now on to the Coupe! I actually installed my very first piece today with the steering rack. Pretty straightforward but a couple of comments. I am going to powdercoat the retainer bracket (along with many other pieces) but before I do so I am going to hollow out a half moon to clear the steering rack tube so it's not sawing on the sharp edge of the bracket for the next how ever many years:
Attachment 209741

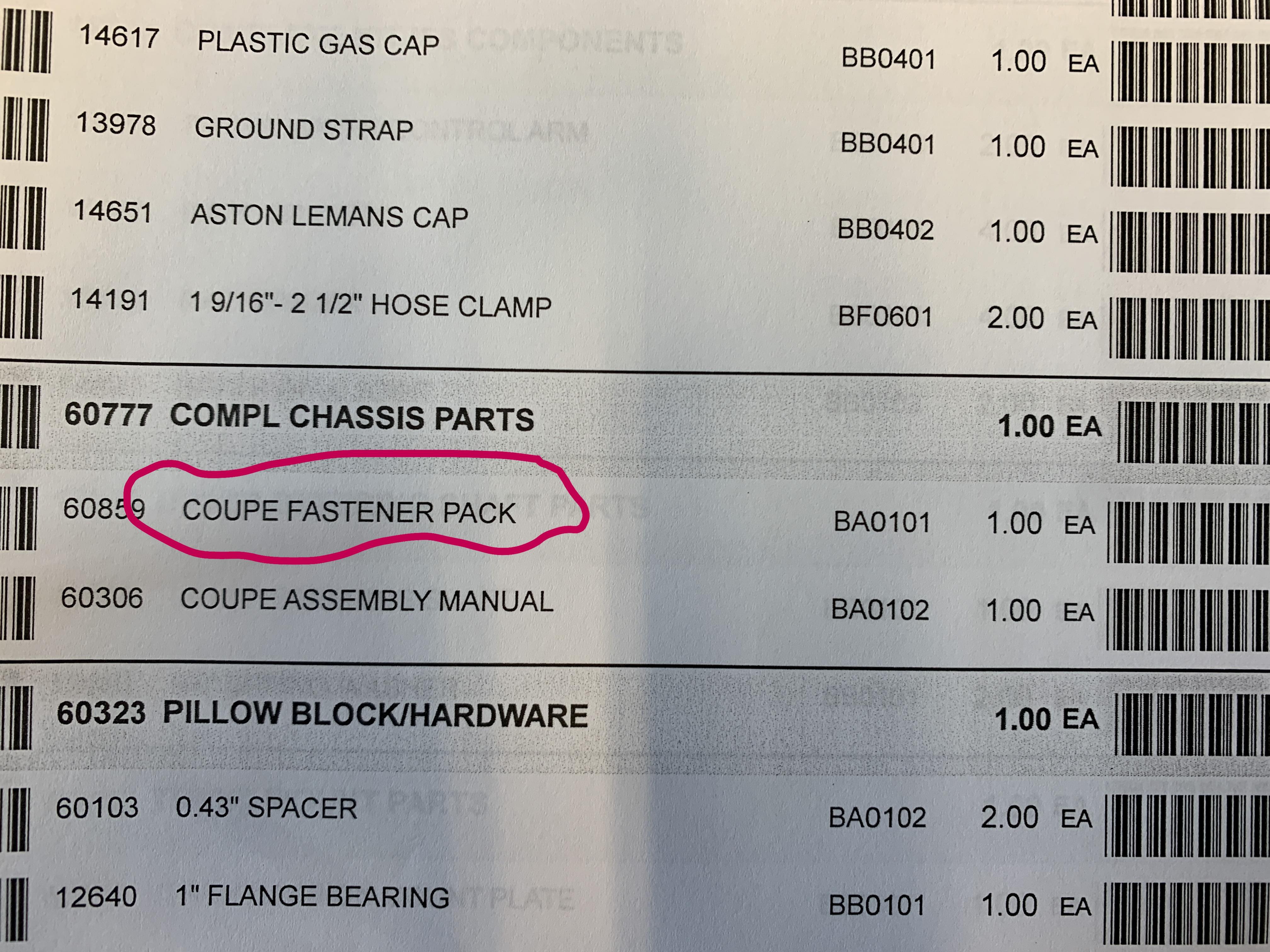

I also am curious if anyone is aware if there is a separate inventory sheet for this item:
Attachment 209743
I am asking because after searching twice, I was unable to locate 1/2" grade 8 washers and nuts for the steering rack bolts. Most of the other sub-boxes with multiple components had additional inventories but I couldn't find one for the hardware pack. So, off to Ace this morning and picked up the washers and nuts and loosely installed them. I also installed the zerks on the Moog tie rod ends a la edwardB but opted to not install the Energy Suspension boots since the Moog boots were quite well fastened on (maybe crimped with an internal wire?) and they were logoed so I stuck with them. For anyone interested, the zerks are 7 mm.
Attachment 209744
And so there is actually proof I did something:
Attachment 209745
Carry On!
Away you go! FYI, the Energy Suspension polyurethane boots will greatly outlast the rubber boots. Plus they're a lot stronger. Those are the reasons to switch them out. Your choice though.
I had every intention of doing so but the rubber boots are really anchored on there. I couldn't decide how aggressive to go with a screwdriver, etc. to remove them. I have the poly boots, just didn't install. I will take another look.Quote:
Originally Posted by edwardb
Tim, these are the lists that I got from Dave at FFR.
https://thefactoryfiveforum.com/atta...6&d=1738098304
https://thefactoryfiveforum.com/atta...9&d=1738098760
https://thefactoryfiveforum.com/atta...8&d=1738098304

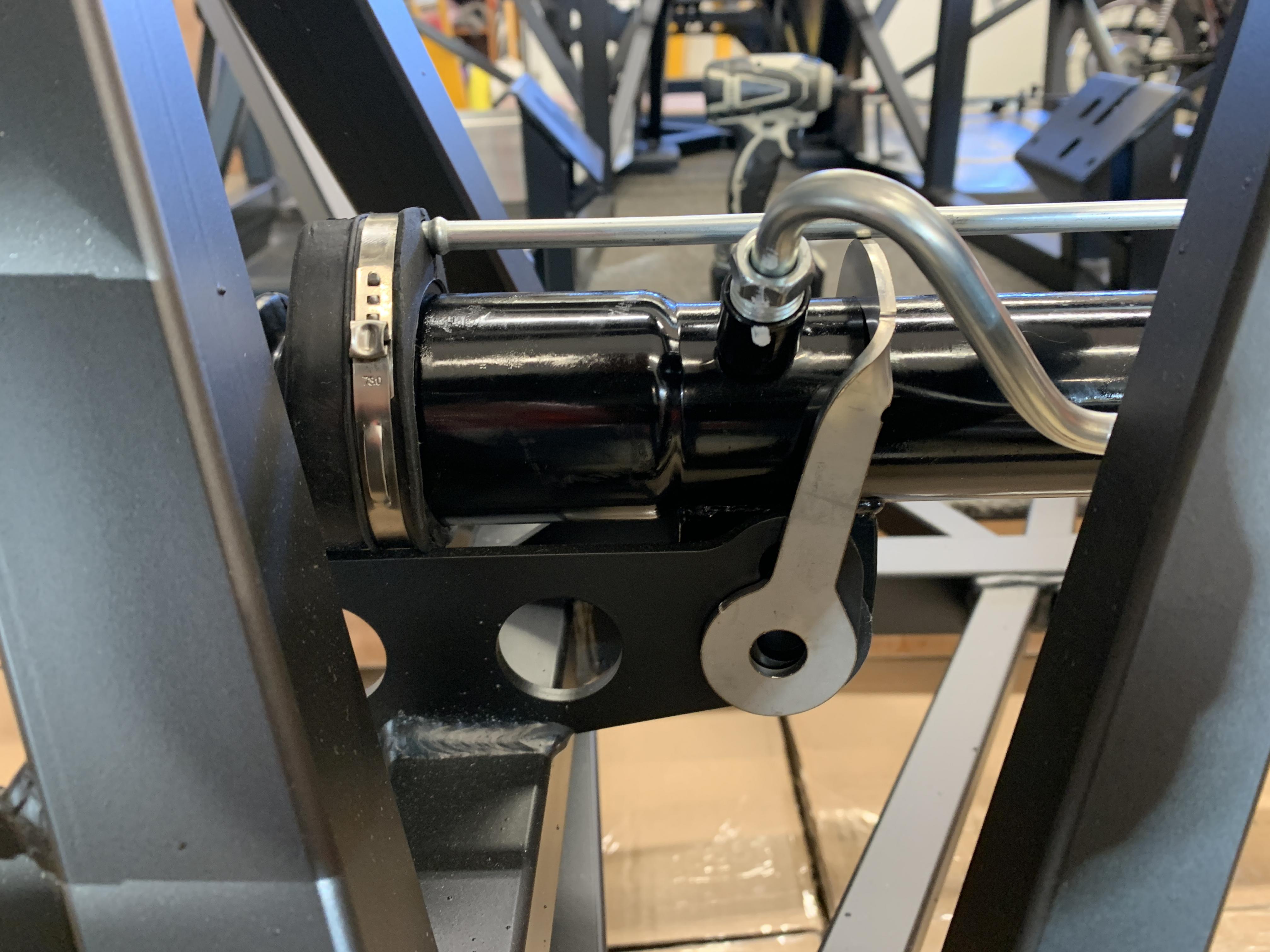

As for the tube on the steering rack, I was able to flex it enough to provide clearance without having to cut the bracket.
Good info, thanks. I don't think they actually include the 1/2" nuts and washers in grade 8. Although I doubt it matters, I am not a fan of mixing and matching grade 5 and 8 together. I was going to ask FF to send me the missing pieces but it looks like they supplied them, they are grade 5 (although the manual specifically states they are grade 8). Anyhow, no big deal and I appreciate the list for reference.Quote:
Originally Posted by burchfieldb
Forgot about this one, in case someone wants the bolt grades for the IRS fasteners. I agree, I do not like mixing the grades either. I ended up buying flange nuts, like they show in the manual. I was not a fan of the large fender washers and nylon lock nuts.
https://thefactoryfiveforum.com/atta...2&d=1738104223

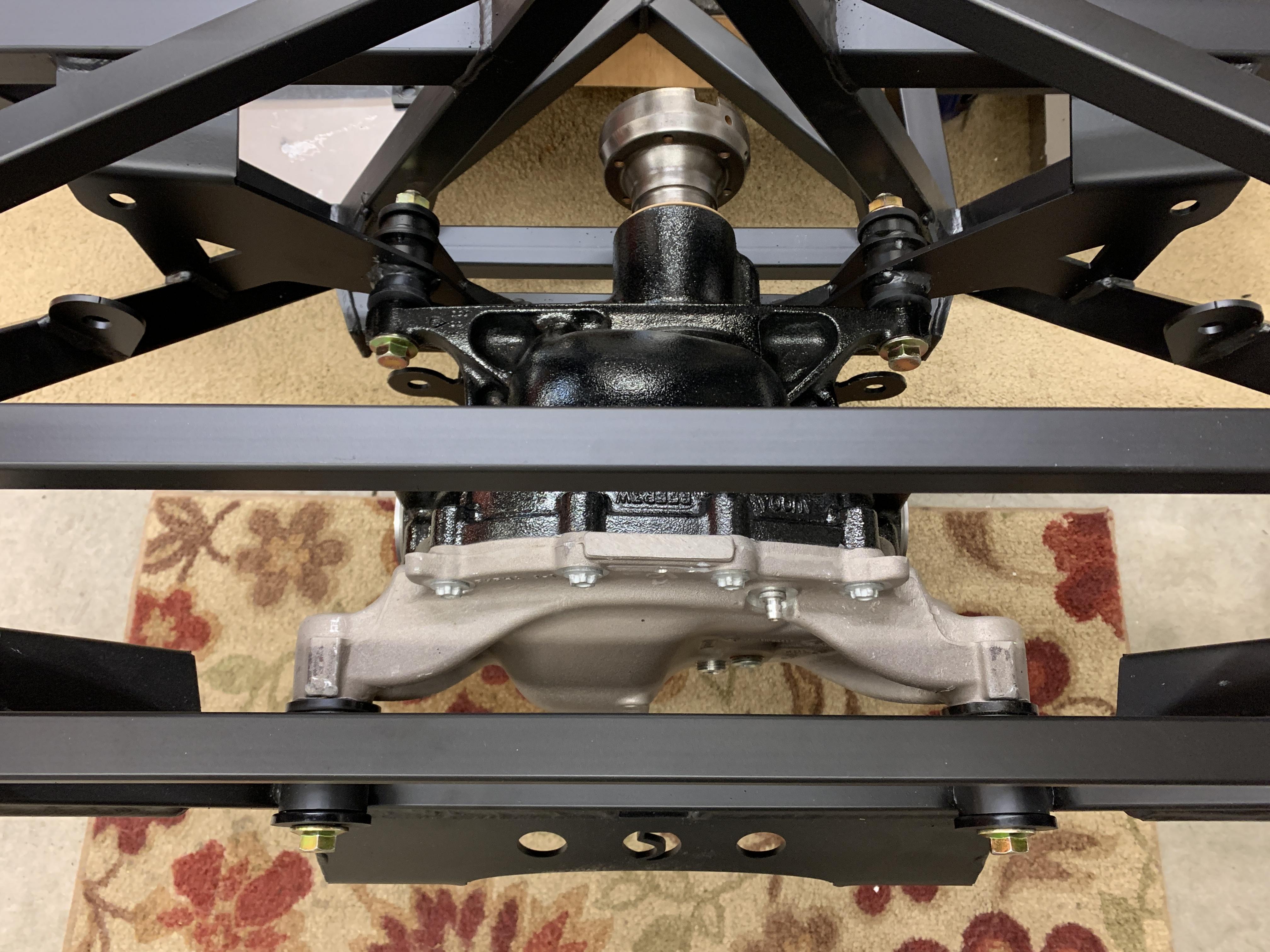

Engaged in a 2 hour wrestling match today. Got it installed and have to say, nobody on this forum was exaggerating the difficulty of the process. So, so, tight but we got it done. I started the process by reaming out the front mounting ears. This reamer make it a piece of cake. I do think there is some possibility of making the holes off center if your not careful.
Attachment 209813
Got it squeezed in and frankly was really confused over what hardware to use. I think I used the correct bolts but if I didn't I guess I can buy replacements. I do have one question though - the metal inserts for the front extend out of the poly bushings by about an 1/8th of an inch. I don't understand why this is so? They could easily be the correct length and still function correctly so if anyone knows the reason for this or if I did something wrong please let me know.
Attachment 209814

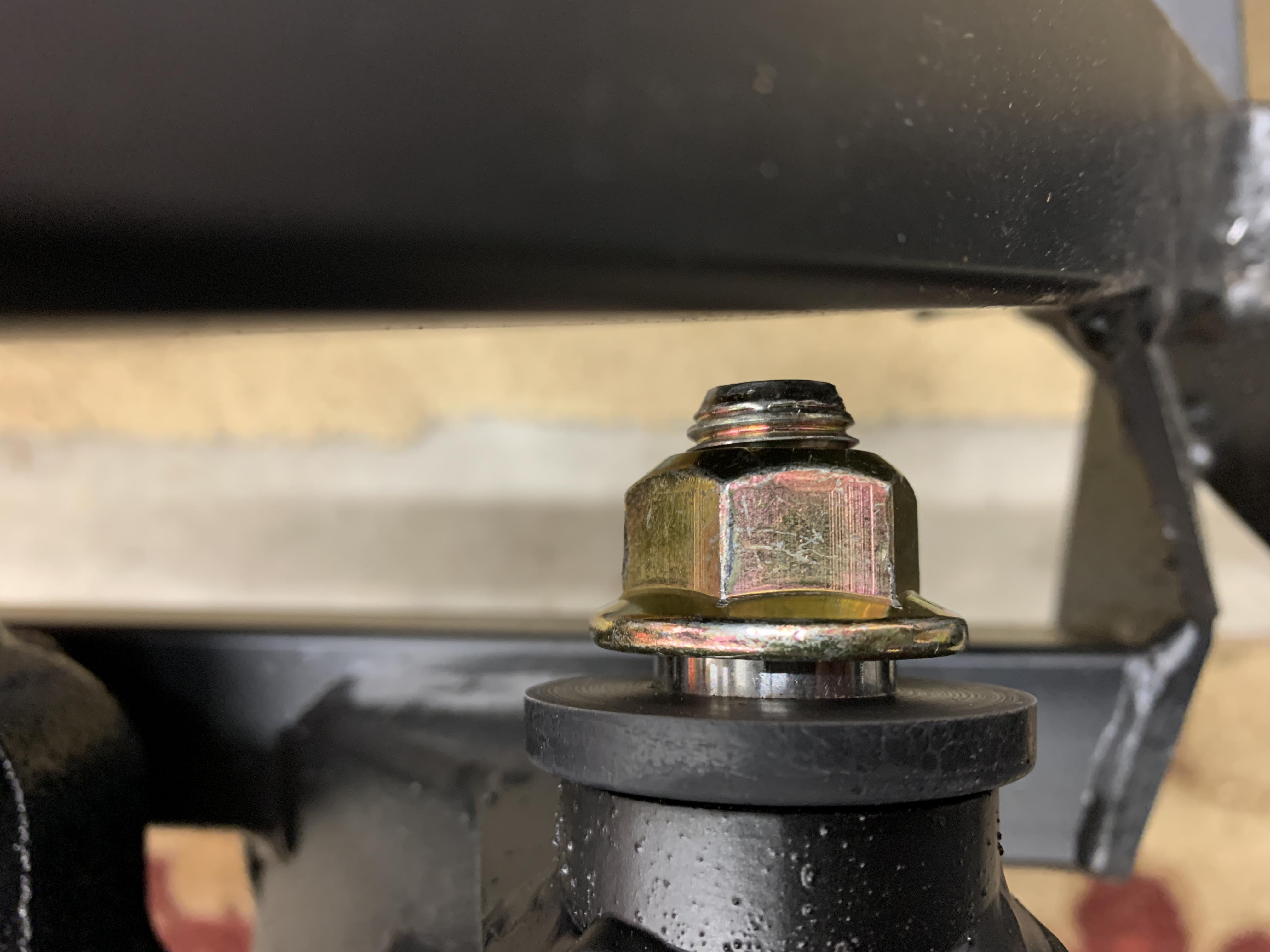

Close up of the bushing in question. Both sides are identical:
Attachment 209815
That gap is apparently normal. Many others have reported it and received feedback from FFR that it's OK. As you found out from installing the center section, it's a tight fit. Once bolted in place and all bolts to torque values, it's not going anywhere. My two IRS builders are from several years ago and didn't have that. But either FFR or Ford changed a bit since then. Not to worry.
Mine is the same. The real disappointing news is if you have the rear sway bar - I just learned I must remove those lower IRS bolts again to install the sway bar mounts. Should be easier second time around - I hope.
I wish FFR would have made a note in the build manual regarding this. Also, the only instructions for installing the sway bars are on the Instructions page of the FFR parts page, and only for the Roadster, so you have to use those instructions for the Coupe sway bars.
Both of my IRS builds have been like you showed. Like others noted above, I think you're good.Quote:
Originally Posted by PNWTim
I couldn't agree more, it's a fight to get it up in there, especially if you're working solo (like yours truly). Congrats! One of your first milestones in the build completed!
Jim, thanks for the heads up. I actually opted for only a front sway bar based on feedback from a couple of coupe owners. I can honestly say, if I had to pull those lower bolts out to install it I would probably reconsider regardless. But you are correct, there should be a footnote or something in the manual that says "in the event you are.....".Quote:
Originally Posted by Jphoenix
It certainly felt like a milestone! I was lucky and had my son to help me so that was a blessing.Quote:
Originally Posted by 460.465USMC
It's definitely one of those "a little bit up, a little bit forward, now a little bit down, now a little...".
Thanks Paul. It's definitely not going anywhere, for sure. I just don't understand why the insert isn't simply flush. Such a basic thing and they are cutting those bushings so why would it be intentionally cut long? I am not an engineer but details like that baffle me.Quote:
Originally Posted by edwardb
Because you don’t want the bolt/washer on the rubber. It’s designed to be tight on the bushing. The bushing to rubber then is what gives it a tiny bit of flex.
Mine is the same way also. If you ever have to do it again on your own, an engine hoist and some ratchet straps work well. I also used some ratchet straps between the back of the frame and the mounts to pull the rear mounts back some.
My mistake, the sway bar mount actually goes through the lower control arm - the photo in the instructions is not very clear - but it becomes clear once under the car. Thank heaven I don't have to remove those IRS mount bolts!!Quote:
Originally Posted by PNWTim

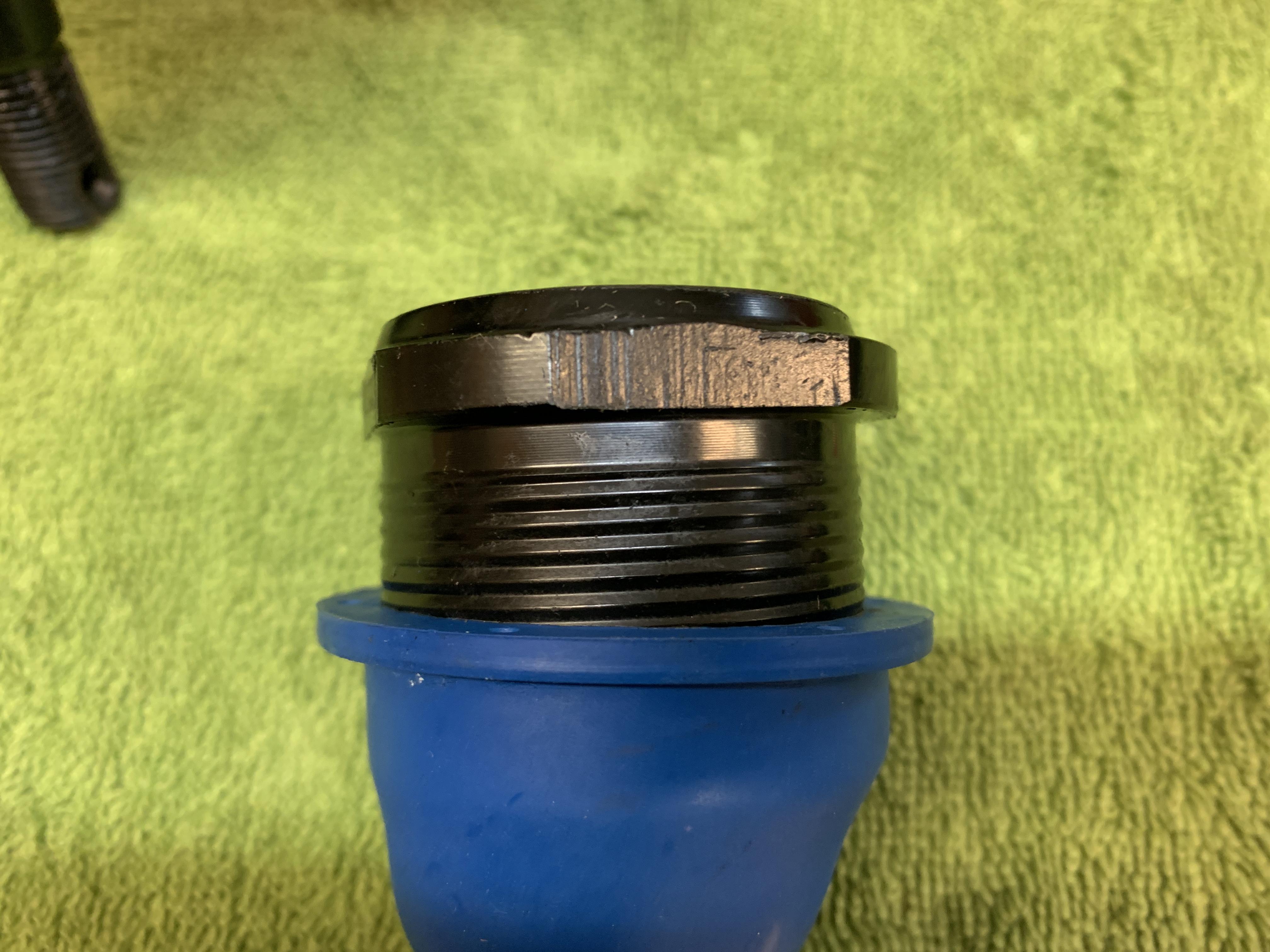

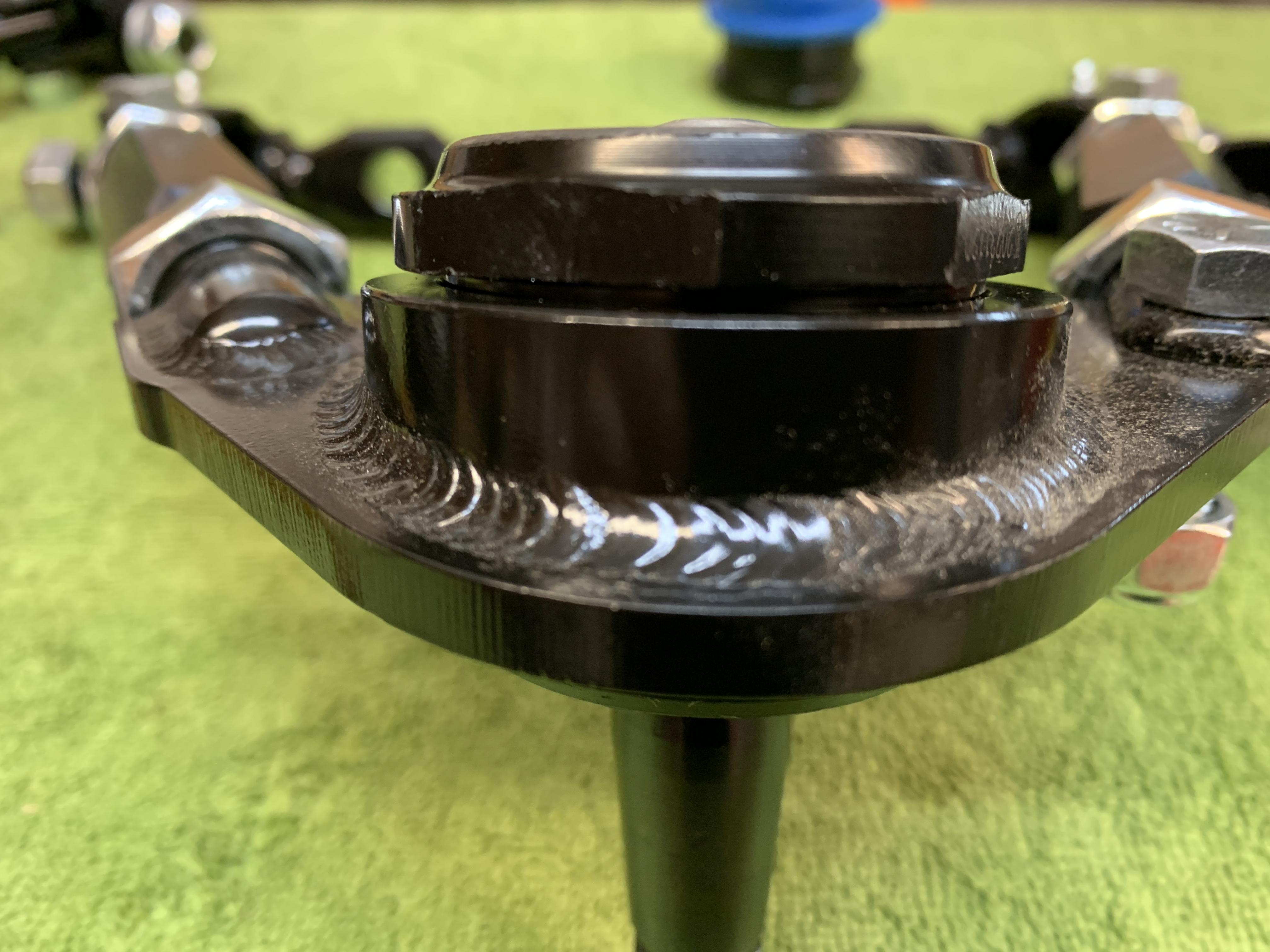

This post is a two parter - first is a question re: seating of the ball joint. I am using the Mevotech FF supplied ball joints and curious if this is as far as they thread in? They aren't threaded all the way to the top so I am assuming this is the case but if someone could please verify I would appreciate. Not sure if you can tell from the picture but the gap is about 3/32. The last 1/8" of the ball joint (towards the top) is unthreaded, smooth metal making it seem unlikely it would thread any further.
Attachment 209910
Threaded in all the way - I think
Attachment 209911
And now to question(s) two. I know many on the forums opt to purchase the Howe Racing ball joints due to a real or perceived issue with threading in the Mevotech units. I like to try and use the supplied parts when it makes sense and in this case I thought it did. I was able to thread in the first one pretty much all the way by hand. No problem, piece of cake. But now on to the second one. 1 to 1 1/2 threads and full stop. No passing go, no collecting anything but barked knuckles. I chucked a wire brush in my Dremel and stripped all the powdercoat/paint from both the control arm and ball joint. Earned maybe an additional half turn. So, my questions are these: is this just ball joint roulette or is there a methodology to getting these things put together? I don't really want to spend $200 on the Howe units but I am also not going to fight these for several hours. If anyone has any insight, learnings or wisdom they can impart, I would greatly appreciate it.

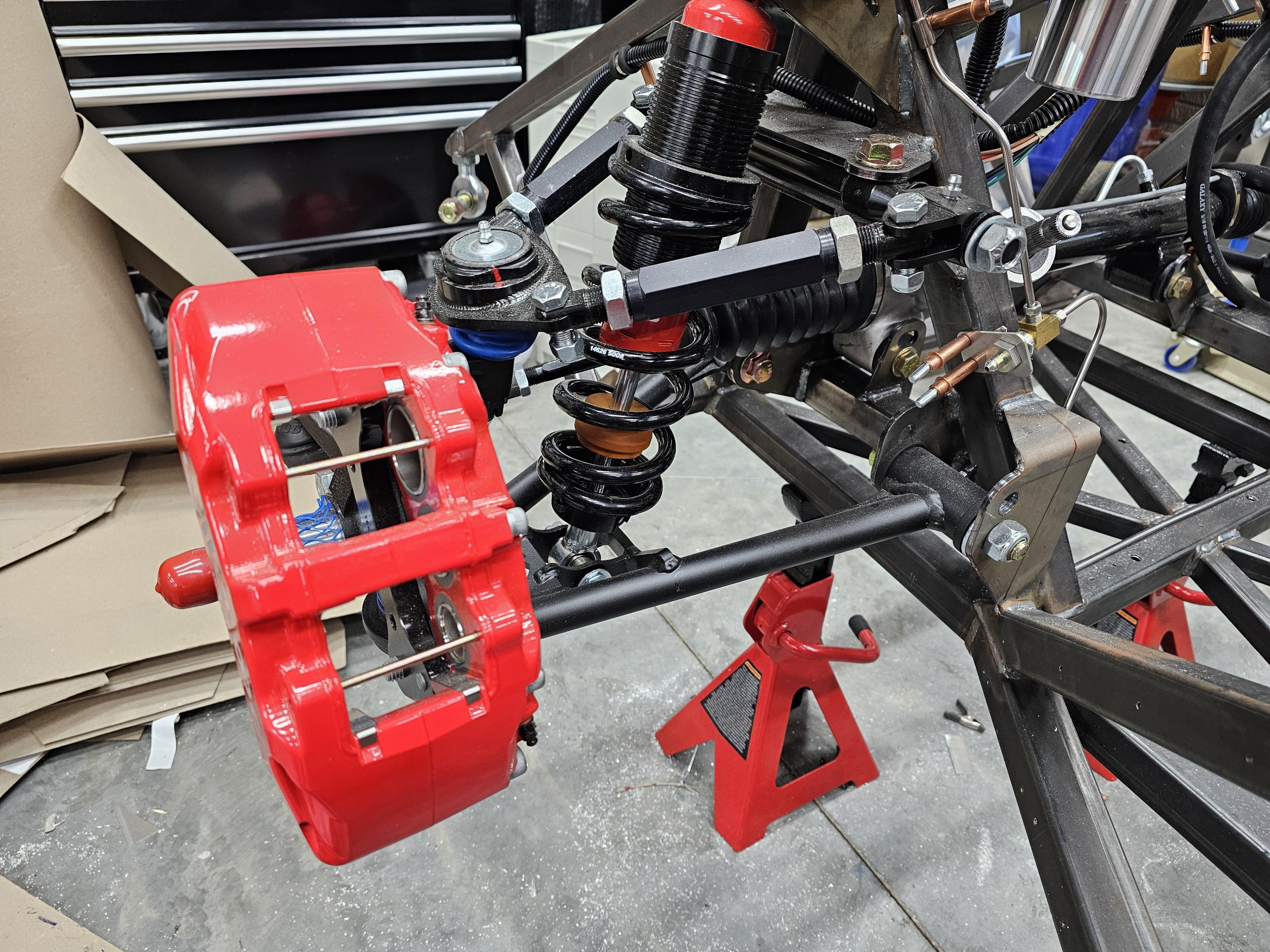

Mine seats all the way.Quote:
Originally Posted by PNWTim
Attachment 209928
I had to put the ball joint in the vice and use the arm to install and seat it, per FFR.
Thanks. I just went back out to the shop and tried the freezer and heat. I got it halfway in but stopped dead. Guess I will keep trying. Might try swapping them side to side just to see if there is any difference.Quote:
Originally Posted by burchfieldb
I would reach out to FFR if you can't get it resolved. I am not sure of the root cause, maybe the threaded part gets distorted during welding? Do you have a machine shop close by?
I am not sure what the issue is but it seems to be fairly arbitrary and random based on the threads I have read. One threaded nearly the entire way by hand, the other went one turn. If I had to guess, both are probably machined to pretty close tolerances with a plus or minus. If you end up with a male and female pair erring on the opposite ends of the ranges they won't go together. I had to walk away yesterday before I launched one over the fence but I am going to try swapping and see if I can split the difference.Quote:
Originally Posted by burchfieldb
Unfortunately, no machine shop close by. I will probably purchase Moog replacements for $40 if I can't get them to go today.
Lol, I know that feeling! Probably for the best if you can't get them to go in, it would likely may it easier to replace later on. I did use the recommend red loctite, maybe that added some lubrication to help it thread in and not bind.Quote:
Originally Posted by PNWTim

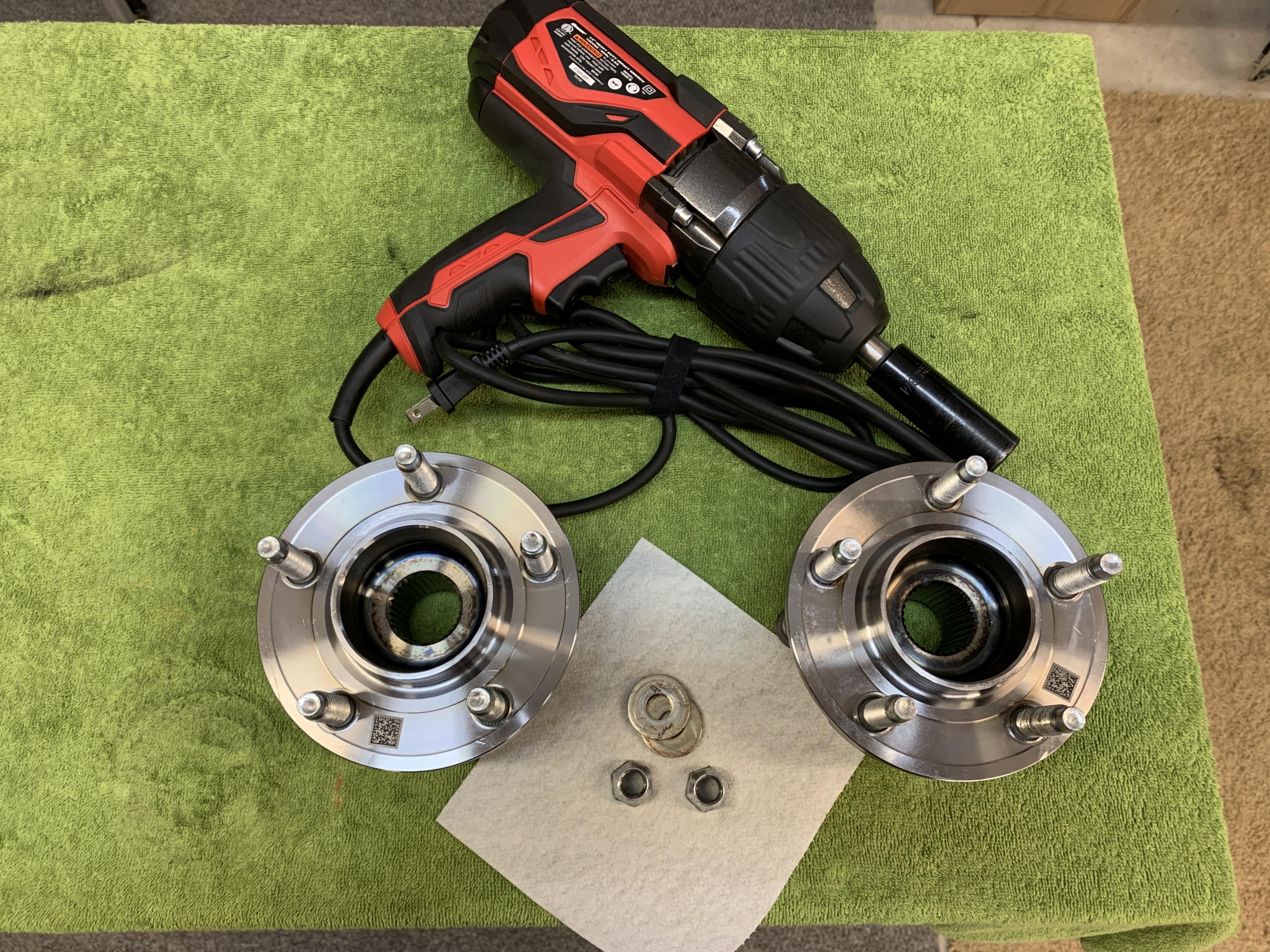

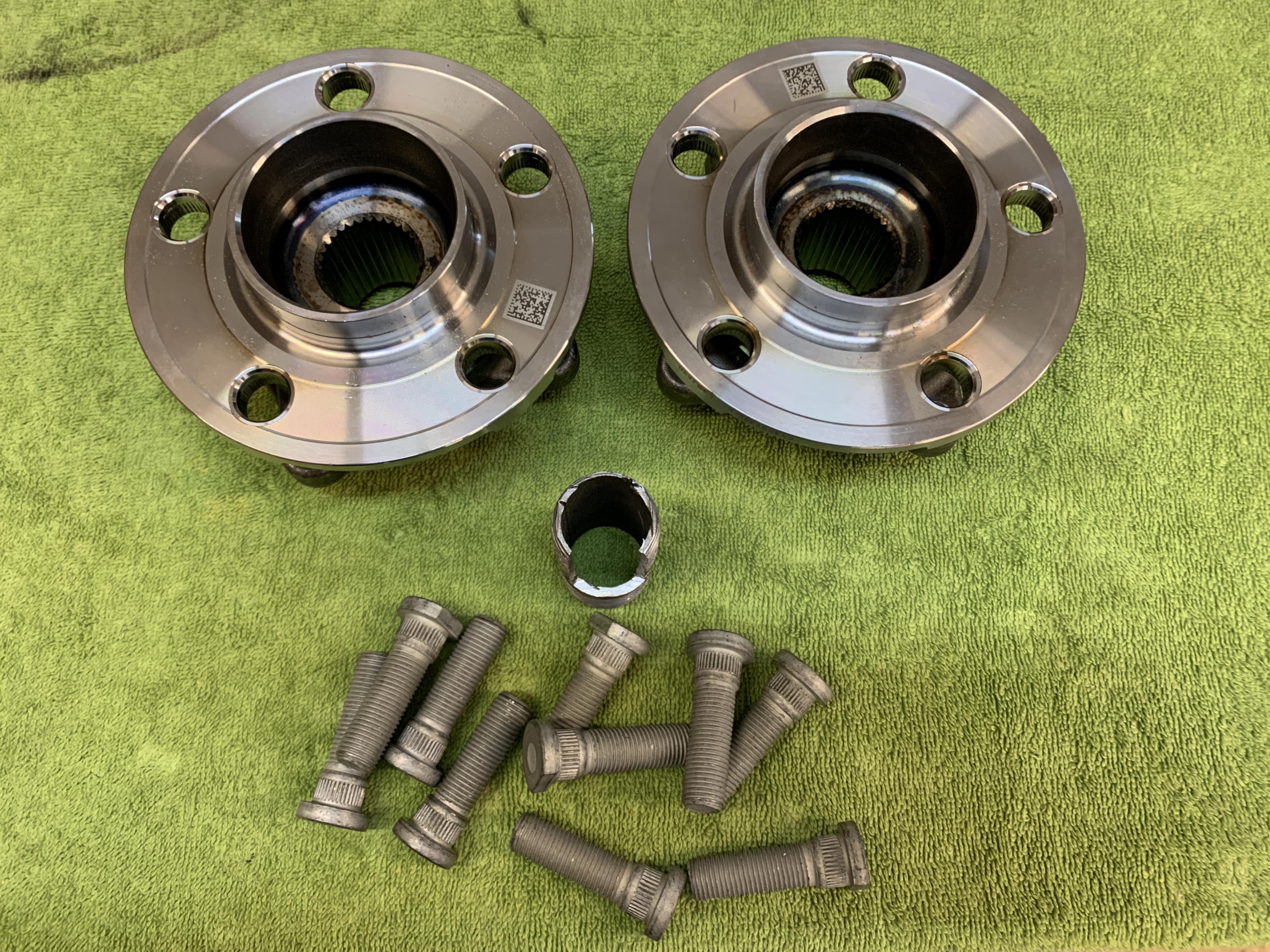

Trying for a quick win after losing the battle with the ball joints. Made a "crib" to support the hub out of 1" black pipe while I drove out the studs. I had intended to press them out with my vise but that was a non-starter for me. Supported the hub on the back anvil of the vice and after a couple sharp raps they popped right out.
Attachment 209988
Ran the new studs in using a couple of extra thick grade 8 washers, grease and two lugs nuts
Attachment 209990
Not terribly exciting but progress is progress.
Before I installed the driver side ball joint I set up a wire brush in a drill to completely remove powder coating from male and female threads. I put red loctite on the threads and started threading the ball joint. It did not just thread right in by hand. Loaded the control arm in the vise and tightened it with a BA wrench until it would not turn. It looked exactly like your unseated ball joint. I was as frustrated as you and went back to work on other shop projects. I needed the drill. I grabbed the drill and realized the new wire brush still looked new. The parts had not been wire brushed and I drove the coating power (coating flakes) into the female threads either galling the thread or creating a thickened red loctite bond. My wife would call that senior moment,"slippage" (:-)Quote:
Originally Posted by PNWTim
I bought another control arm and ball joint from FFR fearing the part was toast. They're down the road and it was a good excuse to visit. Wire brushing the ball joint and control arm allowed the ball joints to twist in with minimal effort.
I purchased a tool a few years ago to remove rusted bolts, Solary induction heater. I put the "damaged" control arm in the vise and wrapped the supplied element around the ball joint and heated it until it started to smoke. That thing actually came out with a bit of effort. Both ball joint and control arm threads were toast.
Thanks Peter. I ordered replacement Moog ball joints today. There are certain things I am willing to futz with but with the track record these things have I just decided I was done with it. I did try switching them side to side this morning but it didn't make any difference. Kind of bummed because I paid for the darn things but I am a firm believer new parts should not go together with this kind of difficulty. I will be very curious to see if the replacements thread right in - I will know Wednesday and report back.Quote:
Originally Posted by Peter Ross
That's a bummer, Tim. I've read about builders encountering this issue for a few years now. Somehow, they went in fairly well on both my builds. But, I did have to use some leverage. I hope your replacements thread right in without a battle.
I know, kind of annoying. I kind of felt like I gave it the old college try too, but no dice. I received the Moog replacements yesterday and they threaded right in so go figure. Like I said previously, seems there is a little "ball joint roulette" going on and I landed on green 00. I even used Erik Treves' technique of freezer on the ball joint and heat gun on the control arm but still didn't cooperate. In the rear view mirror now so moving on. Really enjoying the suspension work, it's like a big erector set (dating myself I know).Quote:
Originally Posted by 460.465USMC
This could be a good question for an Ask Dave Anything episode.Quote:
Originally Posted by PNWTim
Just chiming in to say I had the same problem with the FFR supplied ball joints but the Moog joints just dropped right in.
A couple of questions to the team:

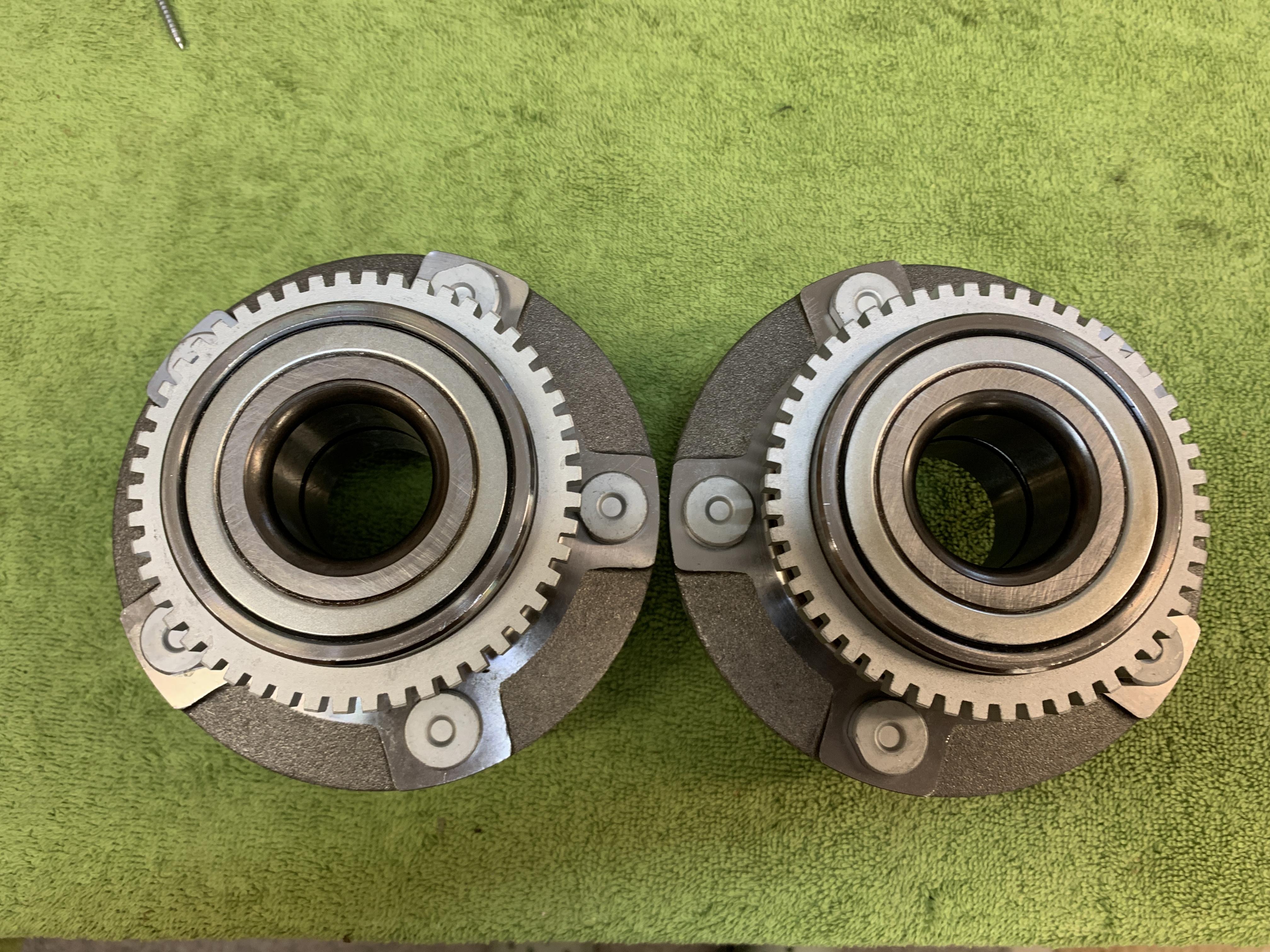

What is the thought or consensus on removing the tone rings from the front hubs?
Attachment 210289
Second question:

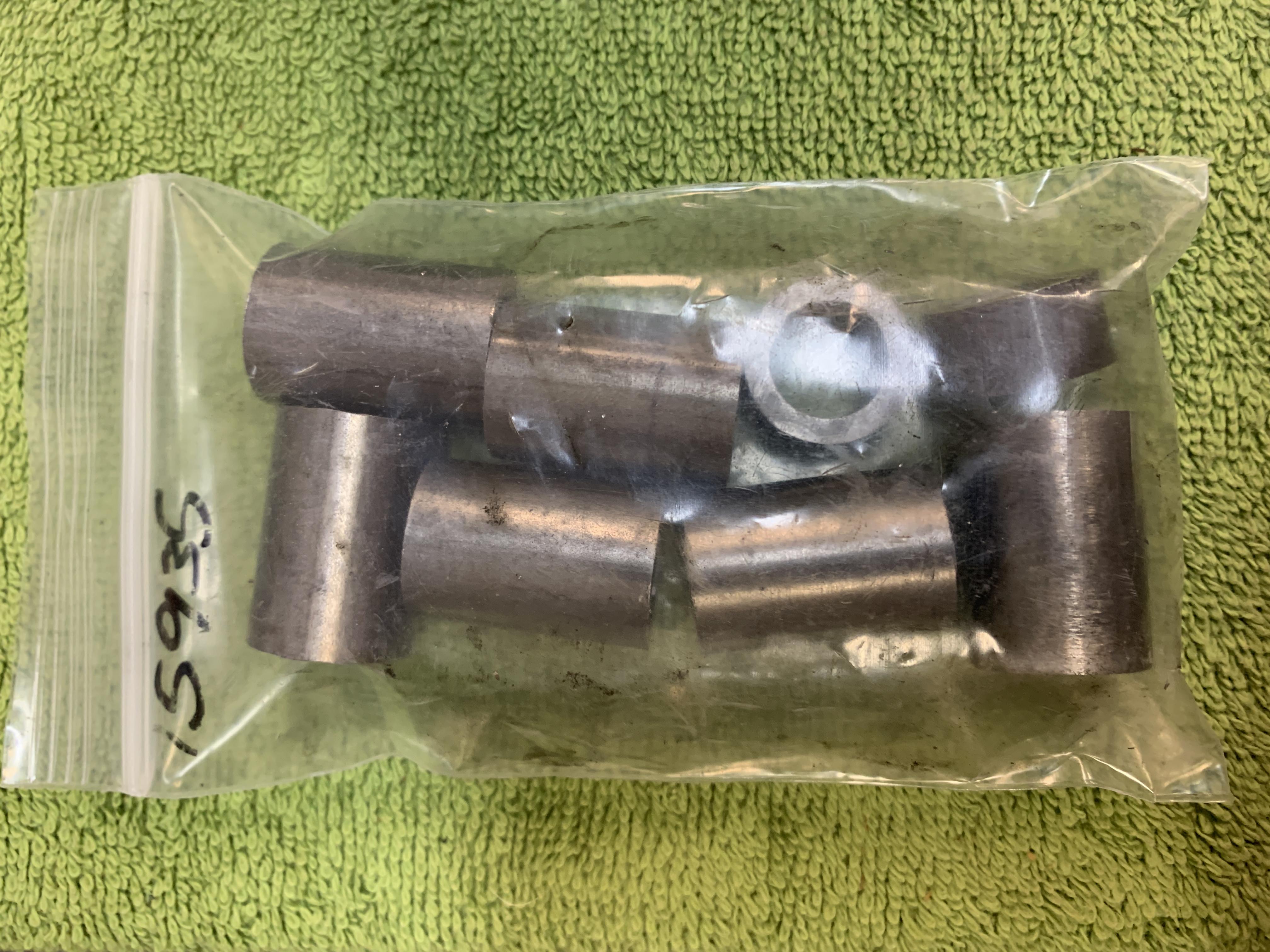

I can't seem to locate the spacers for the front shocks. The only spacers I have (or can find) are in this bag and it was packed the the IRS hardware. They are not 5/8" in length so I am assuming they are for the rear which I have not completed as yet. If someone could point me in the right direction on where to find them I would appreciate it.
Attachment 210290
I pulled the rings off of mine with a puller. I believe my spacers were in a similar small bag, but I put those on quite a while ago.Quote:
Originally Posted by PNWTim
Builder's choice on the tone rings. Unless you're playing with ABS they're just along for the ride. Being the anal type, I remove them. But to be honest, you can't see them once done and they don't hurt anything. The easy way to get them off in my experience is cut a slot between a couple of the teeth with a Dremel cut off wheel. Go pretty deep but (obviously...) not into the hub. Then take a screwdriver that's a tight fit in the slot. A smart rap with a hammer and they will break right off. They're very brittle.
Thanks guys, appreciate the feedback. I will go ahead and remove them since I'm not a fan of parts that are "extraneous". I have a feeling my IFS shock spacers are missing. If they are in another bag like the one I showed they are MIA. They weren't in the IFS hardware bag or the box the spindles were in so I guess I will reach out to FF and see what they say.
I think I am still in my 90 day window and those are not inventoried items (as far as I can tell) so hoping they just shoot them out to me.
So, I seem to be plagued with spacer gremlins. I eventually found my front shock spacers. I was having a brain cramp and mixing up IFS for IRS and lo and behold, there they were in the correct box. Which leads me to my next question. I went to install my spindles today and realized I need the countersunk spacer identified as item 15803. This goes on the lower ball joint to elevate the castle nut enough for the cotter to engage.
I have reviewed all my inventory pages including the sub-inventories for the fastener pack and the IRS (even though they are for the front). Nowhere can I find that item listed. If anyone remembers where they happened to find them I would be much obliged. One would think they would be in Box 26 which is where the lower control arms are located but no dice.
I think my spacers were in one of the hardware packs, box 1?
