Thanks for the kind words. Come on in! The water's fine. Blast to build and amazing to drive. The Coupe is our favorite FFR build to date. Gets a ton of attention everywhere it goes. Even though it's amazing how many people don't know what it is until you tell the story.Quote:
Originally Posted by Tooth
Don’t let the time factor deter you. I work 60-70 hours most weeks and built a roadster. It took 3 years and just completing but I think you’ll find it’ll go quicker than anticipated, especially with good research. Just do it you won’t regret it.Quote:
Originally Posted by Tooth
This is a great looking design! I am just wondering why two wheels on each side of your hood / bonnet closure system?
I have Al plate in hand, and inline skate wheels coming in the mail. Now, the devil is in the details :-)

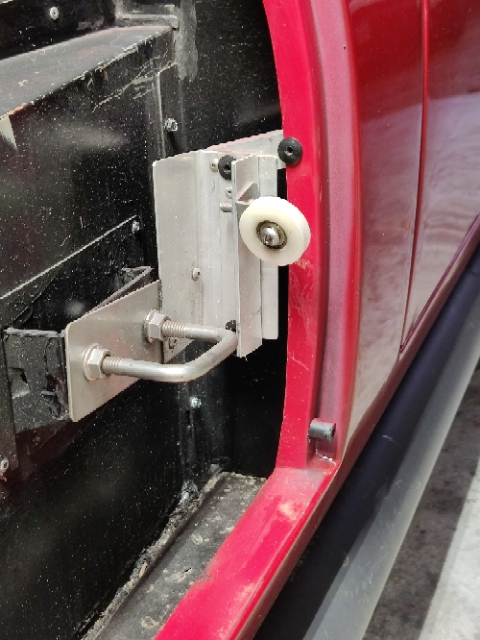

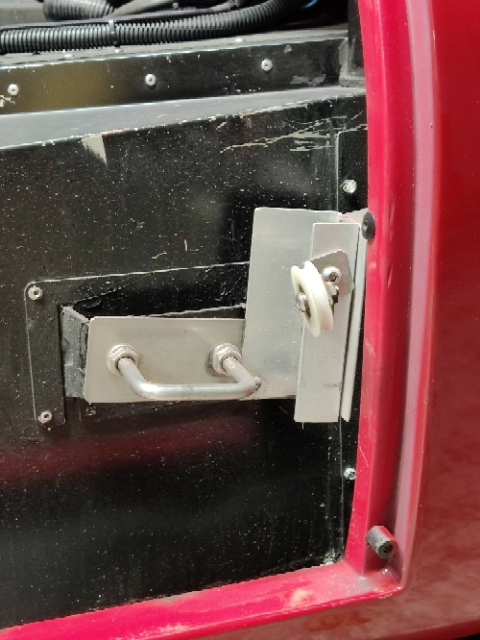

It might work fine with one wheel per side. Just so happened that the idea I kinda sorta copied had two wheels per side so that's what I did. Keep in mind the wheels not only guide the hood when opening and closing, they also maintain the alignment at the bottom on both sides. Having two wheels gives that much more support. No downside in my opinion.Quote:
Originally Posted by LateApex
Hi Paul. do you have the demensions posted for your Hood Roller Brackets? I would like to make them while I have the Body off my Gen 3 Chassi.
I posted a tracing of the prototype pieces I still had around at the time. With a 6" ruler in the picture. This should be enough to duplicate them. https://thefactoryfiveforum.com/show...l=1#post400154.Quote:
Originally Posted by B Campbell
Howdy! I run a fabrication shop in South Jersey, and we make a lot of things out of aluminum, mostly for the military. 6061 is a stronger alloy with higher tensile strength than 5052, but it's much more proned to cracking, especially as thickness increases, (1/8"+) and/or if too tight of a radius is used on the forming dies. Also forming a 45° for instance you can get away with on 6061 but trying to bend a tight 90° you run the risk of cracking. Annealing the bend area is another trick you can use to form harder alloys, but your effectively reducing the tensile strength in that area which raises the question, why use such a hard alloy in the first place. Anywho, most of our aluminum that needs forming is 5052 and the rest that's only sheared/punched/machined but not bent is 6061. At 0.040" thick though, i think you can bend just about any alloy of aluminum without issue, but since your box isn't a structural part, i would have chosen 5052 for easier working. BTW, thank you for your incredible documentation of your build. I know I'm a few years late to the party, but it's a tremendous resource you've put up here. Thank you!
Factory Five uses 6061 exclusively for their kits. Mainly .040" and bend multiple angles up and and in some cases beyond 90 degrees. I've not experienced or heard of any issues with cracking with their parts. Clearly they know what they're doing. As far as the parts I've fabricated, I use what material I can get my hands on. Sometimes 6061. Other times 5052 from a local metal supplier. I am aware of the limitations and take necessary precautions. Having said that, the few parts I've fabricated (storage box, instrument panel switch box, glovebox, etc.) are not structural so no worries. Not my first time around this stuff. Since this build thread was posted, I've acquired a Woodward Fab box break, so have even a better handle on this. Glad you appreciated the build thread.Quote:
Originally Posted by CB_83
Any idea where to get the part numbers for the vacuum connectors? Need to see exactly where to hook them up.
Looking at this guide wheel and bracket you fab'd, which obviously works just fine, it looks to me like a simpler solution would be a 90 degree bracket that would bolt on with the latch u-bolt, outside of the inner aluminum panel, looks to me like an easier way to do it.Quote:
Originally Posted by edwardb
If you make set like that, please make another set for me - or share the CAD file!Quote:
Originally Posted by Ltngdrvr
Thanks,
Dave
Gen III #17
Quote:
Originally Posted by Ltngdrvr
I never claimed my solution was the only way. As mentioned, mine is loosely based on versions I saw for previous gen Coupes. I don't see any reason why using the hood latch U-bolts wouldn't also work as an attachment point. Probably needs to be from steel versus the 1/8" aluminum I used. There's quite a bit of stress pushing against the wheels. Not sure a 90 degree bend in aluminum would be stiff enough. You would need to make sure you're offset far enough from the latch mechanism in the hood. It's obviously necessary for the wheels to be rolling on a smooth interrupted area of the hood underside. You'll also need to build in some way to adjust to get the wheels in just the right place. Someone suggested to put slots where the wheels attached. At least for the wheels I used, that wouldn't work. When tightened enough to not move in a slot they wouldn't turn. So I have slots on the inner part of the bracket and easy to adjust there by sliding the whole assembly.Quote:
Originally Posted by Dave Tabor
https://hosting.photobucket.com/imag...720&fit=bounds
Just went thru your pics
this car and all your builds are beautiful
Hi Paul,
If you wouldn't mind, could you provide me the correct P/N and source for the Eibach 1" wheel spacers?
Thank you,
Tim
Mount Dora FL
Tim, Follow this link. It is an album I have started that lists custom parts and tools, where to order them and what I paid for them. Most of these I also got from Pauls builds. Hope it helps.
https://thefactoryfiveforum.com/album.php?albumid=2045
They're Eibach 90.4.25.010.3 Pro-Spacer Wheel Spacer Kit, 25mm (1 inch), 70.50mm diameter, 1/2-20 thread size. Also pictured in Namrups gallery (nice, BTW). I bought them on Amazon four years ago. Looks like they still may have them available. But showing not available lots of other places. For my truck build, also needed 1 inch spacers and couldn't find the Eibach ones anywhere at that time. So did some looking and ended up with Coyote brand WHSP24 5450-5450-A, 6061 Billet Aluminum, Black Anodize, 5x4.50 - 5x4.50, 1.00", HC 70.50m, 1/2-20 thread size from CJ Pony Parts. I don't know that they're quite the quality of the Eibach ones. But about half the price and still hub centric. I'm more than happy with them as an alternative.Quote:
Originally Posted by mtdr
All, incase the Eibach spacers are hard to find. I ordered a set of these from Amazon and they arrived yesterday. Look to be a decent product and fit the hubs fine:
https://www.amazon.com/GAsupply-Cent...ct_top?ie=UTF8
mark
Not sure I've mentioned here. But have on other threads. Last August, while out cruising with our son, took a large rock or whatever off the windshield at the top driver side corner. Was a pretty sickening sound... Not long after, a crack started down from the divot left by whatever hit us. Ugh. I have glass coverage on my insurance, so cost wasn't a big concern. But sure wasn't looking forward to the effort required to remove and replace. No regular commercial shops, at least around here, will touch this. And I'm not sure I'd want them to. After looking at several options, went ahead and ordered a replacement from Factory Five. It's a 1986 Jaguar XJS windshield. Based on the brief research I did, not widely available plus I didn't want to risk not fitting. So placed my order with FF. Took a while to arrive. But didn't matter because I was able to drive the car the rest of the season and planned for it to be a winter project to replace. Today (finally...) it's done. I'm very fortunate to have a fellow club member who was in the OE automotive glass business. He's retired, but still helped along with a co-worker who's still at it. The same two guys that helped me install the glass during the original build. Of course this time had the added effort of removing the old one. Which was interesting to say the least. I know very little about this kind of thing. So tried to help and learn but mostly stayed out of the way. I won't describe the entire installation process since I did earlier in the build thread. But two takeaways. Beyond just avoiding those Michigan rocks or road hazards in the future. :p
1. I chose to use the Flexline UM1913BR 19mm trim rubber on the original build. I liked the cleaner look plus the windshield doesn't have polished edges and the fit in the body is slightly uneven. So made that decision early on. Well, that made removing the windshield quite an additional chore. The guys used a system that puts a wire around the perimeter of the windshield and then a winding mechanism on the inside that pulls the wire through the adhesive. Freeing the windshield. Bunch of YouTube videos showing how this works if you're interested. We had to cut the trim rubber off and out of the groove (as much as we could...) in order to get the wire down where it needed to be. Wasn't that hard. But stressful working around the painted body with sharp instruments. Plus there's gooey black butyl in the groove of the trim rubber that gets everywhere once you start cutting into it. What a mess! But got it done with no visible damage and finally got the windshield out.
2. The curve of the original windshield didn't match the curve of the body quite right. When set in place, was 1/2" or more high on both ends. Required it to be strapped down to get it to fit. Multiple other builders noted the same thing. So not unique to my build. Once the old windshield was out, checked the fit of the replacement. It was much better. Within 1/8" or maybe a little more and could have probably been taped down if I wasn't using the rubber trim. Don't know if FF changed something with the supplier. The replacement windshield has the same DOT code as the original. So from the same mfg. I know this windshield is from a recent shipment. So at least a couple years newer. Or maybe the fiberglass body had moved/changed and is now more conformed to the windshield. Bottom line a lot better. Once everything was cleaned up and the old urethane cut out of the opening, masked and painted the frit on the windshield with the same Dow Black Betaprime 5504G as used before. Installed the new rubber trim, put a V-bead of Dow Betaseal U-428 Plus adhesive around the opening, and pushed the new windshield into place. Strapped the windshield down the same as before, but didn't have to use nearly as much pressure. Actually pretty light. Mainly was necessary to get the rubber trim to drop down into place. It just barely fits. I let it cure for a couple days as suggested and today removed the straps and put everything back together.
Summary: If I ever build another Coupe, I will probably not use the trim rubber. It complicates the installation. If you're unlucky like me and get to replace the windshield, makes that process more complicated too. I briefly considered not using it on the replacement windshield. But I was already committed plus the cut-out of the windshield didn't do any favors to the perimeter of the body that's covered with the trim in place. I for sure won't be using any on the front and rear glass of the truck build I'm working on now.
That's it. Now let the driving season begin.
https://thefactoryfiveforum.com/atta...2&d=1648671887
https://thefactoryfiveforum.com/atta...3&d=1648671887
Super nice result though, Paul, after all the work. I had a question, you mentioned the first windshield being quite a bit off as to meeting the body and about strapping them (old and new) down. When this is done, are you actually bending the windshield to fit or is it pushing the rubber down in the middle so the edges fit, or what? I can't imagine the glass bending to fit, plus then it would be under stress to pop out... so there must be something I'm not understanding about it.
Thanks for the terrific write up and pics.
The windshield bends, and the adhesive is very strong.Quote:
Originally Posted by James Morse
You'd be surprised how much the windshield will flex.
Quote:
Originally Posted by James Morse
What he said. The windshield bends. As I think everyone knows, it's safety glass so two rather thin layers of glass with plastic between. Total thickness is under 1/4 inch. So relatively flexible. And that urethane adhesive, properly applied with primer, etc. is amazingly strong. But on the original installation, with or without the rubber trim, something was needed to seat the windshield on the ends until the adhesive cured. Thus the straps and padded blocks. Others doing builds at the same time were doing the same thing. That's where I got the idea. The replacement windshield was close enough that it probably could have been just pushed into place and taped were it not for the rubber trim. Hopefully guys doing new builds will have a similar fit. It's easier and a lot less stressful.Quote:
Originally Posted by Ltngdrvr
edwardb I'm getting ready to remove my body off my coupe r and with all those extra bars i worry about cracking the fiberglass any suggestions thanks james
i sent you a private message also
This build isn't an R Coupe. I haven't even seen one in person. So pretty hesitant to offer advice for something I have no experience or knowledge of. Just looking at the chassis pictures on the FF website, looks like the main bars affecting the main body shell would be the added bars across the door openings. But again, that's just an observation. Not advice. I will tell you the bodies in general are more flexible than you might think and within reason not prone to cracking. Keep in mind the guys at FF that prepped your kit for shipping dropped it on there. Mainly I would suggest to have as much help as possible so you can lift and spread it as evenly and carefully as possible. Also, if you have a powder coated frame, might want to have some towels and/or rags available to pad the chassis when taking the body on and off. Keeps from scratching things up.Quote:
Originally Posted by jamminj
i knew yours wasn't a type r but i appreciate any input
thank you
unfortunately, it came all scratched up they chewed it up putting the aluminum panels in but i will try my best not to make it worse
body is off wow lots of flexing
Paul,Quote:
Originally Posted by edwardb
I am working on planning my build, while I wait for my kit to arrive, what made you use the Breeze 3-turn Unisteer power steering rack vs the one from Factory Five?
Back when I did the 20th Anniversary Roadster Factory Five either didn't have a PS rack or were just offering it. Don't remember. Based on several recommendations, I purchased a Unisteer (Maval Industries) rack from Breeze. Was very happy with it so just duplicated that same rack on the Coupe. It's a moot point though, because Breeze doesn't offer it any more. Mark recommends a new rack from BBB Industries (a buddy just talked to him) but doesn't sell them. Many use reman Fox Mustang racks from their local parts stores. Cheap and lifetime warranties typically. Some have good luck with them. Some not. Of course the PS rack Factory Five offers is certainly an option. I personally don't have any experience with them though. There are other high-end racks, like Flaming River, but no experience with them either. Multiple choices...Quote:
Originally Posted by burchfieldb
Good to know, thanks for the knowledge.
Hi Paul -
You probably have had as many comments or questions on this design point as you can stand. Here is one (or two) more. BTW, this is all because you have a great design here :-)
1) Why two wheels? As opposed to one? I am thinking that with the locating pins at the fore of the pontoons, once one gets the bonnet lip past the U-joints, maybe a second wheel is not needed, as the pins help? Did you find that because of the slight flair or the bonnet, a little more support from the bottom wheel helped?
2) I believe I saw a comment you made on this topic concerning the amount of pressure on the wheel as motivation for affixing the aluminum strut (if you will) to the rear surface of the U-bolt bracket/support feature. I am considering using the U-bolt support as the mounting base for an L-shaped strut that has a 90-degree bend, where the wheel (or wheels) can be mounted aft of the U-bolt. My thinking is that the "L" plate can be shimmed with lock nuts on the U-Bolt to give the adjustment or pressure needed on the bonnet.
I am wondering what your thoughts are concerning use of one wheel, and/or use of an L-shaped wheel mounting bracket. Was this an option you looked at?
I am getting my body back from painting in a week. Working on these last bits of fitment :-)
Thx in advance!!
... Bob
Hi Bob. Thanks for the shout out for the design. But truthfully it's my take on a similar design Whitby's offered for the previous generation Coupes. Which they attribute to Don Vaught. There's no longer a picture on their website however. Those Coupes had a different design for the U-bolt attachment. So I changed the design somewhat to bolt them to the side of the Gen 3 U-bolt mount as shown. I found the U-bolt adjustment is relatively critical (and sensitive) to the alignment of the cowl (bonnet, hood, whatever...) so I didn't want to mess with that to adjust the rollers. That led me to keep the mounting separate from the U-bolt. Again similar to the earlier design. Having said that, no reason to think this is the only way to do it. I suspect what you're describing would work. A single wheel likely would work as well. After all, it's mainly just replacing one bumper. But the location would need to be right. High enough to catch the cowl as it's coming down and position for the alignment pins in the pontoons. And low enough to keep the cowl properly aligned to the body, e.g. replacing the lowest bumper that was removed. Again, I was adopting another design that used two wheels on each side, and to be honest never questioned that aspect. Good luck with yours.Quote:
Originally Posted by LateApex
Since the skirt of the hood 1. Bowed and 2. Does not come down vertically, but in an arc.Quote:
Originally Posted by edwardb

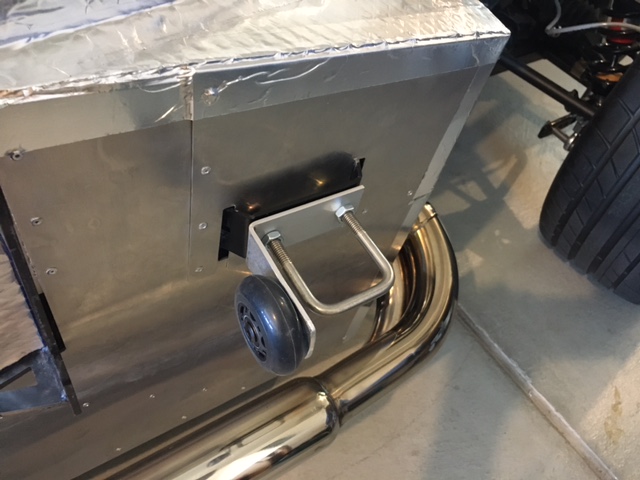

I made a simple setup which is adjustable and allows the roller (a shower runner) to be set to the arc of the descending hood skirt......from some aluminum I had lying around.
Was going to re-make to be more visually "pretty" but it works so well, I have never got around to it.
Attachment 170098
Attachment 170099
Thanx guys !
I'll post a couple of photos when I get my bracket dialed in :-)
Hey Paul!
I know this is from years ago - but could you expand a bit on how you mounted the 3rd brake / LED brake light in the rear spoiler? Is your mounting setup glued to the inside of the spoiler in some fashion? I can't tell from your pictures how it's secured.
Love the finished look!
Thanks
Rian
The bottom of the spoiler is wide enough that it can go in from there and allow the visible cutout to match the outline of the light. Since I wanted it basically flush with the outside, bonded base studs (like these https://www.mcmaster.com/97590A561/) to the inside and then extended the mounting over with small aluminum pieces with nutserts. With this, the light just fit through the bottom and is suspended in place with its mounting bolts through the fixture itself. I'm also very happy with how it turned out. It's relatively subtle when not lit. I like how it has low intensity along with the running lights. But then very bright when braking. The FF supplied LED's for the balance of the lights are also very bright. No one ever complains they can't see my intentions while driving. Visible in this brief video I made during the build, in case you didn't see it. https://www.youtube.com/watch?v=AAzI1ulTMV8.Quote:
Originally Posted by Rian_Colorado
This post from earlier in the build thread shows the inside and what I did: https://thefactoryfiveforum.com/show...l=1#post367203.
Hi pal do you have a link to your build thread for this please :cool:
For the entire Coupe build? You're in it... On page 27. Hit the "First" button at the bottom RH of the screen to go to the beginning.Quote:
Originally Posted by orangecruz
Or something else? :confused:
As promised ...Quote:
Originally Posted by LateApex

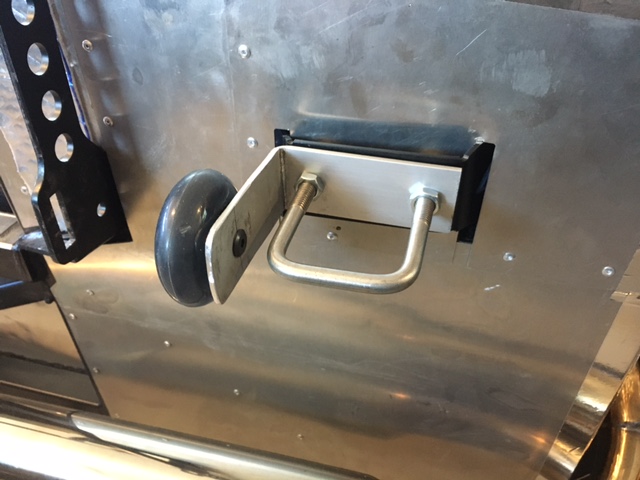

Here are two photos of my design:Attachment 171229Attachment 171230
It is simply aluminum sheet stock beaten into an L-bracket and drilled to mount with the hood clasp U-bolts. I eyeballed the location of the skate wheel, and I can shim it as needed with washers or jam nuts (at least outward, which informed my wheel mounting point). I'll take this off, paint the bracket and use a little Loctite on the wheel mounting bolt. There are a couple of nylon washers in the stack to help the wheels roll - hah!
Cost is approximately $0. The design principles are "Use what you already have when you can", "Keep it simple" and "Don't aim for too much precision." These guide rollers get the bonnet into "the neighborhood", where locating pins and clasps take care of the precise alignment.
Hope this helps ...
Paul,
Thanks for the descriptive on the battery wiring. Very helpful.
You say the 'switched' side of the battery cutoff side - how do I tell which side is which on the provided FFR battery cutoff switch? (for some reason couldn't add an image to this reply). It's just a switch - so does it matter which side gets the hot battery connection?
Also, you used a bus - are there issues with just stacking the 3 red Ron Francis connectors onto one side of a battery cutoff switch?
I interpret the switched side as the backside of the switch, which routes to fuses. As opposed to the hot side of the switch which is fed 12V from the battery (perhaps via the starter post) As you note, the switch itself cares not which post you connect to :-) Hope this helps ...
Yes, that does help - thank you!Quote:
Originally Posted by LateApex
