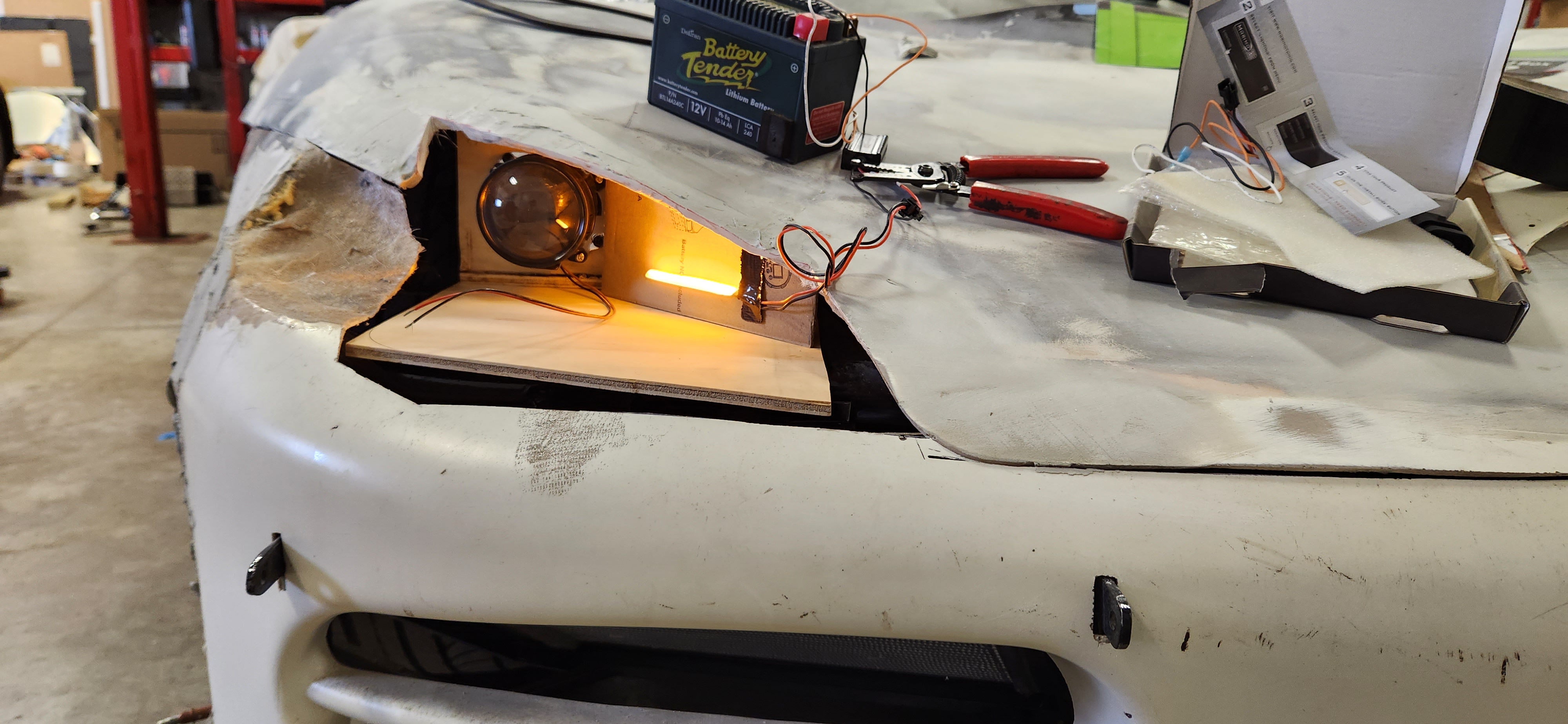

These are a nice pair of Morimoto switchback LEDs, I think I have the contents of the bucket finalized. Just need to finalize the internal and external shape of the headlight, CAD it, and print.
Attachment 191630Attachment 191631
Printable View
These are a nice pair of Morimoto switchback LEDs, I think I have the contents of the bucket finalized. Just need to finalize the internal and external shape of the headlight, CAD it, and print.
Attachment 191630Attachment 191631

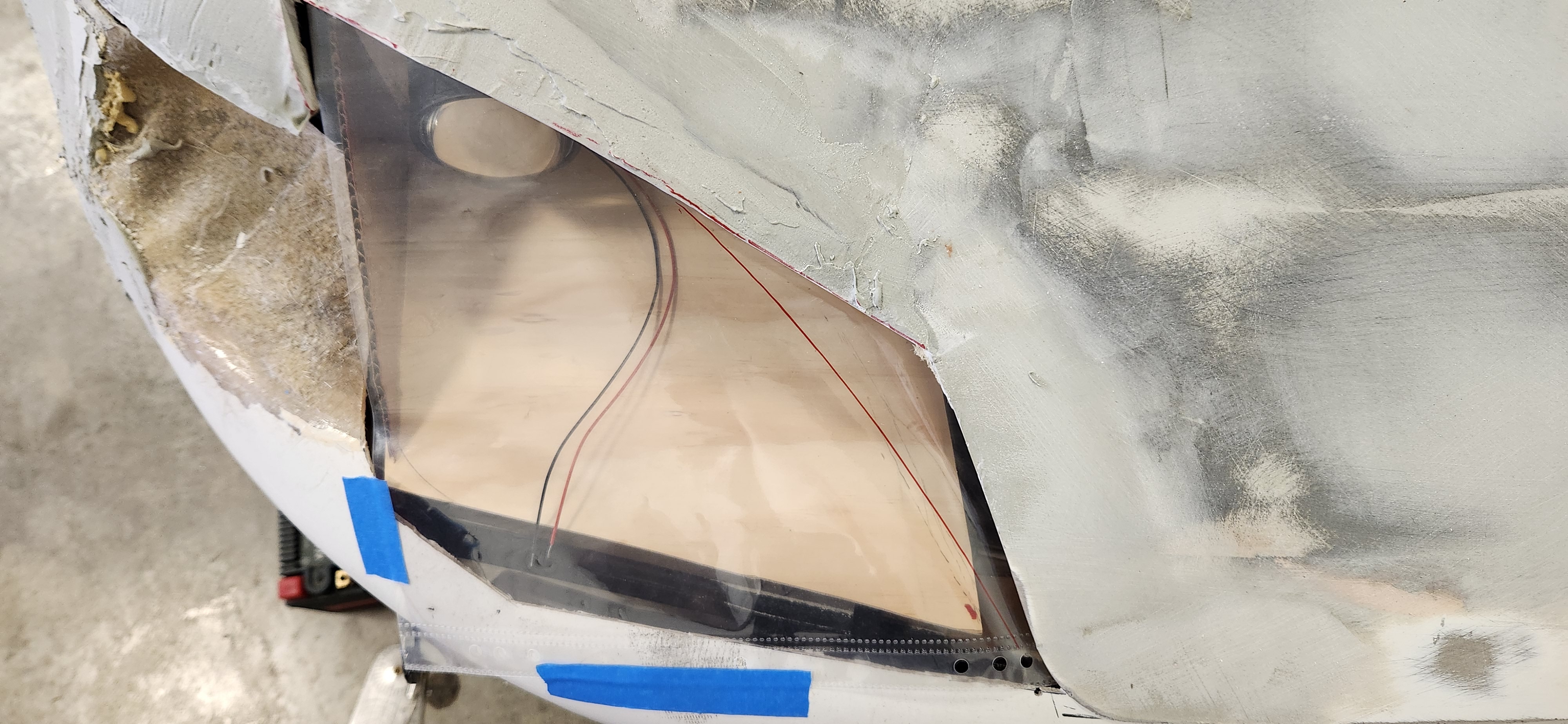

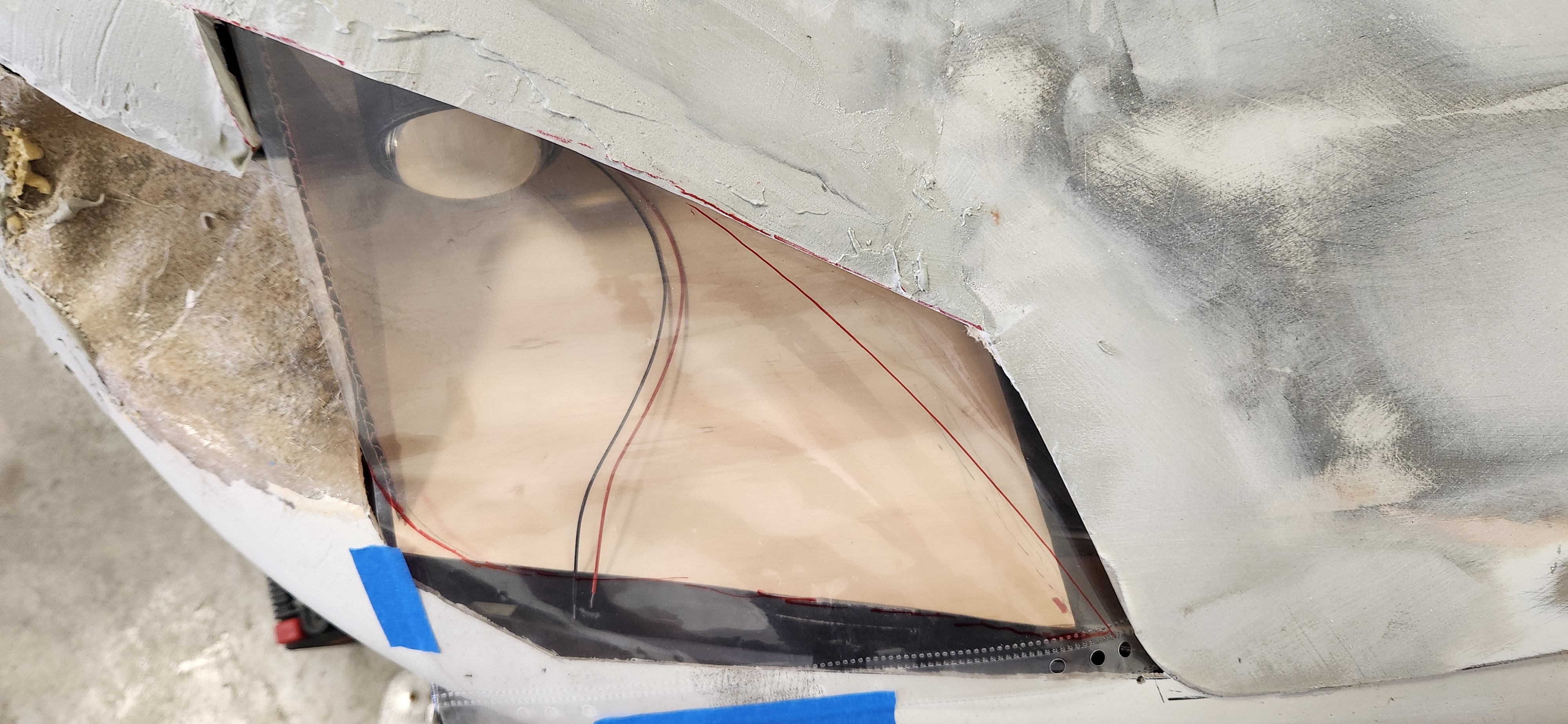

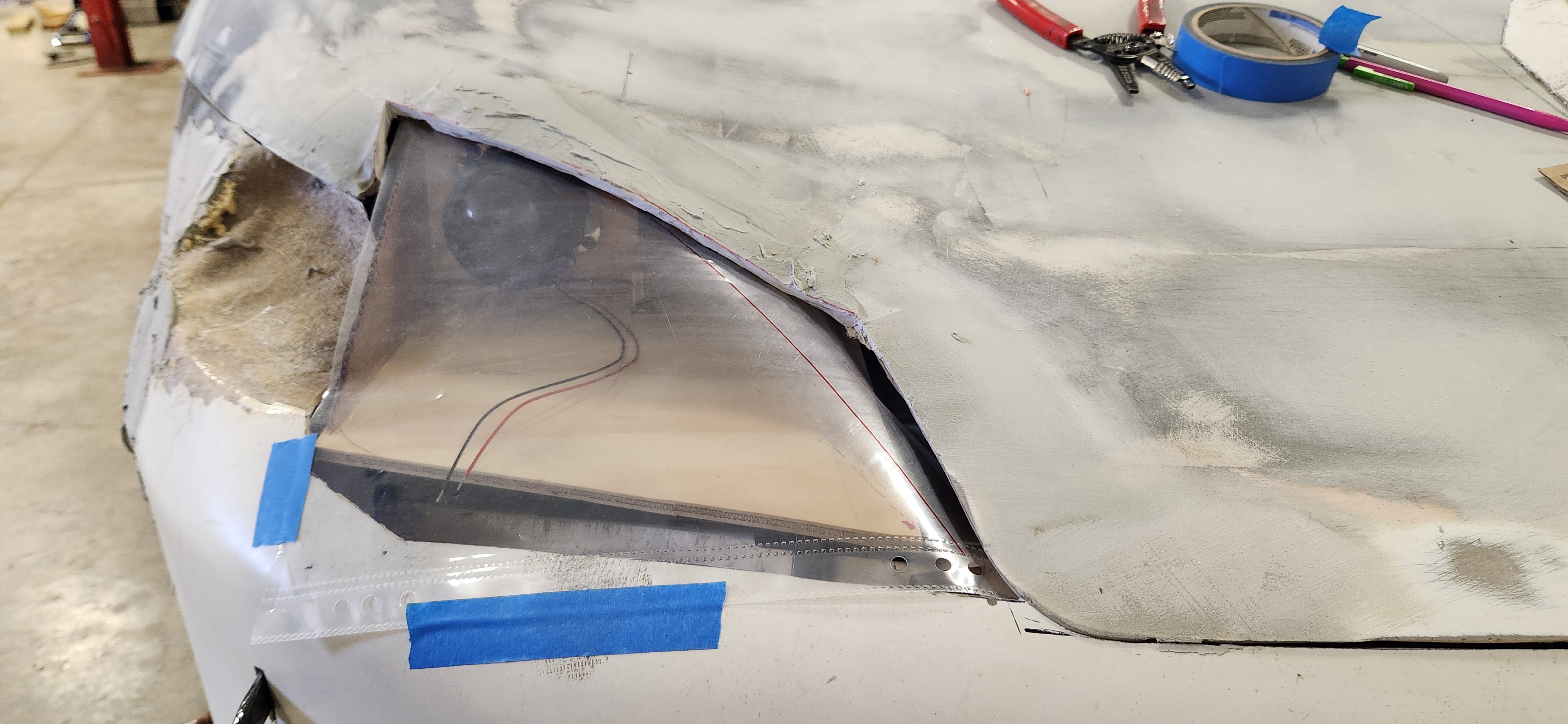

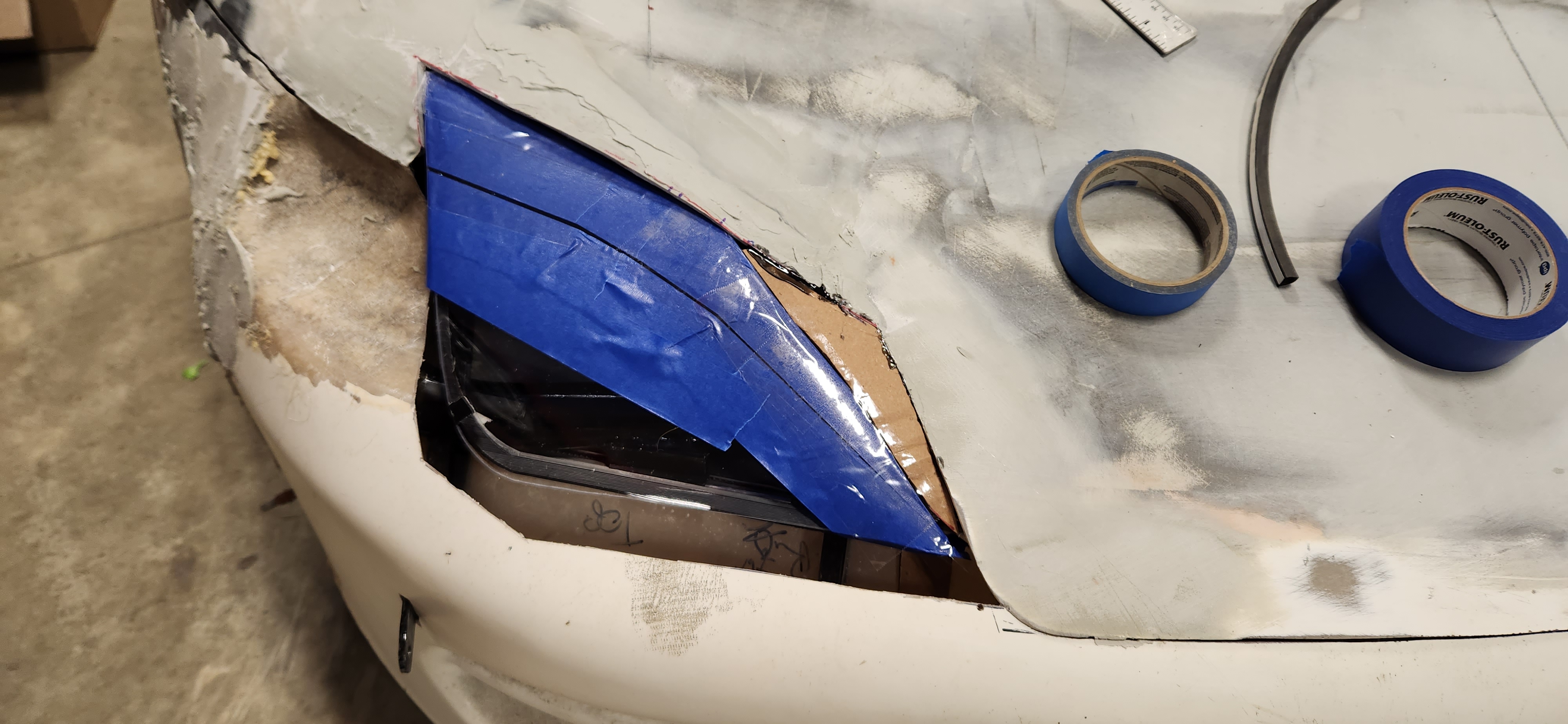

Clear plastic sheet to get an approximate lens shape. Acrylic arriving in 2 days, will hopefully have a buck ready to heat form the lens. Time to start some CAD.
Attachment 191633Attachment 191634
Attachment 191635
I assume you have made headlight covers before and know about the preheat cycle?
I have not, but my understanding is that preheating is required for Lexan, but not for Acrylic. That's the only reason I am going with Acrylic, even though it's not as ideal as Lexan (although Acrylic has great properties as well).Quote:
Originally Posted by crash

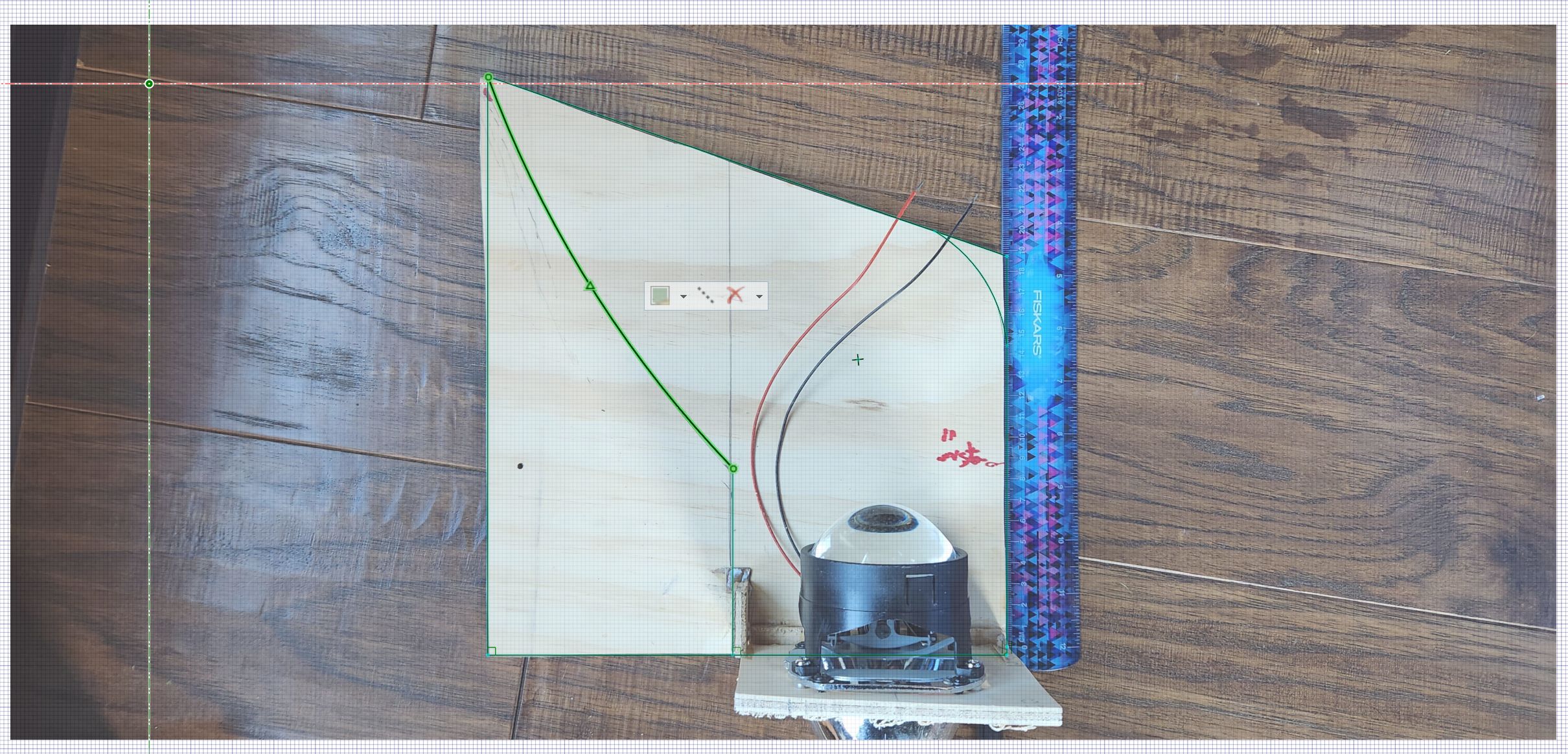

Design your part out of whatever material you are using. Take a photo of the part with a ruler adjacent to it. Import the photo onto your CAD drawing 2D grid. Adjust the size of the photo (lock your photo aspect ratios first or you will skew it) until the ruler matches your CAD measurements, i.e. 50mm on your photo ruler equals 50mm in your CAD measurements. in other words, resize photo, measure with the CAD program's line or ruler tool, repeat until you get it right. Then it's simply tracing over the photo on your 2D grid, then using your part measurements (use a ruler or calipers) to transform it into a 3D part. Although complex geometries get a bit difficult to coax into 3D for someone like myself who uses CAD about once every couple of years...
Then it's off to the printer!

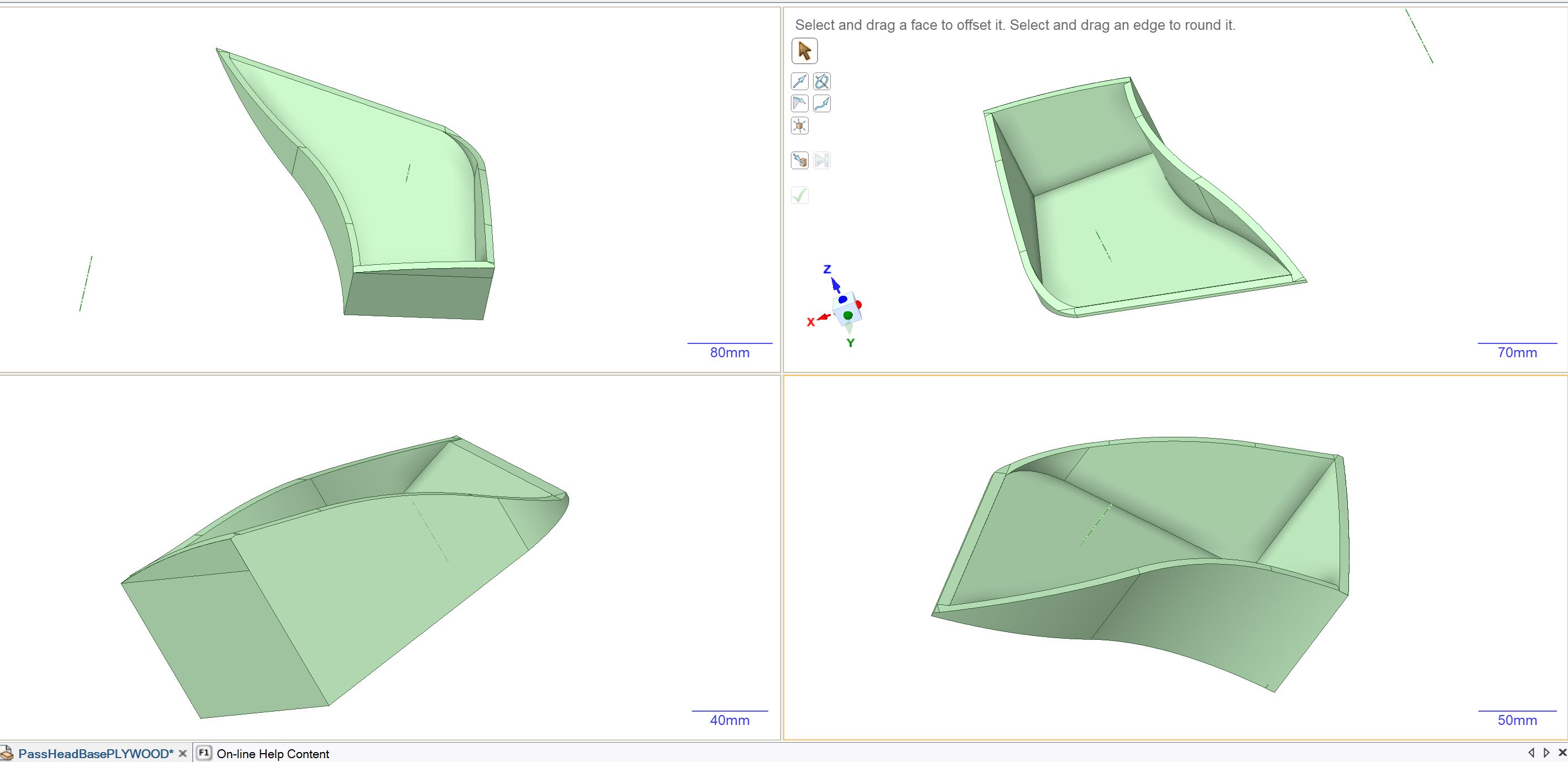

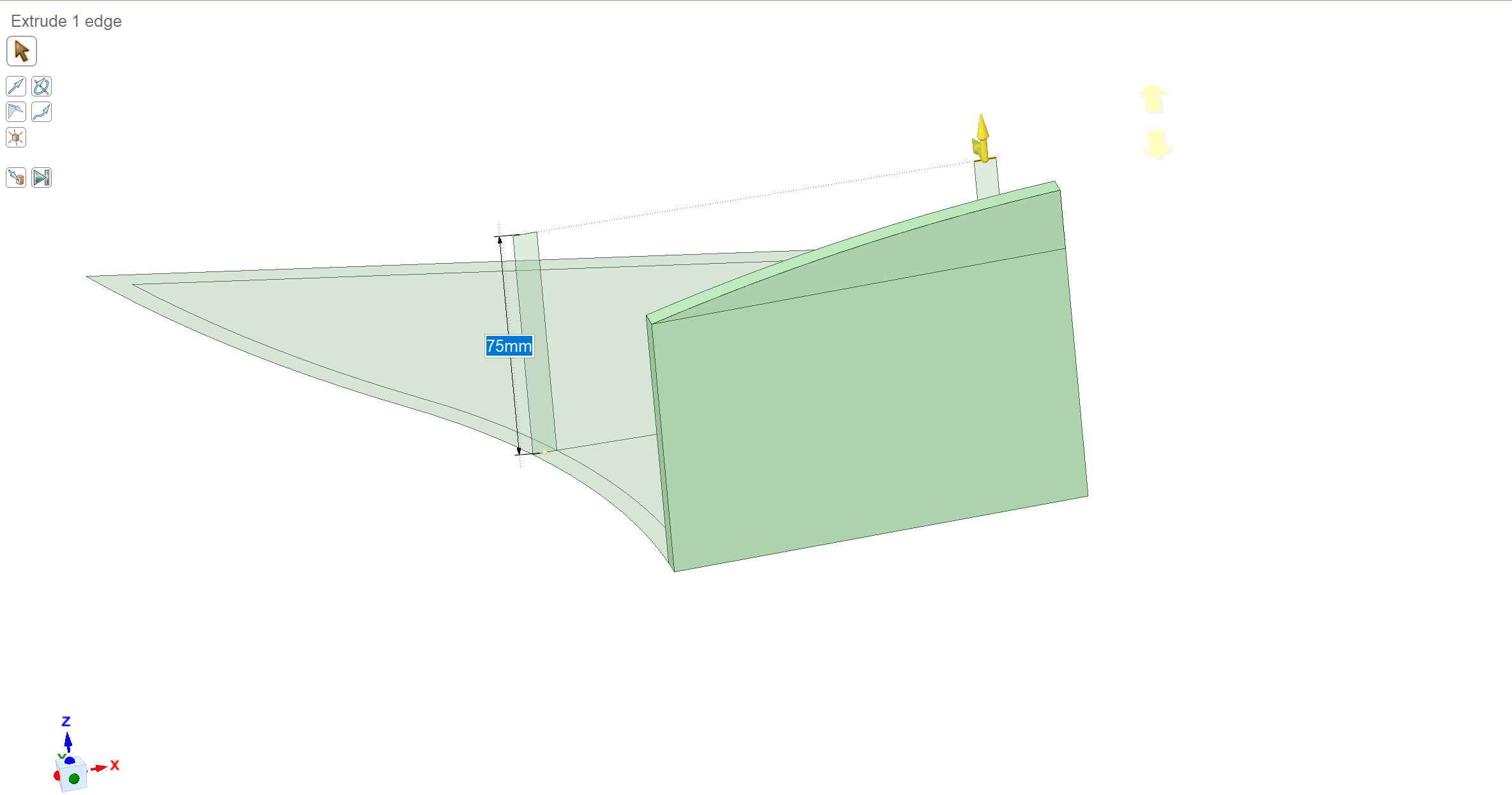

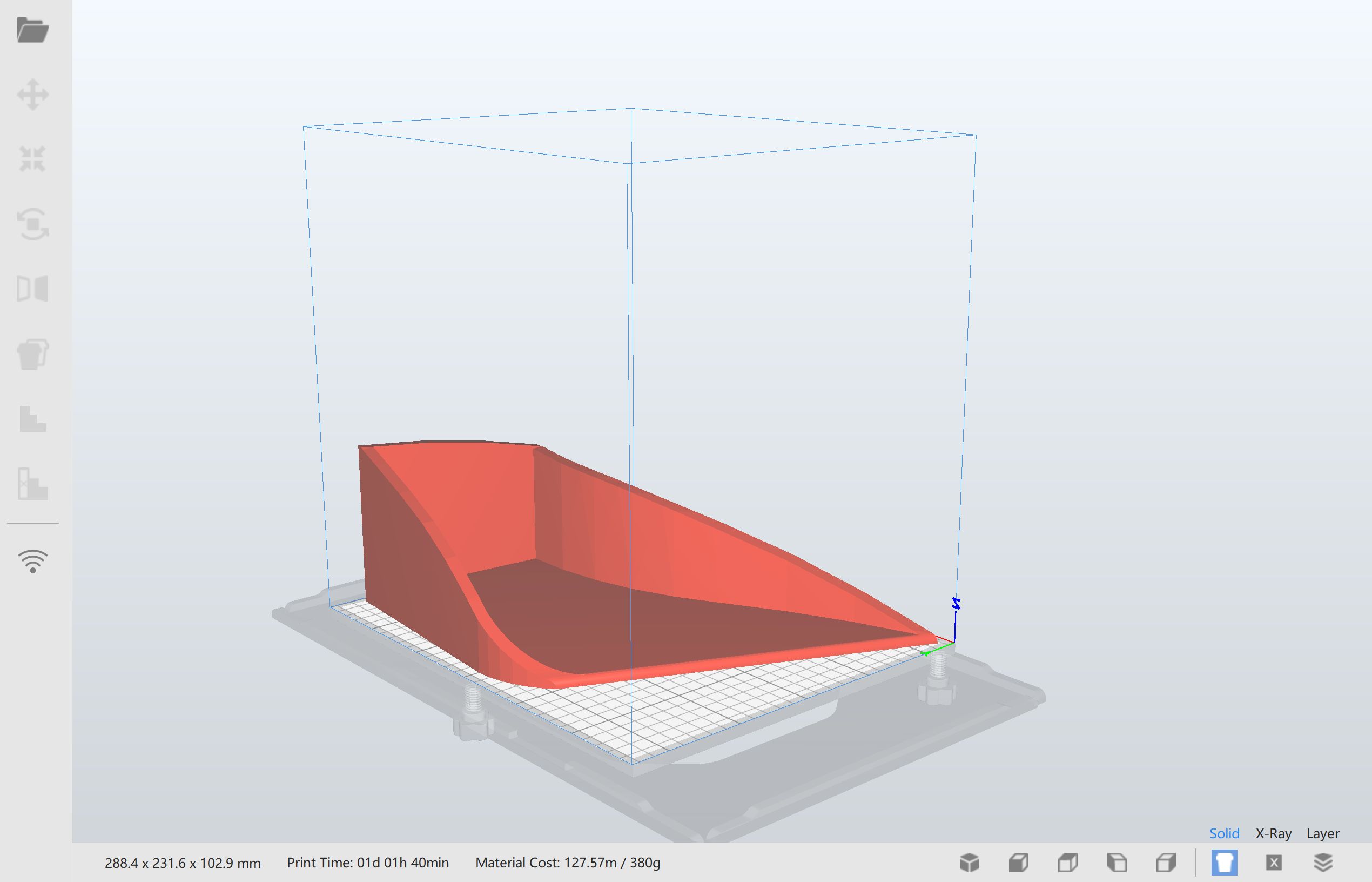

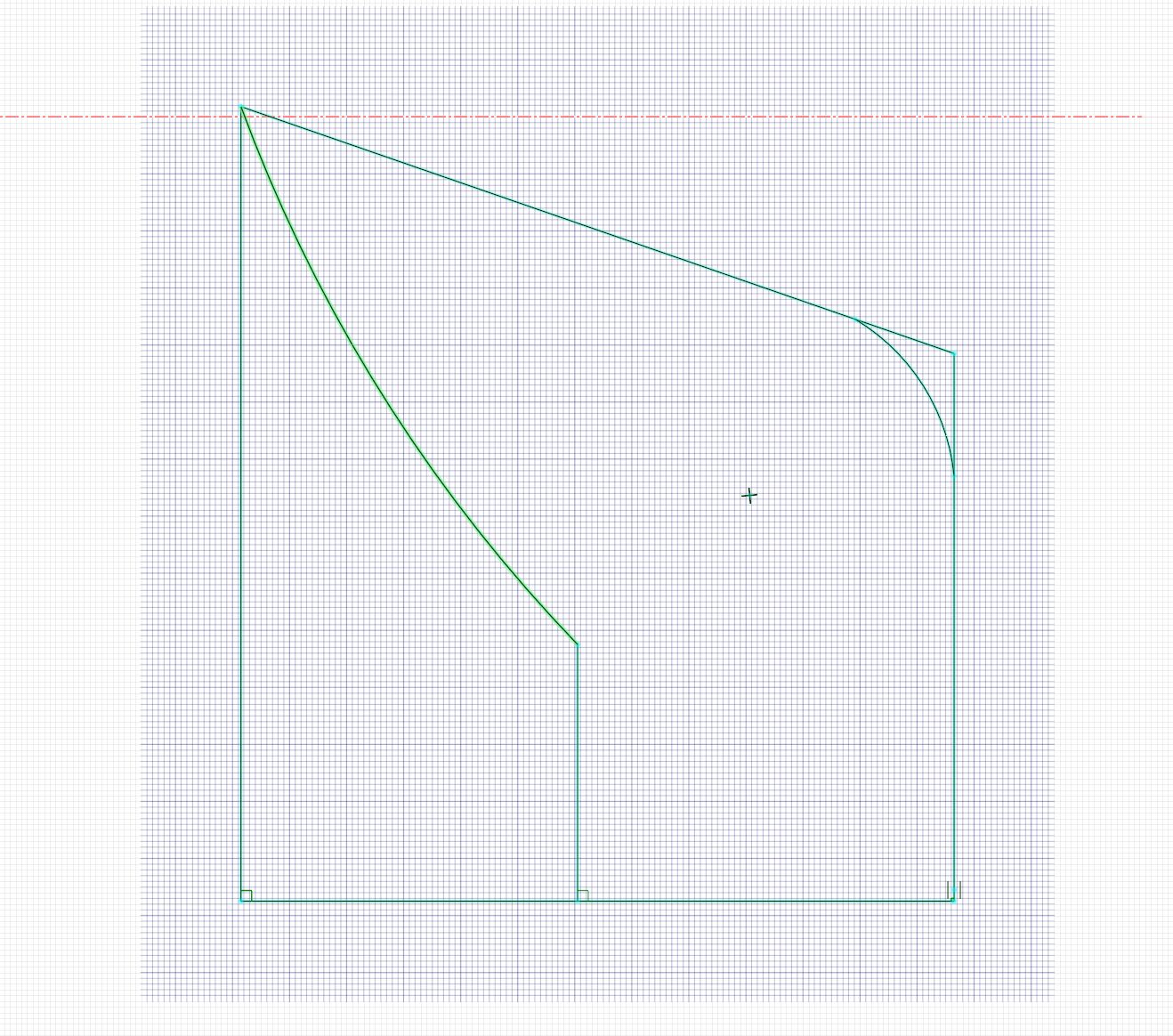

This is just the outer shell of the headlight housing, will confirm fitment with it and then make a buck for heat-forming the Acrylic over it. Once confirmed, the internal details will be added. The Acrylic buck cannot be 3D printed plastic, as the softening temperature of Acrylic is higher than the softening temperature of the printed plastic. So I'll print the shape of the lens, then put a layer of cloth/resin over it.
Attachment 191675Attachment 191676Attachment 191677Attachment 191678Attachment 191679

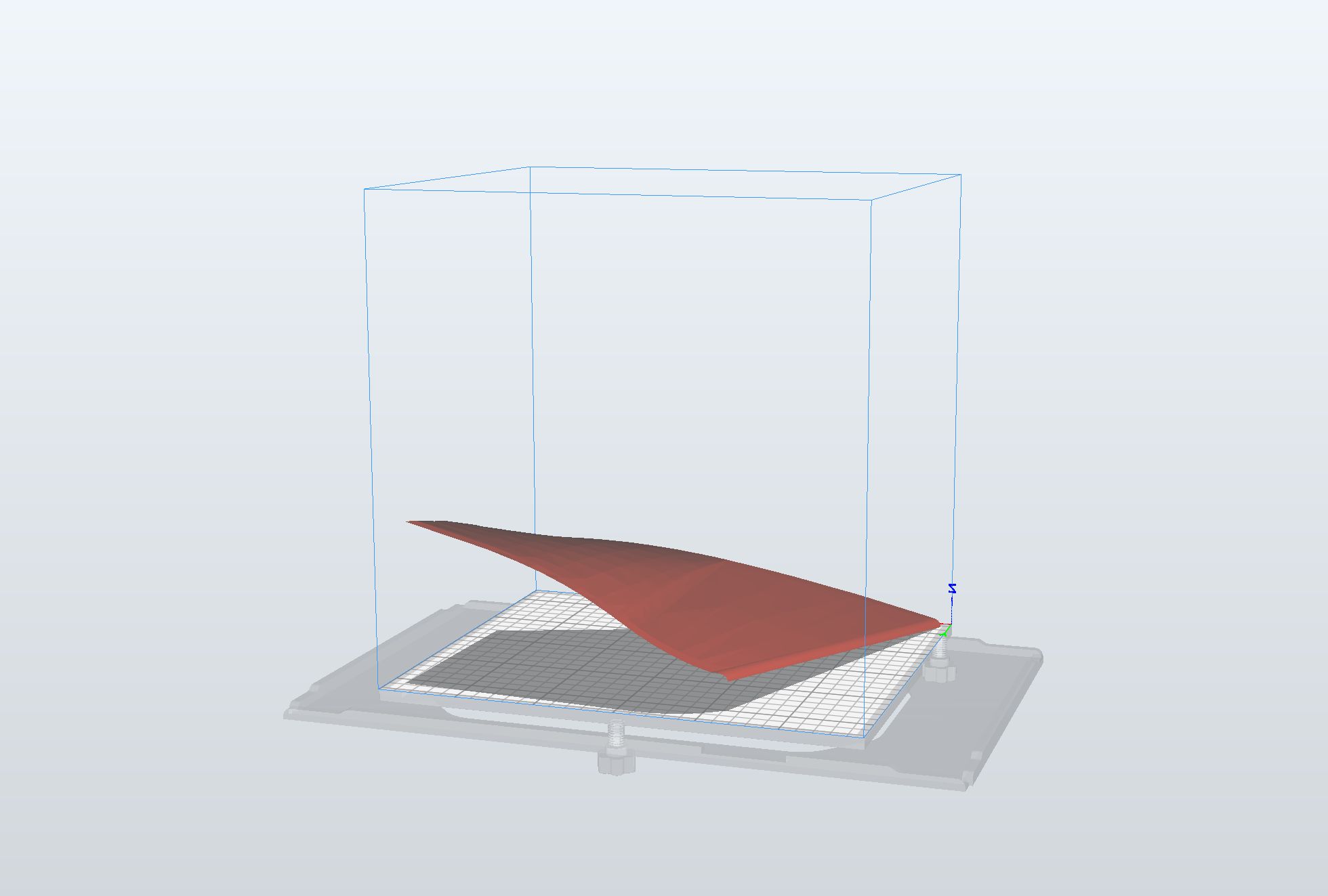

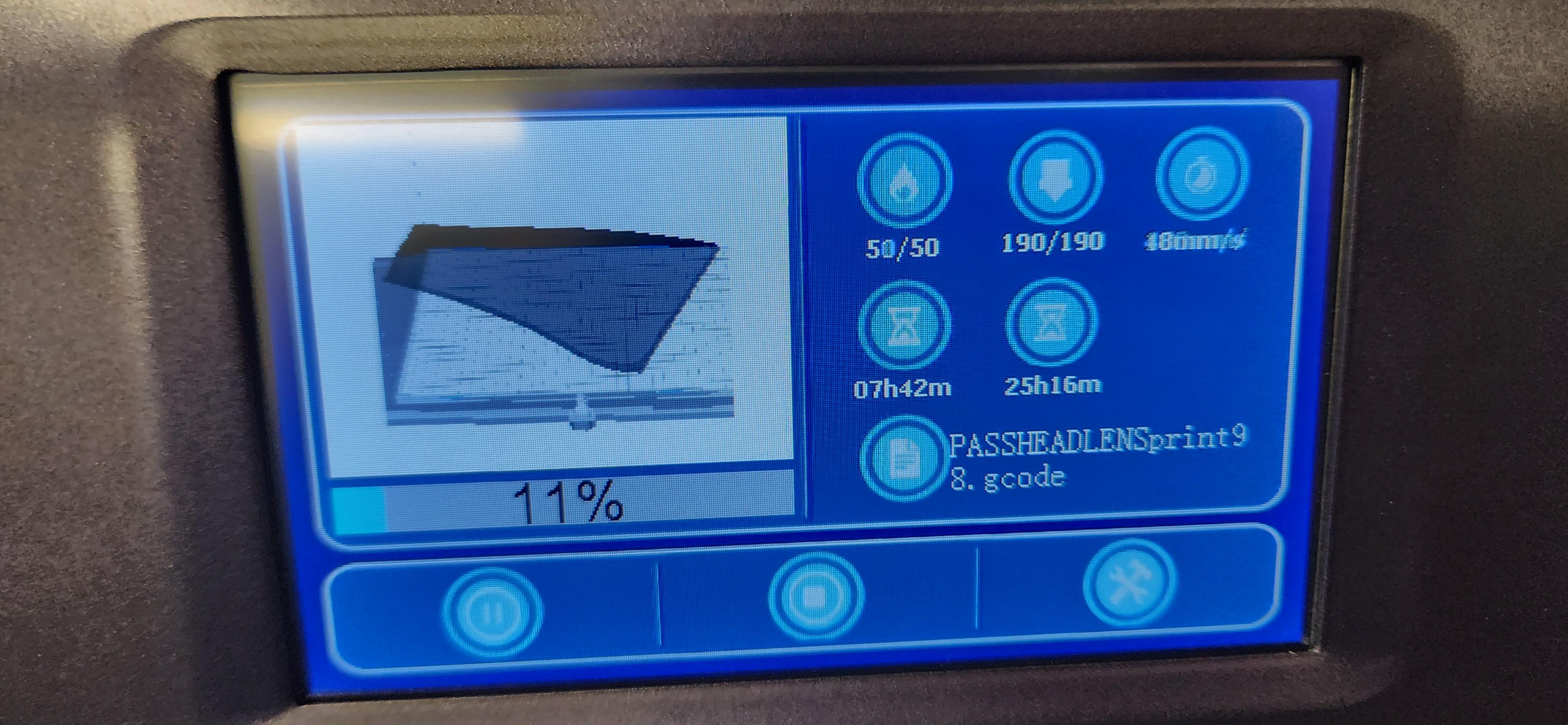

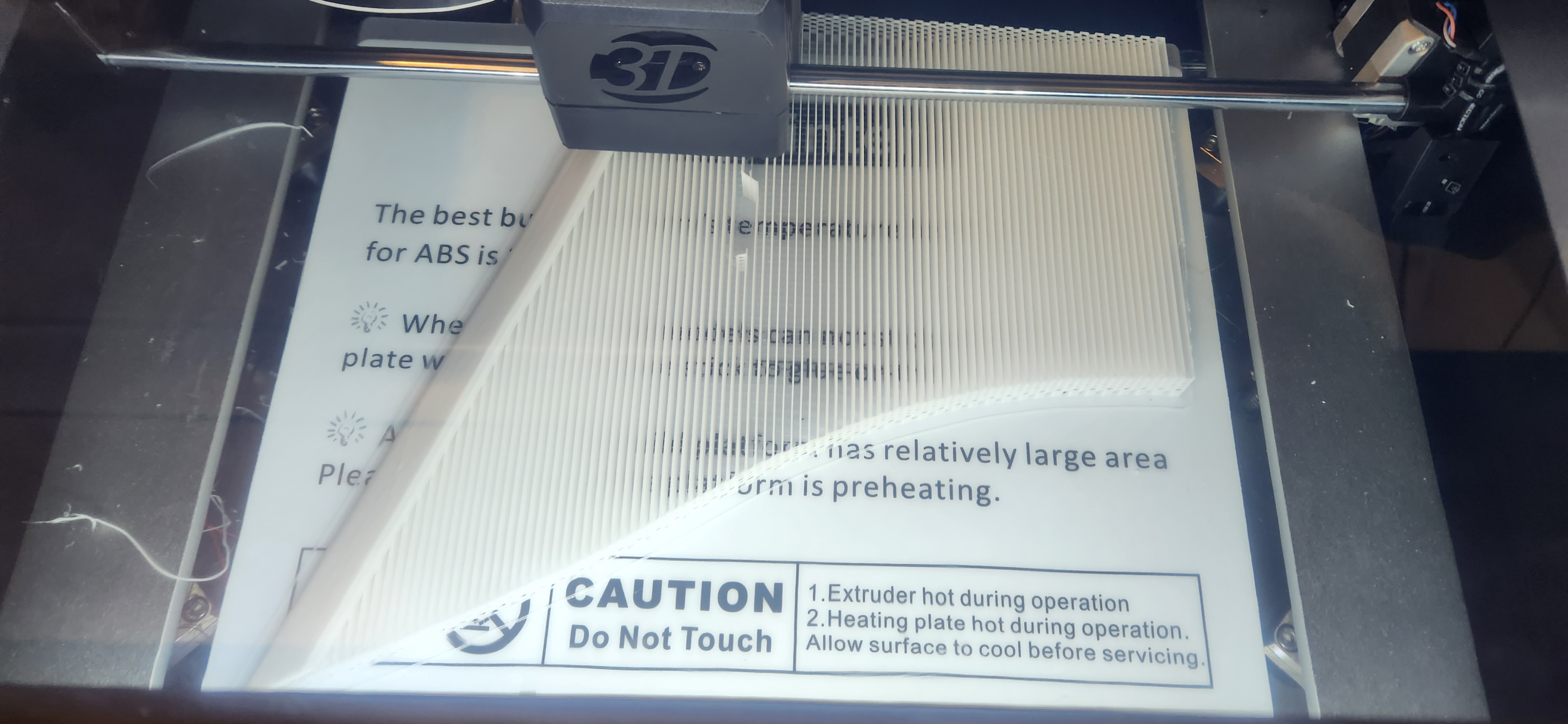

Here's the lens shape, will go on the printer next. Hard for CAD to get a perfect mesh the way I want it, so will get a little body filler for final shaping prior to heat forming the Acrylic.
Attachment 191680

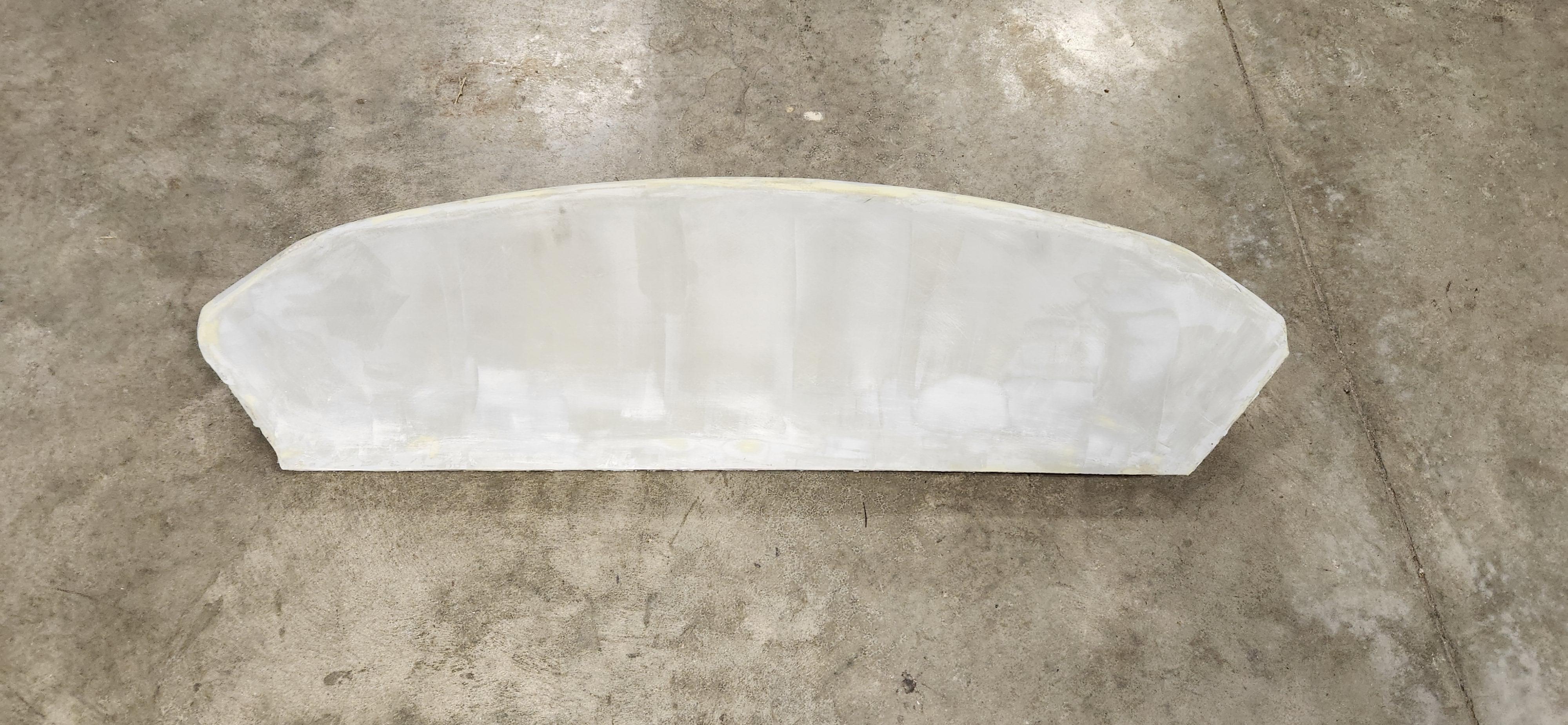

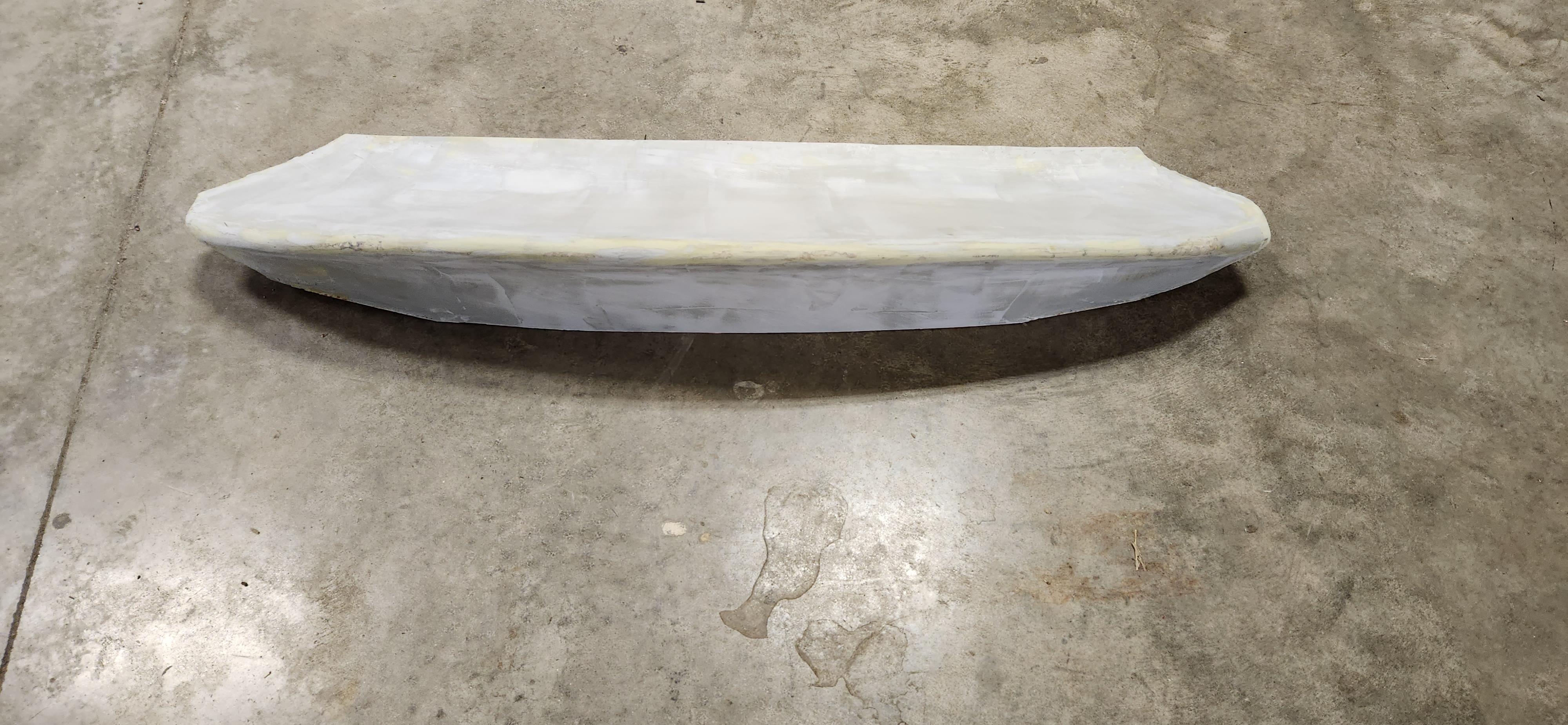

Spoiler roughly trimmed, 1 or 2 more skims of filler then seal and pull a 2 part mould. This will be practice for pulling hood and front fascia moulds.
Attachment 191707Attachment 191708
Must.Be.Patient.
Attachment 191734Attachment 191733
What material are you printing your bucket out of? I've not had good luck with PLA or PETG for car parts, they get too soft in the sun. ABS and Nylon have worked well for me and I hear good things about ASA.
This is PLA but it's only for a buck for the Acrylic. Anything permanent will be ABS.
Wow, you've been busy! Very cool stuff!
I can't seem to get the quote function to work at the moment, so returning to the preheat issue...
I have actually found that acrylic is worse than polycarbonate when it comes to bubble formation. Acrylic comes out "clearer" as a finished part, but it is much more brittle than the polycarbonate. IIRC we preheat the plastic to about 150 degrees for about an hour, then up to about 400 degrees until it is drooped correctly on the mold. Molds are really simple. Just negative shaped FG on a wood base for stability. Don't know what the flash point of the wood is. Kinda waiting for them to catch at some point, though no charring on anything like that yet.
There are good videos on YT about the preheat and forming process including specific temps, etc.
The Retrofit Source has some pretty slick products.
https://www.theretrofitsource.com/St...TRS?quantity=1
Yes, quality stuff. That's where the switchback LEDs in my above post came from.Quote:
Originally Posted by Shoeless

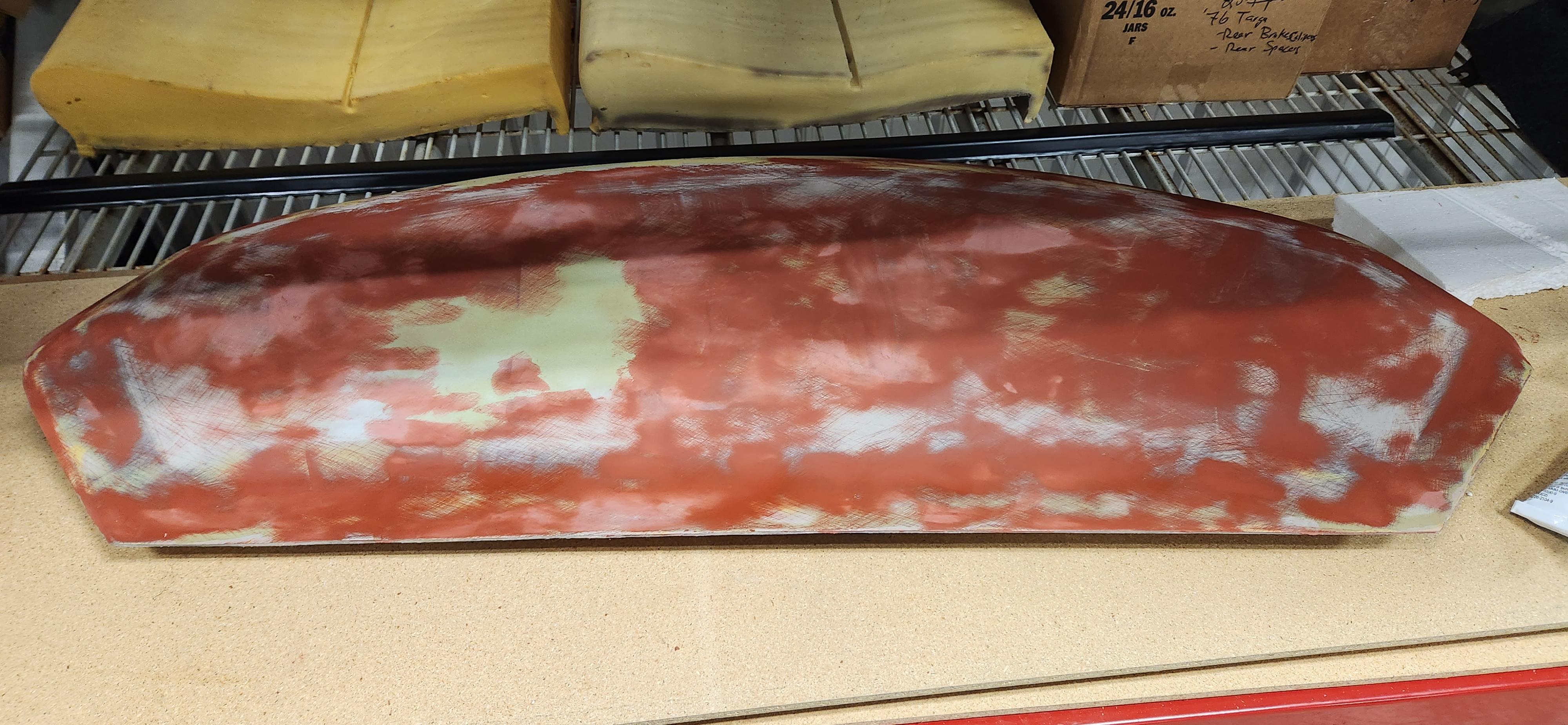

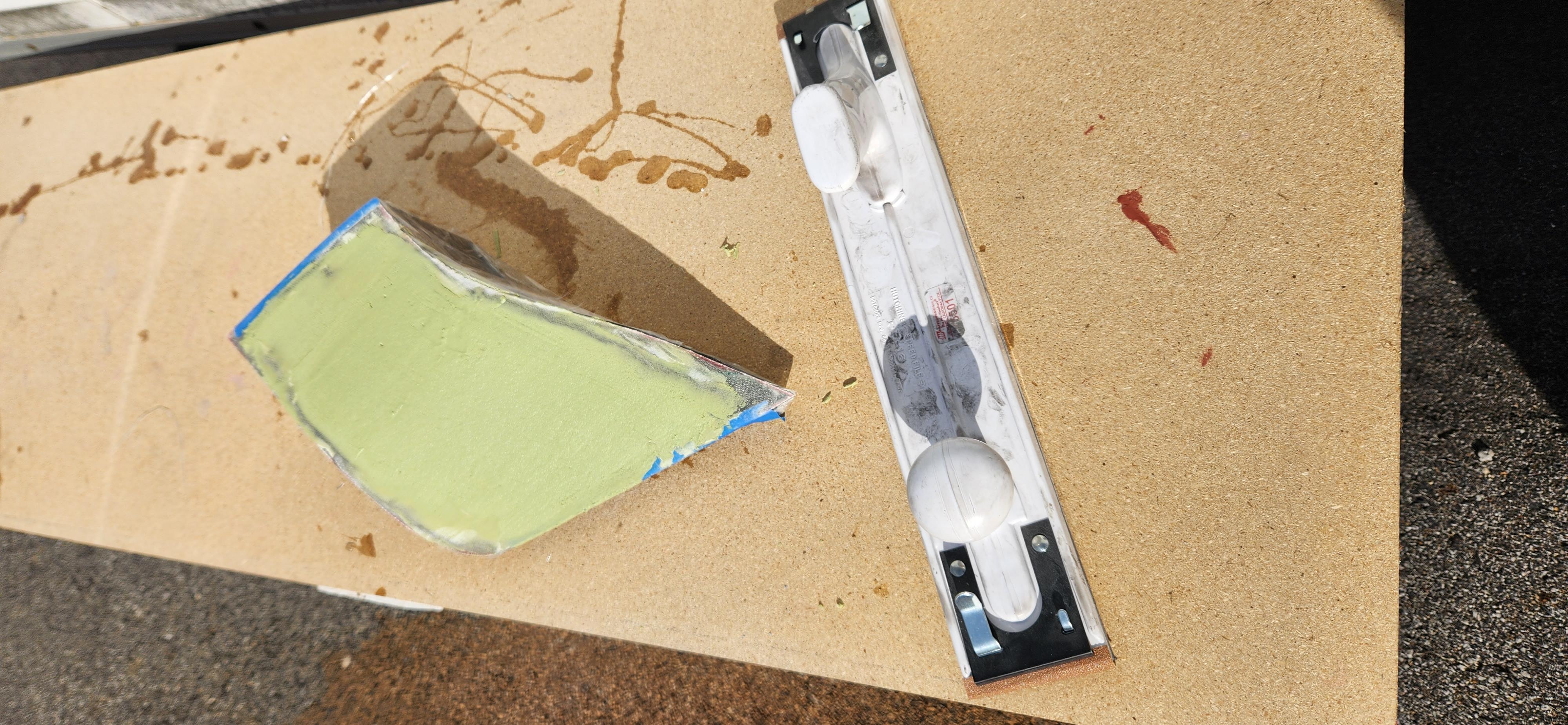

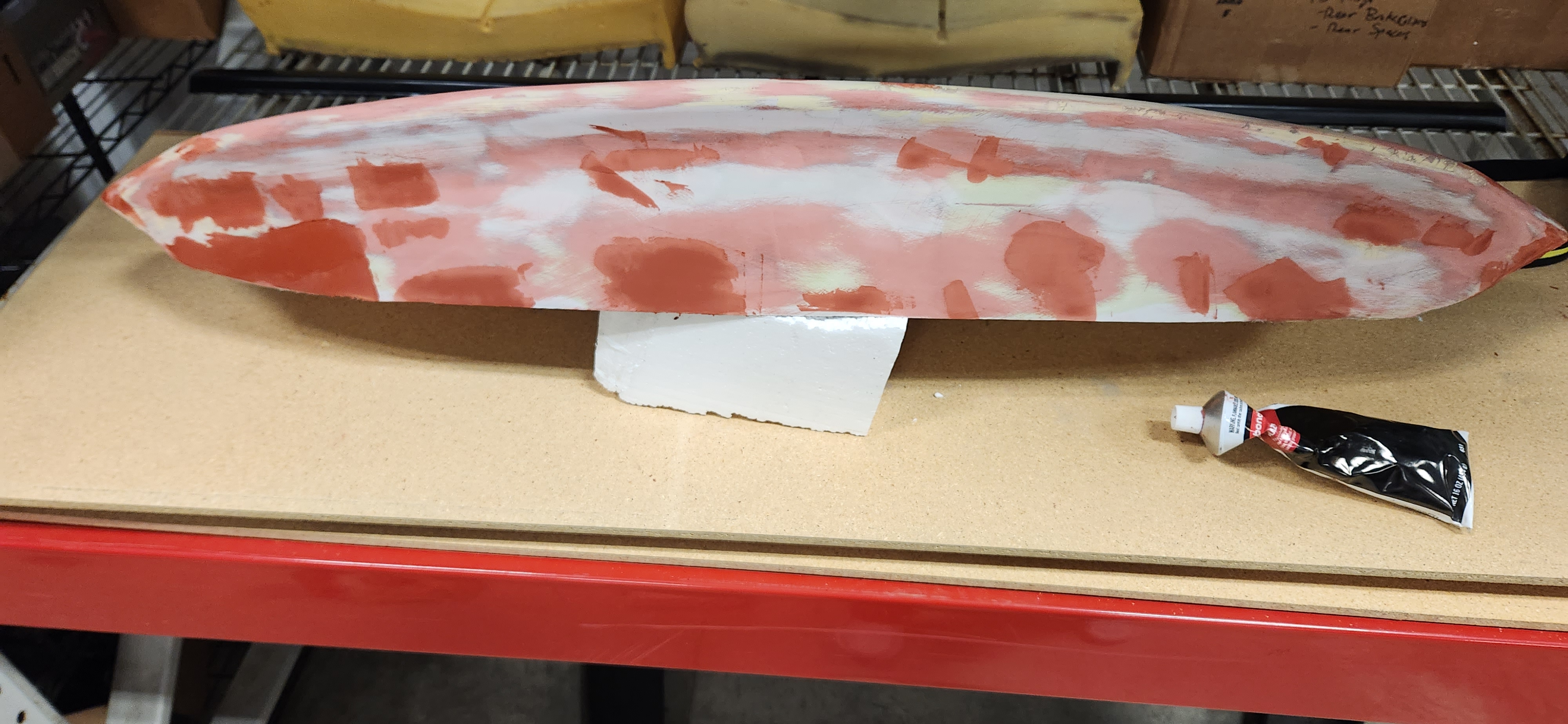

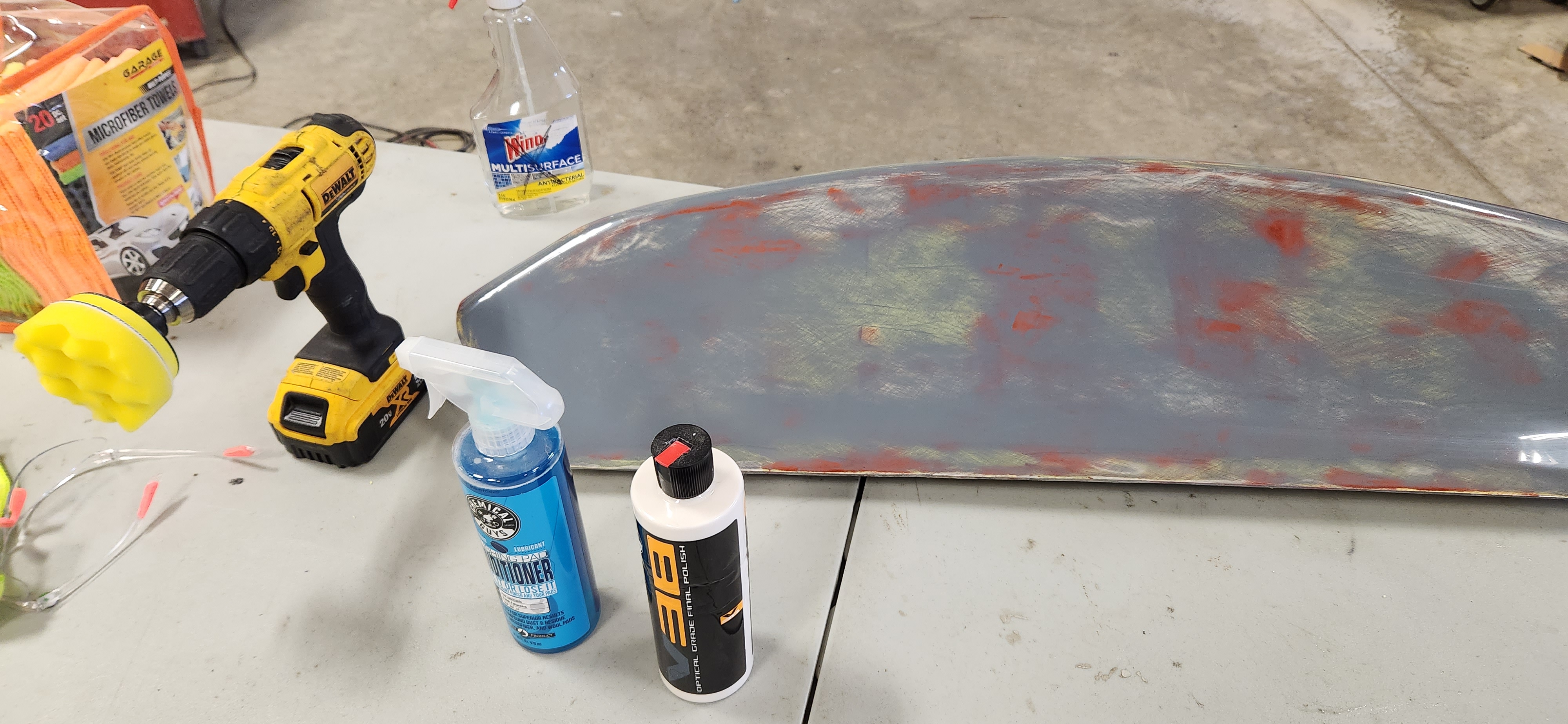

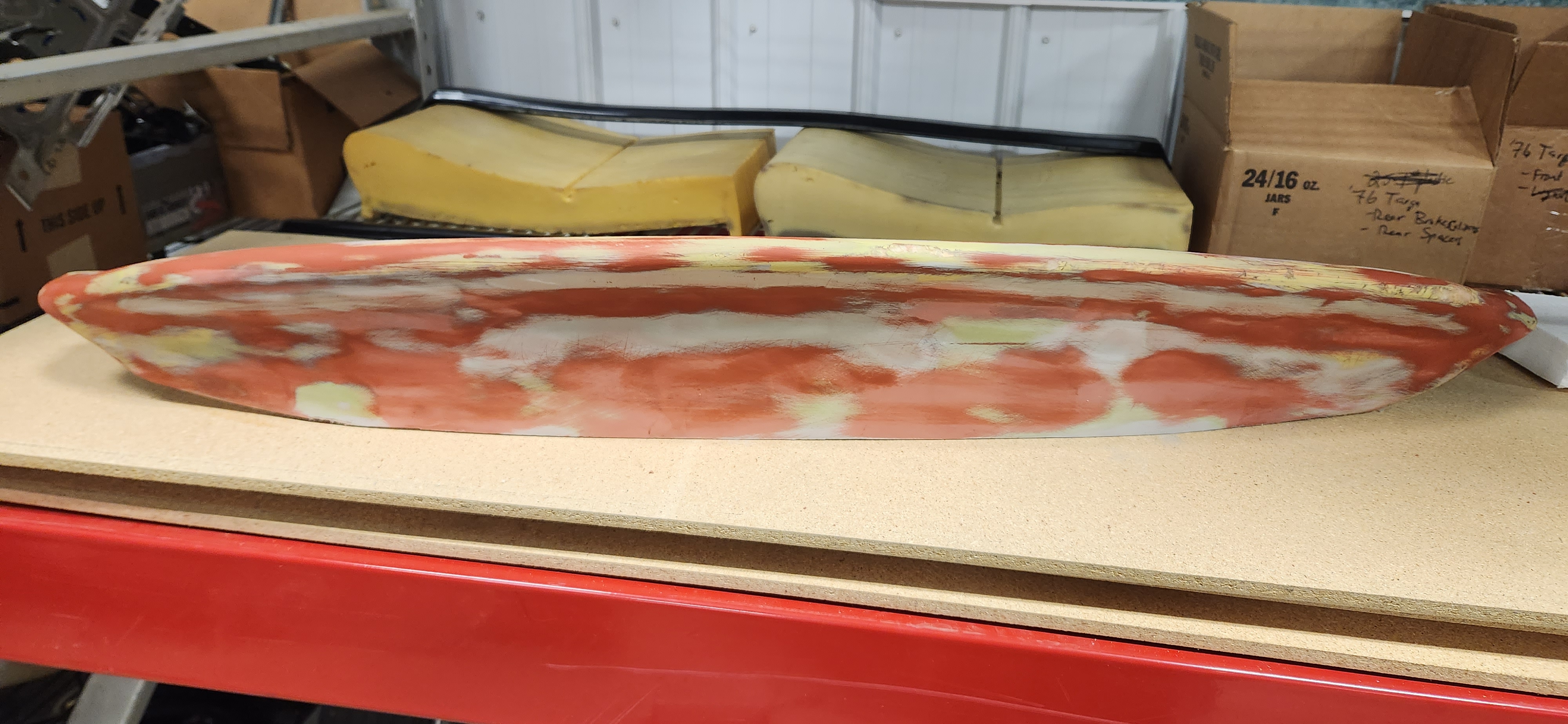

Did a rattle can guide coat followed by more sanding then a thin layer of Bondo glaze, then 180 grit. Added more glaze to some imperfections, then final sanding, seal, then pull a 2 part mould.
Attachment 191786Attachment 191787
Attachment 191788
Spoiler ready to pull a mould, started making flanges with aluminum flashing but it's a pain to work with, going to use cardboard and packaging tape.

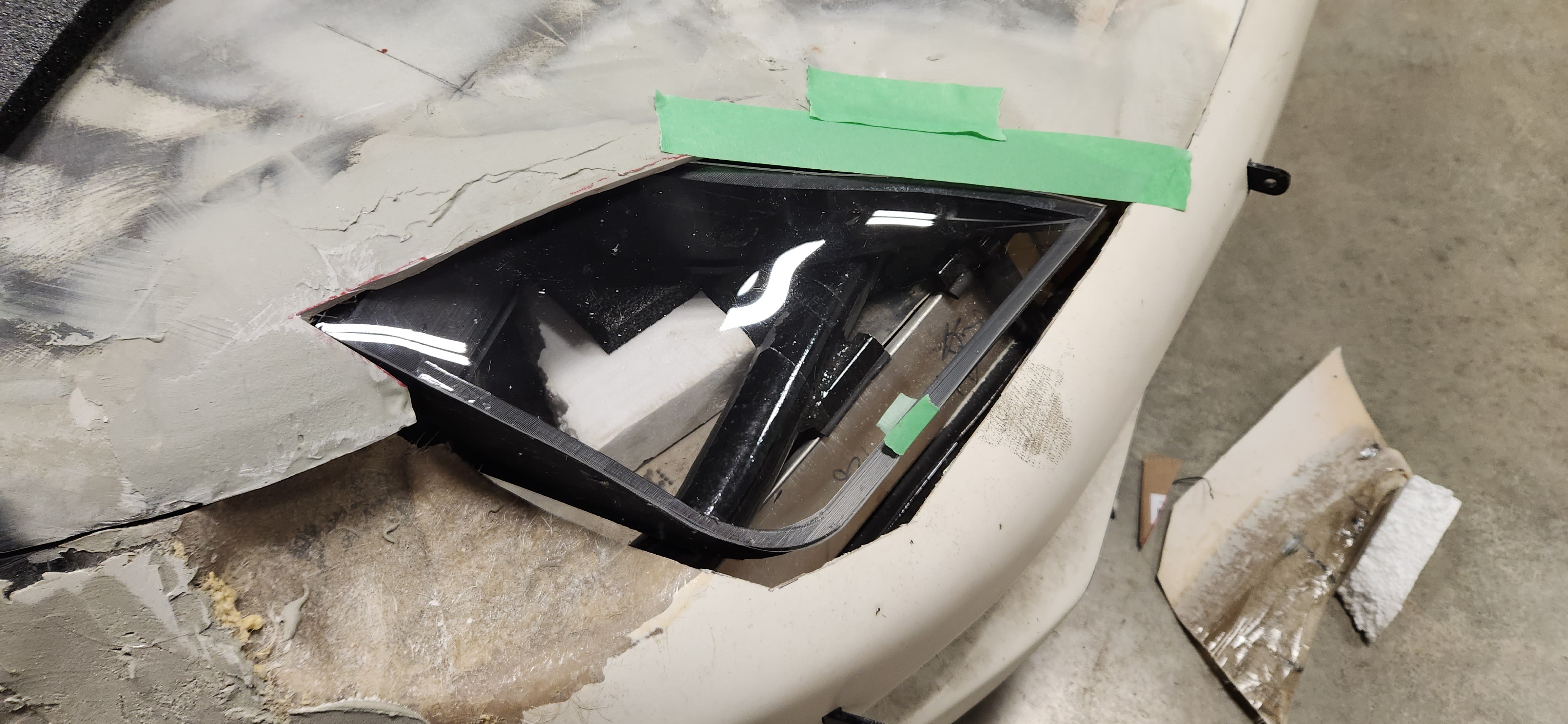

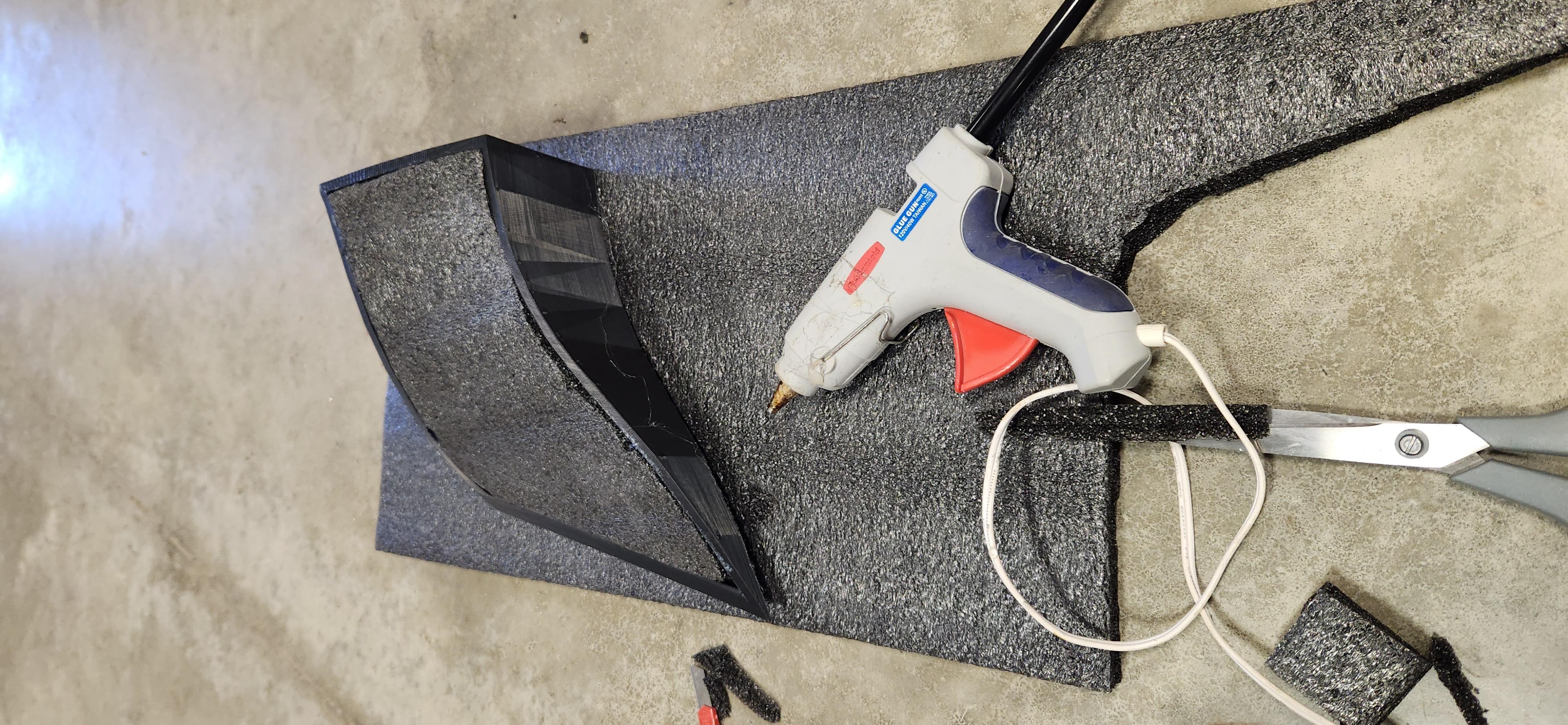

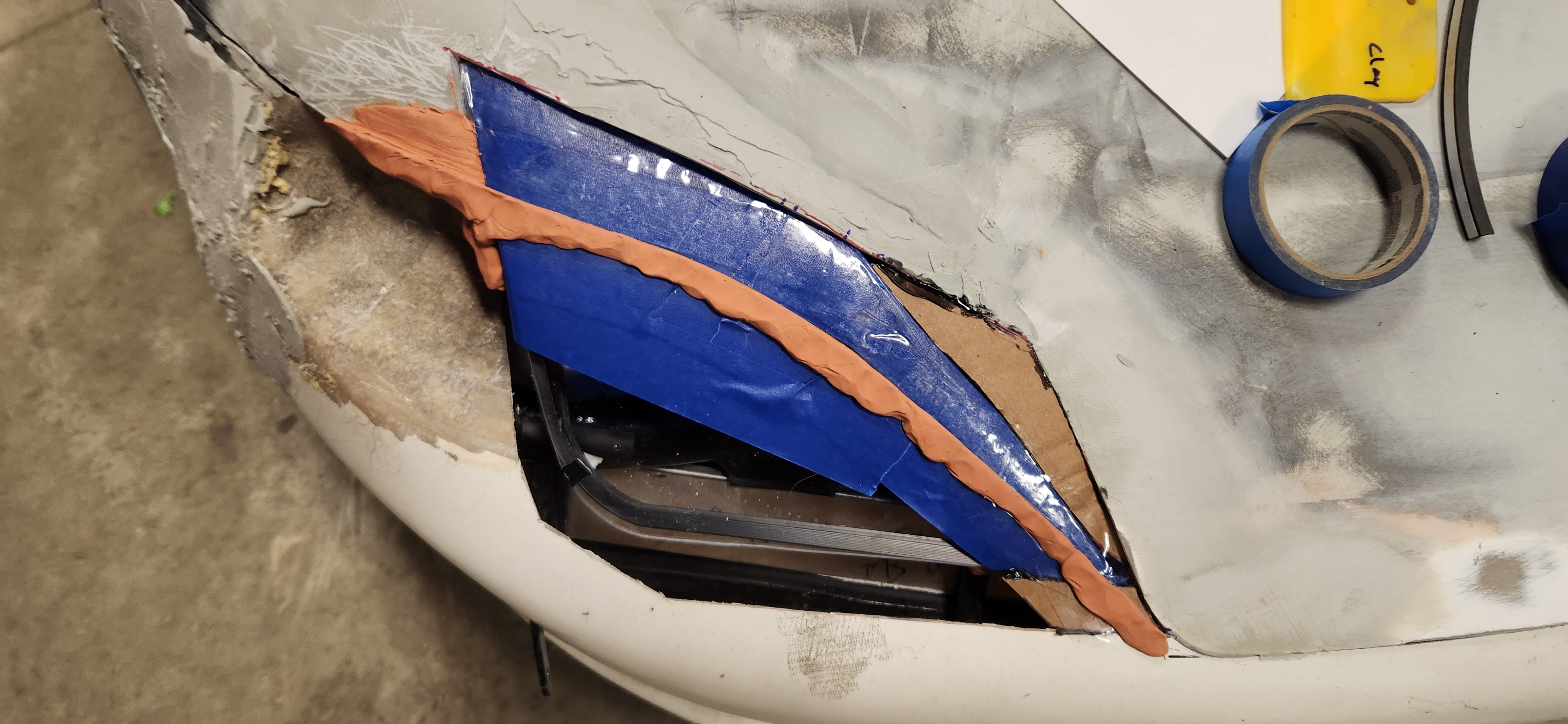

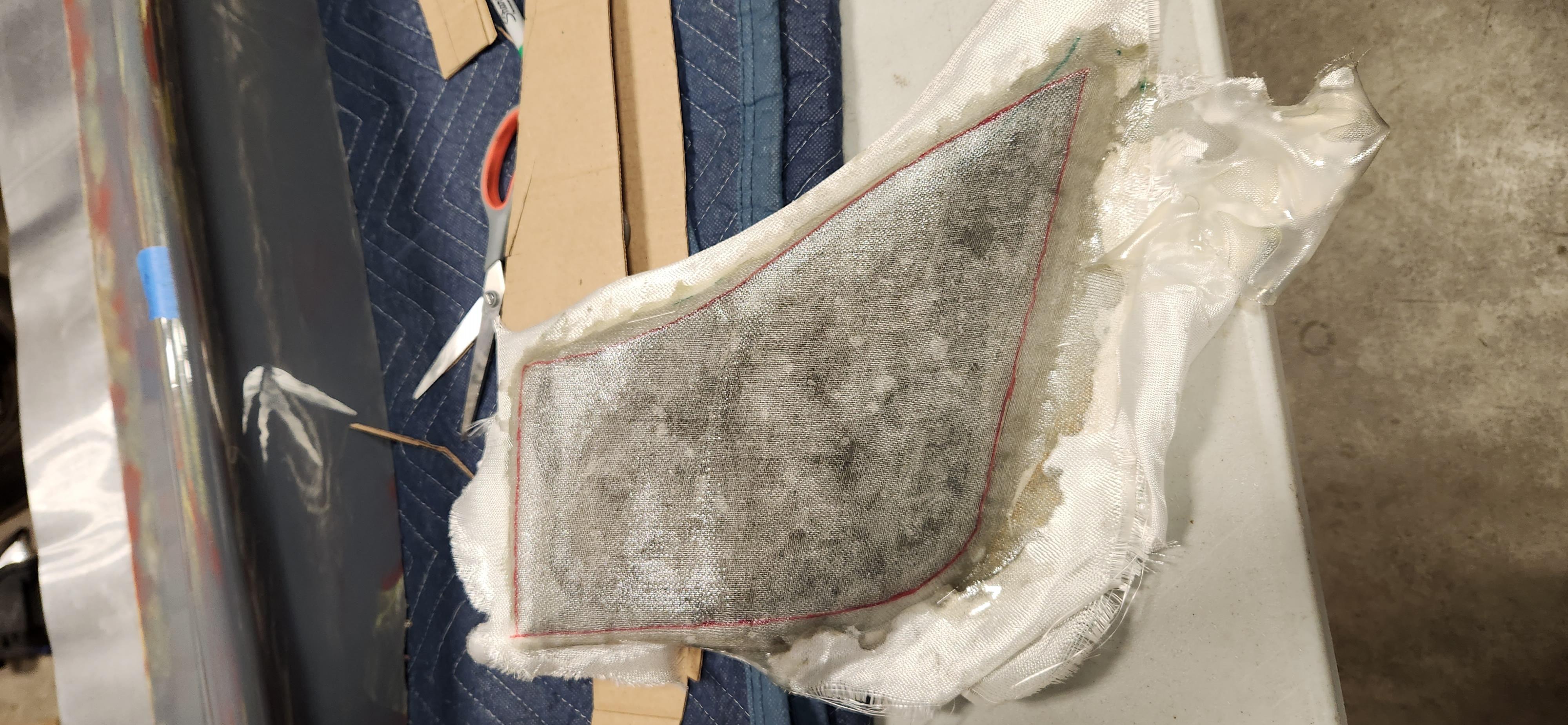

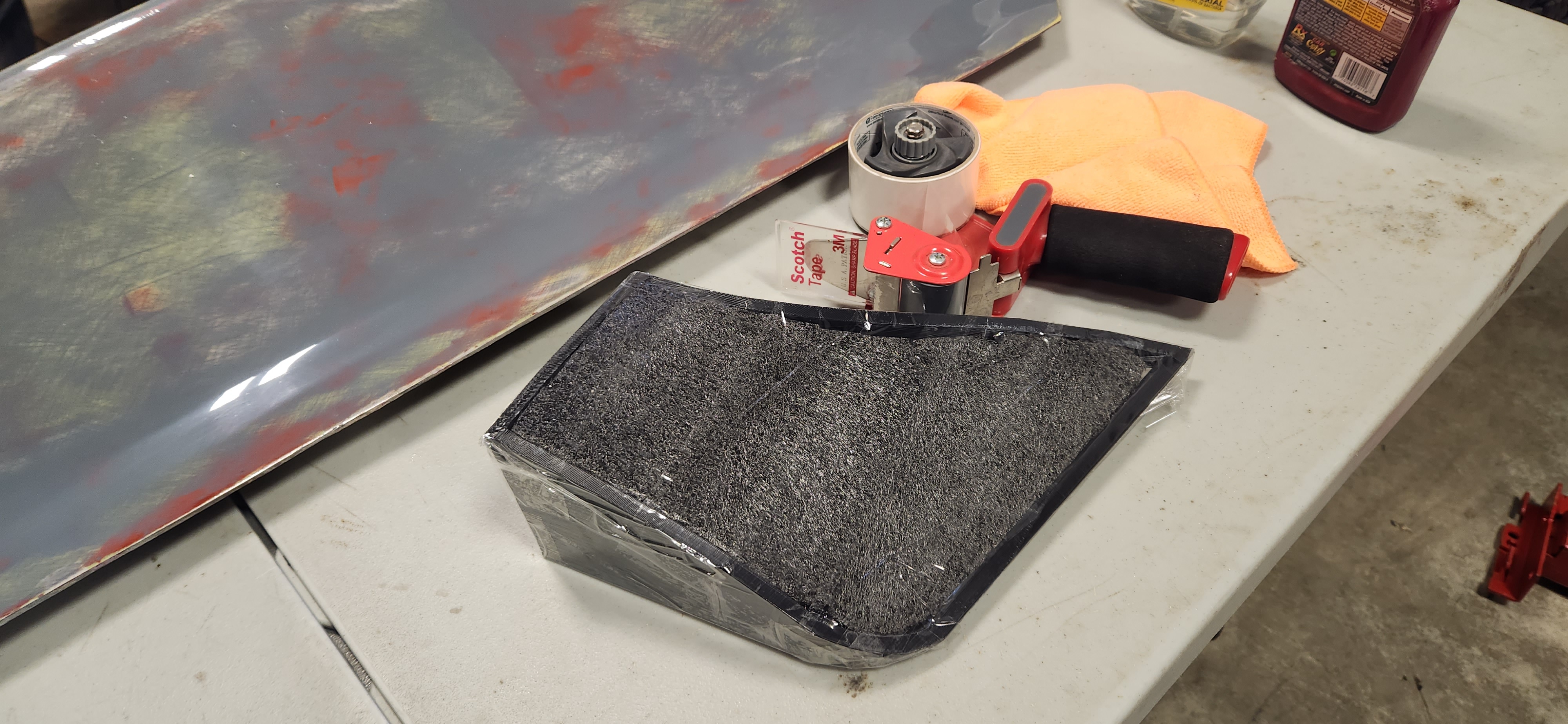

Headlight acrylic heat forming buck. Hot glued foam into the headlight bucket to get the general contour, seal with packaging tape, made a fiberglass buck, now just smoothing the contour with body filler, then can heat form the lens. Sunny and 42F this morning, not horrible.
Attachment 192097Attachment 192098Attachment 192099Attachment 192100
Attachment 192103

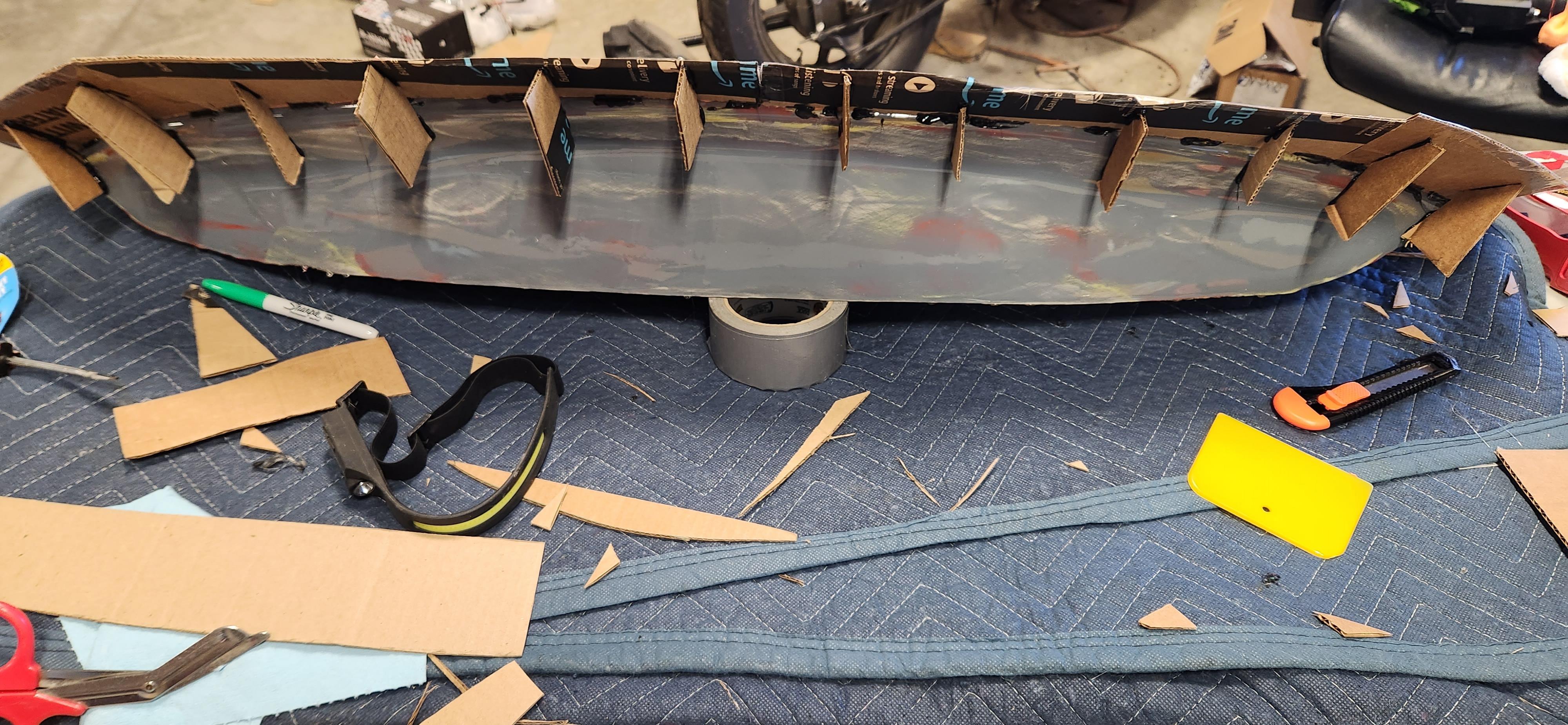

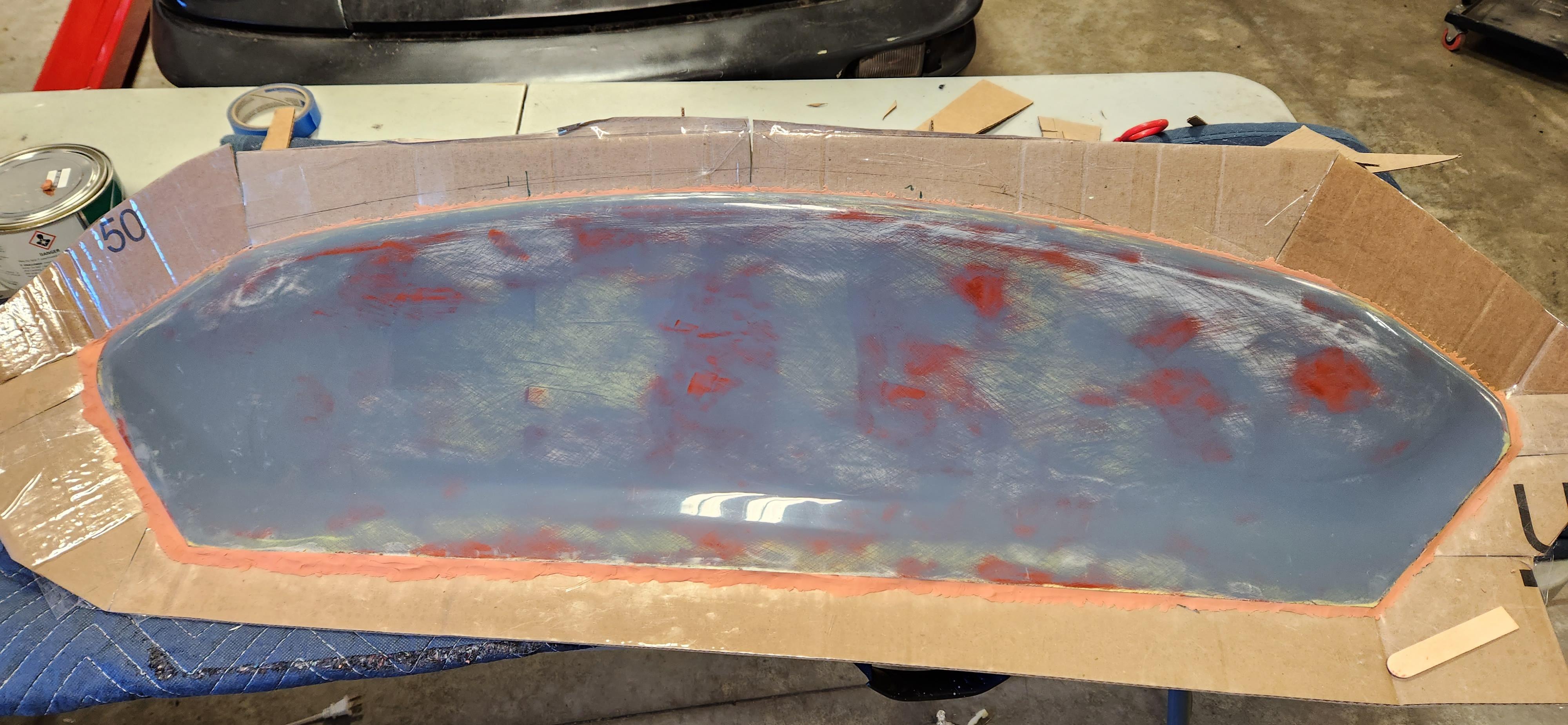

1st time making a mould, and of course it's a 2 part mould... I really wanted to like the aluminum flashing for a flange but it's actually a pain to work with, hot glue doesn't hold well, etc. Cardboard and packaging tape, not pretty but it works.
Attachment 192134Attachment 192135
I've seen playing cards be used before. Nice uniform shaped and usually waxed.
Looks like that will work! Sometimes you just gotta make do with what you have and what works!

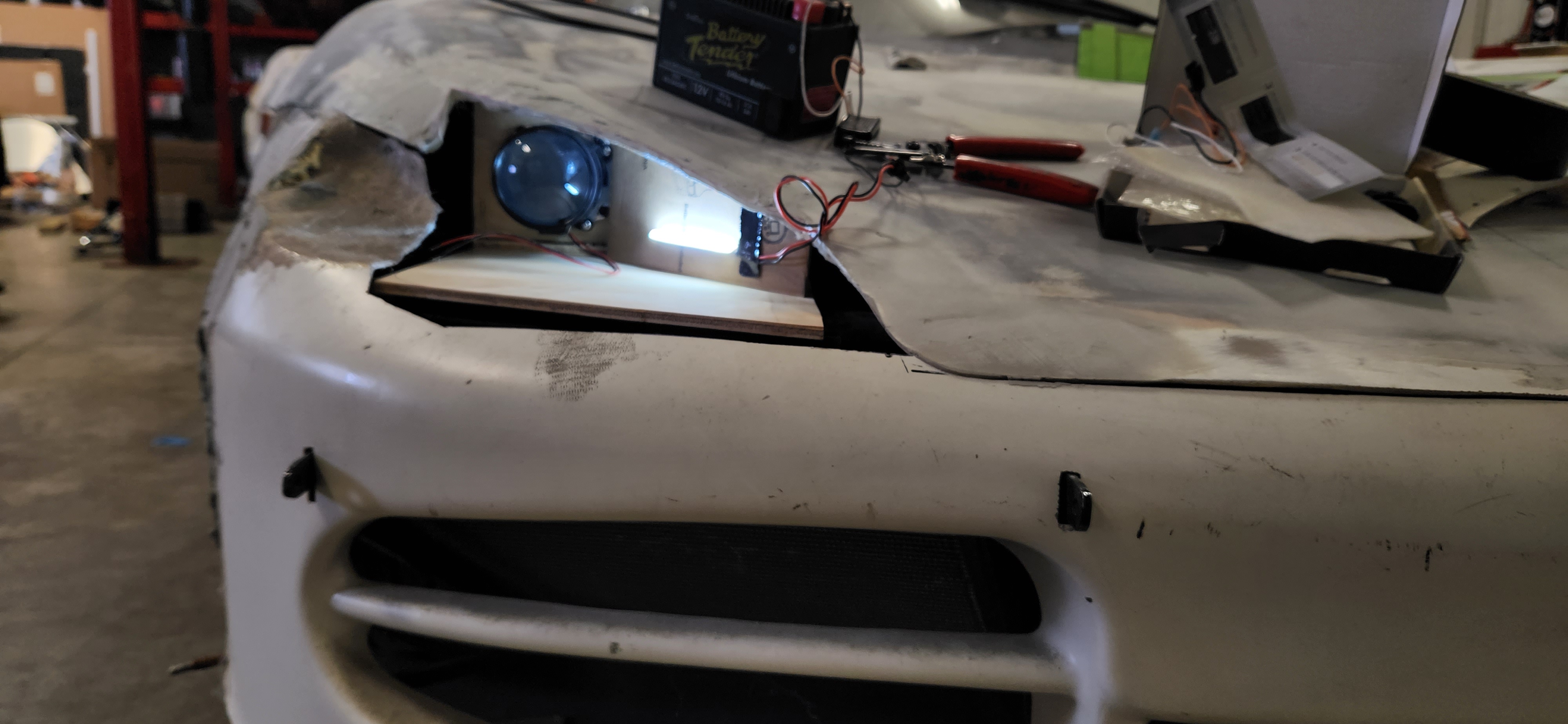

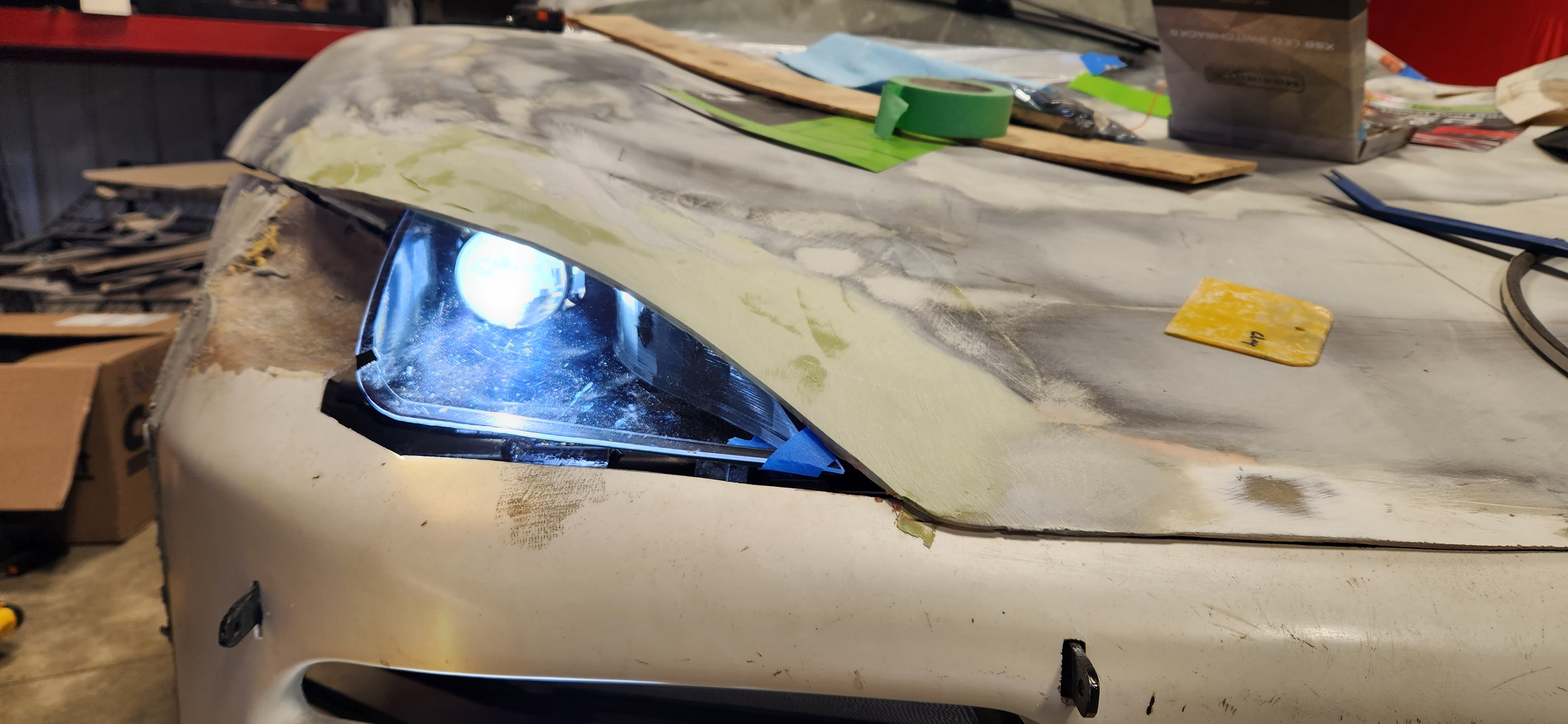

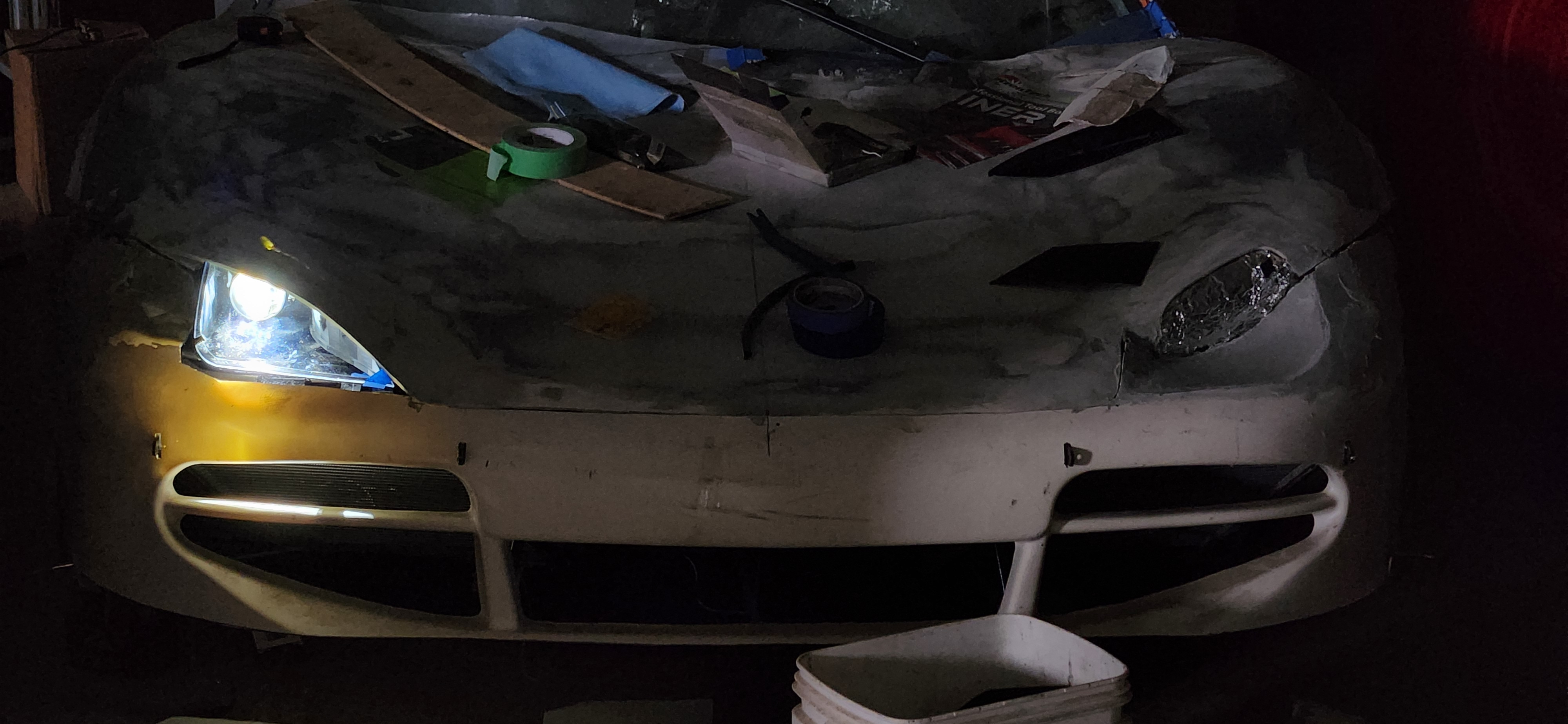

I think this will work well. Bi-xenon projector with LED DRL/turn signal.
Attachment 192228Attachment 192227Attachment 192229Attachment 192230
Attachment 192231
Very cool project!
Thanks, Shane.

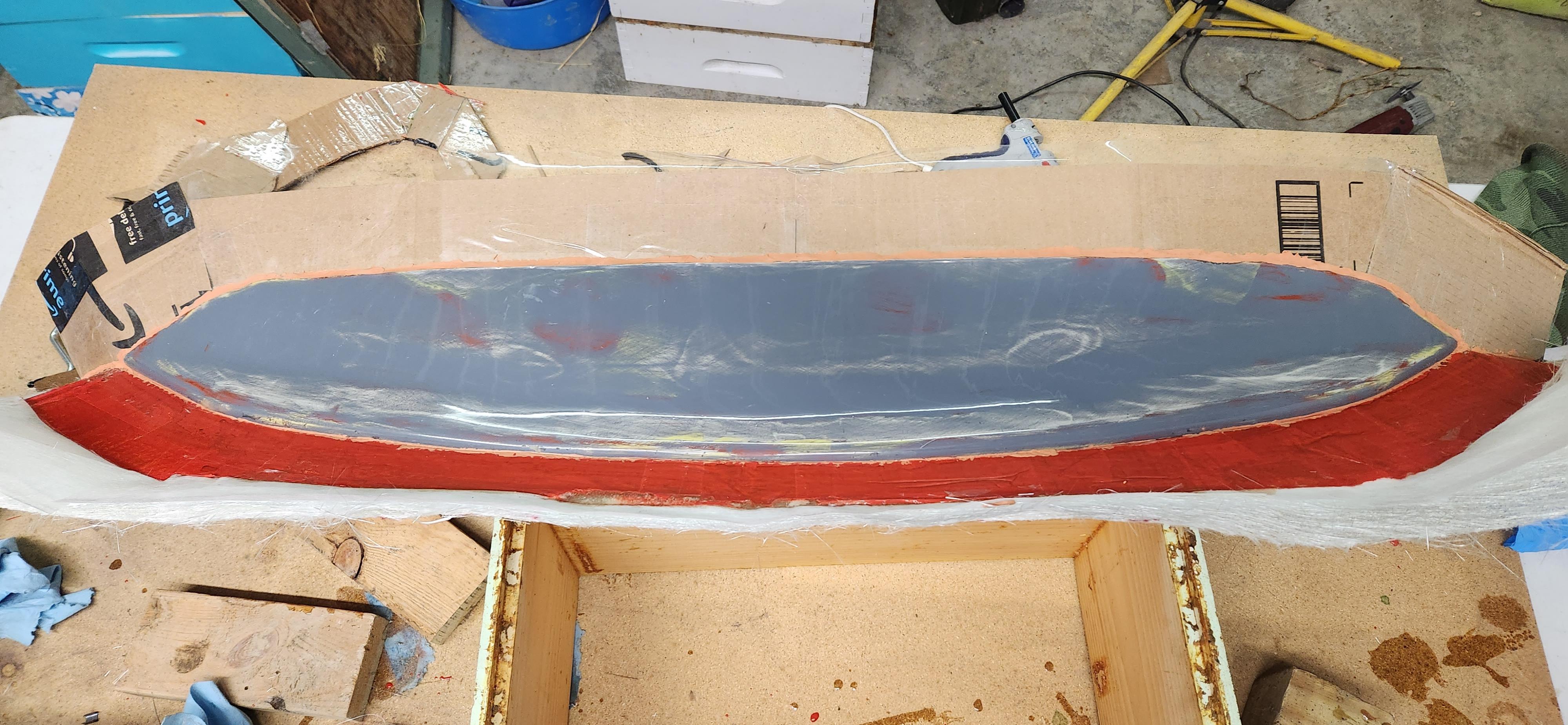

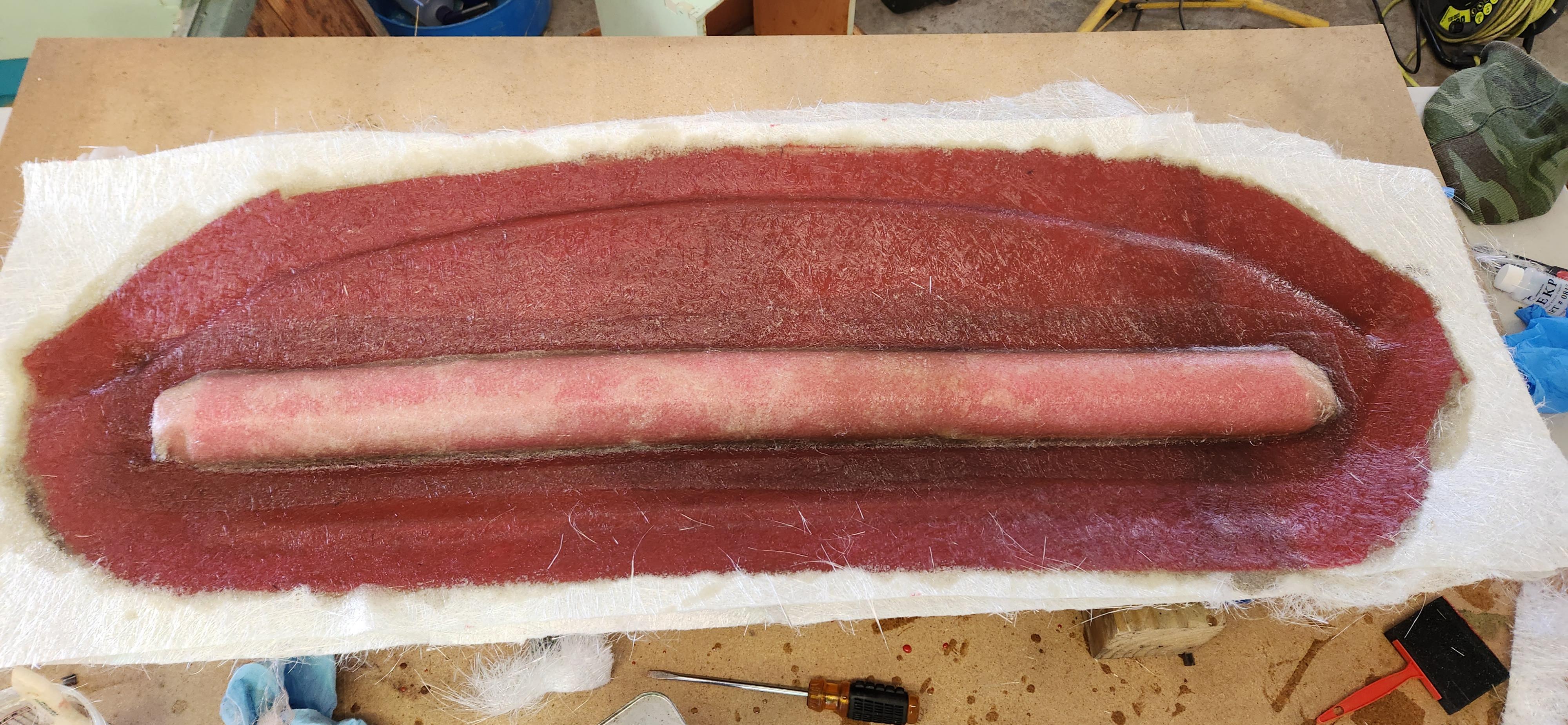

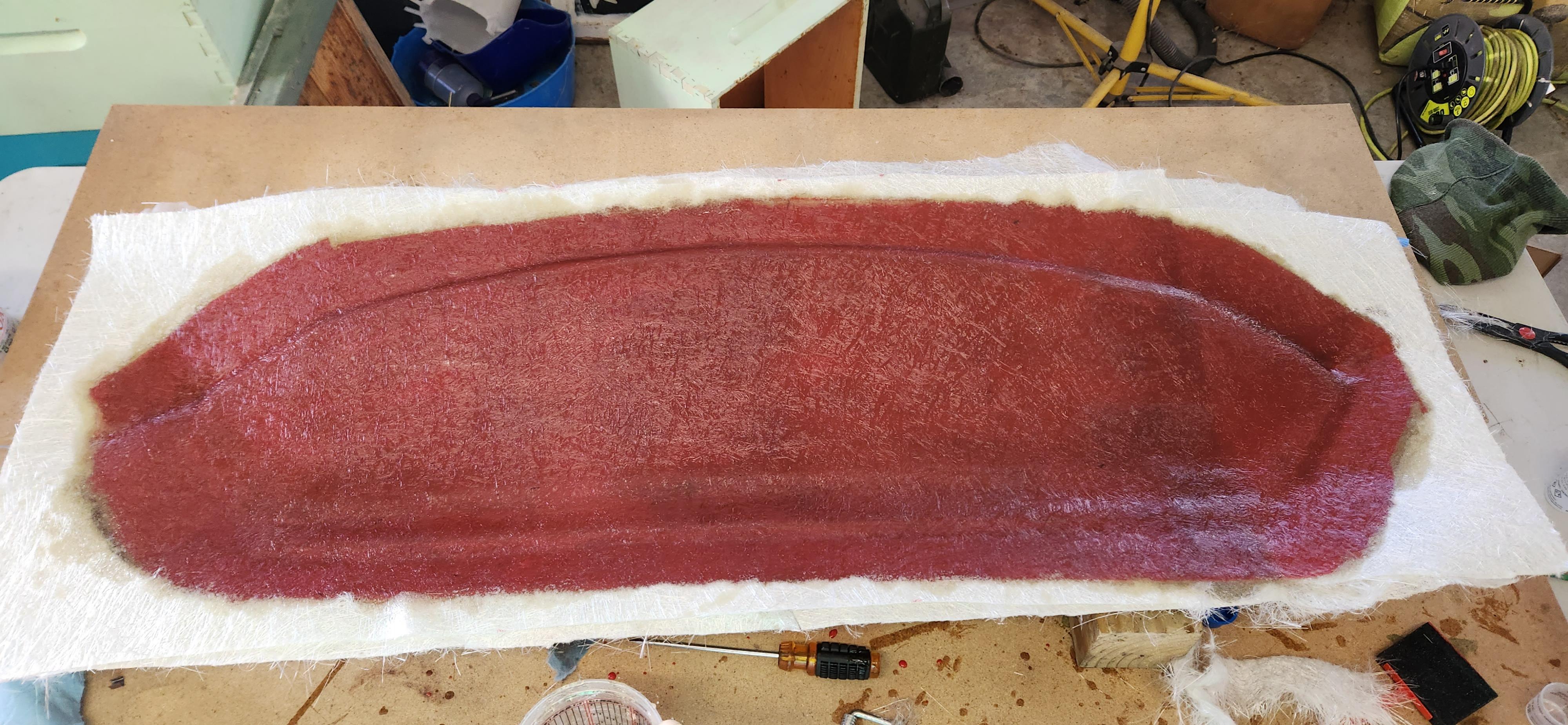

Just laid up 1/2 of the mould, hopefully it turns out OK. Waxed, brushed on pva, brushed on gel coat. Added a pool noodle support just for the heck of it.
Attachment 192311Attachment 192312
That looks good to me! For the moulds that I've made, I found that large nylon rope works really well as a reinforcement....you don't have to fiberglass over it.....just lay it on the outside surface once you're done with your FG layers and soak it with resin and it naturally bonds to the wet layers of FG.

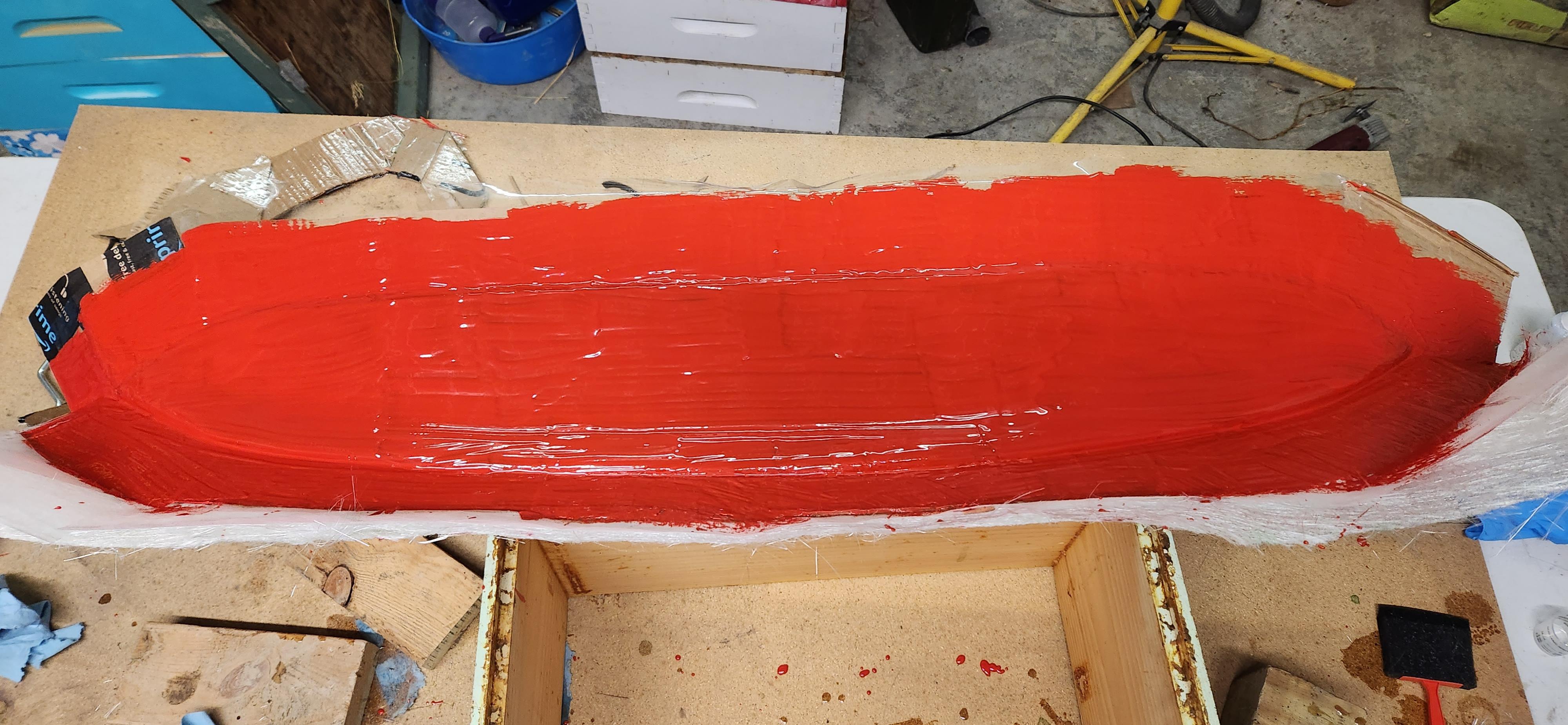

Got the other side flanged, waxed, plasticined, PVA'd, and tooling gel coat applied. Hopefully will have time to laminate after work tomorrow.
Attachment 192466
Attachment 192467
Spoiler 2nd half of the mould had a major gel coat disaster, pretty upset about that so moving back to the headlights.

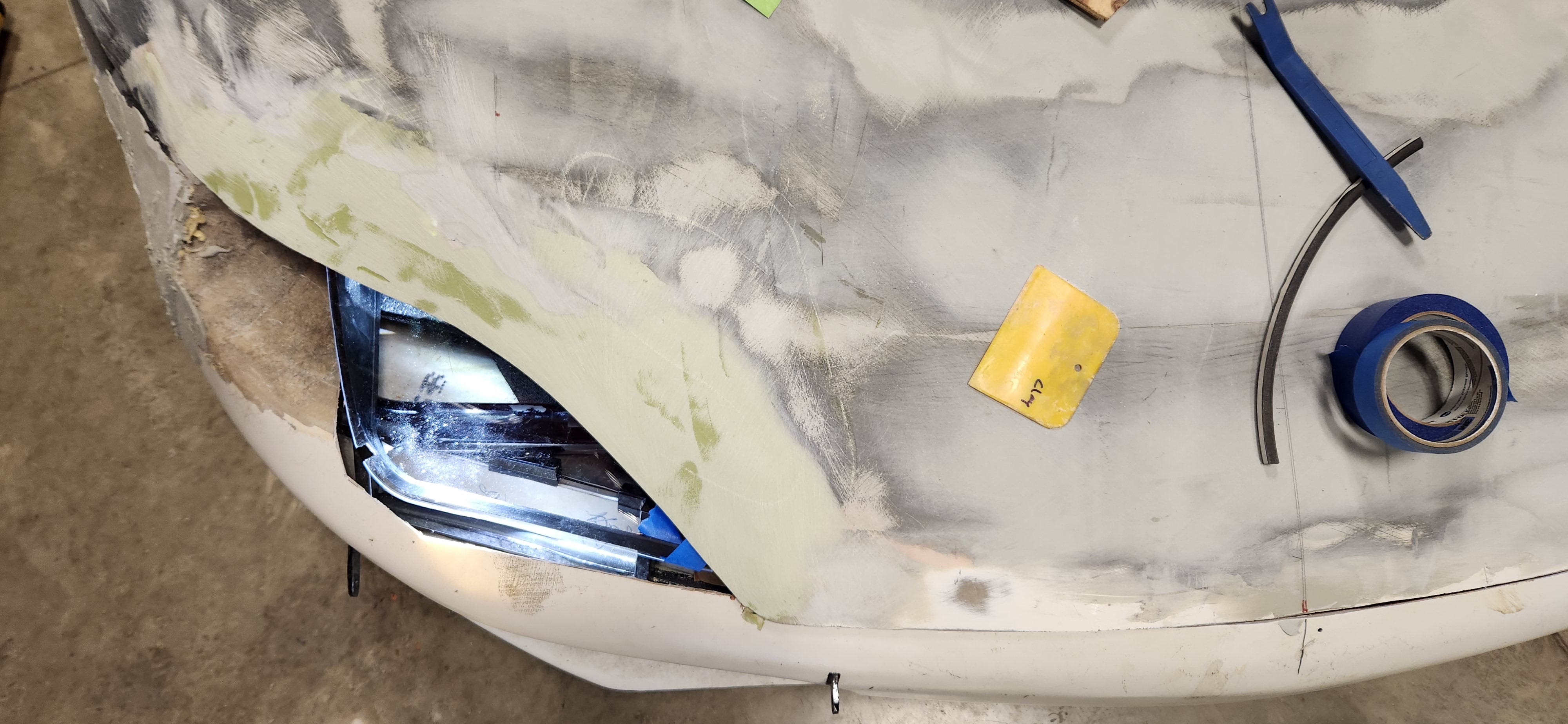

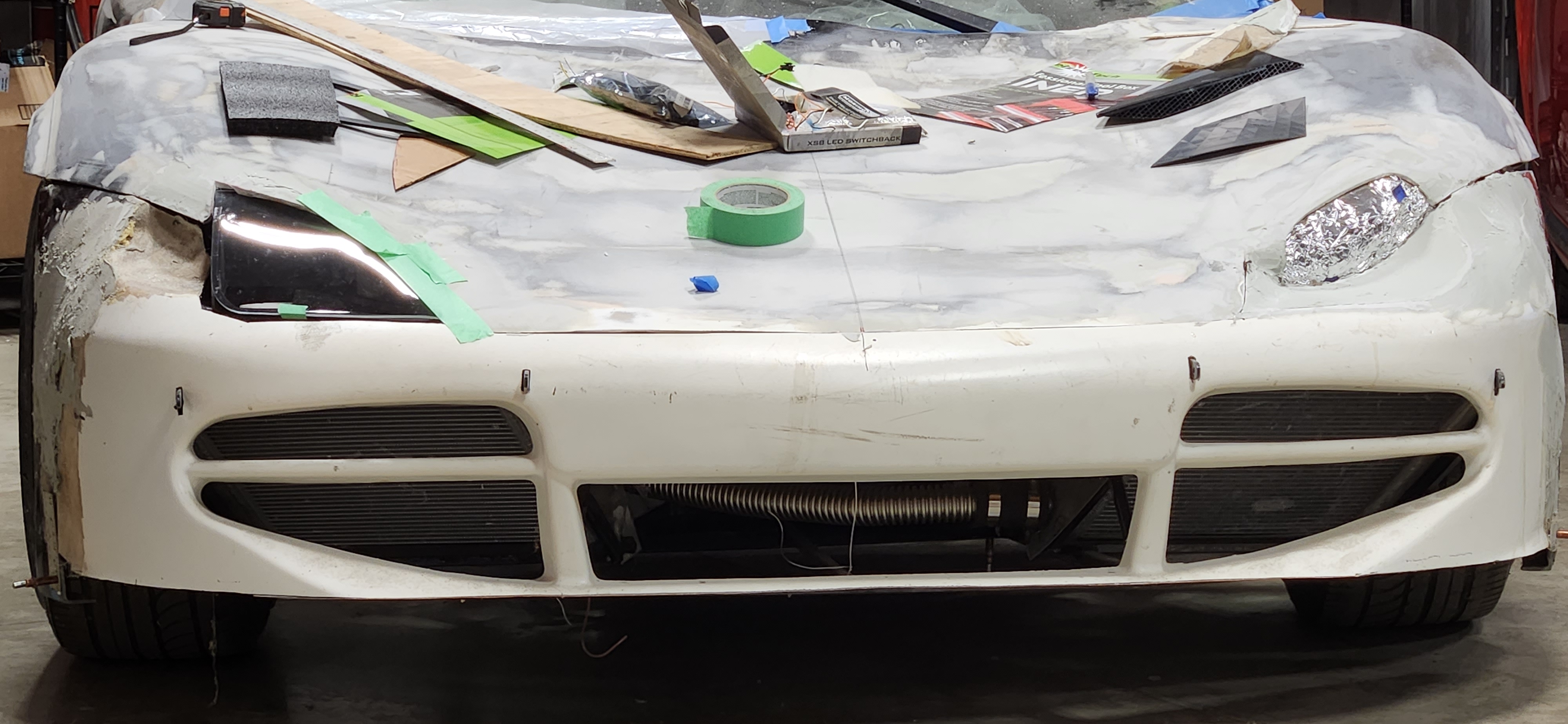

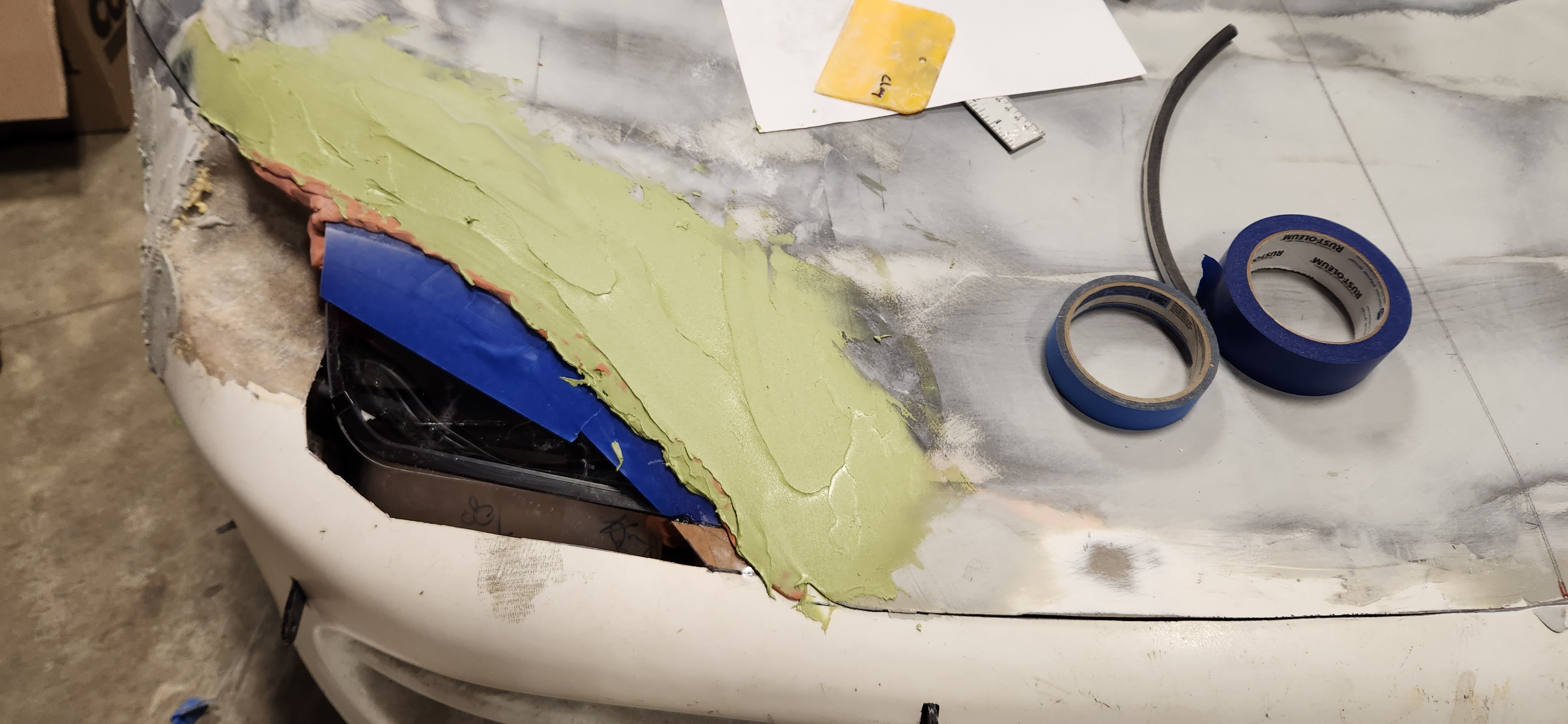

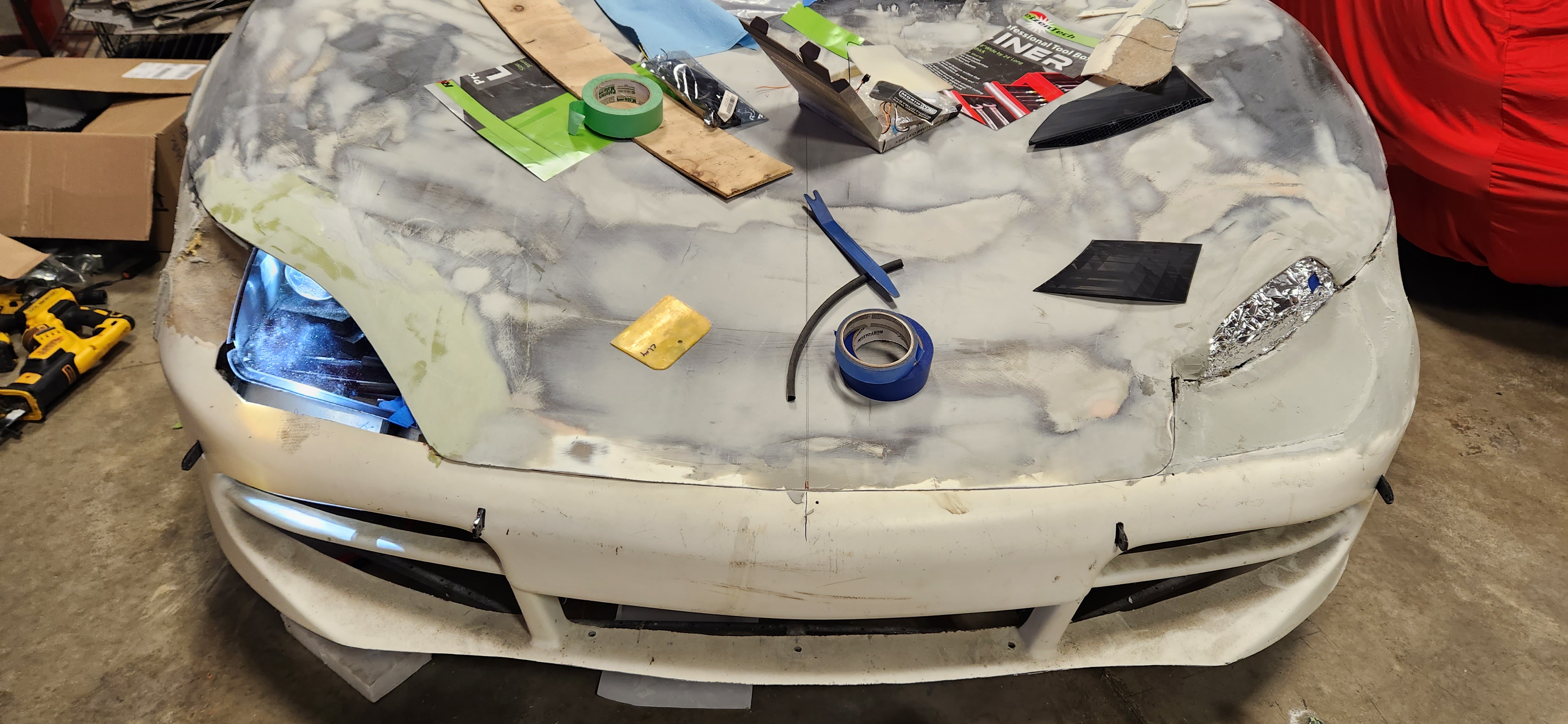

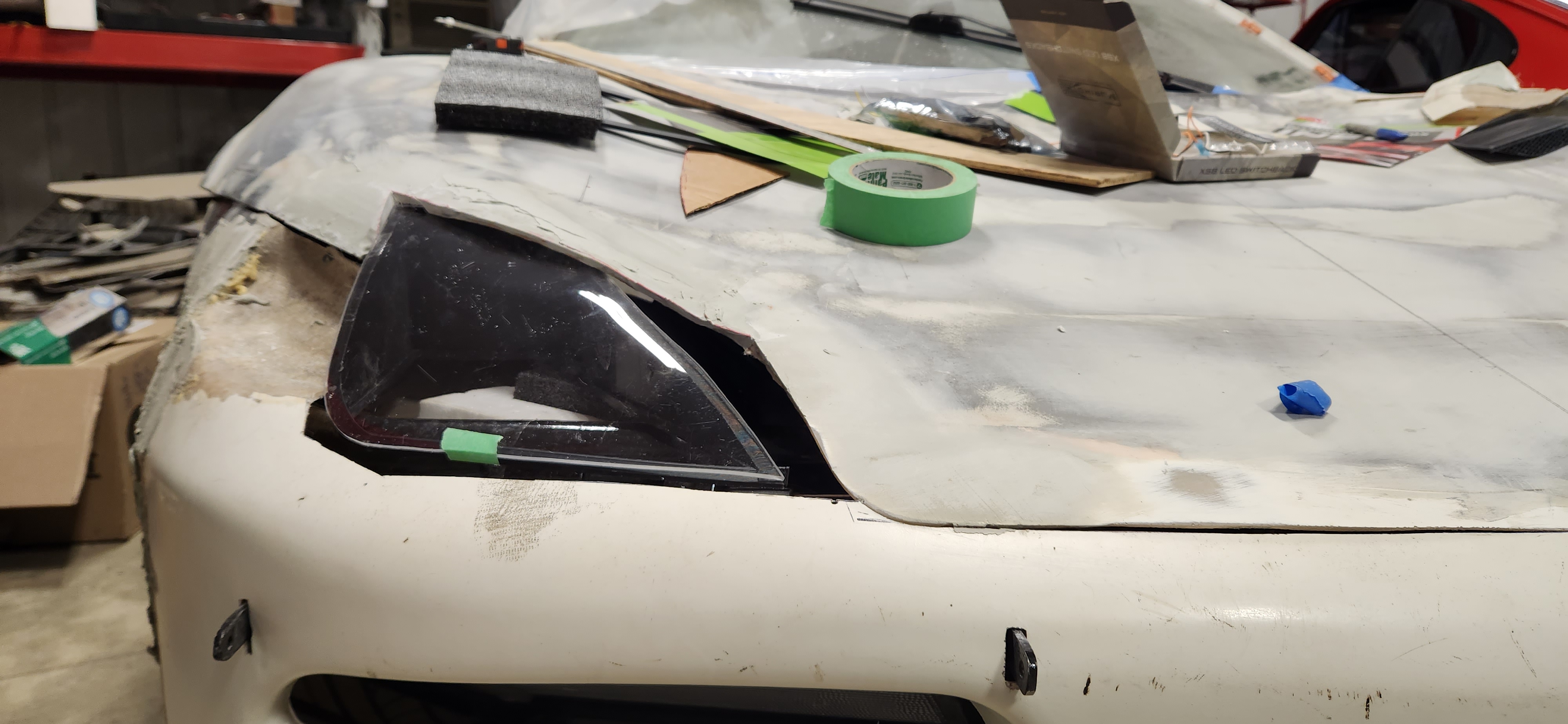

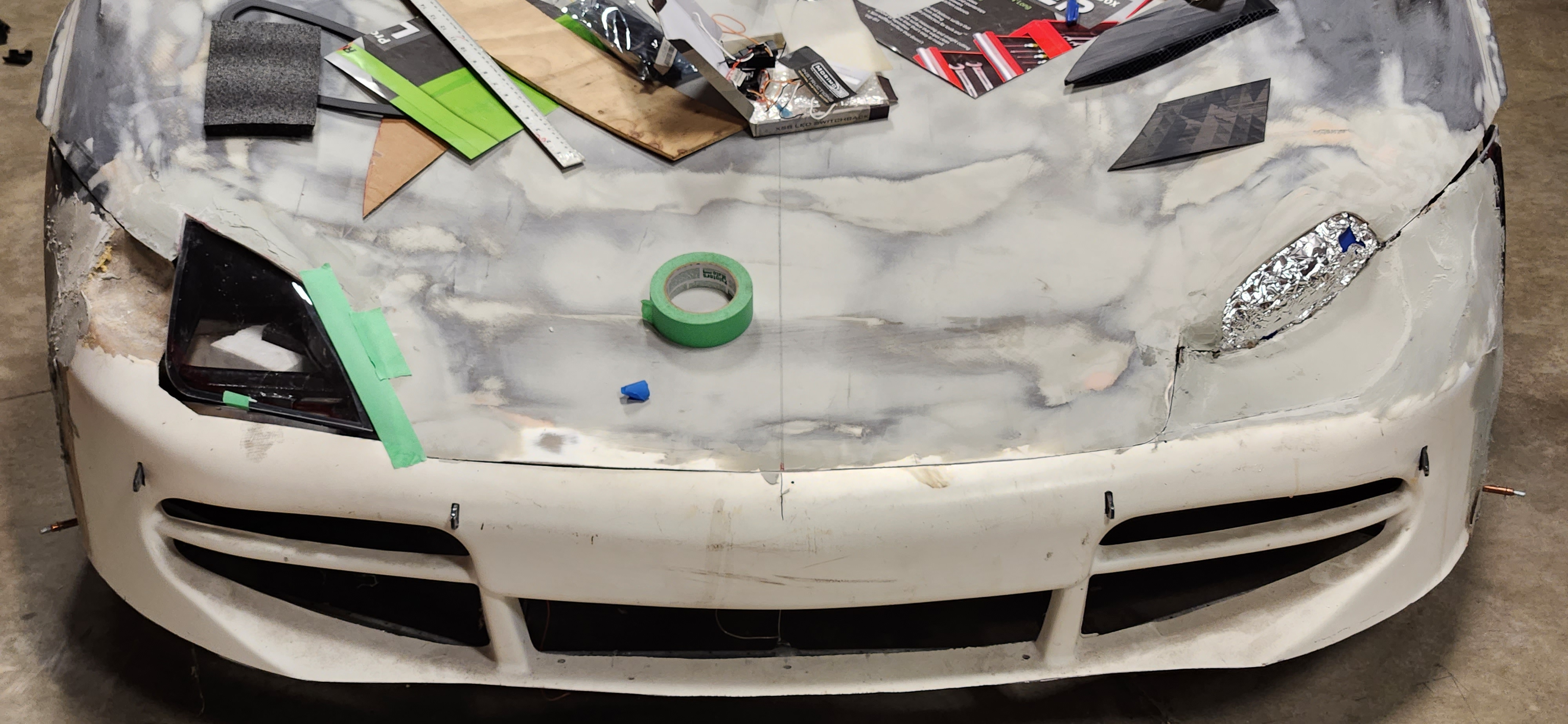

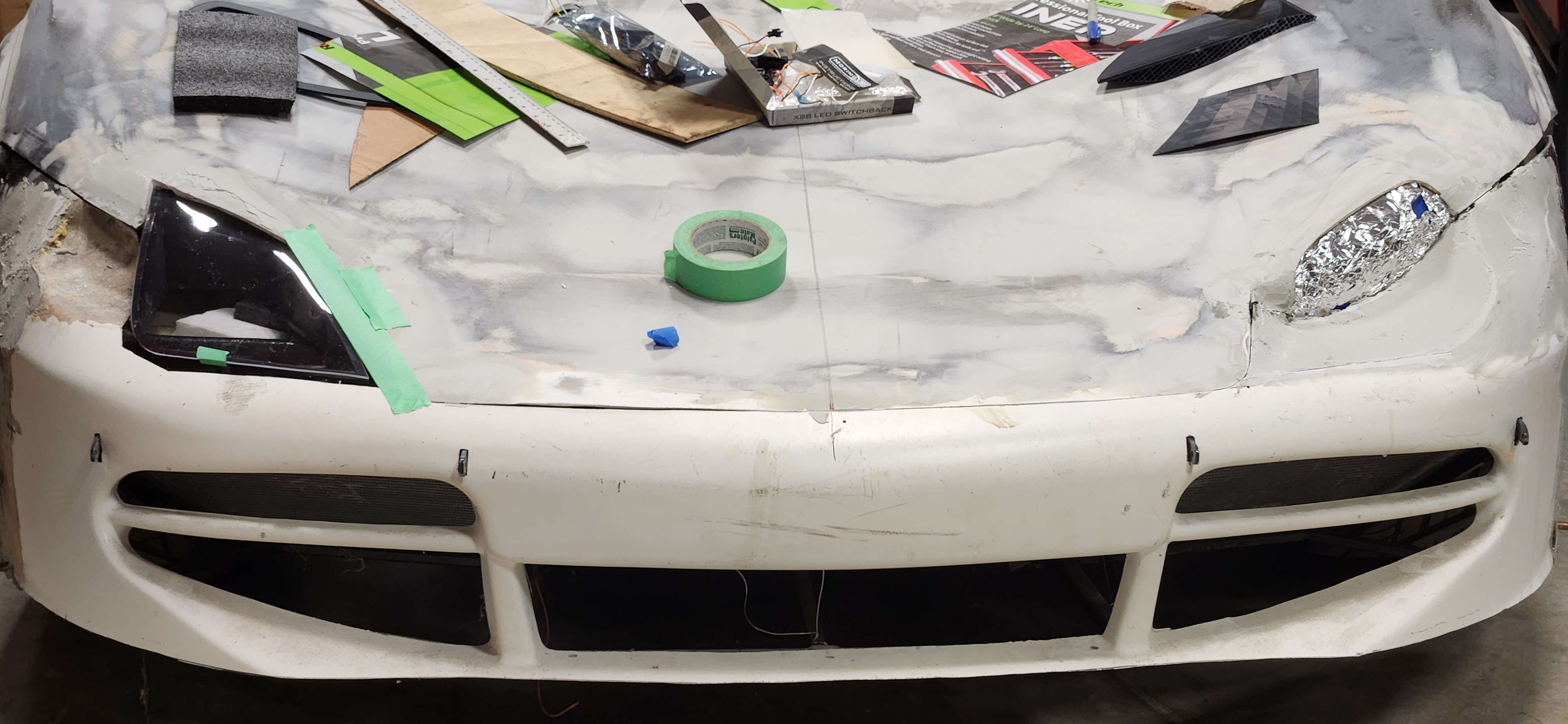

Front hood contouring for the new headlight, bumper contouring will come later. Here it is with just the first layer of filler to make the general shape. I think this works out well and solves some of the issues I didn't care for with the Yamaha R1 headlights, primarily aerodynamic.
Attachment 192606Attachment 192607Attachment 192608Attachment 192609Attachment 192610
I do think that looks better than the R1s on the GTM.

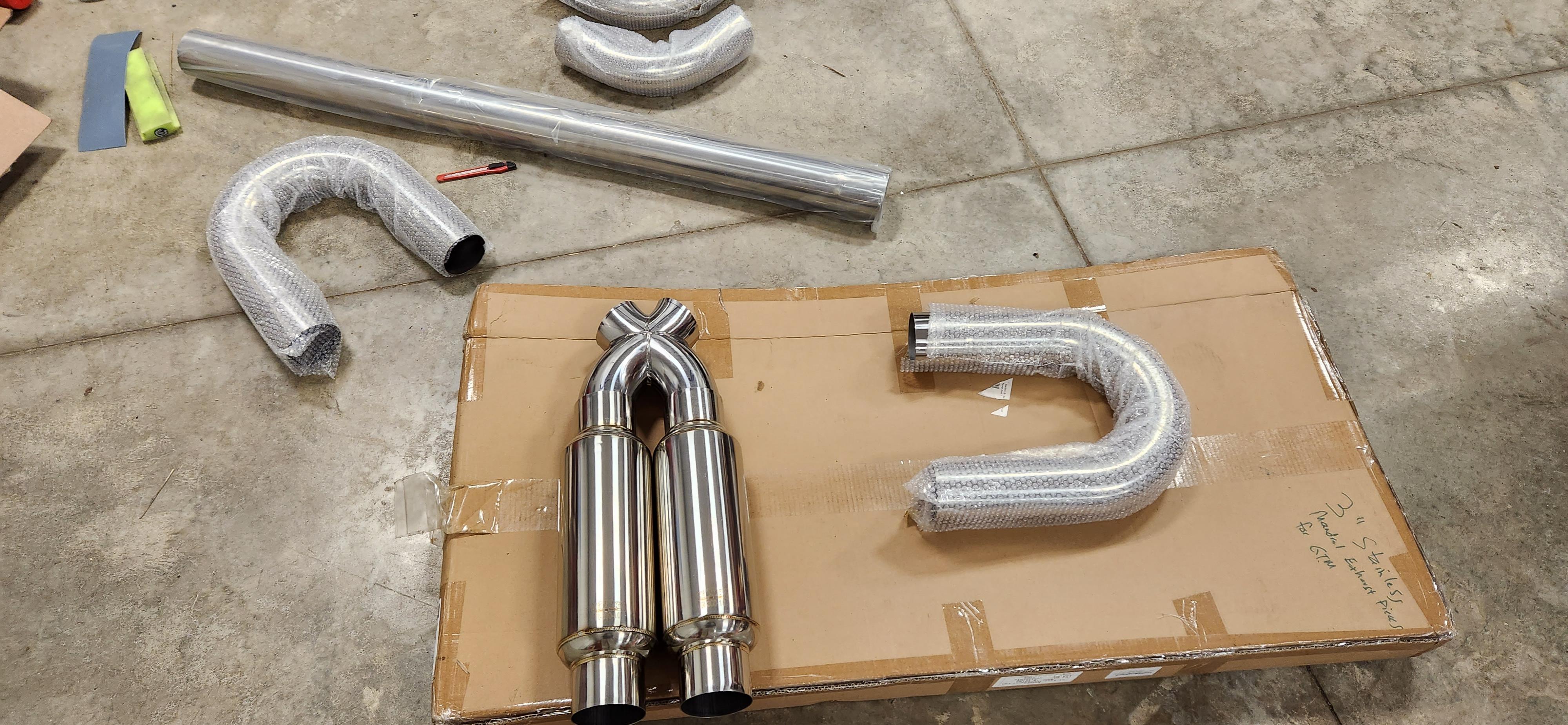

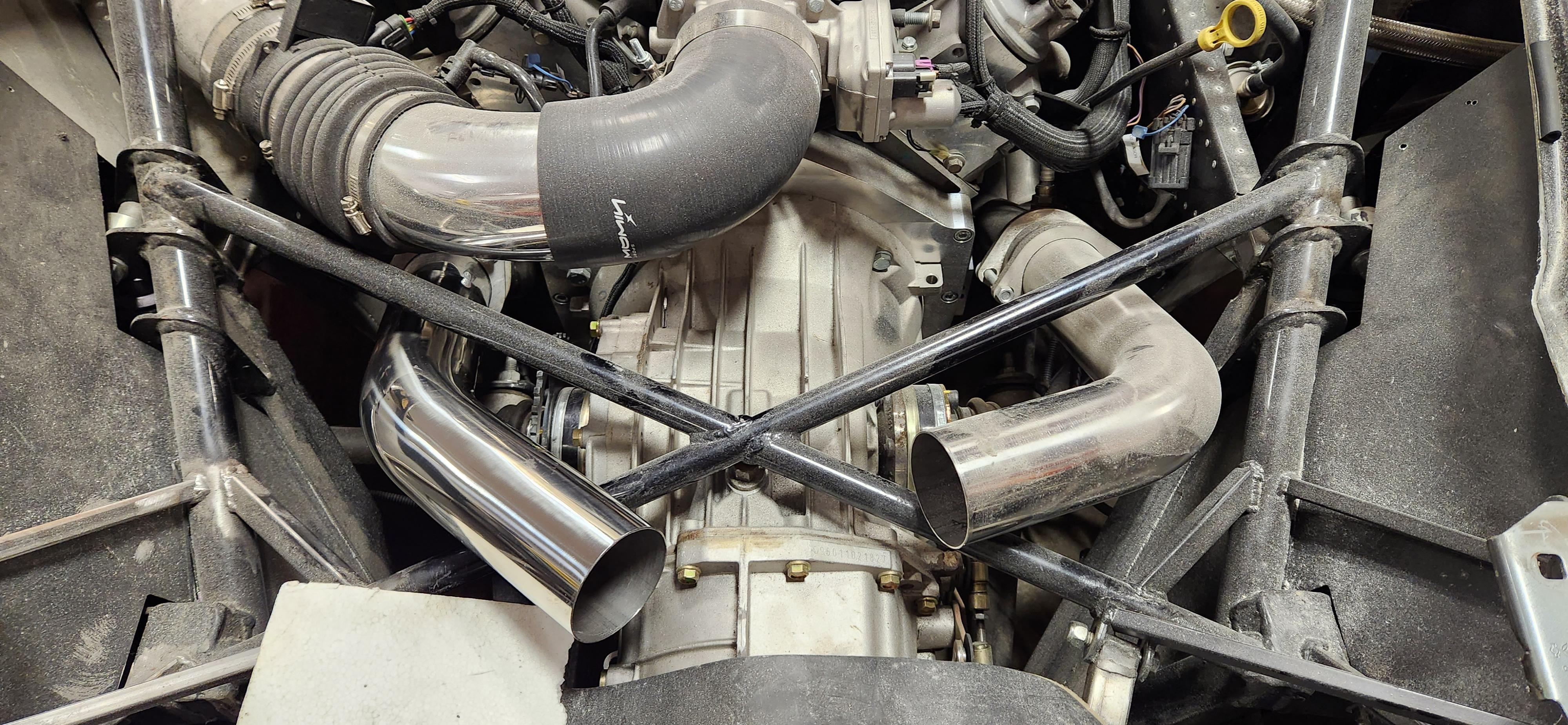

Bouncing around the car, converting Kooks exhaust to narrow exit from wide exit so I can access my rear trunks.
Attachment 192627Attachment 192628
Yeah....I was going to mention something when you posted that you put on the gelcoat and then were going to fg later. In my experience, the gelcoat will always separate from the mould if you leave it set too long before fiberglassing it. I never put down the PVA or gelcoat unless I know for a fact that I have time to fiberglass it the same day. Not sure if that's what happened to you?Quote:
Originally Posted by beeman
Yeah that could certainly be the case, my understand is that the exposed layer of the unwaxed tooling gel coat won't cure until it's sealed by the fiberglass, and I've heard that is that it is OK to laminate the following day. But I won't do that again. Of all my setbacks on this project, this one really got to me.
Temps are falling here in the Midwest, so I'm wondering if that played a role, room was about 60F.
Gel coat was almost 2 years on the shelf so maybe I should have just started with new. Save a few bucks, you know where that ends up...

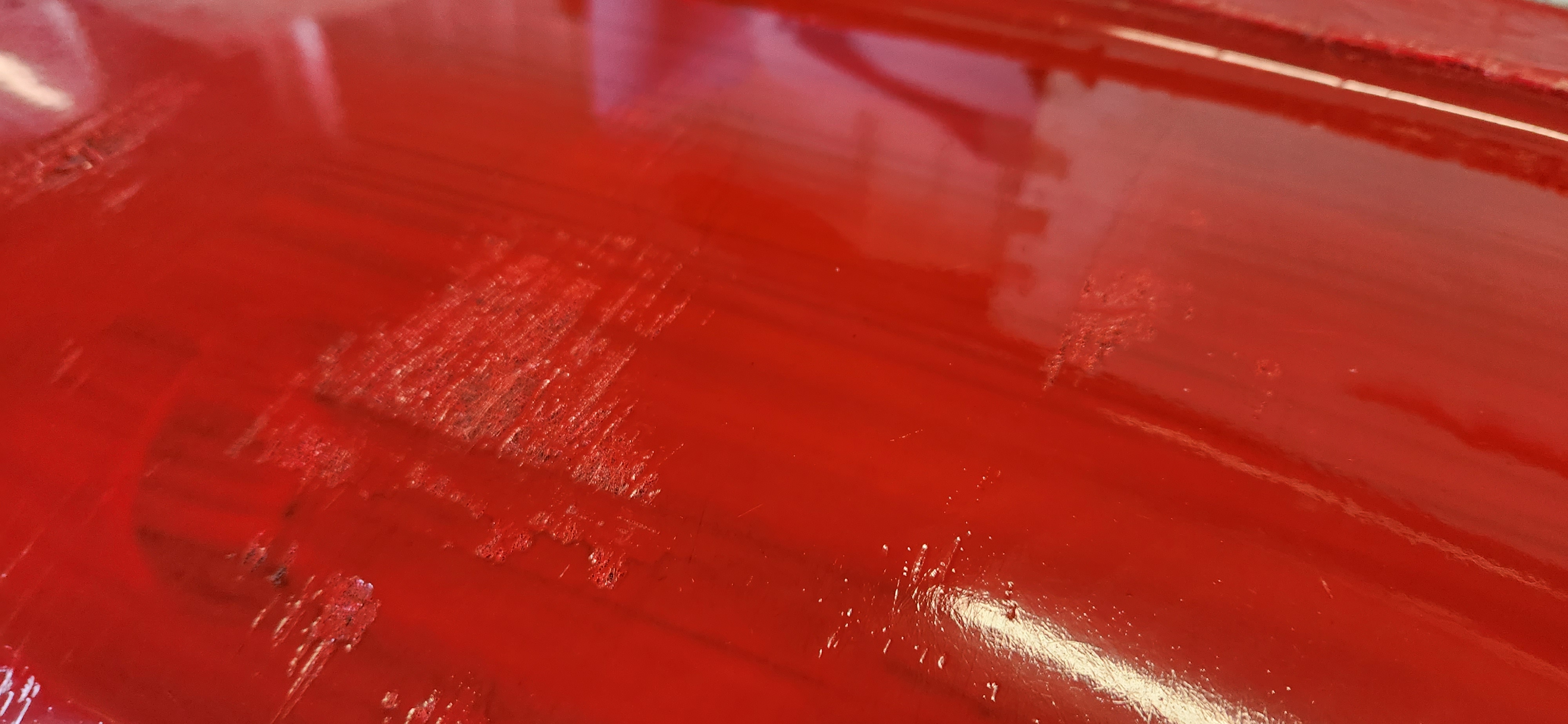

On the first side, I have a few acceptable blemishes like in this picture that I plan to repair with waxed gel coat.
Attachment 192666
I've always wondered if it does have to do with temp change. If you leave the gelcoat for a day and the temp changes, the part and the gelcoat expand/contract at a different rate and the gelcoat pulls away from the mould? Not sure what causes it, but it sure does ruin your day. My moulds that I make the Quarter Window Scoops from were really bad at this. I'd clean, prep, PVA and gelcoat them in the morning and then fiberglass them in the afternoon. About 50% of the time one of the moulds (was always the same one) by the time I came back from lunch, the gelcoat was already loose from the mould. I finally ended up cleaning the moulds with wax and grease remover to get all of the wax out of the mould and then hitting the whole mould with some scotchbrite to scuff the surface of the mould up a bit so that the PVA/gelcoat would stop coming loose. Haven't had a problem since.
What brand of mold prep and release agent are you guys using?
You'd think that would make it harder to get the part released from the mould?Quote:
hitting the whole mould with some scotchbrite to scuff the surface

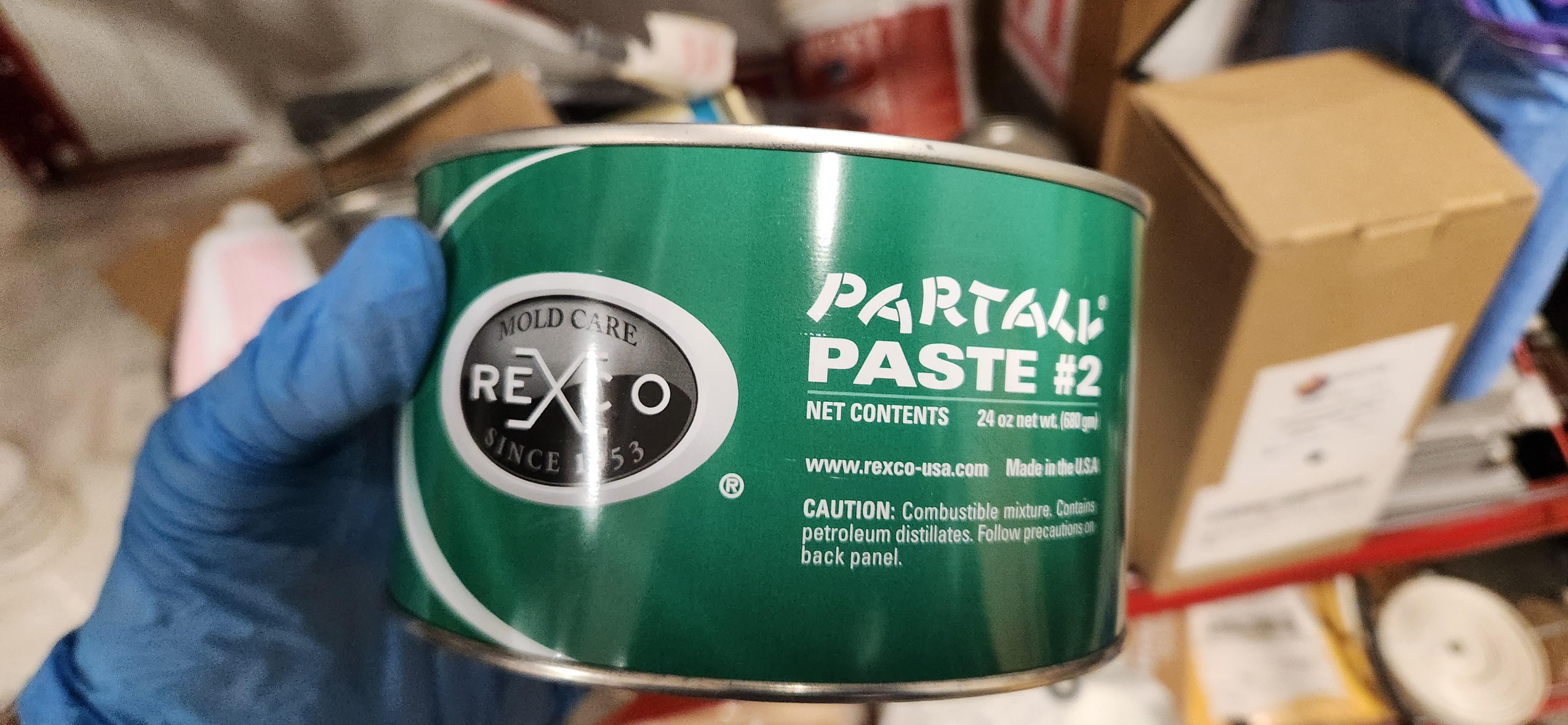

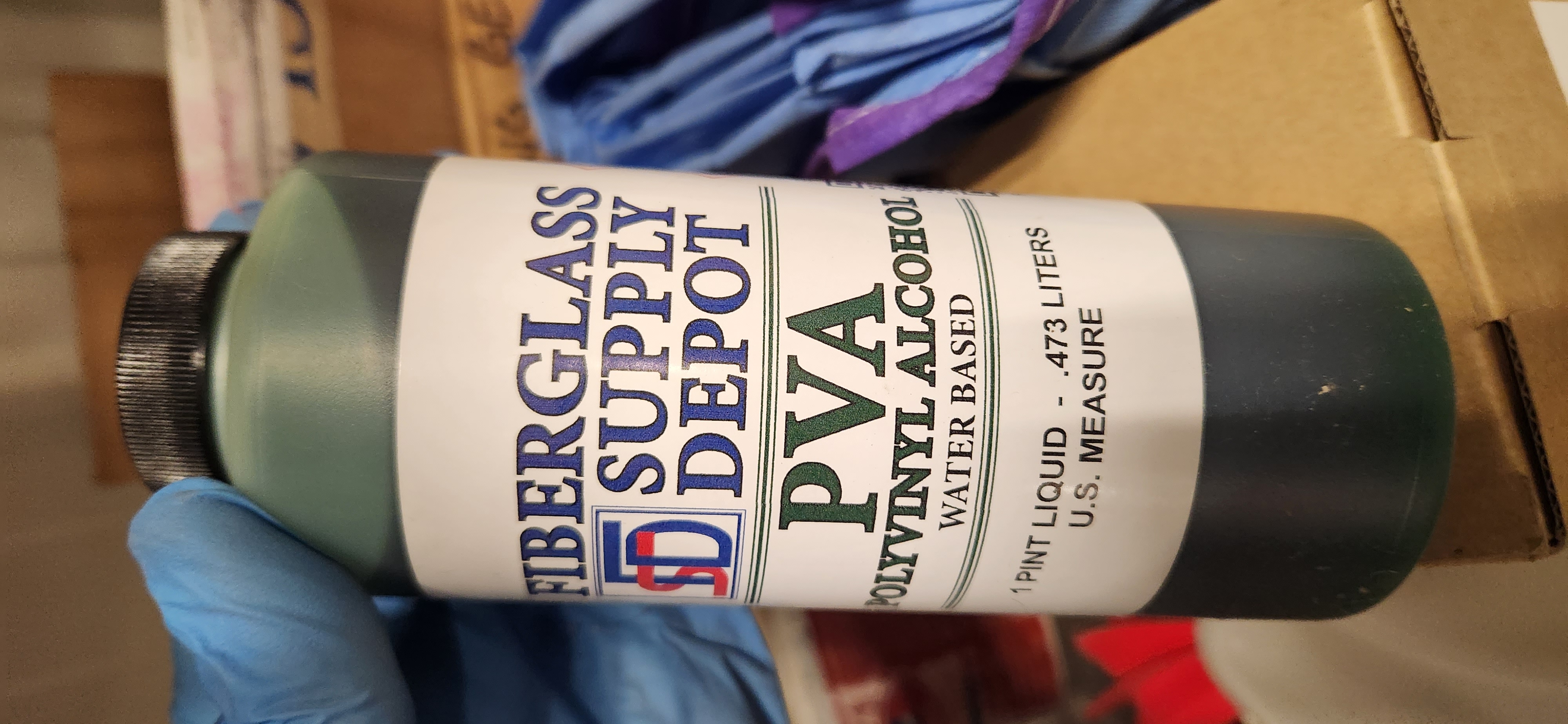

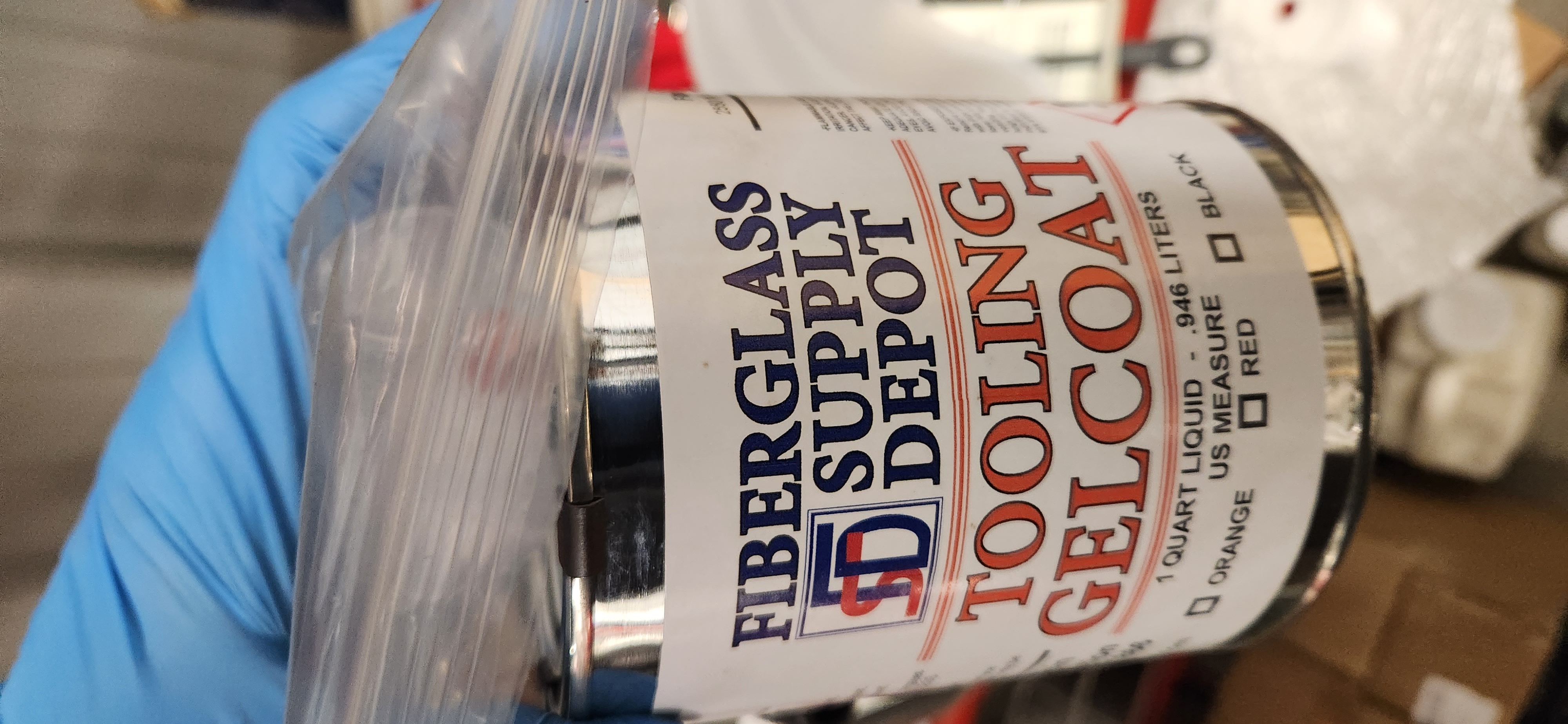

Here's what I have, Mike.
Attachment 192749Attachment 192750Attachment 192751
Going forward, I'm just going to use standard unwaxed gel coat to complete the spoiler mould, the tooling gel coat is just tougher for multiple parts pulls which I don't need. I ordered some fresh stuff.
The fiberglass guy I had doing my stuff was using the Henkel/Loctite/Frekote products in the past, although it has been awhile since I had any mold work done, but they worked awesome. Expensive, but no issues what so ever. Beautiful parts.
I think I would talk to whomever you are buying your products from as they should be knowledgeable in fixing the issues you are having. I would think sticking with one line of products start to finish would be important.
I know for the above Henkel/etc. products, there was a very specific process of cleaning and coating the molds to make sure there were no issues and that parts would come out without sticking. I think 3-4 different products from that line were used. Can't remember for sure, but do remember that it was not cheap to do it right. I think my FG guy did things with production in mind, even though I only did a couple parts from each mold. Might be a cheaper way. I would talk to your supplier.
The only products I'm using are the Partall #10 film, gelcoat that I purchase from Carstens Industries and whatever quality polyester resin I can find at reasonable cost....which right now is True Composites.
As for scuffing the surface of the moulds that were giving me issues....as you may have found out, the tooling gelcoat is hard as hell. It's like scotch-briting cast iron. The coarse red scotchbrite pads barely scratch the surface, even with considerable pressure and scrubbing. I was having the issue with the gelcoat pulling away from the mould on almost every single piece from one of these moulds and I figured that if it releases that easily, as long as I have the PVA in there, it can't get any worse than the problems I was already having. The parts pop right out of the moulds and I haven't had an issue with them since I did that.
Thanks for the info, guys.
Shane, I've been using vinylester resin, about 2x the cost of polyester. What's the opinion on polyester vs vinylester? I'm assuming the FFR bodies are vinylester?
I'm definitely not a fiberglass resin expert. The general consensus is that vinylester is stronger and able to withstand impact better. For the parts I'm building, none of them are really "structural" or designed with an "impact" of any sort in mind. Since the parts are getting bonded to the body (in the case of the Quarter Window Scoops and Rear Body Vents) with an epoxy, and we aren't really dealing with any sort of "chemical bond" like with a wet lay-up of the parts, I just can't justify spending double on resin when I really see no advantage to doing so.
I think the only time you have to use vinyl ester is in ship building, it will not break down with persistent moisture like polyester resin

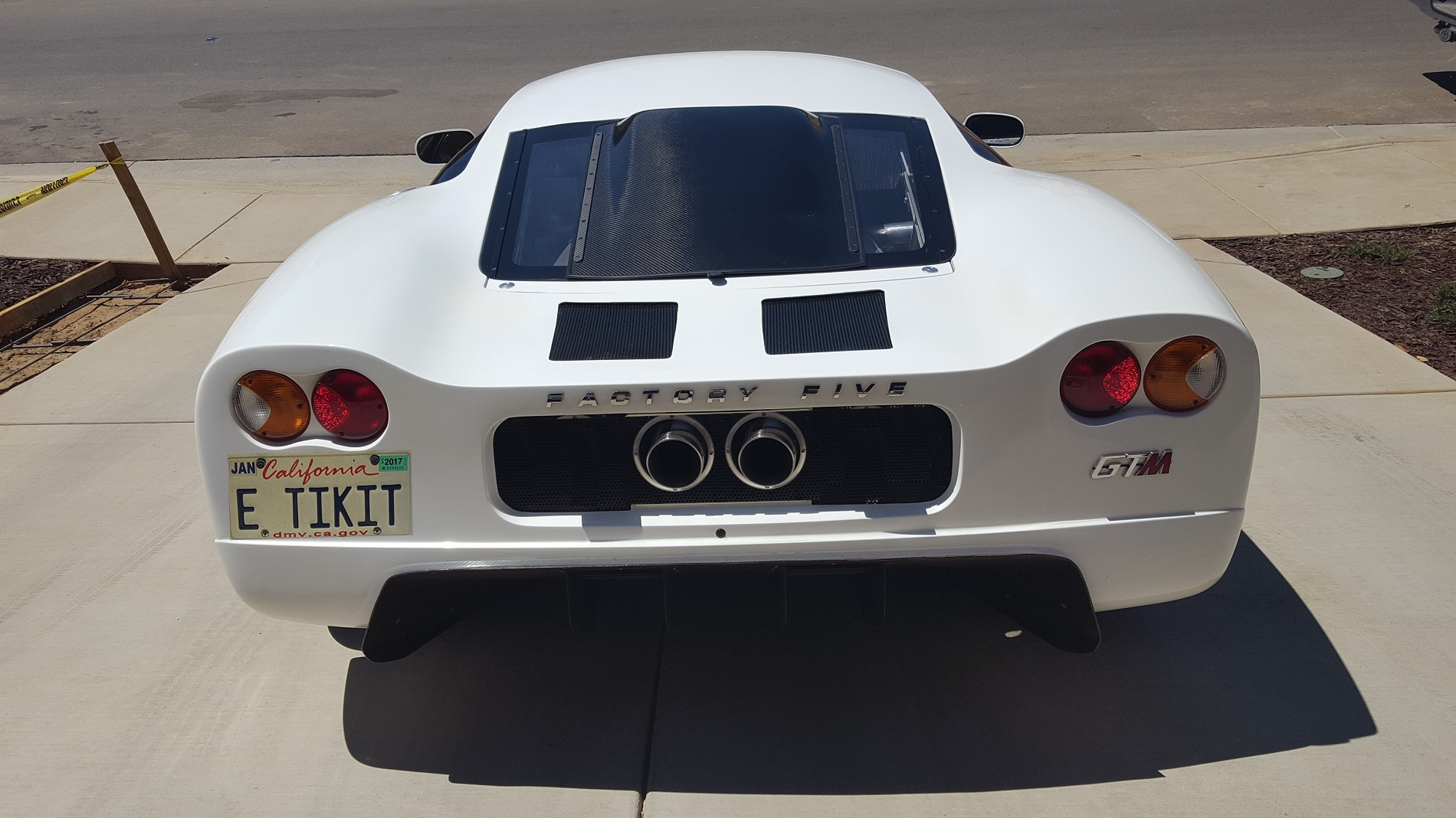

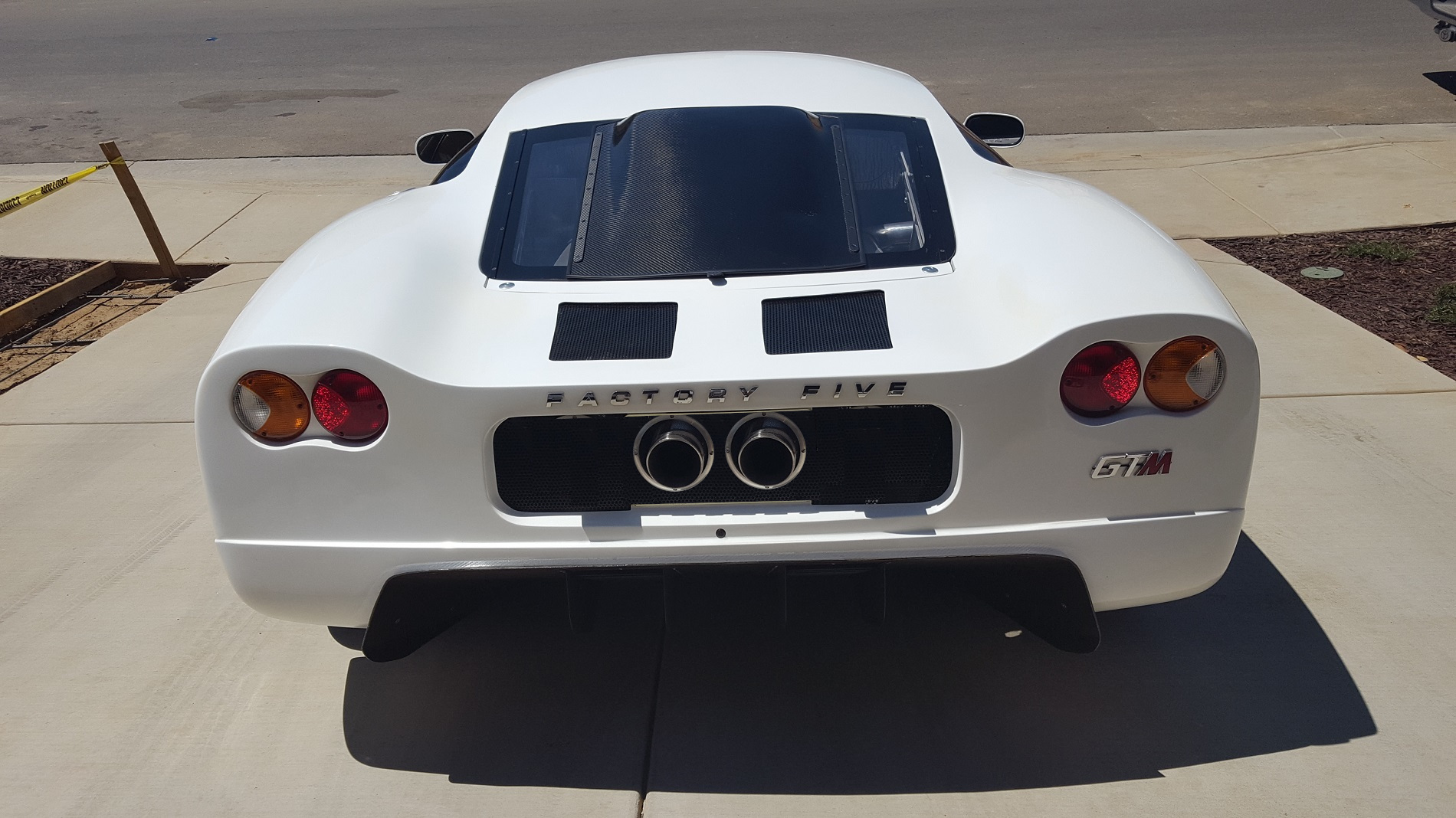

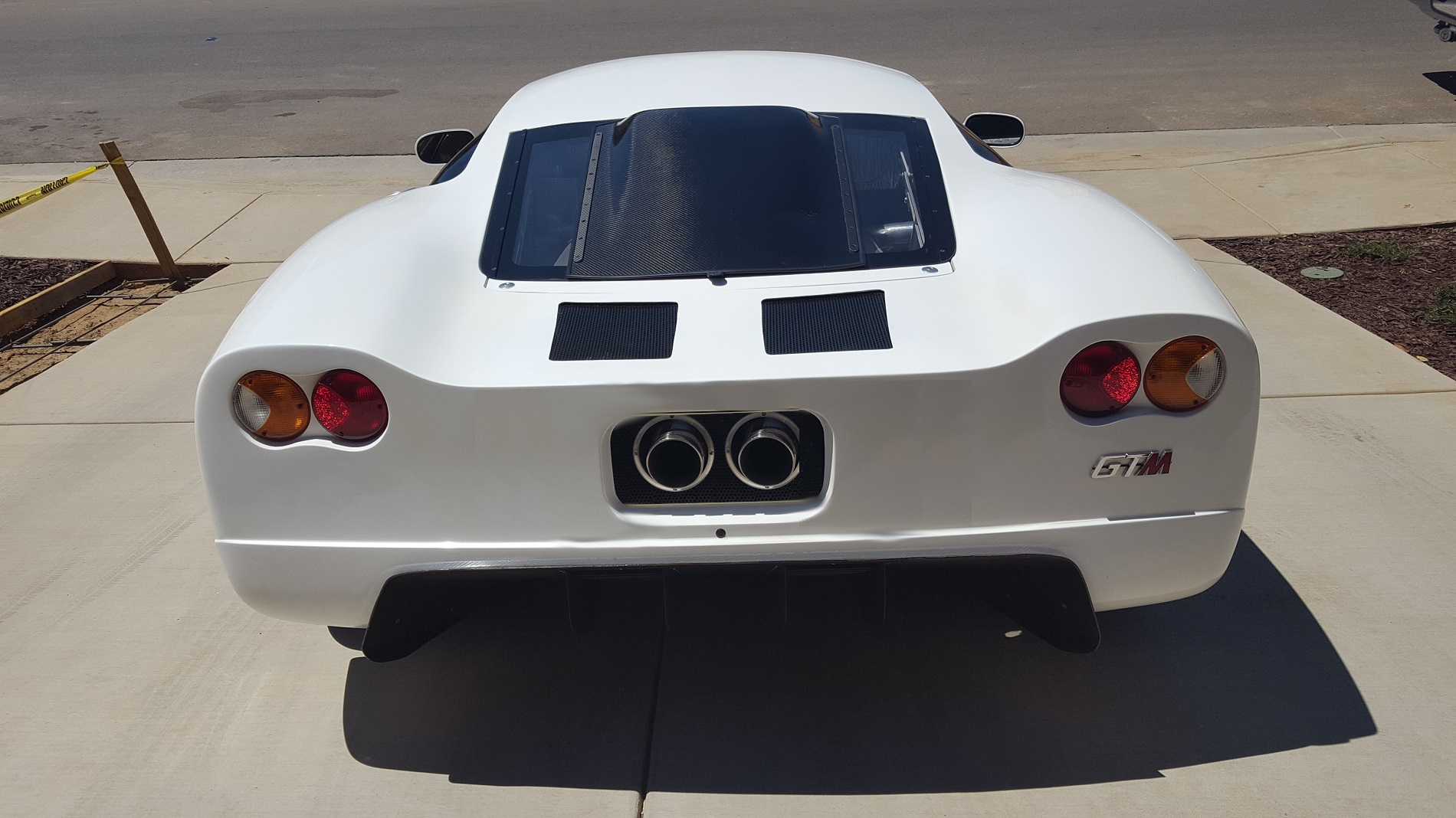

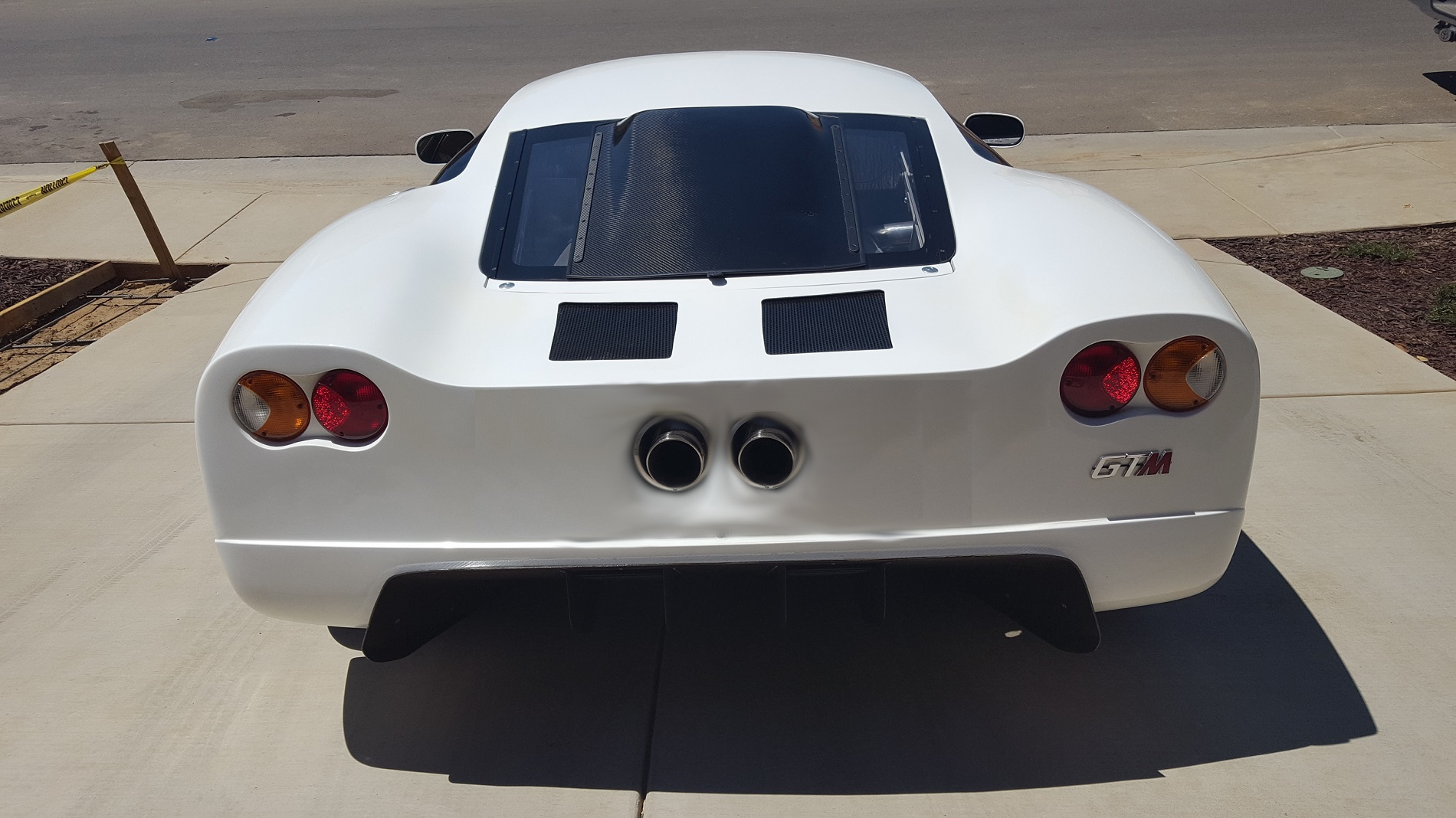

Looking at the rear of the car with the narrow exhaust exits. Trying to figure out if I should delete the recessed license plate area. Photoshop to the rescue. The large flat surface at the rear of the car doesn't look good unless it is broken up by the recessed area.
Just need to figure out where the license plate will go. Leaning towards central, under the exhaust. 2nd option is offset to one side.
Attachment 192892Attachment 192893Attachment 192894Attachment 192895Attachment 192896
Hey Dave, have been following along. I think I like the last pic the best. License plate in the middle and the exhaust on each side.Quote:
Originally Posted by beeman
Agree with Joel all the way.
