I like EFI, but not afraid of carbs. I like this brawler, first carb I’ve had with external adjustable float levels. I’ve run webers but, especially on the Formula Mazda, they’re a pain in the butt.Quote:
Originally Posted by Dave Tabor
Printable View
I like EFI, but not afraid of carbs. I like this brawler, first carb I’ve had with external adjustable float levels. I’ve run webers but, especially on the Formula Mazda, they’re a pain in the butt.Quote:
Originally Posted by Dave Tabor

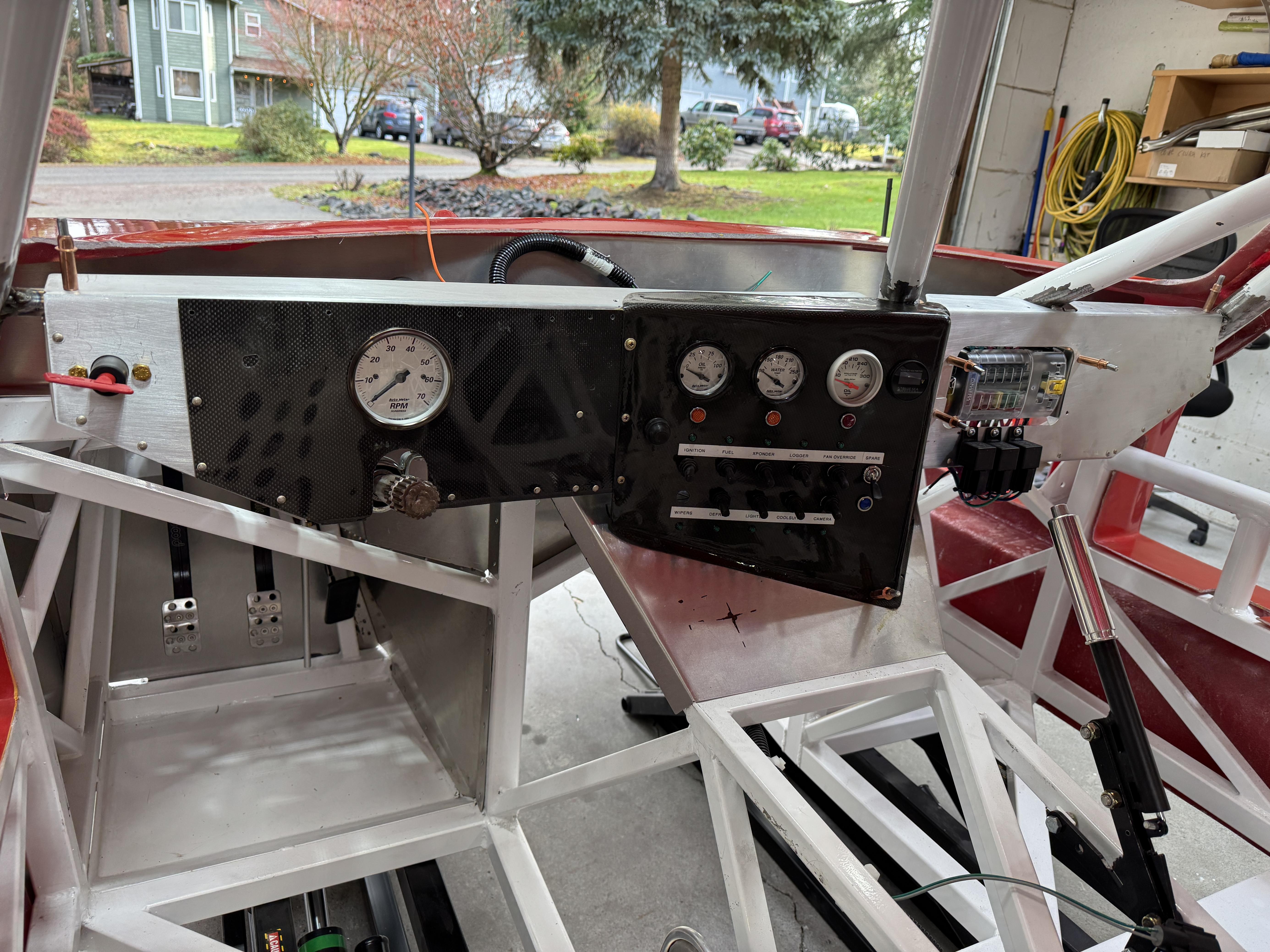

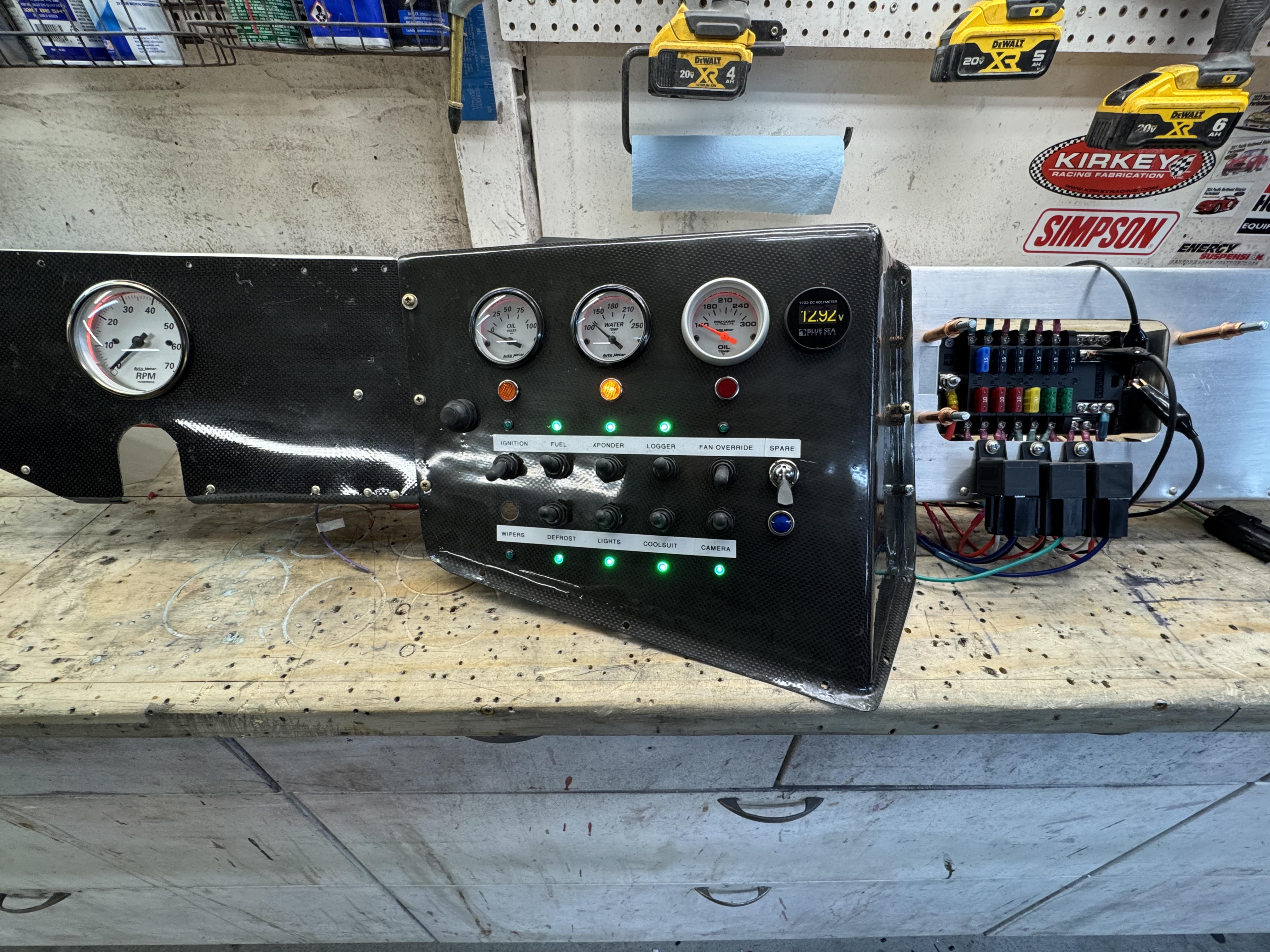

Dash wiring complete, functional test successful, no defects noted. It's not a typical Coupe dash since it just needs to be reliable and functional for racing. Still have to mount and wire up the MSD box, but for now it's all working as planned.
Attachment 207605Attachment 207606
Looks pretty functional to me!Quote:
Originally Posted by Jphoenix
Good news from AVAIAD this morning, all the dry sump parts are on the way. Spent the day getting the bonnet on, located, but needs trimming.
Attachment 207625Attachment 207626
Just a couple of things:
When I mounted my bonnet, I found that even with my body in the location spelled out in the manual, when I went to mount the doors the door hinges hit the body and I had to move the body forward to clear, making the bonnet now not fit. After fixing that I found that when I added the bonnet struts they also caused the bonnet to move. Lastly, the rubber bumpers along the bonnet/body can also cause the sides of the bonnet to flexin/out. It took me a lot of "adjusting" to get it looking good.
Thanks Scott. That’s a good tip, so I’ll do the doors next, before I do any trimming on the hood.

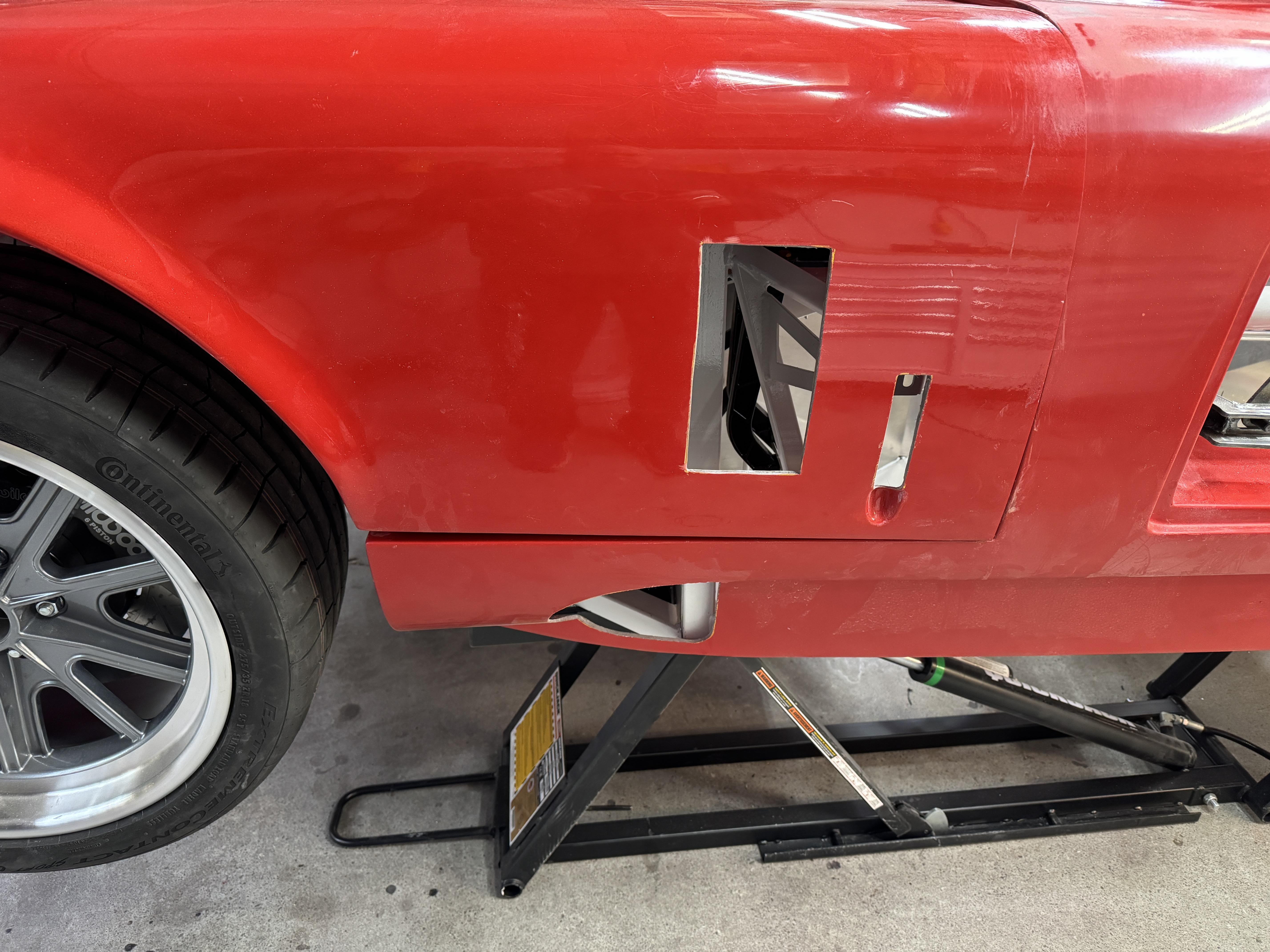

After starting on door hinge cutouts yesterday, I read a few threads here on bonnet fitting and decided to finish the door hinge cutouts, but not fit the doors until after the bonnet is fit. The way the bonnet sits now, it does not appear I'll need to move the main body at all. EdwardB's thread on body fitting was very helpful and I concur with his finding that the main body fit per the manual is pretty darn good.

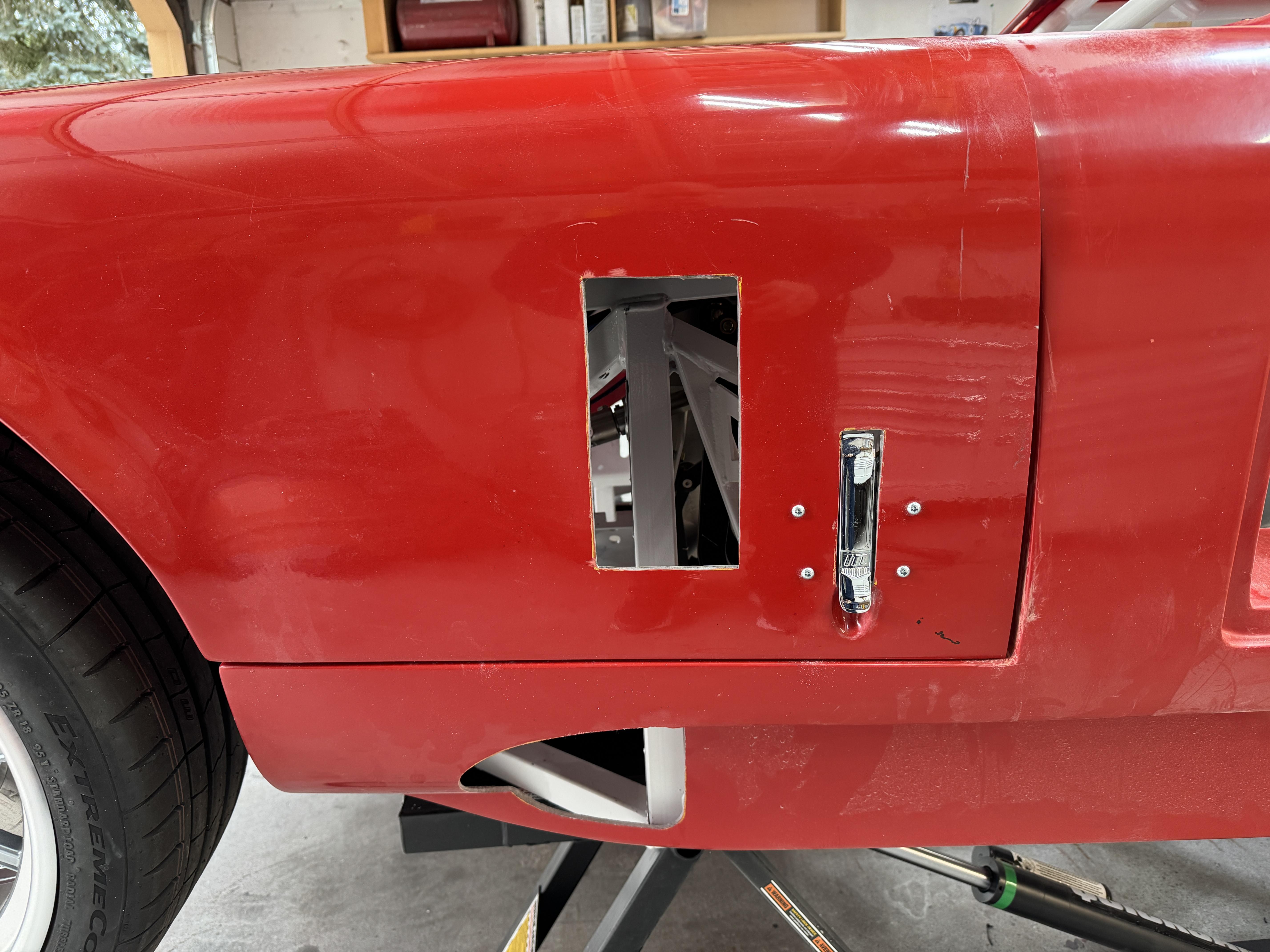

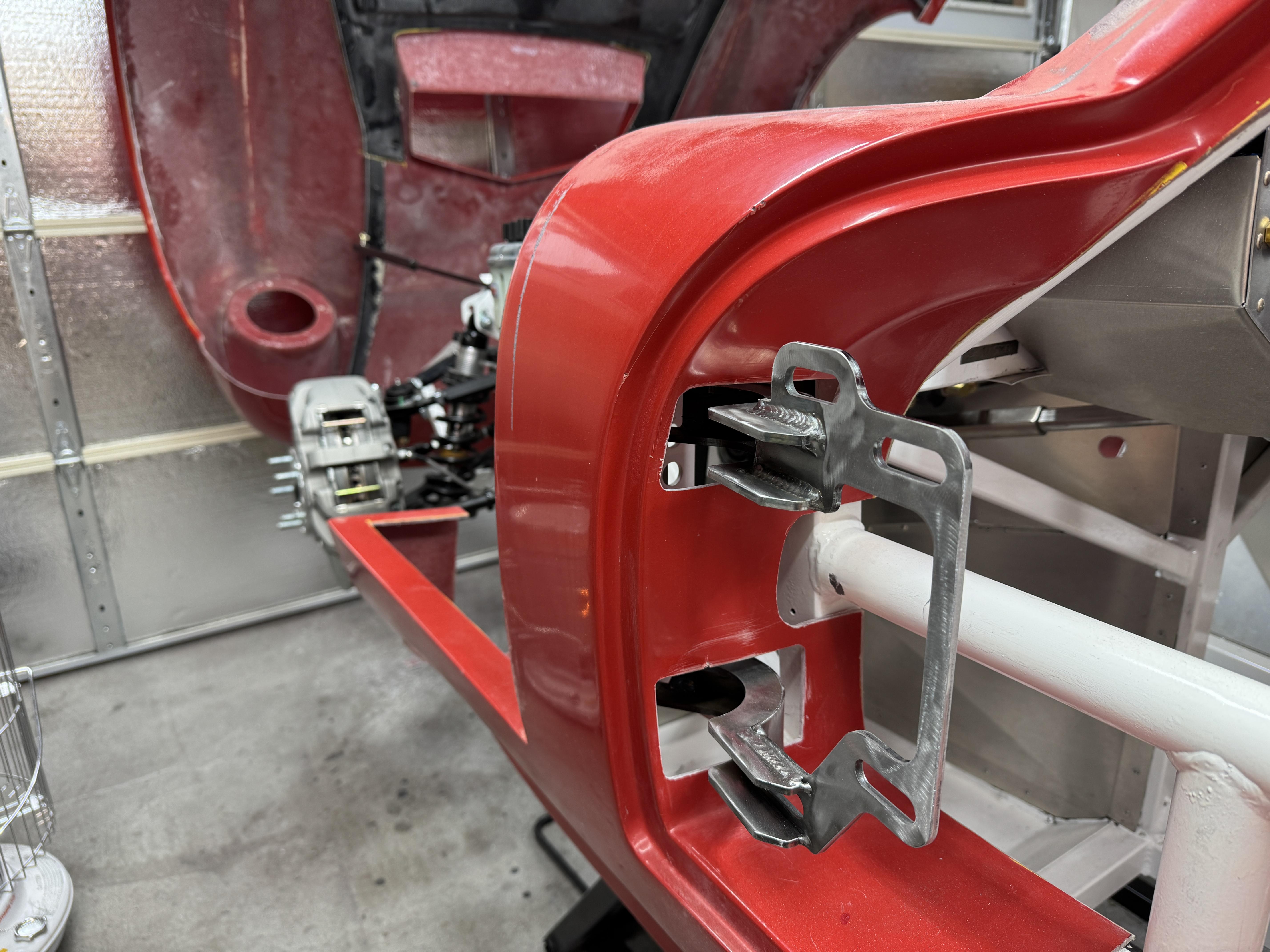

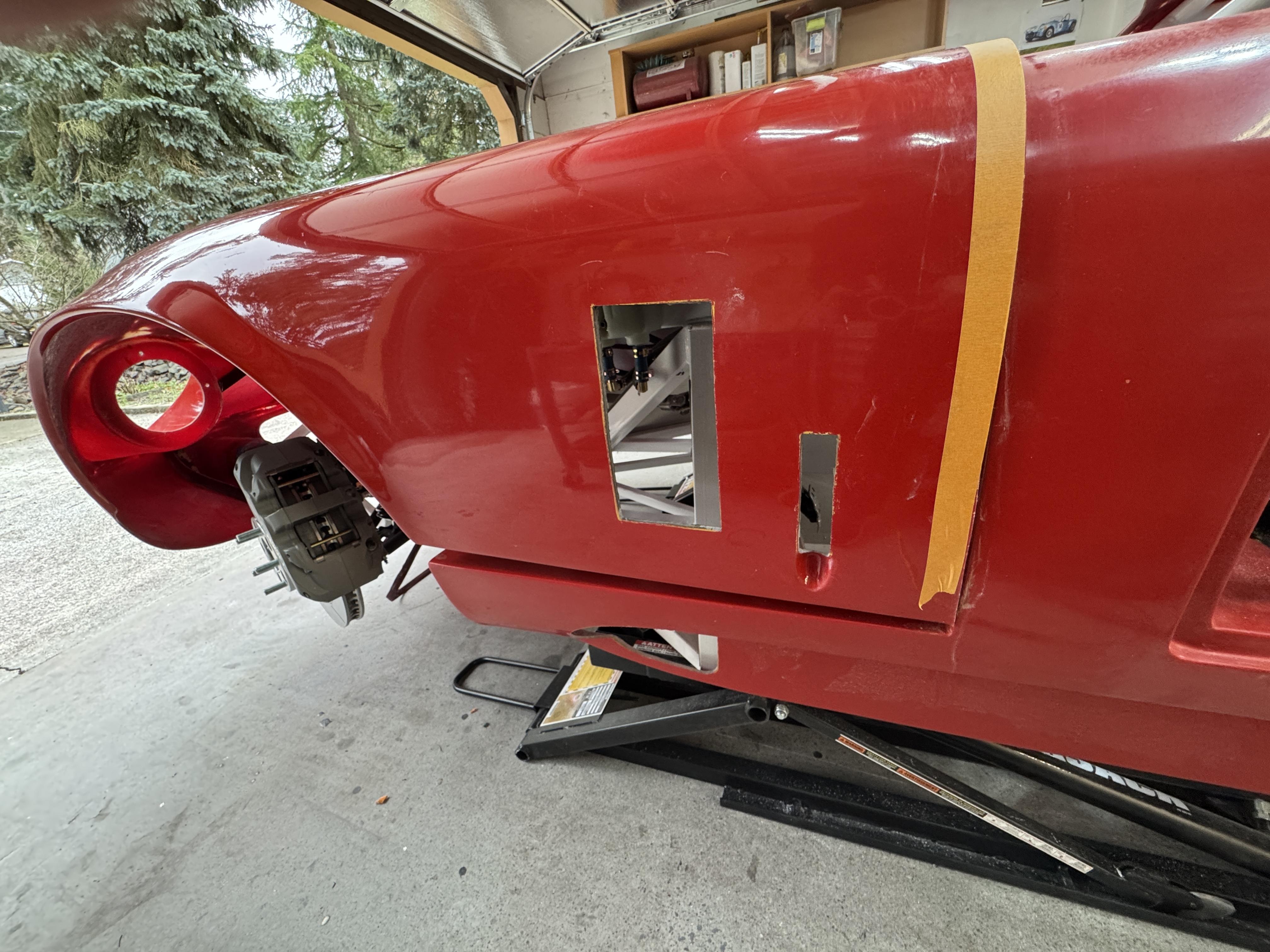

The door hinge cutouts were pretty straightforward - of course the Coupe-R complicates things with its door bars in the way of the door and its frame, but I see I can simply cut them as GTRich did (and probably others, but I could not find any other threads or photos of how the Coupe-R doors are modified).

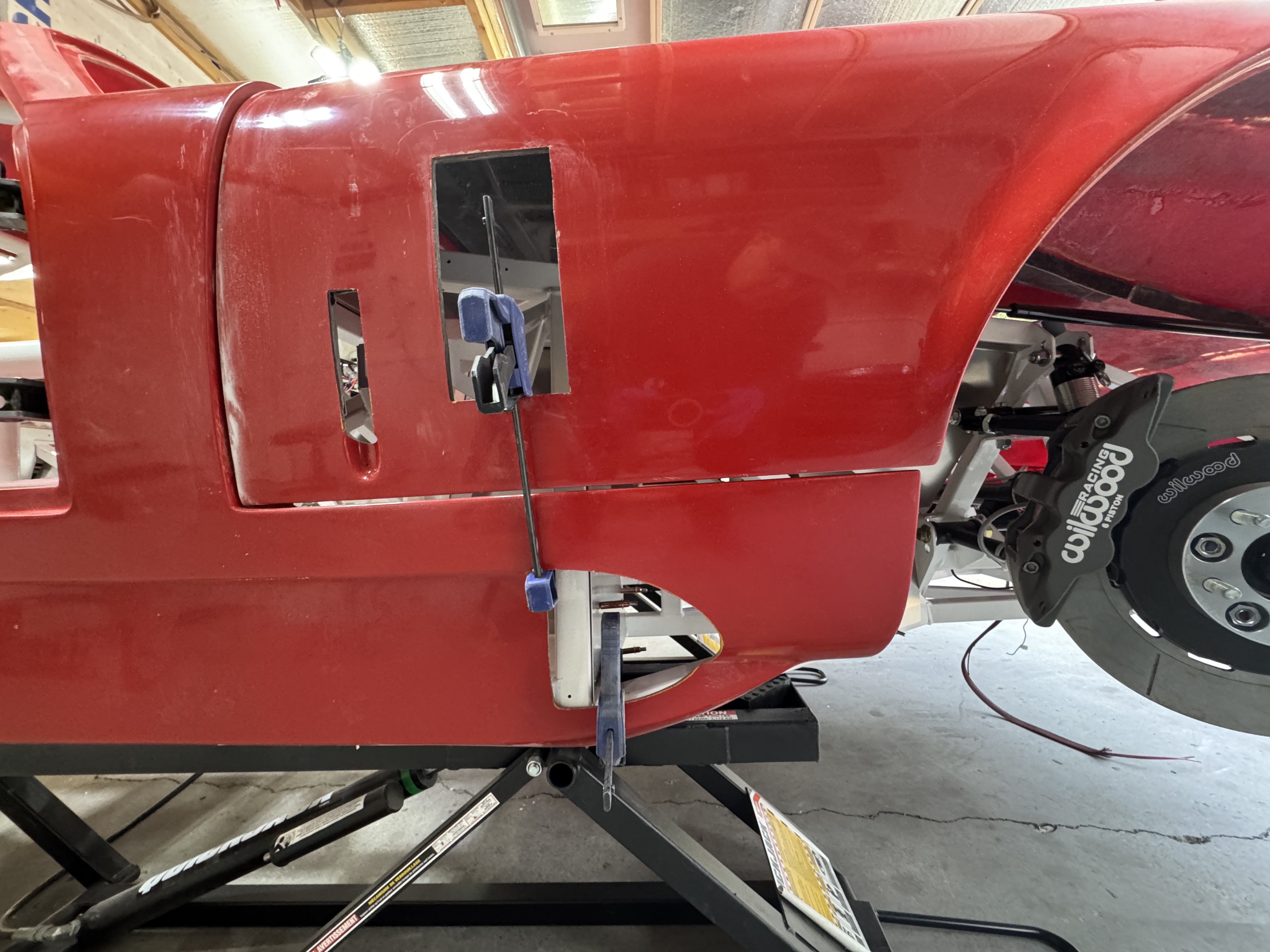

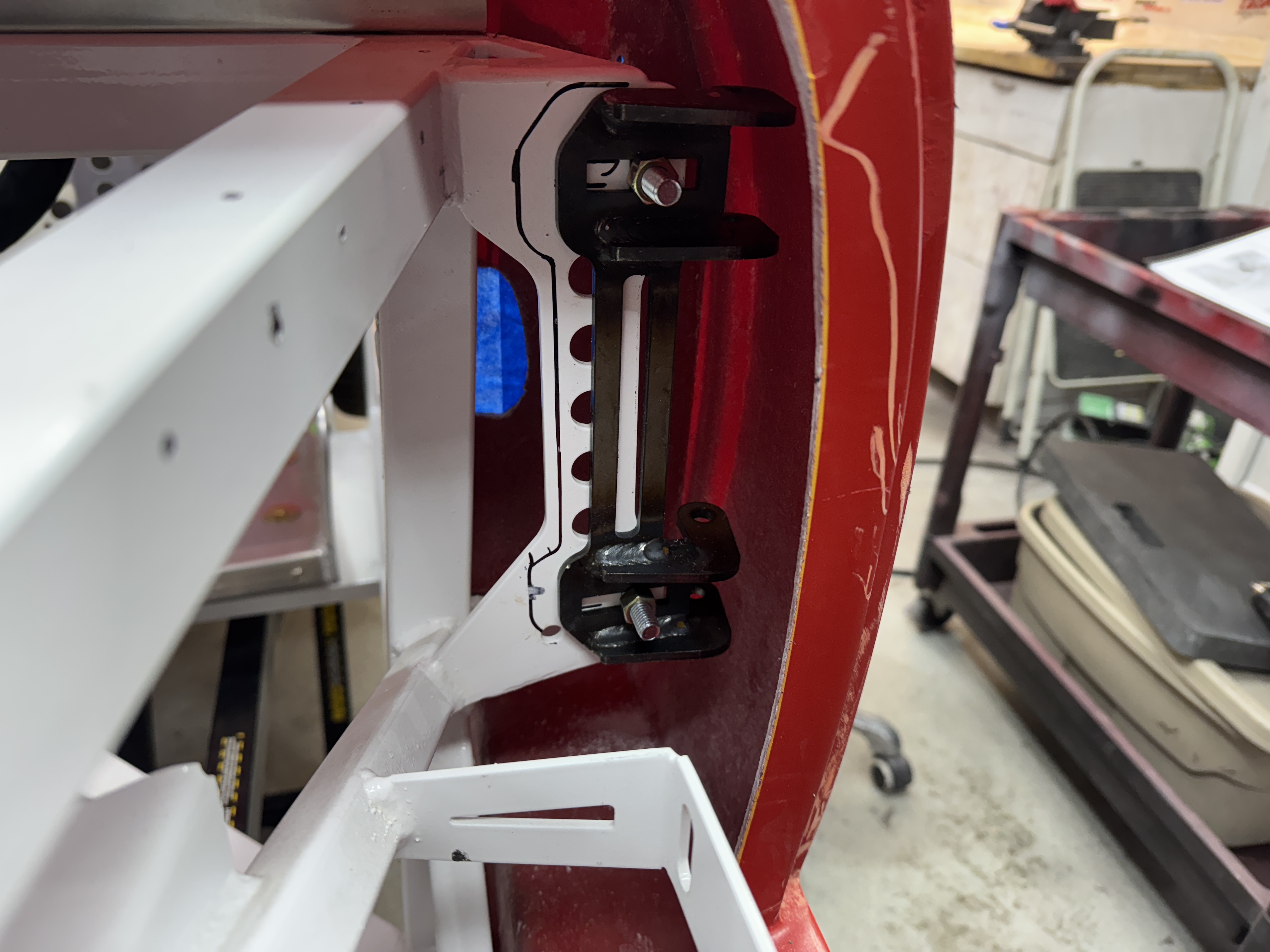

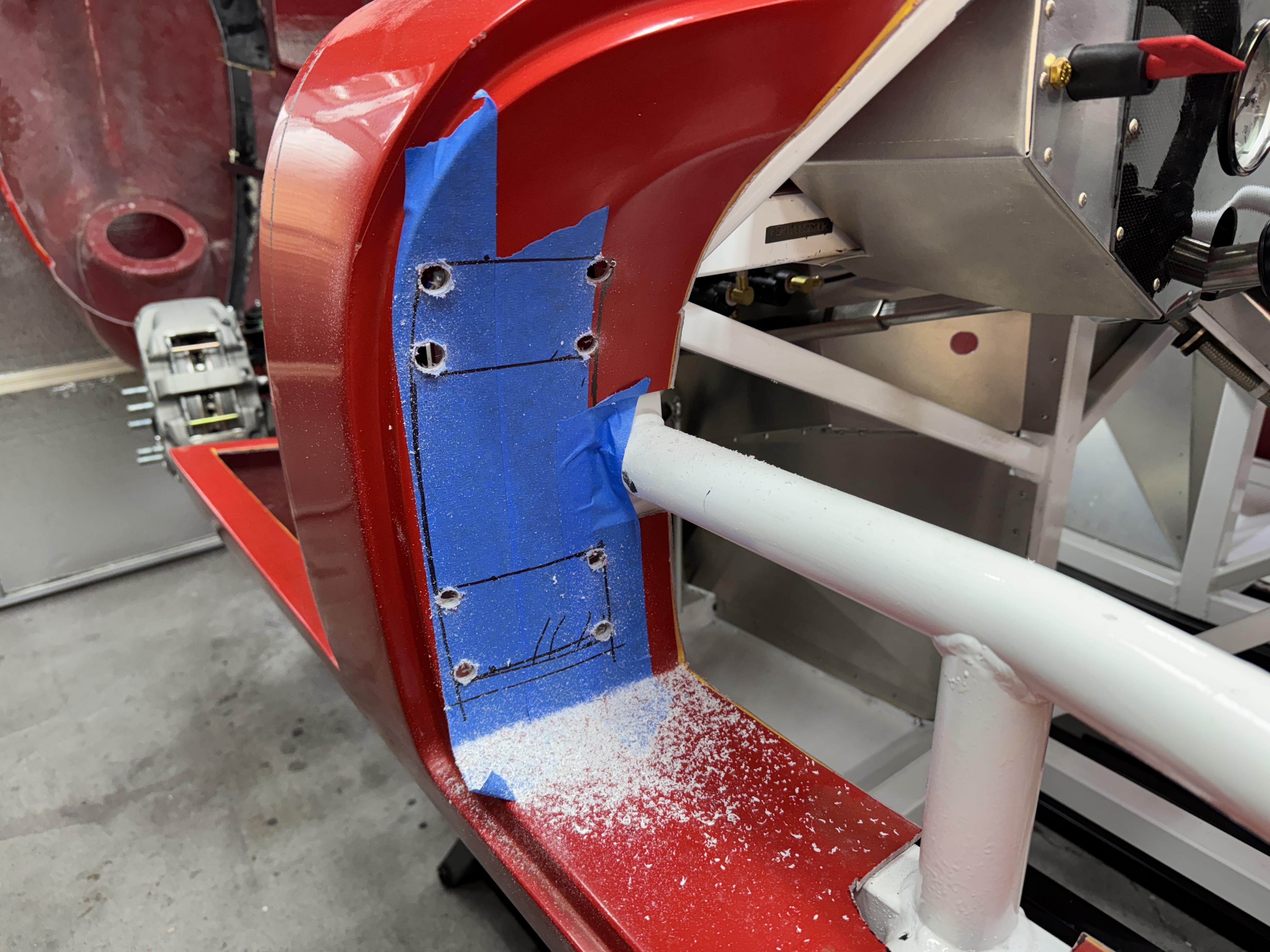

Finding the location of the hinge cutouts was easy, using a 12" drill bit to pilot a hole above and below the hinge mounts, squared it up and laid out the cutouts per the manual and int worked out quite well, with just a minimum of additional trimming need on the driver's side, but more trimming needed on the passenger side to get the door hinge to close fully.
Attachment 207698Attachment 207697Attachment 207699Attachment 207700
Next, I adjusted the bonnet slightly to move the left side forward .25" and started to trim the aft end of the bonnet 1/8" at a time to get it to sit down. The left side is pretty close to the primary alignment point where the wheel cutout meets the pontoon edge. When those two points align, then I'll have the bonnet in the correct location. The right side need to come aft quite a bit, but needed to trim more on the left side because the bonnet is well oversize - and that's good. But slow and steady wins the race, so I spent the entire day laying out trim line with masking tape, taking a little off on each pass, the adjusting the hinge points and pontoon position and it started to look pretty good after a while. I also read that the struts have an effect, so installed those prior to starting.
I used only two 1/4" bolts to fasten the front hinges on each side of the body mounts so I could adjust the bonnet left and right if required after trimming - or during final trimming. I did notice that my hinge mounts are something like a 110 degree angle, so don't have the problem I've read about where wedges were needed on the bottom. The mounts are different from those shown in early photos in the manual, so maybe FFR fixed that?
After some hours with the sander, I've got it close. At the end of todays work period I believe the right side hinge mount needs to come back .400" to meet the datum point, the left side is within .100" and the entire bonnet needs to move to the left about a half inch, give or take. So that I'll do tomorrow and proceed with final trimming, probably install the latches to see how they pull the bonnet in at the top of the quarter panel. Also install the bumpers now that the hood just barely fits down into the recess. This is really not nearly as bad as I expected, so by this time tomorrow, I should have a nicely fit bonnet.
Attachment 207702Attachment 207703Attachment 207701Attachment 207704
I found EdwardB's body fitting posts to be very helpful - after installing the hinge point rod ends, I had not thought about adjusting them to get the bonnet level with the pontoons, but soon realized that have a decent effect on the body fit. Also I read his comment about cutting out the lower bonnet valence to clear the radiator and side tunnels, I was wondering why I kept seeing photos of that parts being trimmed so far back - I removed my radiator and sheetmetal so I did not run into that problem, so glad I read about it now and can trim that part before I put the rest of the engine bay together, much easier to access now! As EdwardB said, there is not mention of this need to trim the lower valence in the manual.
Thanks to everyone who posts here to help us all along with the mysteries of putting these cars together.

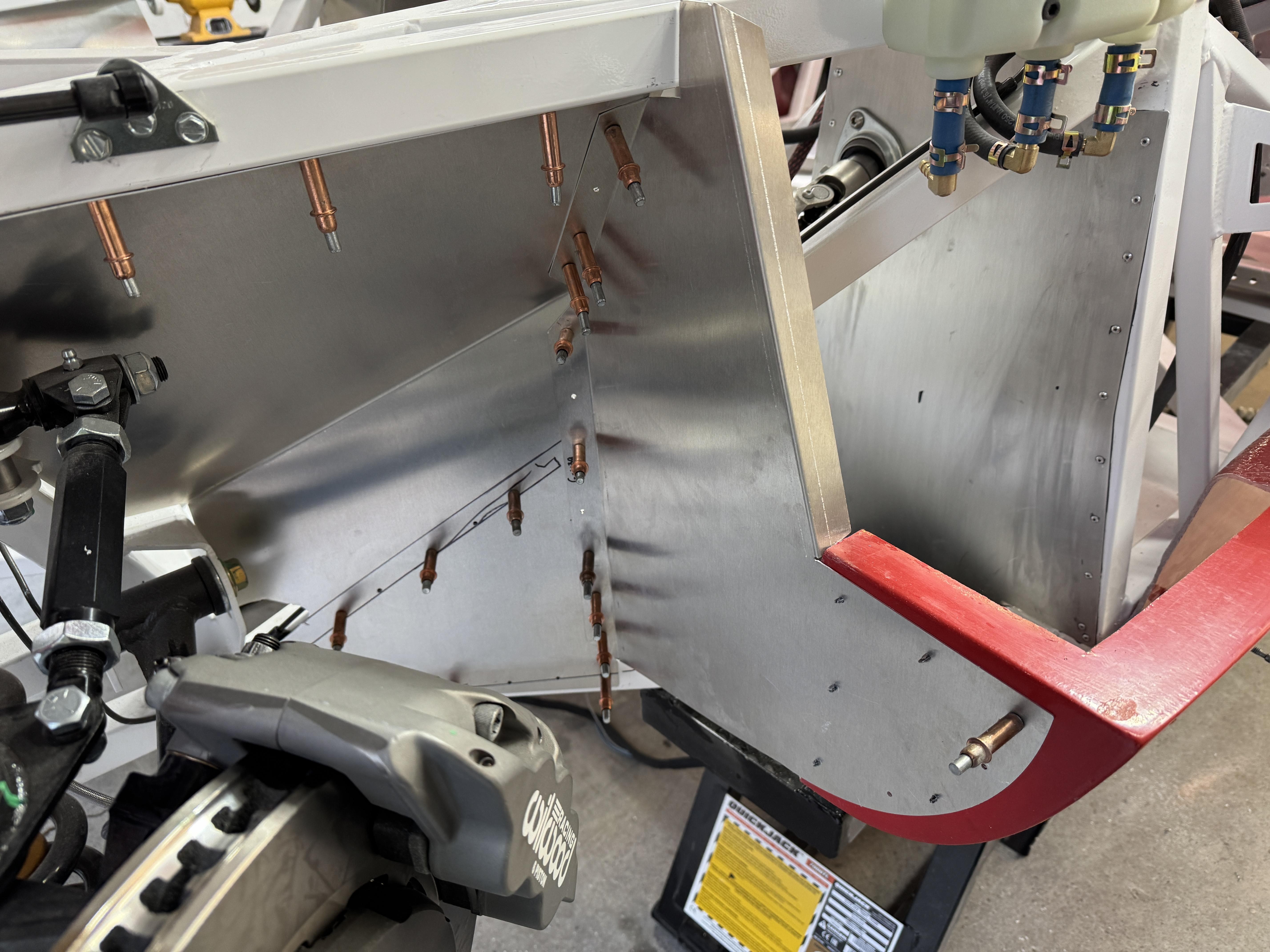

More sanding on the bonnet today. I moved the entire bonnet to the right about a half inch on the front mounts to try to cure a bulge on the left side and the bonnet aft edge bowed in on the right side. Then I adjusted the rod end horizontal location a bit more aft to get the wheel cutout and pontoon datum set. Got it pretty close now.
Next I need to decide where the end of the pontoon will be located. I'll use the inner fender panels per the threads here and mount it on the forward side of the pontoon as suggested by Erik T.
Attachment 207761Attachment 207762

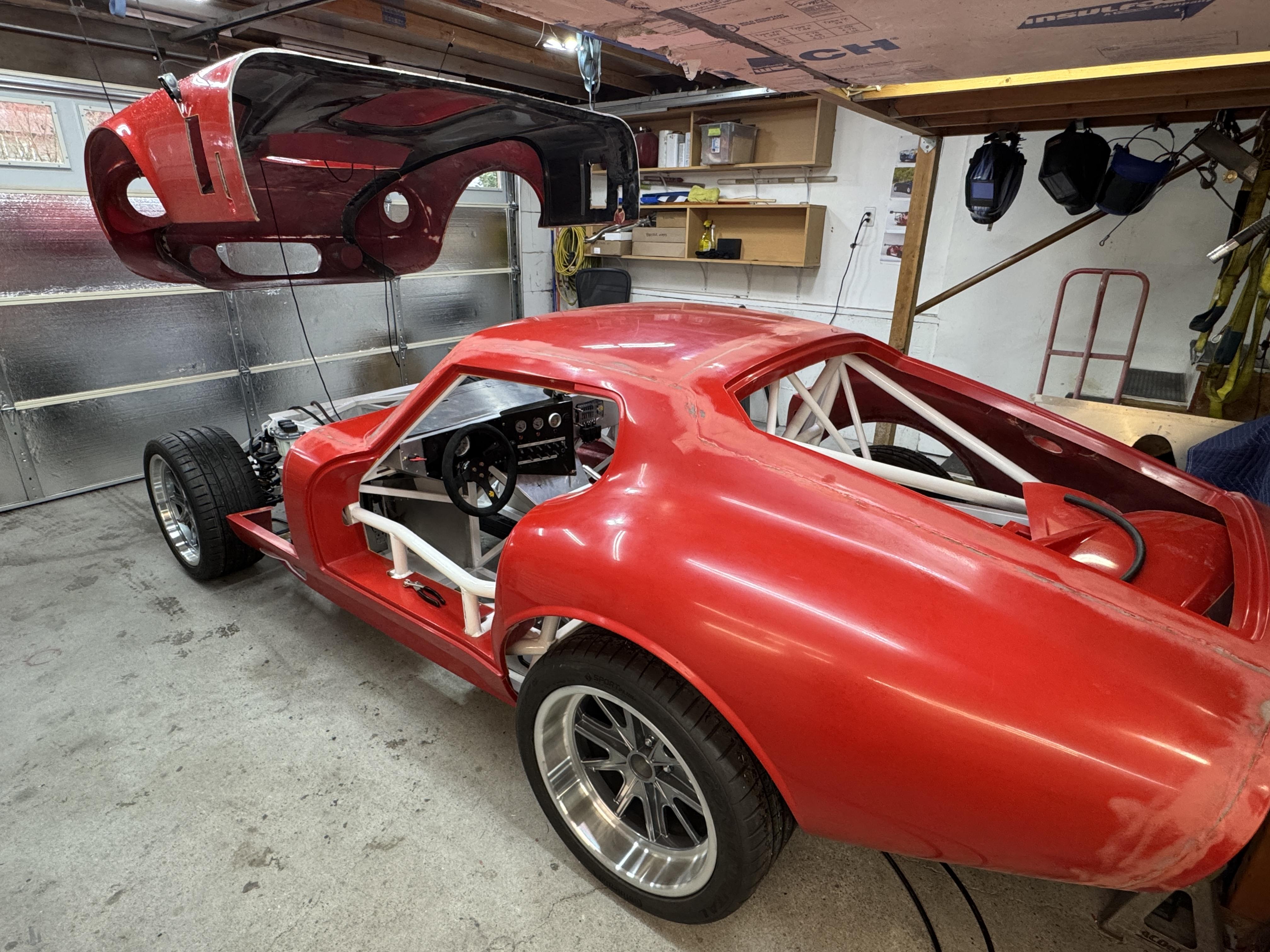

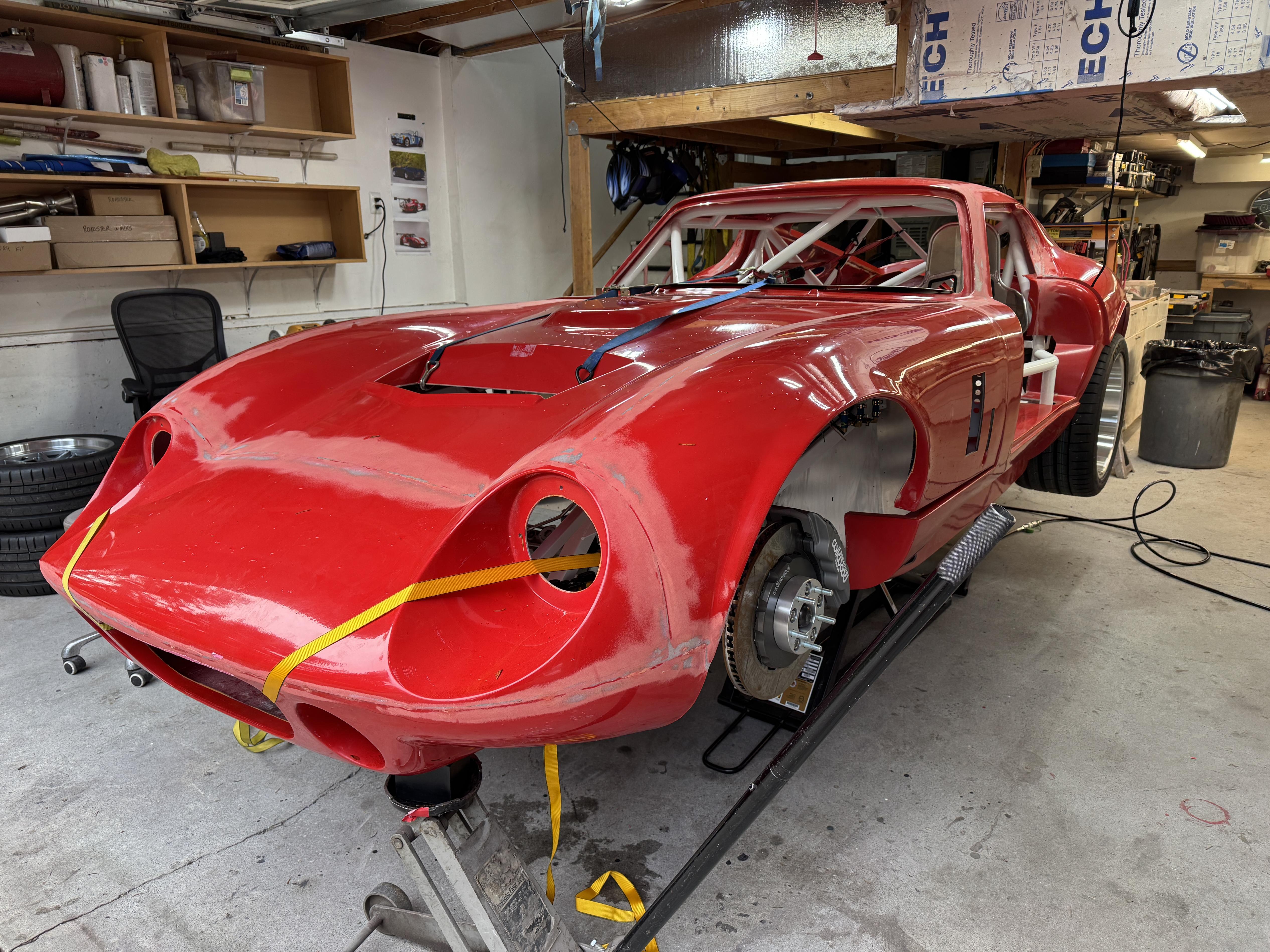

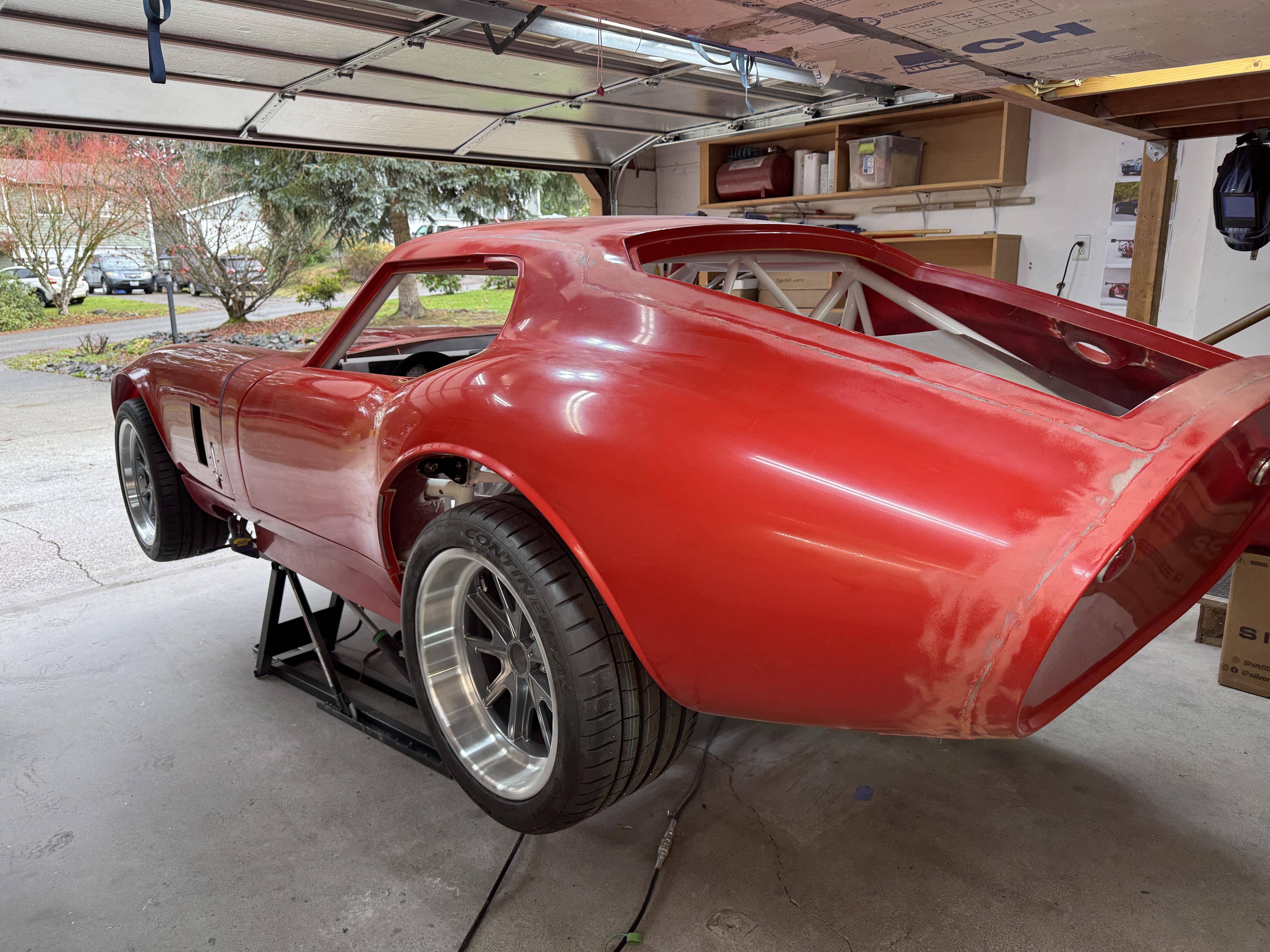

Finally getting the bonnet close to where it should be, going to install the pontoon wheel arch pieces to help solidify the position, then work on gaps after I mount and trim the doors. Erik T's video on how he did the doors on Logan's Coupe-R was very informative, so I started by lining up the doors best I could and marking the cutouts for the side-intrusion bars and cut them out. The doors fit nicely in the door cutouts now, but still have to trim to fit - after I cut the door frames and put them back on. Following EdwardB's tips, I'll make sure the bonnet is closed and locked prior to trimming the doors.
Attachment 207786Attachment 207787
In other news - the dry sump parts from AVIAD arrived this morning, so I can get the engine back together, new TKX from Summit delivered yesterday - so no further obstacles to finishing the car.

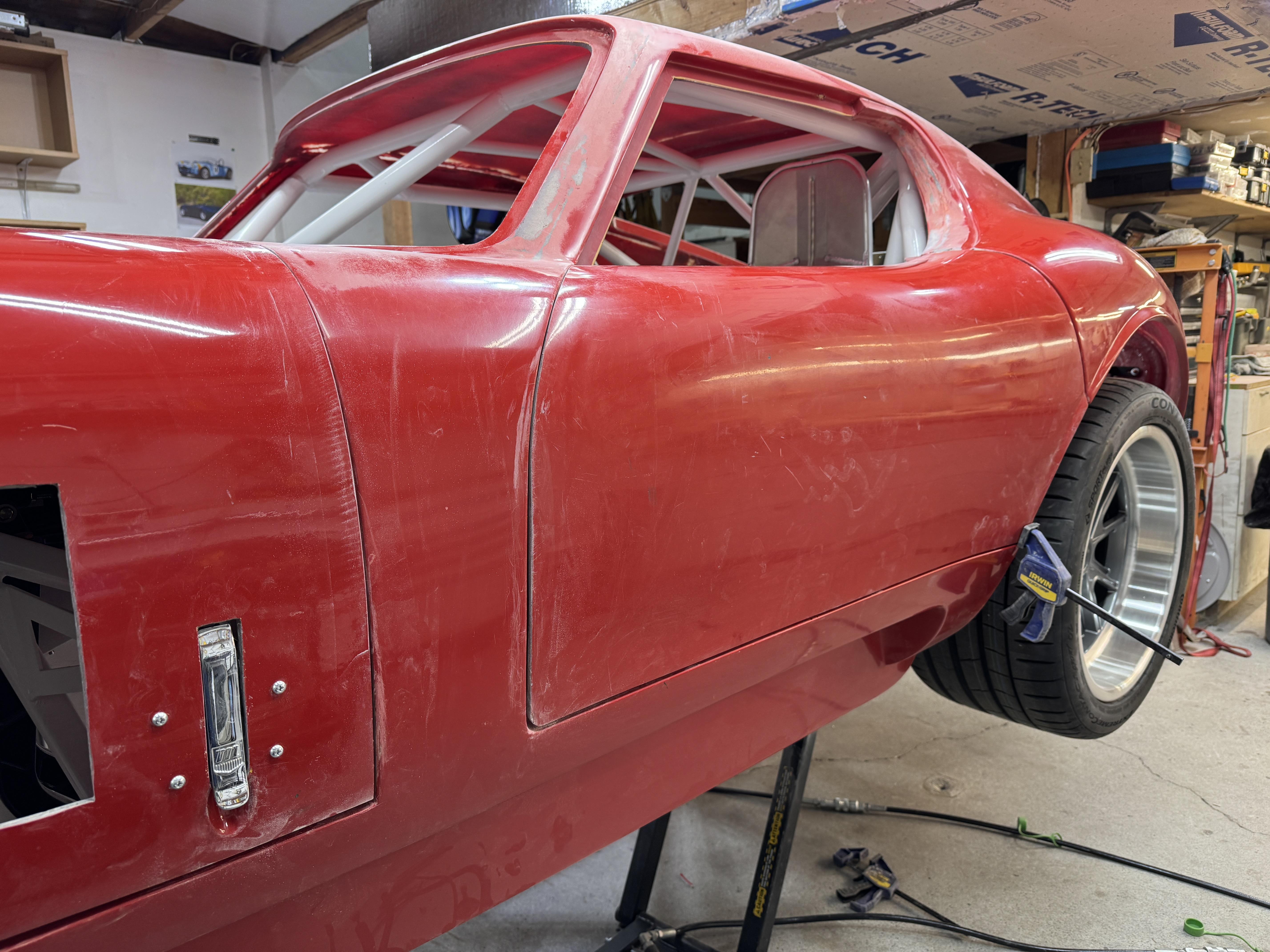

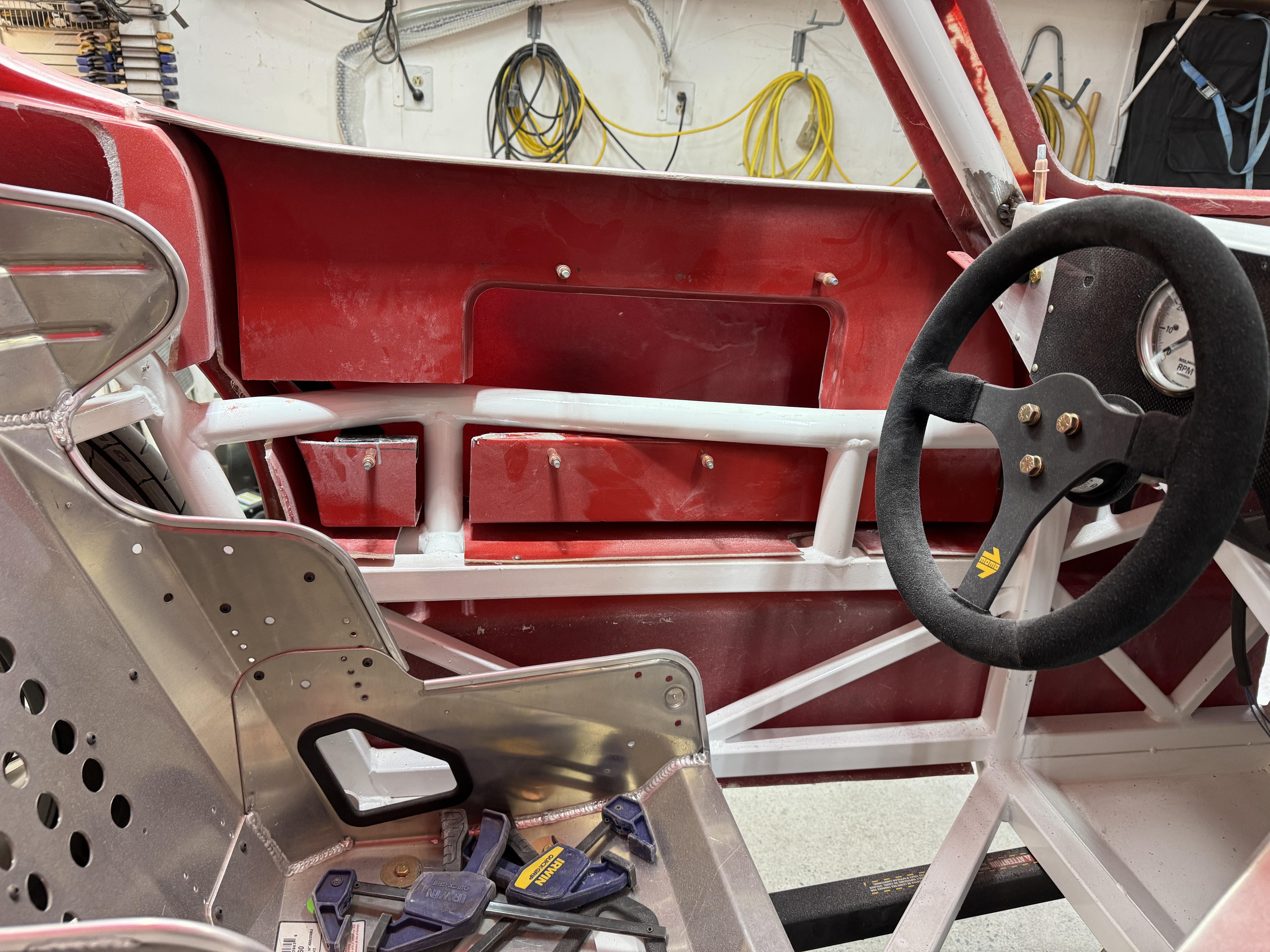

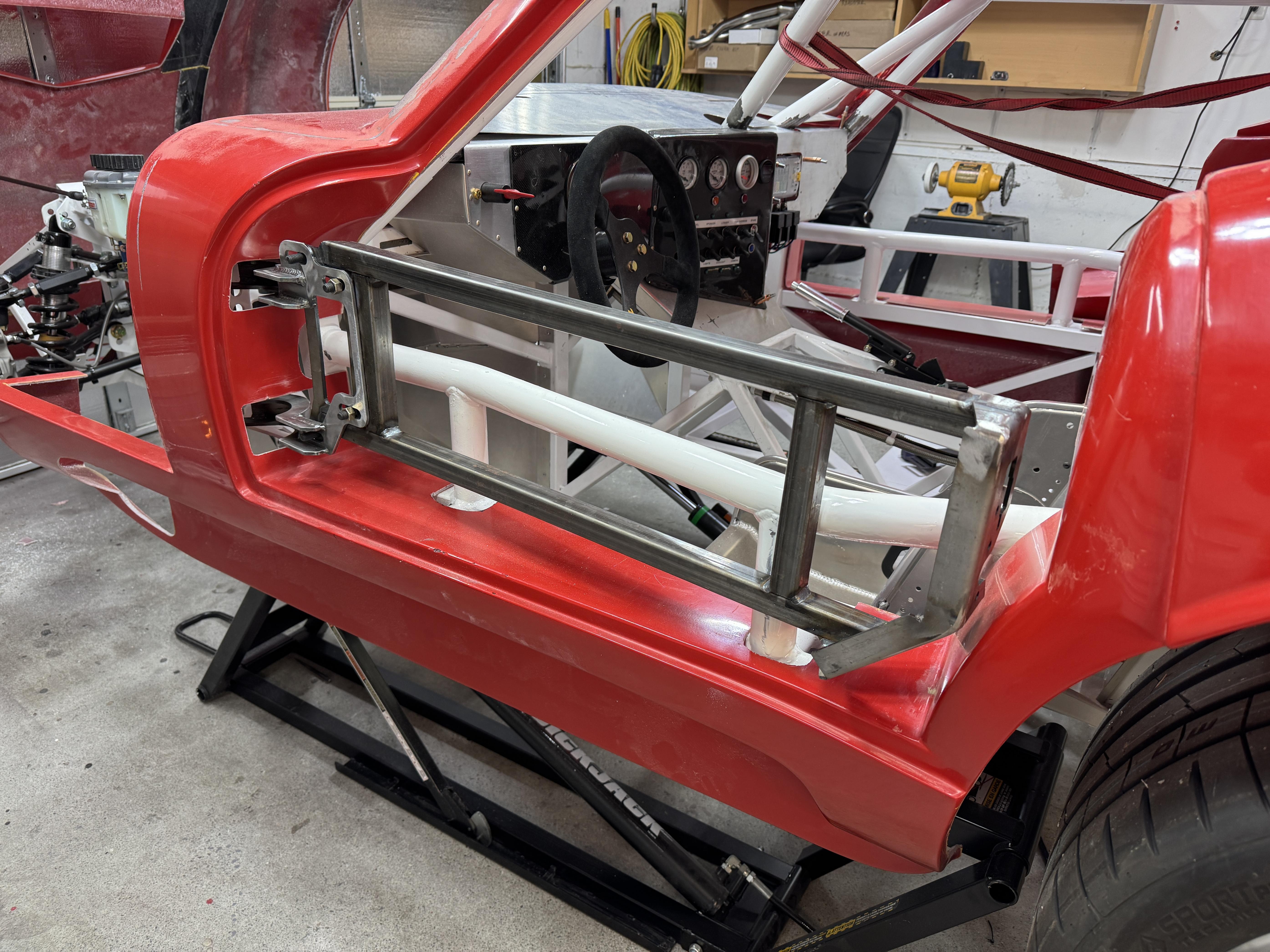

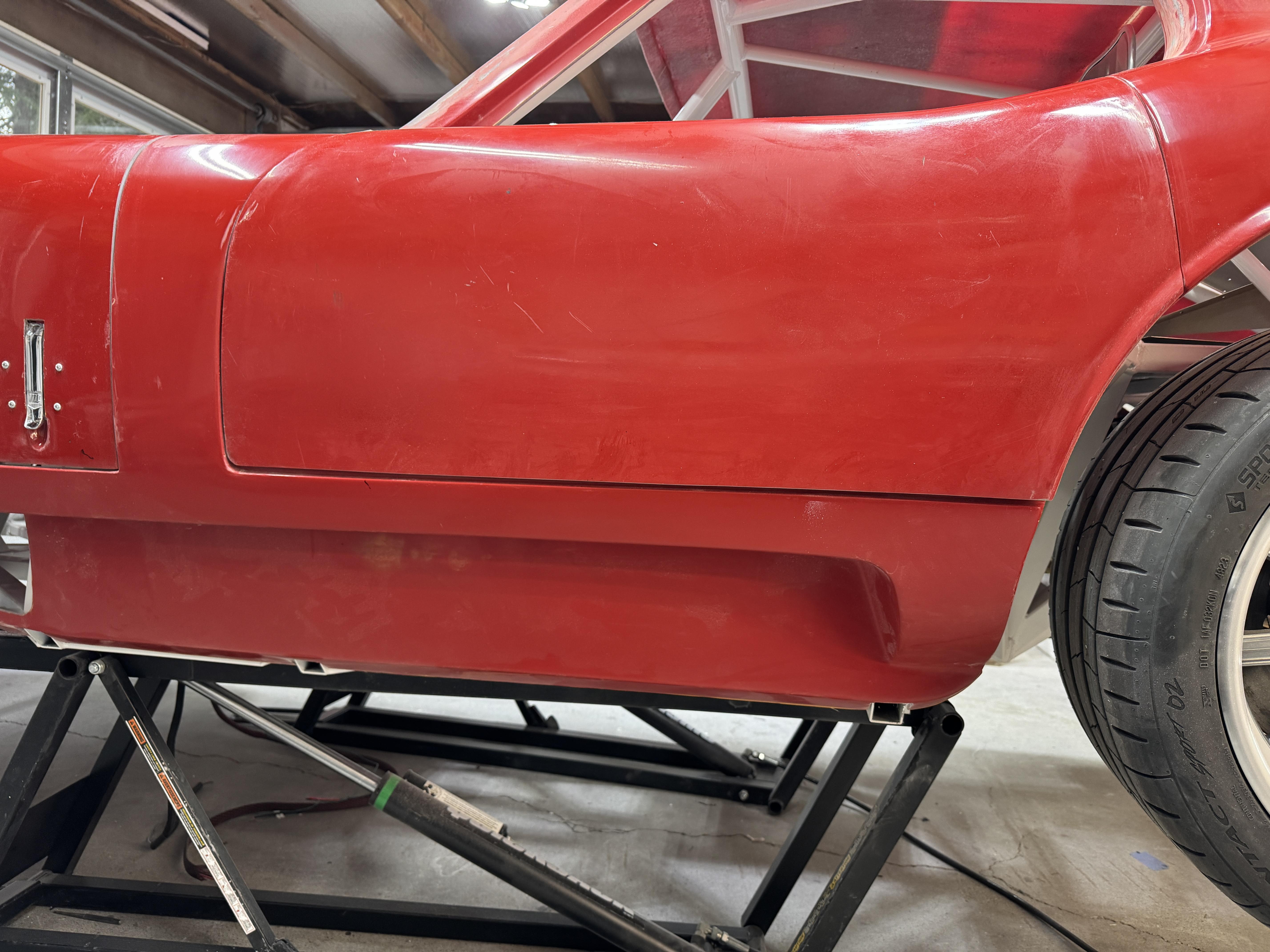

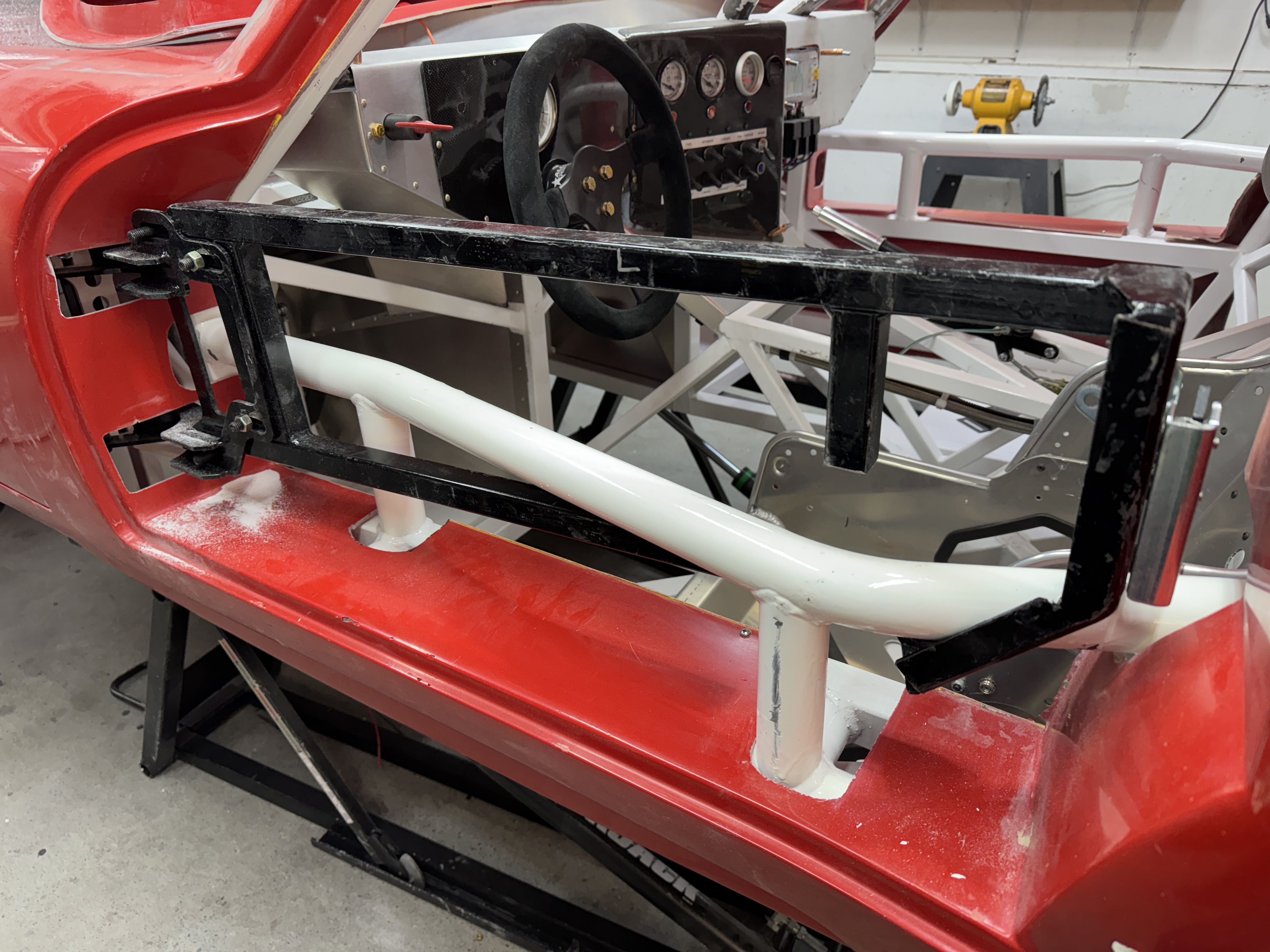

Spent all day yesterday fitting the driver's door. Complicated by the side intrusion bars, but mostly the door fitting in the hole. I had it quite good - then I un-latched and opened the bonnet causing a big gap to appear in the front of the door. I was warned about this and is why I was working with the bonnet latched. Now I have it close to fitting again, but obviously need to finalize the bonnet and body fit and lock them down, then go back to the driver door. I put spacers on the inside as shown in EdwardB's thread and that helped pull the door in - I also ran out of adjustment on the door hinge mount as he did, until the spacer was installed.
After sleeping on it, I need to get the body centered left to right and bolted down, then make sure the bonnet is good, then finish the doors. As has been said by the folks having done this before - all the body parts have relationships to each other that must be negotiated.
Attachment 207847Attachment 207846Attachment 207845
Another day on the driver door, getting much better now with the spacers in the frame and the hood trimmed even more. When I close and latch the hood, I can see it moving the body, so trimming the hood to relieve the stress is helping. Takes a long time because just want to trim off a very little bit each time, then latch it down, adjust the door again, open the hood, check the door, latch the hood again, check the door. Also learned I need to latch both sides, so slowly but surely.
Attachment 207869

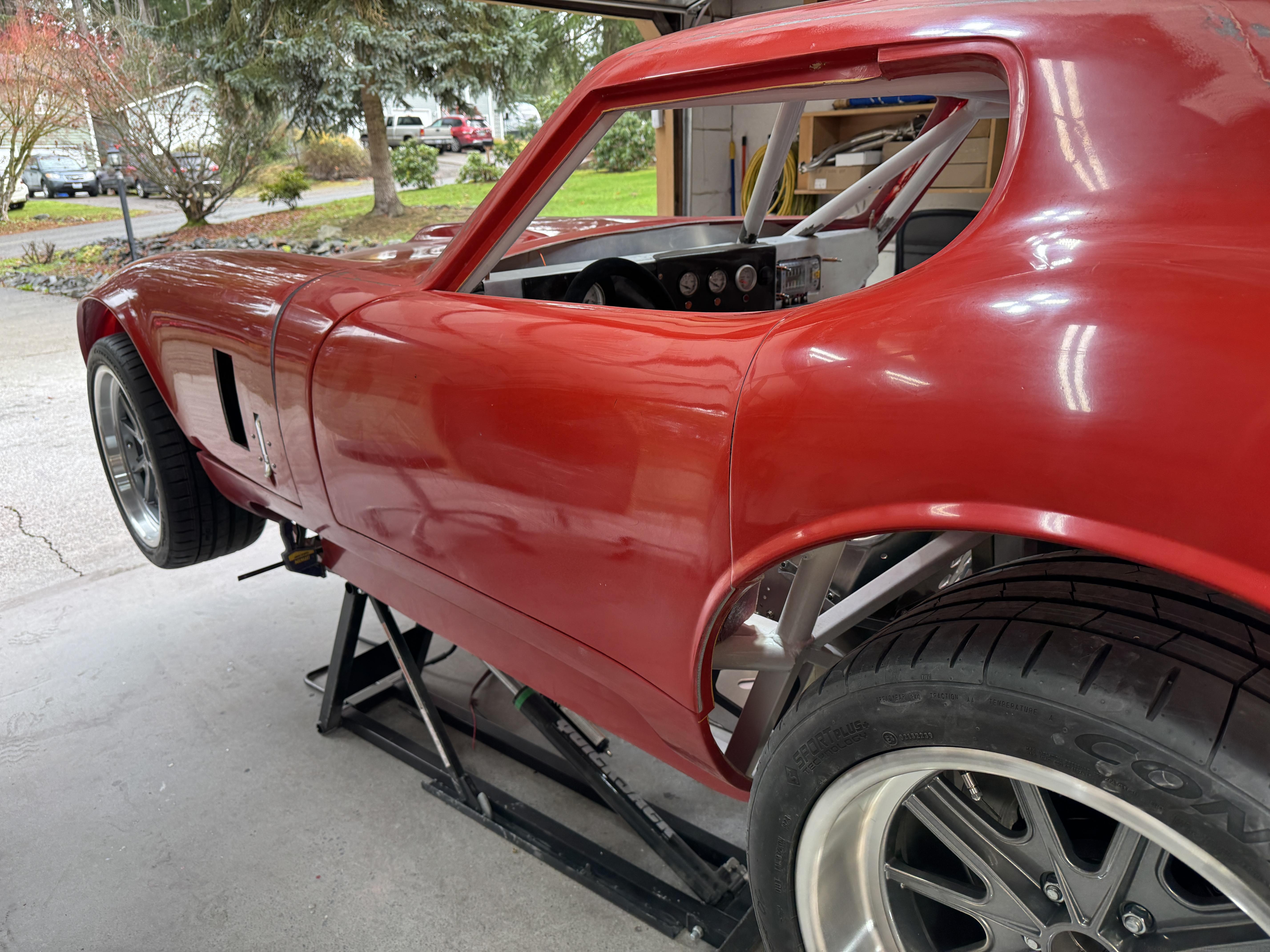

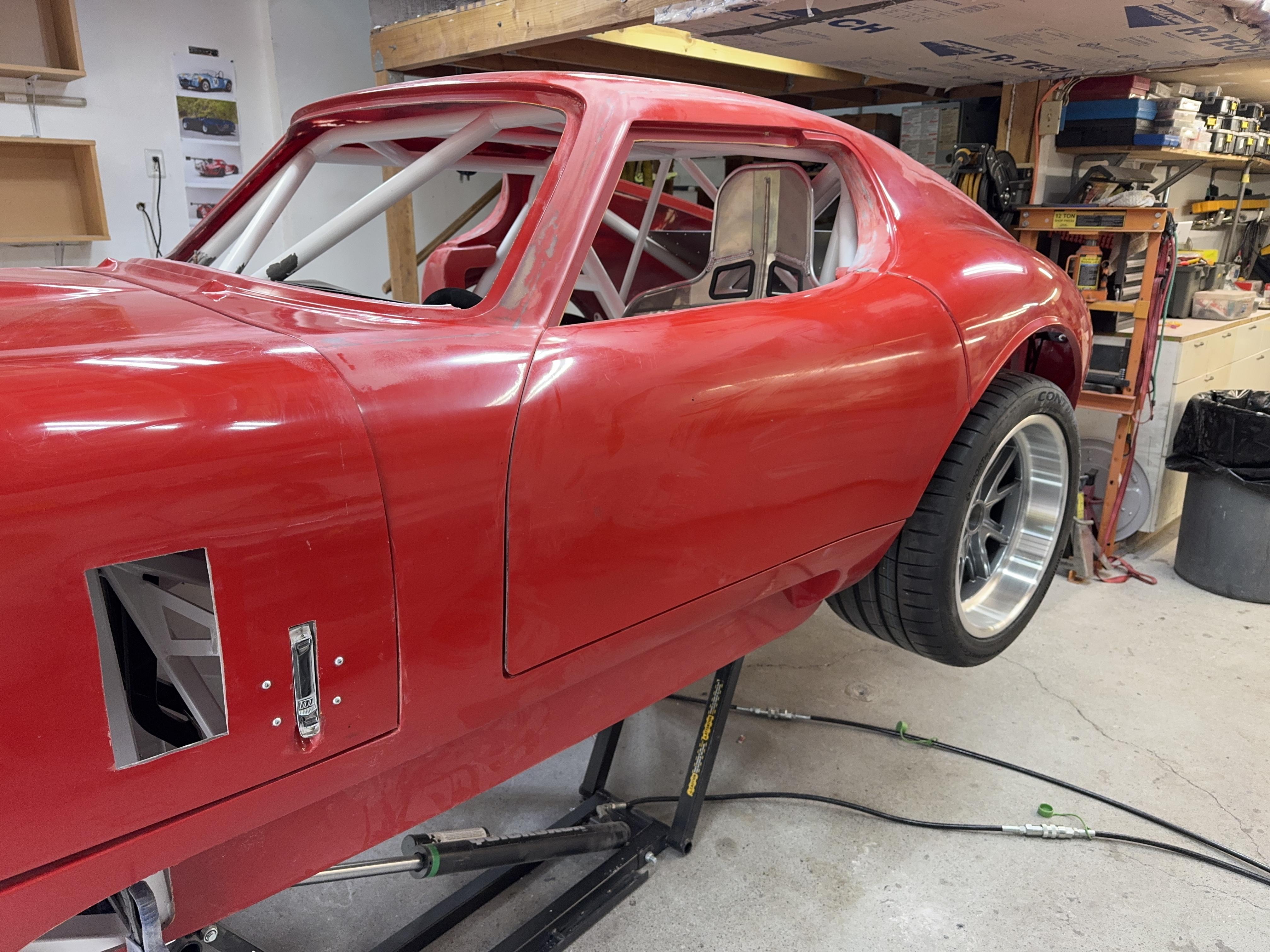

The driver door opens - and it closes and latches. Calling it good, but need to do more work on the bonnet fit on the left side, then I suspect 2 more days to fit the right side of the body (including cutouts for the 1.5" frame tubes on the bottom that I see is required for this fit) the right side of the bonnet - which is close, and the right side door which also appears to fit pretty well after an initial trial.
Patience is a virtue :rolleyes:
Attachment 207879Attachment 207880Attachment 207881
Looking good Jim! It is a process for sure. Keep working at it and it will all work out.
Scott
Thanks Scott, I’m enjoying the process. Got the inner fender well installed to locate the left pontoon. Then threw the passenger door on from across the room and it fits pretty good in the initial stage.
Taking Erik T’s advice to mount the inner panel on the front side of the pontoon.
Attachment 207886Attachment 207887

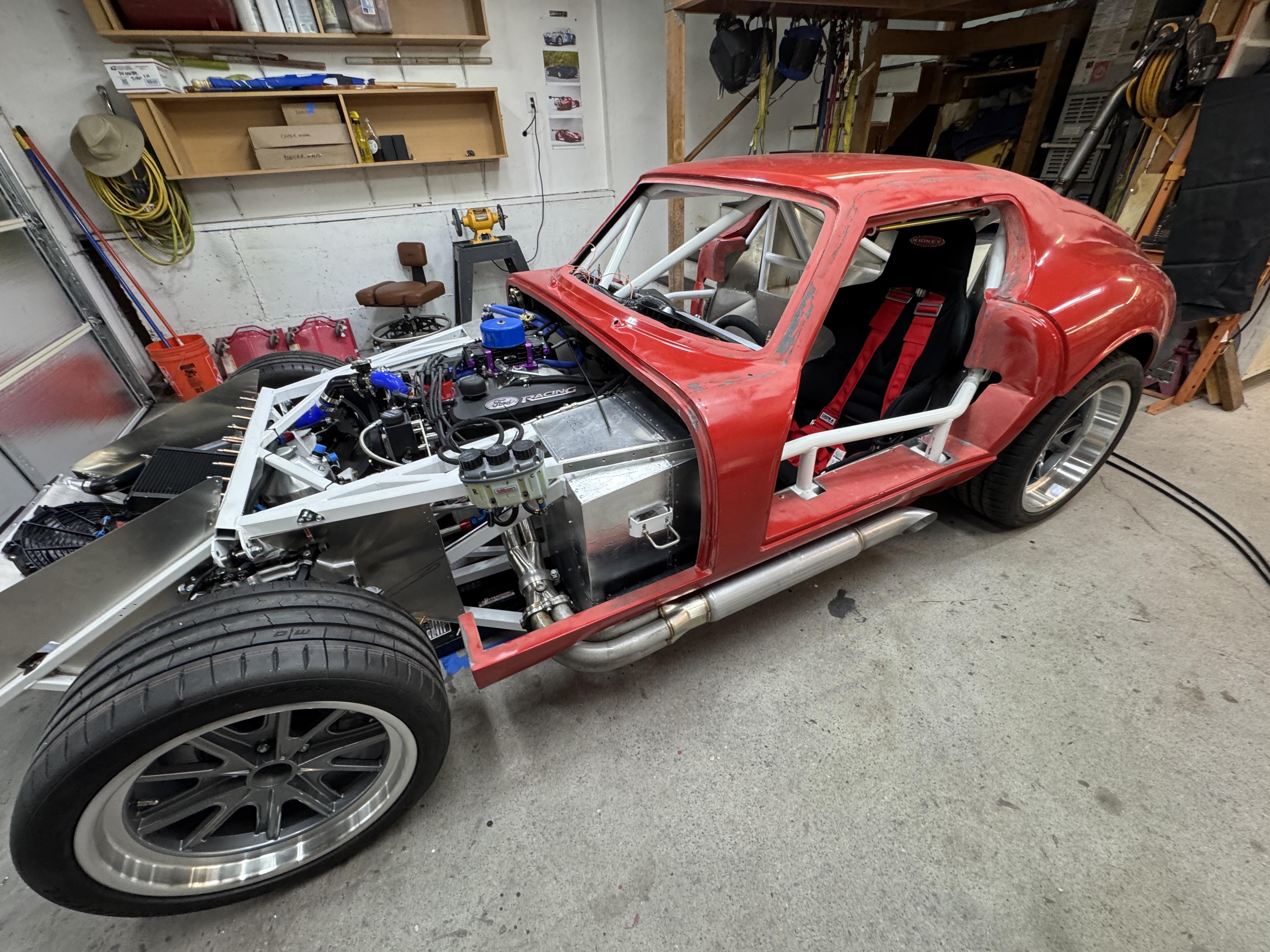

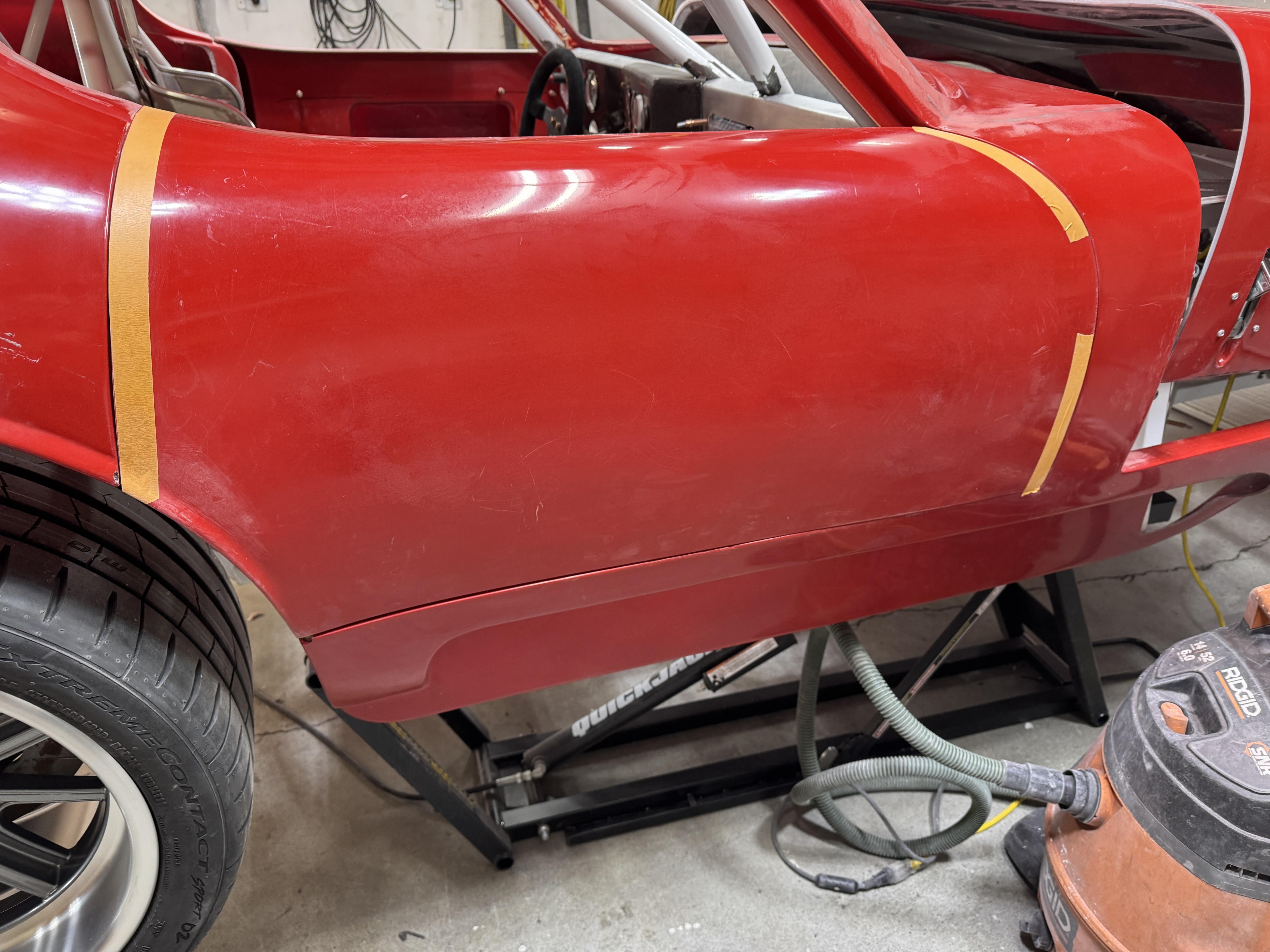

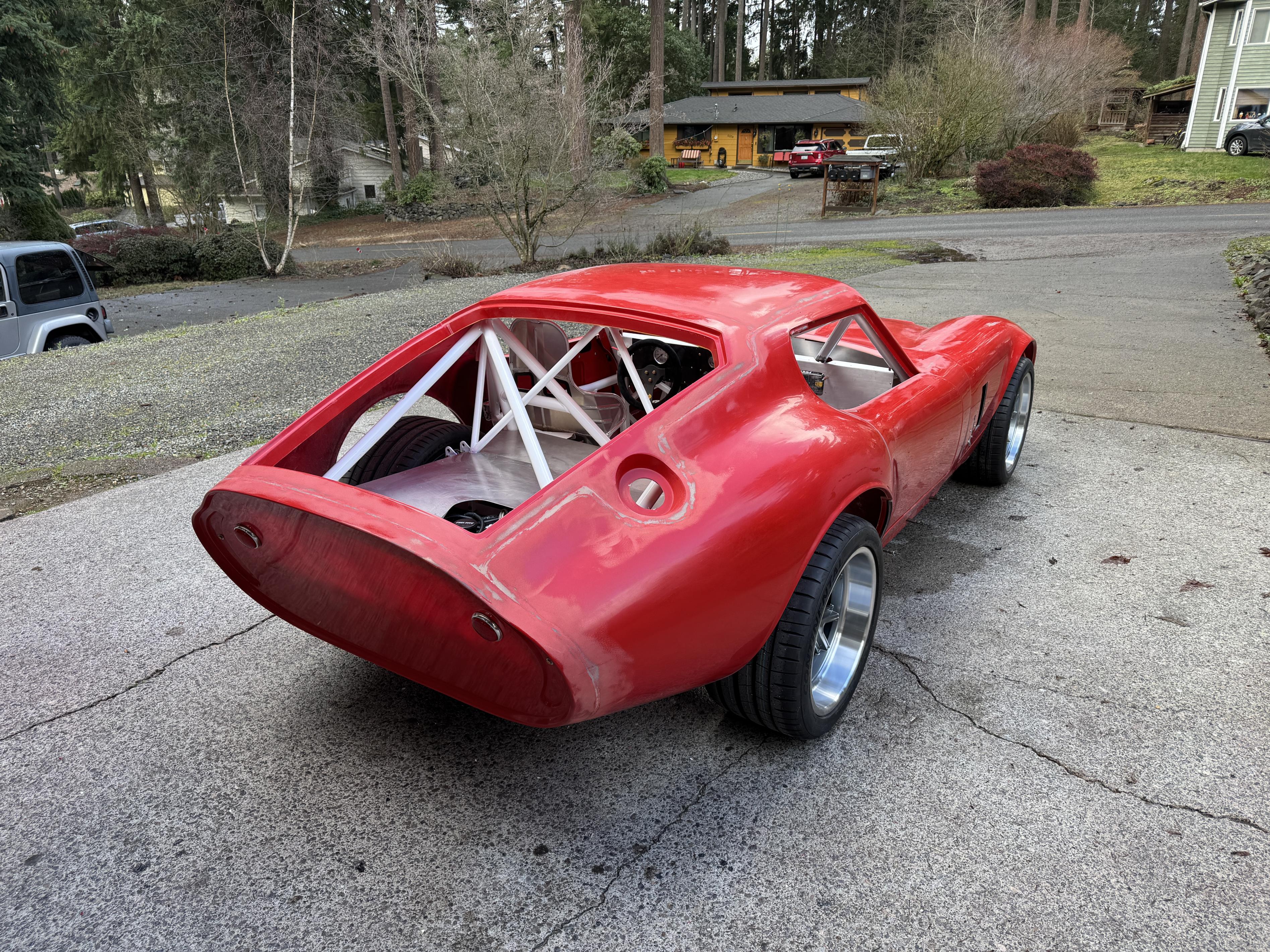

Doors are done, they close and latch and the latches are installed, eventually will do final gaps after I get the bonnet finished. The bonnet needs more adjustment of course, move a little here, adjust up a bit, then to the side - never-ending it seems.

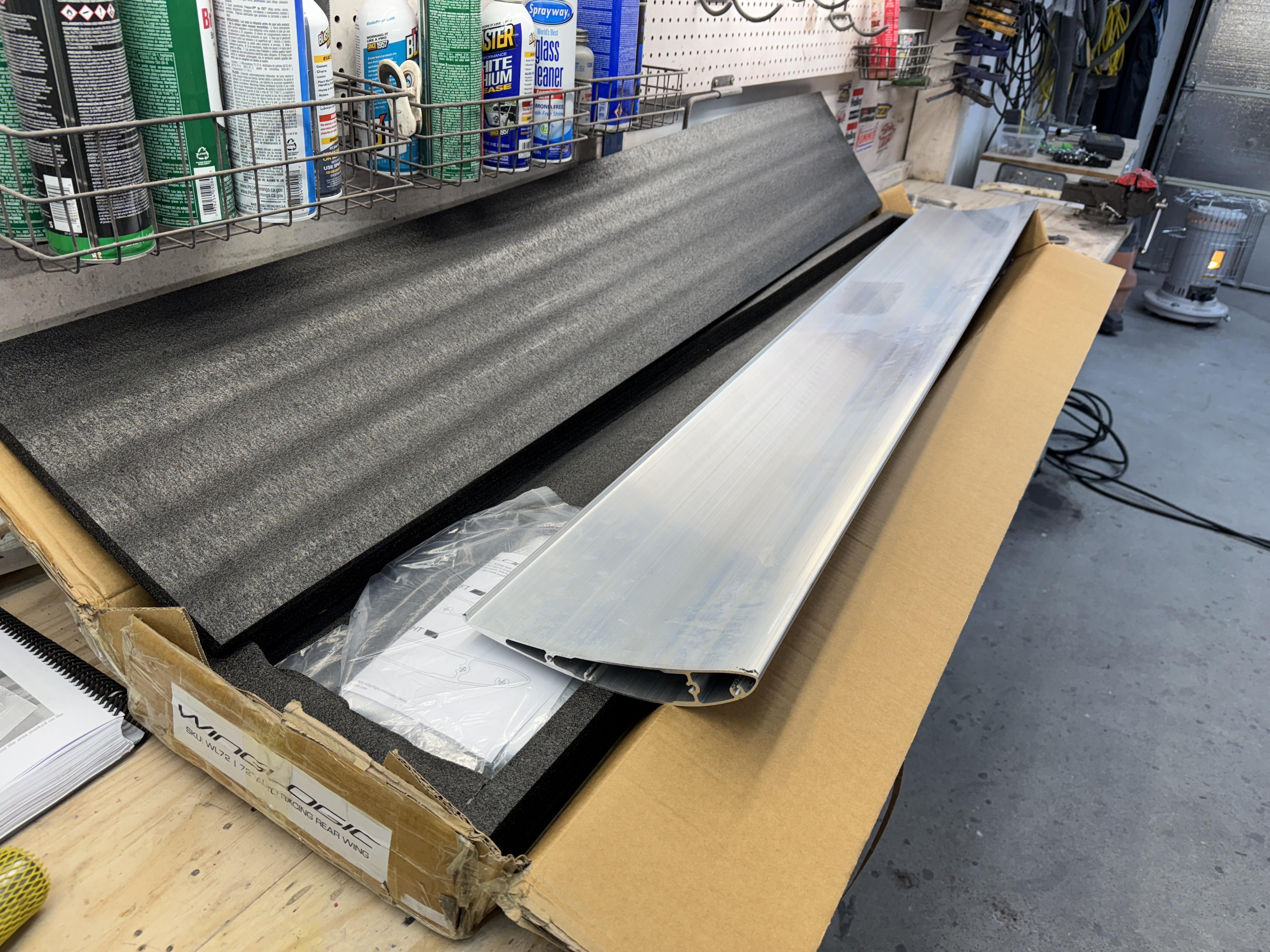

Took a page from Dave Tabor and got a wing from WingLogic, 72" wide. Gotta get the engine buttoned up and the TKX modified for mid shift and get it in. Plenty to do yet.

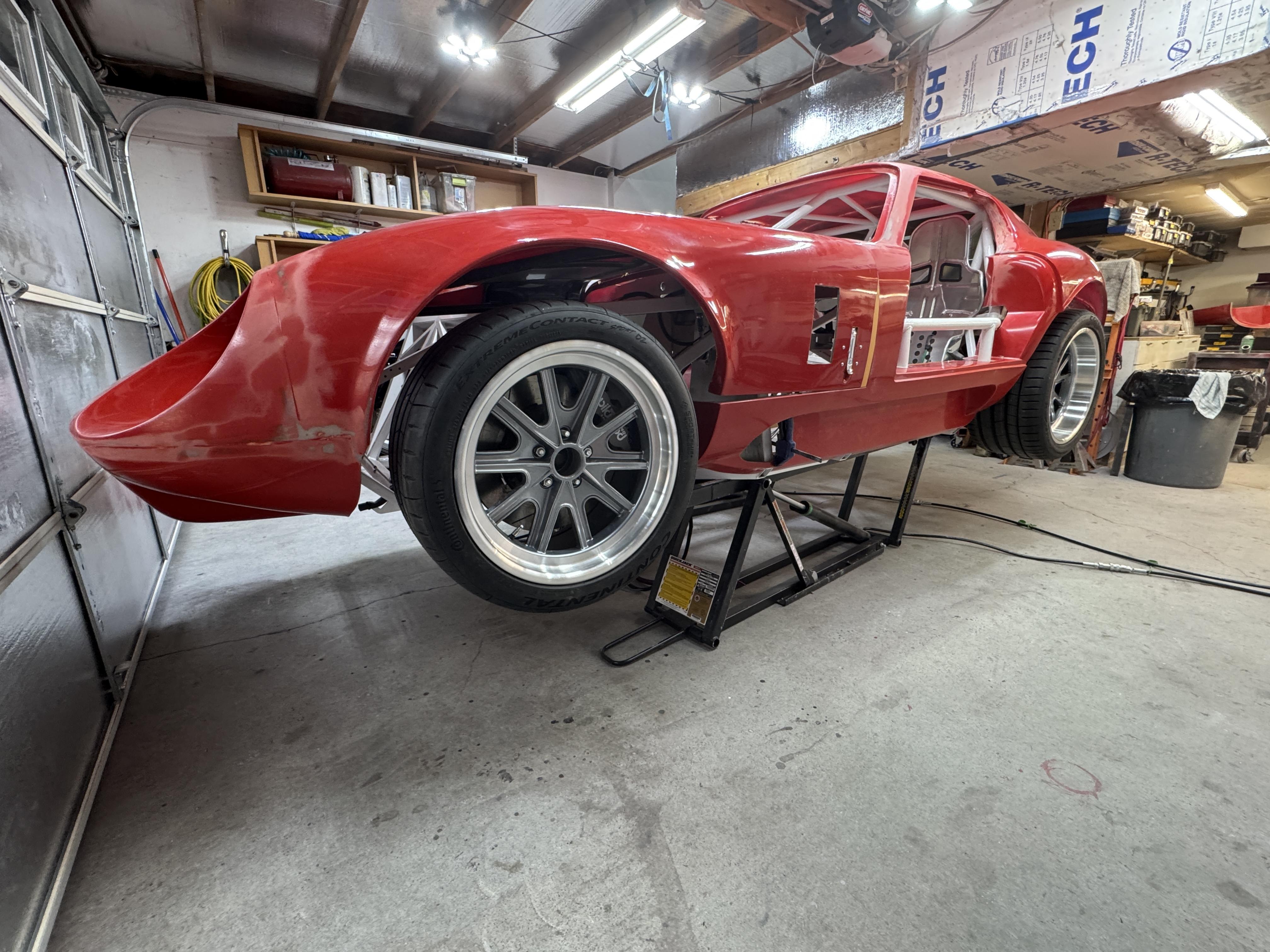

I put the suspension in the street ride height so I can easily move it on and off the quickjacks.
Attachment 208040Attachment 208041Attachment 208042

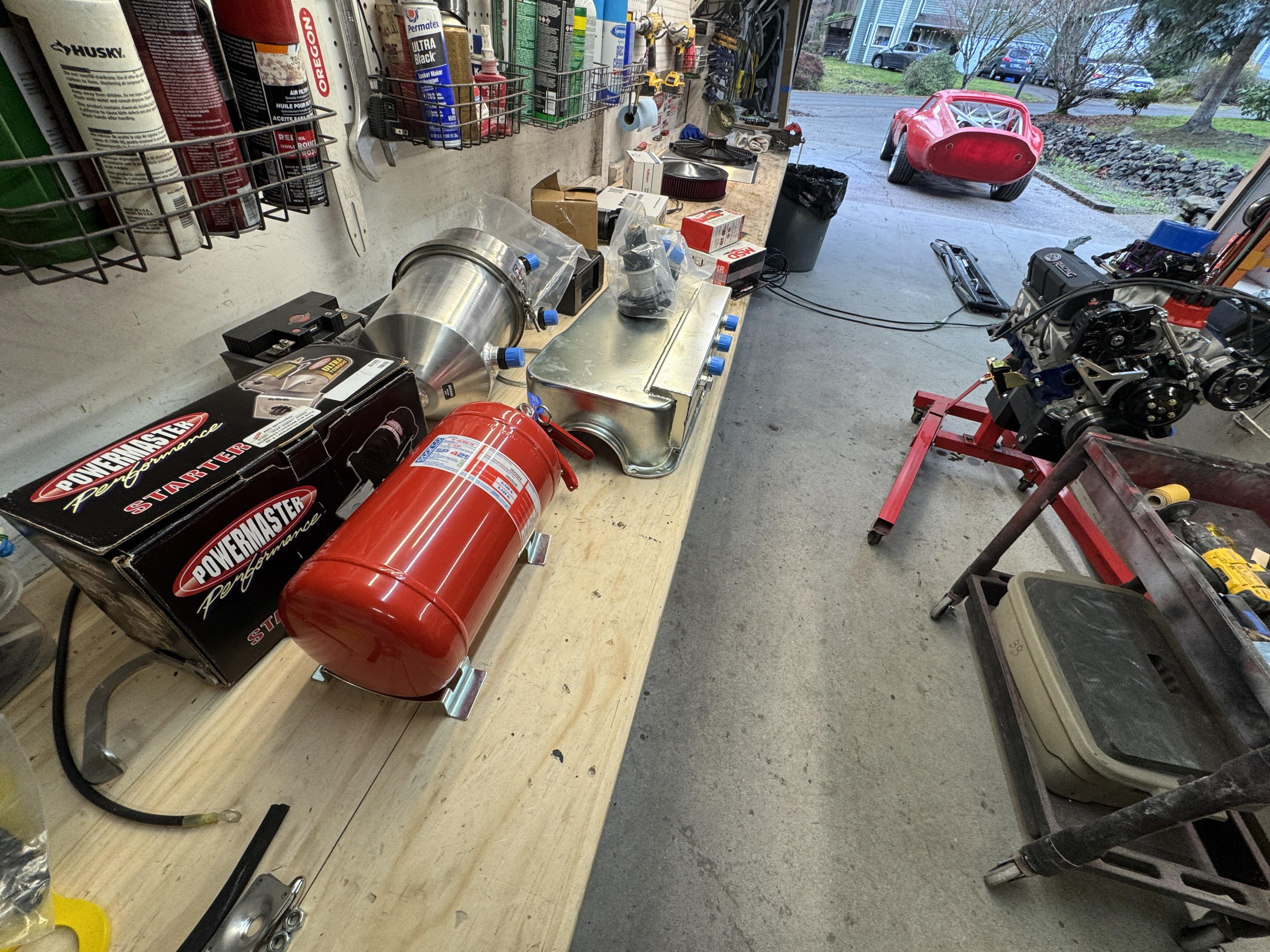

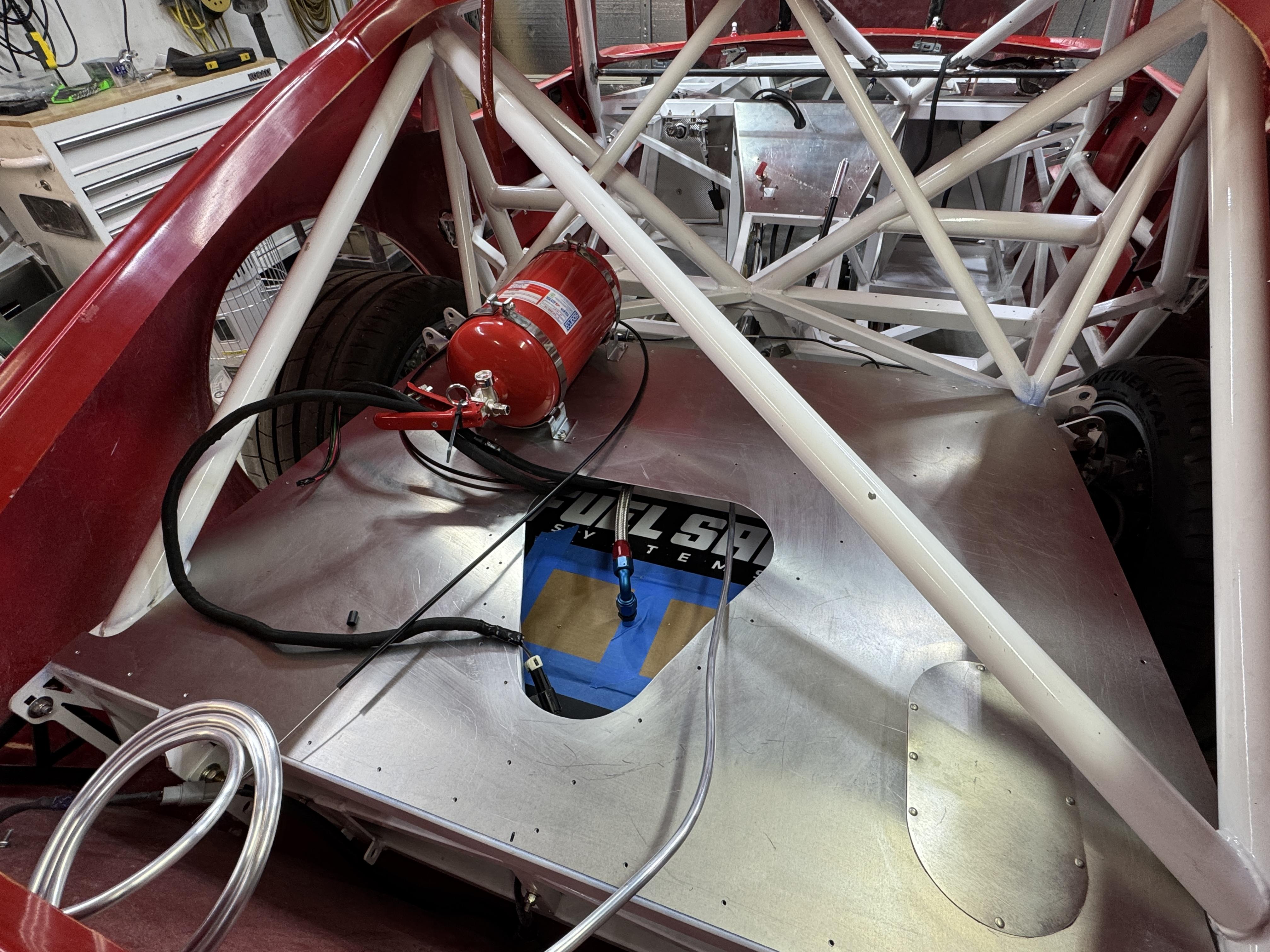

Fire system going in.
Attachment 208487

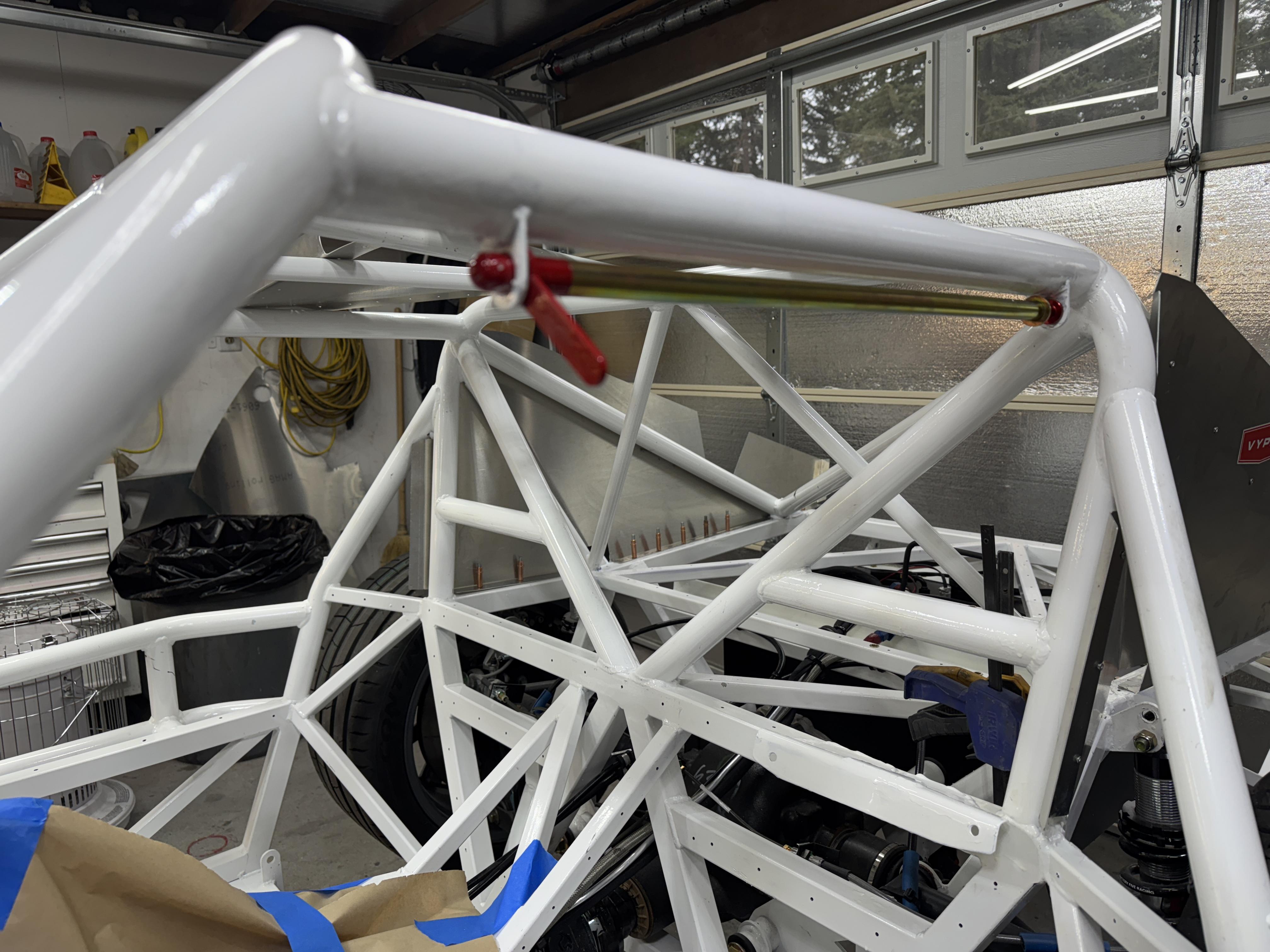

Lines run to the cockpit and engine compartment. Two fire pull handles, one on the center console above the brake bias knob, the other on the outside left front for course worker access. Close to the main power shutoff.
Attachment 208491Attachment 208492
Next up is the AVIAID dry sump oil tank, I'll put it in front of the engine, aft of the steering rack, I recall that's where John George located his.
Looking good Jim!Quote:
Originally Posted by Jphoenix
That's going to be a very fun track car.
John
Thanks John!

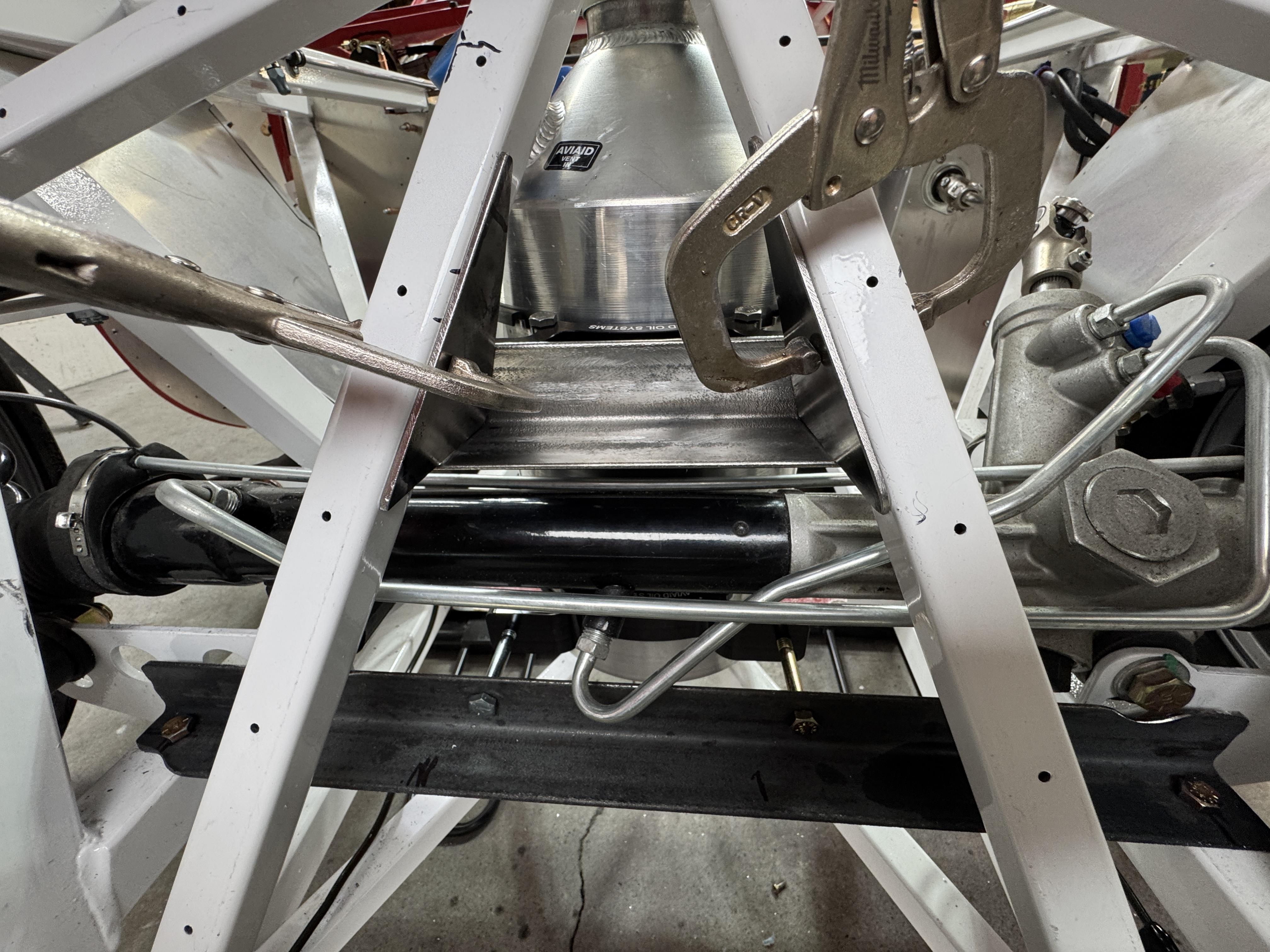

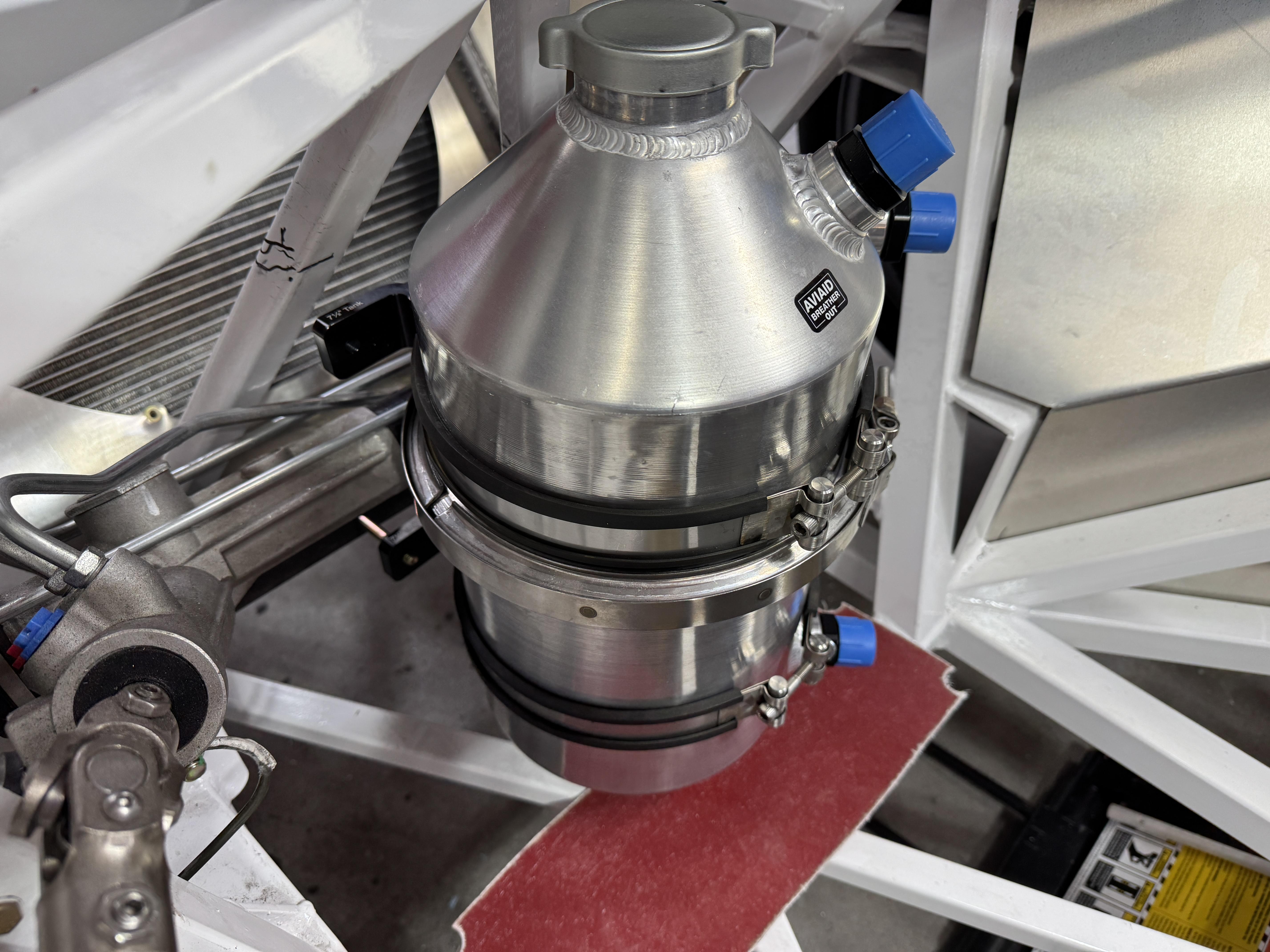

Fabricating mounts for the dry sump oil tank now.
Attachment 208597Attachment 208598
Pretty sweet. Do think you will run it at PIR sometime in the future?
Yes we do 3 races per season at PIR.Quote:
Originally Posted by PNWTim
https://www.icscc.com/season.php

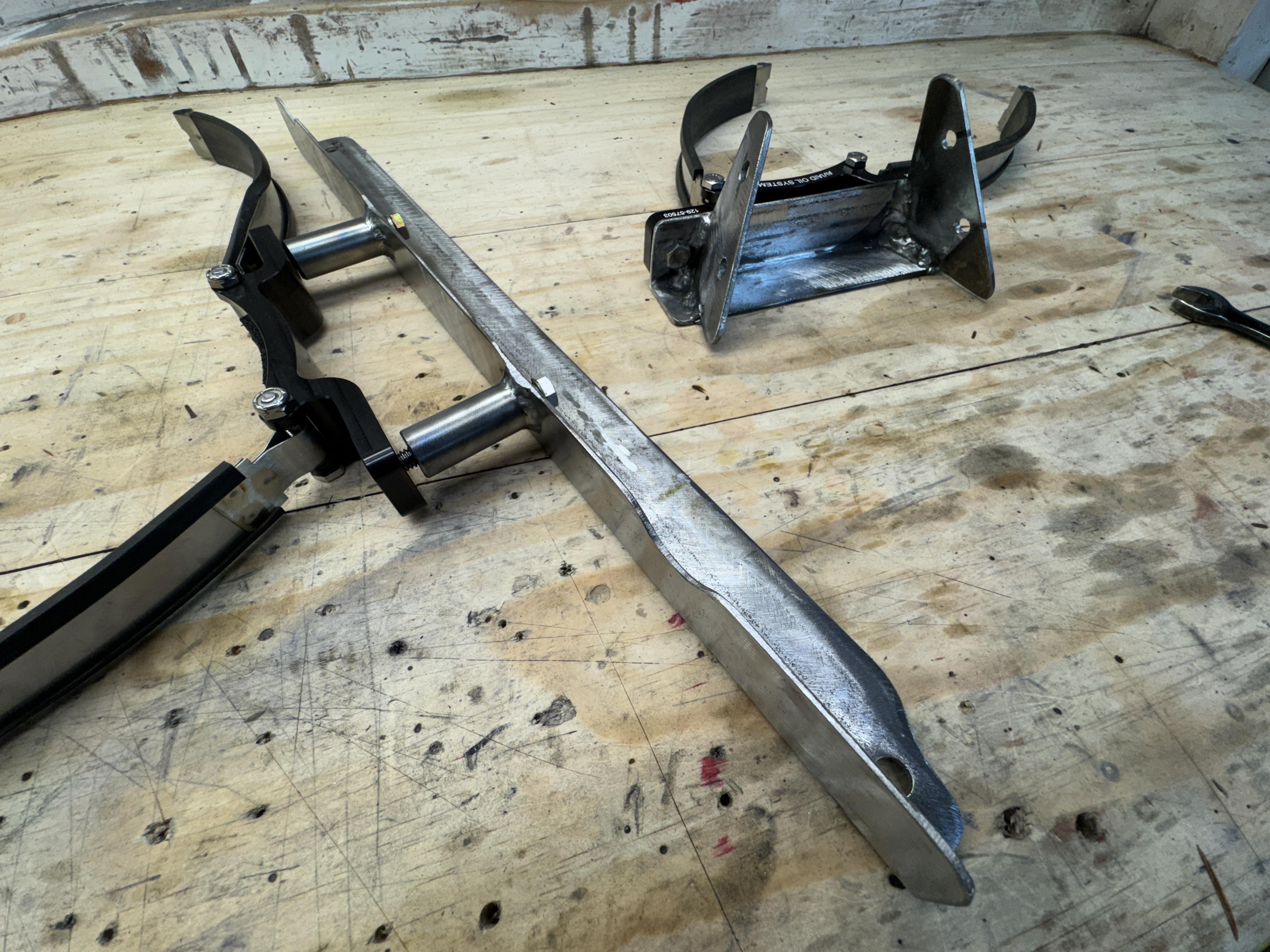

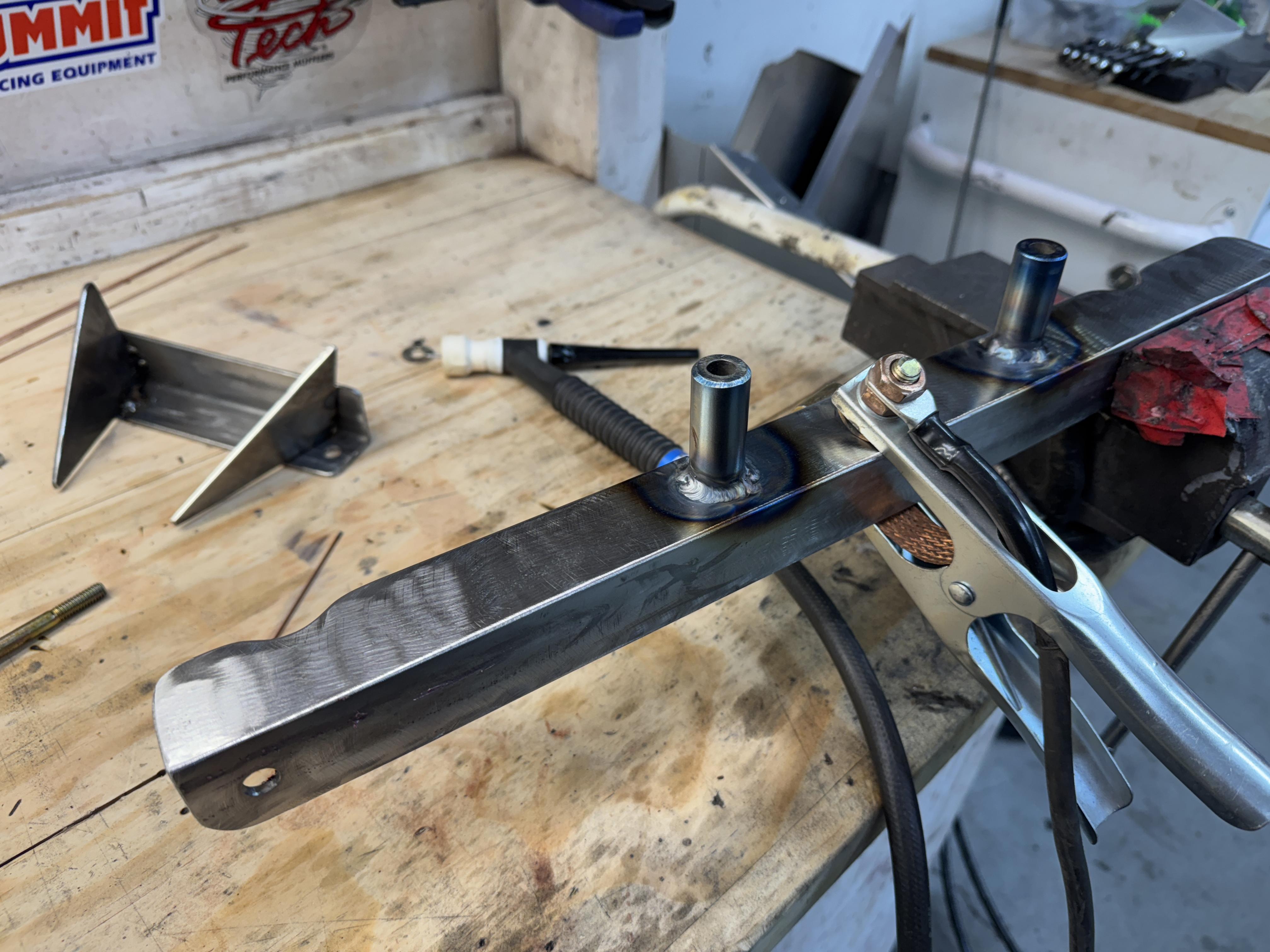

Welded up the oil tank mounting brackets. Painted them with white POR-15.
Attachment 208636Attachment 208637
I’ve sent my fuel tank plate back to FuelSafe so they can fix the mis-wired cannon plug, so I decided to have them install a 45 degree fill fitting and a fuel level sender as I may do some enduros. ICSCC has an enduro each race weekend and it’s a good way to get lots of race time - which I’m going to need as driving this car will be significantly different from the Formula Ford. So I’ll use the fuel filler in the rear fender, but plumbing it with the Coupe-R cage will be a challenge.
Attachment 208638
PIR a few years ago:
https://www.youtube.com/watch?v=5CyGqwHzb_I
I had moved my daughter into the University of Oregon the day before - brought all her stuff and my car from California...and then spent the the remainder of the week touring the Columbia River Gorge area in the Type 65...
Dave
Gen III #17
23,000+ miles
Nice run! Our first race of the season there is without the chicane, so going into turn 1 (actually 4 with chicane?) is always interesting with no chicane.Quote:
Originally Posted by Dave Tabor

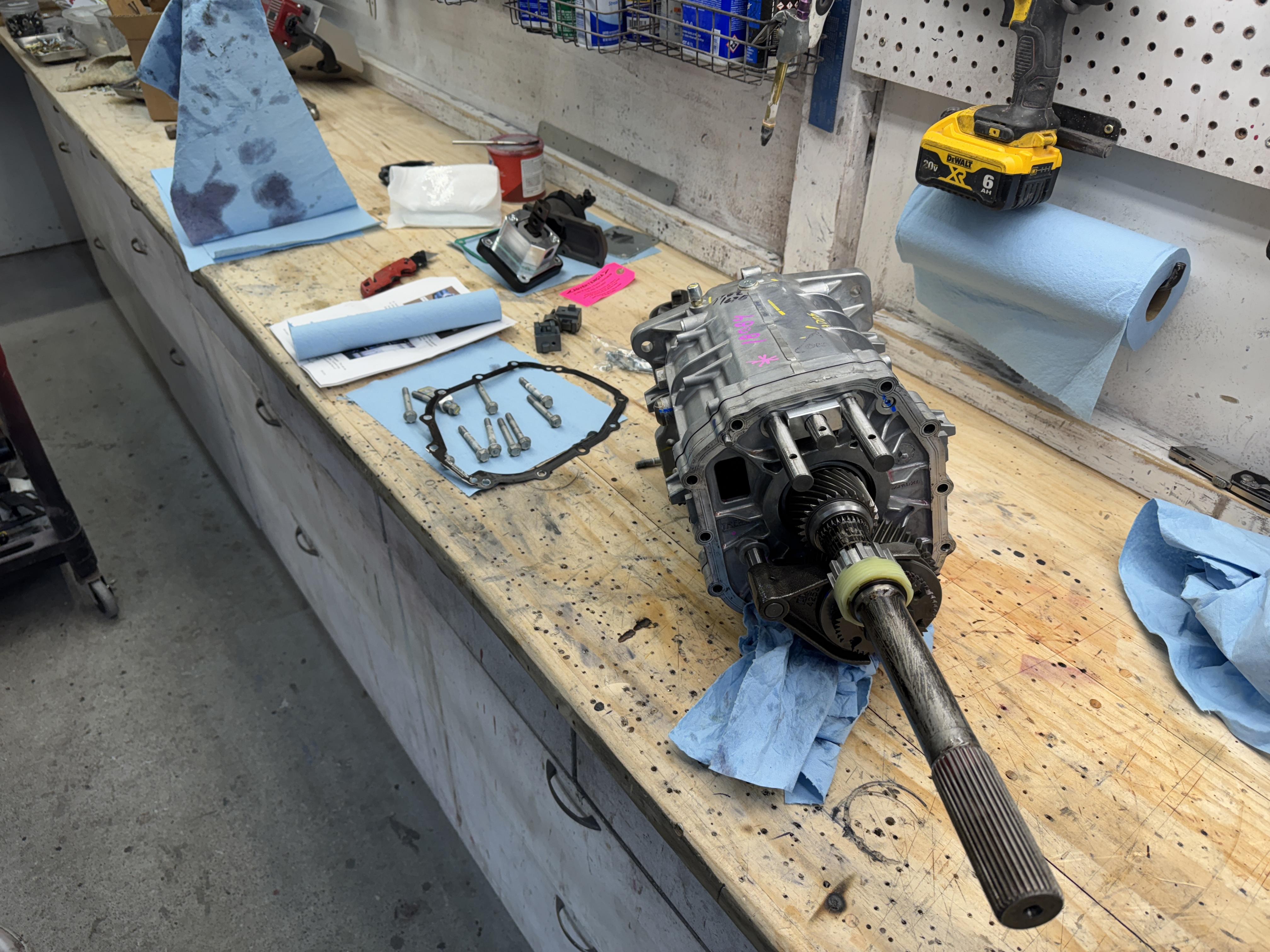

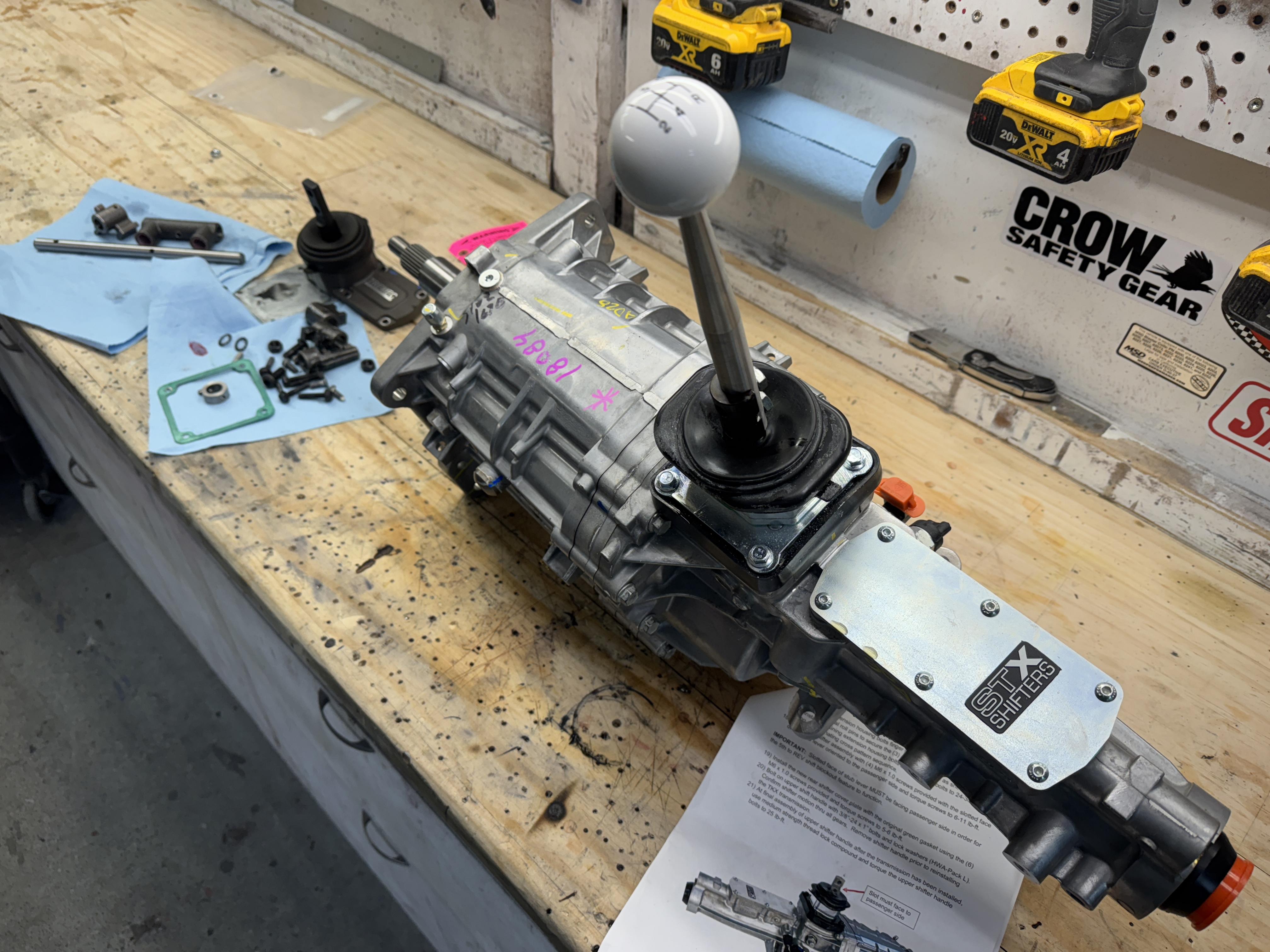

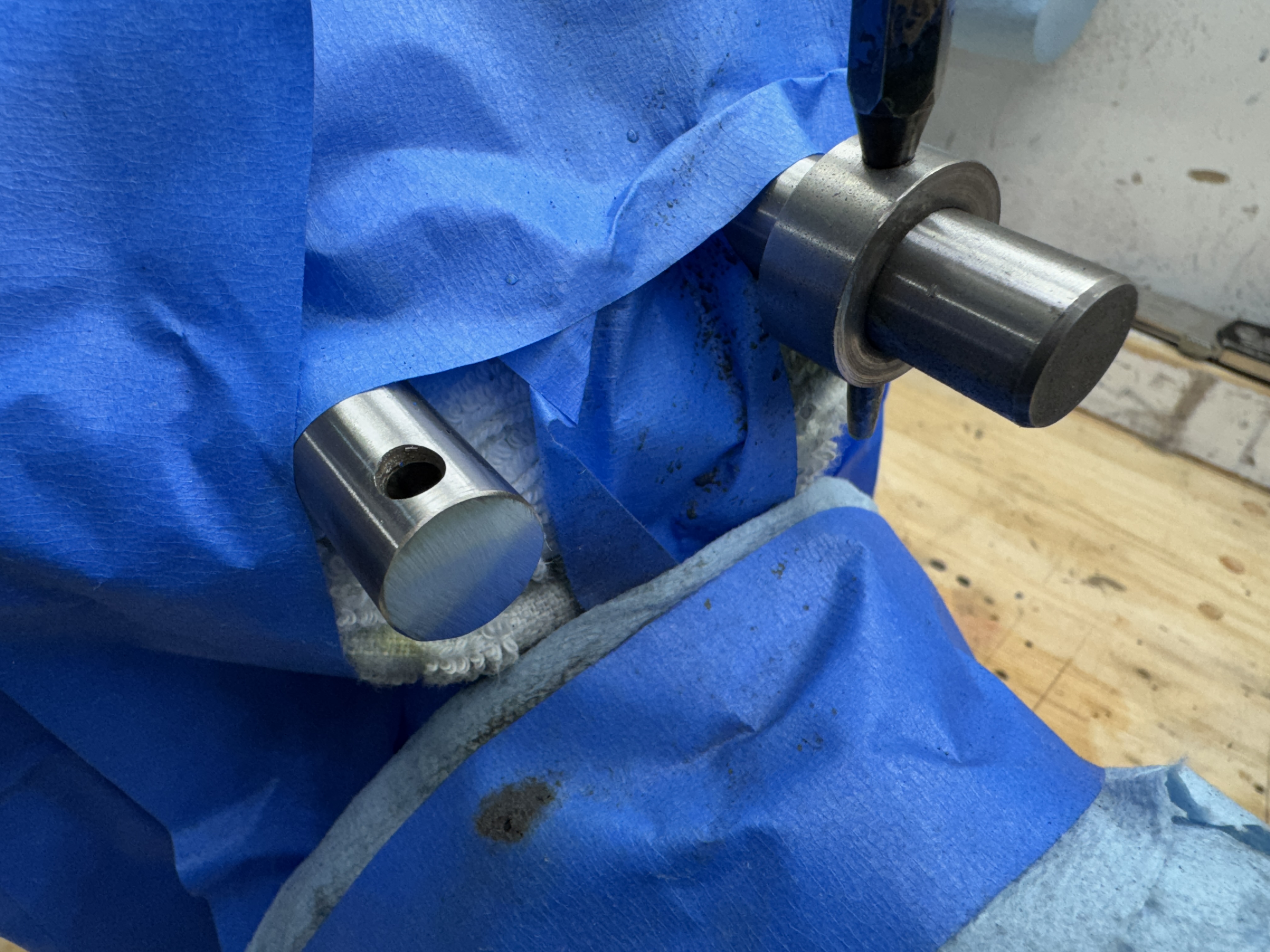

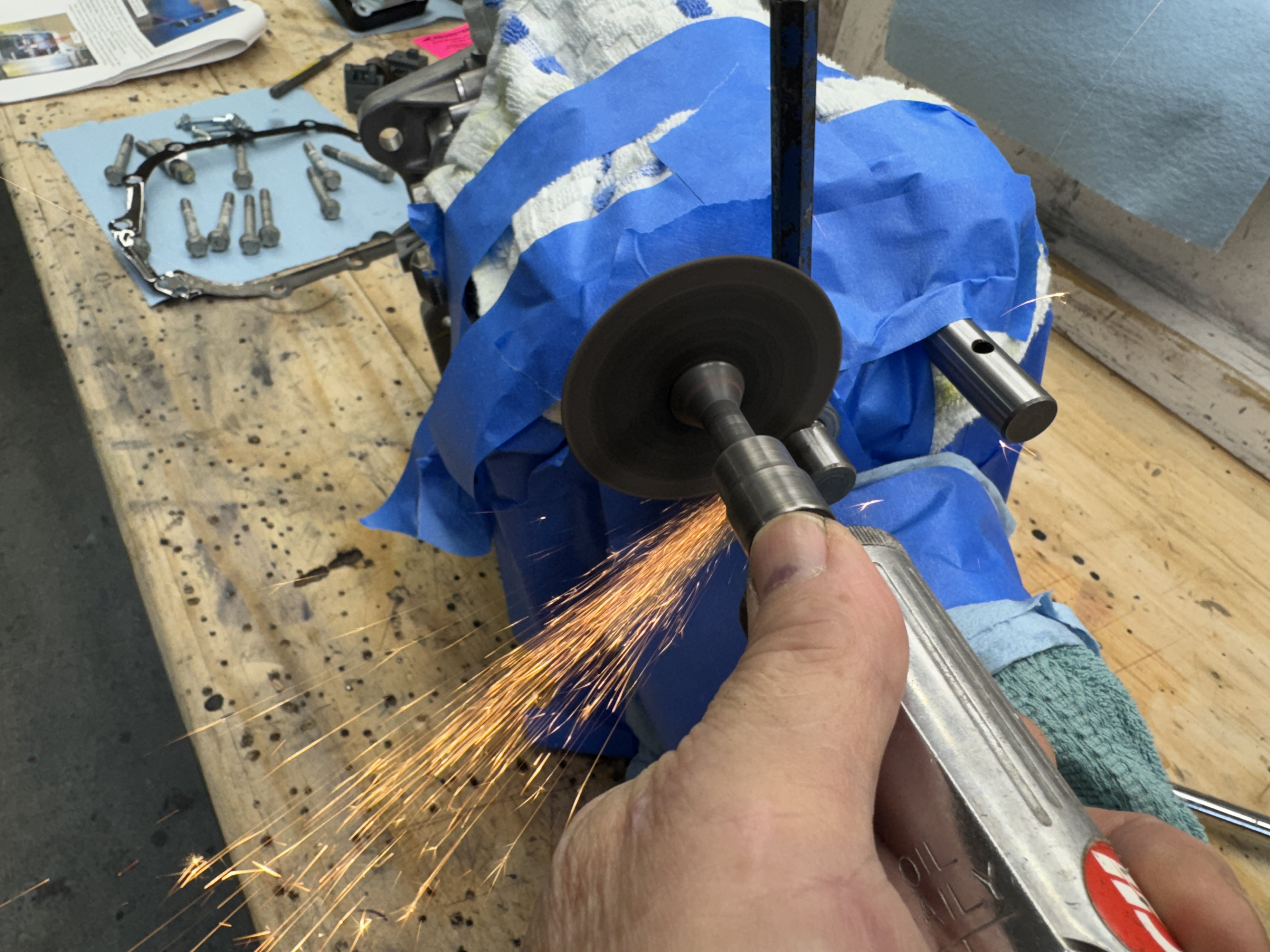

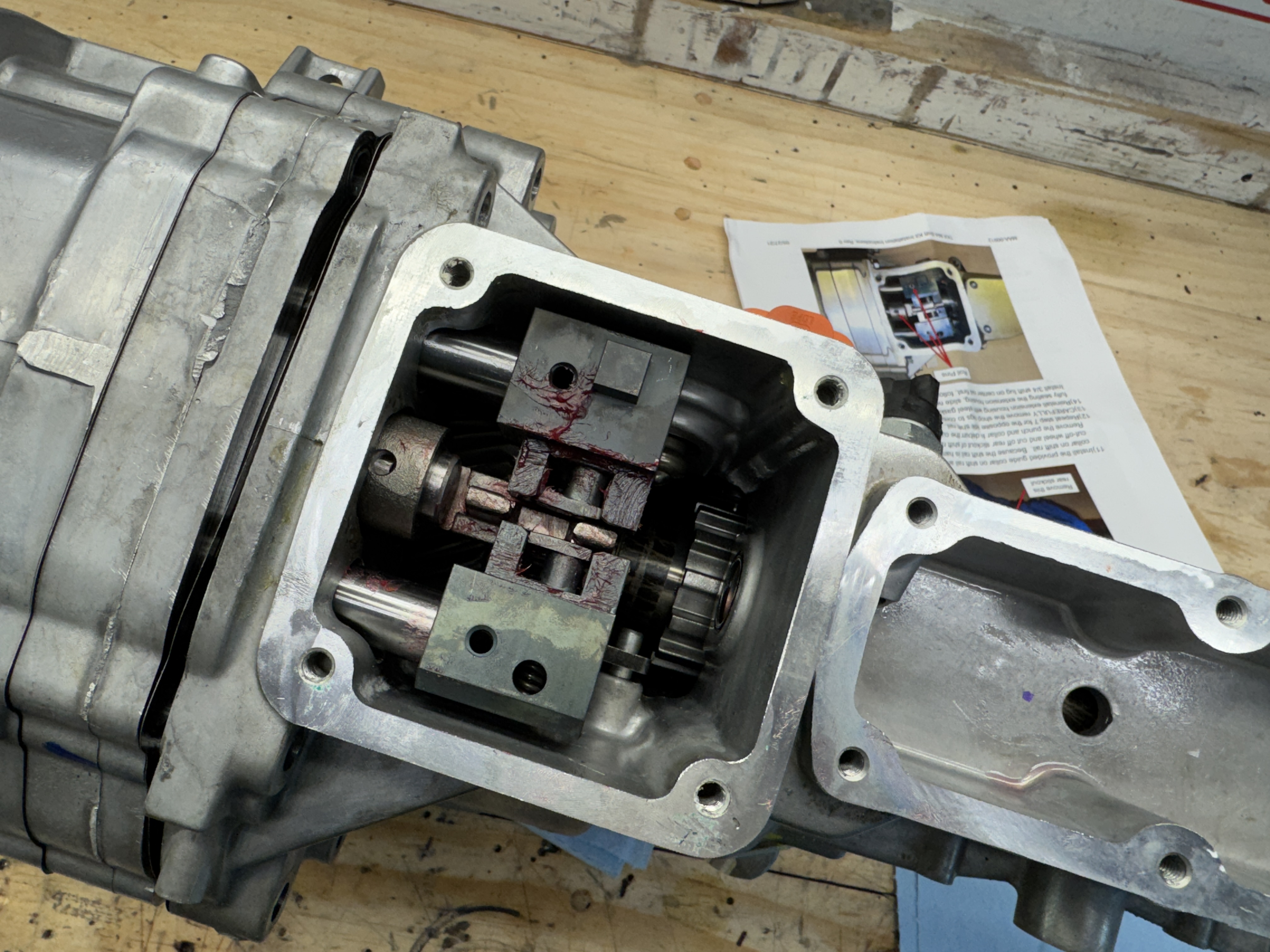

In preparation for installing the engine and transmission into the car, I need to modify the TKX 18084 to a mid shift configuration. I bought the mid shift kit from Summit, made by Silver Sport Transmissions. At first it seems disassembling the box and cutting off the ends of the outer shift rods appears to be a daunting task, in fact, it's pretty simple. Knock out three roll pins, remove the tail shaft housing, cut off the shift rod ends using the included spacer as a guide and slap it all back together with the new shift blocks. The last photo shows all the parts removed lying on the paper towel - replaced by the mid shift assembly.
Attachment 208902Attachment 208903Attachment 208904Attachment 208905Attachment 208906
Ready to go in. I'm using a Hays hydraulic throwout bearing.
Attachment 208907

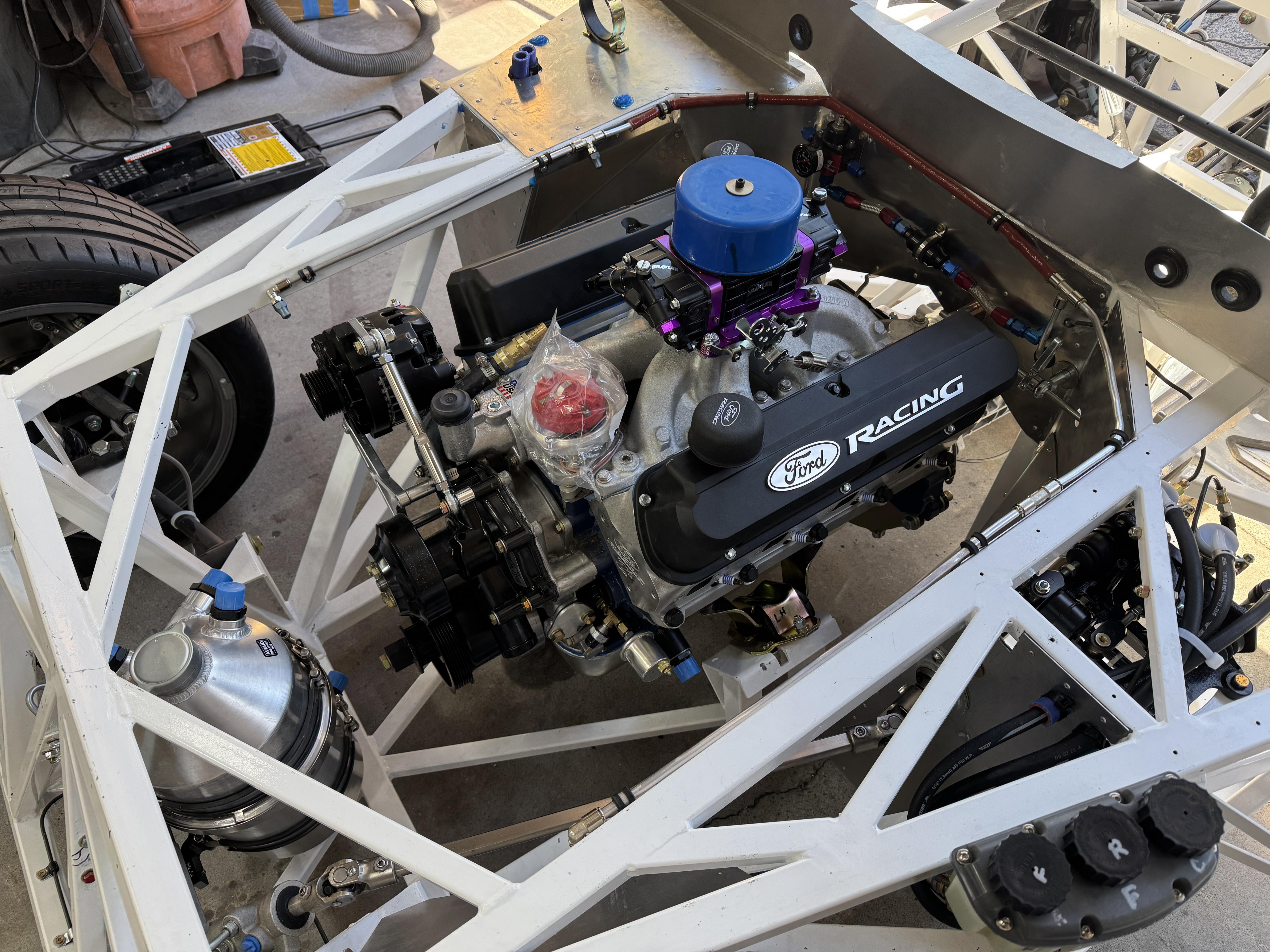

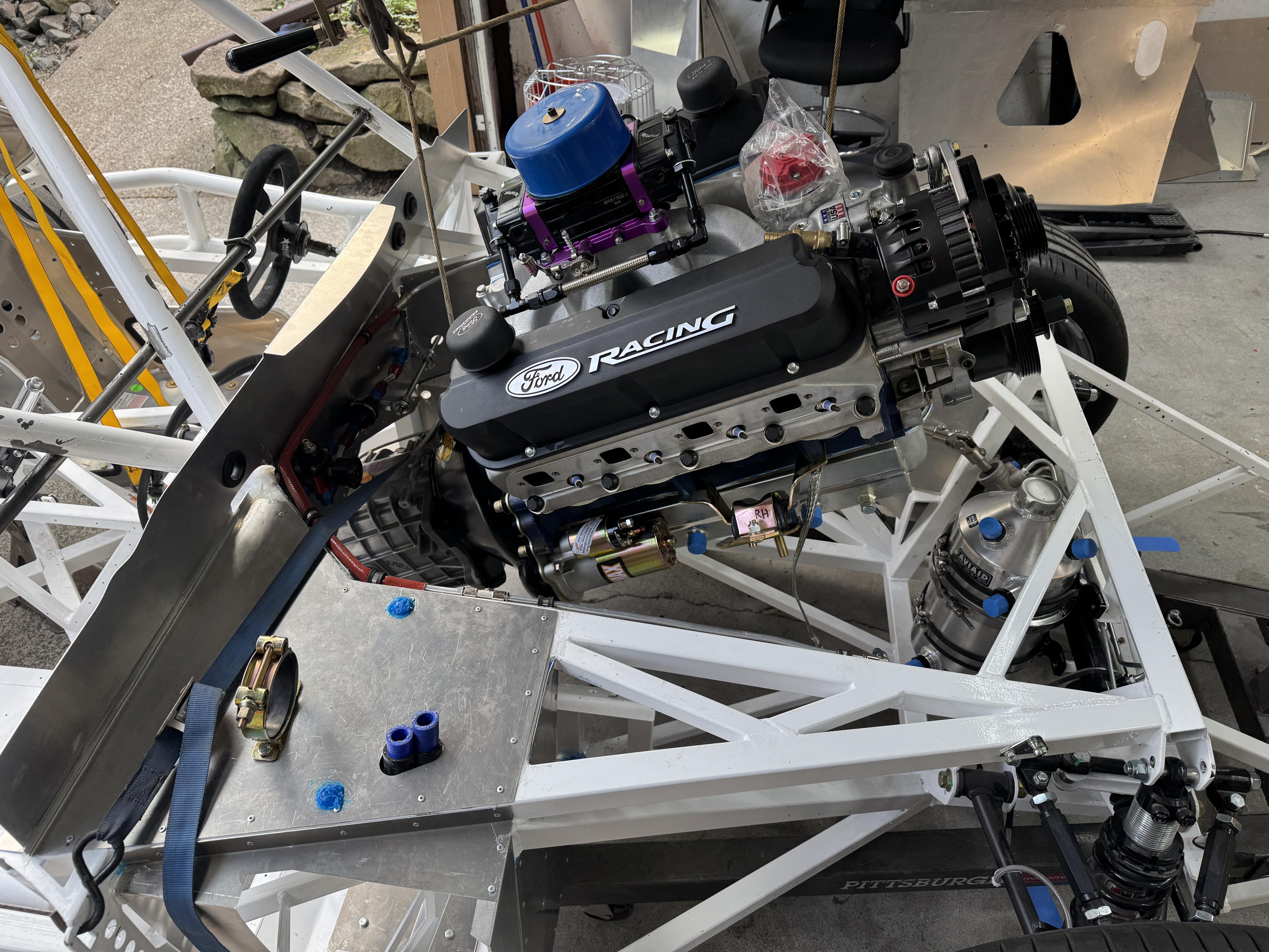

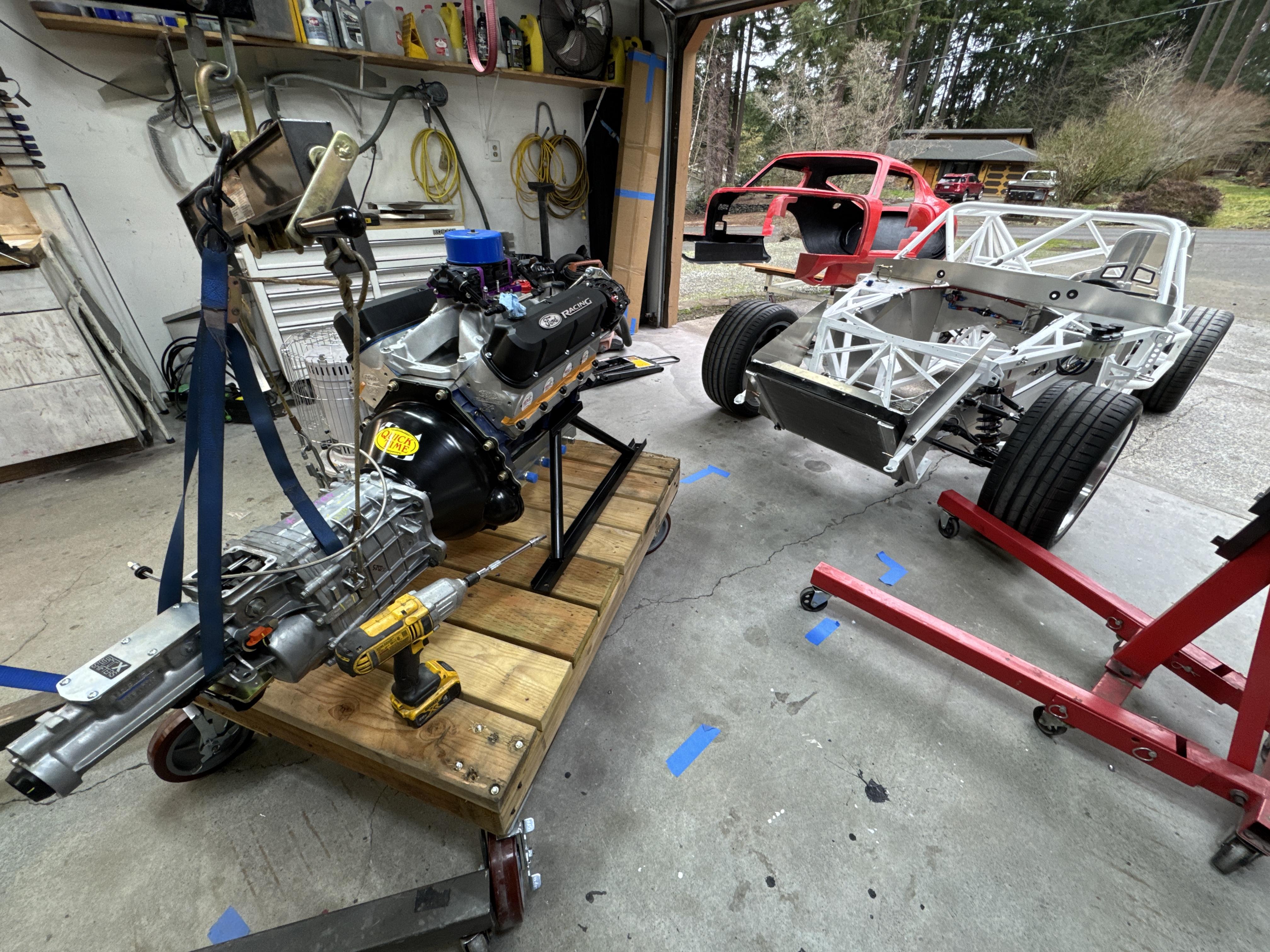

Engine goes in for the last time. I wanted to try and install it with the dry sump oil tank in the chassis and it turns out I have plenty of room. The transmission rear mount was a bit of a puzzle at first, but I figured it out and it's all settled in now. Time for reassembly to start in earnest.
Attachment 208929Attachment 208930Attachment 208931

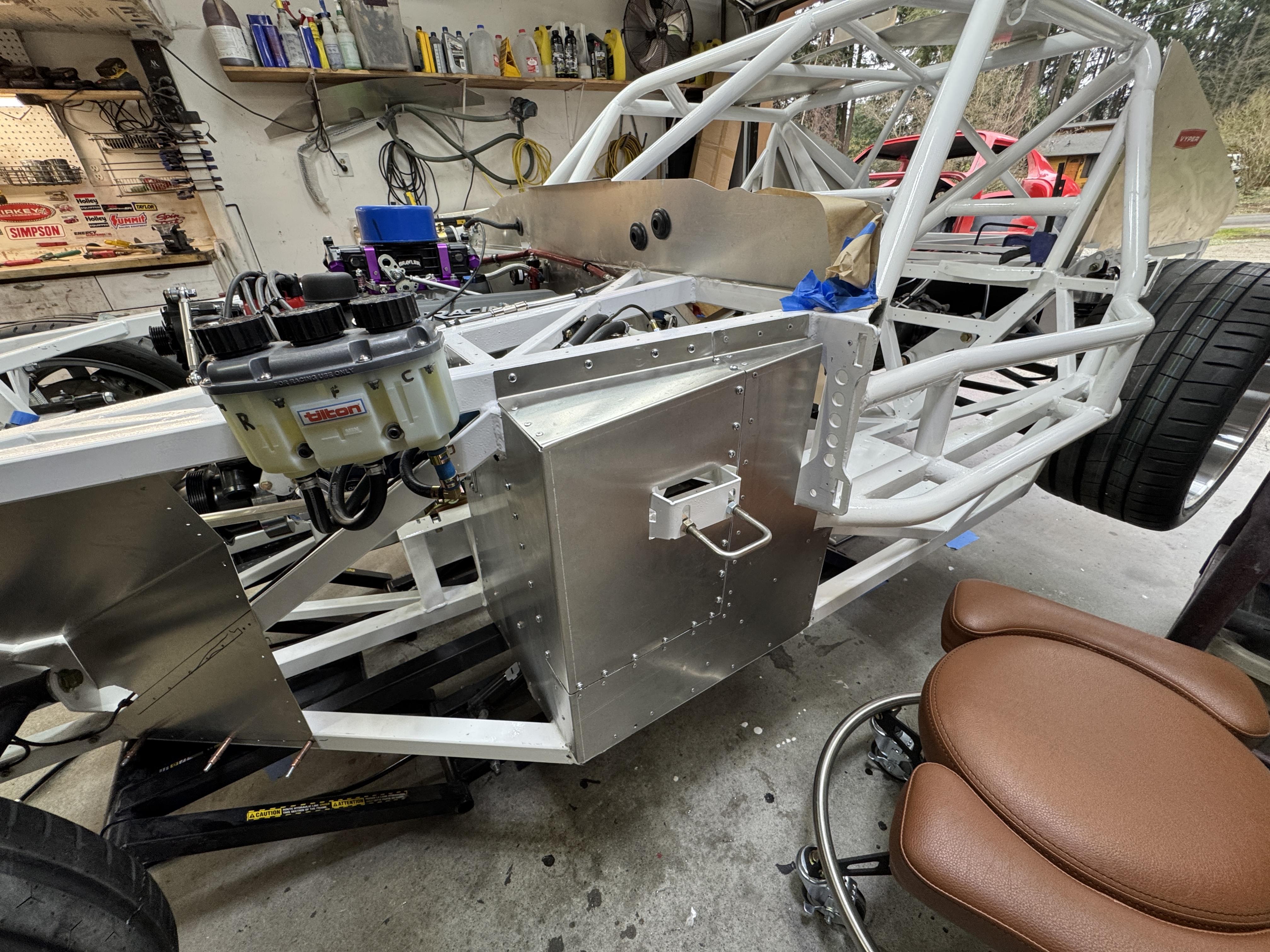

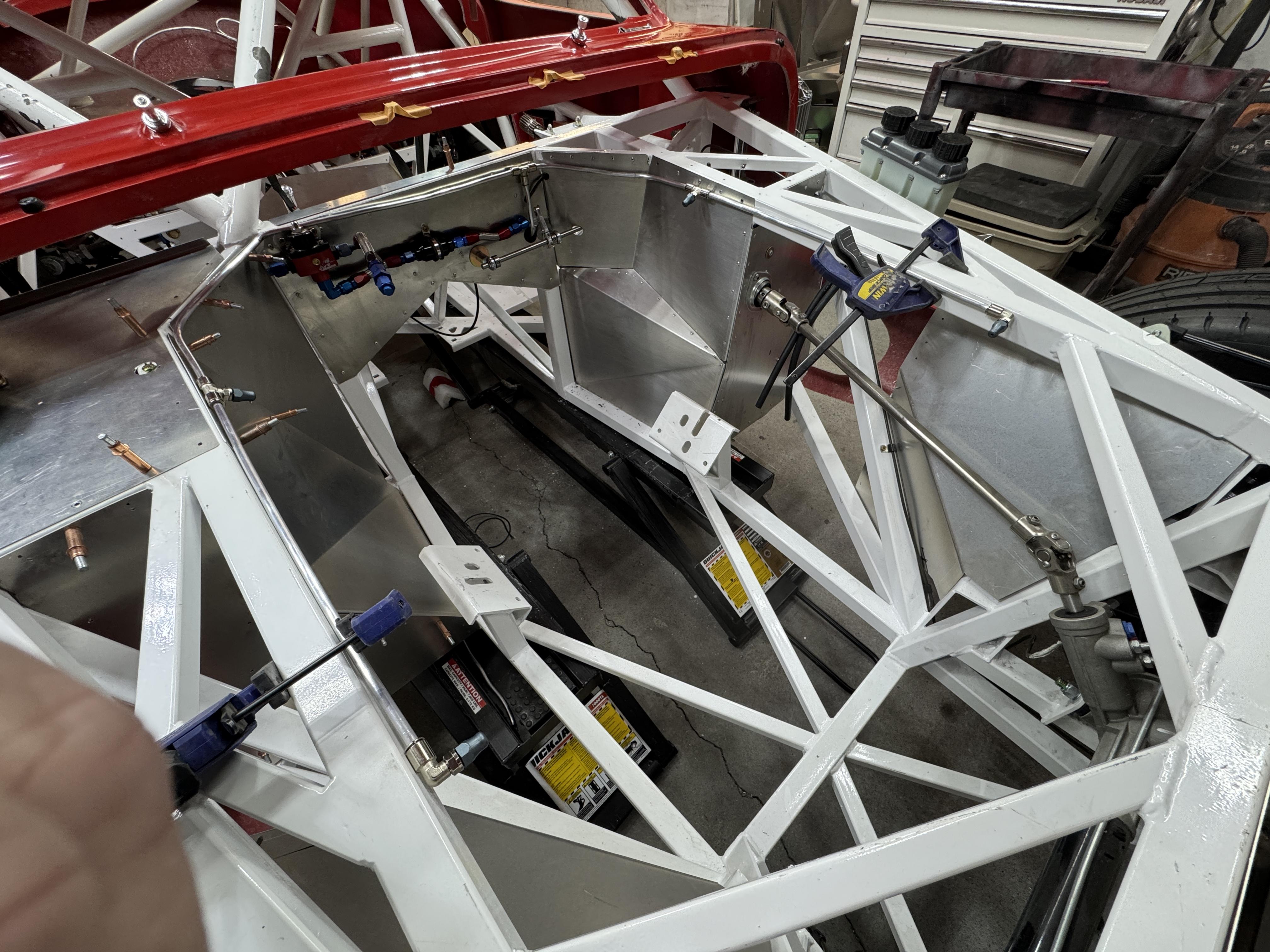

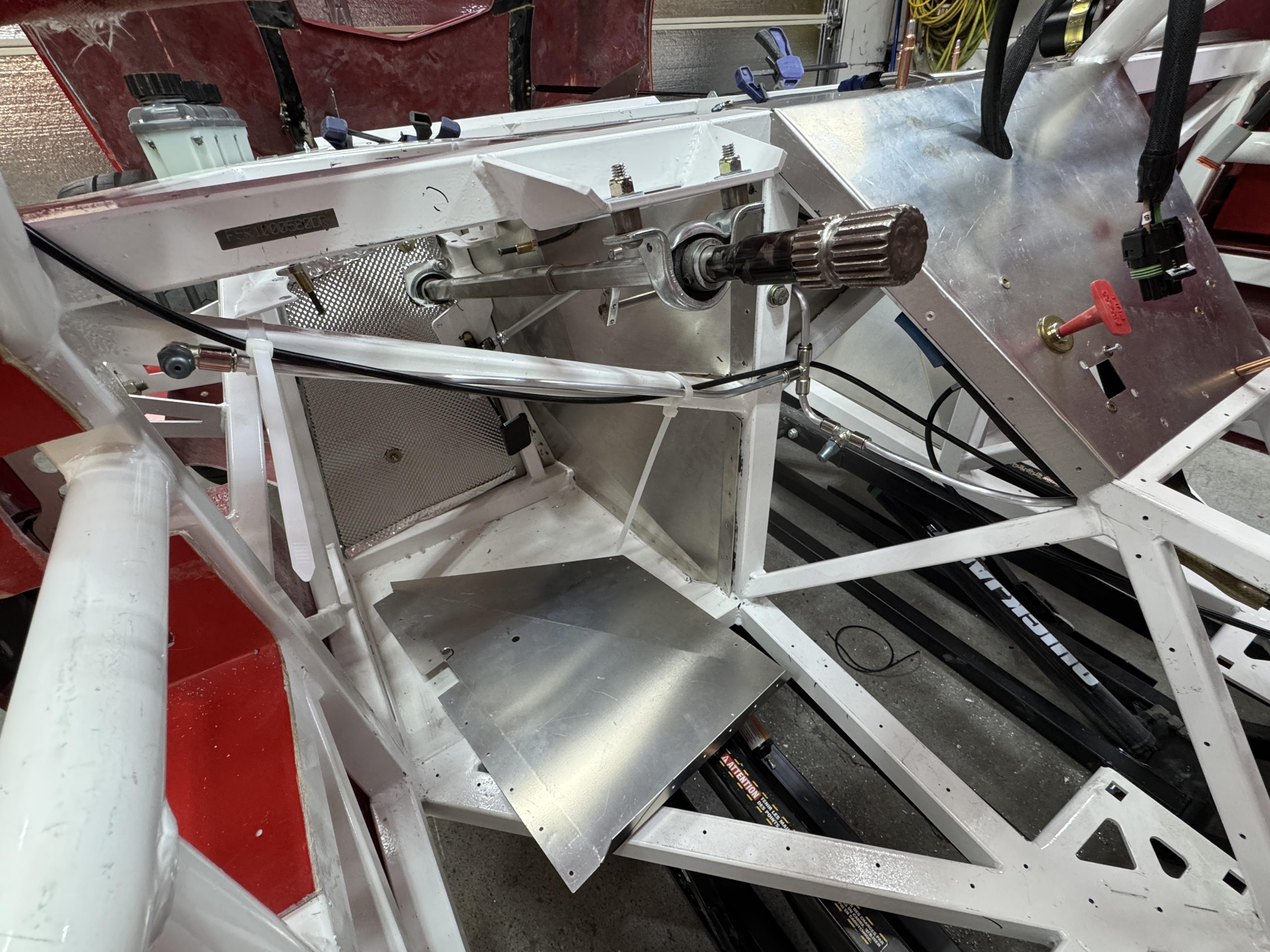

Got the driveshaft collar installed, then decided to modify the driver's side outer aluminum panel so I can remove it to gain access to the brake and clutch cylinders, so I cut it similar (but larger) to the cutout on the passenger side. Now I can install the body (for the last time - sigh) and still gain good access to that brake/clutch area. Also will do the typical threaded screw attachment scheme to the upper panel as most have done.
Attachment 209155Attachment 209154

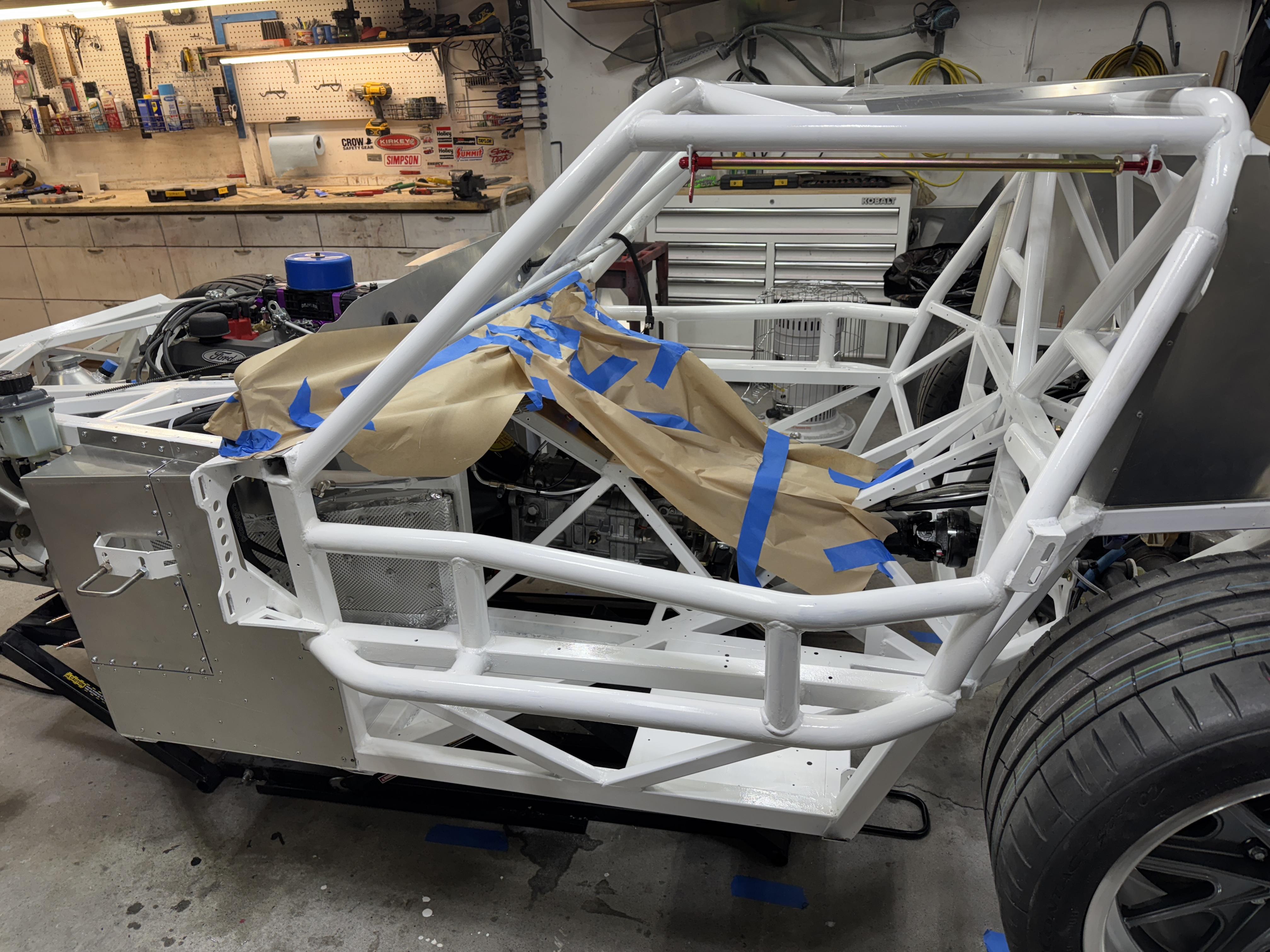

I've also been sanding off the white powder coat where it's flaking off. Interestingly, it just falls off in some spots and is well adhered in others, so I just sand off the flakiness and paint ti with white POR after proper prep. I suppose I should tell FFR and maybe they'll give me a $699 credit towards a MK V? :cool:
It's really too bad your powder coat is flaking off. The frame must not have been prepped for powder sufficiently, whether not cleaned or etched correctly. I'd be pissed.
Knowing FFR's customer service, I'm sure they'd make it right.
Yes, definitely a prep issue. But only in certain spots, some areas are good. FFR has always been very responsive - and very accommodating when I change things last minute, so no doubt their customer service is probably the best I've experienced in a very long time.
I was always going to have to touch up paint anyhow with all the welding needed for things like seat back mount, window net brackets, dry sump bits, etc. The white POR is a perfect match for the powder coat they use. In any case - it's a race car, it won't be pretty for long :p
Attachment 209157Attachment 209156

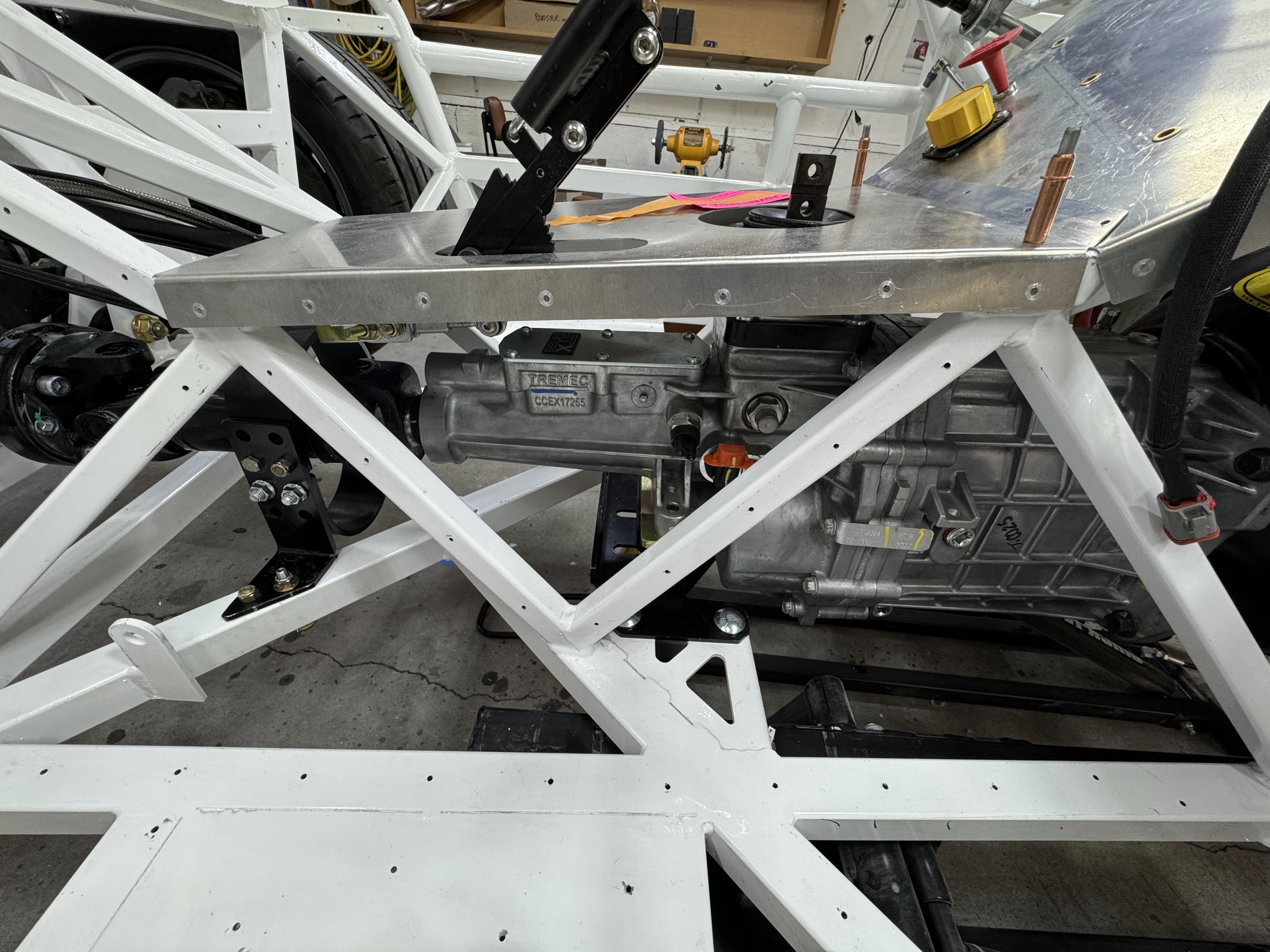

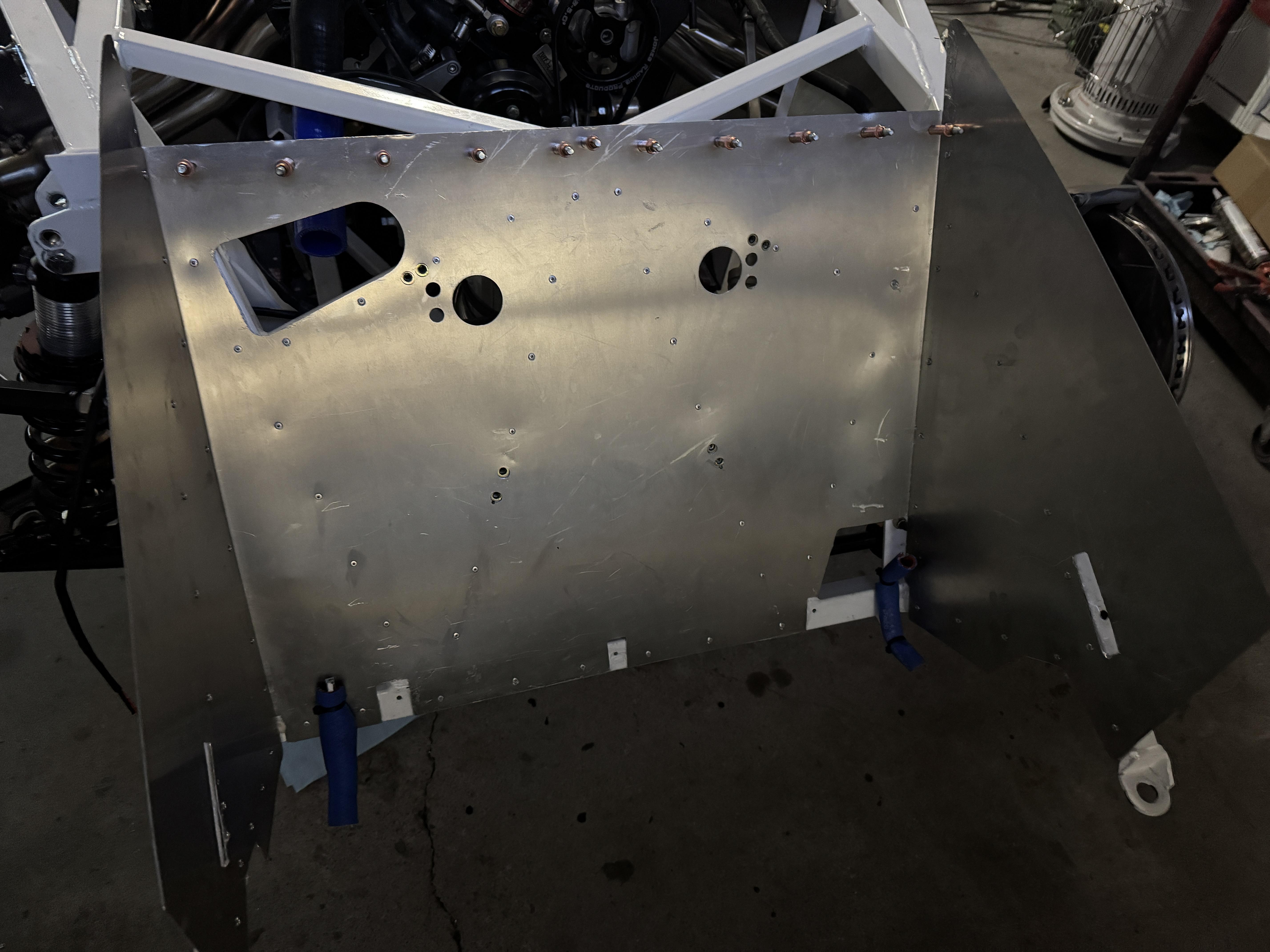

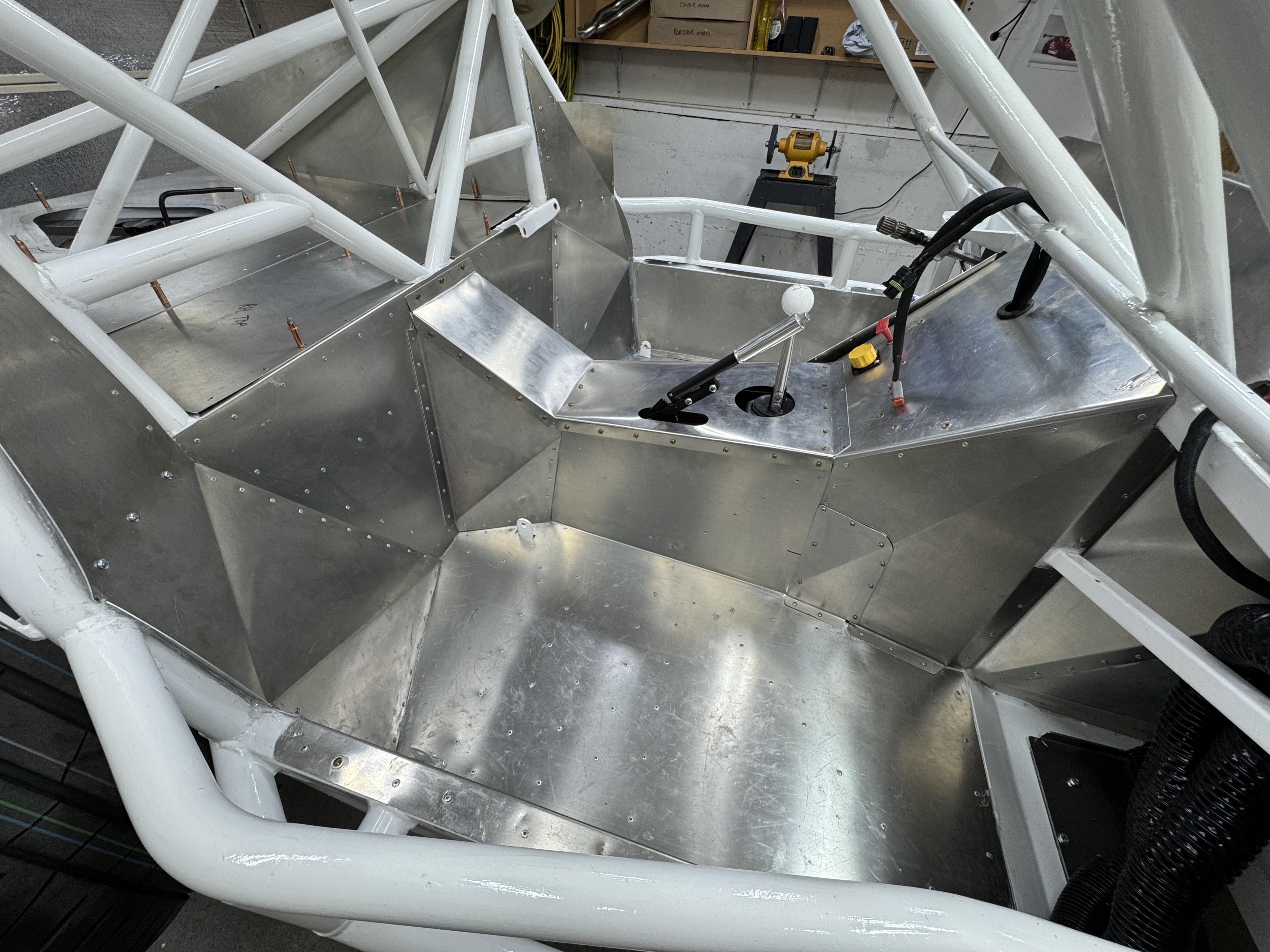

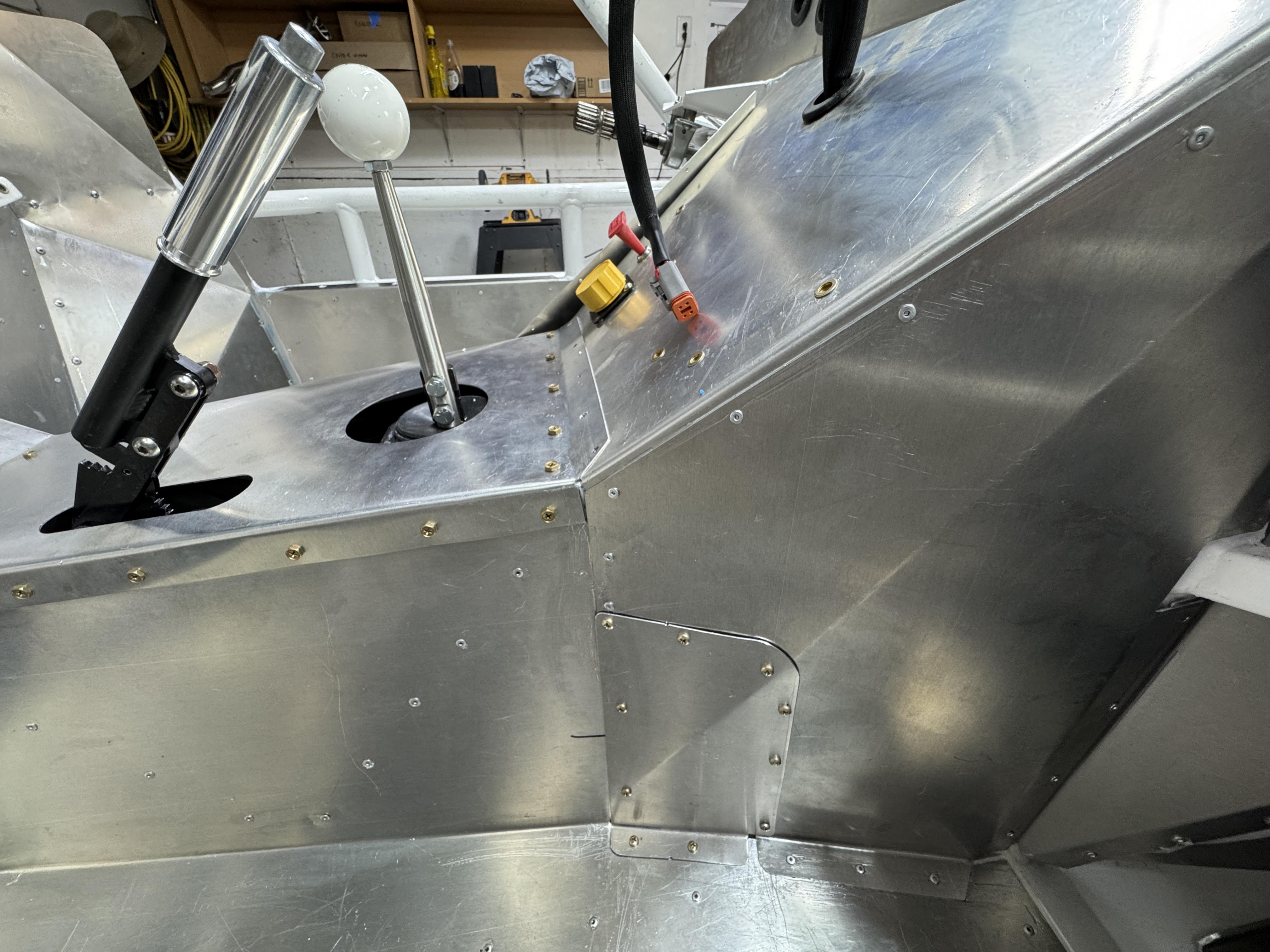

I decided to complete installation of the cockpit aluminum prior to installing the body. I'm using screws to attach the center console top plate and the diagonal plate aft of the console so I can have access to all the fluid and electrical lines running through the top of the tunnel.

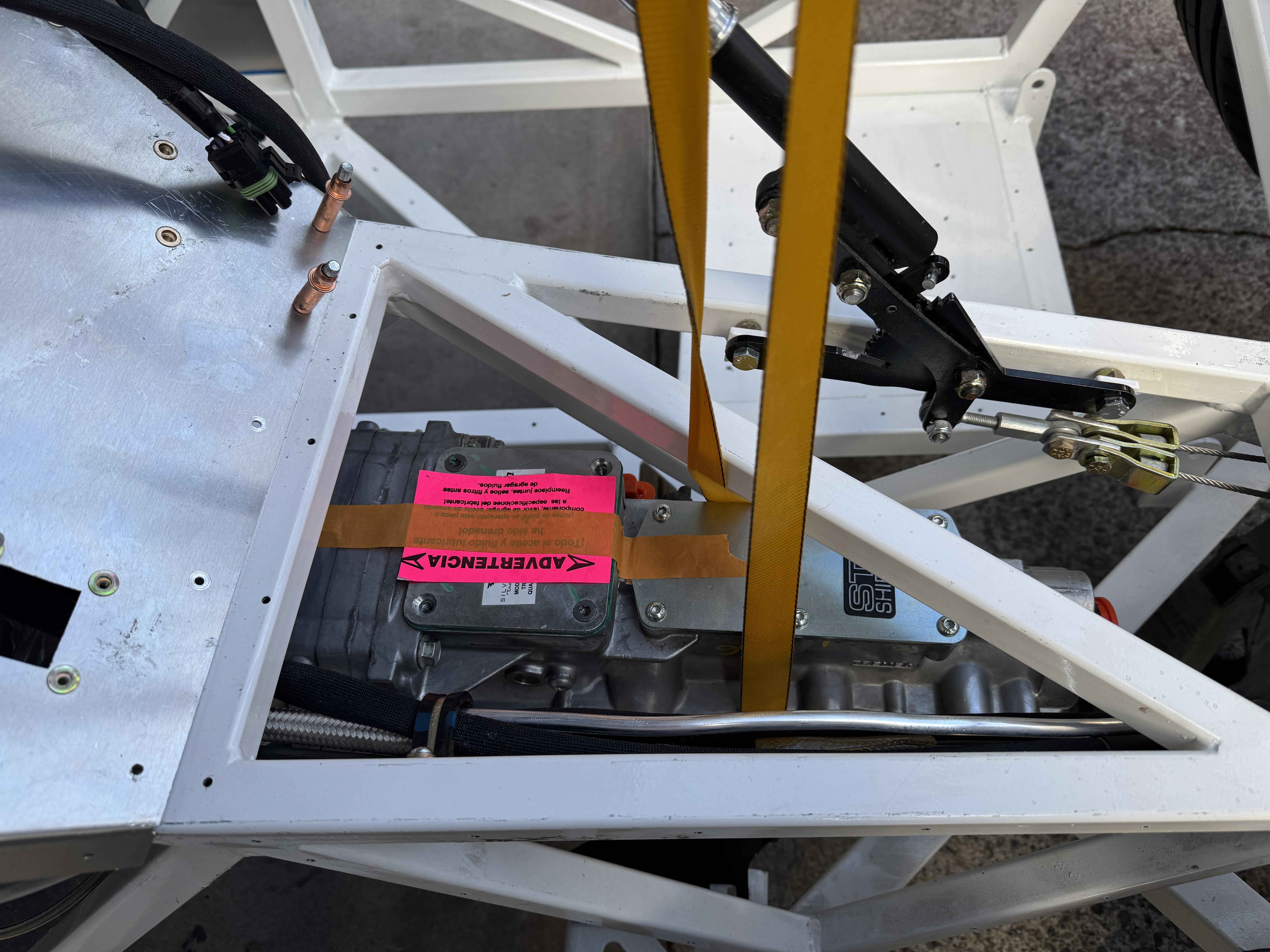

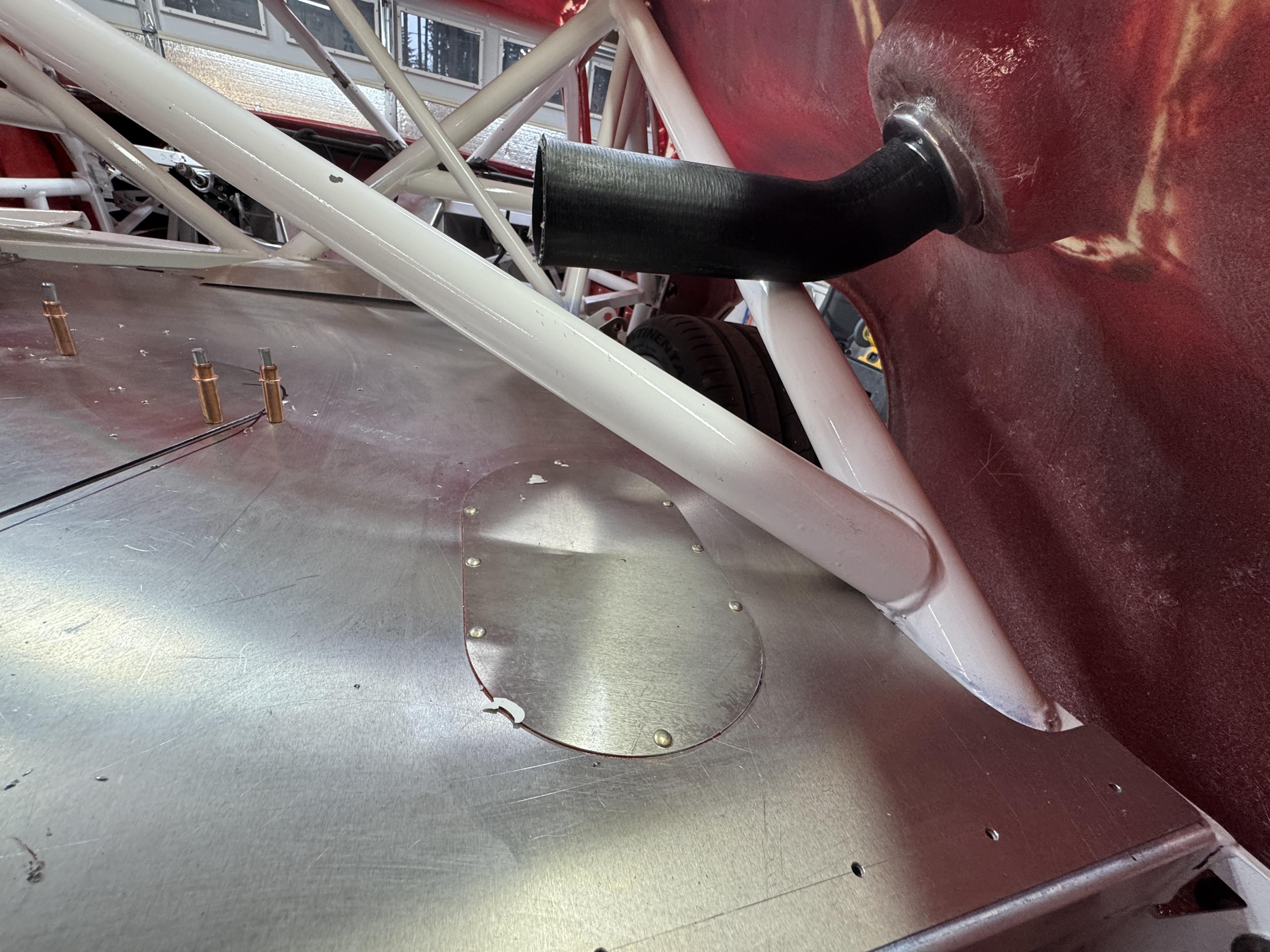

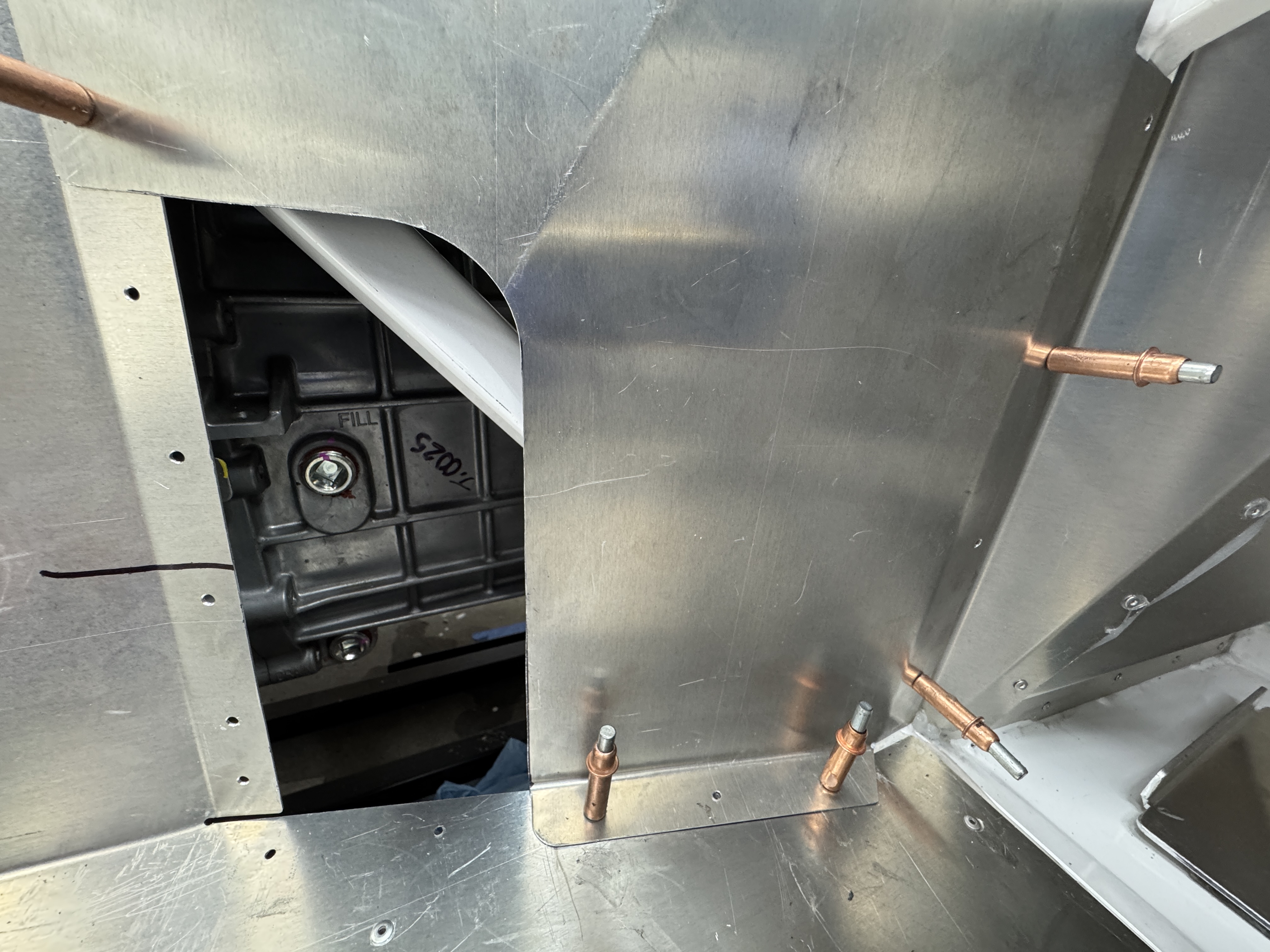

In addition, I wanted easy access to the transmission fill port, so I fabricated an access panel using screws and rivnuts. For the screws holding the console panels in place, I used a combo drill bit/10-32 tap I found on Amazon and it works a treat to make drilling and tapping all those holes - took about 10 minutes to tap them all. Here's the bit: https://www.amazon.com/dp/B01GWSYQ4E...fed_asin_title
Attachment 209239Attachment 209240Attachment 209241

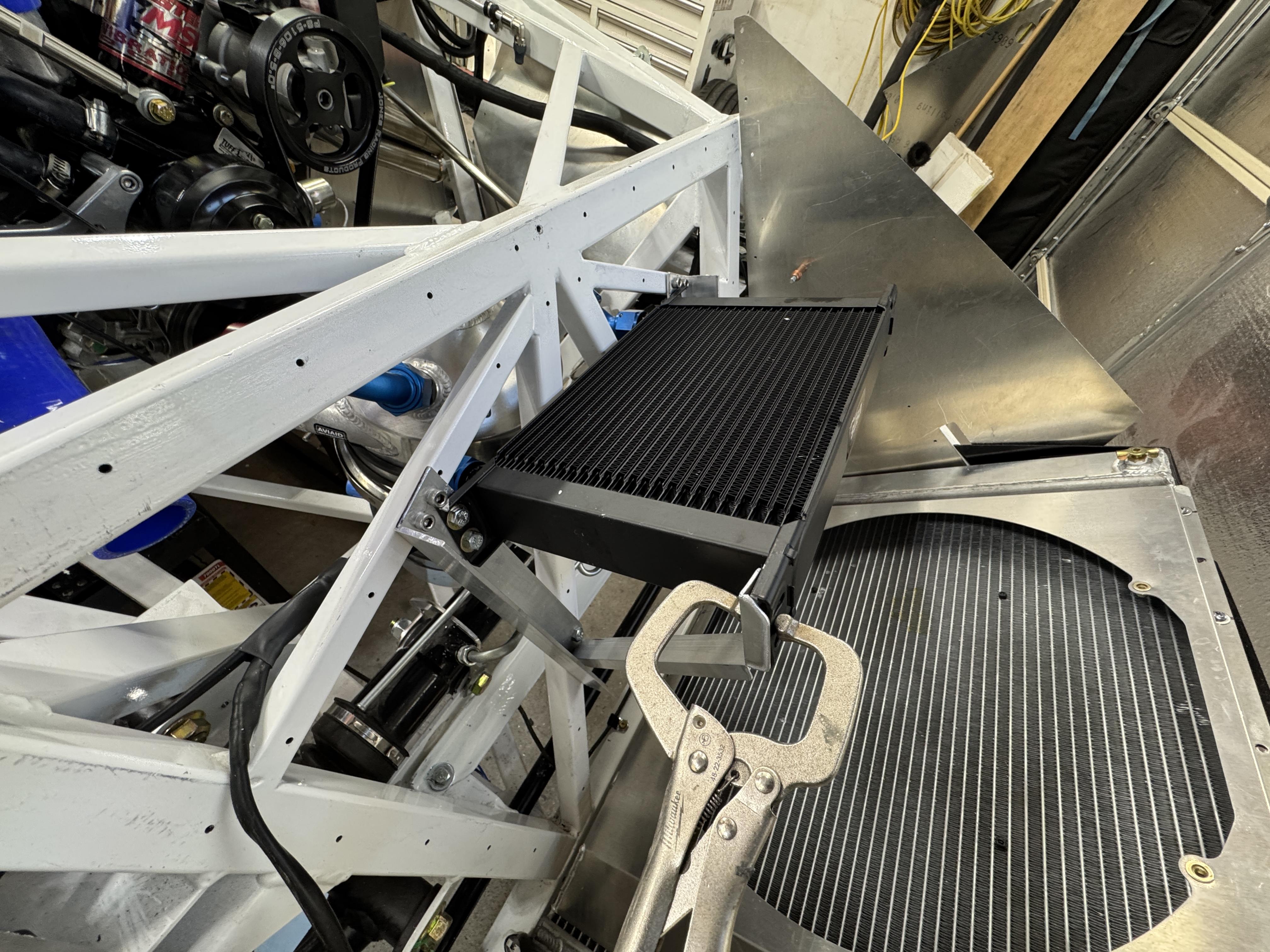

Fabricated oil cooler mounting angles, located and installed radiator ducts. Setrab oil cooler with AN12 fittings. Still have to locate and install the oil thermostat and remote filter mount.
Attachment 209540Attachment 209539

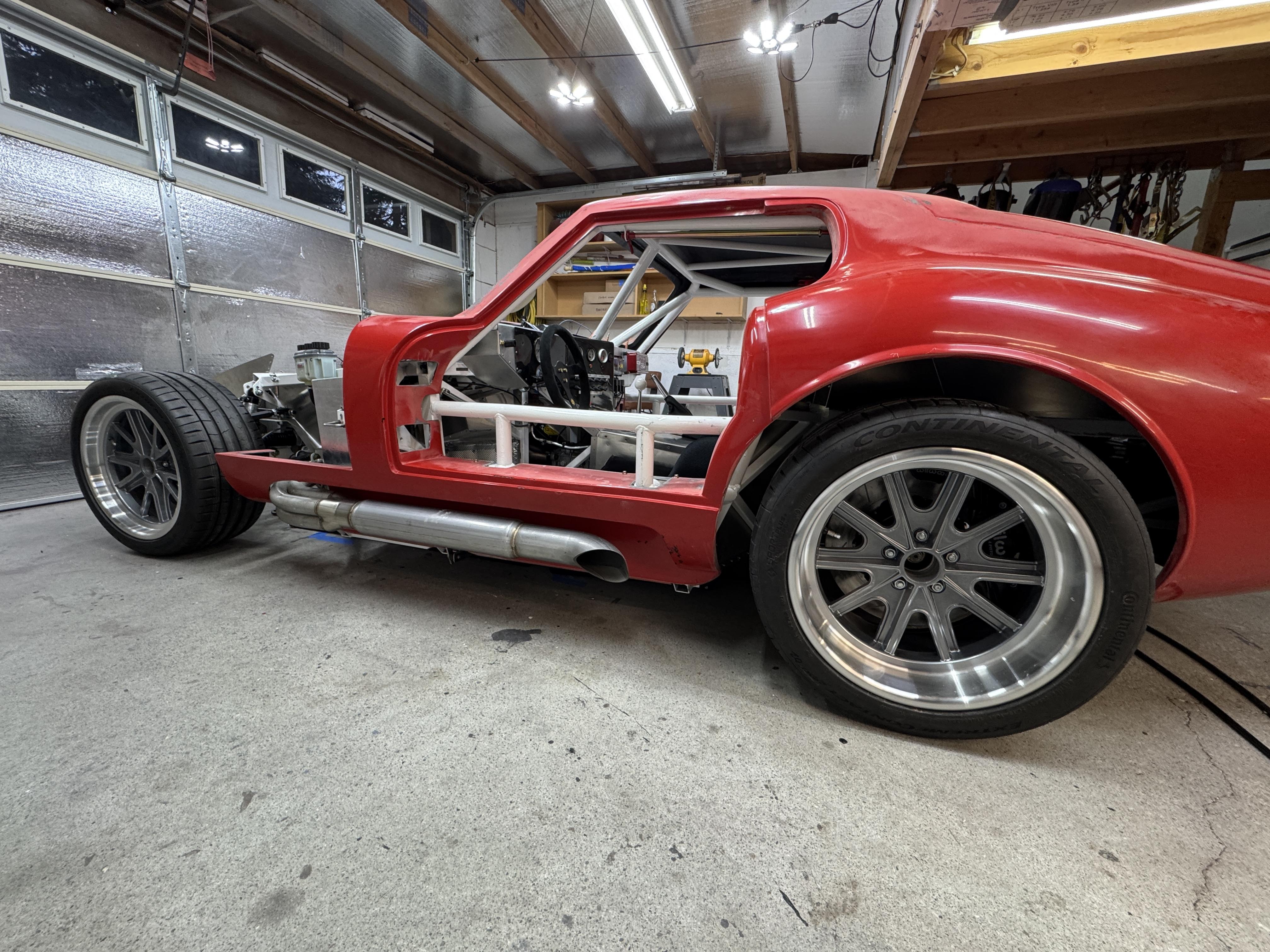

Fabricated brackets for the side pipes using FFR roadster side pipes connected to Georgie’s headers. They fit great and should be a bit quieter than the normal side pipes.
Attachment 209599Attachment 209600

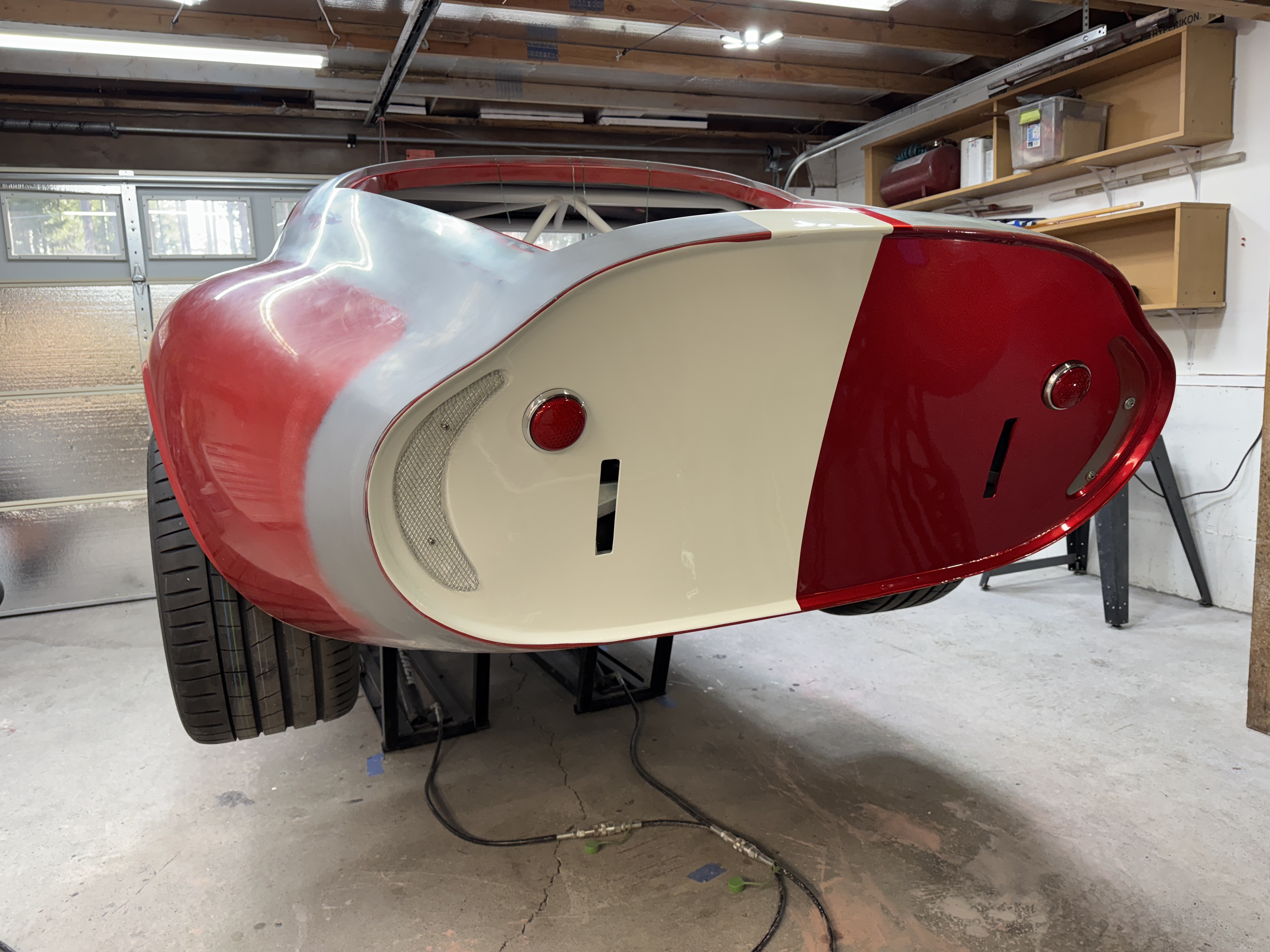

Still waiting for my dry sump pump from AVIAID, they say two more weeks - so I decided to start on wrapping the body since there's not much left to do.
First off - wrapping the Coupe is not difficult, but it will not result in a show-quality finish - unless the car is already show quality and you take it to a professional - which I am not. Any tiny imperfections or dust on the body will show right through the wrap. I've been wrapping my race cars for a couple years now, so I know what it will take and my expectations are for a nice looking car from 10 feet and 140 mph. :cool:
Second, the wrap is temporary while I sort the car this season and I will likely replace it (or the body entirely) for next season. The car finish gets beat up pretty well on track with tire rubber marks, rock dings, and in a couple cases, large tire marks from getting hit in the side, so again, I'm not worried about perfection - and it's easier than trying to paint it here in my garage which I've done and it's not fun at all.
Third - it doesn't get me out of body work, knocking down the parting lines, filling with Duraglass, lightweight filler and sanding all the way through 1500 wet. Like I said, any imperfections will show through, and I can't clear it, sand and polish the imperfections away - but I do have a nice collection of racing stickers as a time-honored method of hiding the worst bits.

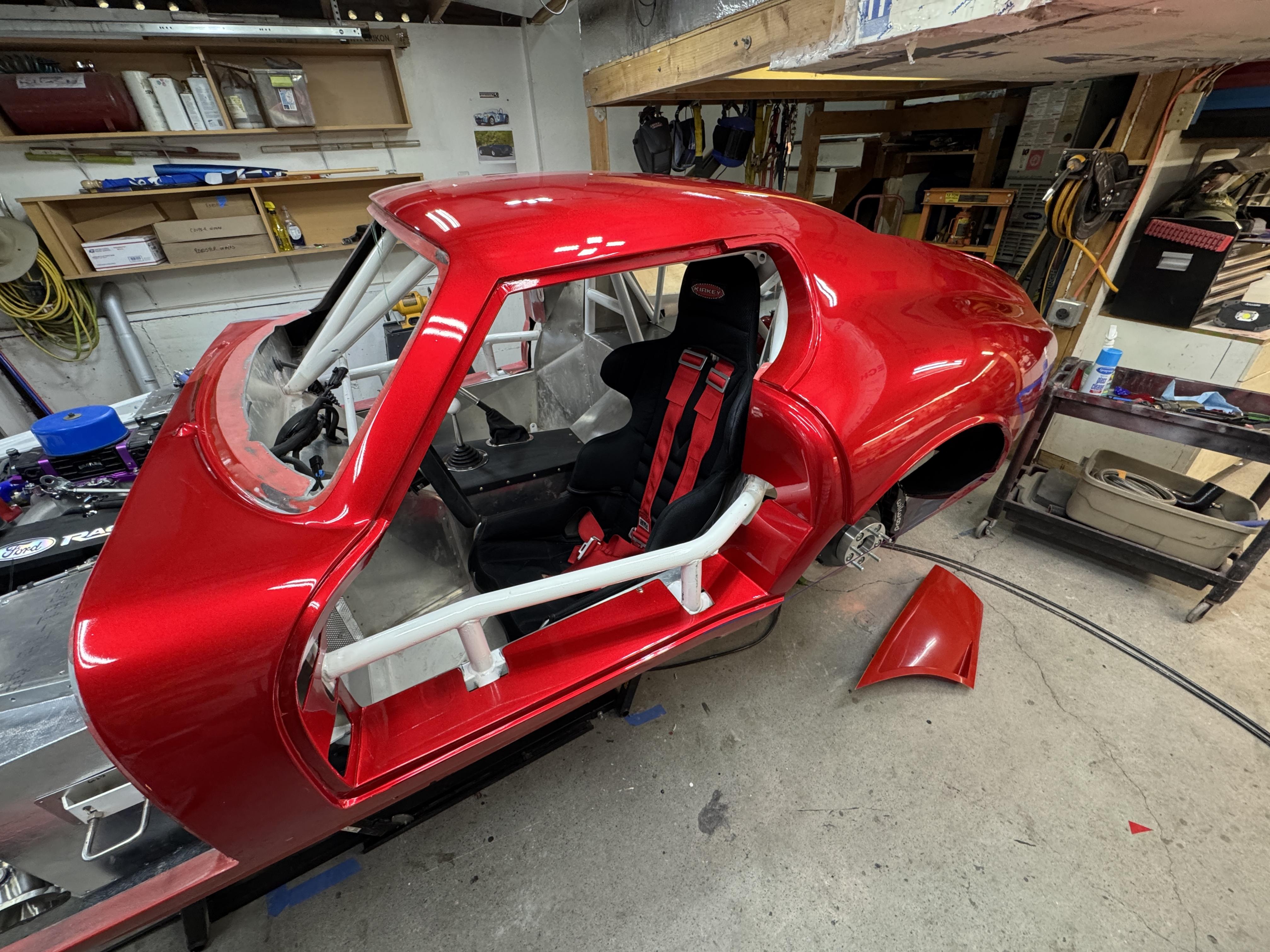

Finally, I bought 50' of 5' wide VVIVID high gloss red metallic vinyl with a clear cap that wraps real nice and is much easier to use and glossier than the 3M stuff. Also some white for the stripes and back. I'm using 3M knifeless tape for edges and stripes, works very well. I was pleased to find that one piece of the 60" wide wrap, 86" long covers the entire half side of the car body. I'm splitting the wrap down the middle with the stripes forming the butt joint. Gets kinda tricky around the lower rear quarter panel, but I think it can be done with enough patience and pulling. I'm lucky that I have wheel vent cutouts that allow me to cut out that compound curved area.

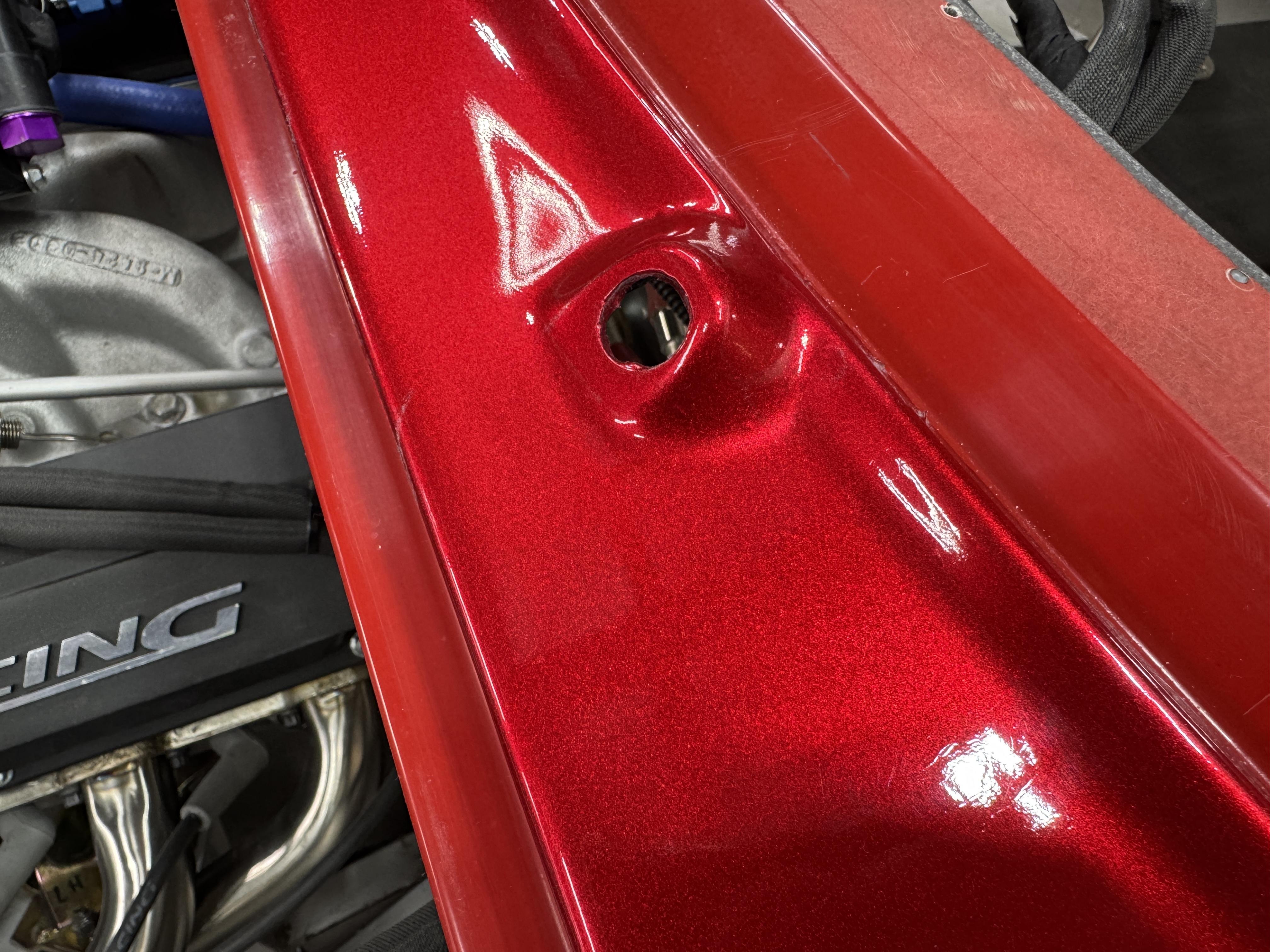

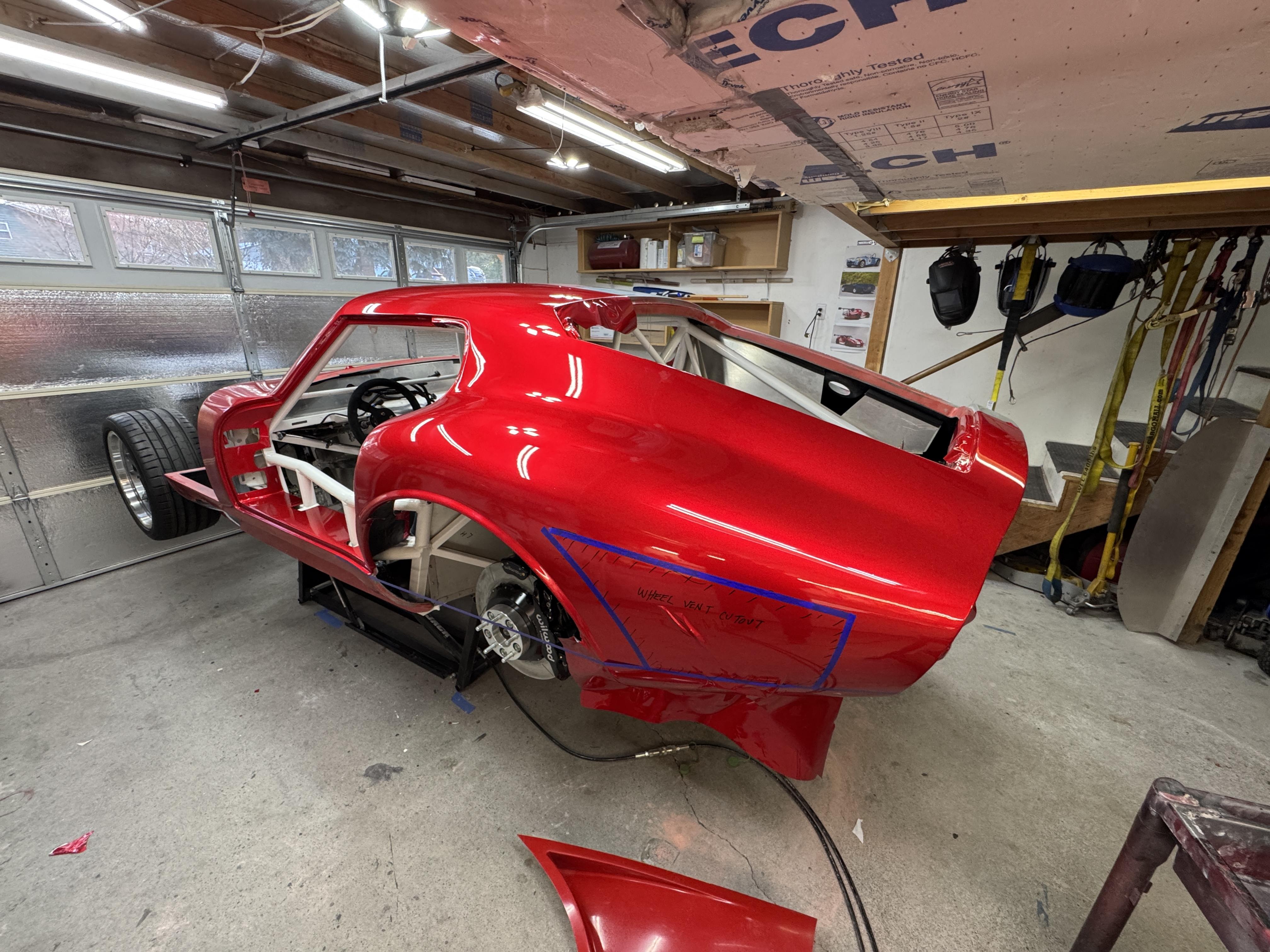

I wrapped the door jams first to minimize the visible seams, but not sure it makes any difference. You can see that with patience (lots of patience) the wrap will form around difficult monuments like the wiper mounts, etc.
So, if you're waiting for your spot in line at the paint shop and don't want to drive around in gelcoat (nothing wrong with that) give it a try and if nothing else it will re-kindle your long lost patience ;) Also - the folks on Youtube showing how to wrap where they throw it on from across the room, swipe it three times with their squeegee and it's perfect is just complete BS. I watched a lot of wrap videos over the years and no one wraps anything as complex as a Cobra - and formula cars are even worse because if you pull hard enough to get the wrap to conform, it falls off the jacks.
Attachment 210238Attachment 210239Attachment 210240Attachment 210241
That looks great. I’m planning on wrapping my 818, and with the same brand and what looks like the same color. I figured if I muck up the wrap, I can just rip it off and try again. If I mucked up painting it’s be a lot more trouble to correct

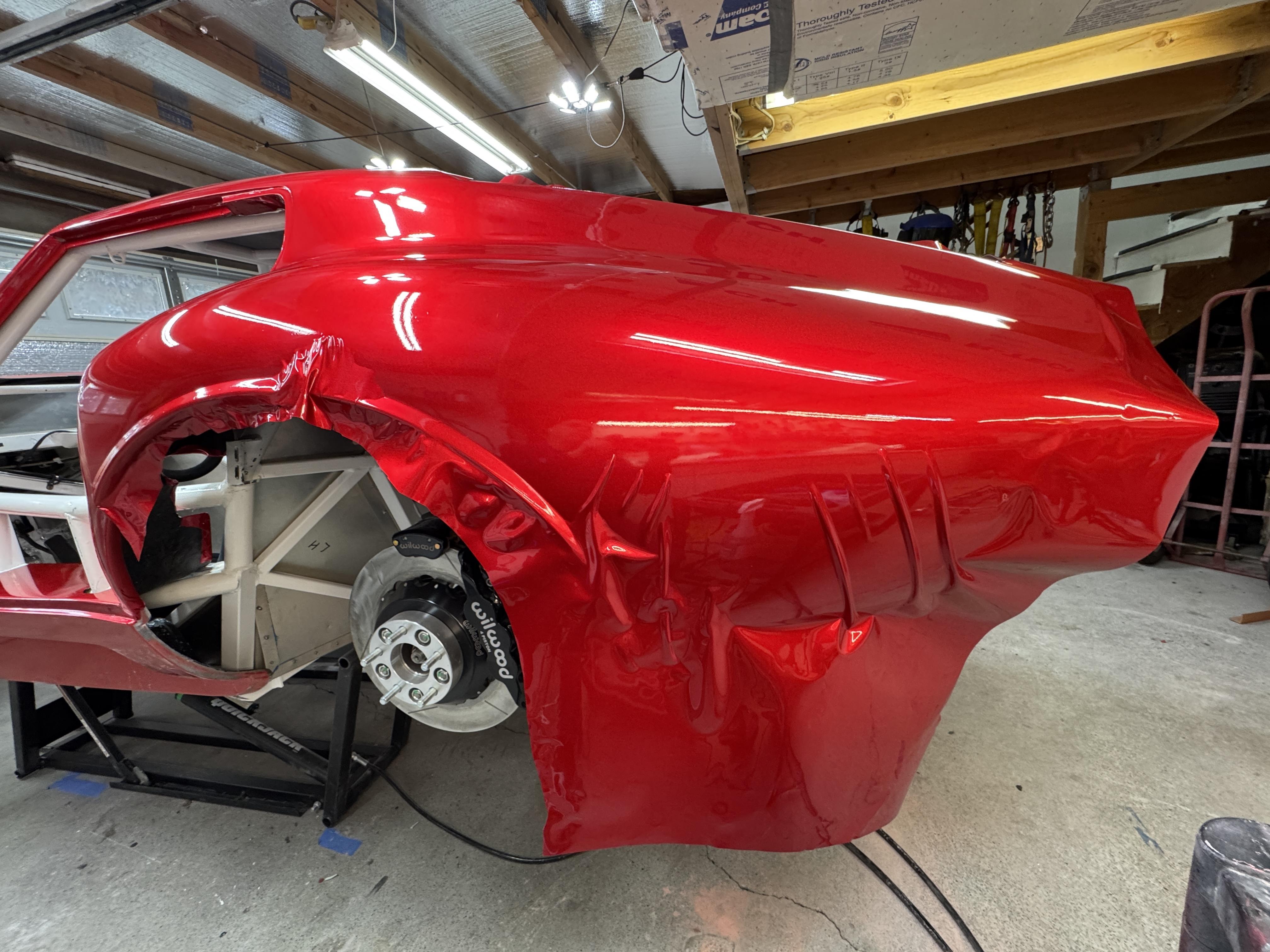

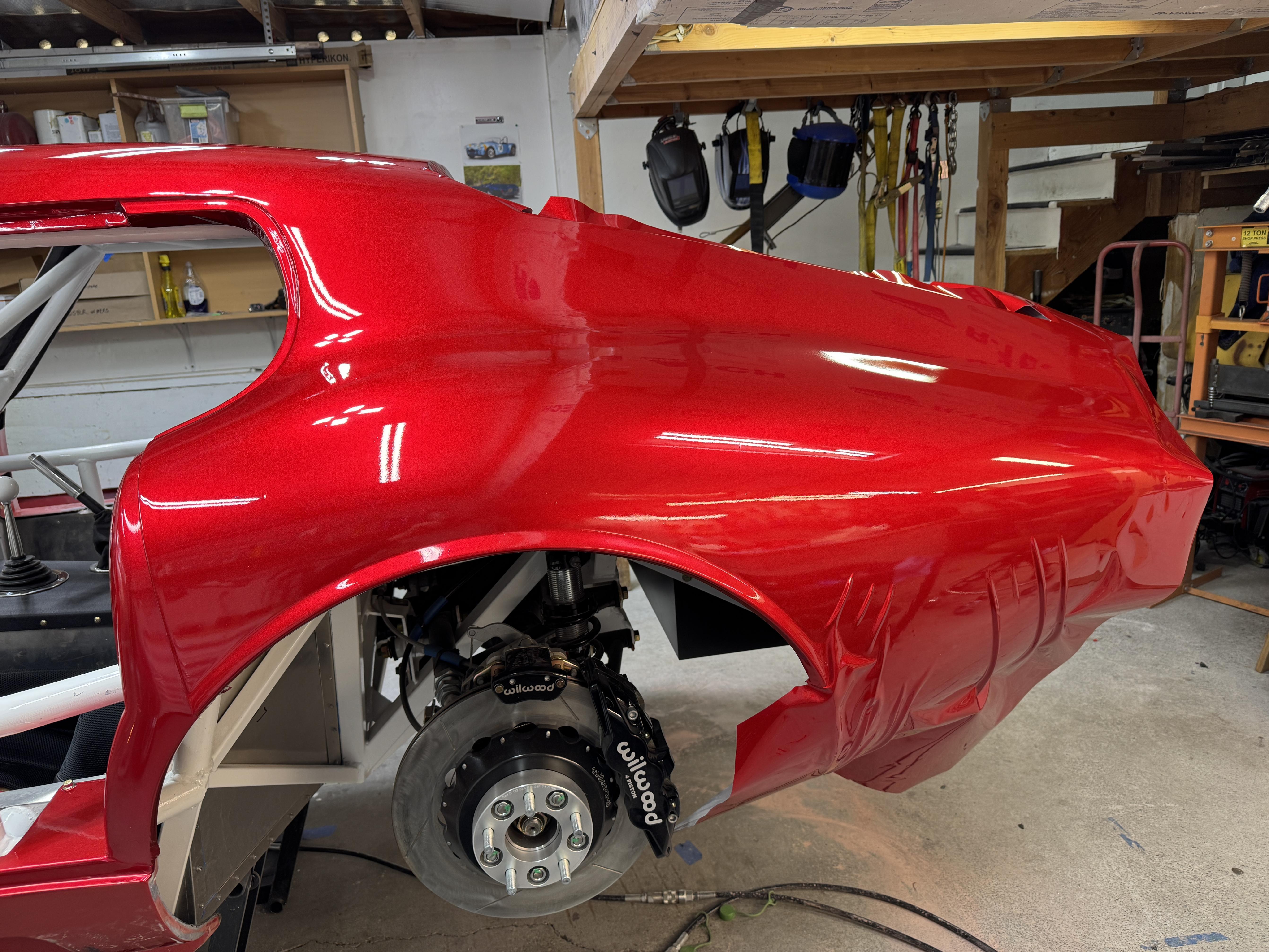

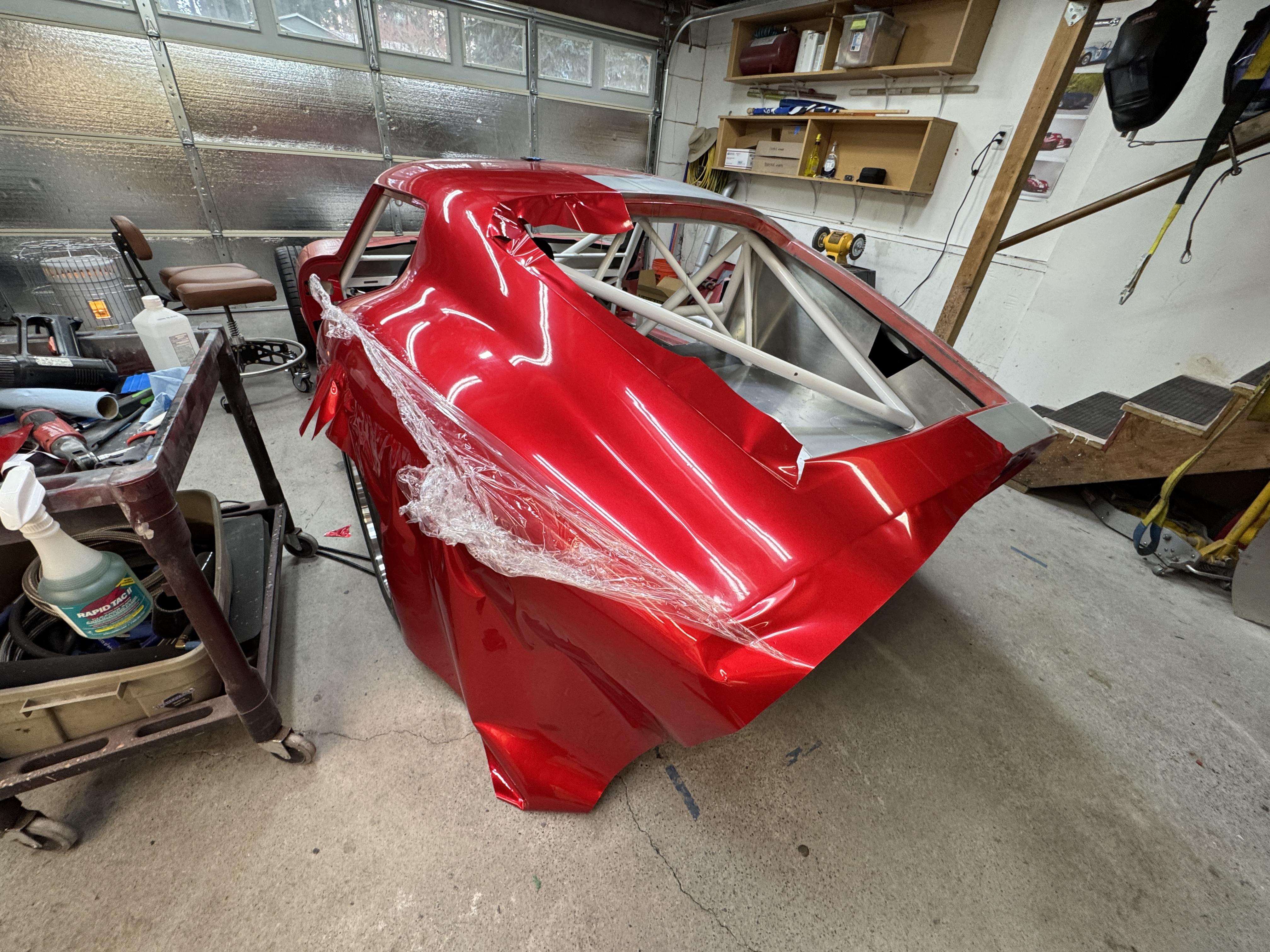

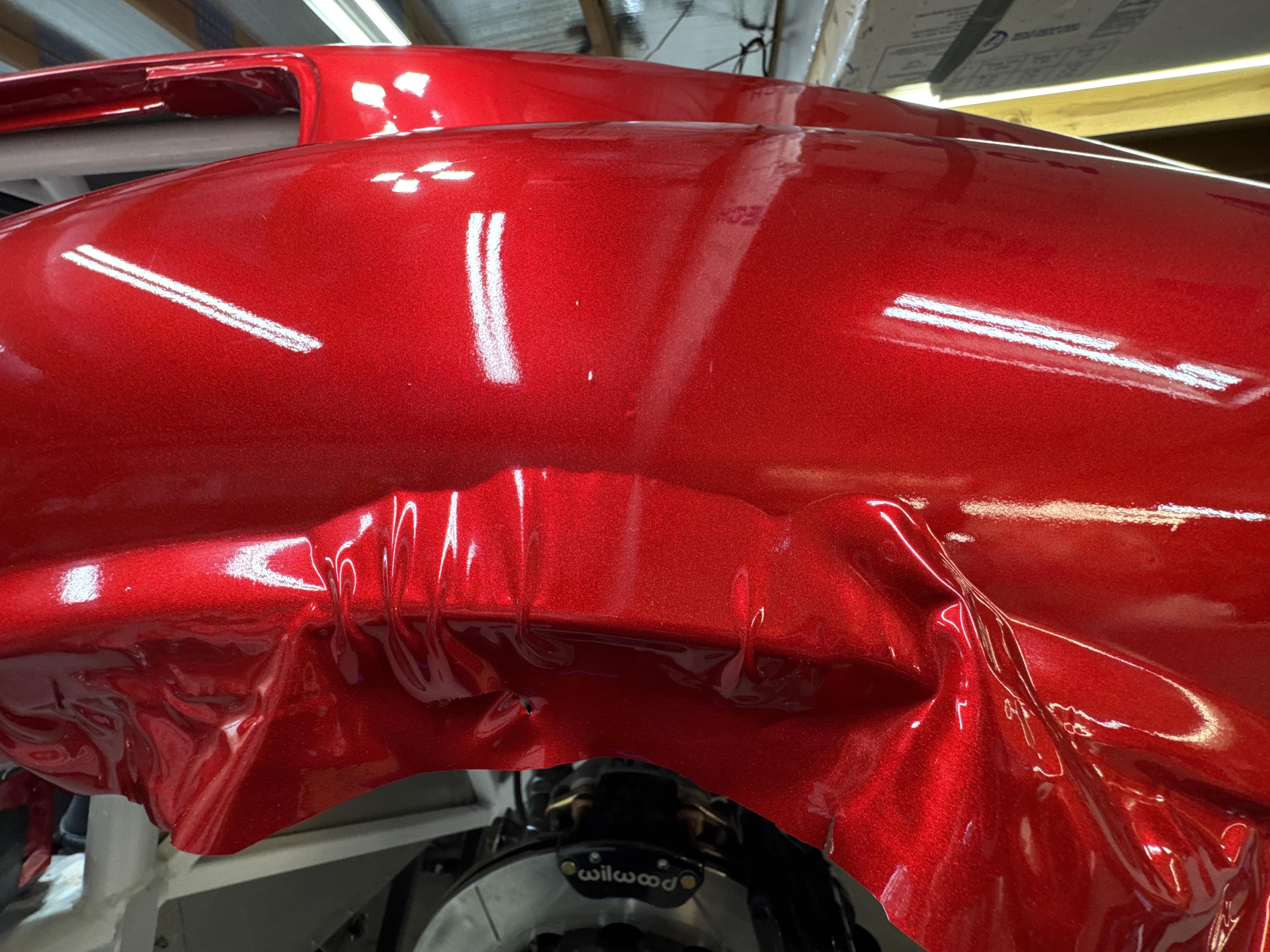

I'm adding a couple more photos here to show the progression of wrapping around the curves - which can be very frustrating. Getting the wrinkles out takes a lot of patience and working with fingers, squeegee and heat gun - but persistence pays off.
Attachment 210242Attachment 210243Attachment 210244Attachment 210245
Yup, rip it off and try again - been there done that. The youtuber CK Wraps is pretty good to watch. The Rapid Tac II tack fluid really helps with cleaning just prior to wrapping and helps it stick very well. I wait as long as possible to remove the clear cap.Quote:
Originally Posted by jbs72697
Attachment 210246
Yes, I’ve spent a lot of time watching CK Wraps. I’m sure I’ll find it challenging when the time comes.
That color looks awesome. What’s the name of it? I’m trying to decide between Vivid Liquid Metal and ultra gloss candy red
LOL. Exactly so. Gotta have tiedown points on the shop floor. Nothin' worse than throwing an 1000 pound race car on the ground without wheels...Quote:
Originally Posted by Jphoenix
