Body Fitting Progress and a Question: Part 1 of 2
Well, I've had the body on four different times so far. It must be quite a sight to see me put it on, but somehow I manage to get it into place each time. Maybe I'll be a little more graceful and efficient after another half dozen.
After celebrating the body on for the first time, it was time to get to work on several areas: where the bulb seal was fully compressed, body contact on the outer dash wings, big gap above the dash etc. Here are the specific areas I needed to address:
- (A) & (B) Trimmed along top and rear edges of trunk side panels. Bulb seal was compressed. This was needed to allow body to move forward.
- (C) Trimmed top of Breeze cubby wall using my angle grinder. This was needed to allow the body to drop down closer to the rear cockpit wall. Scraping the Thermotec and carpet away from both sides was especially fun. It was so enjoyable, I trimmed it twice. :p Turns out the second trim was unnecessary afterall. Doh!
- (D) & (E) Trimmed outer sides of cockpit wall. Bulb seal was fully compressed, and preventing body from dropping down into place.
- (F) & (G) Trimmed outer wings of dash. Full contact with the body, and keeping it from dropping down into proper gap above the dash. I made my own dash out of 0.080 aluminum, and perhaps didn't bend it enough, or at the correct angle. This area also received two rounds of trimming.
- (H) Trimmed firewall extension. Bulb seal fully compressed, preventing body from dropping down to proper gap above the dash on the right side.
- (J) Trimmed 1/4" of inner vertical edge of the U-channel in the firewall extension. This would have interfered with the PS windshield post--see picture below.
- I also trimmed the rear cowl. Front cowl was trimmed just before I applied the underbody coating.
https://thefactoryfiveforum.com/atta...7&d=1676149554
(F) & (G) Here's what the DS of the dash outer wing looked like before trimming. I had to make a couple passes, ultimately trimming an additional 1/2" below the line shown here. The PS needed the same trimming, as the contour of the body swings down pretty far in this area.
https://thefactoryfiveforum.com/atta...5&d=1676149554
(H) Here's what the firewall extension looked like after first round of trimming. Had to trim once more so the body would nestle down on the PS to match the gap above the dash on the DS.
https://thefactoryfiveforum.com/atta...3&d=1676149554
(J) Here you can see the vertical edge protruding into the body slot opening where the windshield post will slide through.
https://thefactoryfiveforum.com/atta...4&d=1676149554
Time for a couple tool additions: pneumatic angle grinder and air saw. Both advertised CFM requirements at 90 PSI that are well within my 13 gallon compressor's CFM capacity. However, my compressor runs continuously when using them, especially the grinder. So, to reduce the duty cycle I stopped every so often to allow it to catch up. The air saw is DIY grade from Eastwood. Also picked up some drum sanders for my electric drill.
https://thefactoryfiveforum.com/atta...6&d=1676149554
A couple of questions: the first is do I have the door flange far enough forward of the door striker? The distance between the top of the striker and the forward edge of the door flange is short of 1/4". Is it enough?
https://thefactoryfiveforum.com/atta...9&d=1676149597
Body Fitting Progress and a Question: Part 2 of 2

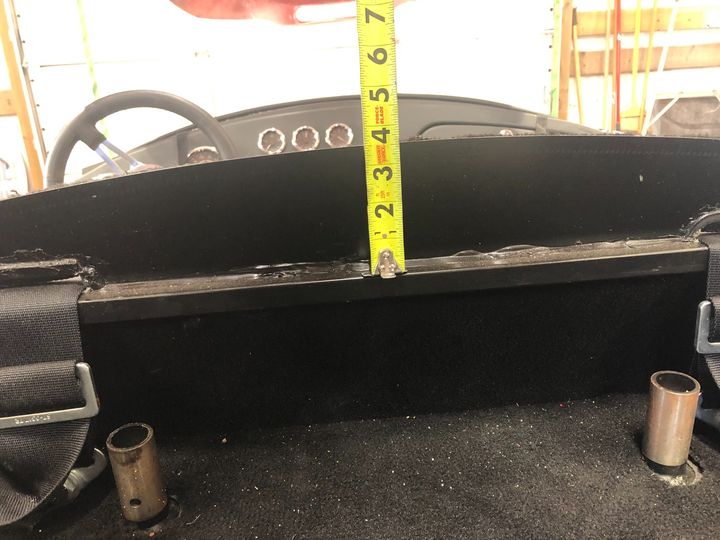

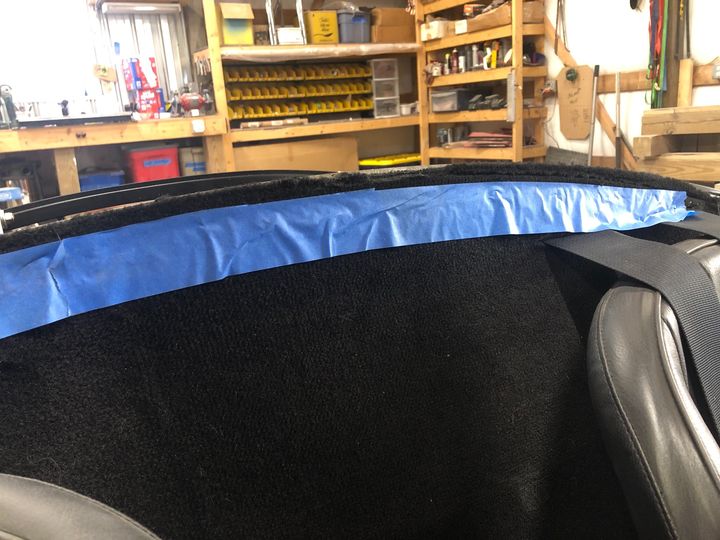

The second issue is I have ~1/4" gap between the rear wall and the body--see picture below. Unless I somehow installed the cockpit wall too low (is that even possible?), I can't figure out what might be causing this gap.
- The side rocker panels are tucked in below the chassis.
- The top of the Breeze cubby wall is not making contact with the body.
- The bulb seal along the trunk sides is not compressed.
- There is wiggle room between the outer sides of the cockpit wall and the body.
What else could be causing this gap? Will it settle over time?
https://thefactoryfiveforum.com/atta...8&d=1676149597
Body is Centered....and a Windshield
I fiddle-farted around a bit more with the unwanted 1/4" gap above the cockpit wall, as well as the clearance between the door flange and door striker. Here's where I landed:
- The next time I was putting the body on I noticed when the lower rocker panel is pulled away from the chassis the body sits right down and over the cockpit wall. Since the rockers will be adjusted during door fitment, I'm going to leave it for now. If the 1/4" gap does not disappear, I will look into extending the carpet above the cockpit wall to fill the gap (good suggestion from Jeff).
- Trimmed rear trunk lip 1/4" to allow more play in forward body movement. This gave me confidence I can achieve the 1/4" gap between the door flange and door striker.
- Next, I moved on to locating the nose. To get it centered I measured from the chassis (upper shock mount attached to chassis) to the edge of the wheel well lip. Then adjusted the body left and right until these measurements were equal. Per a good tip from Mr. Kleiner, I picked up SS tubing from Onlinemetals.com (0.75" OD x 0.065" Wall x 0.62" ID Stainless Round Tube, 304 Seamless - Part #: 12927) and rubber grommets from ********** (they shipped out same day). The grommets can also be purchased from Metro (EX17-B from Metro Molded Parts). I cut the tubing to 5.5" lengths (4 each) with my angle grinder, and then deburred.
- After centering the nose on the chassis, I was relieved to find the quick jack holes in the chassis lined up with the holes in the body. No need to break out the big hammer. However, the body holes needed to be opened up a bit for the grommets to fit.
- I glued a 1/2" thick piece of rubber on each 3/4" tube next to the hood hinge bracket. With the body sitting on these and anchored by the SS tubes/grommets in the QJ holes, it is very solid.
With that done for now, I moved on to the windshield install. Here are a few highlights/observations from my experience:
- I can confirm the brass threads in the windshield frame are soft. I thought I was being very careful, but still managed to cross thread a few of the holes. Doh! Thankfully, I had a M5-0.8 tap on-hand from my NRG removable steering wheel adapter project, which made quick work of cleaning up the threads. Also, the channel closes in pretty tight where the screws thread in, so in at least one spot I "tapped" the channel. One word of caution: to reduce the chance of buggering up the threads, minimize the number of times these side posts are removed/installed.
- I bought the body cutout option with my kit, which meant the slots for the windshield posts were cut for me. The slots were cut parallel with the body (front to back), but my windshield posts angle outward. The result is the openings are now pretty wide, but I think my Replicaparts trim plates will still cover them. Before I started adjusting these slots, I traced around the trim plates so I could keep an eye on the footprint of what they will cover.
- Both side posts needed a little trimming: removed about 1" from the left and 3/4" from the right. When drilling the holes and trimming the length I anchored them in my bench vise. Even though I started with a 1/16" pilot hole and gradually opened it with larger bits, the larger ones really wanted to grab the post and twist it. Probably not a good practice to torque the posts while they're attached to the windshield. I tapped the side posts for the 1/2"-13 supplied bolts, a tip I picked up on the forum. One more thing on the side posts, I wanted the holes to be centered on the post. Since the they didn't perfectly line up with the holes on the chassis, I slotted the chassis holes to match with my air saw.
- The Styrofoam in the windshield box provides a nice "cradle" to lay the windshield until it's ready to install.
- Working solo, I needed a way to prop the windshield in position (27" from top screw to top inside of door flange). I notched a piece of scrap 1"x3" to hold it in place while I marked the holes, and again to hold it in position as I tightened down the 1/2"-13 bolts.
- I used one of the washers that came with the windshield hardware as a shim on the Right side lower post. The rest of the posts were flush with the chassis.
Here's a picture of the channel I mentioned above that was so narrow I tapped it to aid the screw in finding the hole and engaging the brass threads.
https://thefactoryfiveforum.com/atta...3&d=1676949447
I used the air saw to slot a couple of the holes. This not only provided a little extra wiggle room, but also allowed me to center the holes in the posts. I'll touch these up with paint next time I remove the body.
https://thefactoryfiveforum.com/atta...5&d=1676949447
My high-tech windshield placement instrument.
https://thefactoryfiveforum.com/atta...4&d=1676949447
And, we have a windshield.
https://thefactoryfiveforum.com/atta...6&d=1676949447
https://thefactoryfiveforum.com/atta...7&d=1676949447
I think I'm ready to move on to door fitment. As always, I'm grateful to the forum for all of the great tips and guidance.
Door Latch Mod ("Old" Style)
At this point I guess I should refer to the style of latches that came with my kit as the old style. There are numerous recommends and posts on the forum to complete a number of mods/improvements for durability and functionality. I'm not exactly blazing a trail here with new info., but it feels good to have them done now that I've started door fitment.
Here's how my door latch mods turned out:
- (A) First up was drill and tap the knob for 10-32 button head SS screw. There are reports of it working loose over time. I anchored my latch assembly in my drill press vise. It drilled and tapped pretty easily. I cut down the 10-32 screws to about 1/4" in length, not including the head.
- (B) Like other builders, my latch pins did not fully retract--see second picture below. They protruded at least 1/16". This protrusion reportedly tends to catch, not allowing the door to open. Using a stone on a Dremel and a small flat file I removed 25%-30% of the latch arm stop. Now the pin sits sub flush when fully retracted.
- Next, I opened the square hole for the 5/16" carriage bolt. Just a few light strokes with a small flat file and it popped right in, sitting flush.
- Then I flattened the dome of the carriage bolt down to about 0.080" (2 mm) with a belt sander. This is to allow clearance to the door. The carriage bolts I had on hand were too long. So, I measured the height of the standoffs for the latch cover, and cut the bolts to length.
- (C) I secured the latch lever where it attaches to the pivot with a couple washers. The ID of the first washer should be 1/2" to slip down over the round center of the pivot. The OD of this washer should be minimal to avoid contact with the spring. You can see how I removed some material from the washers to provide clearance away from spring. I added a very thin spacer (washer) with smaller ID left over from my Wilwood brakes to provide clamping force between the nut and lever arm.
- Chamfered the hole about 1/16" in the wedge shaped striker that the latch pin engages--see last picture. Did this after the fact per Kleiner's recommend below. Thanks, Jeff.
- Finally, I applied white lithium grease to the moving parts (red arrows below). Through a stroke of genius, I determined no need for me to disassemble: in theory the pin spring and keeper could fly out when removing the cotter pin. They could bounce off the wall, and drop into a garbage can full of saw dust and metal shavings. In theory.
- For the pivot mechanism, I applied silicone spray to both the front and the rear sides. Worked the latch arm a number of times. Rinse and repeat.
https://thefactoryfiveforum.com/atta...1&d=1677453867
Latch pins didn't fully retract. Here's what they looked like before I ground down the latch arm stops.
https://thefactoryfiveforum.com/atta...5&d=1677452228
As received, a 5/16" carriage bolt will not slide into the square hole of the pivot center. Just a few quick strokes with a small flat file to remedy.
https://thefactoryfiveforum.com/atta...6&d=1677452228
Here the now flat head of the carriage bolt is seen. The red arrows are where I applied white lithium grease. I used silicone spray to penetrate the pivot joint. Also, the head of the 10-32 SS button head screw that secures the latch knob is visible.
https://thefactoryfiveforum.com/atta...8&d=1677452228
Here's the 1/16" chamfer I added to the striker where the pin engages.
https://thefactoryfiveforum.com/atta...6&d=1677781495
A Door Opens. A Door closes.
With the door latch improvements done, I moved on to setting the DS door in place. I pushed the rocker panel up against the 2" square tube, and in all the way. Then held it there using a scissor jack while I fiddle-farted (that one was just for you, Blitzboy! :p) with centering the door. With the slotted hinges/mounts it can be moved forward/aft, left/right, and up/down. Uff-da!
My door needed to be sanded down to fit in the opening (I think this is normal). Laying down a 1/4" thin line on the door to match the curve of the body opening gave me a guide for sanding. I opted for a sanding block and elbow grease to remove the material. As a first timer, no need for me to up the risk of removing too much glass with the die grinder. It comes off pretty fast with 60 grit or 36 grit.
After many iterations of centering the door in all six directions I came up with this position.
https://thefactoryfiveforum.com/atta...6&d=1678736955
The door alignment certainly isn't perfect. For one, the top forward corner of the door protrudes out from the body a bit. I think this may be typical as well. I'm assuming the body Pro will need to build up the body in this area.
https://thefactoryfiveforum.com/atta...7&d=1678736955
Once I had the door centered, I tightened the two socket head hinge bolts, and the nuts on the four door studs. Per Mr. Kleiner's advice, I added a thick (slightly less than 1/8") washer between the lower forward door stud and the hinge. I set aside the supplied nylon lock nuts for now. I'm using standard nuts until I put the doors in for the final time. The DS rocker panel is now secured in place with a couple #10 self-tapping screws through the factory holes. I will slot these holes left/right next time I have the body off, so they can be dialed in exactly after paint. Replacing the #10 self-tappers will be 1/4-20 SS button heads into rivnuts in the 2" square tube.
Next, it was time to install the latch. The manual speaks of a spacer for the latch, but doesn't show it. It's been so long since inventory I completely forgot what they were, and the fact I had them. They are laser cut, and 3/16" thick. If needed, they're used during this step, that is, aligning the latch to the door strike.
Door latch spacer:
https://thefactoryfiveforum.com/atta...3&d=1678735565
I used it on the driver's side. Remains to be seen if the PS will need it. I picked up a couple 5/16" ID x 3/4" steel spacers at Ace for the striker bolts. I think it looks better and is more solid than stacked washers to set the striker distance away from the strike mount (as shown in the manual). Just had to shave it about 1/4" to fit. It's visible in the picture below.
To fasten the latch assembly to the door, I tapped for 10-32 screws. Upon a closer look, I see the steel backing behind the fiberglass is plenty thick to tap for 10-32 (thank for the suggestion, Edwardb). The manual doesn't specify the hardware here. I used socket head screws, because the hole closest to the lever (upper left in picture below) doesn't have clearance for a button head.
Door latch installed with socket head 10-32 screws.
https://thefactoryfiveforum.com/atta...4&d=1678735565
And with the shiny cover on the latch. I don't know why the manual says to toss the acorn nuts to secure the striker. They fit perfectly for me, and give it a nicer finish.
https://thefactoryfiveforum.com/atta...5&d=1678735565
I know a functioning door latch is only a big deal to me. But pix or it didn't happen, no? There were a lot of steps to get to a functioning door. Here's an exciting 13 sec video of the DS door latch operation :p: https://youtube.com/shorts/NxzpQEgaJo8
PS Door. Check Straps. Louvers.
I've been chipping away since my last update. A little bit of progress on most days. With the DS door complete, I tackled the PS door. As has been mentioned by Mr. Kleiner, each door has its unique adjustments and tendencies. It required some sanding, but it seemed to center a little easier. Perhaps because it was my second door?
Sorry, but no video for the PS door. :p Here's a picture of the latch secured with the door in place. The doors have a satisfying thunk when they close. Not quite like the steel doors from the 60s, but it's a good sound to me no less. Especially, considering how light they are compared to the older steel doors.
https://thefactoryfiveforum.com/atta...6&d=1679769014
Check straps: I like to finish up an area when I can, so moved on to the check straps. I used 10-32 SS button head screws instead of rivets. For the 2" square tube side, I installed 10-32 rivnuts. Gives it a more professional, finished appearance, IMHO. The exposed standard nuts on the door side of the hinge will be replaced with 10-32 SS acorn nuts later on. As will the nuts on the 3/8" door studs. Here's a view of the PS check strap. I'll try my hand at vinegaroon to make them black.
https://thefactoryfiveforum.com/atta...7&d=1679769014
Side louvers: I went with the assembled side louvers from F5. I liked the approach Edwardb used (no surprise there) in his 20th anniversary build to install them so they are removable. Not sure if I'll ever need to, but the louver opening would make a handy access hole if needed in the future. I bought the adhesive mount studs - 97590A567 from McMaster, and attached them via the supplied angle brackets. The brackets are attached to the louver via 6-32 SS button heads and nylon lock nuts. I made sure the studs were flush with the outside face of the louvers. It's important to locate the bracket to louver holes while the studs and louvers sit on a flat surface. Otherwise, there will be a gap between the inside of the body and the louver when installed. The louvers are now at the powder coating shop, along with the front nose grilles, splash panels, quick jacks and tubes, and side exhaust heat shields. All will be black.
Driver side louver on the bottom (finished side up) and PS on the top (finished side down). Note the 6-32 screws are pretty well hidden on the finished side.
https://thefactoryfiveforum.com/atta...9&d=1679769014
Next, I started hood fitment. My first step was to install the hinge brackets to the hood. I hemmed and hawed about using rivets to attach these, and ultimately decided the leftover 3/16" stainless steel rivets from my Breeze battery install would suffice. It's all I can do to install these with my hand rivet tool. I actually don't mind installing rivets by hand v. power tool. The one exception are these 3/16" stainless rivets. Oof!
It surprised me a bit to find not all the holes in the hood align to the holes in the hood bracket. I had to drill out several holes on the hood side to get alignment. I found the two best holes on each bracket so they are set to roughly the same inward pointing angle. Then I installed rivets in these holes. Then I drilled through the bracket into the hood to get the hood side hole aligned. These brackets feel very solid with the four SS rivets.
Here's an example of a hood hole that didn't align with the bracket.
https://thefactoryfiveforum.com/atta...8&d=1679769014
Hood fitment continues. I've made two passes with the orbital sander (I'm liking my DIY dust containment "room"), and the hood now centers in the body opening. I hope to have the spacer/bumpers in, handles installed, and prop rods installed for my next update.
