Nice work
I bet you are enjoying doing that tig work. I do myself. Your work looks super.
Quote:
Originally Posted by Mitch Wright
Thanks guys. I enjoy learning new skills. And while I'm sure the welds would look nicer if done by a professional, I take pride in being able to say I built everything on my car myself. And as Lance said, the only way to get better at welding is to weld more ;)Quote:
Originally Posted by aquillen

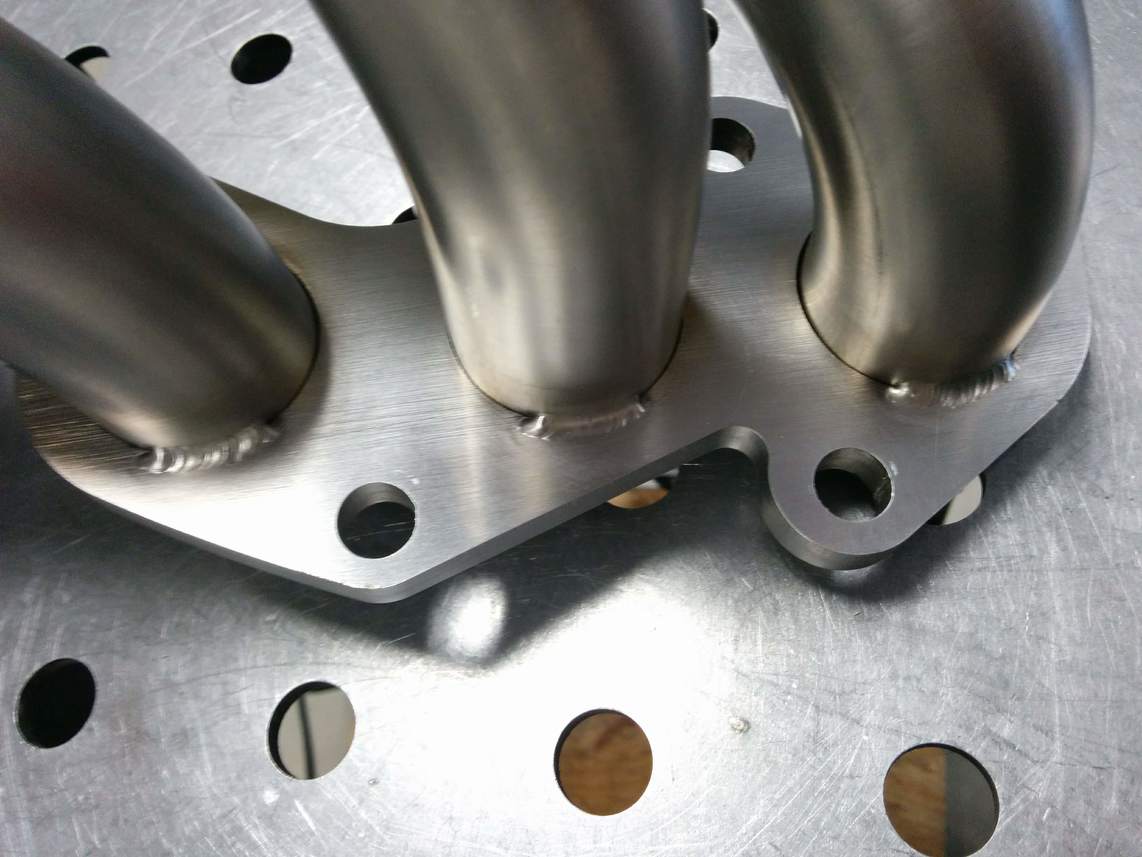

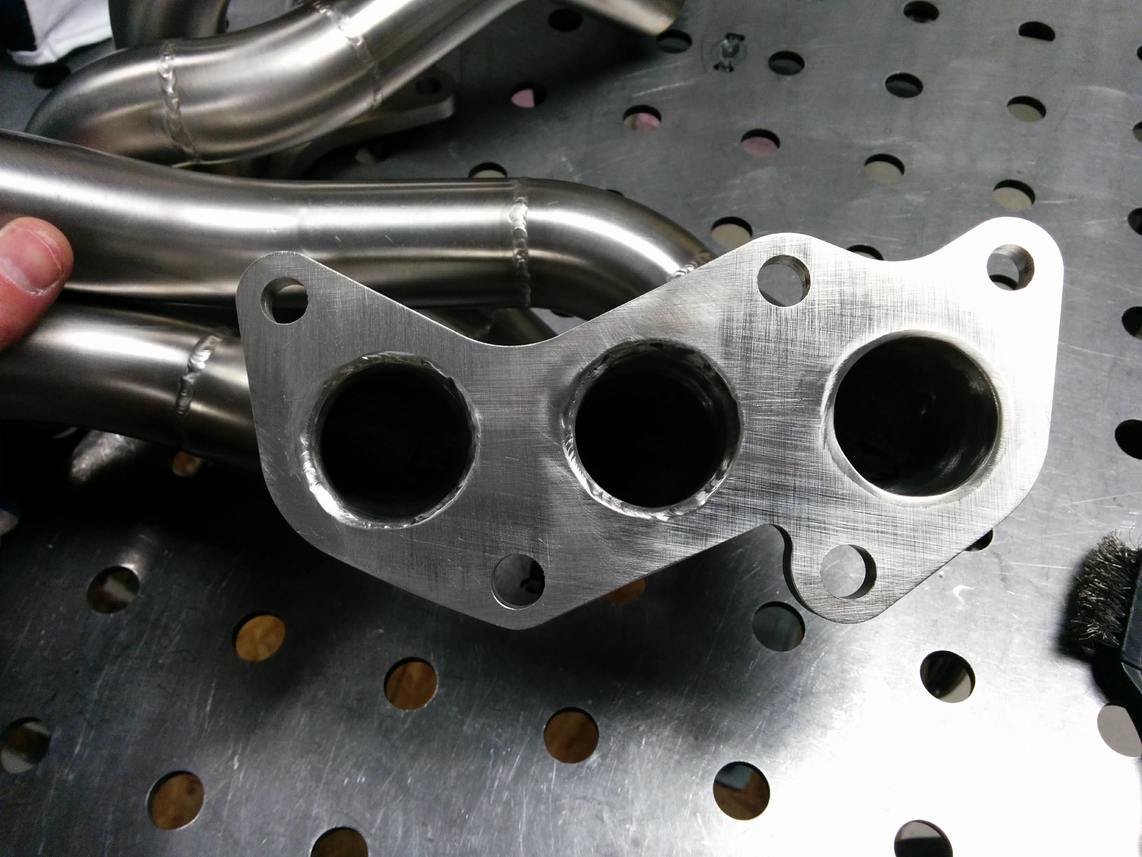

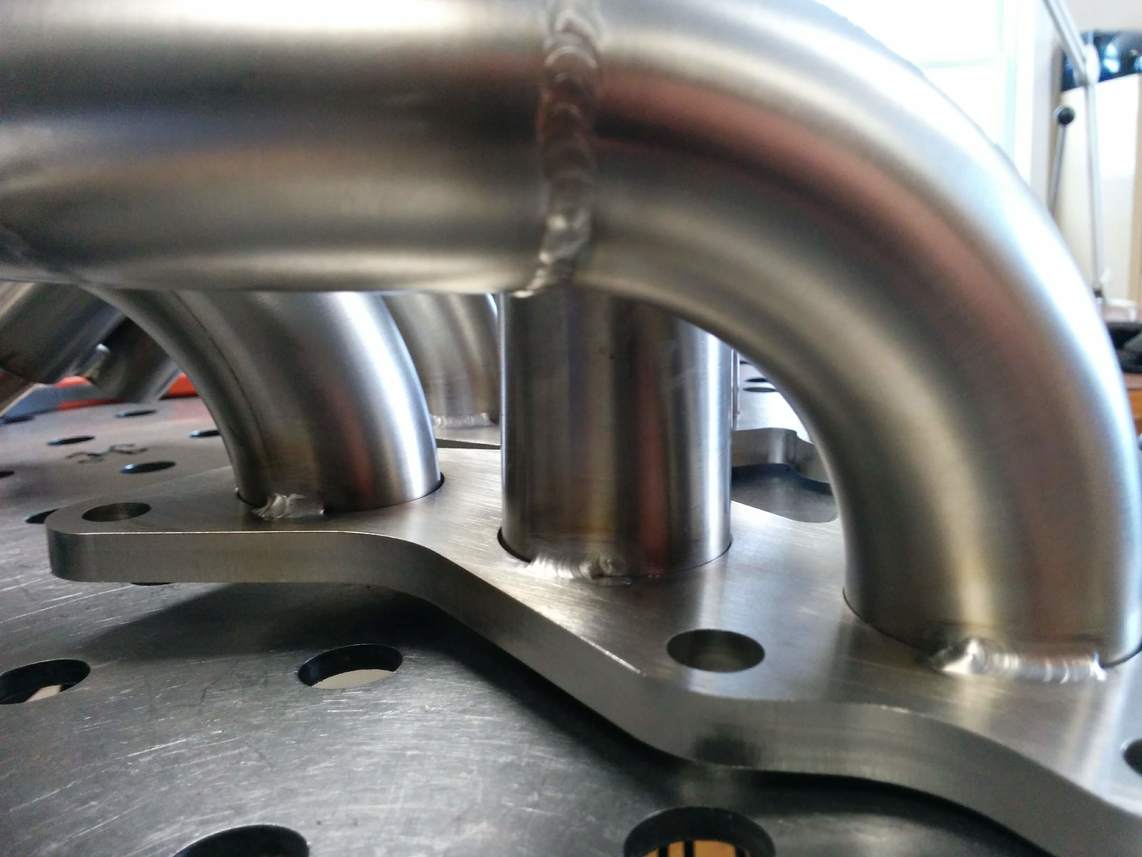

More progress. I welded the tubes into the flange on the side that bolts to the cylinder head. The tube on the far right looks beautiful, almost like it was machined into the flange. The other two not as nice. The nice tube was flush with the flange and the other two were sunken down. It was much more difficult to get the torch in at the correct angle on those and I had a hard time positioning the piece while welding. But in the end all the pipes are fully sealed and that's what really matters.
Attachment 102852

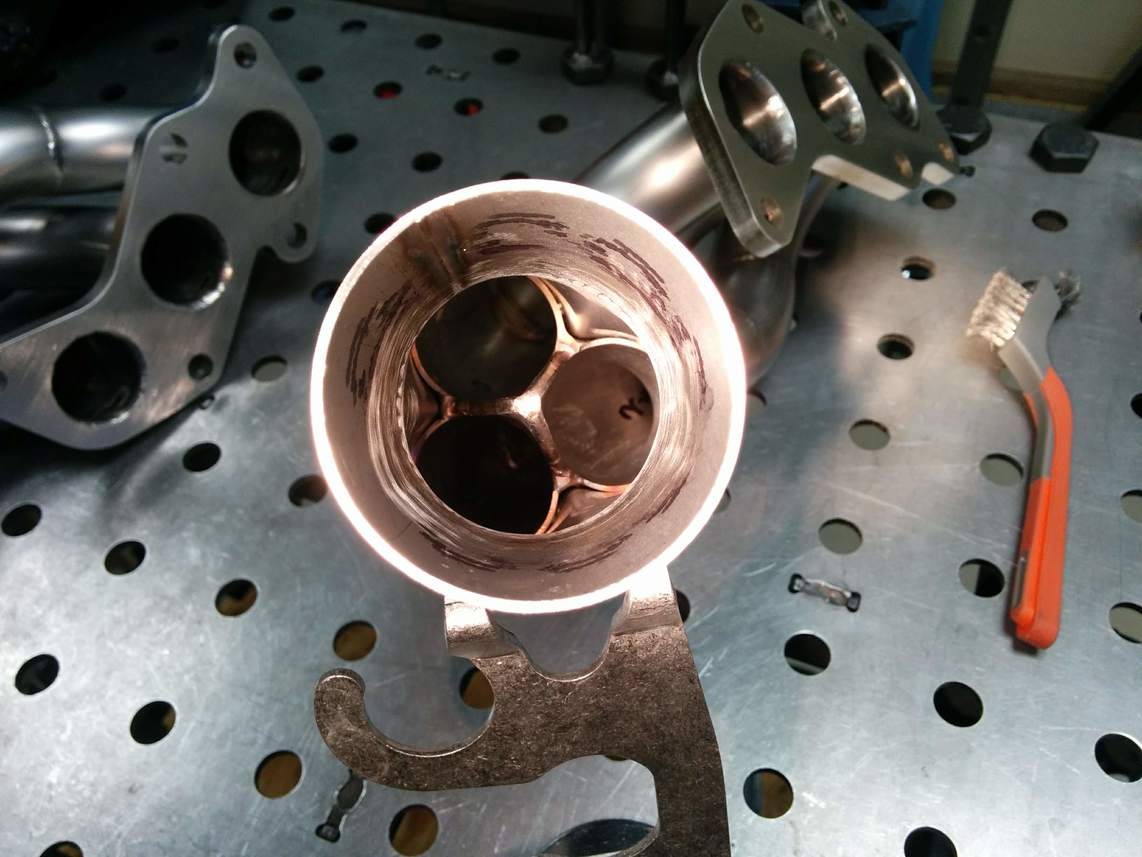

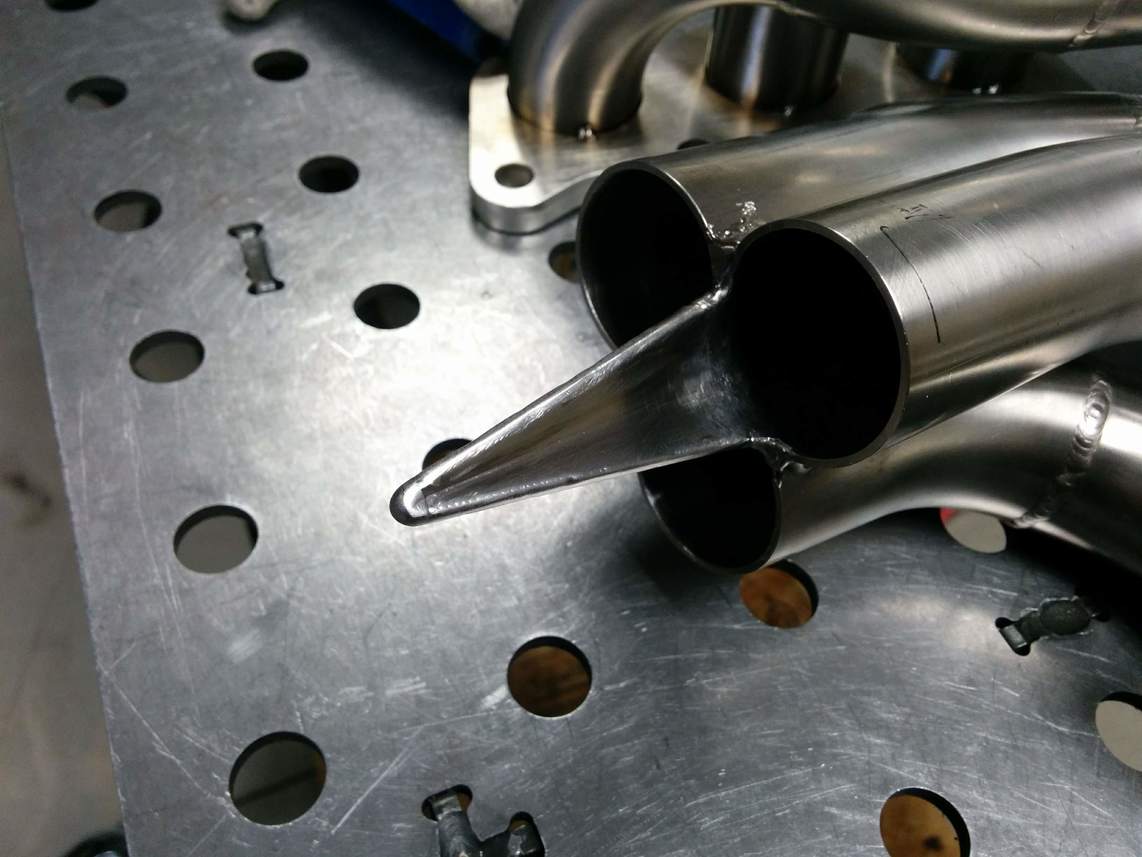

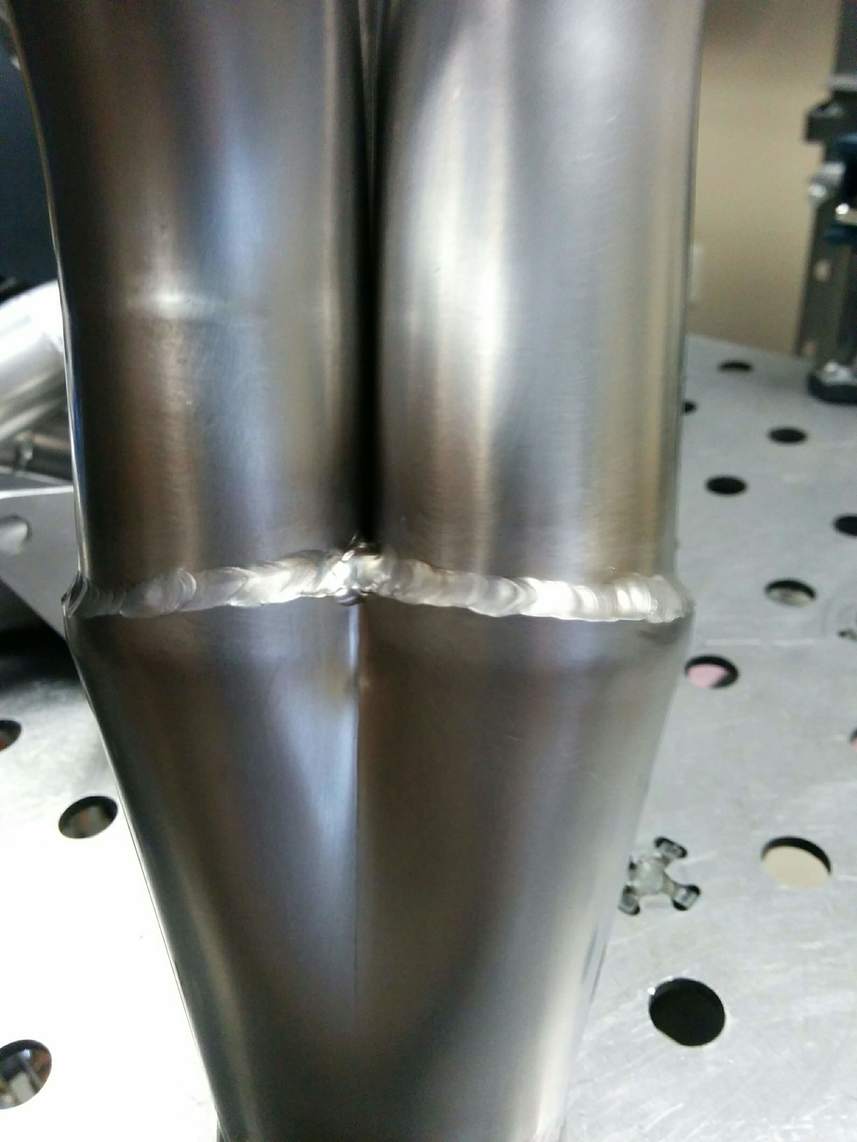

I also got the merge pyramids welded in place. These seal off the center section of the pipes so there are no leaks and provide a smooth transition for the exhaust gas to go from individual pipes into a single larger pipe.
Attachment 102851
Finished welding up the headers today. Man it feels great to have accomplished that. I am very pleased with the way they turned out. I am also glad I designed them in CAD first. They fit exactly like the CAD model predicts.
https://thefactoryfiveforum.com/atta...9&d=1551304889

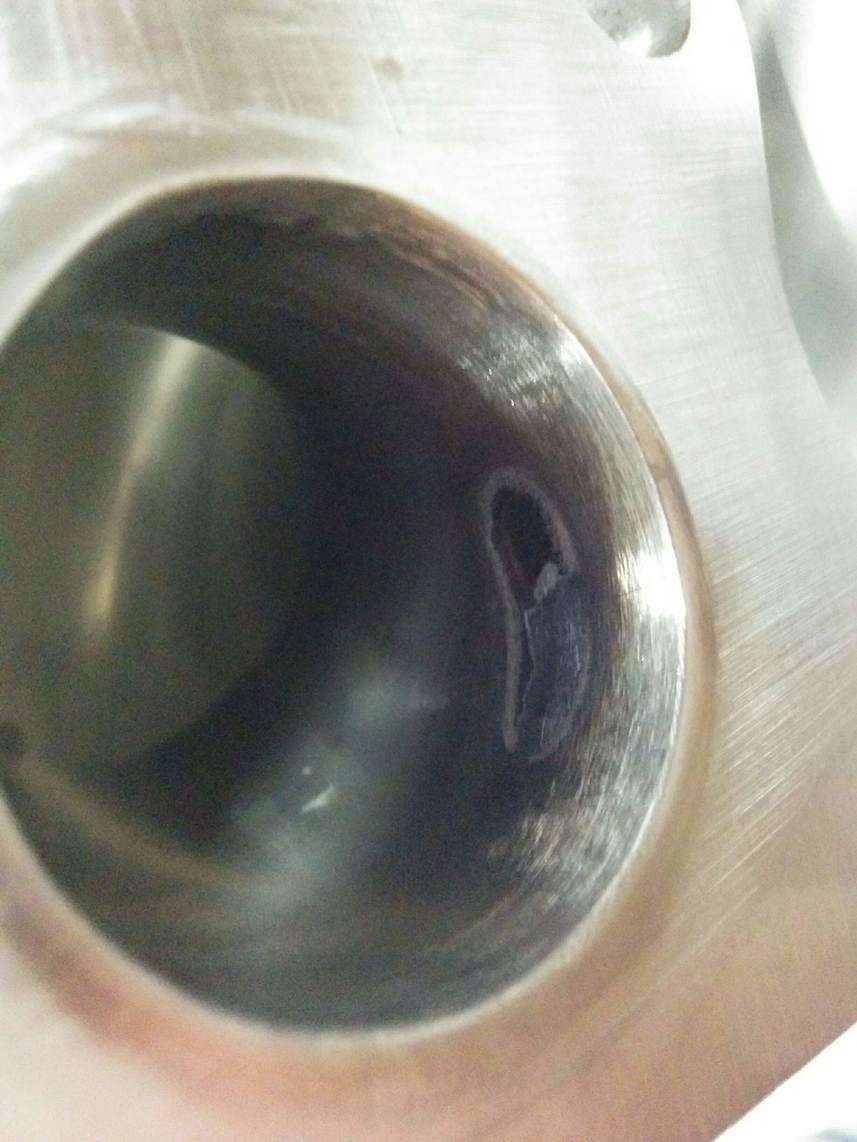

For those interested here is a picture showing a full penetration weld of a primary tube to the thick flange where I used the Solar Flux instead of back purging. I chipped away half of the glass like coating left behind so you can see underneath. It does a great job, no oxidation.
Attachment 102881

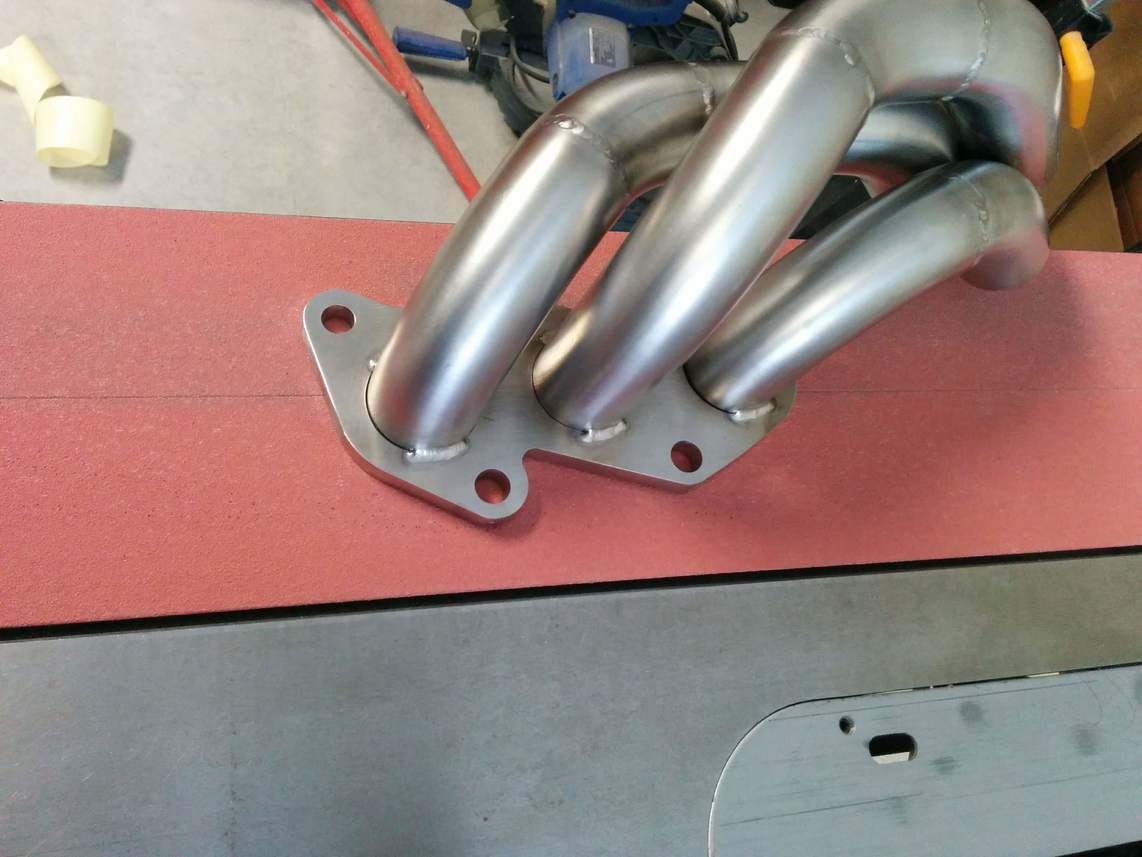

After I was finished, there was some slight warping on the header flange so I leveled it by placing adhesive backed sandpaper on the top of my cast iron table saw (which is ground very flat). By running the flange back and forth a few hundred times, I'm not kidding either, the flanges are now dead flat.
Attachment 102884

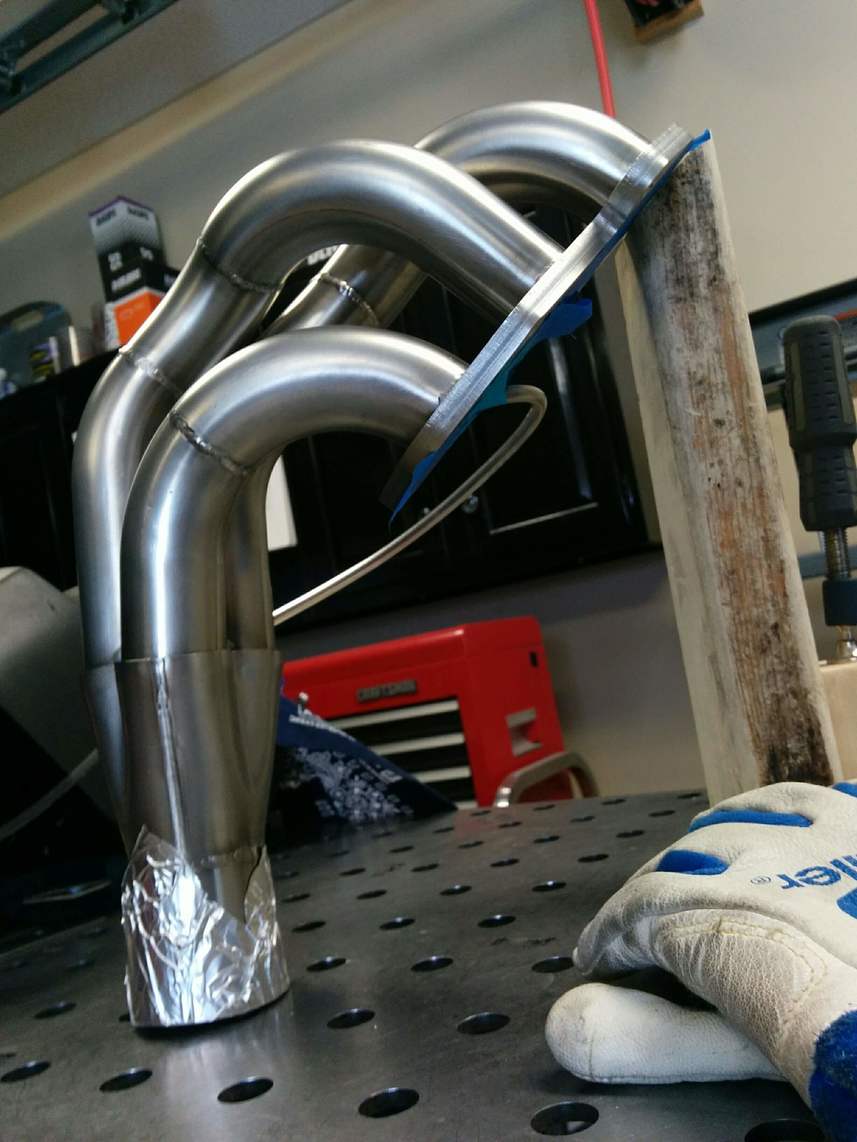

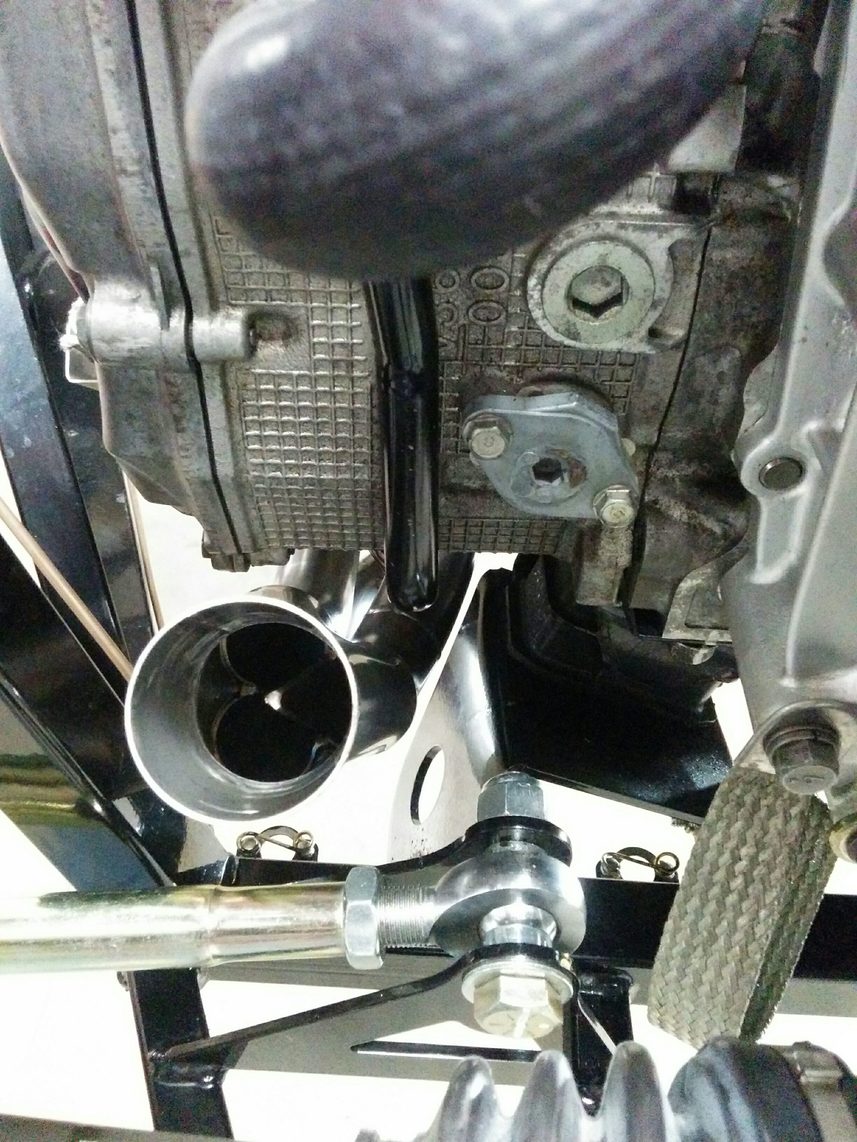

I needed to make a handy jig to hold the assembly vertically so I could weld on the collectors. Notice the back purge setup for these welds.
Attachment 102885

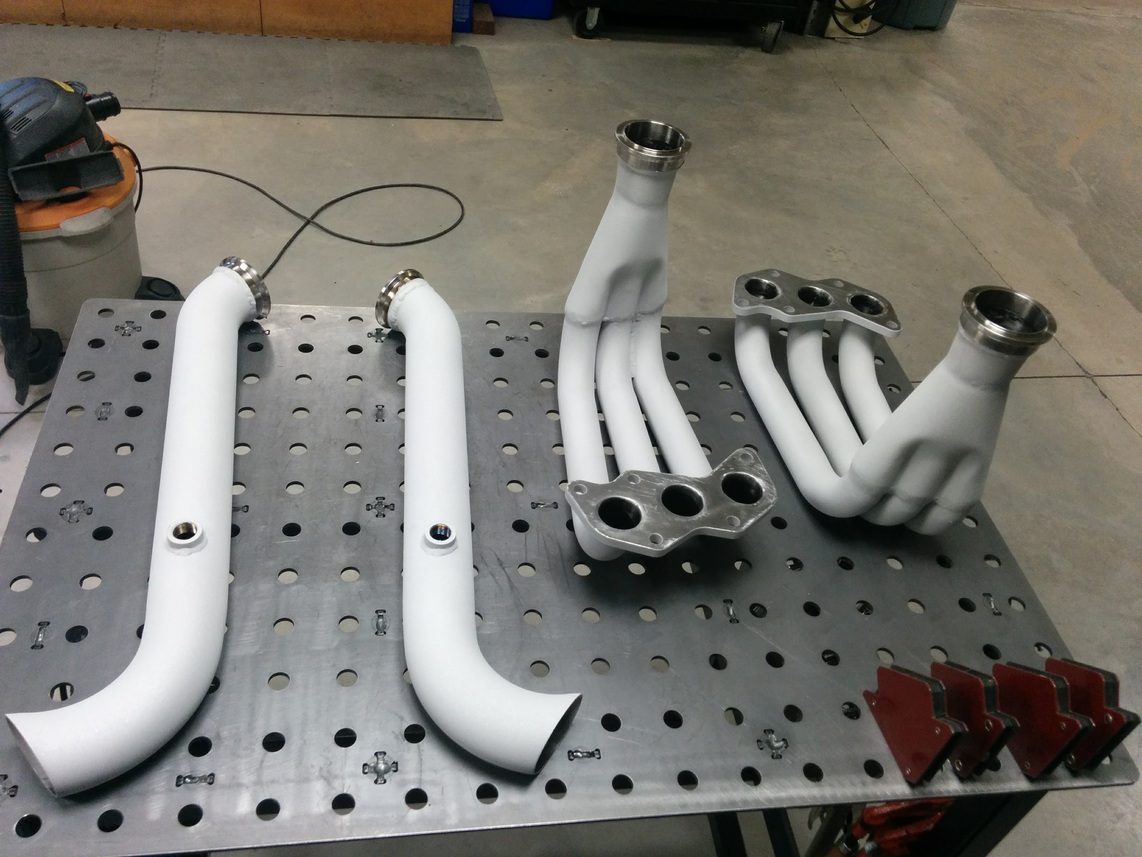

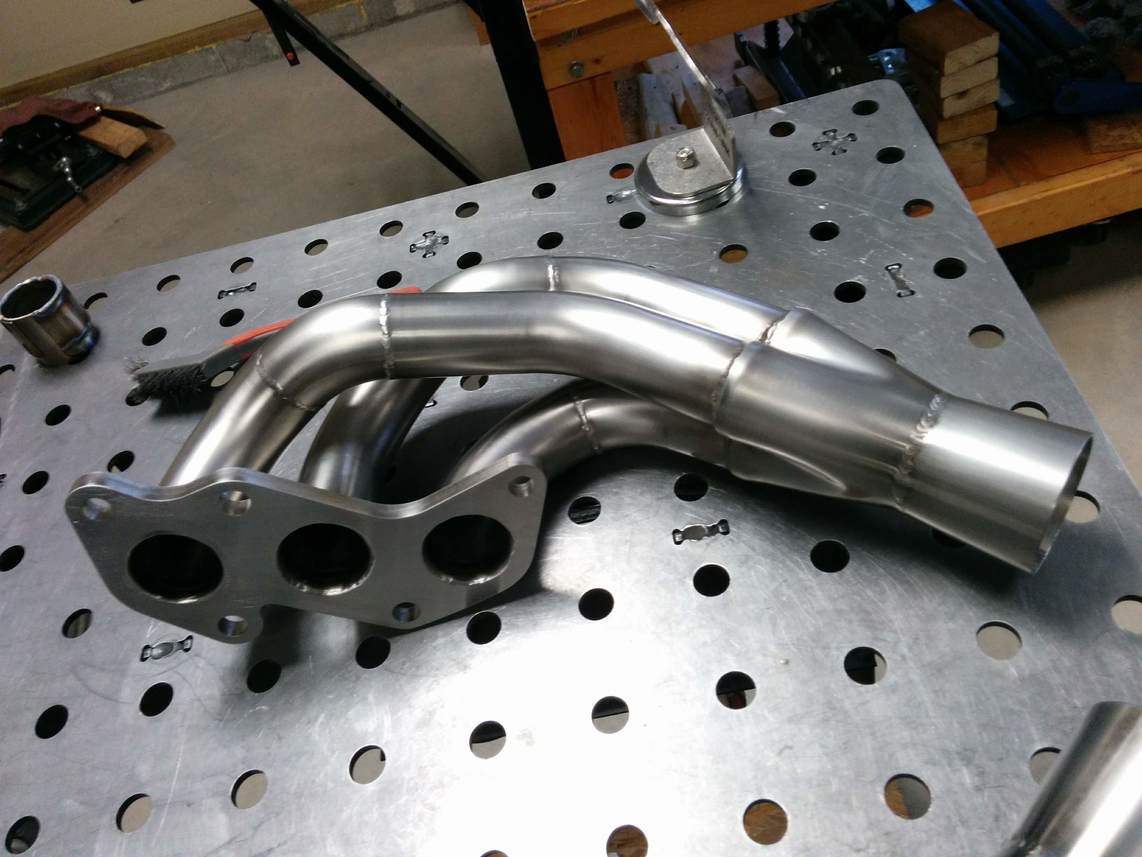

Here are some more pictures of the finished product.
Attachment 102889 Attachment 102886 Attachment 102890 Attachment 102888
Attachment 102887

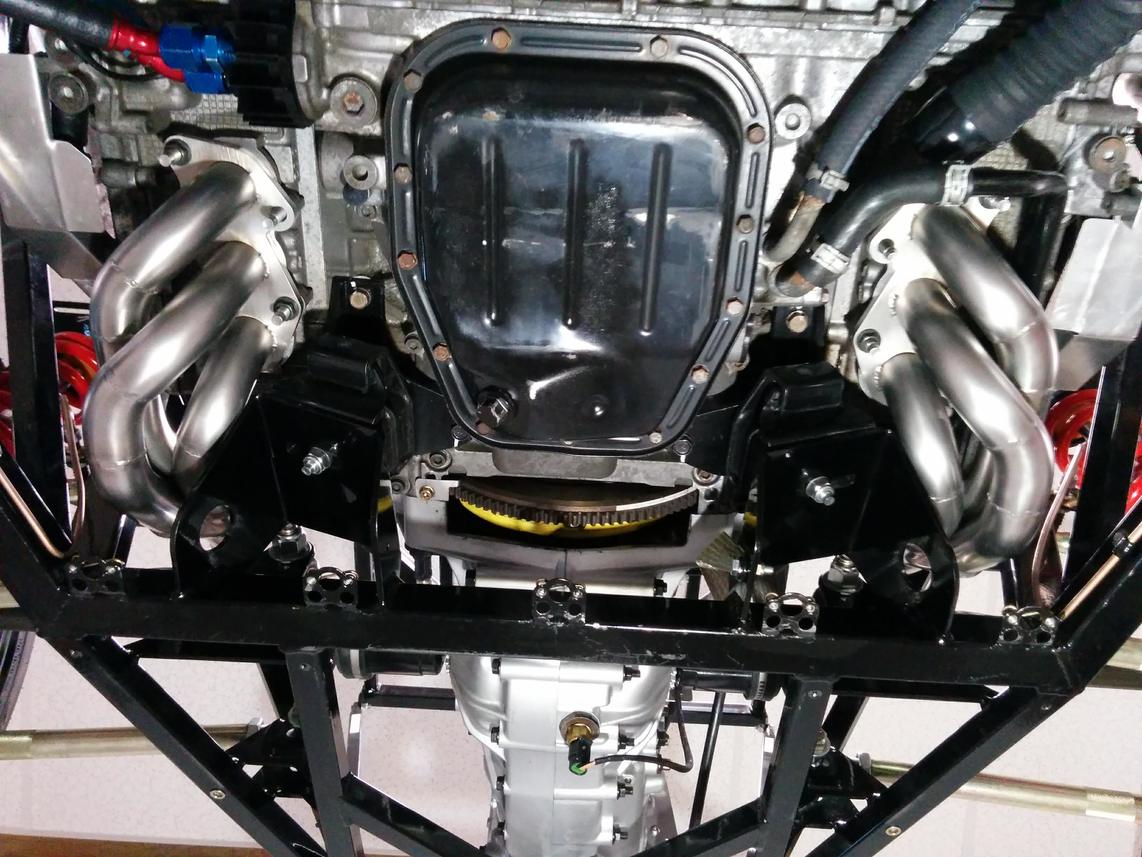

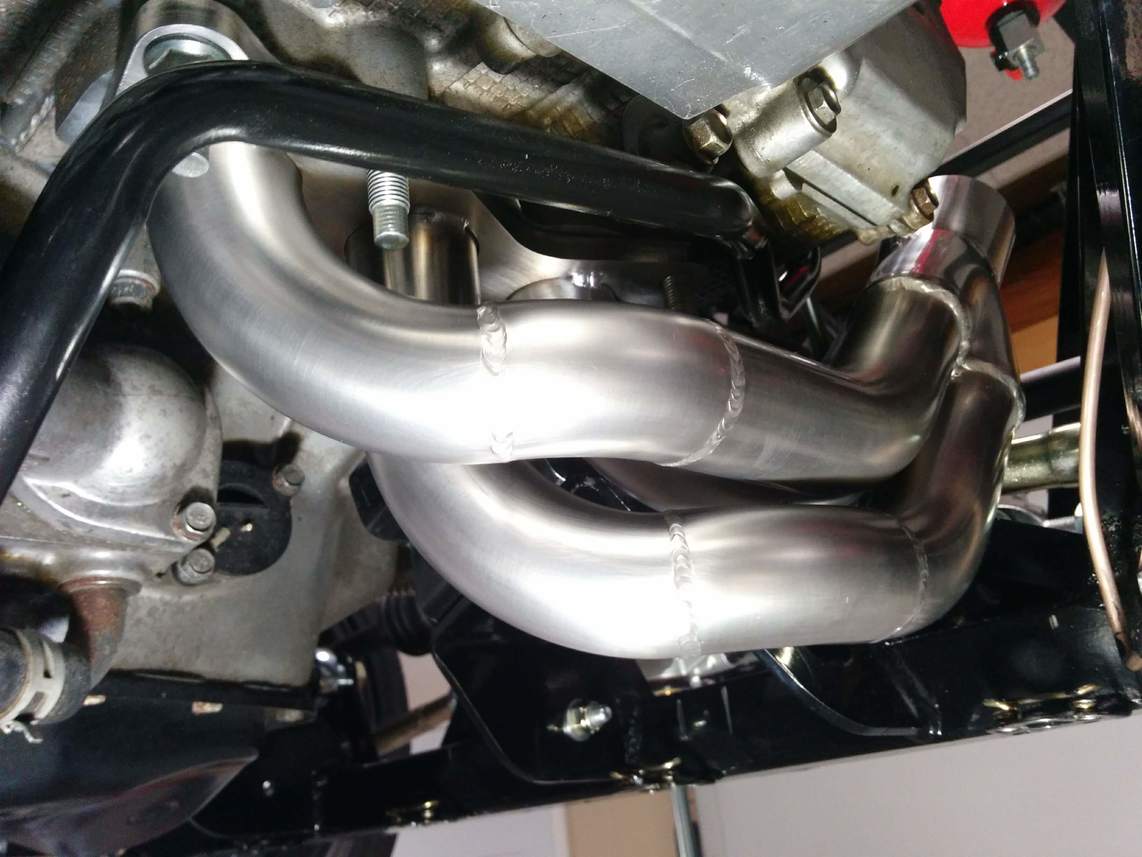

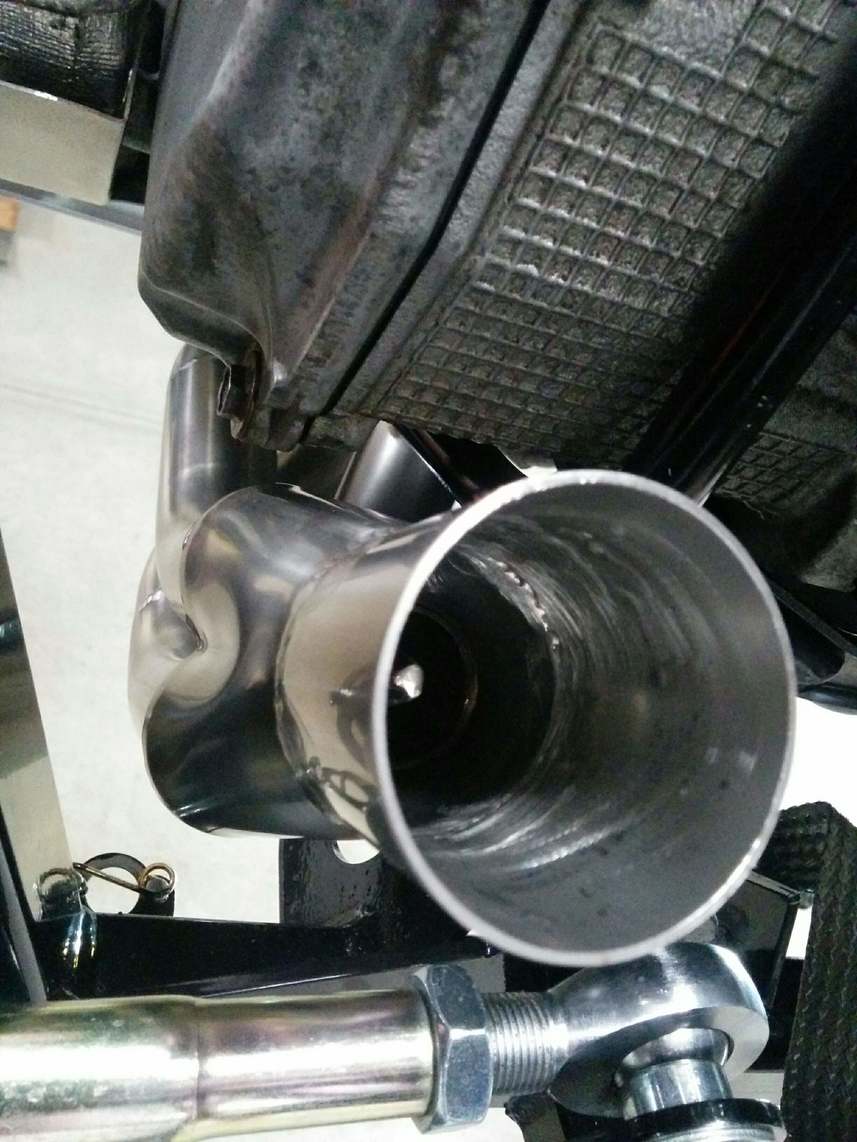

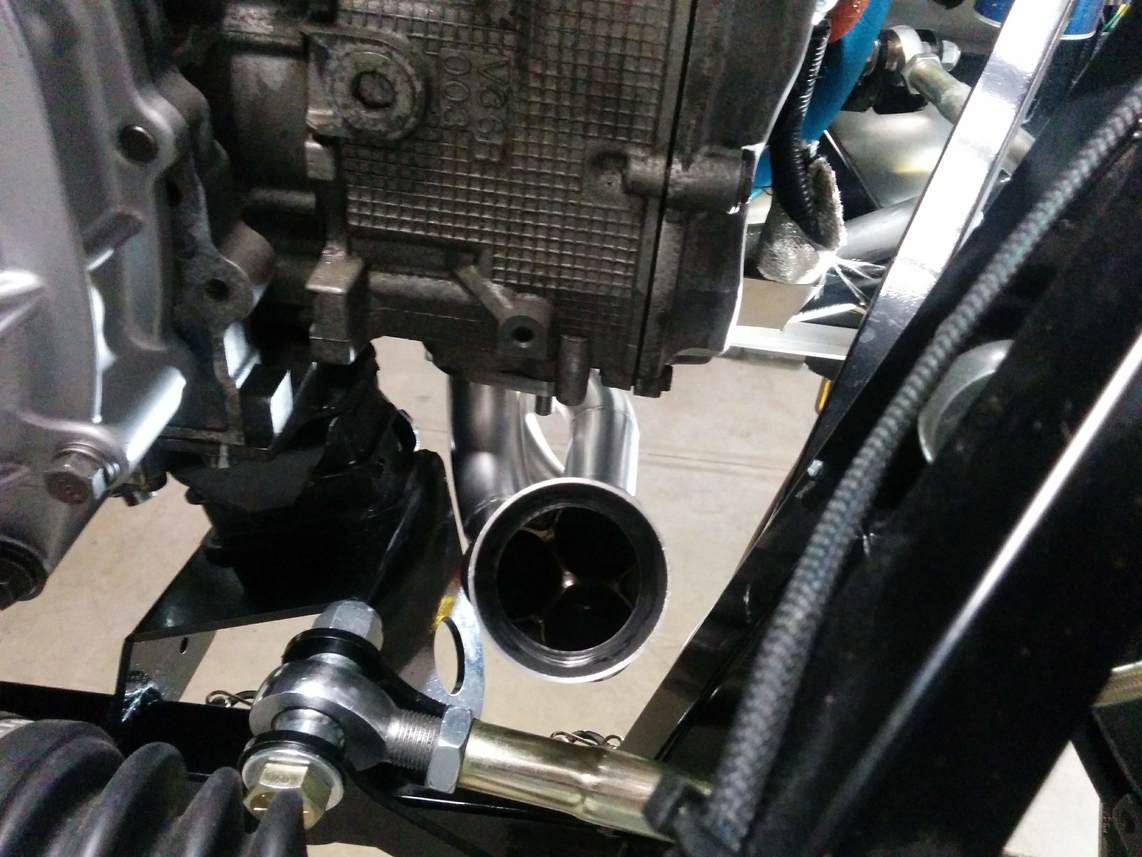

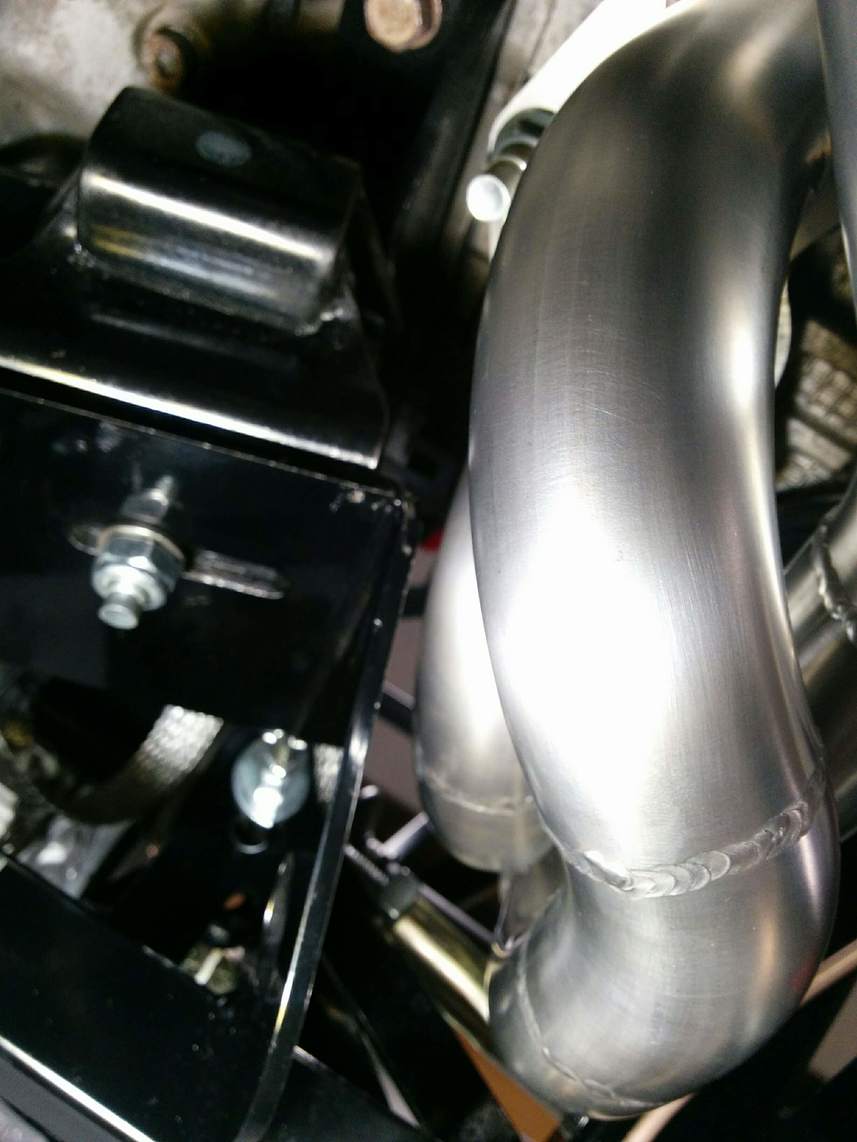

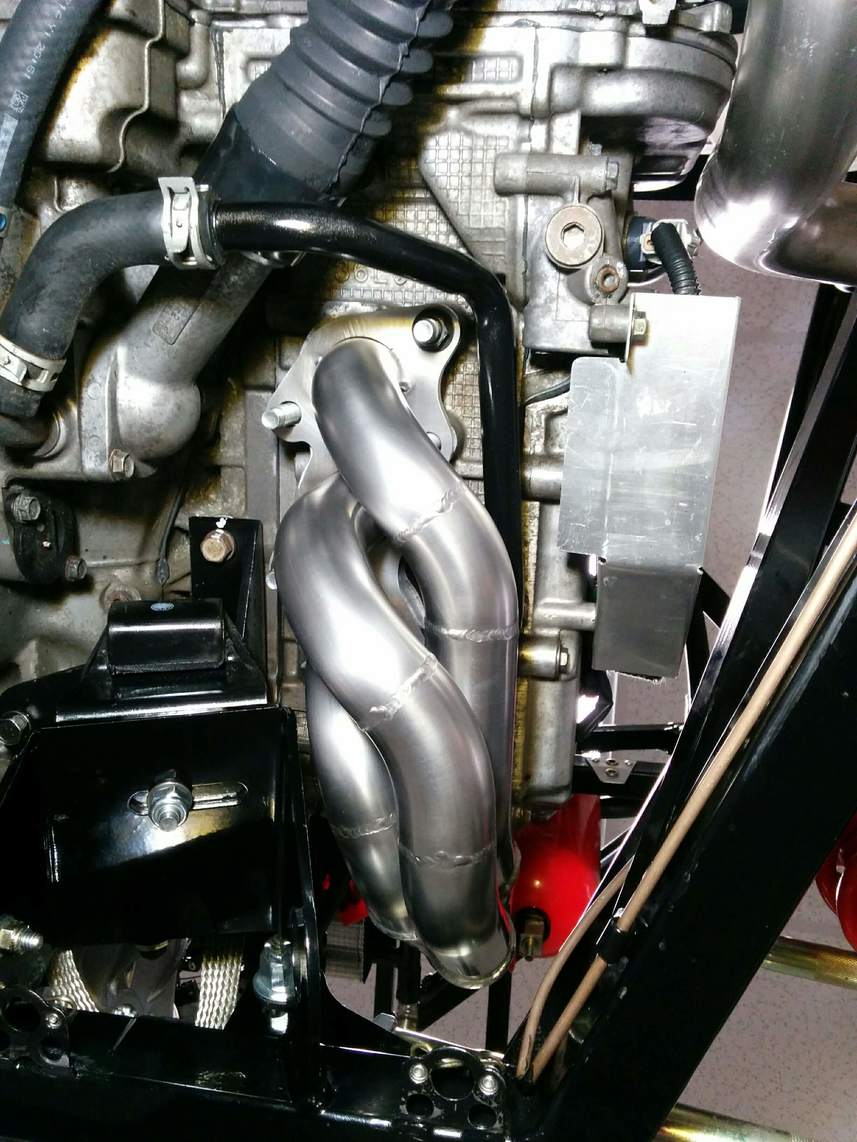

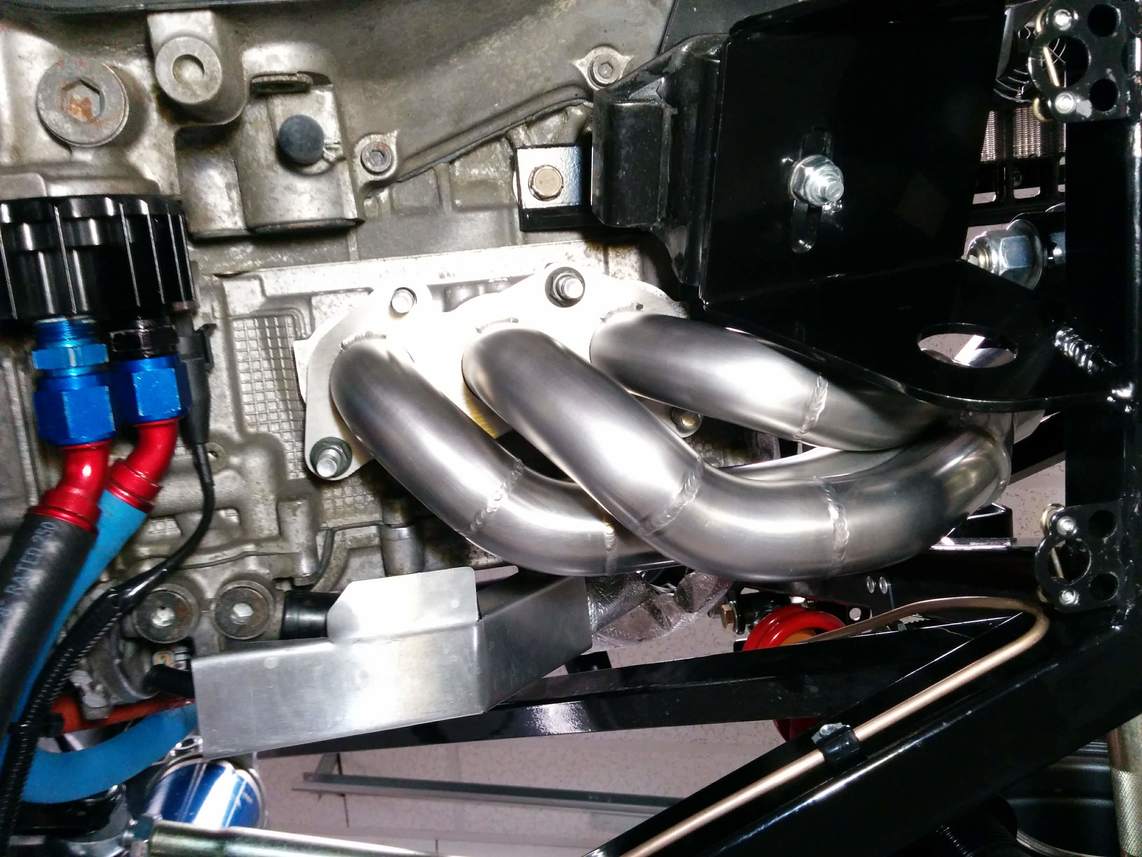

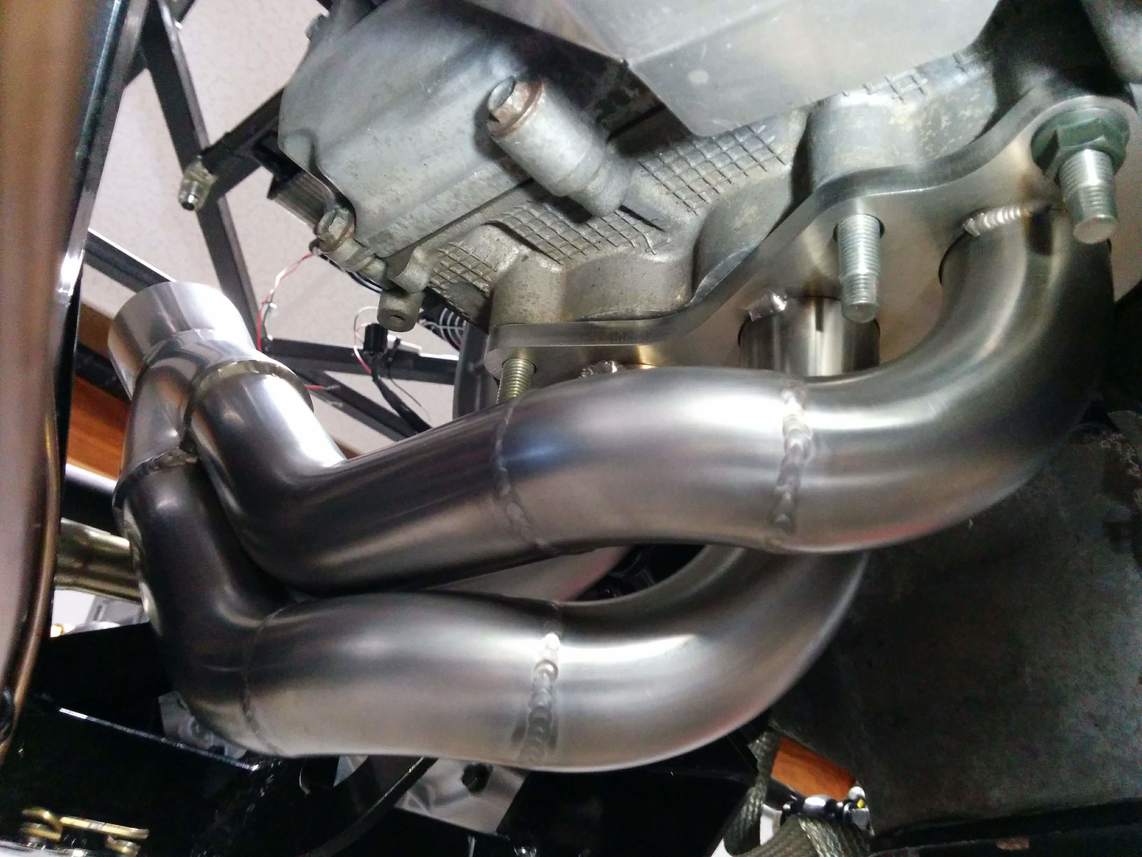

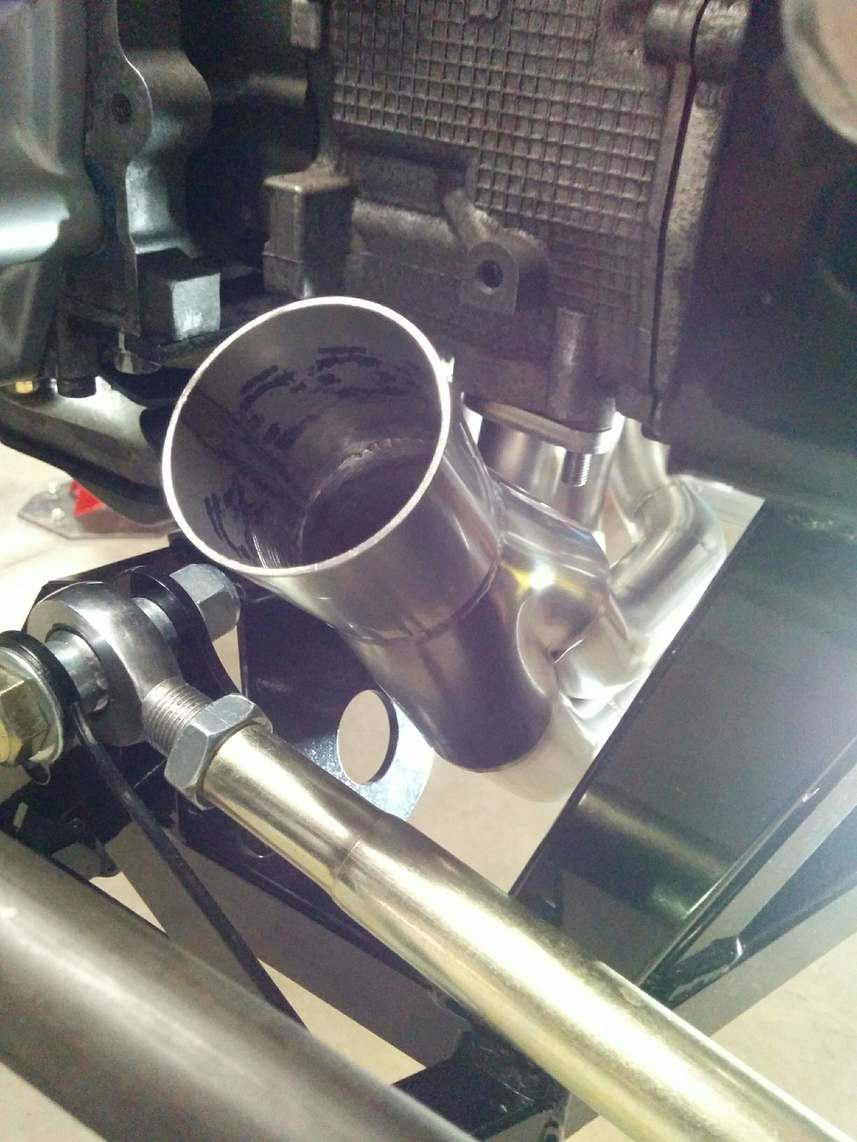

Here are some pictures of the headers on the car.
Attachment 102891 Attachment 102892 Attachment 102893 Attachment 102894Attachment 102895 Attachment 102896 Attachment 102897 Attachment 102898Attachment 102899 Attachment 102901

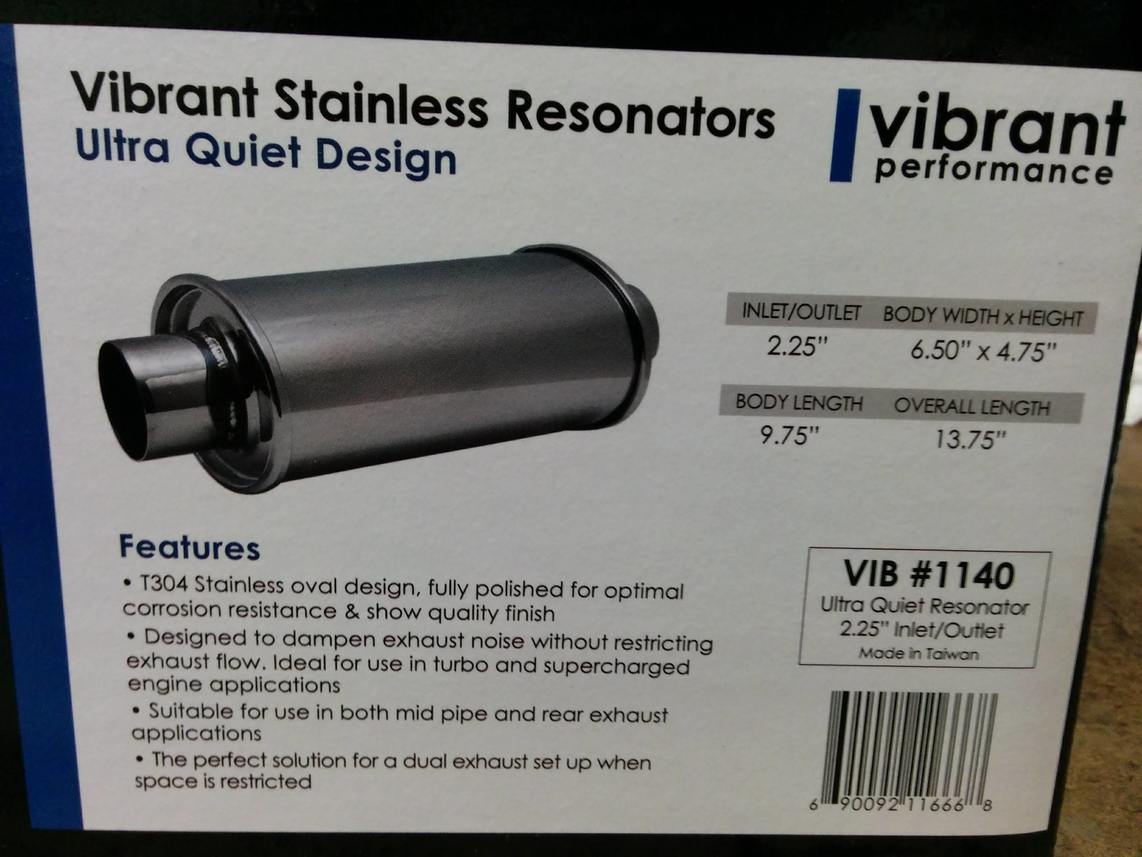

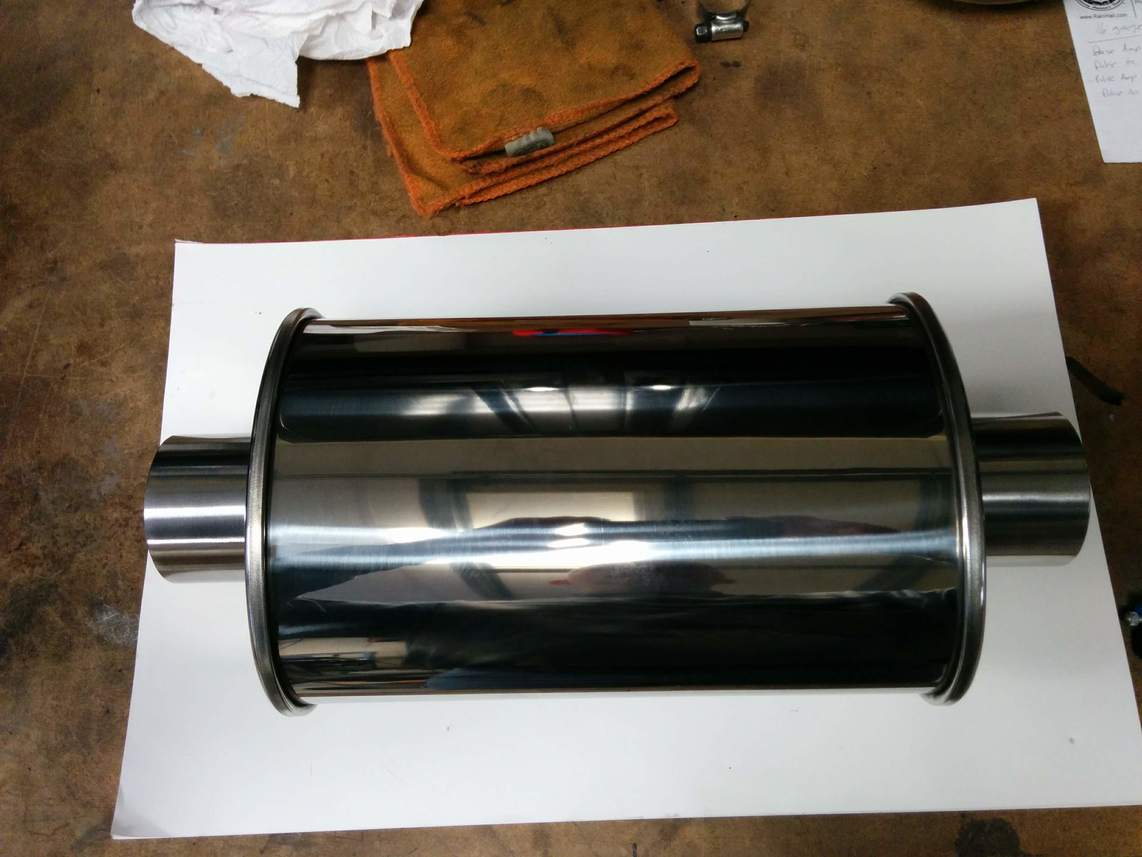

Next I will be adding in the resonators and tail pipes. I bought these shiny ones, aren't they pretty :p
Attachment 102902 Attachment 102903
Your headers turned out very nice! You have hidden skills. I wish my first weld job looked that nice!
Sharp
beautiful
Outstanding work!
Great job John, your decision to mod the frame rather than moving the engine back an inch really makes this routing of the headers much easier. My dicision to move the engine back may prove to be problematic. I also only raised the engine 1/2" I'll probably raise it another 1/2" to an inch like you did.
Modifying the frame was definitely a good choice. It has made many of my other modification easier.Quote:
Originally Posted by flynntuna
This looks awesome. I wish I could weld like that.
Your work makes me feel good just looking at it.
Heck, I couldn't weld like that a month ago. All it takes is determination and practice.Quote:
Originally Posted by Rob T
Great work! Really makes me want to get a TIG welder.
Beautiful, can’t wait to hear it.
Nice work On the 33 there is very little room! It is fun to build your own parts, welder, grinder, time = new one-off parts!

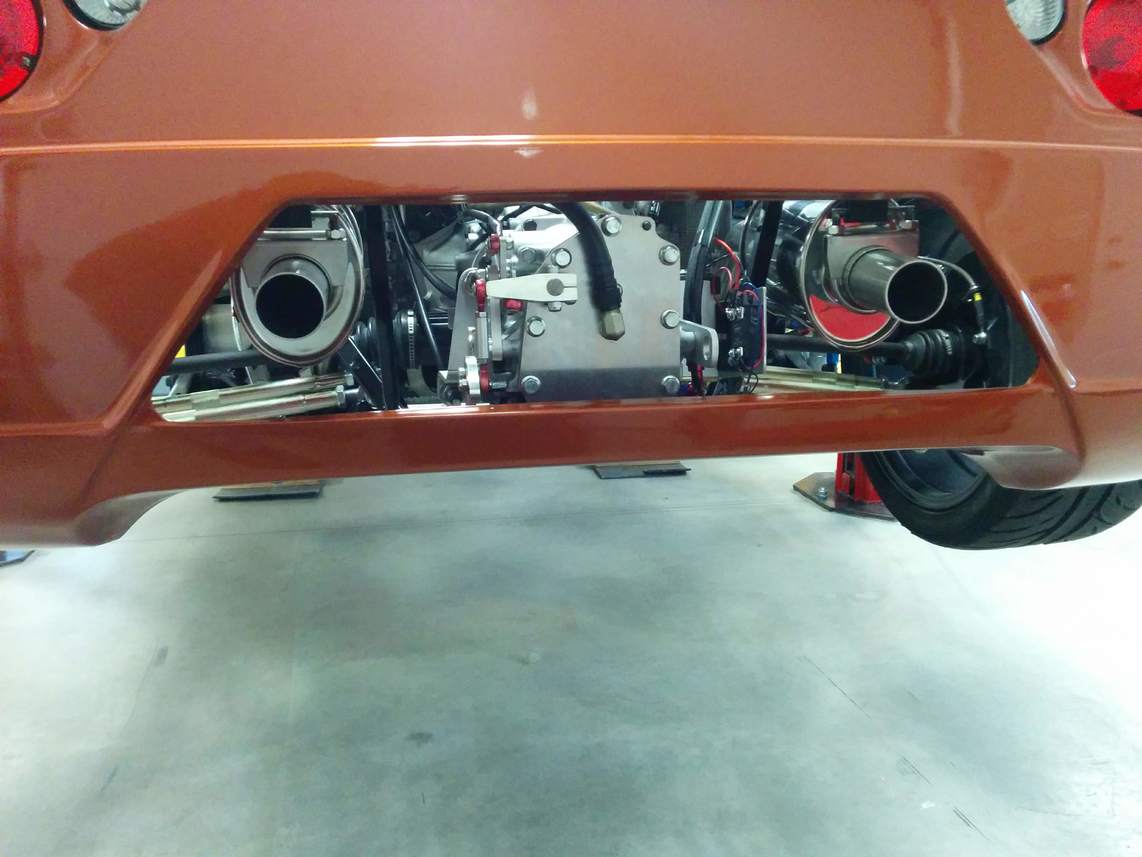

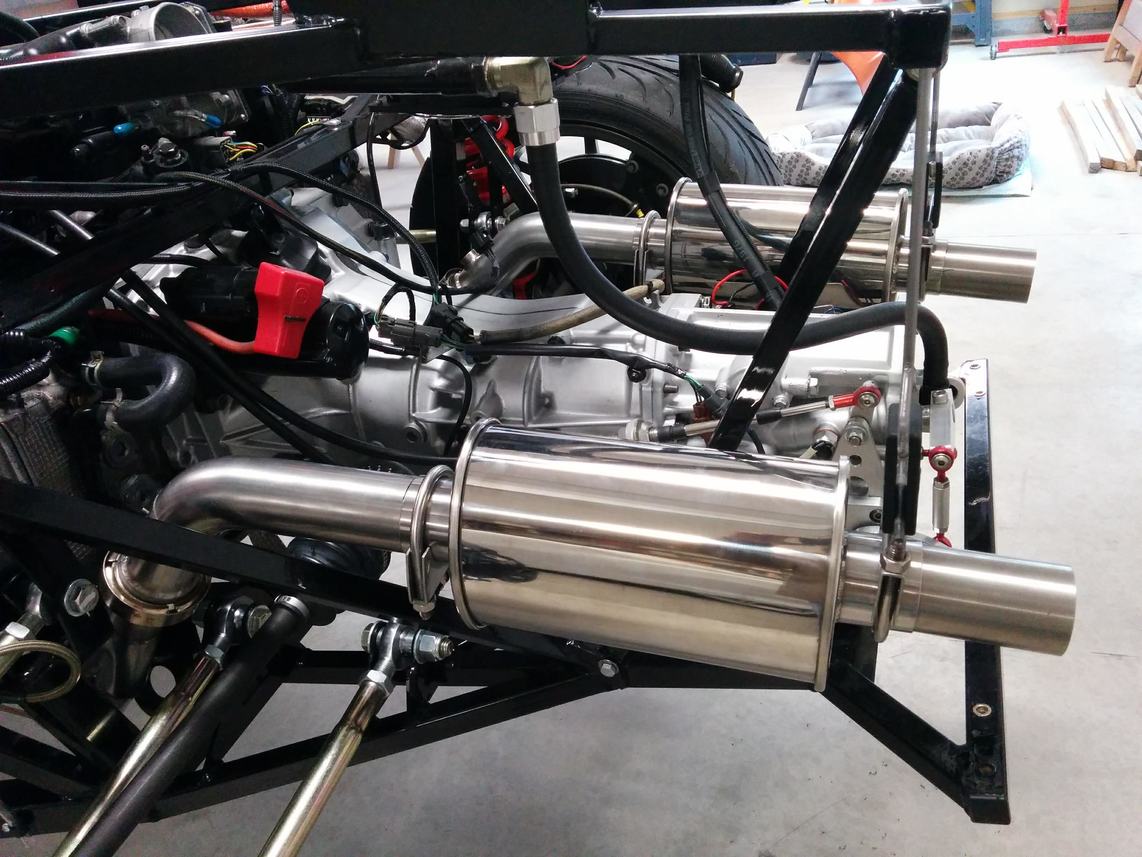

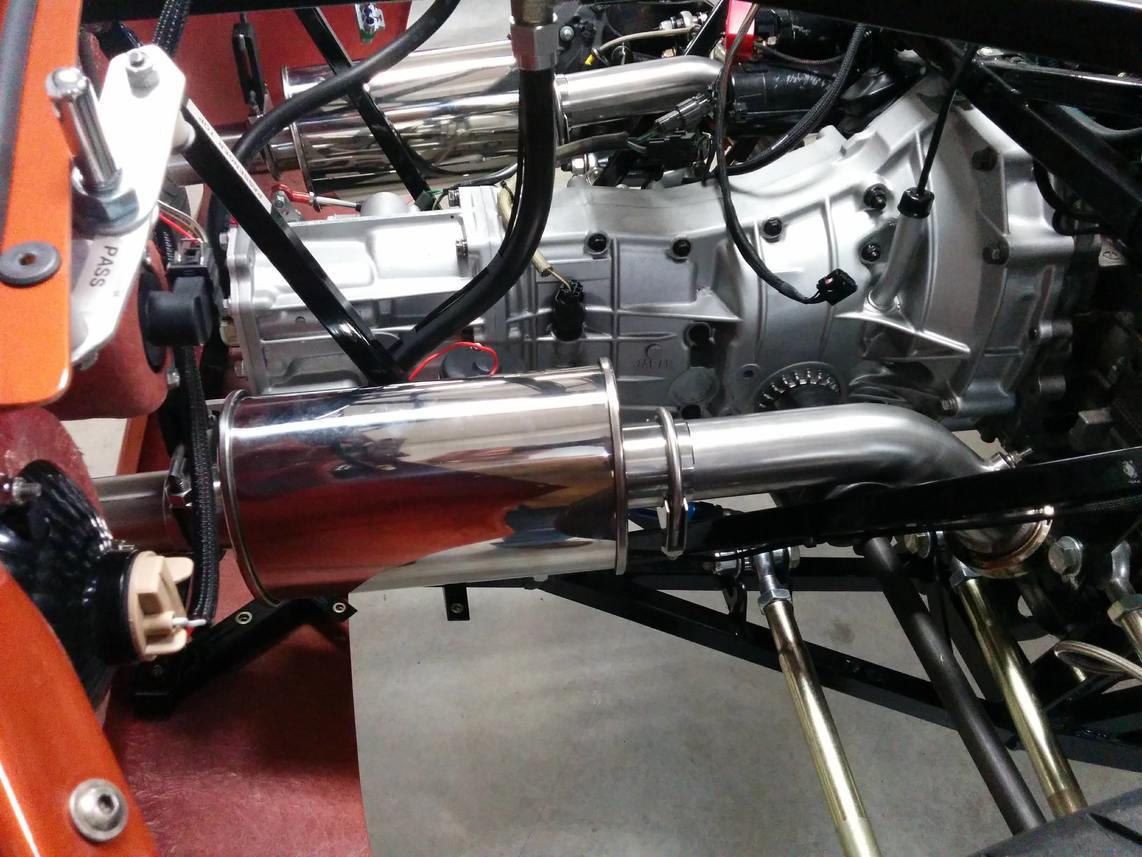

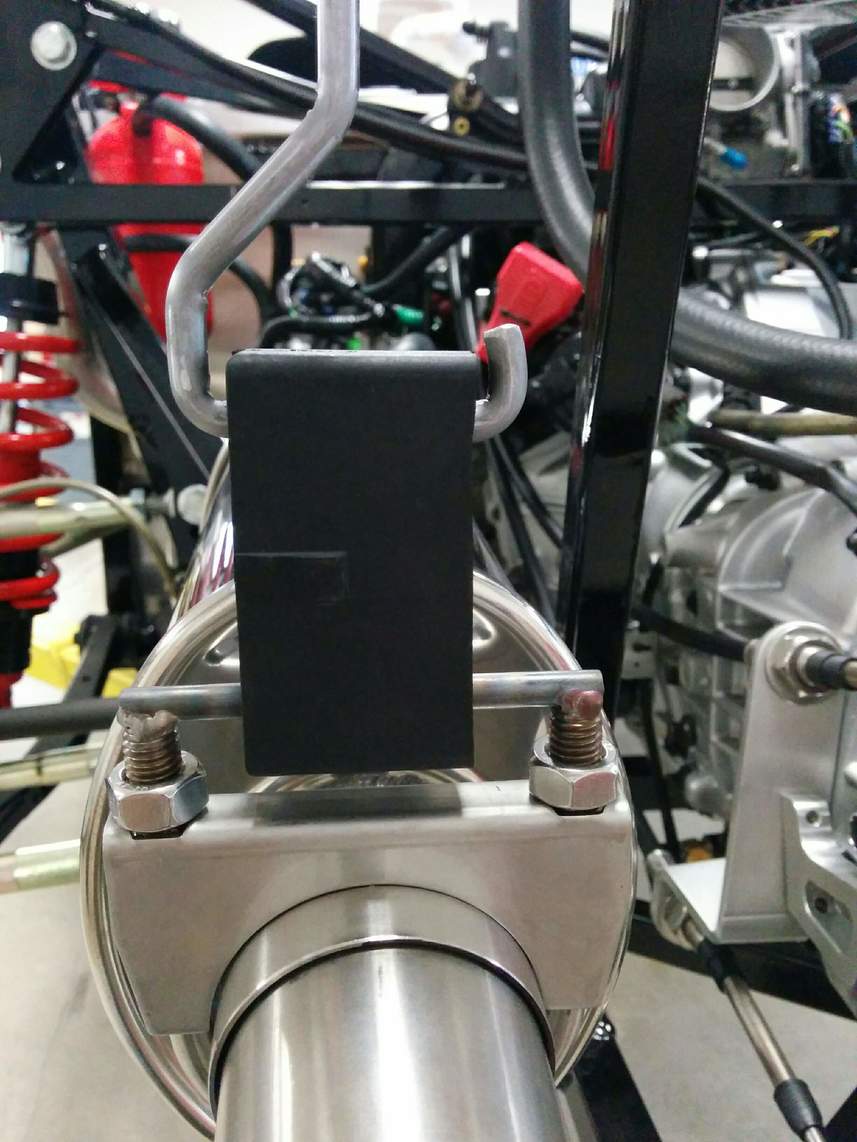

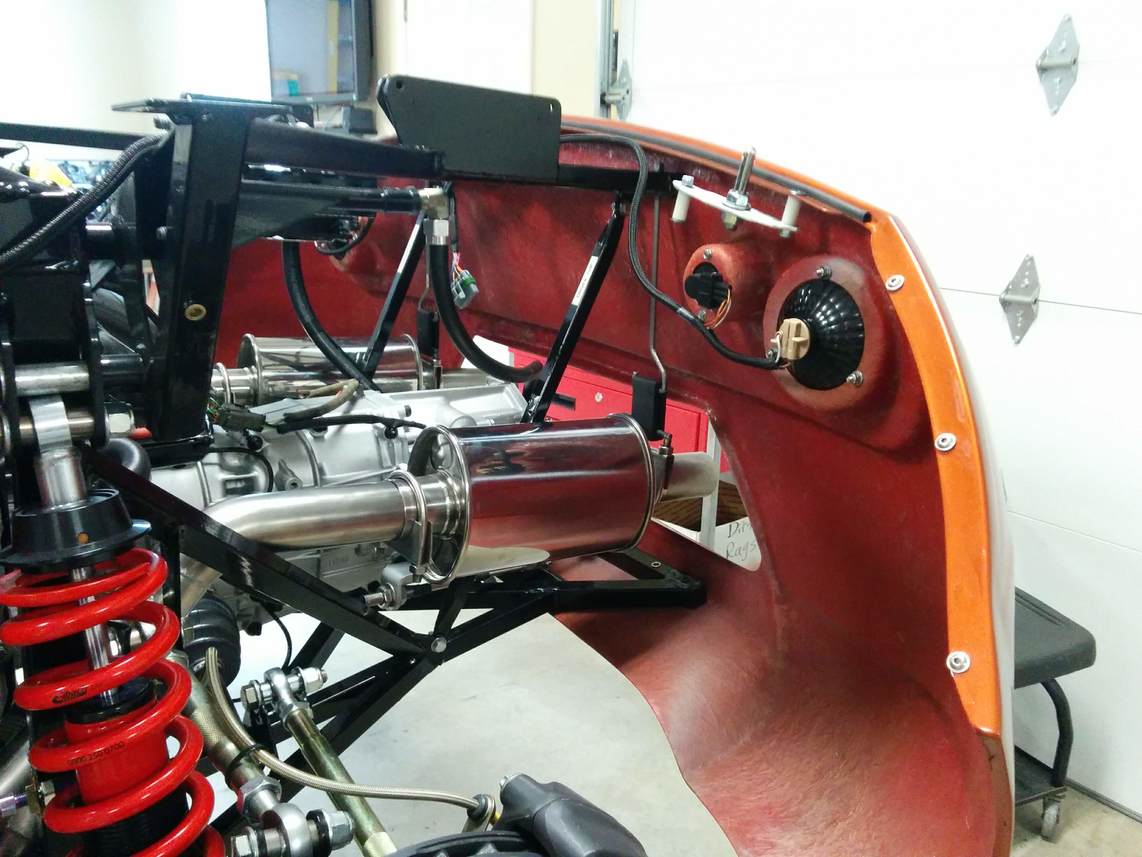

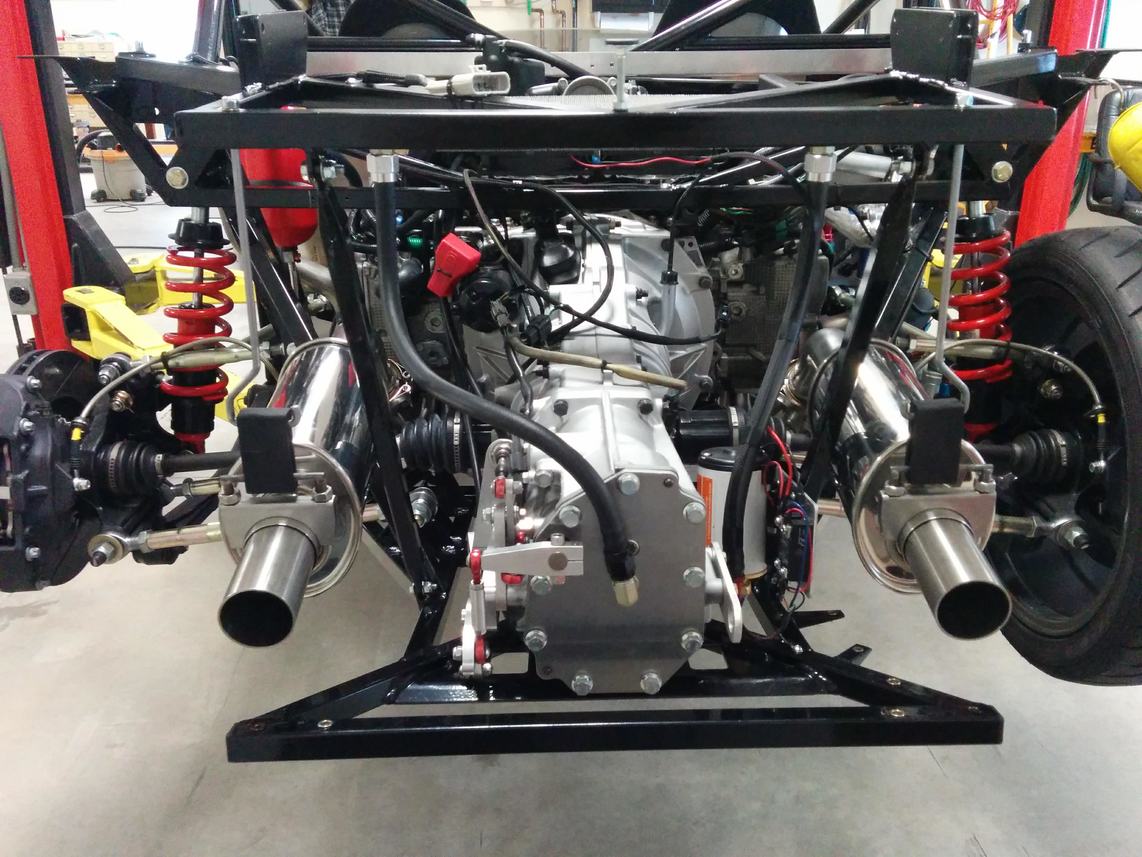

Finished the exhaust out the back finally. I made some neat exhaust hangers that incorporate into the u-bolt clamps to hold up the back of the mufflers. I wanted some type of mounting that would have some give and flex when the motor vibrates and twists. The nice part is the hangers are threaded at the top so I can adjust the muffler height very precisely.
Attachment 103583 Attachment 103581
I had to relocate my wing mount uprights and my transmission pump and my oil catch can, but it was worth it!
Attachment 103582 Attachment 103580 Attachment 103578 Attachment 103579
Two thumbs up now lets hear a sound clip.
Was thinking bungee cords. Yours is nicer. Looking good!
Ooh.. it sounds nice.
I'll post a short clip after I get the idle working.
beautiful work. Clever design.
Here is a short clip with the new headers. My phone camera gives the exhaust a raspy sound that you do not detect when standing near it.
https://youtu.be/2B664lt-1Yc
Sounds great and very unexpected with the idle tone!
Very cool!!
wow!!!

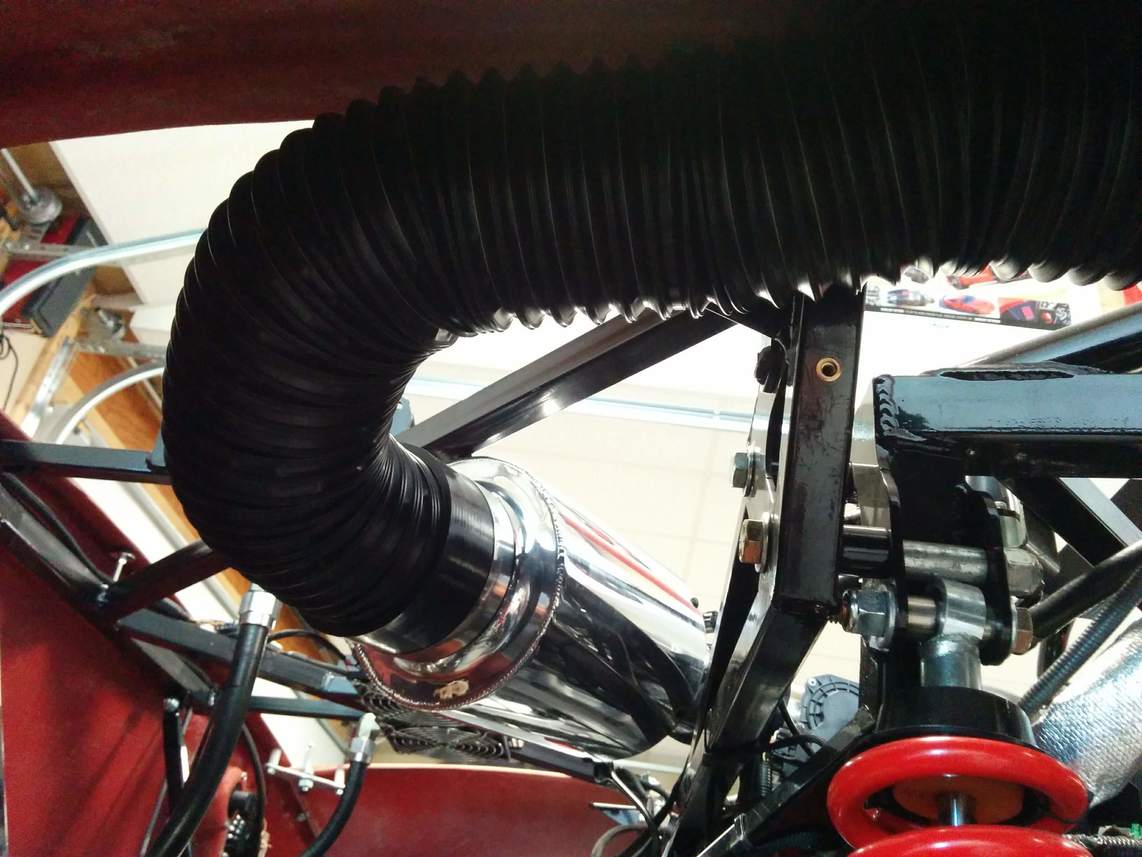

Getting close to being finished with the winter modifications this year. One of the last things on my list was to make a cold air intake that rams cool ambient air into the intake from the passenger side vent. I ended up going with an inline air box (its a cylinder really) that has a cone filter inside.
https://thefactoryfiveforum.com/atta...4&d=1553375734

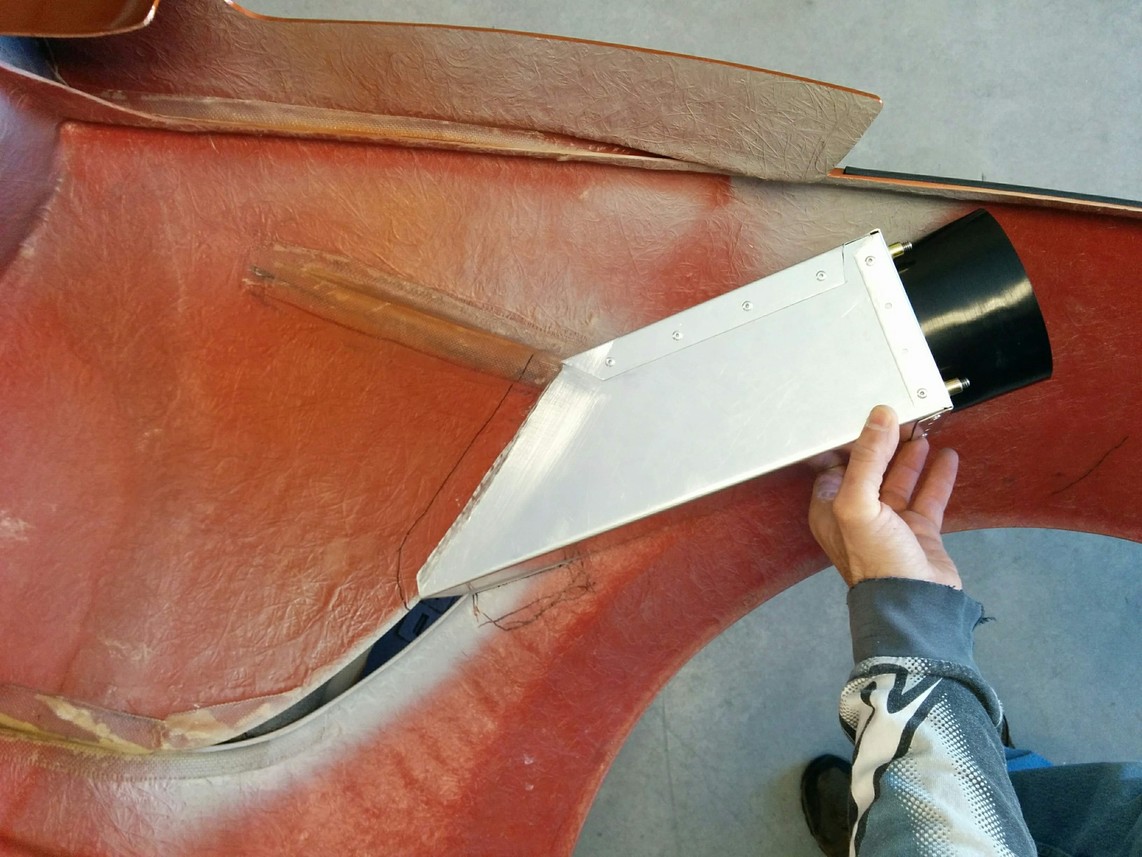

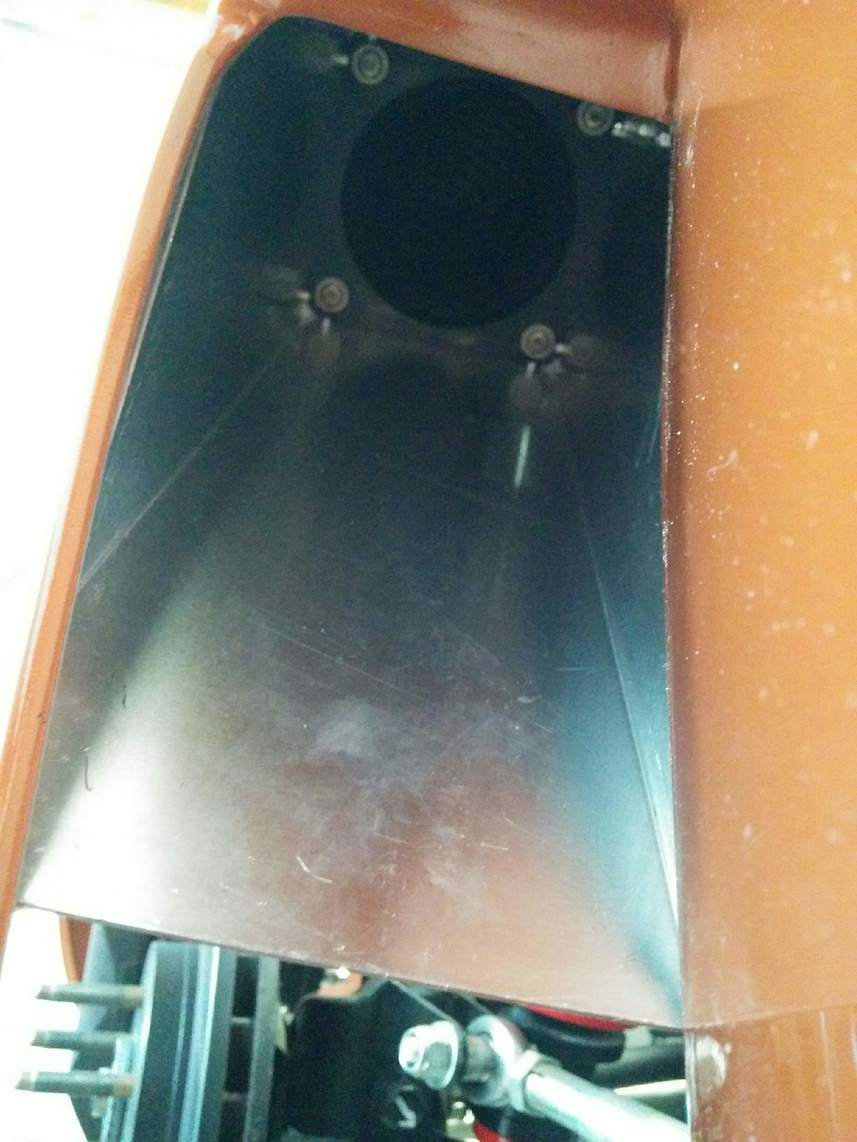

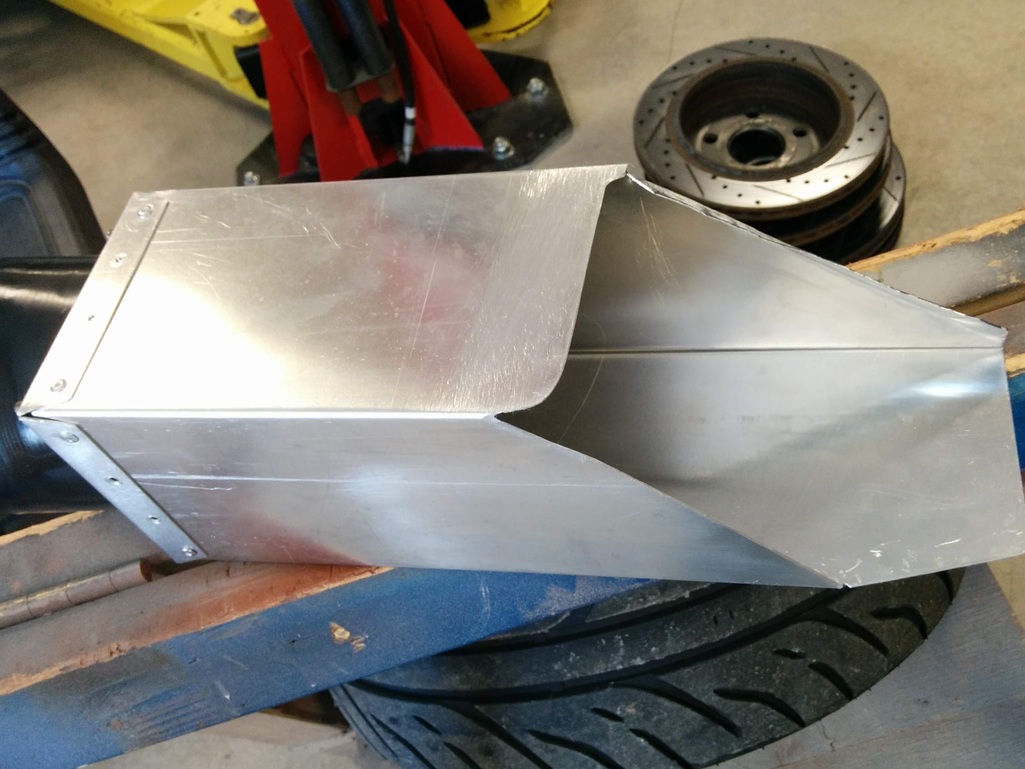

I started by bending up a square tube the size of my intake adapter ~ 4 1/2" out of some scrap aluminum sheet. Then I needed to sculpt it to fit the side sail as best I could. That was quite hard, trying to fit a square tube to the multi curved inside body. I had to angle it up enough to clear the inner fender but not so much that it interfered with the rear deck lid. It was a very close fit.
Attachment 104225 Attachment 104226

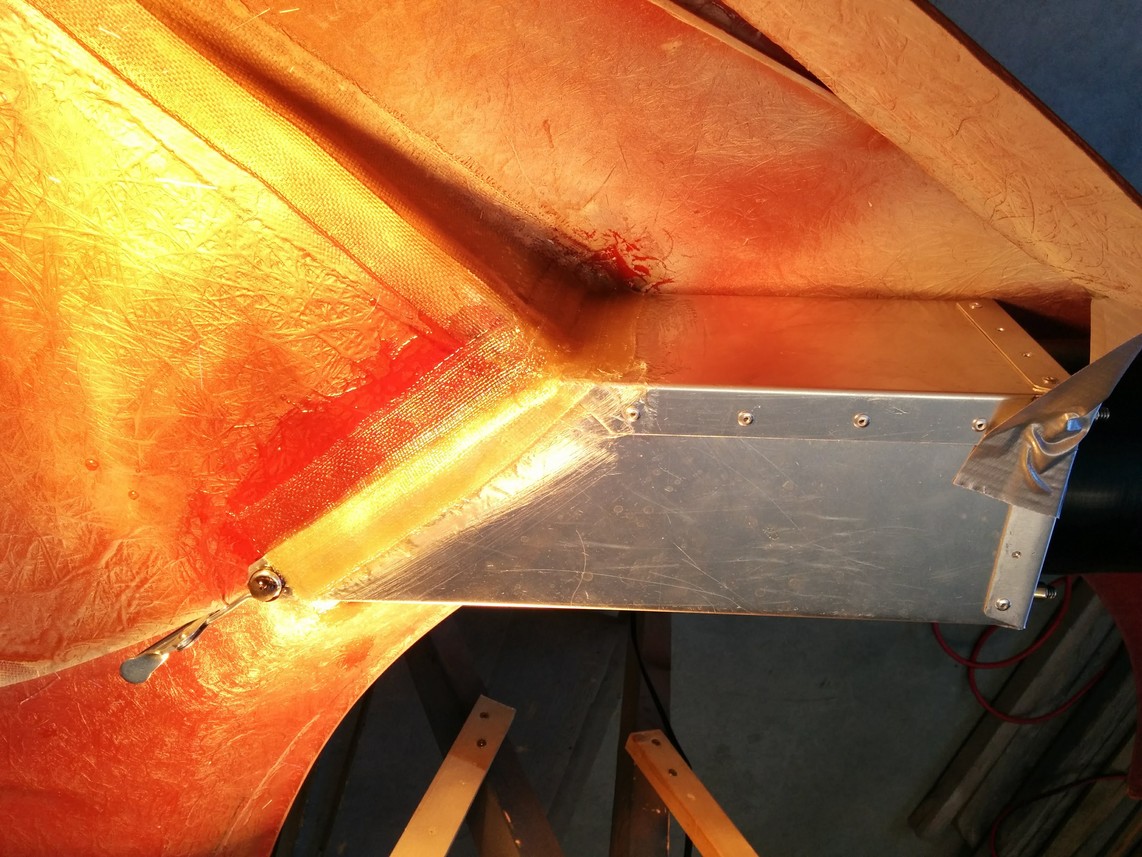

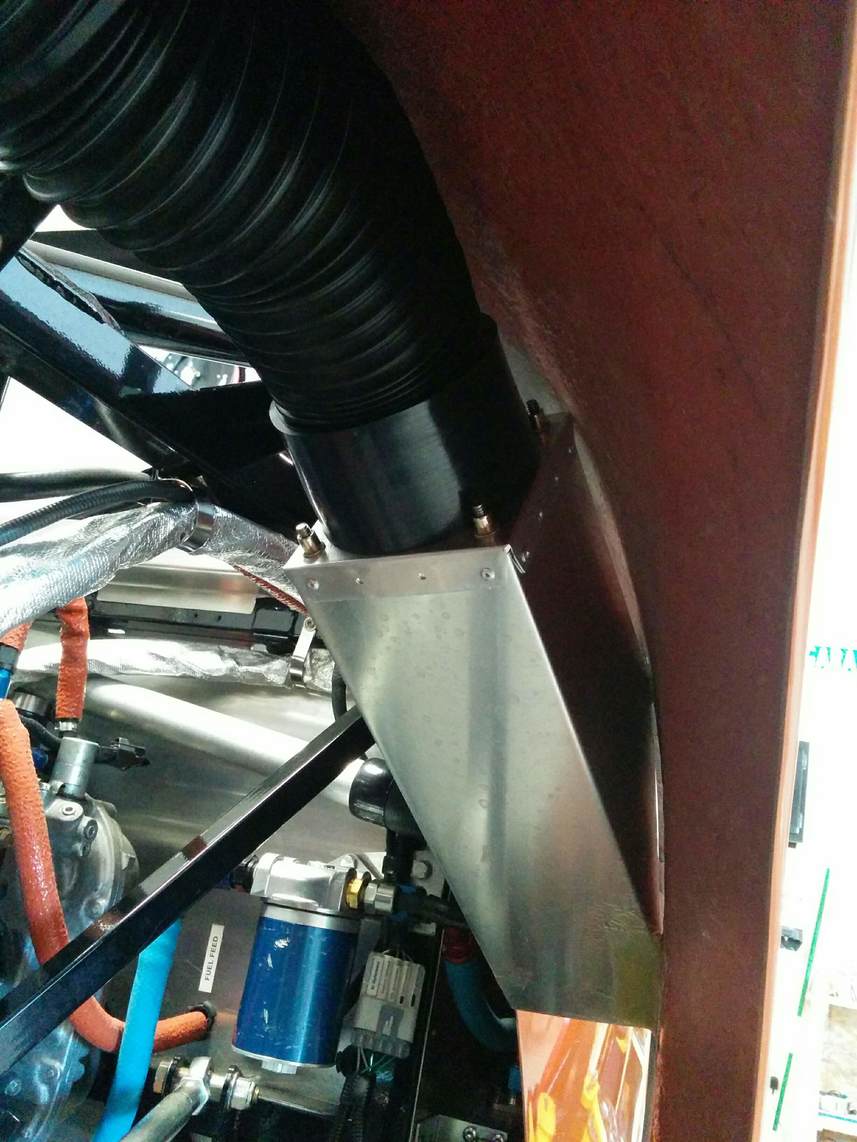

I then used resin and mat to bond the aluminum scoop to the inner fender in three places.
Attachment 104227 Attachment 104228

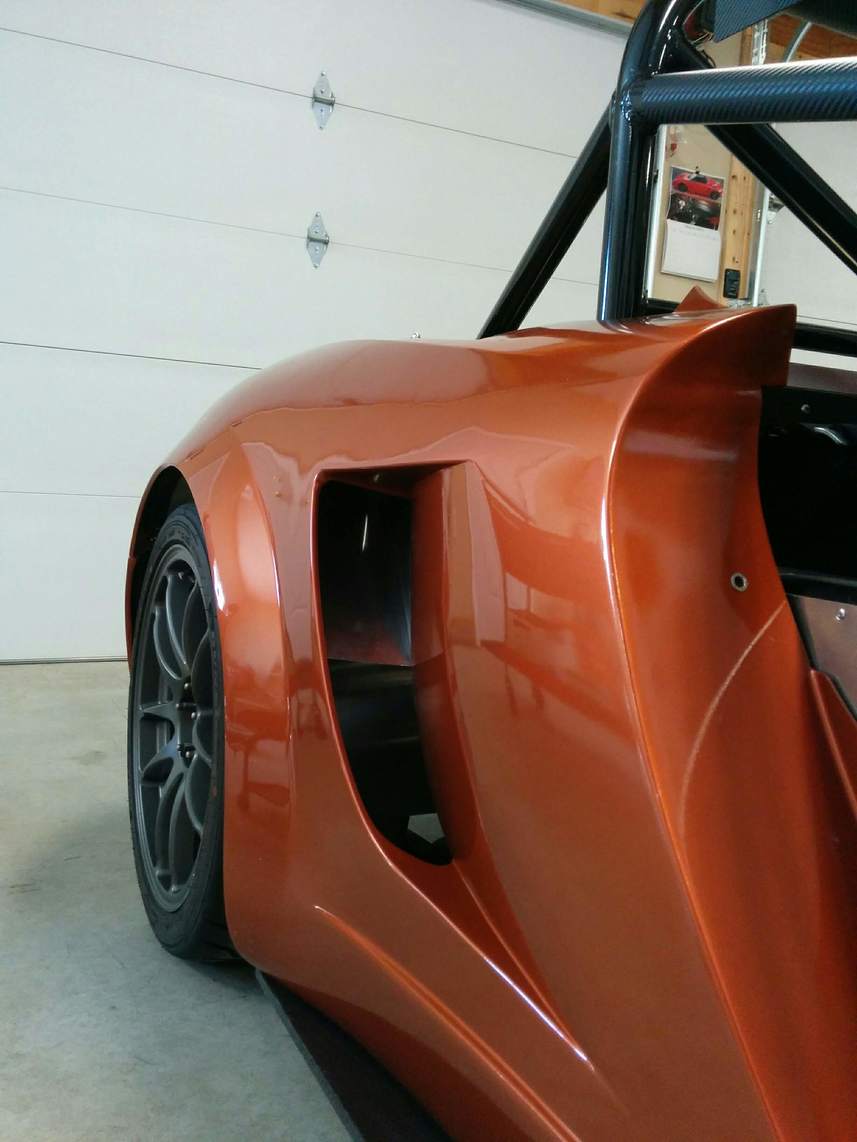

After the resin hardened I reassembled the body and checked for fitment. I love the way it came out and it should give the engine plenty of cool air, especially at speed!
Attachment 104229Attachment 104230Attachment 104231Attachment 104232
Very nice work!

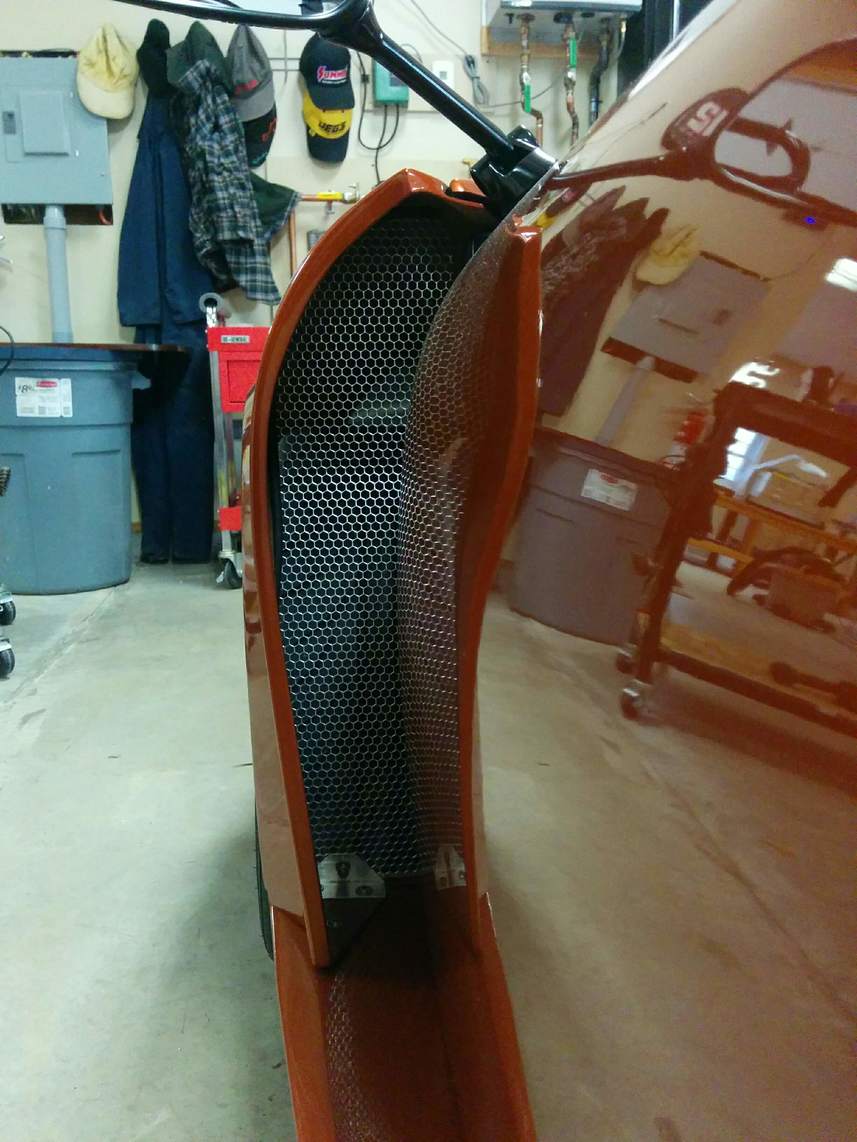

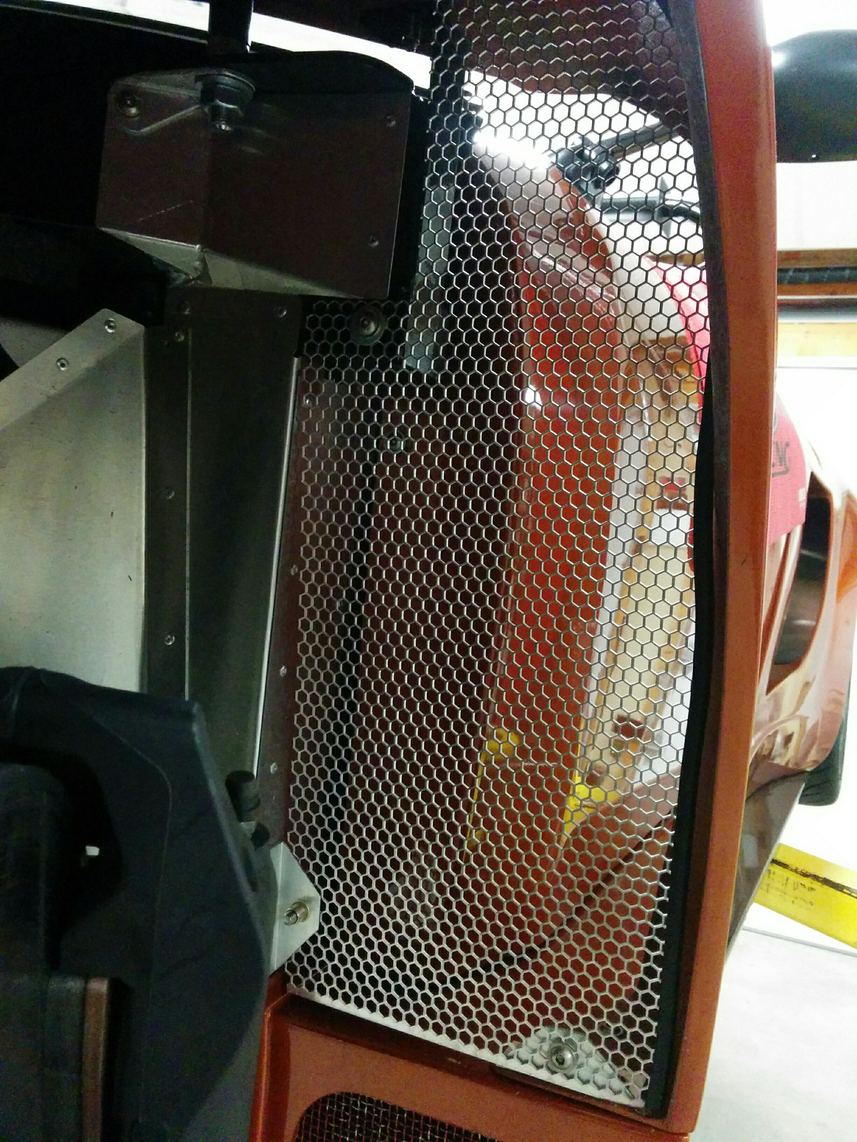

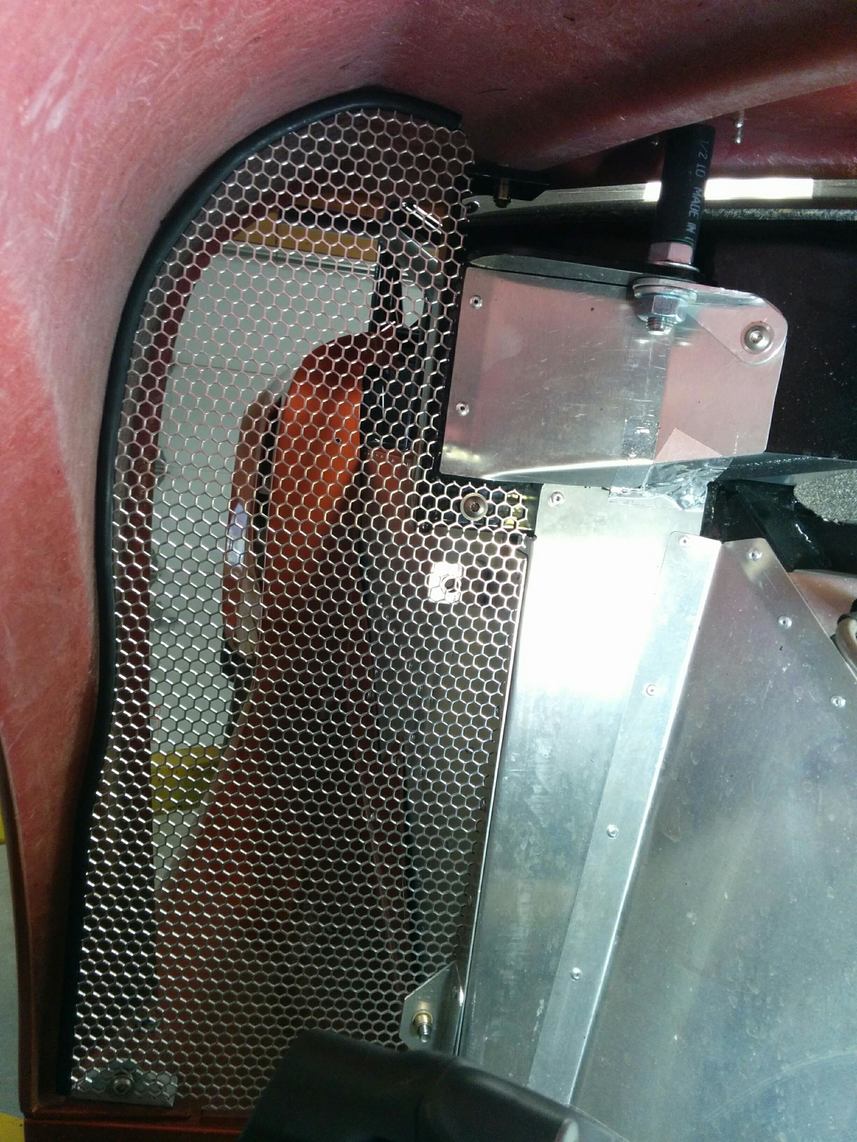

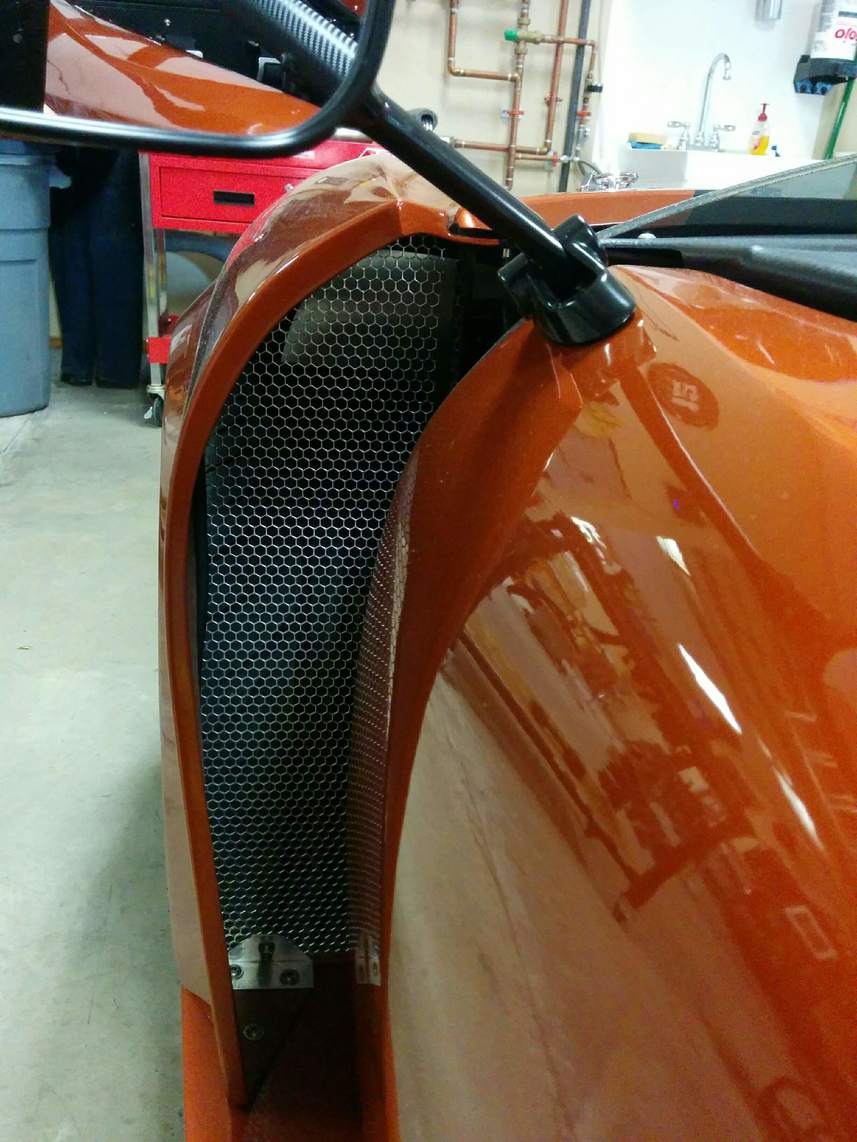

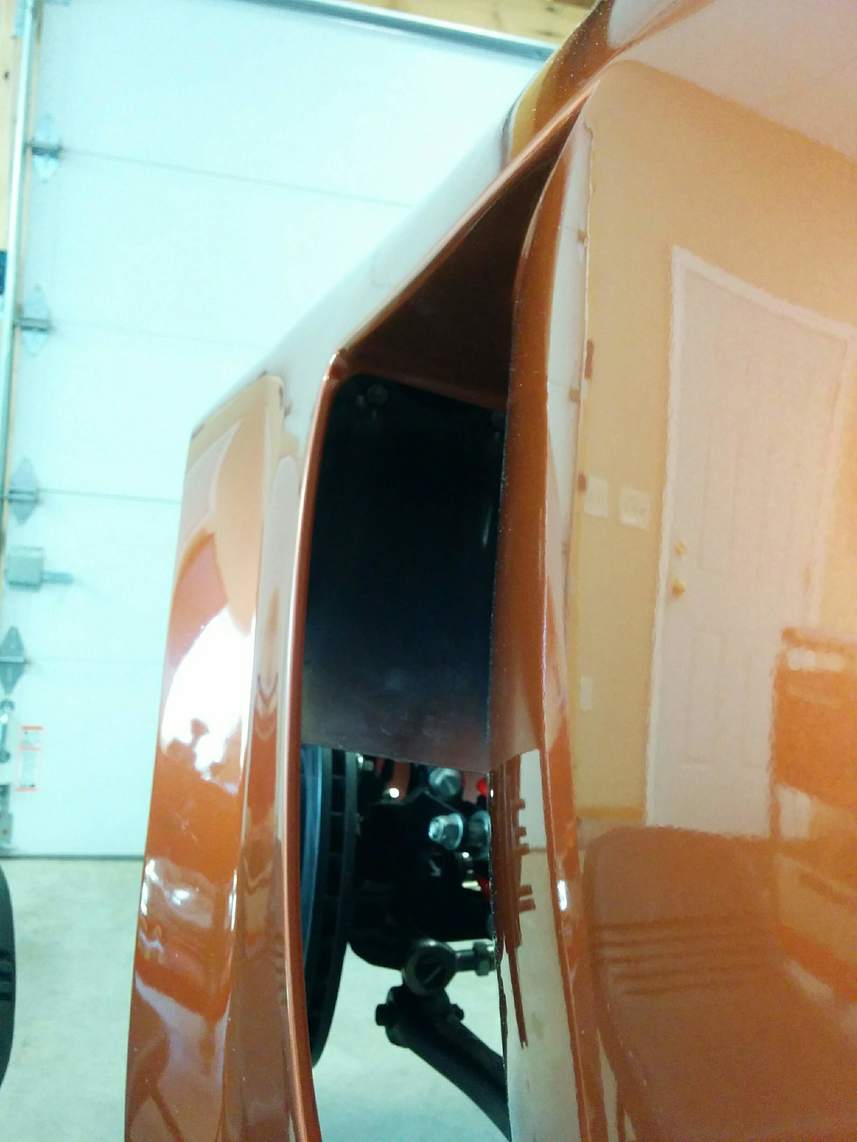

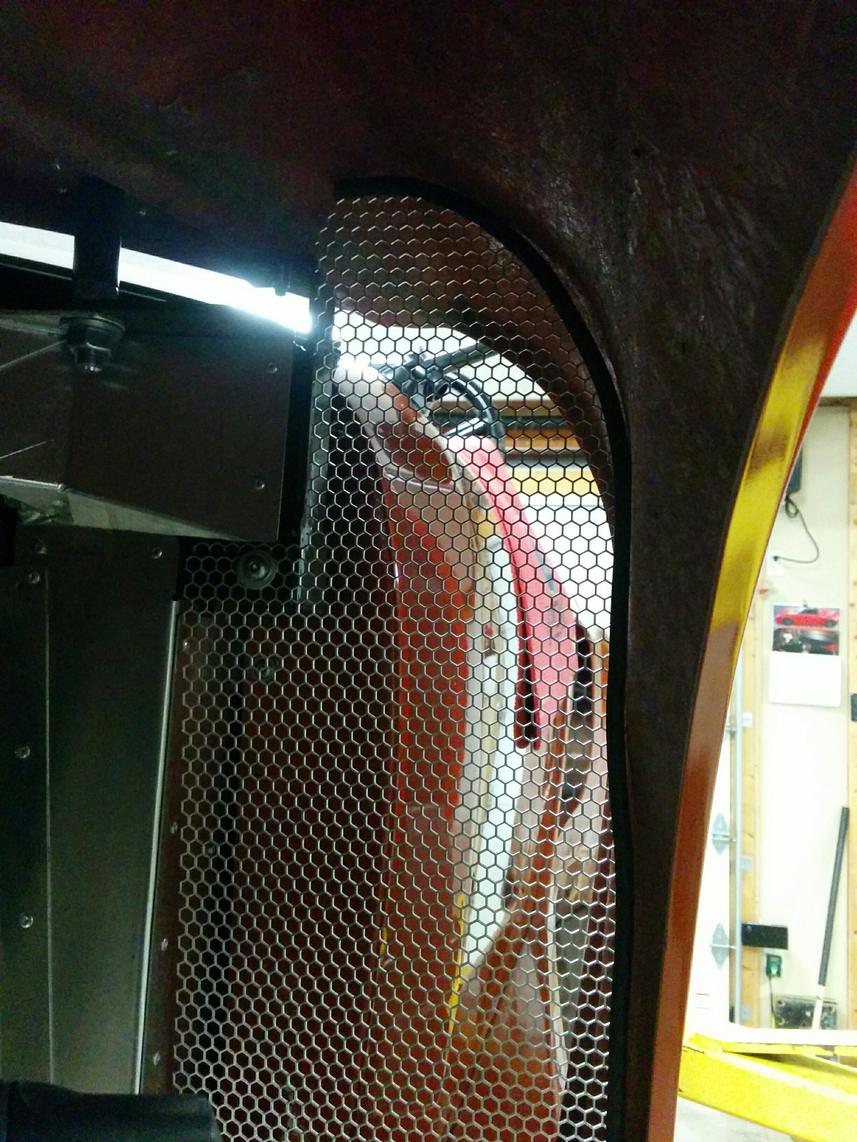

Back in a previous post, I opened up the gap between the leading edge of the doors and the back of the front fenders to allow high pressure air to exit the wheel wells and get more air to flow along the body and into the rear scoops. The enlarged openings work great, but I get tons of debris and stones flying out and blasting my paint. A while back I purchased some nice aluminum hex mesh screen and now I have finally gotten around to fabricating some front wheel screens. I think they are a nice touch and will hopefully prolong my paint job.
https://thefactoryfiveforum.com/atta...1&d=1553467157

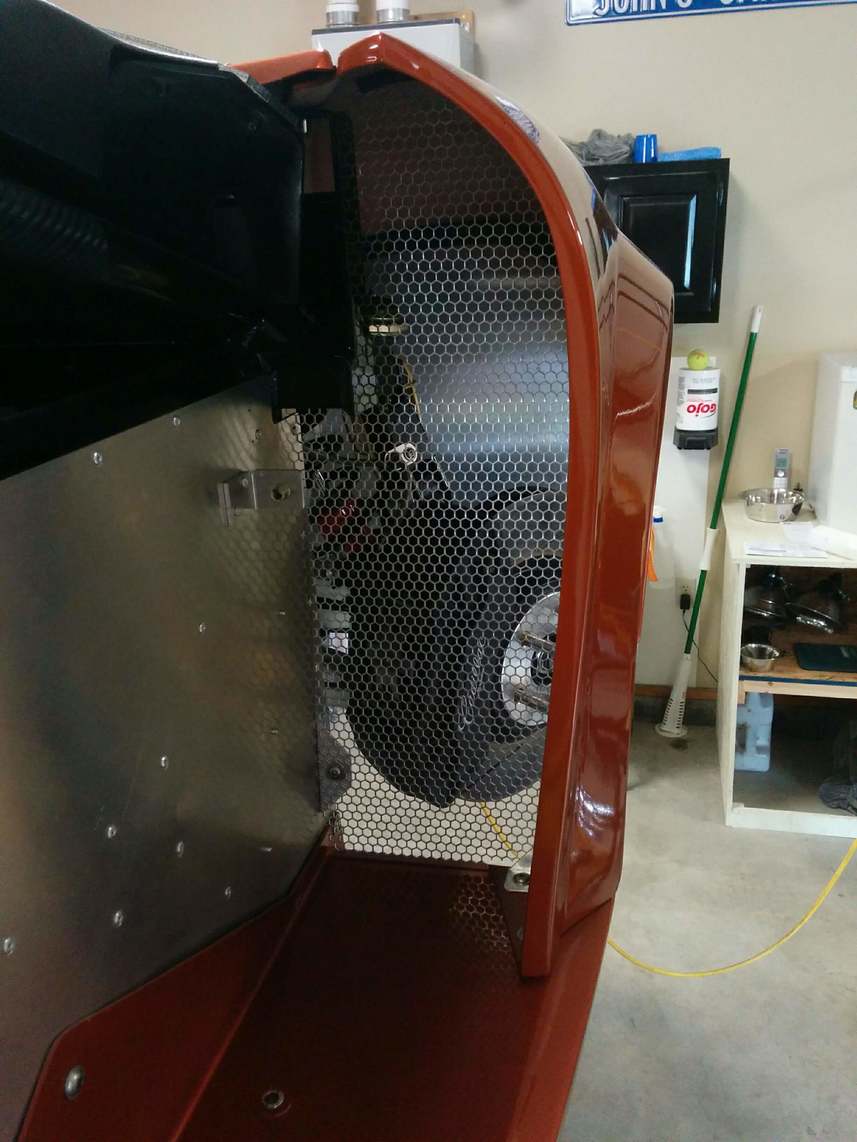

Passenger side with the door off.
Attachment 104332 Attachment 104333 Attachment 104334

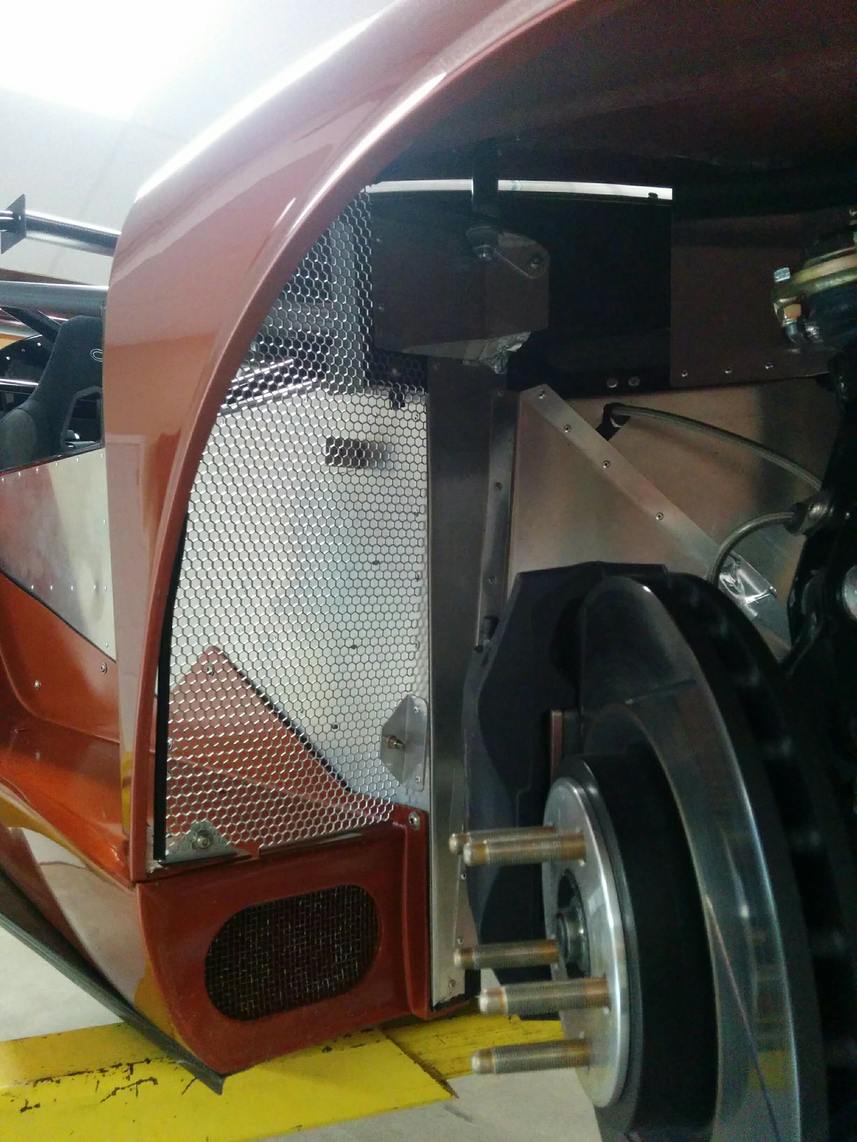

Driver's side with the door on.
Attachment 104335 Attachment 104336 Attachment 104337 Attachment 104338
John, you can also add some Helicopter Blade Tape to the leading edge of the door. (tough stuff looks like a clear bra) let me know if you would like some, I can send it over.
Thanks Mitch. I actually have XPel clear paint protection on the leading edge already. It works well but the added protection of the mesh is good for the large / sharp stones.Quote:
Originally Posted by Mitch Wright
Since my new headers are complete, if anyone wants a set of custom EZ30R or EZ36 headers for their 818 build, PM me. You can use them as is or as a starting point for your own design. I would just need $ for shipping.
Attachment 104472
Post showing the finished headers.
Pm sent
I decided to try thermal wrap on my new stainless steel headers. I figured since they shouldn't rust the wrap should be ok instead of the very pricey ceramic coating I used on my first set of mild steel headers. Some tips for others planning to wrap their exhaust.
- Use the expensive wrap from DEI. There is a reason they are the best.
- Get the Titanium Lava Rock wrap. It doesn't itch and its very pliable without having to wet it.
- Use safety wire to tie off the wrap. It's easier and you can get it tighter than those dam straps they give you.
https://thefactoryfiveforum.com/atta...0&d=1557097508
From a purely aesthetic non functional stand point those fender openings look awesome. I would do that to my car even if they served no purpose. Headers look good too.
Quote:
Originally Posted by Hobby Racer
- I agree in all aspects (and have used the stuff for years) but the downside is the wrap can hold oils and even antifreeze, which will burn.
A friend had enough oil related fires that he went to Heatshield products. Available through Summit. Though pricey, they last a long time. There are several other brands with similar products.
I've used the Heatshield Products stuff as well. It's pretty awesome for heat retention. It can be removed and reinstalled easily. However, it still a fiberglass mat type material on the inside and soaks up fluids.Quote:
Originally Posted by Scargo
I am amazed at the incredible fabrication work being applied to these cars. I guess I should not be surprised though, its a great package so it is going to attract some very talented people. Awesome work Hobby.
