I took the car out for a little acceleration test after work (Closed Course of course). I decided my helmet was needed (Plus, I found out bugs hurt when they hit you).
https://www.youtube.com/watch?v=EbmvoH8Mdl8
Printable View
I took the car out for a little acceleration test after work (Closed Course of course). I decided my helmet was needed (Plus, I found out bugs hurt when they hit you).
https://www.youtube.com/watch?v=EbmvoH8Mdl8
you missed the apex !
Awesome! Congrats on reaching go kart! How did it feel?
Looks quick
your car sounds angry! very nice
You captured the sound nicely!!! Now your all addicted like me
What a sound, man. That rabbit got afraid by the sound, not by the car! Imagine hitting one with your FB bumper in place. Byebye bumper.
You captured the sound nicely!!! Now your all addicted like me
Echo

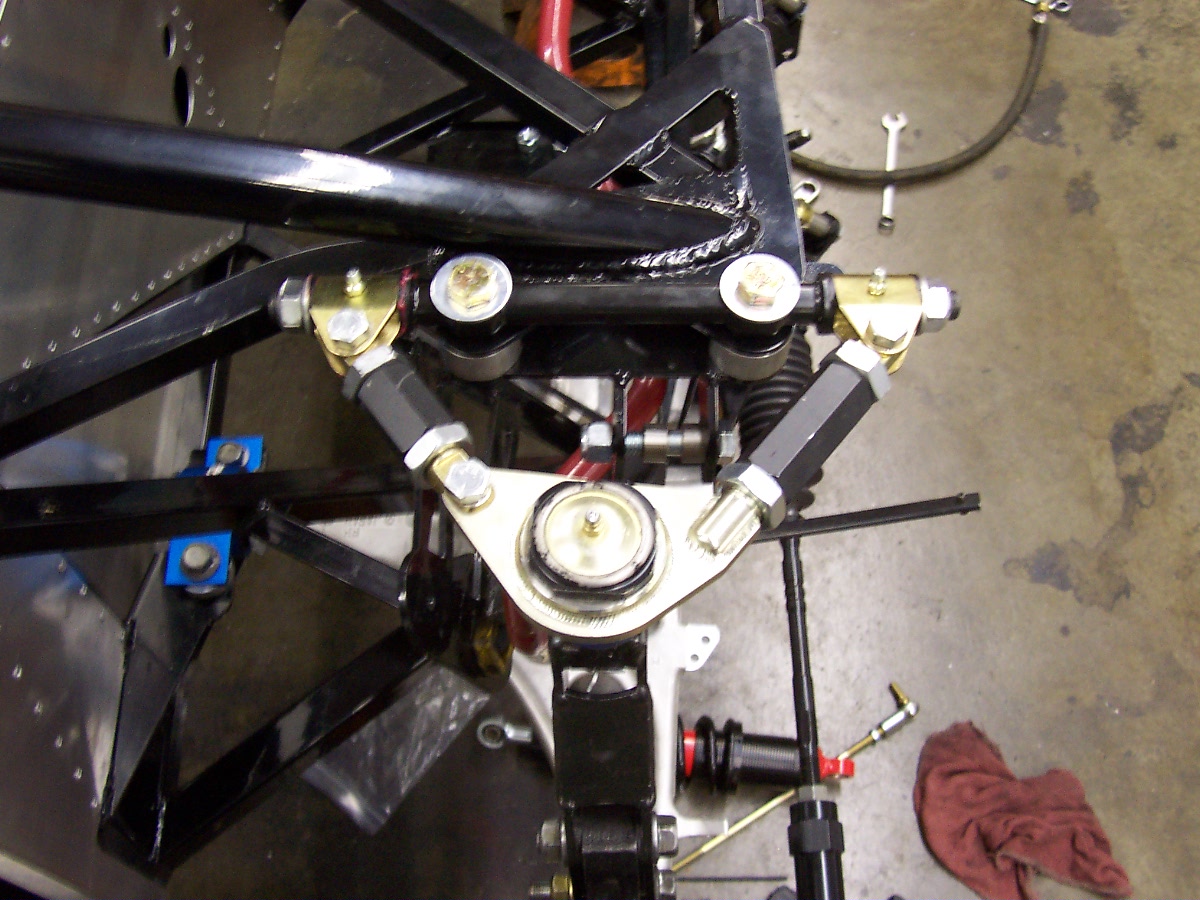

Great to see you finally go cart. Hate to change the subject but I am a ways behind you. I saw how you and Brando trimmed the upper control arm and I did a similar job. I also cut the sleeves down and thinned the nuts on the rear portion so I could retain both Jam nuts. You need to run both nuts or the aluminum sleeve will wear out very quickly. Just curious, is this how they got camber in the FFR cars?Attachment 32012
That is a good idea.Quote:
Originally Posted by D Clary
With mine the sleeve is not moving, it will not wear. As long as it is not moving, all should be good. Its crammed in there, and the opposite jam nut is further helping. The aluminum sleeve is tricked to thinking the jam nut is there, without having one.
The steel threads will work in the aluminum sleeve without a jam nut to hold the threads tight.
I bolted up my side intrusion plate (1/8" 7075 Aerospace grade Aluminum- Light and the same strength or stronger than 1/8th steel). I chose to use bolts to make it removable. Bolting in a new seat or belts is a chore.
Now on to body mounting.... I'm going to have to remove half the bolts on the intrusion plate, then clamp on the side pods, adjust, then drill through the side pod to find the holes..... fun.... but its for safety!
http://i.imgur.com/4lTTmhcl.png
What size bolts did you use ? As it seem FIA only allow 1/4" boltsQuote:
Originally Posted by C.Plavan
1/4" :) I did not go into the round bars, just the square.
Hi Chad,

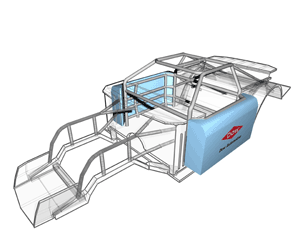

Any thought about using some Impaxx foam?
Bob
Attachment 32030
Not at first. Maybe later after the door vents are made :)Quote:
Originally Posted by Bob_n_Cincy
How are you getting out of the car? Dukes of hazzard style? :)
Attachment 32031
Won't it be fun to run an 818 against another 818? Buttonwillow? Streets? Seca?
Where will our first bit of joint ffr fun take place? That day is coming soon and I am pretty amped.
I was going to weld mine like I did my Challenge car but think I will bolt to the 2" squares like you did.Quote:
Originally Posted by FFRSpec72
Yep same as Challenge car, same cage.Quote:
Originally Posted by Frank818
I cant wait Brandon. My goal is to race in a Buttonwillow NASA race at the beginning of Oct (A year from when I took delivery). I have a few race buddies that plan on testing at BW in Sept. So I want to really finish before then.Quote:
Originally Posted by Brando
What are you doing with your new motor? Anything different?
Just curious, how long did it take for you to get your body on?
My major todo checklist list-
Plumb dry sump
Install body (finger-crossed on the door vents and canards)
Design/fabricate/weld rear wing support
Make a firewall cover for fuel cell
Install additional gauges/senders
I'm gone every weekend in August which sucks. (Somehow I was suckered into a Tough Mudder in Tahoe-I don't know what I was thinking) I may have to take some vacation time to finish this thing before the test days.
I was thinking of welding in 1/8th inch steel, but it will severely limit access to seat/belt changes when things expire, or when you need to remove the rear firewall (by removing seat). Mounting the seat/belts is a chore to line things up without it on. With an Instrusion plate..... Holy moly it will be tough.Quote:
Originally Posted by FFRSpec72
One tip- Install all the harshness "eyes" before installing the seat. There is not enough room to get the eye bolts into the harness mounts (you cant get right angle with seat in there).
Body fitting..... The rear bonnet will be the death of me..... Are you guys waiting for good adjustment after you mount the side pods and bumpers? I have everything clamped down, but the rear bonnet and hinge interferes with the hatch. I think I have tried every version of hinge adjustment possible. Should I say screw it and mount the side pods and rear bumper, or keep messing with the hinge adjustment?
http://i.imgur.com/Mk7VHvy.jpg
If you end up doing track testing at BW check and see if you can +1.Your first time running with NASA will you be doing TT or door to door? TT is all my car will be allowed to run with them (correct me if i'm wrong).
I got really impatient with the body so I threw it all together in 2 1/2 weeks. It came out more than acceptable for my expectations.
I never updated my build thread but like I told you directly my motor totally seized at the AutoX I was debating on. Motor is already apart and heads shipped out and drysump was ordered 2 days ago.
I'm stroking the motor and installing race bearings, STI crank, forged rods/pistons, cams, new turbo and element tuning drysump. I'm actually at the point where i have to decide on which pistons and am on the fence as to what compression to go with. I was thinking 9-1...but am open to suggestion. Picking the turbo has been challenging, the more I investigate the more options I find. I'm leaning towards the Blouch Dominator 2.5XT-R "Polka Pickle" Ball Bearing turbo. I have not decided on cams yet. Goal is a RELIABLE 350WHP
Awesome with the tough mudder. I'm doing the So Cal one Oct 25th. We were also going to do the Tahoe mudder but it fell through.
EDIT: I wanted to note the motor seizing was not due to the AutoX. I went into the day with bad engine knock knowing that I was probably going to get towed home. It was on its last leg prior to the day. I do beleive now that 818 + slicks + track = spun bearings if you don't have at least an accusump. I want to know how the FFR cars are ripping around like they do without oiling issues.
I think Dan rm1sepex did some hinge work. I haven't done the hinges yet.
Chad, I don't understand your question...
I drilled out the rivet on the hinge point of the hinge. Then I slotted anything that needed to be. Then redrilled the pivot hole and used a button head and lock nut. There should be plenty of adjustment in the slots of the bracket on the rear hatch unless something is different on the R.Quote:
Originally Posted by C.Plavan
That is how I did it. Though I turned the threaded bolts and the sleeve down rather than thinning the nuts. Took 1/8th" off each side, and about 1/2" off the one that is welded, and barely got -3 camber and 3.6 castor.Quote:
Originally Posted by D Clary
I tried this fitting the other day. I couldn't even get the deck with the spider humps to fit over the roll bar. It is clearly made to fit the "S" frame, and just cut for the "R". Still has notches in it for the "S" configuration of roll bars. I couldn't seem to spring the arms out wide enough to clear the cage. And this is a piece we are supposed to take on and off for engine access?Quote:
Originally Posted by C.Plavan
I gave it up for now, lots of other work to do, but if you have a tip it would be appreciated.
Sorry- It is a little confusing with a rant tone...lolQuote:
Originally Posted by RM1SepEx
I meant to ask, should I just mount the side pods, rear bumper, with the rear bonnet (trunk) panel laying on, but not hooked to hinges for now. I can get decent lines without the rear bonnet bolted to the hinges, the problems with the rear bonnet happen when I bolt it to the hinges. Then all hell breaks loose on the rear lines. I'm just wondering if I should deal with the hinge alignment problem now before mounting, or push it off to later and still mount the side pods/bumper.
Mine came cut. How did they ship the car to you? My rear hatch was already on, and in the right place when they rolled it off the truck.Quote:
Originally Posted by nuisance
Chad, check my thread, I had to trim the tops of the hinges off, they held the engine cover up so it wouldn't seat. I took photos to show where they needed to be ground off.
post 742 http://thefactoryfiveforum.com/showt...-Thread/page19
I think I outlined the correct sequence/proceedure in my thread for the body. I'm sure that the R tubes make it more complicated.
I need to reinforce the tops of the bumps, too much stress there when you remove the engine cover. I found that I needed to use time and gravity to get the panels to sit well.
I think that you need to do them all at the same time as a tiny movement in one area makes a big change in another.
At least your panels are much better than mine!
Thanks Dan- I was just looking at your posts. I think I have a better handle on it. I guess I can perm mount the sides and rear bumper, then deal with the trimming of the rear cover later. I just didn't know if I should start drilling holes, if the rear cover was having issues once bolted.Quote:
Originally Posted by RM1SepEx
Congratulations on karting! That looks fantastic. Like everyone said, the sound is perfect.Quote:
Originally Posted by C.Plavan
Over the years I have tuned a lot of Subarus with different static compression ratios. In general I was surprised at how little difference it made. The combination of the mediocre head design with the significant contribution to power from both the turbocharger and the camshafts makes static compression less important. I tuned one at about 10.1:1 and it did make a little bit more torque off boost, but was (as you might expect) more octane sensitive. There were spots in the power band pump fuel could not get to MBT. It seems like around 9:1 is a good place to be. The camshafts make a huge difference in where the powerband is. If you have a turbo that doesn't spool until 4500 rpm, it is nice to have a good cam that helps to keep torque up above 7000 rpm. I like the Cosworth and Kelford cams, but there are many choices these days.Quote:
Originally Posted by Brando
Jeff
Quote:
Originally Posted by sponaugle
Agreed, With my spec c cams it seems the stock static compression is what works best 8:0:1, but with more lumpy cams a slightly higher of 9:0:1 seems solid up higher. Also turbo selection helps.
My build is going to use :
the stock heads, ported/ polished slightly, spec c cams all rebuilt and machine etc.
Bottom end:my stock Sti rods, or better, ( jdm Sti rods are pretty strong) cp pistons, all new acl bearings, all machine work, arp studs and pins etc
Dom 1.5xtr twinscroll turbo running at 16-19psi
Id1000 injectors, Perrin 3" inlet and custom 3" exhaust.
Jdm twin scroll headers and uppipe.
Good for 450plus, but I am only shooting for 300-330whp
I used a few holes everywhere until I was happy, now I'm finalizing all the mounting points and putting in my riv-nuts so that everything is removable.Quote:
Originally Posted by C.Plavan
VERY productive morning after reading a ton of build threads. Thank you all for your detailed builds.
I actually cut 1/8th" to 1/4" of the vertical lip of the engine cover and rear hatch. They were sitting up to high for my liking. Now they are flush with the side pods and look great.
Side pods on, rear bumper on, Engine cover on (with Mini latches- which I love), I just need to tackle the rear hatch/bonnet. The gaps turned out pretty good. I'm sure I can tweak one, but its a race car, i'll get to it.
http://i.imgur.com/NDMSRH8l.png
http://i.imgur.com/wuwutWXl.png
I was able to finish the rear and adjusted the hinges nicely. Now on to the front. But I'm done for today.
http://i.imgur.com/r3Dri9Ol.png
http://i.imgur.com/2urEUeCl.png
http://i.imgur.com/RwAOX9Gl.png
On Friday I replaced the LW pulley and test drove it....very minor improvement...if any. So yesterday I replaced the LW flywheel (12 Lbs) with the stock one (23 lbs)..Bingo! what a difference. I drove it yesterday afternoon after I got it back together, and I have just driven it again today...to make sure.Quote:
Originally Posted by C.Plavan
It is now a pleasure!
Check my thread for pictures, if interested.
For any kind of daily driver, I would advise strongly against a LW flywheel. The pulley is probably insignificant.
fred
