I couldn't agree more on the LED improvement. Nice! I did the same (from Watson Streetworks), because I want to be as visible as possible to other drivers given the small footprint and low profile of these Roadsters.Quote:
Originally Posted by toadster
Not sure if you already checked, but I had to swap out my flashers for LED compatible flashers with a pigtail ground. Not a big deal at <$20, but mine wouldn't work correctly without them.
Good ideas, Todd. Wish I had had those battery clamps hooking up my Sniper stuff. I will be doing the LED upgrade.
my kit came with LED flashers for the rear taillights, so should be OK with the fronts - time will tell :)Quote:
Originally Posted by 460.465USMC
more wiring! :)

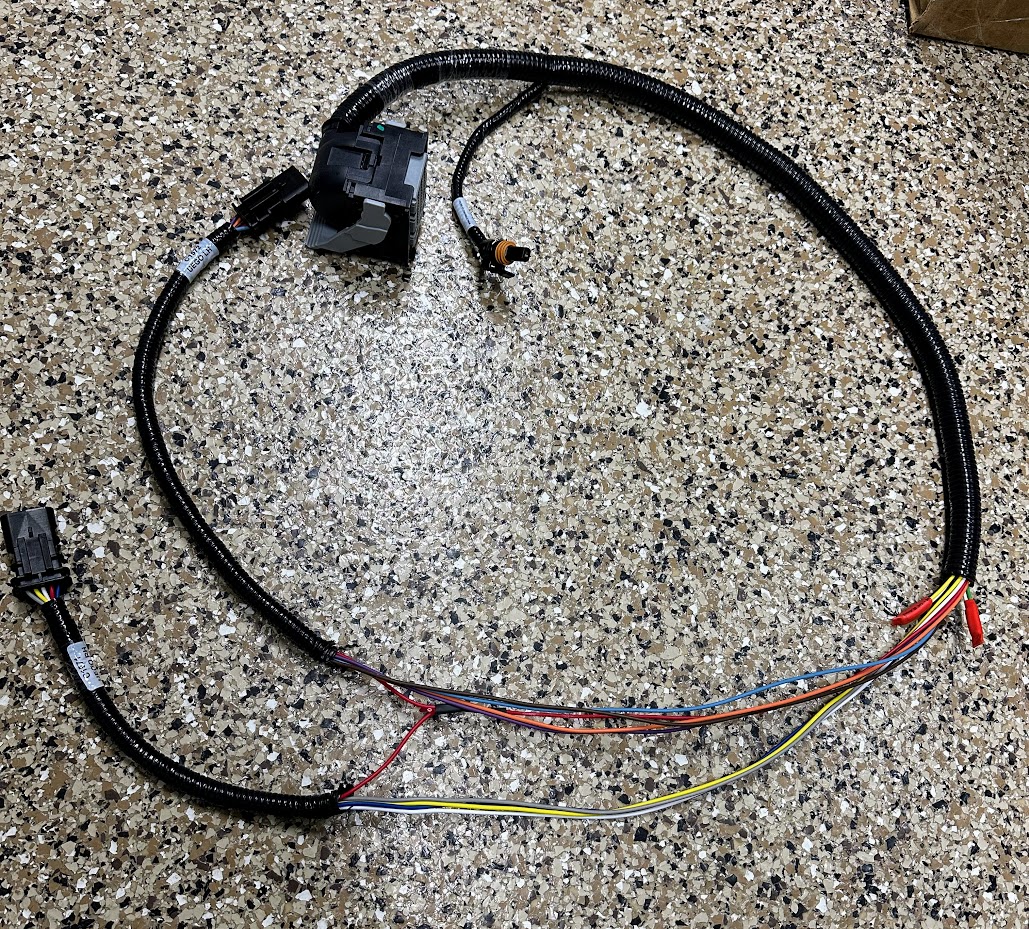

had to reattach the HS CAN +/- 12V lines in the harness because we will use them for the ABS HCU

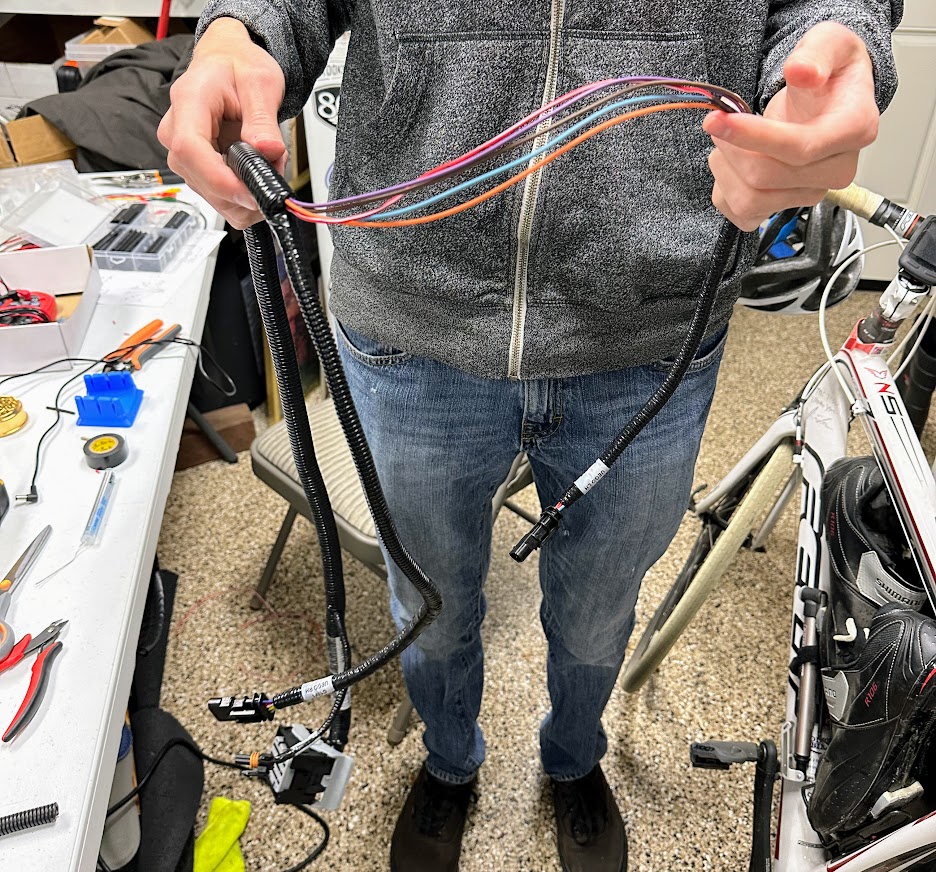

got to do some wire dieting on the O2 sensor wires, our harness had a 4-to-1 power distribution wire really high up the harness toward the plugs
We split that power feed way back and wrapped the right side (which is shorter) and we hope right hand means the passenger side!
Left the driver side unwrapped for now as we'll most likely have to extend the wires to the O2 harness later when the engine is in
Attachment 174595 Attachment 174596

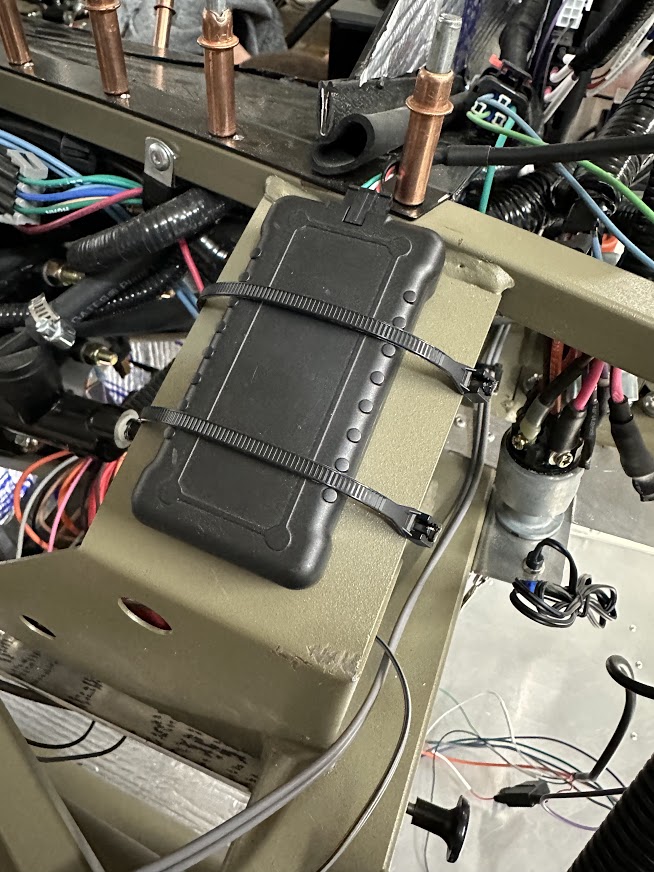

also mounted the DGD GPS sensor, assuming this will be a safe place and not get in the way of anything around the windshield - correct?
Attachment 174597

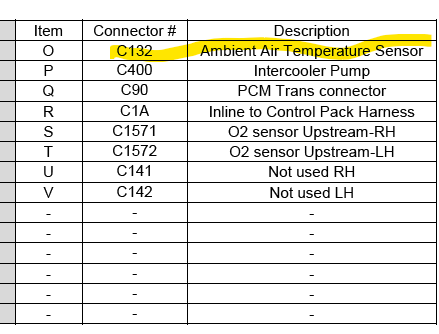

In reading I believe the C132 AAT isn't needed so we're going to cut at the Y joint and terminate, I do want a modern car, but I don't think in need an ambient air temp display telling me I'm getting sunburnt LOL
Attachment 174598

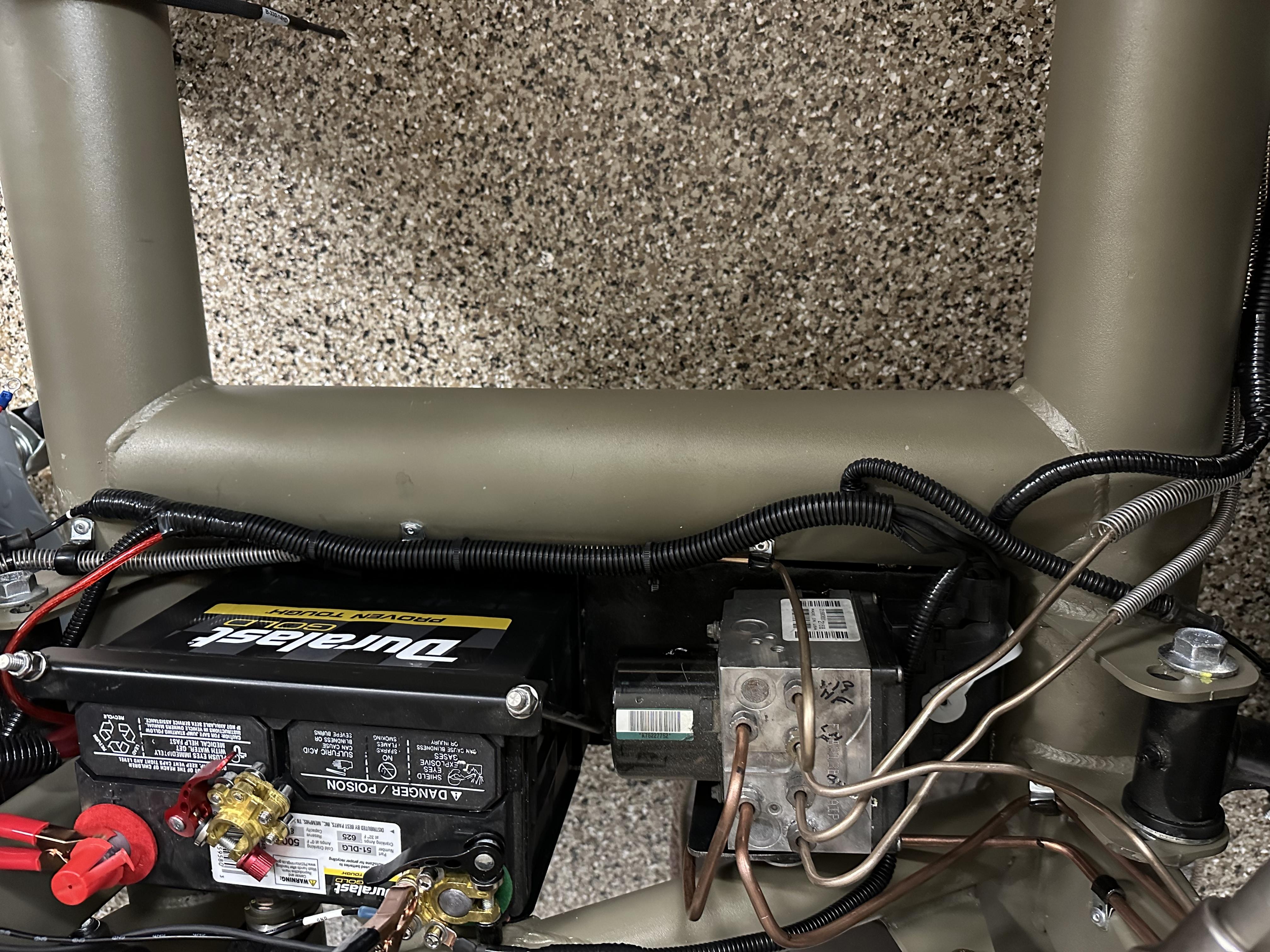

also tidied up the ABS wiring
Attachment 174605
Hey Todd, that area is going to get covered up by the rest of the DS footbox upper sheetmetal, so I don't think that GPS sensor will work in that position.Quote:
Originally Posted by toadster
https://thefactoryfiveforum.com/atta...4&d=1667795717
Hey Todd, looks like it won't get in the way of the windshield but I'm not sure if there's enough space under the footbox top aluminum panel for that GPS thing to fit. The aluminum panel has a cut-out for the windshield post and goes pretty far back. Would definitely recommend checking for clearance.Quote:
Originally Posted by toadster
As for the O2 sensor, the manual from Ford actually says to not splice or do anything to the O2 sensor harness because it may affect the signal... haha I read that one after I did it too! :p
EDIT: Looks like John beat me to it!
Quote:
Originally Posted by JohnK
awesome thanks guys! I have other spots to put it, hence the zipties :)Quote:
Originally Posted by facultyofmusic
it's been SO long since I've seen that part LOL
also, the O2 sensor wires won't be modified, it's the wires that feed that O2 connection - that's not an issue THANKS!

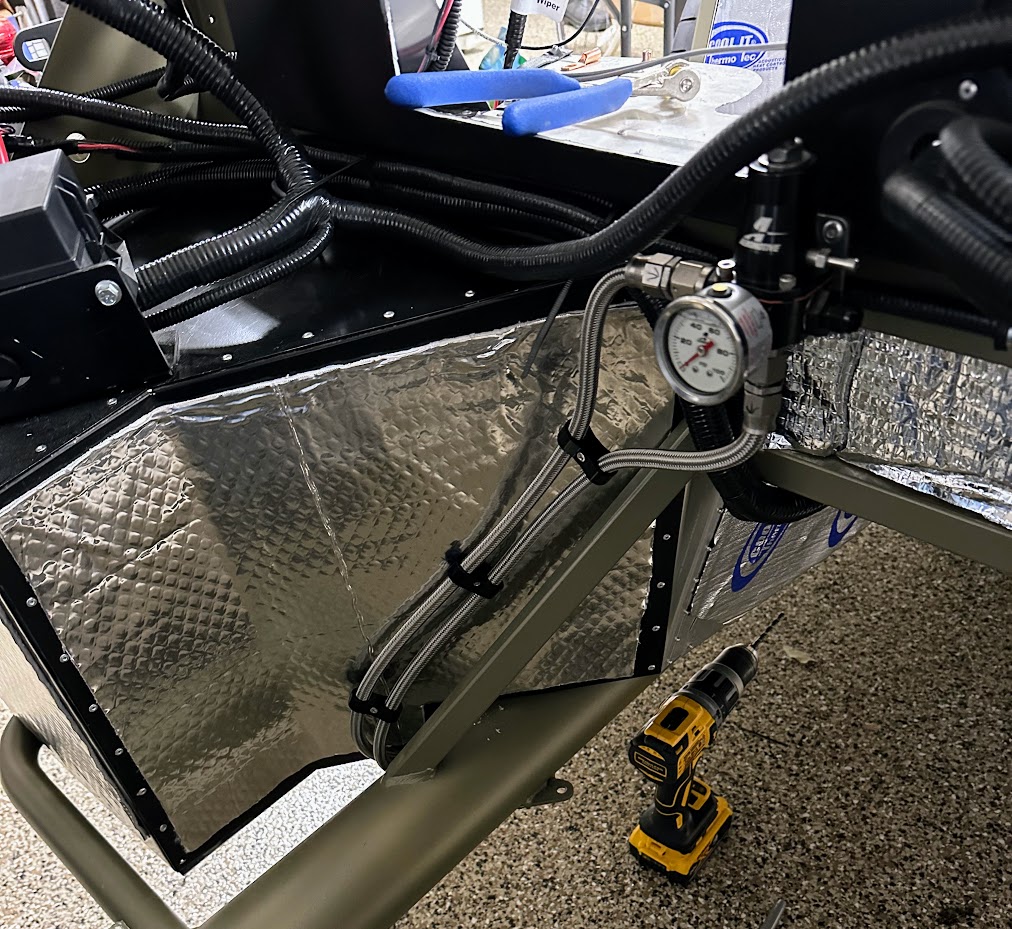

minor work in the past day, but attached the fuel pressure regulator in the engine bay, and tidied up the flex fuel line to the footbox
Attachment 174674
Looks Good! I was going to wait till I get the motor installed just in case. But that is the same location as mine.... eventually.
I wonder if that's going to be tough to see and work on. I know some folks like to set the fuel pressure and then replace the gauge with a plug since those pressure gauges may leak. Suppose one day you'll have to change out the return line for some reason; it will be tough to reach the bottom. However I've also seen others use about the same location.Quote:
Originally Posted by toadster
Just a thought. Great job so far!
Thanks Dan! Yes, everything is going to be tough to work on in this car to be totally honest :) this was about the only spot left on the firewall without going lower... time will tell :)Quote:
Originally Posted by facultyofmusic
Got to more wire dieting last night, finished up everything on the Coyote pre-install except for the 250A fuse

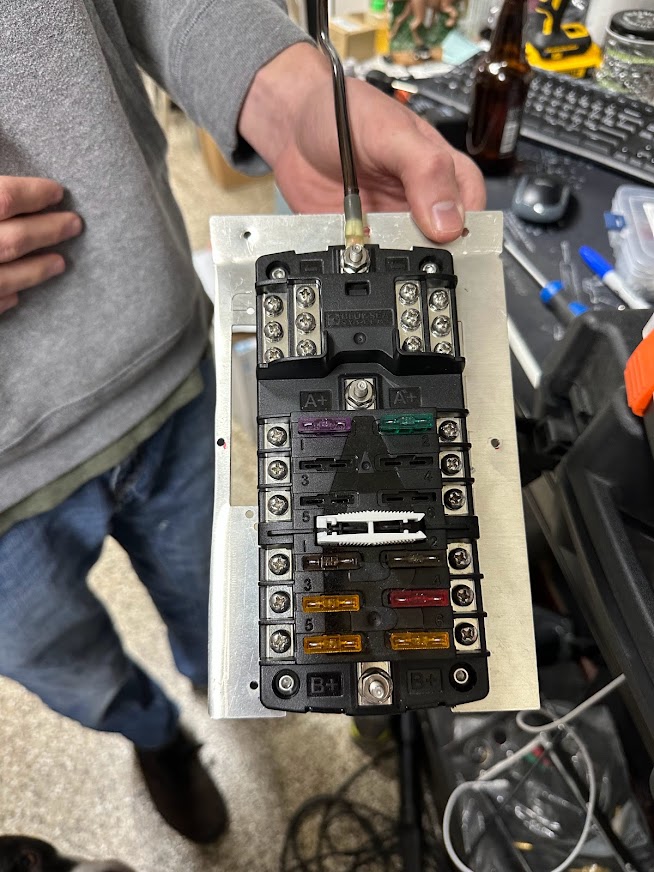

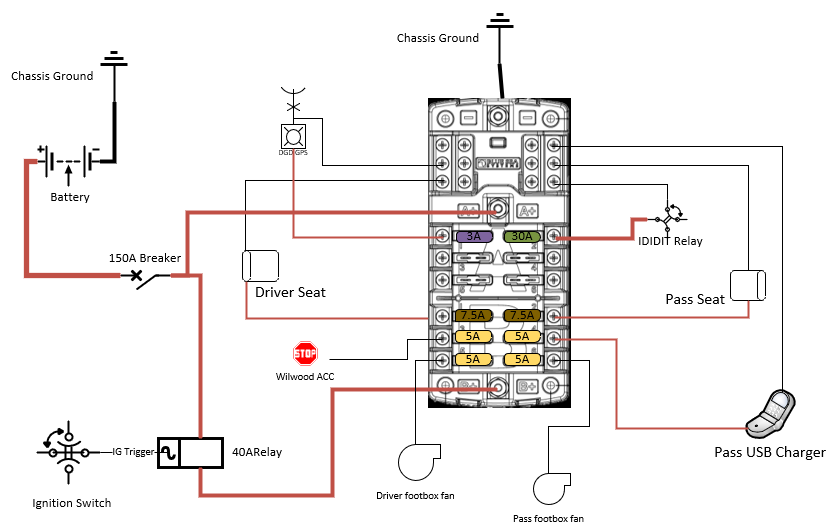

also installed the 2nd fuse panel, the top 6 fuses will be HAAT, and the bottom 6 will be keyed-on power
Attachment 174929
we re-used the 2nd fuse panel mount that came with the kit to mount the Blue Sea fuse panel
Attachment 174854

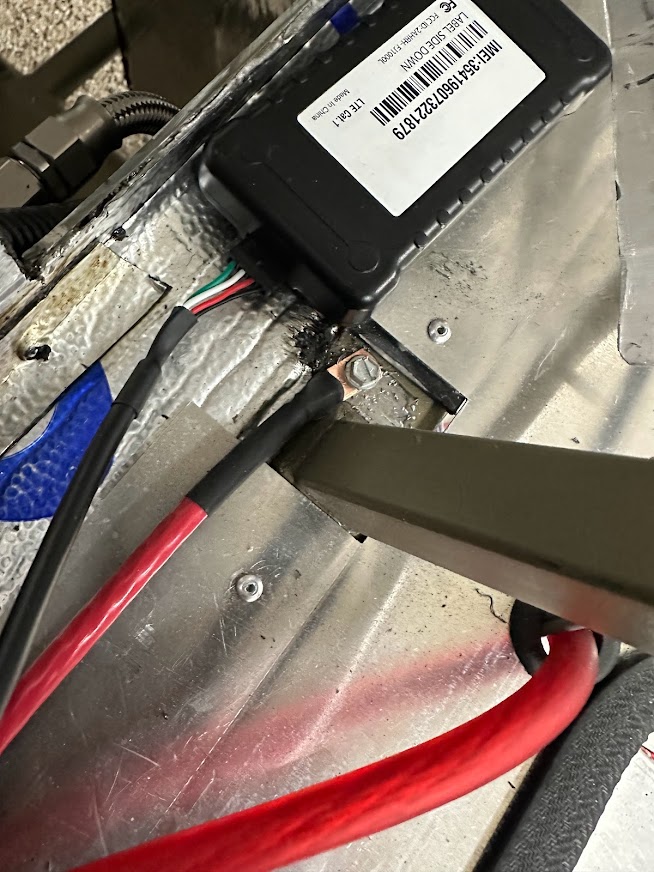

put in a good ground for our ground bus bar, tricky spot, but it's bare metal ground
Attachment 174855

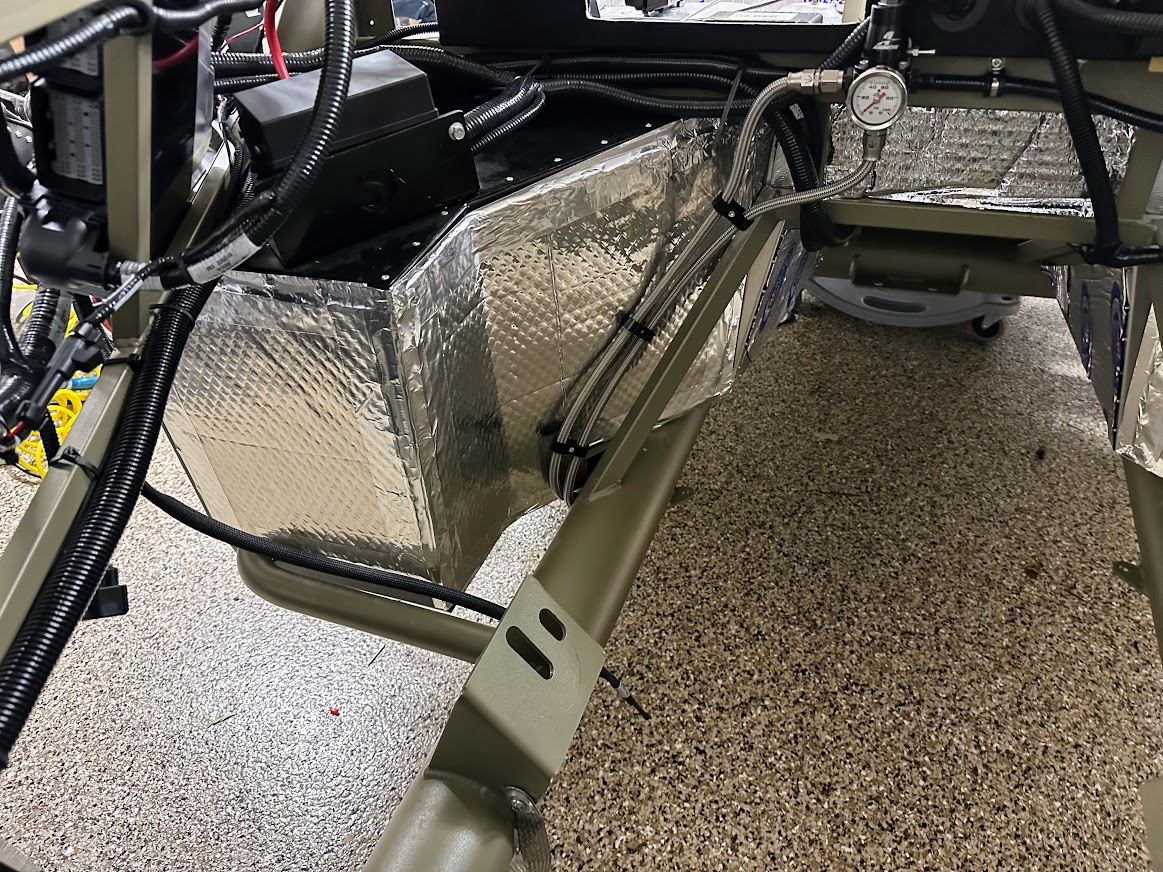

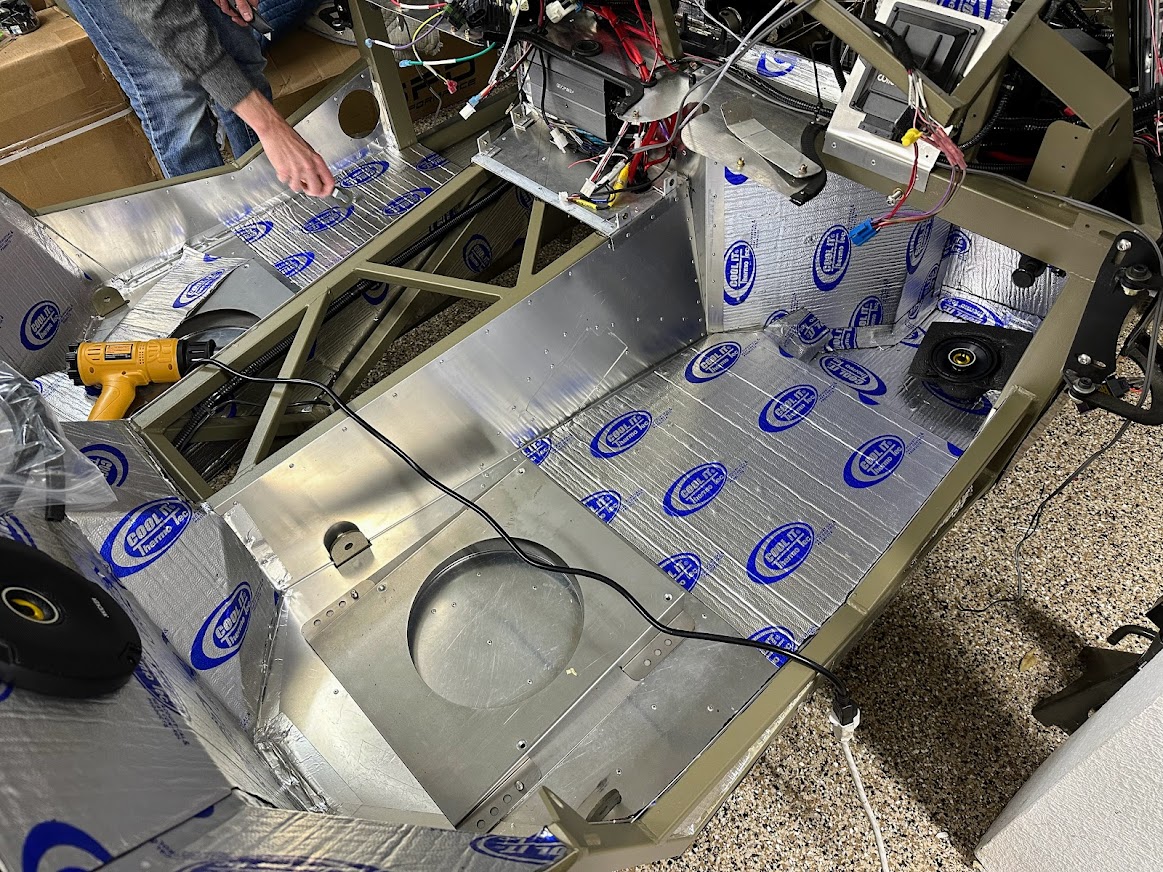

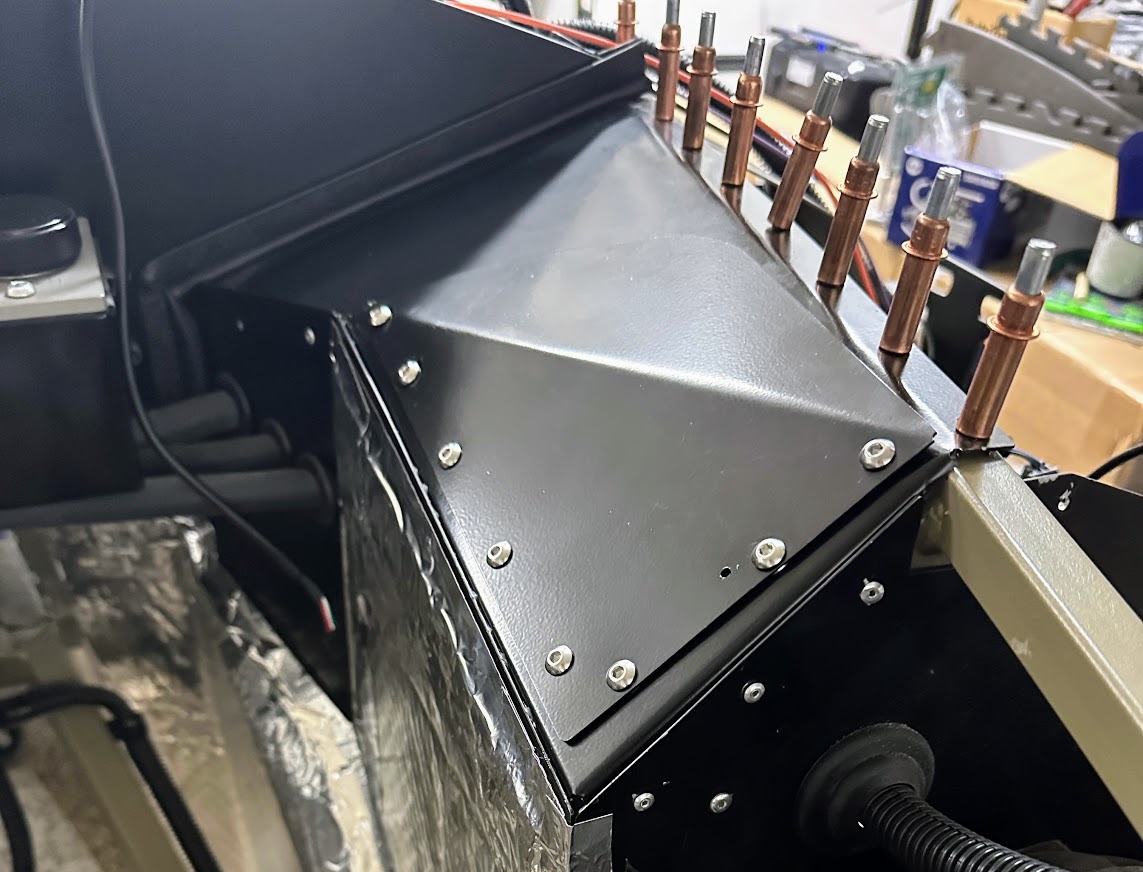

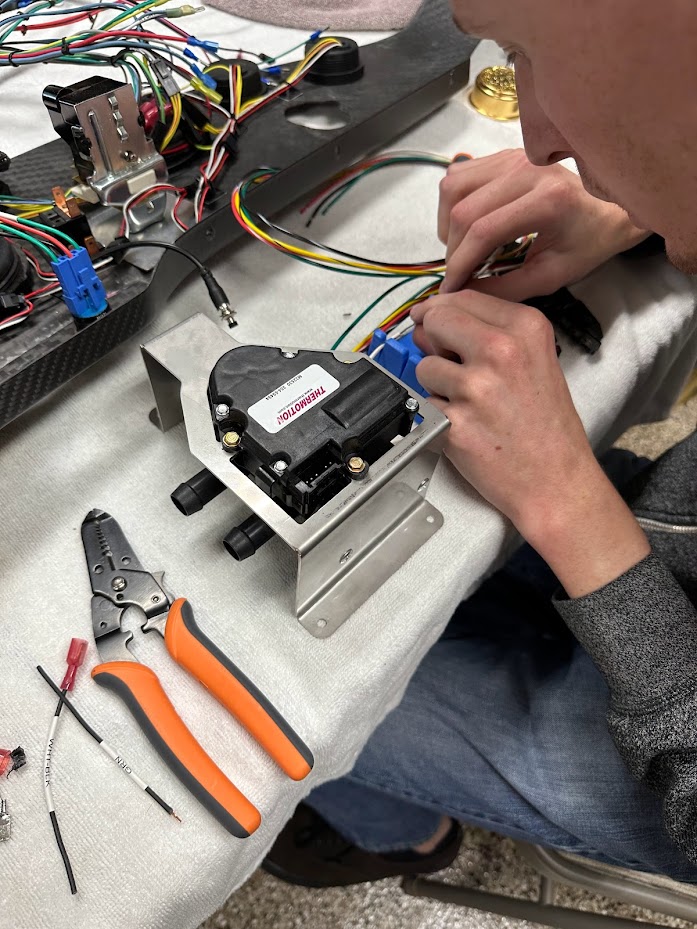

While my son was soldering connections, I went ahead and aluminum tape sealed the footbox Zero Clearance heat reflection panels from Breeze
not as clean as I wanted it to look but it's keeping it functional and sealed the edges from the rough cuts
Attachment 174857 Attachment 174856

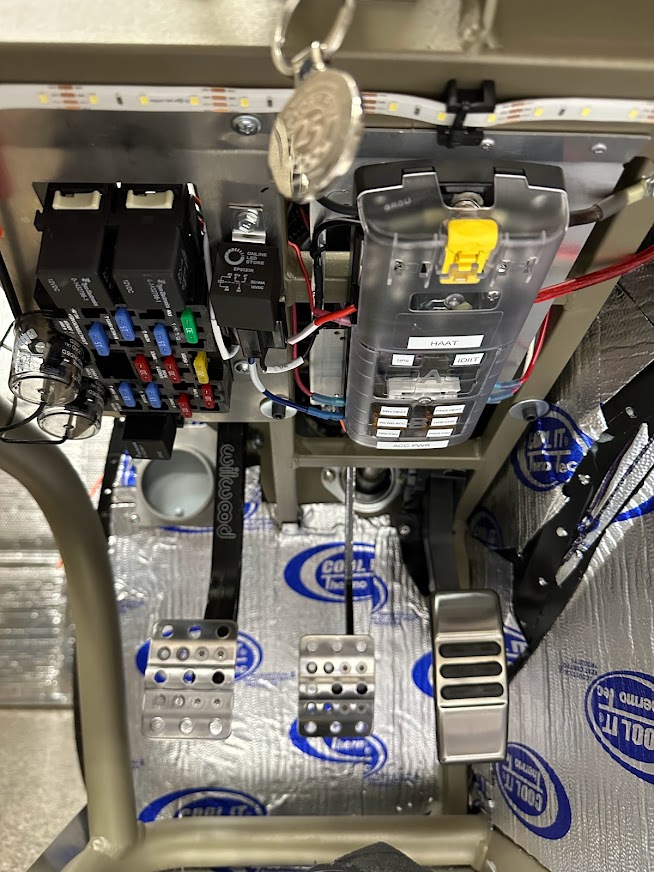

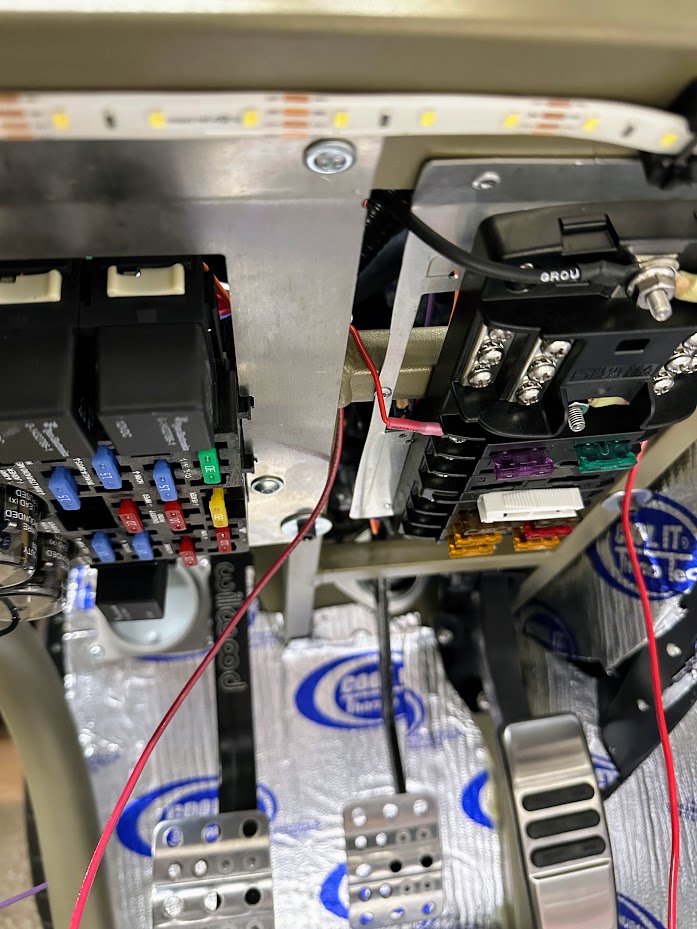

lastly, here's the fuse panel mounted under the steering wheel - still lots of wire to run to this! But I like the location, keeps everything in one area!
Attachment 174858

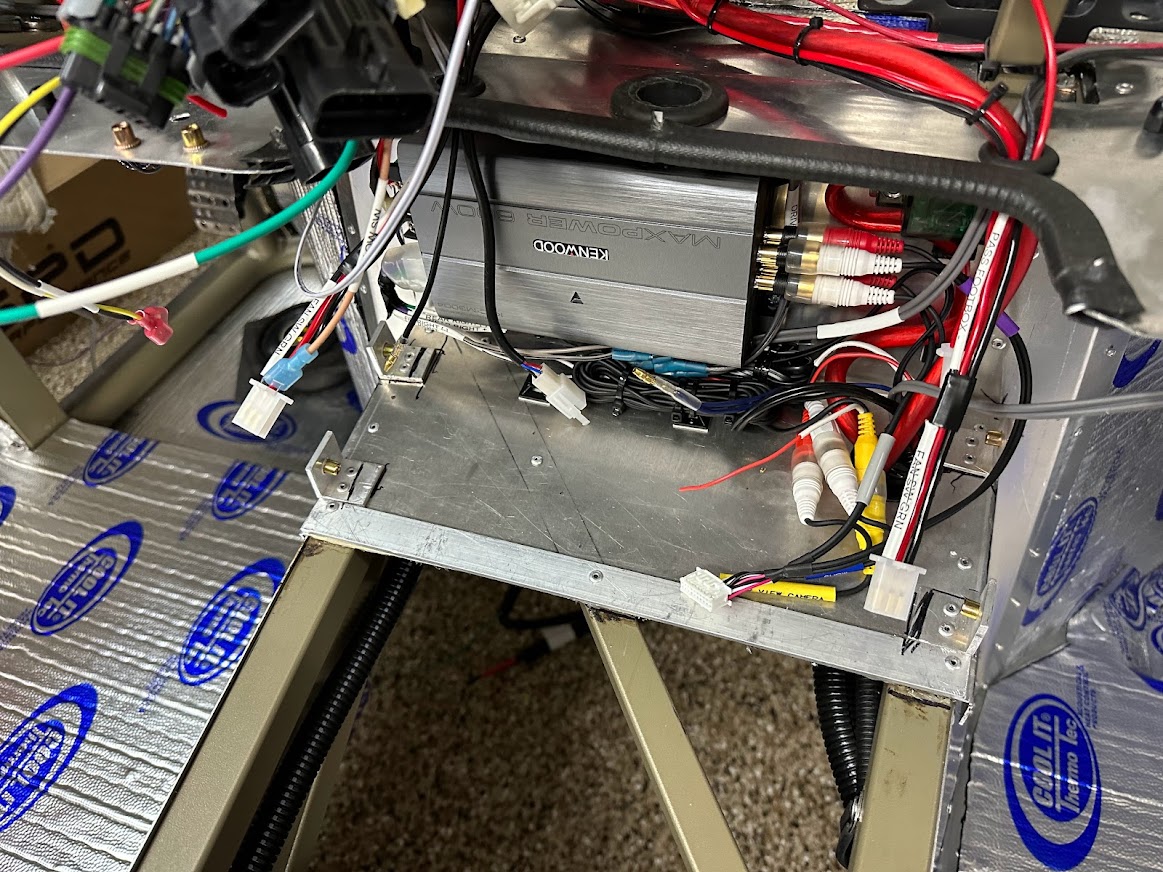

setup the 250A for the Coyote ECU, space is at a premium for sure! the 24" power lead should reach the starter with no issue from here
Attachment 174912

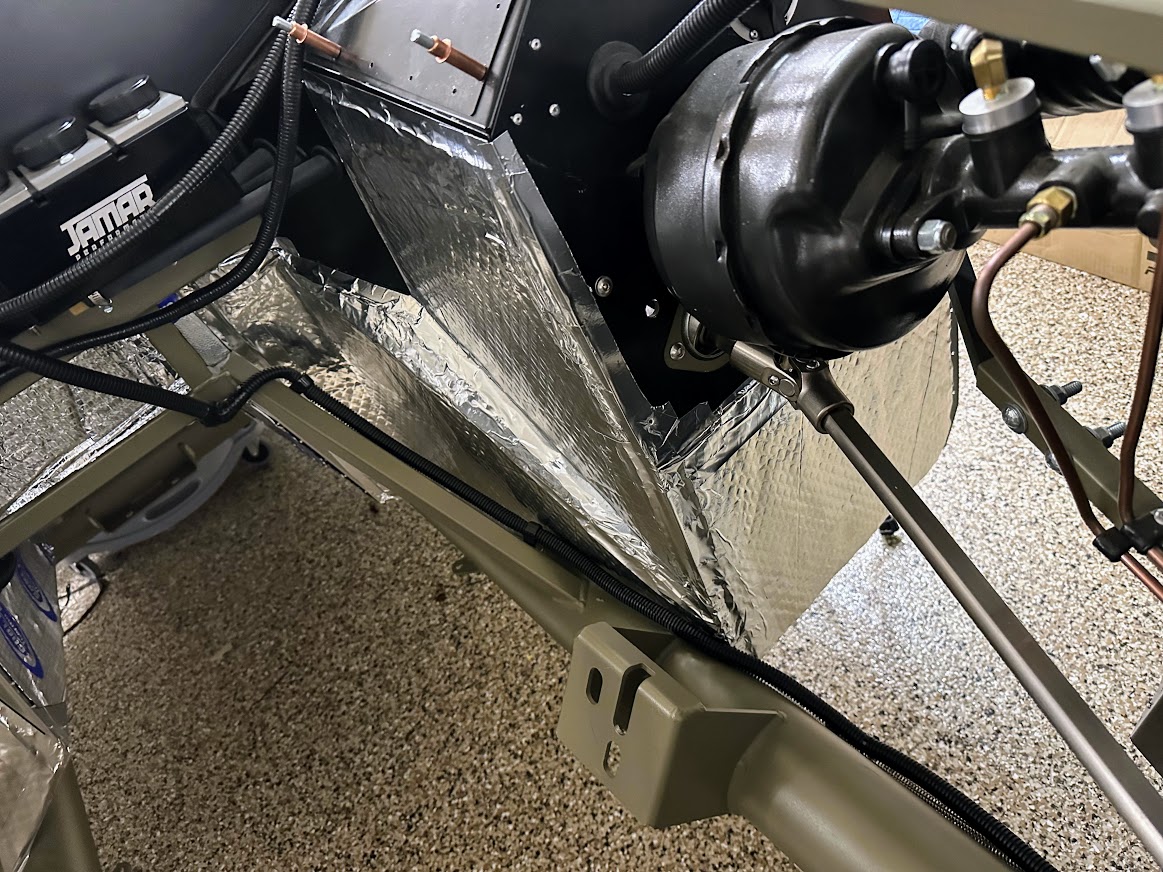

getting the center console disconnects done and laying out some thermotec to prep for running the heated seat wiring, keeping the Breeze seat mounts directly onto the floor
Attachment 174913 Attachment 174914
running more wires to the 2ndary fuse box and we added a relay to power the key-on power
Attachment 174915

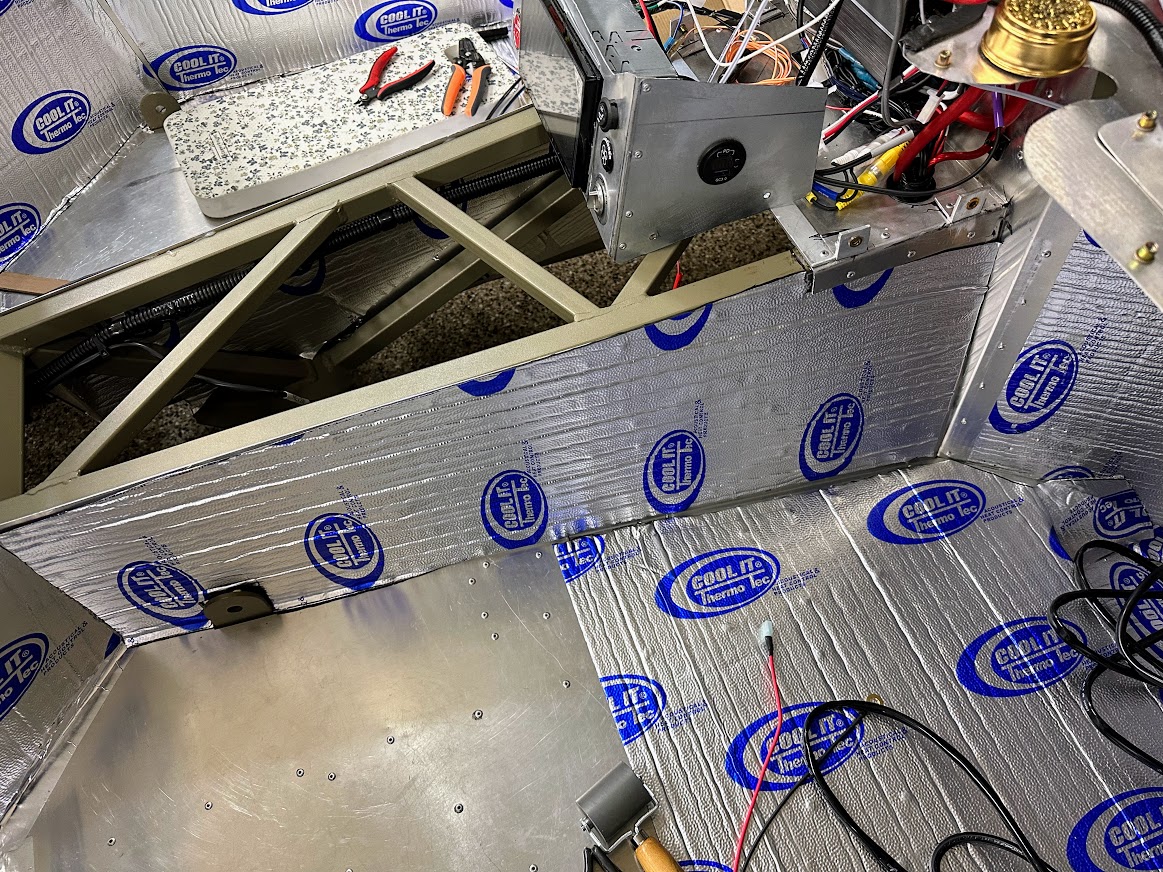

15 hours in this weekend on the car, doesn't look like much but dang we got a lot done!
Looking good Todd. I was wondering if you set your Breeze seat racks yet. They look pretty square to the door side where mine are more angled to match the trans tunnel. I have pre-set mine so I can go-cart, but won't fully secure them until the body is painted and secured.
no not mounted at all, just set in place for sizing for the thermo-tec, still need to run the wires for the seat heaters and they'll run in the corner of the trans tunnel and floorQuote:
Originally Posted by Ted G
similar setup to this, just we're mounting the breeze seats directly onto the floor, no thermo-tec as per the directions
Attachment 174933

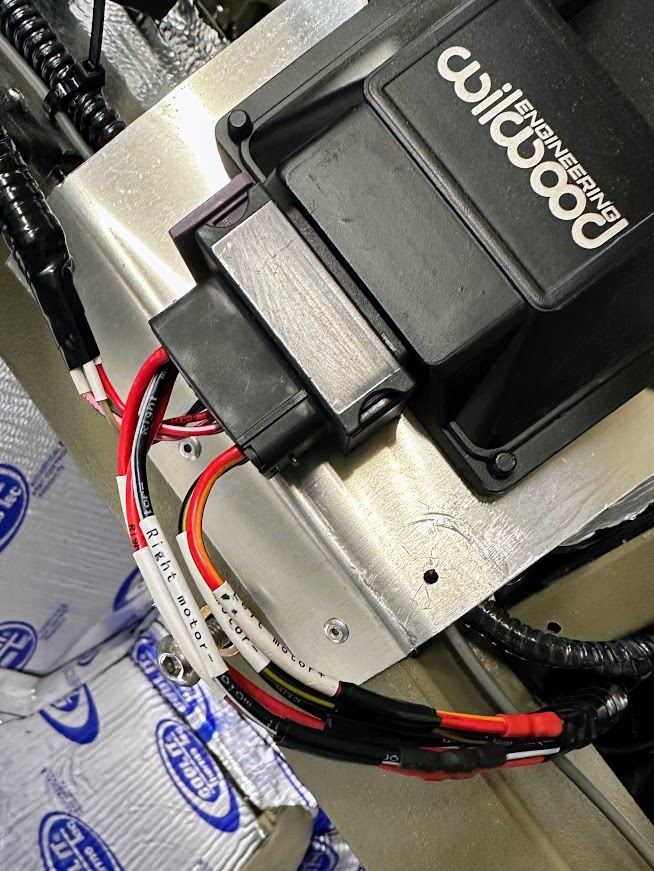

minor updates, my son wire-dieted the Wilwood brake setup to get the lines to the correct length to the lower dash pod, I think altogether it was about 30 solder joints, and 16-20 quick disconnect wires
You don't realize it until you're in the middle of it all but wiring takes a long time!
Attachment 174993Attachment 174994
While he was occupied with wiring, I did the rivnuts and button-head screws in the driver footbox top panel
Attachment 174995
at this point I think we only have the main power wire from the battery to run to the starter in the engine bay, all the Coyote pre-wire is done
We have to chase down a few more wires for the A/C-Heater setup but we're nearly ready to test fit the engine!!!
Sounds like a fantastic weekend in the garage, Todd. I'm looking forward to hearing your Coyote roar to life.
Looking good! I guess you'll need that engine hoist pretty soon eh? I'll get it back to you this weekend hopefully! Thanks goes out to Fman for the loaner X2.
a few more things while we prep for engine test fit...
Digging through all the wiring, we realized that there a few more items from the A/C and wipers that we needed to pull the dash and re-wire, we'll probably leave the dash off for a little while to do the engine-bay runs back to the switches

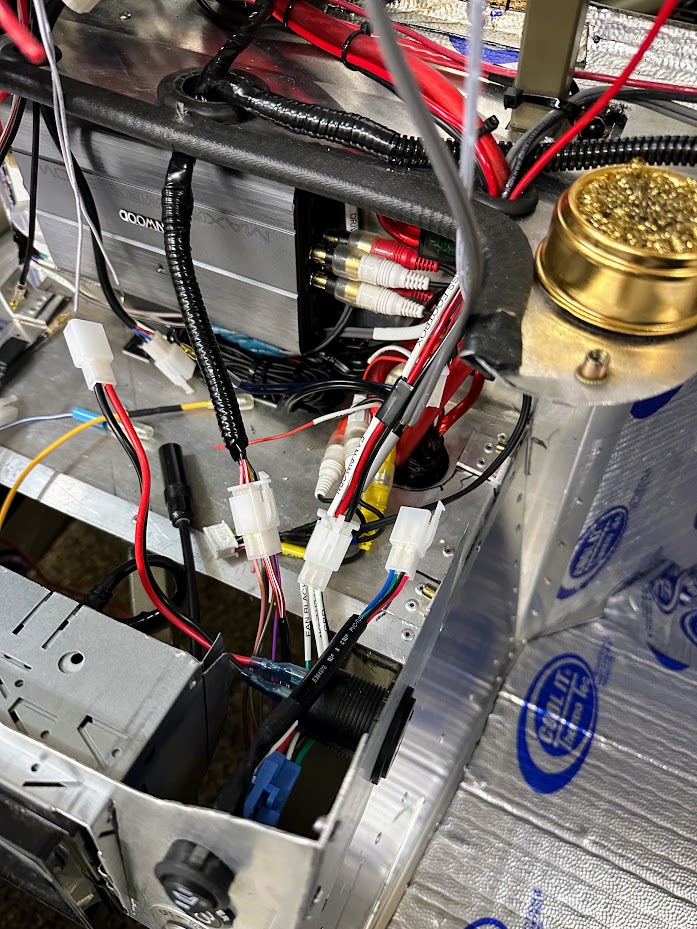

lots more wire dieting and soldering, thankfully my son loves to solder :)
Attachment 176165

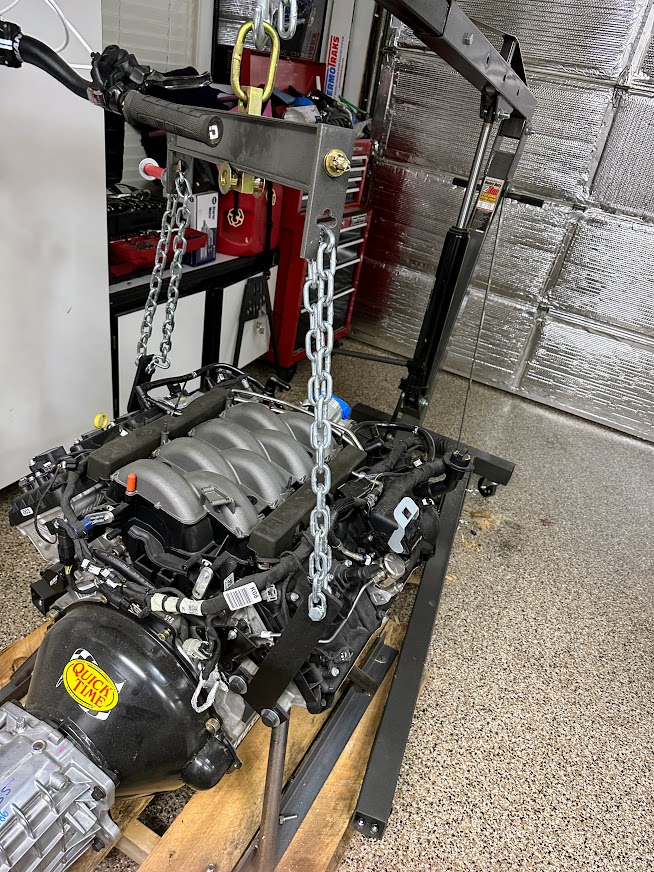

clearing out the garage a bit to make room for the hoist and a few local cobra guys to help with the engine test fit, expectations are that we'll have to pull the engine back out due to the A/C & Heater setup alignment
maybe we'll get lucky - but not expecting it to all work the first time...

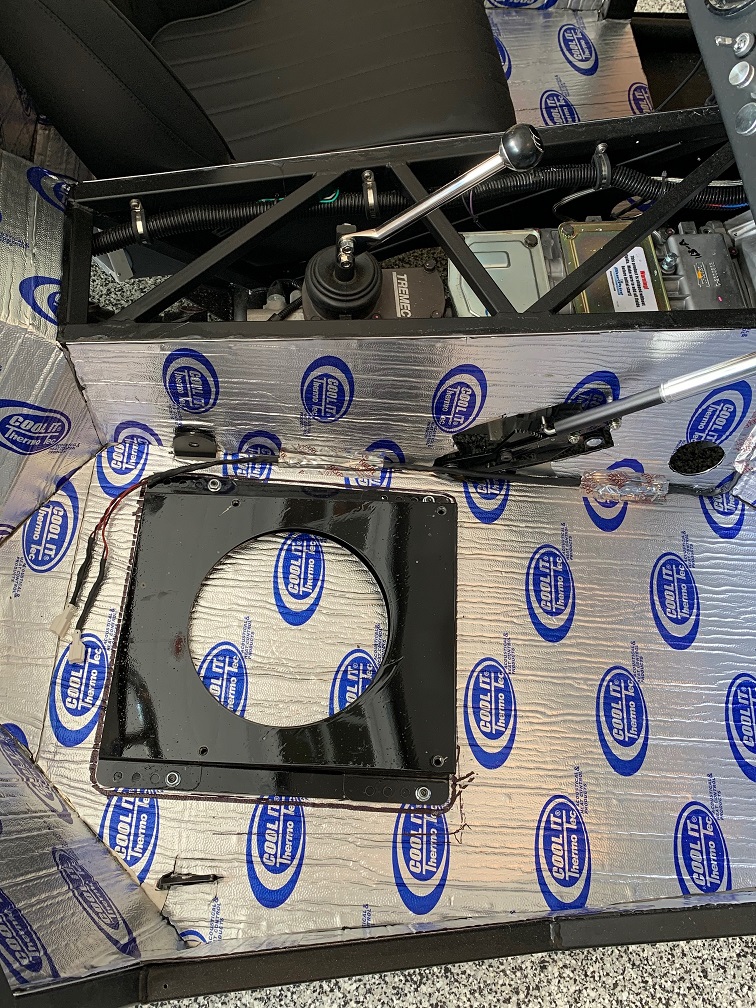

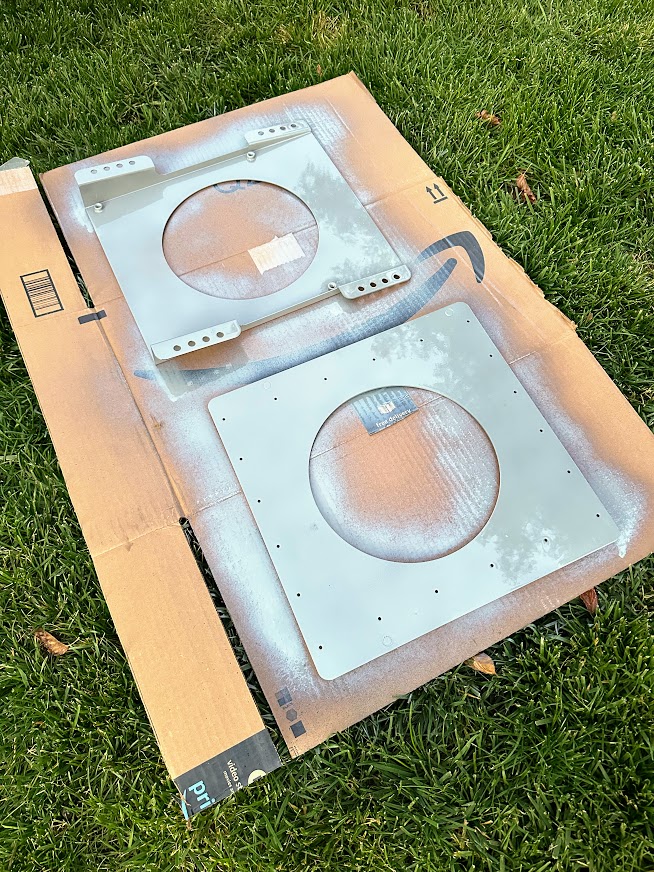

also prepping more cockpit items, spraying the seat frames to minimize rust, and the last bit of Thermo-Tec on the transmission tunnel
Attachment 176166 Attachment 176167
Also ran the relay and wiring for the fog light setup, upgrading from the H3 55W to LED
Attachment 176168 Attachment 176169

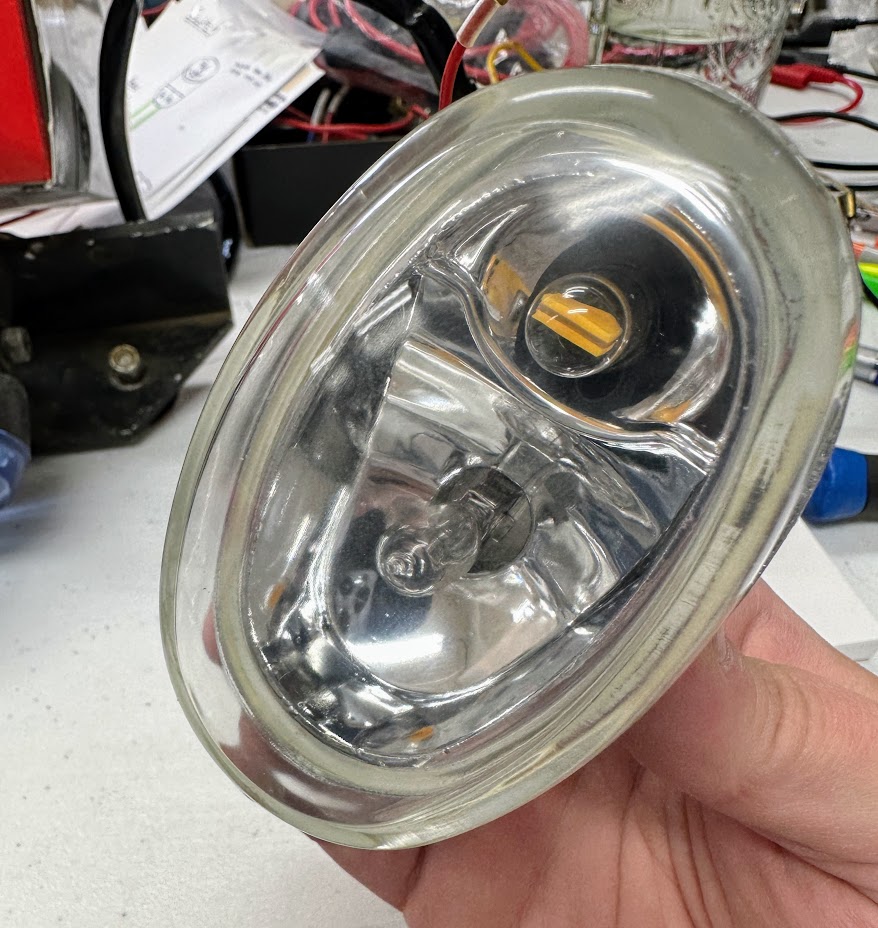

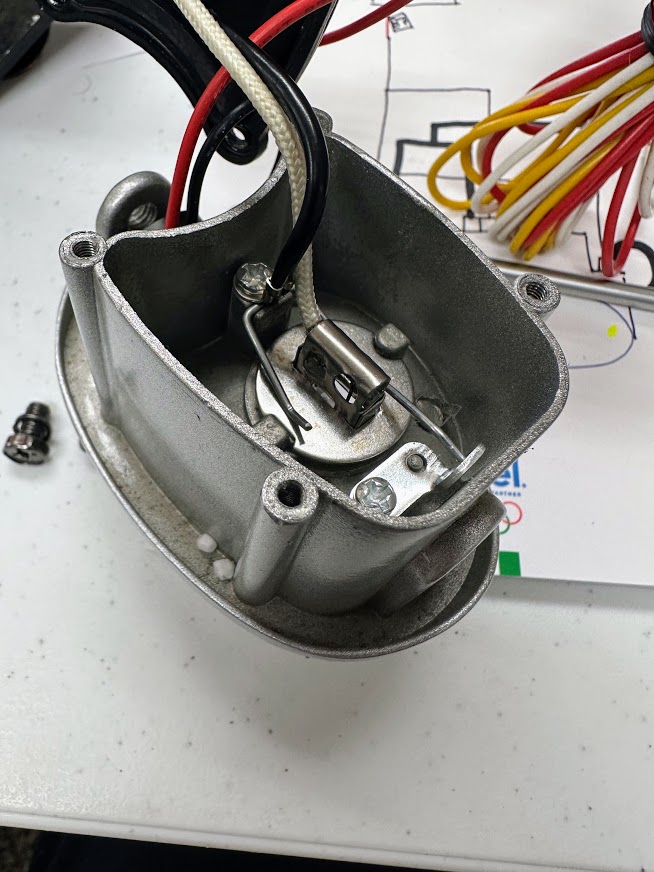

I then realized that you need a h3 pk22s base which is a flat base, many LED H3s have a thick collar, so I ordered new ones from SuperBrightLEDs
https://www.superbrightleds.com/h3-l...ens-cool-white
the side markers are Alla Lighting Miniature 168 194 LED Lights Bulbs T10 Wedge Super Bright Amber Yellow Interior/Side Marker Lights 194A 194NA 2825 W5W 192 158

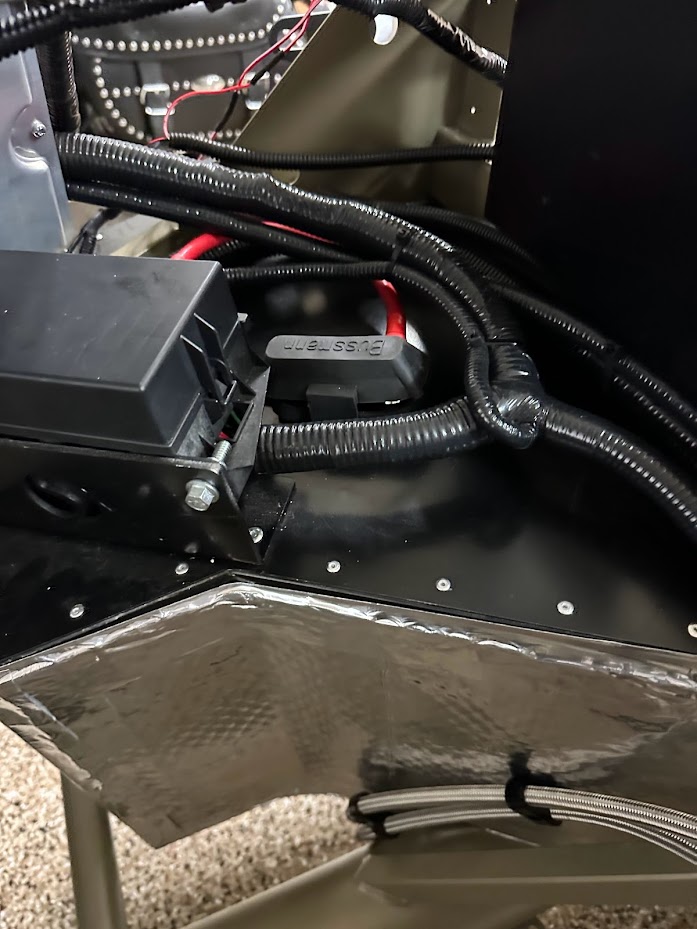

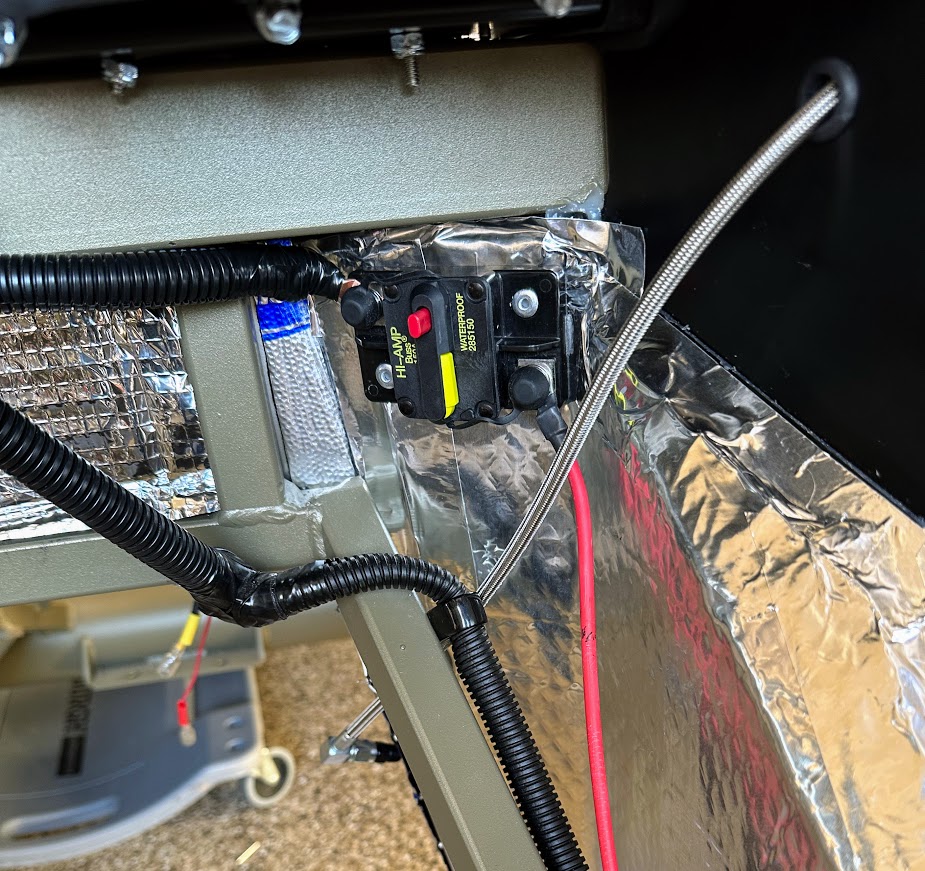

getting a few more items done, placed a 150A breaker in the engine bay for alternator circuit protection, cheap $40 insurance for what could be a big $$ issue
also ran a grommet for the hydraulic clutch line, length TBD once we test fit the engine, I'll seal up the alternator line once we get a good length on the line
Attachment 176257

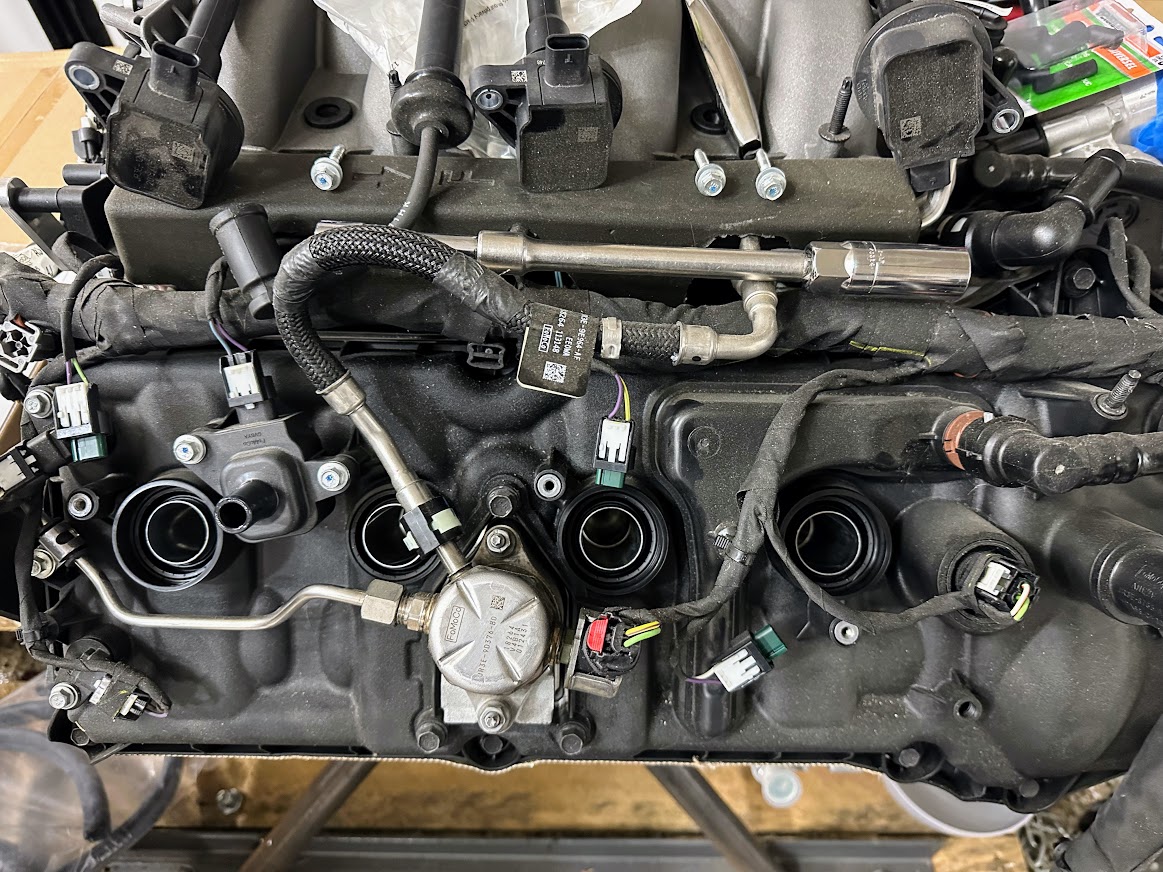

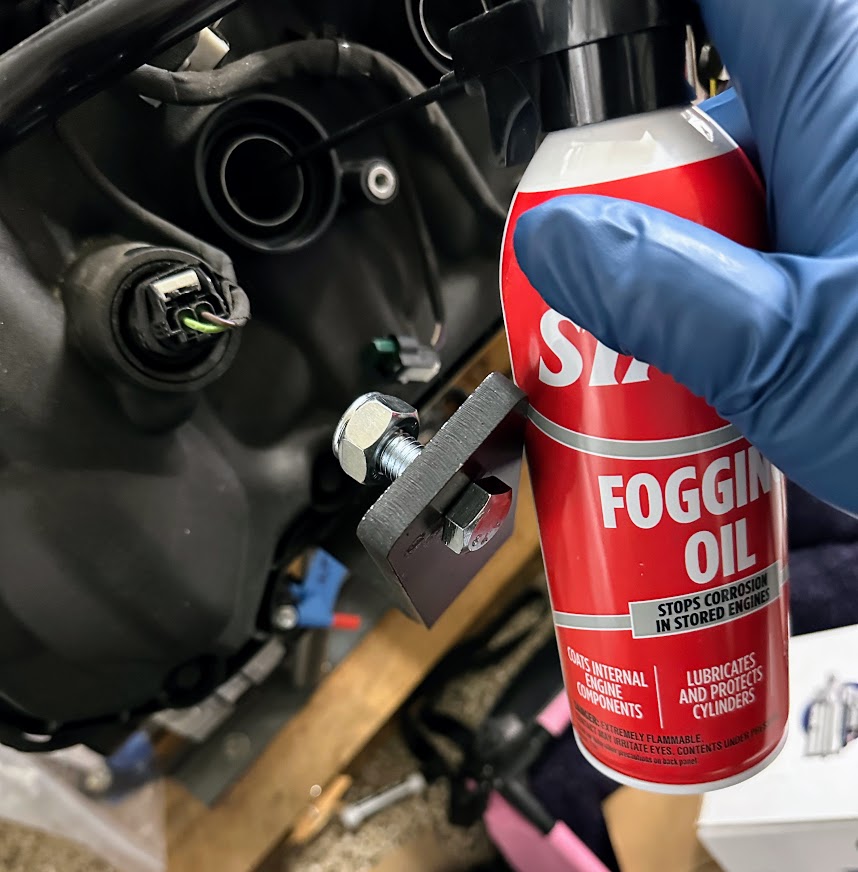

since the Coyote has been sitting for a bit, I chose to use some Sta-Bil Fogging Oil to coat the cylinders a bit, hand spun the engine about 10-12 times

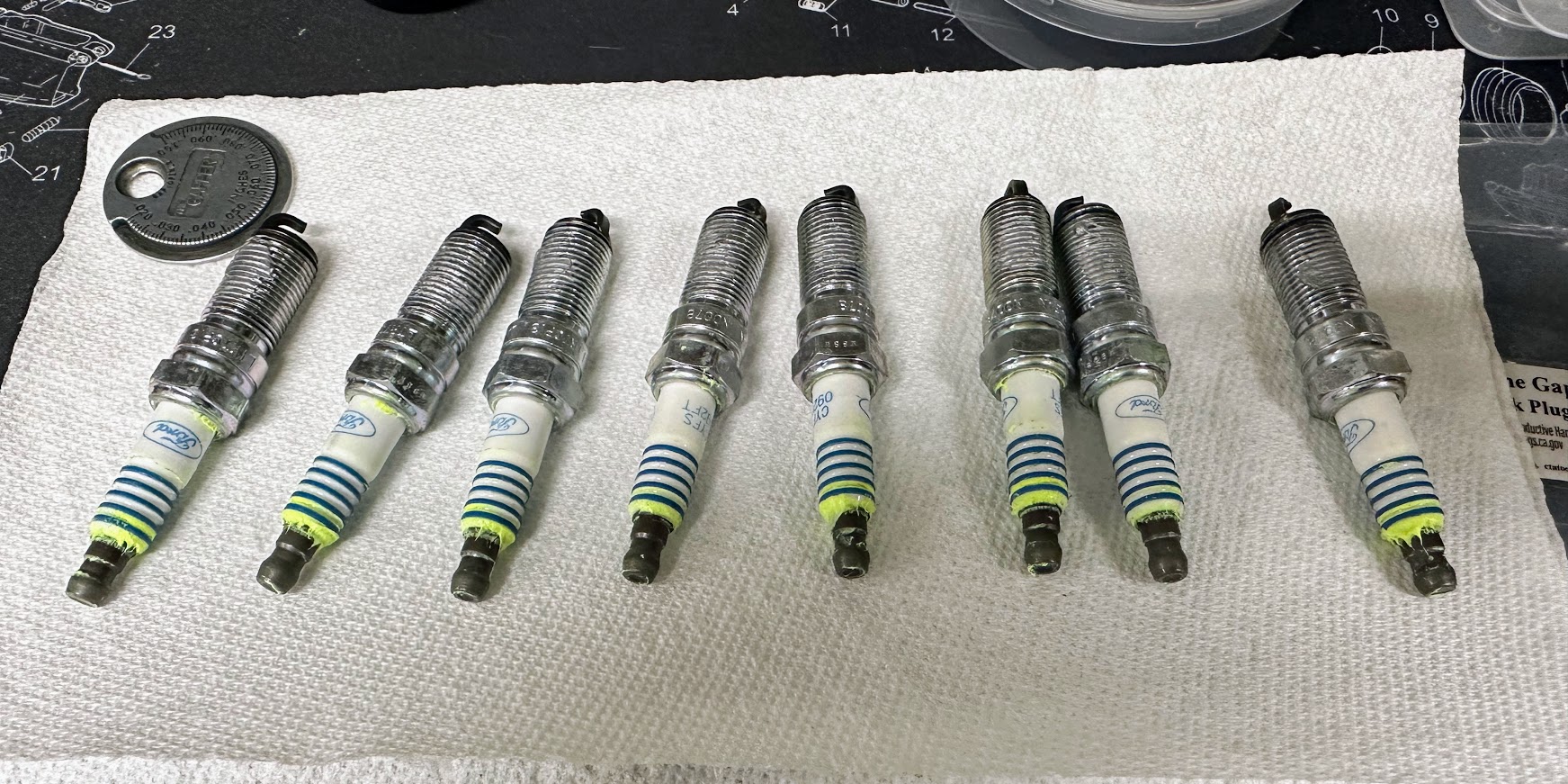

was also a good opportunity to check the spark plugs for proper gap
Attachment 176258 Attachment 176260 Attachment 176261
getting the garage ready tonight, and hopefully the weather won't be too bad tomorrow for a test fit of the engine!
Do not use that gauge to open the gap on your plugs, if needed.
Read up on gapping plugs and make note about the precious metal tipped ones.
It is not so surgical, but a lot of people pry on the electrode to open the gap, BAD.
agreed, it was only to check the gap - they were all spot on, just wanted to verify - you never know when a tech will accidentally bump one when assembling :)Quote:
Originally Posted by Railroad
Can't wait to help you install this thing!
Almost there, Todd. Not sure if you got your hydraulic clutch line from Forte, but I did, and routed very similarly to yours and the length is perfect. Looking good.
Man you bit off a lot with your build, but not more than you could chew - way to keep chugging along, Todd.

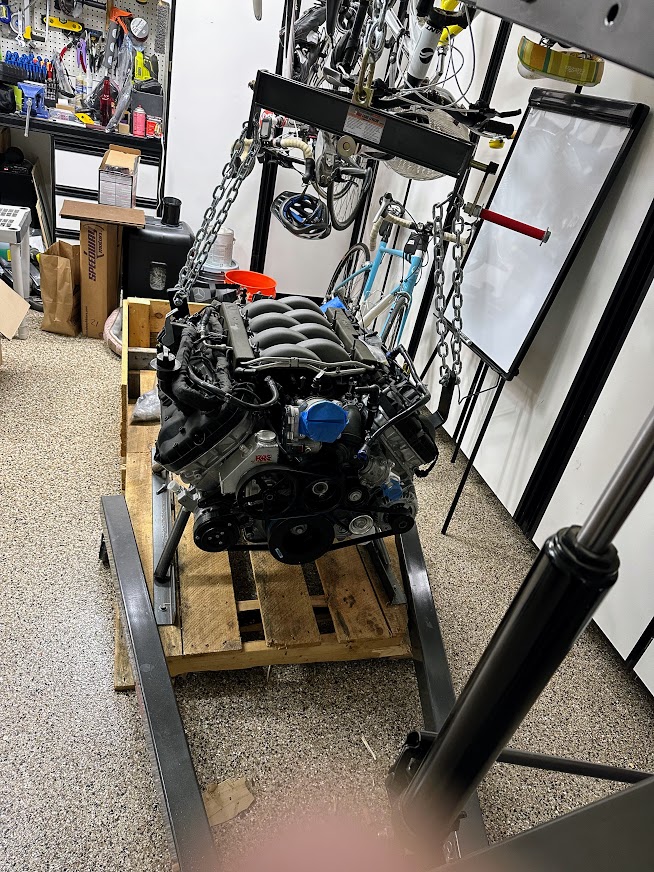

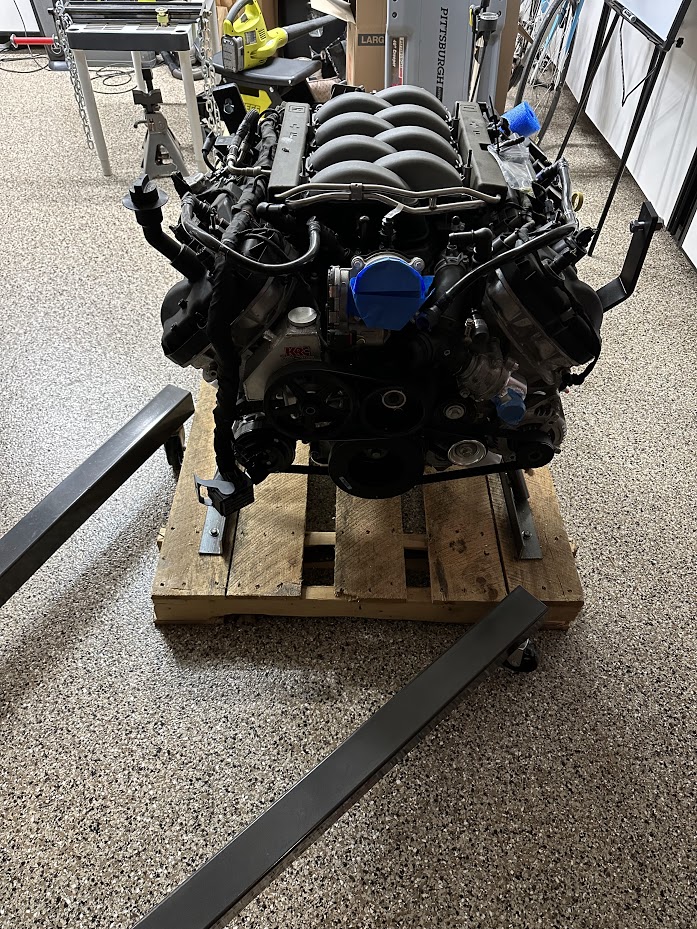

I took a day off Friday to get the garage a bit more organized and see how the engine would come off the pallet, never ran into this before, but I haven't use an engine hoist in over 30 years - let alone, one with a new crate motor on a pallet

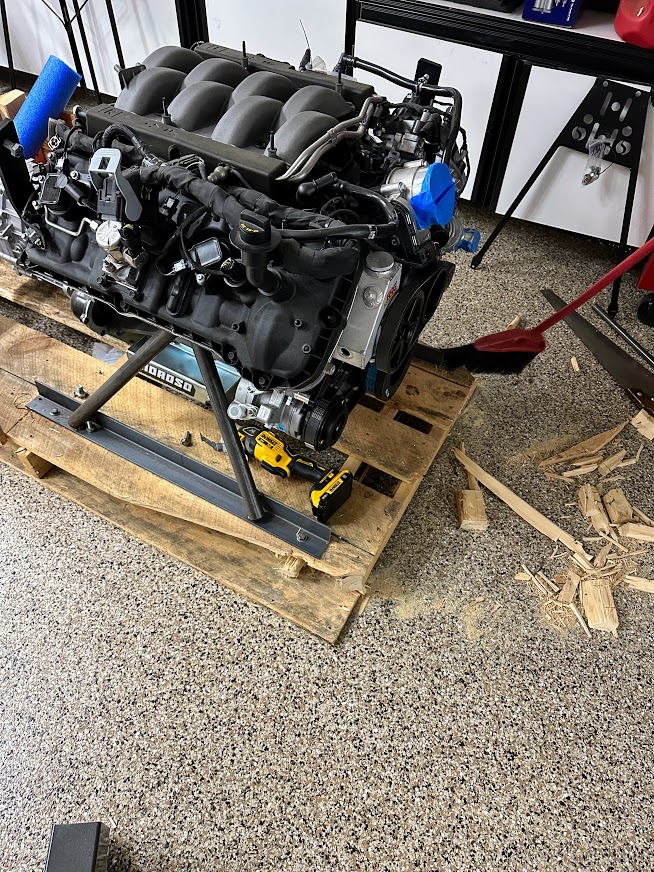

the pallet wood itself is too wide for the legs of the engine hoist, so not only are we doing a custom build, but had to customize the pallet to get the engine on the hoist :)
Attachment 176352 Attachment 176351 Attachment 176350 Attachment 176349

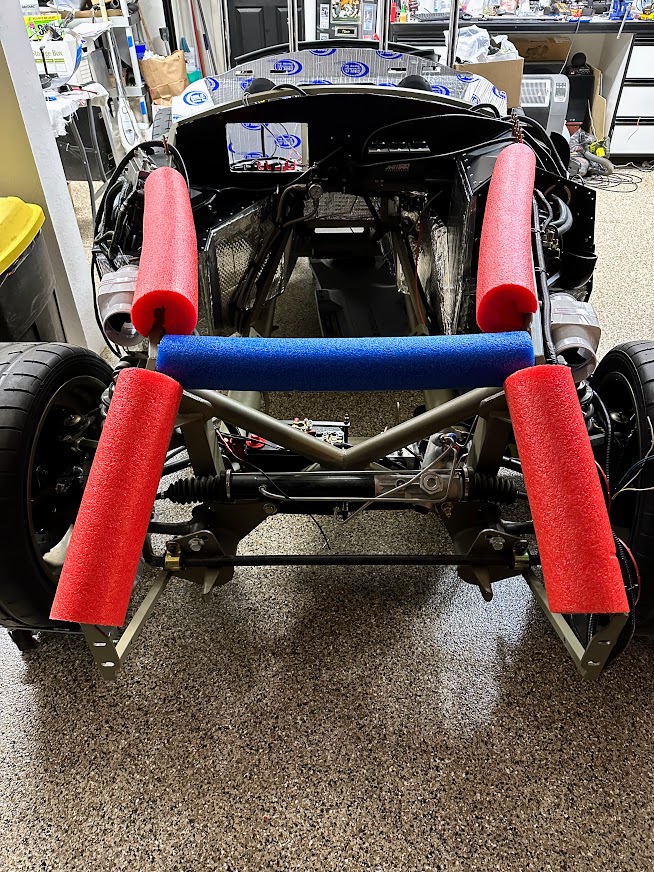

what fun is that!? The legs now were situated to the point where the end of the hoist was over the center of the engine which allowed us to test lift and check on clearance, etc.
next, I prepped the engine bay, removed the steering arm, removed the radiator, and used some HUGE pool noodles to protect the engine bay a bit
Attachment 176355

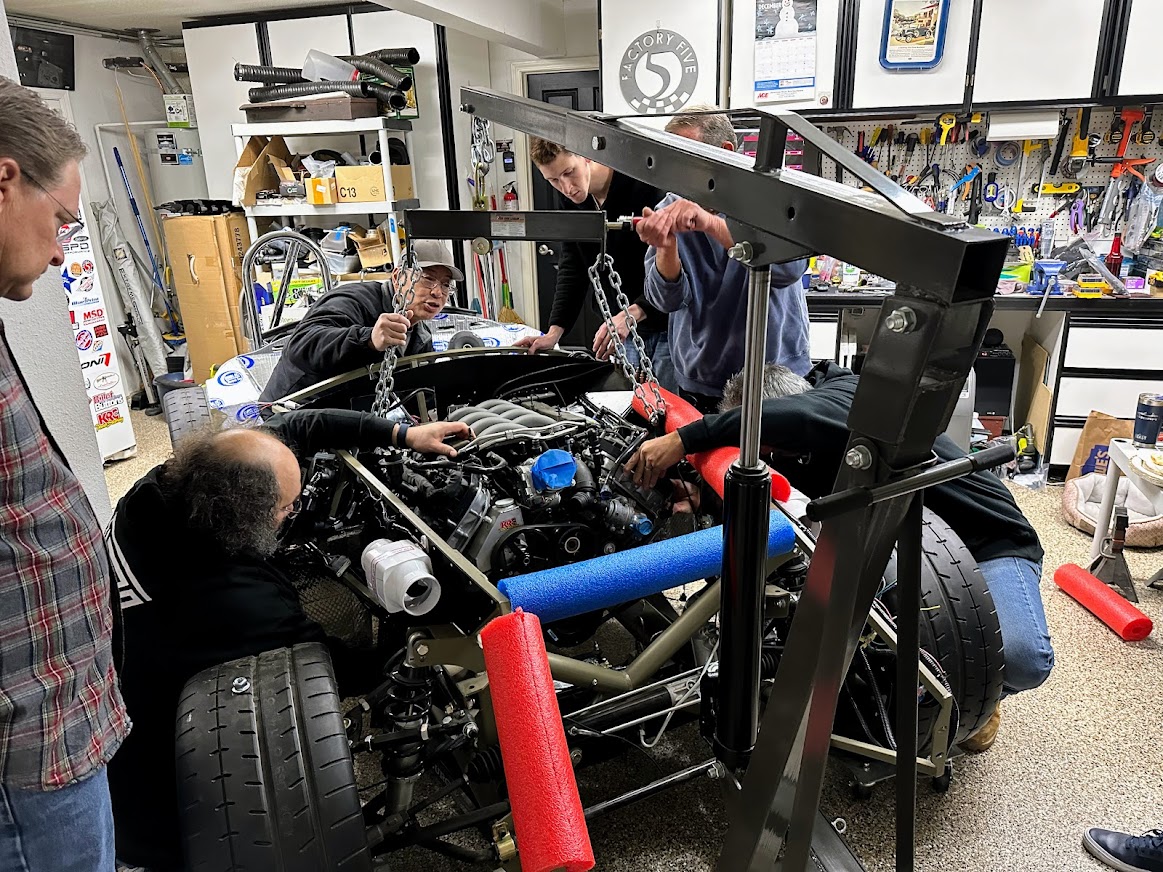

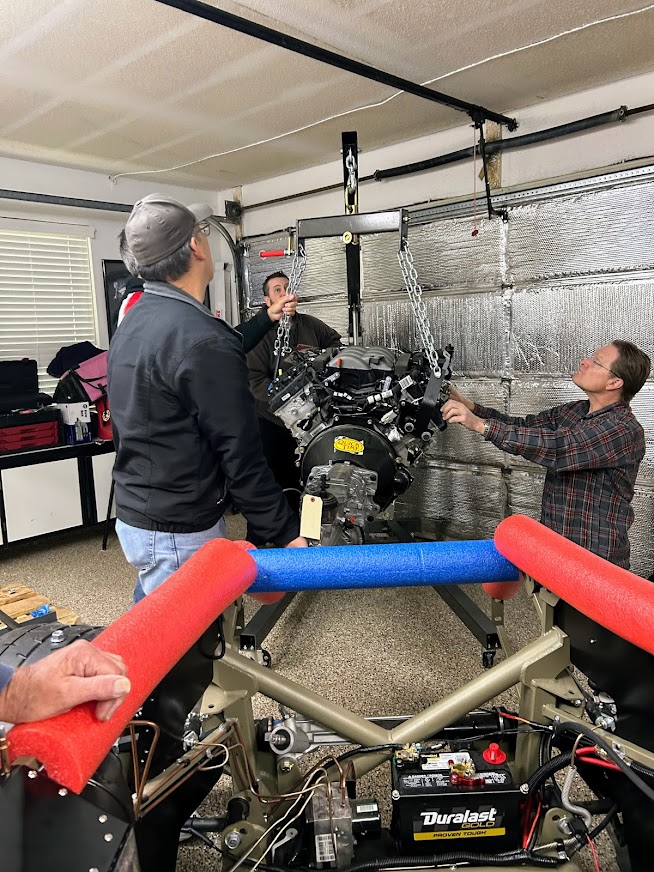

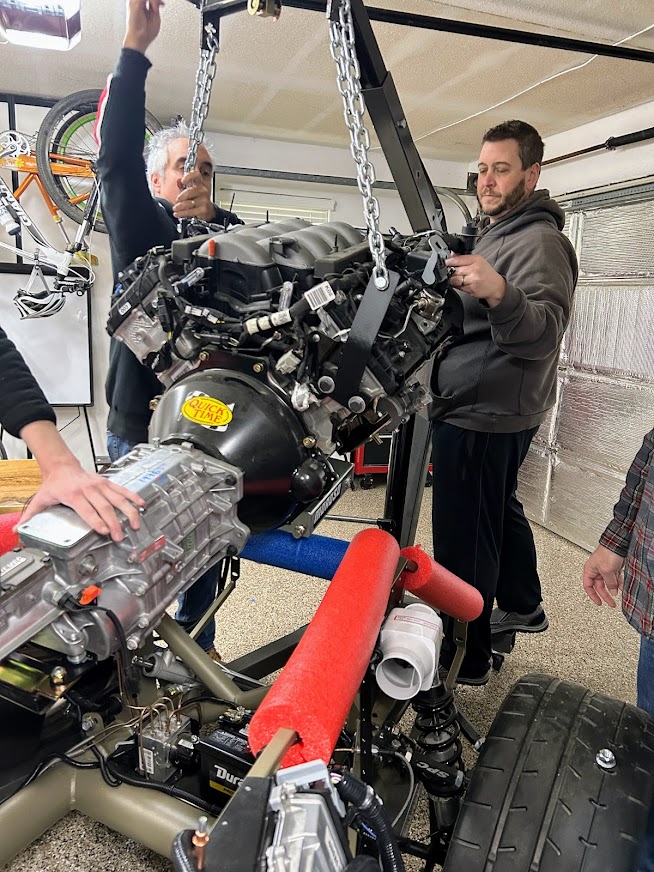

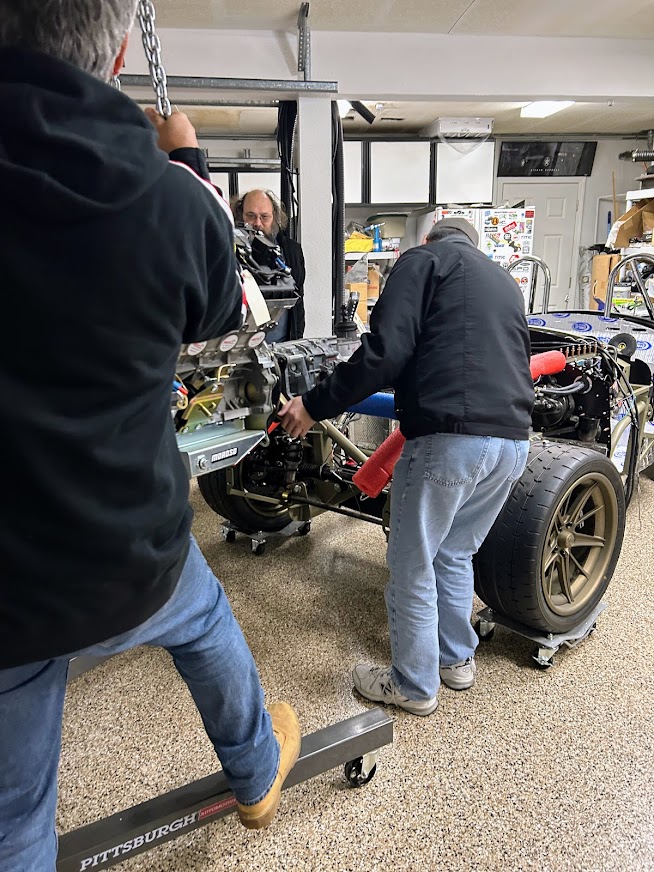

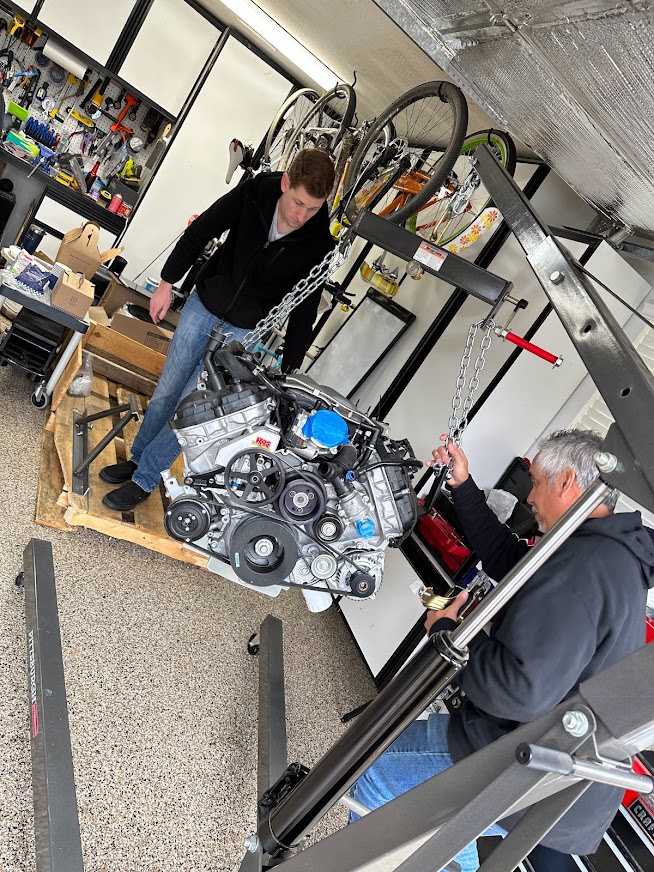

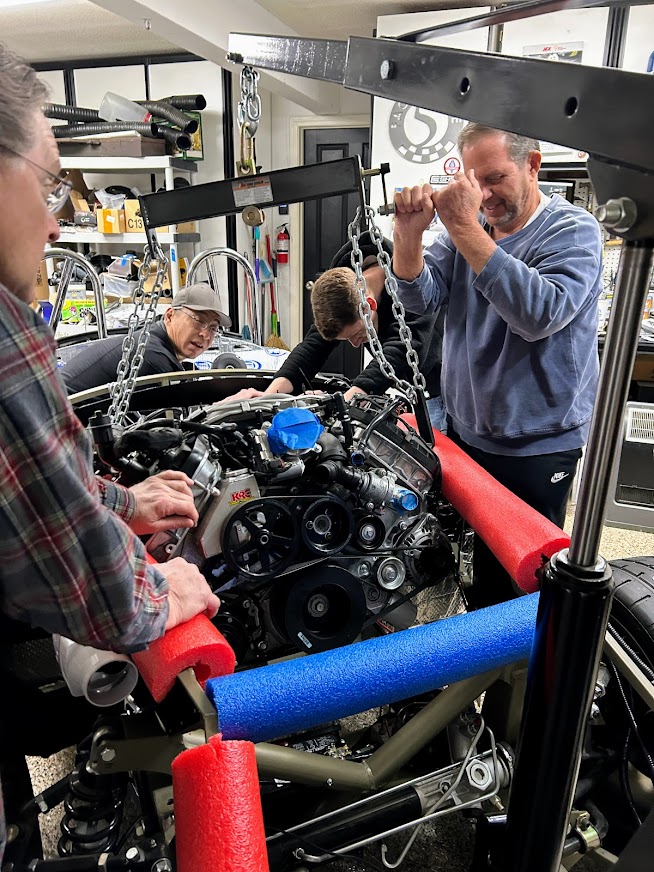

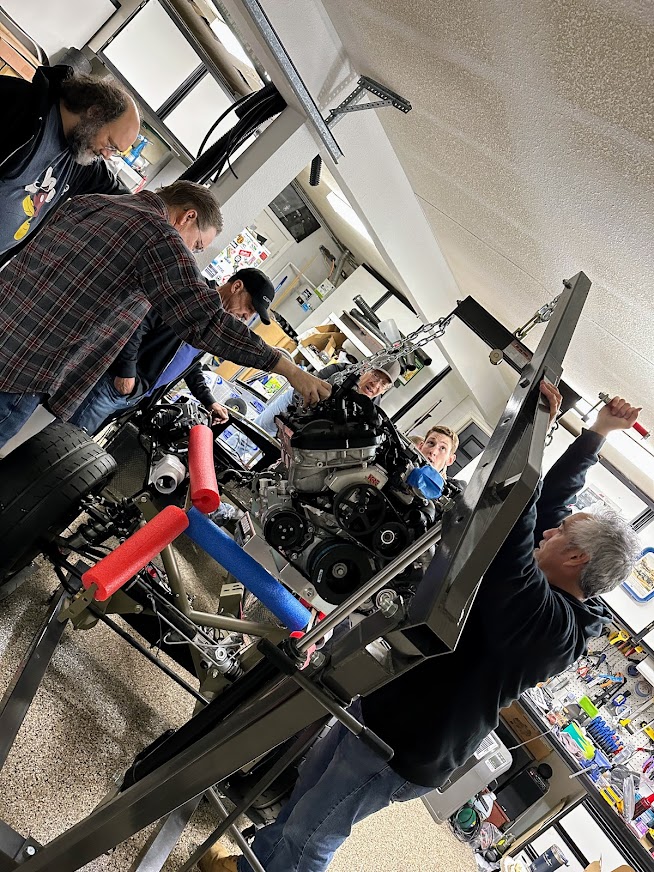

Saturday was an amazing day - some of the local Sacrament FFR crew showed up for bagels and coffee... oh and to help STUFF the coyote in the engine bay!
Attachment 176364 Attachment 176365 Attachment 176356 Attachment 176357
Attachment 176358 Attachment 176359 Attachment 176360 Attachment 176361
Holy Smokes! Just a surreal feeling!

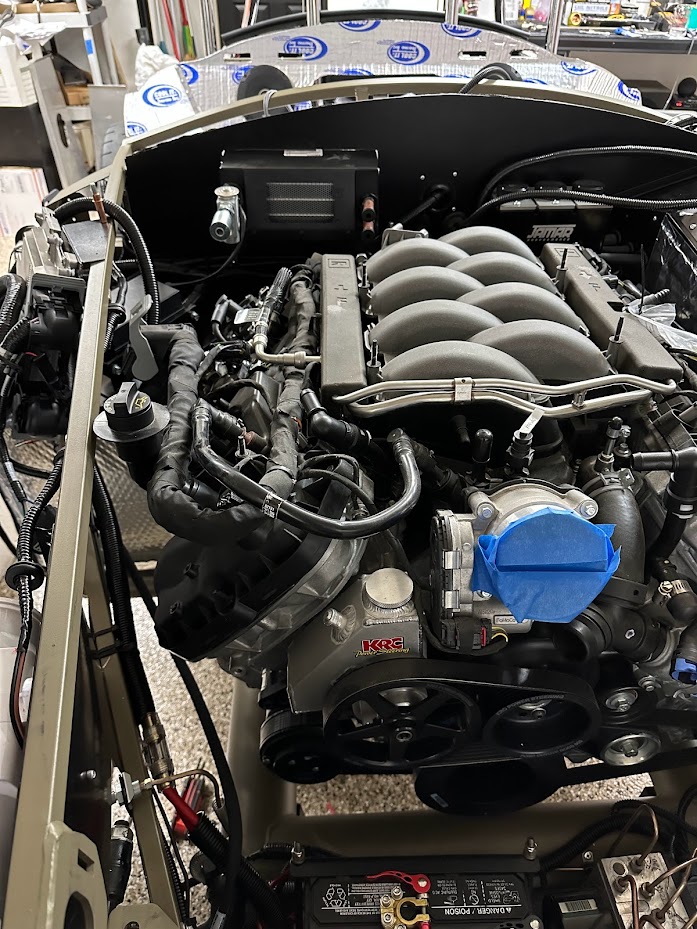

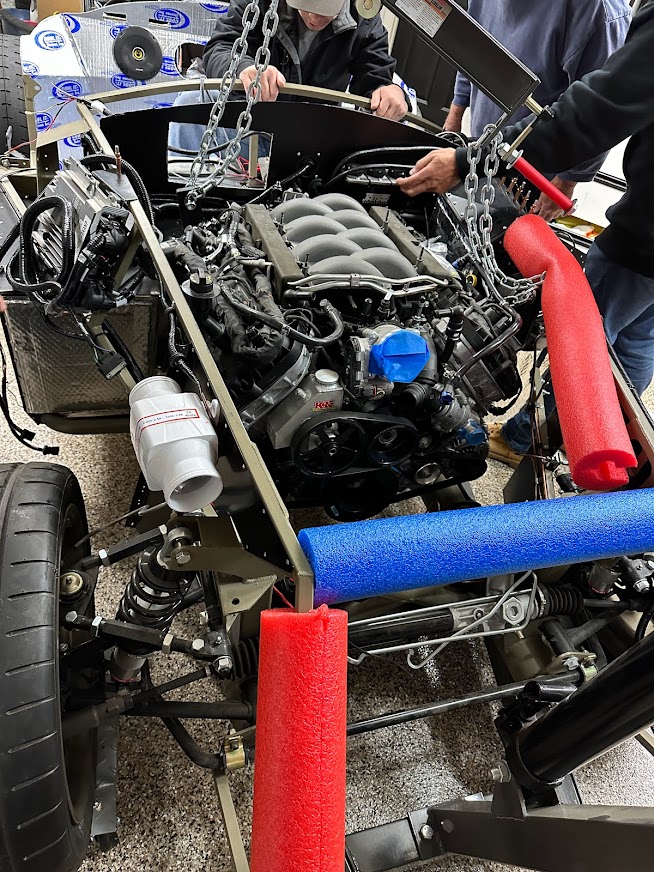

here's a few more pics to show how tight that coyote really is in the engine bay!
I need to figure out the oil filler - it's flush against the passenger rail, probably a disassemble, and mount on the head?
Attachment 176366

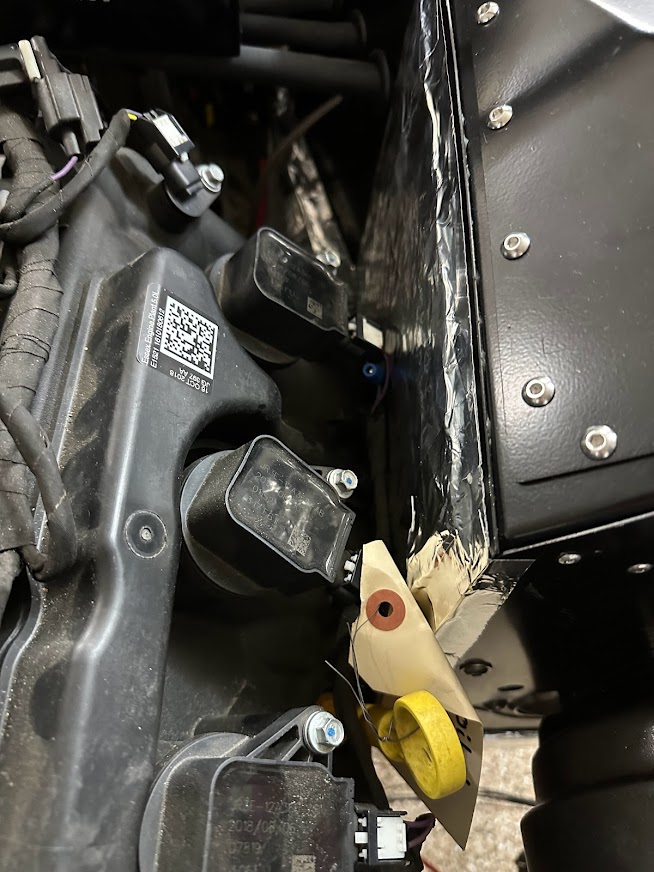

the driver side zero clearance insulation is right up against the spark plug wires, folks aren't kidding that it's about 1/4" clearance to the footbox...
Attachment 176367
the team was amazing! Such a great group!!
Attachment 176368
after a few hours, the team left and my son and I were mounting the A-frame and torquing bolts...
things went well until the passenger size engine mount... yes, that's a grade8 bolt that snapped off!!
Attachment 176369

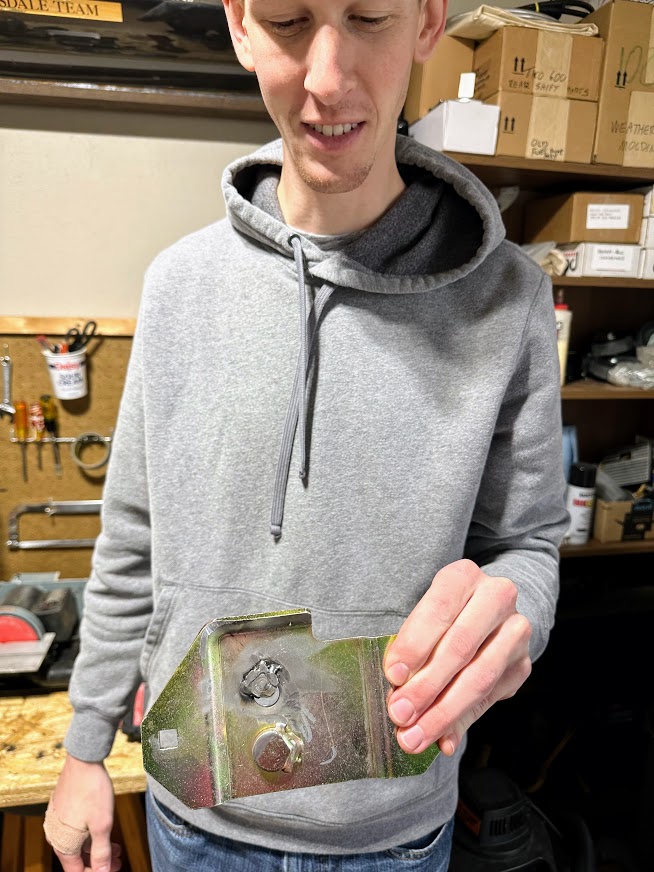

Sadly my son fractured his knuckle when this bolt snapped, we think he may be ok with a brace for a bit while it heals...
fortunately, Tim (aka tbl100) had a spare mount kit - the alignment pin was welded in the wrong spot so FFR sent him a new kit when he assembled his Coyote
he was gracious enough not only to come get the parts, but to also grind off and re-welt the alignment pin! my son Ryan - broken knuckle and all wanted to do the work!
Attachment 176370 Attachment 176371 Attachment 176372 Attachment 176373

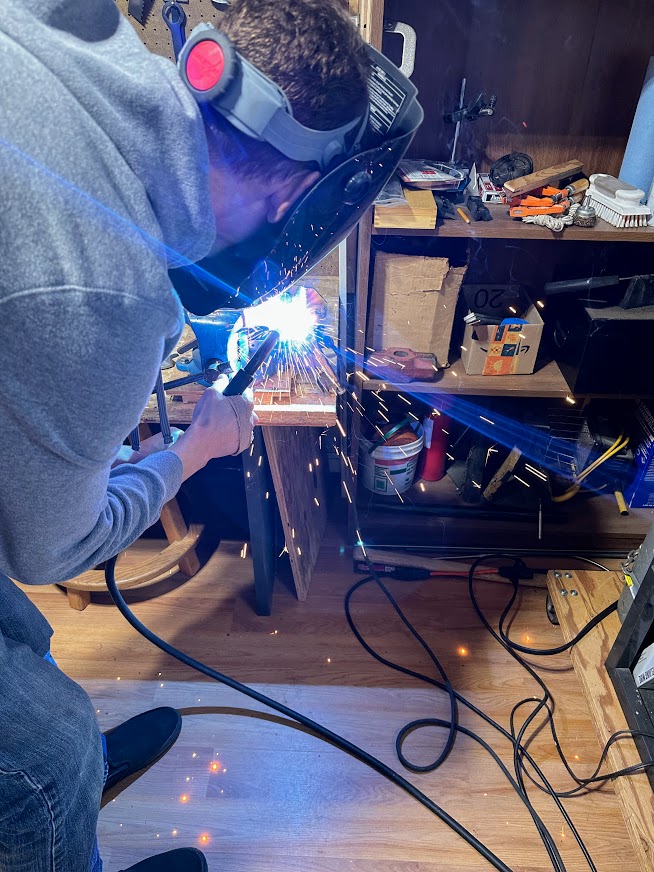

that was the first time he welded and it turned out great!
today, I'm hoping to use some metal etch on the plate and paint to protect it then we'll have to raise the engine and re-fit the passenger mount
just to clarify - torque settings we're seeing on the internet is 41-ft/lbs from mount to block and 120 ft-lbs from chassis to mount
if that 120 is too much PLEASE let me know!
Wow! That was even more excitement than you anticipated! Glad your son's (mostly) okay, and great to see his level of attachment to the project. And in the end, you've got the engine in it's final home, which is a great thing. Those Coyote's give the phrase "between the rails" a real test ... congrats Todd, way to go. Great to see after that ton of custom wiring you've churned out.
Congratulations on getting that beast stuffed in there! That's a huge accomplishment. No matter how many photos you've seen, it's a far tighter squeeze when you see it in person. Sorry to hear about your son's knuckle. I hope it heals up quickly. FWIW - I also had a tough time tracking down torque specs for the engine mount to block and engine mount to frame torque specs. I ended up going with the recommendation in this thread.
Engine mount (Engine to mount) 35-60
Engine mount (Mount to frame) 50-105
That's a pretty wide range, though. IIRC, I just shot for the middle of that range and called it good enough. I put some blue loctite on the mount to engine bolts. My mount to frame nuts were distorted thread nuts, so no loctite needed there.
Quote:
Originally Posted by John Ibele
Thanks guys! Yeah, my son is doing pretty well - this is nothing compared to his broken collarbone and thumb six months ago! He's a trooper!!Quote:
Originally Posted by JohnK
I think your mount #s John are pretty good, no wonder 120 broke a bolt :(
I'm really (maybe no so) surprised FFR doesn't have any numbers on this step! They seem to document torque settings on everything else...

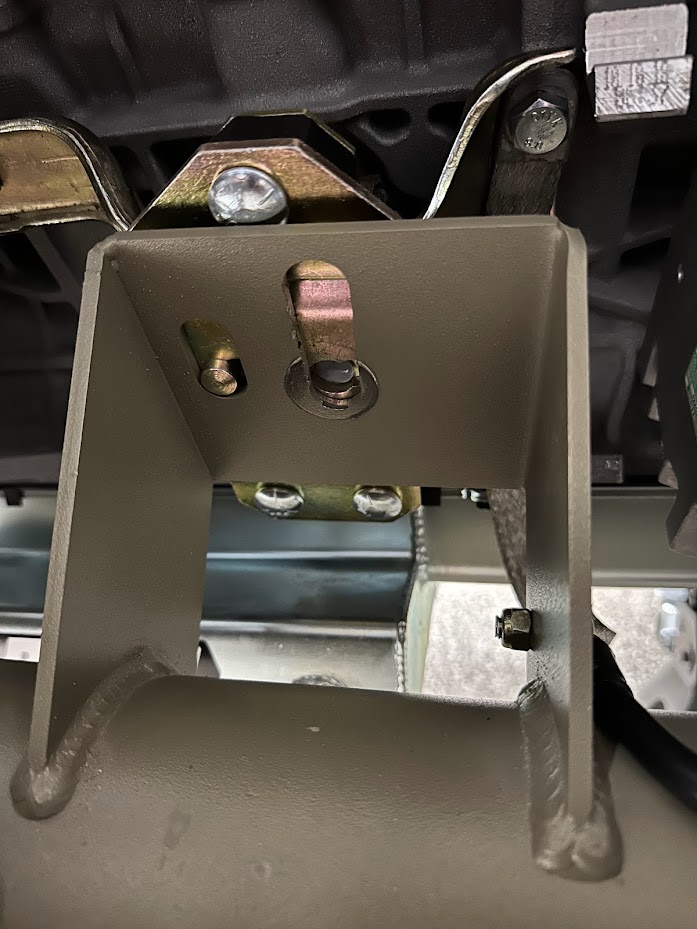

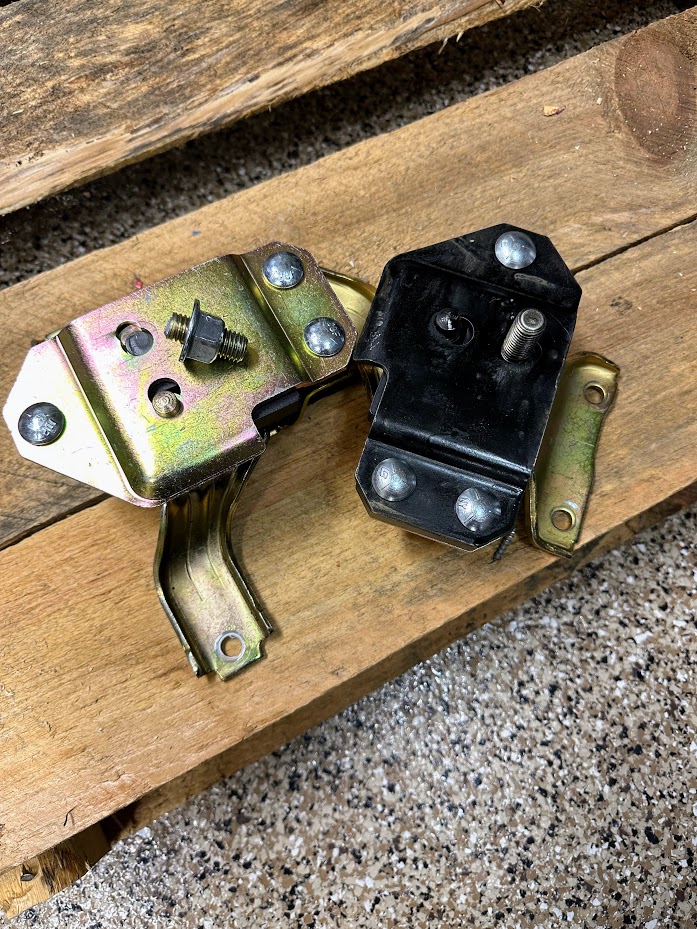

I 'prepped' the new mount and painted it - it ain't pretty, but it's an engine mount LOL
I think when we get the engine up in the air a little, I will probably fumble around with the headers, that's going to be an exercise in frustration, I just know it! :)
Good story for your son when asked what he did this weekend. "Ehh. Busted my knuckle up a little when dropping in Dad's coyote motor in his hotrod. No biggie". You will have great experiences and stories to look back on. Busted knuckle = sore. Time with your son = priceless.
yes, we've made some amazing memories working on this car! :)Quote:
Originally Posted by Gizmosrcool

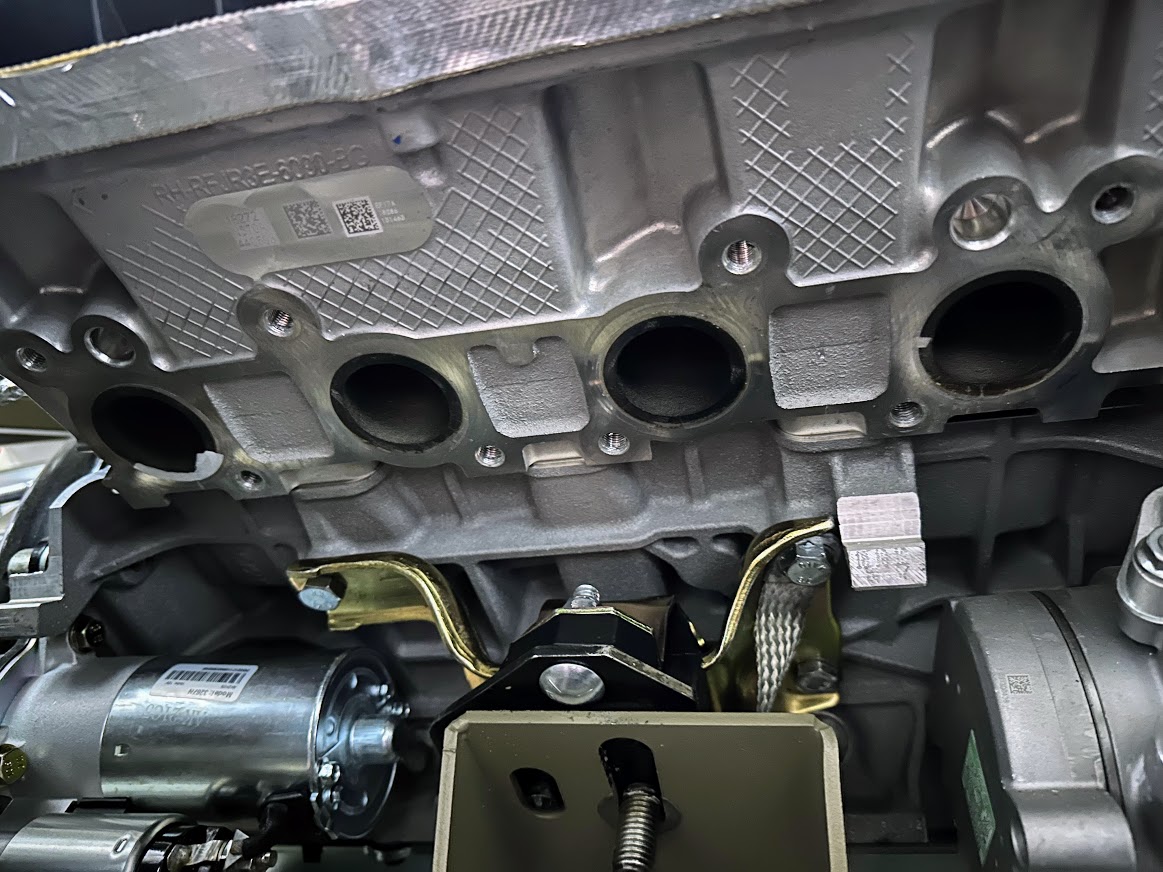

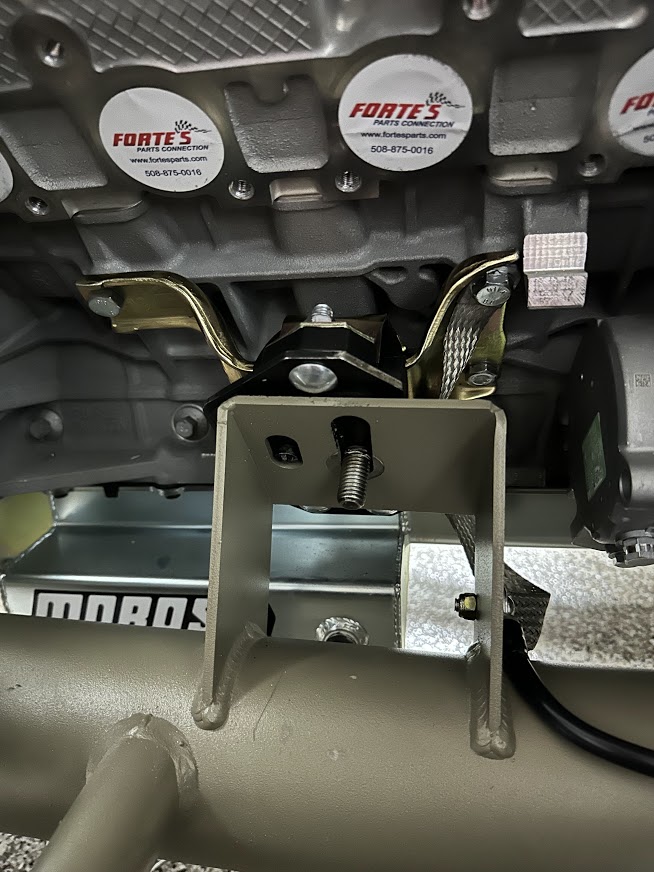

tonight we use the doctored up engine mount, I metal etched it and painted it - the paint looks horrible, but - it's an engine mount!
what is really odd, the 7/8ths socket fit the prior nuts, but we had to go buy a 22mm socket for the replacement nuts - so crazy!
we torqued them to 85 ft-lbs this time!
Attachment 176407 Attachment 176408

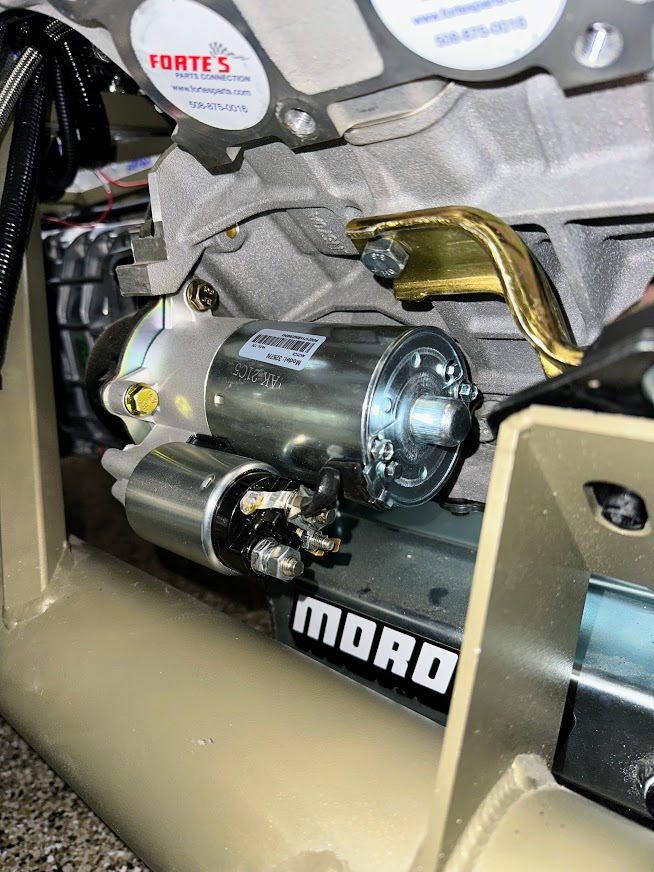

also got two of the 3 starter bolts in, need to jack up the car for the bottom one for sure...
Attachment 176409
we were going to start the headers tonight, but realized it's 10pm time for bed!
Attachment 176410
Nice progress. Minor point, but you asked about the oil filler. Probably you've figured this out by now. But yes, take the extension off and use the provided cap. The extension twists off just like a cap. You'll need a funnel for oil fills. But no big deal.
Situations like the starter motor and even headers are often easier with studs and nuts instead of bolts.Quote:
Originally Posted by toadster
yes, thanks Paul - that filler neck was in there pretty good, surprised FFR doesn't tell you to remove it before dropping in the motor as it's right up against the passenger railQuote:
Originally Posted by edwardb
all better now, agreed will need a funnel and maybe flexible hose for filling once the body is on
that's a great idea! I got the Stage 8 (8914) 1.25" Thread Pitch Bolt Kit for the headers, in hindsight the studs/bolts method would be much easier!Quote:
Originally Posted by Mike.Bray
Congrats, Todd and Ryan. Well done. Like JohnK said, until you put the Coyote in it's hard to describe how tight it fits. I had less than a 1/4" on the DS FB.Quote:
Originally Posted by toadster
I see Edwardb already commented on the oil filler tube. Forte removed mine before shipping, so I use a funnel with a long flexible tube to fill the oil.
I hope your son's finger heals up with no issues.
P.S. which one are you in the picture?
I'm the one circled in yellow, my son Ryan is in red :)Quote:
Originally Posted by 460.465USMC
Attachment 176424
