Angelina: Build Story of my 4-wheeled Motorcycle

Hey Y'All,

This past weekend I devoted most of my garage time towards prepping my radiator for final installation. I decided to paint it black for a more authentic look, and I chose Eastwood's Radiator paint for the task...

Scuffing, degreasing, and metal cleaning resulted in a decent prep for the paint, and it laid out well from the spray cans. I got most of the coverage with one can, but got an extra for the final coating (and just in case touchups :rolleyes: ) It was good that I planned ahead for mistakes...'cause I had my wire retainers slip off while trying to unhook them from my painting frame. The radiator bounced off a towel on the concrete floor and revealed a minor scuff on the bottom flange and both hose fittings had dents :mad: I don't think I cracked it, but wowsers, that is some soft aluminum!

I could bend the flanges straight with just finger pressure and I managed to reshape the hose fittings to nearly round again with a wooden dowel. I hope it is alright...we'll see...

Anyway, here's the pictures right before I took it off of the painting frame Attachment 219143 Attachment 219144

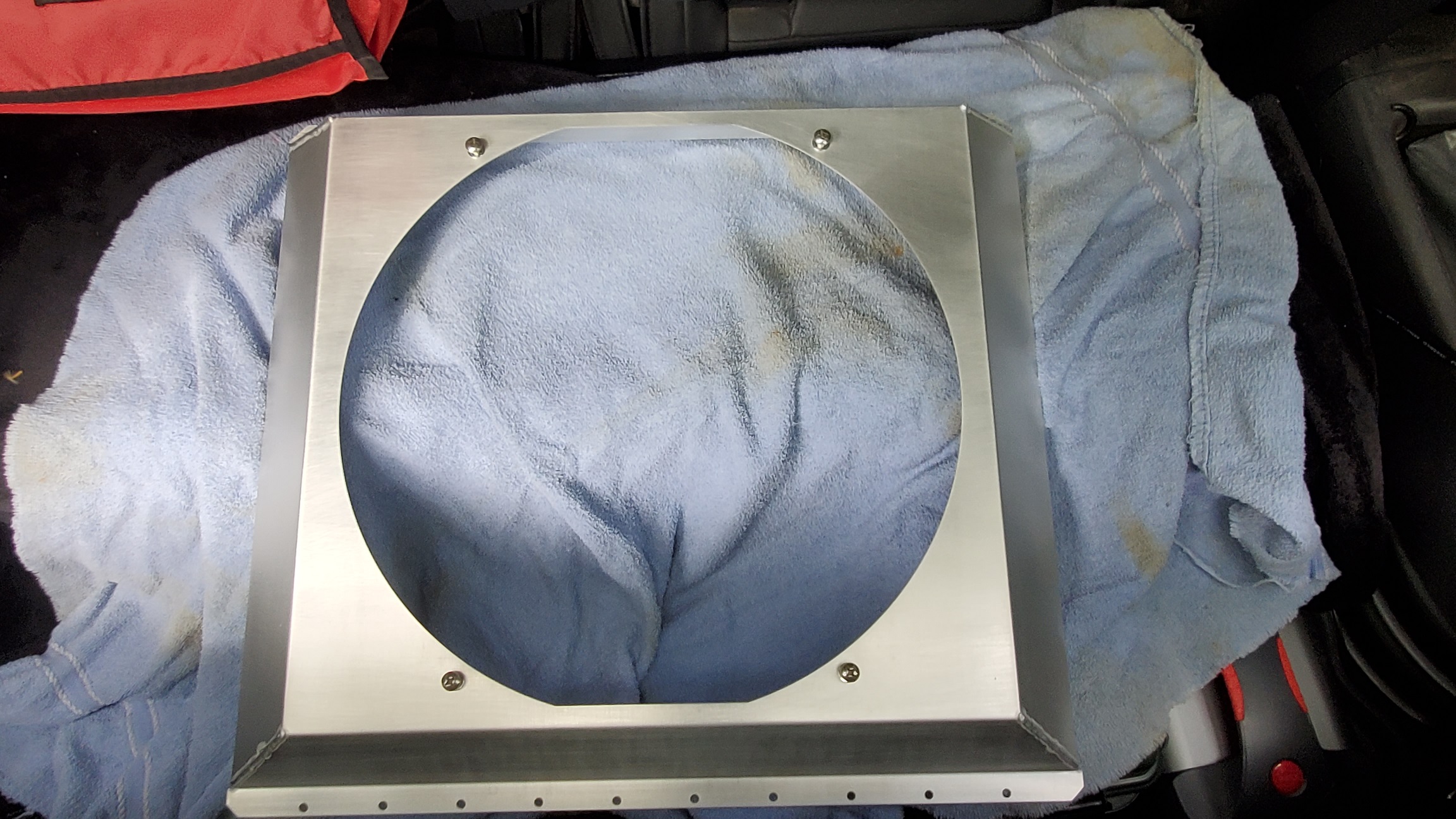

Lastly, I trimmed up the bottom edge of my fan shroud, and then scuffed and cleaned it before adding the riv-nuts for the fan assembly. Here's a picture before it goes off for powder coating Attachment 219145

Until next time, Happy Building!

Craig C

Hey Y'All,

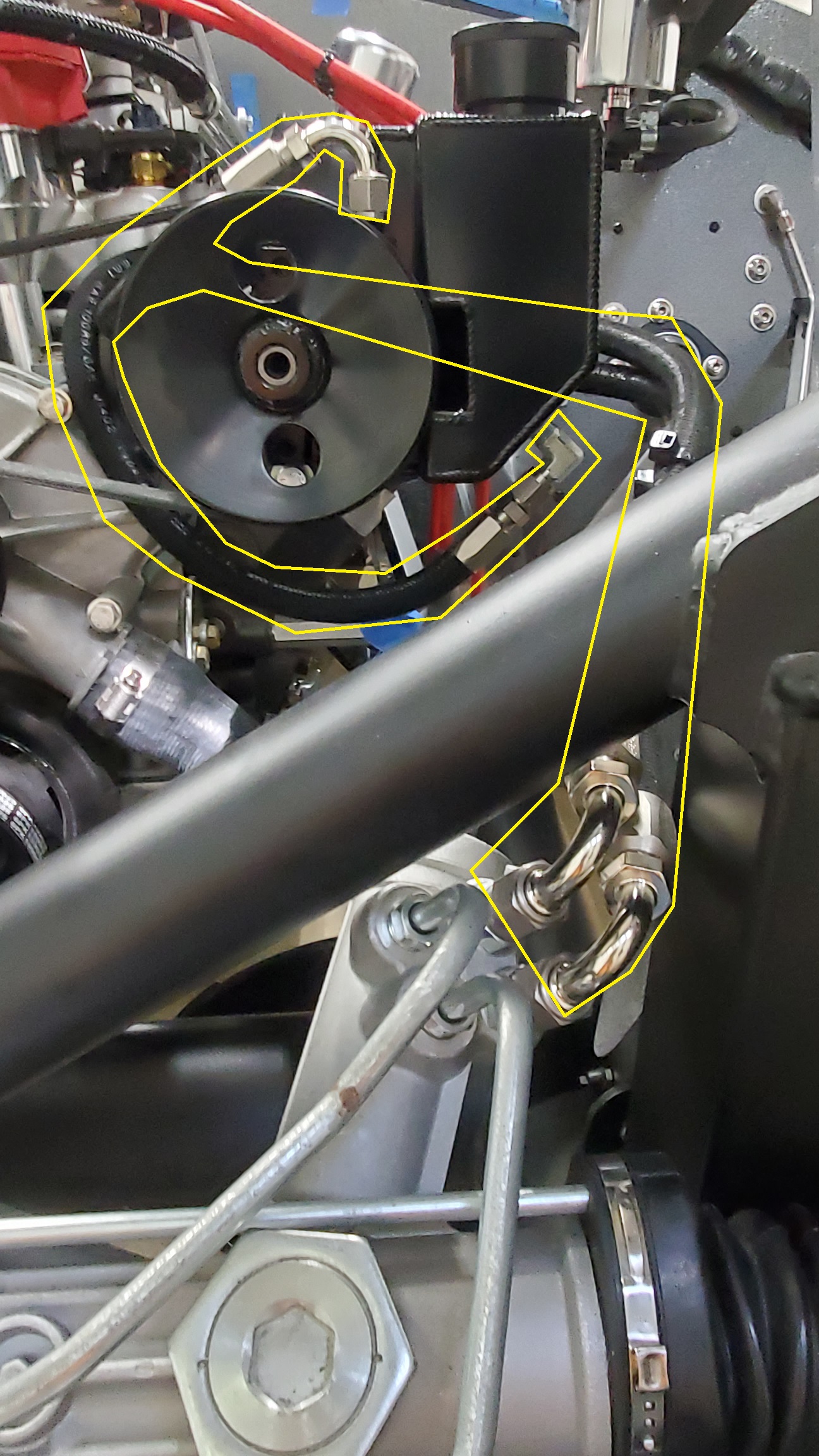

I wanted to check the fitment of the FFR-provided power steering hoses, and this is what I came up with Attachment 219225Attachment 219226

Is this the "typical" routing? I've heard great things about the Breeze power steering hose kit. Does that route much different?

Let me know what you think :)

Craig C

Hey Y'All,

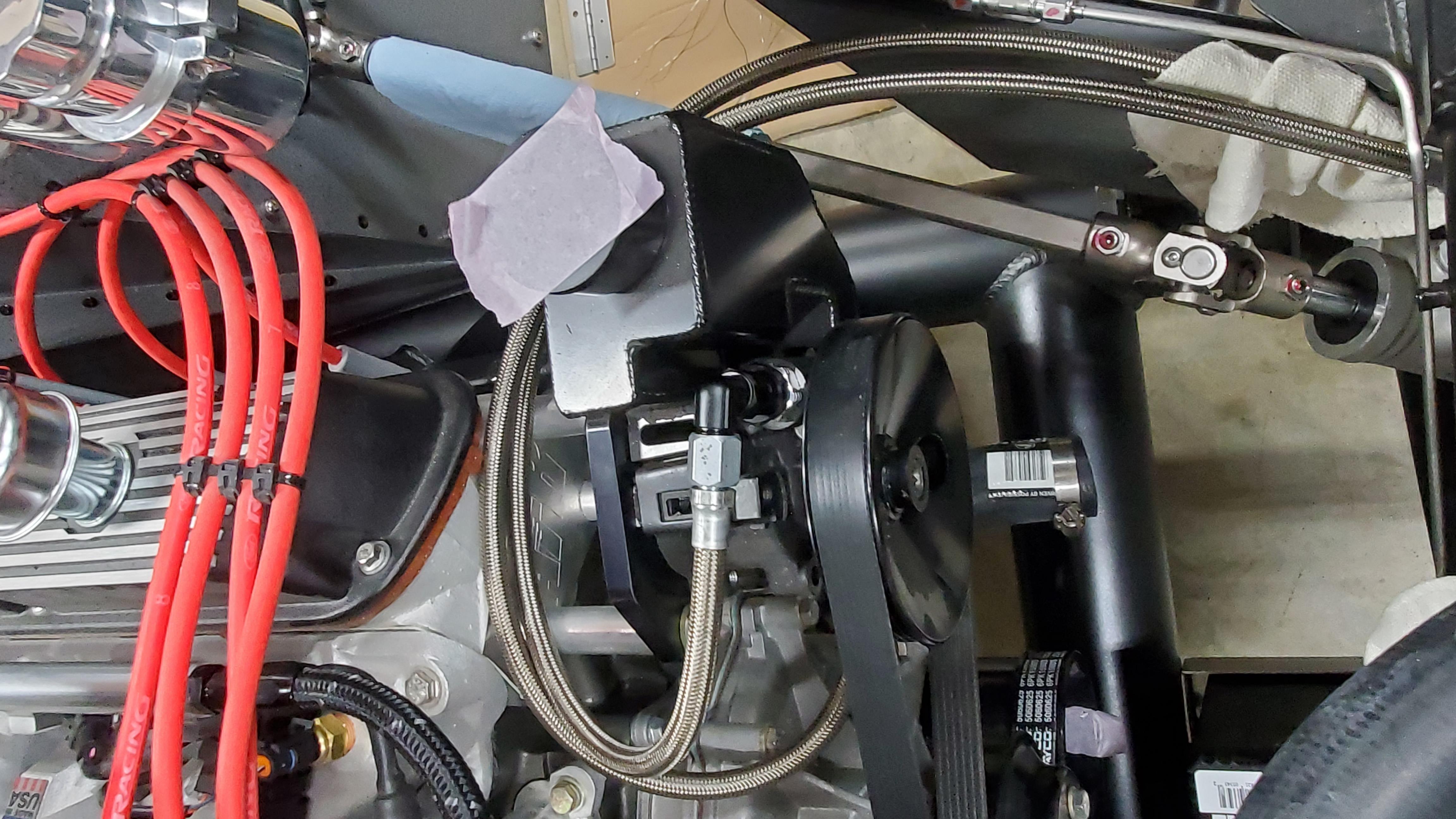

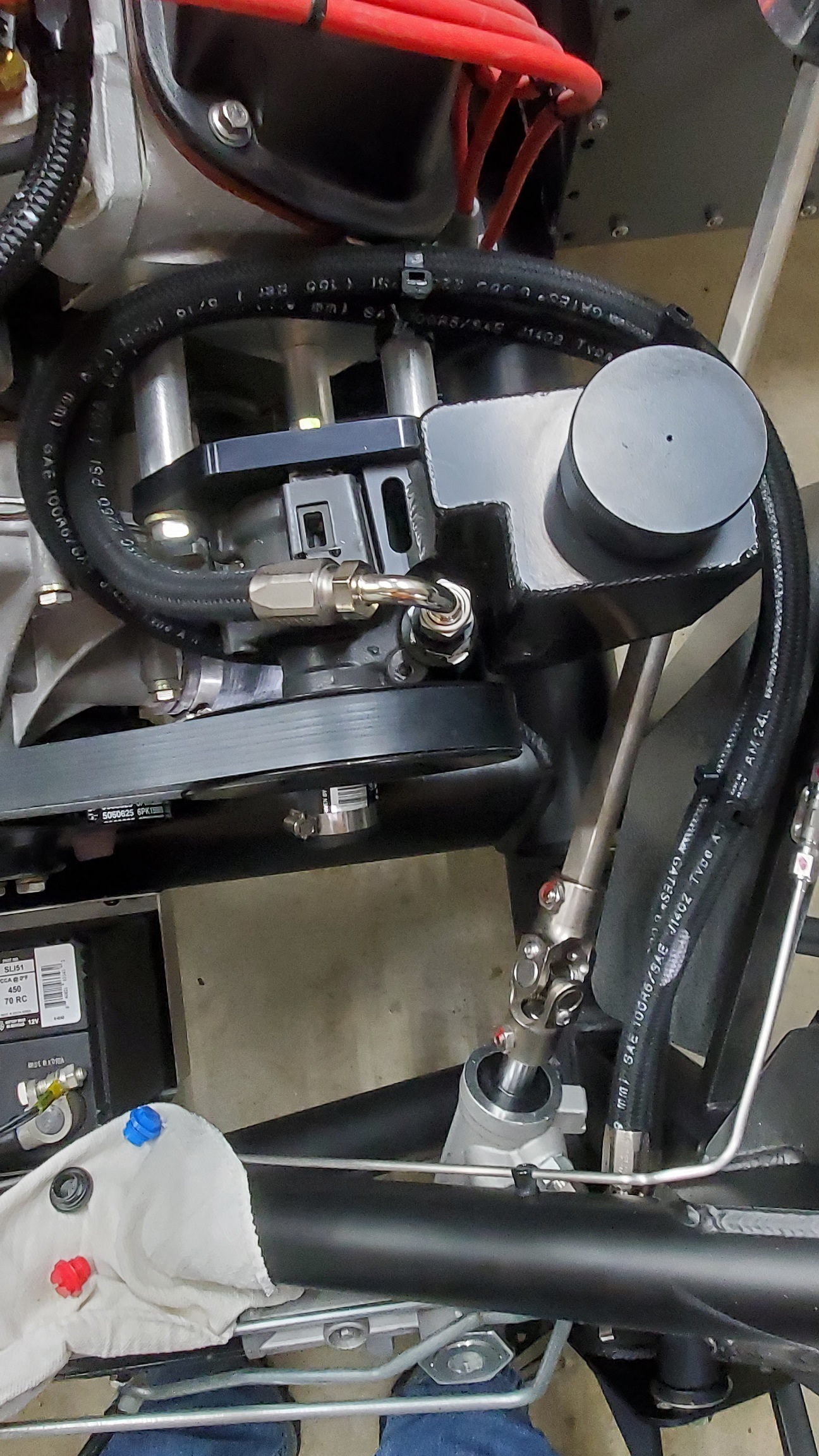

No feedback about the FFR-provided Power Steering hoses...so I decided to make my own! I chose Earl's products, 'cause they're good stuff :p

I got 6' of their PS reinforced and fabric covered hose ('cause I don't like the braided SS look), steel fittings, etc. I also chose to replace the low-pressure barb fitting on the fluid tank because I might decide to add a cooler later, and I think having AN fittings at both ends will be easier to design for this...

I also decided to route this as I interpreted the FFR-supplied hose (as in my previous post). Here's how it turned out
Attachment 219537

Here's an overhead perspective
Attachment 219538

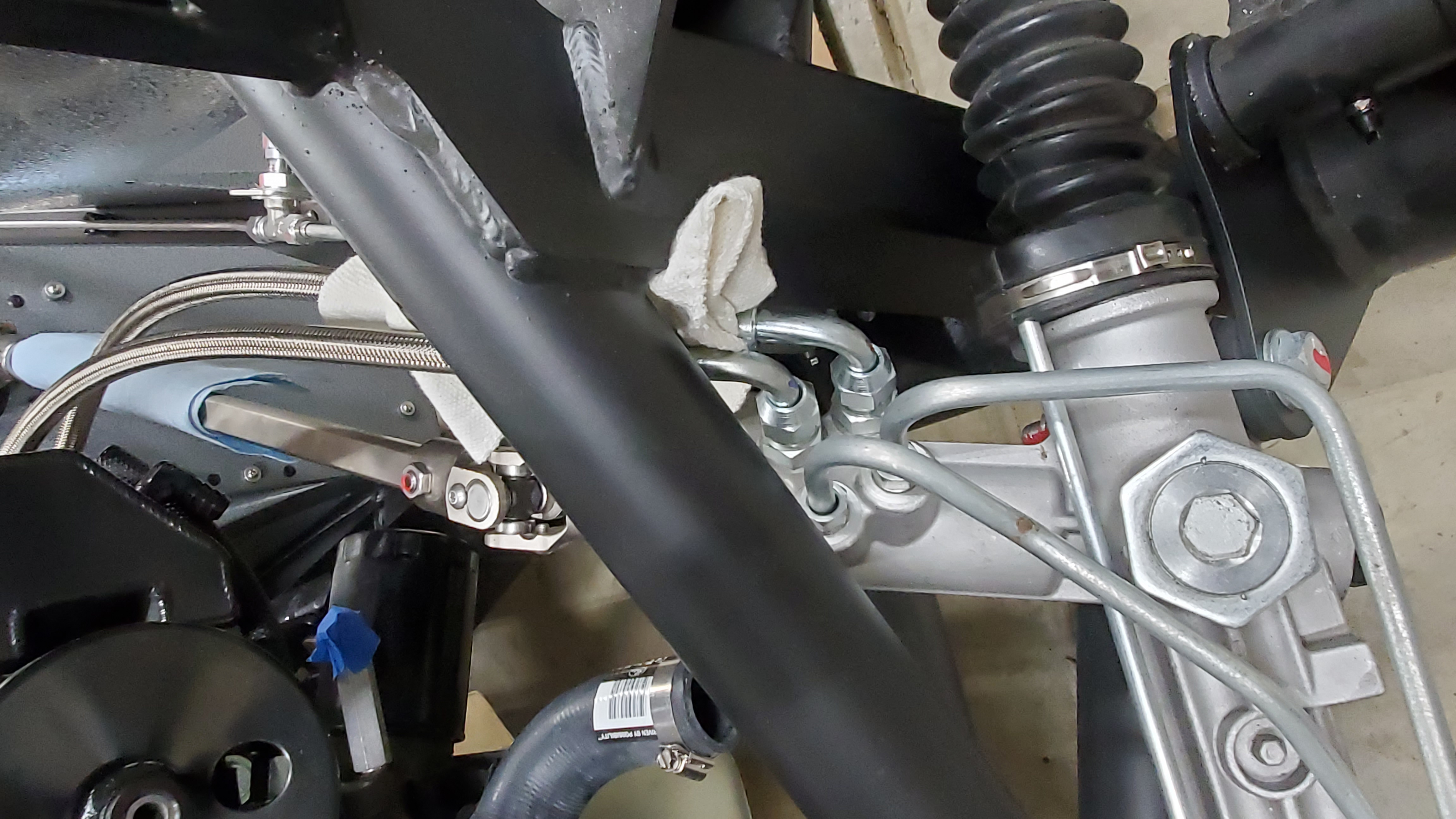

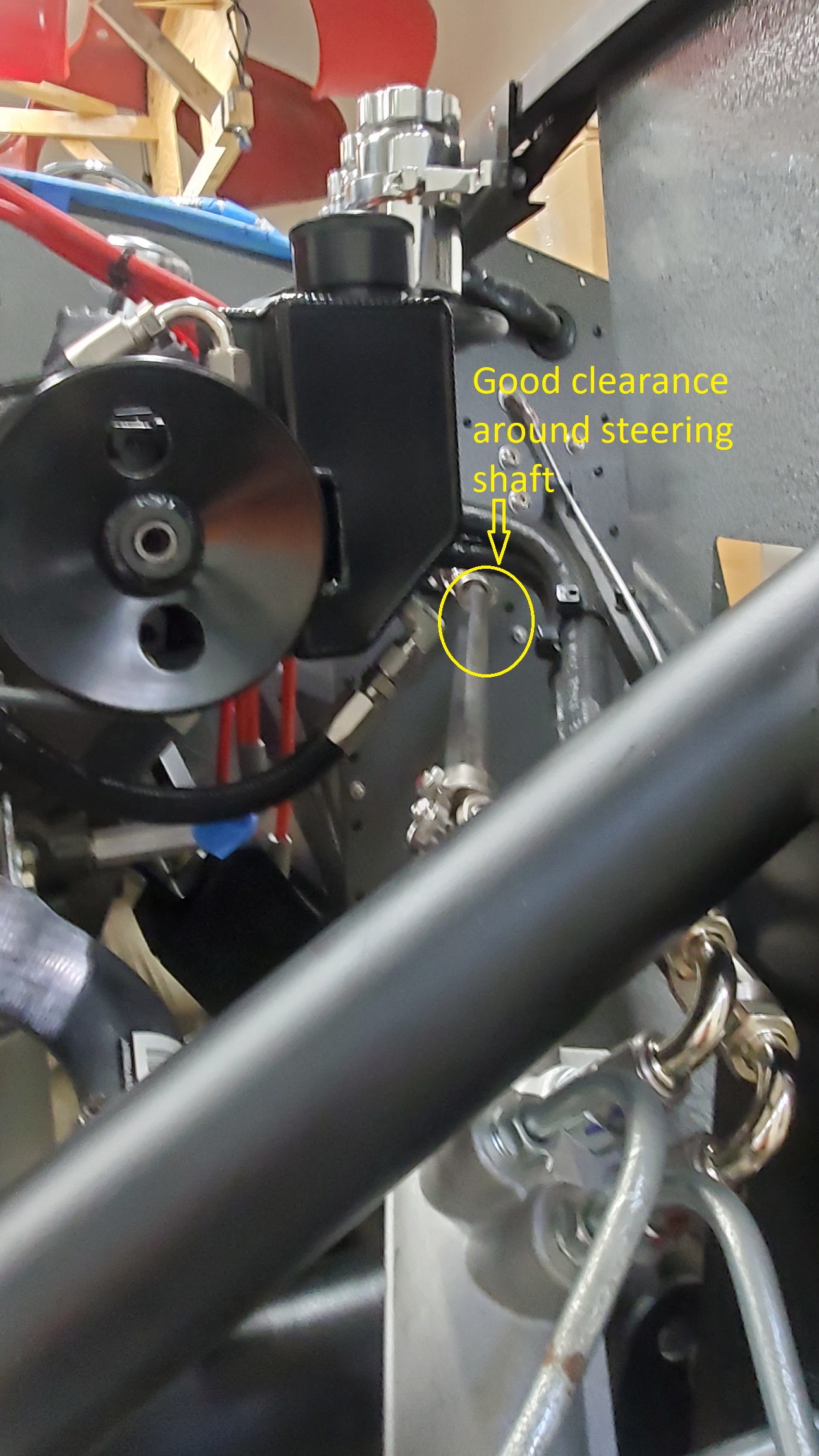

Lastly, an image which shows that I have good clearance to the steering shaft
Attachment 219539

For a 1st-time effort, I'm pretty "chuffed" how it turned out ;)

The FFR-provided 16.5 fitting did not have an o-ring (I think it was simply an inverted flare), so I ordered one of those with an o-ring that I'll install later to the pressure-side of the pump...

Until next time, Happy Building!

Craig C

Hey Y'All,

The reason for me adding power steering hoses was so that I could top up the fluid reservoir to prepare for cranking the engine :cool:

Along with the aforementioned power steering system, I also checked the drivetrain fluid levels. Interestingly enough, just as MANY others have observed, the IRS came pre-filled with what appeared to be the correct volume of fluid...it just didn't reach the bottom of the fill plug (which is how most measure the system). No worries, I added fresh FORD products from a local Dealer, including the "friction modifier" for the limited slip pack. What's really strange is that Summit did not want to ship the products to me at my home address...must have some potent chemicals or something :rolleyes:

Here's a picture for those who might want to compare their own experience to mine Attachment 219540

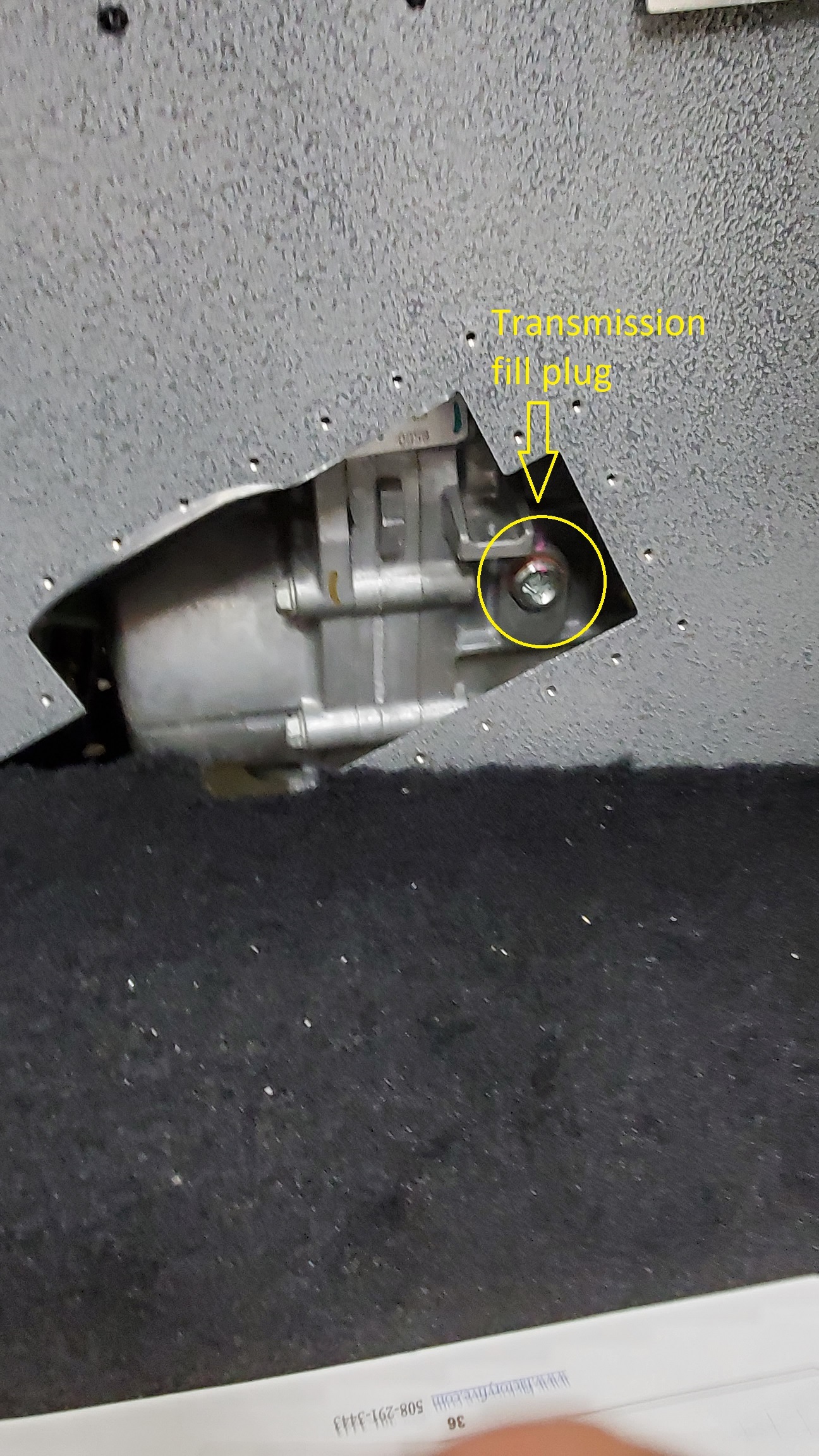

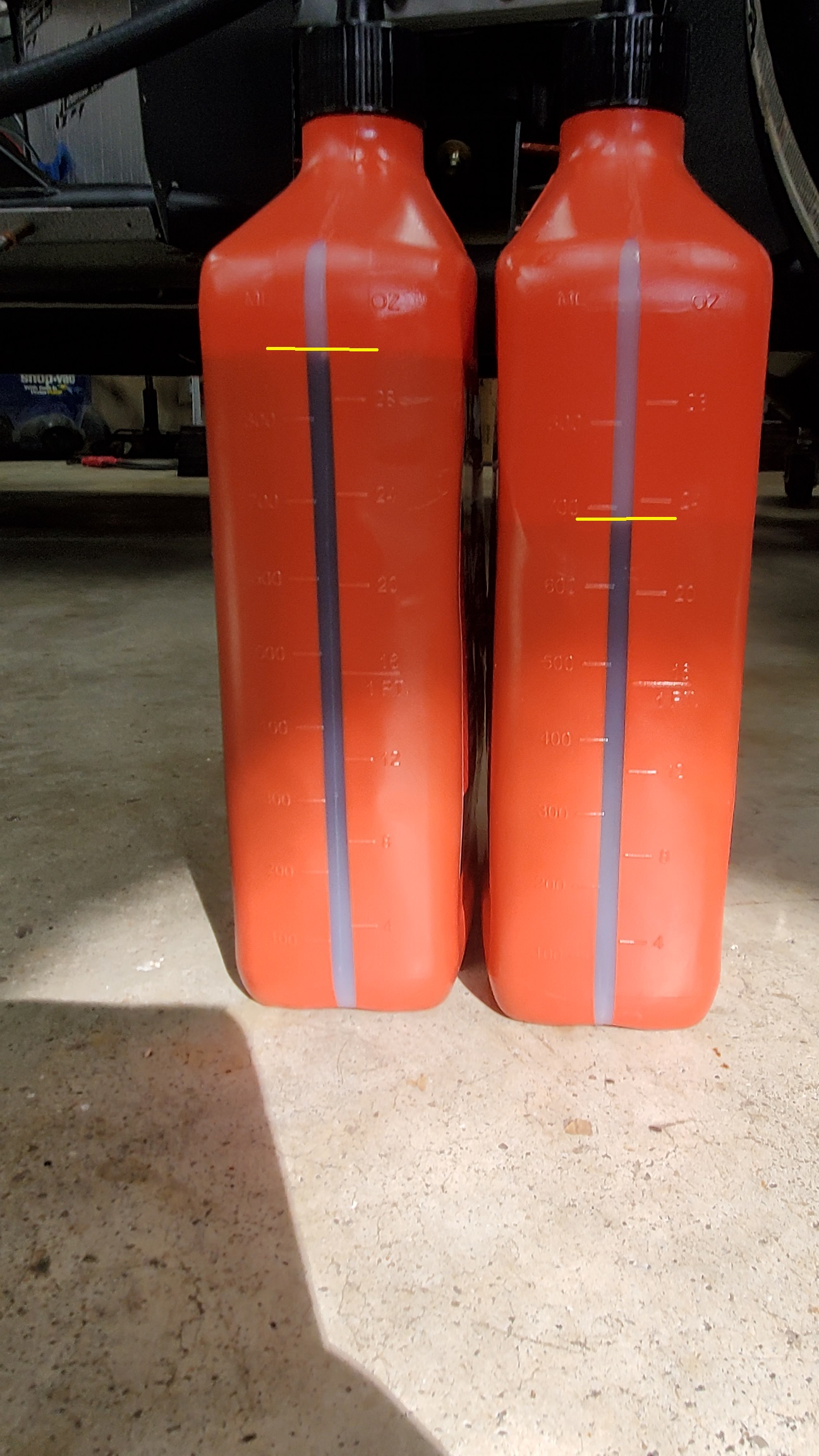

Next, Forte' sent me 3 qts of the Penzoil Synchromesh fluid for the TKX they sent to me...and wouldn't you know it...that, too seemed like the correct amount of fluid...but just as before, the level did not reach the bottom of the fill plug, so I got another quart and squeezed some more in. It didn't take much more. I did take advantage of my handbrake cover plate to fill up the transmission...but in all reality, I don't think I'll use it in-service in the future -- there seems to be enough room in the tunnel to sneak a fill tube in there... Attachment 219541

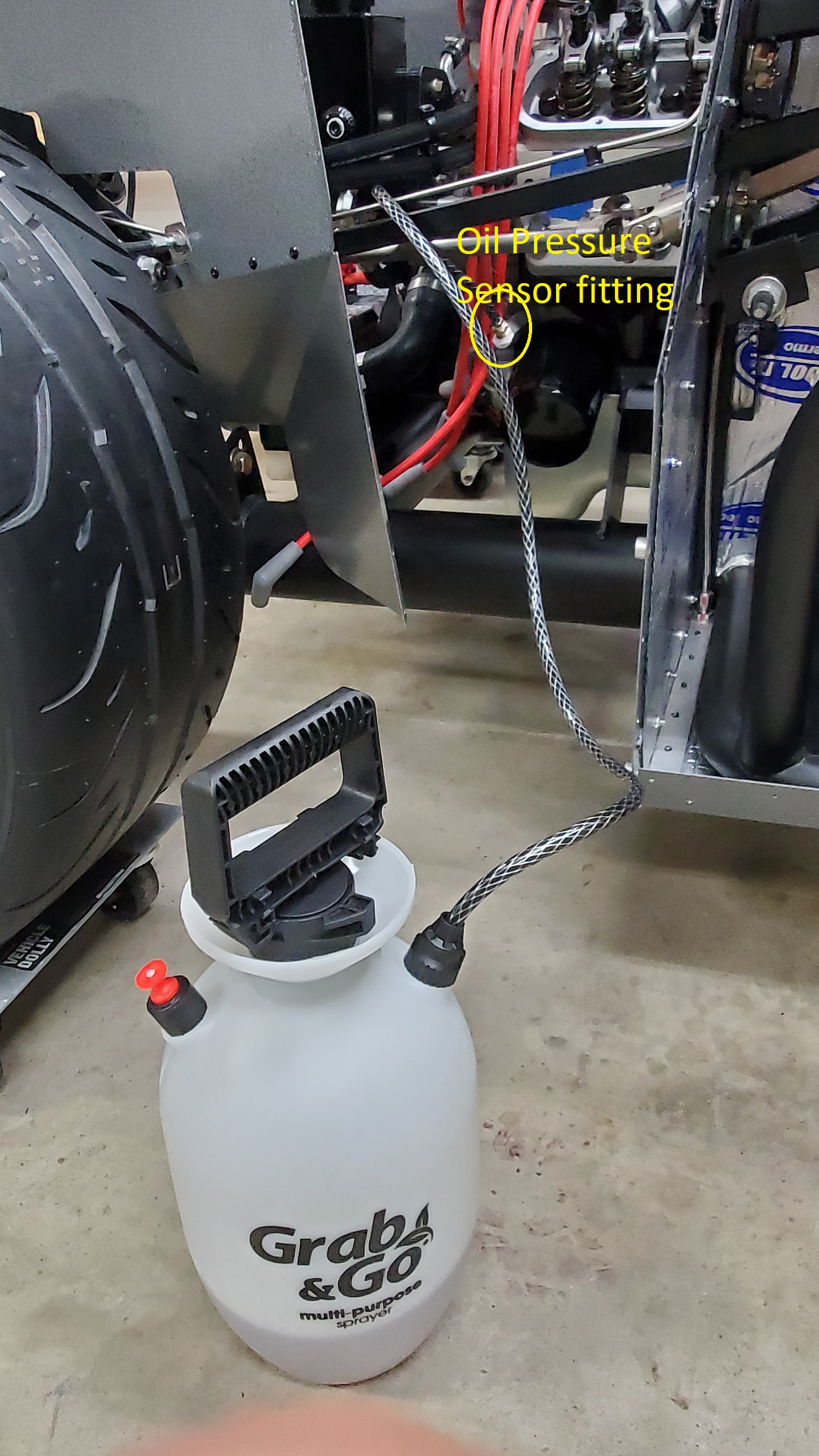

Lastly, I've heard about the "Garden Sprayer" oil priming method, and I thought I'd try it. It worked well. Here's a picture of the setup
Attachment 219542

I simply pumped up the sprayer unit about 20 pumps and then hand-rotated the engine with a socket wrench on the front pulley. I then watched (and listened) for oil coming up the pushrods :cool:

The total volume for my 7" Champ pan on a DART 427W was 8 quarts.

Sometime this coming week, I plan to complete the cooling system and add Evans waterless coolant...

So until next post, Happy Building!

Craig C

Hey Y'All,

In my last 2 posts for this weekend, I'm highlighting how my radiator installation turned out.

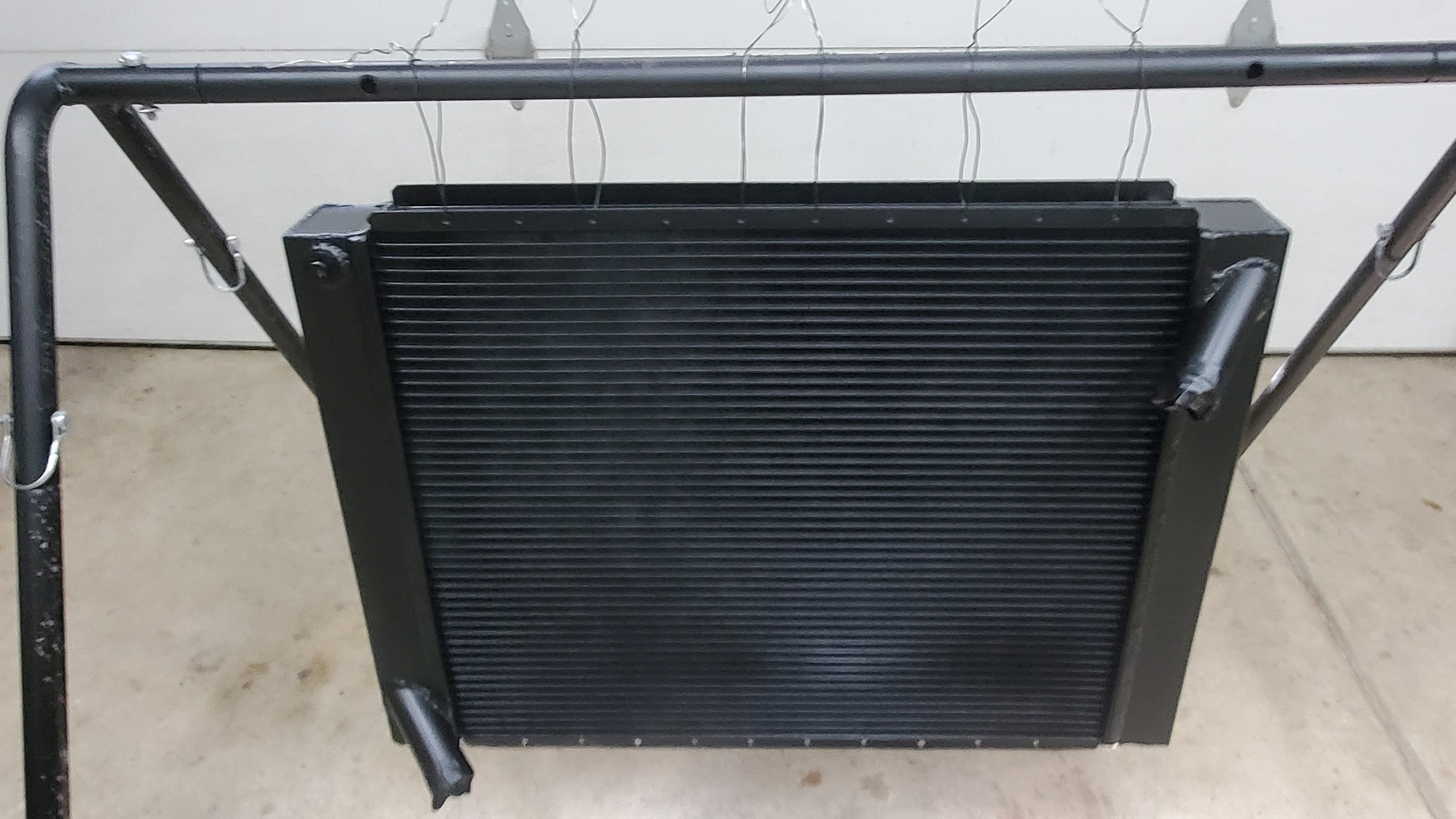

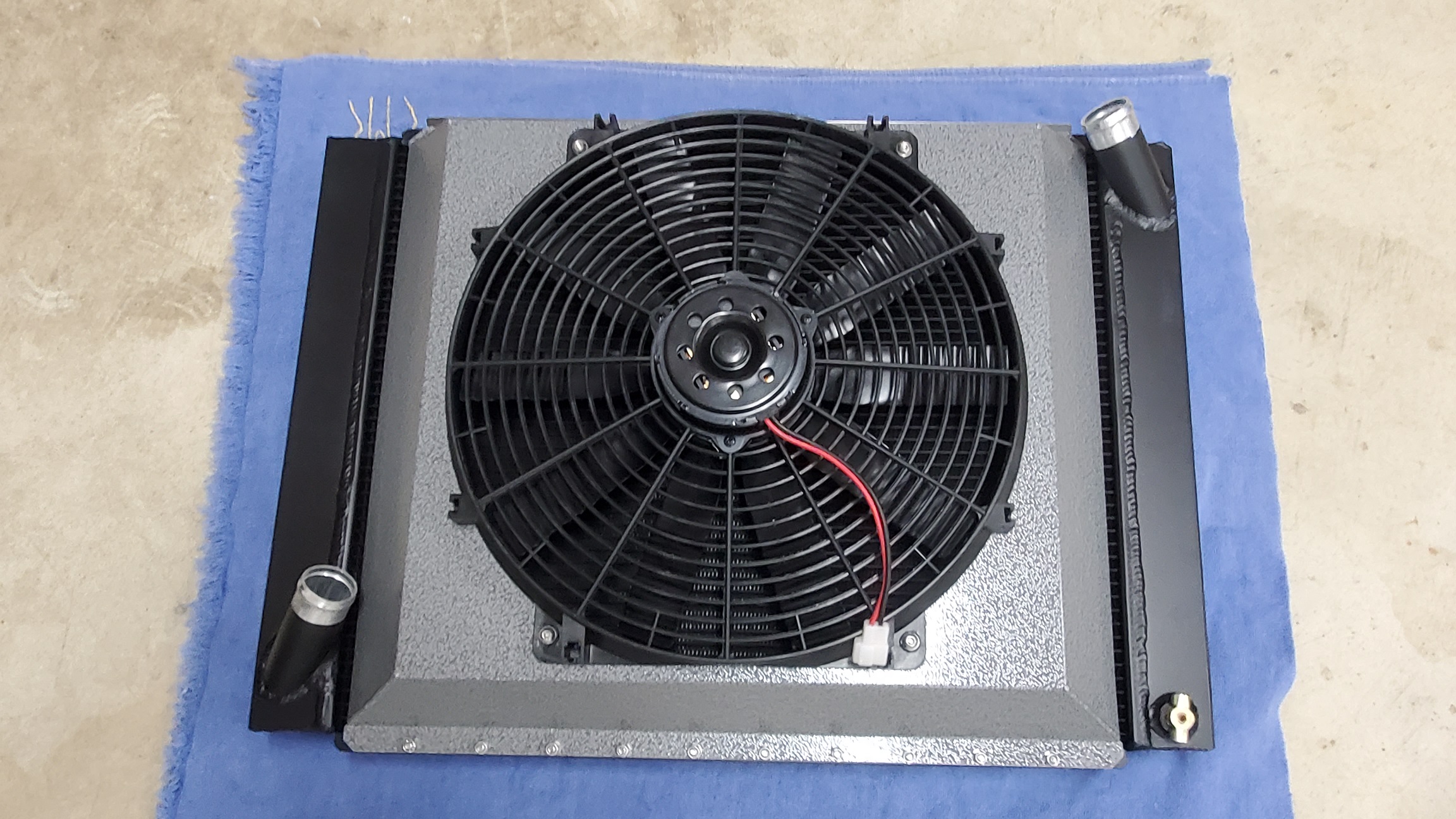

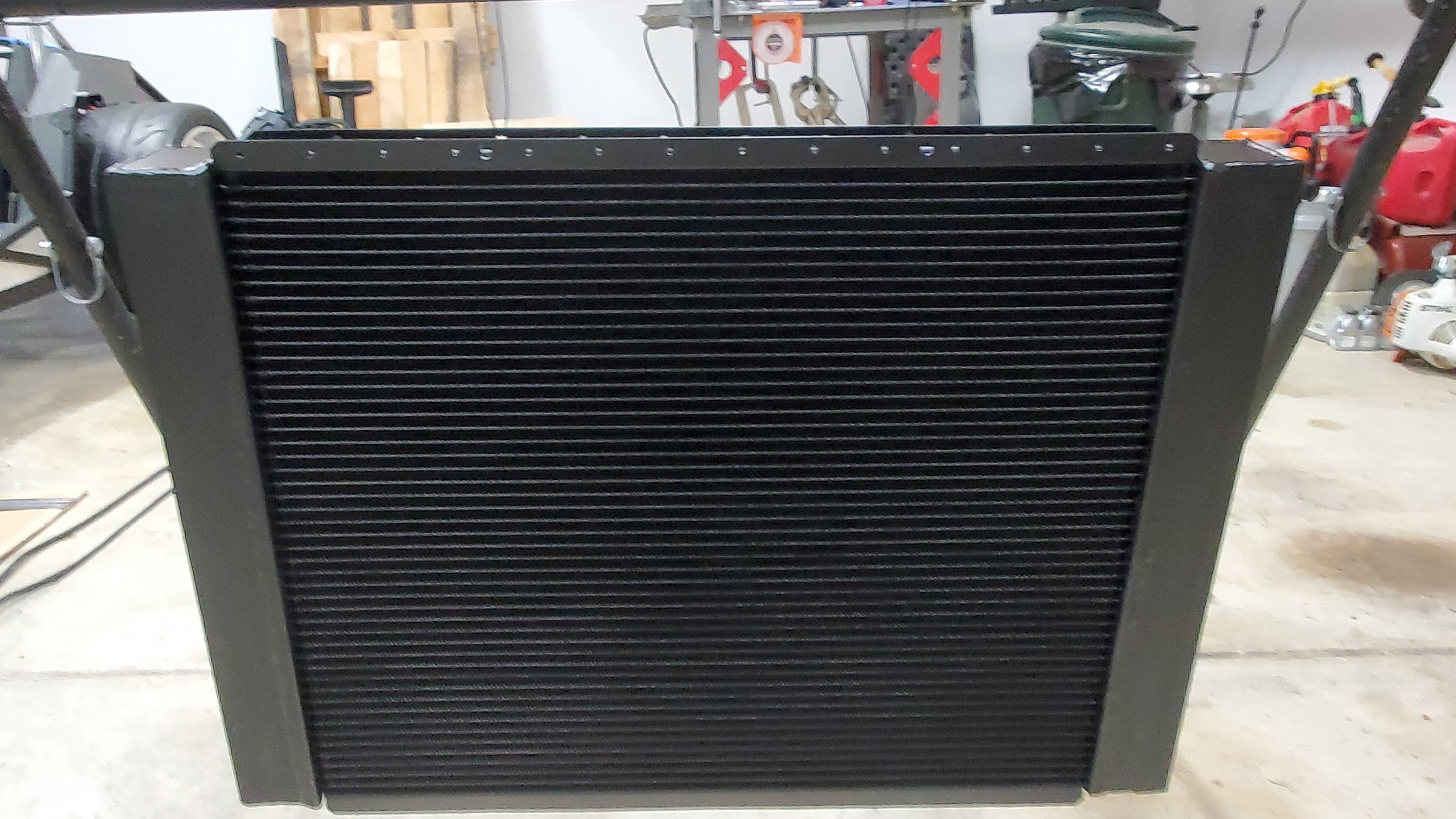

First up, a before-installation picture of the painted radiator, powder-coated shroud, and installed "more airflow" fan
Attachment 219545

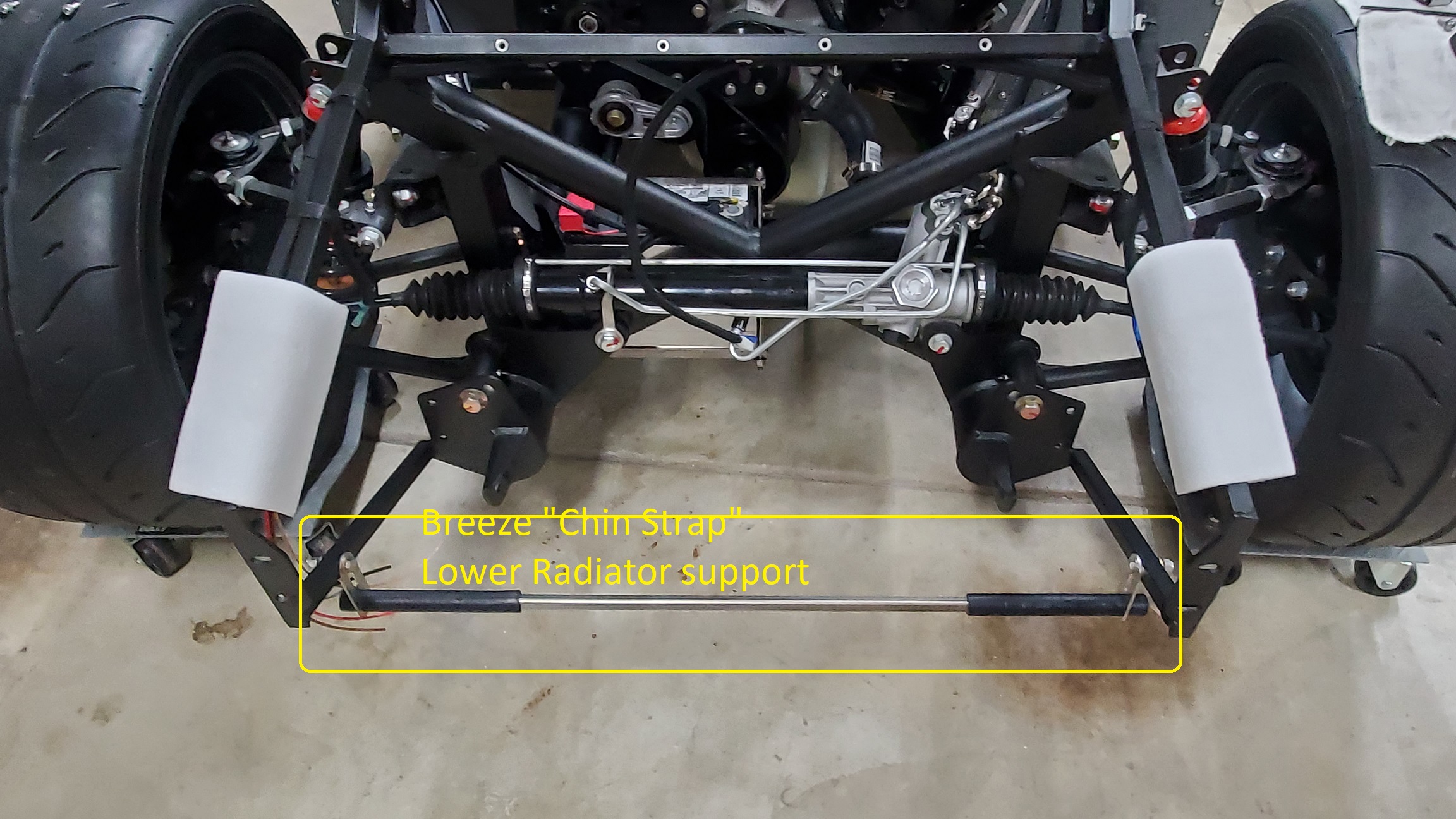

Next up, the mocked into place Breeze "chin strap" lower radiator mount (what a great nickname!)
Attachment 219546

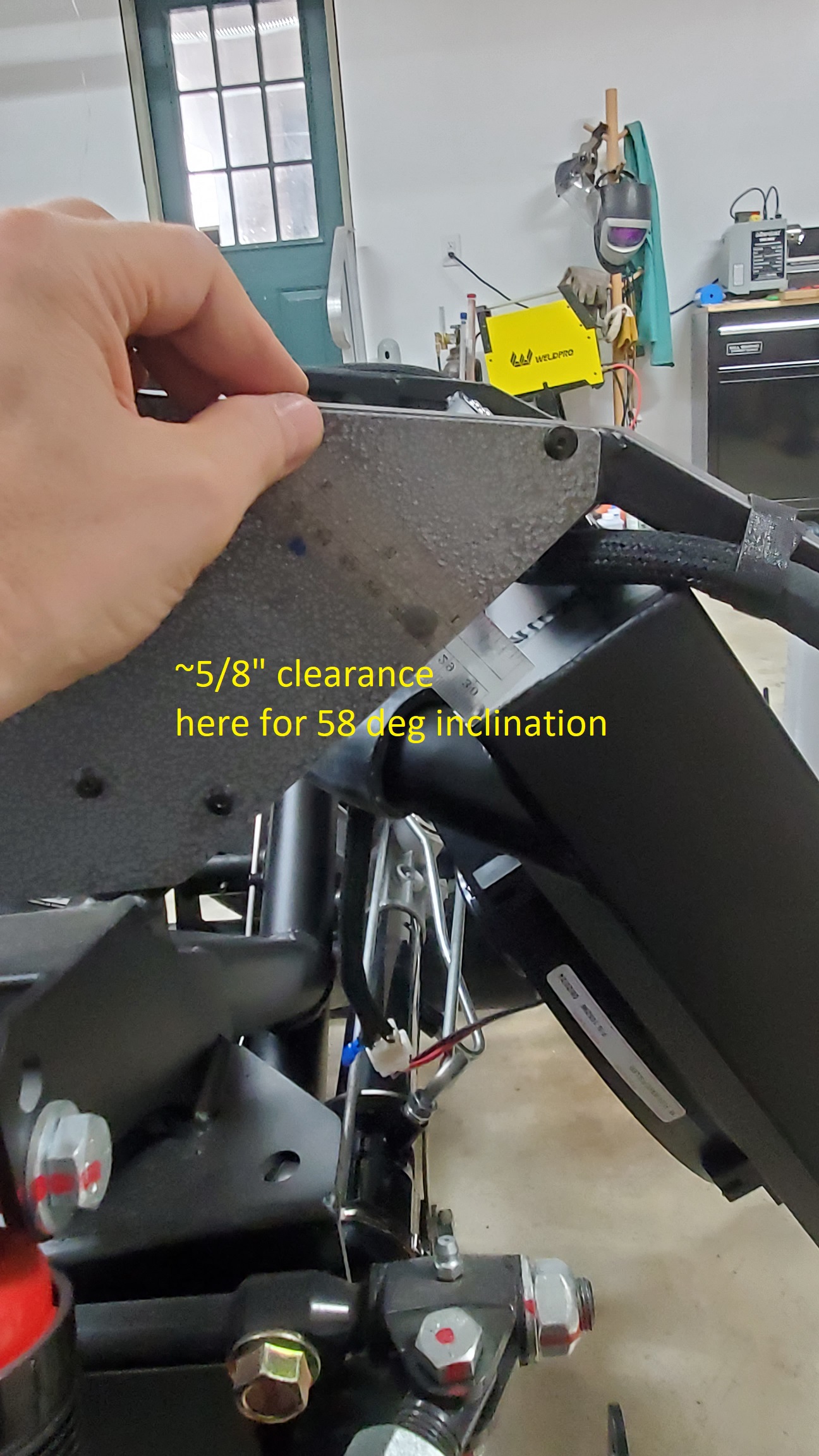

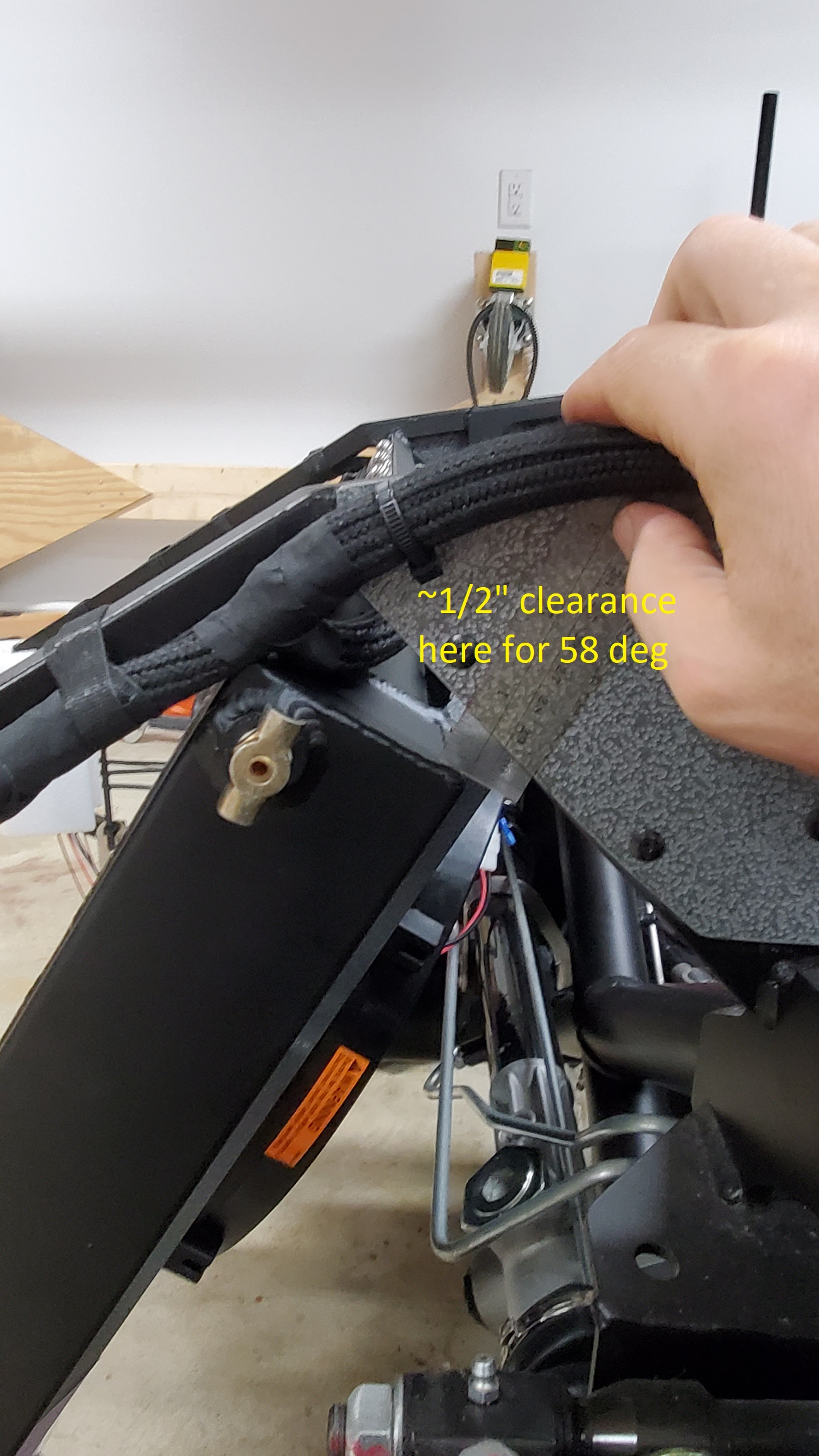

Lastly, 2 images of the clearance you can expect when angling the radiator to 58 deg per the instructions
Attachment 219547 Attachment 219548

More pictures in post2, next...

Hey Y'All,

In my last post of the weekend, some details and overall imagery of my radiator installation...

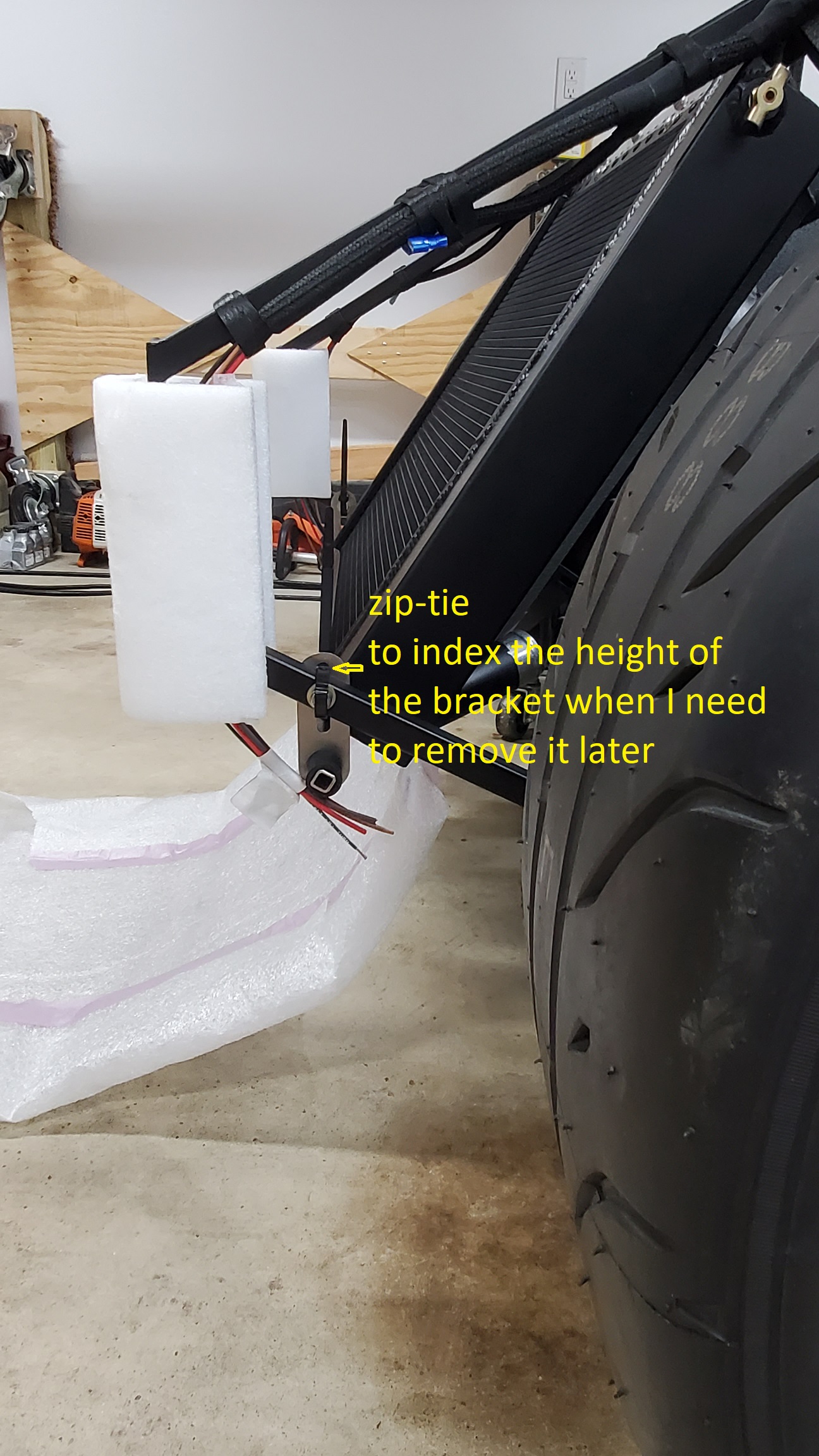

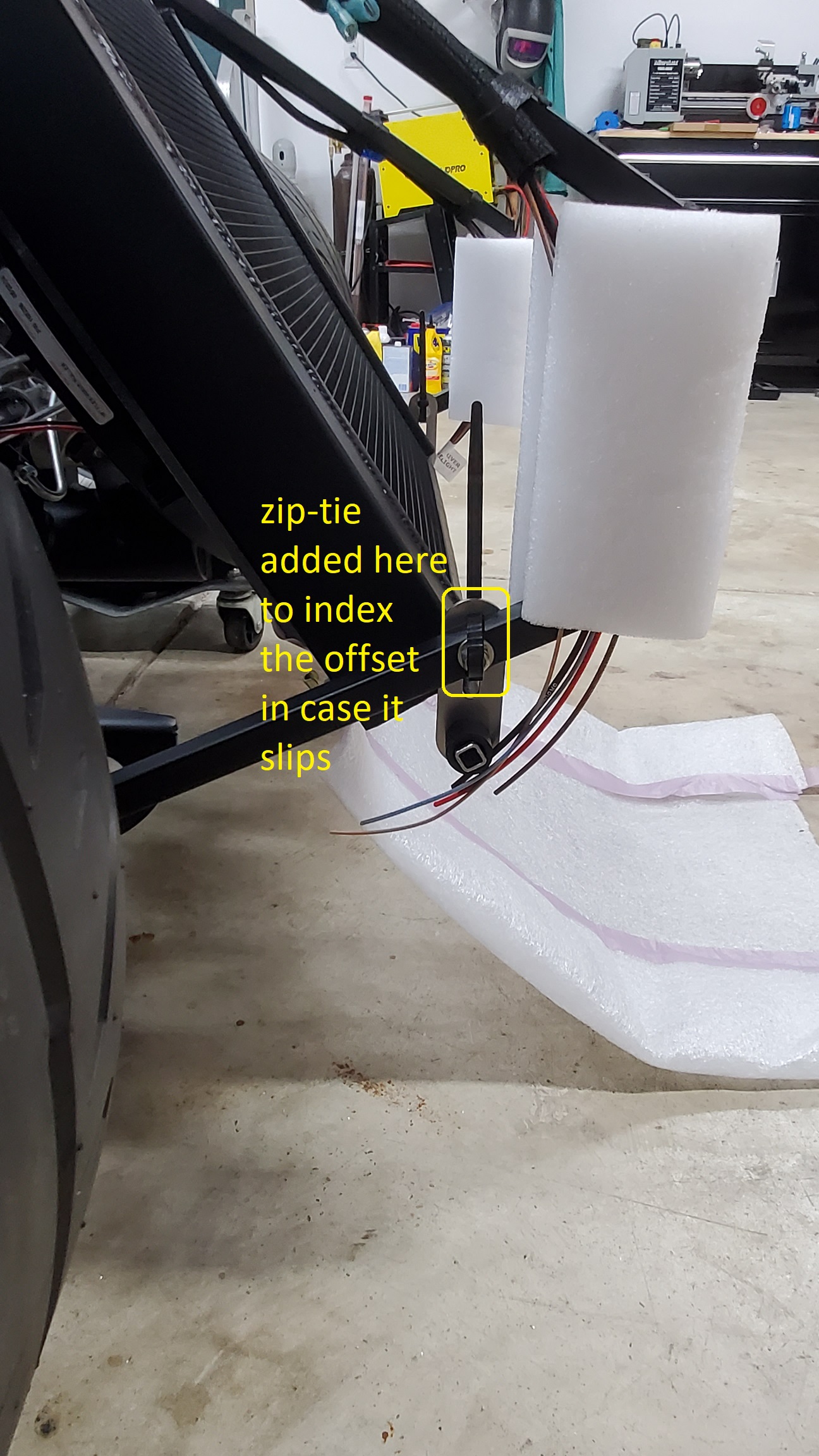

An idea for returning to measured offset using zip-ties as an indexing tool. This might also be beneficial for final installation if the straps ever get loose and slip down in-use
Attachment 219549 Attachment 219550

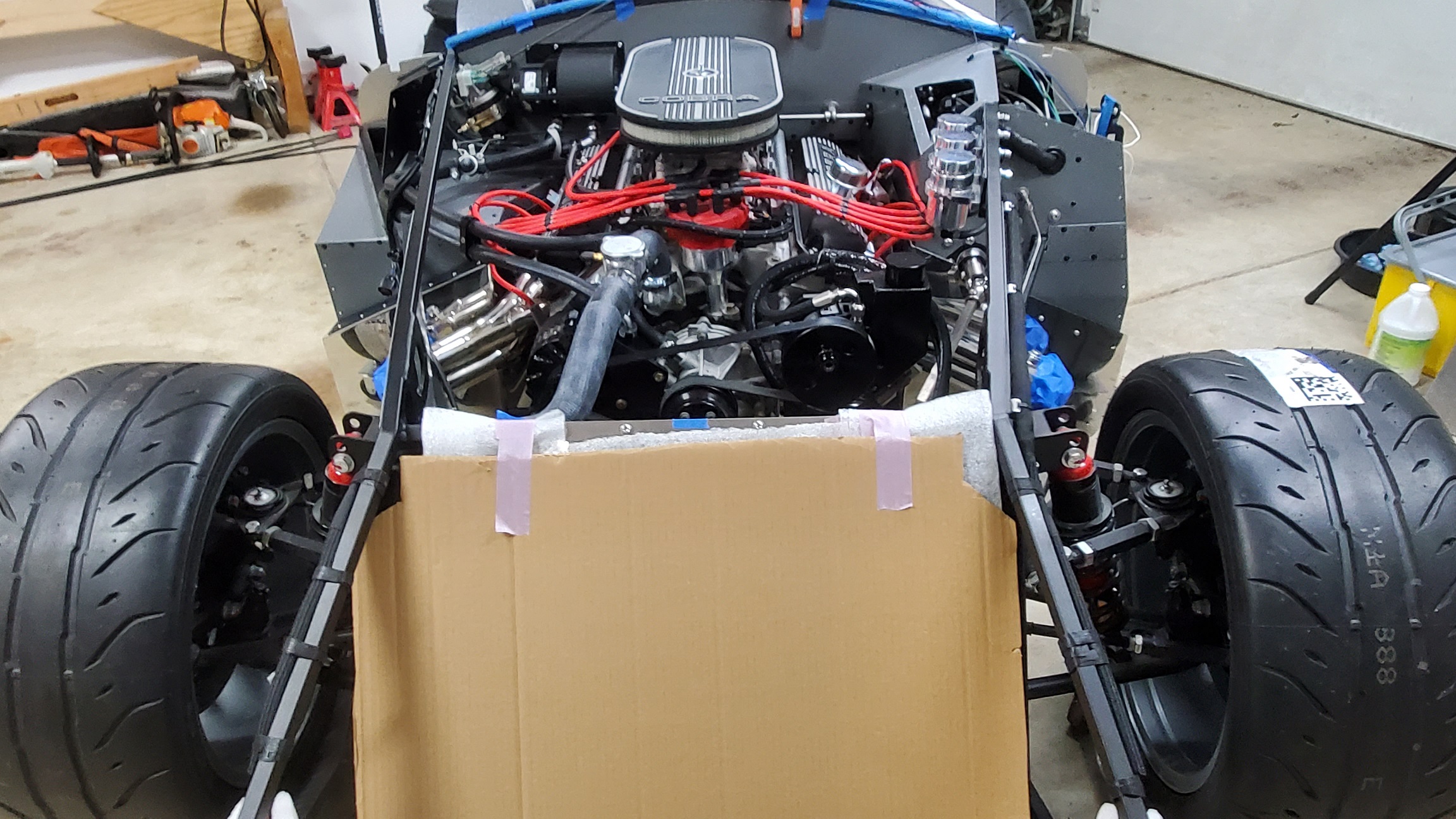

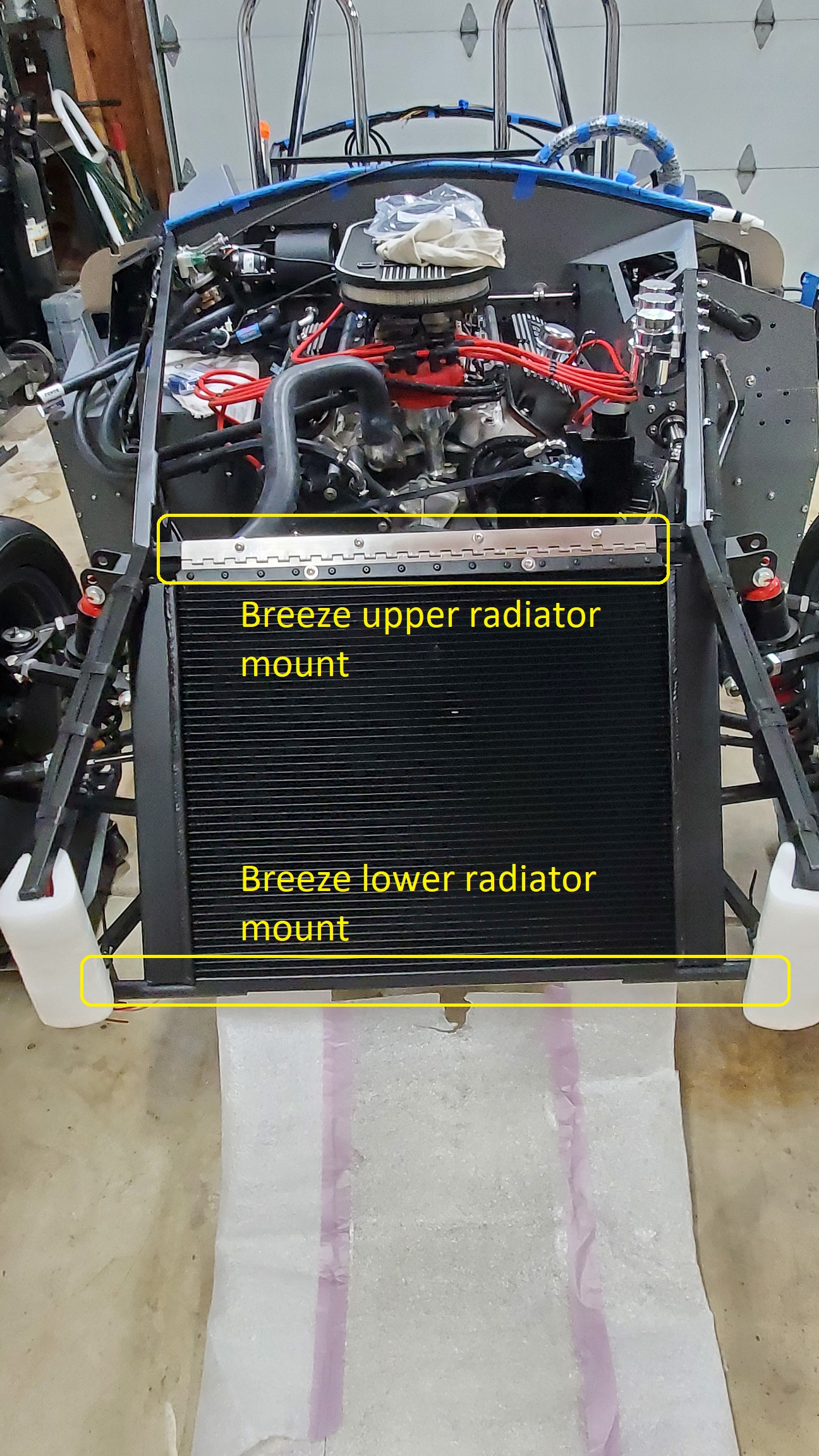

Front installed picture. Note the inevitable "angled" look due to the orientation of the top radiator frame tube. It's not too bad looking
Attachment 219551

Lastly, a view of the shroud, fan, and top hose orientation
Attachment 219552

Until next time, Happy Building!

Craig C

You don't need zip ties to index your radiator angle. The nose aluminum will make it abundantly obvious where the radiator needs to sit. And don't fixate on 58 degrees. Place your nose aluminum side pieces on the frame, line up the notches for the quick jacks, and snug the radiator up to the aluminum pieces. Easy peasie.

Greg

Looking good!

Dialed!

Quote:

---

Originally Posted by gbranham

You don't need zip ties to index your radiator angle. The nose aluminum will make it abundantly obvious where the radiator needs to sit. And don't fixate on 58 degrees. Place your nose aluminum side pieces on the frame, line up the notches for the quick jacks, and snug the radiator up to the aluminum pieces. Easy peasie.

Greg

---

Exactly!

Jeff

Hey Y'All,

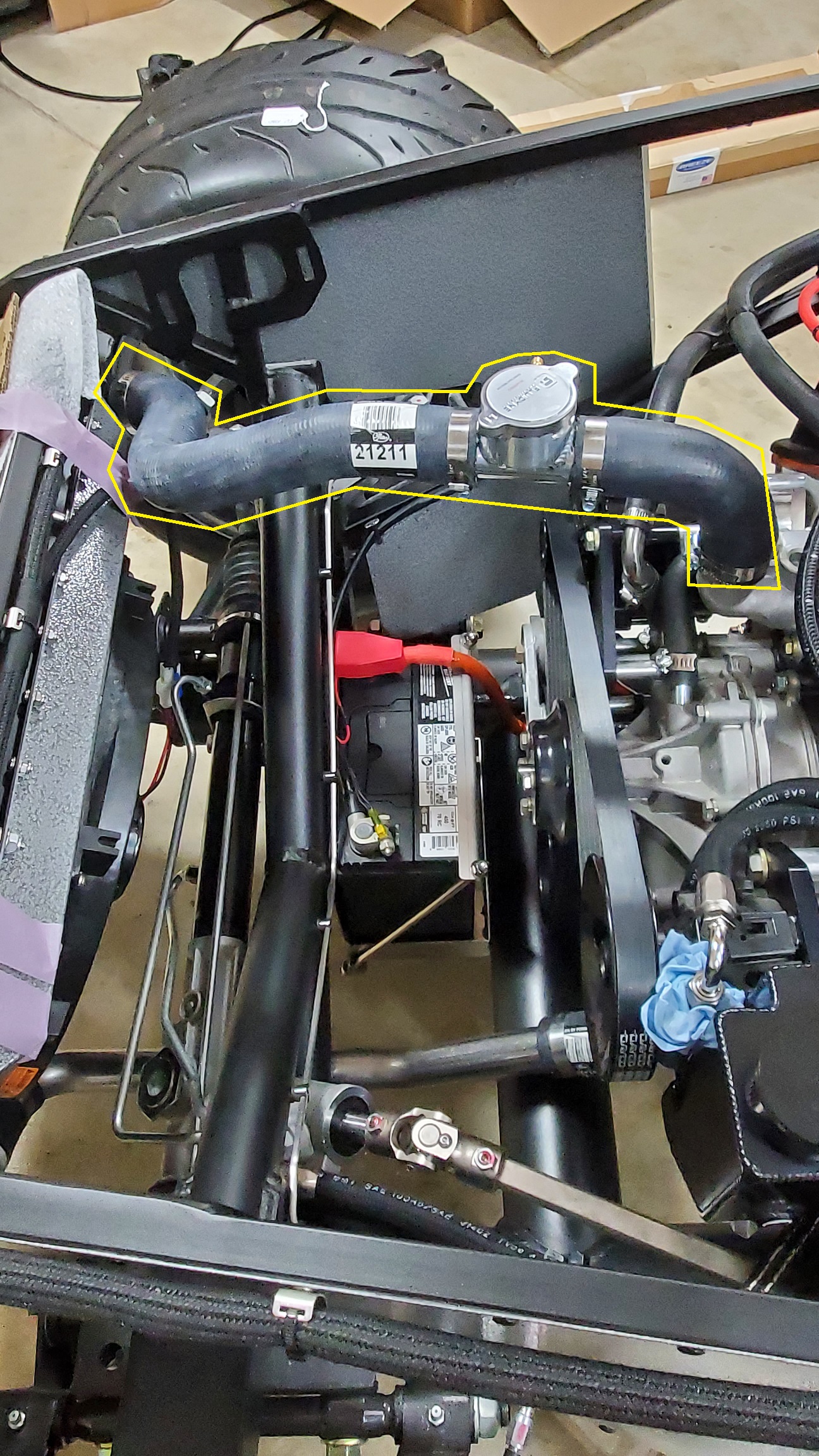

This past week I was motivated to install the radiator hoses. Thanks to Frank (and another Forum Member) for a suitable upper radiator hose that could be cut and clocked to fit well :)

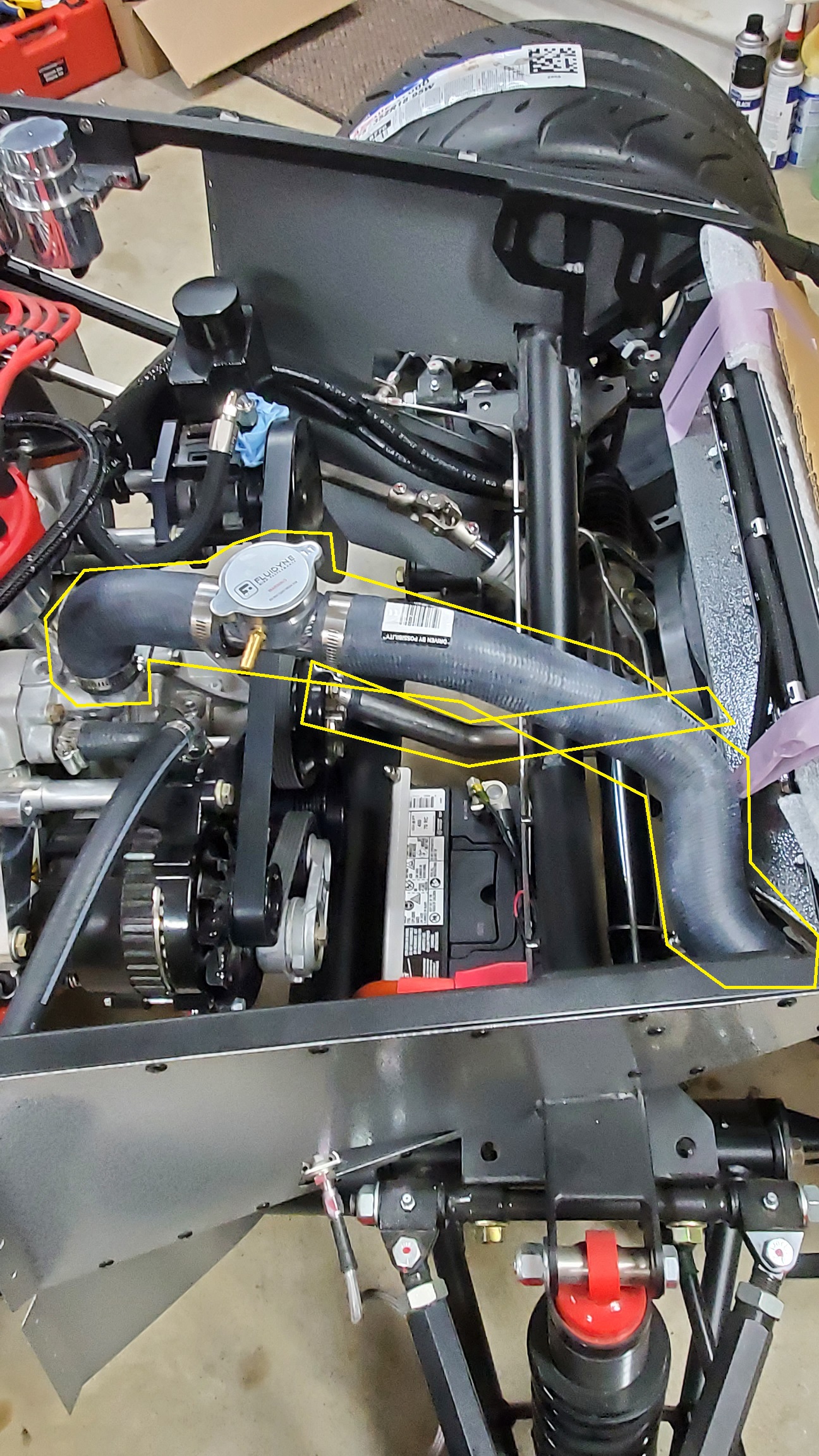

Here's a picture of the upper Attachment 219832

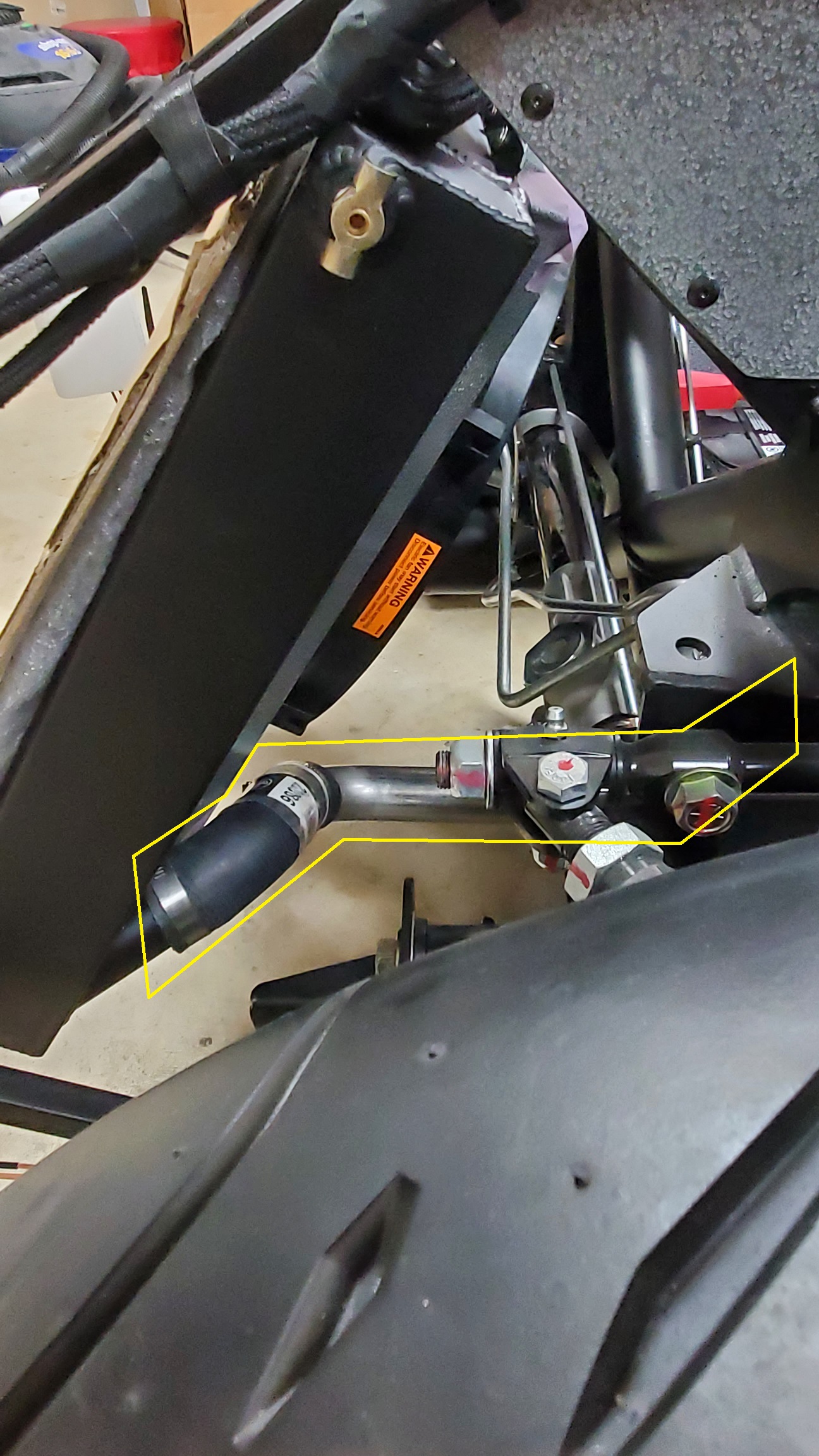

The lower is a Breeze pre-bent tube with selected rubber hose ends. I ended up trimming a little off of the rubber hose nearest to the lower radiator outlet (as outlined in the instructions)...and then the fitment was perfect.

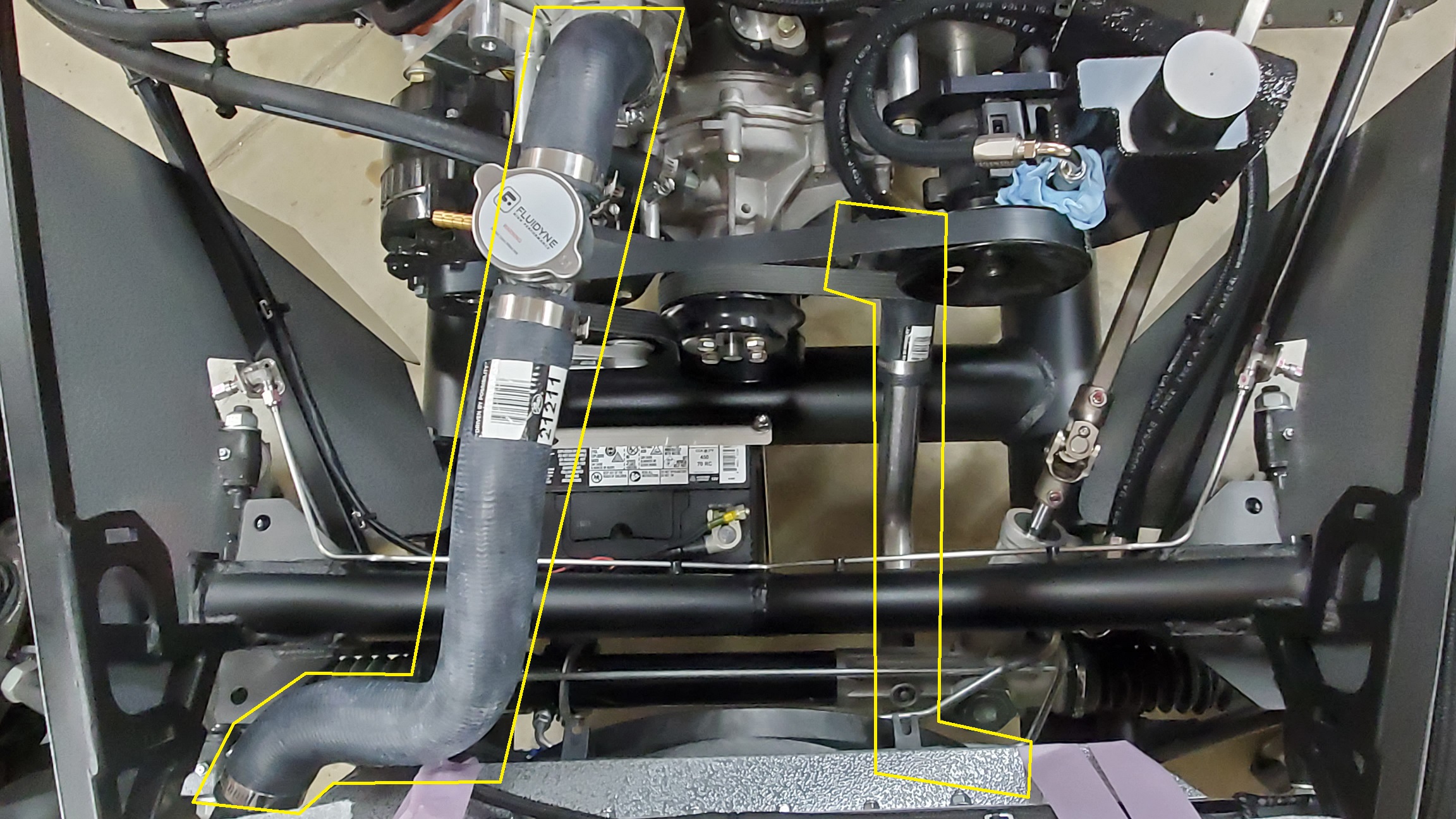

Here's a couple of pictures of the lower. First, the Roadkill view Attachment 219833
then a profile view Attachment 219836

Next post: a few more radiator hose pictures :)

Craig C

Hey Y'All,

In this follow-up post, I add a few more radiator hose installation pictures
Attachment 219837
Attachment 219838

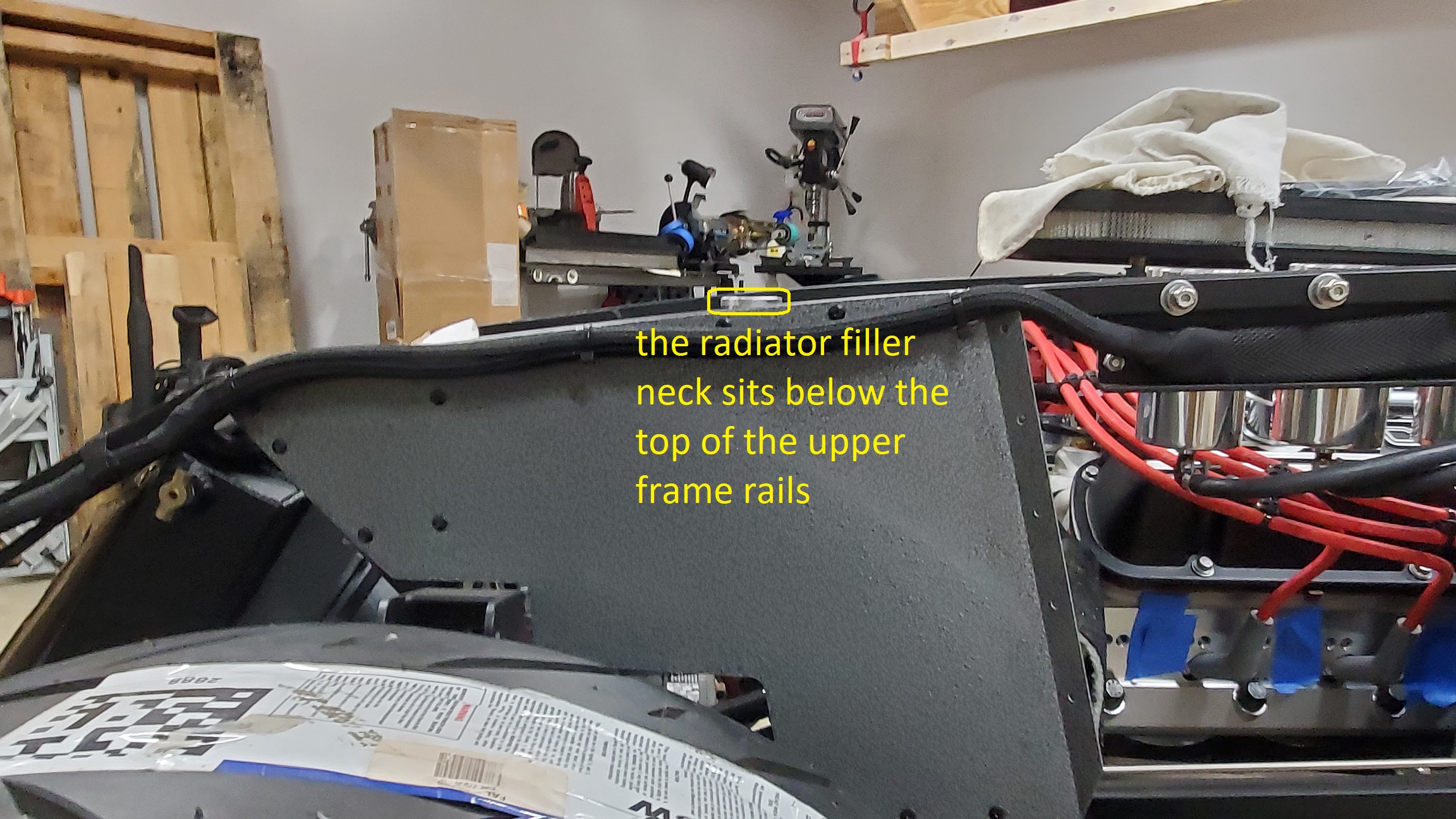

and this last one shows that the height of the filler neck cap is just below the top of the upper frame rails :cool:
Attachment 219839

Until next time, Happy Building!

Craig C

Hey Y'All,

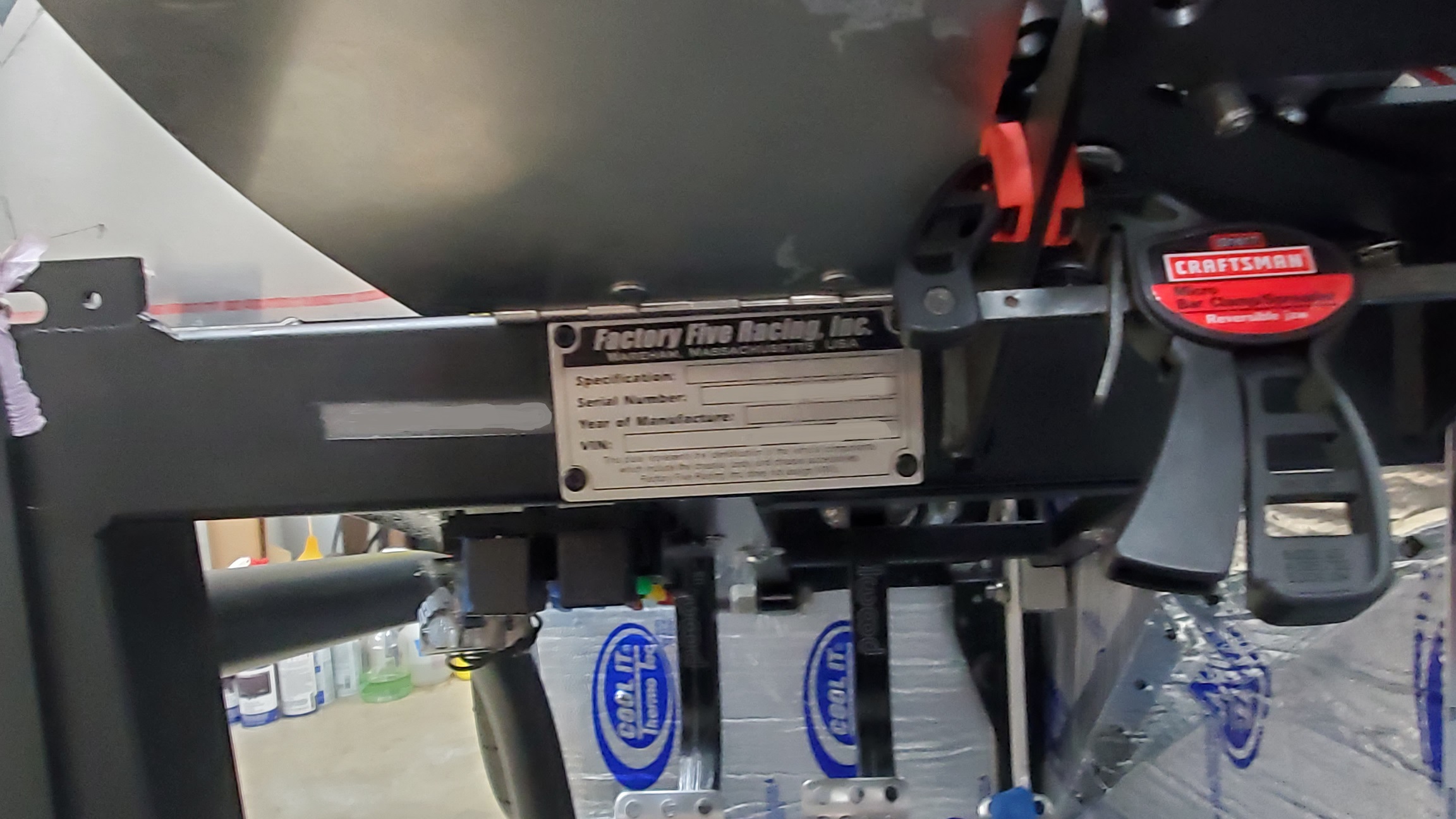

In this "bonus" post, I managed to get a VIN for my Roadster :cool: I honestly thought it would be more difficult than it was...and my state doesn't have all the "hassles" that many of you have, but still it was a thrill to get my VIN and then engrave it onto my VIN plate and install it. Here it is on the 2x2 frame tube next to the steering column support...
Attachment 219840

Then later in the week, I applied for title and then registered my Angelina
Attachment 219841

Even though my build is going slowly, it was a personal goal of mine to get registered in 2025...this gets me extra motivation to keep making headway every week :)

Happy Building...it'll be done before you know it...
Craig C

Hey Y'All,

In this post, I add some detail to the heater cable routing/layout and some of the factors that I considered in my design...you may find this helpful for your builds.

First, I had competing constraints: 1) layout of the Dash Panel to be aesthetically pleasing to me, and 2) locating the coolant valve to be both accessible, but out-of-the-way, in the engine compartment.

The Cable dimensions were fixed because I didn't want to modify this specialty cable, so that meant a balance between my constraints. For those not aware, I chose to use a different "straight" fitting from the heater core, a common 90deg heater hose, and an aftermarket valve first brought to my attention from John Ibele's build -- Thanks! It manages the flow for both inlet and outlet hoses. Using it meant I needed to consider how the valve "sits" in the engine compartment with all the hoses and cable attached. If you use the FFR-supplied valve, your layout can be much less constrained. All these adjustments were achieved by simply trimming the hose lengths to get what I wanted :)

I also wanted to take advantage of a bulkhead-type of pass-thru for the cable instead of a plain rubber grommet. I believed it would help to locate the curve arc of the 90deg turn it has to make from the cockpit to the engine compartment valve. I chose a "cable gland" for this purpose because you can cinch-down the opening for a tight seal. Enough with the set-up! Here's some pictures...

Bigger than "grommet-sized" hole needed, though Attachment 220051

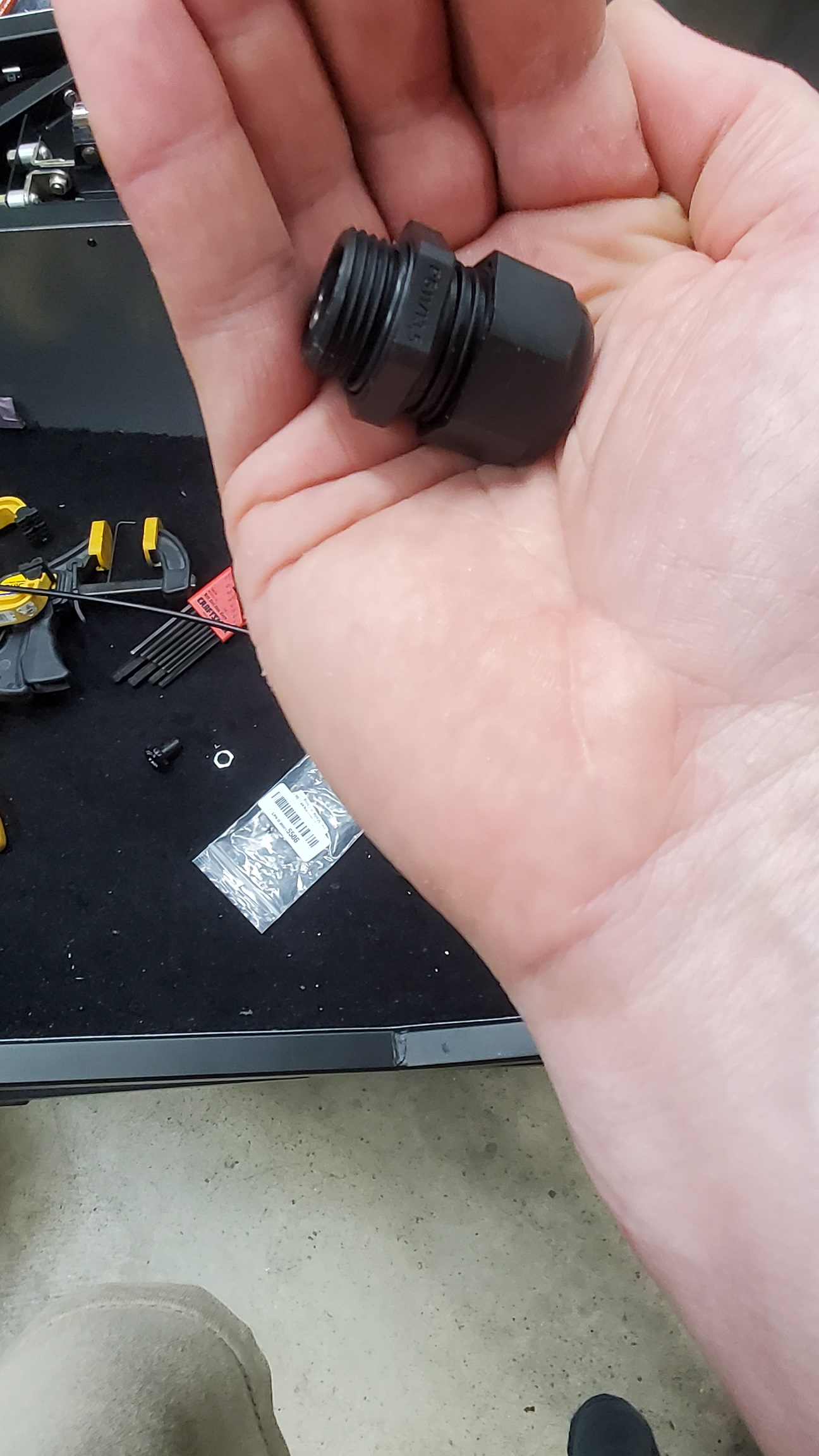

Gland-nut Attachment 220052

Where my Dash Panel controls will be located
Attachment 220053

Behind Dash Panel routing..."straight-shot" to minimize bends Attachment 220054

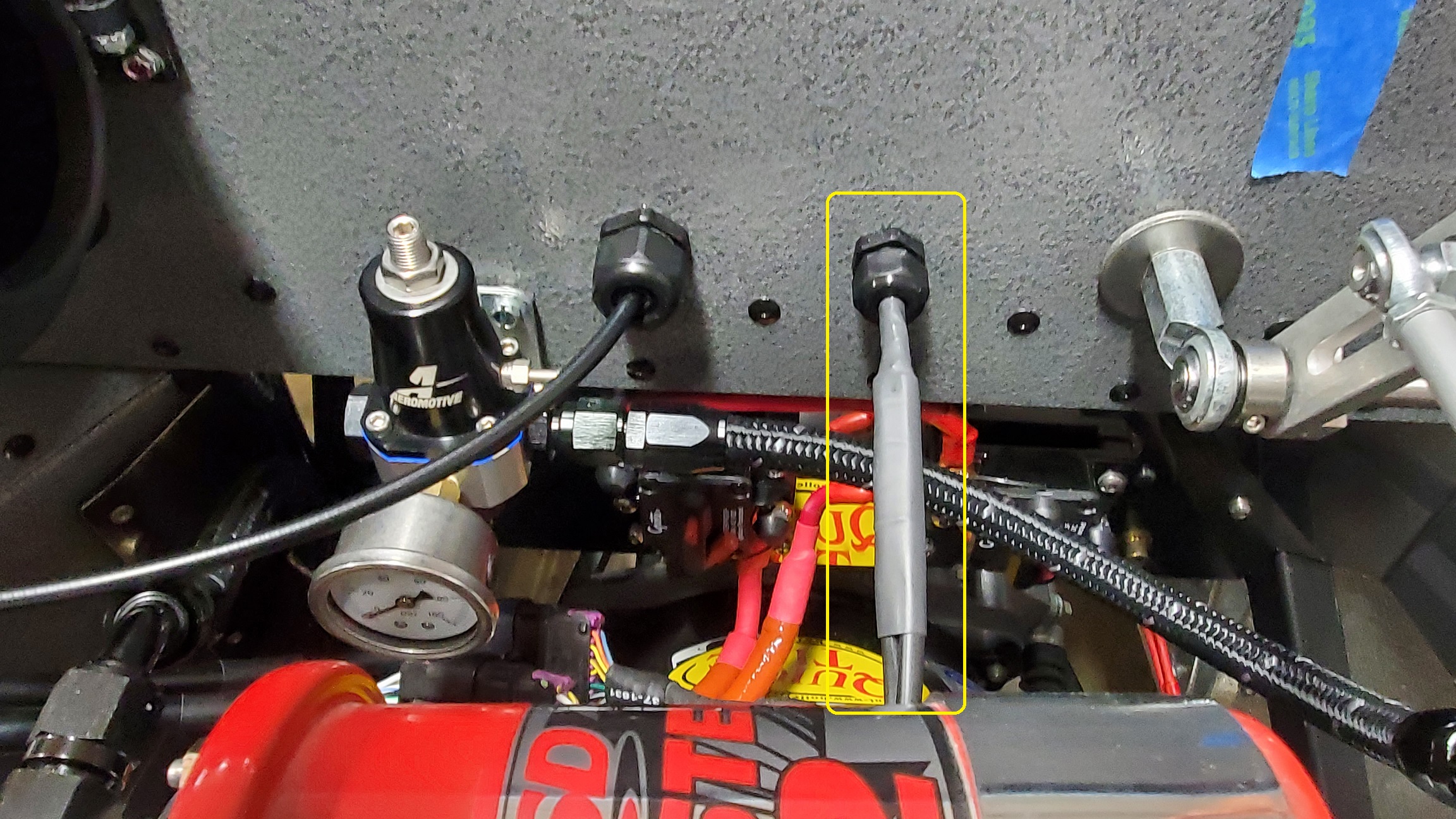

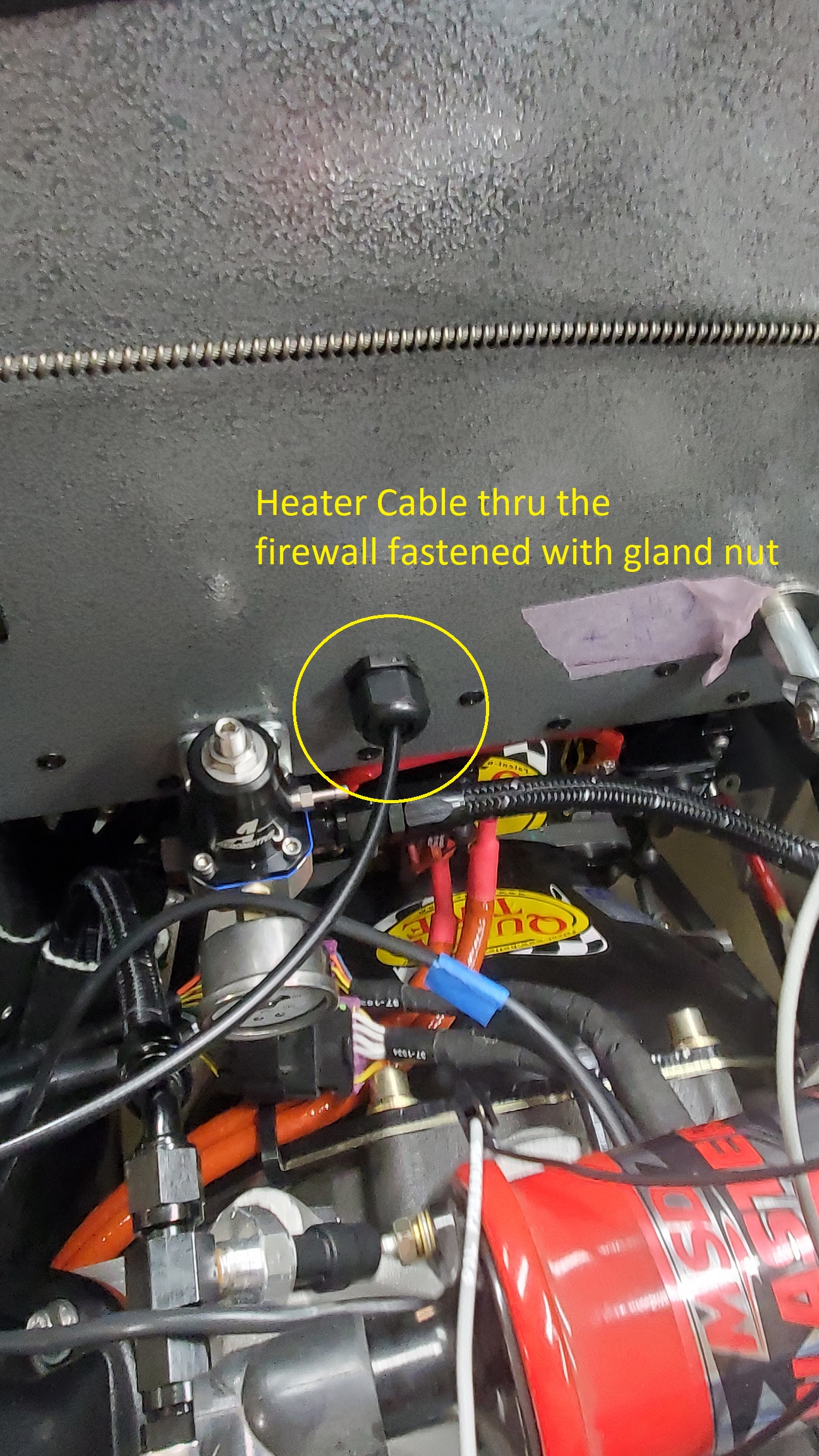

Firewall with Gland Nut and cable Attachment 220055

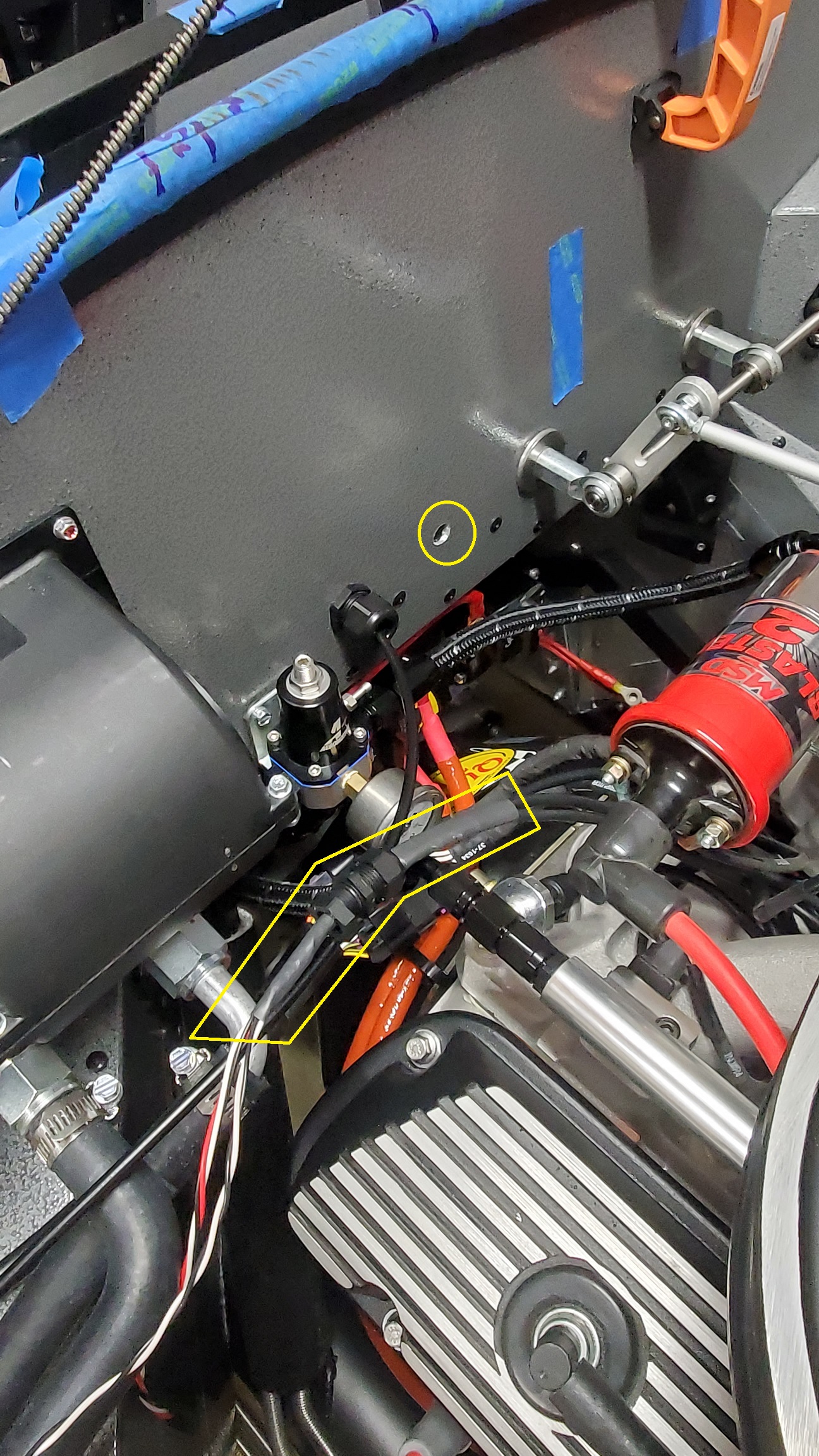

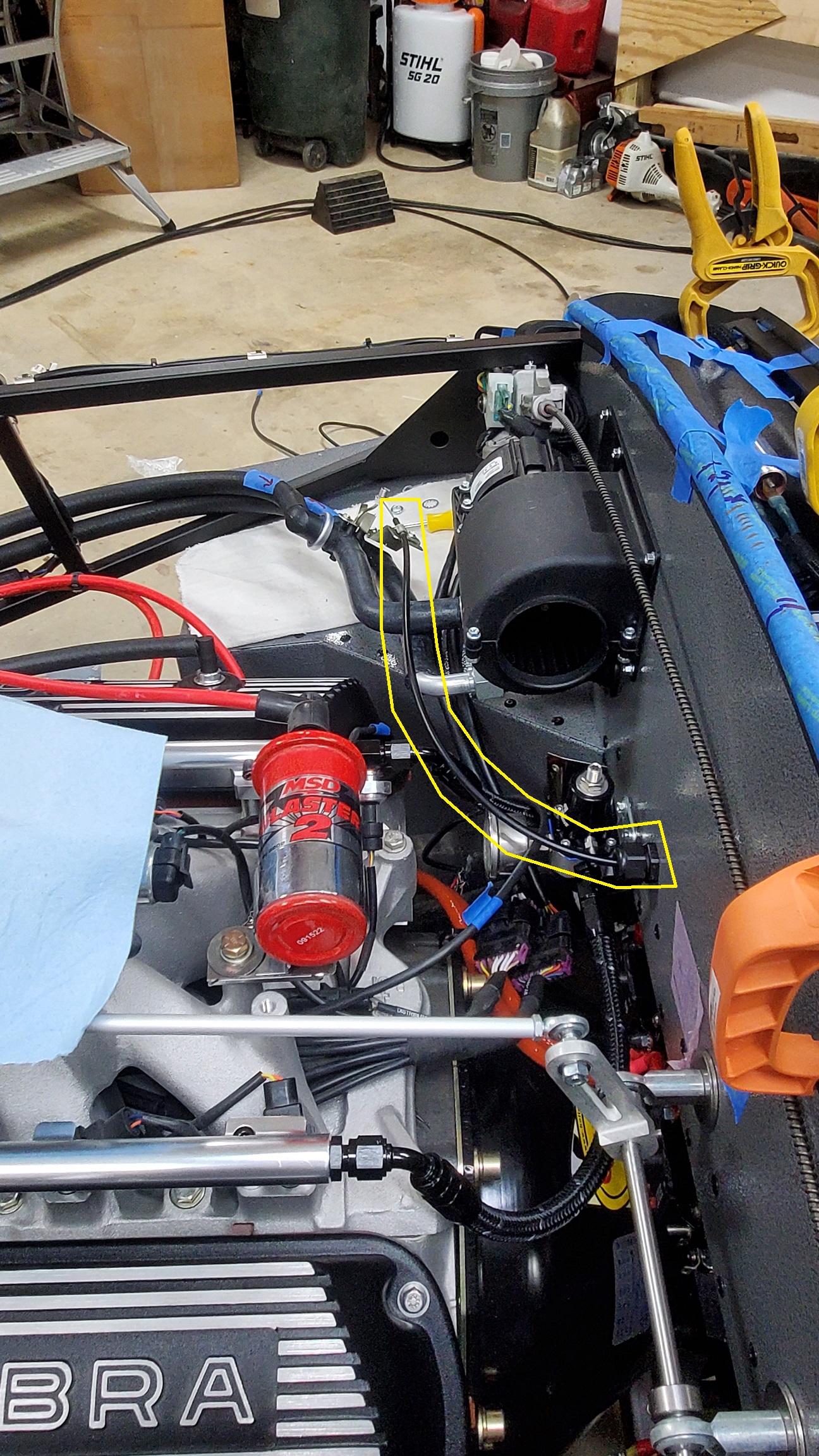

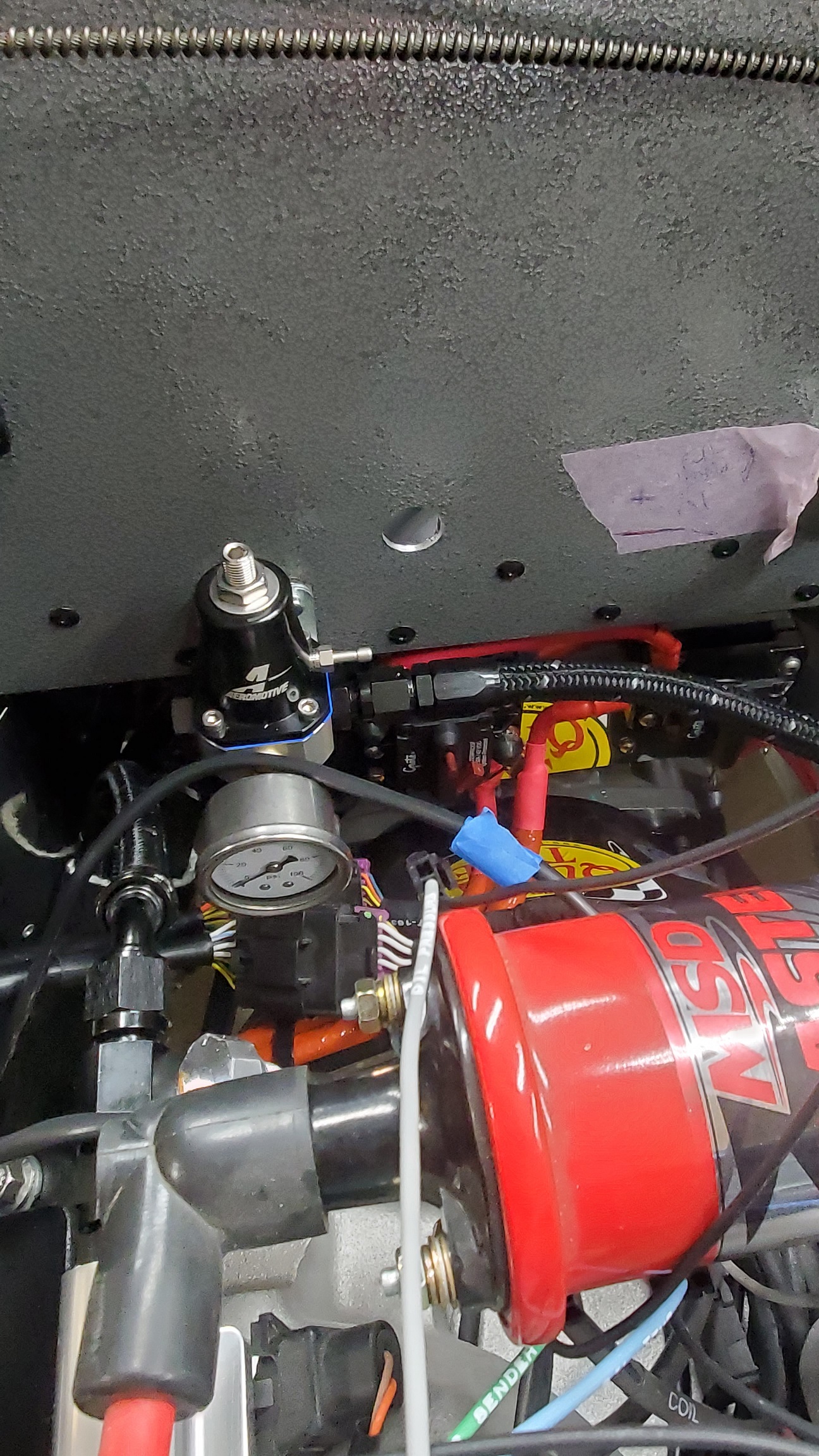

Engine Compartment routing Attachment 220056

Until next post, Happy Building!

Craig C

Hey Y'All,

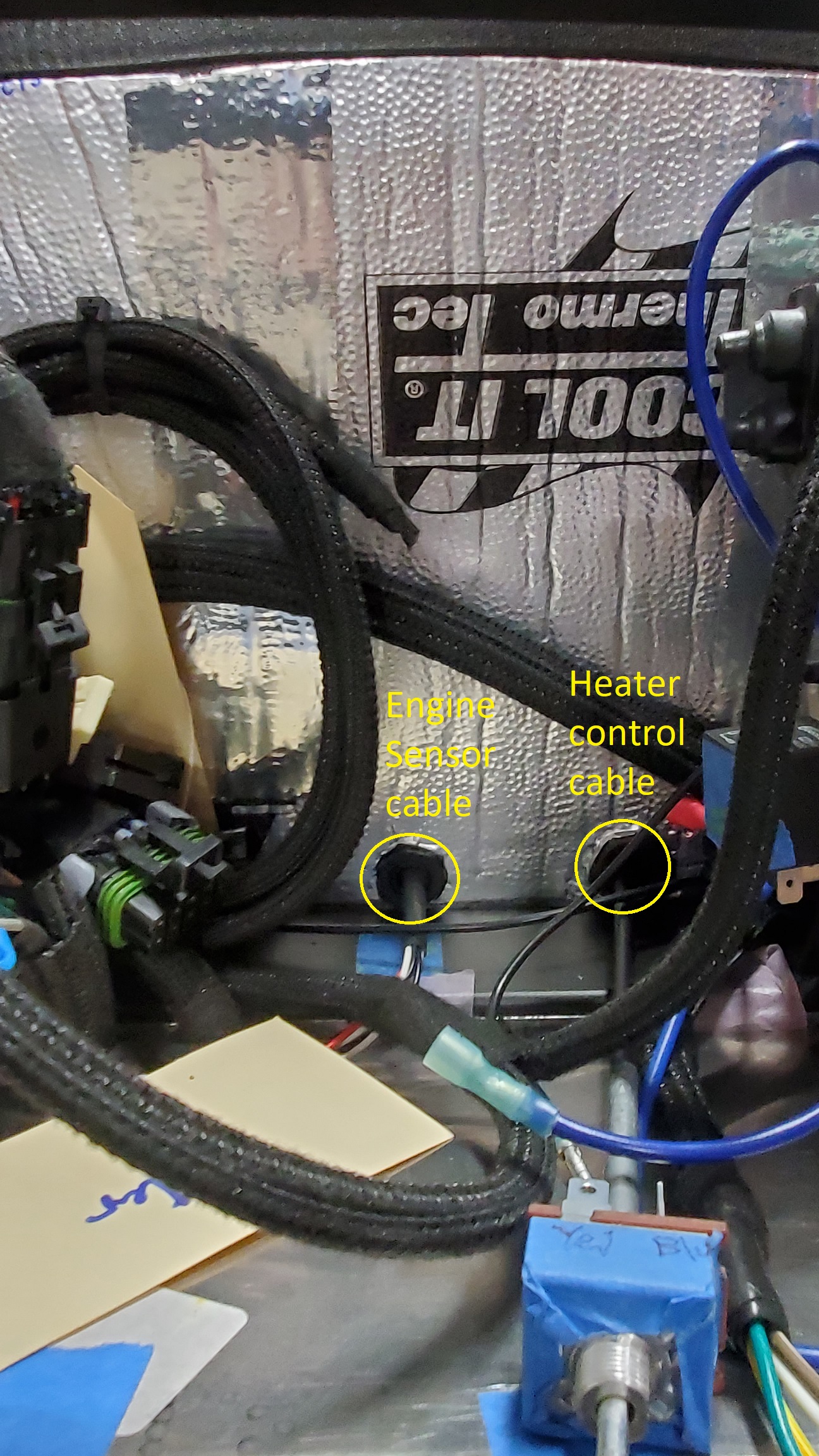

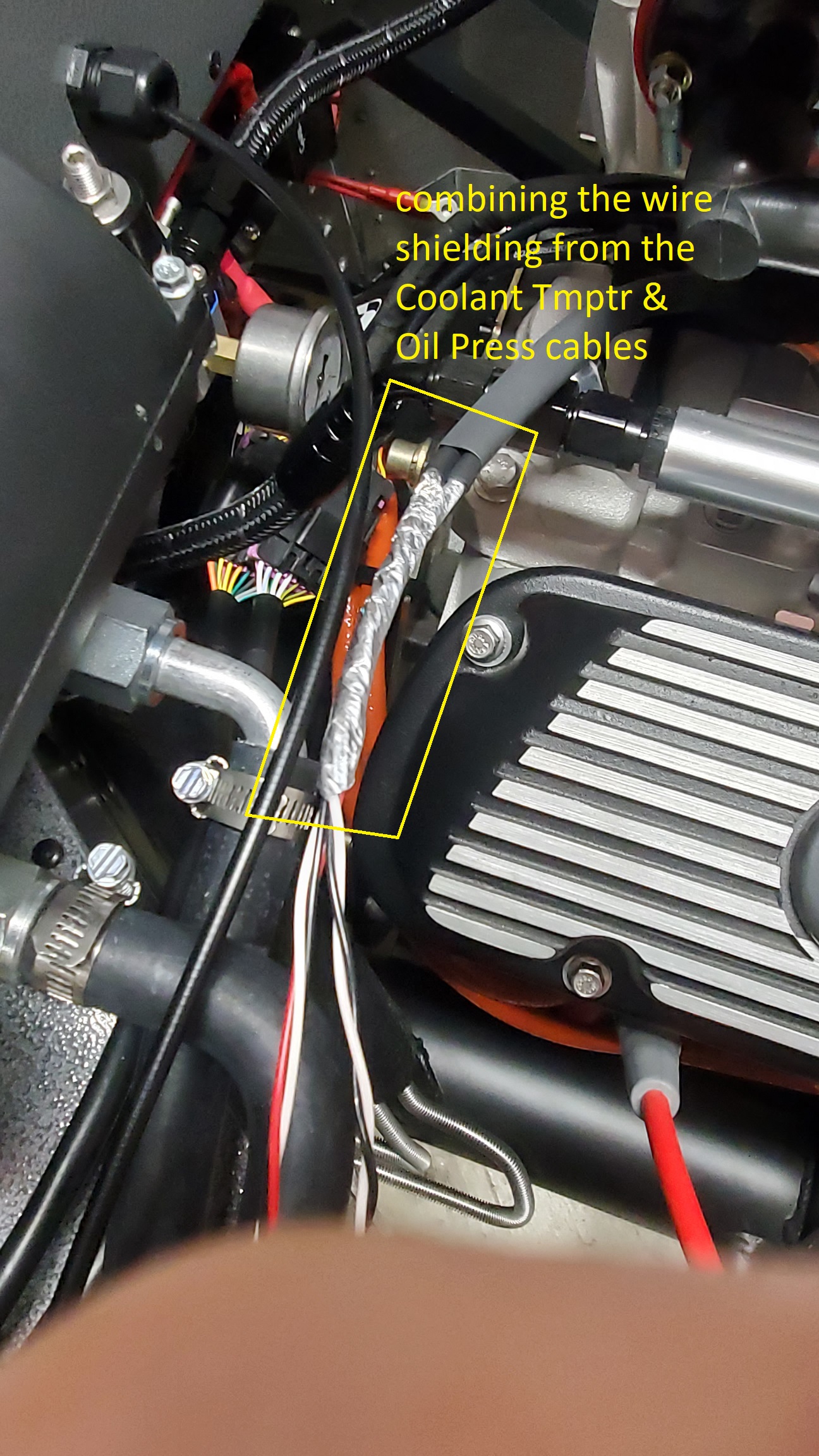

In this post, I prep the engine sensor cables (Coolant Temperature & Oil Pressure) provided in the SpeedHut Gauge box to be used and spliced into the Ron Francis provided wiring harness. The SpeedHut sensor cables are shielded with the special sensor connectors already attached, so I wanted to take advantage of that in the "noisy" engine compartment. I did not want 2 cables going thru my firewall, however, so I decided to splice the two sensor cables together...particularly the shielding foil. I found a tool normally useful for Home Entertainment cable prep which cut the insulation, but not the shielding foil :cool: You could pick one up from your local big-box store...

Leaving lots of foil to wrap around both sets of sensor wires, and then wrapping looked like this (also note the "twisted-pair" pig-tails, which are almost as effective as proper shielding)
Attachment 220057

Then adding heat shrink tubing
Attachment 220058

Then making sure it would fit into the cable gland nut
Attachment 220059

Finally, adding my favorite woven split-loom for a tidy appearance
Attachment 220060

Next, I could finally complete the sticky heat shield mat in the center part of the firewall and cover the cut edges with heat shield tape. Here's the finished result from the cockpit view (behind the dash panel)
Attachment 220061

Until next post, Happy Building!

Craig C

Hey Y'All,

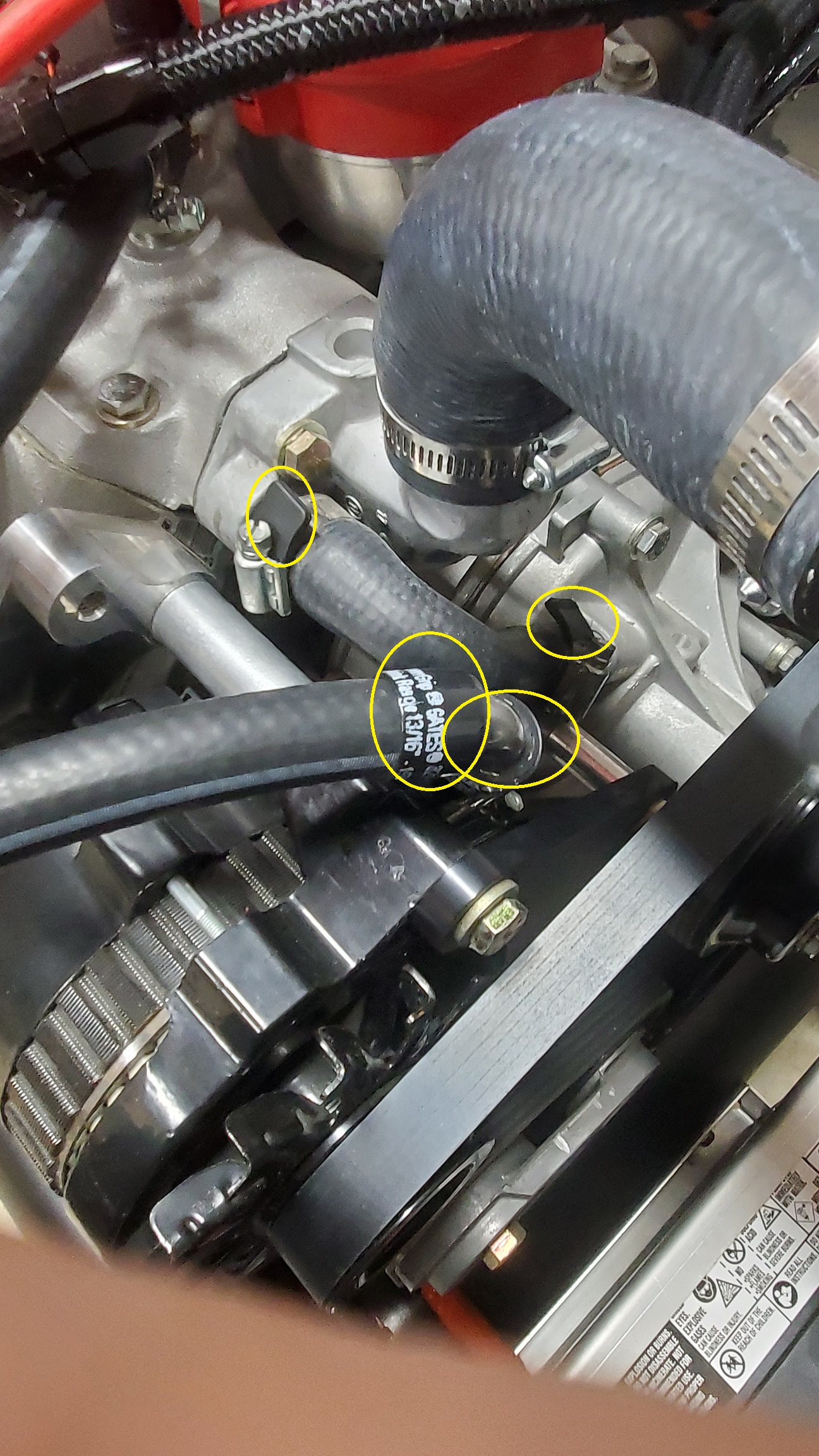

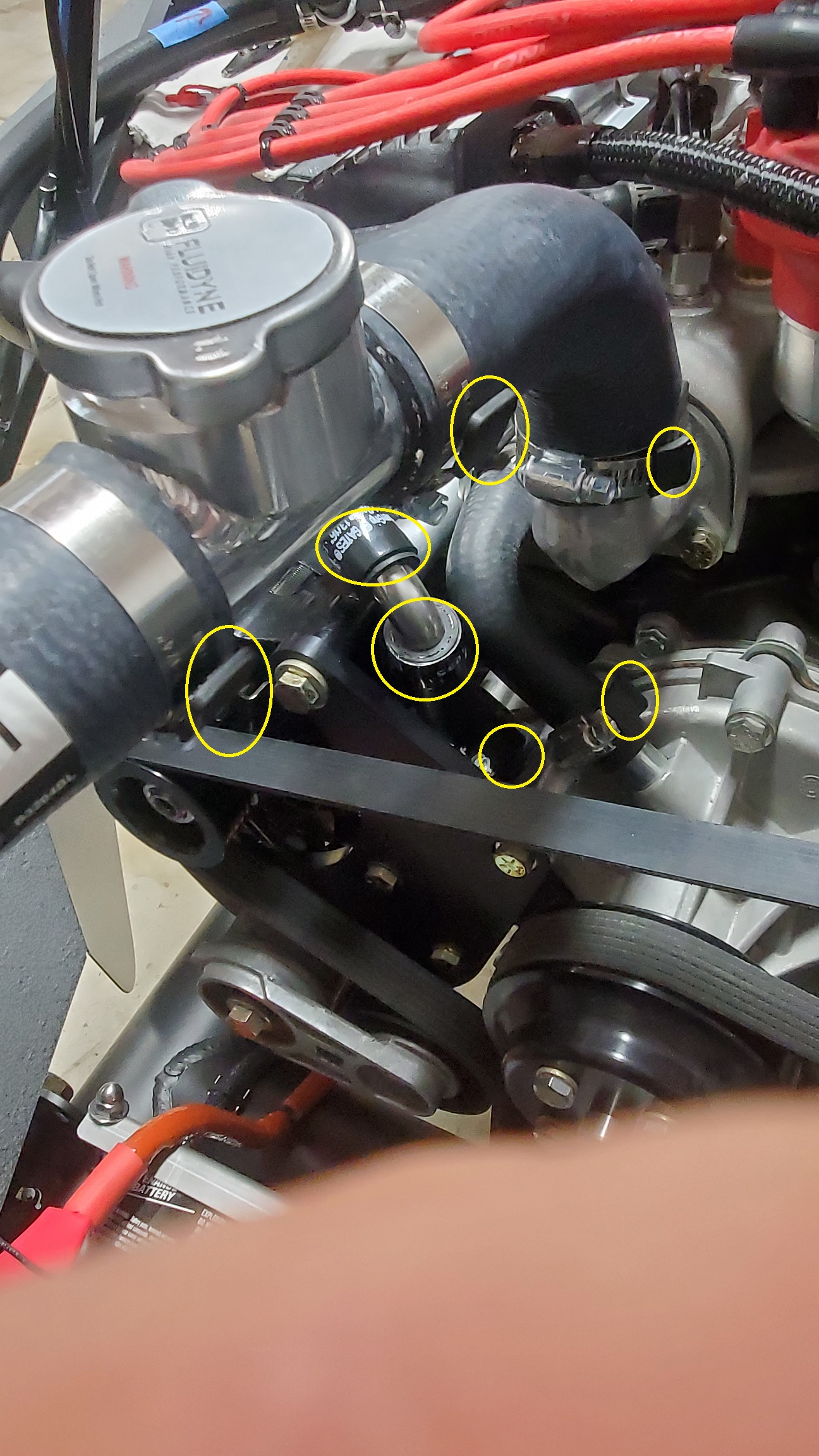

In this "bonus" post, I wanted to share what some little touches can do for the overall appearance. I went to McMaster-Carr to get some of those Gates heat-shrink hose clamps for my heater hoses and ended up getting some protective hose clamp rubber end-caps. These are to make sure the "tails" don't cut skin, but I noticed they can help tidy-up the appearance of the standard-style hose clamps :cool:

Here's some pictures
Attachment 220069 Attachment 220070 Attachment 220071

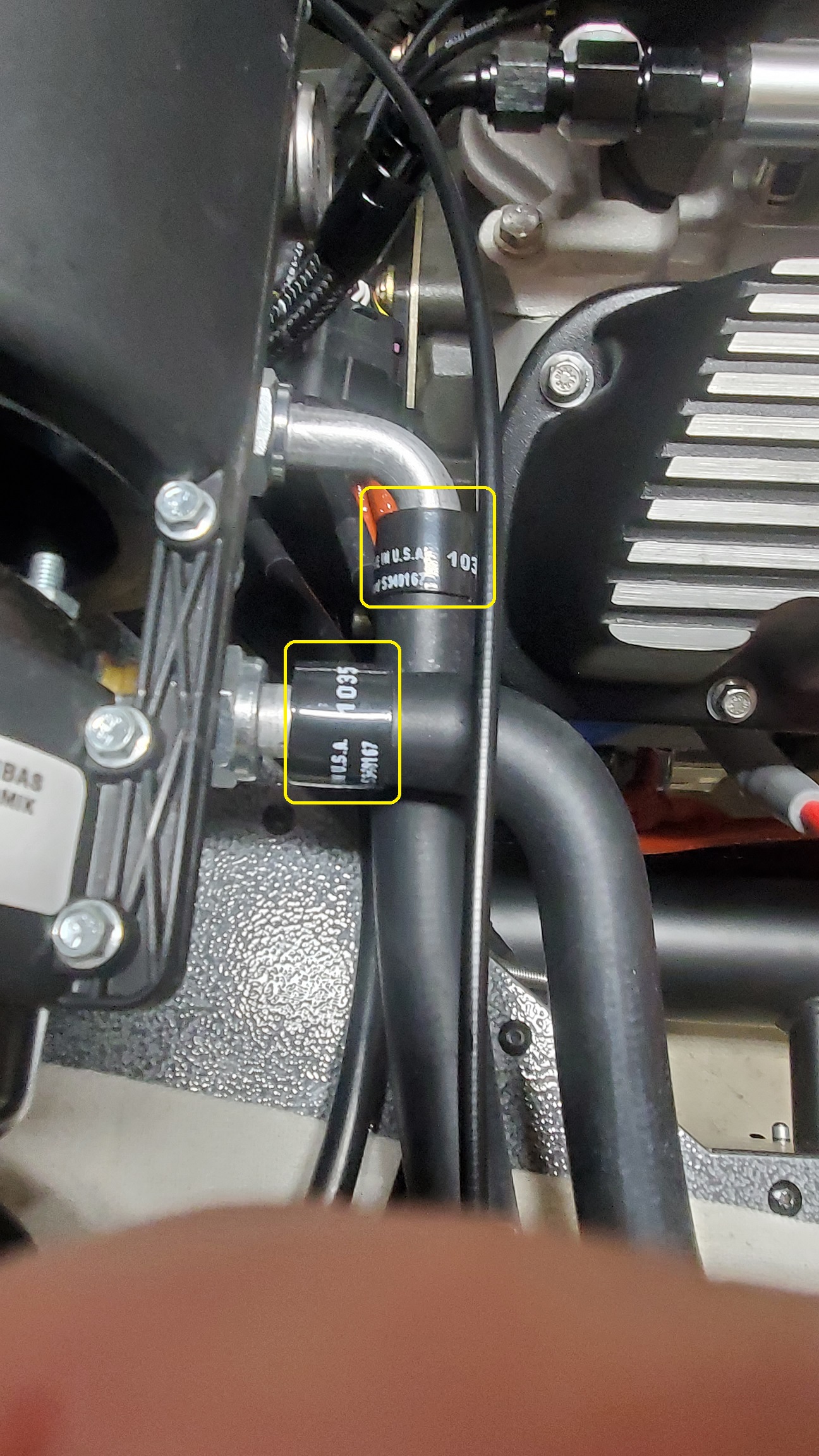

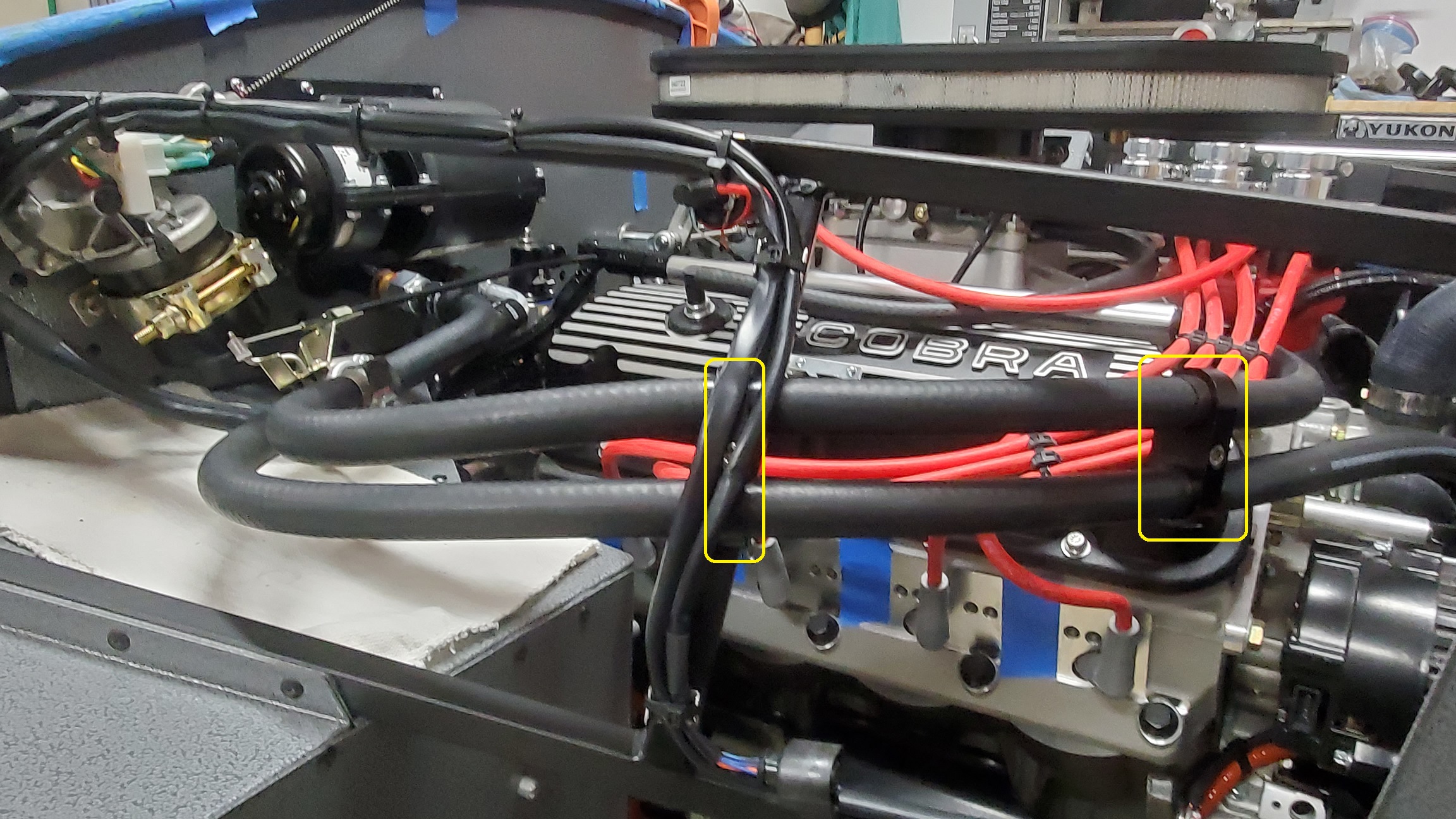

Lastly, I got some hose "separators" from Earl's and used one of them to serve as a mounting bracket for my heater hoses (so that they're not just laying on the top of the Passenger footbox...)
Attachment 220073

Until next time,

Happy Building!

Craig C

Hey Y'All,

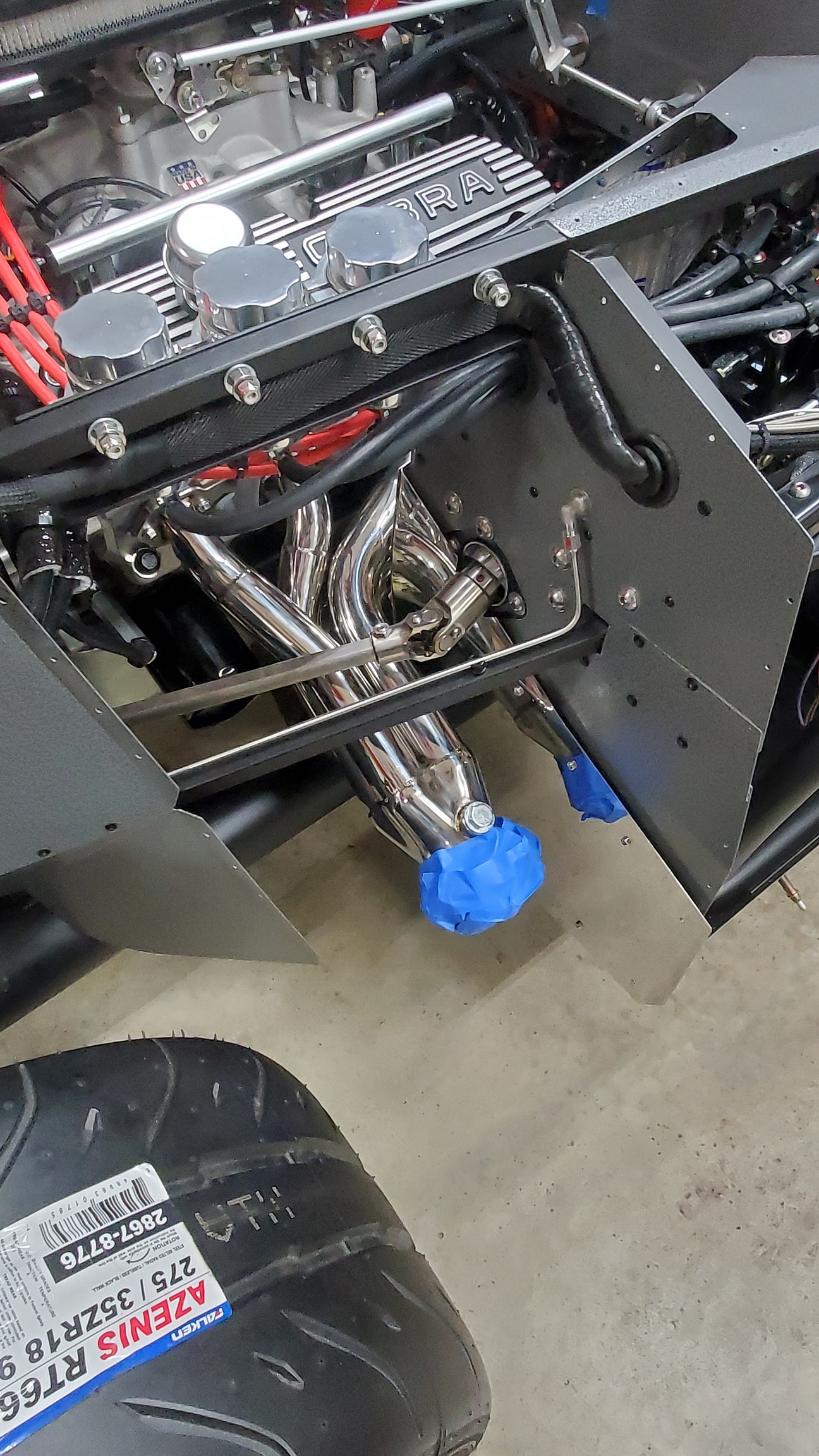

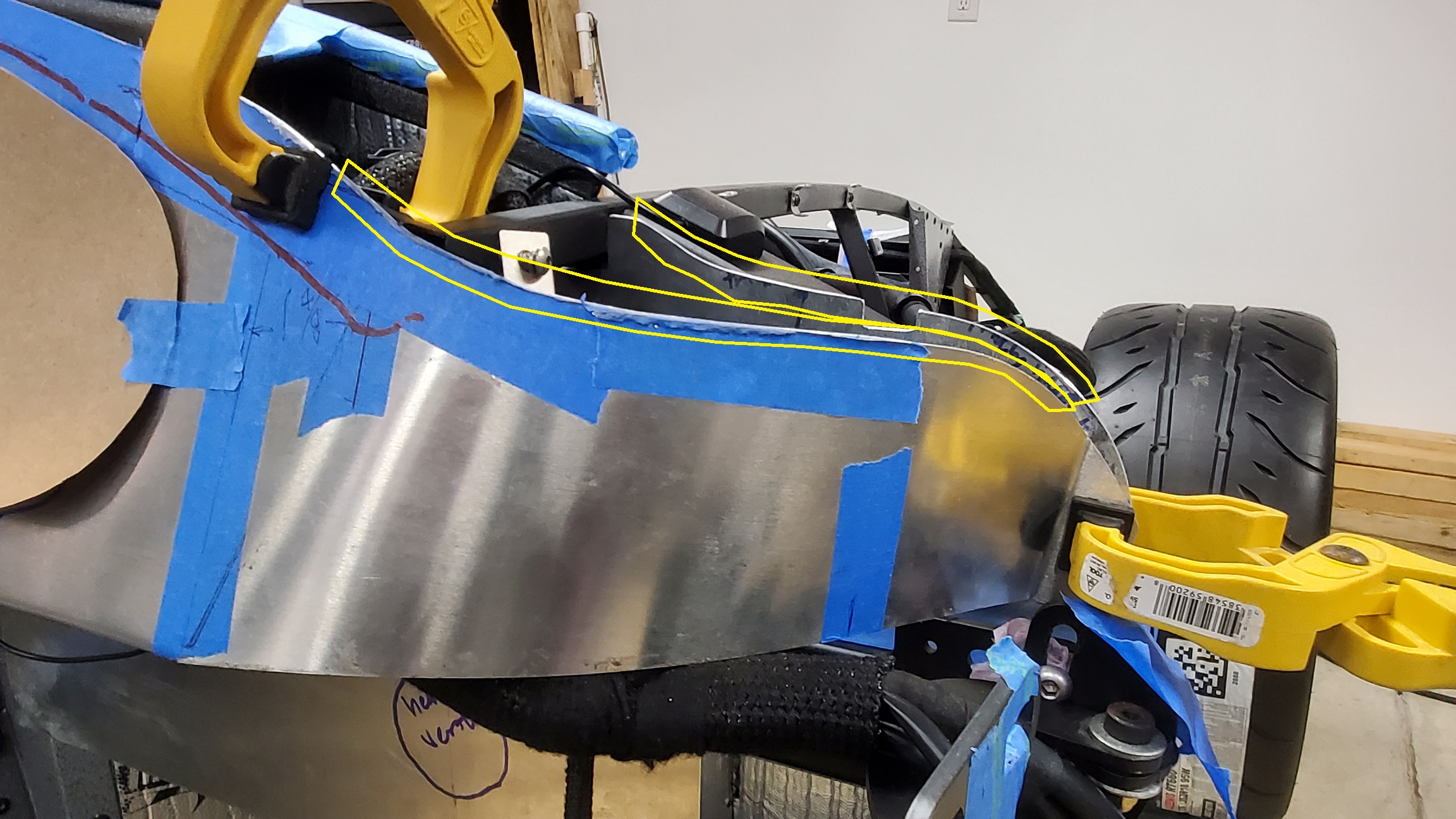

I confirmed that I can install my headers with my heat shields -- what a relief! It was certainly like Tetris, but I have a method that I think I can apply even with the body on :cool:

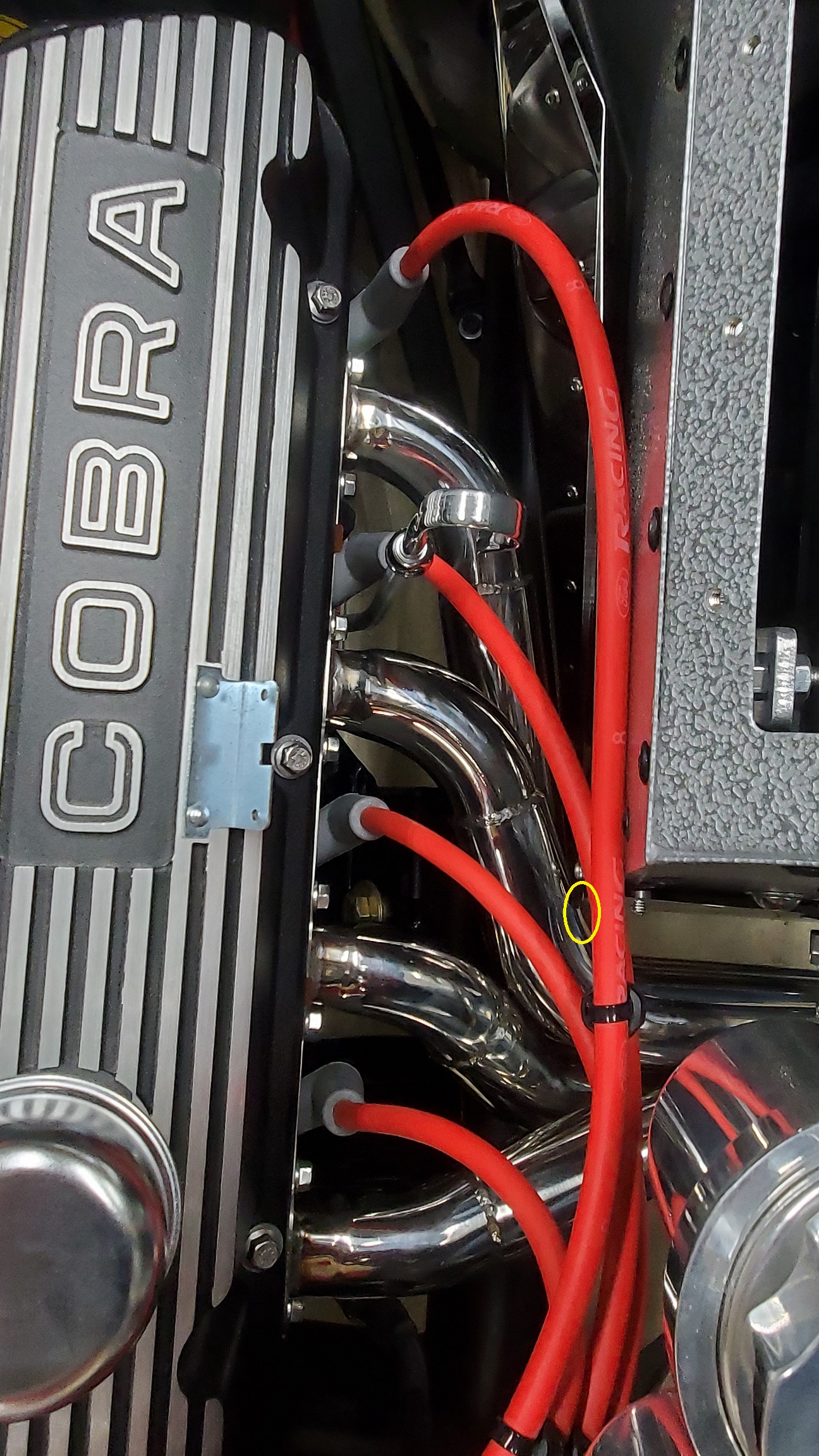

Here's the Driver's side
Attachment 220097

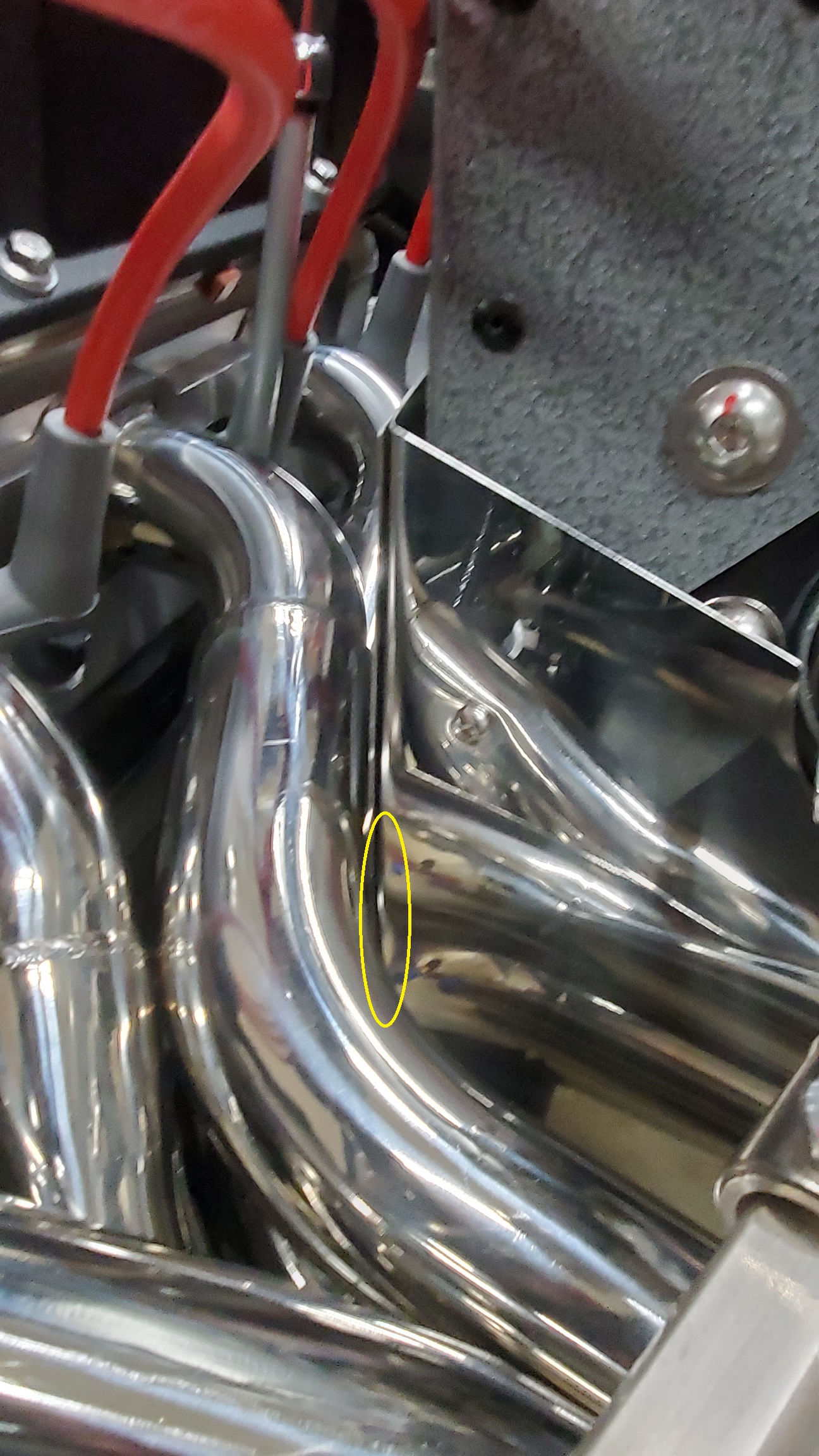

It was very close, but I think I have a little more than 1/16" clearance. It's a good thing I chose to use solid engine mounts :rolleyes: I'll have to check after running the engine for a time. I suppose I could just add a "small" dent to one of the tubes :p

Here's how close it was
Attachment 220098 Attachment 220099

The Passenger side had lots of clearance (as expected)
Attachment 220100

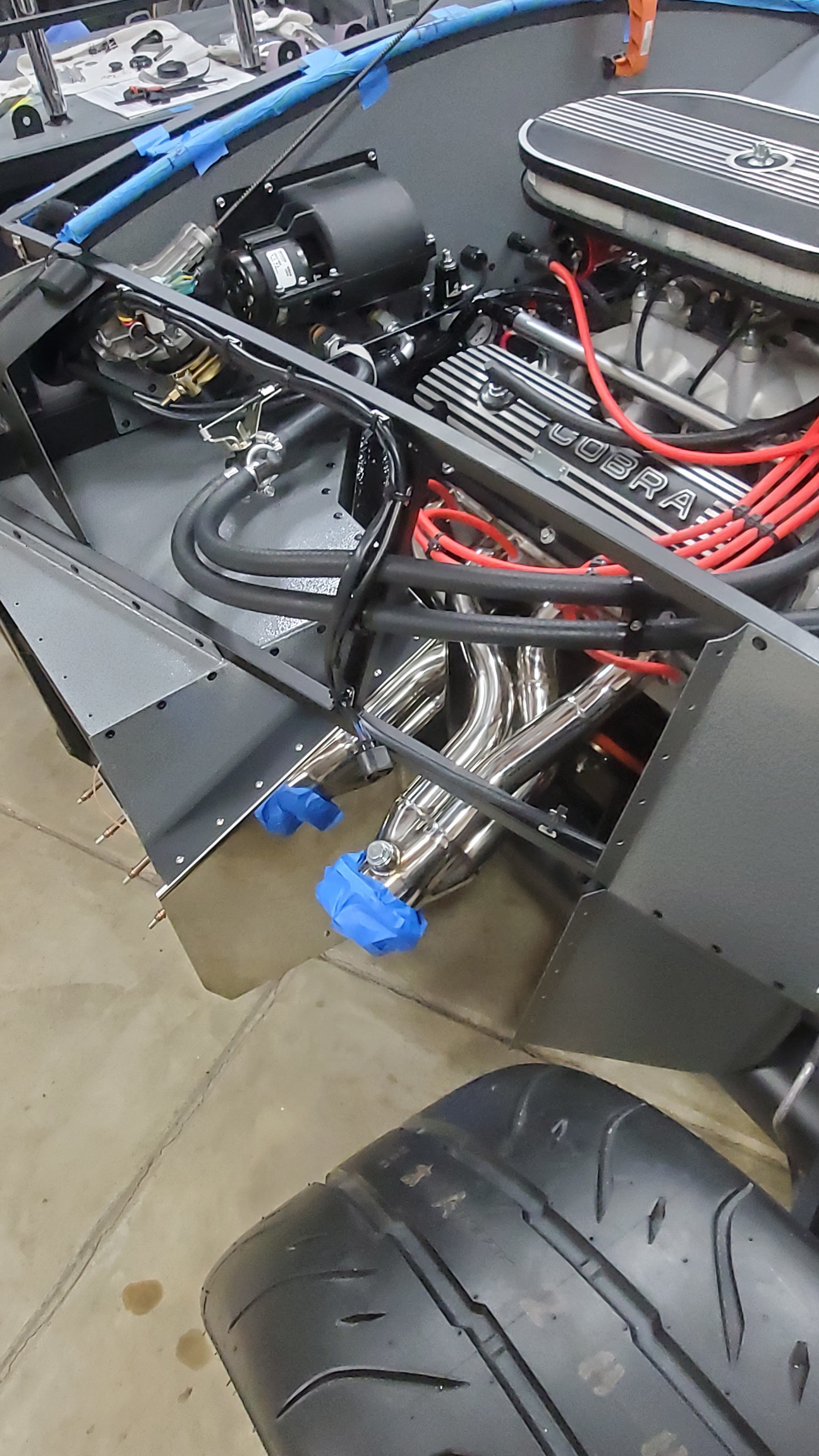

Lastly, a frontal view
Attachment 220101

Man, that looks good!!

Now the disappointing news: I'll have to do this all over again when I close up the footboxes with the outside panels :(

Oh well...the price of being "stylish" ;) For those who might want to duplicate this (427W deck height), the critical air gap to the footbox panels in the tight areas needs to be 1/4" or less...

Craig C

Hey Y'All,

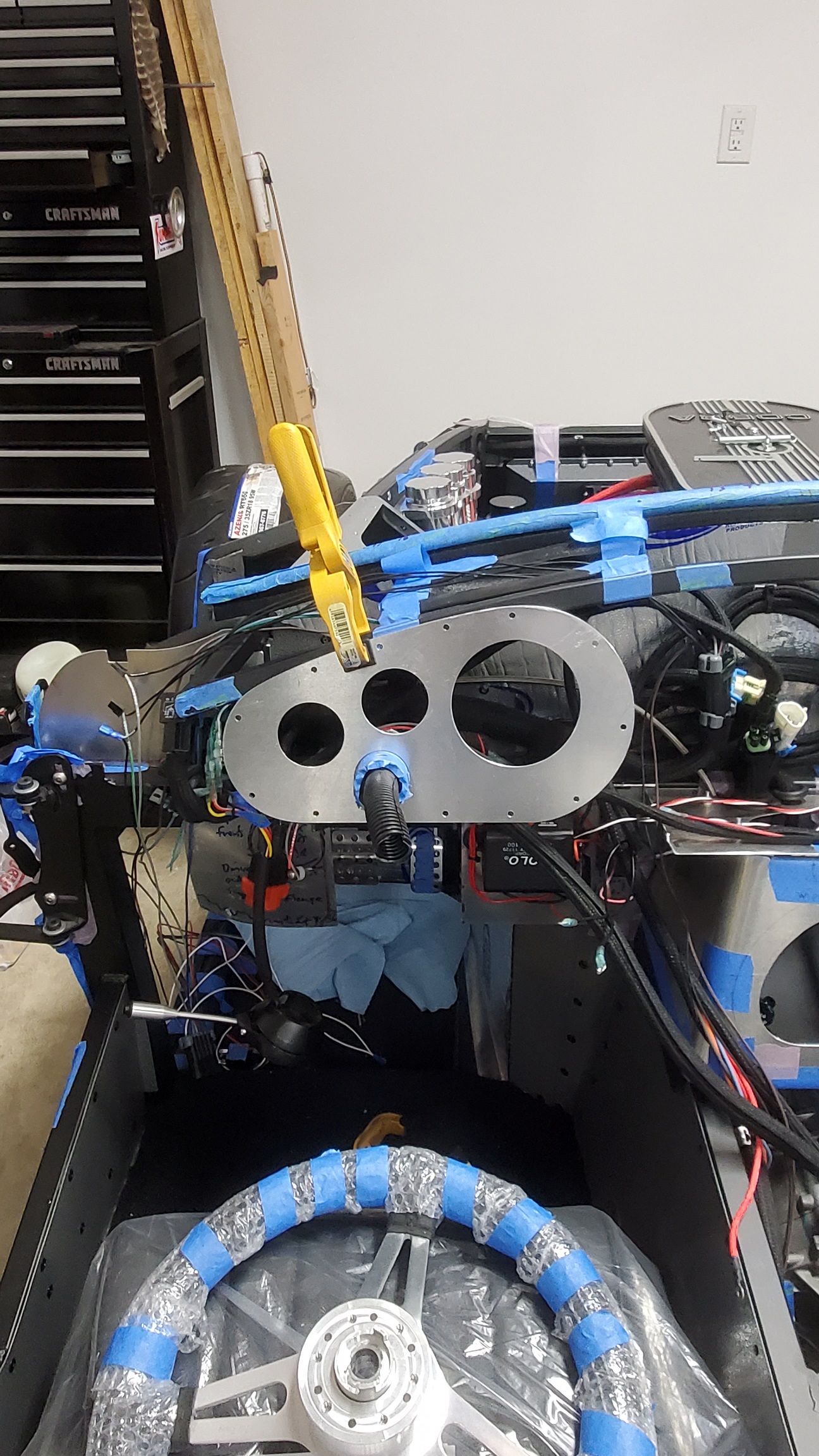

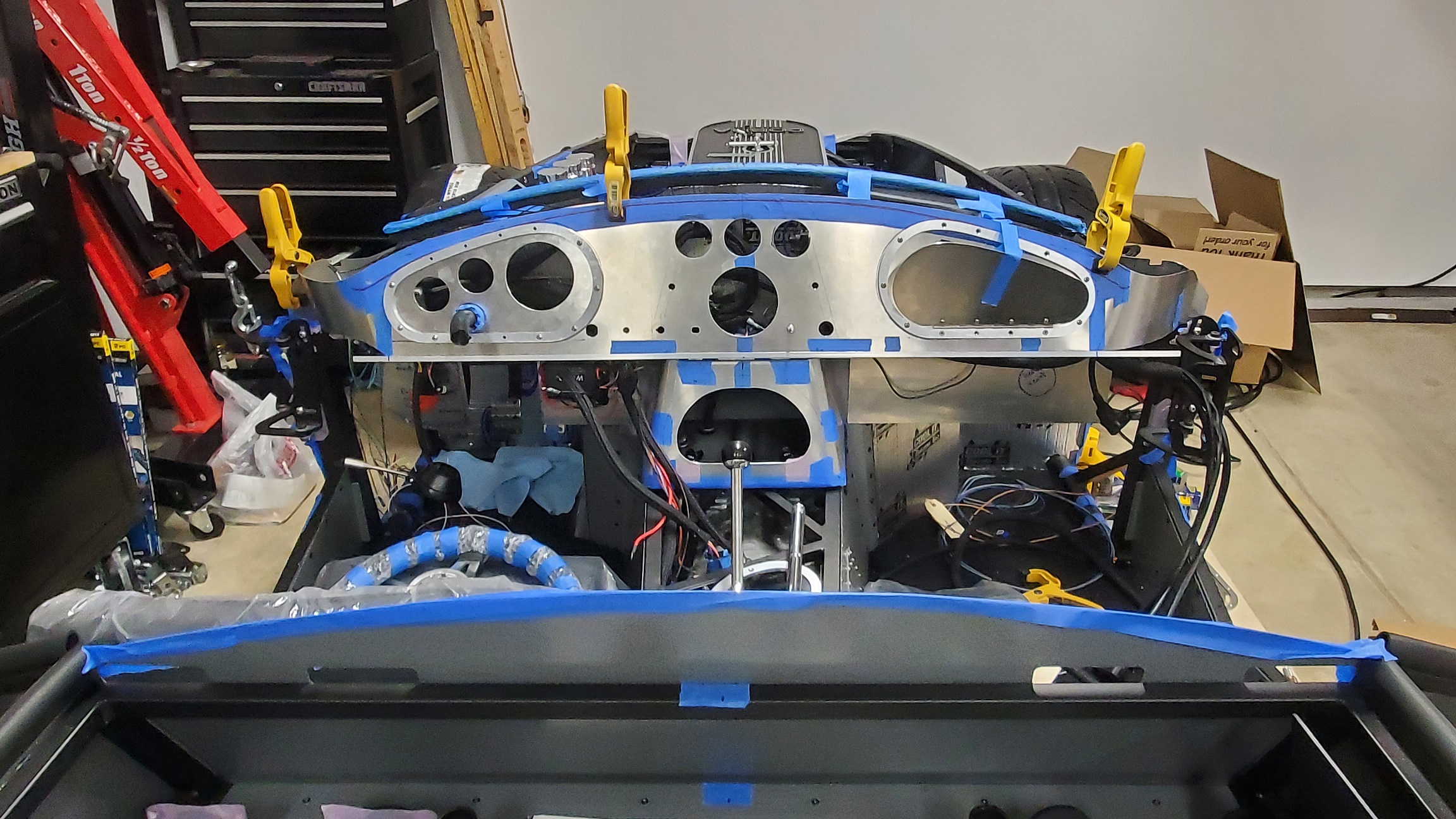

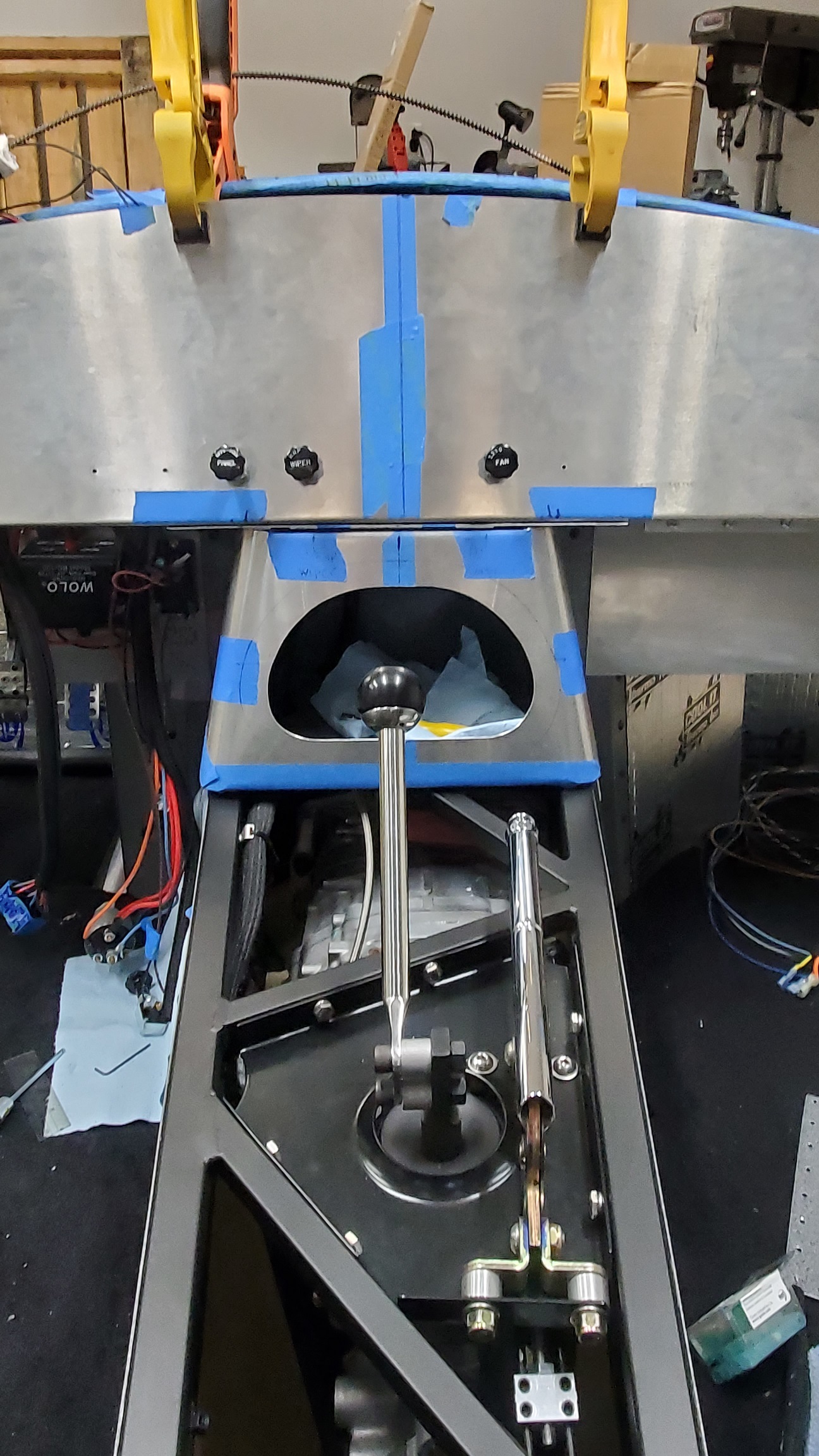

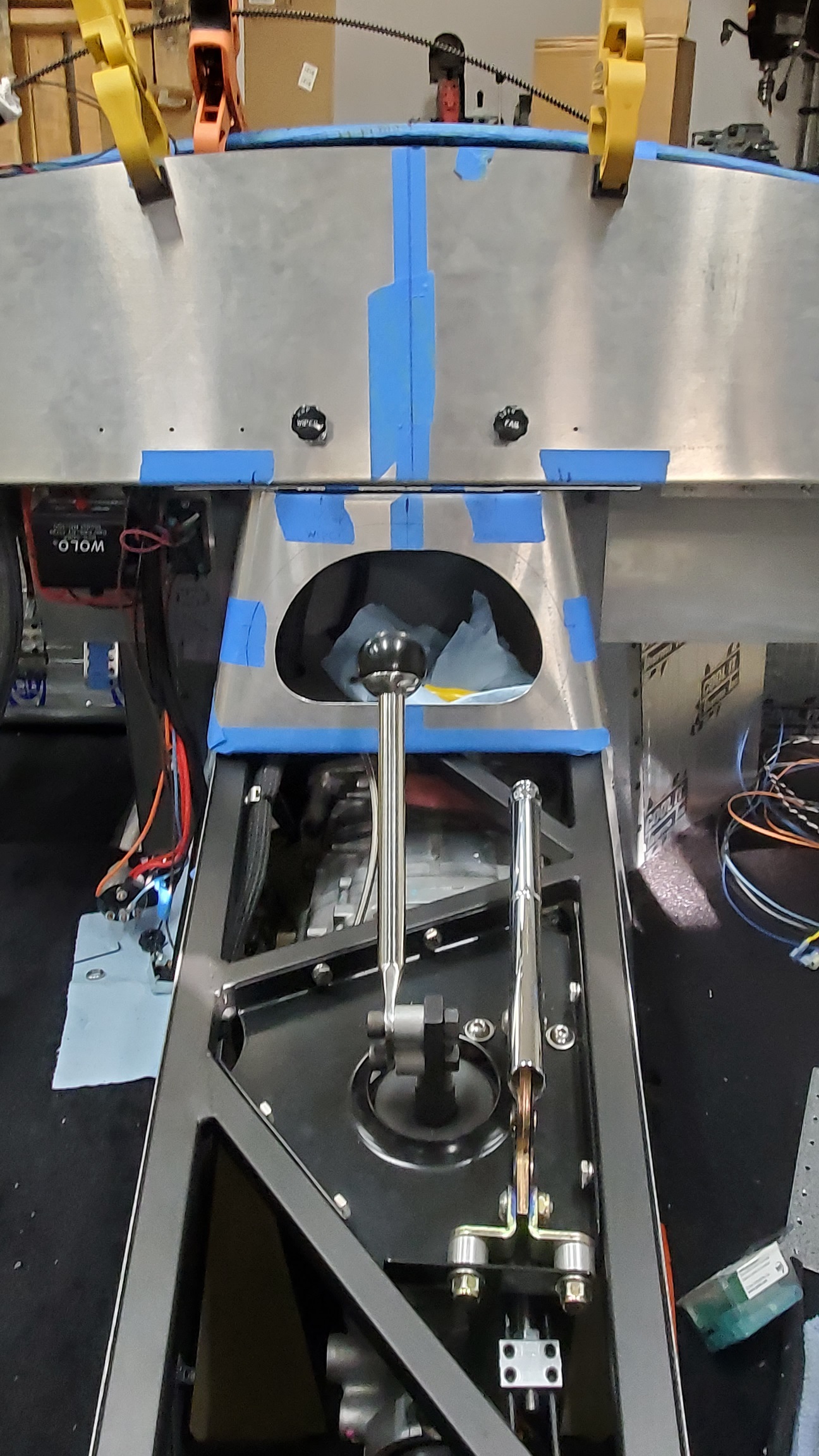

In this post, I get most of the holes drilled into the Dash Panel for the switches. The first one had to be the Heater switch since the cable length was a critical dimension for the layout of the heater valve as well as for the switch location. Then the wiper switch was next

Attachment 220404

Then the Headlight switch (the worry being that it is large behind the dash)

Attachment 220405

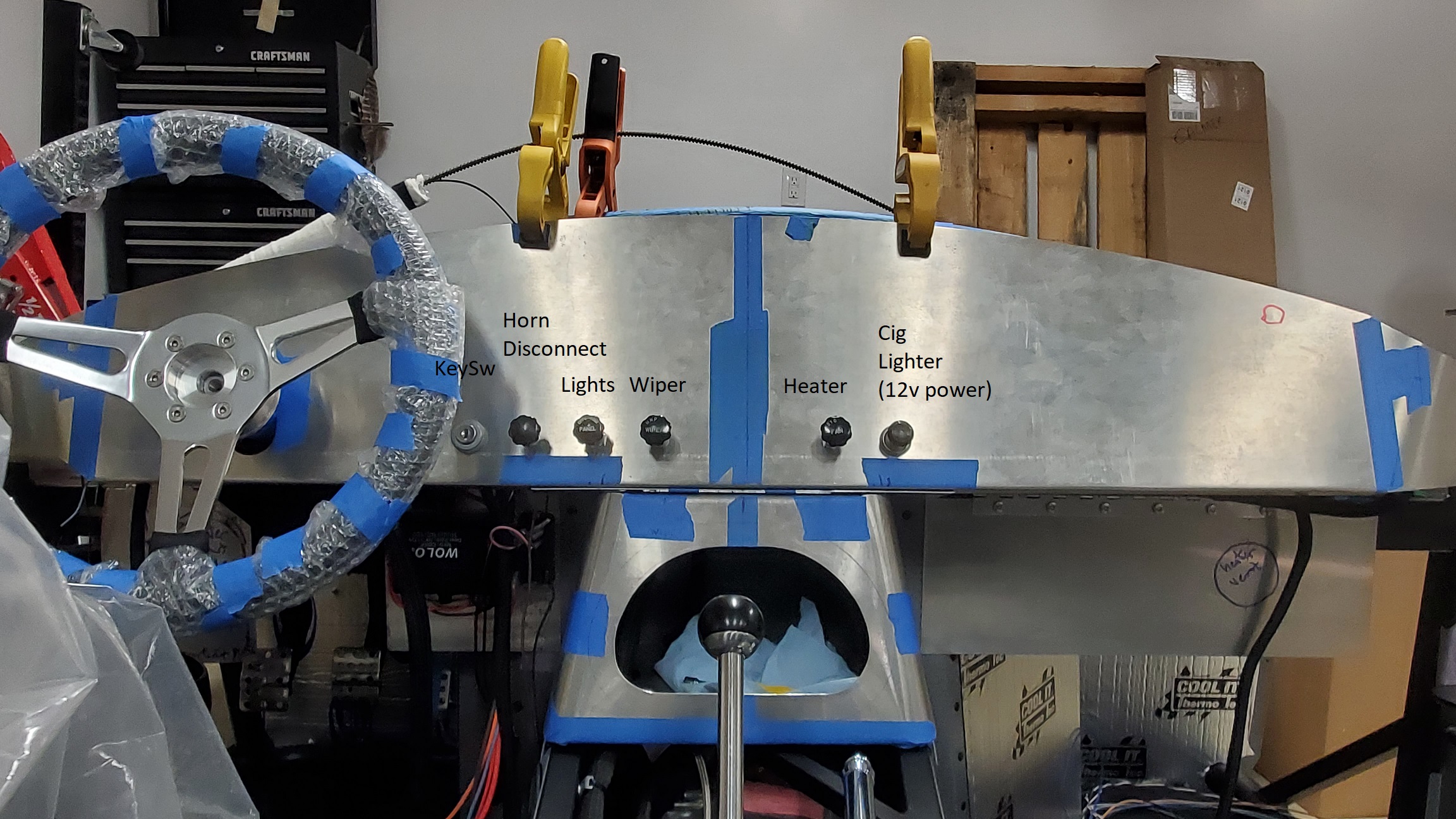

and the remaining switches (Key, Horn Disconnect, and while not really a "switch", I added a 12v plug power source...otherwise known as a cigarette lighter :p )

For those Builders who haven't done this yet, the challenge is to file out all the special straight-edges and tabs so the the switches are "keyed" to prevent them from rotating on the panel as the knobs turn...

Attachment 220406

I still have to locate and drill for the flasher switch and the RAM mount for the GPS (or the phone-based Edelbrock Pro-flo4 screen :cool: )

I also really need to check my layout plans against the cowl lip near the top of the dash panel before cutting out the gauge holes...that will wait for the next post!

Craig C

"Horn disconnect"--- Explaination please :confused:

Jeff

Hi Jeff,

I plan to use a wireless horn button in the center of the steering wheel. I want to be able to disconnect the horn relay coil wire so that the remote switch doesn't respond to RF noise (like from other near-field devices)...

Closing this switch would be a normal part of the engine start-up procedure...and the reverse for shutting down (or in case it responds inappropriately while driving ;) )

Craig C

Hey Y'All,

I got some good news in the mail this past week, and I thought to share it with you...got my plate approved!
Attachment 220725

I've got a long way to go, but it feels good that I registered it as a 1965 and I got my plate, so if I want to get a vintage plate and use it (and no one else is), my State will let me do that too :cool:

Good bit of motivation to keep me energized!

Craig C

Hey Y'All,

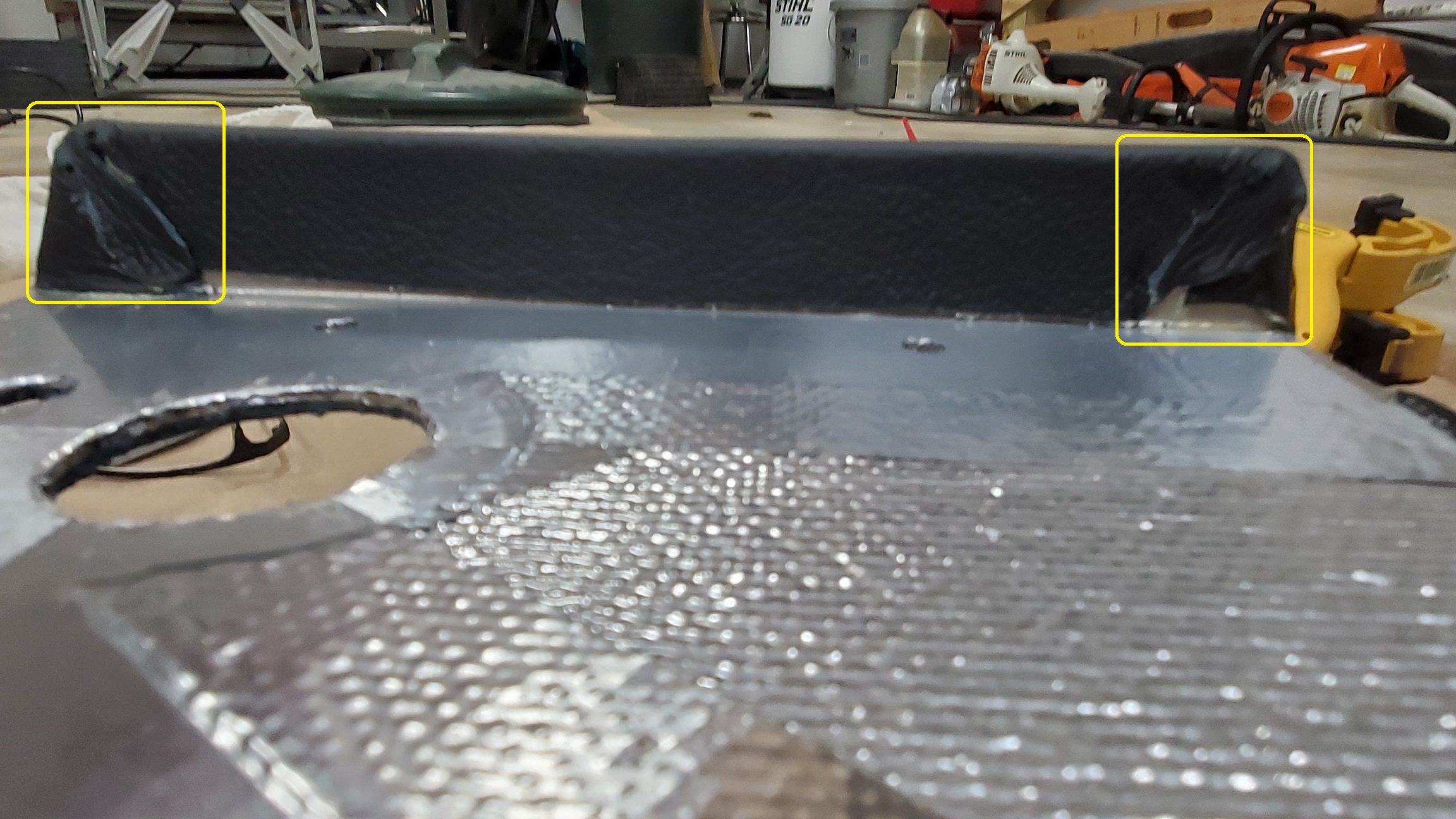

In this post, I describe my first attempt at upholstery...

I chose to start with a simple piece that will be mostly hidden from normal view :rolleyes: :the transmission tunnel panel under the center console. It doesn't have any compound curves, but does have some corners and holes to work around.

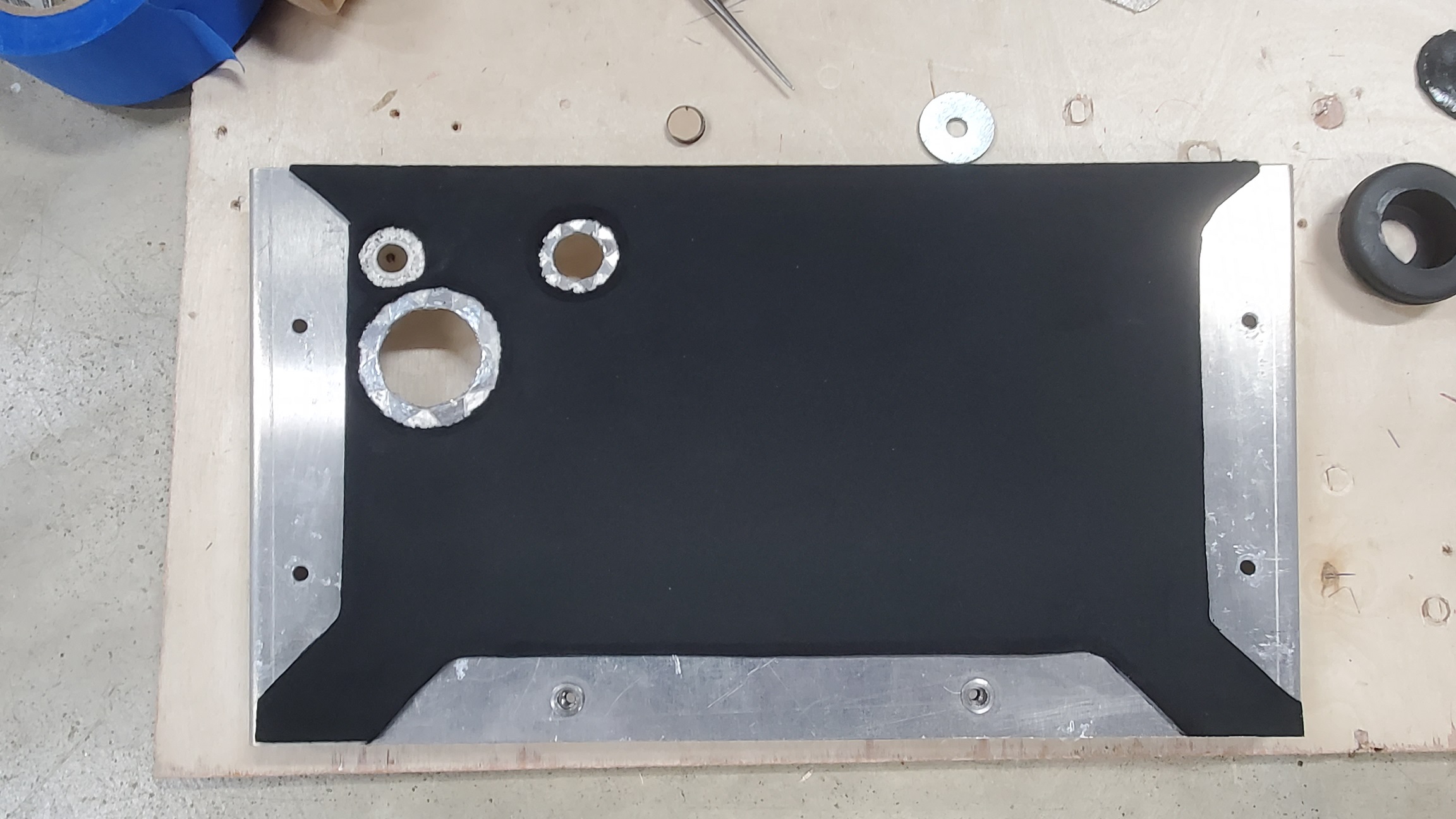

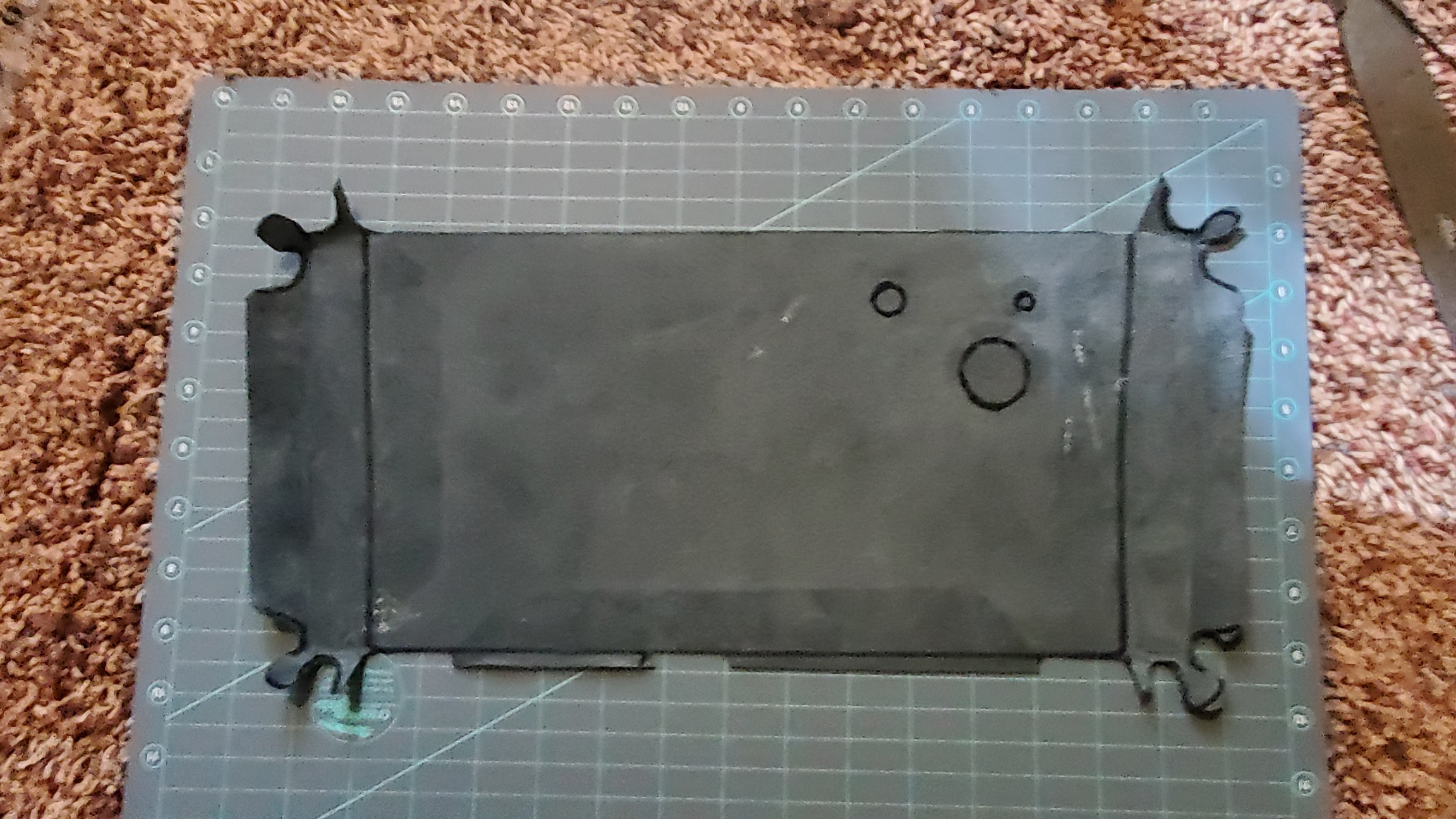

First image is of the bottom side where I affixed some thermal heat shield mats and seam tape
Attachment 220729

Then an image of the top side where I glued on some 1/8" neoprene rubber foam (hat tip to Marcel)
Attachment 220730

Then a nearly final trimmed leather section...note the funny-shaped corners. Learned from watching TV!
Attachment 220731

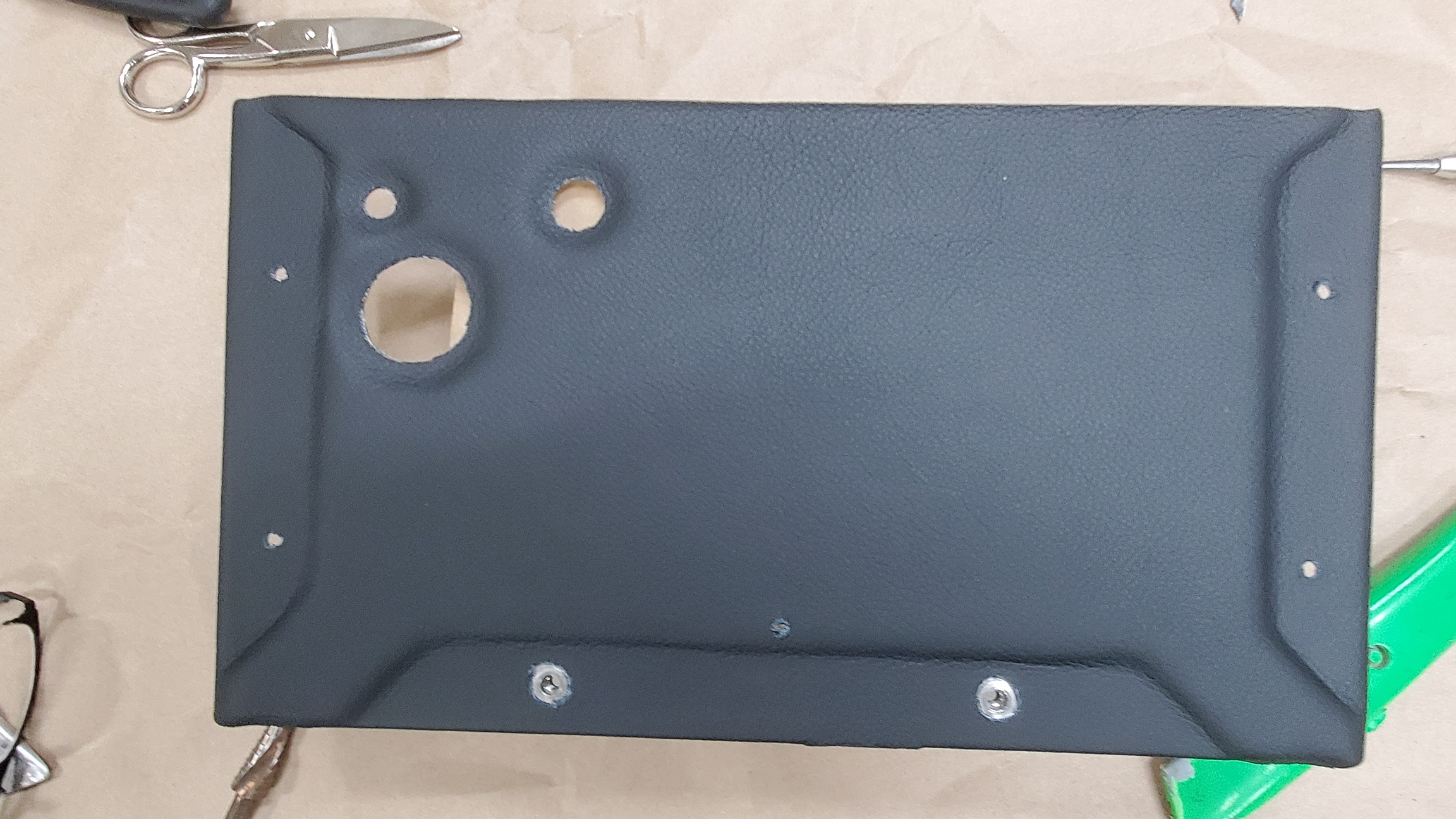

Glued into place
Attachment 220732

Here's the detail of those funny-shaped corners. They help to pull and hold the corners better. Not my best work, but functional:p
Attachment 220733

Mocked into place to check overall fit and appearance
Attachment 220734

A final note: while I was muscling on the pass-thru grommets to check fit, I noticed that the leather would dimple a little in the foam areas...now I know why upholsterers use a Steam gun...to relax the bond between the foam and leather to smooth it back out :cool:

This week, I'll try to check the fit of the console and dash panel to see if I measured for the upholstery thickness correctly. Wish me luck!

Craig C

Hey Y'All,

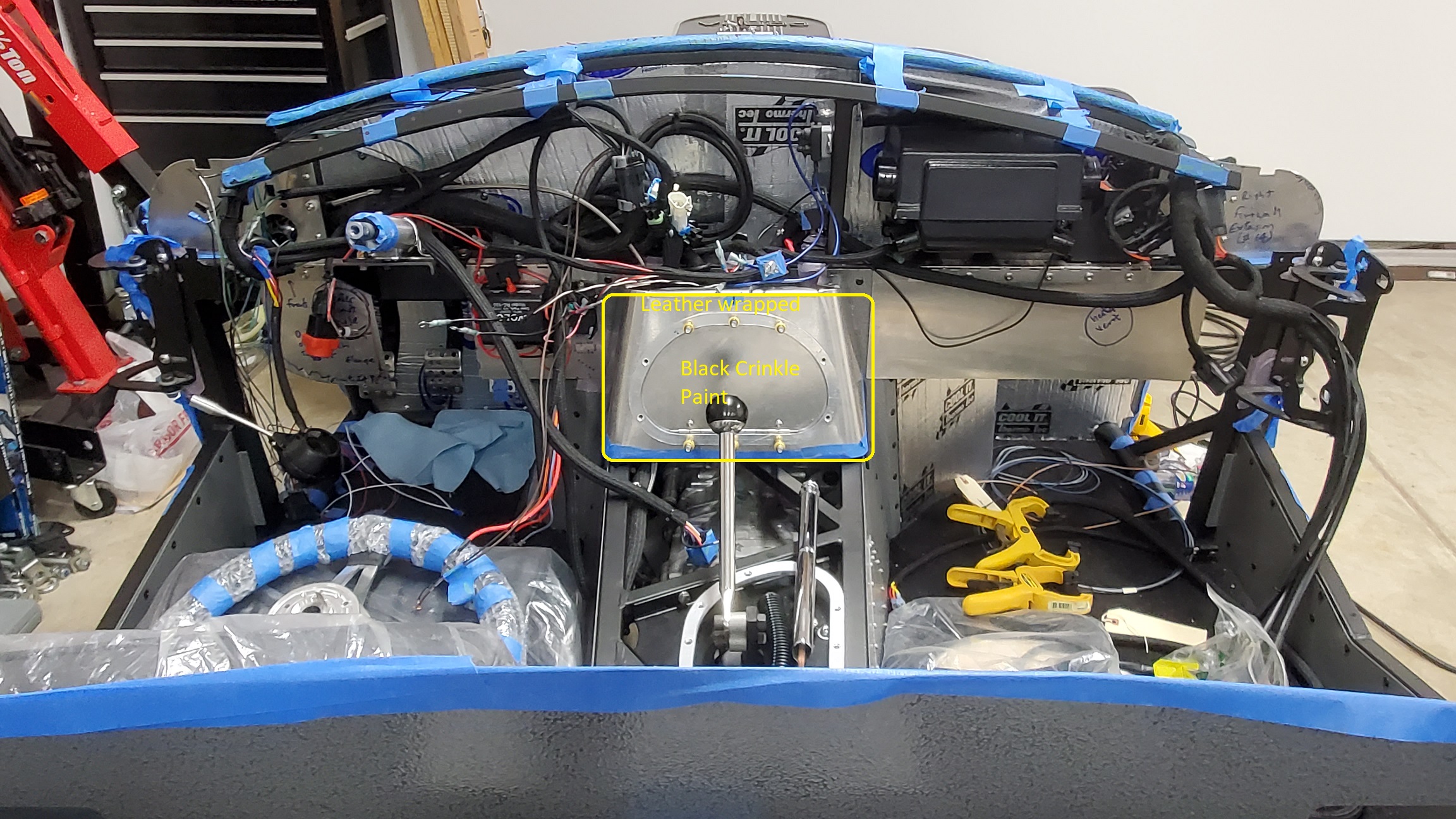

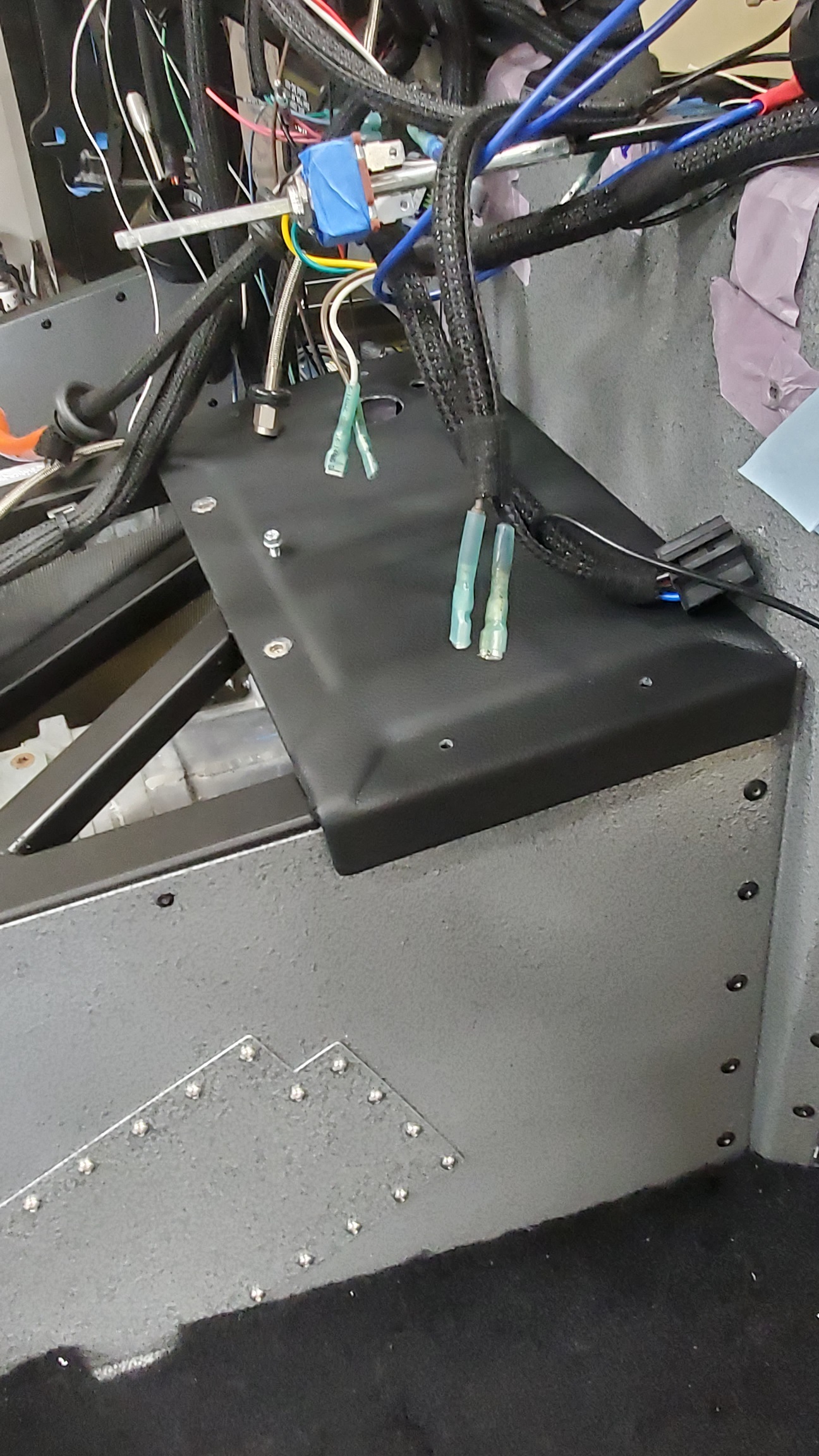

This past week I spent doing little projects now that the console bottom panel was upholstered. I could add loom tape and heat resistant wire covering to the main harness power wires and the starter solenoid wire. I also finished the ends with some heat shrink -- sorry no pictures this time.

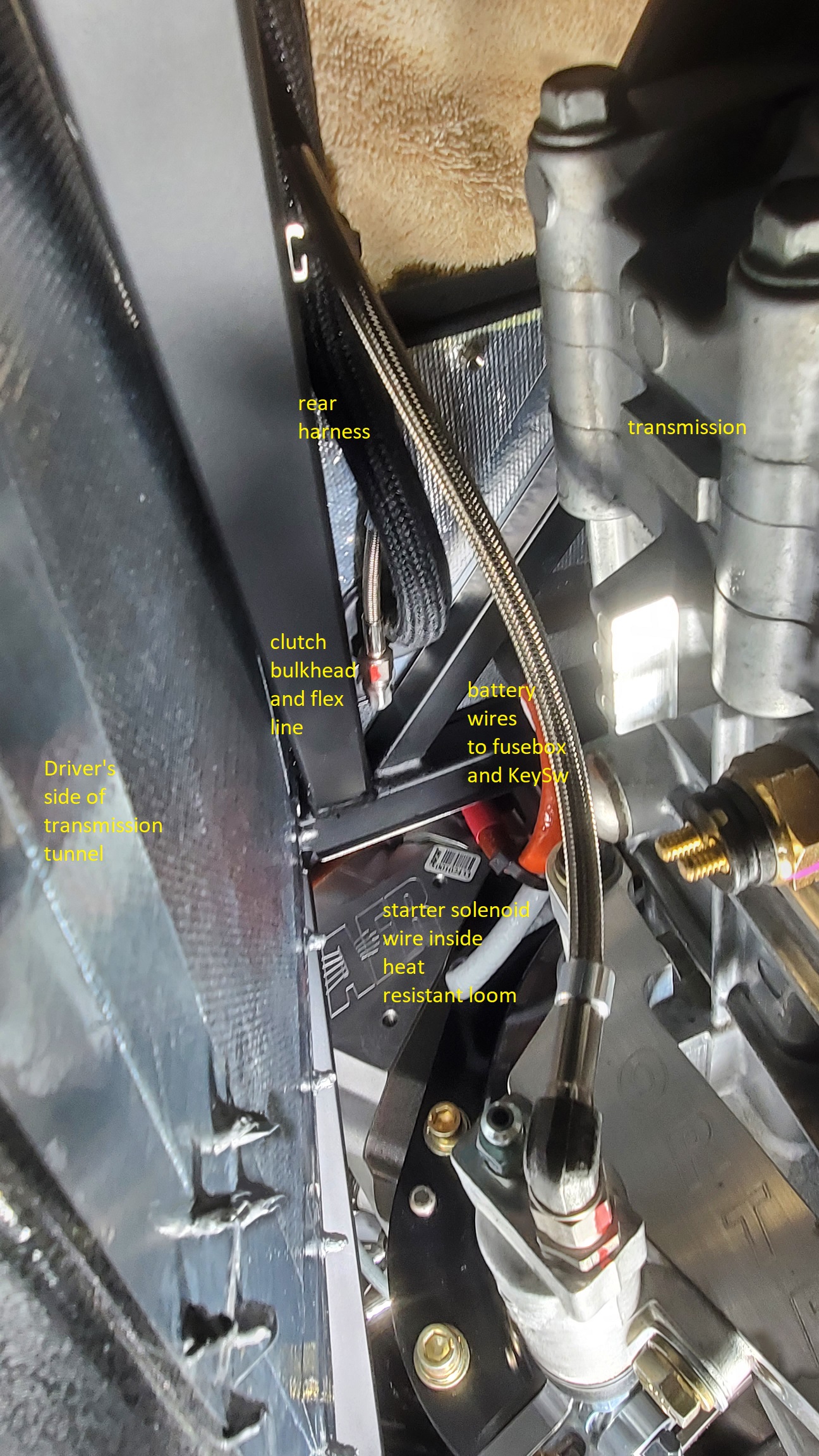

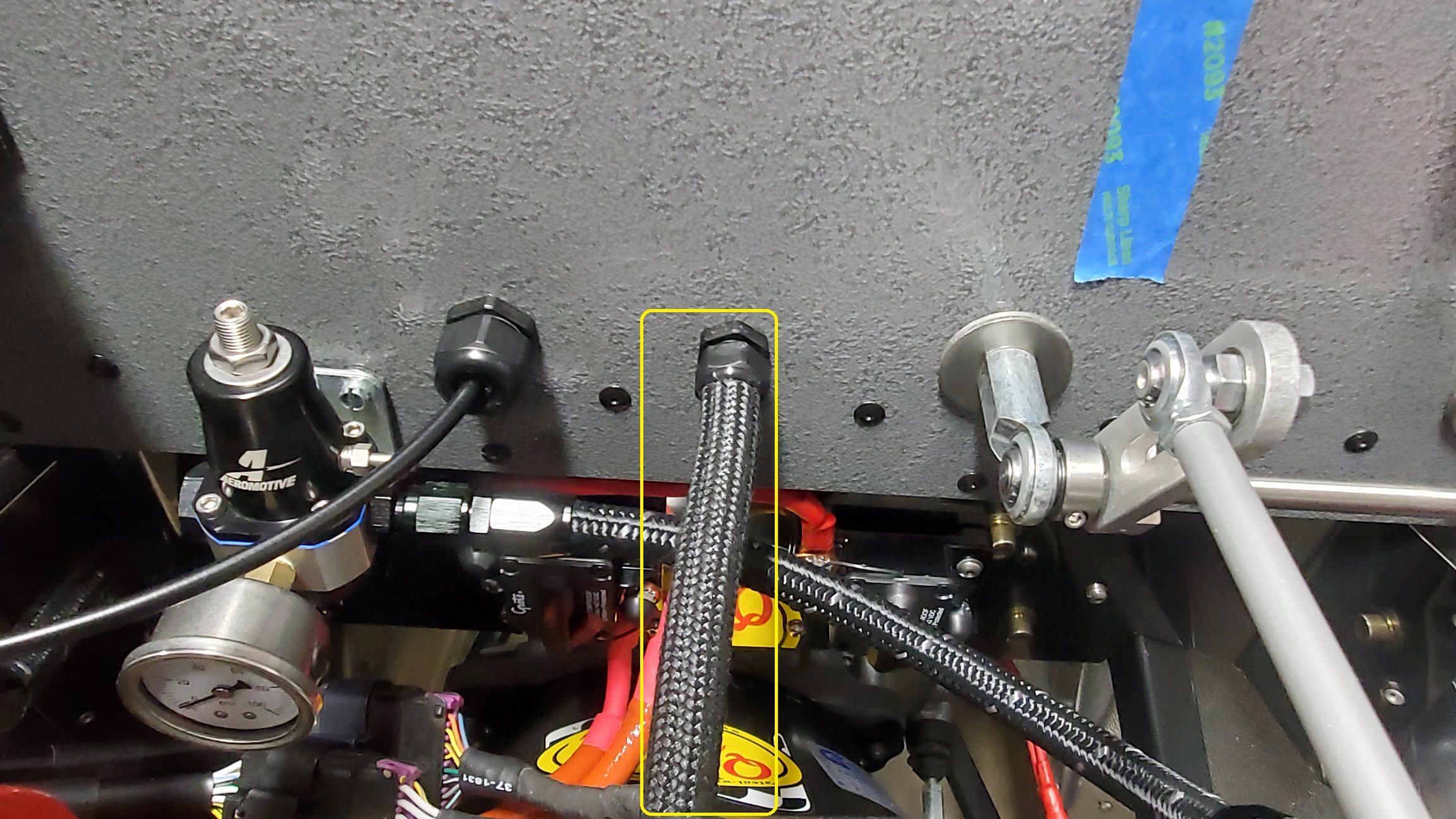

I also fastened the hydraulic clutch line bulkhead fitting and flex lines to the clutch slave cylinder. Then I fished the rear harness loom thru its dedicated grommet in order to route it up to the dash panel area.

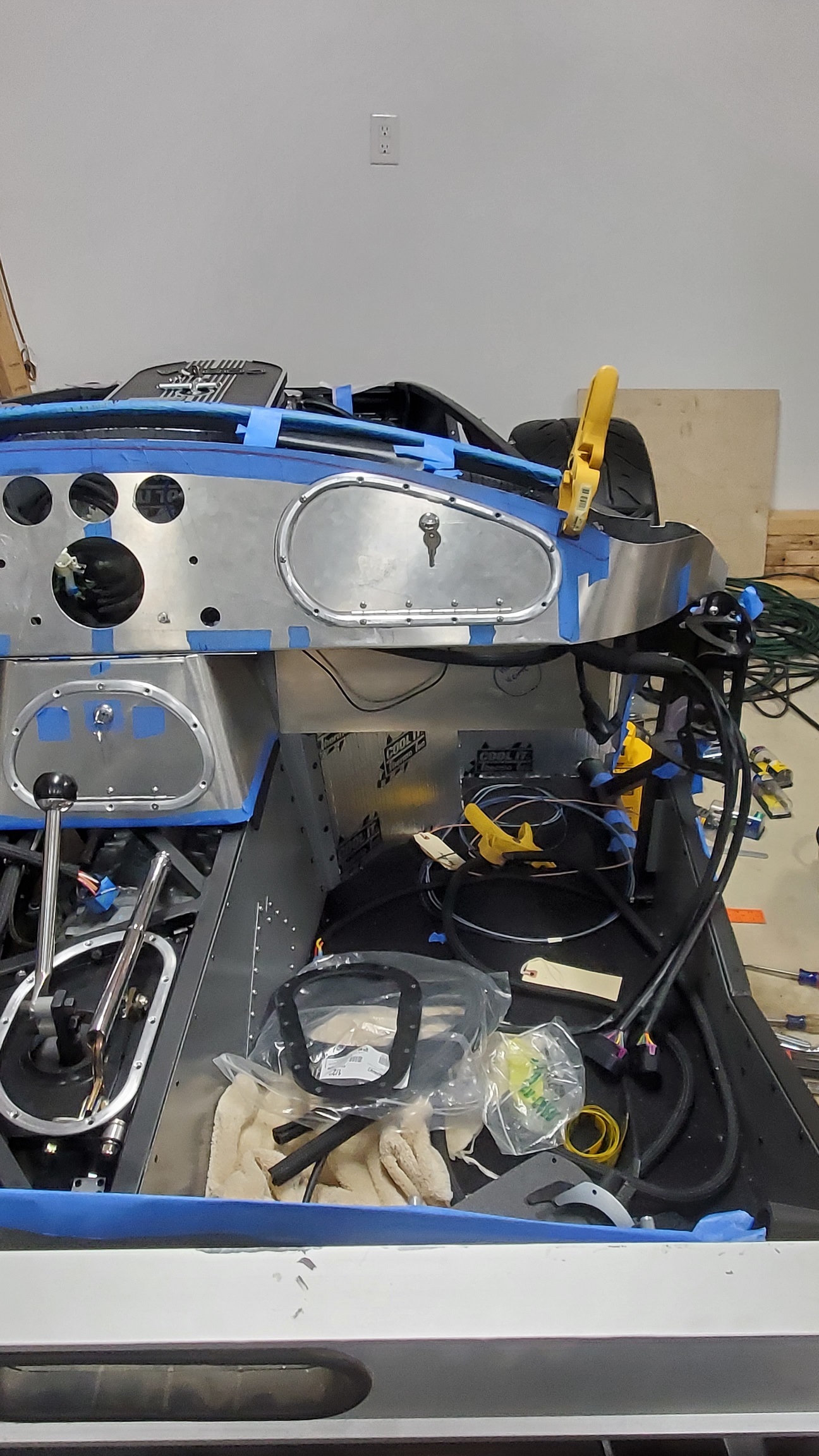

Lastly, I reattached my Center console (temporarily) to check the fit. So far...so good, but I got a new leather hide that matches the FFR leather seats, and it is slightly thicker than my other leather sample...which means I need to attach the body again to check the dash panel's fit...

Craig C

Hey Y'All,

Not much "achievement" in this post...instead "activity"...

It took the better part of the afternoon today to carefully re-mount the body. As before, I used the trick Jeff Kleiner recommended: affix small diameter PVC pipe to the door hinges as "spreader" guides. Doing this permits solo efforts ;)

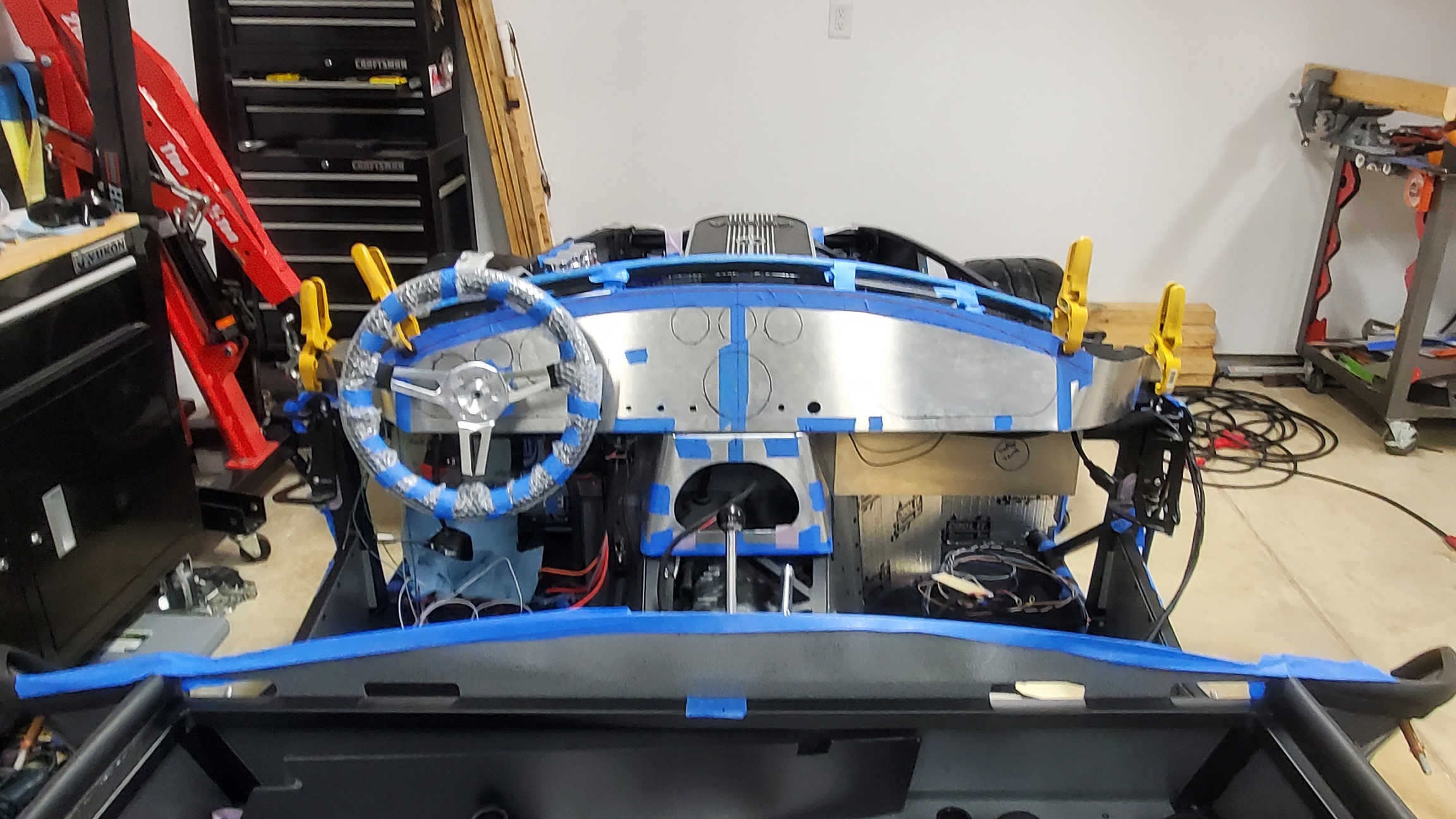

I wanted to check how the dash panel "hoop" looked in relation to the front of the cockpit, but I needed to check some other panel clearances, too.

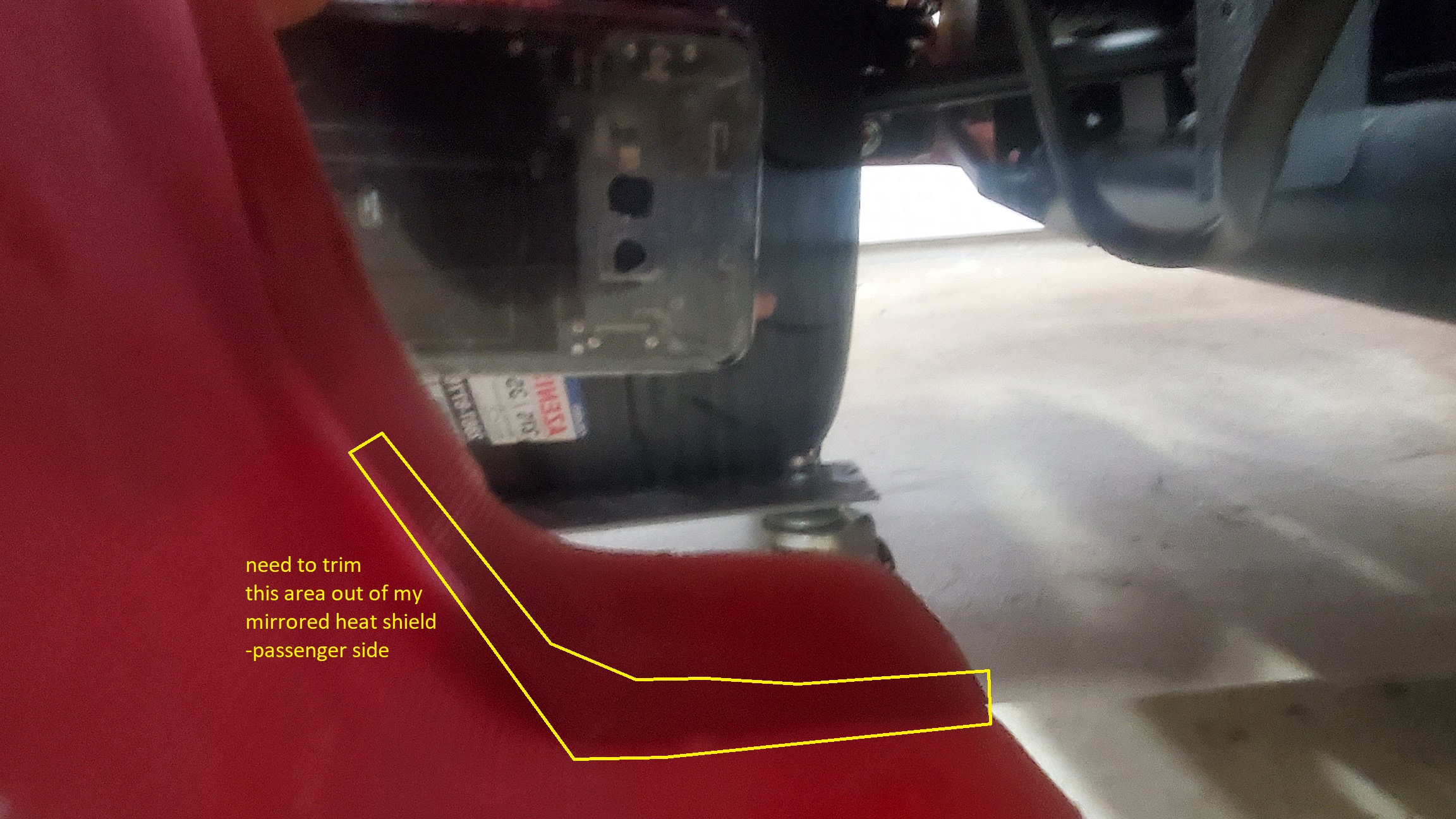

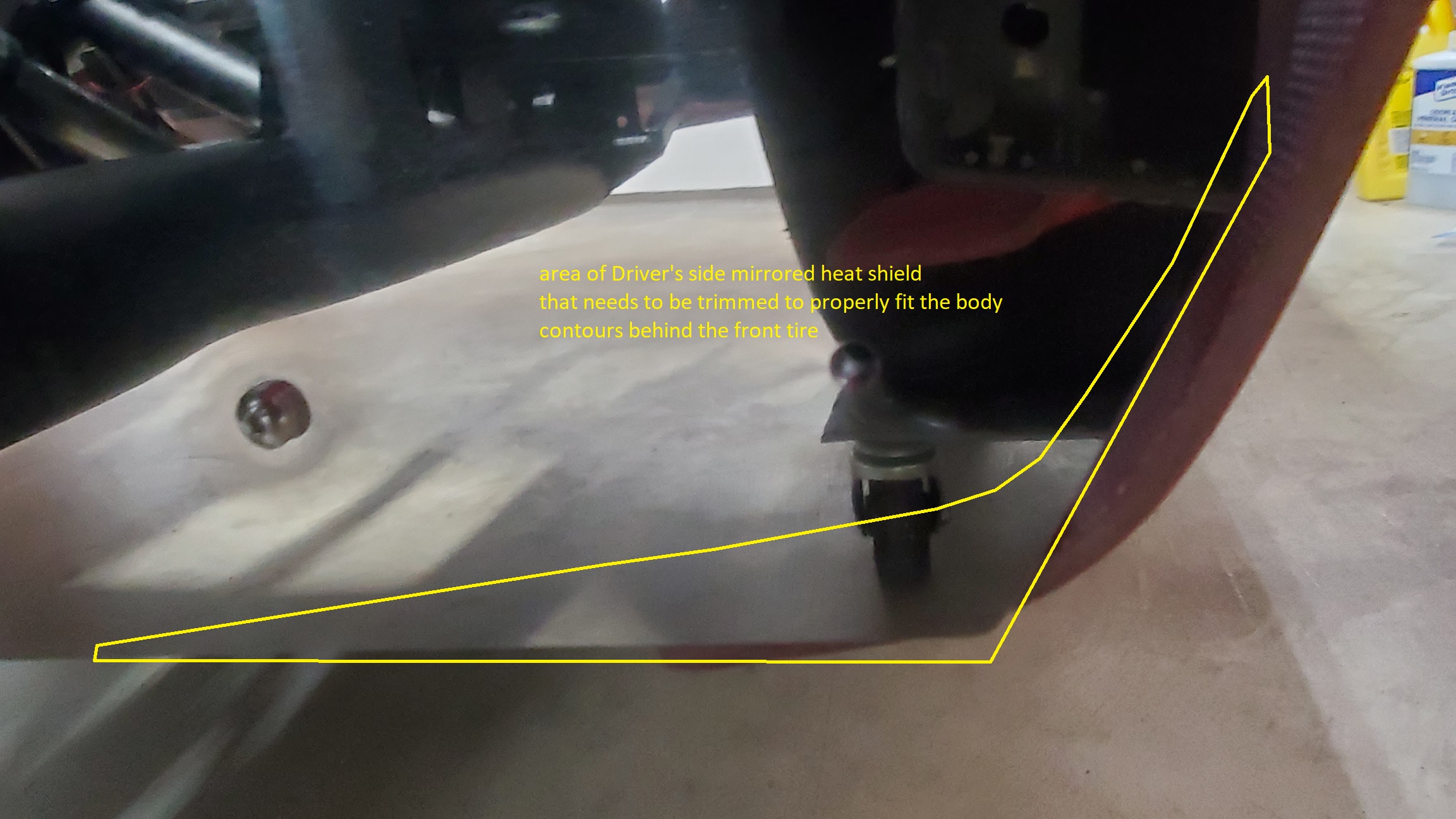

First up, my special mirrored heat shields. I knew that these needed to be trimmed, but they actually weren't that bad.
Attachment 220989 Attachment 220990

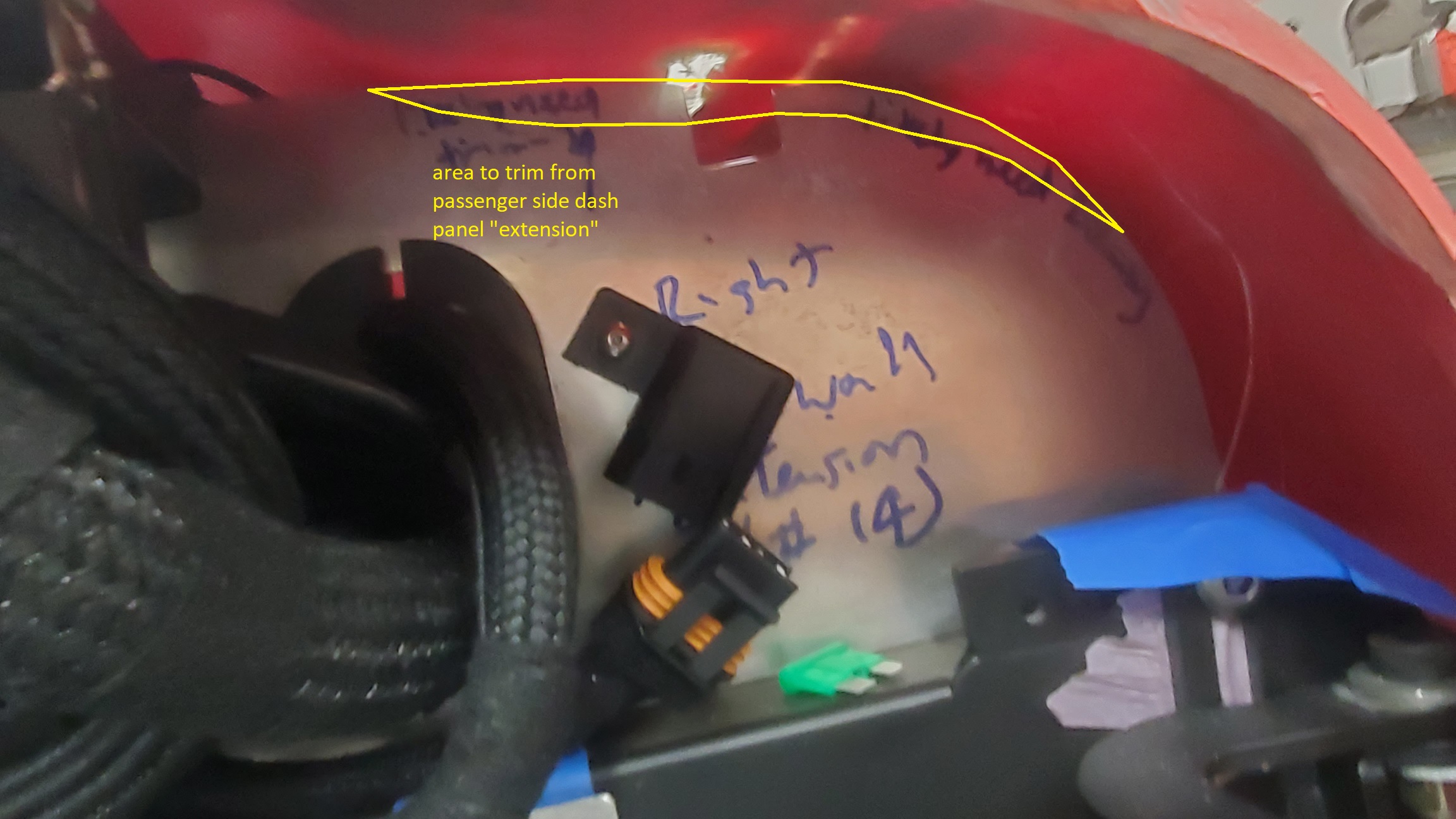

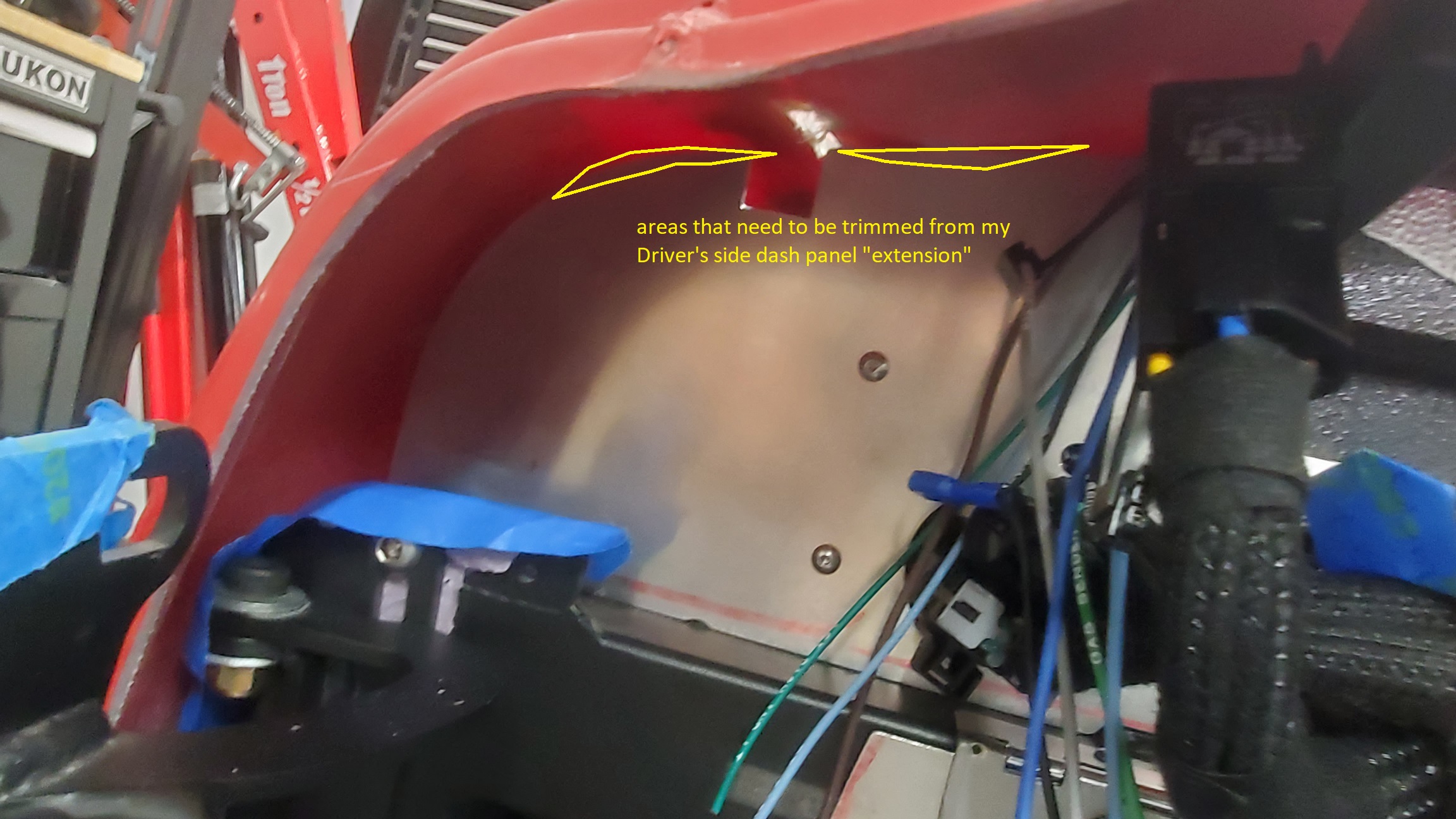

Then the dash panel "extensions. I also knew these needed to be trimmed to make sure the front of the cowl "sets down" onto the firewall bulbseal...although the bulbseal fits well already and I can see that it is squished. Proper trimming will allow me to add bulbseal to these panels, too, without adversely affecting the overall fit.

Attachment 220991 Attachment 220992

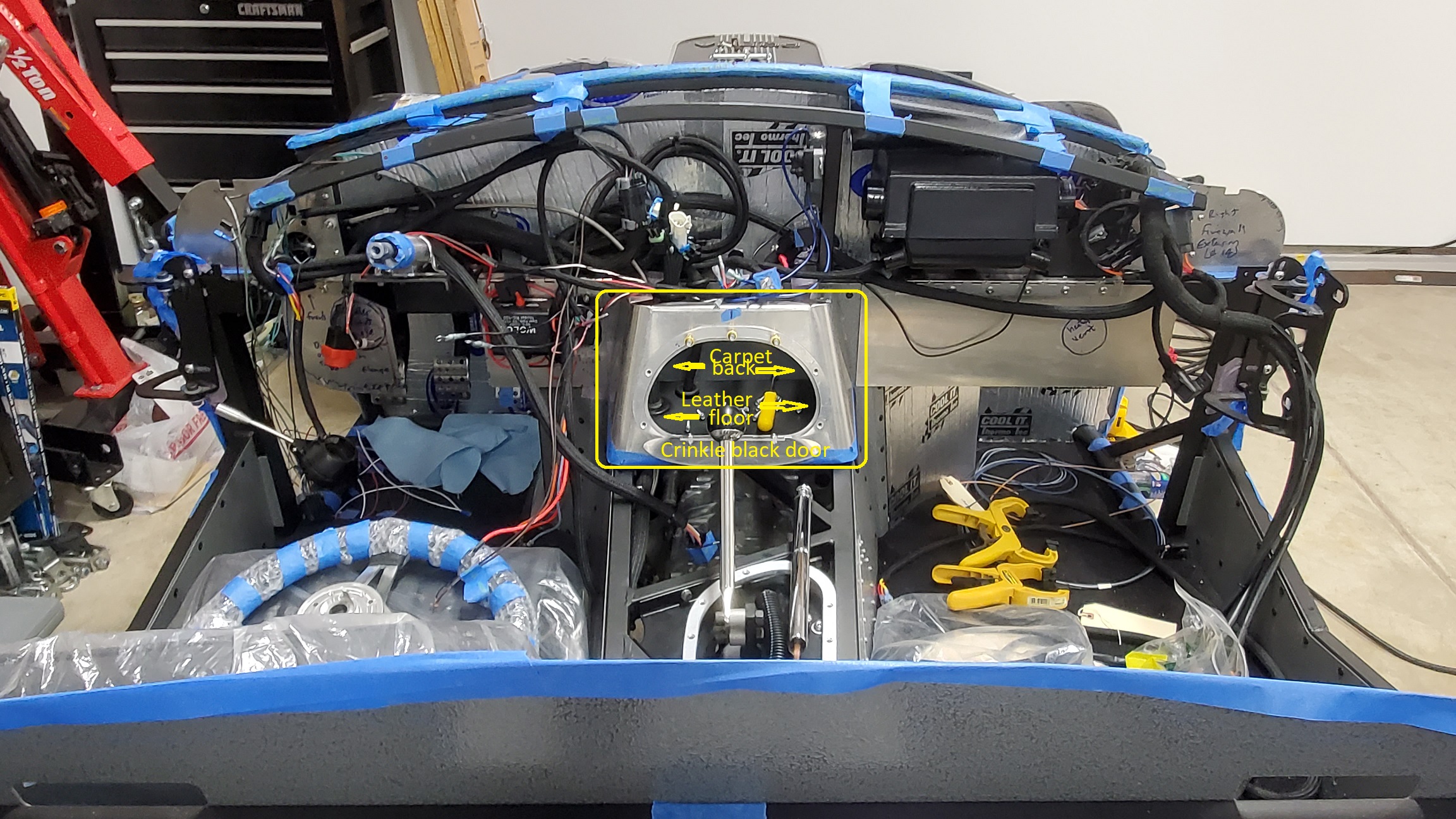

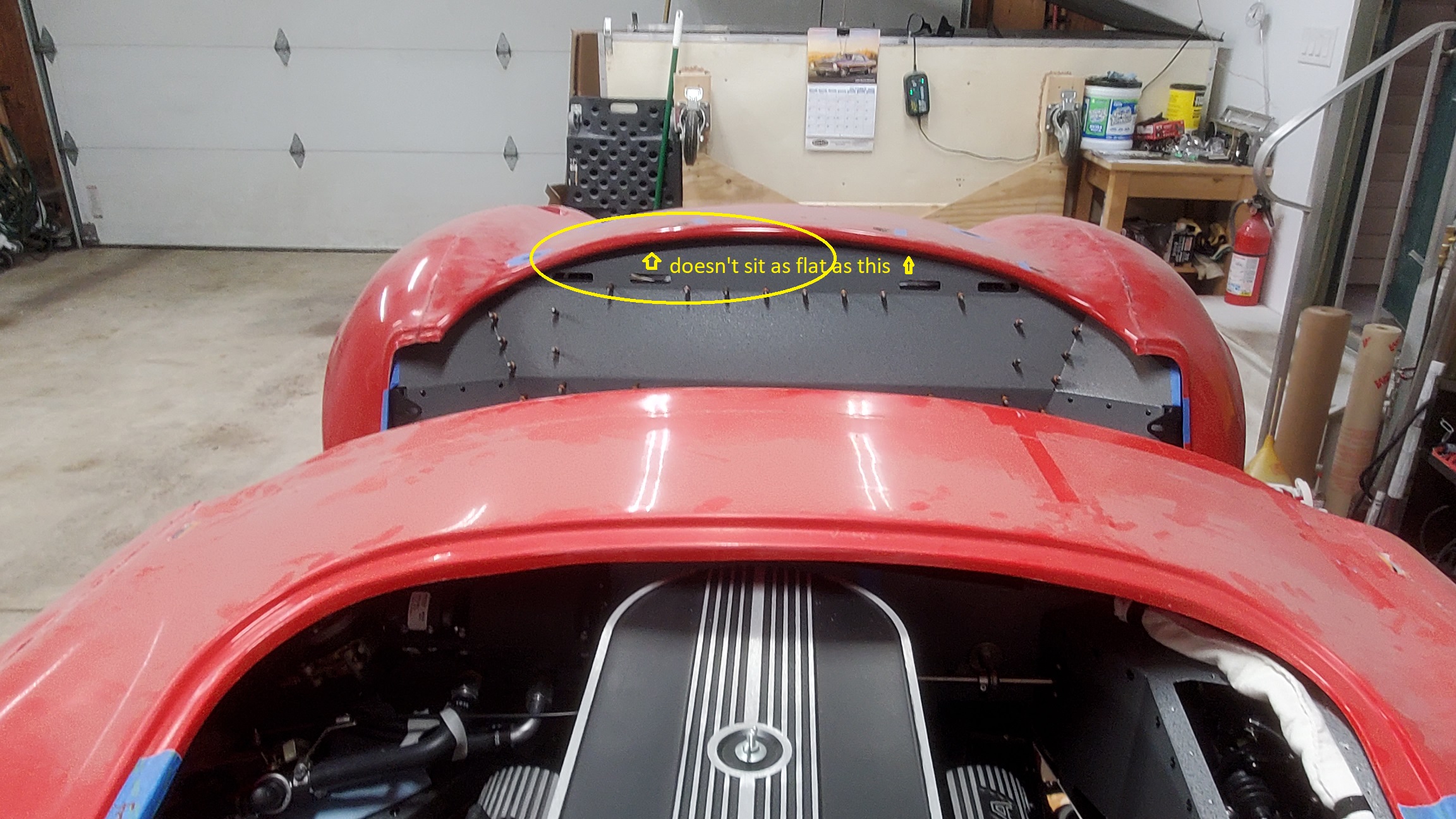

Then some general observations. Please let me know if this is a "thing" or not. Does the rear cockpit cowl edge need sit evenly onto the bulbseal? Mine has a gap on the Passenger side that is different than the Driver's side
Attachment 220993

Then this was what I wanted to see -- the relationship of the front cowl edge to the dash panel "hoop"
Attachment 220994

The cowl edge sits "proud" of the hoop in most places, which was a surprise for me. I may check the fit again this week (after I attach the quickjack bolts). I'm also gonna try to install the dash panel with the body in place (as an experiment)...after all, I might need to remove it with the body in place to change out gauges or switches....we'll see.

Until next time, Happy Building!

Craig C

Quote:

---

Originally Posted by cc2Arider

Then some general observations. Please let me know if this is a "thing" or not. Does the rear cockpit cowl edge need sit evenly onto the bulbseal? Mine has a gap on the Passenger side that is different than the Driver's side
Attachment 220993

---

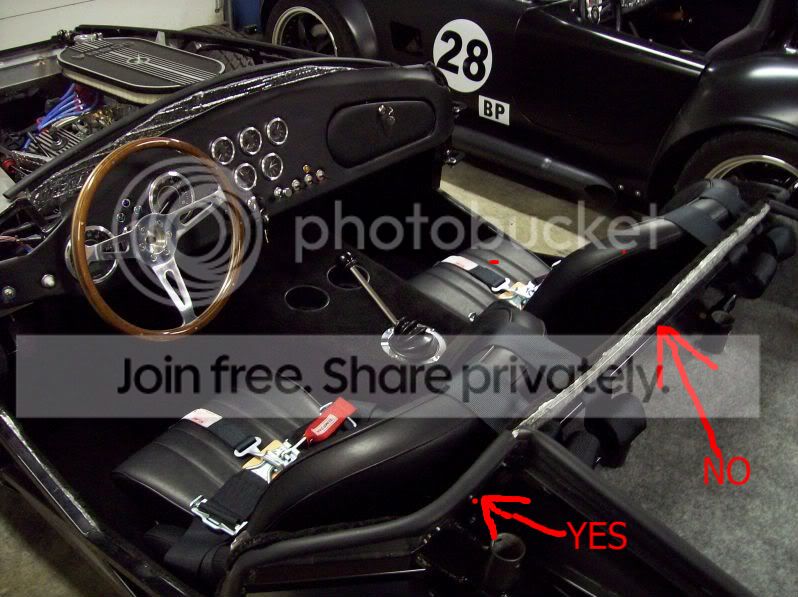

The top of the rear bulkhead wall (between the trunk side walls) does not get bulb seal.

https://hosting.photobucket.com/albu...100_2601-1.jpg

Jeff

Thanks Jeff! :)

Two additional questions:
1) How far down the sides of the rear bulkhead does the bulbseal go?
2) Does the top of the rear bulkhead wall get any sort of edge "protection"?

Craig C

Hey Y'All,

This post covers some of the body fitment checks I did this past week. First up though is a picture that I missed to add for a previous post about the under side of the console in the transmission tunnel
Attachment 221291

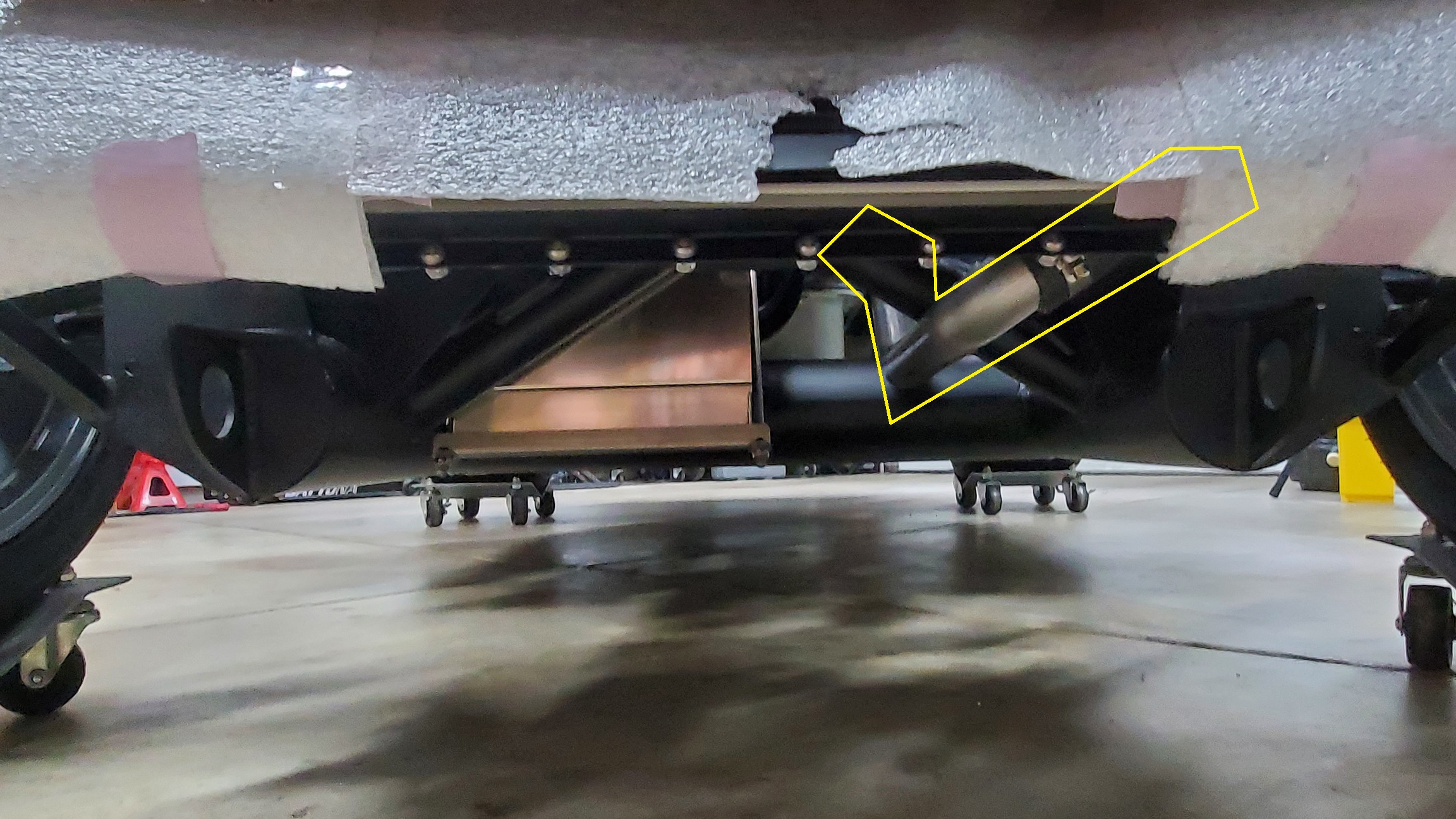

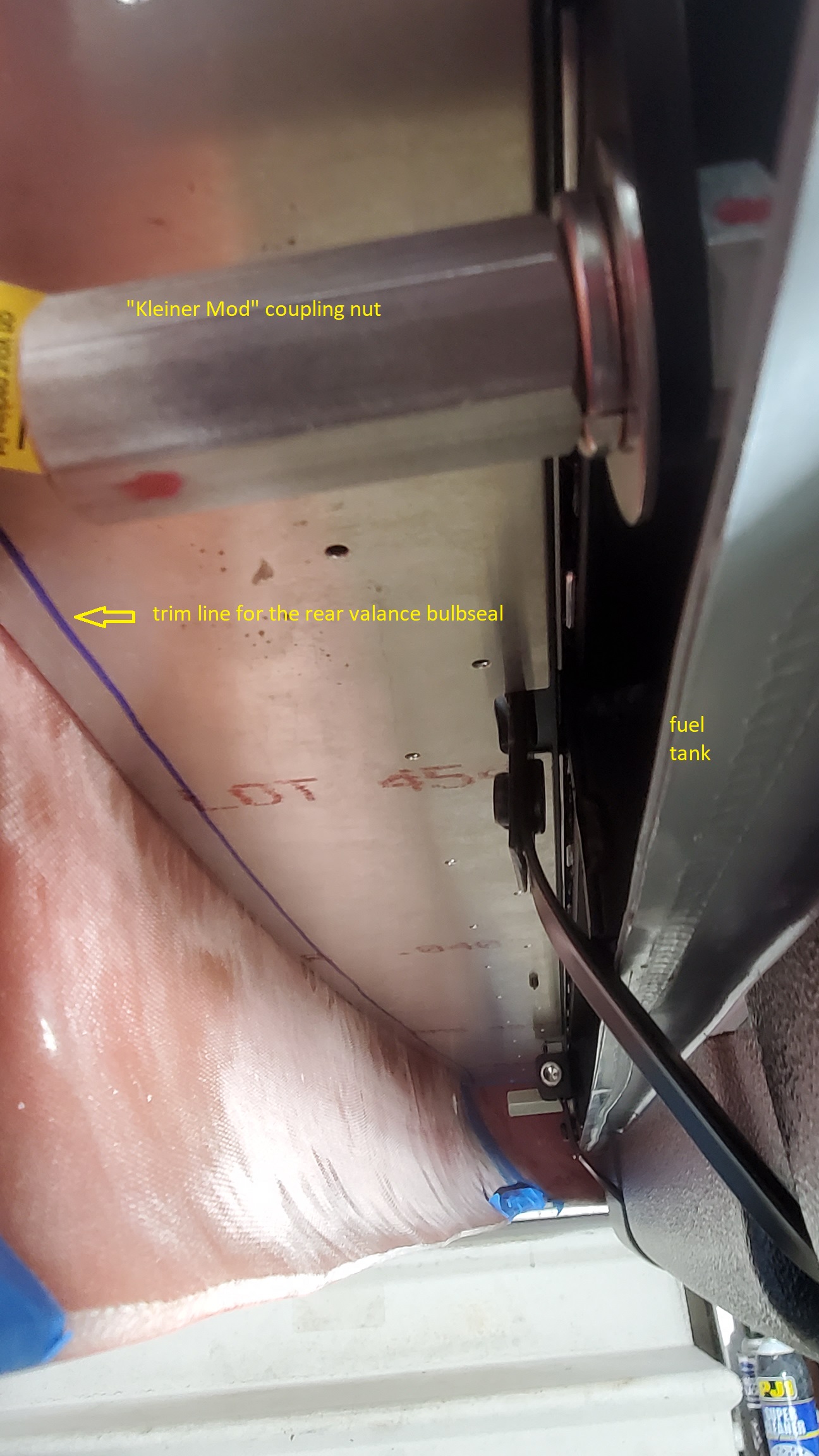

Then I confirmed that my idea for a removeable rear valance panel worked like I wanted -- no drastic bending of panels needed. Instead I just lift up the rear part of the body and insert the panel between the "Jeff Kleiner Mod" coupling nuts. The panel fits the same as the stock panel. Here, I show that I'll need to trim it a little to get the bulbseal to fit with some give to allow the valance to be adjusted to fit the curve of the trunk lid
Attachment 221292

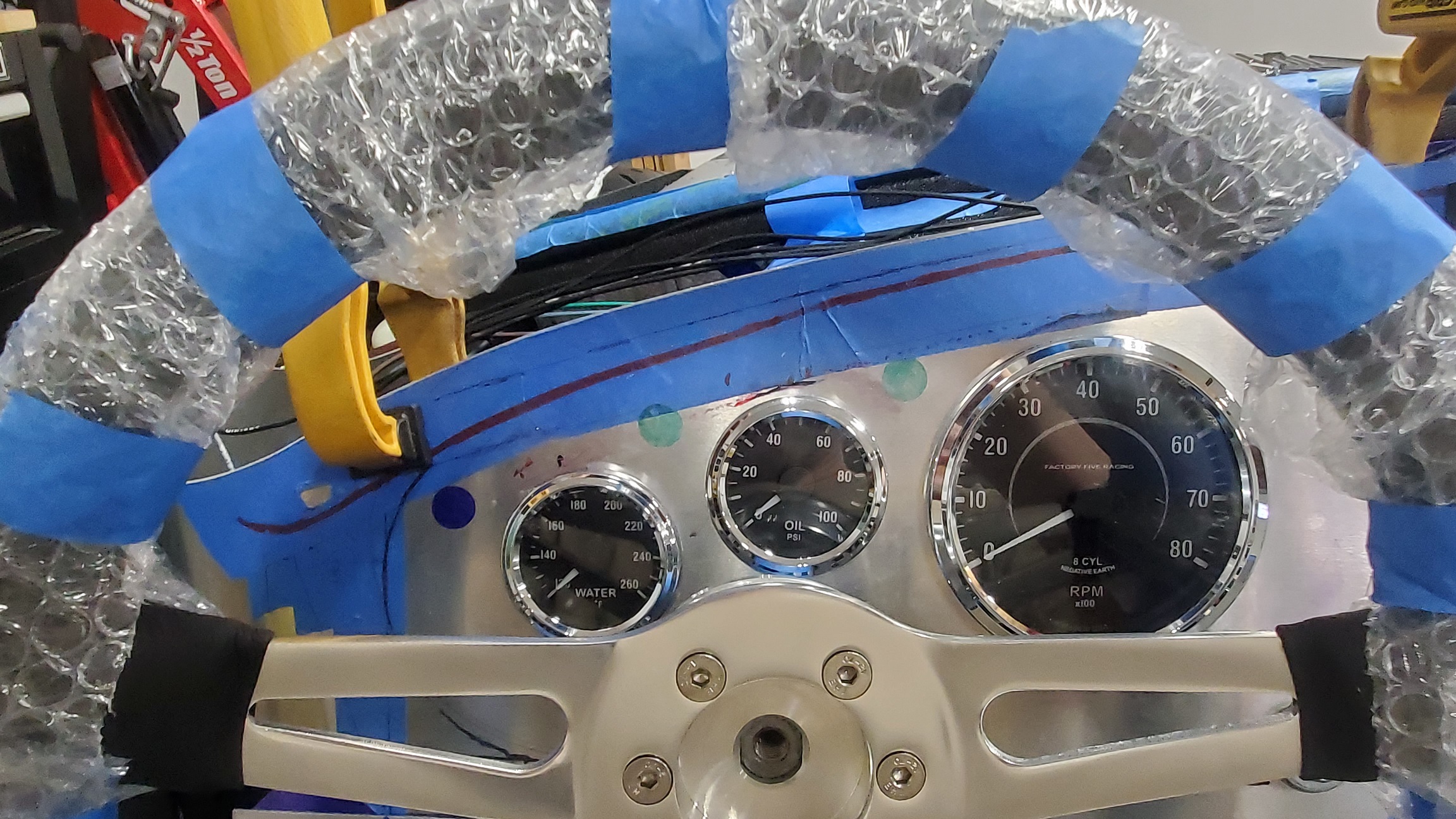

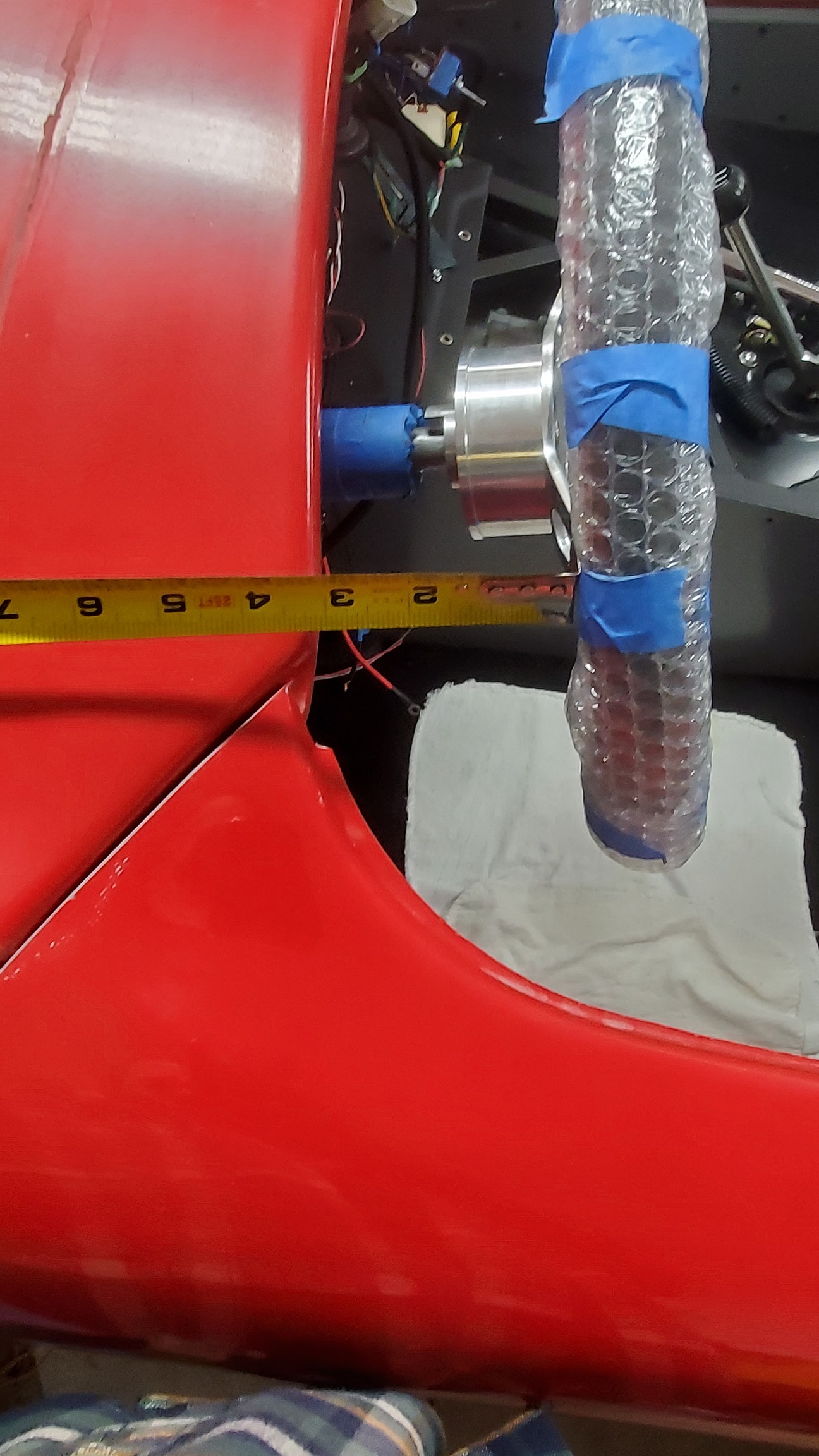

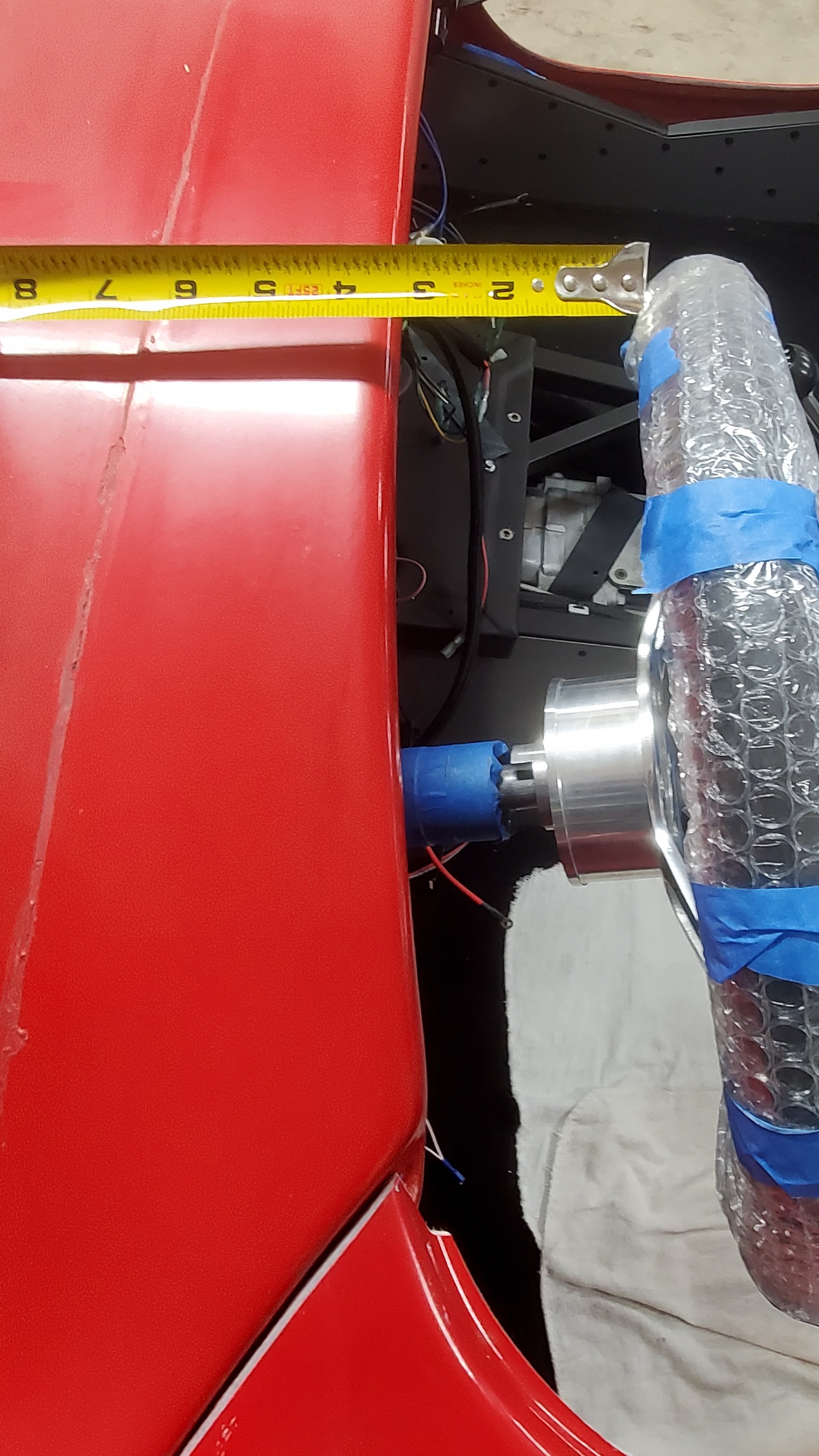

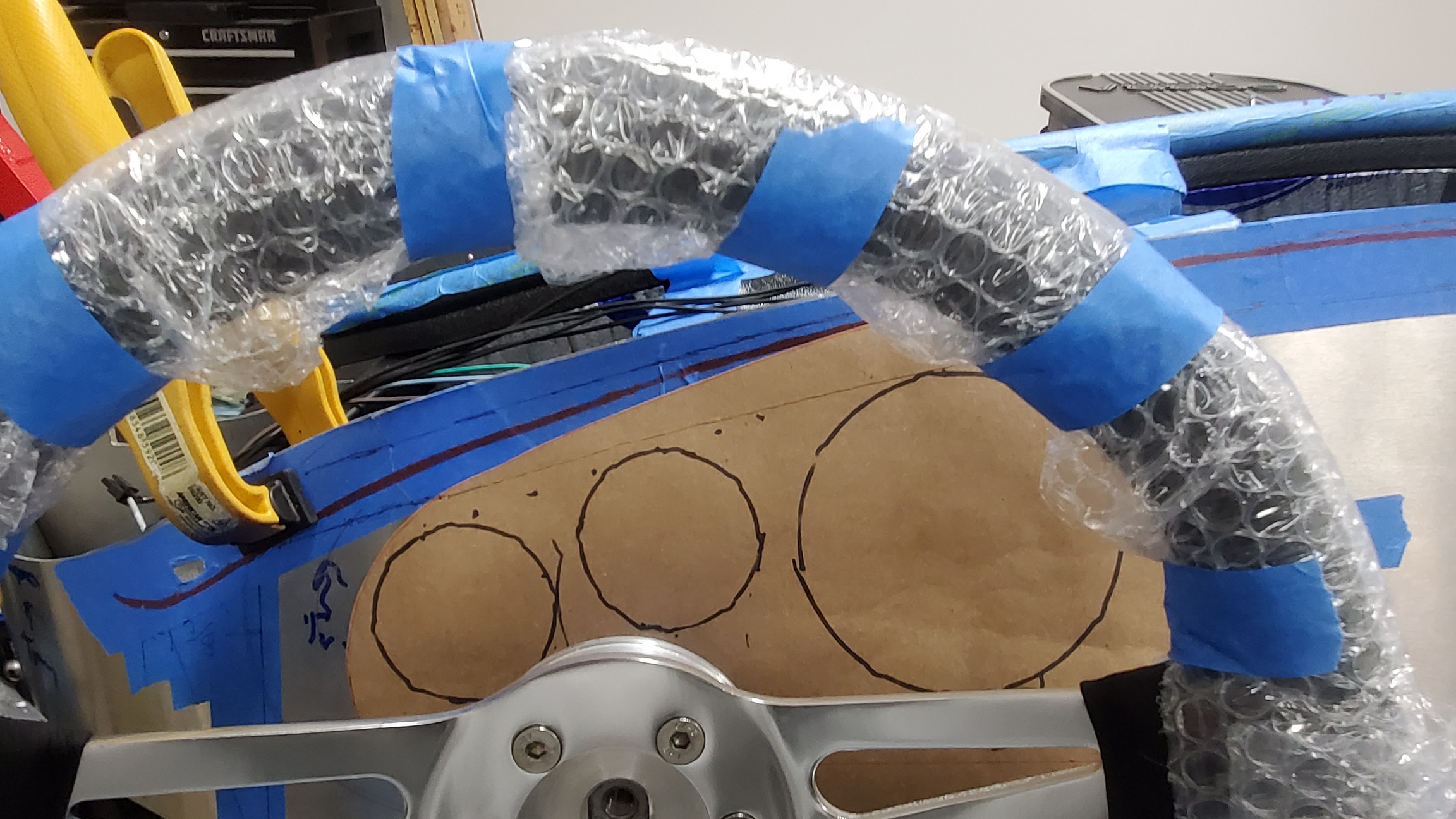

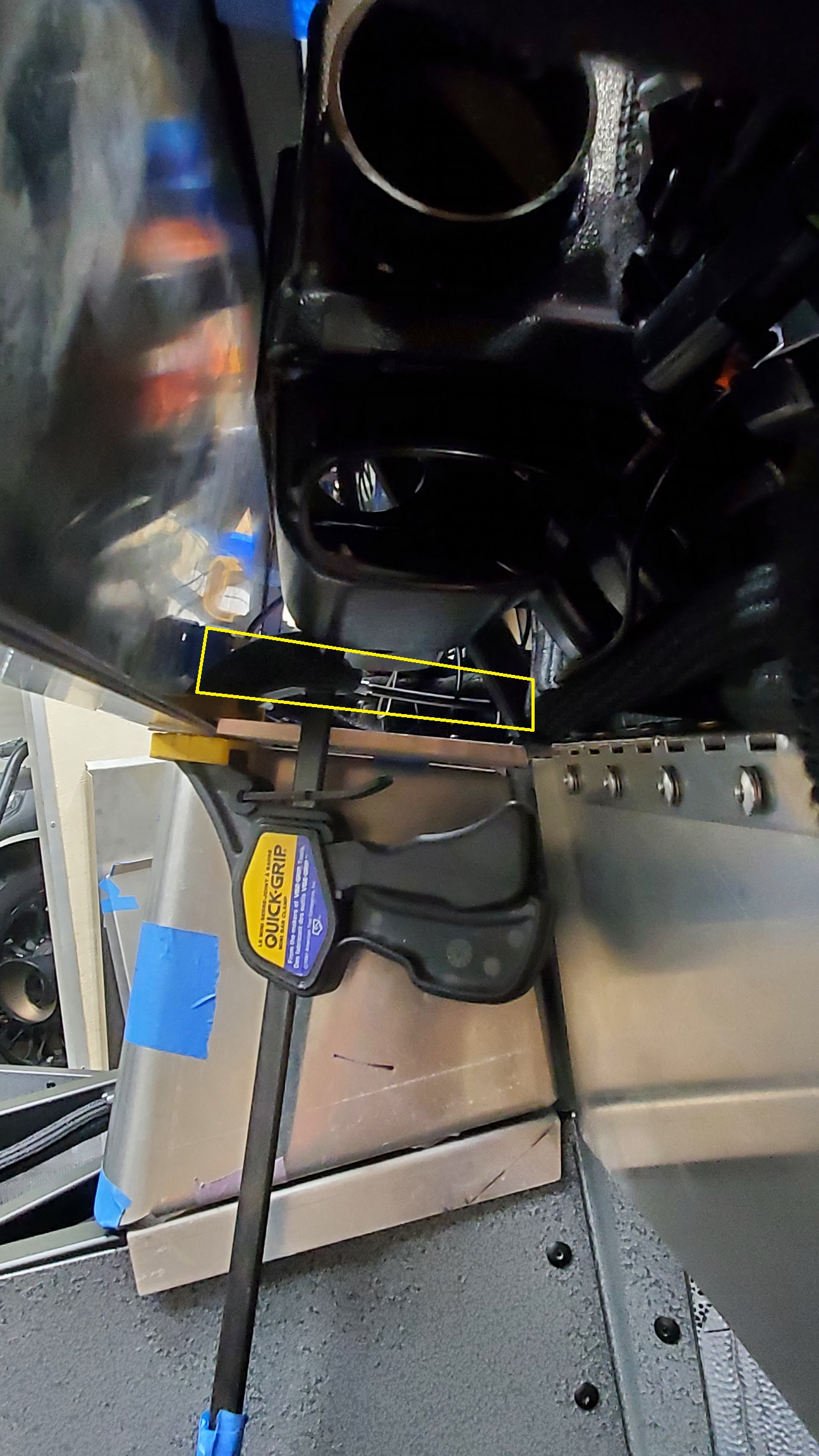

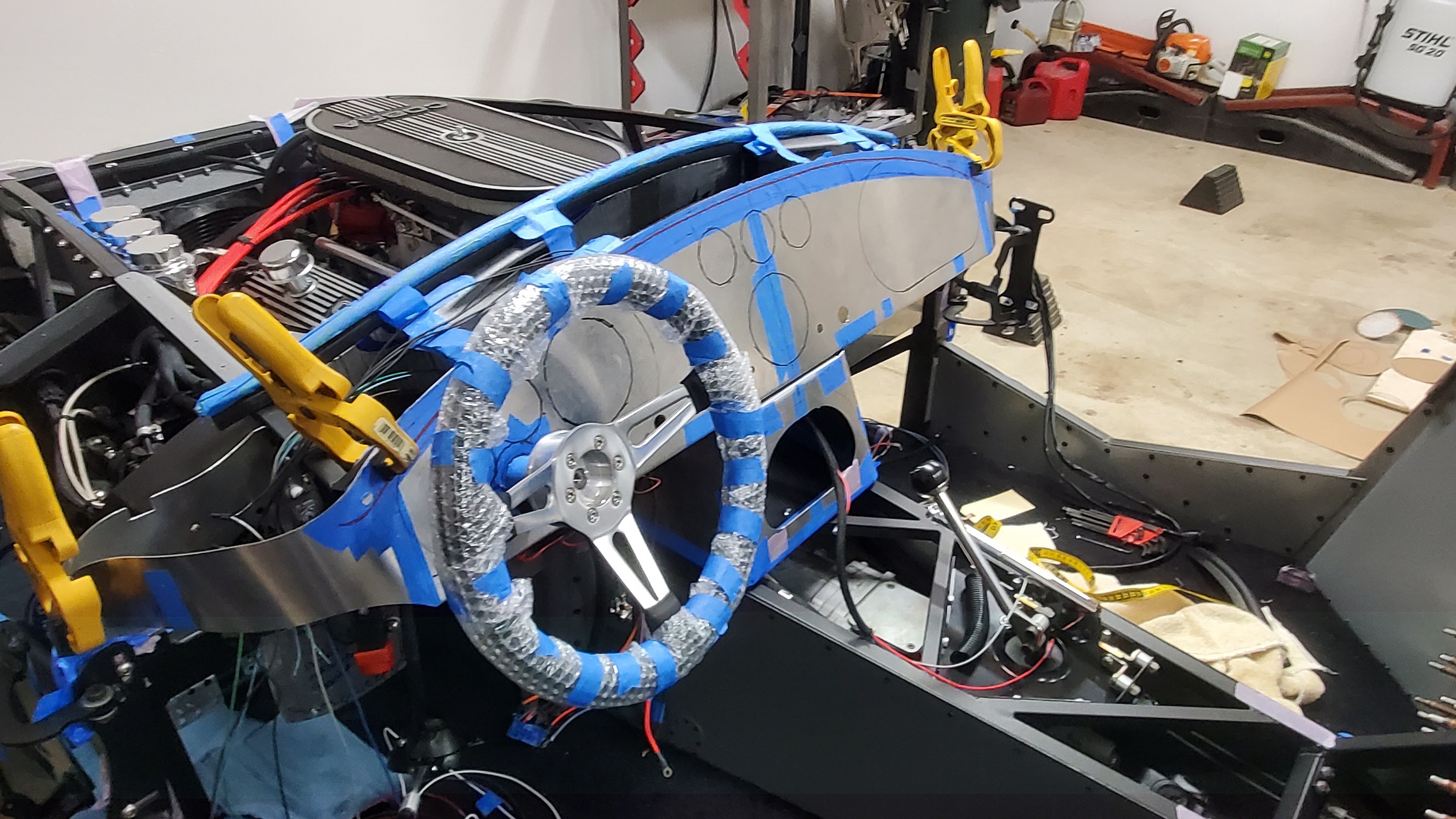

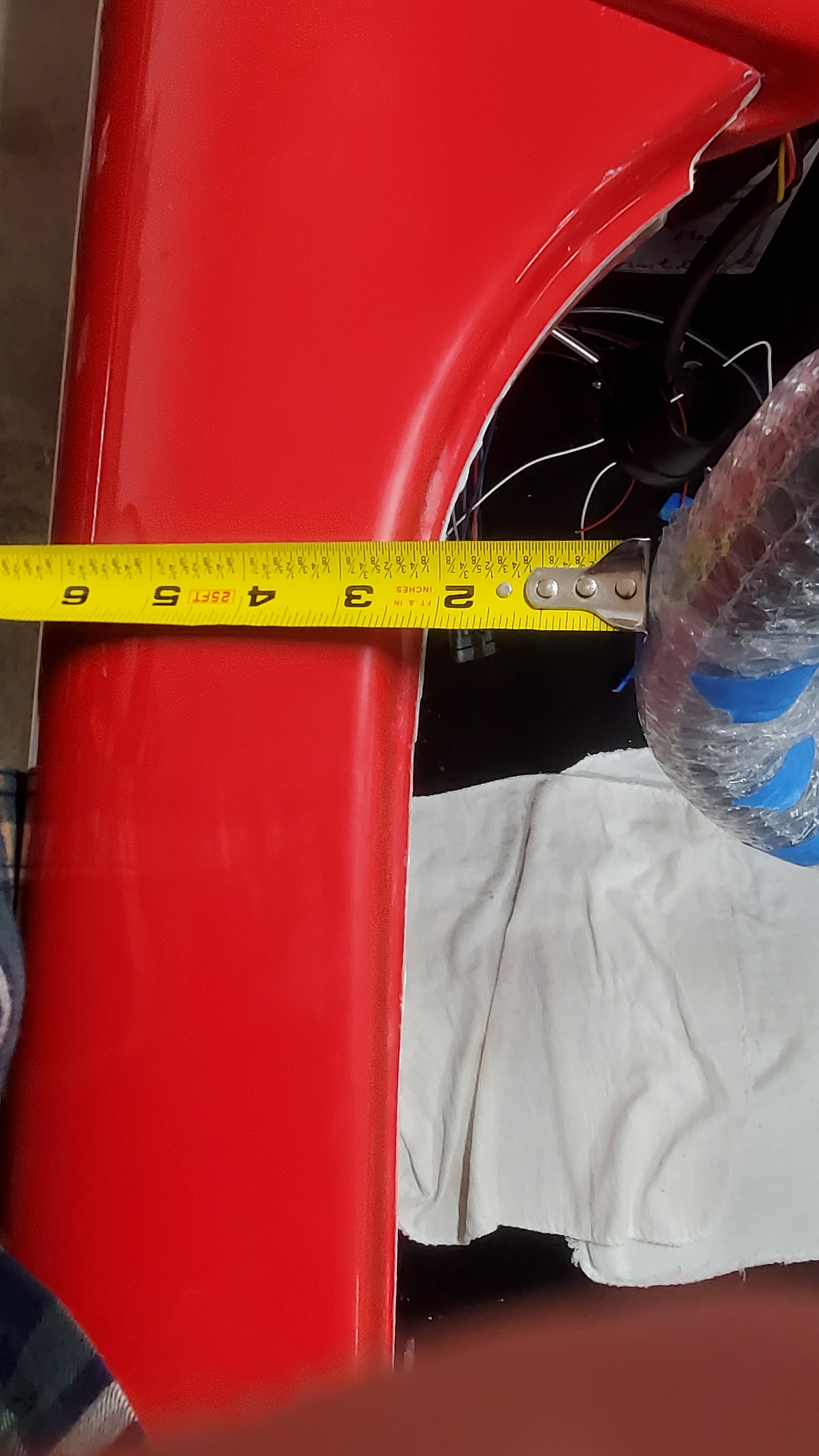

Then, I wanted to confirm that the space for the steering wheel was still good since I made my own Russ Thompson tribute steering shaft locating plate
Attachment 221293 Attachment 221294 Attachment 221295

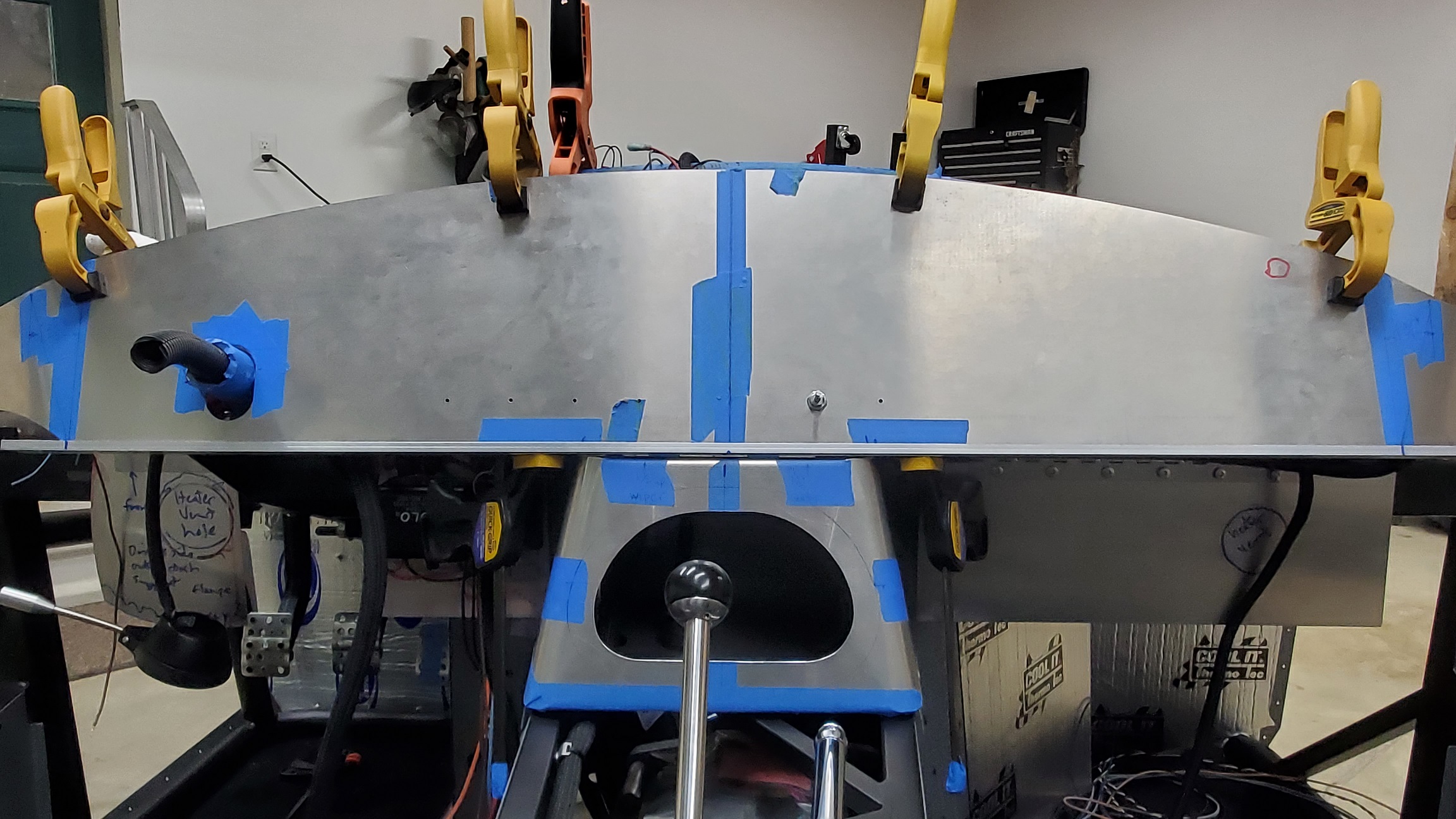

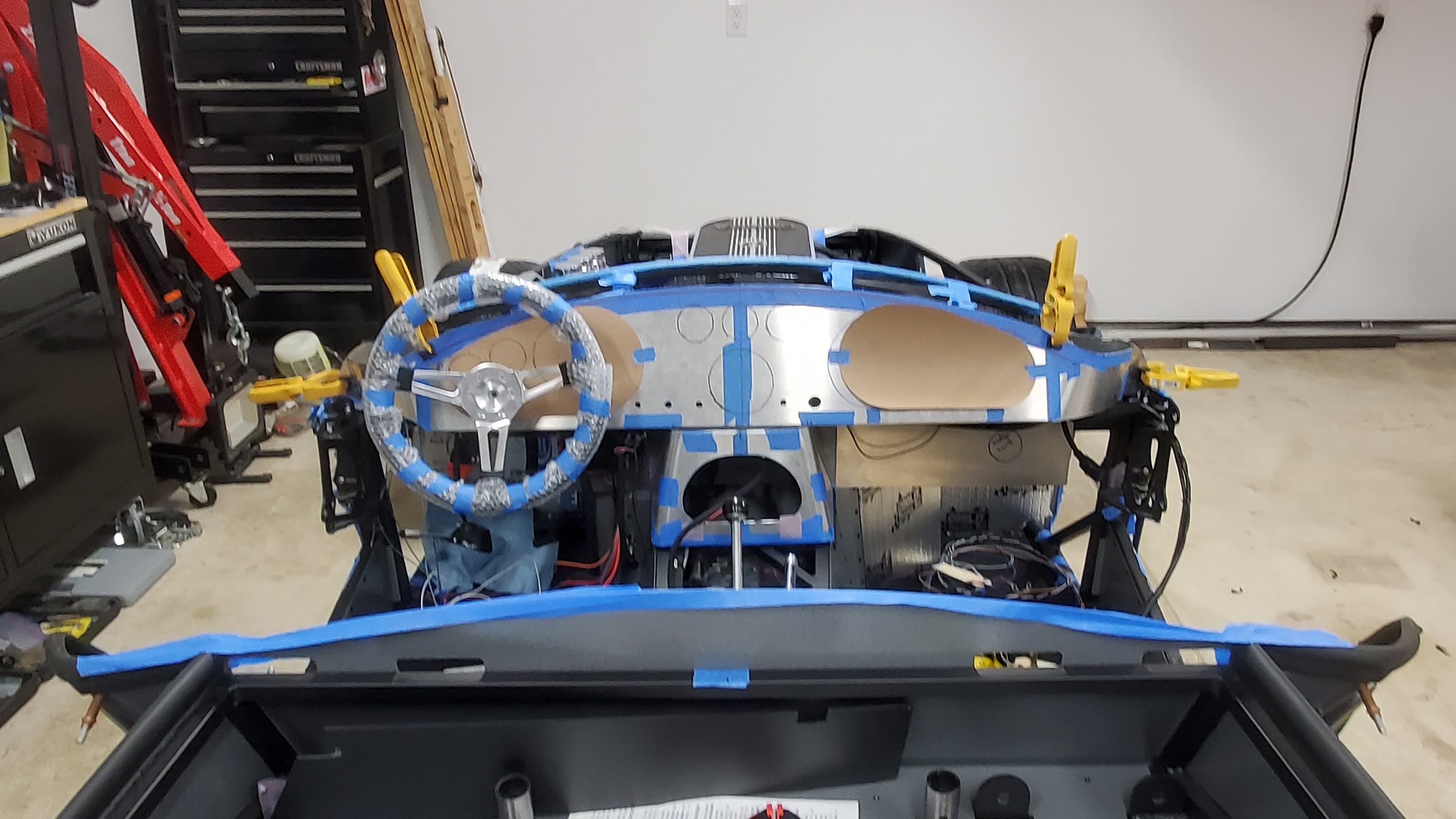

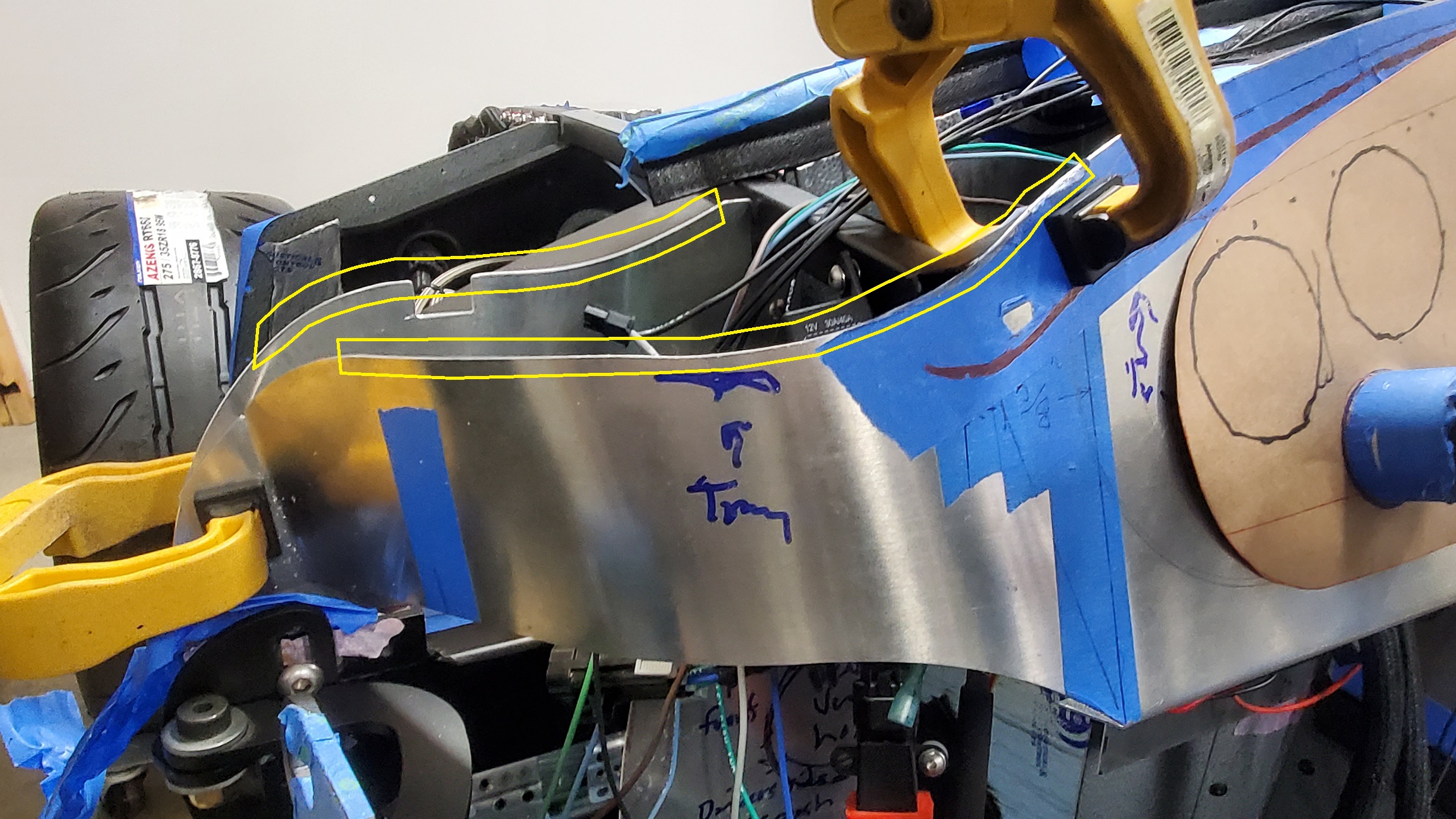

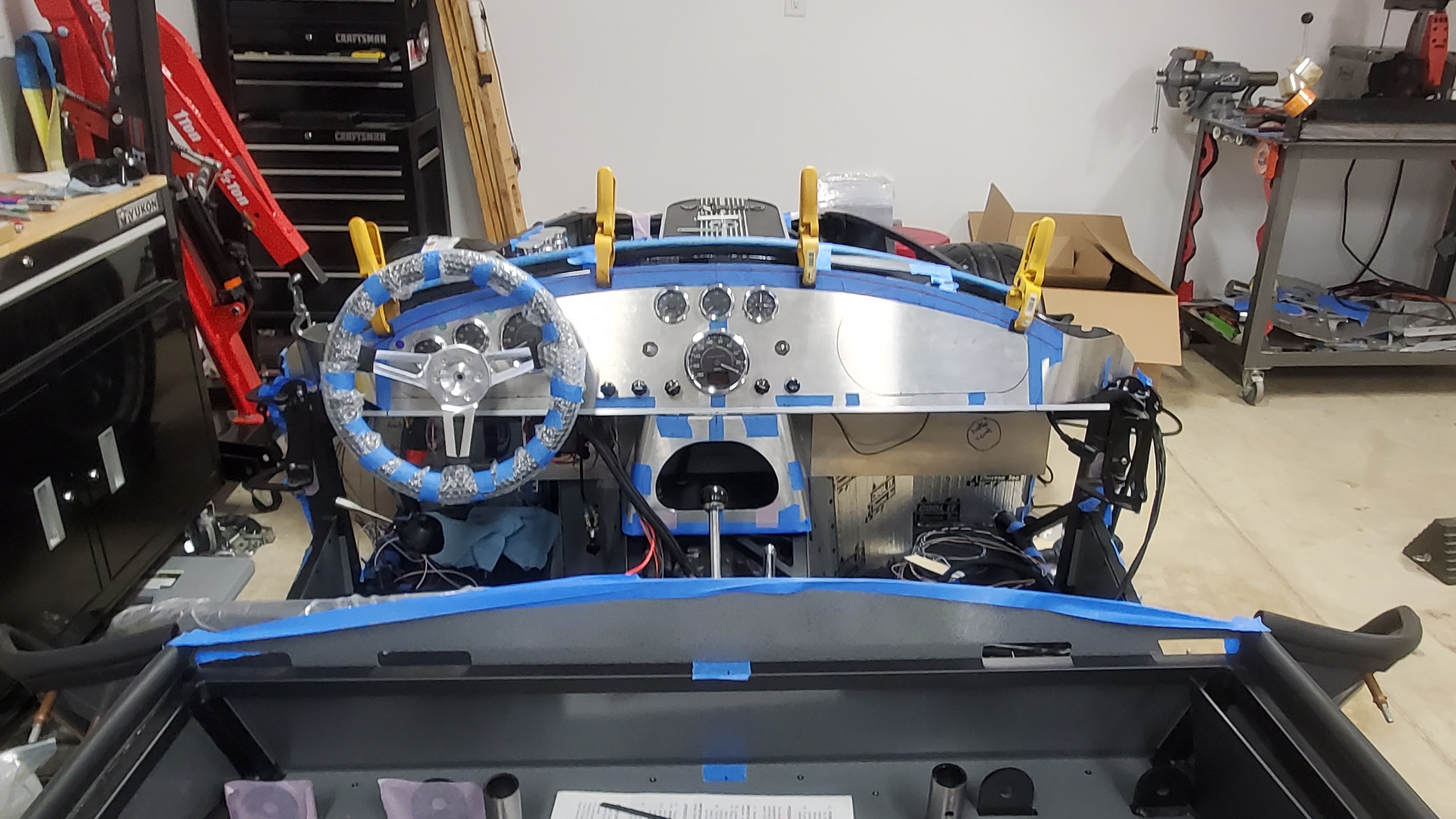

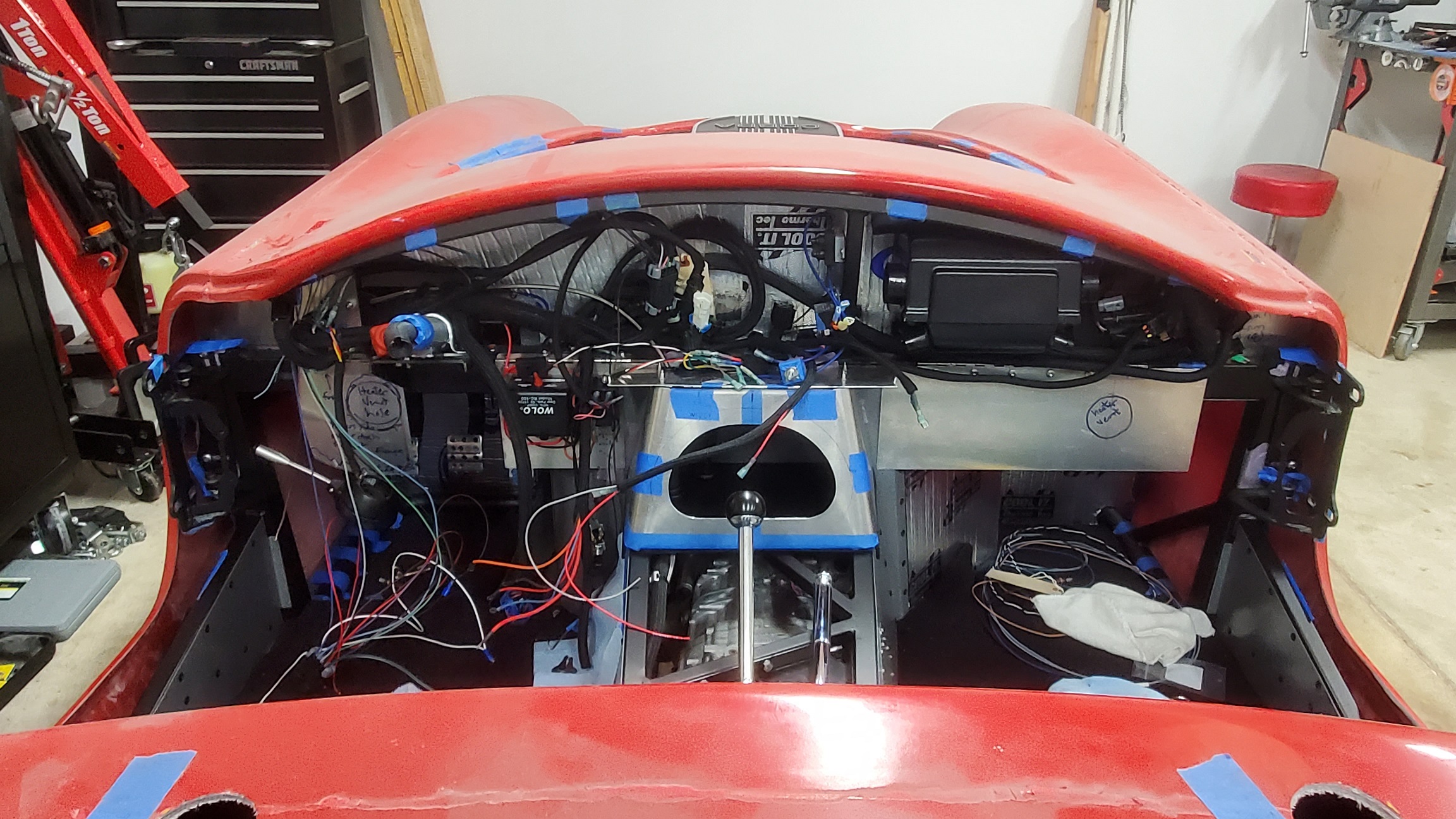

Then lastly, I needed to confirm the fitment of the dashpanel to the body cowl. Yes, it fits, but Jeff was right -- I need to trim the corners of my dashpanel down a bit. There was no wiggle room...
Attachment 221296

Until next time,
Happy Building!

Craig C

Hey Y'All,

Today I trimmed up the dashpanel corners and the firewall extensions to better fit with the body cowl area. I made note of the tight areas while the body was on, and then primarily followed an offset of the lower cowl "lip" outline that I drew on the dashpanel itself :cool:

Driver's side
Attachment 221297

Passenger side
Attachment 221298

Then, since I discovered that I can't install or remove the dashpanel with the body mounted, I experimented with removeable panels. One mounts the primary gauge set, and the other might serve as a glovebox (very shallow one :p )

Even though I like the symmetry, I'm not quite "feeling it" :rolleyes: It still doesn't look "balanced"...
Attachment 221299

Nonetheless, here I confirm the pseudo Competition layout is still visible behind the steering wheel
Attachment 221300

I think I might be onto something, but I'll need to think on it some more...

Craig C

Hey Y'All,

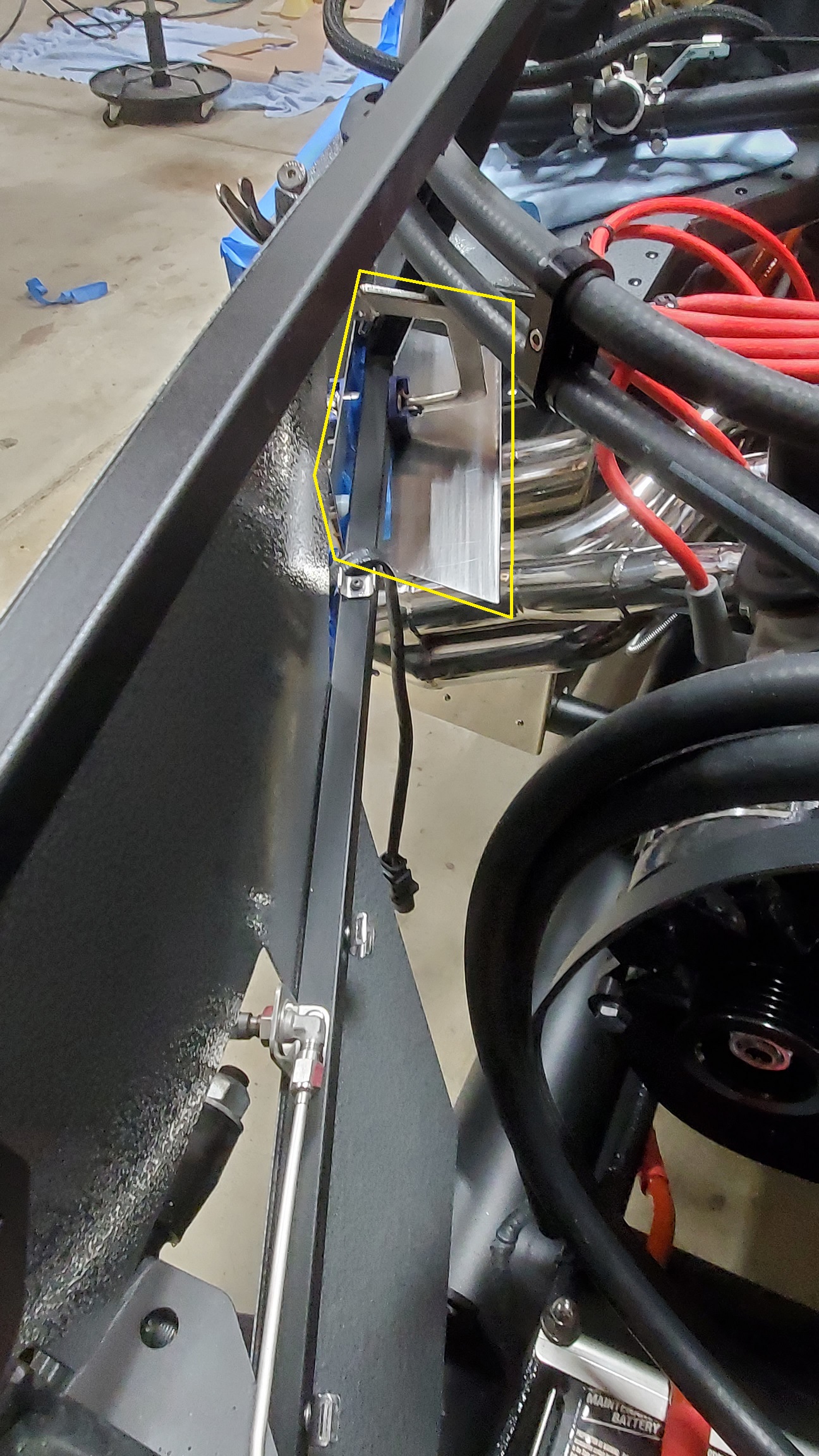

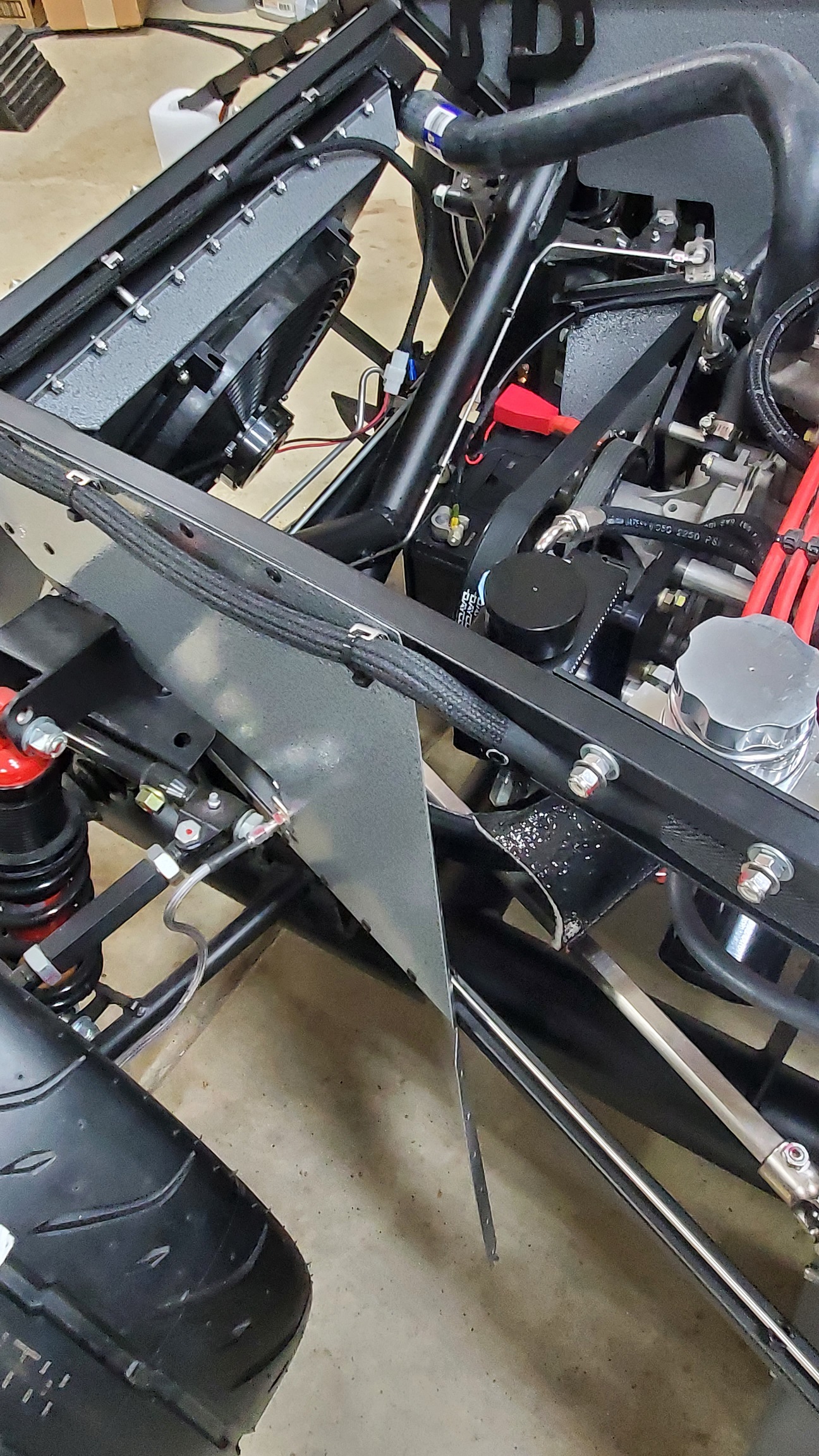

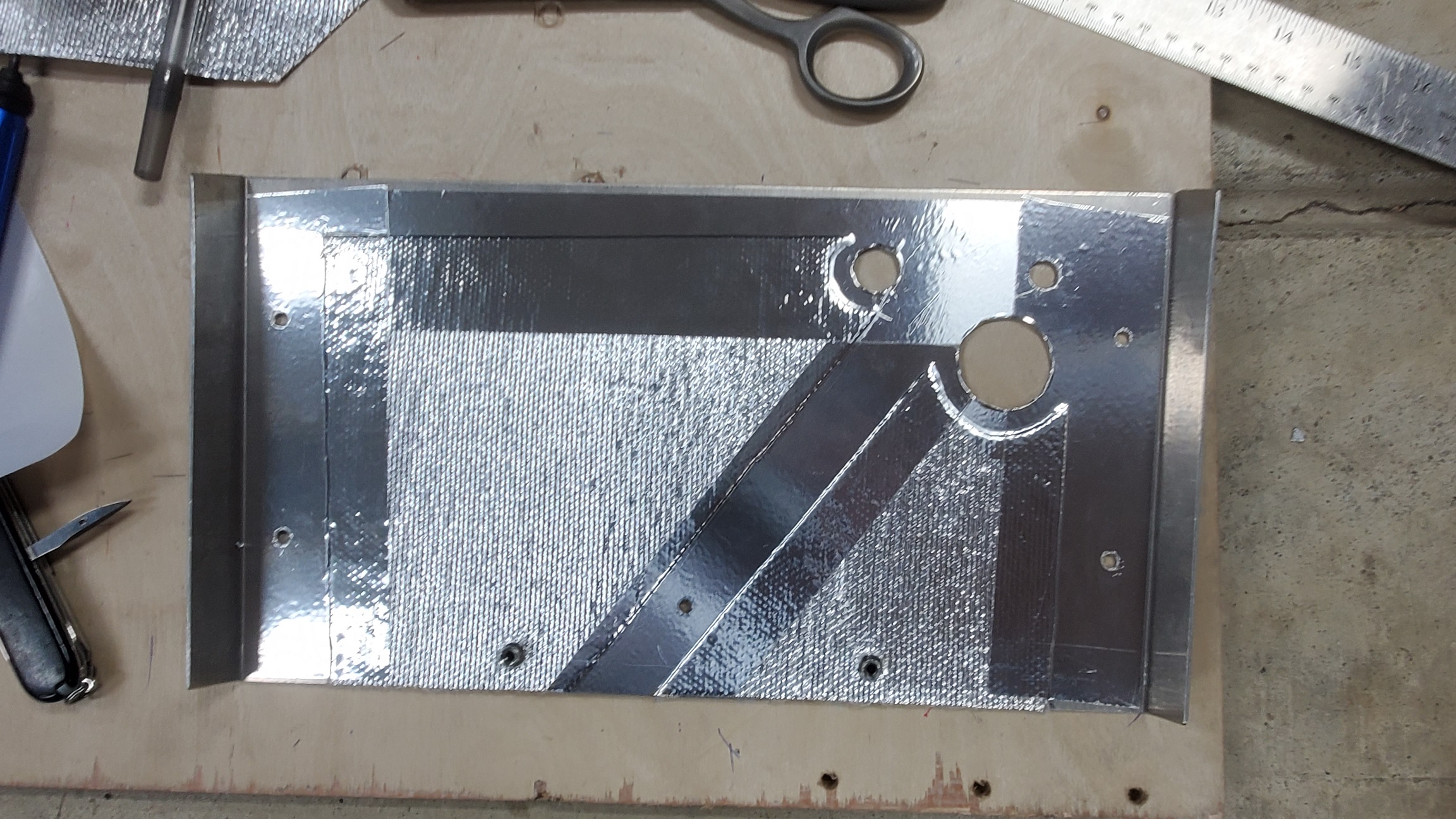

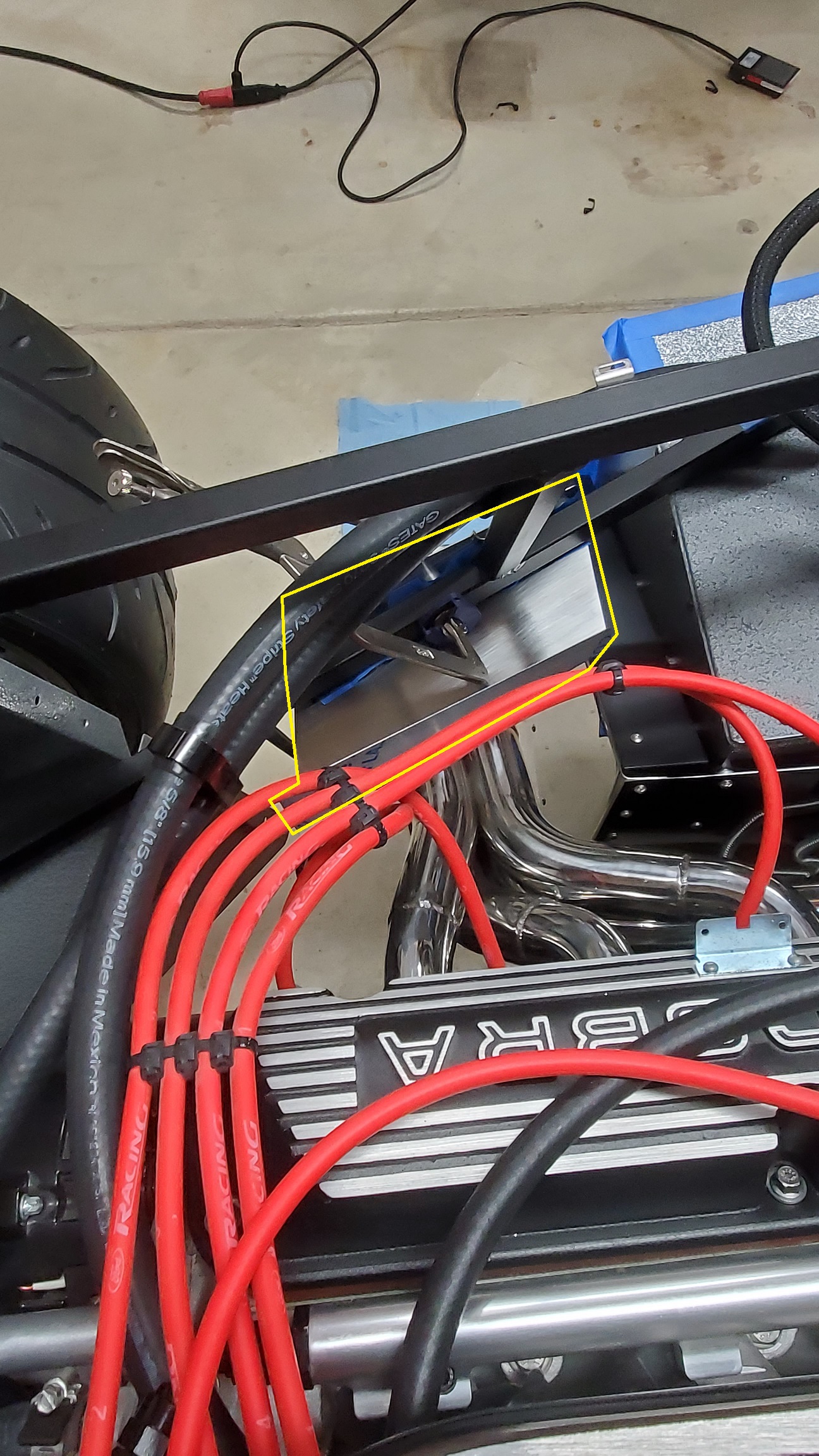

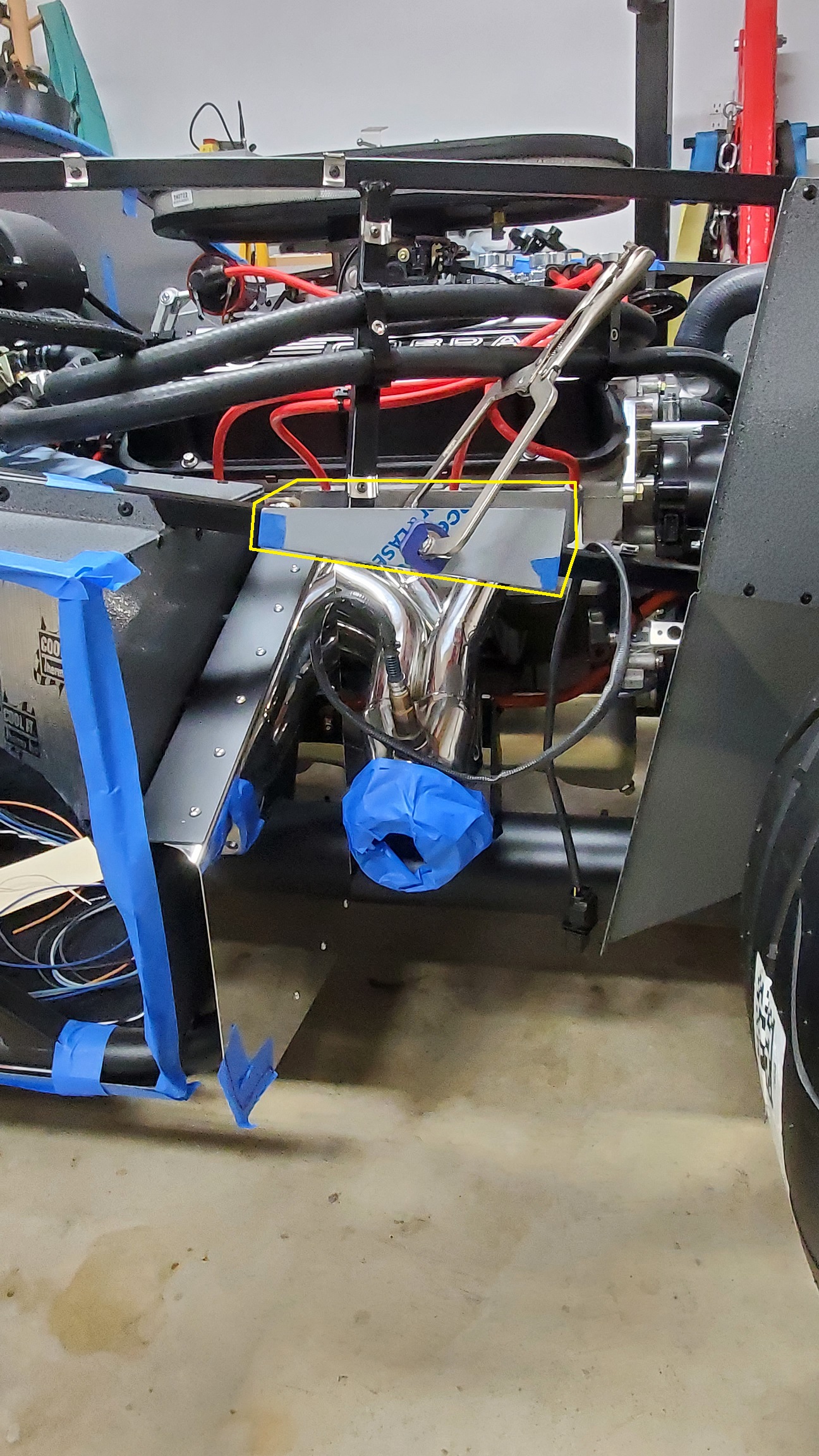

In my last post of this weekend, I decided to make another heat shield while "noodling" on my dash panel strategy...

It is intended to protect the heater hoses and passenger side wire harness (mainly ECU), but I'm not sure if it is really going to help much. I enjoyed working with my hands on a simple project :D
Once again, I used thin polished stainless steel panels...
Attachment 221301

Attachment 221302

Attachment 221303

Until next time, Happy Building!

Craig C

Hey Y'All,

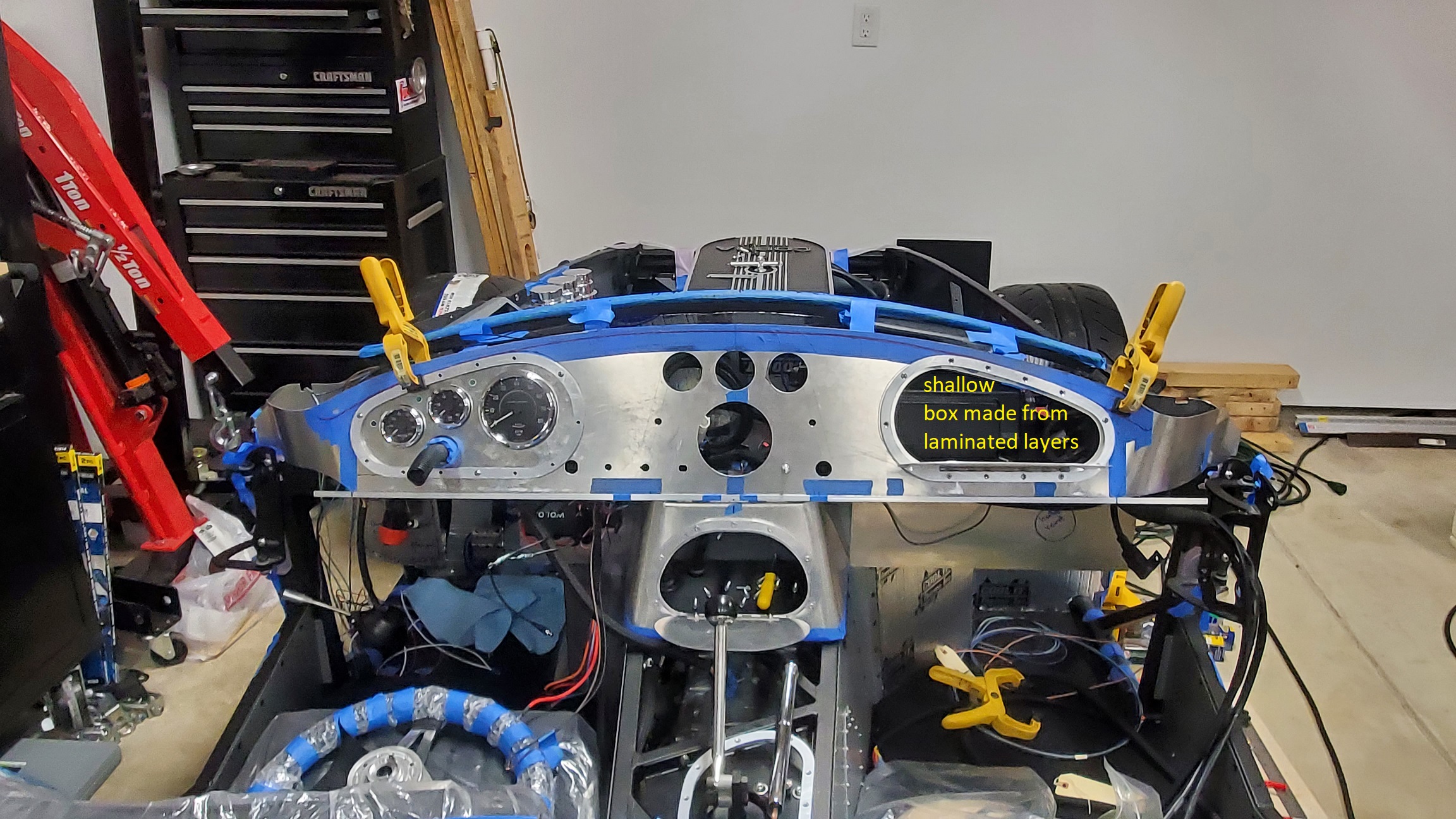

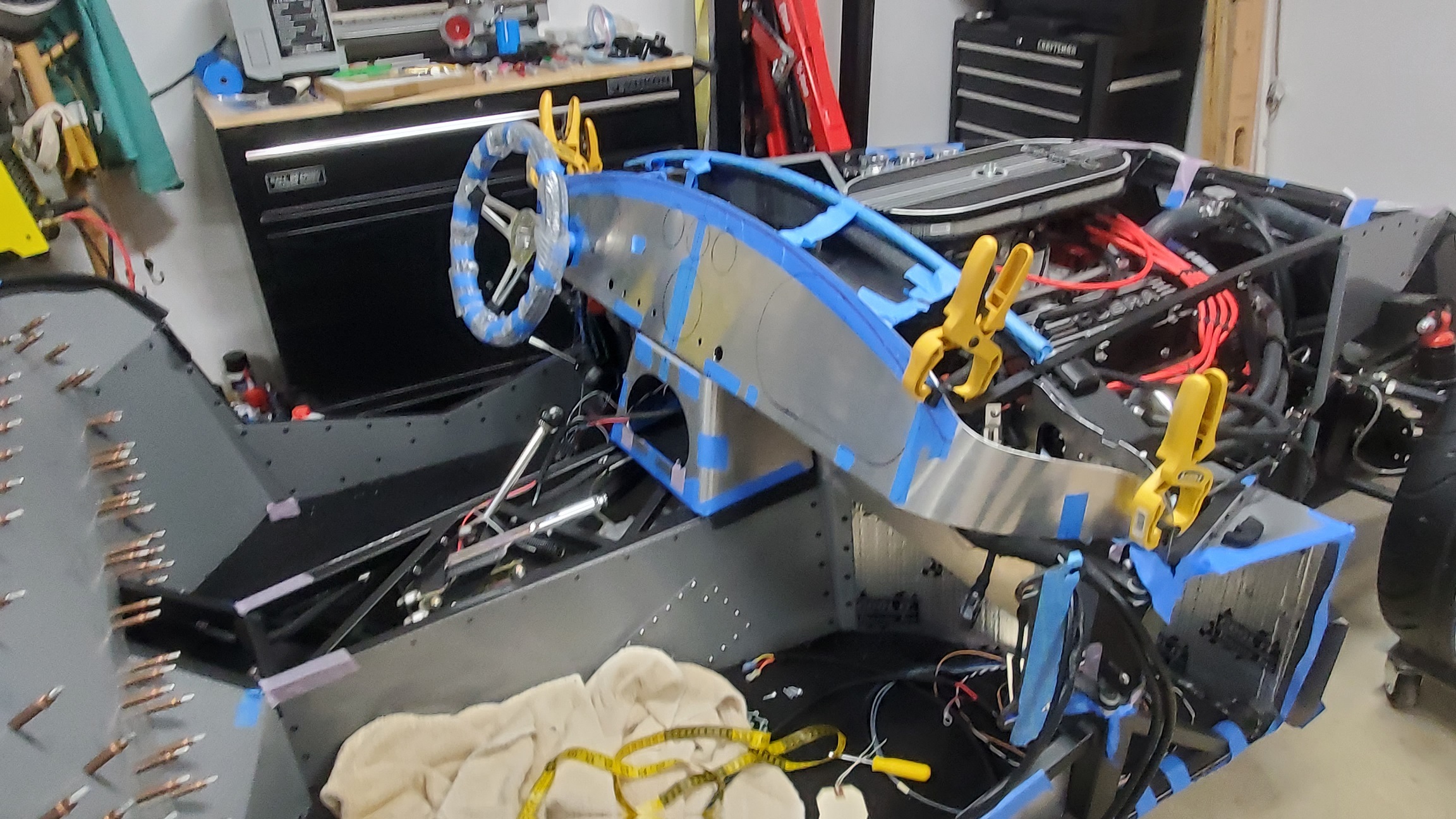

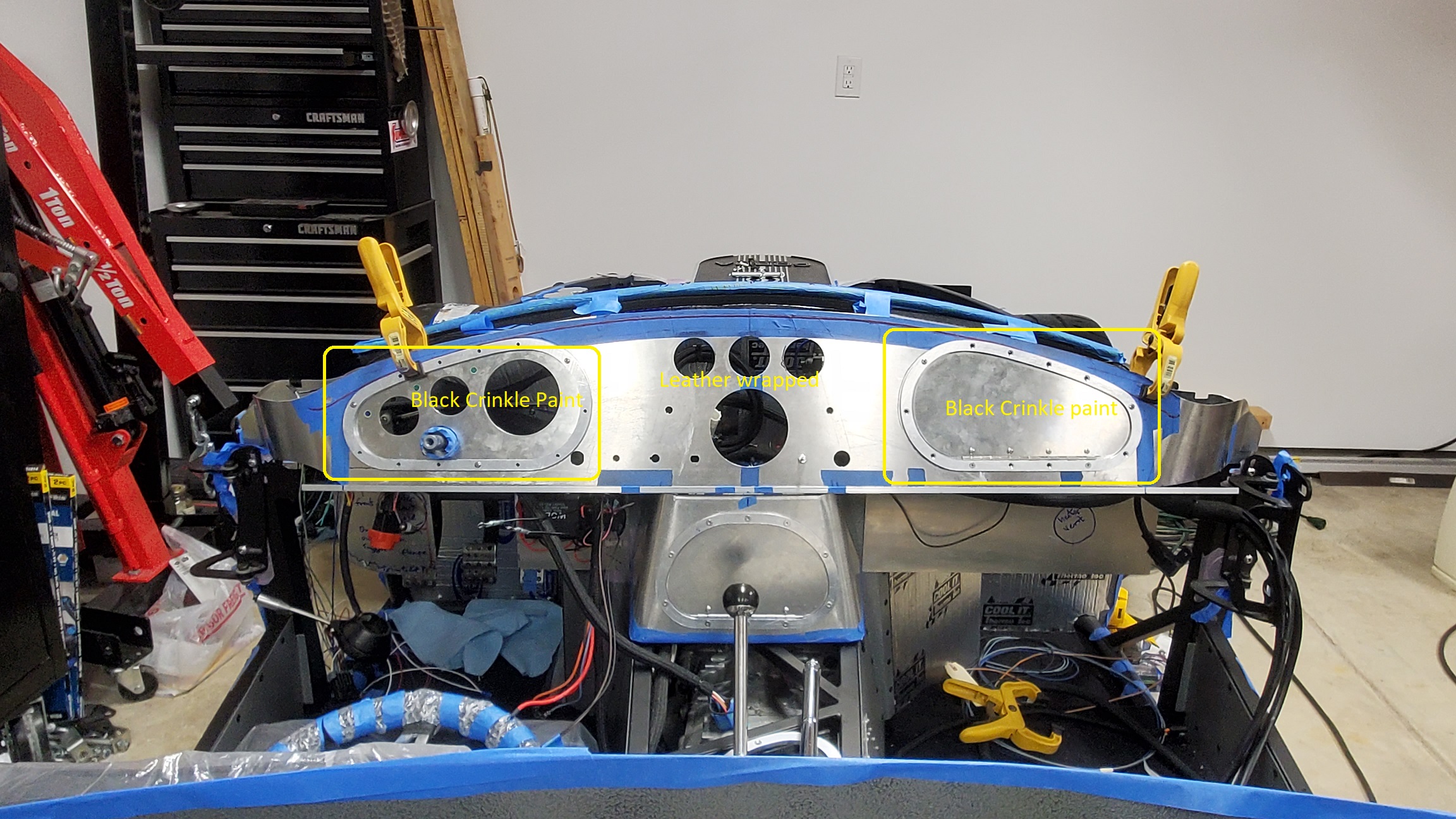

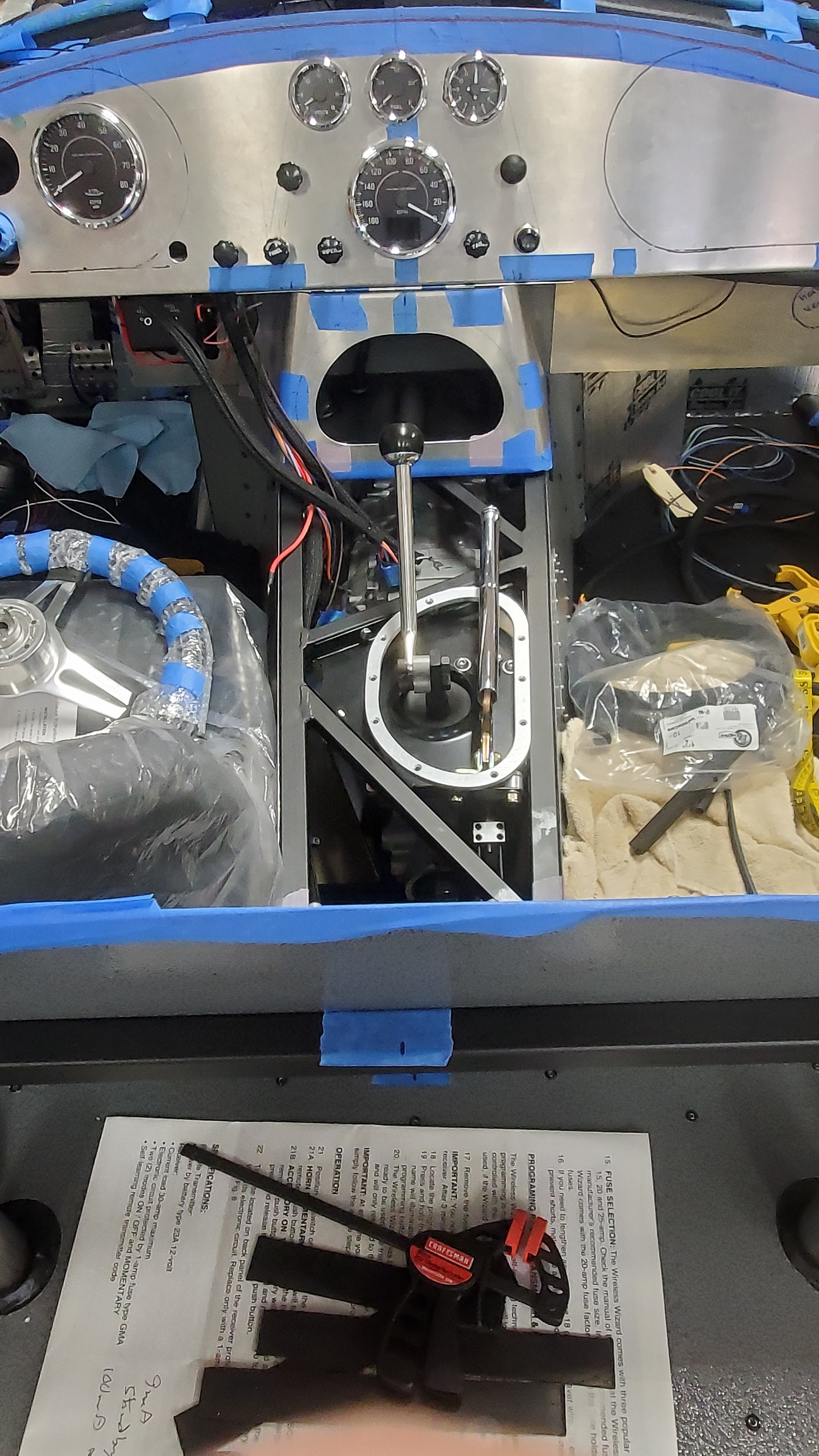

I figured out my Dash Panel design :D

Things I wanted: to cover up the oblong hole for the steering stem, to add some dimension to an otherwise typical "Competition" layout, to have symmetry

Constraints: accommodate how the body cowl edge drops down below the dash hoop tube at the corners, fit the "important" gauges into the space behind the steering wheel so that they fit and can be seen easily while driving, make a trim ring design that would fit the "important" gauges as well as be a reasonable size and shape for a glove box on the other side in a symmetric location

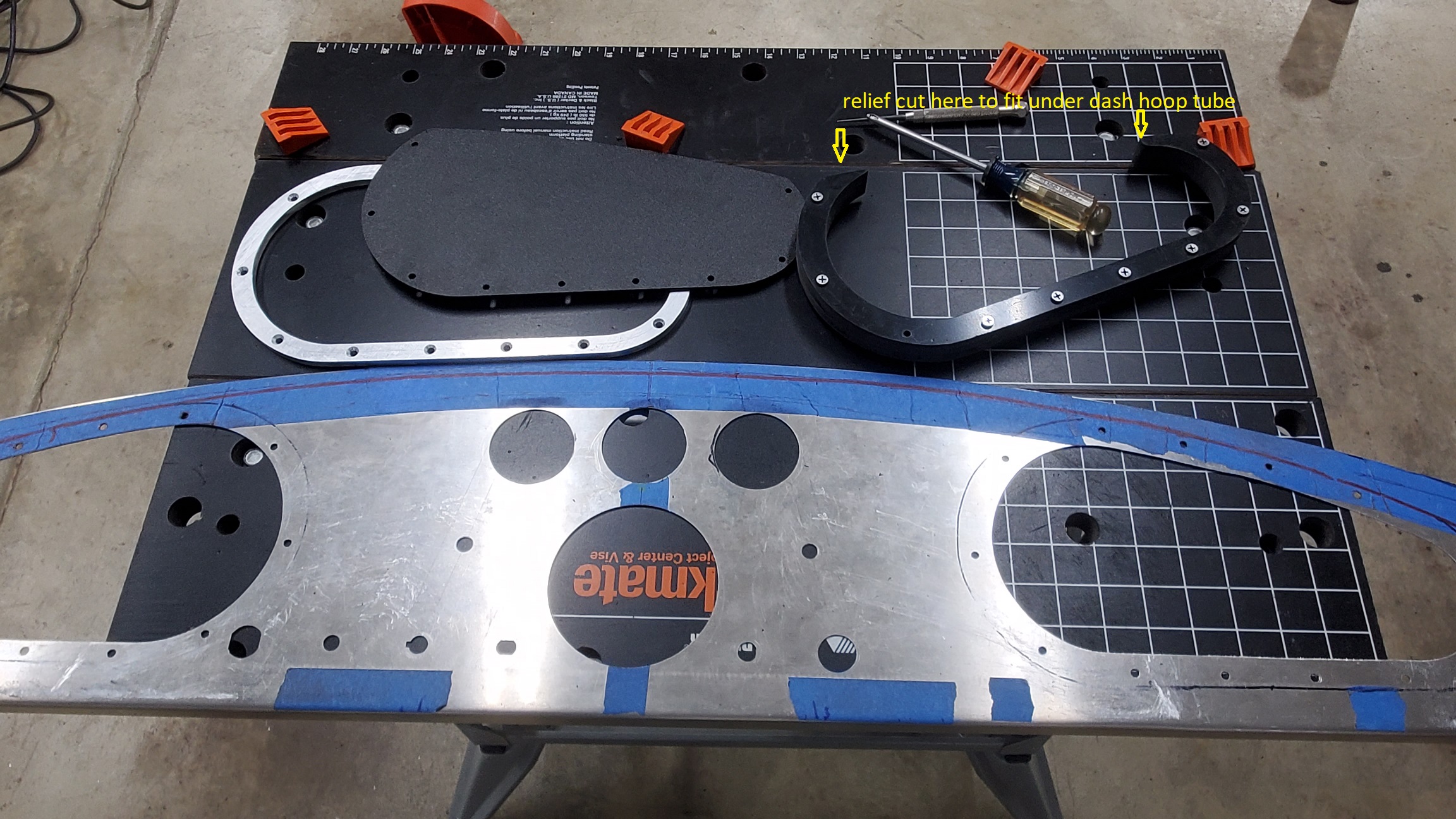

Here's what I decided
Attachment 221632

Attachment 221633

Attachment 221634

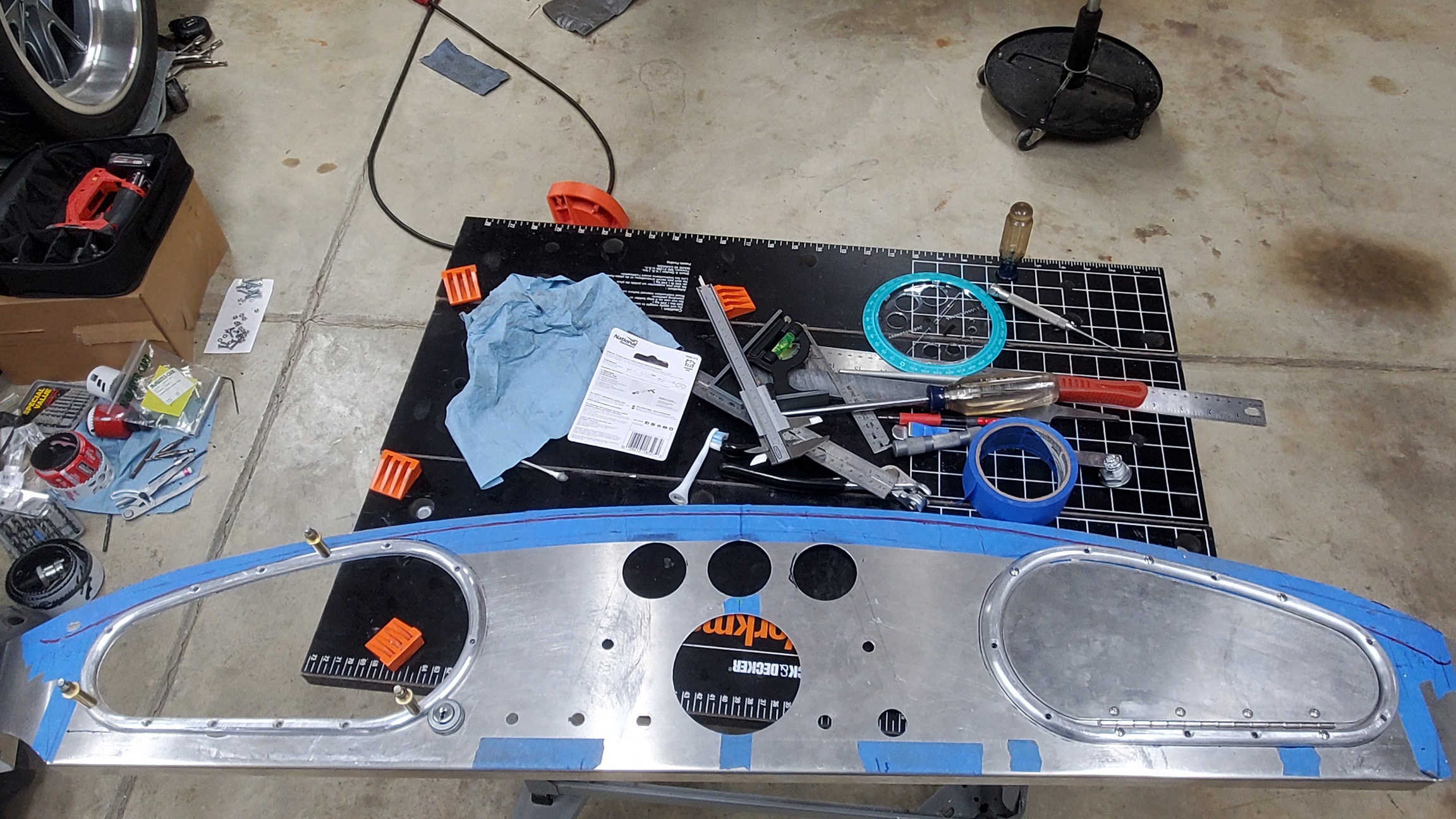

and here's the result after careful pilot hole location and use of a drill press with hole saw attached (2 1/8" for the small gauges, 4" for the large ones; this has some accommodation for wrapping with leather or adding powder coating, but is not so large either). Much like the other Builder's, I had some trepidation about cutting up a perfectly good blank dash panel...but I bought a spare, so let's get to cuttin!!

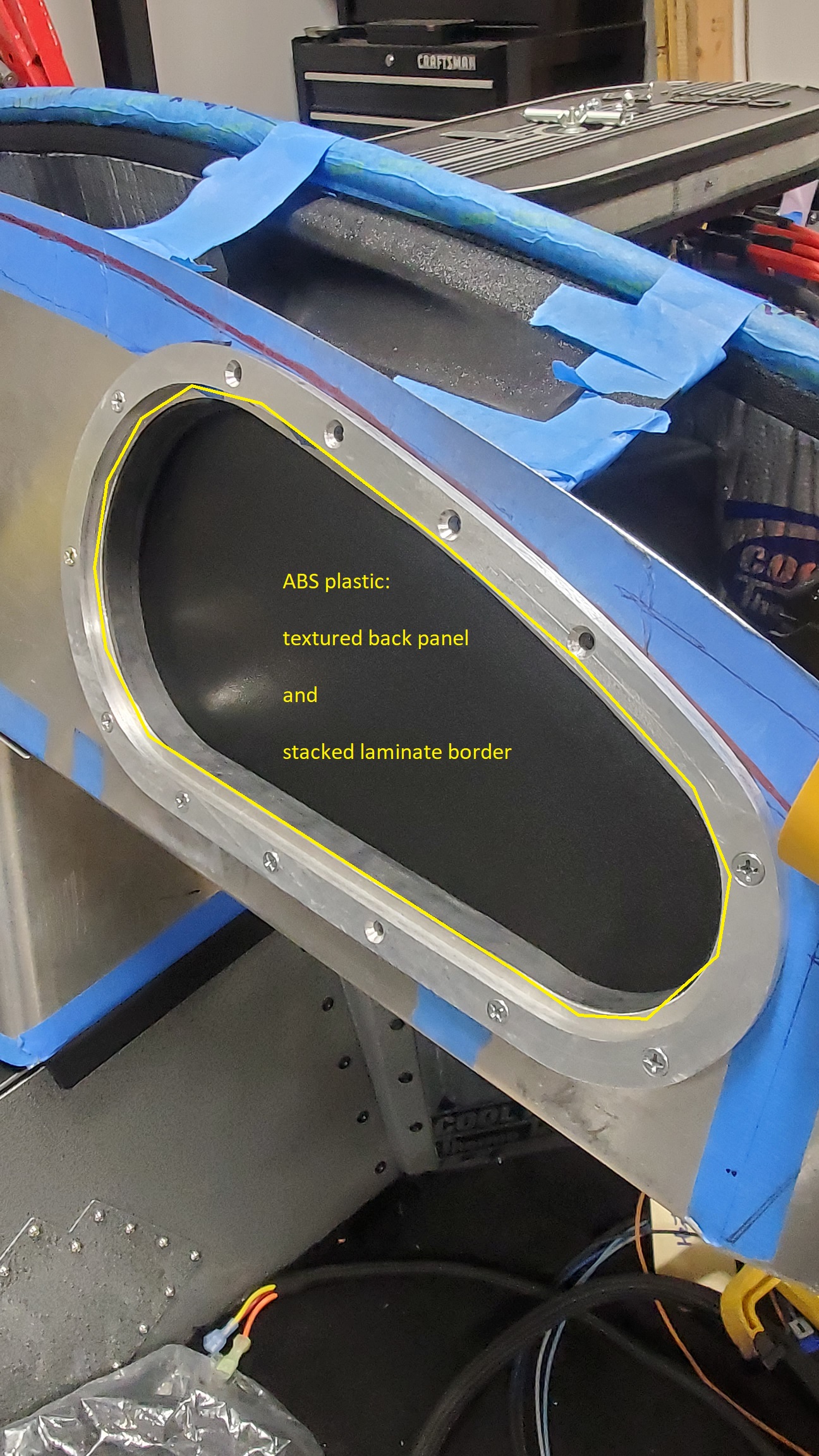

Driver's view
Attachment 221635

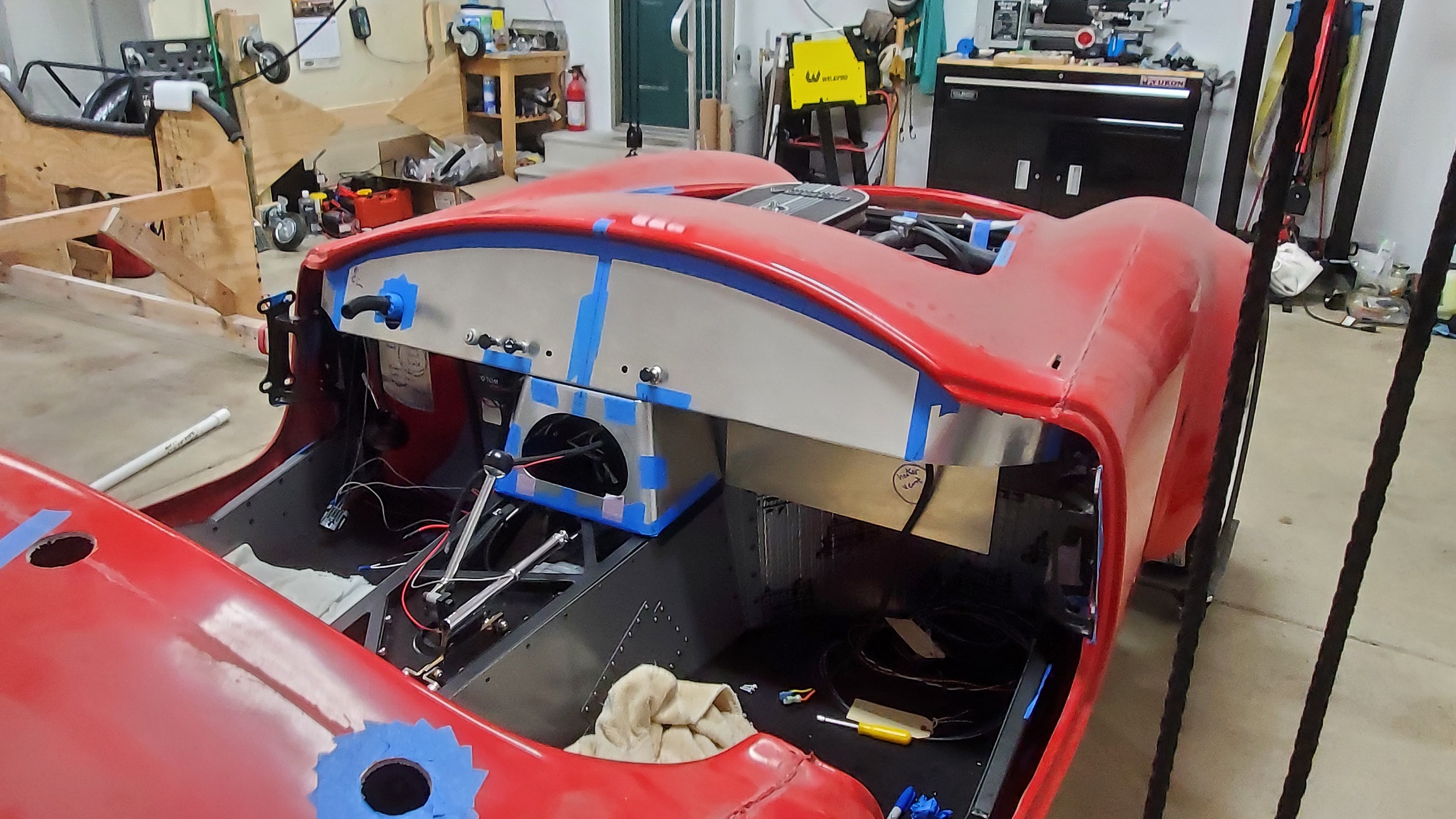

Overall rear view
Attachment 221636

There's more work to do...but it's finally lookin' like somethin'! :cool:

Until next time, Happy Building!

Craig C

Hey Y'All,

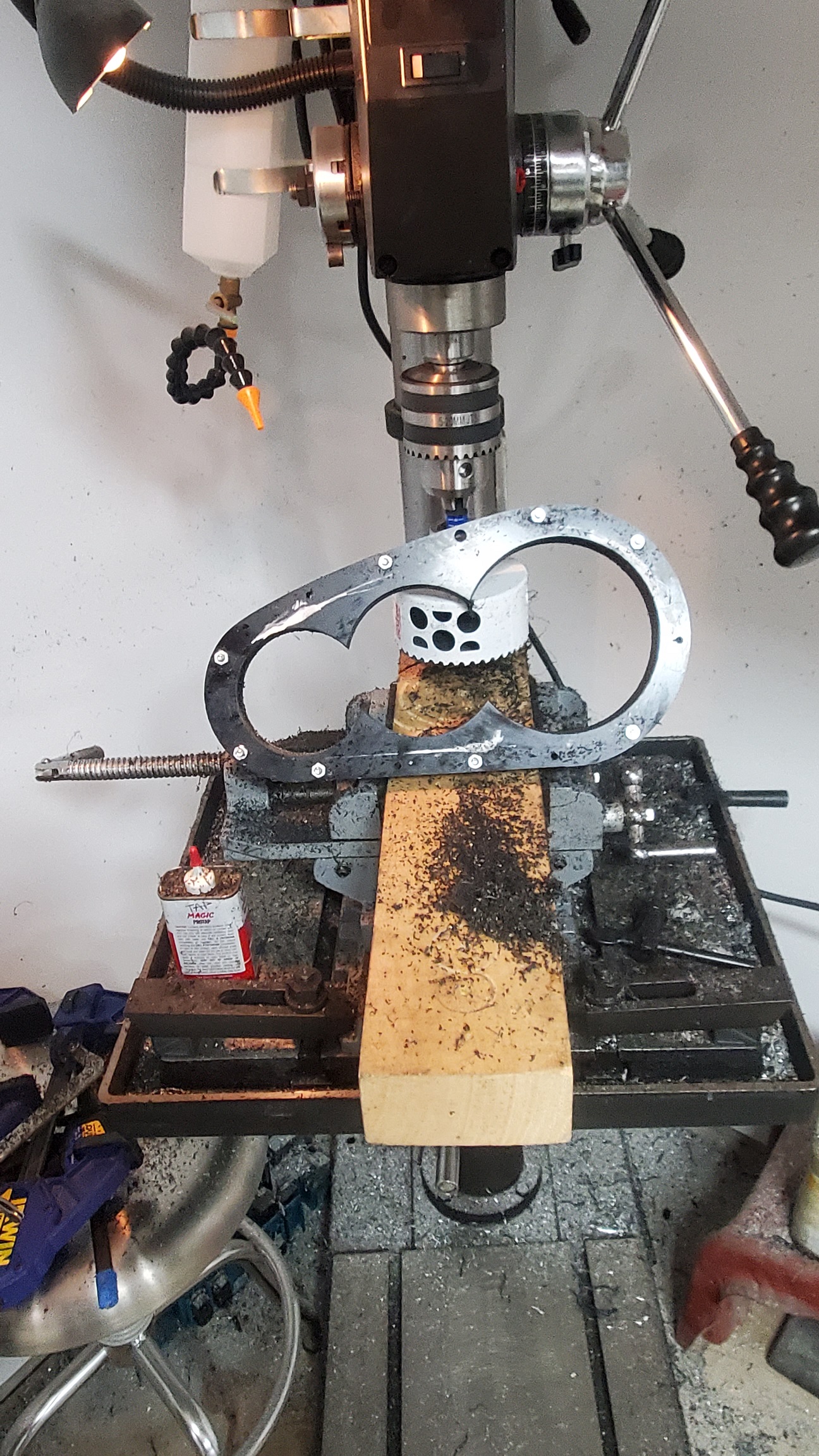

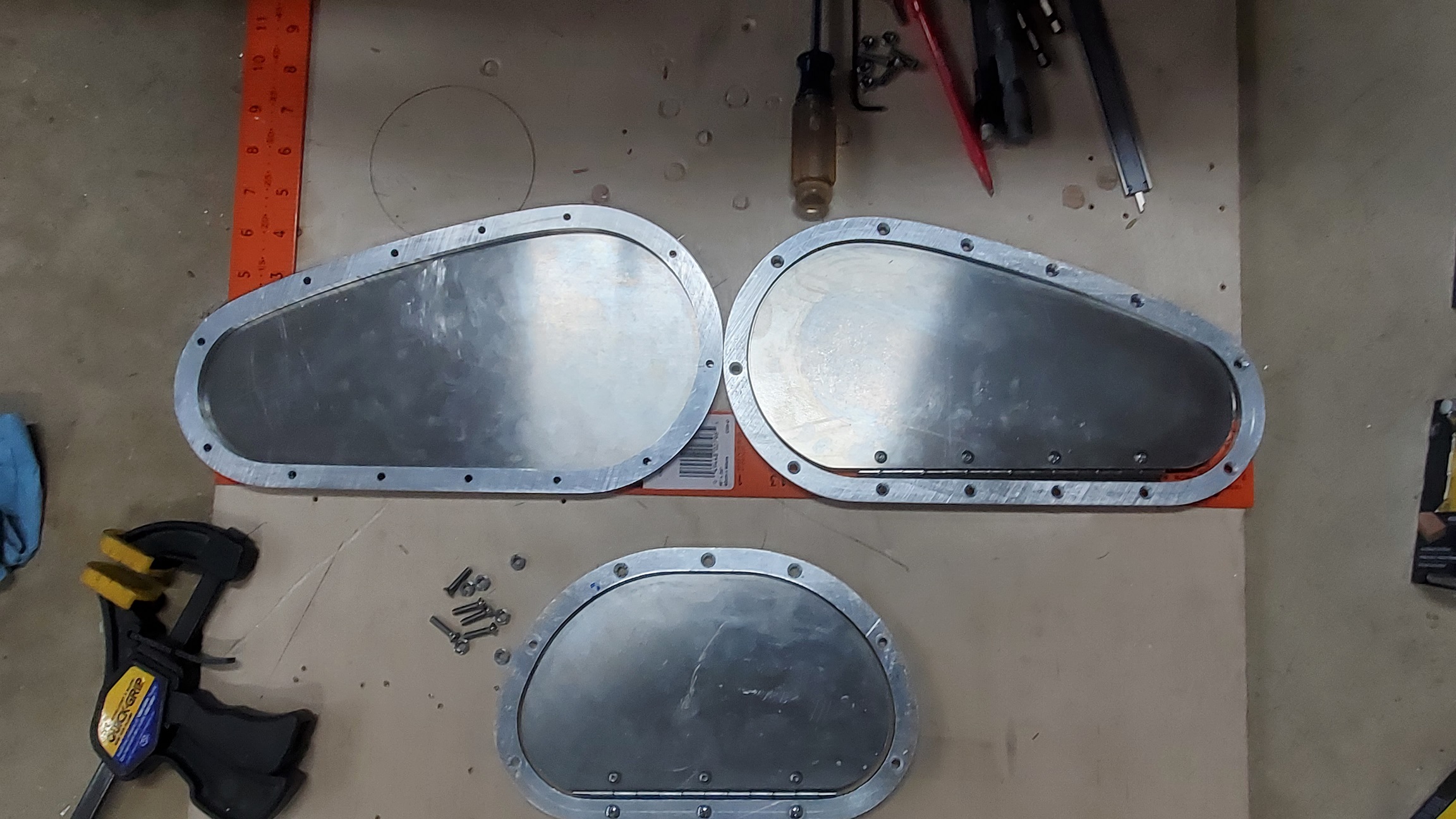

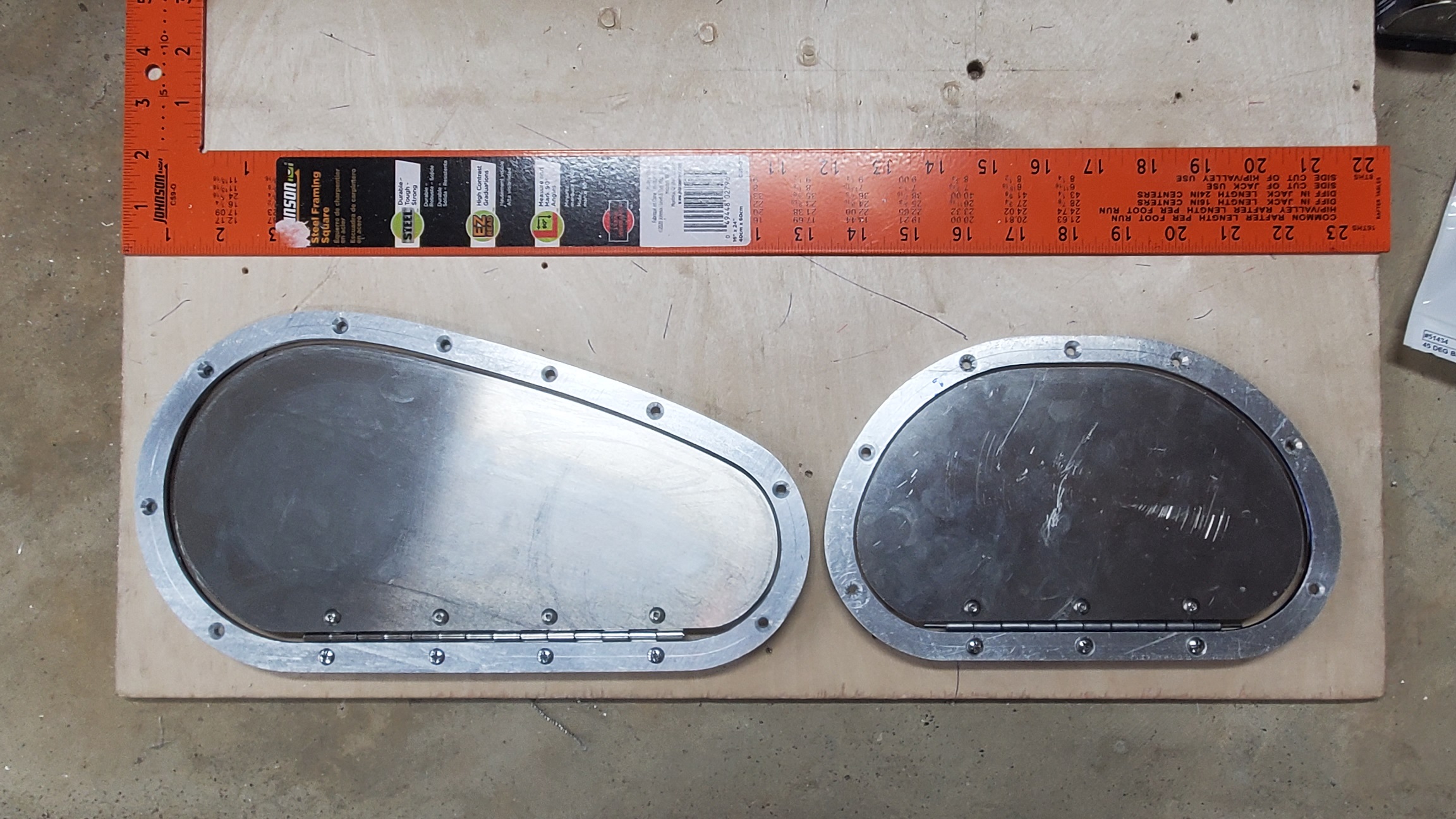

In this post, I perform a lot of activity by cutting up 1/4" Al sheet in order to make my Dash Pane's trim rings (but not a lot to show for all the effort :rolleyes: )

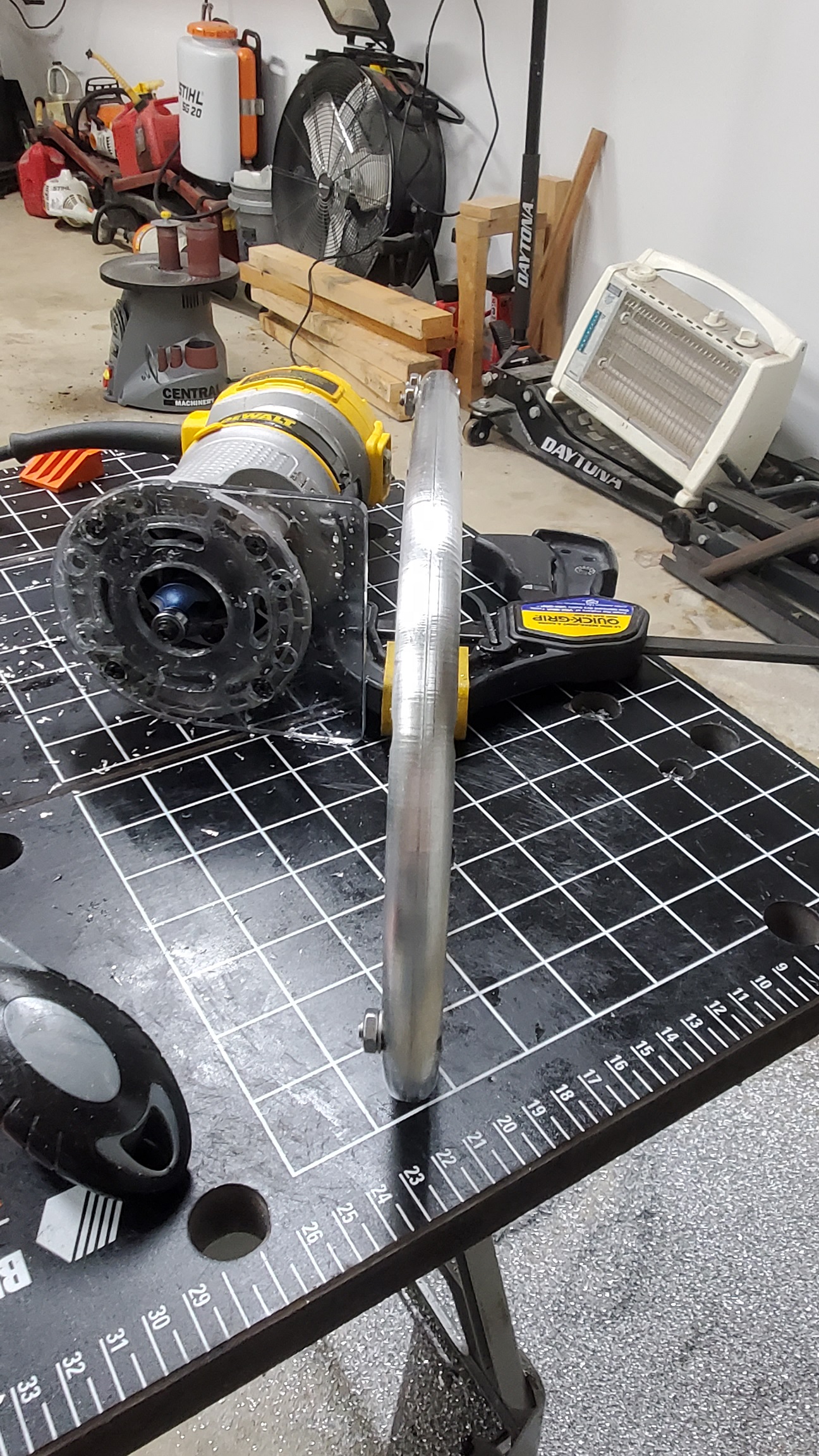

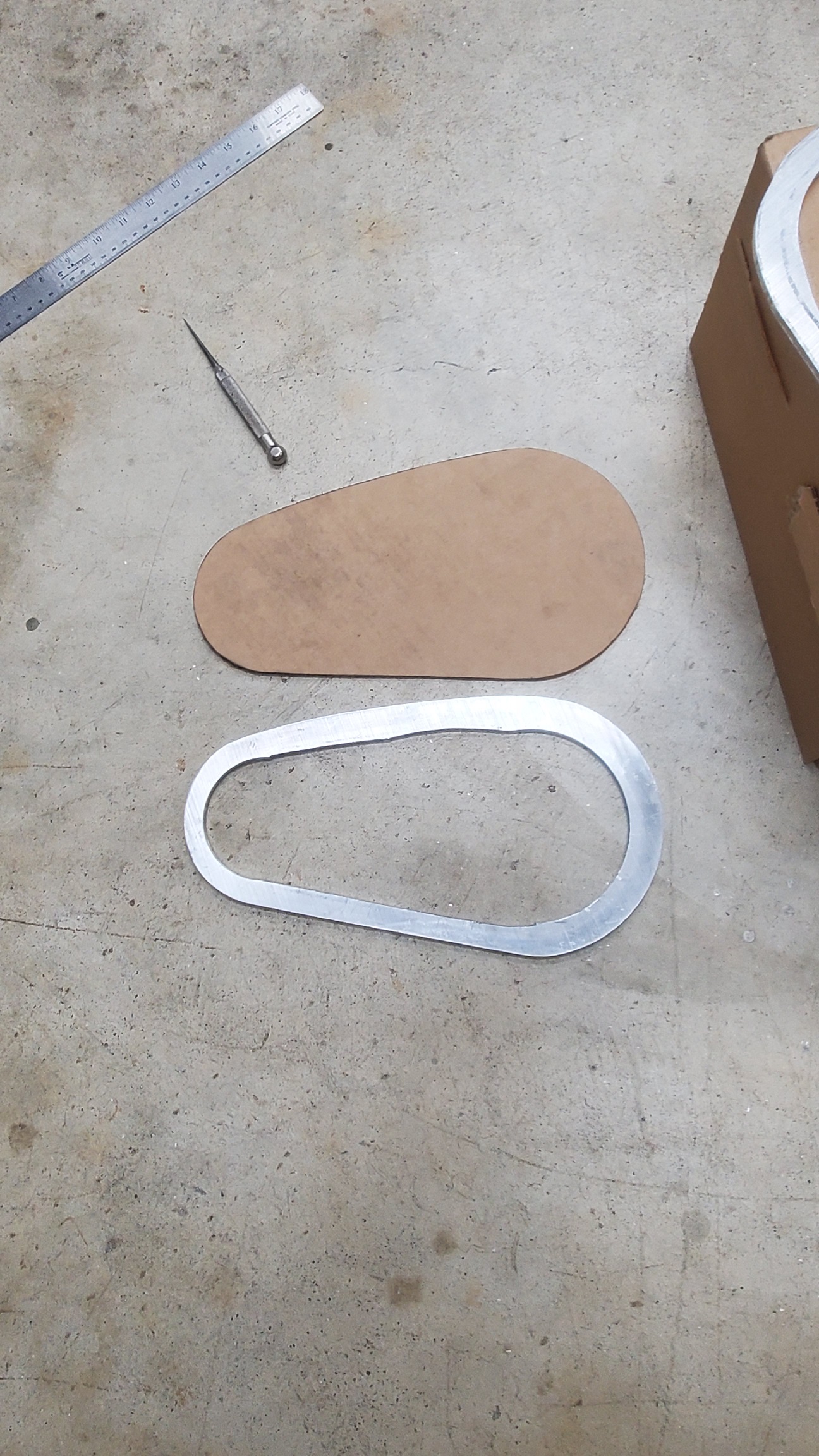

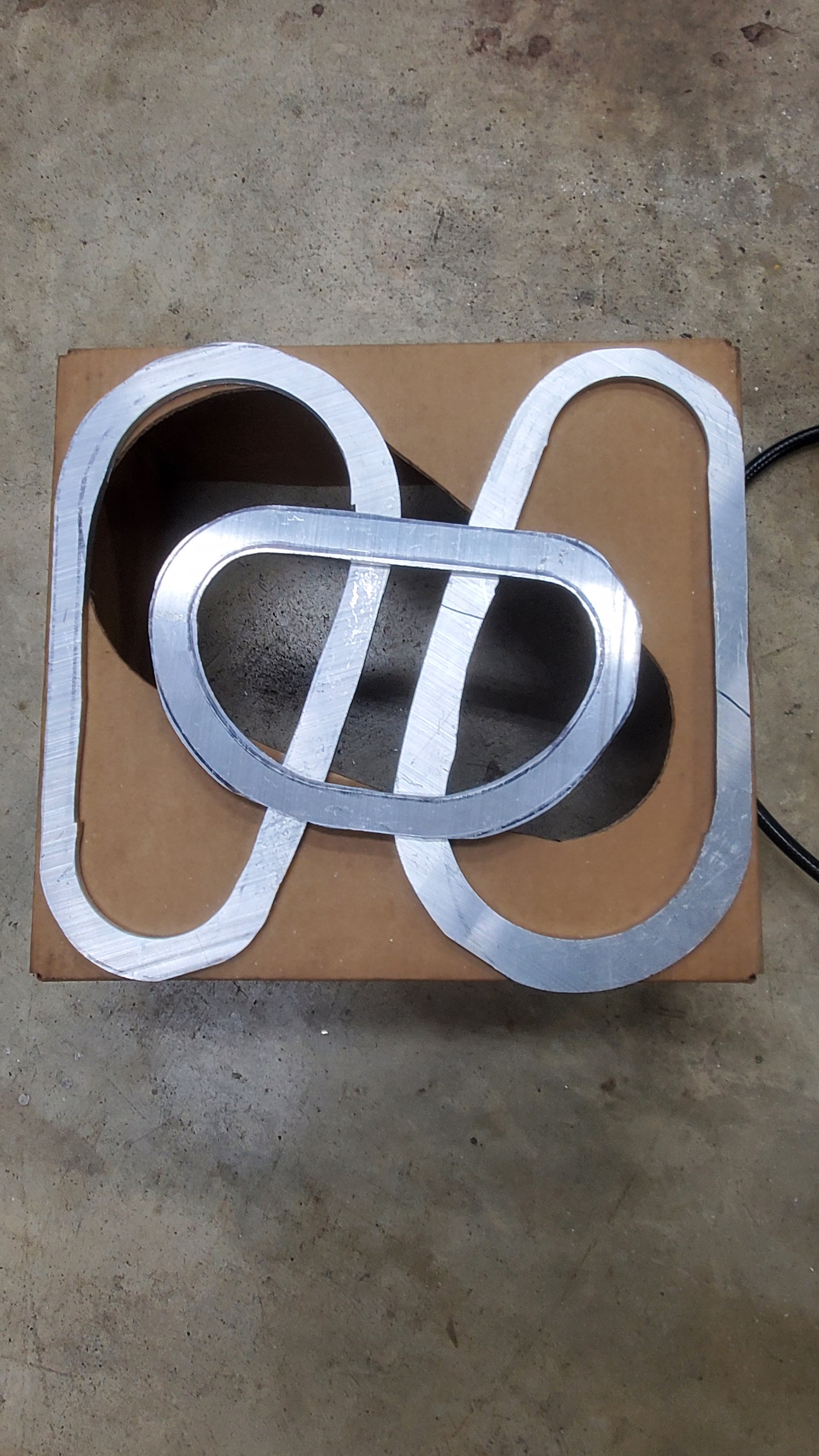

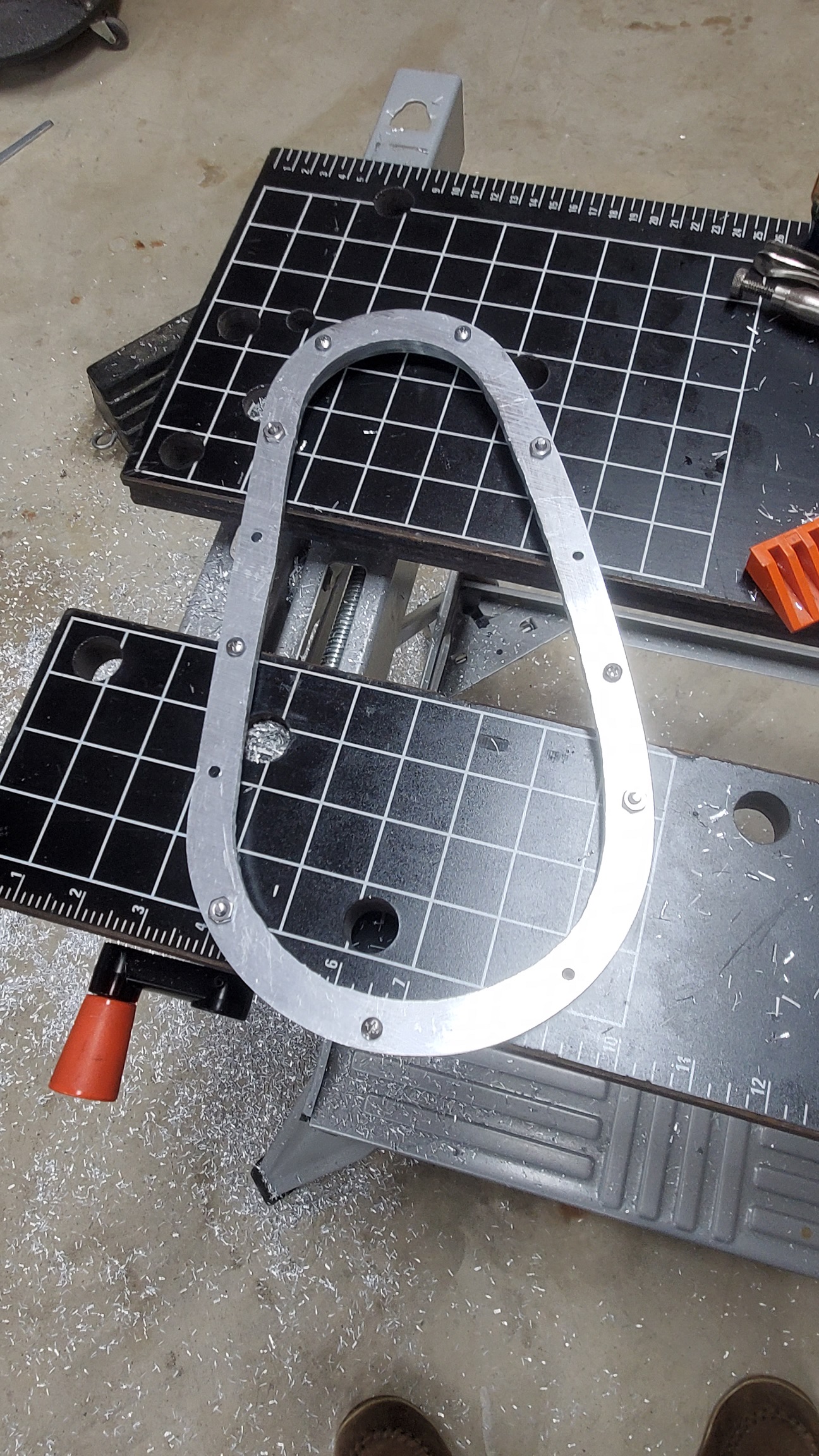

First up, the roughed out shape. I used a combination of hand tools, a desk-top band saw, and a drill press with various hole saw attachments...
Attachment 222020

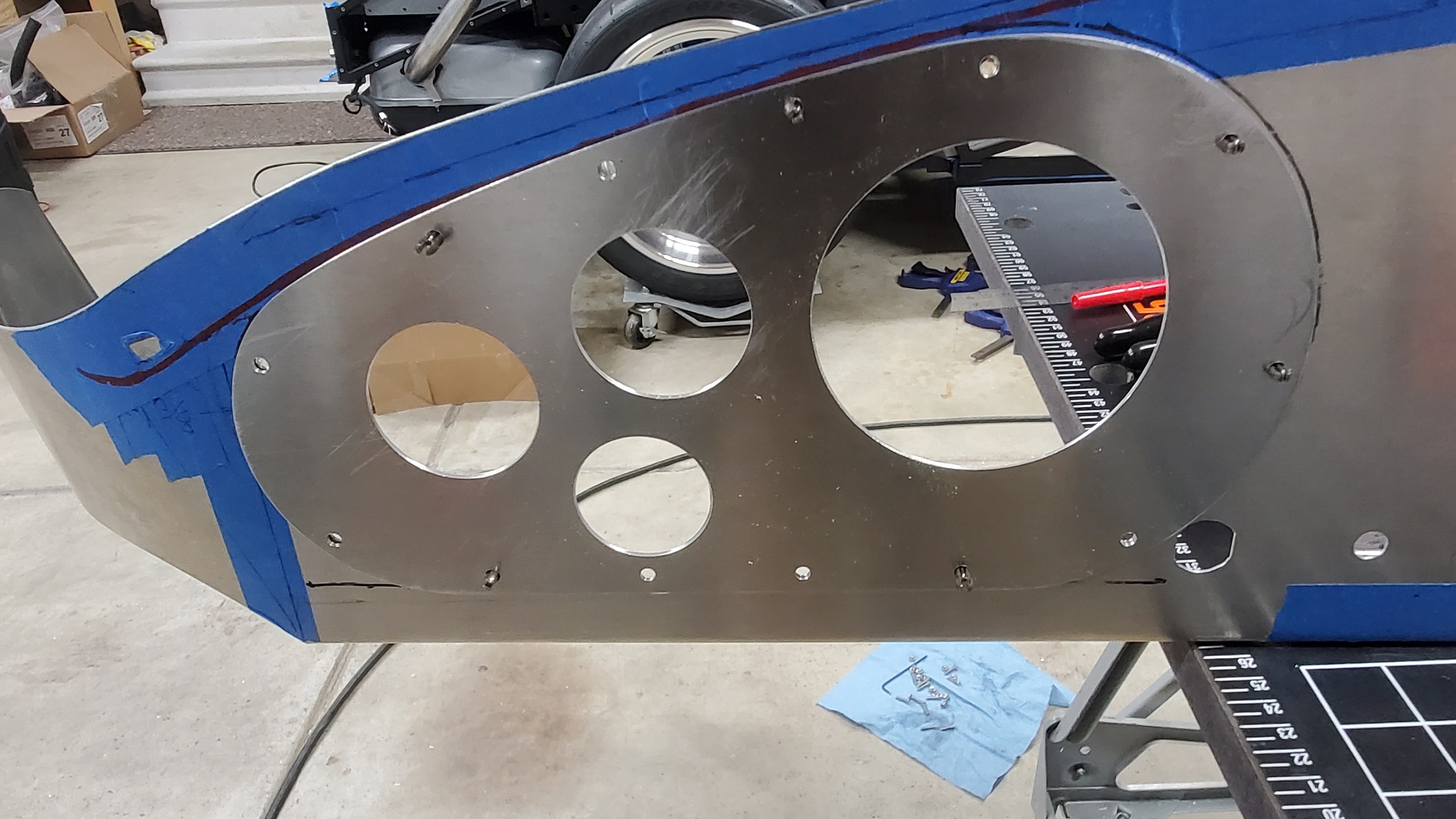

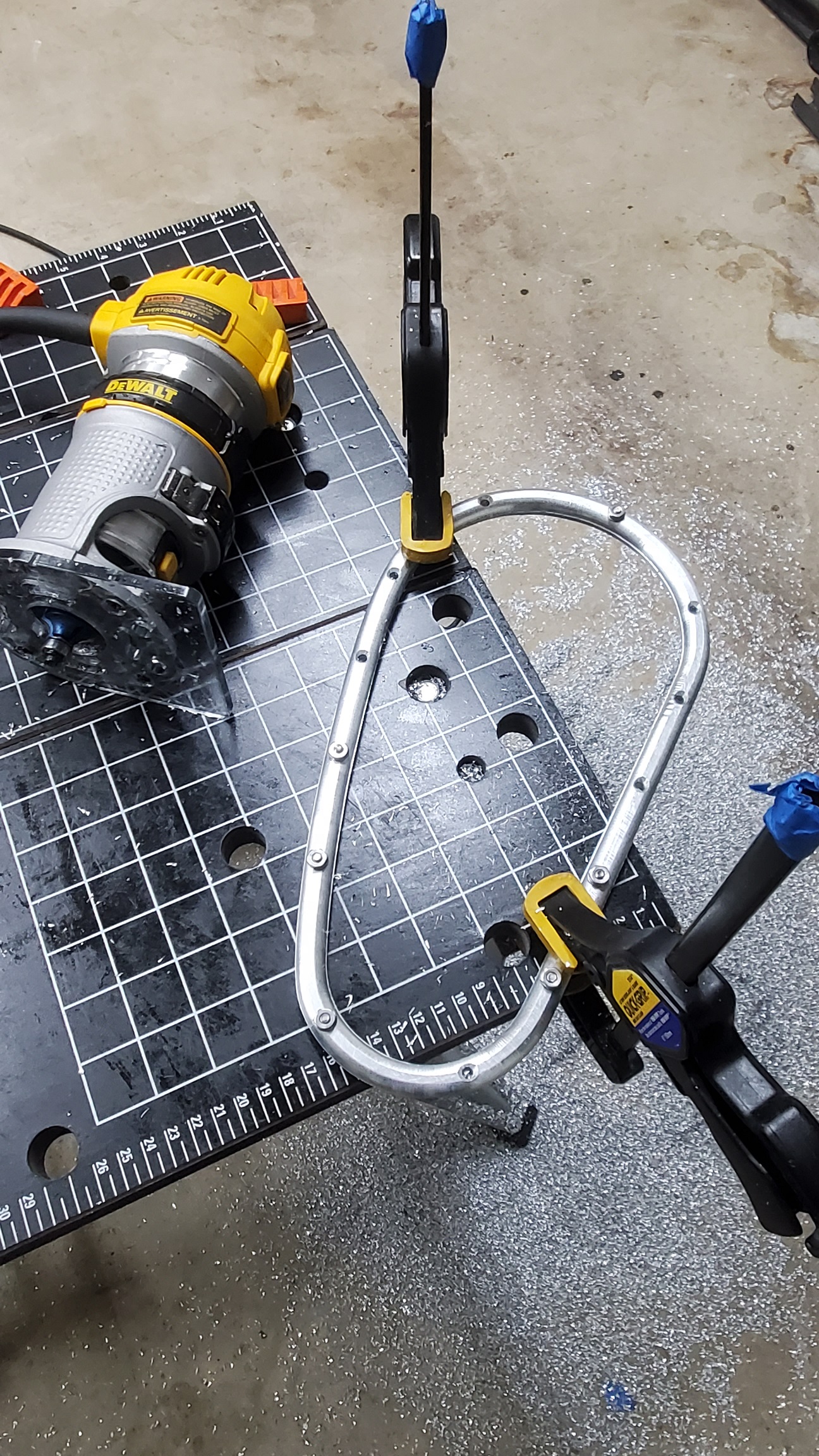

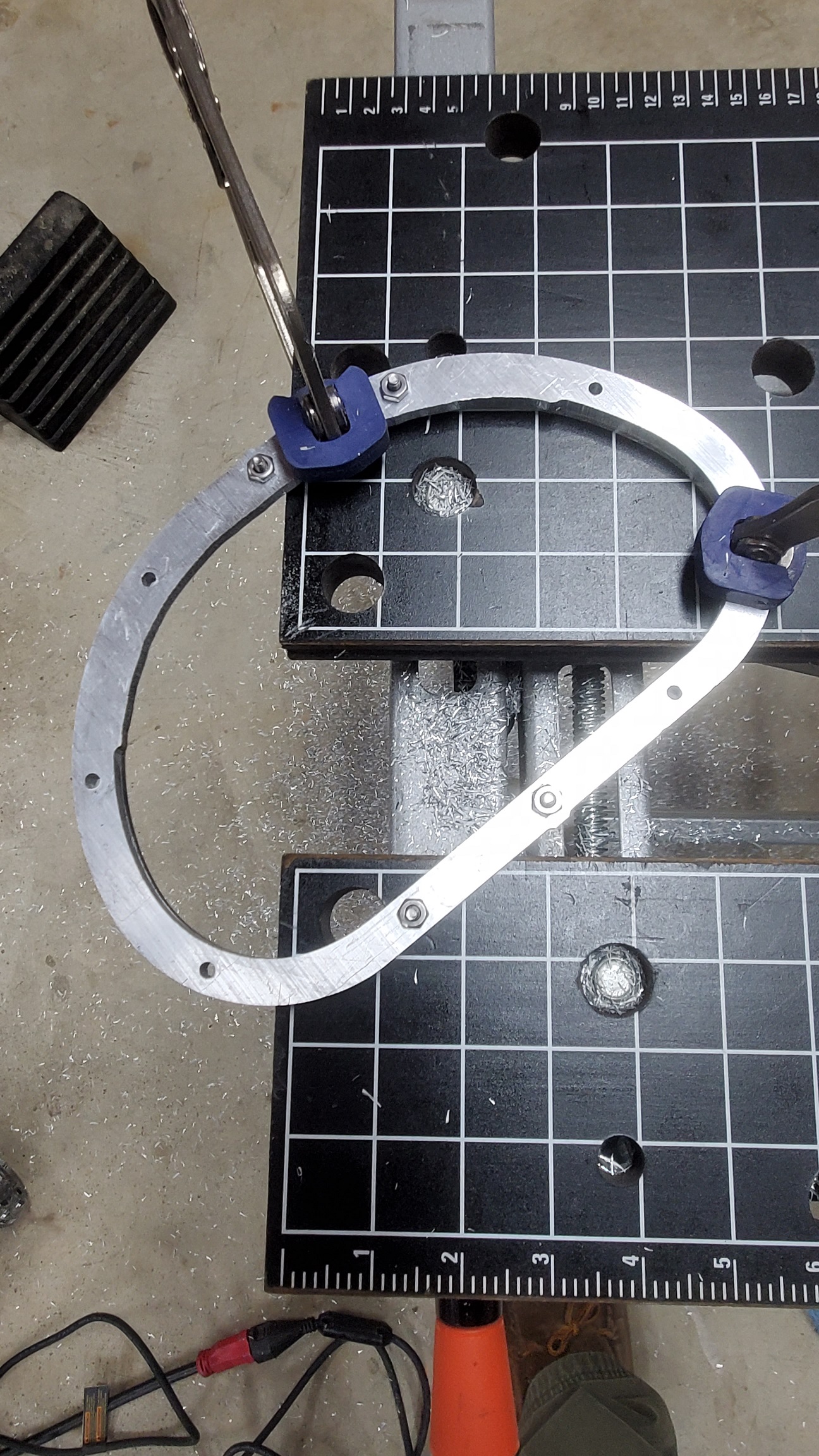

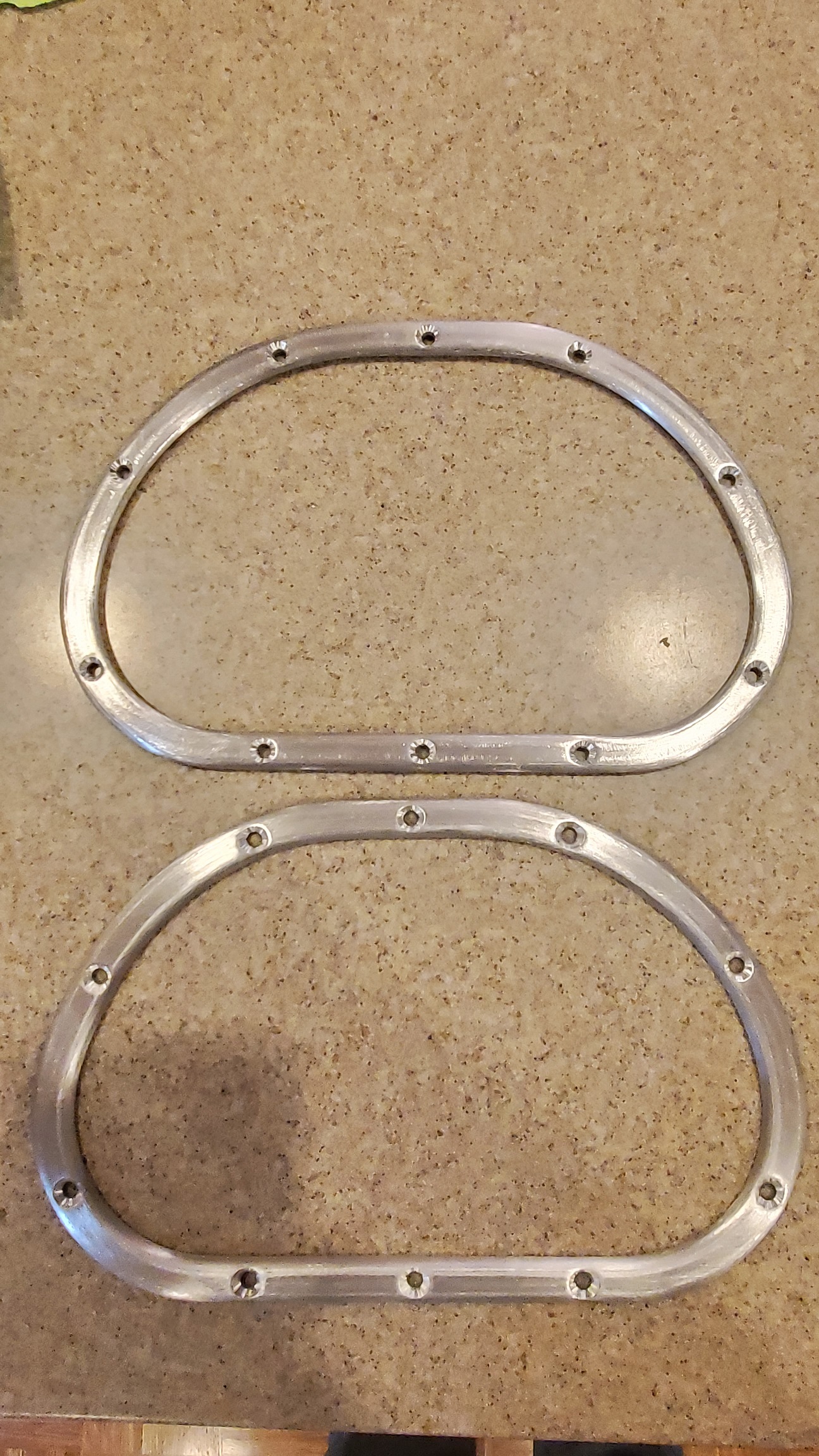

Then I managed to finalize the perimeter shape for the Driver's side gauge "pod"
Attachment 222021

This week, I plan to refine the inner perimeter shape, then use it as a template for the Glove box trim ring. I plan to do the same for the Console door to copy as a shift boot trim ring :cool:

Until next post, Happy Building!

Craig C

Photos won't load.

Jeff

Thanks for the feedback Jeff...initially they didn't load for me, but after about 30 seconds, they loaded. Not sure if I need to inform the Webmaster?

Hey Y'All,

Hope you had a Happy Thanksgiving!

I spent the better part of last week in the garage working on my Dash panel and console trim rings...

Once I got one trim ring shaped out, I copied it by sandwiching both pieces together and then used a hand-held router with bit to clean up the roughed-out profile.

Here, I copy the Console trim ring for the shifter and handbrake boot trim ring

Attachment 222236

and here, I'm in the middle of duplicating the gauge pod trim ring from the glovebox door trim ring

Attachment 222237

Next, I proceeded to make the panel doors using flat Al sheet and piano hinges

Attachment 222238

Lastly, here's a picture of my duplicated trim ring for the shifter and handbrake boot (mocked into the planned location)

Attachment 222239

For those wondering...yes, you can use a big-box-store router bit meant for countertops to cut aluminum...in fact, they performed better than a special spiral-cut bit meant for aluminum (because this special $90 router bit chucked its guide bearings just as I was trying to finish up the shifter & handbrake boot trim ring). Just go slow to feel and hear the metal cutting properly...don't force it...and of course wear safety glasses :p I saw Ian Roussel do this in one of his TV shows and while initially doubtful, I liked his creativity to use the tools at his disposal...

Next post: more trim ring and panel creation :)

Craig C

Hey Y'All,

In this last post of the weekend, I thought I'd lead off with a funny image -- Al shavings from the use of router bits on my trim rings ... there's a lot there!
Attachment 222243

which was the result of finishing my gauge pod trim ring. I also made a panel "blank" to be cut next...

Attachment 222257

Gauge pod carefully duplicated

Attachment 222244

and here, I'm checking the fit to the critical locating factor of the steering shaft collar (so I don't have to make a bezel ring just for it)

Attachment 222245

Lastly, a mockup of my week's long efforts

Attachment 222246

If I designed this right, then I can remove the overall dash panel while the body is mounted :cool:

Until next time, Happy Building!

Craig C

Hey Y'All,

This weekend I fitted my console with the decorative (and reinforcing) trim ring and console door...

Here's a picture with the door closed

Attachment 222564

and with the door partially opened

Attachment 222565

I still need to locate the latch assembly and bevel the trim ring so that the door opens all the way. The good news is that my plan worked -- the door clears the shifter throughout the travel arc :cool:

Next post: finishing the dash panel openings...

Craig C

Hey Y'All,

In this last post of the weekend, I trimmed up the new openings in my Dash Panel...and re-checked the overall fit. It's nerve-wracking for me since every hour I put into it will be more effort to duplicate if I mess it up :rolleyes:

Here's a picture with the new glove box door closed

Attachment 222566

and with the door opened

Attachment 222567

as with the Console trim ring, I'll need to locate/install the latch assembly and bevel (or profile) the trim ring to get the door opening interference-free. I may decide to design an opening limiter anyway...

Also, I decided to design my glove box as a shallow assembly of laminated pieces fastened by the trim ring bolts :cool:

Until next time, Happy Building!

Craig C

Hey Y'All,

This past week I spent detailing out the Console and Shift Boot trim ring bezels. I used quarter round router bits and hand files. I still need to polish them...but that can wait for later. :p
Here's a picture:

Attachment 222869

Then, I designed my glovebox. It couldn't be very deep and I wanted to continue to get practice using the hand-held router, so I made it out of ABS plastic and layered several sheets together to get the depth. Here's a work-in-progress using hole saws...

Attachment 222870

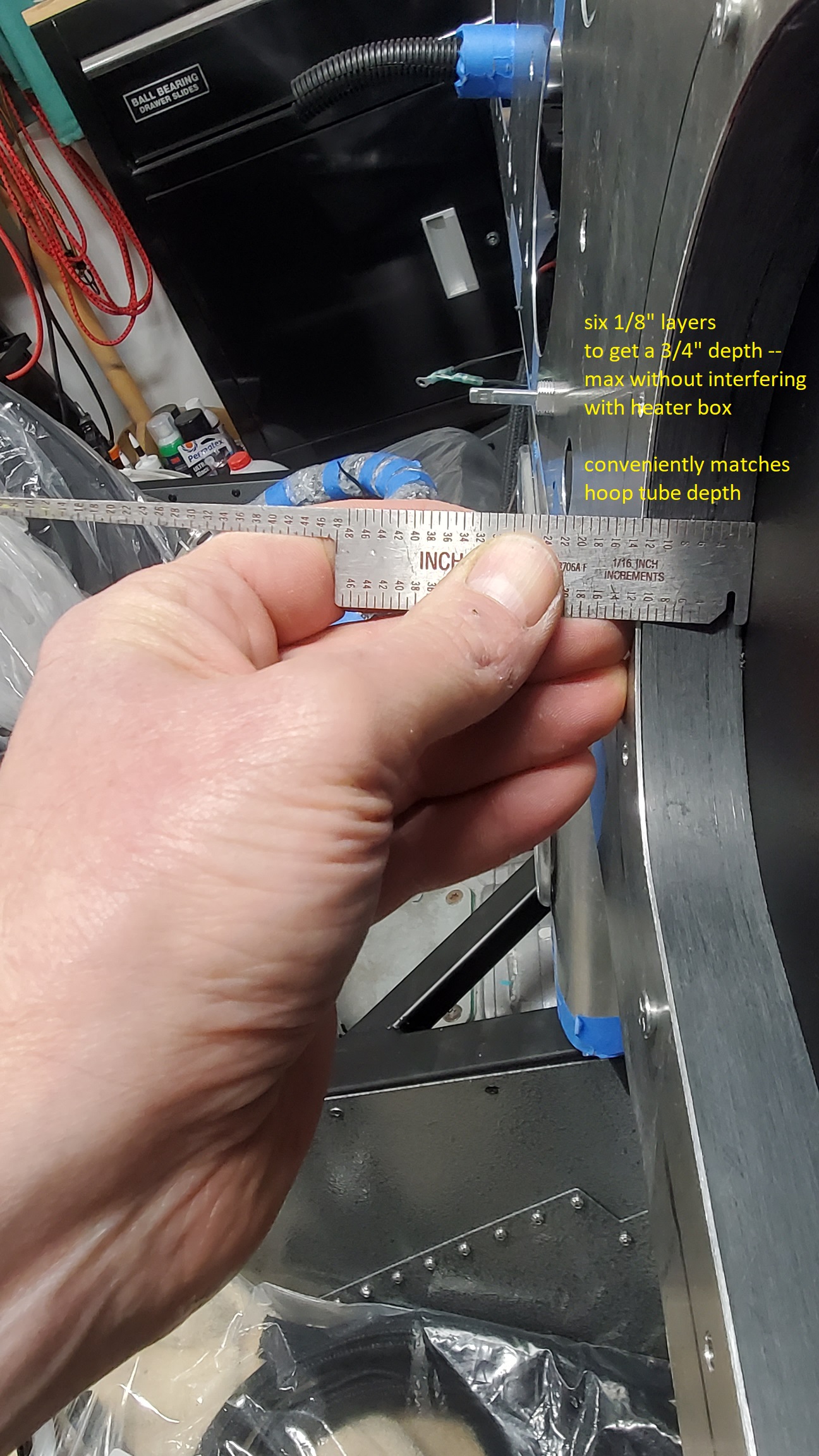

Here's some details:

Attachment 222871 Attachment 222872

and mocked into position

Attachment 222873

Next post: profiling the dash panel's trim ring bezels...

Craig C

Hey Y'All,

Once I got the glovebox cut out, I could now add contour to the dash panel trim rings (since up to now they were used as "tooling" because they had a conveniently flat profile).

I used simple quarter round router bits and lots of hand filing to get them presentable. Here's a few pictures as they were shaped...I cut the outside edge first since that gave me the best stability, then I cut the inside edge since I could take advantage of the overall shape to keep the router level.

Attachment 222874

with details

Attachment 222875

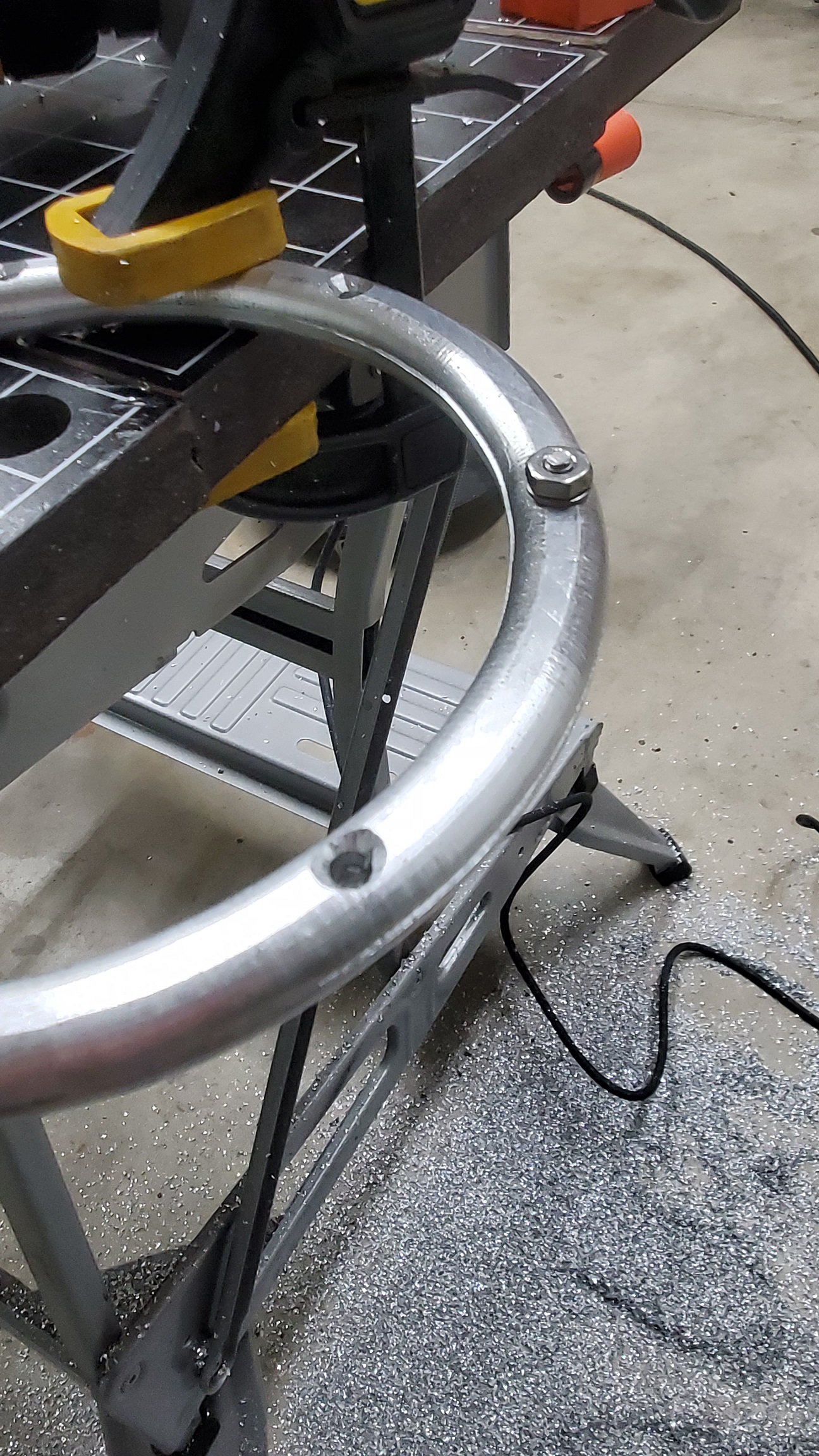

bolted back-to-back to give strength while cutting. Viewed on-edge looks like 1/2" diameter rod :cool:

Attachment 222876

and mocked into place. I had to relief cut the gauge pod bezel a little to get the keyswitch fastener on, but no biggie!

Attachment 222877

Lastly, I located and fitted the Glovebox and Console door locks. I had originally wanted to install nice-looking push button keyed locks, but they were too big for the space available (especially for the glovebox :rolleyes: ), so I used simple cabinet locks that look acceptable. A bonus is that the latch lever (or pawl) itself could be used as-is...no tedious fitting required (at least so far :rolleyes: )

Attachment 222878

So until next post, Happy Building!

Craig C

Photos still aren’t loading Craig. Don’t know why—-everyone else’s are working for me :confused:

Jeff
