Adjustable seat tracks for Kirkey high backs

Attachment 748Attachment 747Attachment 746Attachment 745Attachment 744

Learned/Borrowed extensively from Rich A and Jeff Kleiner (thanks guys), and will do my share by providing part numbers:

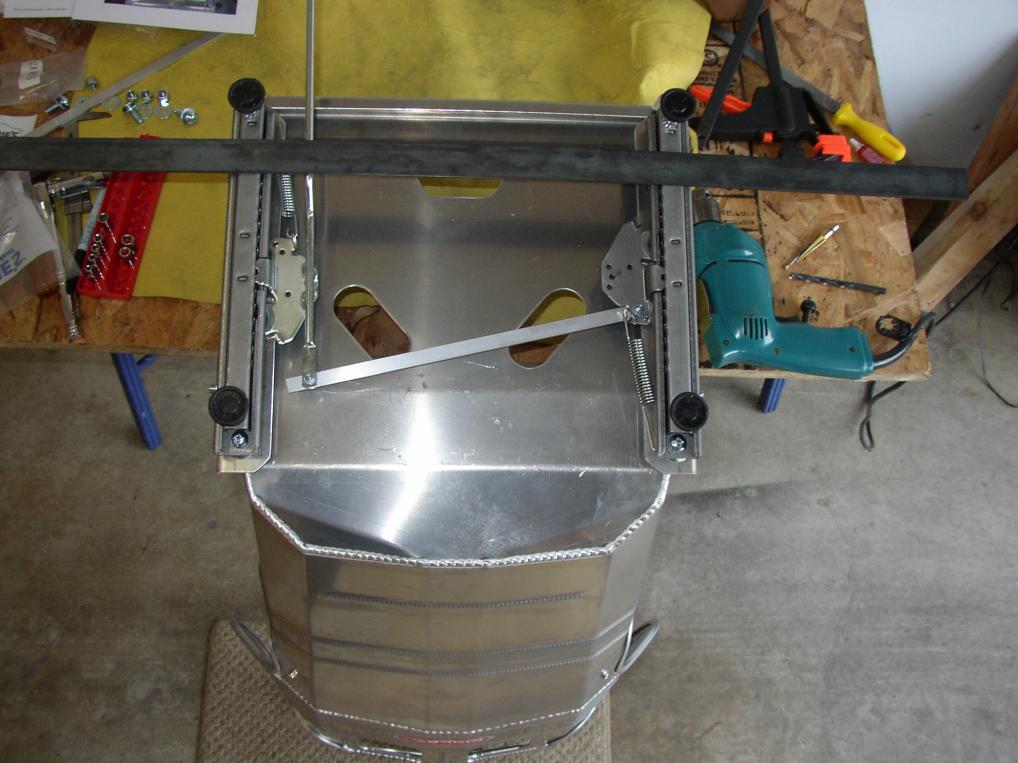

-Seat tracks are Summit # SUM-G1153 (@$27.95 ea pair)

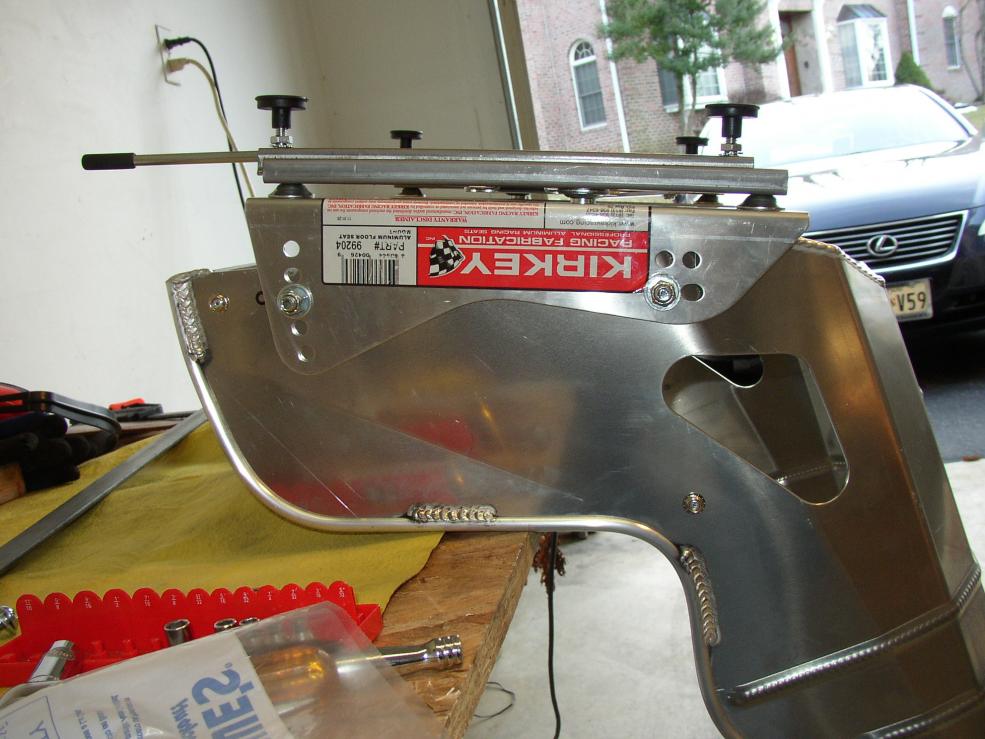

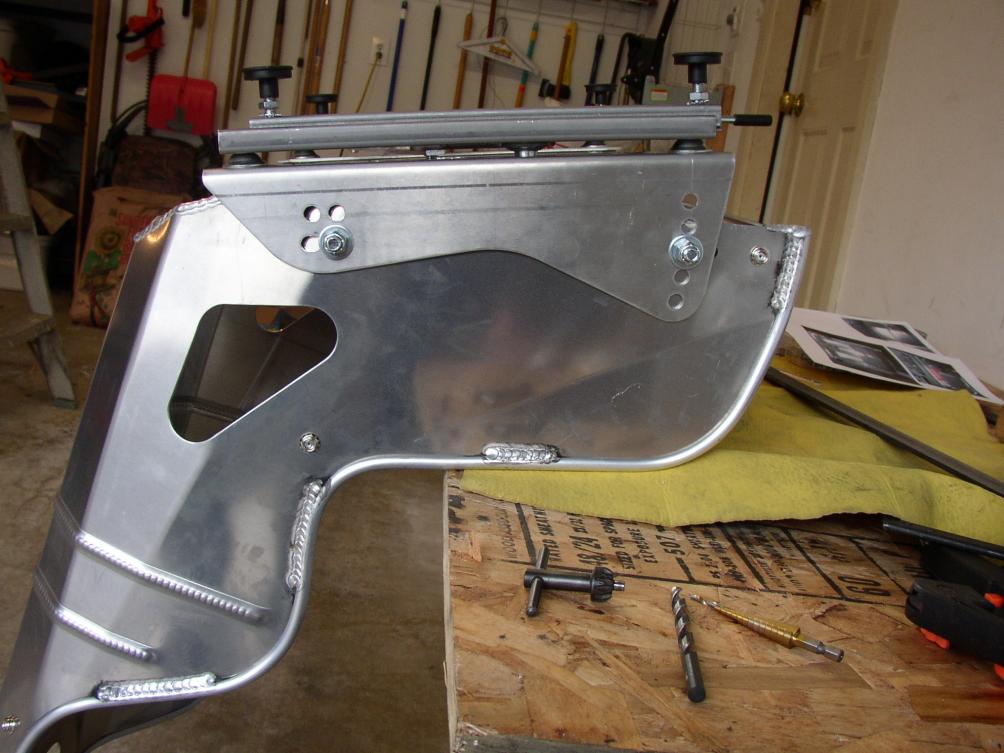

-Kirkey base mounts are Summit # KIR-99204 (@$42.95 ea pair)
-as Rich mentioned, stock latch cross connect wire is too short for our application, used 13" of 1/8" x 1/2" aluminum flat (@$7.47 for 8' at Lowe's)

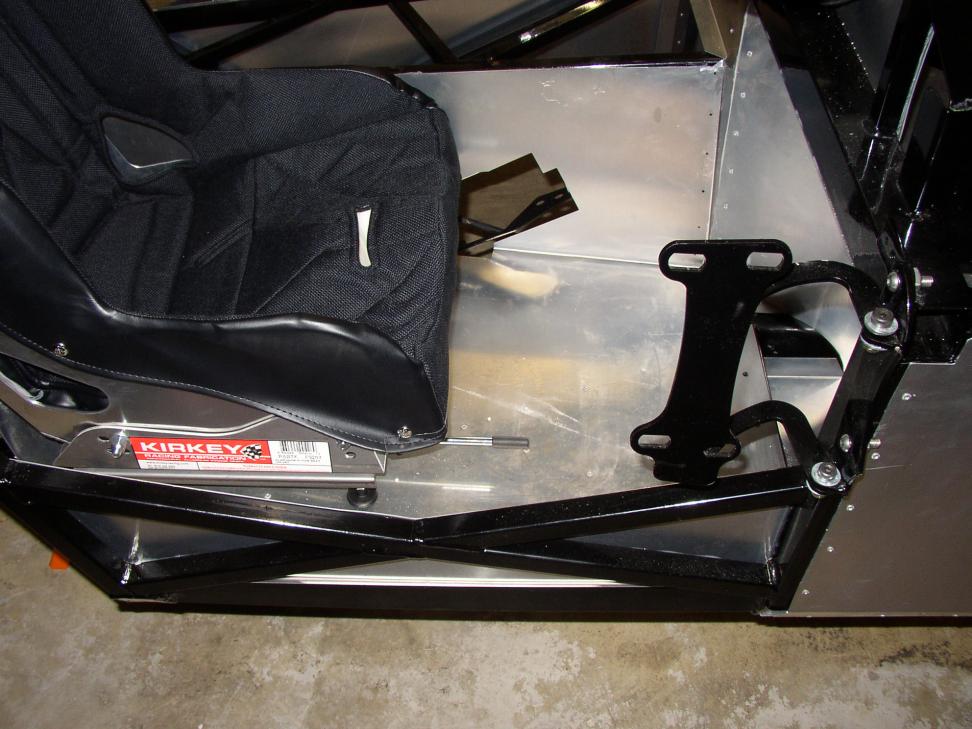

-for mounting to chassis, purchased several 3/16" x 1.25" x 3' steel flats (@ 7.67 at Lowe's). intend to mount them fore and aft on the two tracks using the seat track bottom studs under the black round plastic hat covers, adding any additional bolts necessary to connect with the chassis steel (plate and 3/4" square tubing) under the cockpit floor
-about $6 of miscellaneous bolts, flat washers, nuts, and lock nuts out of Lowe's hardware bins to complete the job

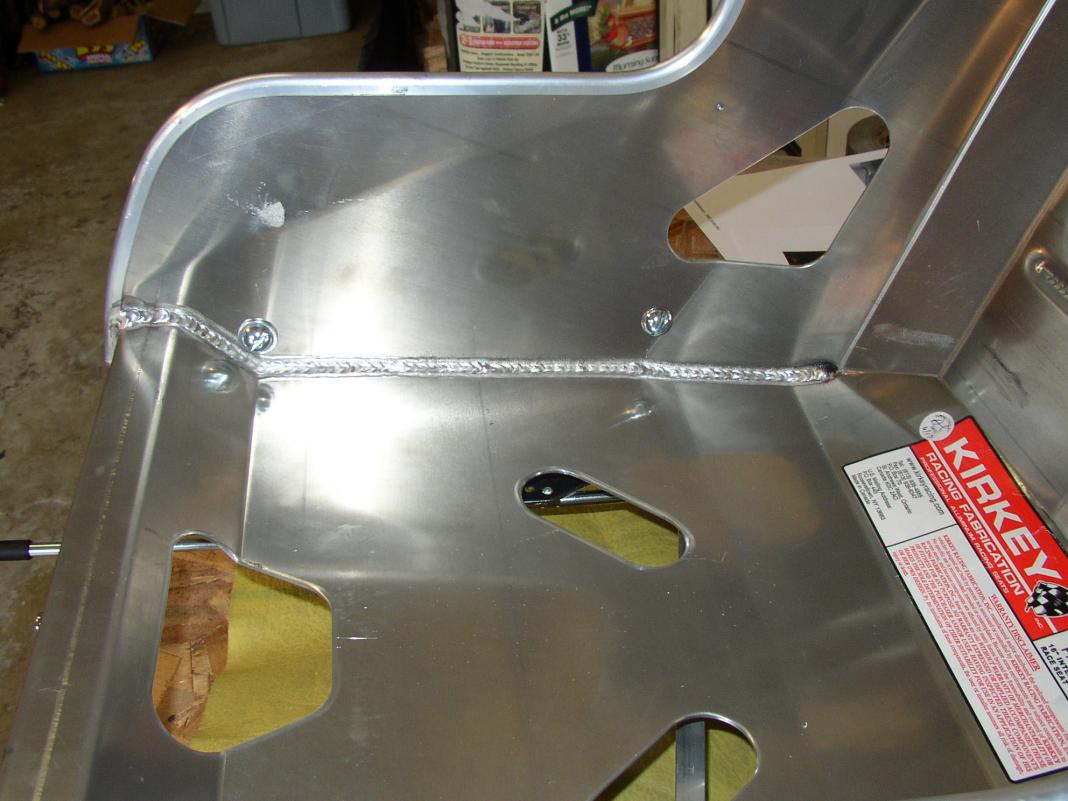

Used a step drill bit for the first time ever, and found this to be the second most favorite tool discovered on this car project, second only to the angle grinder with cutoff wheel (which will be used to sheer off the extra lengths of the screws mounting the seats to the side brackets, once body is mounted and am sure seat orientation is good).

Went with adjustable seat tracks as I have no plans to road race, only occasional auto-cross and track days. Assuming that these strong seat mountings, plus 5 point safety harnesses, plus dual roll bars will be considered sufficiently safe.

If deemed worthy, an administrator can feel free to post this in the wiki manual (but falls under no existing chapter)
