How about some shop pics!

I was reading a few posts today and noticed some wild differences in our shops. This got me to thinking. When Motor Trend bought Car Craft magazine then shut it down we lost a monthy segment called "This Guy's Garage". It was always entertaining to see where we spend our time. From the 3 car garage "man cave" to the single car garage we booted the wifes car from. From a leaking barn in upstate New York to the 10 acre "ranchett" in Texas we have some pretty cool digs.

Show us your Shop as is, no need to clean it up and sweep up the sandpaper just the gritty reality of what we do.

Here's mine.

Allyn Mitchell
aka rebostar
Gaston Oregon

Attachment 227329Attachment 227330Attachment 227331Attachment 227332Attachment 227333Attachment 227334

Here's mine:

https://thefactoryfiveforum.com/atta...9&d=1760043880

https://thefactoryfiveforum.com/atta...0&d=1760043880

Those are some impressive shops!

Attachment 227348
All cleaned up and waiting for the kit to show up.

Attachment 227349

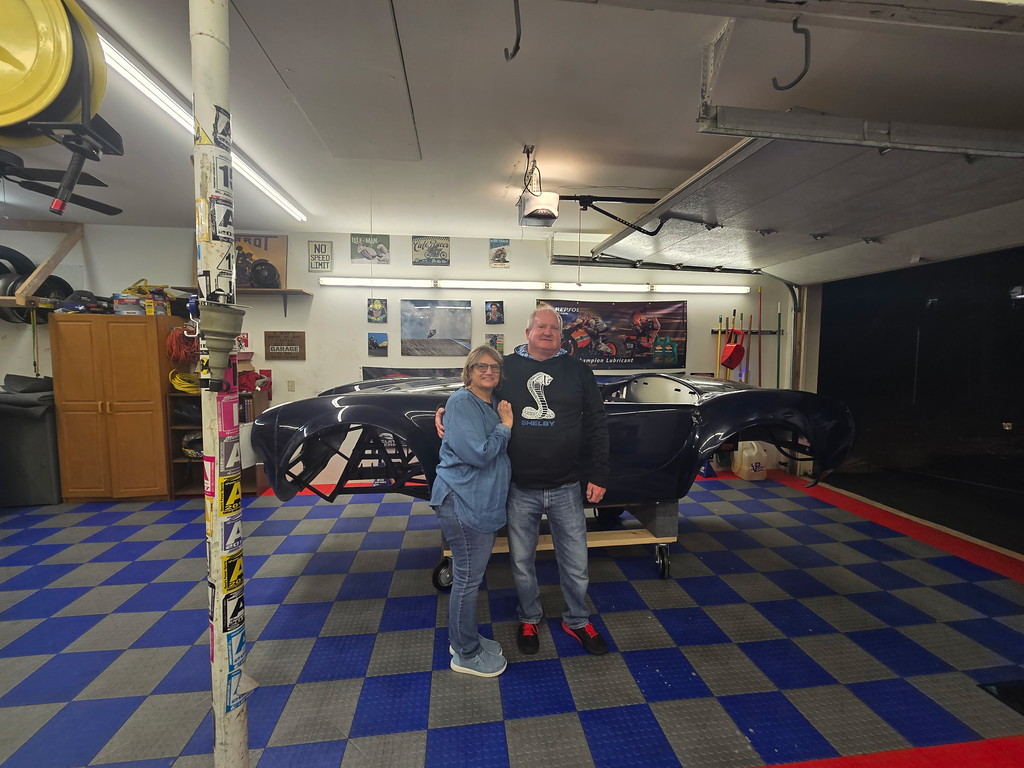

My wife and I on the evening the car showed up.

Attachment 227350

Yesterday after I had rolled the car out to sweep up and put some tools away and the car as it sits currently.
My shop is behind my house and is 26x30, it's where I work on my race bikes in the past and the MK5 right now.
House has a 2 car garage but all work goes on in the shop, I've got heat and ac and a couple of ceiling fans to keep the air moving.
Ceiling is only 9 foot tall, I wish it was taller and bigger so I could swing a lift without taking up a lot of room.
My friend helped me redo the whole thing a few years ago and luckily he convinced me to put in a ton of lights.

https://thefactoryfiveforum.com/atta...2&d=1714190036


https://thefactoryfiveforum.com/atta...4&d=1714190036


https://thefactoryfiveforum.com/atta...7&d=1714190165



https://thefactoryfiveforum.com/atta...6&d=1714190165



https://thefactoryfiveforum.com/atta...5&d=1716837484



This is when it was all nice and clean. It gets more and more cluttered the longer the build goes on

Mine looks a lot like Allyn's. It's functional, free from painted walls (so I know where the studs are to hang stuff), and no floor grid/coatings. Just simple and functional. I insulated it, sheetrocked it, and put in a mini split in advance of starting my MkIV build.

Greg

Attachment 227358

Some of your spaces are soooo cool! Pretty much all function here, just a 30'x50' place with heat and a bathroom to work in and make LOTS of pink dust!

https://thefactoryfiveforum.com/atta...2&d=1725972847

Since "Papa" Dave started by showing his awesome shop I'll post a couple of indoor pics that I took while his car was in process. This is the 30'x30' "dirty" side for mechanical and body prep work:

https://thefactoryfiveforum.com/atta...9&d=1774614463

Here's the 30'x20' "clean" side where they get sprayed:

https://thefactoryfiveforum.com/atta...0&d=1774614534

I have an overhead door in the wall between the two so that I can roll bodies on the bucks from one side to the other without having to take them outside.

I built it all except for pouring the concrete and having two friends help stand up the 16 foot long treated 6x6 posts and give a hand with setting the trusses.

Finally one of my favorite pics taken as I approached the door one evening while doing the final assembly of Dave's roadster:

https://thefactoryfiveforum.com/atta...1&d=1774614585

Lets see some others!

Jeff

Quote:

---

Originally Posted by Jeff Kleiner

Since "Papa" Dave started by showing his awesome shop I'll post a couple of indoor pics that I took while his car was in process. This is the 30'x30' "dirty" side for mechanical and body prep work:

https://thefactoryfiveforum.com/atta...9&d=1774614463

Here's the 30'x20' "clean" side where they get sprayed:

https://thefactoryfiveforum.com/atta...0&d=1774614534

Finally one of my favorite pics taken as I approached the door one evening while doing the final assembly of Dave's roadster:

https://thefactoryfiveforum.com/atta...1&d=1774614585

Lets see some others!

Jeff

---

I thought those pictures looked familiar!

After seeing some of these really great shops would never post a specific picture of my build spaces.

Quote:

---

Originally Posted by BEAR-AvHistory

After seeing some of these really great shops would never post a specific picture of my build spaces.

---

LOL - I'm not proud!

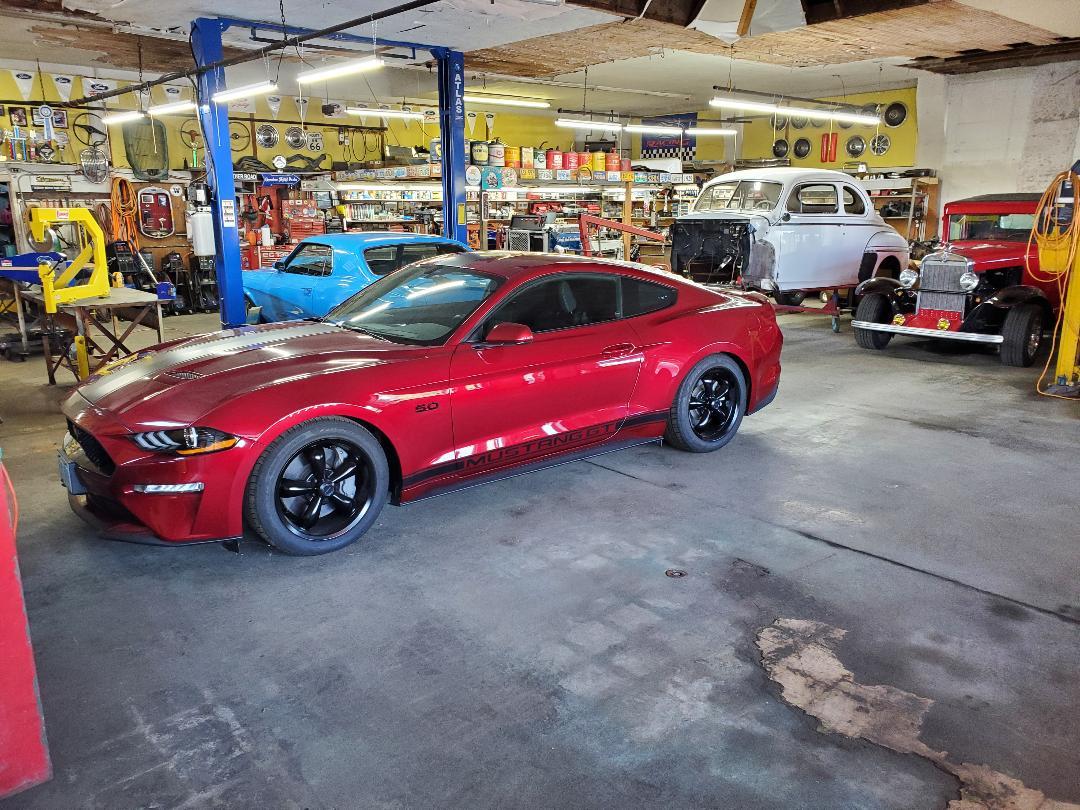

Here's mine where I restore a lot of stuff:

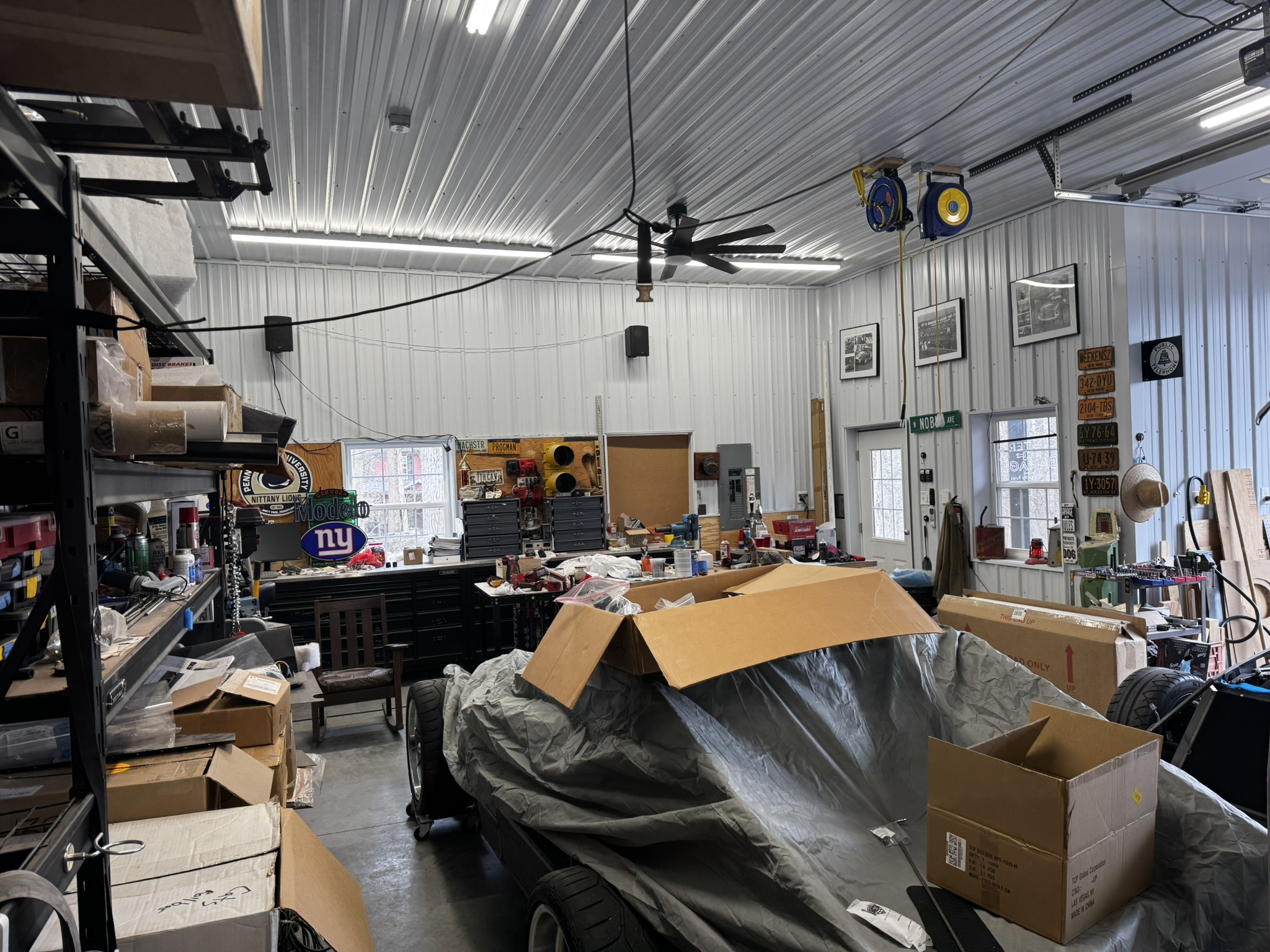

Here's my 30x40. It's a MESS right now because we haven't been here long and I'm trying to figure out the layout and workspace details. My wife is telling me we need to extend it by 20' to add a bathroom, bedroom, and office. I'm beginning to think she wants me to spend less time in the house. :D Not gonna argue.

https://thefactoryfiveforum.com/atta...2&d=1774625126

https://thefactoryfiveforum.com/atta...1&d=1774625126

I'm jealous.....this is what I'm working with.
Attachment 227375

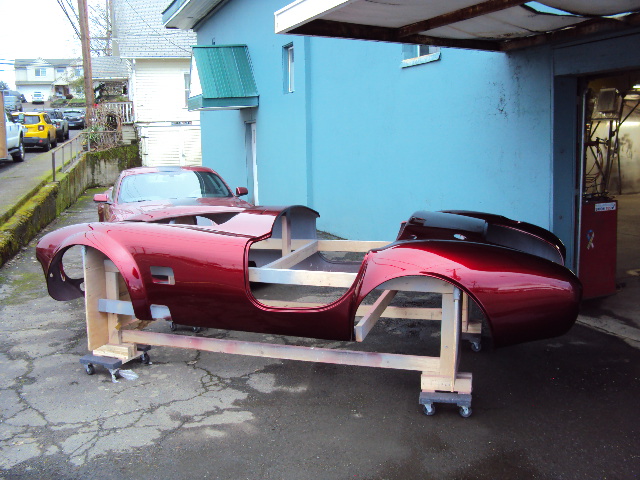

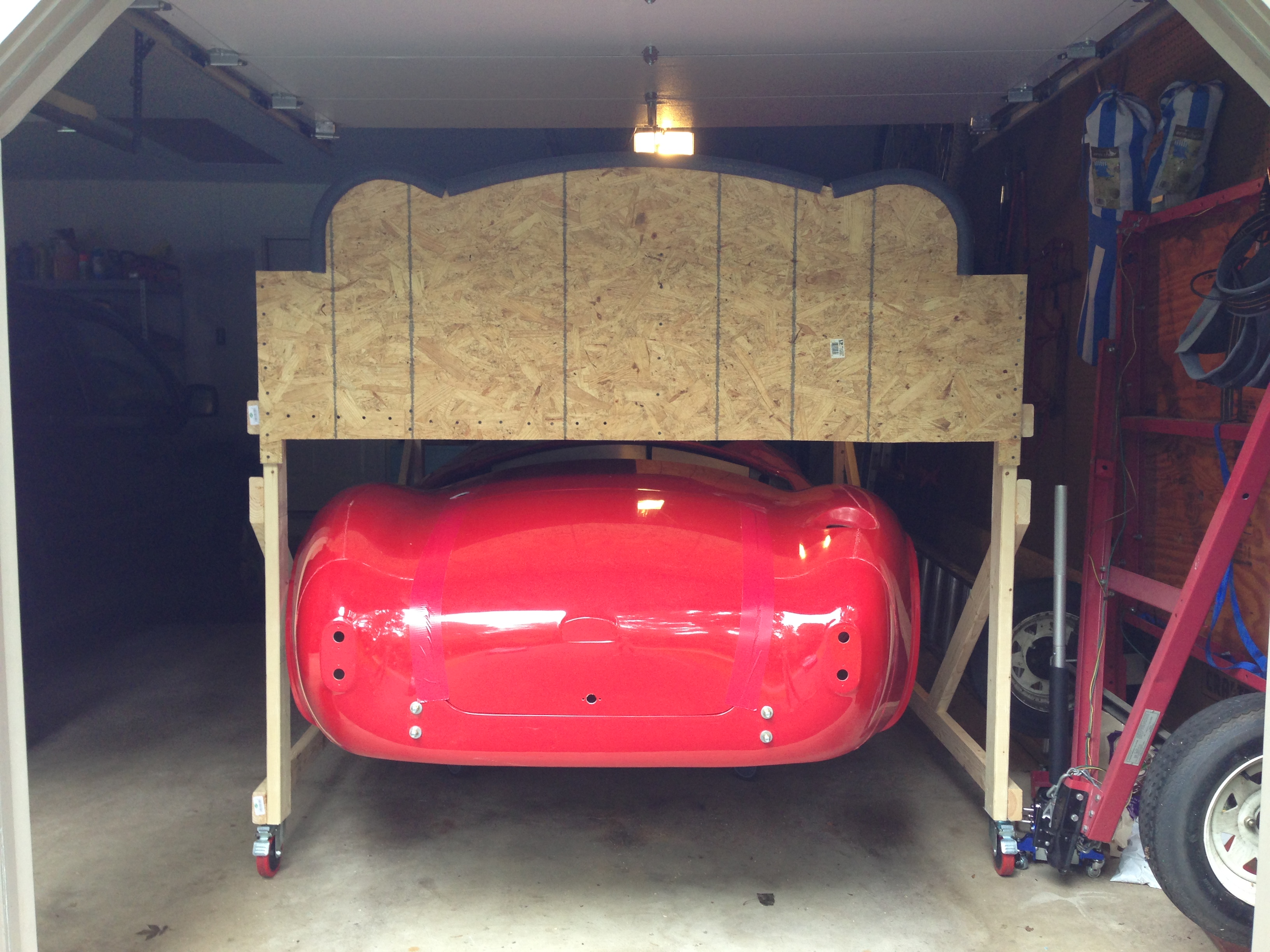

It's not very big, but it gets the job done. It helps that I'm storing the body outdoors on a buck.

Rob

Attachment 227384Attachment 227385

Everyone Else Wins!

....https://youtu.be/IGYtX-3p7xk

Where There's A Will There's A Way!

I built my MKIV in a single bay of a regular two-car garage. My 5yo son was SUPER curious about all the boxes of parts and my tools; I had to store those behind a locked door in my basement. All you guys with tools on the same floor as your build make me jealous!


John

Attachment 227386

You know some of us have some great shops and some of us feel like our shops don't "measure up" so to say.

I remember when I was a kid and my dad built and raced his own sprint cars.
We never had a fancy well lit shop or garage, I wish dad could see how I've remodeled his old shop and what I'm building.
When I was a young kid my dad probably took me to every hole in the wall race or fabrication shop in this town.
I've seen some of the quickest most innovative dirt cars built in old buildings with the musty smell of gear oil, welders, paint fumes and cigar and cigarette smoke wafting through the air.

It wasn't the shop that came up with the ideas and innovations that pushed to new limits but the men with ideas and a dream working with the tools they had at hand. Usually late into the night and still rising early to make their day jobs.

Never be ashamed of the space you have no matter how big or small or fancy or clean or dirty your space is.
Heck in all the years my dad was racing sprint cars we never had an enclosed trailer until dad got me started in karts and we built our own, mostly outside in a really hot summer with leftover metal and parts we bought from the camper lot just down the street from my dad's work that a friend of his owned.
Attachment 227387

This is my dad when I wasn't even walking yet probably, that's his "shop" behind him, a small one car garage in my parents first house.
1965 I think, with one of his early cars.

Quote:

---

Originally Posted by gbranham

Mine looks a lot like Allyn's. It's functional, free from painted walls (so I know where the studs are to hang stuff), and no floor grid/coatings. Just simple and functional. I insulated it, sheetrocked it, and put in a mini split in advance of starting my MkIV build.

Greg

Attachment 227358

---

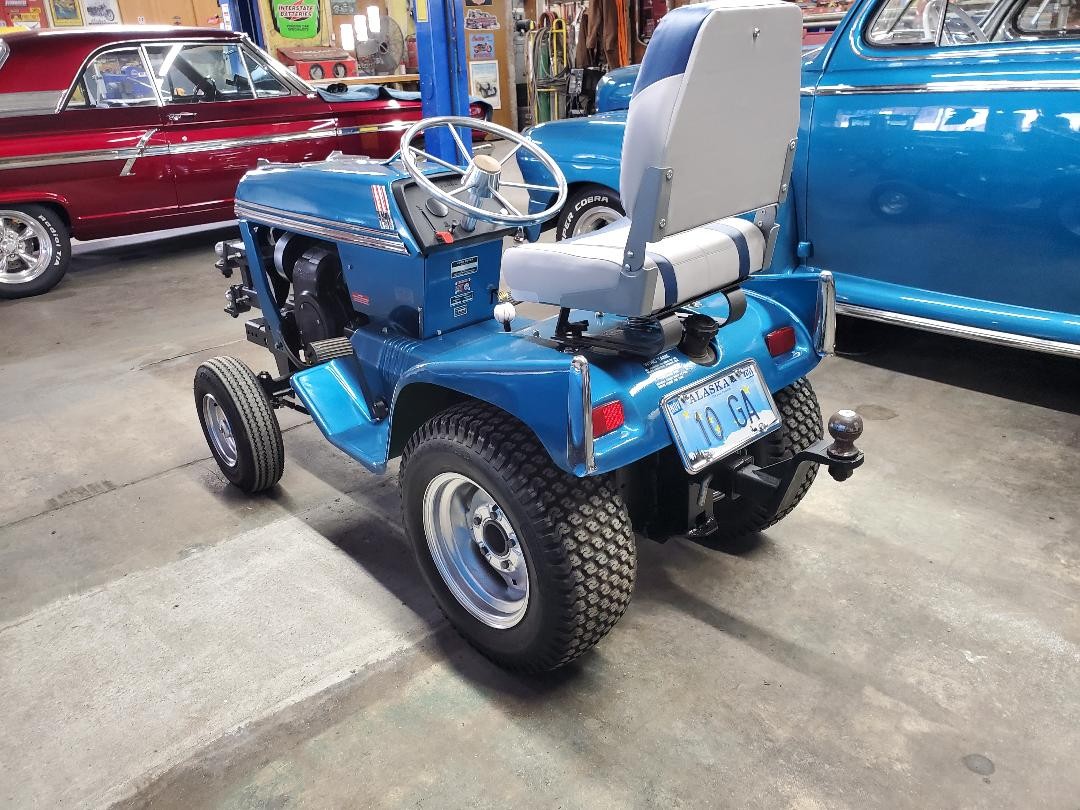

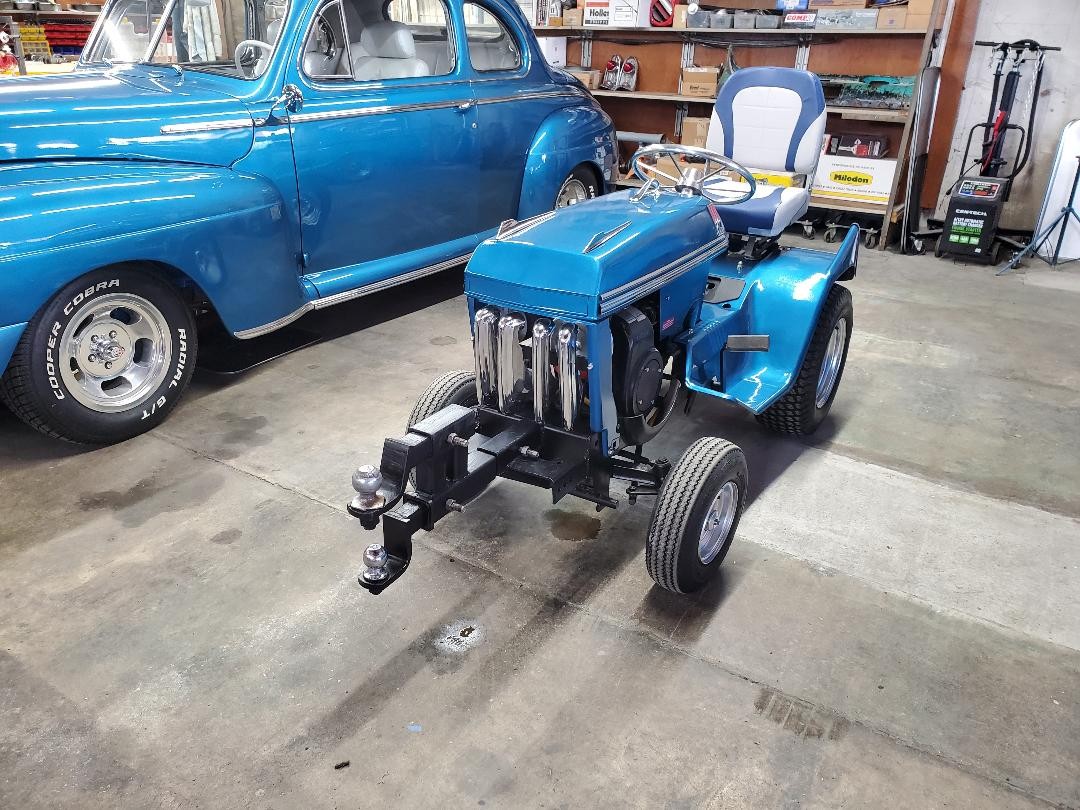

Greg, Great shop. Really like your mower. I bought a John Deer a couple years ago, not to mow my 20 square feet of yard, but to move my trailer around the parking lot. Like every other vehicle I seem to scrounge up, I cant leave em' alone. Gotta blow it up and do it my way!
Cheer's


Attachment 227395Attachment 227396Attachment 227397Attachment 227393Attachment 227394

I have 2, but the total area is never enough, to many tools get put away and have to be drug out and re-setup for work.

Attachment 227465Attachment 227466

My garage is very special to me. I had it built in 2011 just for the pure intentions of someday building a Cobra. Life situations had me waiting till 2023 to finally begin that build. It was worth the wait.

Attachment 227474

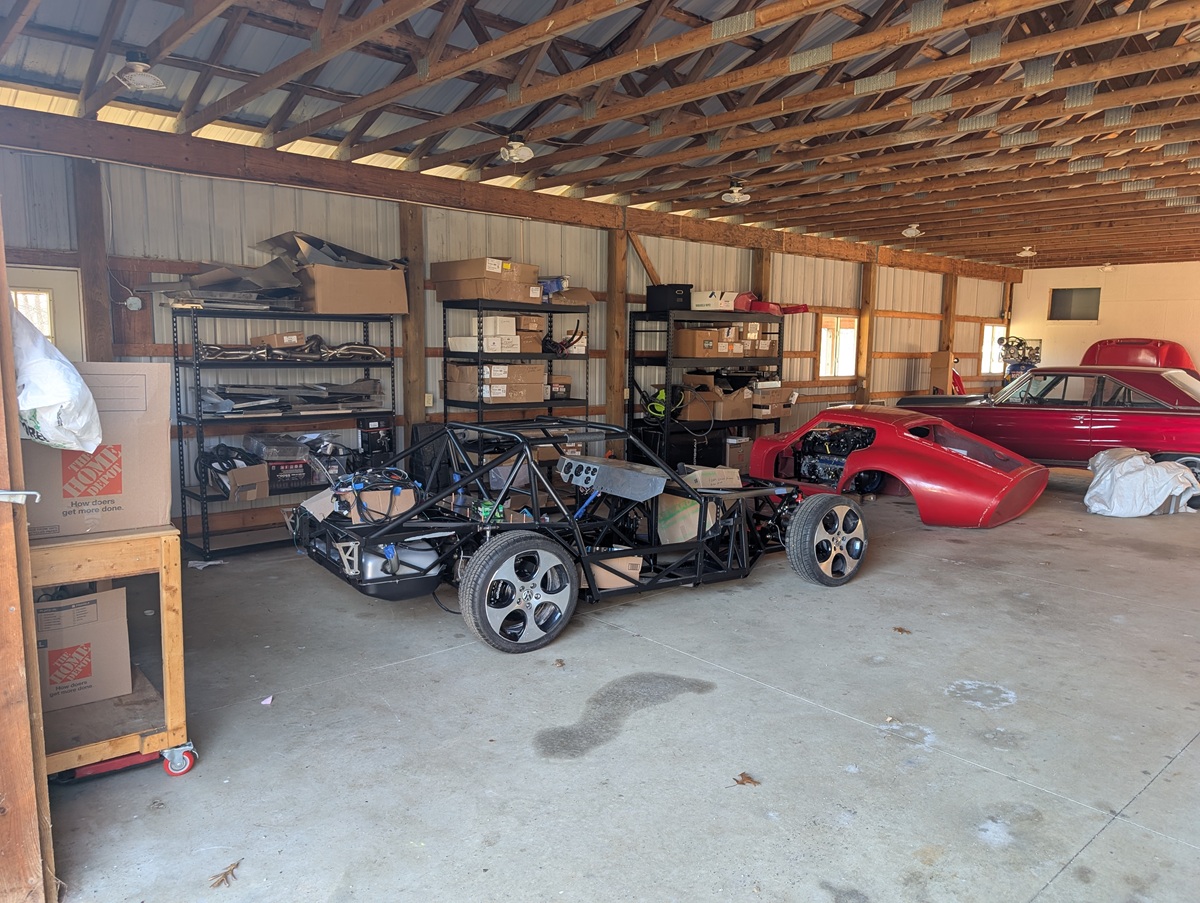

We just moved to a place with a 40x60ft pole barn, this is my half of it

Attachment 227476

This is the best shop I have had, not near as fancy as others but it feels like home to me.
Attachment 227477
Attachment 227478
Attachment 227479

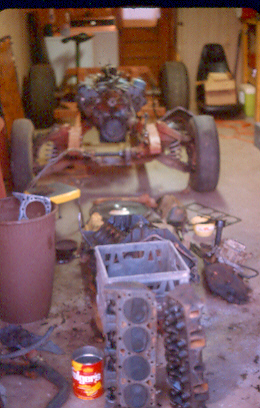

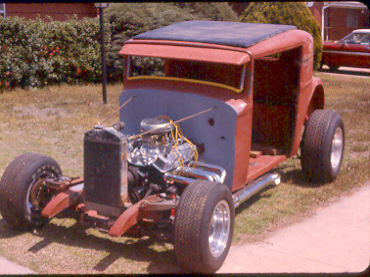

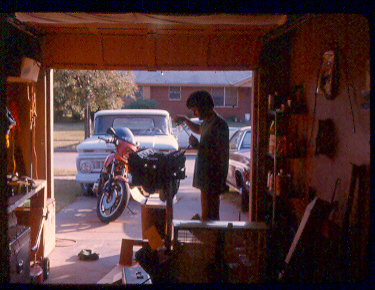

I have come along way from my first "shop." I chopped the top on this 1931 Essex coupe and rebuilt a 327 in a single car garage.
Attachment 227480
Attachment 227481
Attachment 227482

I built this about 15 years ago. Stick frame, 50 X 36. It has a wall down the middle splitting the space in two. The right side is the metal side and the left side is the wood shop.

Attachment 227483

Okay, some of us now have garage envy... I'm just building mine in our humble 2 car suburban garage...
Attachment 227547

I'll play

Just a garage for me. I should mention it's an 8' ceiling which keeps me from installing a lift:( There's a game room above it which my wife has commandeered as her office since she works from home and doesn't want to give it up. Otherwise I'd be raising the ceiling.

Attachment 227552

My shop is 30' x 40' and in 4 sections. I wish it was a bit bigger as each area is a little small but OK with scissor trusses for extra ceiling height. 20'x15' 2 post lift 8'door. 20'x15' back insulated/heatable with a quick jack and side table. A 15'x15' heated workshop with cabinets, drill press, grinder, tool storage and storage above. And a 25'x15' open area, 10'door, with a BIG strong rolling table, welder, huge floor vise and overhead chainfall. LOTS of electric and concrete floor throughout. I was hesitant to show my mess but it is an active shop for more than just the MK4. Pics are all 1 -2 yrs old. Some of my many PV panels are mounted on shop roof and help big time with our all electric house and cars(except MK4)
Attachment 227574
Attachment 227575
Attachment 227576

I love the Tesla electric vehicle pulling a gas powered monster. The irony of it all :). A friend was one of the first in Canada to buy a Rivian when he retired. When I retired I bought a gas guzzling Mk5 kit :cool:
Attachment 227574

Apologies, but I forgot the coolest thing in my shop, my wife had it made for me, best shower curtain ever.

https://thefactoryfiveforum.com/atta...4&d=1774992874

First pick when I built my Mk4 in a two bay, deep garage in MD. Second one I'm still putting finishing touches on in NC. Three bays.
Attachment 227595Attachment 227596

It's a mess, but here it is. Best thing I did was have 15' ceilings.Attachment 227608

Here's my 30x40 pole barn with two bays and a work area. I've got a nice mini-split that keeps the temperature comfortable in all but the most extreme conditions. The property "aesthetics planner" pressured me into building out a small porch/sitting area in one corner. It cuts into my work area, but it does look nice. The same person also told me that the contents of the shop should never "spill out." Clearly the contents have spilled out.
Attachment 227640

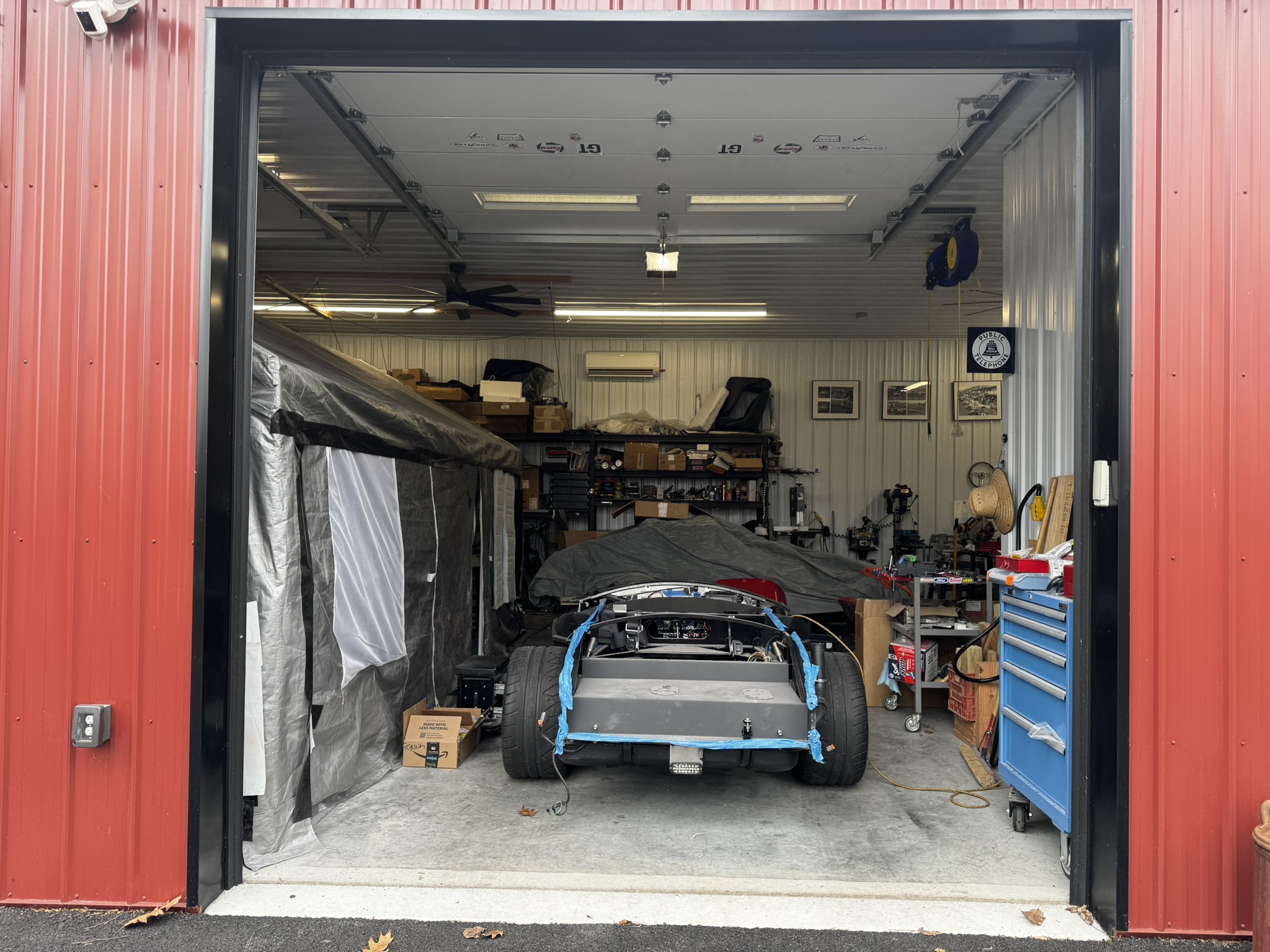

Bay 1: is currently home to my body shop/paint booth. The Daytona will be getting color soon, and then the Mk 4 goes in. While it's nice to keep the dust and paint contained, I am anxious to get this carport out of my shop! I've been trying out this Pig Mat Grippy Mat - its like carpet you roll out and it holds dust really well and can be vacuumed. So far I really like it - a real game changer for keeping down the dust in this work area and the rest of the shop.
Attachment 227641

Bay 2: is car storage and the work area. I can also slide another car in sideways in front of this. Today the Mk4 is in the bay awaiting the Spintech under car exhaust to get back from the heat coating then it goes out for PenDOT inspection and then the bodywork will begin. The Daytona is in front of the Mk4 - it has 6000 miles from two seasons of driving and just waiting for it's painted body.

Attachment 227642

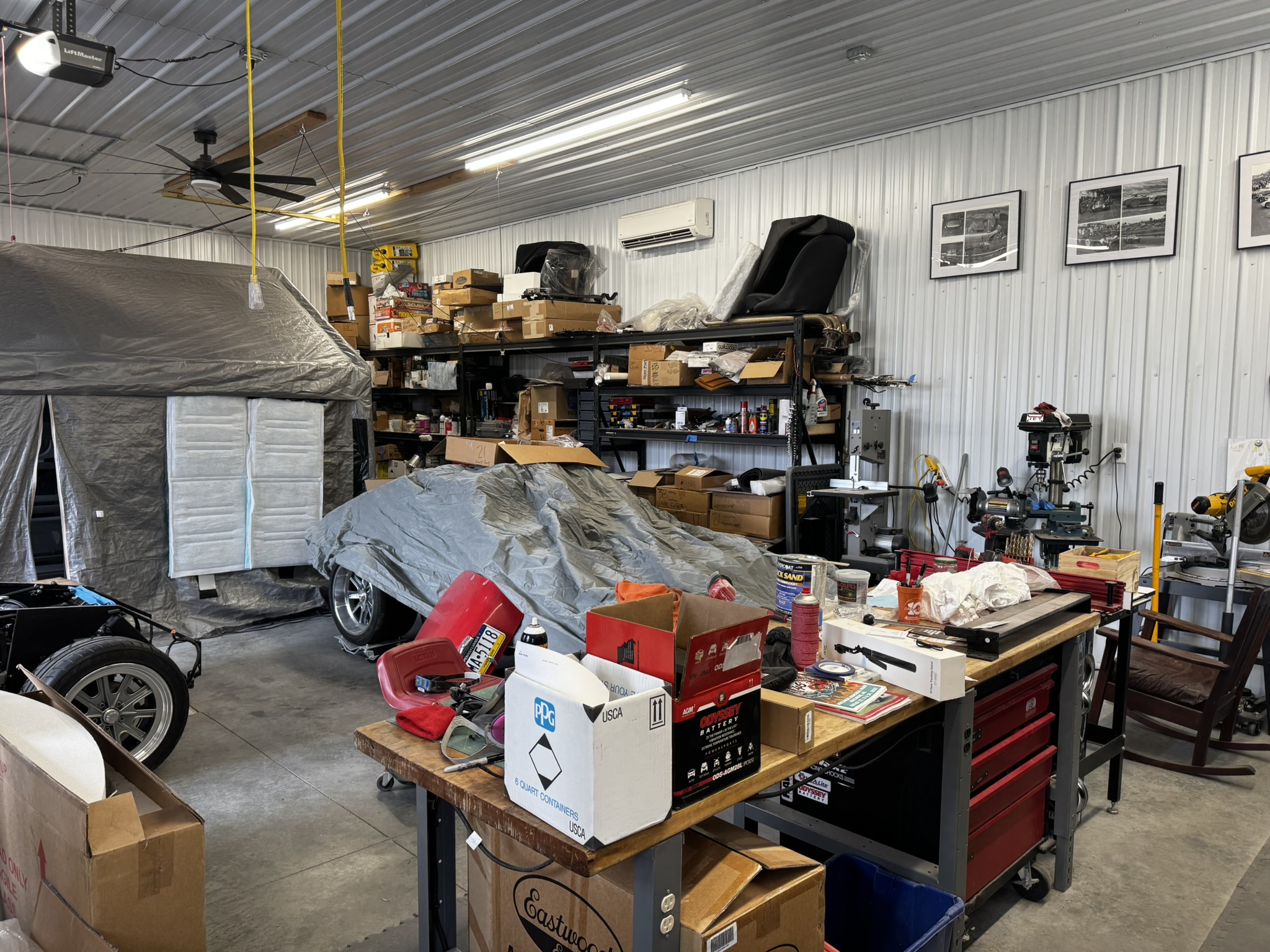

Yeah, it's a bit of a mess right now with two cars and a riding mower all pulled apart. Normally it's quite organized. That's the Daytona under the car cover. The Morris rocker is for when my supervisor visits.
Attachment 227639

Attachment 227643

Attachment 227644

Built here:

Attachment 227795


Current snake pit:

Attachment 227794

Wow, some really cool shops have been shared. Mine supports the family ranch I manage with its wide variety of repairs (tractors), maintenance and projects (fences, corrals) in addition to fun projects like the Roadster, my Jeep, and 4 engine builds in the last 4 years. This is fun and here’s what I find really useful and the things I wish it had:

Useful Stuff-
Size and Tools-
-The shop is 40 x 40 including the original 30 x 40 pole barn section where most of the work happens and a 10 x 40 lower section which was added (left side of pic ) for additional storage-plenty. The shop has a good complement of tools-arc welders (1 in shop, 1 on welding trailer), acetylene welder, MIG welder, plasma cutter, drill press, bench grinders, vertical press, large compressor, power and hand tools.
Attachment 227873
Drive Through-
-In addition to 2 normal sized walk in doors, the shop has 2 garage doors which are in line with each other. So, you can drive all the way through , even pulling a tight fitting trailer. Also helps with cross breeze. I love this feature.
Attachment 227874

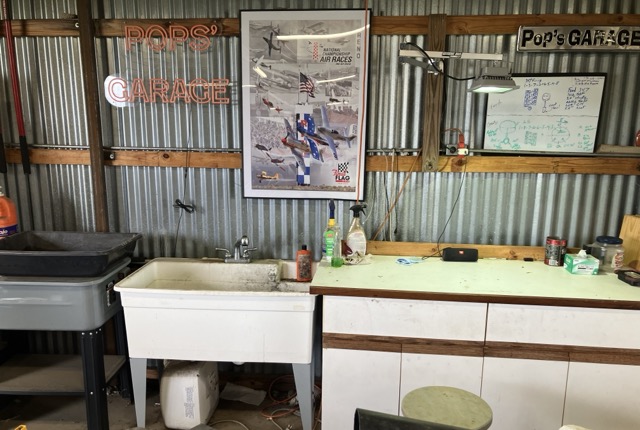

Well lit Task Table-
-The task table has a very bright fully adjustable halogen light and a formica counter top for easy cleaning.
-Counter height with barstools. Flanked by deep plastic sink and parts cleaner.
-Used for everything: Rebuilding transfer cases, fuel injection racks, carburetors and assembling rings on pistons, pistons on connecting rods, etc.
-Marker board with both the SBF and LS firing orders and cylinder layouts. At one point I had both style engines in the shop at same time-my brain hurt.
Attachment 227875
Attachment 227876

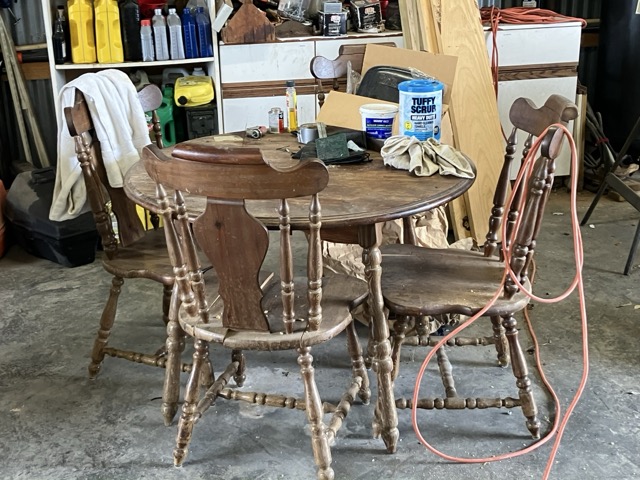

More Marker Boards, Fridge, Table with chairs
-Key for lists, writing procedures, Teaching moments, OCD—-LOL!
-Gather to curse, laugh, celebrate the day’s challenges and accomplishments over your chosen beverage.
Attachment 227880
Memories, Signage-
-The shop was my Dad’s and we built it in ~1995–countless great memories.
-My kids and grandkids give me signs for the shop including my Neon “Pops Garage”.

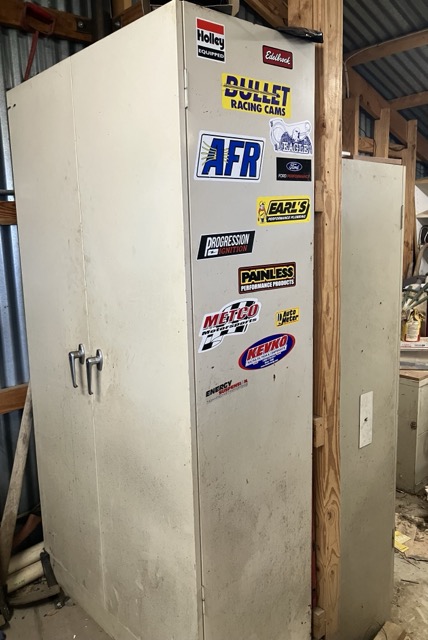

-Like most I have tool chests and cabinets full of stickers.

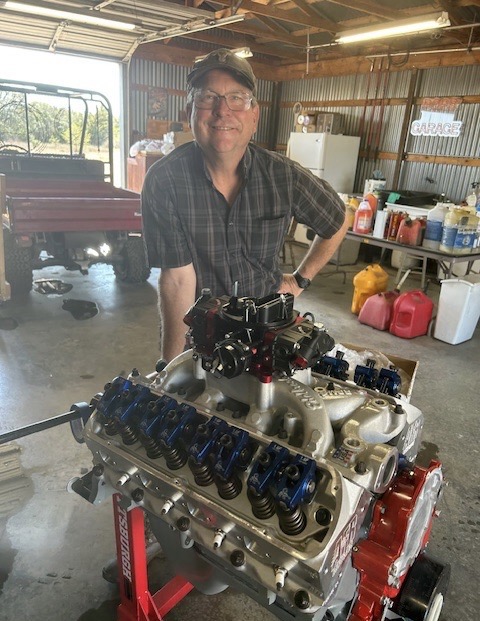

-Countless pictures have been taken including me finishing up the 347 and the right way to put the intake back on a 6.2 L LS build during install-Climb In!!!
Attachment 227877

Attachment 227879

Attachment 227878
I Wish the Shop Had-
-Height for Lift-Shop has 8’ ceiling which prevents me from installing a lift.
-Insulation and climate control-Wish it had a mini-split. My kids gave me a Portacool for Christmas, yay!
-Paved road-there’s a 3/4 mile dirt road to pavement. Currently trailer roadster when i drive it. I at least need to improve it to allow slow driving with limited clearance.

I enjoyed writing this. Indeed the shop is my escape—I better get out there and finish cutting and bending rebar for a slab at the ranchouse entry.



I have so much shop envy. I have a very dirty, leaky 2 car garage. The wife and I are talking about moving in another year or two. If I do having property with an existing out building or space to build a 2 1/2 car shop.

The fella that bought my first build while looking at it the first time said "I can't believe you built that in here". He caught himself I'm sure worried he said something rude. I assured him it was the nicest thing anyone had said to me in years.


https://thefactoryfiveforum.com/atta...7&d=1761695129

https://thefactoryfiveforum.com/atta...8&d=1762634774

Nice garages, I had one much like some of the ones posted 35' x 40' when I was younger but traded it for a standard 1950's 2 car garage and more bedrooms (had kids). I cant complain I pumped a lot of vintage race car builds out of here before settling down to my latest rides.
Attachment 227885 Attachment 227886

I am really envious of all the beautiful shops. I guess my shop falls in the functional side. It's all the stuff that goes on inside that's the beauty. I currently have 6 engine builds going on at the same time. You can see some of them in the photos. There is a stock 289 2bbl for a Mustang restoration, A fresh 351W about to hit the dyno, A fresh 347 build just finished(dyno'd 430HP), 1970 Boss 302 from a vintage race car (just finished dynoing, now a rebuild chasing more HP). Not shown is an LT4(C8 Corvette engine) that should make over 800 HP when I get a chance to put it together. Lastly another 351 based engine to use the Webers sitting in the back. Oh and the Stack injection is getting a 502 BBC to mount it on. As you can see my shop is never going to be neat and show worthy, but it's certainly a lot of fun!

jeff, what kind of seats are in that grey primer cobra?

28 x 32. Attachment 227908Attachment 227909Attachment 227910

Dave

Attachment 228143Attachment 228143

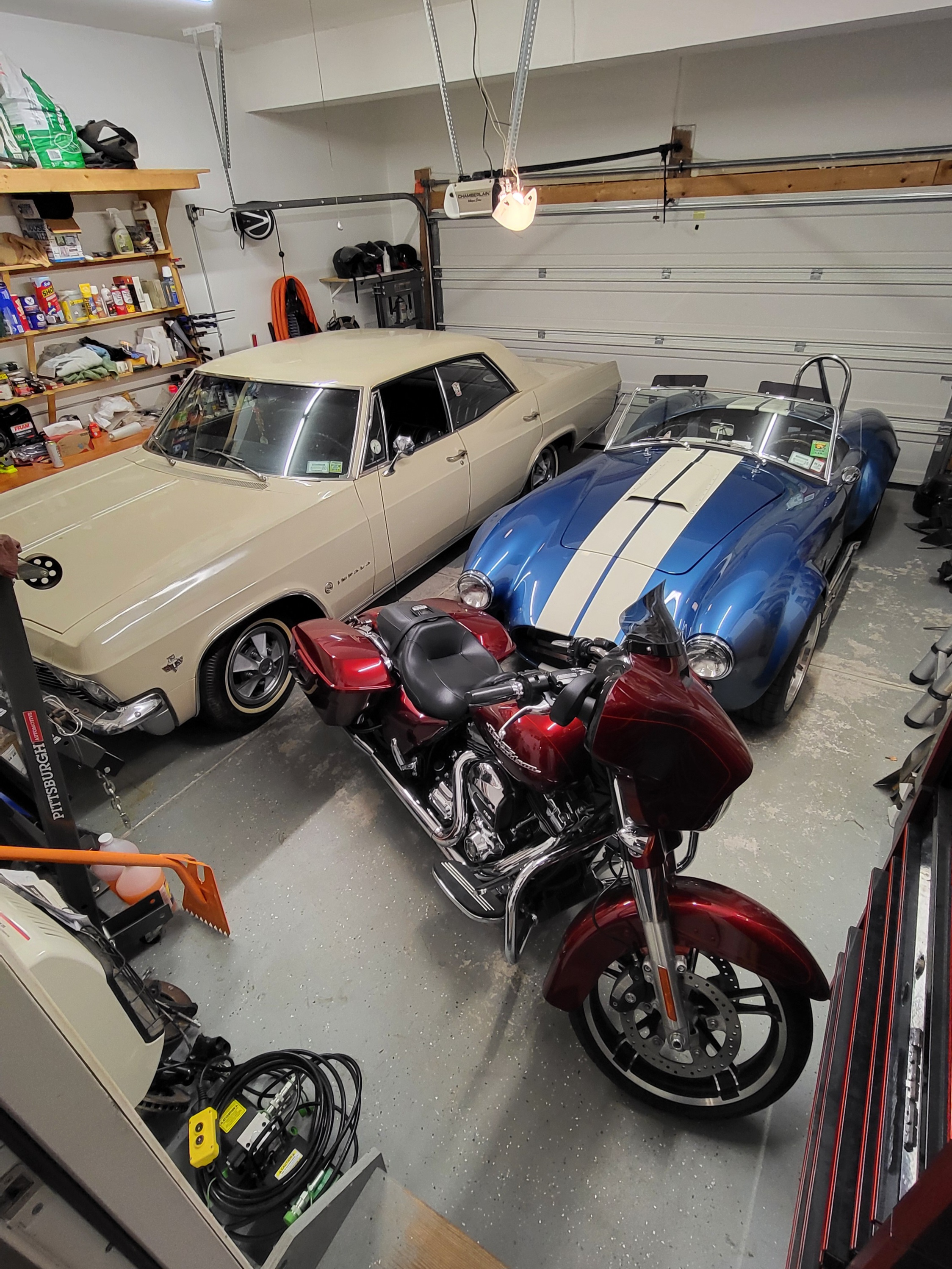

No room to spare, but it works. I built the MK4 before I had the Impala.
