Steering arm orientation
I'm having trouble confirming the steering arm orientation for the mkiv 289.

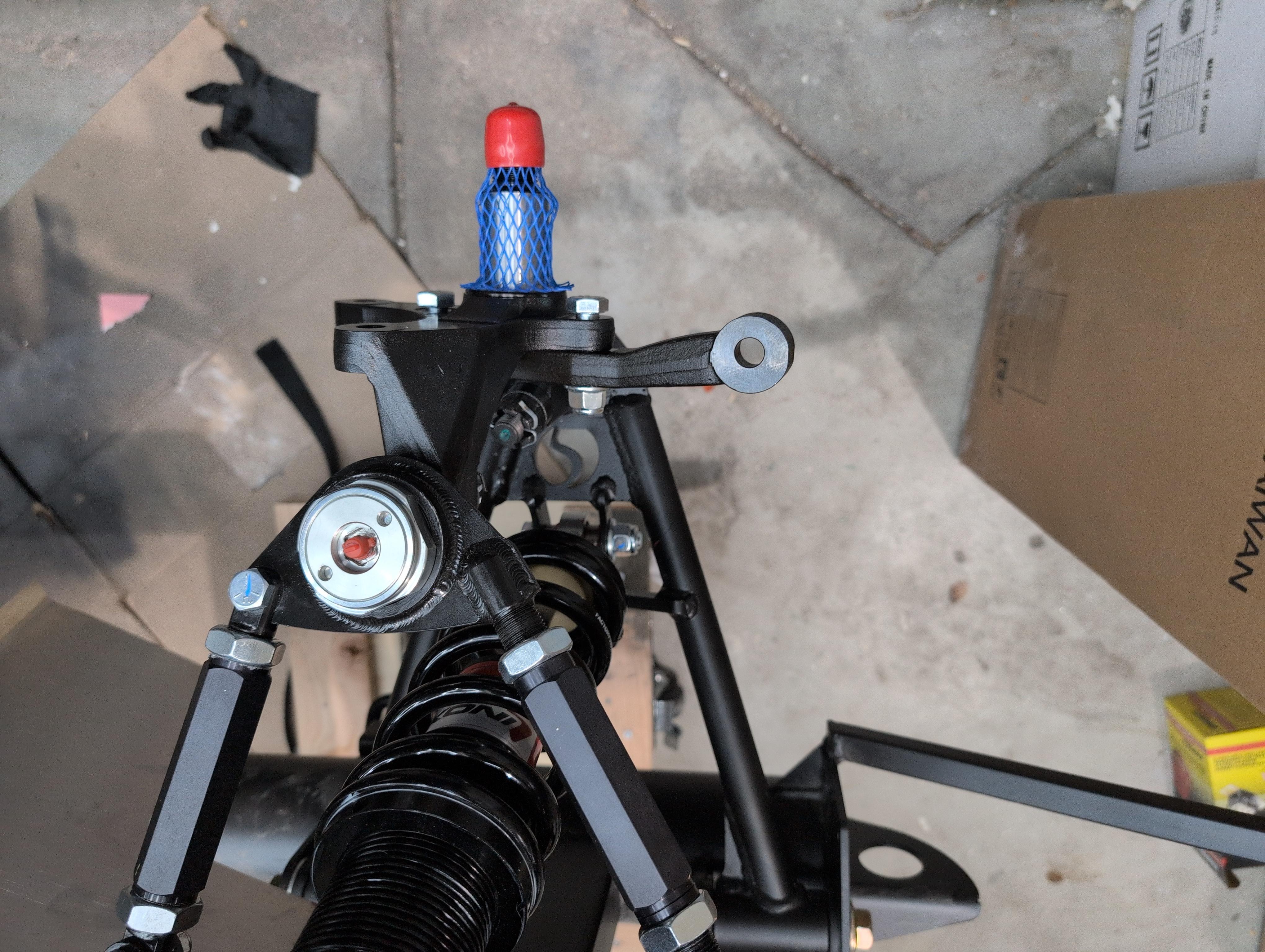

The manual seems to show up and out, but it's difficult to tell. Can someone confirm this setup? Photos are the driver side
Attachment 226785Attachment 226785
Attachment 226784Attachment 226784
-
Yes...pointing up and out.
The steering arm hole is tapered to accept the tie rod end. Larger opening of the tapered hole points down to accept the tie rod end from underneath. It won't work the other way.
