8secDuster's Type 65 Coupe

It has been about a year in the making, but I was finally able to pull the trigger on a new Type 65 kit.
Earlier this year, I decided to sell my restored 68 Barracuda Formula S 340.
I originally bought that car to drive, but decided to perform a rotisserie restoration on it once I discovered the low number of cars known to exist.
The car came out pretty nice, earning a O.E. Concourse Gold Certification (981 pts out of 1000) at the 2021 Muscle Car and Corvette Nationals (MCACN) car show in Chicago.
We had pretty good luck with it, as it was featured in Magazines and in a Mopar Calendar. Not too bad for a "Garage Car"
However, now I didn't want (afraid) to drive it. Body Parts a getting hard to find for them if something were to happen to it.
So I figured I would sell it to try and find a driver quality clone Superbird or Hemi Car to possibly replace it.
Talking to a good friend (CW_MI) about it, he brought up Factory Five. I told him that I have always liked their Roadsters, but I really dig their Coupes.
It was then that I started looking into builds. The more I researched them, the more I wanted one.
I have had Hot Rod's, Stock Muscle Car's, and Drag Race Cars. But at this point in my life, I realized I wanted something different, and a Coupe checked all the boxes for me.
So earlier this month the Barracuda sold, and I called FFR and placed my order. Completion date is the end of December. Tentatively shipping the first of January.
I have taken many notes and ideas from several really nice builds on this site. But after seeing and sitting in Paul & Sharon's car over the summer, it Sealed the Deal for me.

My plan with this build is to "loosely" pay homage to CSX-2299.



THE CAR

Complete Coupe Kit
Gas-N 1-3/4" 302 Headers
FFR SS Exhaust
3-Link Suspension
Wilwood Brakes
Koni's
Roadster Seats
Carpet Kit
Side Windows
Vintage GPS Gauges
Power Steering
Air Conditioning
Hydraulic Clutch Kit
Coupe Scoop Set
Sway Bar
Body Cut Outs


ENGINE / DRIVETRAIN

Competition Components 363" SBF Dart SHP Block
Dart Pro 1 Cylinder Heads CNC Ported 210cc
Ported Victor Jr Intake
Sniper 4150 EFI
Tremec TKX .81
Tremec Forward Shift Conversion
RAM Clutch and Hydraulic Release Bearing
Moser 8.8 with 3.55 Gears


WHEELS & TIRES

17'' x 9''
17'' x 11''
American Racing Shelby VN-427's
275 / 315 Nitto 555 G2's


ADDITIONAL VENDORS

Dart Machinery
Competition Components
Liberty Gears
Mancini Racing
KB Racecars
All-Cote Powder Cote
Breeze Automotive
Gas-N Performance
Tubular Auto
Howe
Moog
Aeromotive
Superbright
Specialty PW
Moroso
Jones Racing Products




COLOR / STRIPES

Blu Avio Metallic
Wimbledon White Stripes
Narrow or Wide Stripes - TBD
Roundels & Number - TBD




A pretty straightforward build that I'm really looking forward to, because this time, my son will be involved. He was too young when I did the Barracuda.
He's 18 now and slowly getting into cars. So I'm hoping this will give him the nudge needed to enjoy "old" cars.
Maybe not at the borderline Addiction Level I have been all my life. But to truly enjoy them as he gets older. Because one day, they're going to be his.
Then fingers crossed, once it's completed, he'll want to do a leg of Power Tour with it.



Thanks,

Mike

Congratulations and good luck! These cars are a ton of fun to build, and FFR is wonderful to work with

Exciting to see another coupe builder! Mine is supposed to be loaded up at FFR this Friday for the trip out west.

Congratulations Mike, my kit should be finished sometime after yours.

I’m looking forward to following your build.

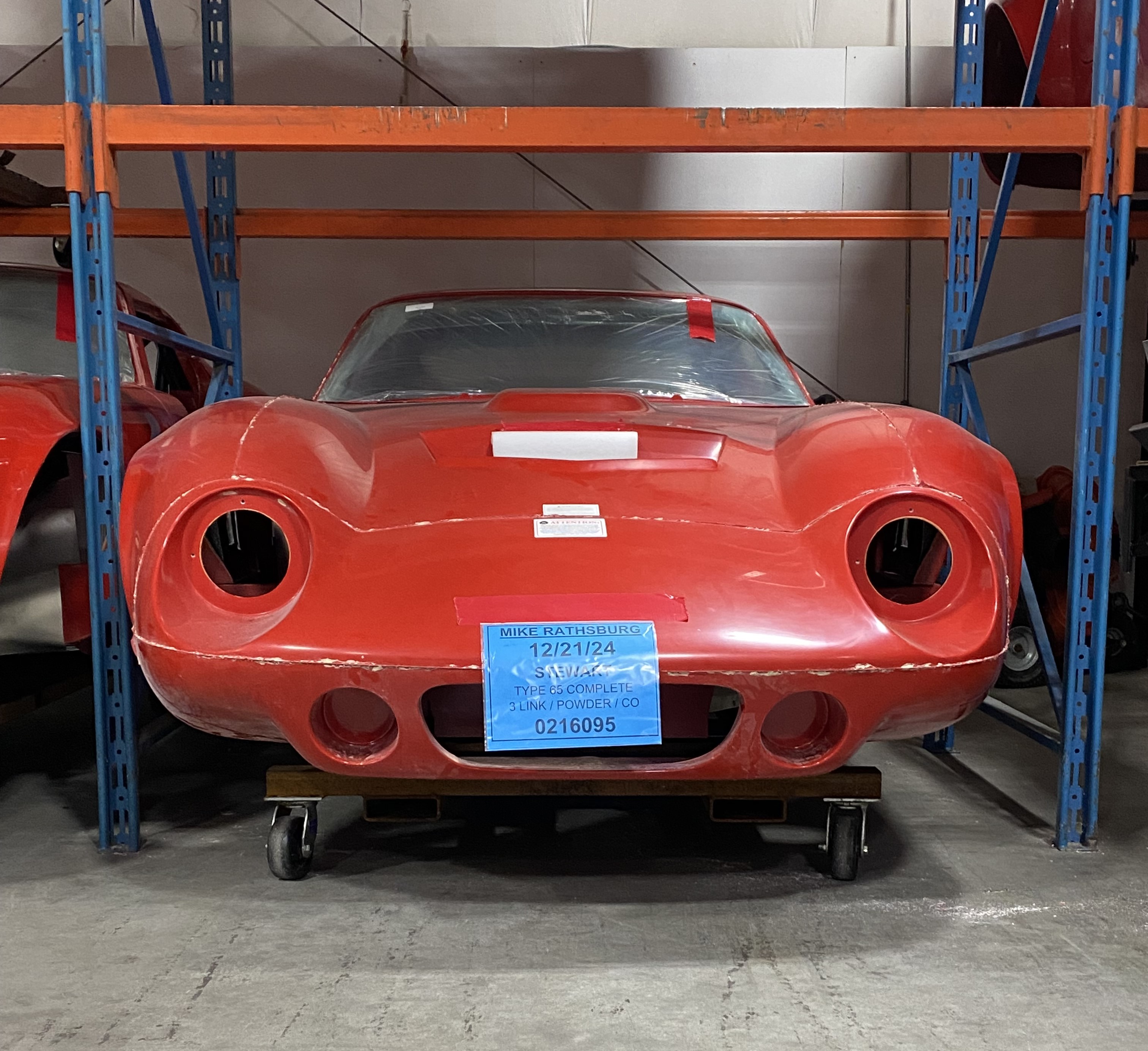

I received The Call yesterday.
The weather has Stewart a little behind. So I should see it next Wednesday now.

Attachment 209125

Mike, congratulations, mine must be on the same truck as yours, they gave me a Thursday-Saturday window, I haven’t received “the call” yet firming it up.

Where are you located? Maybe I can guesstimate my delivery from there.

I look forward to following your build.

Steve

Nice spec :cool:

Thanks Steve!
I'm just north of Detroit.
Todd from Stewart told me they have 6 cars coming to Michigan, and mine was tentatively set for Wednesday.
I'm not sure if all 6 were going to be on the same truck or not? He did not mention that?

Thanks Mike, mine will probably be closer to Saturday then. Which is good, gives us a couple of days of warmer weather to melt what’s left of the ice and snow in the alley and in front of the overhead door.

Looks like the end of this week, a little more weather is coming across Michigan and heading east, right towards Massachusetts. Followed by bitter cold.
Hopefully it's not too bad, and safe to travel. I was originally told mine would be delivered today.
Normally, because I snowmobile, hearing snow in the forecast makes me tingle. This season is going to be a little different...

Congrats and welcome aboard, Mike!

Thanks Chris !
I have been following your build. Looking Good !

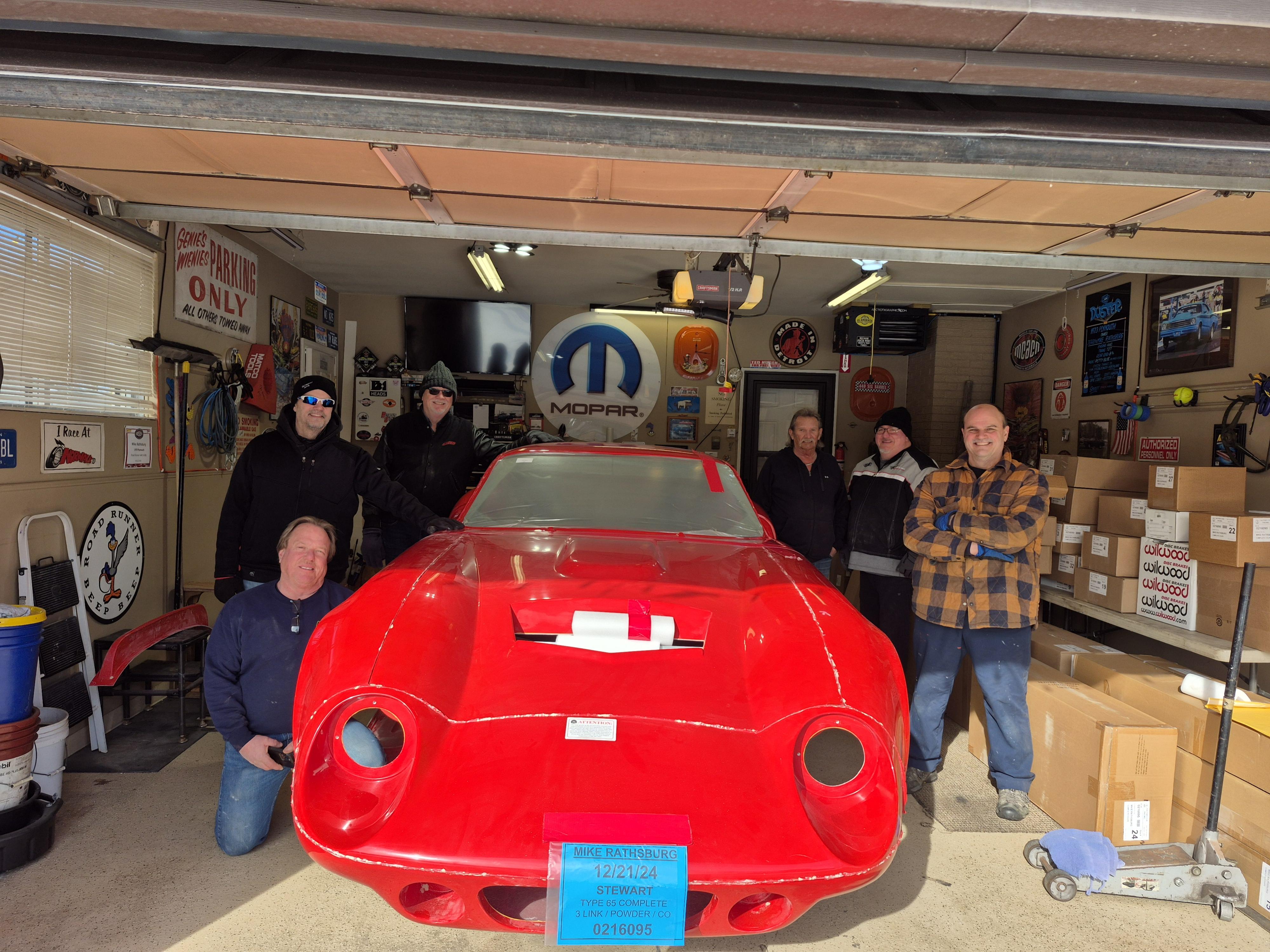

The last couple of weeks have been a roller coaster ride, but my Coupe has finally made it home to Michigan.

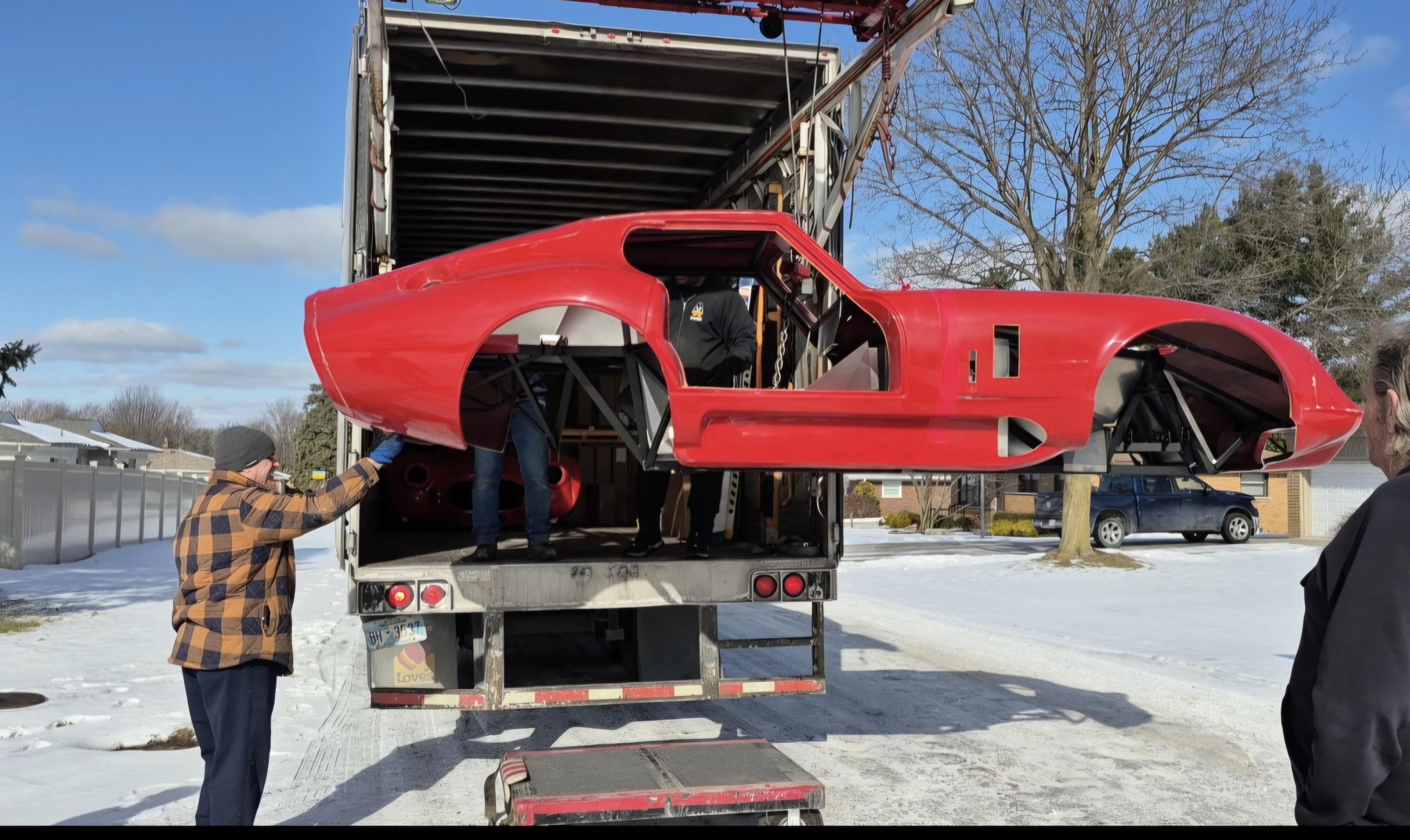

Had a few friends over to help make short work of the unloading process.
Mark from Stewart couldn't have been a nicer guy!
I started the inventory and found 1 boo-boo so far. FF sent me an IRS hardware kit instead of the 3-Link kit.
I still have about 25 boxes to go.

Attachment 209657


Attachment 209658

Congratulations Mike, pretty great day isn’t it. Have fun counting boxes.

Quote:

---

Originally Posted by Smiley

Congratulations Mike, pretty great day isn’t it. Have fun counting boxes.

---

Yes it was! Good Stuff

How many boxes did it end up being , Mike ?

I think there were 38.
I'm missing a couple little things like fasteners and such..ndb, but, I am missing a biggie, the entire Ron Francis wire harness kit.
It had a check on the inventory sheet, but it's not there?
I found that everything missing did have a check next to it... Is this common?
I'm filling out my MIK list now, I hope there isn't any issues getting this harness.
They also included the wrong rear end hardware / fastener kit. I was sent an IRS kit, but have a 3-Link in the car.

There will be no issues with the missing items!! Factory Five will make it right, no worries!
Higgy
(Just outside of Windsor)

Thanks Higgy.

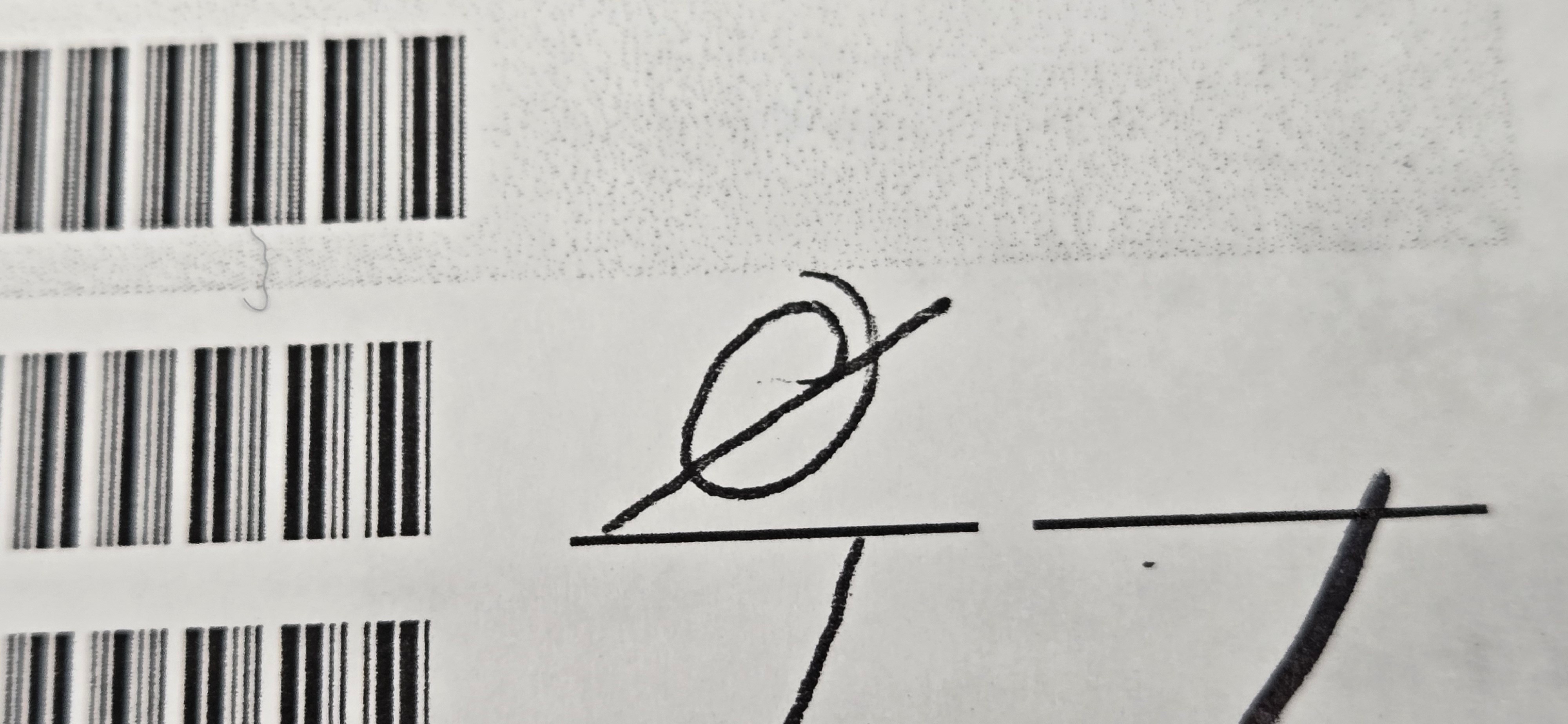

What does this circle with a slash through it mean?
I have a couple of these as well.


Attachment 209691

Quote:

---

Originally Posted by 8secDuster

Thanks Higgy.

What does this circle with a slash through it mean?
I have a couple of these as well.


Attachment 209691

---

That is a zero. That is how we made them in the military. It differentiates them from an "O".

Quote:

---

Originally Posted by Skuzzy

That is a zero. That is how we made them in the military. It differentiates them from an "O".

---

I'm sorry Skuzzy, I should have been a little more detailed with my question.
I'm not sure what that represents? I assume Backordered?

Quote:

---

Originally Posted by 8secDuster

I'm sorry Skuzzy, I should have been a little more detailed with my question.
I'm not sure what that represents? I assume Backordered?

---

It means it did not make it into your kit delivery. Considered part of your POL or parts that were not available when they packed up your kit. They will come trickling in over time, I think mine took about 30 days all in.

Anything with a zero on the inventory sheets should correspond to an entry on your POL (Backorder) list. It's easy enough to cross check. Obviously anything that's reported as delivered on the inventory sheets, not on the POL, and unaccounted for during your physical inventory, should be reported as MIK (Missing in Kit). Factory Five will set up a new sales order for those items. At least that how everything worked in the past for me. Before the new ERP system they're using now.

Thanks Tim and Paul.
I just received an email back from FF addressing my MIK list confirming just that.

It has been about 2 months since receiving my Coupe, and I have to say, I am really enjoying the build process.
Everything so far has been pretty straight forward, with only a few minor issues, and one large one that F5R took care of right away.
Here are some pictures of where we are at.

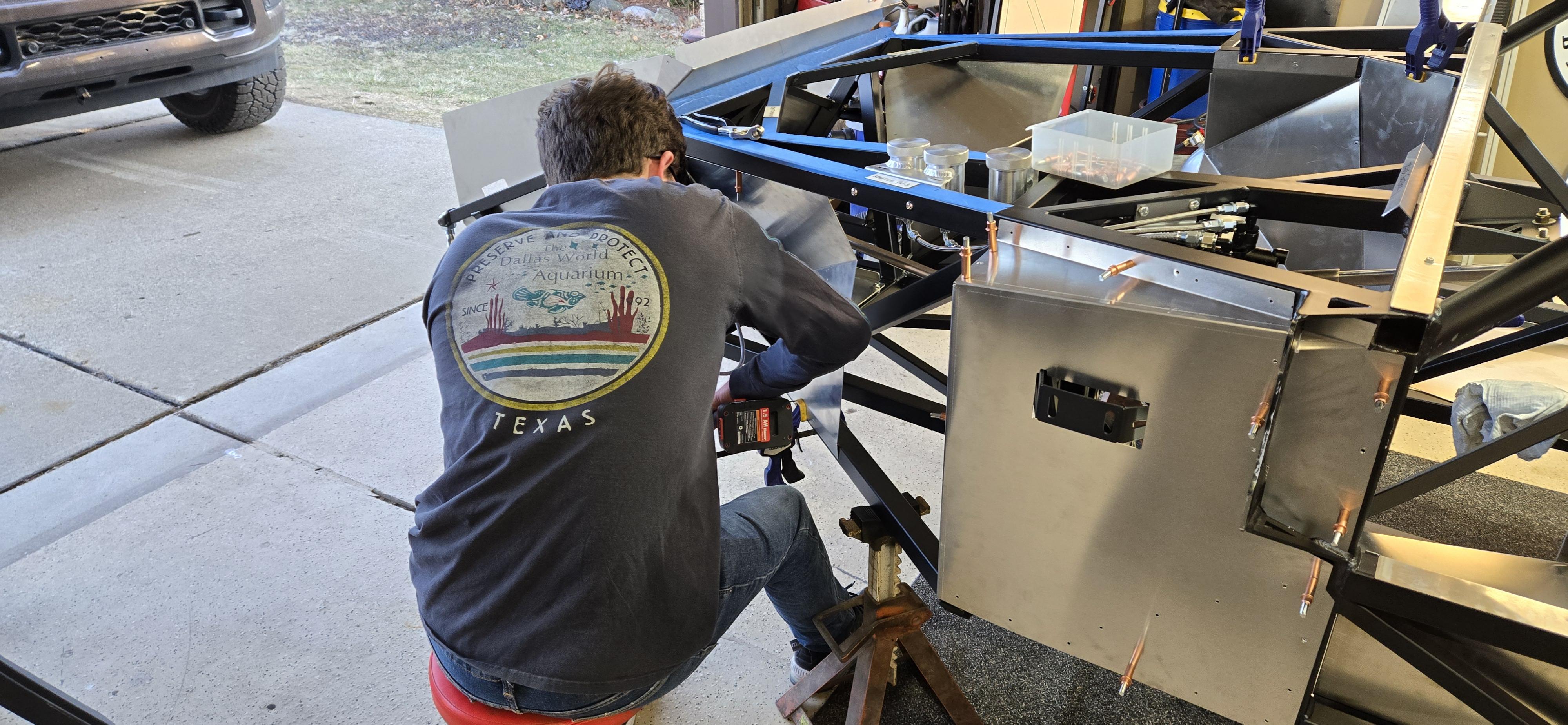

My Son
Attachment 211549

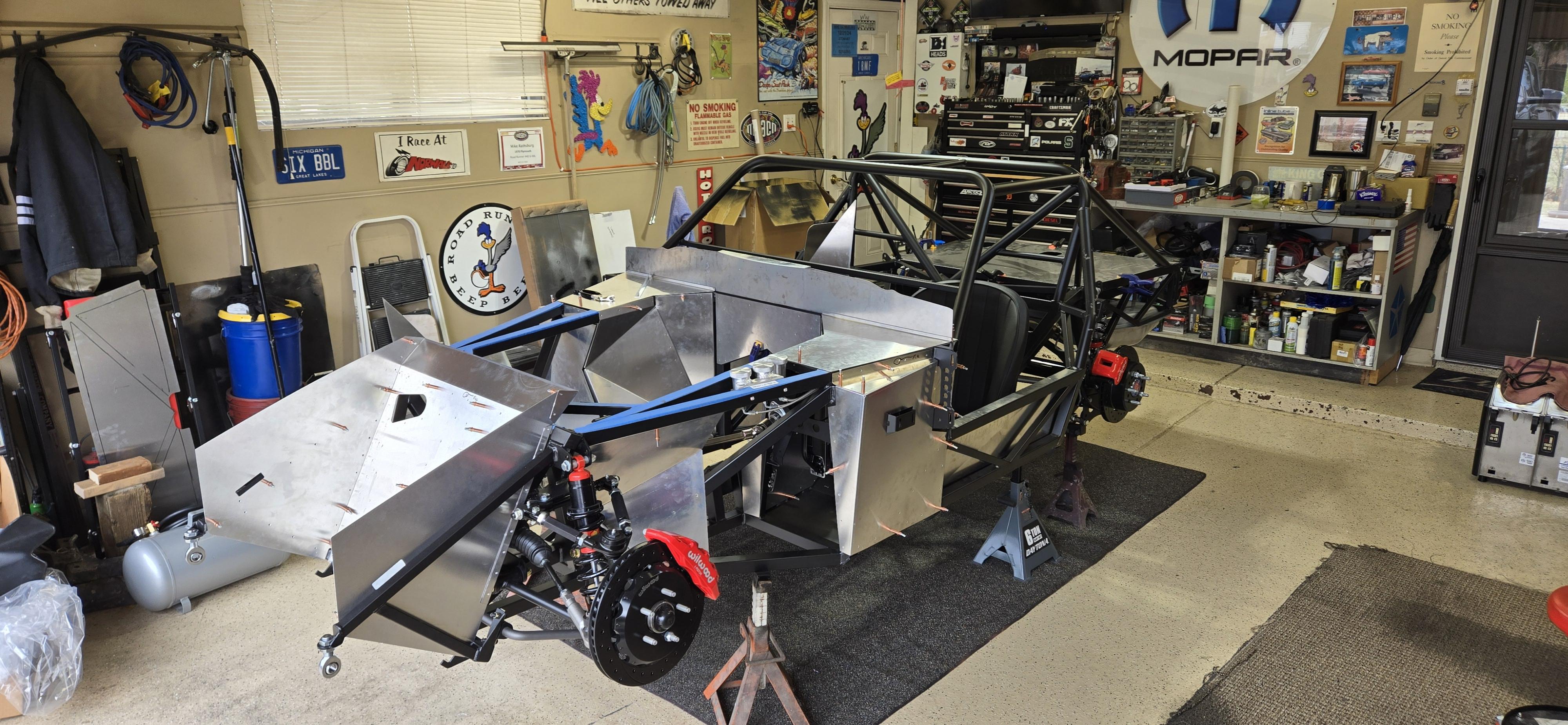

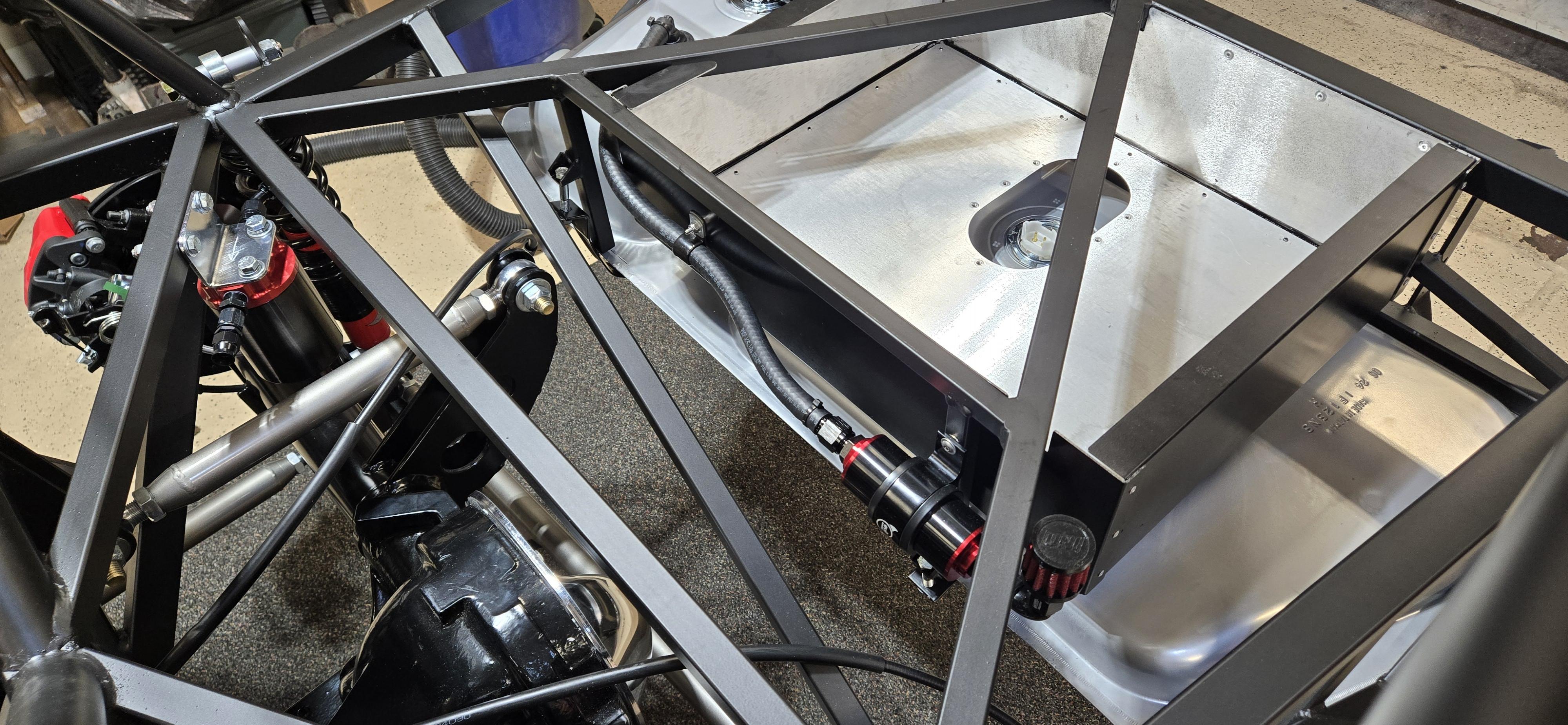

Front and Rear Suspensions are in
Attachment 211550Attachment 211551

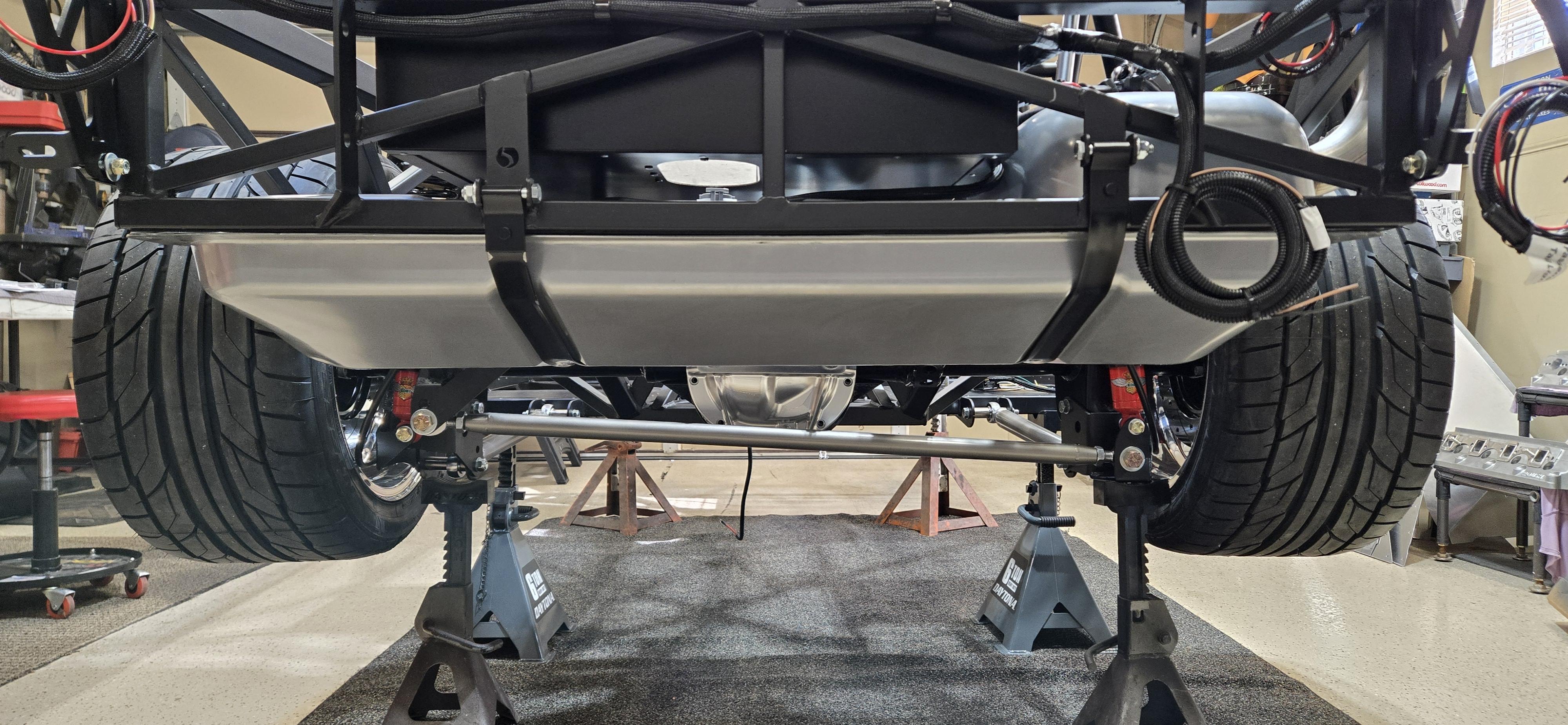

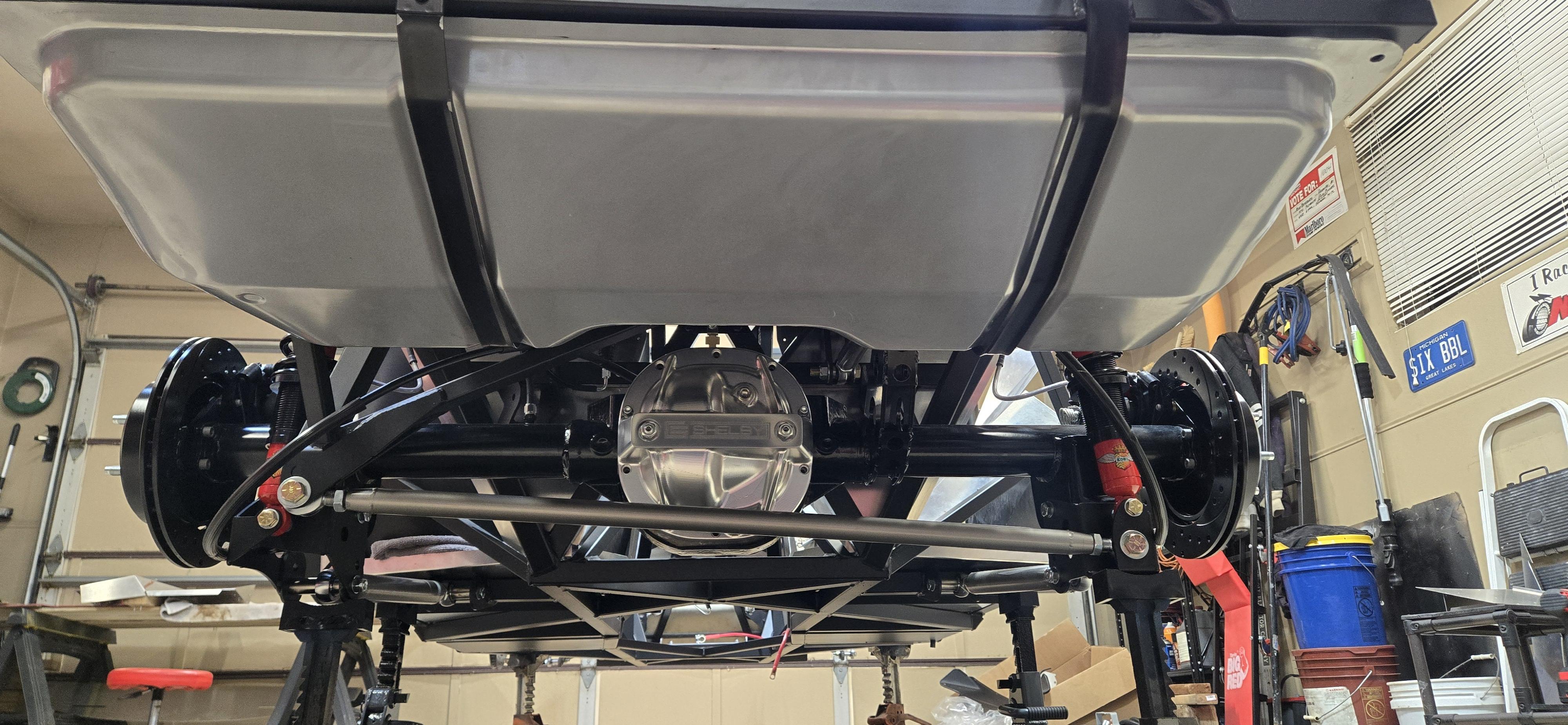

Snakebite Trunk installed
Attachment 211559

Drill, Drill, Drill
Attachment 211561Attachment 211560Attachment 211562Attachment 211563Attachment 211564

Attachment 211570

Attachment 211571

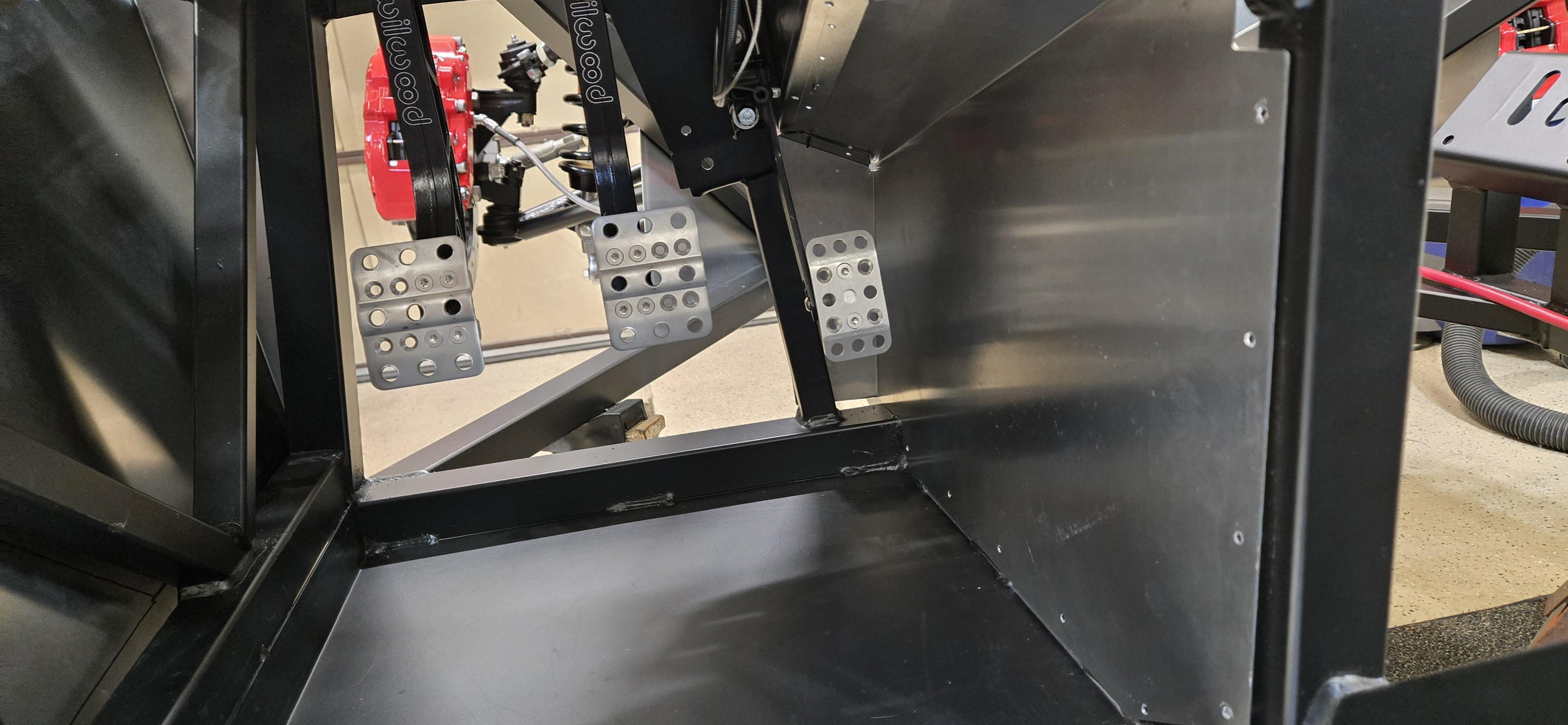

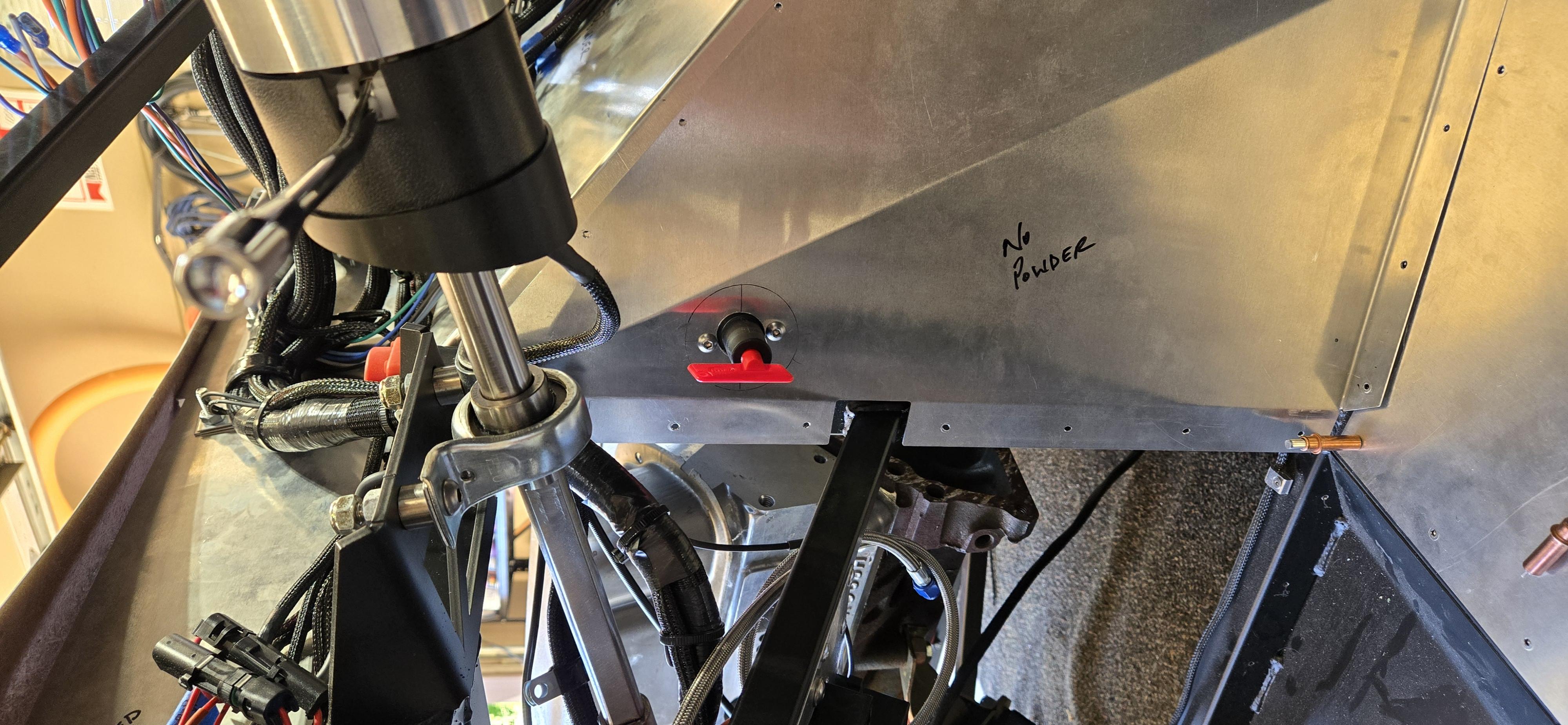

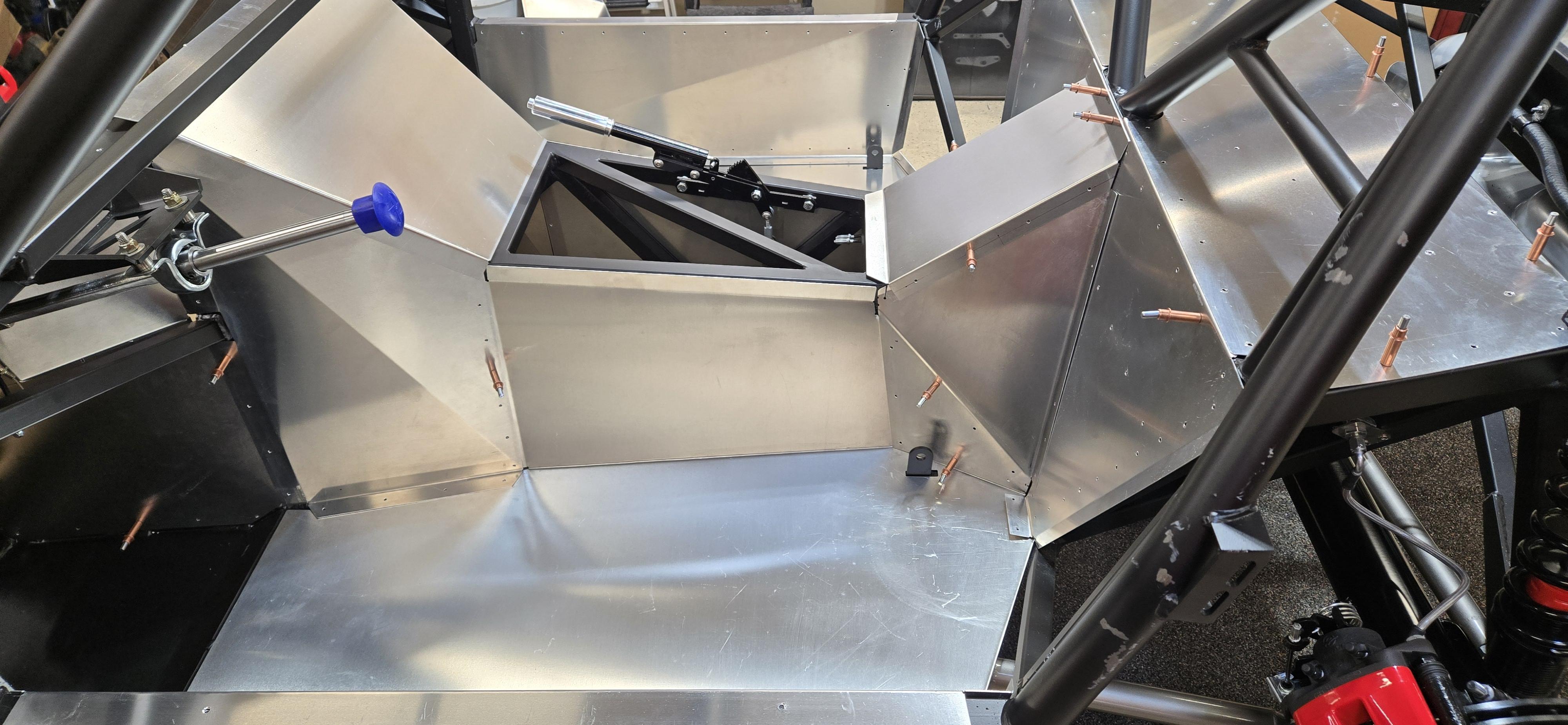

Pedal Box
Attachment 211572

Snakebite's Foot Box Extension
Attachment 211573

Looking good! I feel like the drilling never ends!

Thanks Brent, Man... that's for sure!
Almost done though, then off they go to Powder Cote.

For the last month, I have been taking advantage of the “slow” in-between winter and spring season, and have been able to make more progress on my Coupe.
All panels have been drilled and fitted. Radiator tunnel panels are out at the Powder Coaters.
Brake lines are in. Front and rear harnesses are in. Added a circuit to those for fog lights and reverse lights.
Gauges and turn indicator harnesses are trimmed up and in place, just need to complete the heat/a.c. panel.
Going to try and locate the heat valve inside the car.


One of these days, I'll get this adding picture thing figured out...

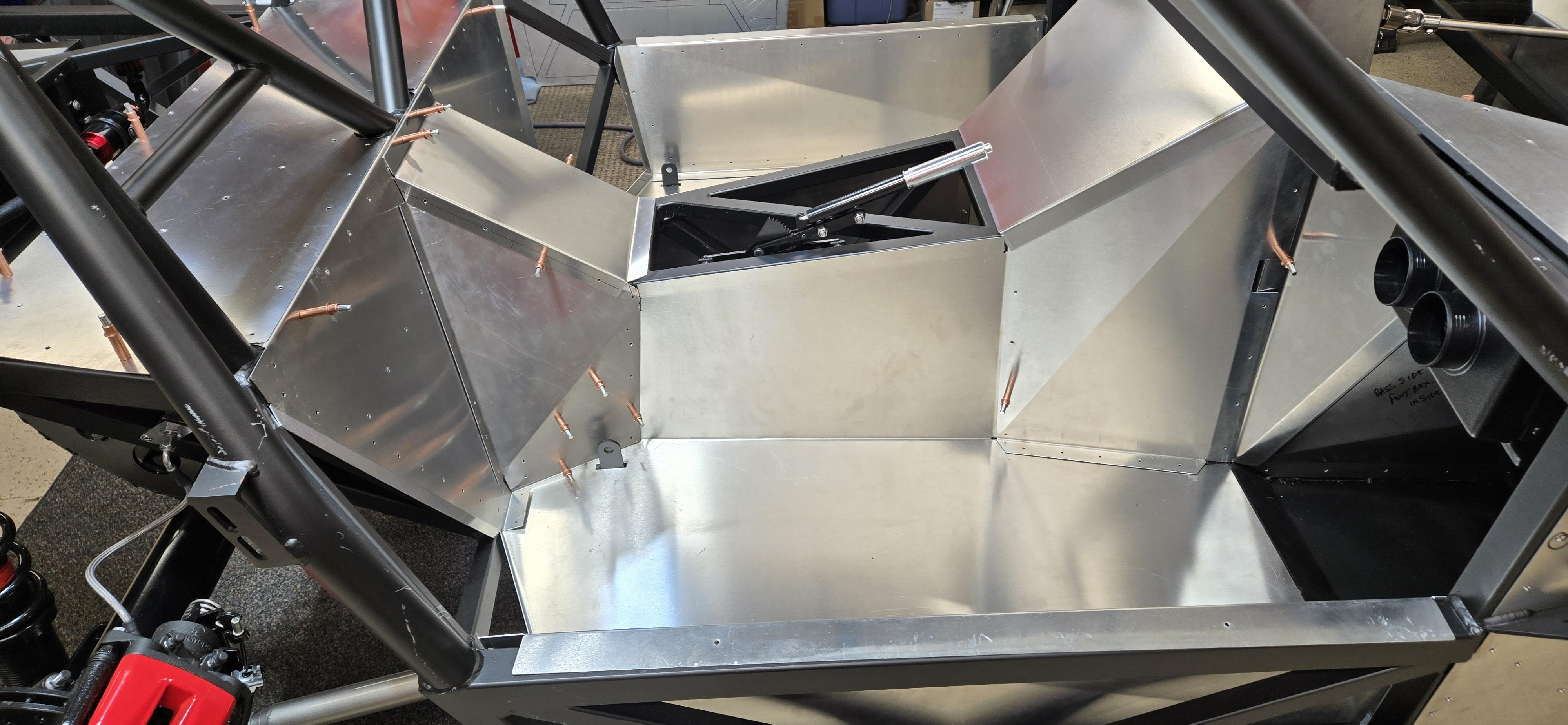

Panels
Attachment 212876

Attachment 212877

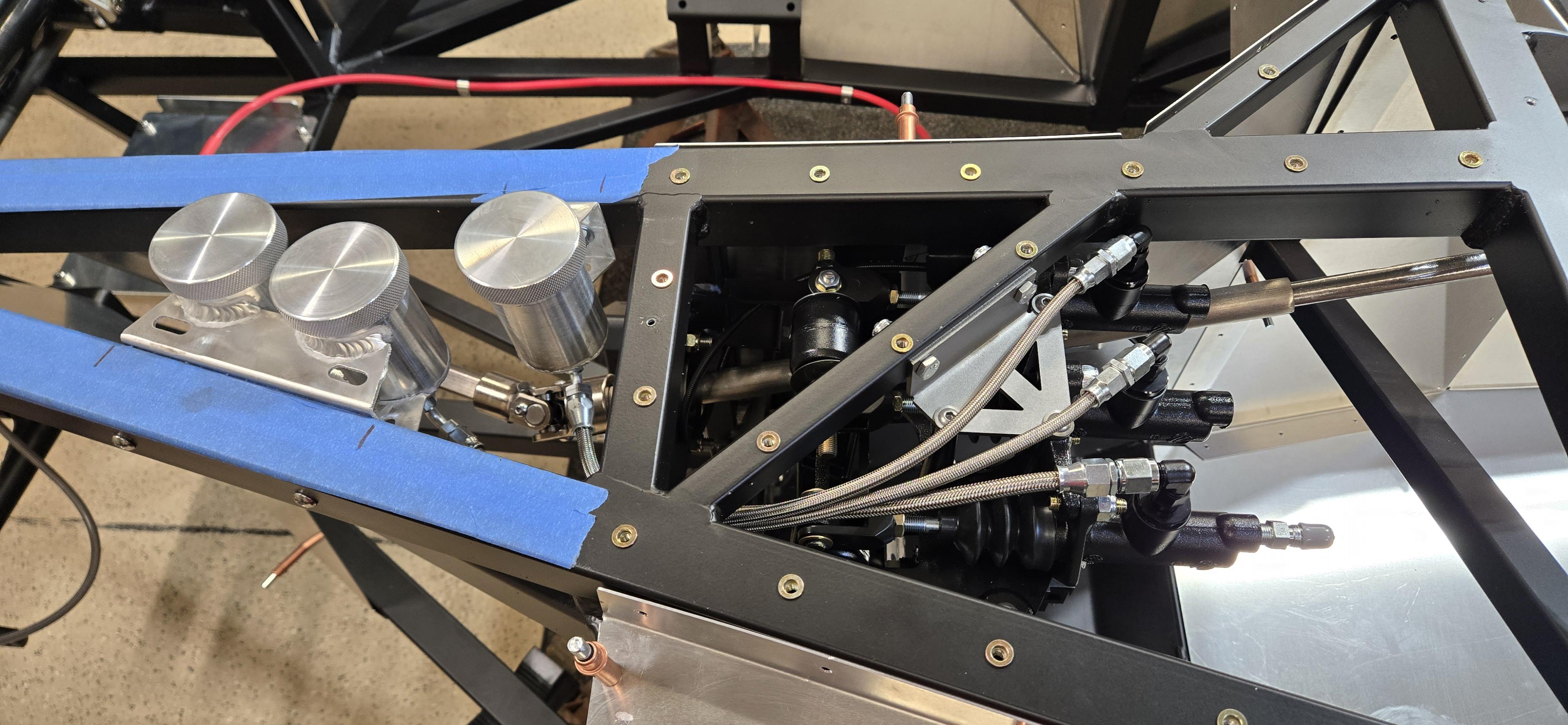

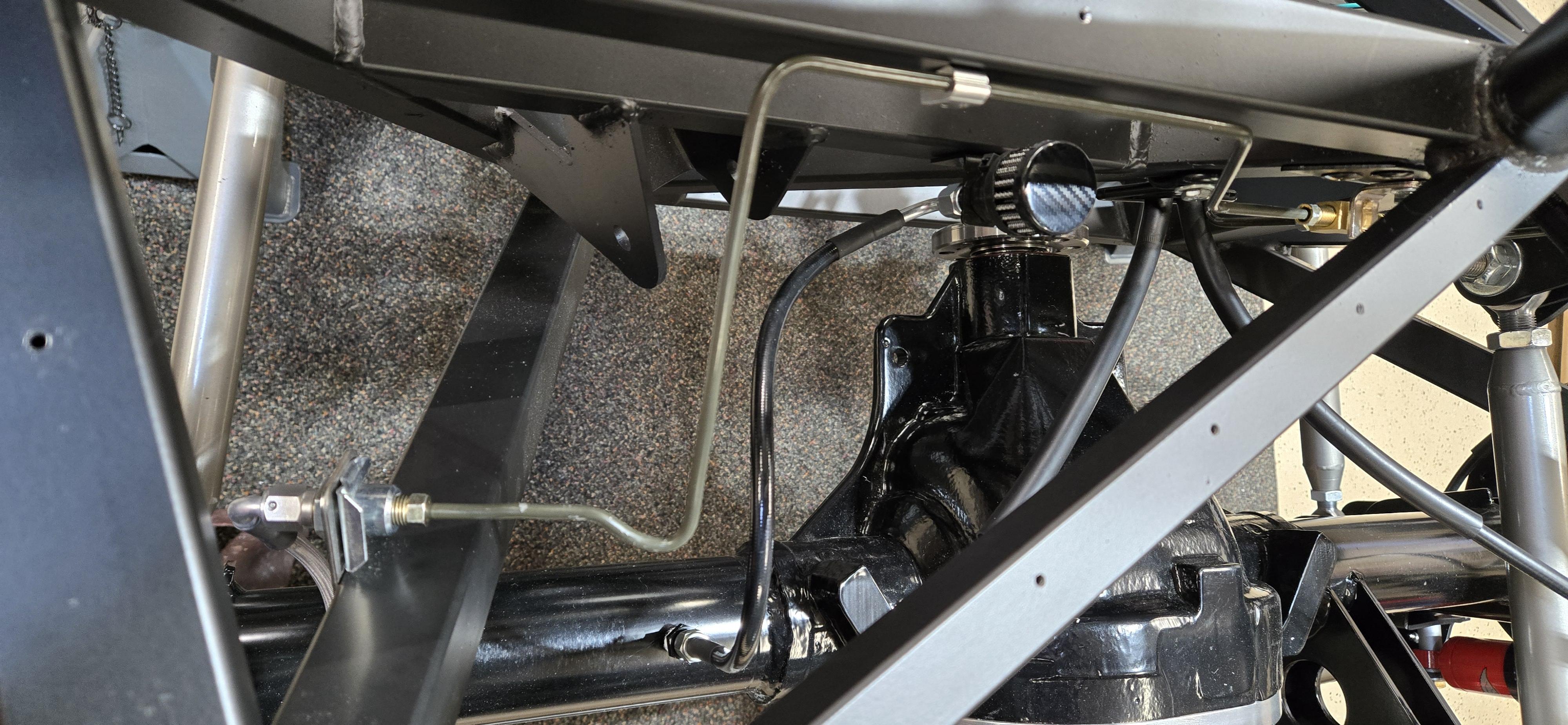

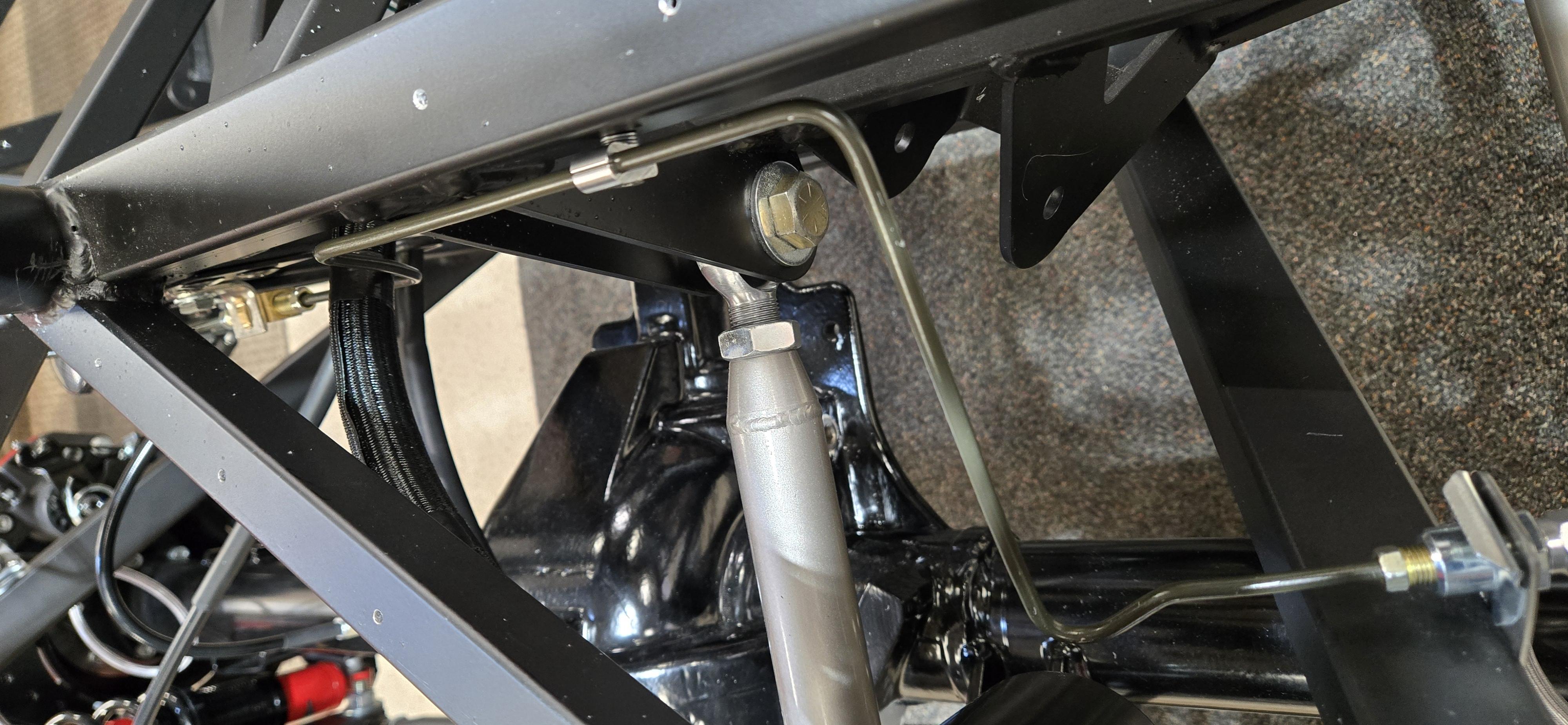

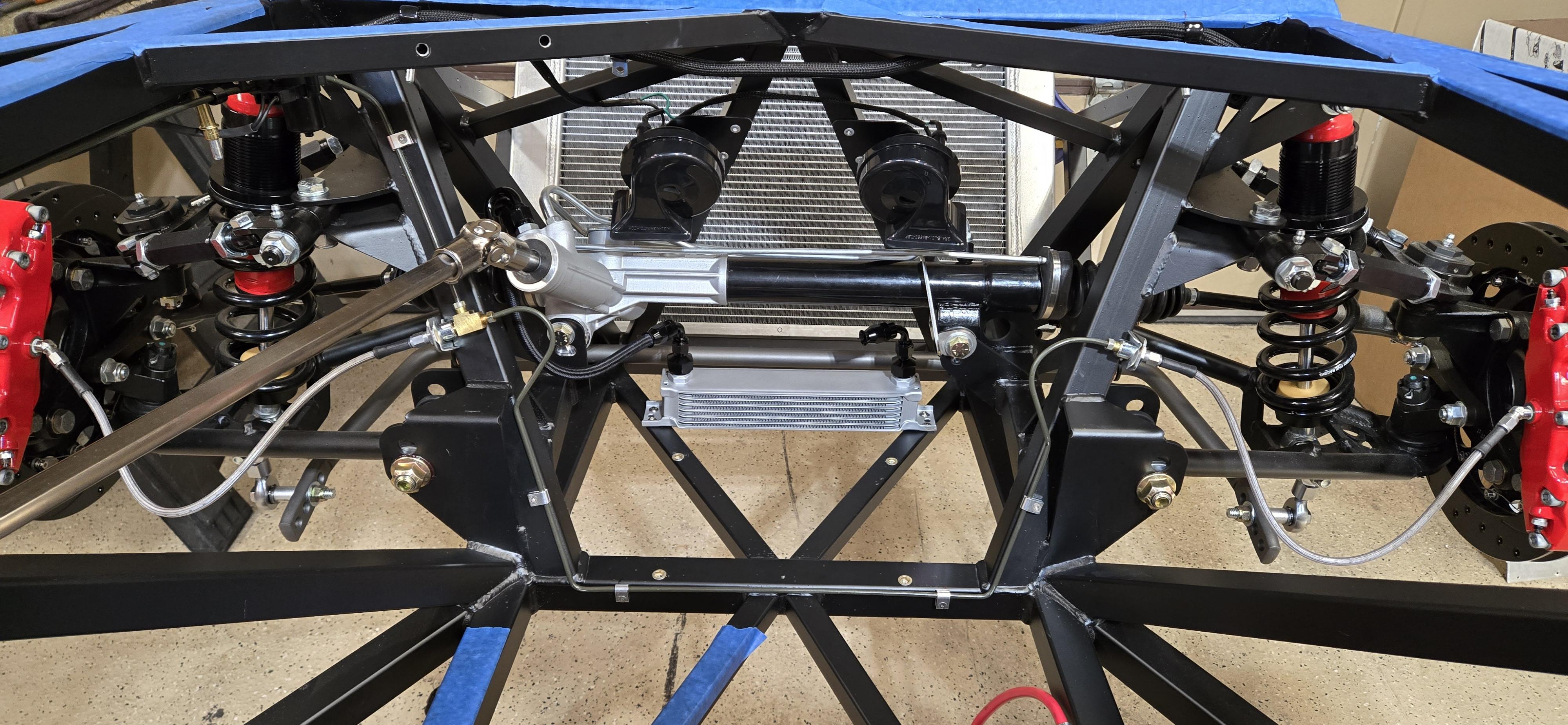

Brake Lines
Attachment 212878

Attachment 212879

Attachment 212880

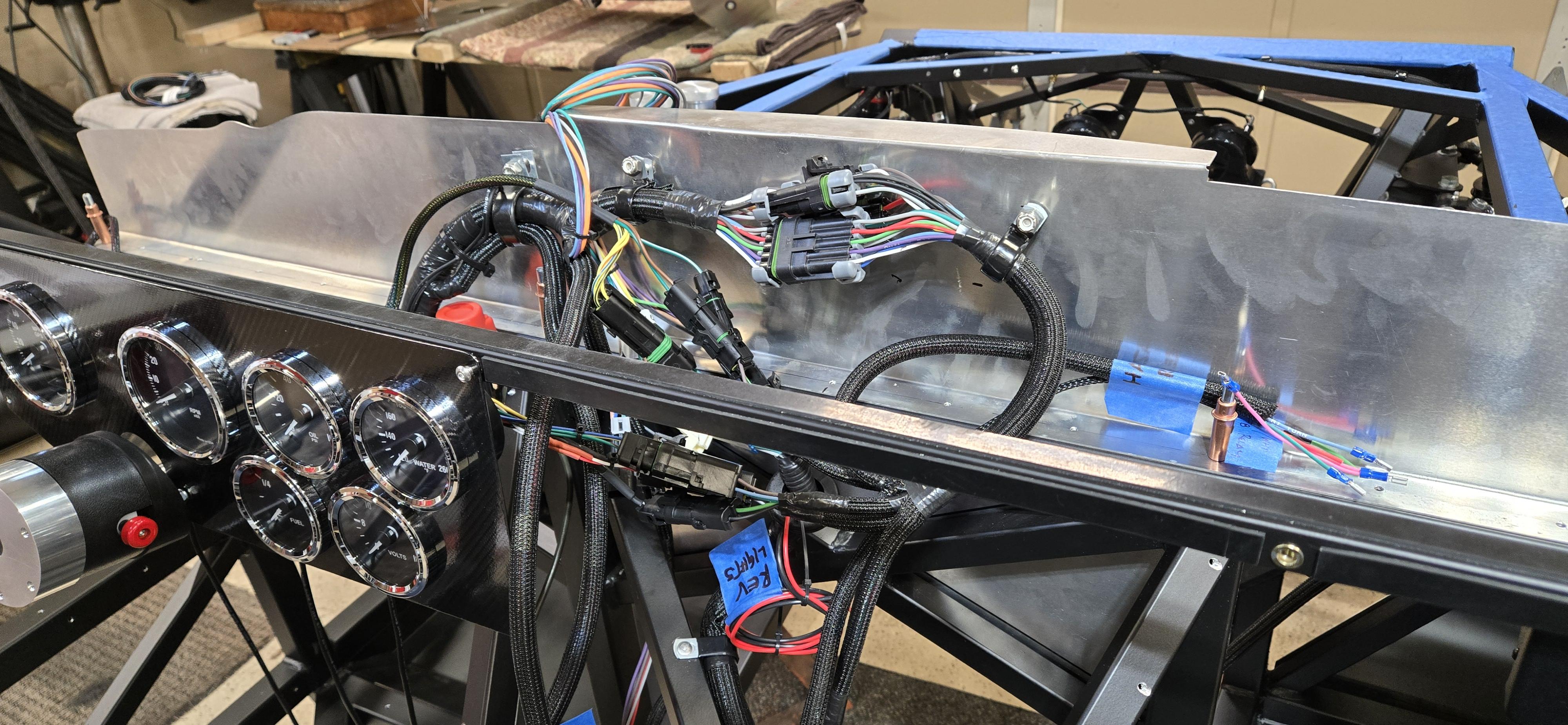

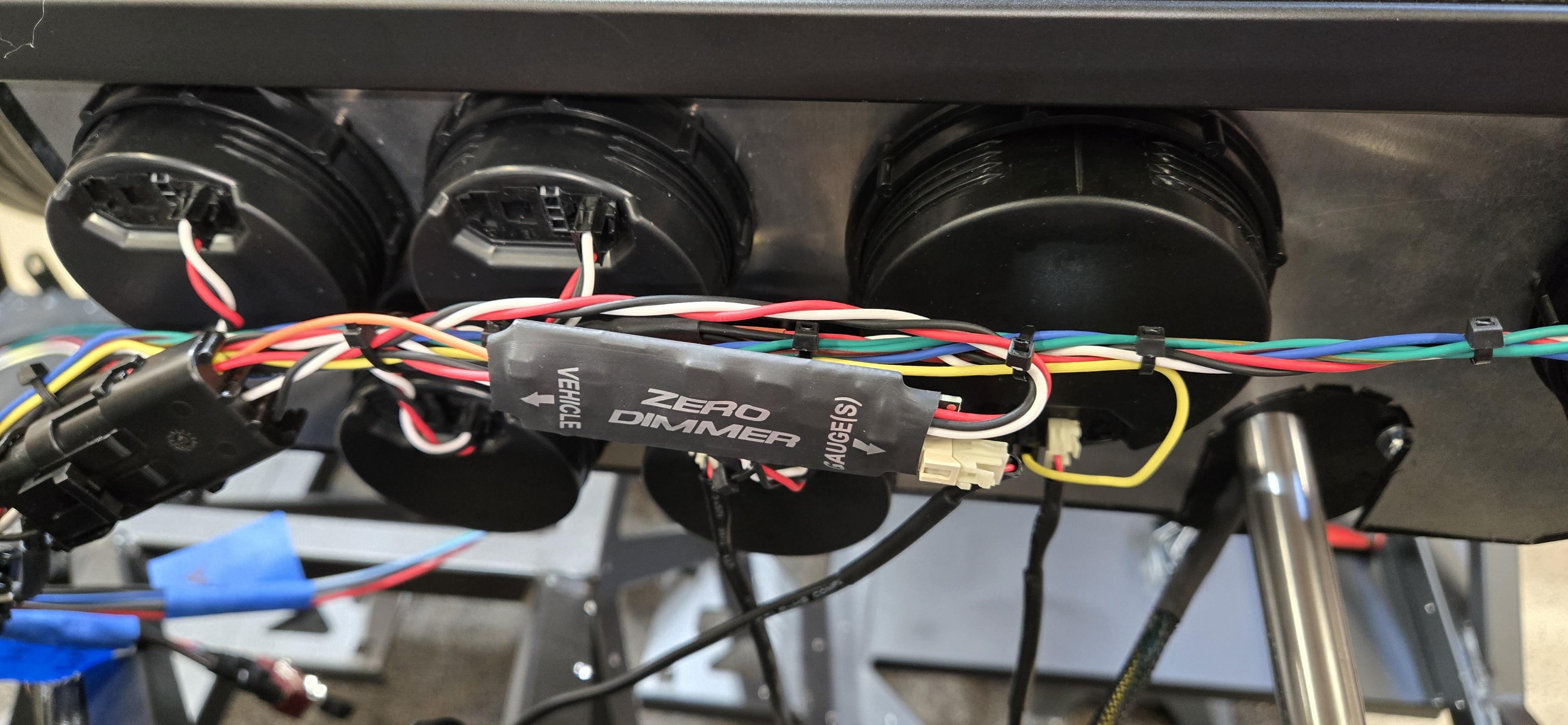

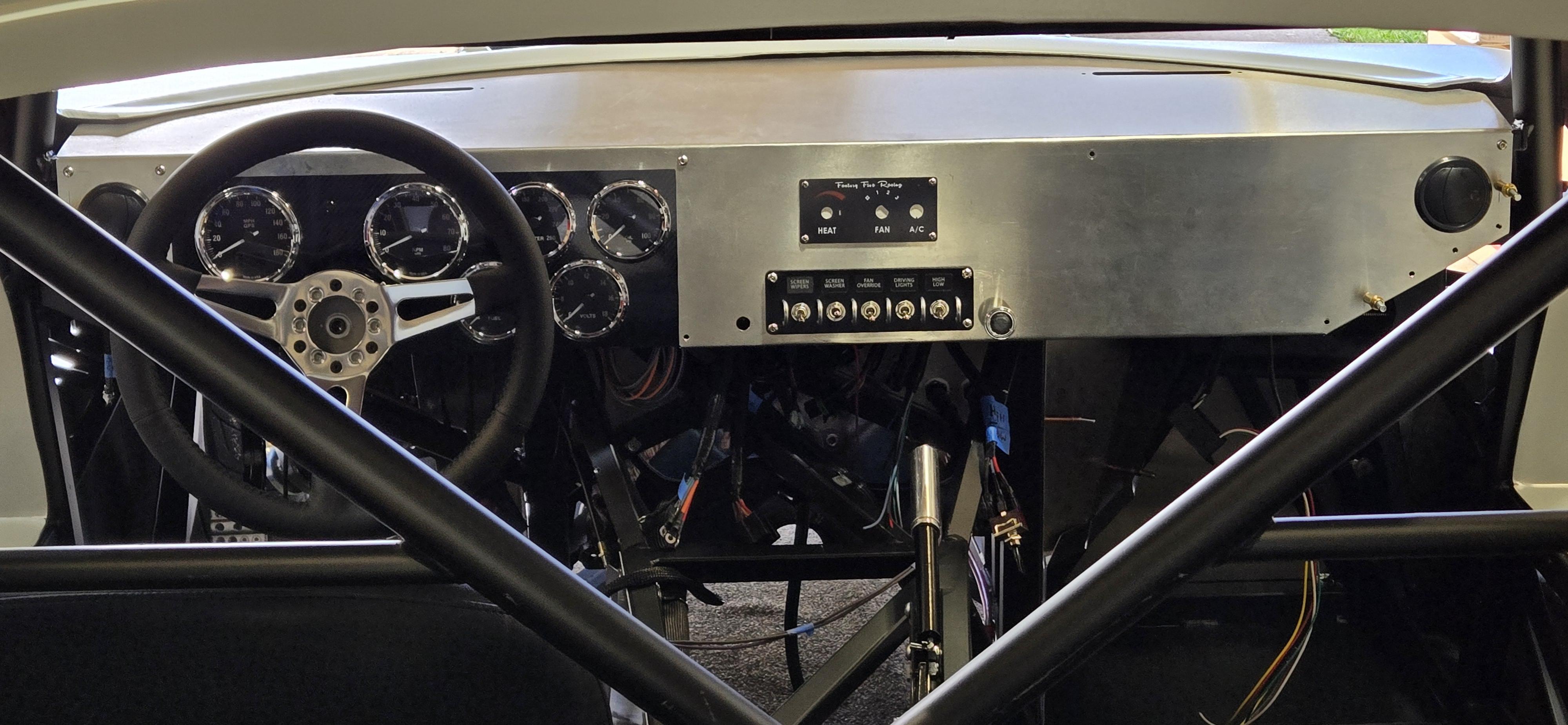

Dash Harness Trimmed and Installed
Attachment 212882

Attachment 212883

Attachment 212884

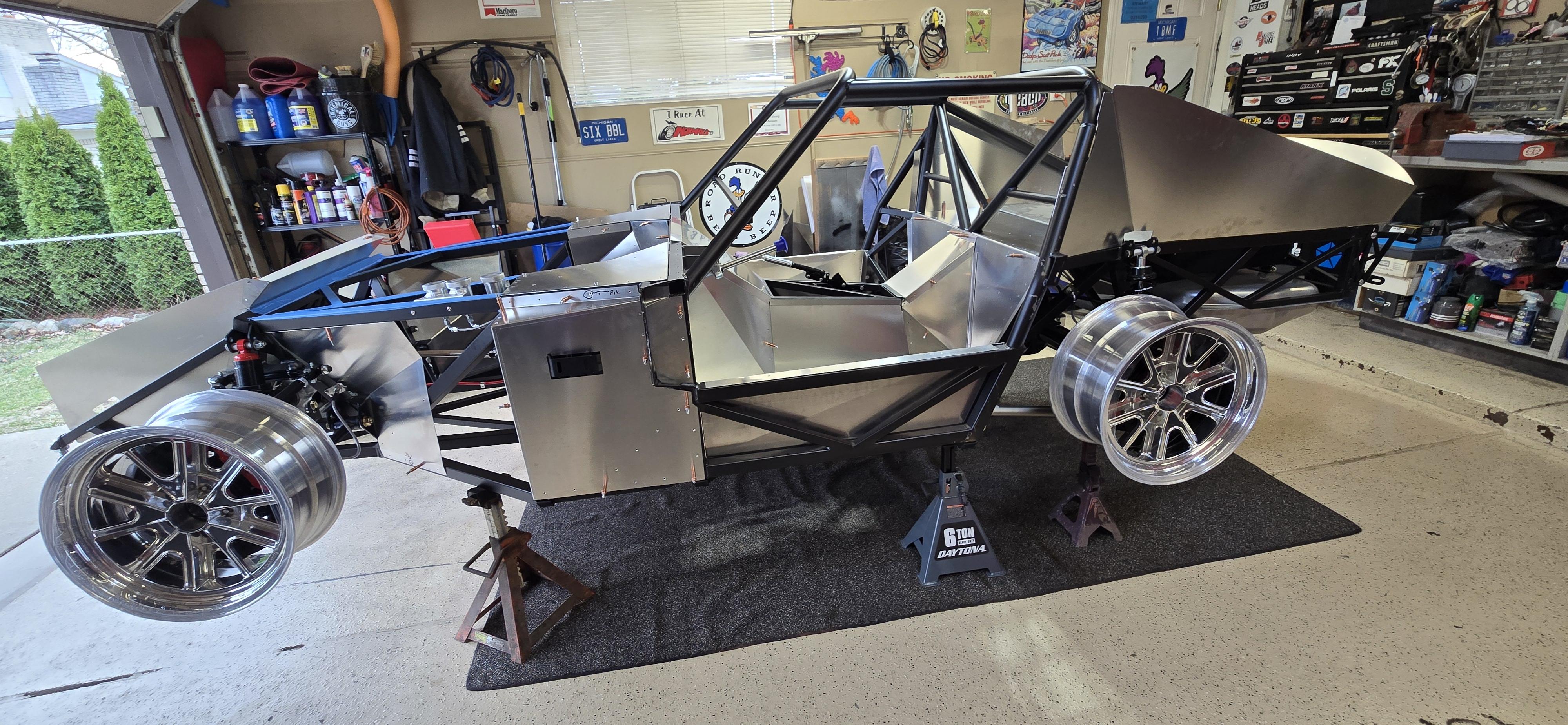

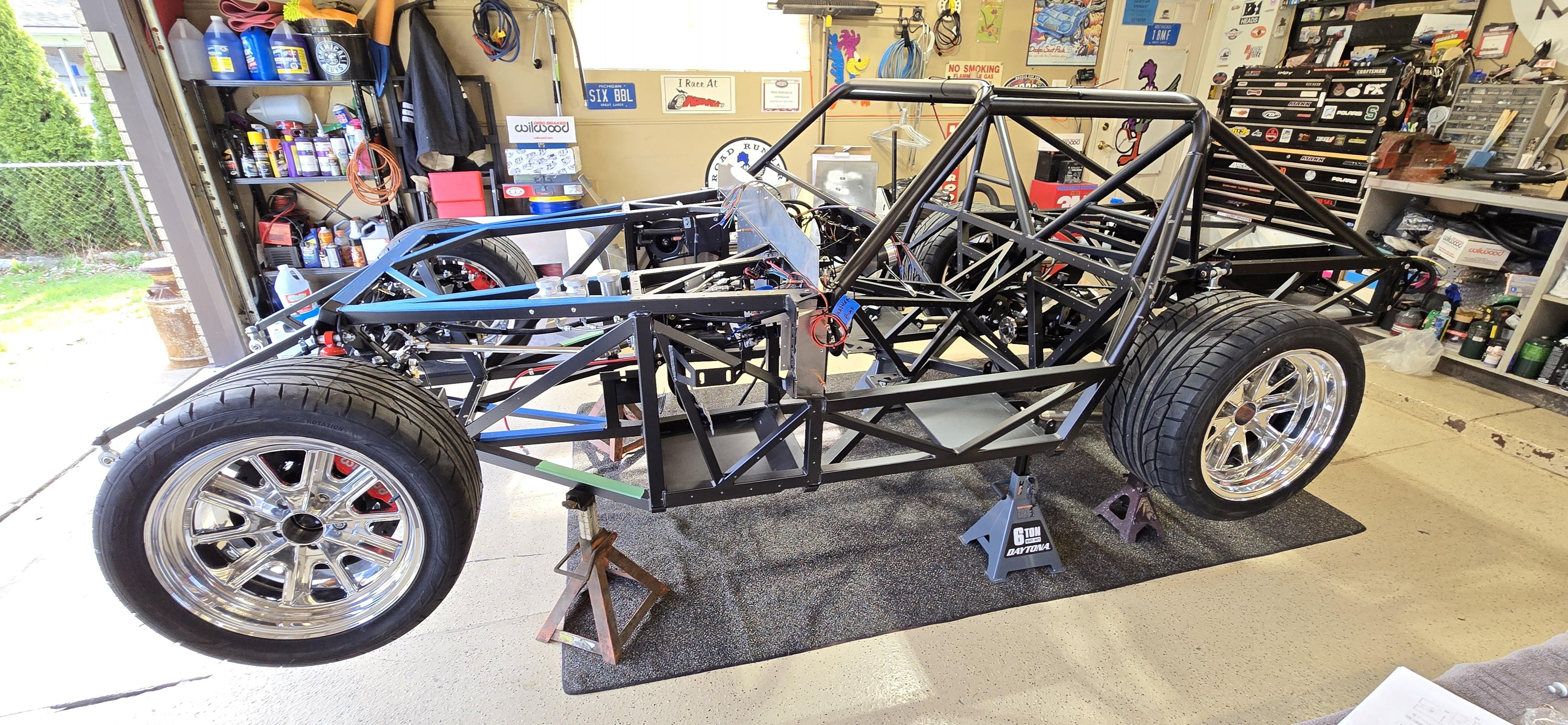

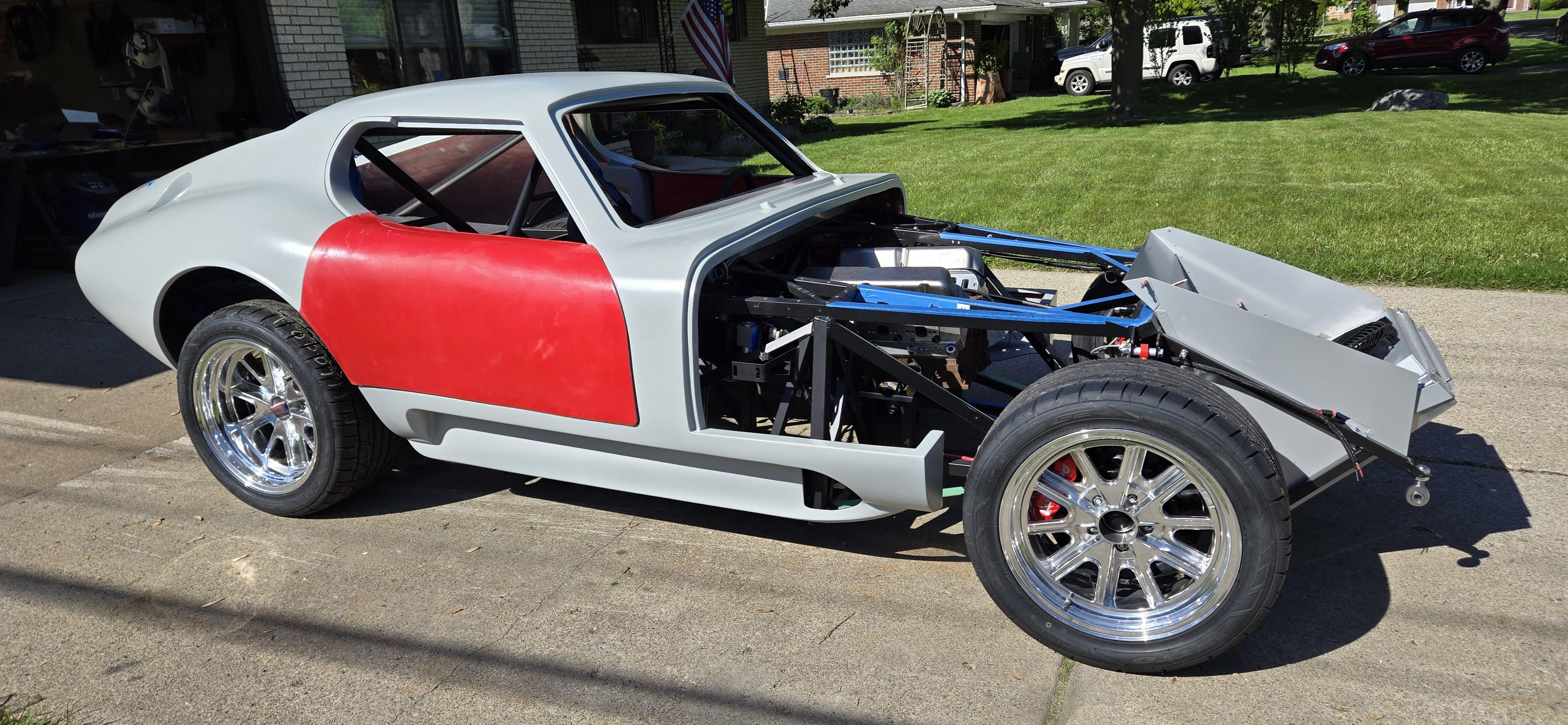

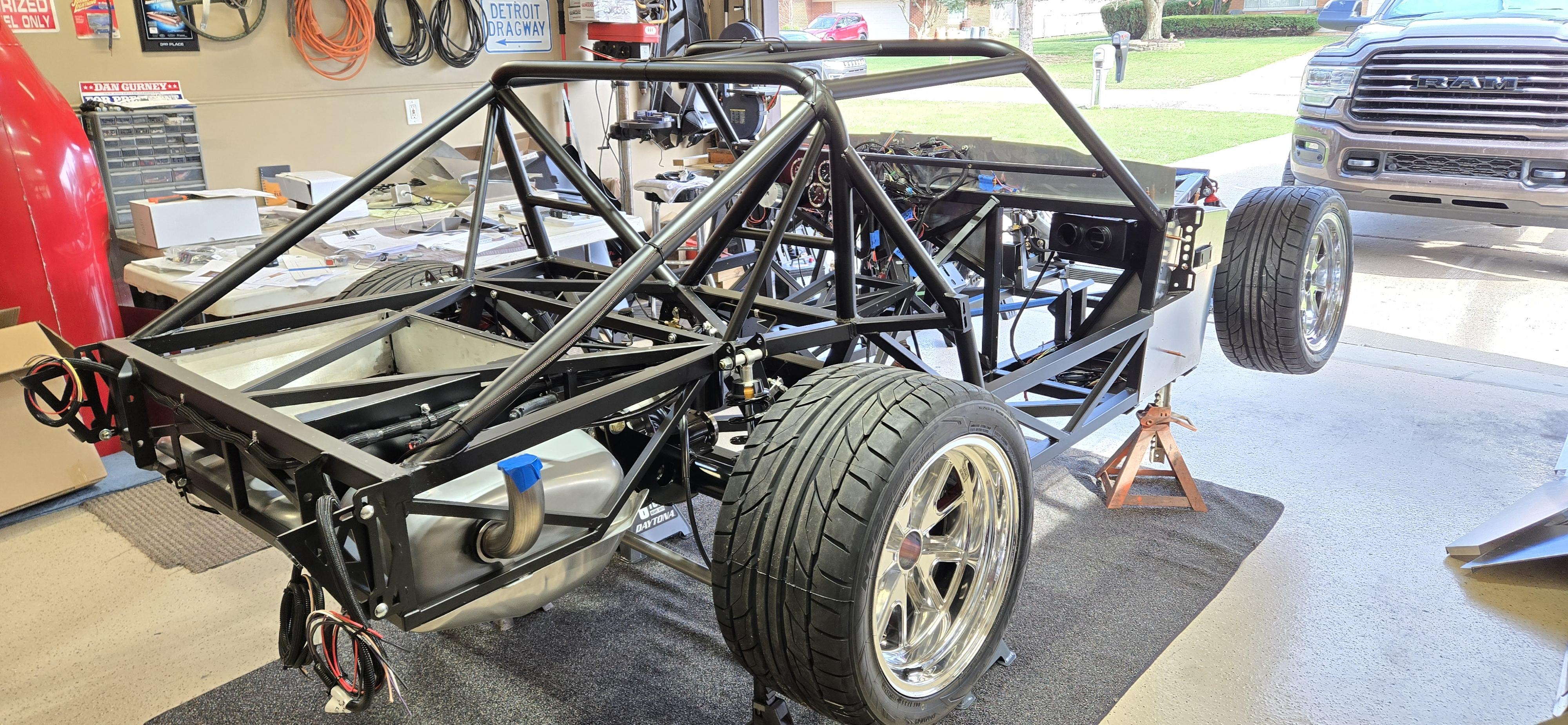

Wheels and Tires came in, so, pretty close to being a roller.

Attachment 212886

Attachment 212887

Attachment 212889

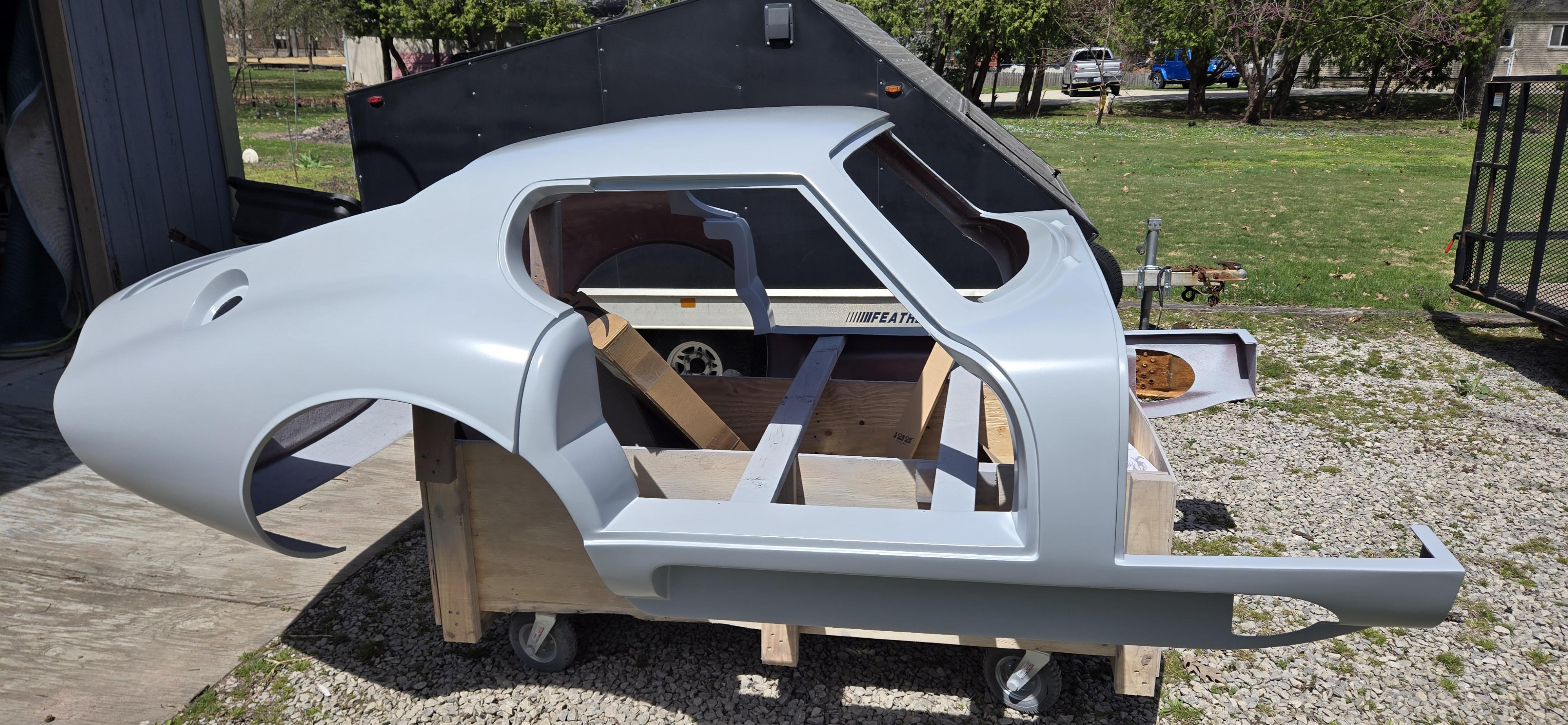

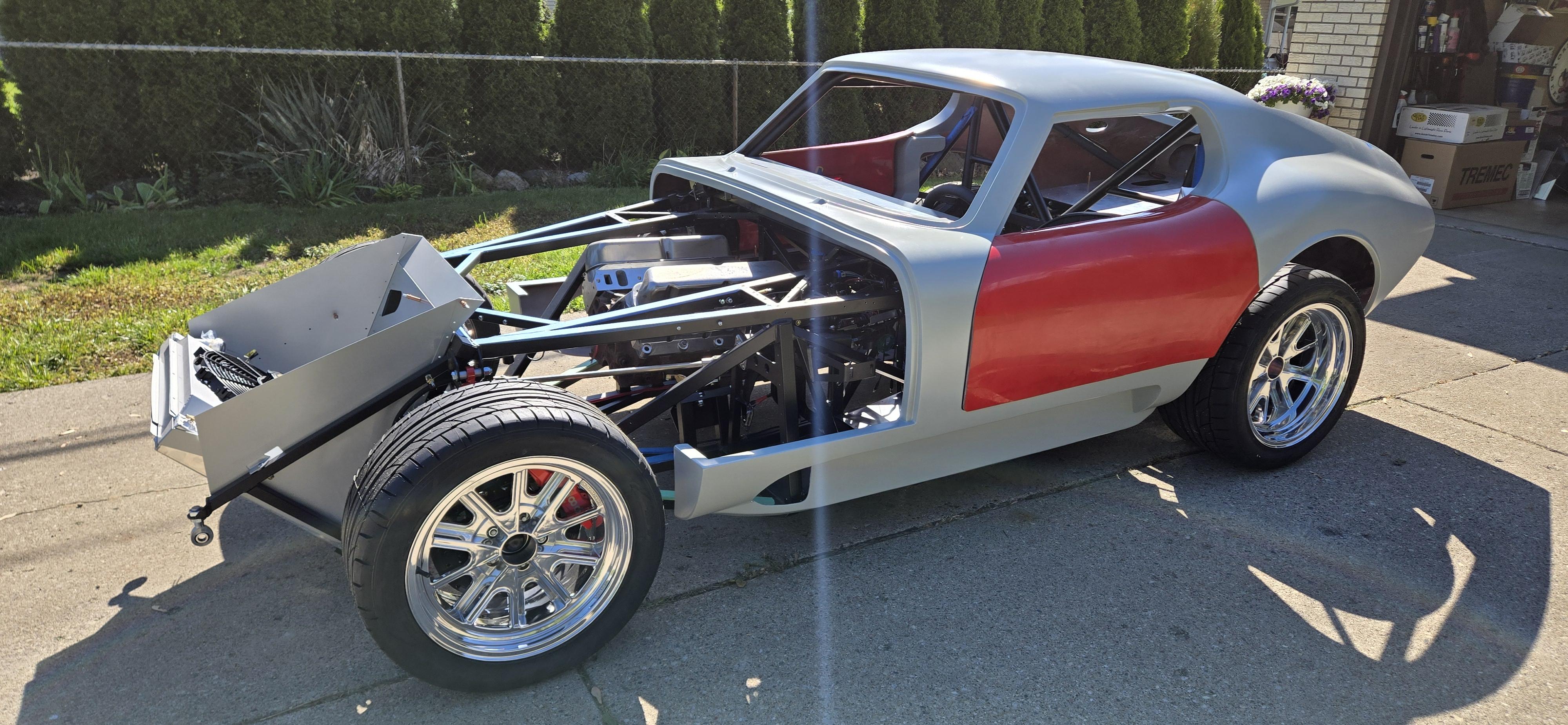

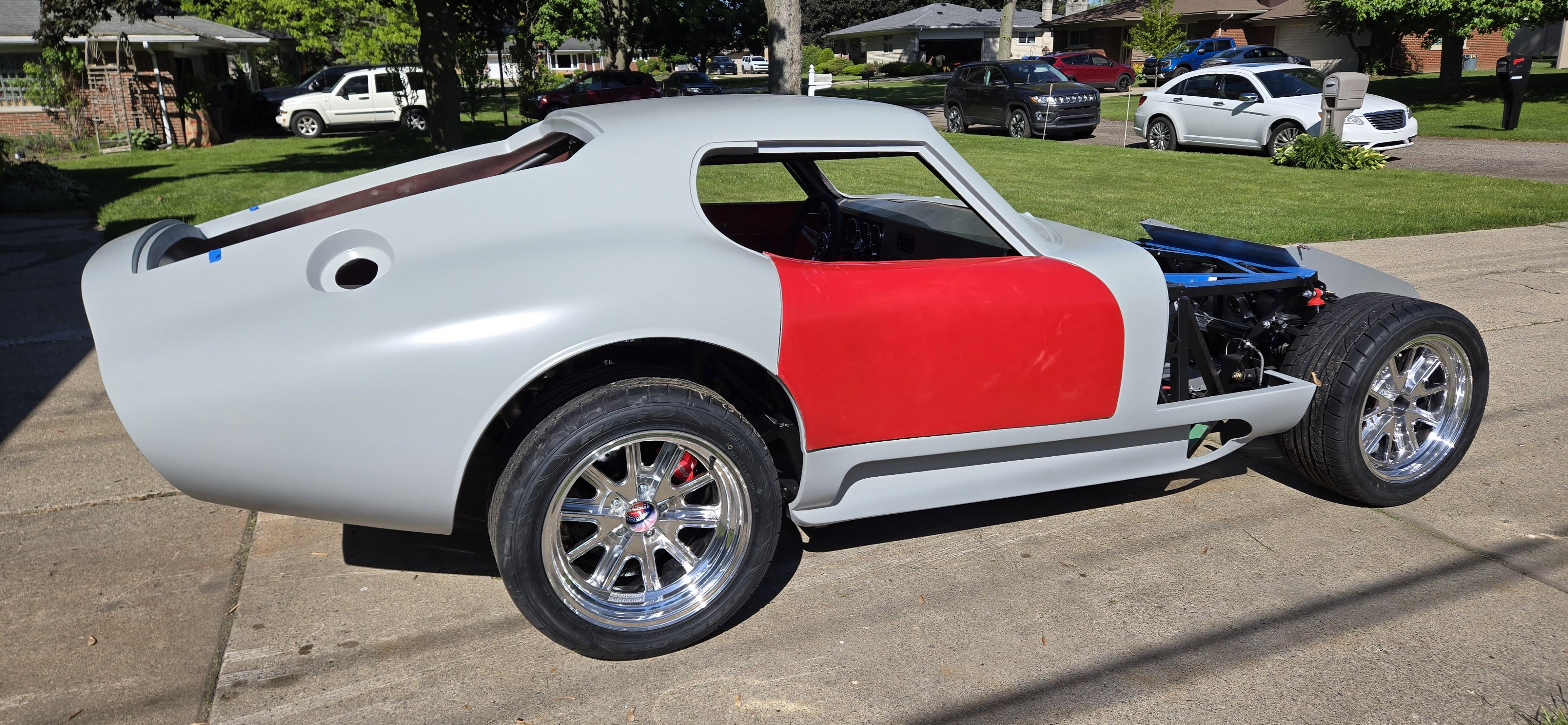

My brother has the rear body work is in 150, and was able roll it outside to get a little S.E. Michigan vitamin D this past weekend.
He will be starting on the nose shortly.

Attachment 212888

Looking good!

Those are some shiny Halibrands!

The build is shaping up nicely. What wheels did you go with.

Thank you.
American Racing VN427's 17x9's and 17x11's

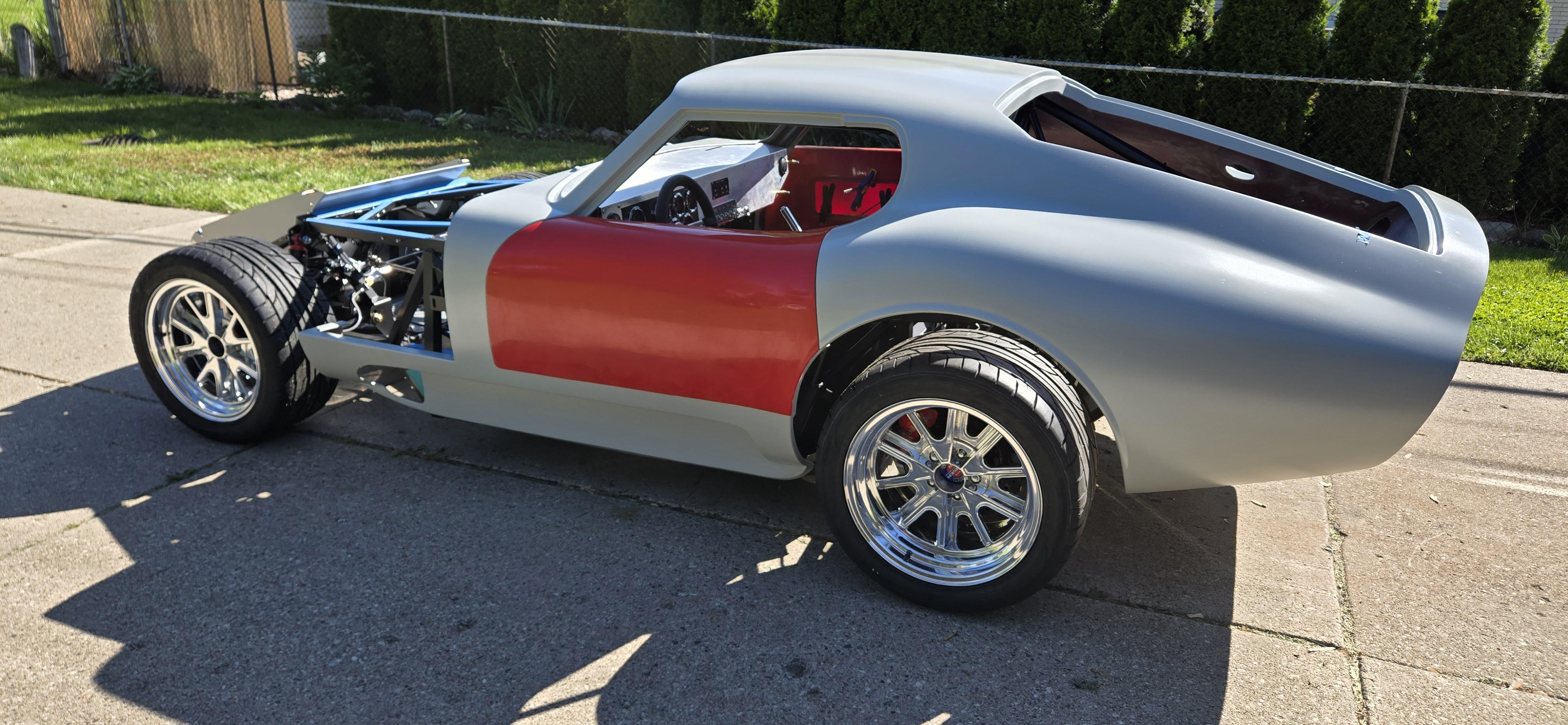

Got-er rolling this past weekend. Dropped in the Mock Block and Heads as well.

Almost ready for a spin around the block!

I just need to wire in the door switches once the doors are hung, and the Dome & Courtesy Lights will be finished.
Door and key on / off operated


https://vimeo.com/1081570374?fl=pl&fe=sh

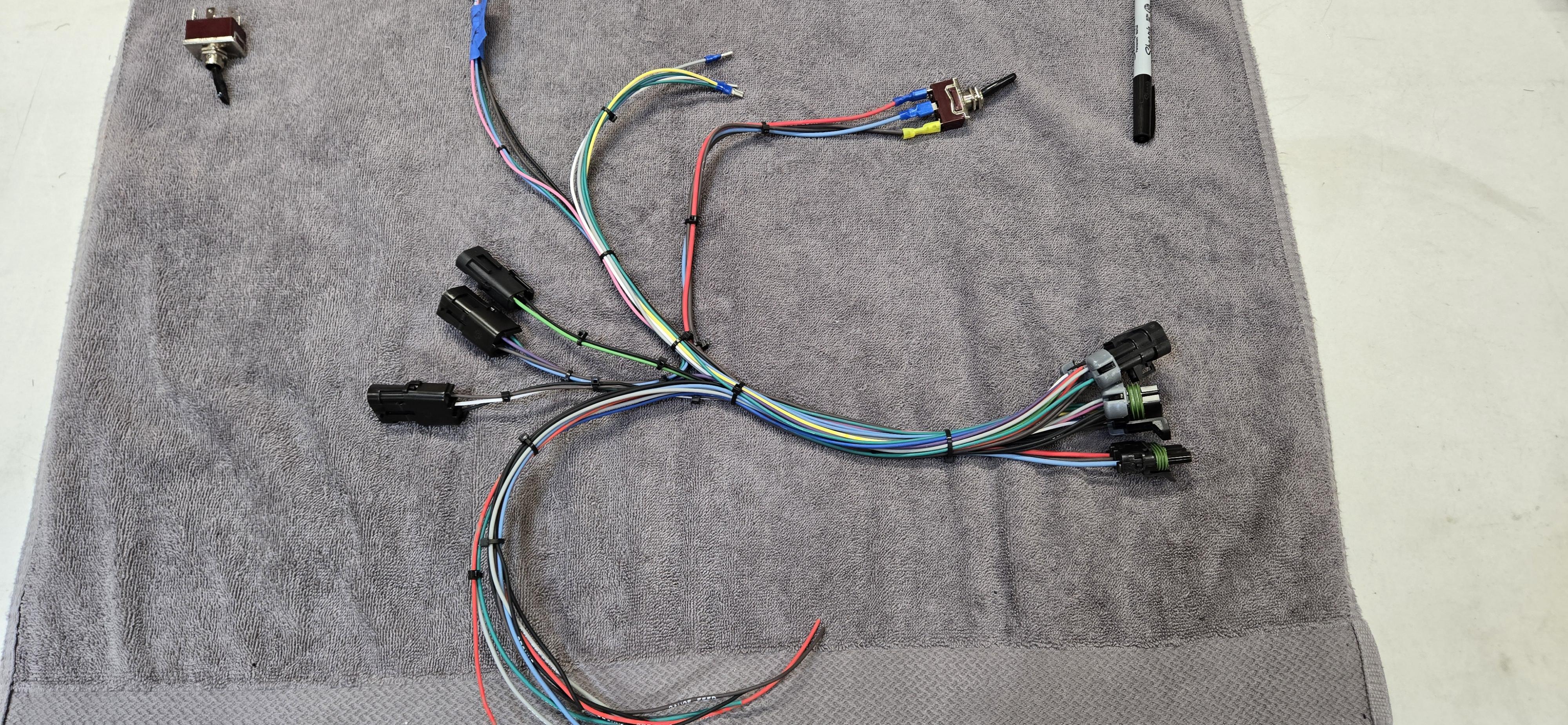

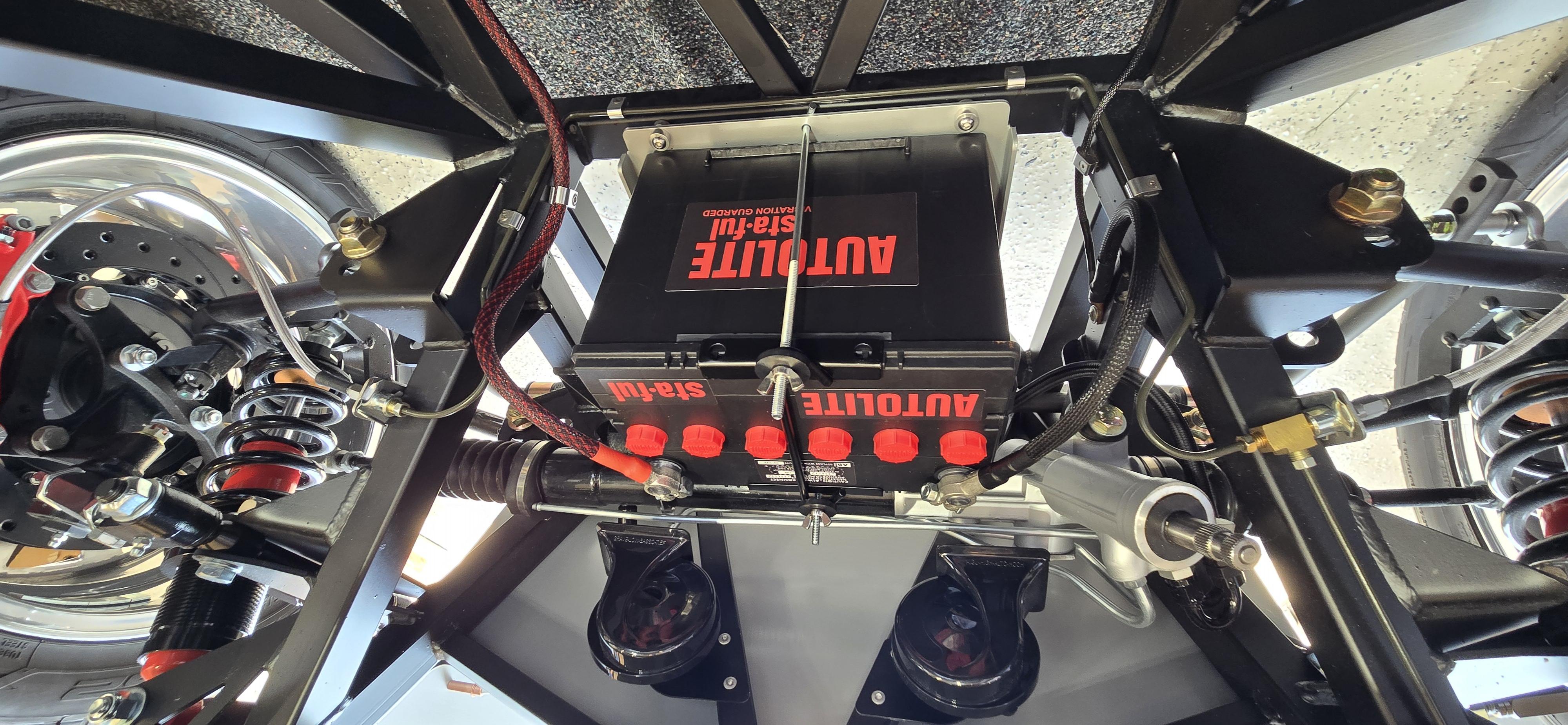

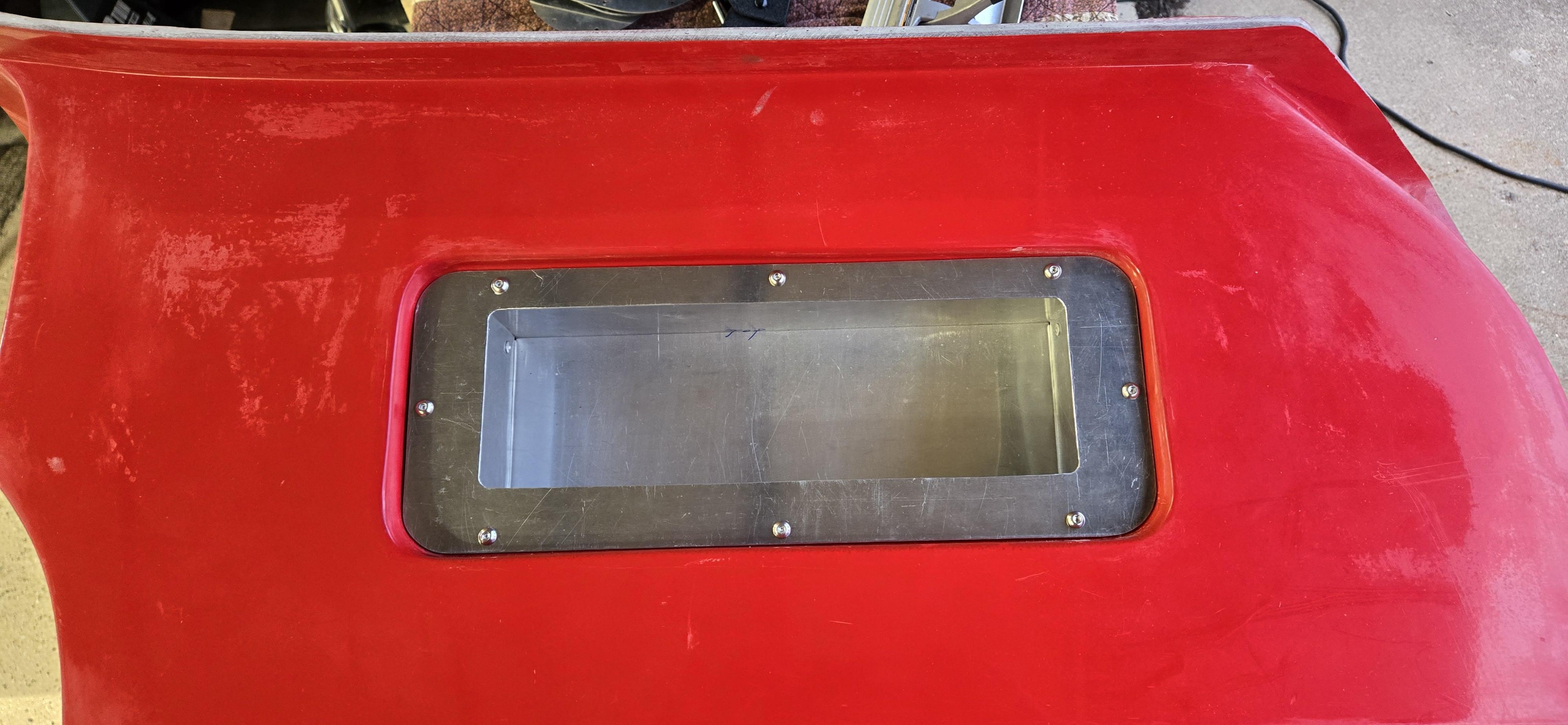

The last couple of months, I have been working on electrical. Like many, I put the RF harness on a diet, added circuits, and terminated everything using weather pack style connectors. I've added a Power Disconnect, Toggle Switch Panel, Reverse Lights and a dash mounted Reverse Indicator Light. Frank's (I.E. 427) Turn Signals, Low Oil Pressure Indicator light, a high mount 3rd Brake Light. Radiator Fan Override, Interior Dome Lighting with key on/off fading, a pair of Map Lights, Door Pockets with Phone Chargers, and a single LED inside the door pocked for night time low intensity illumination. So finally after a few months, the wiring is about 90% complete. I just need to terminate the A.C. and Windshield Wiper Motor when the fire wall panel is back from the Powder Coater and also the E.F.I. ECU when I receive the engine. Body is trimmed around the Door and Hatch Hinges, and lower frame rails. The body will come back off for Lizard Skin once the engine is here (hopefully in a few weeks), and all of the aluminum panels are back from the Powder Coater so I can get those installed and the interior shot with Lizard Skin Thermo and Sound Deadener. And I shortened up a set of 70 Mopar (Duster - Dart) Wiper Arms as well. The drivers side is 12" and the passenger side is 11" so it does not hang off of the windshield.



Attachment 216962

Attachment 216966

Attachment 216967

Attachment 216968

Attachment 216969

Attachment 216970

Attachment 216971

Attachment 216972

Attachment 216973

Attachment 216974

Tail, Brake, Turn, 4-Way and Reverse Lights

https://vimeo.com/1105118518?fl=pl&fe=sh
