Jim's Gumball2 Build Thread
A first for me: I'm going to attempt to document my Factory Five assembly in this build log.
First, a little background. This is my second Factory Five build. I purchased a Cobra kit in 2000 (FFR 2117), drove it 46.6K miles then sold it 5 years ago. After selling the Roadster, I bought a low mileage 2003 manual transmission C5 Vette. A very nice car, but it didn't scratch the itch like the Cobra did. So, I sold it this March and ordered the Mark 4 complete kit in May. The Roadster (FFR 10990) arrived July 26th, and after completing the inventory, the actual build commenced August 4th. Options I purchased included the IRS package, chrome roll bar (only item remaining on backorder/POL), 15" Halibrand wheels, 11.65" brakes, oil cooler, power steering, leather seats, vintage GPS gauges and some other odds and ends. One other item I requested was the base version driver side front footbox aluminum panel. When I built my first car, I used a Flaming River manual rack and manual brakes with the modified pedal. A few years later I retrofit a power steering system and while I was at it, installed Hydroboost assisted brakes. I can't overstate how much I enjoyed the power steering and brake upgrades. So, this car's using a 1995 Mustang pedal box allowing the relatively easy installation of vacuum assisted brakes, and as I mentioned above, I ordered the power steering option from Factory Five.
When I built my first car, I utilized the forums extensively for ideas and guidance. And now with YouTube, etc. there's so much more information available, well, it's fantastic. (I've already used I.E. 427 (Frank), Mike Everson, Paul Borror and others' expertise in my build.)
Anyway, I'm well into my build (I'm retired, so lots of time to dedicate to the project). Photos and more updates to follow.
I've attached a couple pics of 2117, licensed in Utah as "GUMBALL", hence this Gumball 2 build.
4 Attachment(s)
Upper Control Arms and Brake Lines
Over the past couple of days I attached/riveted the insulated brake line clips to the chassis and shortened the rear legs of the upper control arms. I ended up shortening the legs by about 9/16", so I should be able to get to the desired caster/camber values for power steering.
2 Attachment(s)
Dropped Trunk and Battery Box
Today I finished test fitting Frank's (i.e.427) dropped trunk kit and began the install of the Breeze front-mounted battery box.
I made the fuel level sender and pump covers removable instead of being riveted on as directed in the instructions.
5 Attachment(s)
Finishing the Fuel System
Today I completed installation of the fuel system, including connecting the PTFE hoses and hard-mounting the 3/8" SS lines to the chassis.
3 Attachment(s)
Indexing the Bell Housing

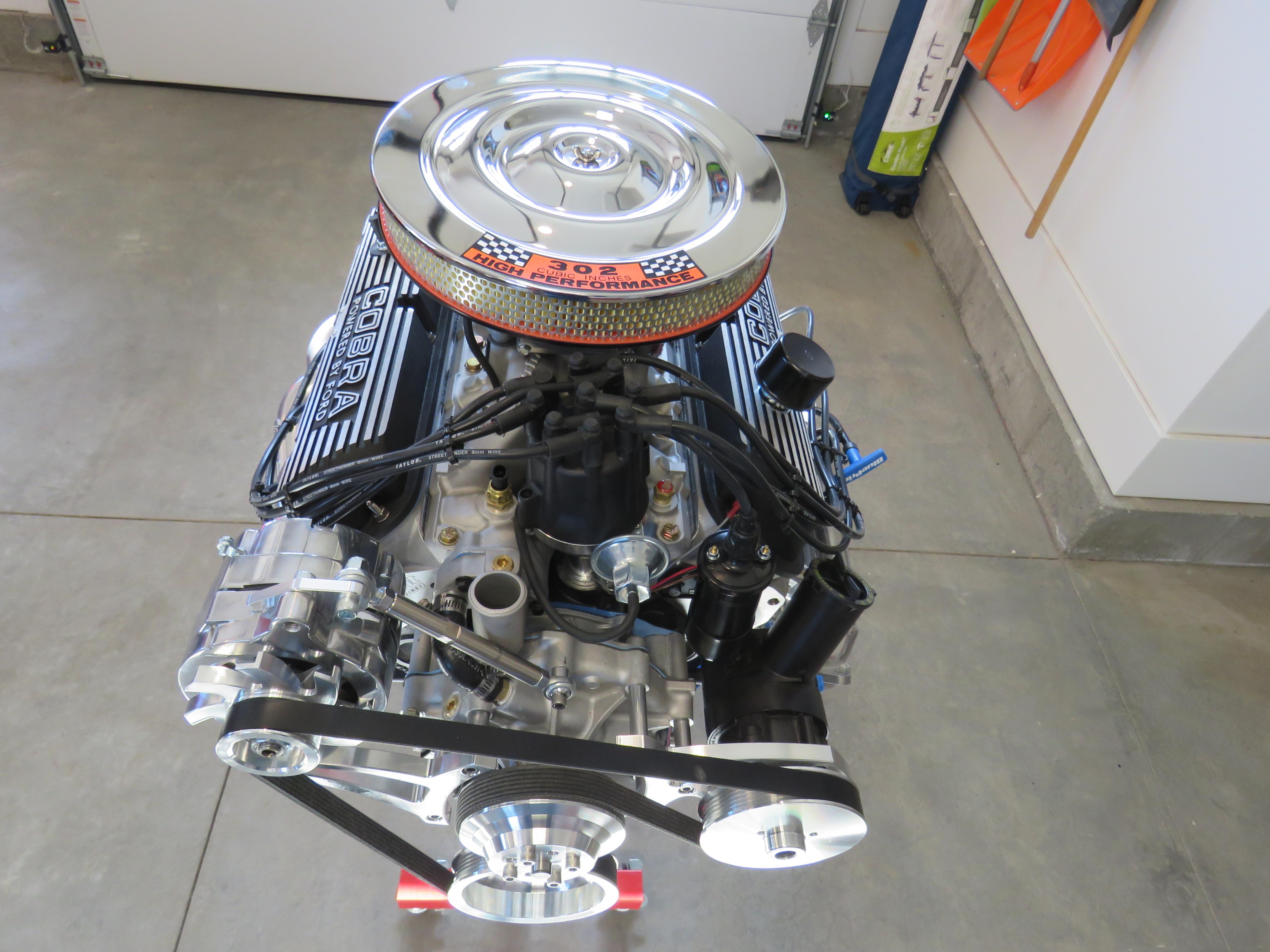

Earlier this week I installed my starter index plate, flywheel and bell housing. I then checked the housing for concentricity with the crankshaft and found that it was out of the called-for maximum runout of 0.005". So I purchased some offset dowel pins from Summit which I installed today. I rechecked runout and am now well within spec.
Here's a few pics of the process, with one showing my shop helper.

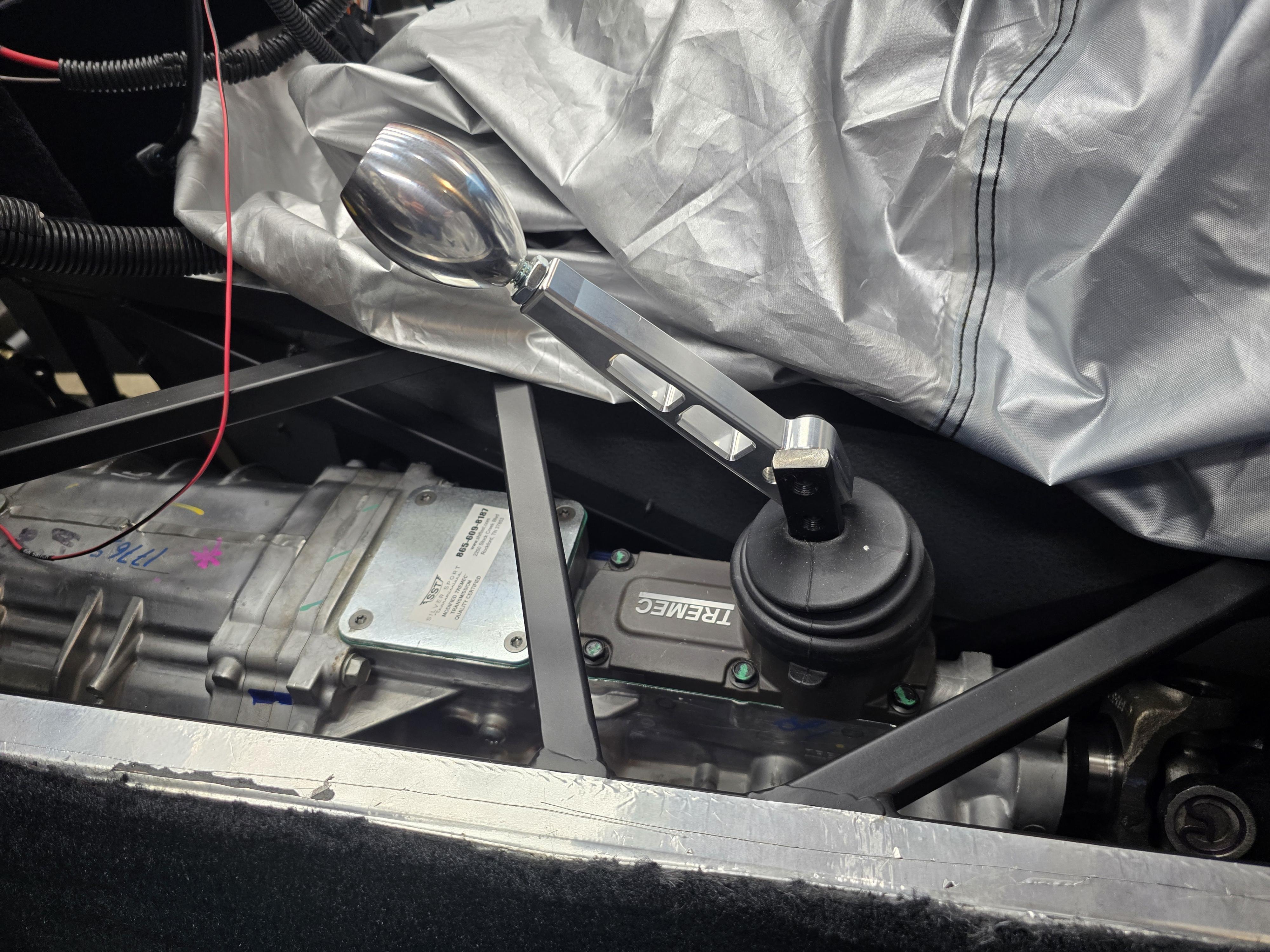

Within the next couple of days I should have the transmission connected to the engine, then it's time to install the package into the chassis.
5 Attachment(s)
Clutch Cable and Driveshaft Installs
The last few days have been dedicated to installation of the clutch cable and the IRS driveshaft. Like most things in life, nothing is as simple as you think it should be. (The driveshaft was a bit of a challenge.)
5 Attachment(s)
Mechanical Throttle Linkage Install
The last few days have been dedicated to installation of the Forte mechanical throttle linkage.
One of the things I wasn't crazy about on my first build was the cable-actuated throttle. I used a Lokar cable and although it worked, sometimes it would stick a bit and cause a slight idle hang. Most of the problems with the system could probably be attributed to the convoluted routing. (A large "S" bend from the front of the footbox to the rear side of the carb/throttle body.)
So, one of the early decisions with this build was to try Forte's mechanical throttle linkage.
Overall, I'm pretty happy with the install. However, I did have a couple of minor issues, one of which was self-inflicted.
To provide a solid mounting base for the two rod ends, I welded a couple of 2" x 2" angle brackets on the passenger side of the firewall to the top of 2" x 2" square tube. I then bolted the rod ends through the firewall and angle brackets, providing a nice, solid mount for the 3/8" shaft. However, I initially drilled the holes in the angle brackets about an inch too high, causing the driver side throttle lever to hit the top of the footbox. Whoops! So, I redrilled the angle brackets about an inch lower, providing adequate clearance for the footbox throttle lever. The black blanking plates shown in the attached pics are what I fabbed-up to cover the mis-drilled holes. (Don't tell anybody!!! But hopefully my screwup will prevent someone else from making the same mistake)
In my install I placed the two lever arms parallel with each other in an attempt to eliminate any wonky geometry and make the gas pedal-to-carb actuation as linear as possible. I guess I'll see how that works once I get my car on the road.
The second issue was due to my use of a Mustang pedal box. The rod from the Breeze throttle pedal to the driver side lever arm was hitting the clutch/brake cross-shaft in the pedal box. So, I redrilled the hole in the throttle pedal about an inch lower, providing the necessary clearance.
Now I'm working on connecting the fuel system to the carb and running a vacuum hose from the intake manifold to the brake booster. That will conclude most of the mechanical work, then it's on to more wiring.
4 Attachment(s)
Wiring: Starter, Alternator and Battery Cables
The past several days have been dedicated to wiring the distributor, alternator and starter, and fitting the battery cables.
Doesn't seem like much progress considering the number of hours I spent, but I guess that's the way it goes...
5 Attachment(s)
Wiring and Oil Filter Relocation
The last few weeks have been dedicated to continuing wiring the car and other things that crop up during the process that may affect access, such as installing a remote oil filter bracket.
I fabricated an aluminum bracket that's attached to the front X-member, with the bracket used to mount the remote oil filter.
I've also incorporated what I think are some good ideas found on the Forum and well as YouTube. Like Frank's (i.e. 427) idea to mount the headlight switch on the left side of the steering wheel and mounting the inertia switch on the right side of the dash in an effort to make the area behind the gauges a little less crowded. I also installed the trailer converter for the taillights in the rear harness, but instead of installing it behind the dash, I spliced it in near the fuel tank.
