Window Frame - Gap

On the Driver’s Side the Frame will not align up flush with the window. Since the frame is not flush I’m not able to screw in the top screw of the frame or close the gap.

Even holding the driver side window mount without any screws not able to get the frame to be flush with mount.

Please refer to the attached pictures for reference.

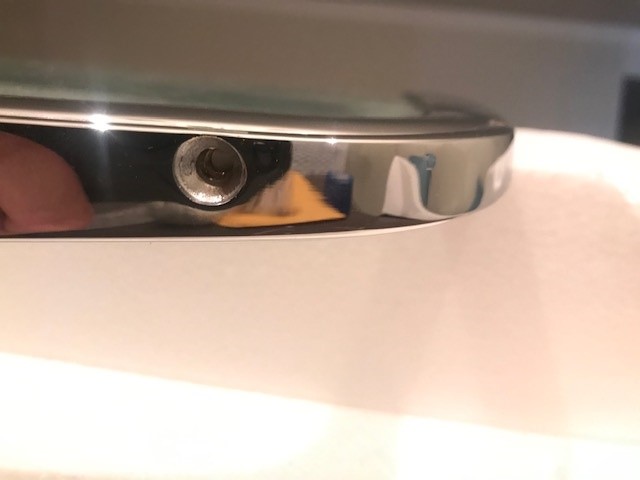

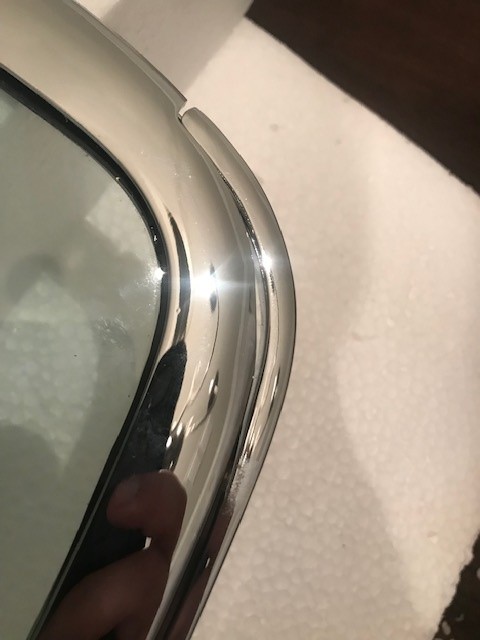

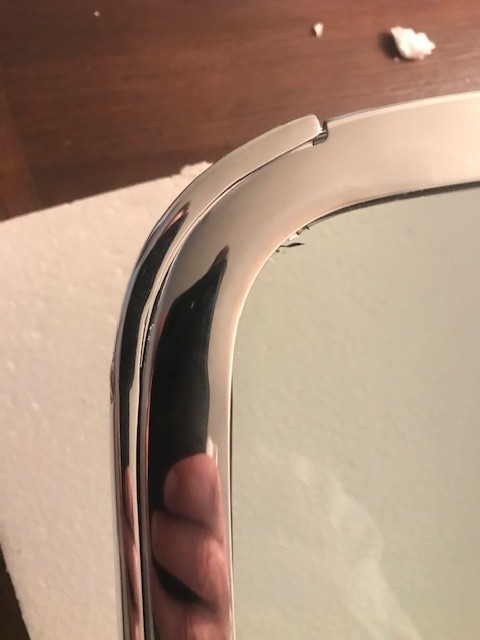

Driver side Pictures:

Attachment 155818Attachment 155819Attachment 155820

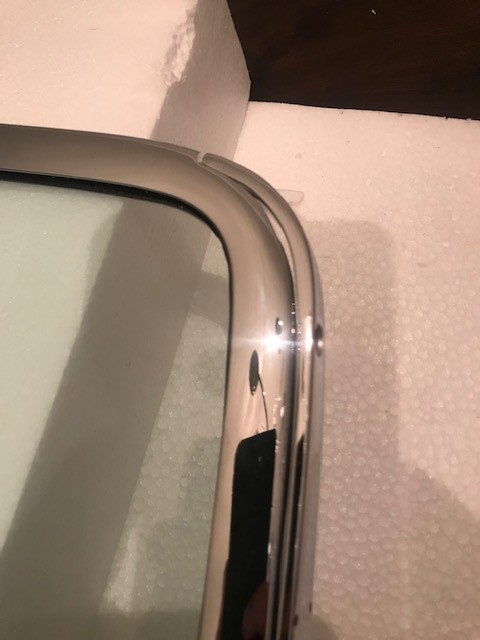

Passenger side

Attachment 155821

Can I move the brass insert?

Let me know if you have any additional questions.
Have an amazing day!



Side note - Thread your frame holes, way easier to line up window angle

The top bend is quite often a problem. The good thing is that it is made of pretty soft brass or bronze alloy so it is easy to bend. I'd bend it to fit the w/s frame curve better and then see how the hole lines up. Yes you can slide the brass threaded insert up or down in the frame. The worst part of all this is that it is a soft insert which means you only get a few tries at installing the screws before the threads strip out. I don't remember who but one of the well known suppliers offers a replacement piece made from steel.

Quote:

---

Originally Posted by CraigS

The top bend is quite often a problem. The good thing is that it is made of pretty soft brass or bronze alloy so it is easy to bend. I'd bend it to fit the w/s frame curve better and then see how the hole lines up. Yes you can slide the brass threaded insert up or down in the frame. The worst part of all this is that it is a soft insert which means you only get a few tries at installing the screws before the threads strip out. I don't remember who but one of the well known suppliers offers a replacement piece made from steel.

---

How do you slide the Brass insert up and down within the frame?
Thanks

Disassemble the bottom corners of the frame. That will get you access to the channel in the sides in which the brass insert rides.

Whitby makes stainless steel inserts for when you strip the brass. ;)


John

https://live.staticflickr.com/1826/4...deed355_4k.jpgIMG_4798 by jhsitton, on Flickr

+1 on the Whitby SS inserts.
for my top screws, I had a really hard time getting things lined up. I ended up cutting the head off of a screw, making essentially a stud that is threaded into the insert. The arm is then fit over the stud and secured using a SS acorn nut. The stud helped me get the other screws lined up and the acorn nut doesn't look too terribly out of place.

Quote:

---

Originally Posted by egchewy79

+1 on the Whitby SS inserts.
for my top screws, I had a really hard time getting things lined up. I ended up cutting the head off of a screw, making essentially a stud that is threaded into the insert. The arm is then fit over the stud and secured using a SS acorn nut. The stud helped me get the other screws lined up and the acorn nut doesn't look too terribly out of place.

---

100%

add another +1

Whitby for the win. Best money I spent on my build. Worth every penny
