for those of you who have the carbon fiber dash and the Russ Thompson turn signal - I followed the "newest" directions and the "newest" template and drilled the oval hole for the steering shaft...
After opening the hole a bit more (side to side) to get the RT mount in there, the dash still sits VERY HIGH

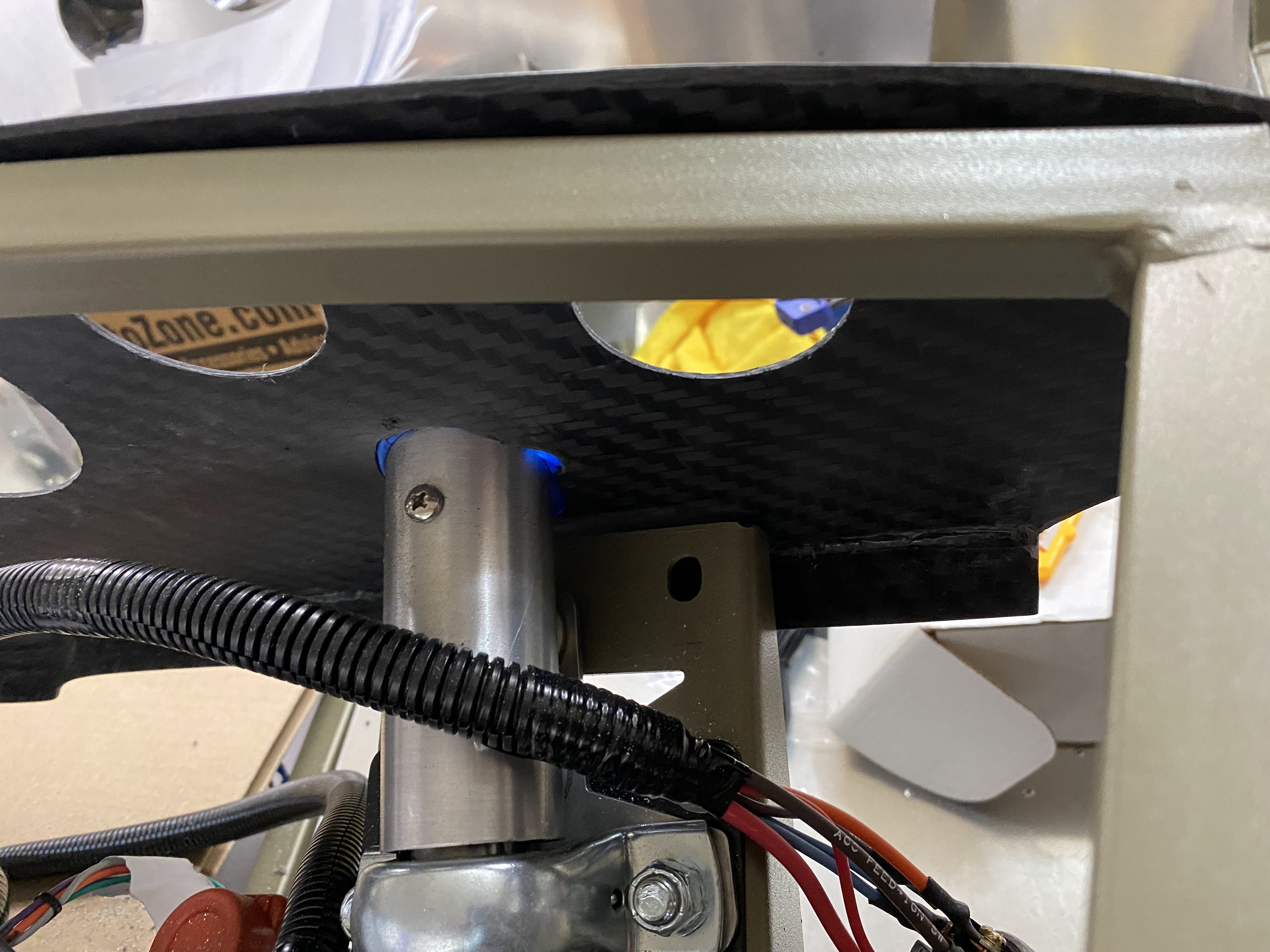

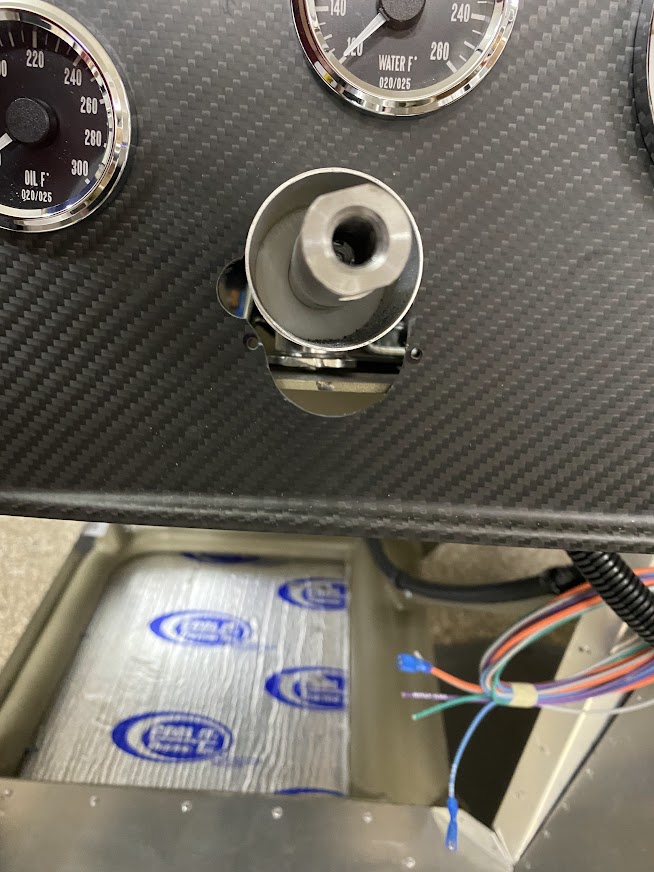

Attachment 152114 Attachment 152115
anyone else experience this? I didn't add any extra washers for the RT mount either, the steering shaft cleared the square tube no issues...
Yes. I had to elongate the opening for the steering column and I machined an aluminum trim/cover plate to cover the hole. I think I’ve seen that someone makes and sells a trim plate cover. Mike Everson (sic) maybe???Quote:
Originally Posted by toadster
Ok thanks - I have the trim plate already ;)Quote:
Originally Posted by Otee453
Just didn't want to ruin a CF dash - can't hide mistakes on this!!
I think you will be ok. Its not unusual for the dash to go higher than the bar. remember you can also trim the top if needed.
Mike
Measure twice, cut once. :rolleyes::confused:
My dash on the lateral portions sat high as well with the center of the dash pretty low on the hoop. Mine was not quite as high as yours but I did not use the RT turn signal. Like Micheal Everyone said, it is CF so you can grind down the high spots to let the body sit correctly on the frame when it is time. I had to trim mine down on the lateral portions a little as well to ensure it did not interfere with the body.
Quote:
Originally Posted by nucjd19
thanks guys - I don't think I'll be able to get the driver side any lower, may have to do 'the shave' on the top
middle and passenger looking better now

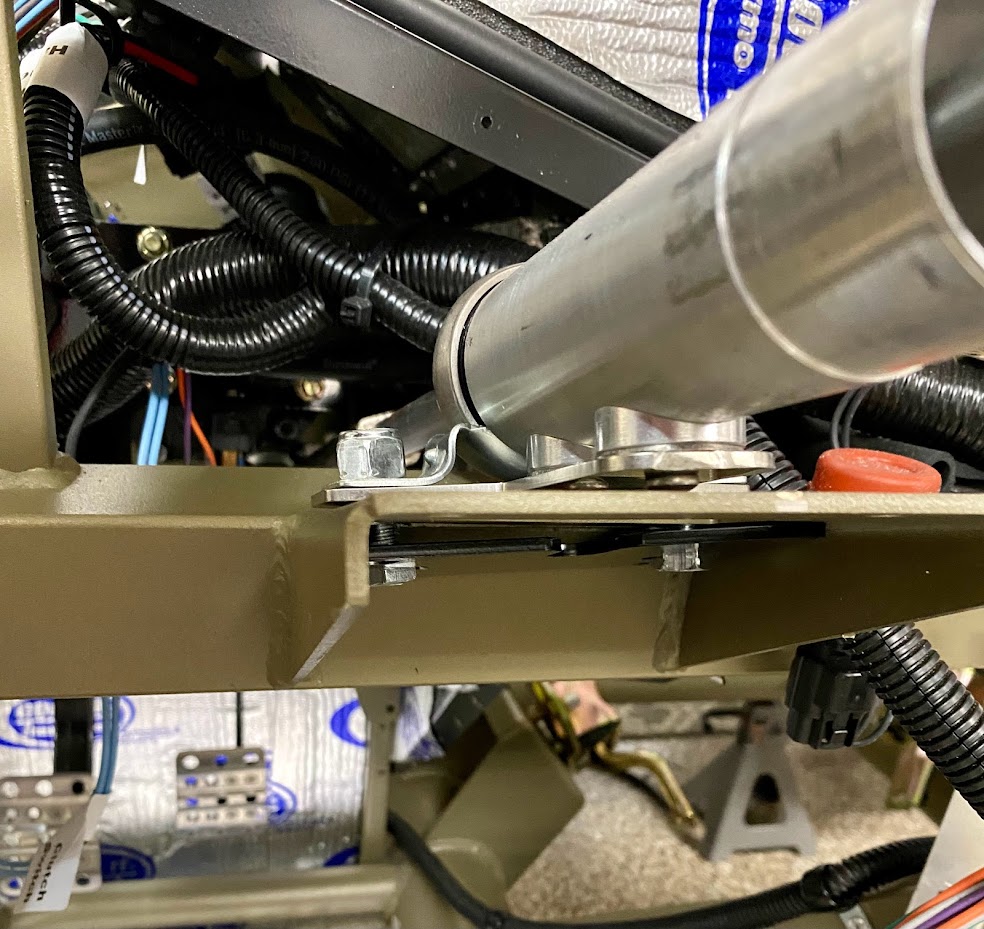

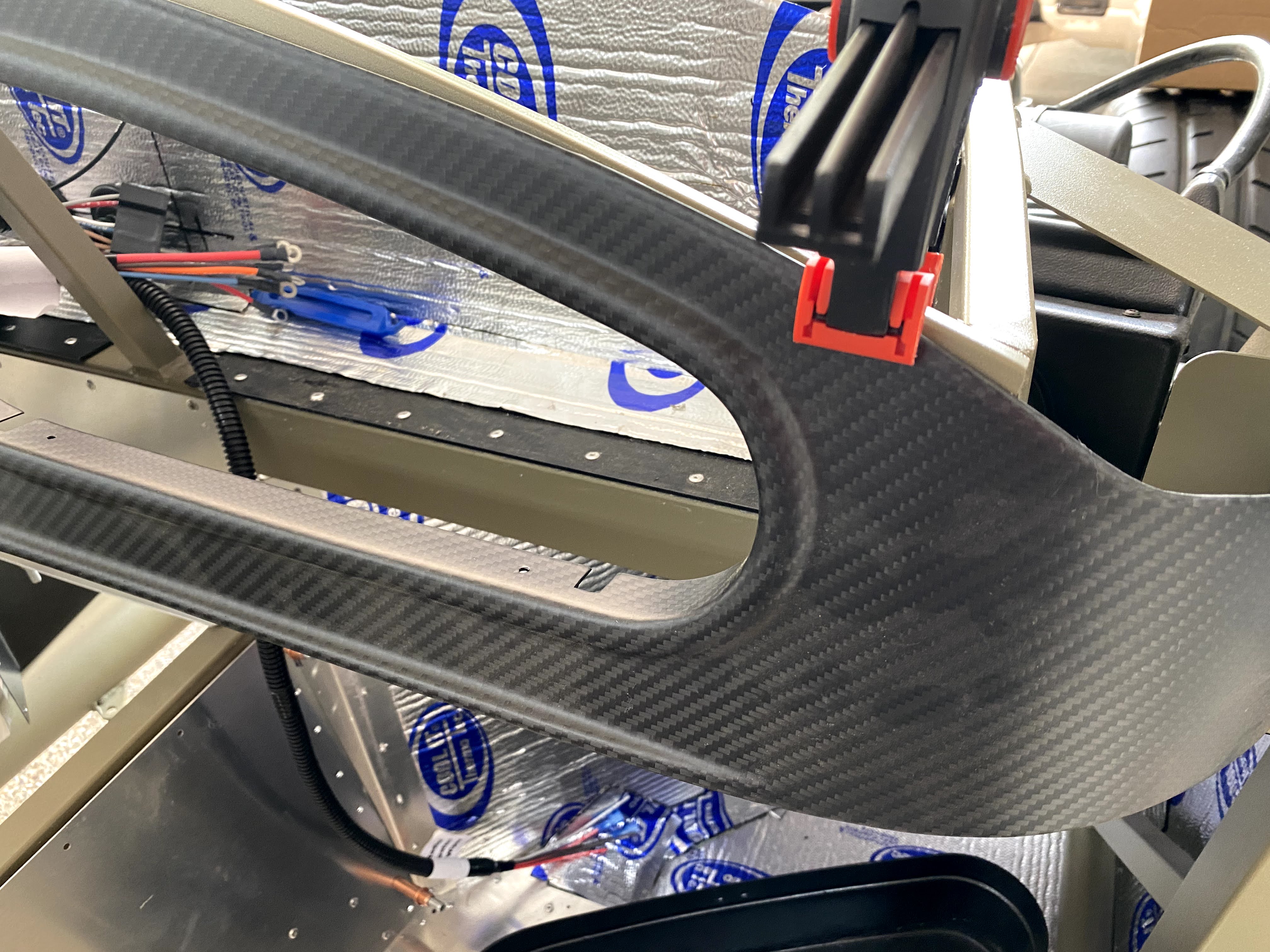

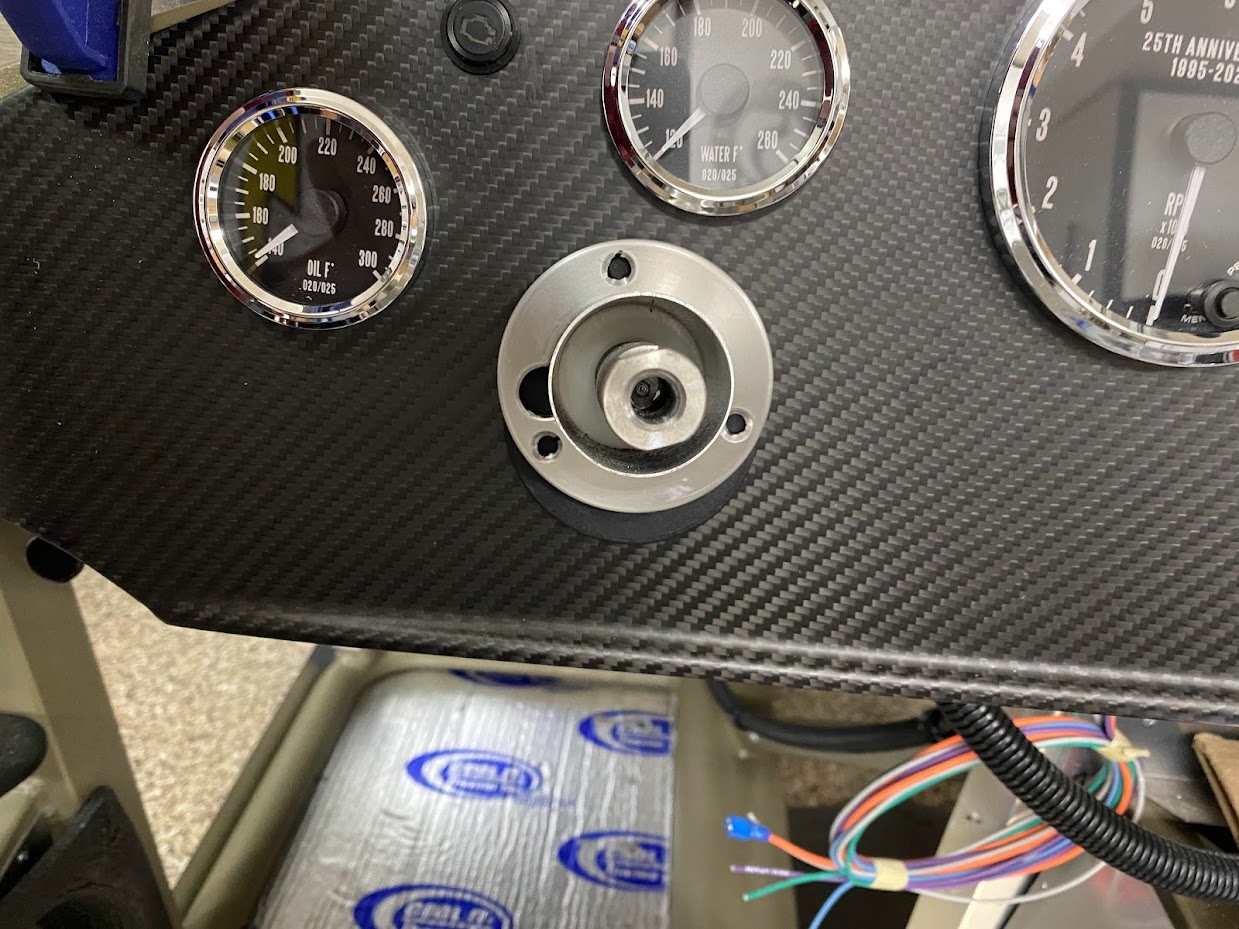

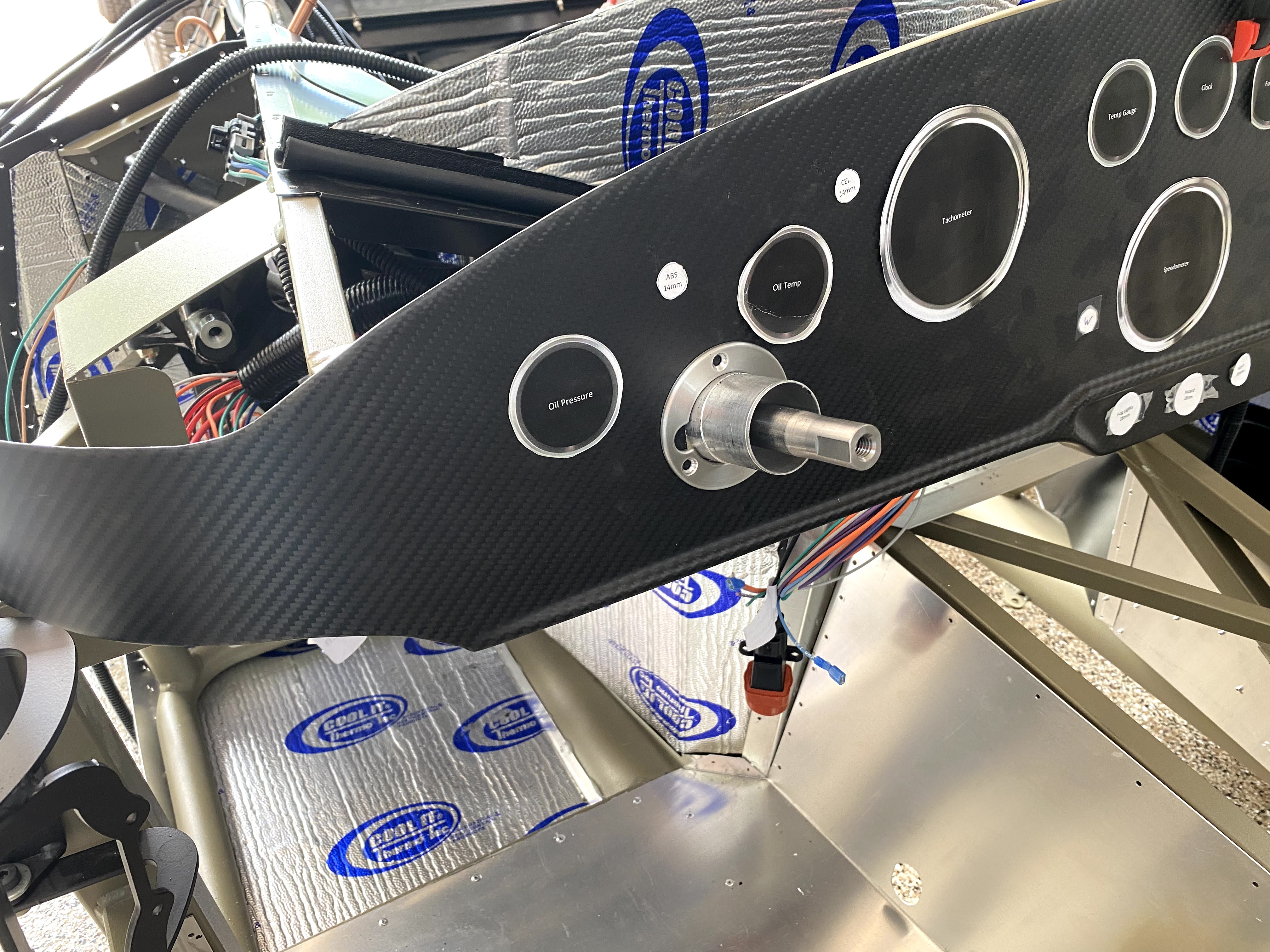

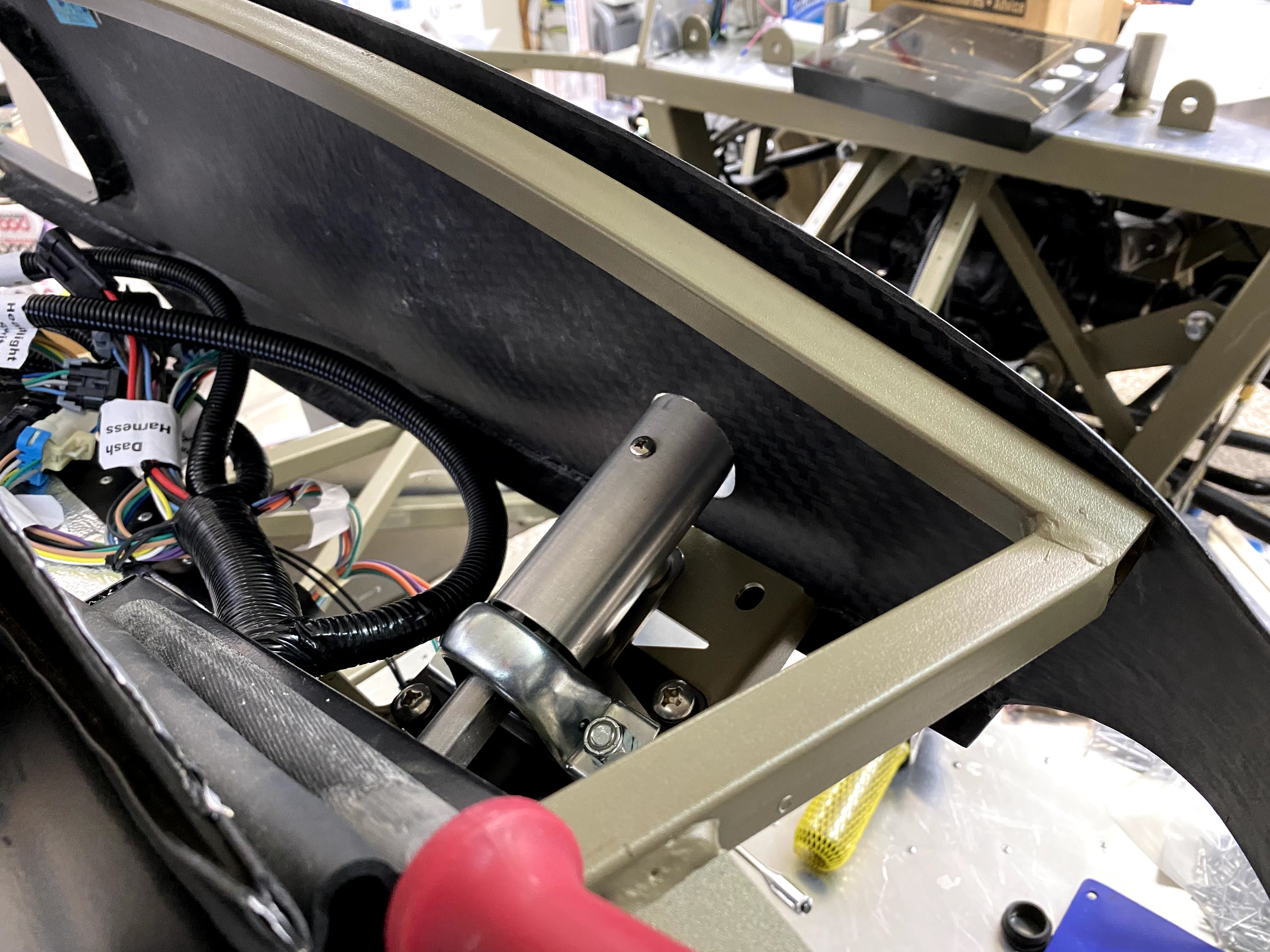

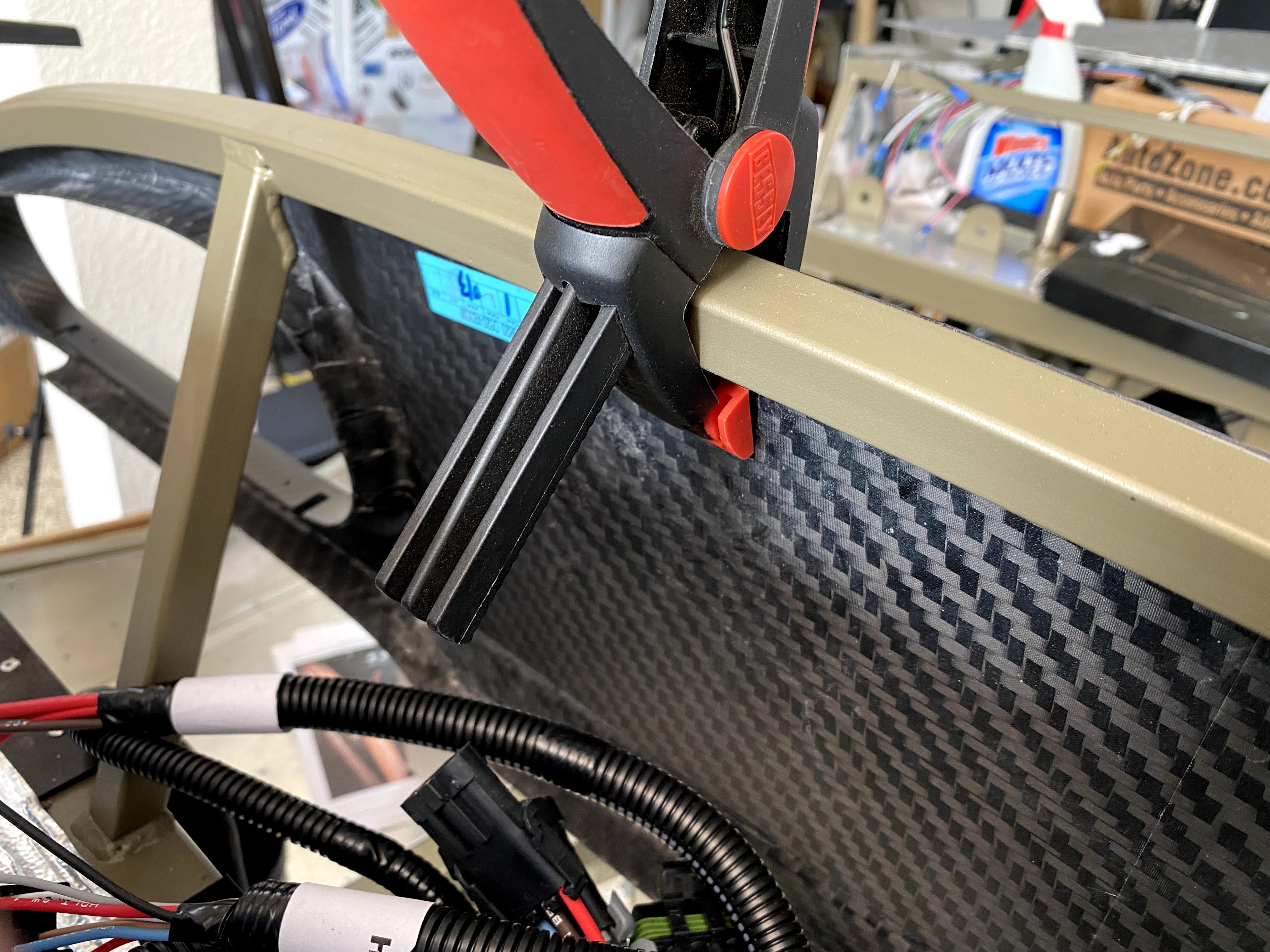

Attachment 152119 Attachment 152120 Attachment 152121 Attachment 152122 Attachment 152123
now I can finalize my dash layout, move things around a bit since the steering column moved...
almost ready to start gauges!
Looking good! Don't forget to open the hole on the 9 o'clock position of the RT turn signal tube for the wires. I'd make it just slightly larger than the trim ring to ensure you don't have the wires sitting on a carbon fiber knife.
Quote:
Originally Posted by Papa
yup! got it marked off, will wait till I start setting gauges out and then drill the wire hole and 3 screw holes :)
thanks!
My CF dash was high stress when I started drilling that thing. Like you said, no way to hide a "whoops" on it.
so for those with the carbon fiber dash, I see a few issues
1. the FFR template is not really 'on' when it comes to the steering shaft, especially with the RT turn signal width
2. the glovebox tends to really restrict movement to the left as it hits the center brace of the dash hoop
3. I'm still above the top of the hoop on the driver's side - and already pre-drilled an idiot light for the CEL according to the SC dash setup
I need about 1/2" drop to get it to fit correctly...
any suggestions before I go buy another CF dash? :(

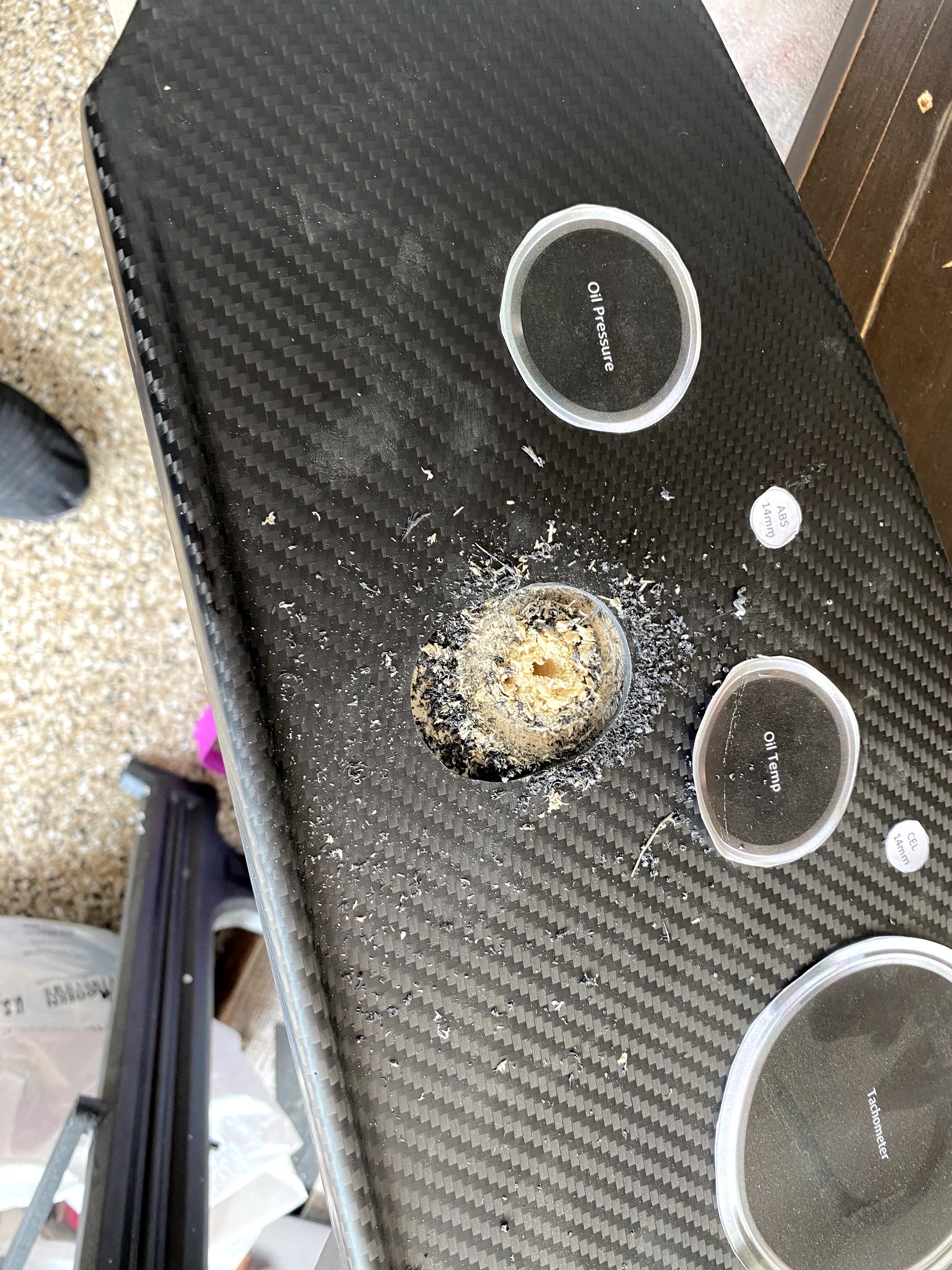

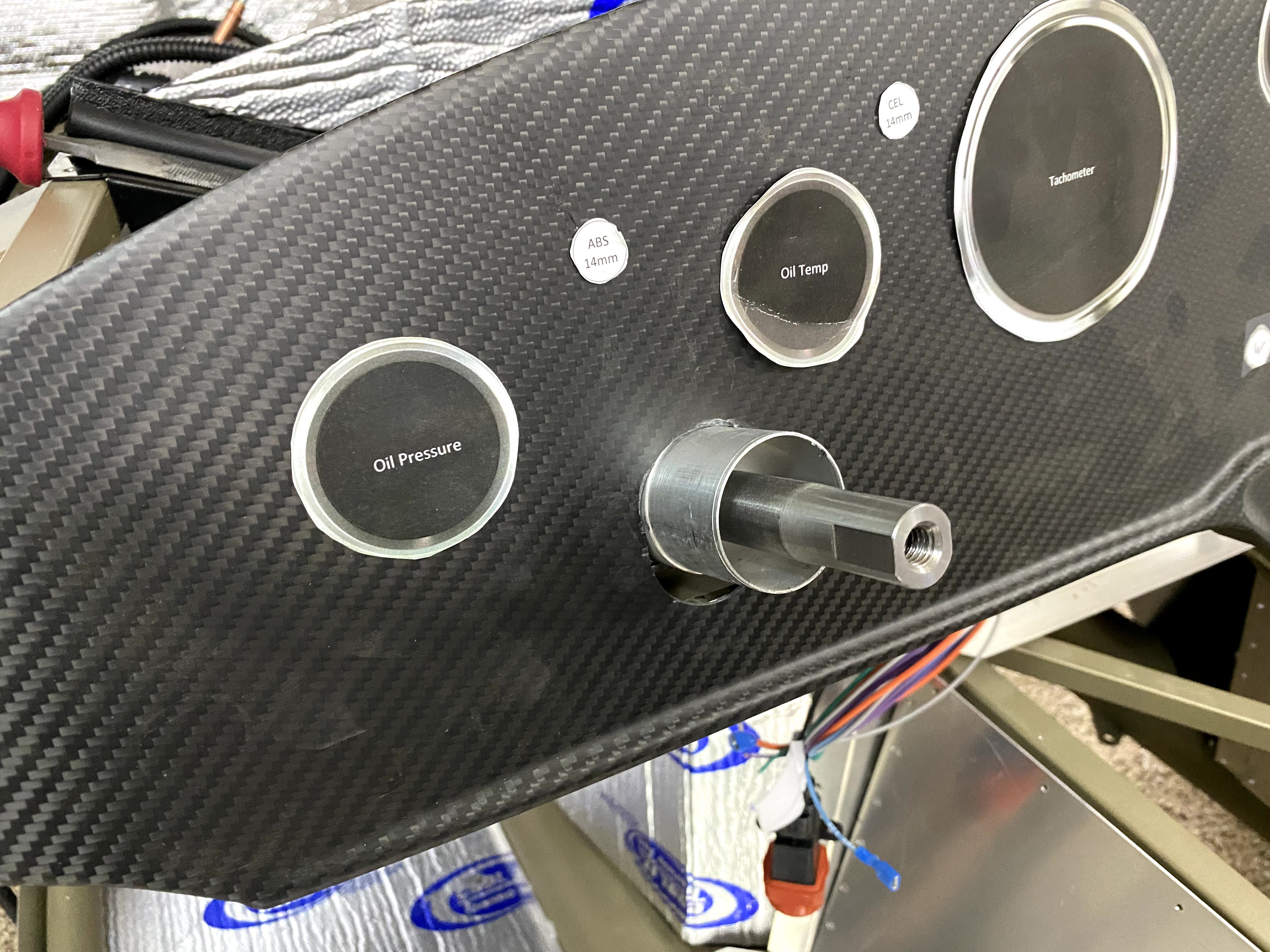

Attachment 158206 Attachment 158207
Oh Man, I hope you don't have to buy another dash!! I think I will make a exact template out of hardboard before I do any cuts on mine. Thanks for the post! I hope you figure it out.Quote:
Originally Posted by toadster
I'm going to try to move the RT turn signal mount under the steering shaft mount that may save me 1/4" of height

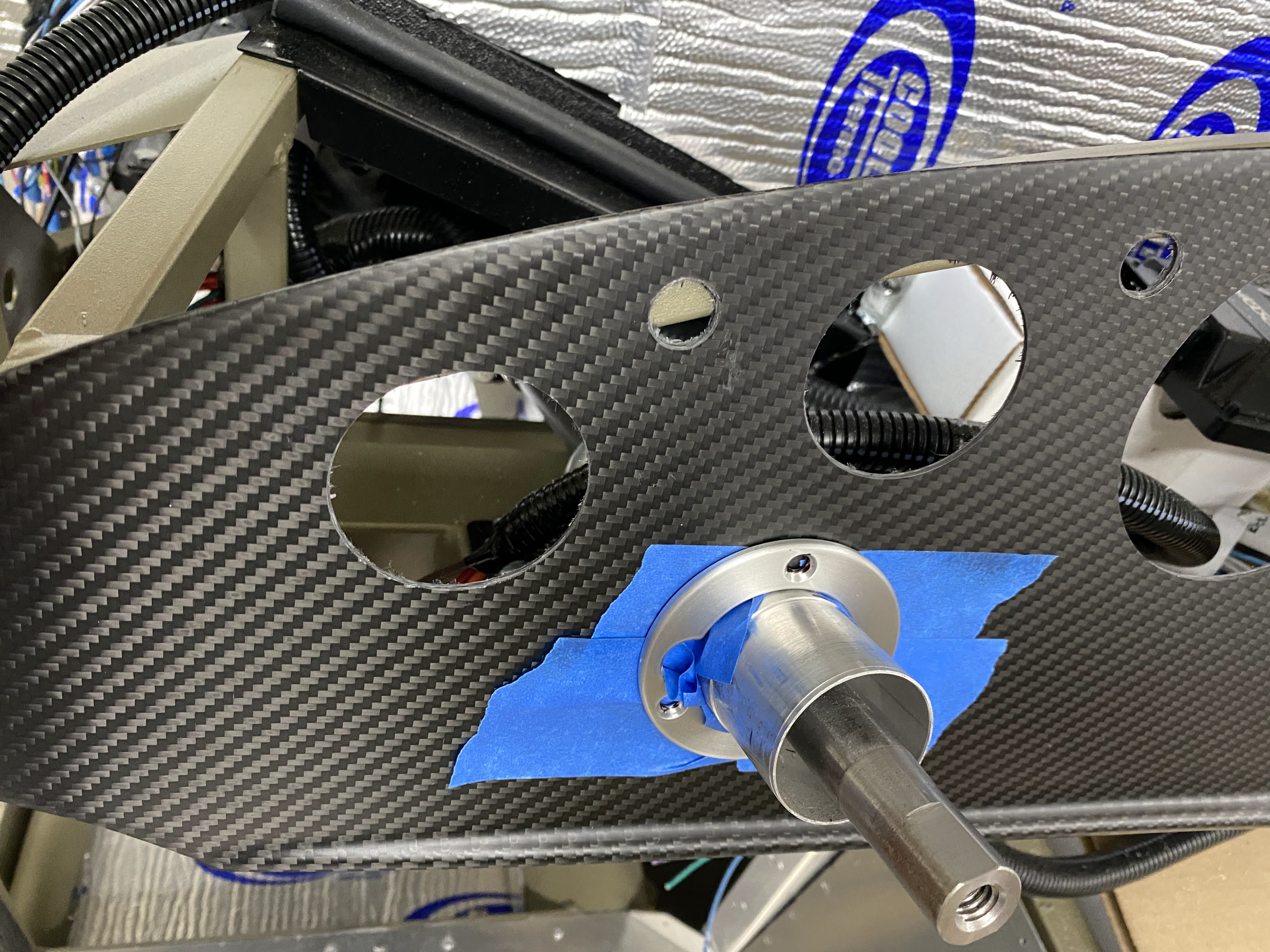

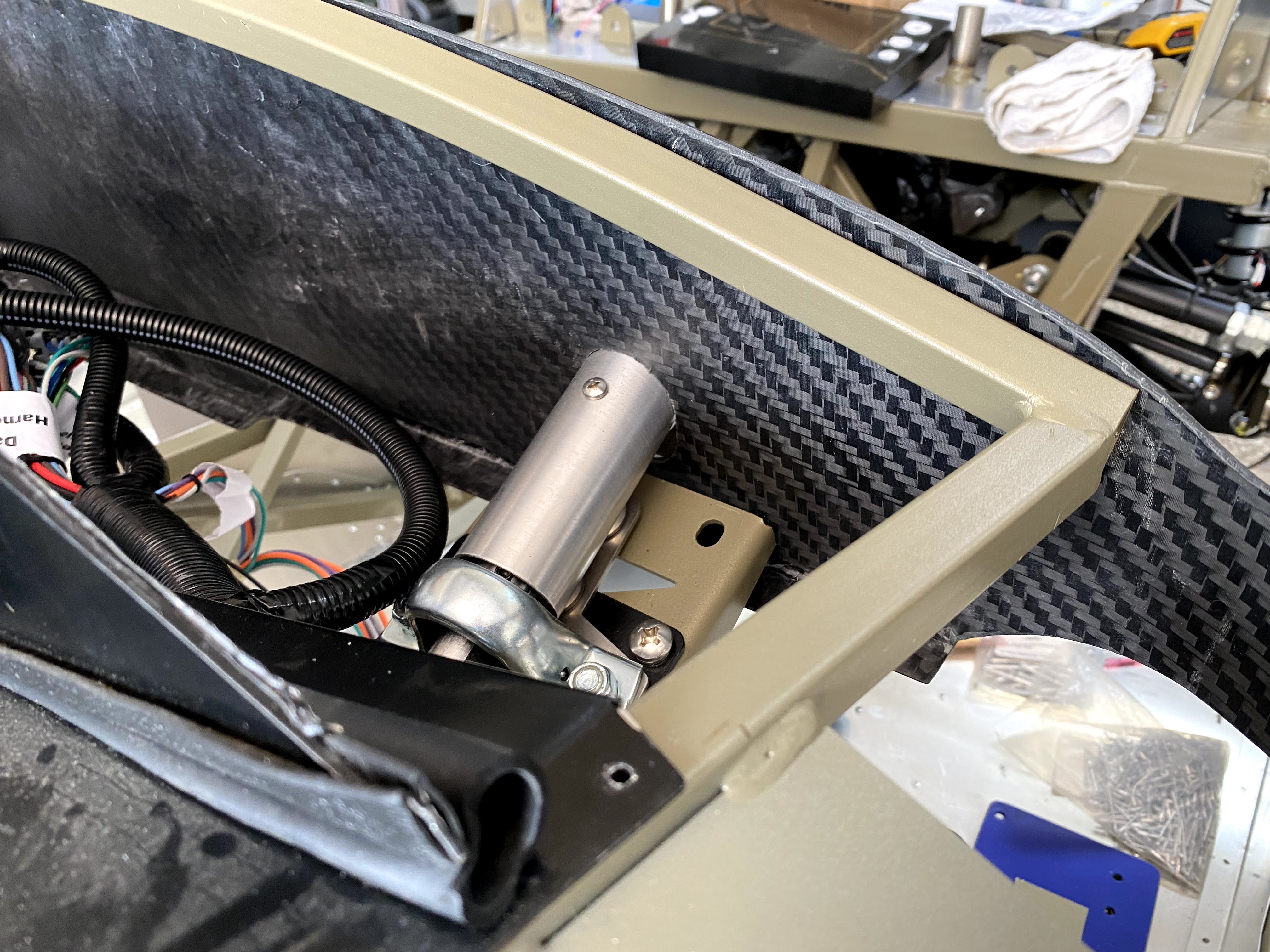

Attachment 158208
well that seemed to help quite a bit, I have a small gap under the trim piece, but I'm not going to fret over that...
my son is going to 3d print a black washer that will hopefully cover the gap

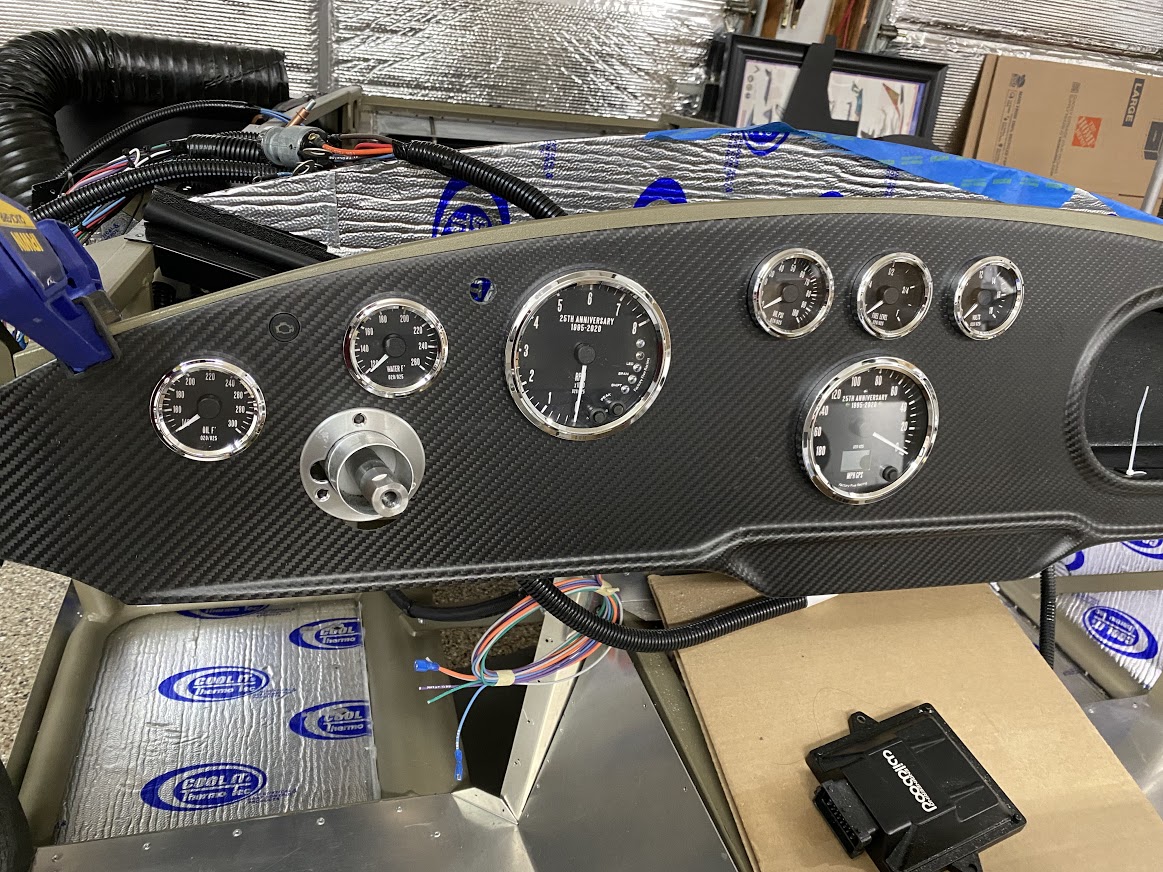

Attachment 158209
just for reference, this is the bottom of the hole from the FFR template... obviously WAY off for a RT turn signal
Attachment 158210
Todd,
I have an idea... Contact Russ Thompson and see if he can make you a new one that is oversized? Send him a template. Of course the custom oversized one will cost you accordingly. And then if he will return the one you currently have and give you credit towards the custom one. Anyway, I will then buy the one returned to Russ at full price, after Russ puts his polish, touch, approval on that one as being brand new redurb whatever, the part remains at normal cost minus your shipping it back. Anyway - You win. Russ wins. I win too! It's a thought... I still need one and willing to get yours. Just throwing out the idea. I don't need a discount, rather keep it level and honest. I really like his products and they are worthy for full price. Of course it's up to Russ if that works, but if I can help and keep the product the same cost as normal and WE ALL WIN, then it's all good to me!
measure twice cut once
LOL I did and FFR even sent me their latest template!!Quote:
Originally Posted by rich grsc
Great idea and I'll even buy Todd's RT ring from him.Quote:
Originally Posted by ydousurf
Factory 5 really doesn't "design" their stuff geared towards aftermarket suppliers parts. I've never liked the elongated opening even on the supplied aluminum pre-punched or blank dash panel. Too bad there aren't any helpful youtube videos for F5R dashes cause that would be really cool. :confused:
Toadster. I hate to tell you this but you are likely going to see the top of the dash once the body is on. Most I see dont cover the 3/4 tube when installed.
Mike
so you're sayin I need to raise the dash from the last photo - correct? I think it should be 3/16" lower than the bar on the sides (according to what I've read) but unsure if the CF dash has the same dimensions as the standard metal dashQuote:
Originally Posted by michael everson
also - here's the 3D print to cover the 'hole' - my son also printed a couple of chamfered washers for the dummy lights
Attachment 158226
