Brake Proportioning valve ports

Printable View

06-26-2021, 11:06 PM
Jaguar Engineer

2 Attachment(s)

Brake Proportioning valve ports

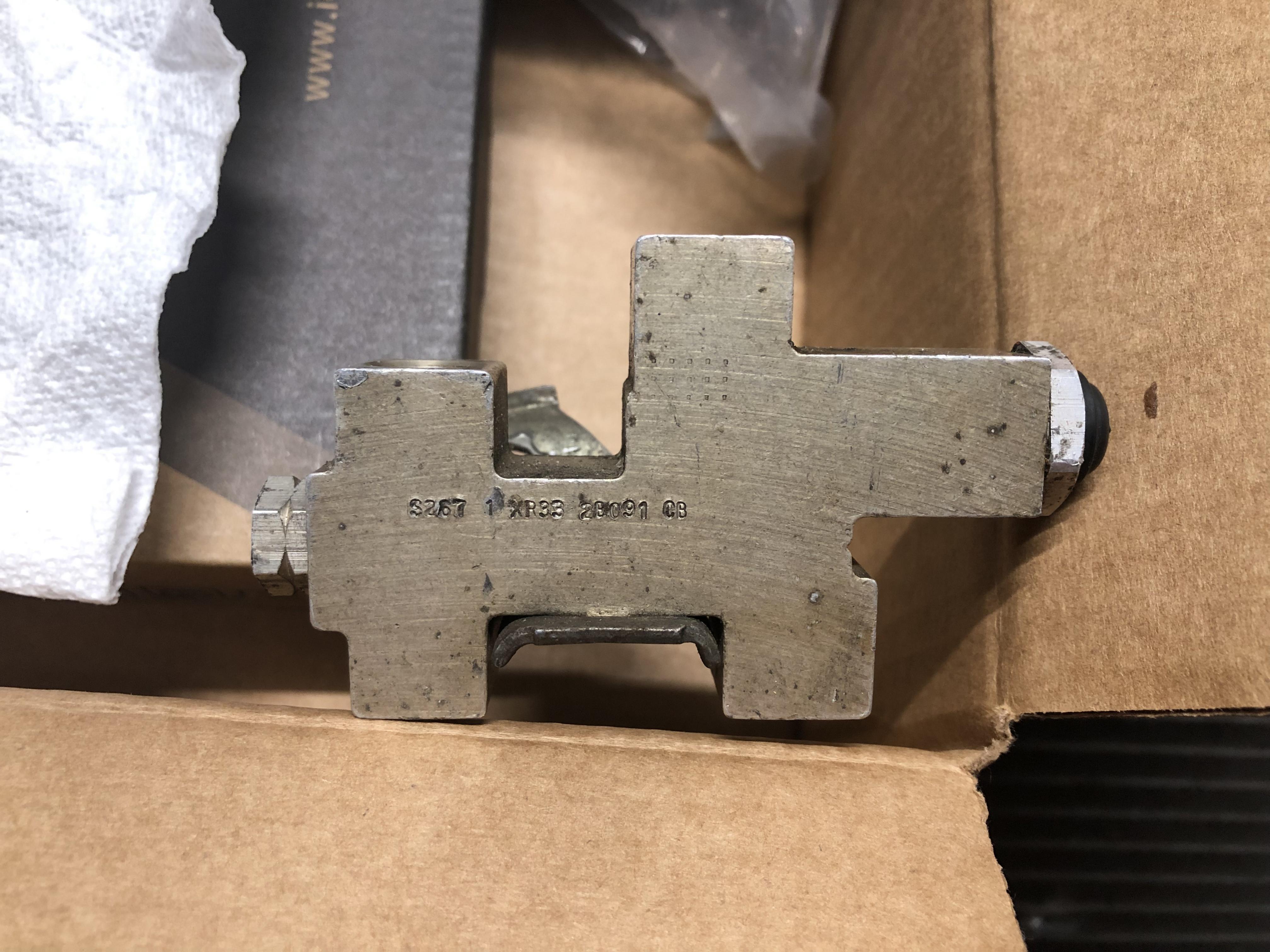

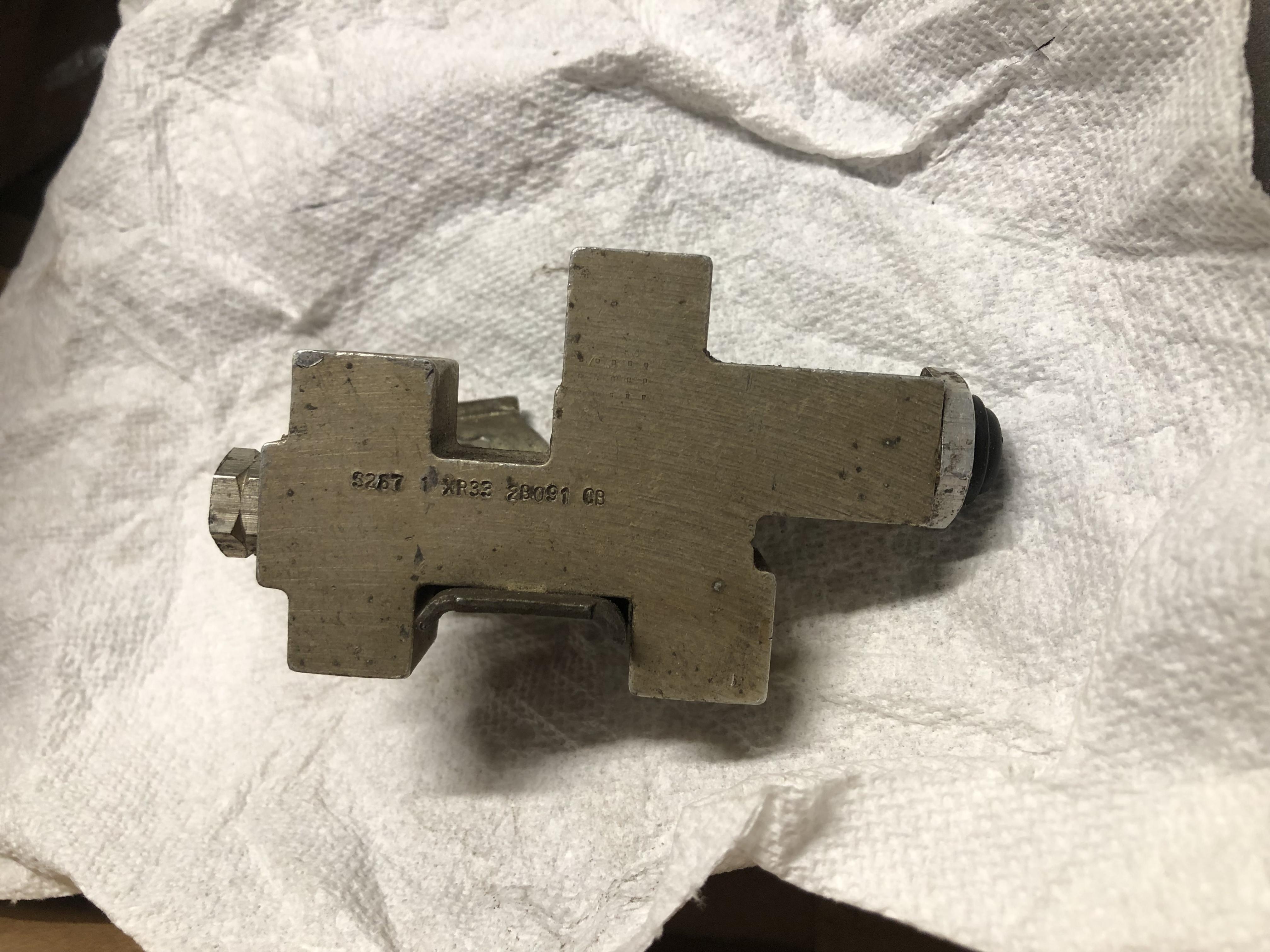

Can anyone help me identify the brake valve ports? I neglected to mark them when removing from donor car (2002 mustang).
Attachment 149924 Attachment 149925
06-27-2021, 12:13 AM
Norm B

1 Attachment(s)

I took a screen shot of your picture and added the port identification. Some/most do not use this component, and if it is required for inspection, then they modify it by removing the proportioning part of the valve. LMR offers a plug to replace the valve portion at the end. I did the mod to increase the pressure to the rear brakes. Instructions for this are available on the web.

HTH

Norm
