Turn Signal Wiring - 3 Wires | No Diagram

All,

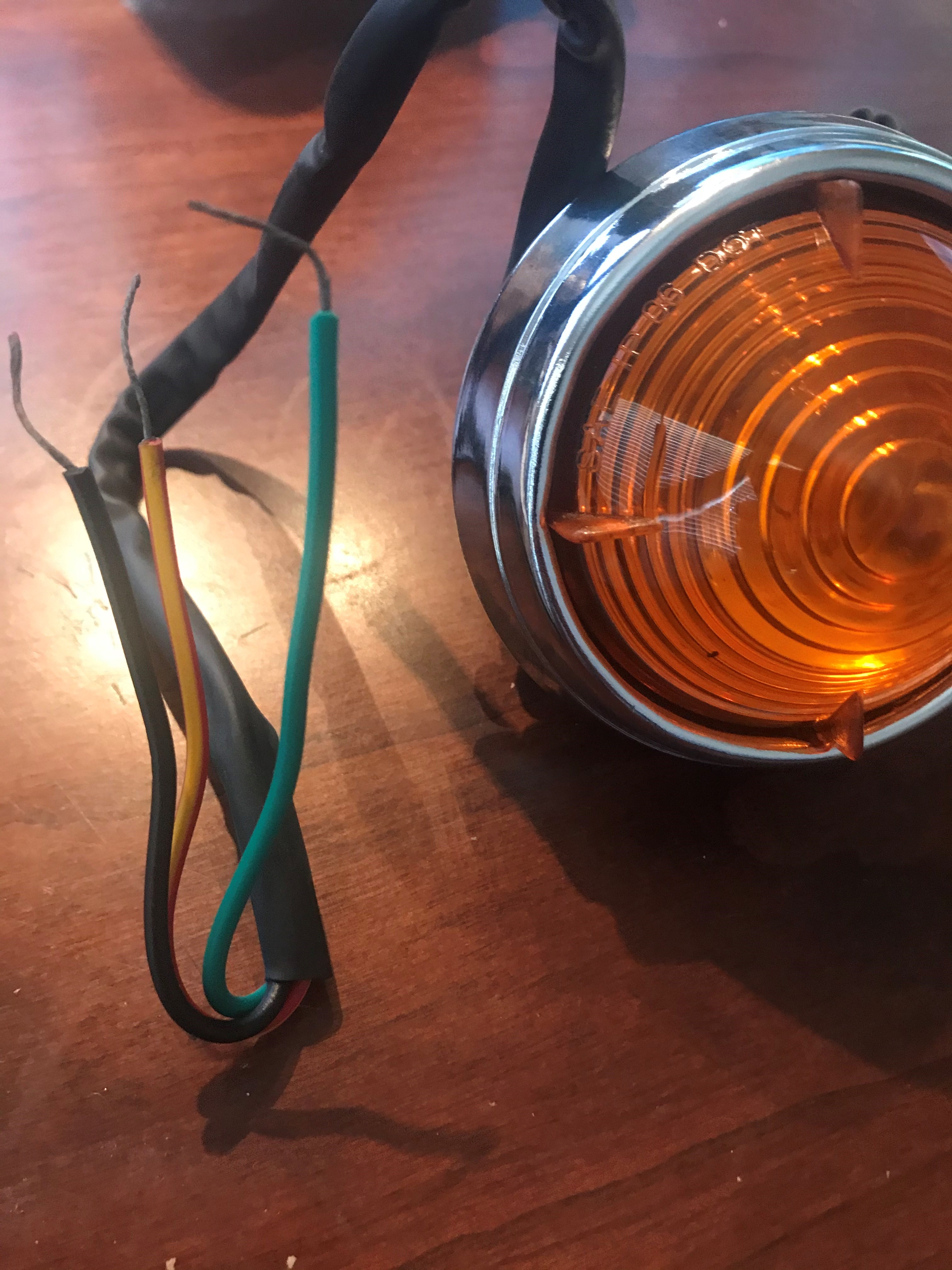

On the turn signal there are 3 wires and no wiring diagram in the box, picture below, do you know what each wire is for? I'm not using a Ron Francis Harness...

Attachment 144614

Below are the instructions from the manual?
Wire the turn signals up to the chassis harness. On the light, the red wire is the dim light and the green
wire is the bright light and the brass ring is the ground.

Thanks in advance...

I believe dim (red) goes to the parking light wire, bright (green) is the turn signal...

Steve

Black is Ground

Yellow/Red stripe is Dim - Night indicator function

Green wire is Bright - Turn Signal function

See if this helps:

https://thefactoryfiveforum.com/atta...8&d=1587003991

You really need to check them on a battery. Cant tall you how many I have found wired differently
Mike

Ditto Mikes suggestion. They are not all colored coded the same. Simple battery test solves a lot of questions.

Testing each light before wiring is a must. Then ID them for later.

All,
Great Advice...

Thanks for the guidance

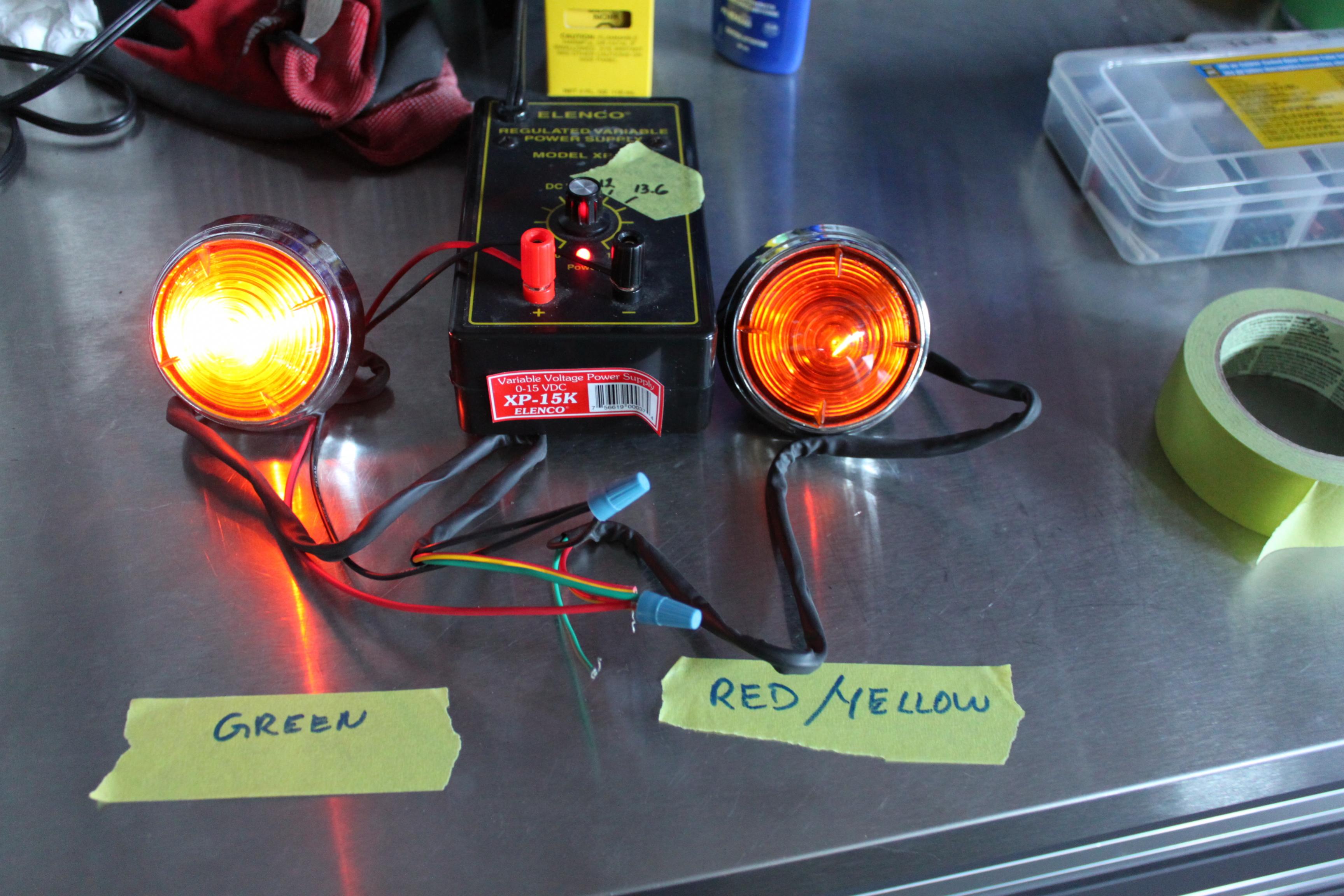

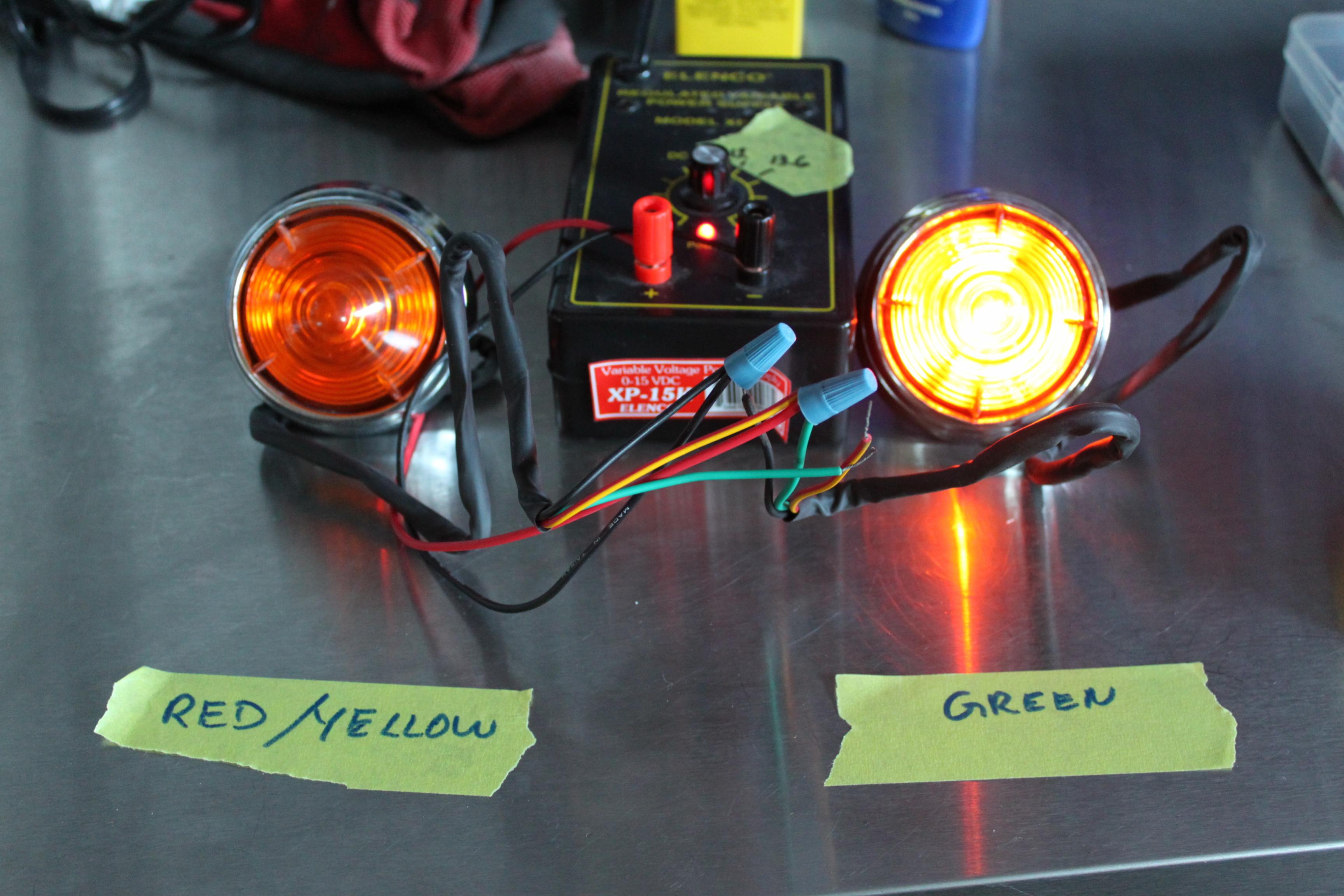

I have a bench DC power supply and I tested both configurations. Confirm that green is turn (bright) and yellow/red is park (dim).

Attachment 172906
Attachment 172905

32J

literally one of my favorite tools, just for this type of stuff :)

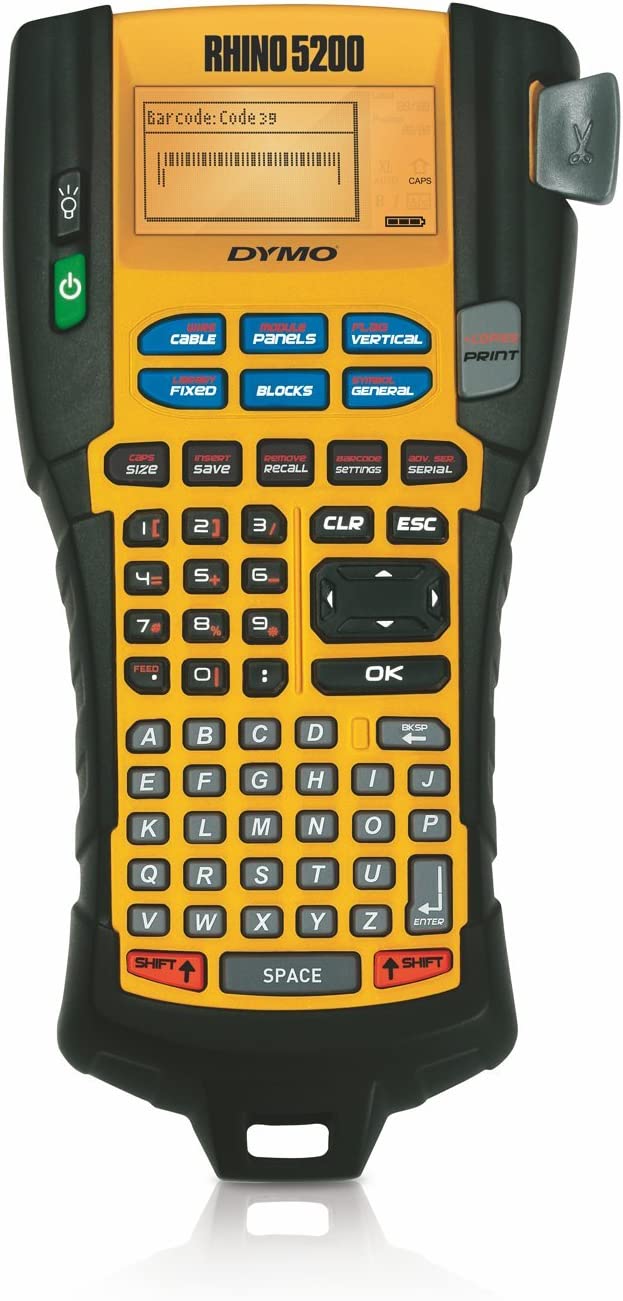

DYMO Industrial RhinoPRO 5200 Label Maker

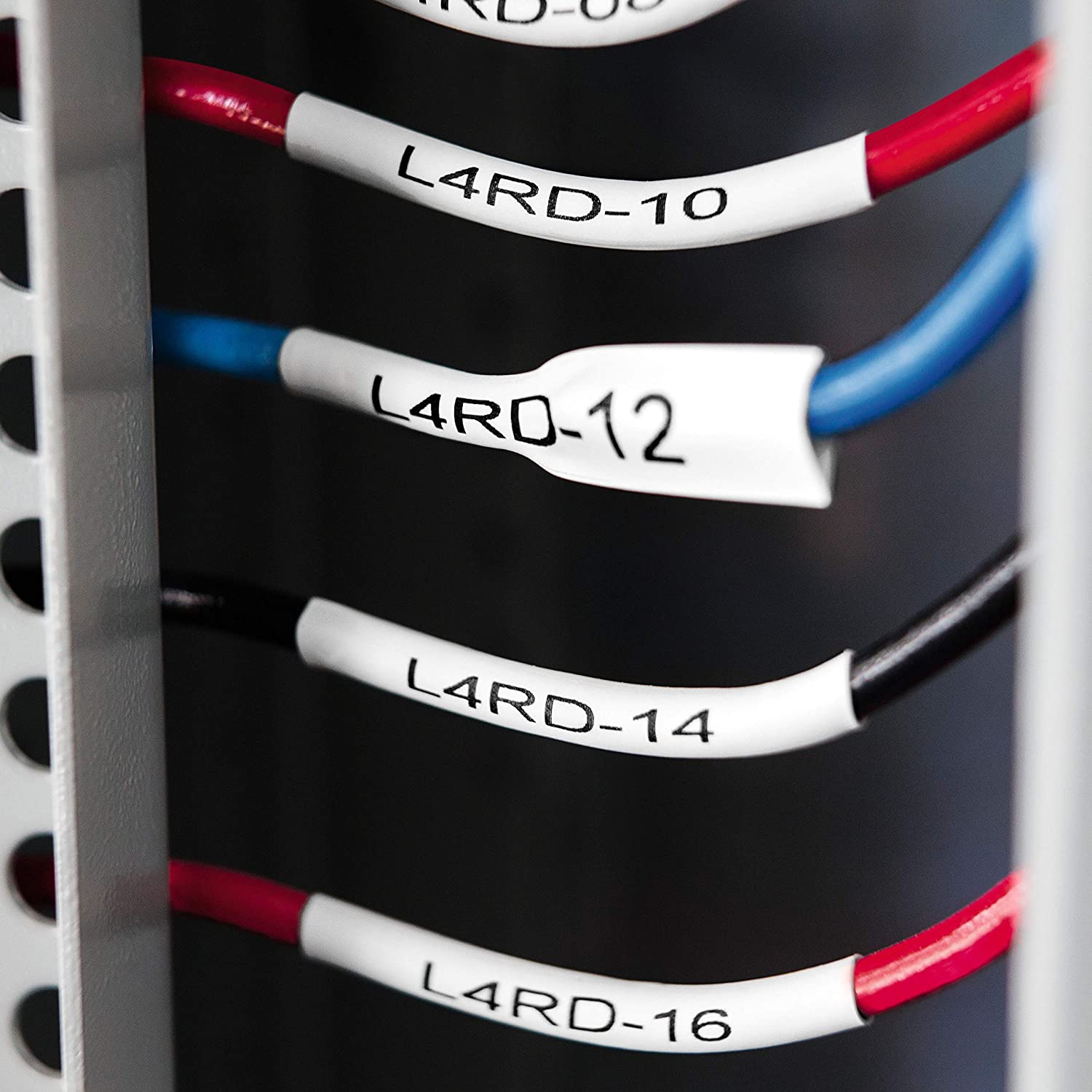

Attachment 172929 Attachment 172930

Quote:

---

Originally Posted by toadster

literally one of my favorite tools, just for this type of stuff :)

DYMO Industrial RhinoPRO 5200 Label Maker
Attachment 172929 Attachment 172930

---

Does that actually print on the heat shrink? Didn't know you can do that, if that's what it does.
