T5 with S10 Tail - Measurements

All,
First, I have no idea when it comes to transmissions. It was explained that I should get a T5 with a S10 tail so I can move the shifter towards the front of the car...

I've got a transmission builder who has all the parts to marry a T5 to a S10 tail.

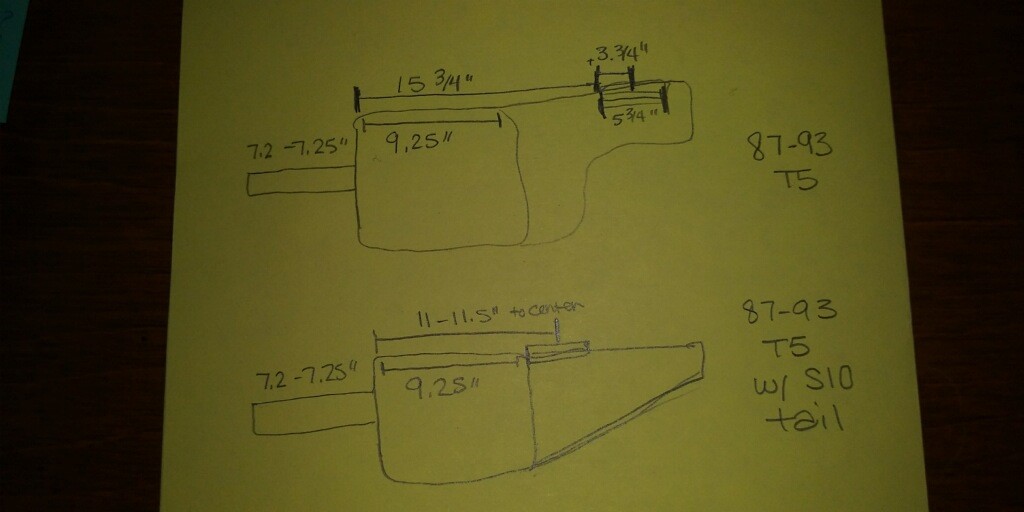

The builder sent me the attached picture to confirm these measurements will work with my build.

I have no idea what I'm looking at... Attachment 137974

Does the picture make sense and will it work with a 302 and 28 spline 11.25" Driveshaft?
11-19-2020, 09:46 PM
rich grsc

???? the picture is pretty self explaining. Shows the difference in the placement of the shifter
11-20-2020, 02:16 PM
Padawan

3 Attachment(s)

Follow-Up Question to T5 with S10 Tail

Rich,
Does the difference in length of S10 Tail and the T5 make a difference during the install? Will I need to do any additional modifications?

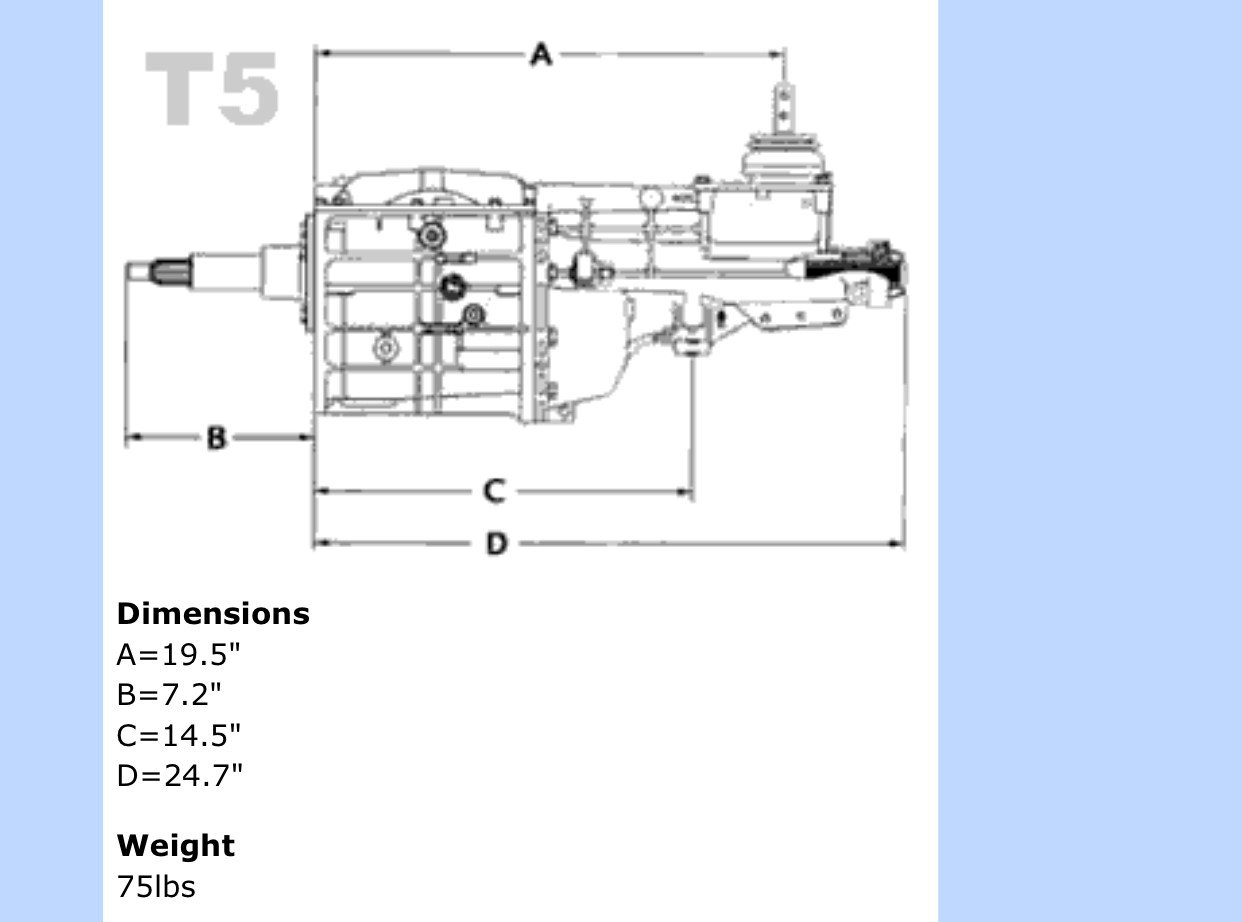

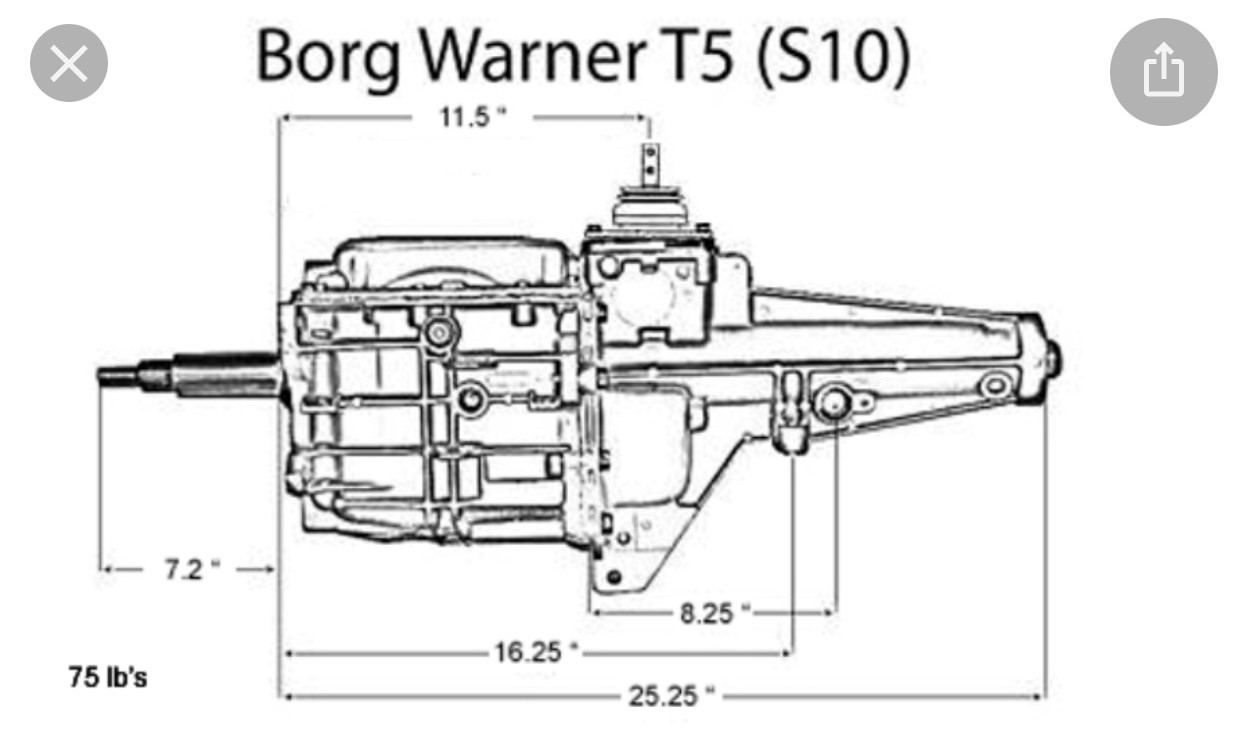

Attachment 138013 Attachment 138014

The T5 with S10 tail is .55" longer than the T5, does this require any special modifications? Will everything bolt in and align with the driveshaft just like the T5?

Thanks,
Matt
