planning the fuel line run, Boyd Tank to Coyote Gen3

I've been researching the heck out of these parts, and need a check...

Here's the Fuel System recommendations in the Gen 3 Coyote Install Instructions (Download)
Summit Racing - Fuel System
AEI-13129 – 6AN Fuel pressure regulator
SUM-220166B – 6AN O-ring to straight 6AN Adapter (2 needed)
SUM-220701-B – 6AN to -6AN Hose Barb (1 needed)
FRA-495110-BL – 6AN O-ring to straight -4AN Adapter (1 needed)
SUM-220700-B – 4AN Hose Barb (1 needed)
SUM-220711-B – 90° -6AN to -6AN Hose Barb (1 needed)
SUM-800199 – 0-100 EFI fuel pressure gauge
GSL392BX – Fuel Pump or VOR-8F002-265 Fuel pump
VPN-400-939 – Fuel pump mount/barbs for GSL392BX pump

My setup for Boyd Tank to Gen3 Coyote Fuel System

EAR-AT949006ERL -6 AN Male to Male 9/16-18 adapter (1 needed at pump outlet)
AEI-13136 – 6AN Fuel pressure regulator (1 mounted on firewall)
SUM-220166B – 6AN O-ring to straight 6AN Adapter (3 needed on FPR)
SUM-250690B - PTFE, Straight, Reusable Swivel, -6 AN Female Thread, -6 AN Hose (6 needed)
AEI-15633 – 0-100 EFI fuel pressure gauge (connected to FPR)
RUS-660843 - Russell ProClassic AN to NPT Adapter (AN to NPT return)
AEI-11542 – Aeromotive Stealth 340 In-Tank; 340lph @ 90psi (in tank)
SUM-220985 - Summit Racing® -6 AN PTFE Hose Braided Stainless Steel, -6 AN, 20 ft. (1 needed)

https://i.imgur.com/EA8o8eW.png?1

Not sure if hose-barbs will be needed since I'm doing AN lines? (from the install guide)
SUM-220701-B – 6AN to -6AN Hose Barb (1 needed)
FRA-495110-BL – 6AN O-ring to straight -4AN Adapter (1 needed)
SUM-220700-B – 4AN Hose Barb (1 needed)
SUM-220711-B – 90° -6AN to -6AN Hose Barb (1 needed)

also, what's the connector into the actual Coyote Fuel Rail? shows a clip... with clamp?
what line should be used here?

Fuel lines

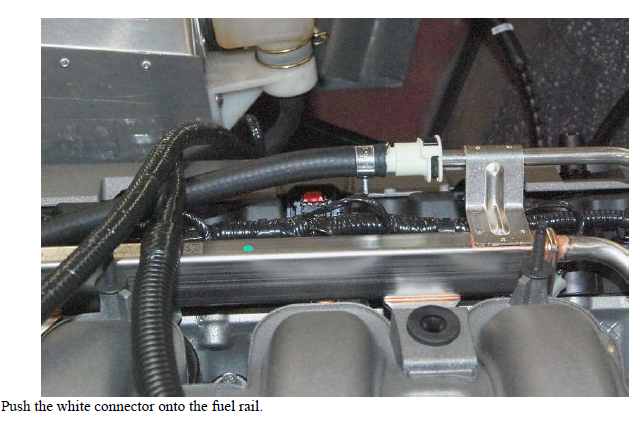

Push the white fuel line connector onto the fuel rail.
Hold the fuel line up to the connector and cut it to length with a razor knife.
Remove the fuel line connector.
Slide a hose clamp onto the hose then push the fuel line connector into the hose and tighten the clamp.

Attachment 131496
