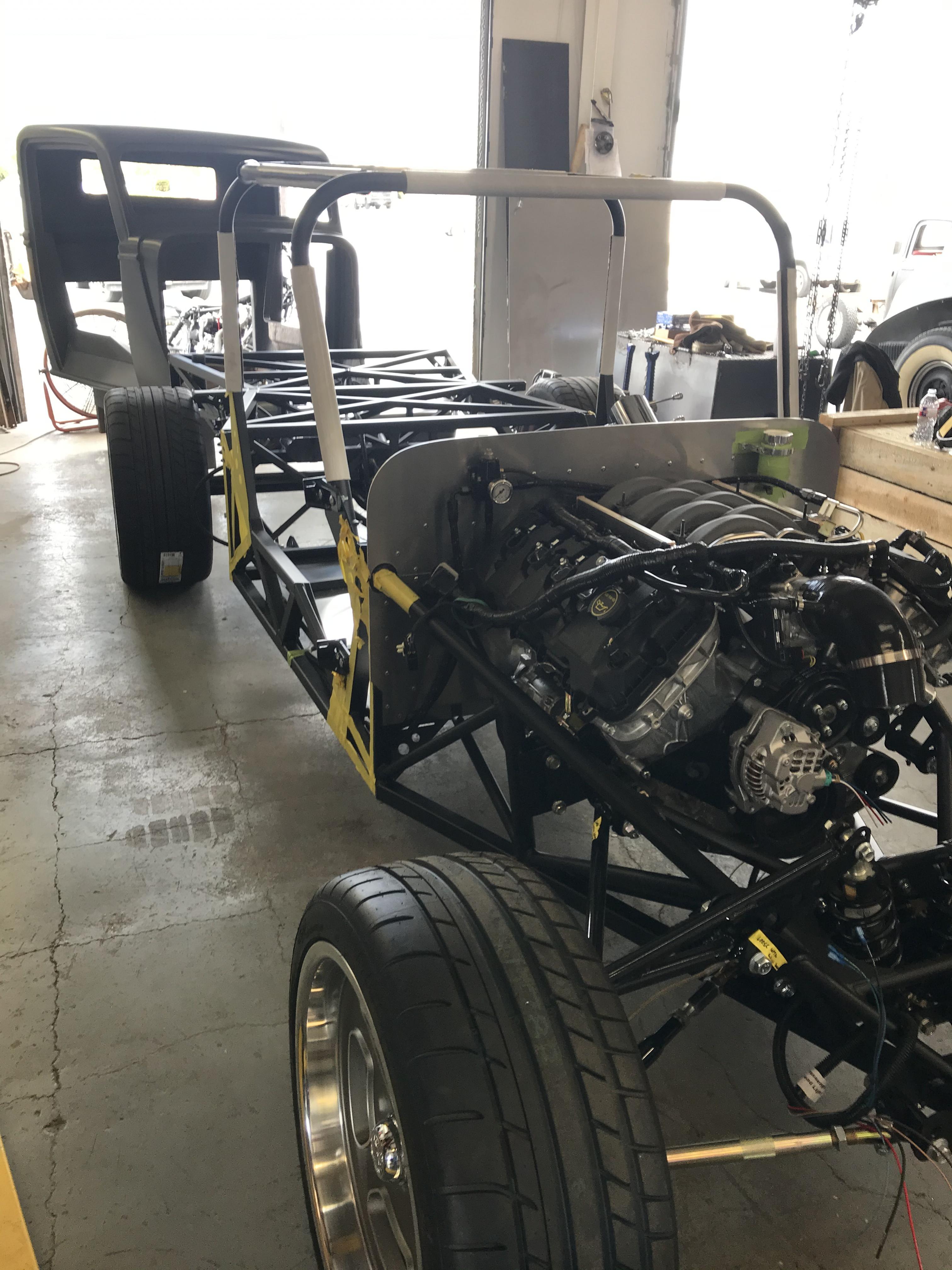

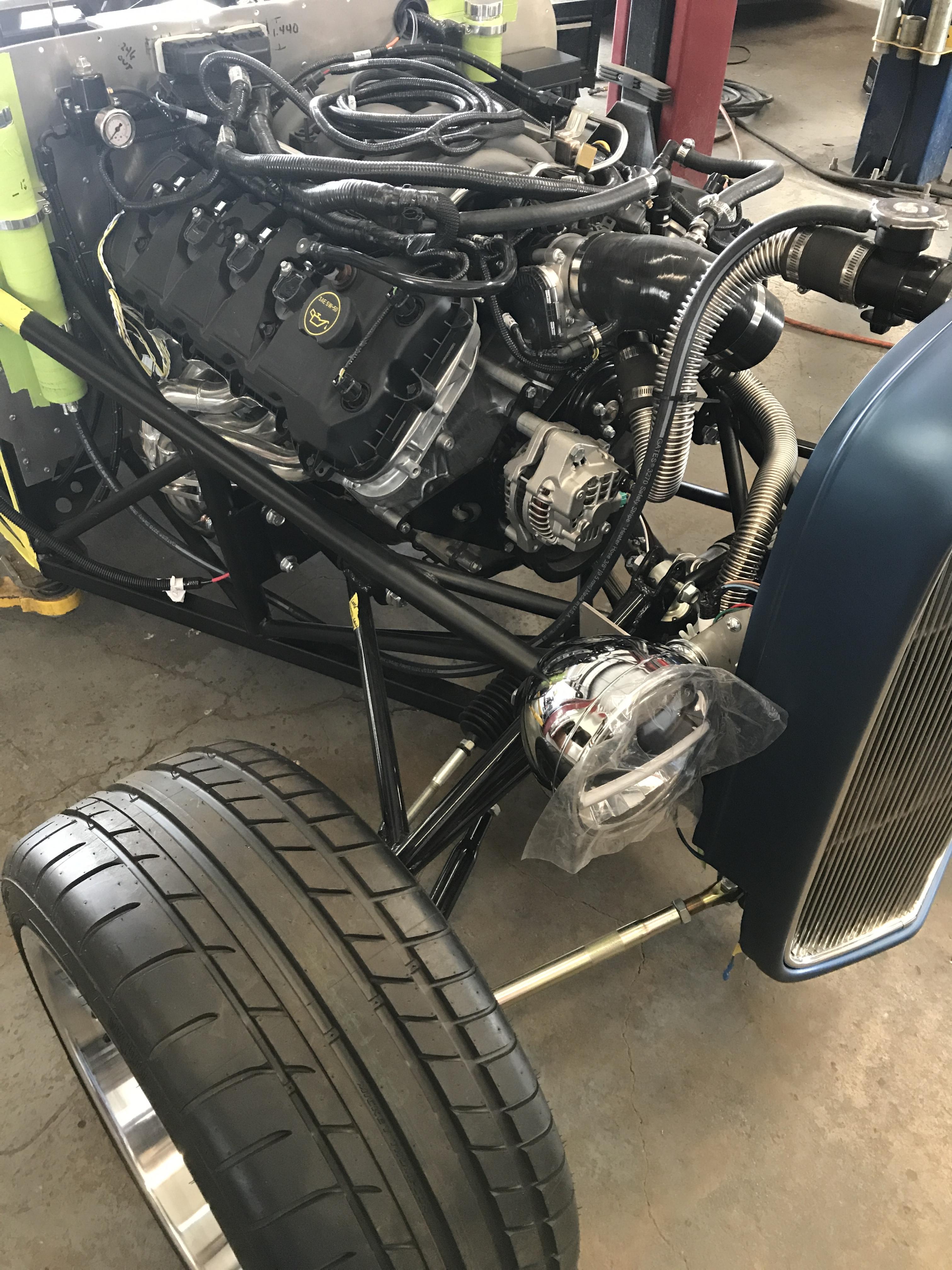

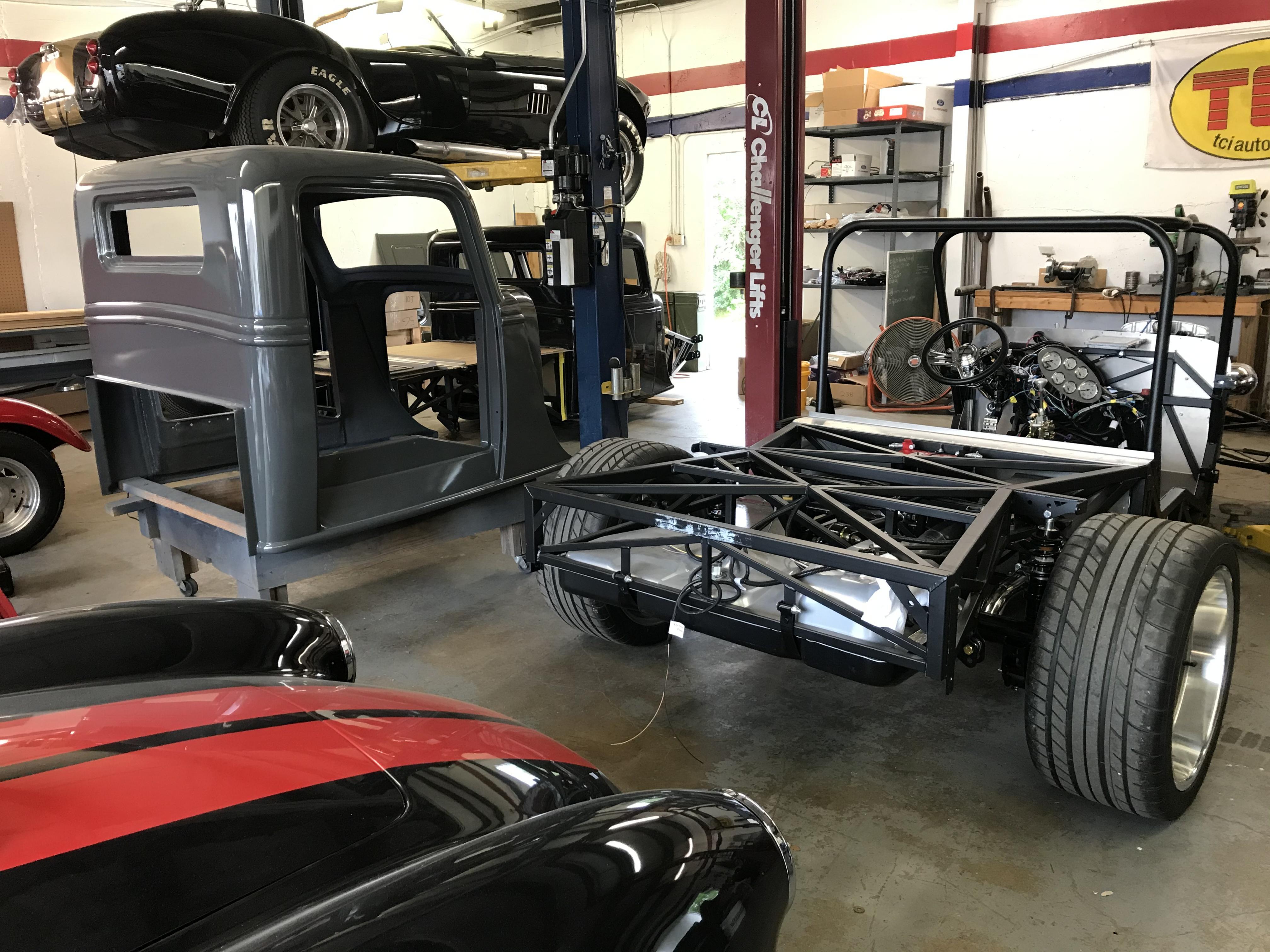

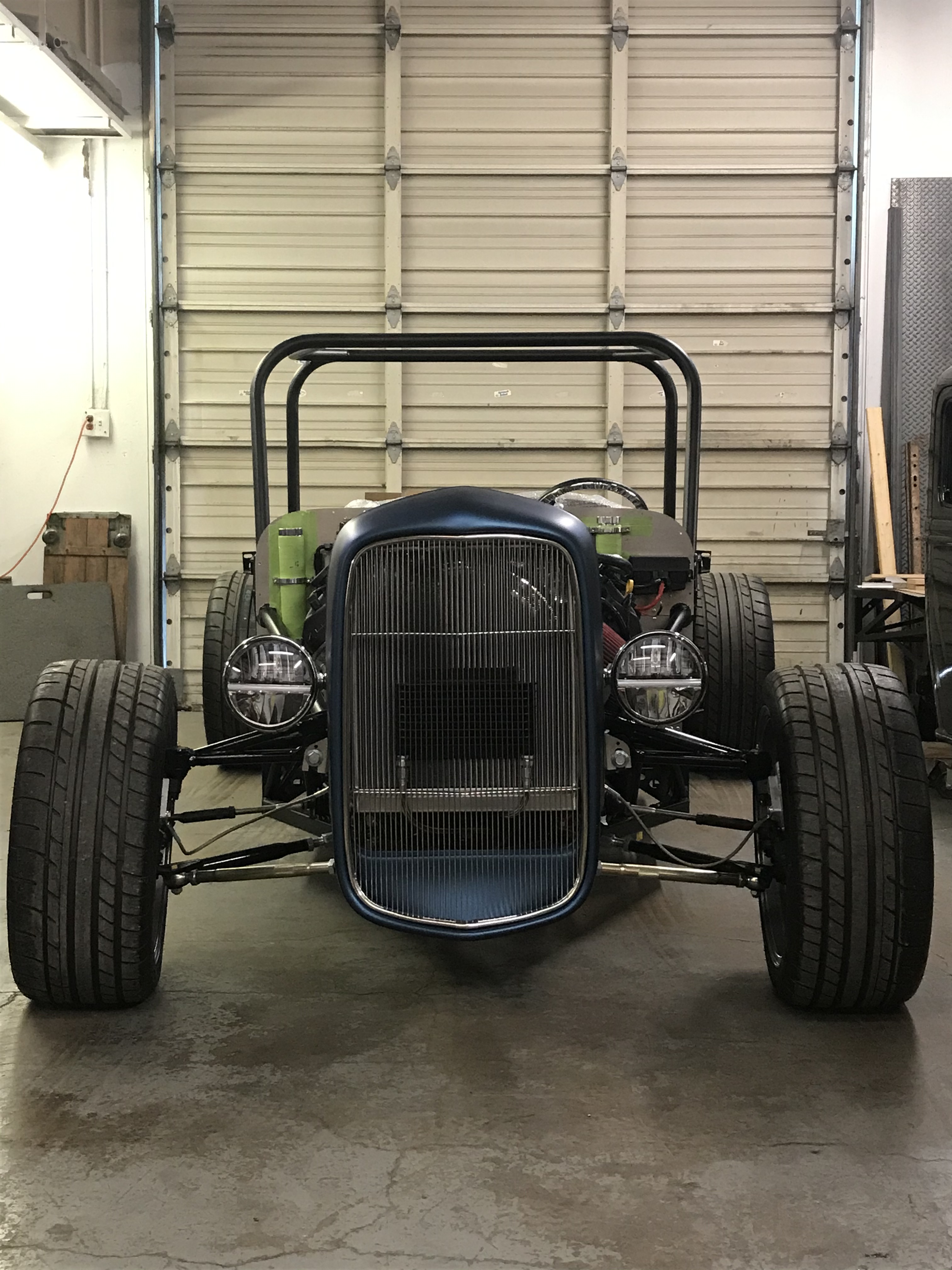

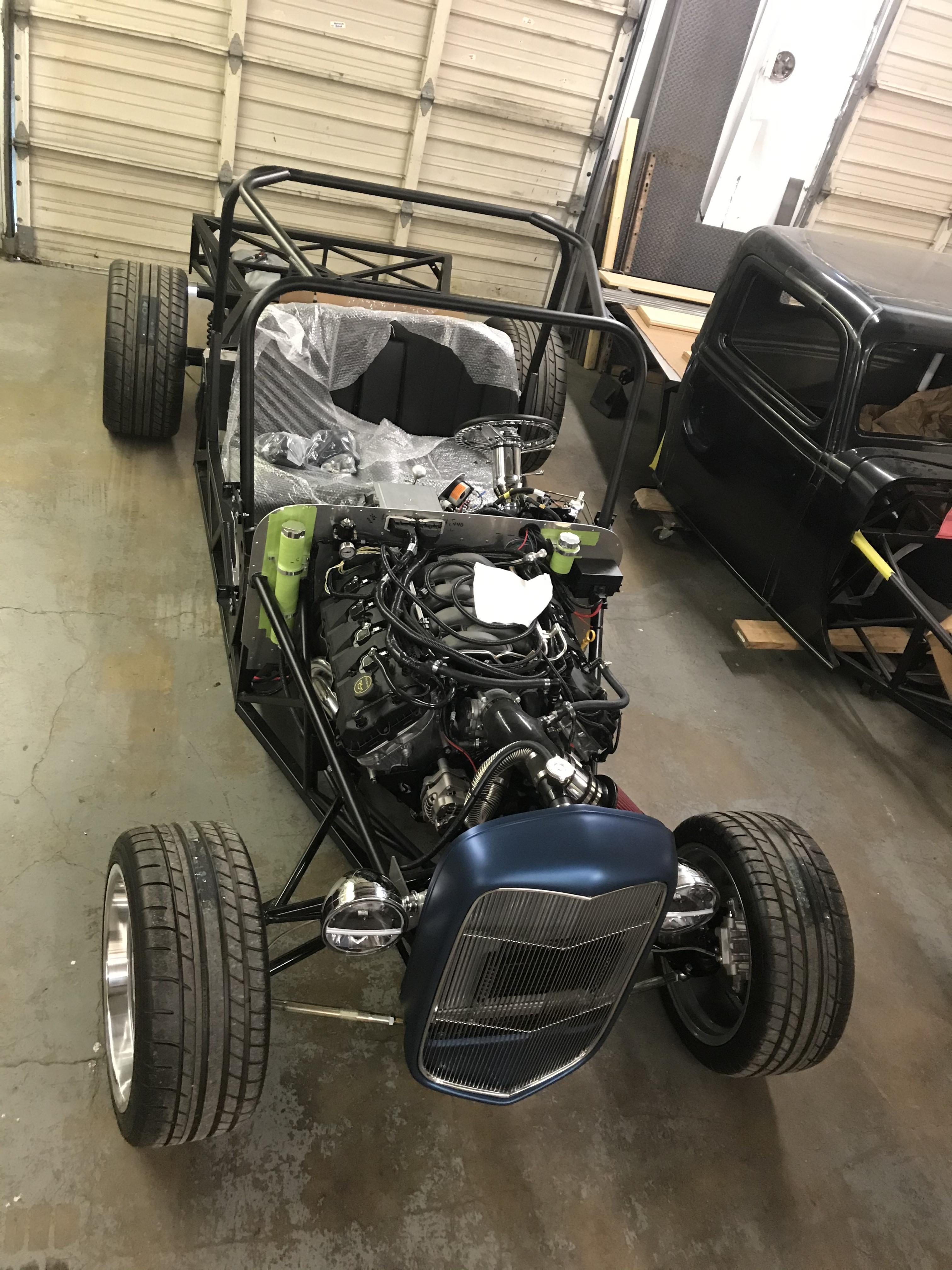

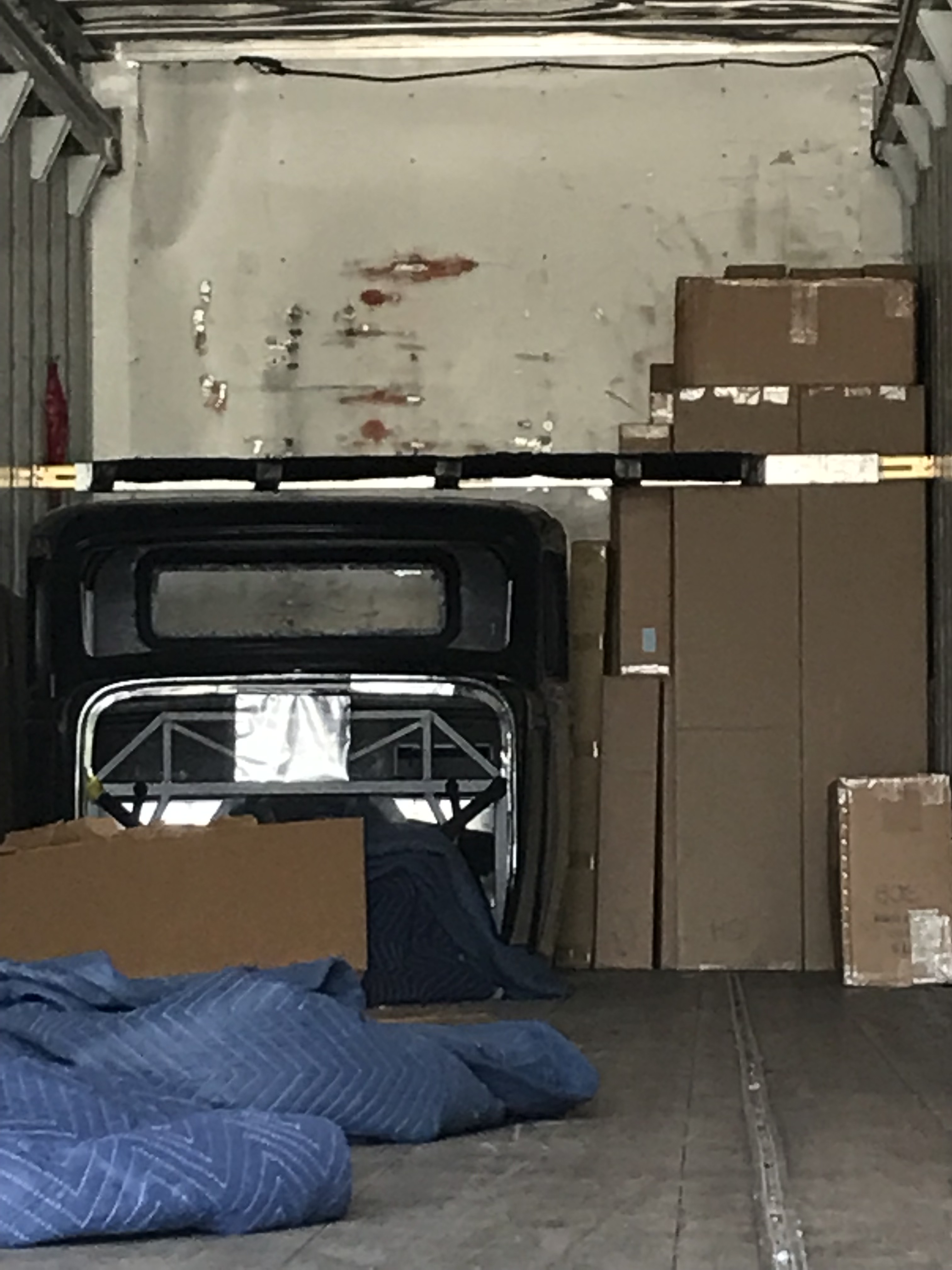

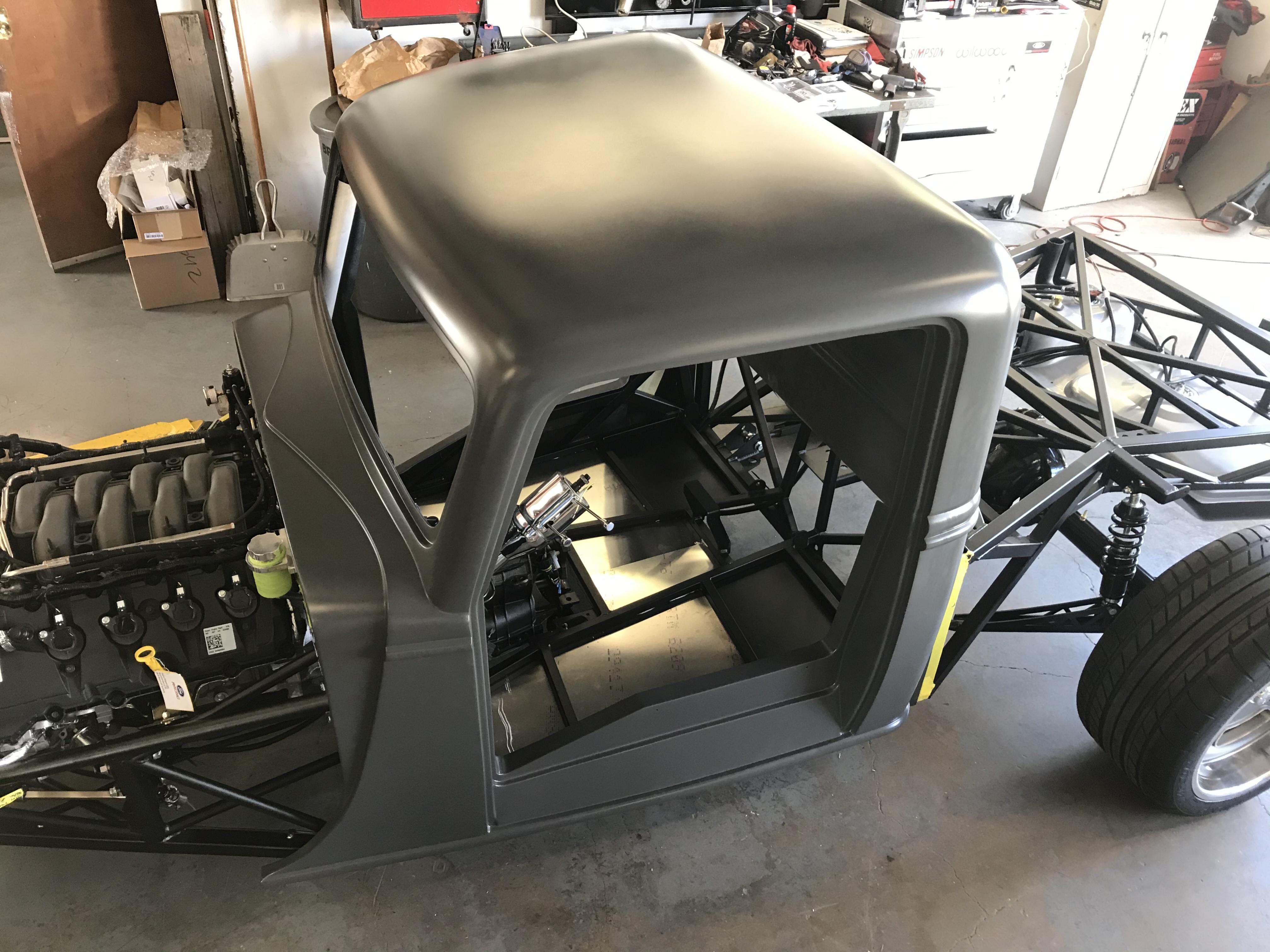

ok im having trouble loading multiple pics in my album and help is on the way. So in the meantime here is a quick glance of what ive been building since the end of October.Attachment 122794Attachment 122795Attachment 122796Attachment 122797Attachment 122798
Man you've got alot done for three months! Looks great.
Thank you very much! Determined to get this thing on the road for spring!Quote:
Originally Posted by bnelson
Welcome. That is one big engine.
Great work, keep the photos coming.
Ralph
Very interested to know how much of the stock Mustang wiring you are using. Looks to be quite a bit.
Thank you! Yes its a tight squeeze!Quote:
Originally Posted by rponfick
Will do!
Emilio
That is a wiring harness I get directly from Ford Performance. So a lot has been deleted already. I ordered one for a 6R80 Automatic. I will use everything except for about two connectors and three single wires.Quote:
Originally Posted by Sell1
Lookin’ awesome boss!
Quote:
Originally Posted by GroundPounderSATX
Amazing progress! It will be a few months before I get started so keep us posted.
Thank you! Will do!Quote:
Originally Posted by McGuyver
Attachment 122938Attachment 122939

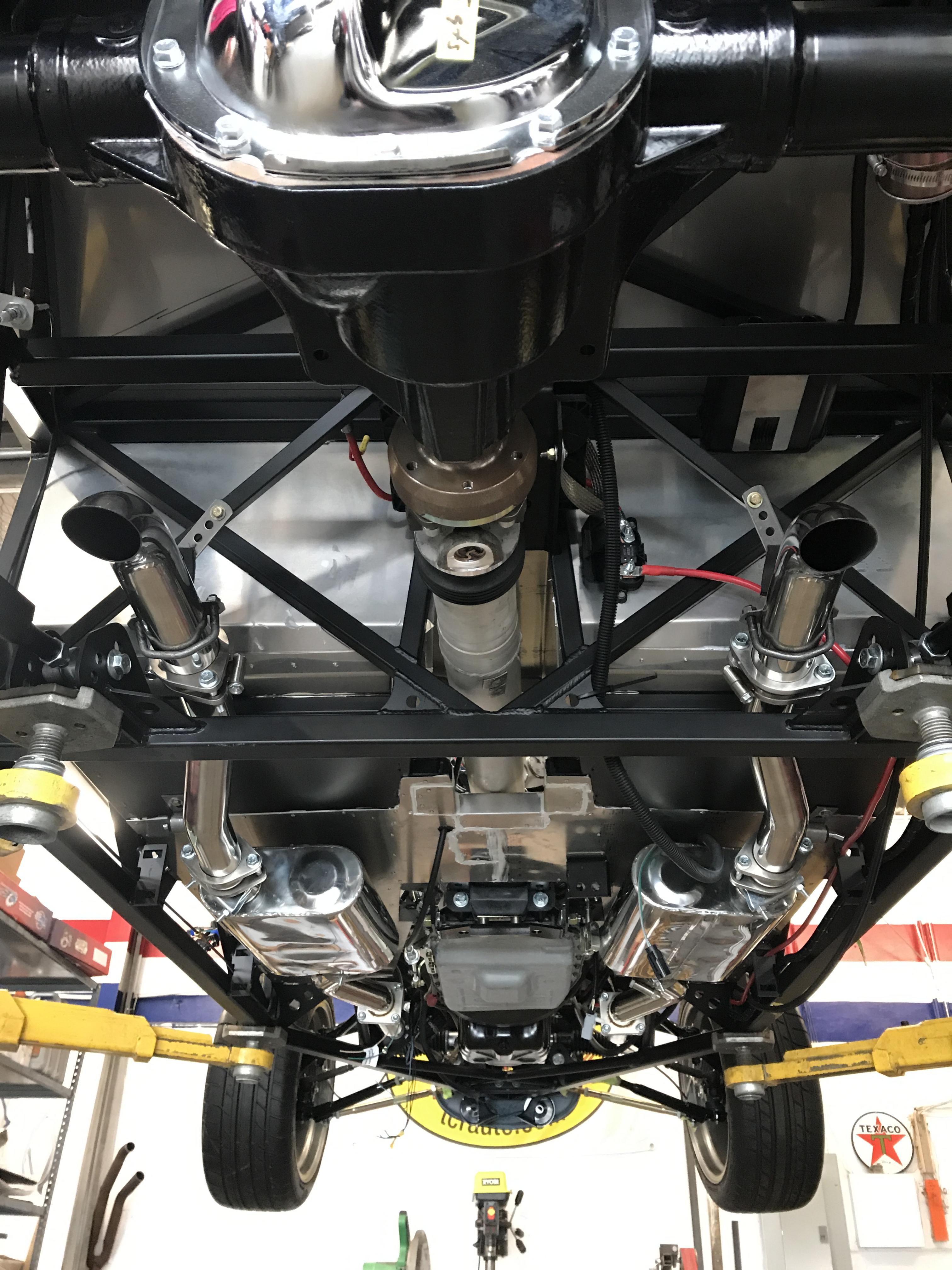

Exhaust done! Getting close to Go-Karting!
Attachment 122940Attachment 122941Attachment 122943

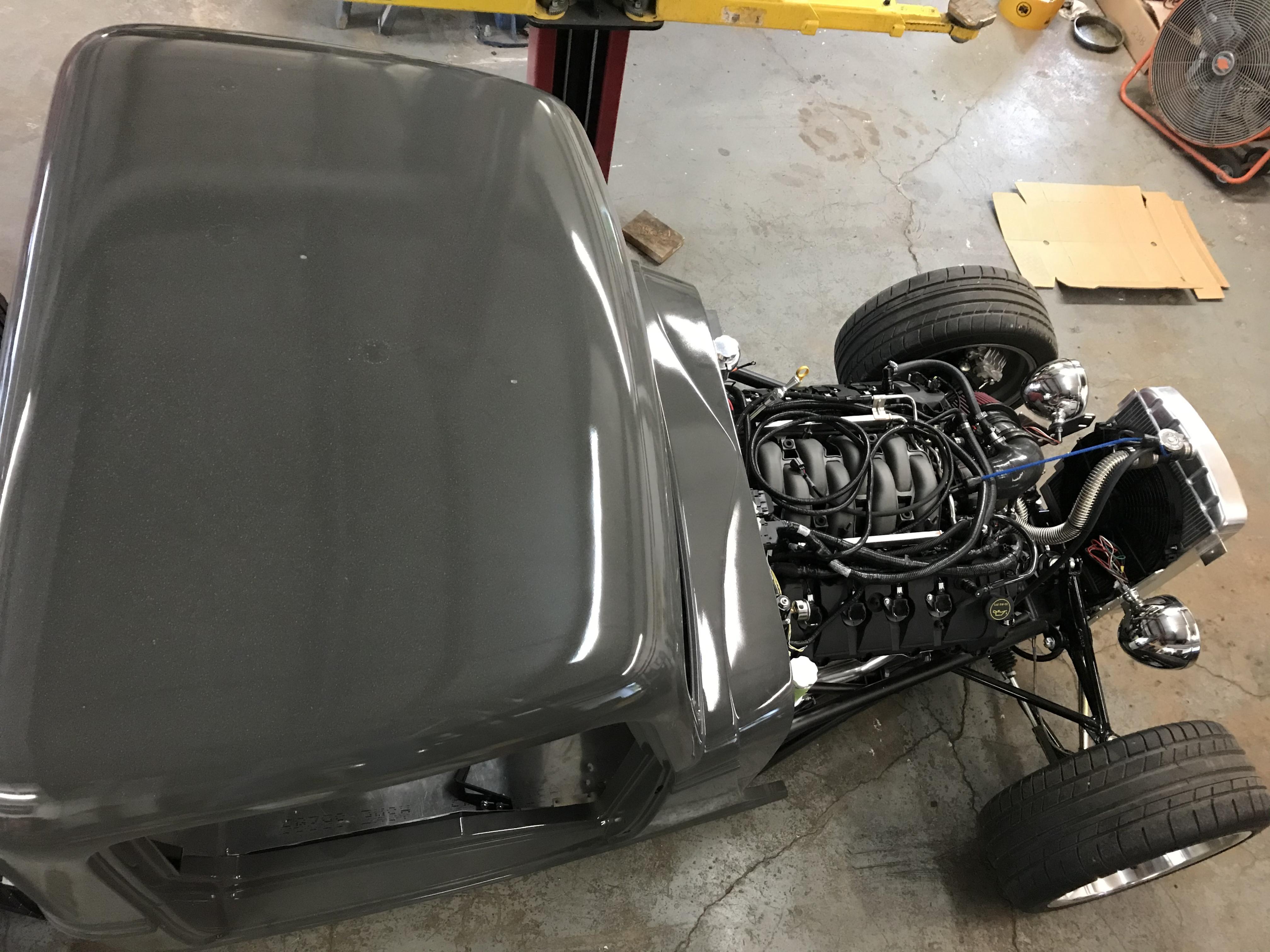

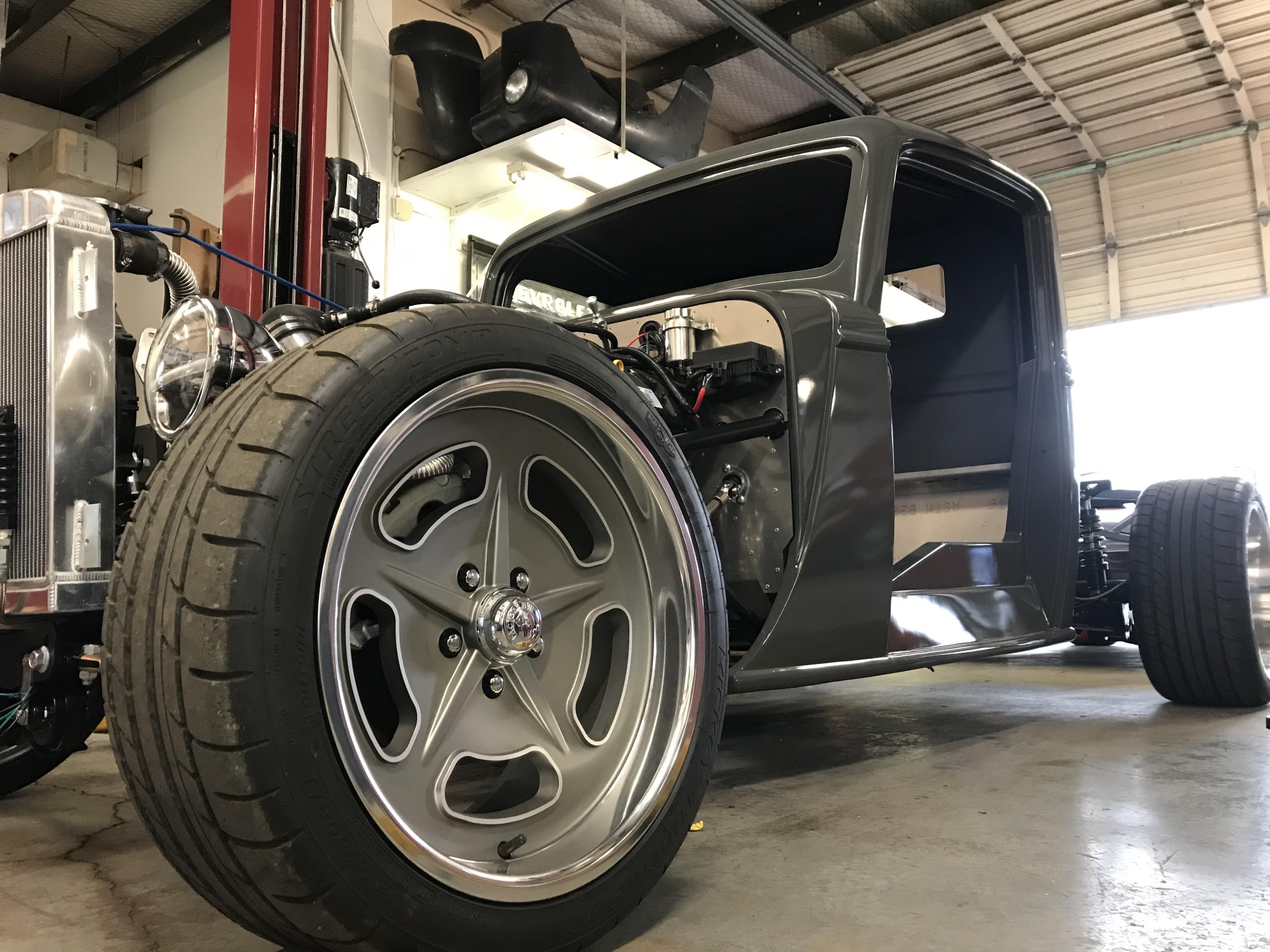

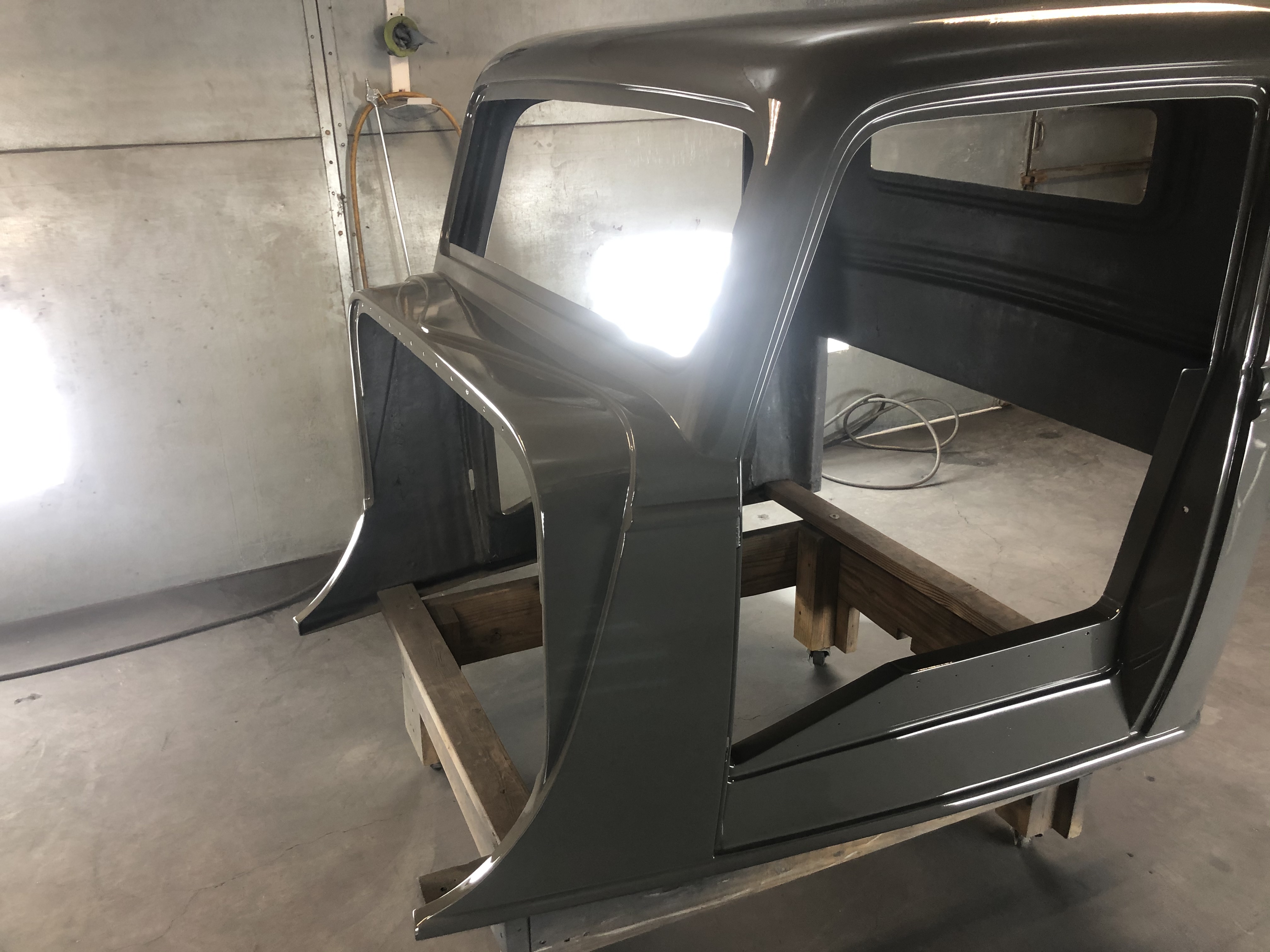

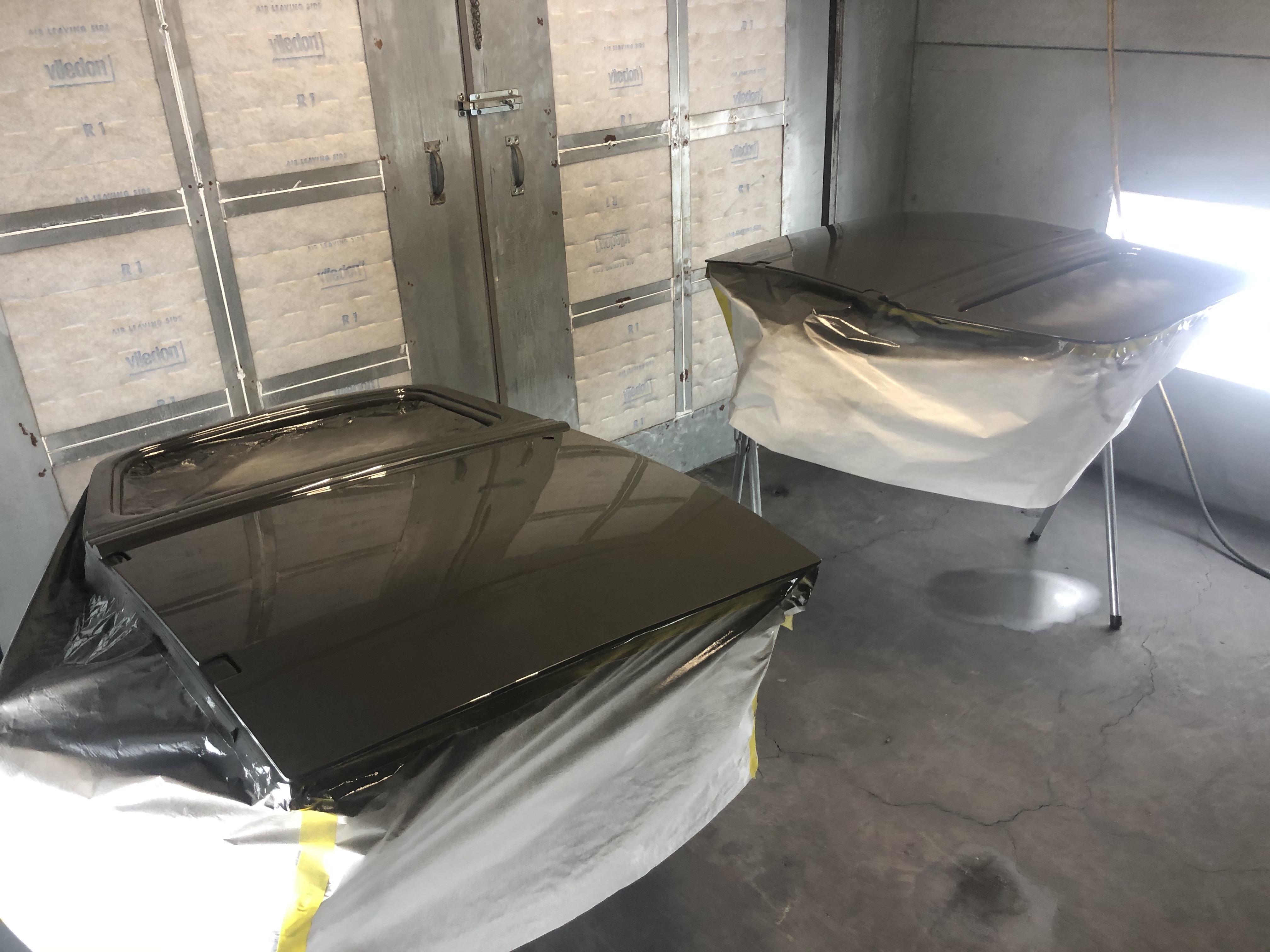

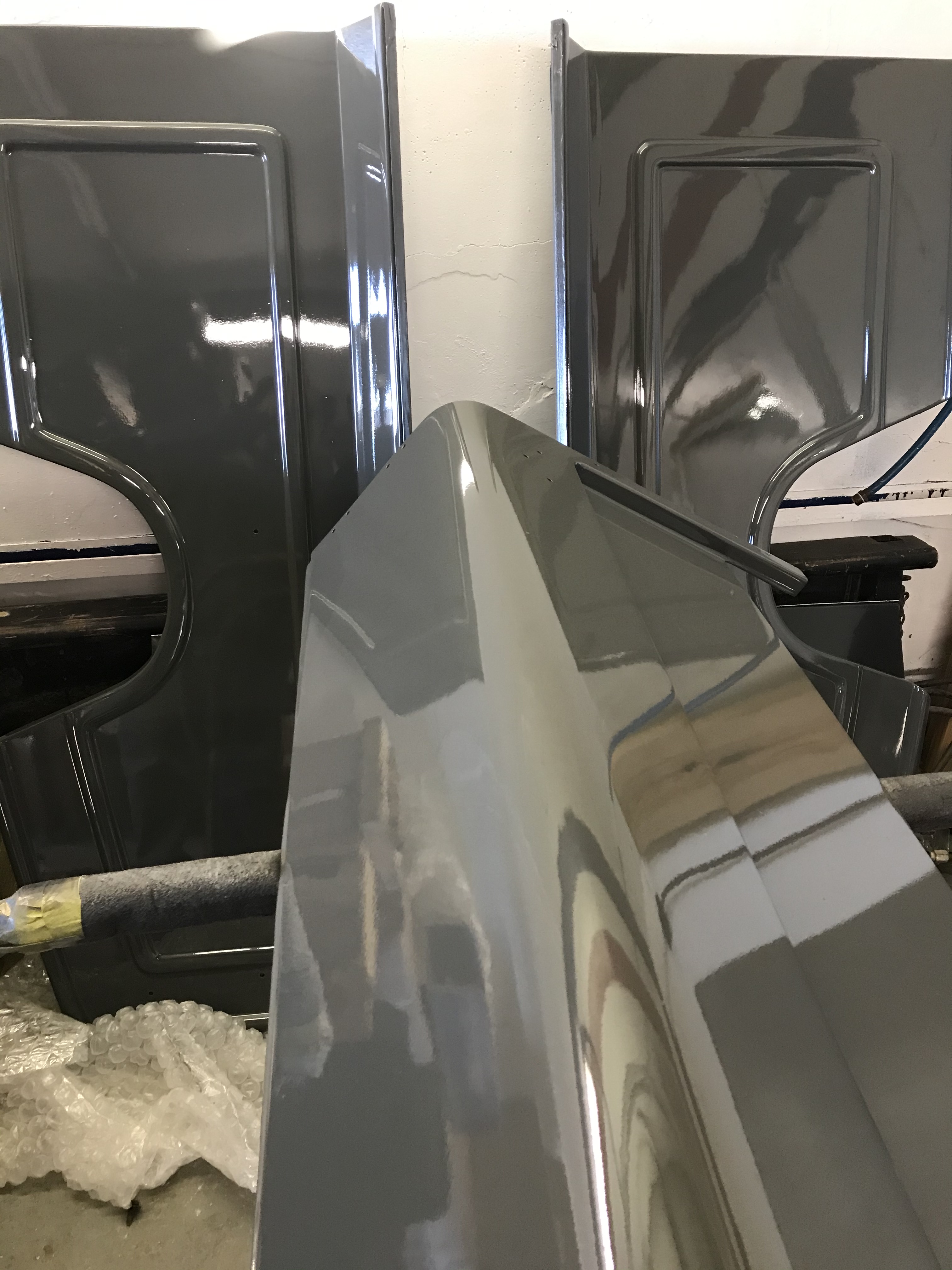

Cab, doors and bed are based and clear coated for final assembly once go-kart shakedown is done!
Looks good!
how hard was the paint? I assume that's ford Lead foot color? I really like that color and was thinking painting my 33 that color.
Also like the Abyss grey.
We used NASON Xl which flows really nice and the colors are outstanding! The paint was not hard its always the bodywork that is the hardest. That's where we found a lot of waviness, imperfections, misalignment, poor bonding and transparent fiberglassed areas. Still was a lot easier than cutting out rotted sheet metal, patching and bodyworking an old classic!Quote:
Originally Posted by tony
Yes you are correct on the color.

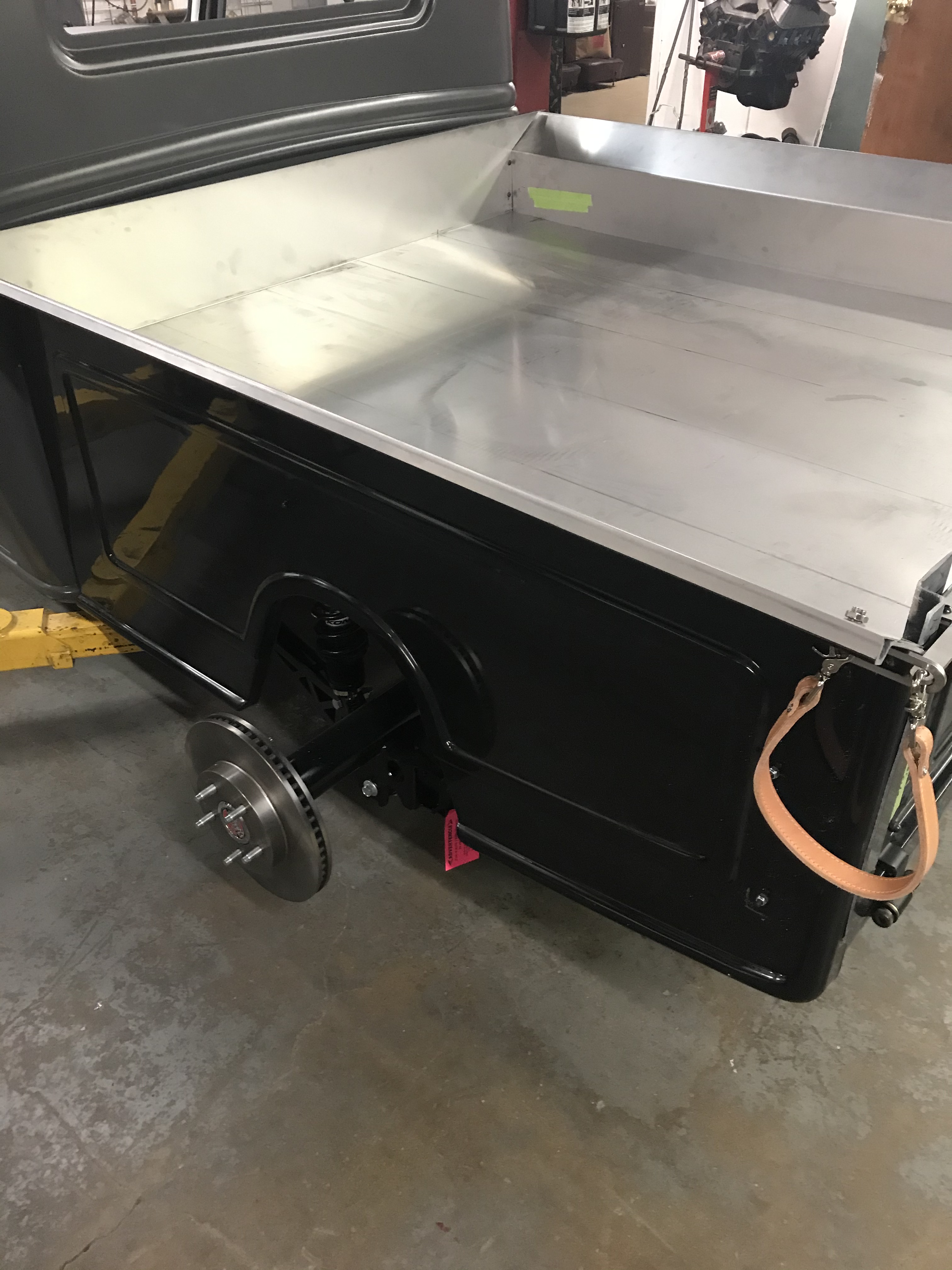

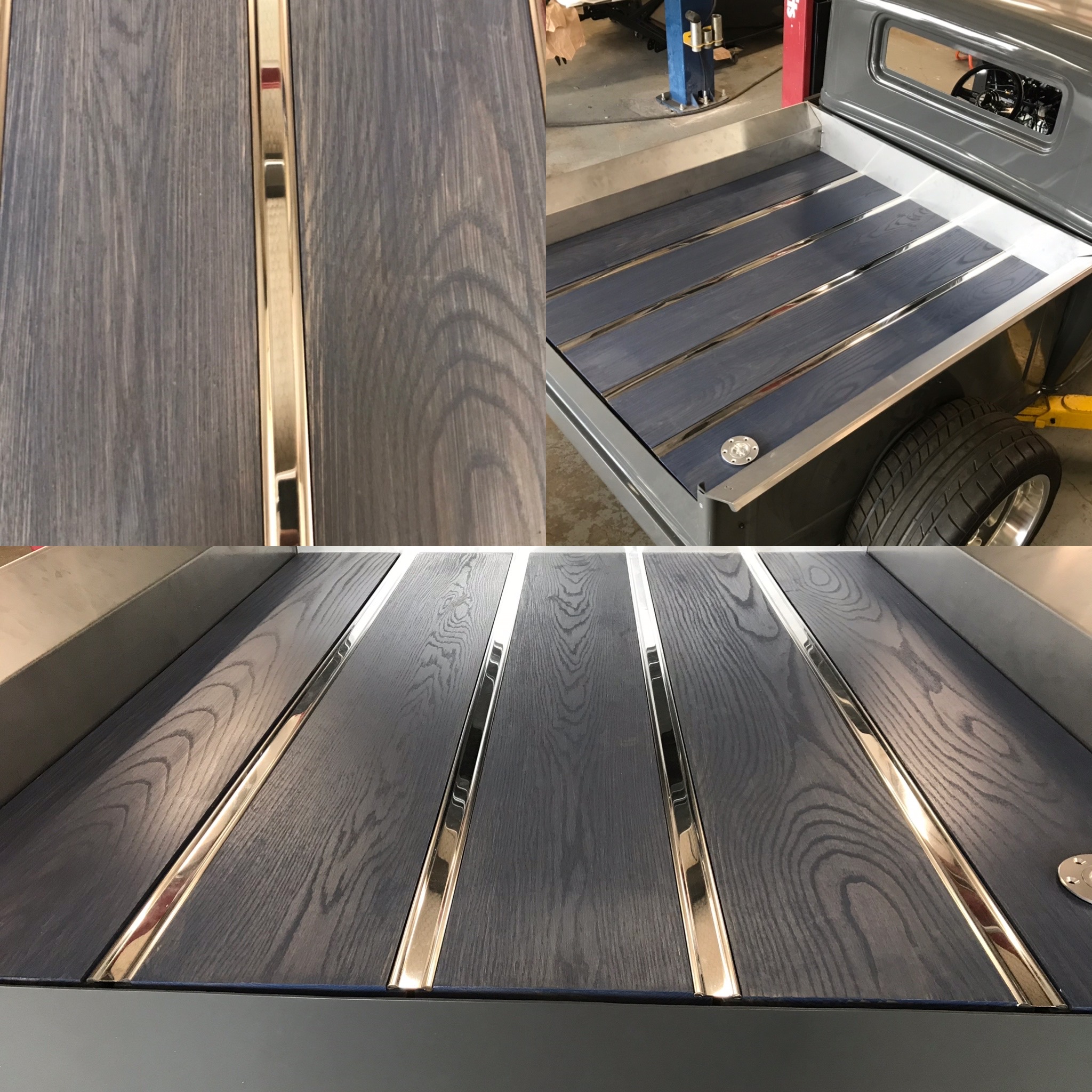

Love the bed!Quote:
Originally Posted by GroundPounderSATX

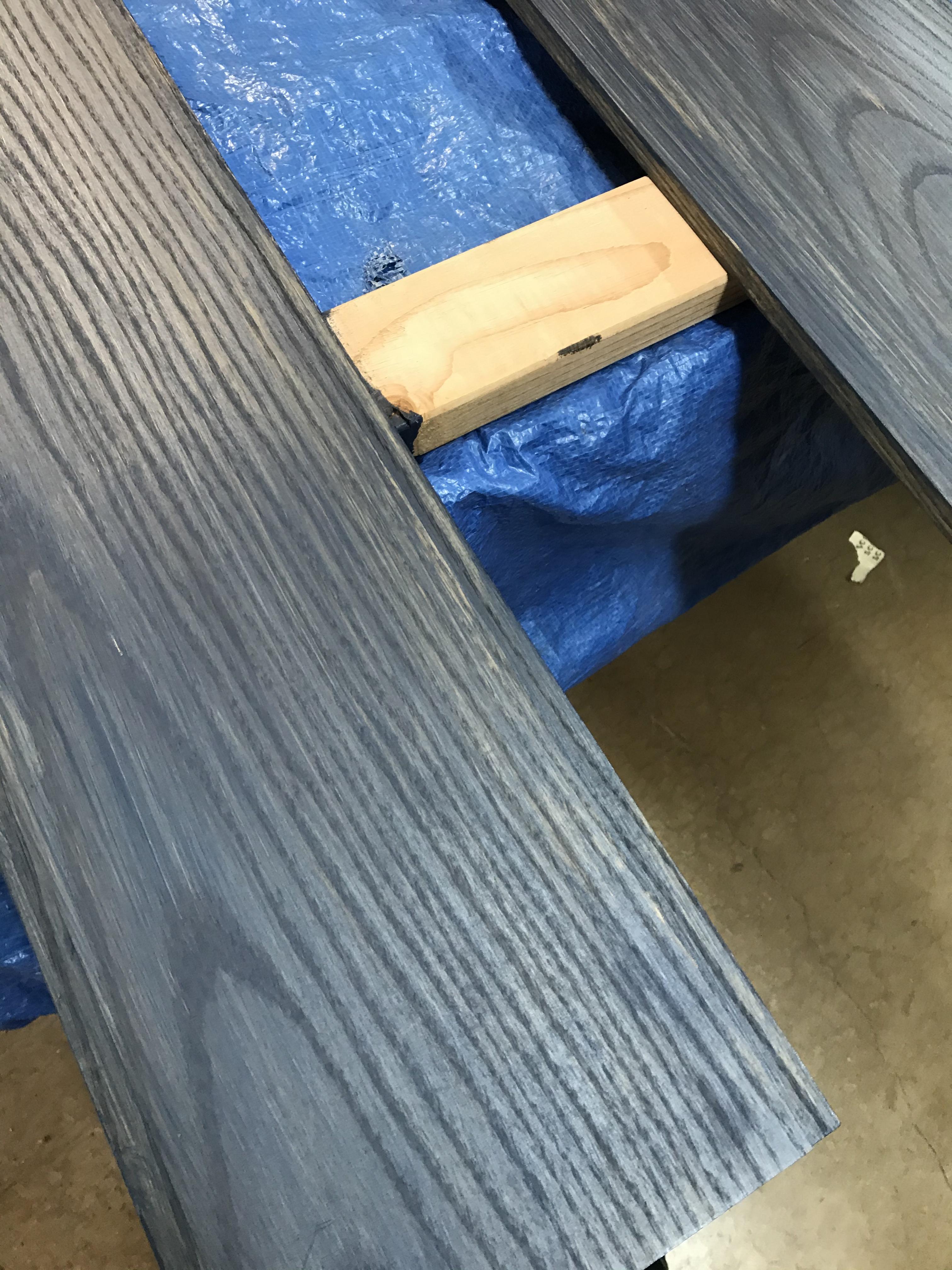

That bed wood turned out allsome!!!
what will you do on the inside surfaces?
I think your asking about the inner bed walls. So, my plan there is to clean them up and possibly buff to shine or give them a brushed finish.Quote:
Originally Posted by KenWilkinson
Sorry, I meant the cab, wondering myself what to do there. Spray on Bed-liner or glue fabric, or flax like Tom Wallace.Quote:
Originally Posted by GroundPounderSATX
Looking for ideas....
Oh ok, I'm getting ready to post some pics of what I've done so far. I'm installing heat shield and sound barrier i got from FFR. Also, going to install carpet and some headliner material.Quote:
Originally Posted by KenWilkinson
That's the initial plan but you never know till its done!
Attachment 129806 Attachment 129807 Attachment 129808 Attachment 129809 Attachment 129810Attachment 129811 Attachment 129812Attachment 129813
Just some detail work that may or may not be seen but just had to accomplish the ideas that came to mind!

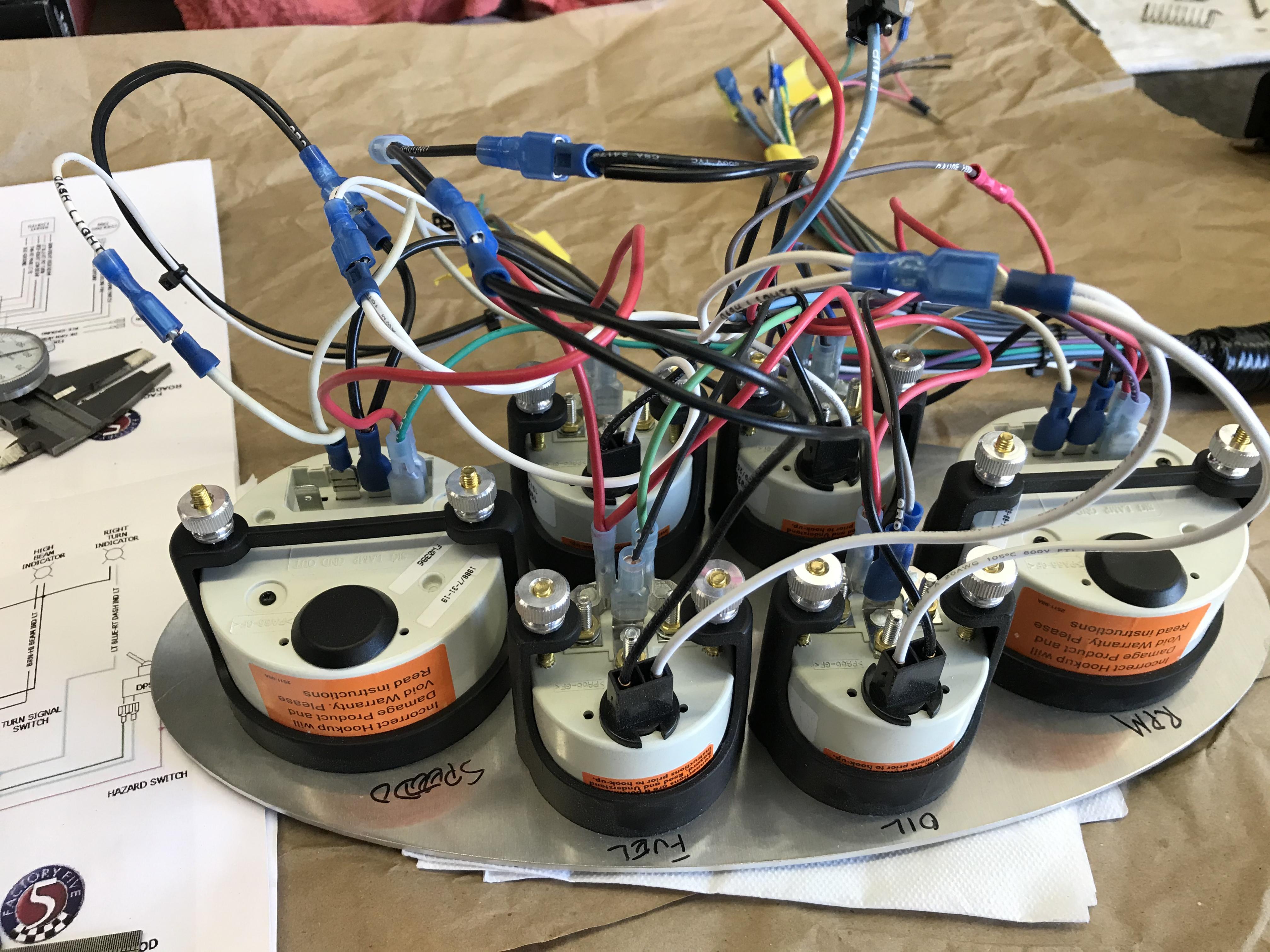

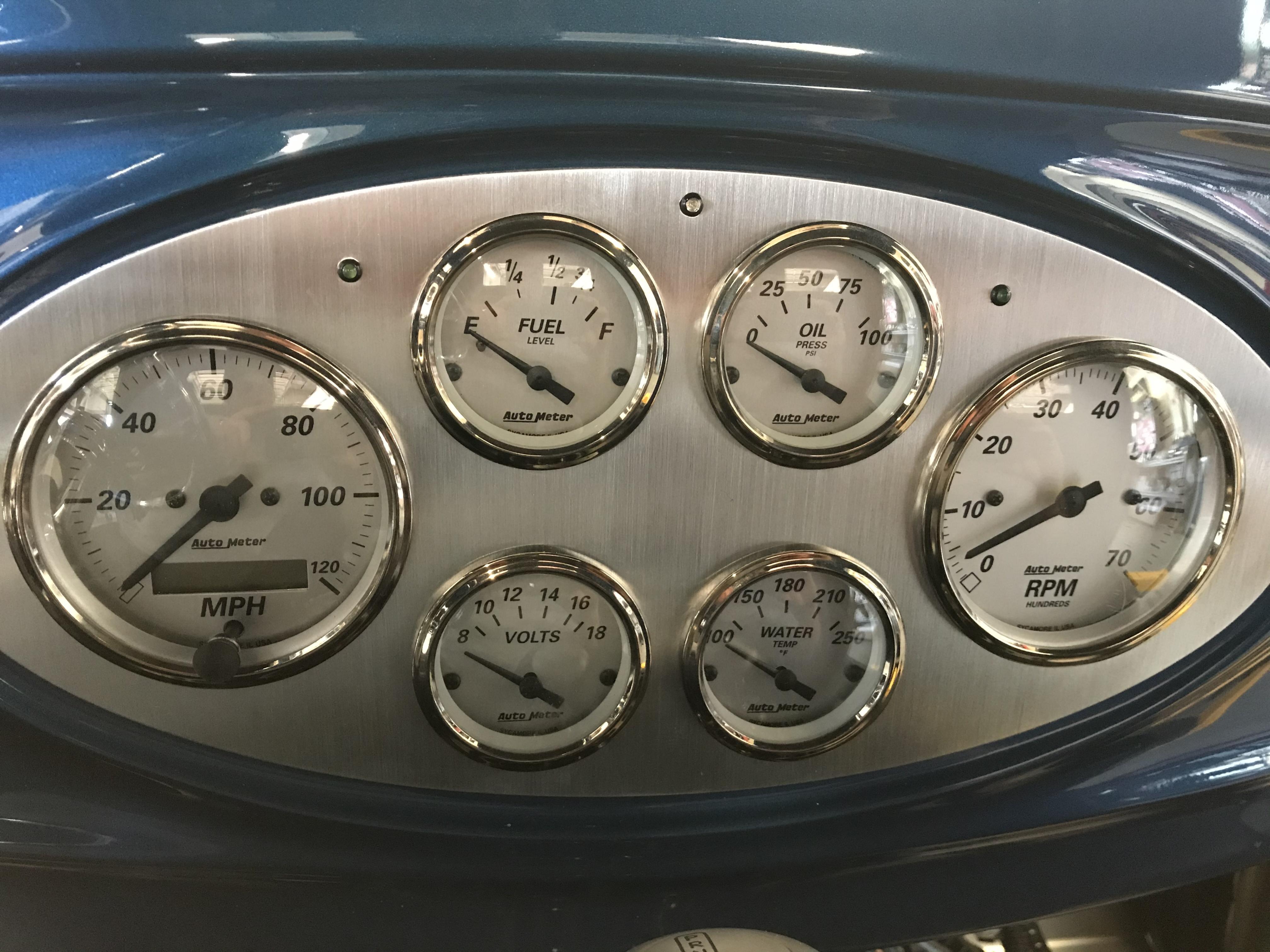

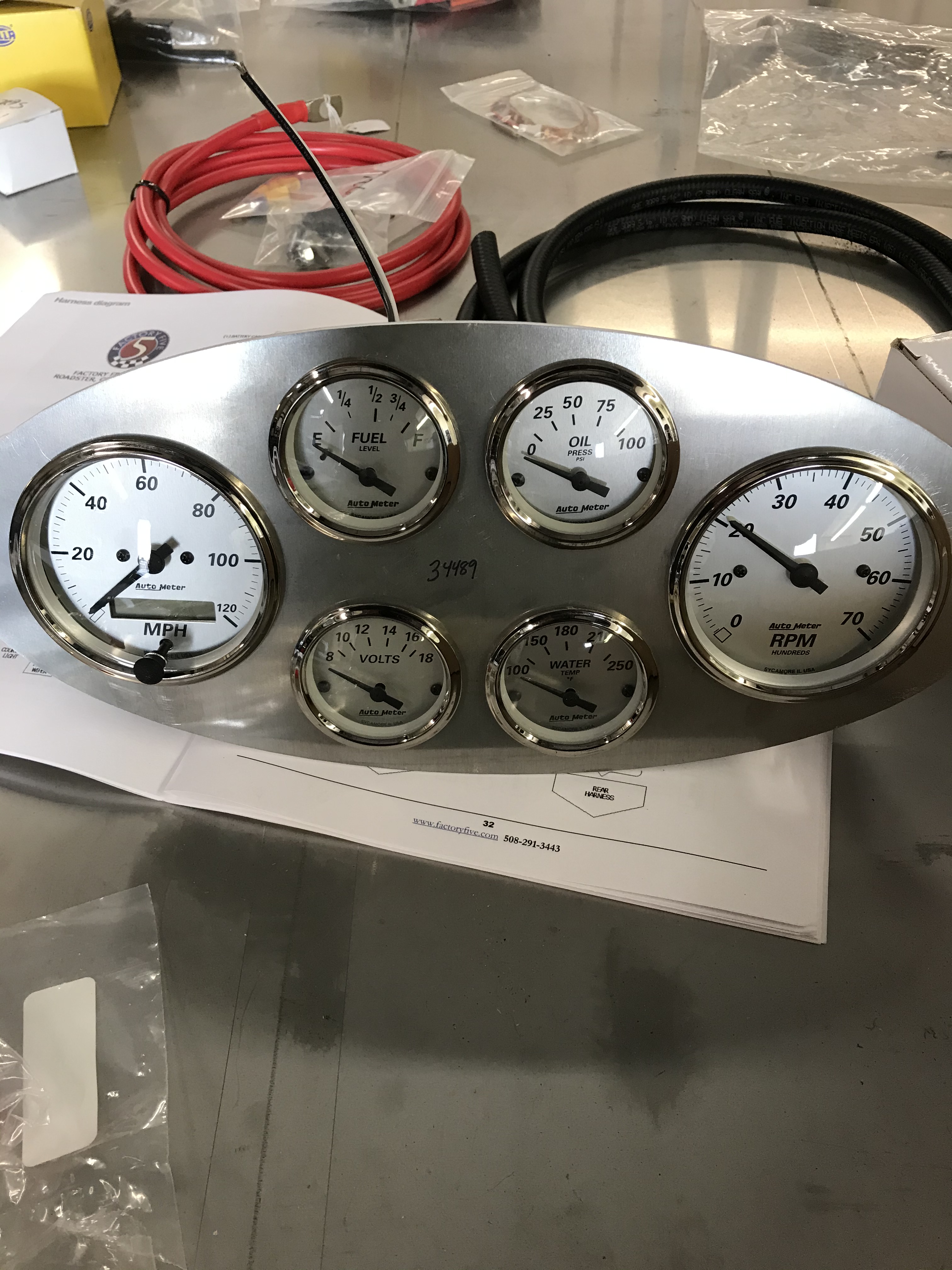

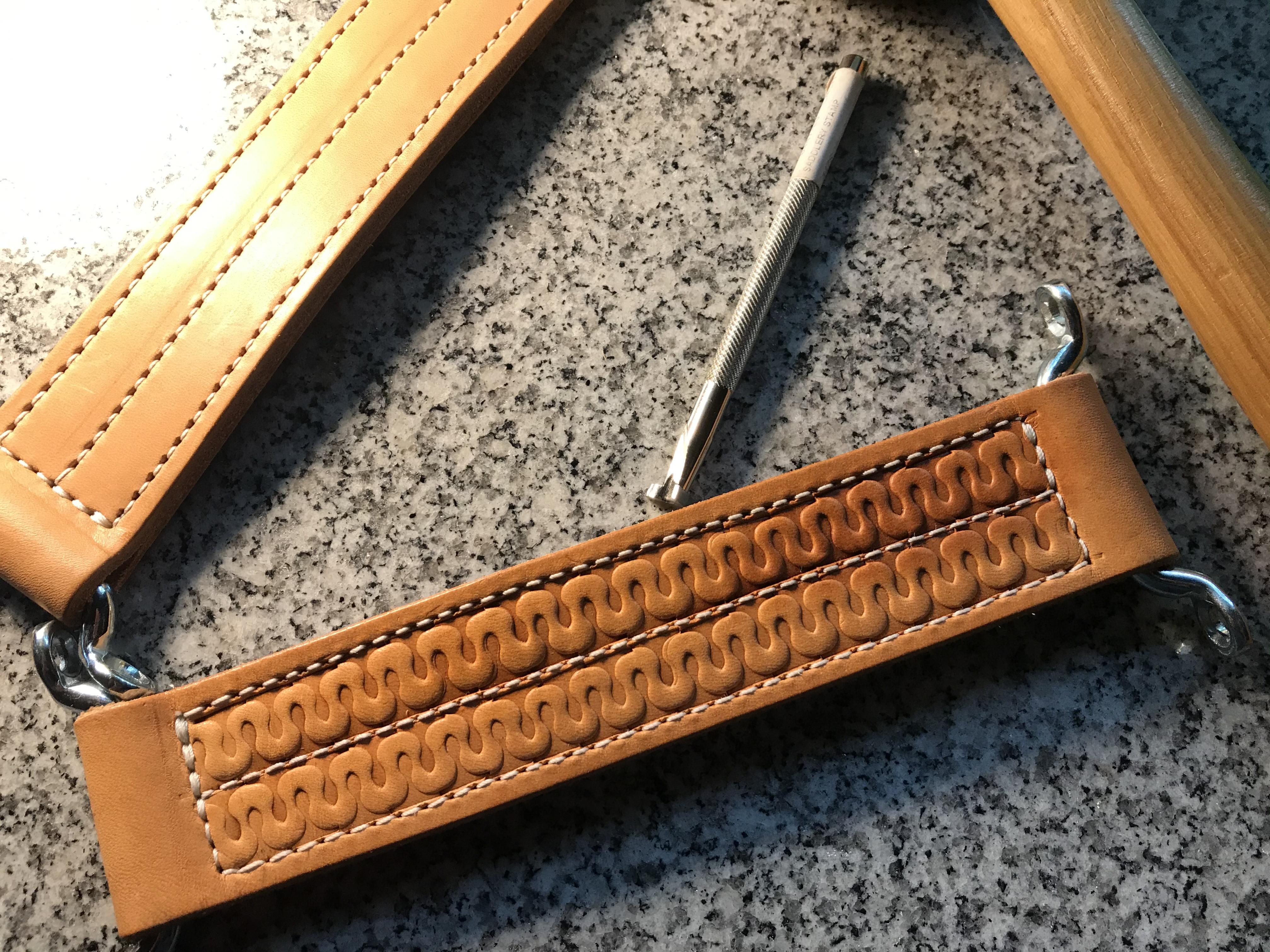

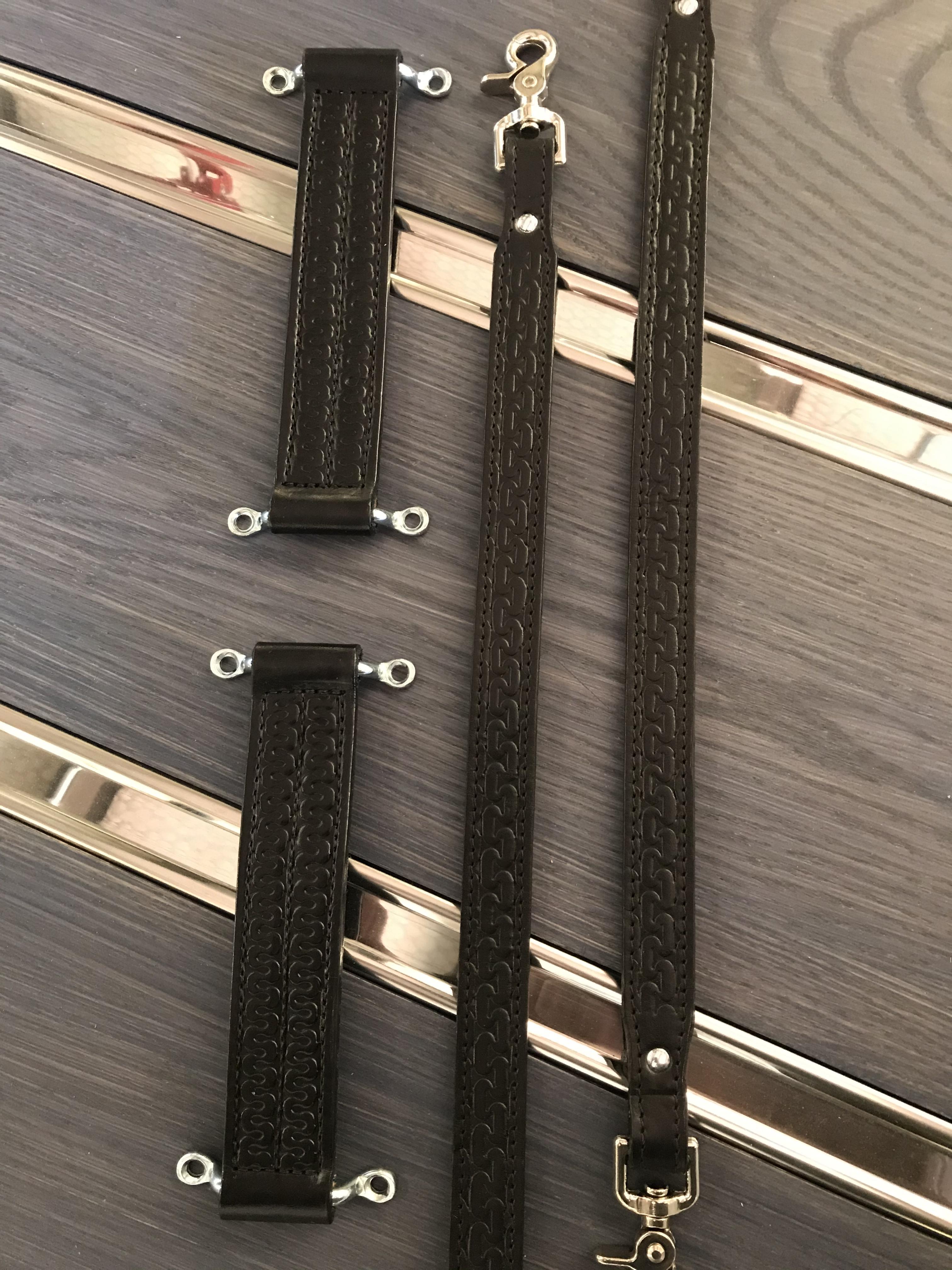

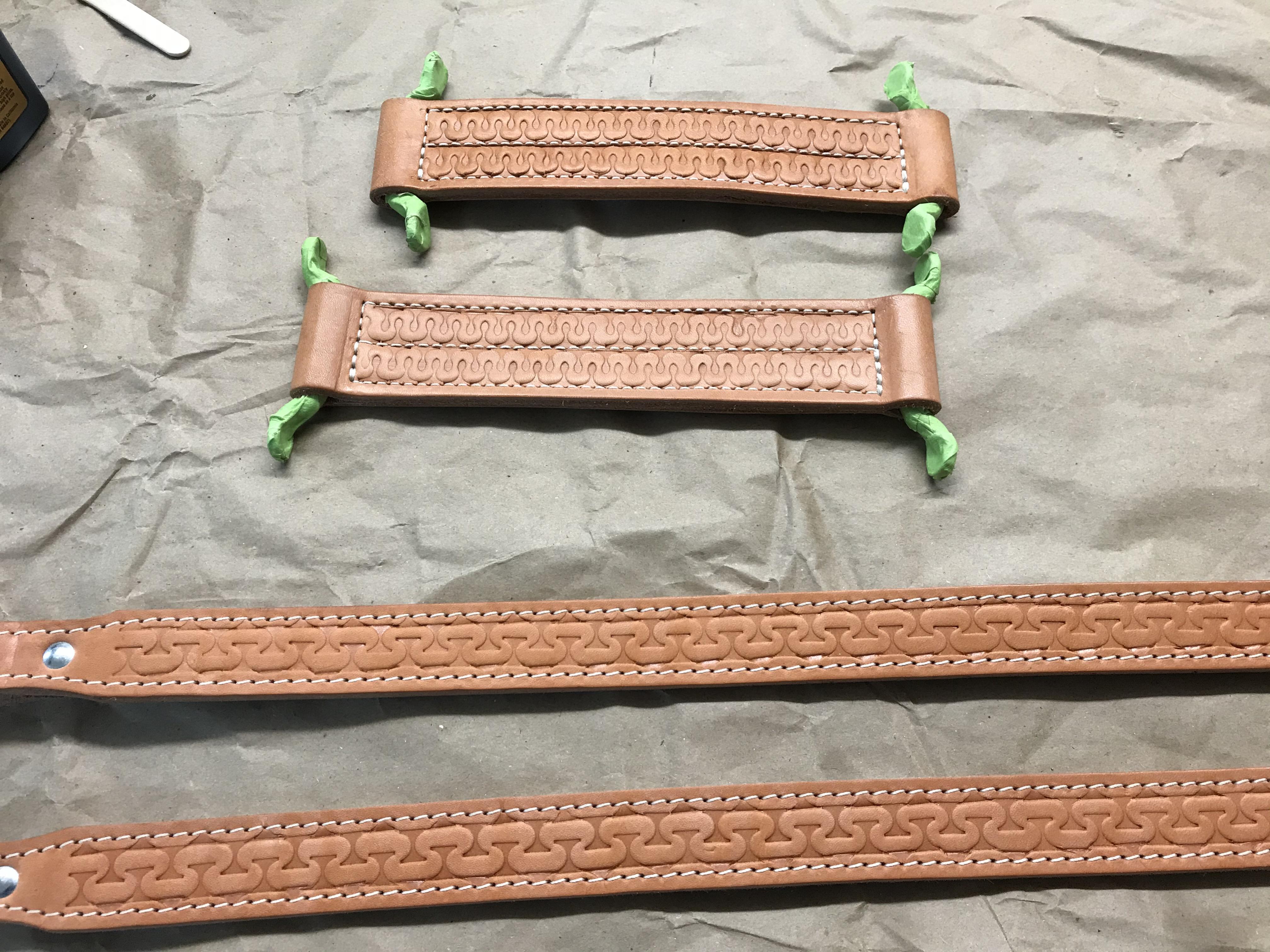

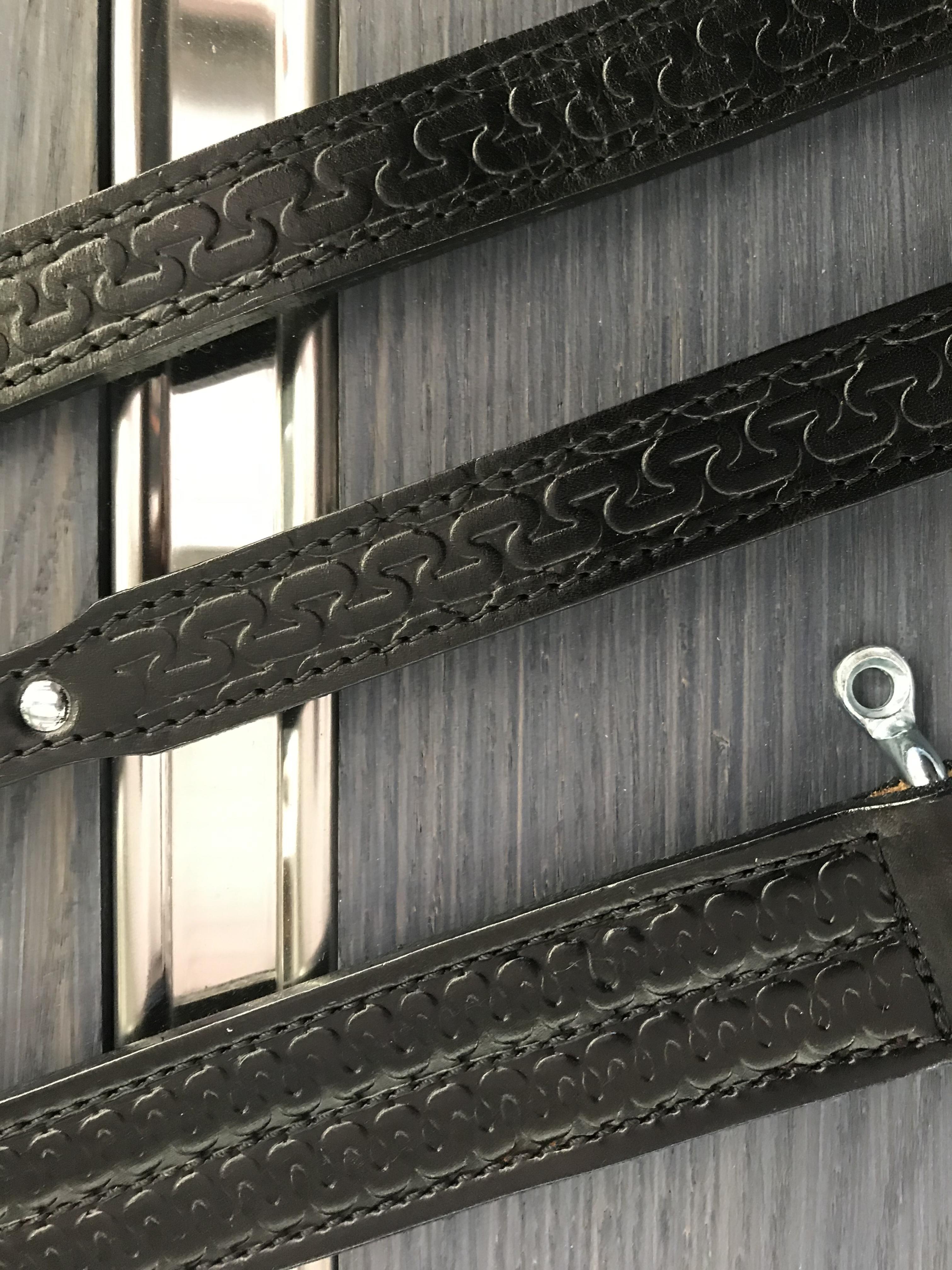

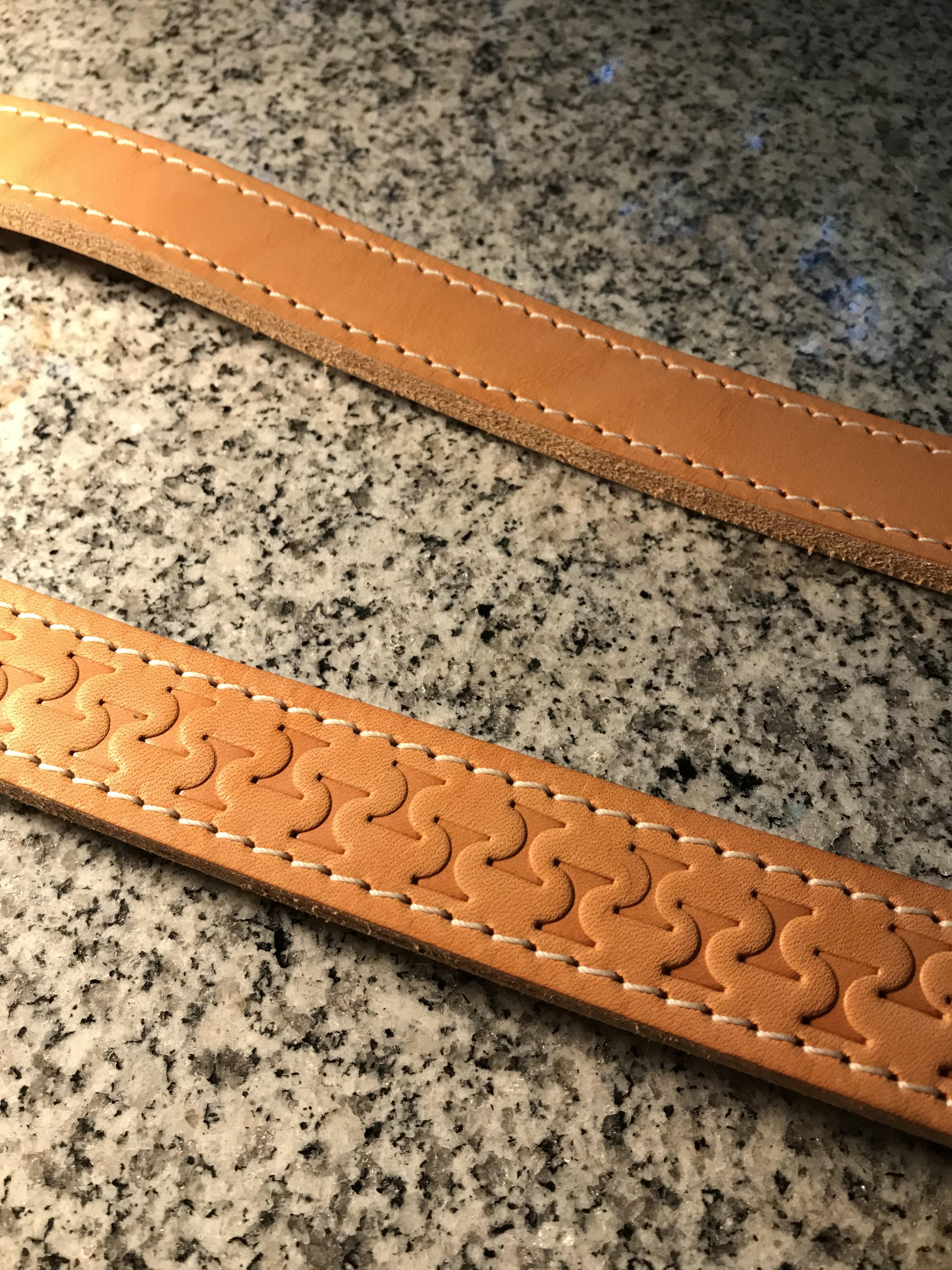

Brushed the aluminum gauge insert. Also, tooled and dyed the door and tailgate straps in USMC Black (SemperFi!)
Attachment 129814 Attachment 129815 Attachment 129816 Attachment 129817 Attachment 129818 Attachment 129819 Attachment 129820 Attachment 129821 Attachment 129822

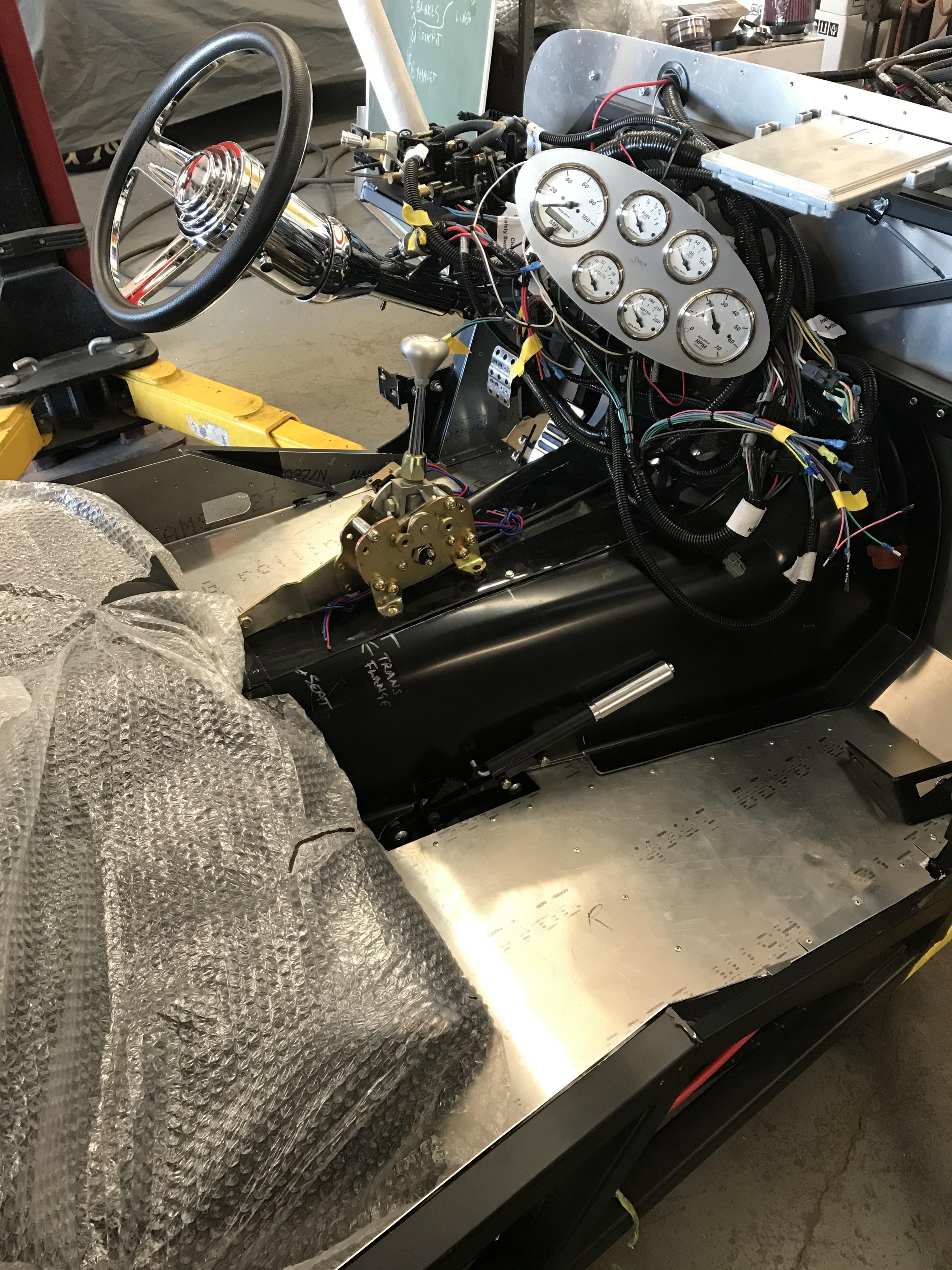

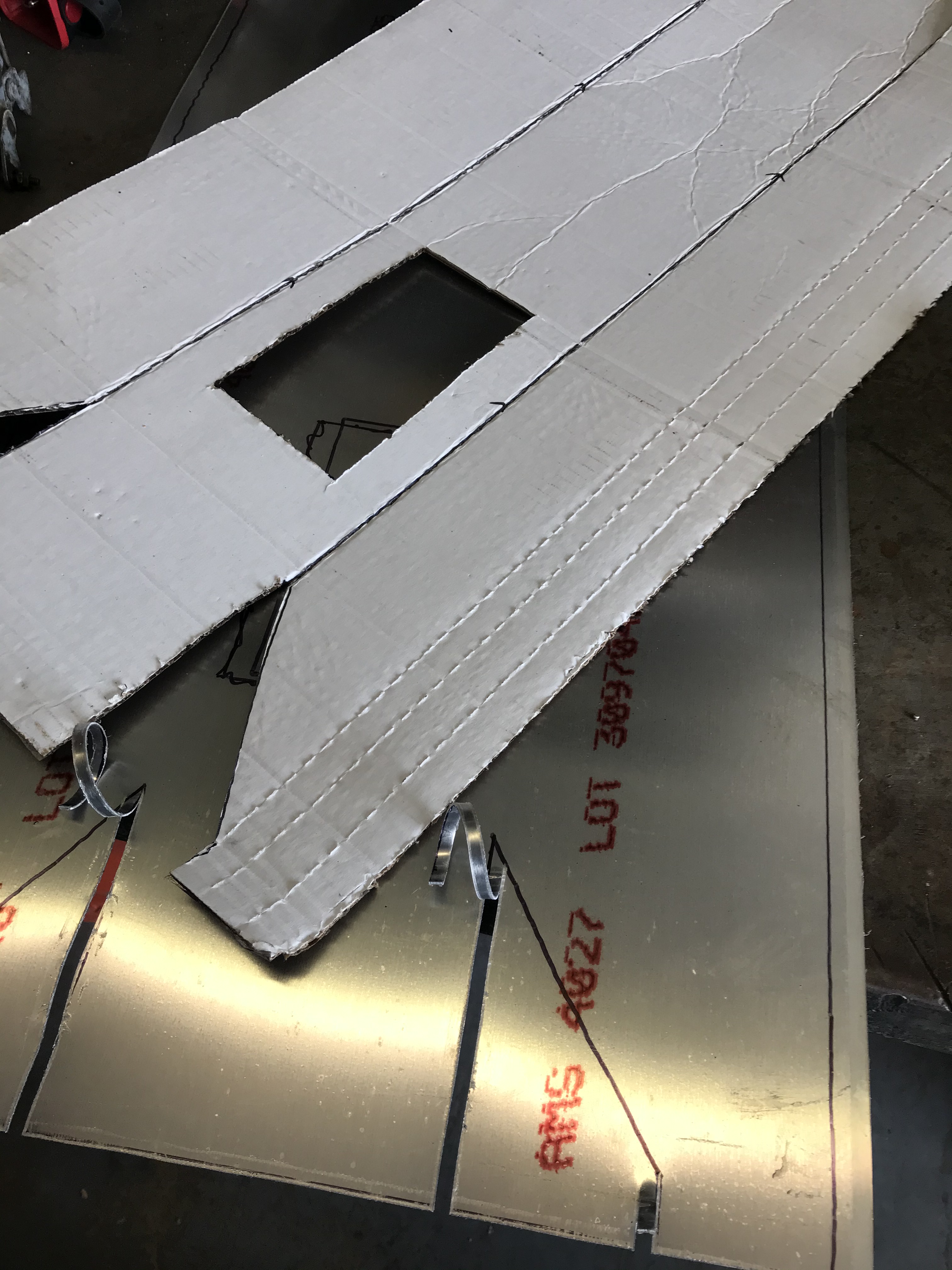

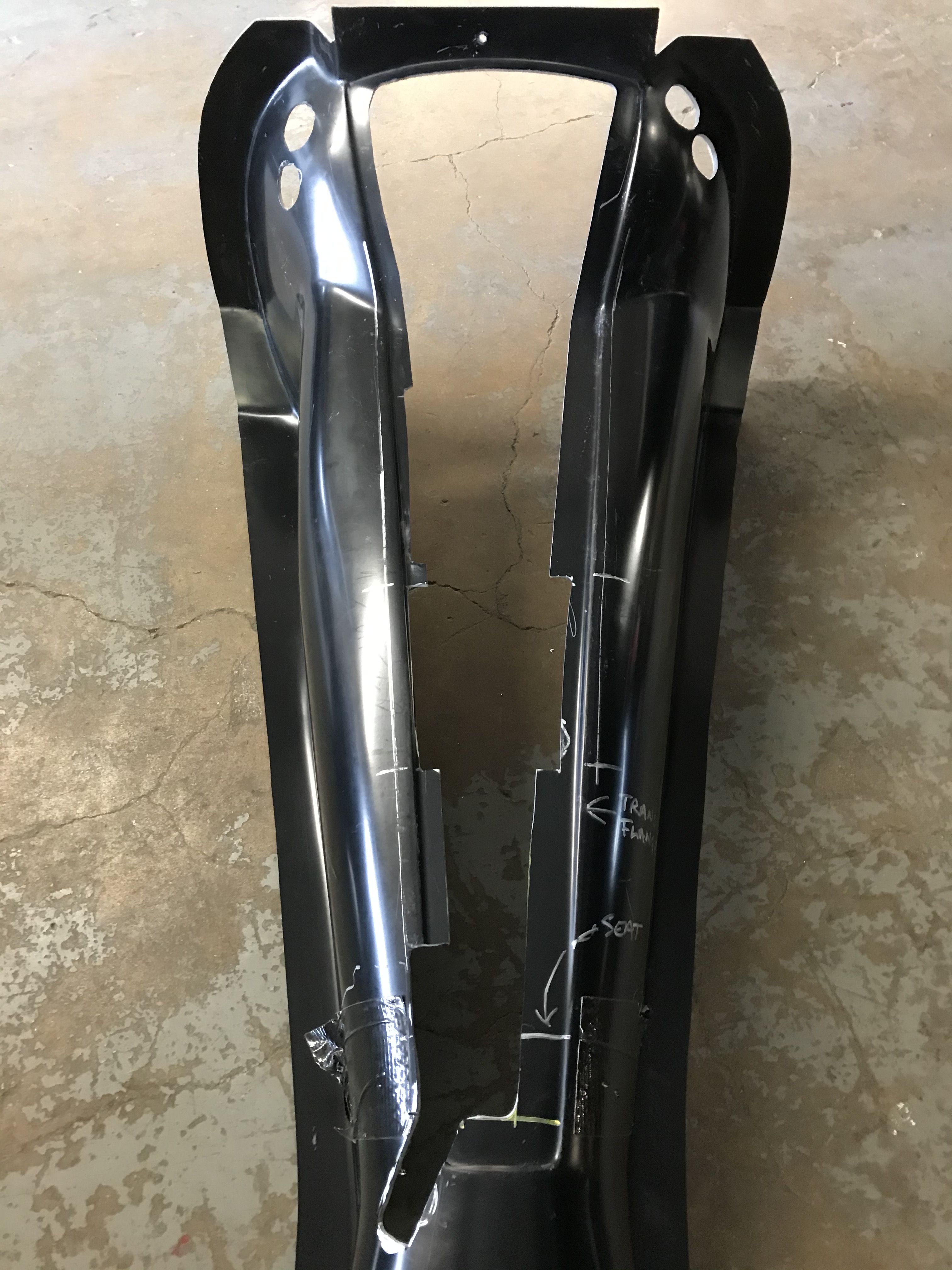

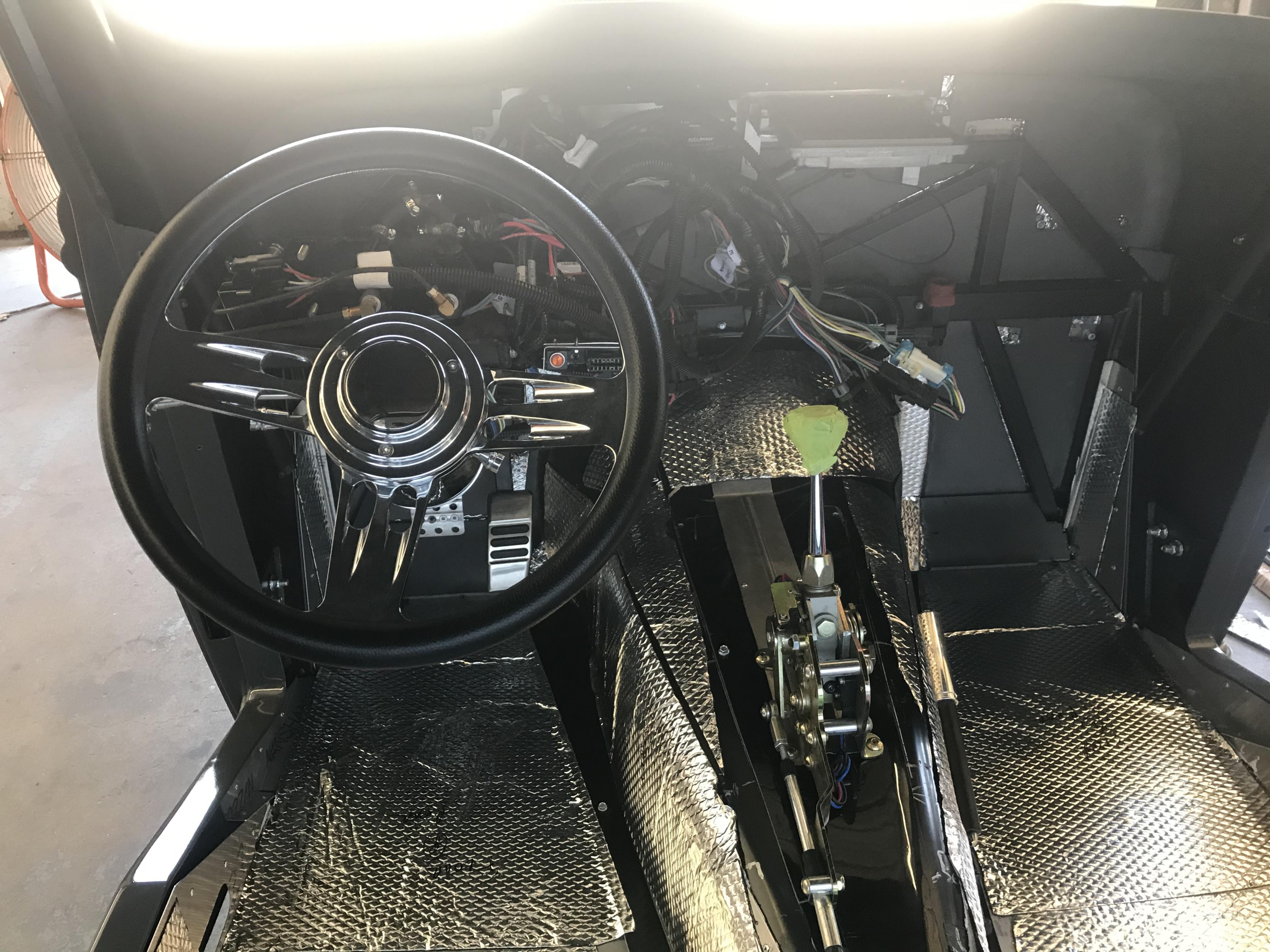

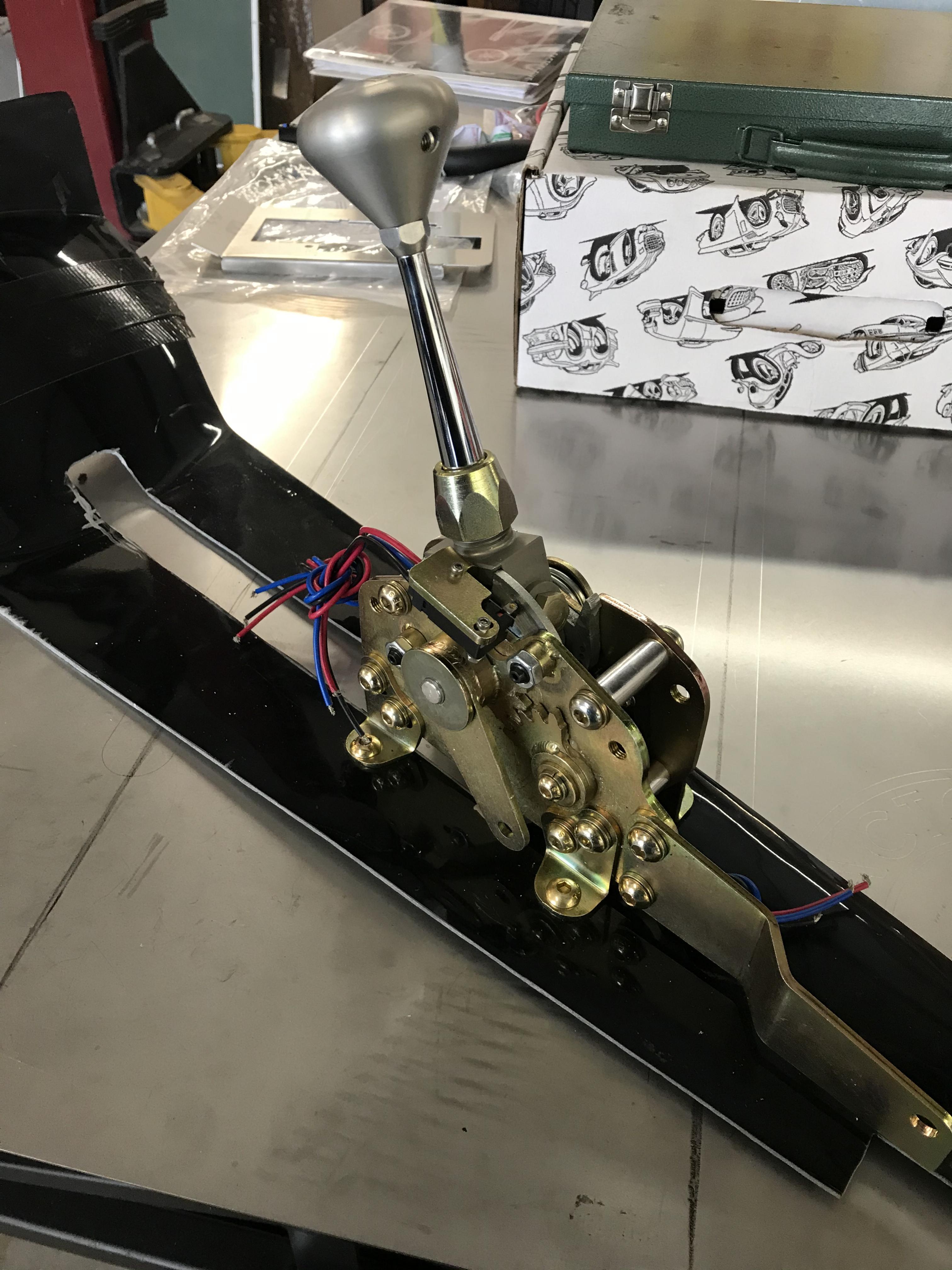

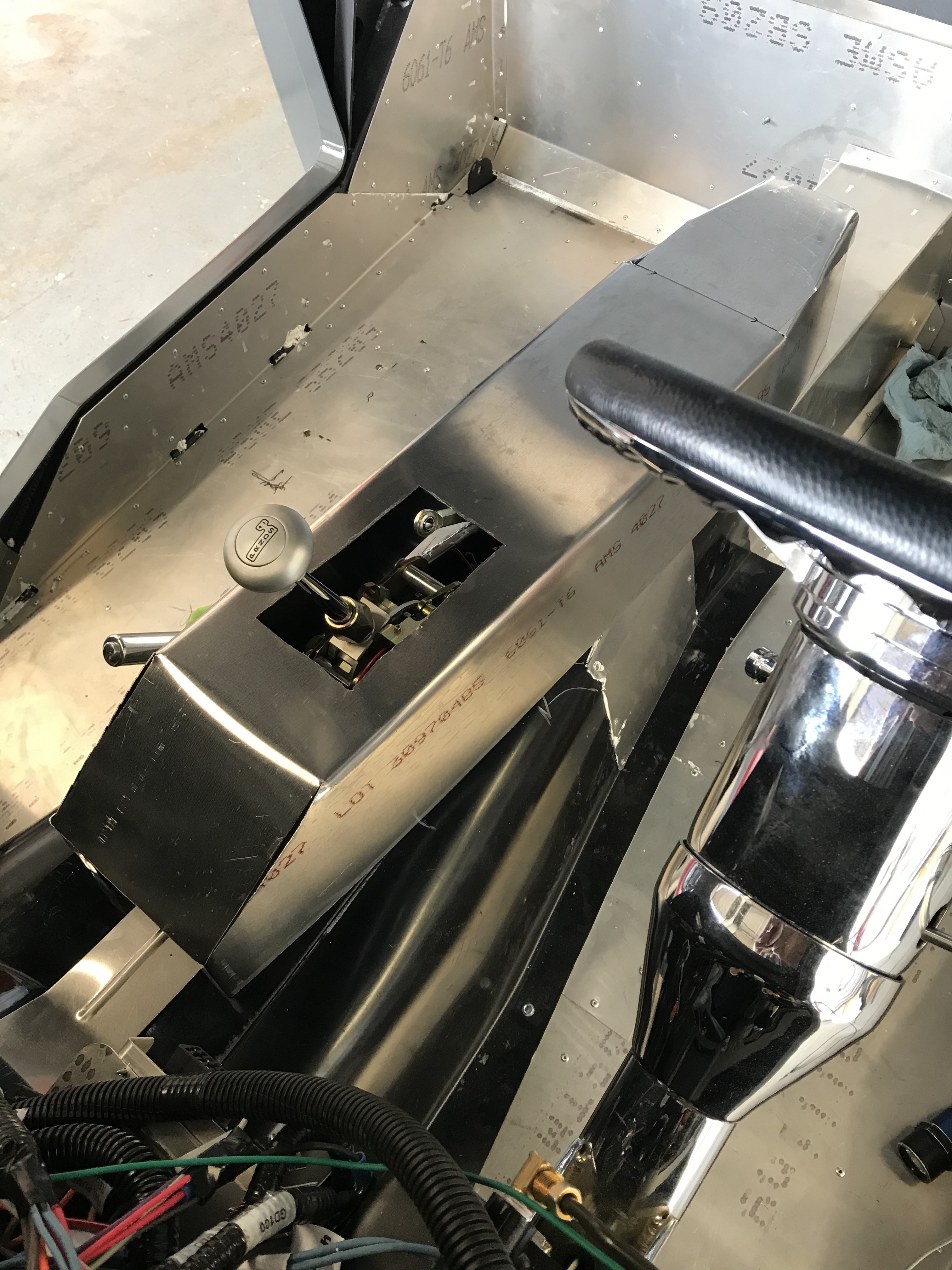

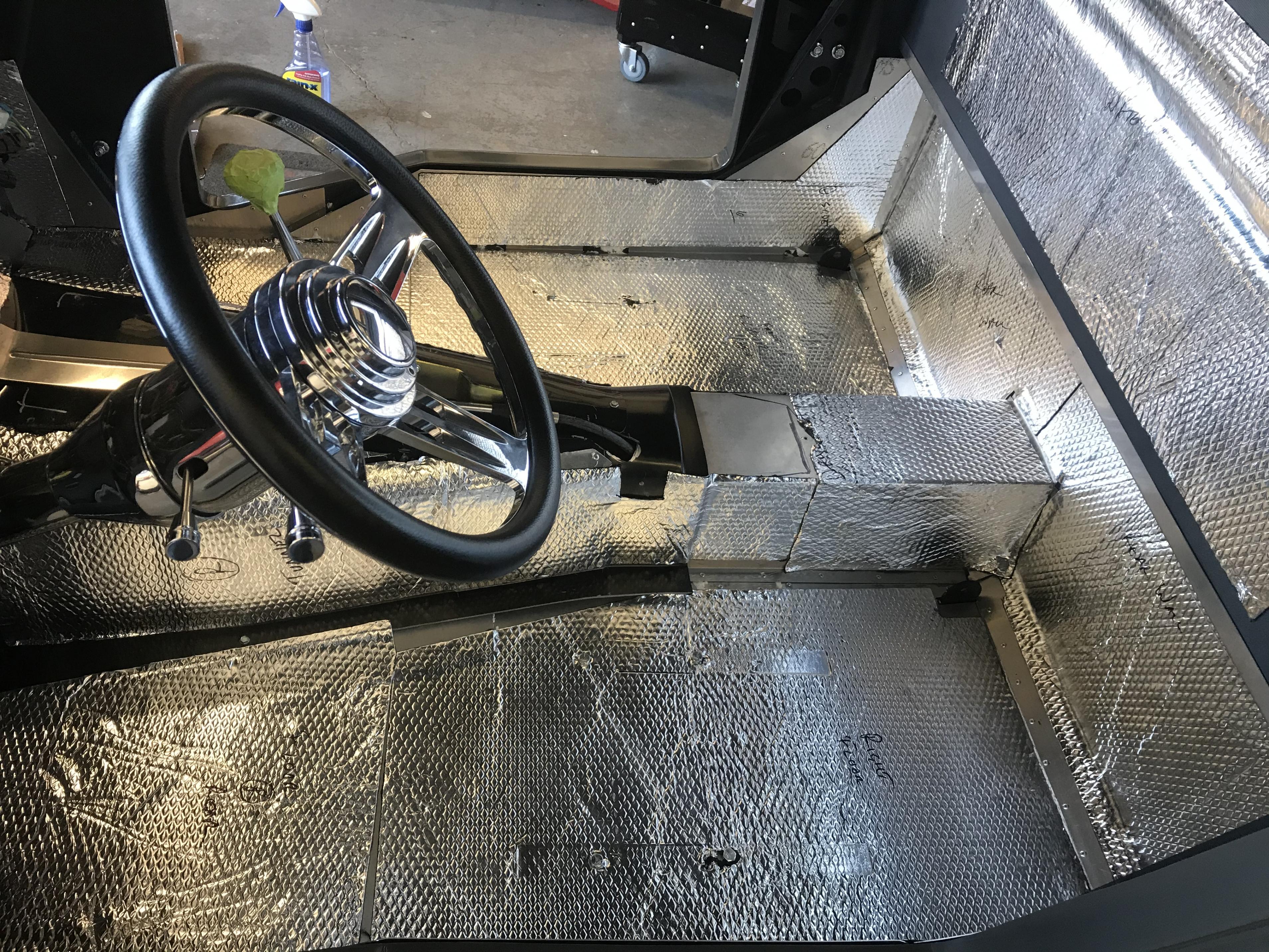

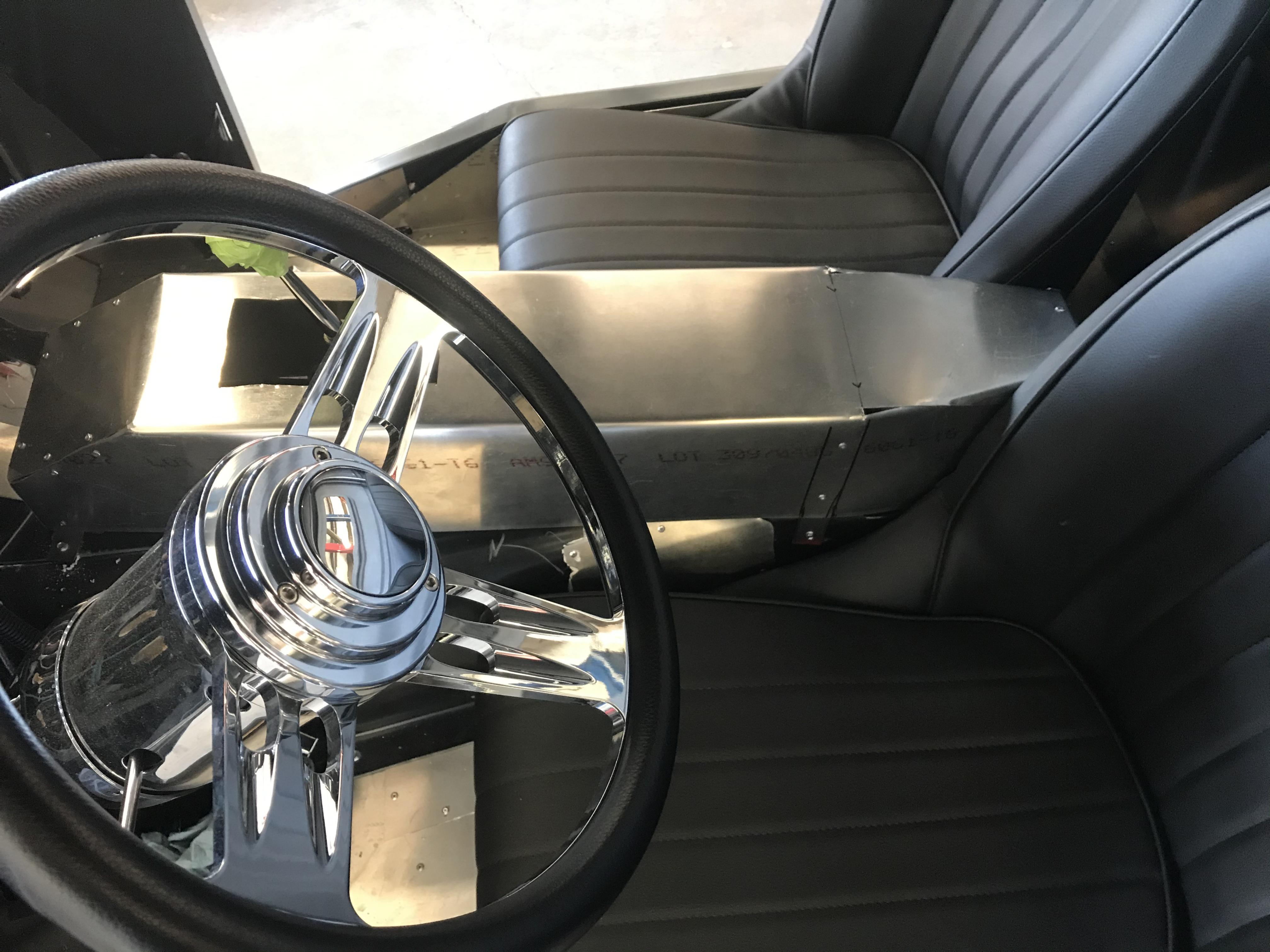

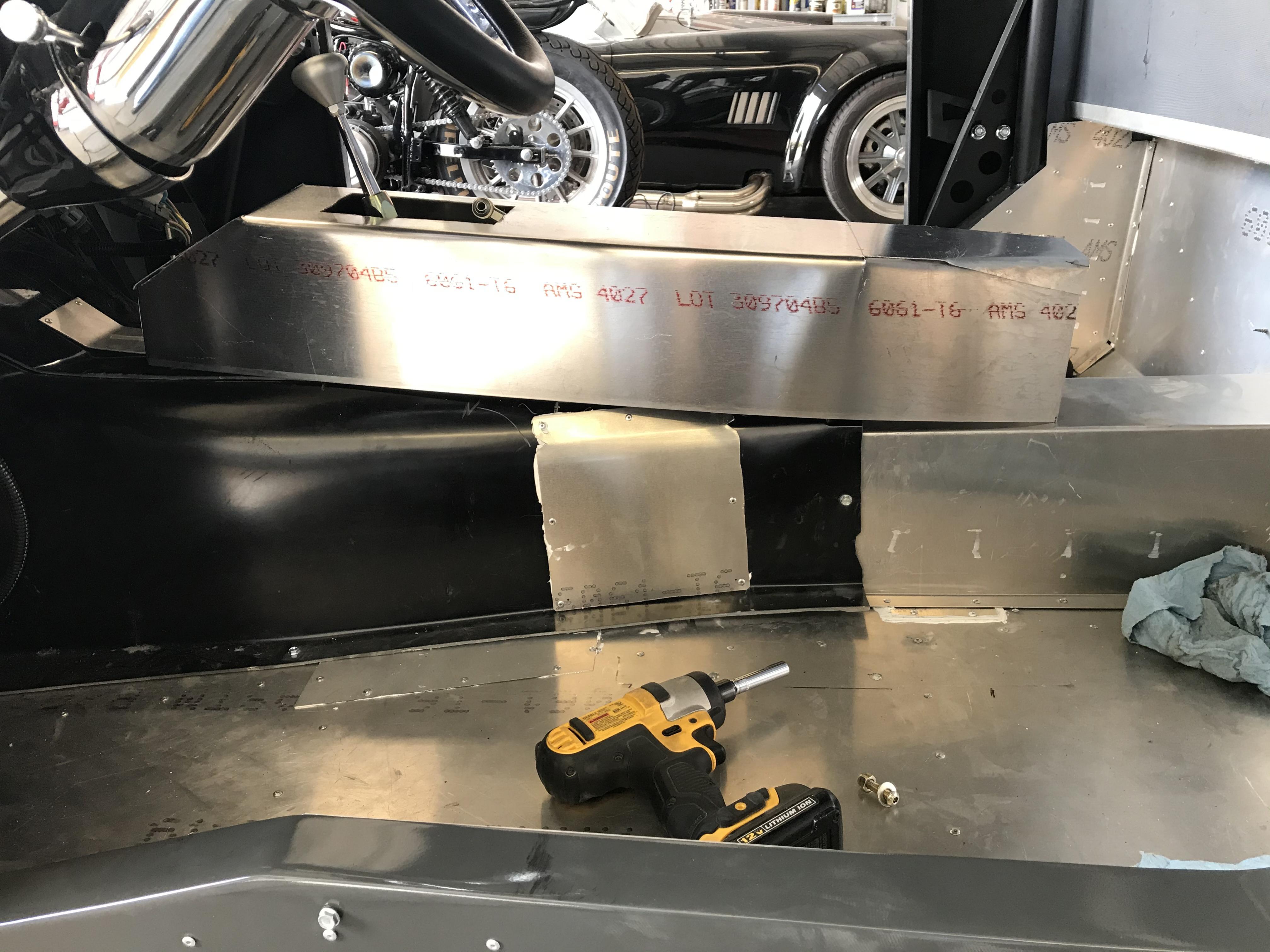

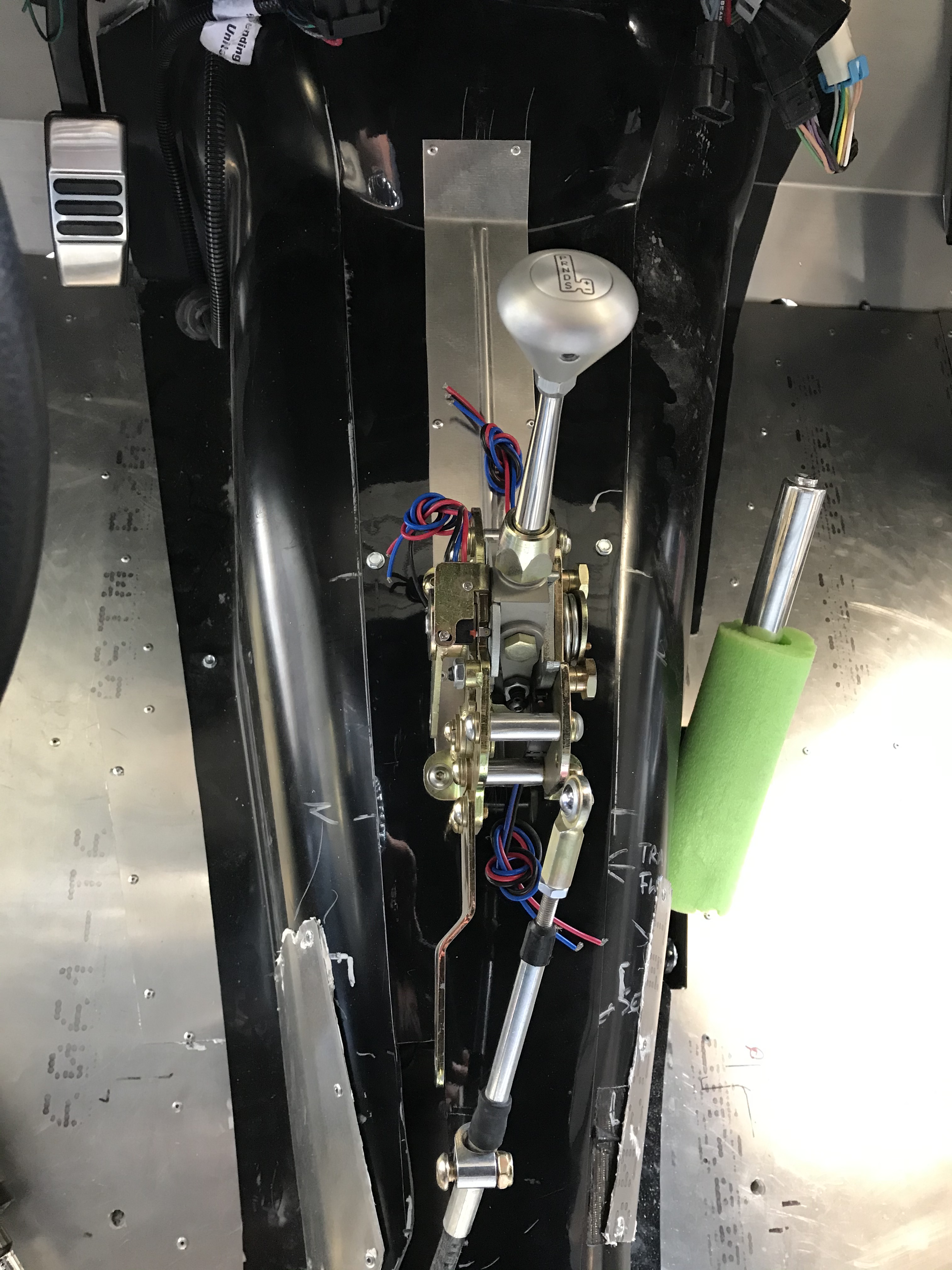

Running a 6R80 trans so the Lokar shifter sits above the tunnel about 5-1/2". Made some mods to the tunnel for the cable and shifter to operate smoothly. Fabricated a console/armrest which will also house the switches for the power windows. Laid down some heat and sound barrier then some carpet. Wrapping the console in the same seat material.
Very nice job. Looks like FFR narrowed the rear of the tranny tunnel a lot since my early model. I had to narrow it about 2" to get it to fit in the seat tunnel.
Keep us updated on your progress.
Ralph
Ken, we are both early kit owners, and I noticed in the latest Assembly Manual that a flocking kit is supplied. I just ask them to send me one.
Ralph
Ralph,Quote:
Originally Posted by rponfick
Thanks for mentioning that flocking kit. FFR doesn't have a headliner or flocking kit on the inventory sheets. I was told that I should have received a flocking kit. Both my truck kits do not have one. I told FFR I did not receive one for either truck and asked if they could send them. Still no response!
Emilio
How close in serial number are your two trucks?
Are there any noticeable differences between them?
And I have to ask....are you building a fleet?
LOL :)
Cheers,
Pat
I have an early truck, no. 15, and there was no headliner idea at the time. They must have changed things over time, and FFR emailed me yesterday saying that a Flocking Kit was on the way. I was pleasantly surprised by the response.
Ralph
Not sure I haven't looked but I did order them on the same day.Quote:
Originally Posted by Pat Landymore
They will be different as far as hood, grill, seat, powertrain and paint.
Maybe....Attachment 129927 ;)
Take Care,
Emilio
Nice!!
Hey GroundPounderSATX (or anyone reading this), did you apply any water/moisture protection to the bottom of the wood planks?
Thanks.

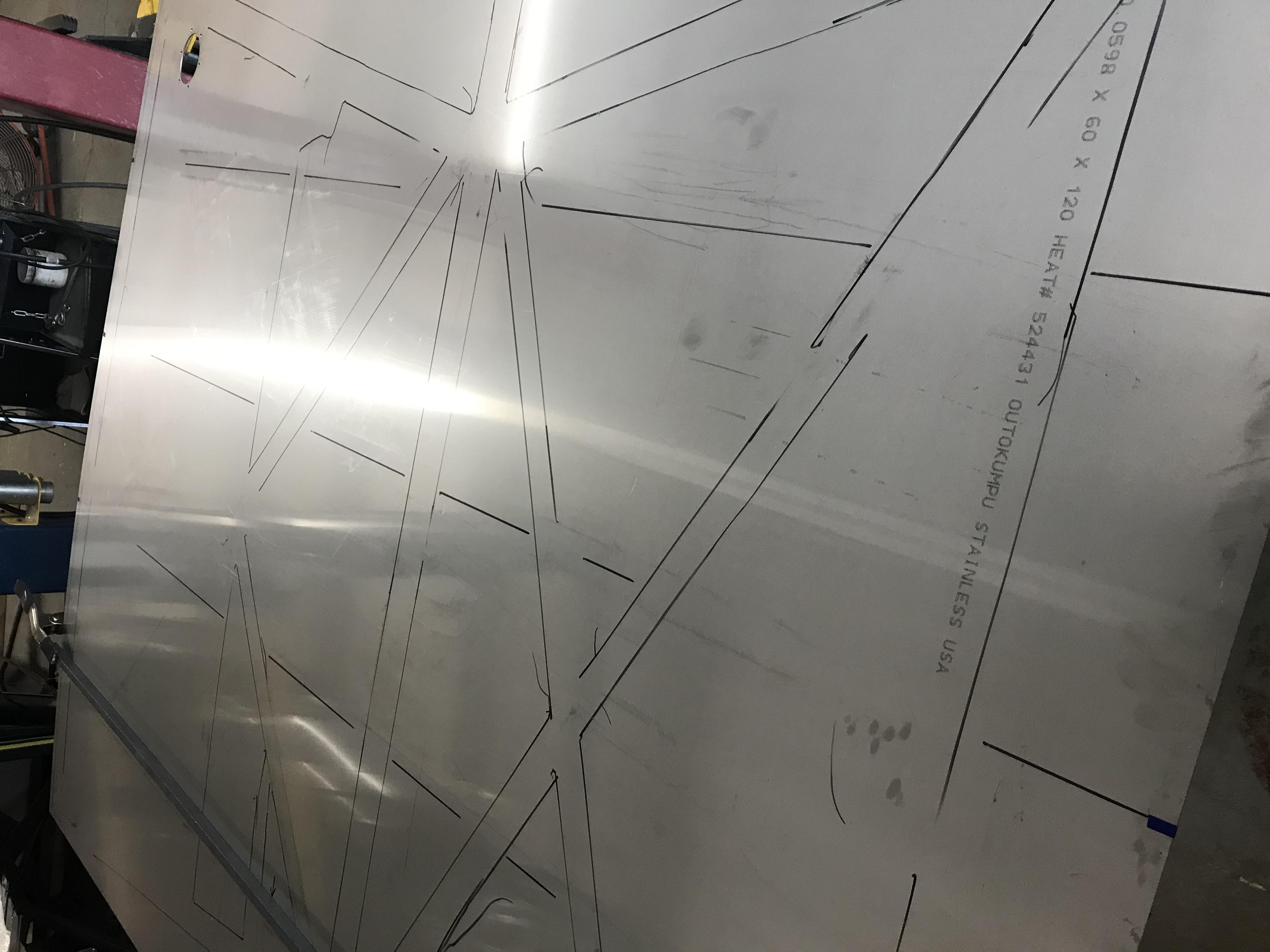

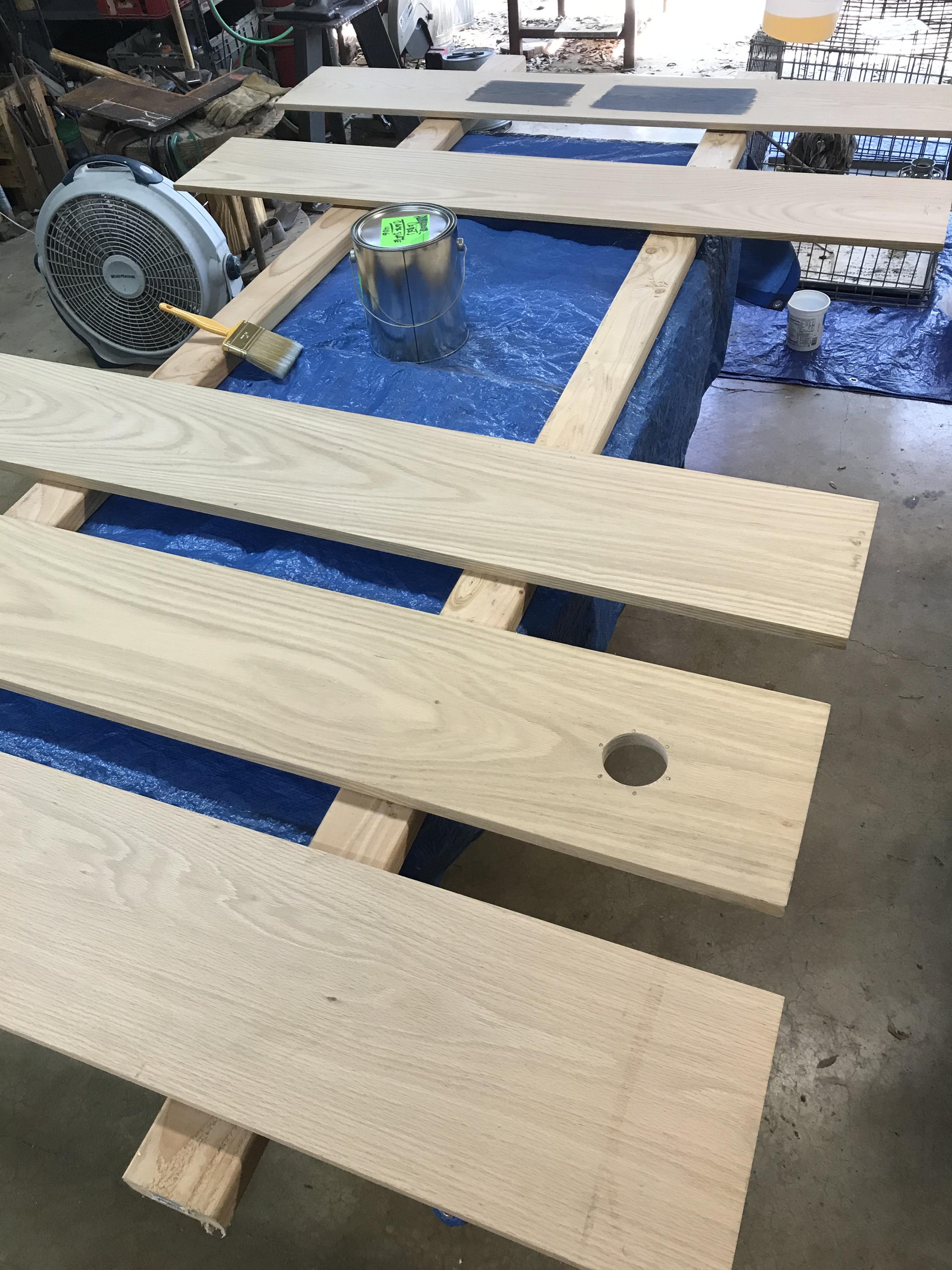

I'm doing mine with veneer on ply. I bolted my bed bottom down with button head screws which will keep an air gap between bed and wood but will be applying a heavy dose of polyurethane on it as well! I drilled multiple drain holes in the SS bed so it dose not pool water.Quote:
Originally Posted by FLFrank35
Yes, I used an oil based stain that's darker than the top. Also, its on top of the stainless steel sheet.Quote:
Originally Posted by FLFrank35
Tom Wallace prepared a thread on Flocking. See below, might be of use to folks.
https://thefactoryfiveforum.com/show...783#post415783
I asked Tom how it was holding up:
"If you do it correctly it will not come off with a chisel. Mine looks as good as the day I did it. "
