11-09-2019, 10:37 AM
Aircontroller

RaceDeck garage tiles

Howdy everyone.....

Just wanted to share a little about my purchase with RaceDeck garage tiles.

I made a purchase during the week while SEMA was going.

Someone in this forum messaged me that there’s another company that has similar tiles that are compatible which are cheaper but I opted to do 100% RaceDeck tiles.

I highly recommend that anyone interested in getting their garage looking spiffy, that they go to the garage journal forum.

Make sure you create an account cuz when you call RaceDeck to place an order they’ll need that to give ya a pretty good discount. I ordered with a lady named Jennifer Storm...she was superbly nice and patient.

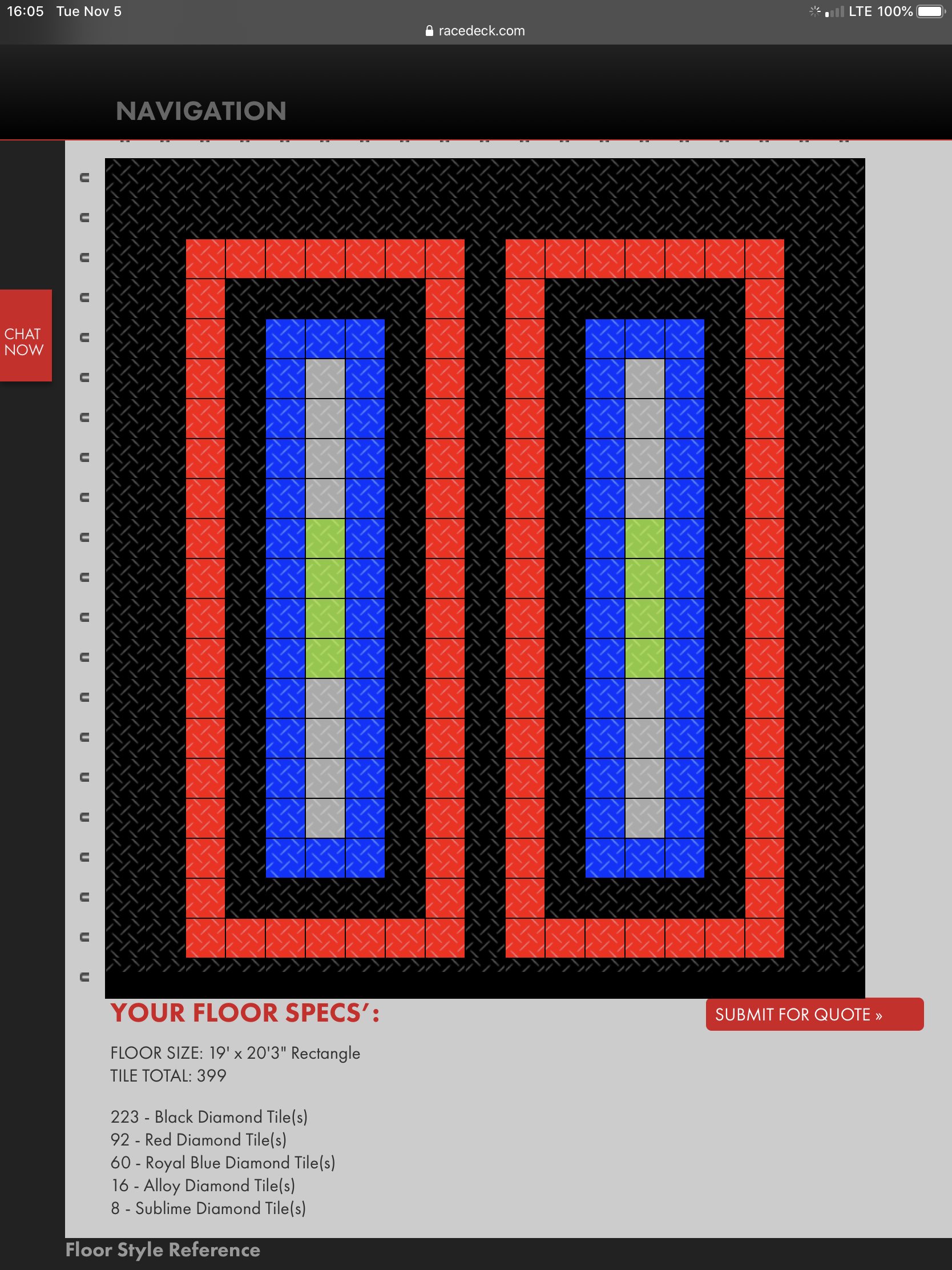

I designed the tile layout, saved it on their site and got a snapshot for myself. Sent Jenn an email jstorms@snaplock.com and got it going.

They also gave me free shipping for being a vet.

Y’all....I’m so stoked about the tiles....I love this country! Happy Veteran’s Day weekend!

P.S. I’ll post pics as soon as I get the stuff and my act together :D
11-09-2019, 12:08 PM
wareaglescott

I have race deck and am very pleased with them. The only thing that caught me by surprise was water drainage. It doesn't on the tiles I have. Just pools and sits there. No big deal, I have a mop in the garage and clean it up when needed. Not a complaint. Just something that never really occurred to me until the first time I parked a wet car in there and was like hmmm there are big puddles of water!
11-09-2019, 01:38 PM
Aircontroller

Yup....i thought hard about this. They have the Freeflow tiles but knowing me....it'll be trashed before I would lift them so i can clean up the concrete below them. Lol
11-09-2019, 02:03 PM
FF33rod

In a wet climate like the Pacific Northwest, I think the freeflow is the way one would have to go. How much a sq ft are we talking?
Also, I would assume you would still want to put a sealer on the concrete floor?

Steve
11-09-2019, 05:29 PM
Aircontroller

I had to cover 19 x 20.

I'm not sealing...

Quote:

Originally Posted by FF33rod

In a wet climate like the Pacific Northwest, I think the freeflow is the way one would have to go. How much a sq ft are we talking?
Also, I would assume you would still want to put a sealer on the concrete floor?

Steve
11-09-2019, 08:20 PM
Topfuelhydro

1 Attachment(s)

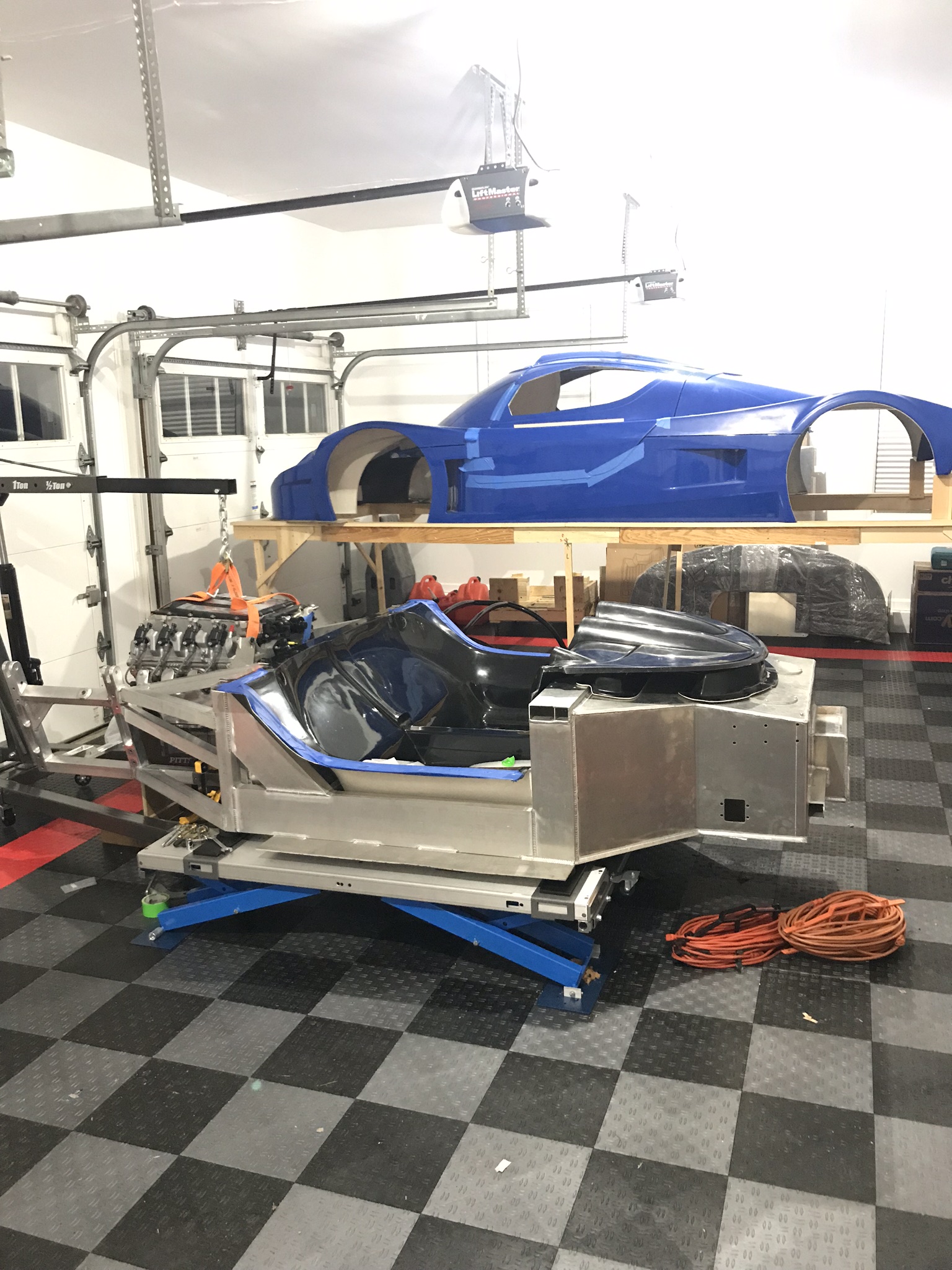

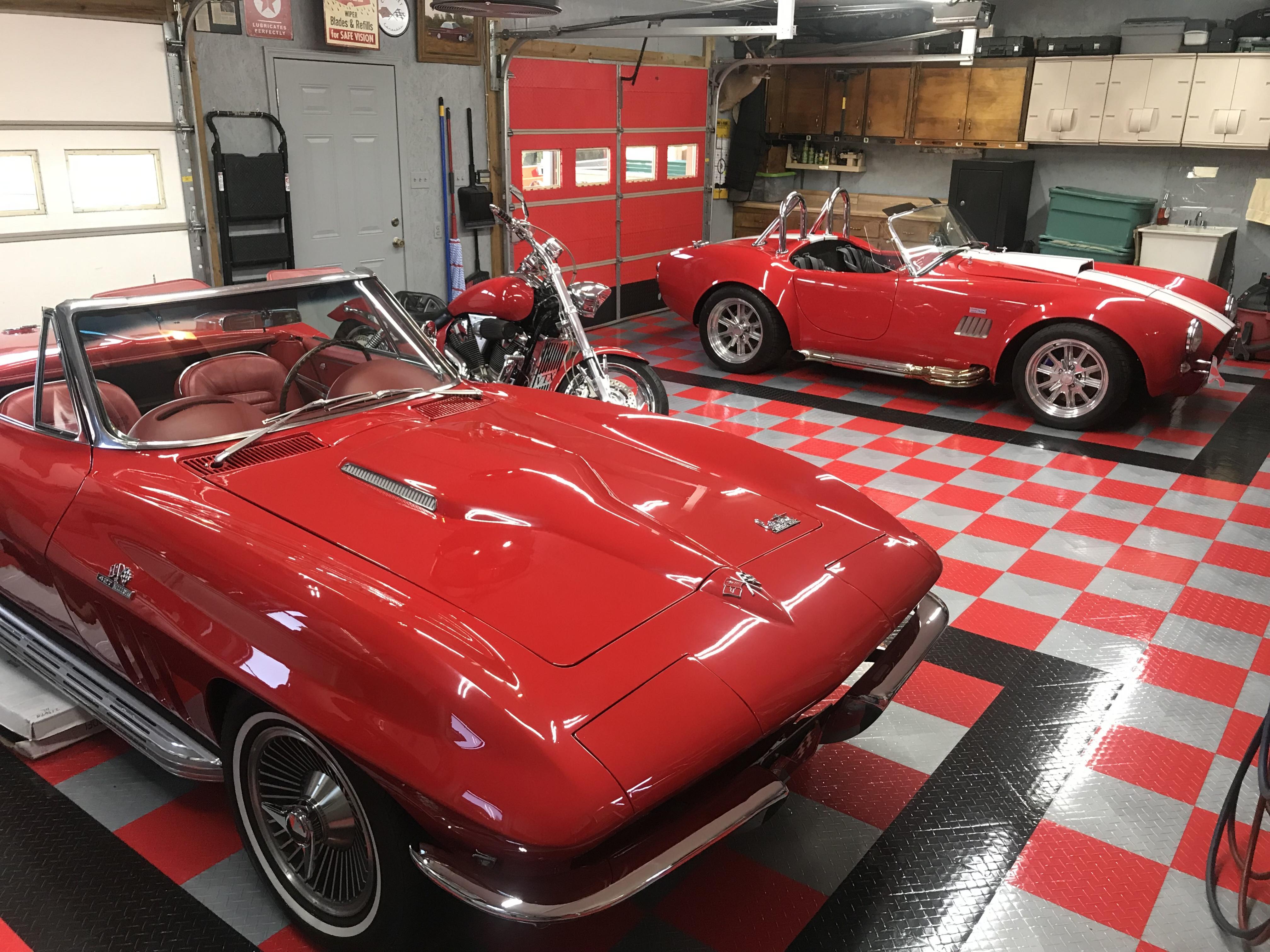

I love mine. Looking to add it to my big outside garage. 1500 sq ft is just hard to justify. :)

Steven

Attachment 117313
11-10-2019, 12:36 AM
FF33rod

Quote:

Originally Posted by Aircontroller

I had to cover 19 x 20.

I'm not sealing...

Wondering what the cost is per sq ft, I have a very similar area as you, just under 20x20
11-10-2019, 07:28 AM
Fixit

8 Attachment(s)

I did a combo of RaceDeck & GarageDeck in the 40 Watt Garage.
It's been down about 4-1/2 years, through 4 Minnesota winters, and still looks great.

With all the muck & sand tracked in by the daily driver(s) during winter, I did a grid pattern alternating the vented tiles and solid tiles. Also, the area near the ped-door is all vented (to stomp off snowy boots). The snow melts and drains through, and eventually evaporates.

Word of warning(s):
- Heed the install instructions and leave the recommended clearances to fixed objects/walls. You'll be amazed at how much the floor shrinks/expands/moves.
- Don't freak out the 1st hot summer day with the big door raised. The area near the door/sun will heat up and expand MUCH faster than the rest of the floor, and might raise/buckle a bit. It'll level out when the temperature stabilizes.
- Do not load a car onto a trailer with the drive wheels on the RaceDeck!! Trust me, you'll "unzip" about 50 tiles in .002 seconds and shoot them across the room.

I bought a commercial rag-mop, bucket and wringer, and wet mop the floor a few times a season to keep it clean. Also, about every year and a half I'll "unzip" the floor into (about) 8' x 20' pieces and pull the whole section out and down the driveway... break out the power-washer and clean the accumulated muck off the concrete, then blast the floor sections clean... haul 'em back in , zip 'em back together and I've got a new floor.

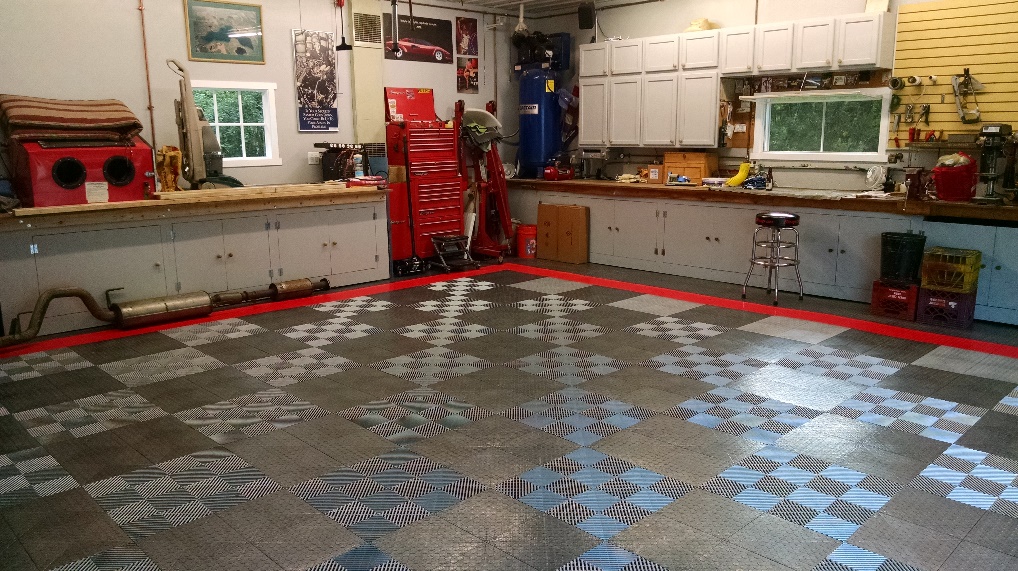

This Spring
Attachment 117320

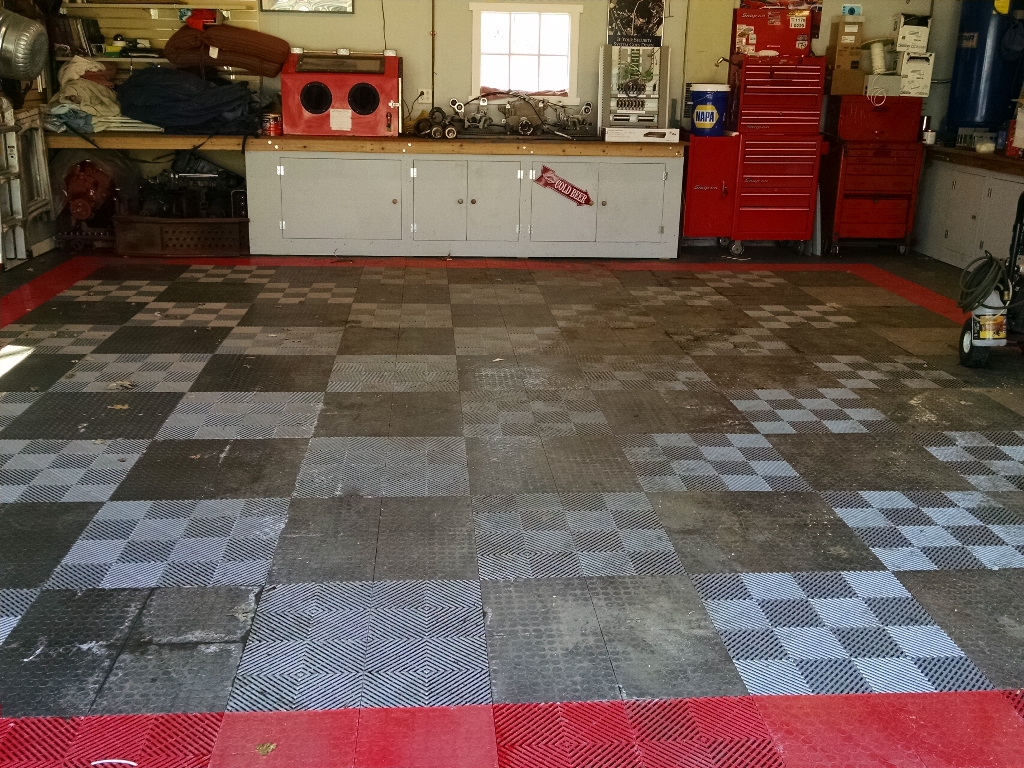

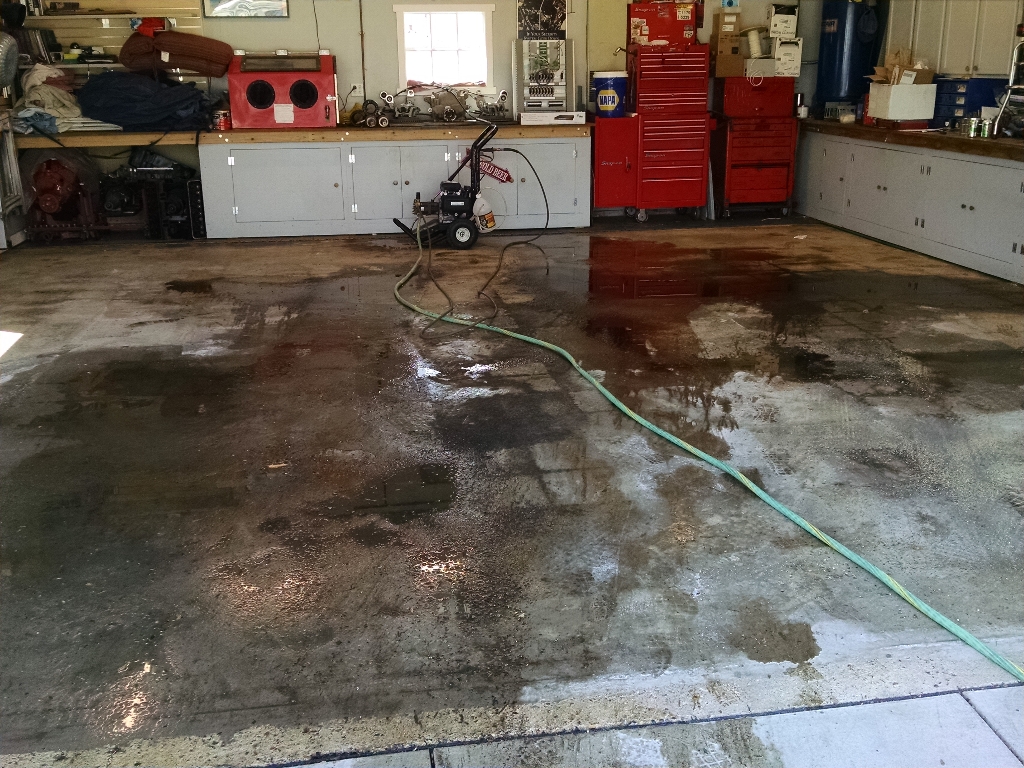

After a winter's worth of crud
Attachment 117321

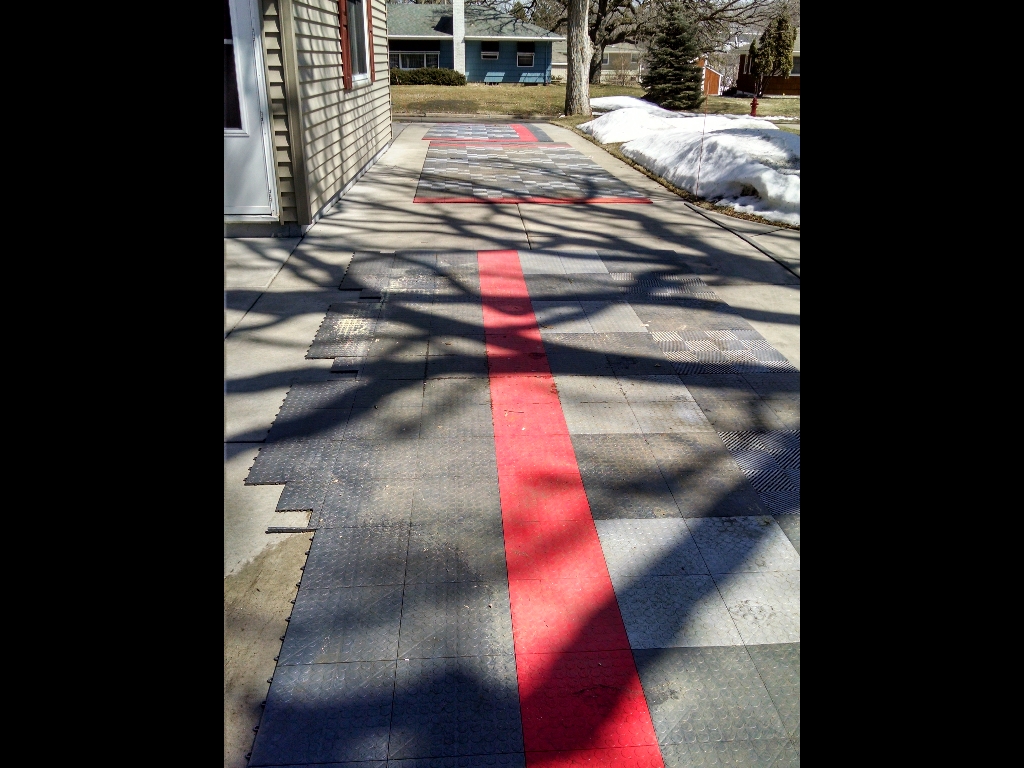

Sections unzipped and down the driveway
Attachment 117322

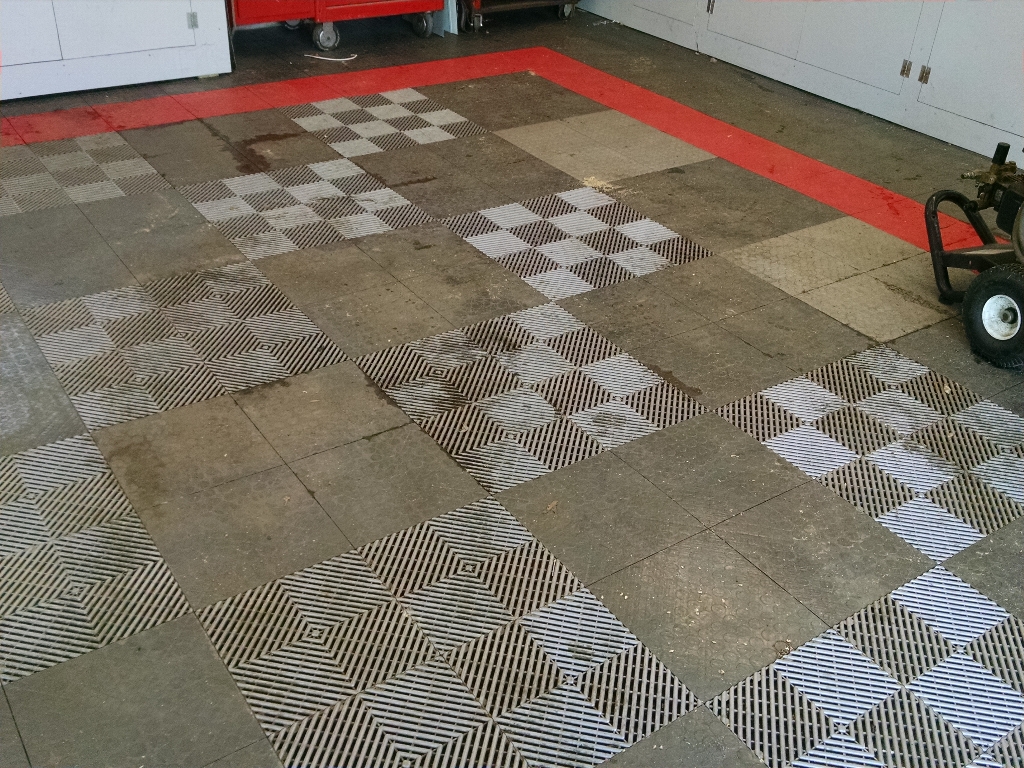

A lot of crud accumulates over a year under the floor!
Attachment 117323

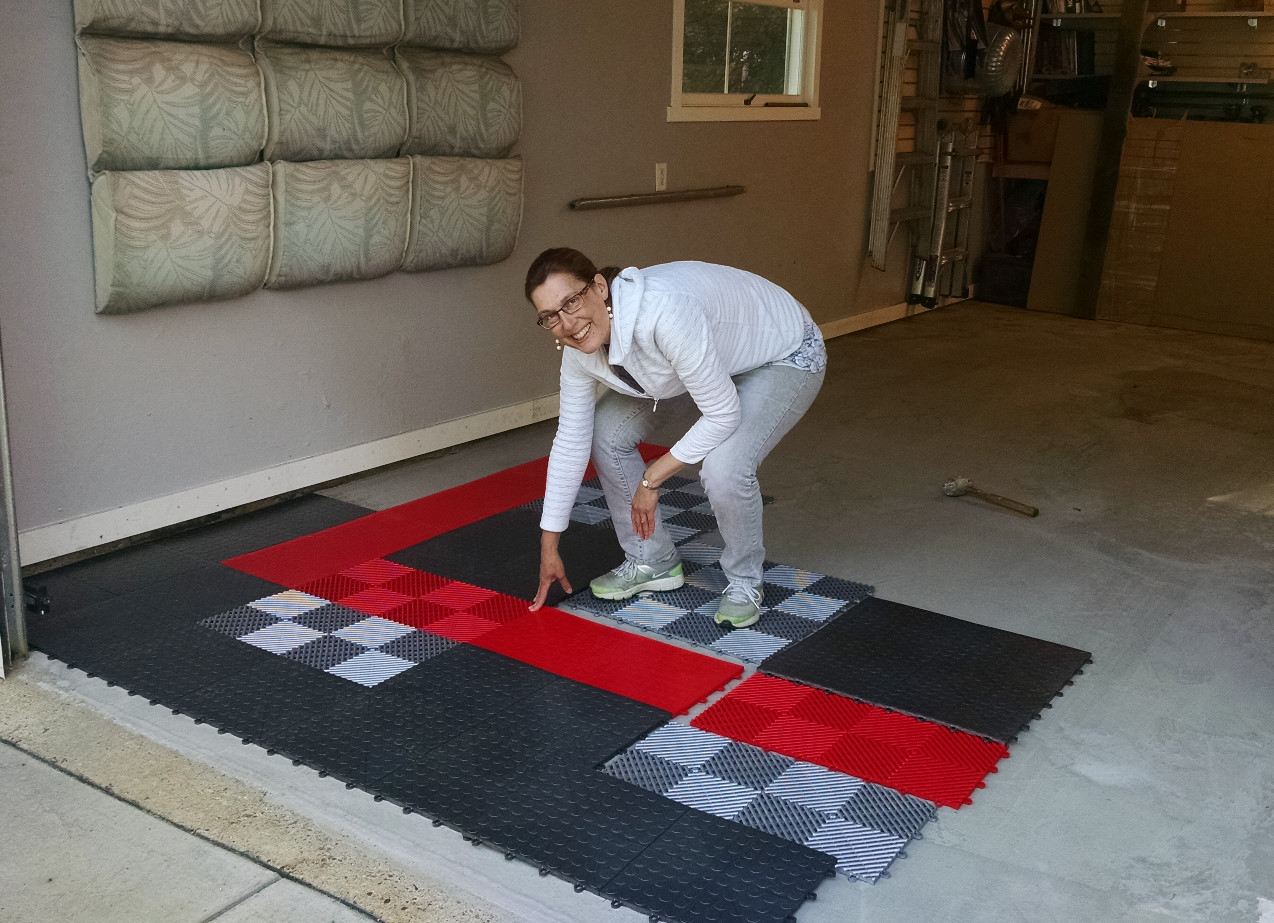

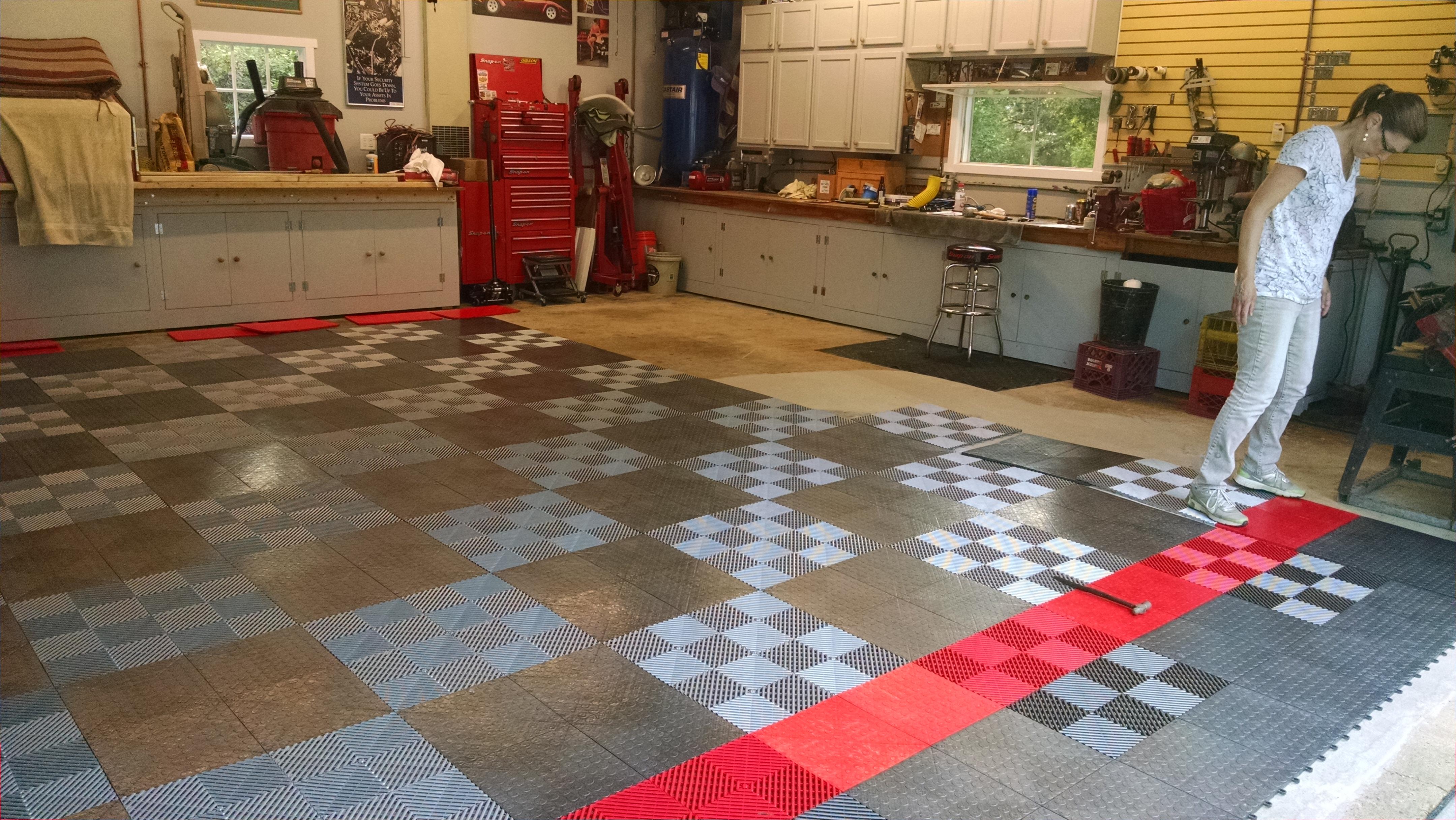

(Original install day)
Mrs. Fixit & I had the majority of the field down in about 2 hours! It was all I could do to keep up unboxing sections and tossing them out while she stomped them down. (A rubber mallet really helps with stubborn pieces)

Attachment 117316 Attachment 117317 Attachment 117318 Attachment 117319
11-10-2019, 07:47 AM
wallace18

1 Attachment(s)

I had them for 6 years now. I like them except on dry days I can get a static shock form walking on them when I touch metal. Other than that I like them a lot.

Attachment 117324
11-10-2019, 07:49 AM
edwardb

I've used Racedeck flooring for a number of years now, and highly recommend it. Installed it wall-to-wall in the 20x20 garage at our previous house. Then picked it all up and put down in half of our current 4-car garage. Had to buy some more pieces, but most of it is the original. I'm surprised how well it's held up with several builds, engine stands, shop cranes, etc. I used the Garage Forum discount as the first poster mentioned, and they have always been great to work with. In our other garage, where DD's were frequently parked on it, I did use the free flow style where the tires would be to help with drainage. They work OK, but agree needed to be cleaned up underneath occasionally. Which isn't hard to do. Also found they aren't as good where you're actually working. The ridges aren't very nice to your knees or whatever. I don't have any in my current setup because we don't park our DD on that side. Just the toy cars, and they usually don't have ice and snow (and salt) dripping off of them. :eek: One hint I read about on the Garage Forum was to install the tiles over landscape fabric. The stuff used for weed barriers and available at HD, Lowes, etc. It's not expensive. Gives the floor a bit of cushion and eliminates squeaking etc. as you walk on it. X2 on following the instructions and leaving a gap around the edges.
11-10-2019, 09:02 AM
Jkviper

1 Attachment(s)

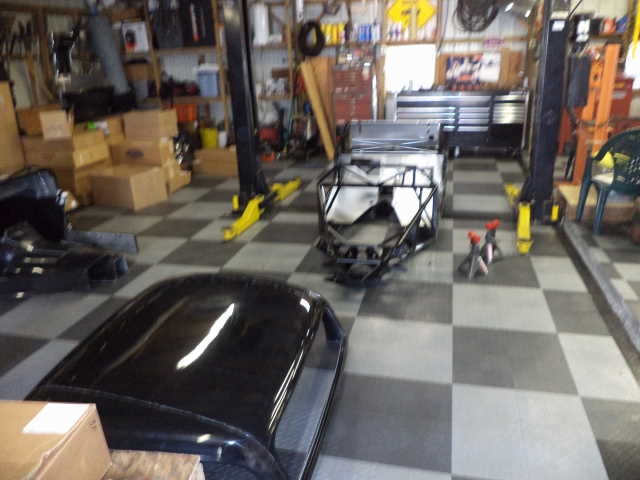

I don’t have the race deck flooring, but a slightly lesser grade of plastic flooring made by the same company SnapLock Industries. Absolutely love the floor. Have had it for three years and looks brand new.

Attachment 117325
11-10-2019, 09:07 AM
Aircontroller

They were quoting me between $3.49 and $3.79 psf.

Quote:

Originally Posted by FF33rod

Wondering what the cost is per sq ft, I have a very similar area as you, just under 20x20
11-10-2019, 09:08 AM
Aircontroller

It looks really good!:cool:

Quote:

Originally Posted by Jkviper

I don’t have the race deck flooring, but a slightly lesser grade of plastic flooring made by the same company SnapLock Industries. Absolutely love the floor. Have had it for three years and looks brand new.

Attachment 117325
11-10-2019, 09:13 AM
Aircontroller

Wow!

Thank you for the pics and details.

I’ll never miss the sight of the bare concrete floor!

Quote:

Originally Posted by Fixit

I did a combo of RaceDeck & GarageDeck in the 40 Watt Garage.
It's been down about 4-1/2 years, through 4 Minnesota winters, and still looks great.

With all the muck & sand tracked in by the daily driver(s) during winter, I did a grid pattern alternating the vented tiles and solid tiles. Also, the area near the ped-door is all vented (to stomp off snowy boots). The snow melts and drains through, and eventually evaporates.

Word of warning(s):
- Heed the install instructions and leave the recommended clearances to fixed objects/walls. You'll be amazed at how much the floor shrinks/expands/moves.
- Don't freak out the 1st hot summer day with the big door raised. The area near the door/sun will heat up and expand MUCH faster than the rest of the floor, and might raise/buckle a bit. It'll level out when the temperature stabilizes.
- Do not load a car onto a trailer with the drive wheels on the RaceDeck!! Trust me, you'll "unzip" about 50 tiles in .002 seconds and shoot them across the room.

I bought a commercial rag-mop, bucket and wringer, and wet mop the floor a few times a season to keep it clean. Also, about every year and a half I'll "unzip" the floor into (about) 8' x 20' pieces and pull the whole section out and down the driveway... break out the power-washer and clean the accumulated muck off the concrete, then blast the floor sections clean... haul 'em back in , zip 'em back together and I've got a new floor.

This Spring
Attachment 117320

After a winter's worth of crud
Attachment 117321

Sections unzipped and down the driveway
Attachment 117322

A lot of crud accumulates over a year under the floor!
Attachment 117323

(Original install day)
Mrs. Fixit & I had the majority of the field down in about 2 hours! It was all I could do to keep up unboxing sections and tossing them out while she stomped them down. (A rubber mallet really helps with stubborn pieces)

Attachment 117316 Attachment 117317 Attachment 117318 Attachment 117319
11-10-2019, 09:16 AM
Aircontroller

Ohhhhhhhh snap!

Weed barriers?! Nice! I’ll keep it in mind! Thank you!:cool:

Quote:

Originally Posted by edwardb

I've used Racedeck flooring for a number of years now, and highly recommend it. Installed it wall-to-wall in the 20x20 garage at our previous house. Then picked it all up and put down in half of our current 4-car garage. Had to buy some more pieces, but most of it is the original. I'm surprised how well it's held up with several builds, engine stands, shop cranes, etc. I used the Garage Forum discount as the first poster mentioned, and they have always been great to work with. In our other garage, where DD's were frequently parked on it, I did use the free flow style where the tires would be to help with drainage. They work OK, but agree needed to be cleaned up underneath occasionally. Which isn't hard to do. Also found they aren't as good where you're actually working. The ridges aren't very nice to your knees or whatever. I don't have any in my current setup because we don't park our DD on that side. Just the toy cars, and they usually don't have ice and snow (and salt) dripping off of them. :eek: One hint I read about on the Garage Forum was to install the tiles over landscape fabric. The stuff used for weed barriers and available at HD, Lowes, etc. It's not expensive. Gives the floor a bit of cushion and eliminates squeaking etc. as you walk on it. X2 on following the instructions and leaving a gap around the edges.
11-10-2019, 09:17 AM
Aircontroller

There are dry days in Florida? ;)

Quote:

Originally Posted by wallace18

I had them for 6 years now. I like them except on dry days I can get a static shock form walking on them when I touch metal. Other than that I like them a lot.

Attachment 117324
11-10-2019, 09:20 AM
Aircontroller

Those are the shiny tiles right?

Ohhh what’s that called.....Tuffshield right?

Quote:

Originally Posted by Topfuelhydro

I love mine. Looking to add it to my big outside garage. 1500 sq ft is just hard to justify. :)

Steven

Attachment 117313
11-10-2019, 11:52 AM
Topfuelhydro

Yes they are.
11-10-2019, 12:10 PM
Aircontroller

7 Attachment(s)

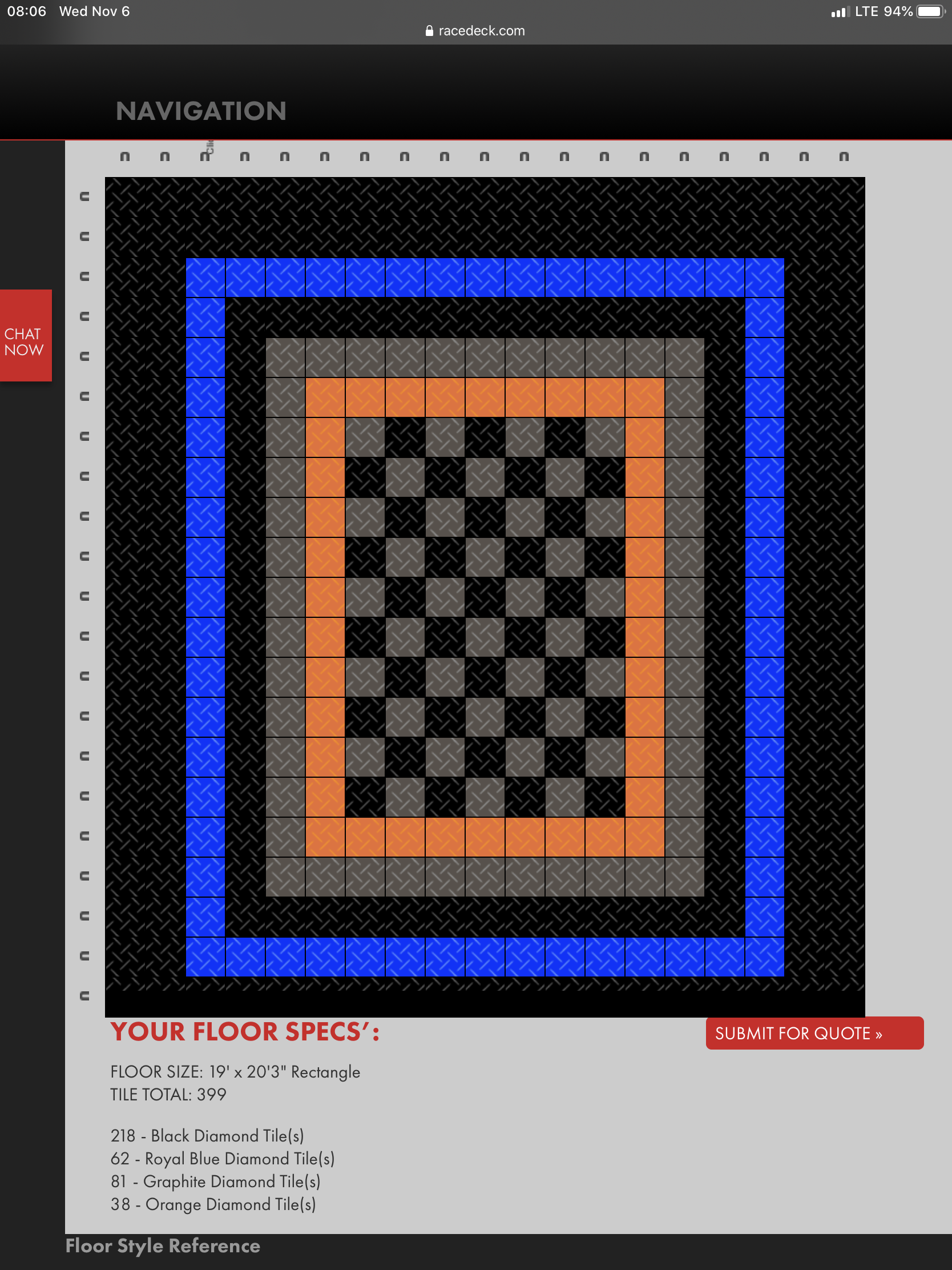

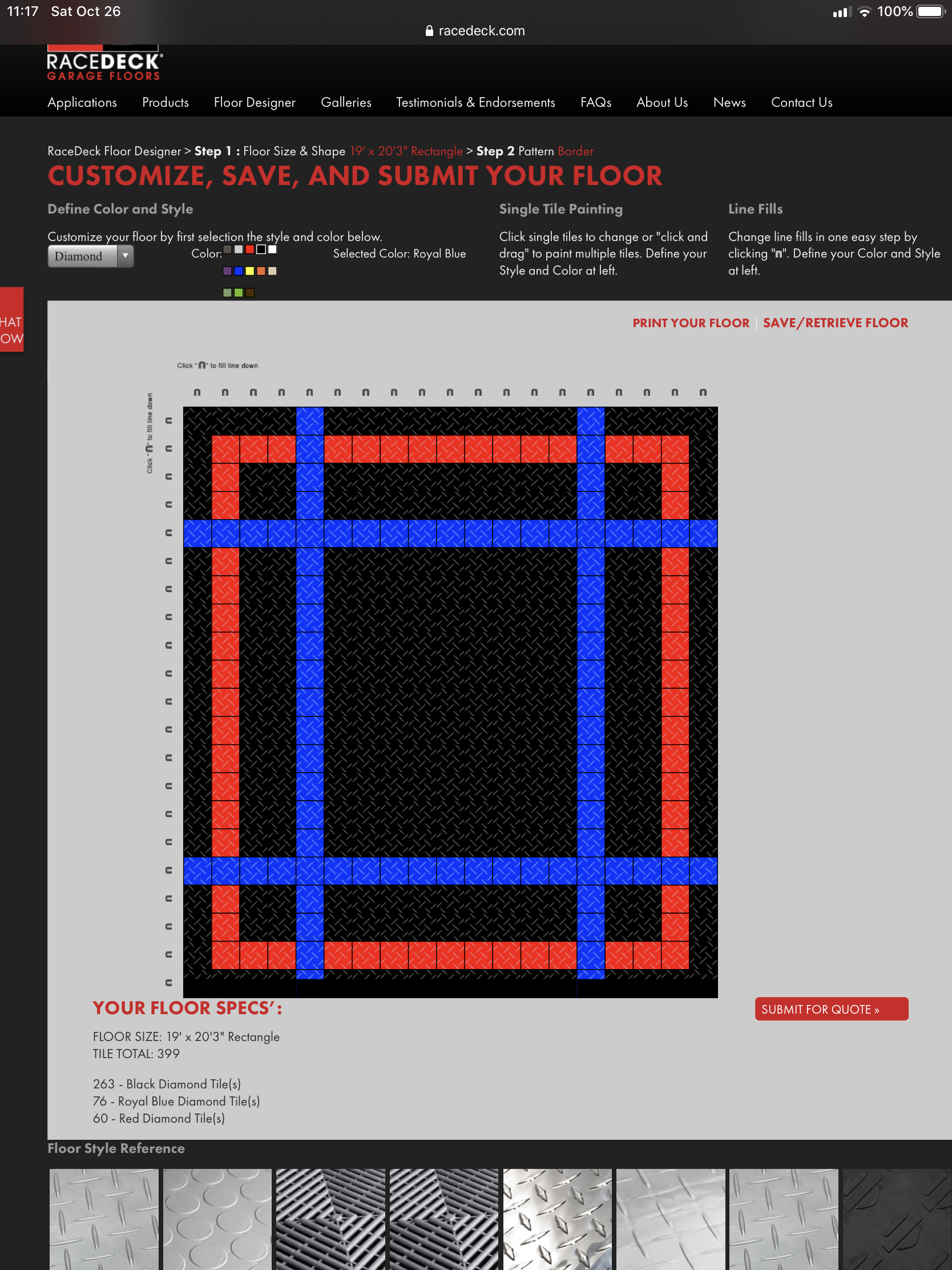

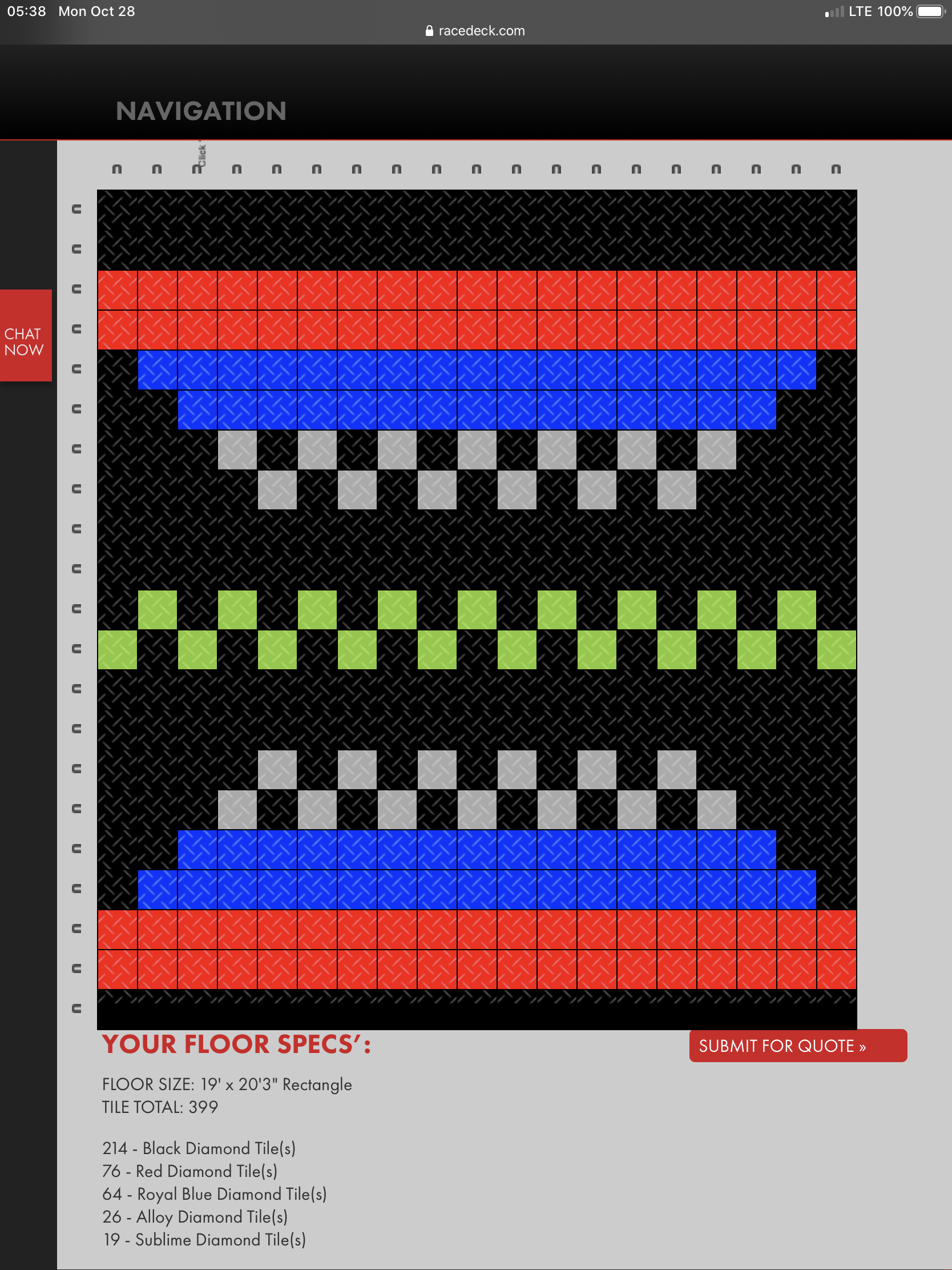

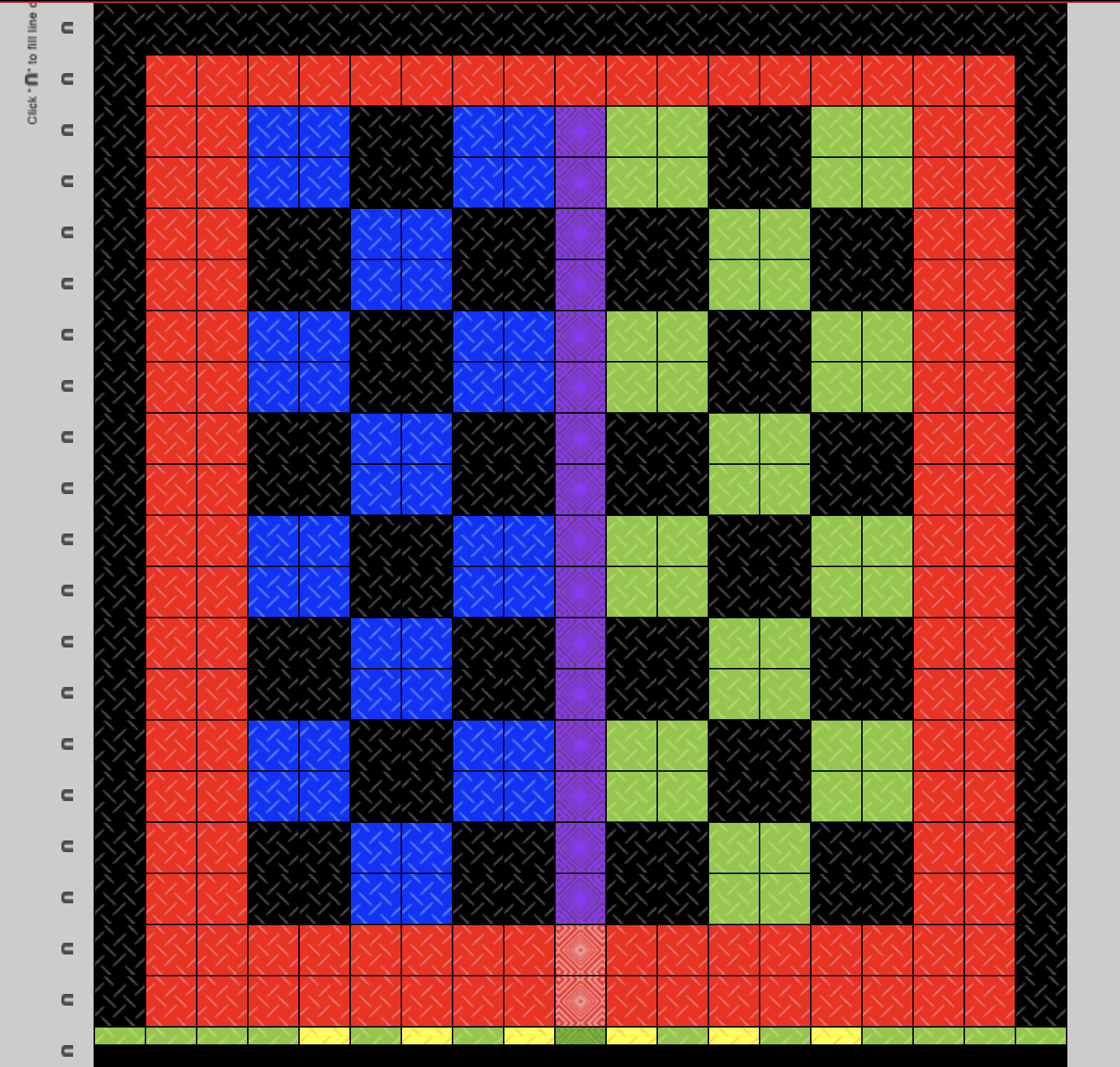

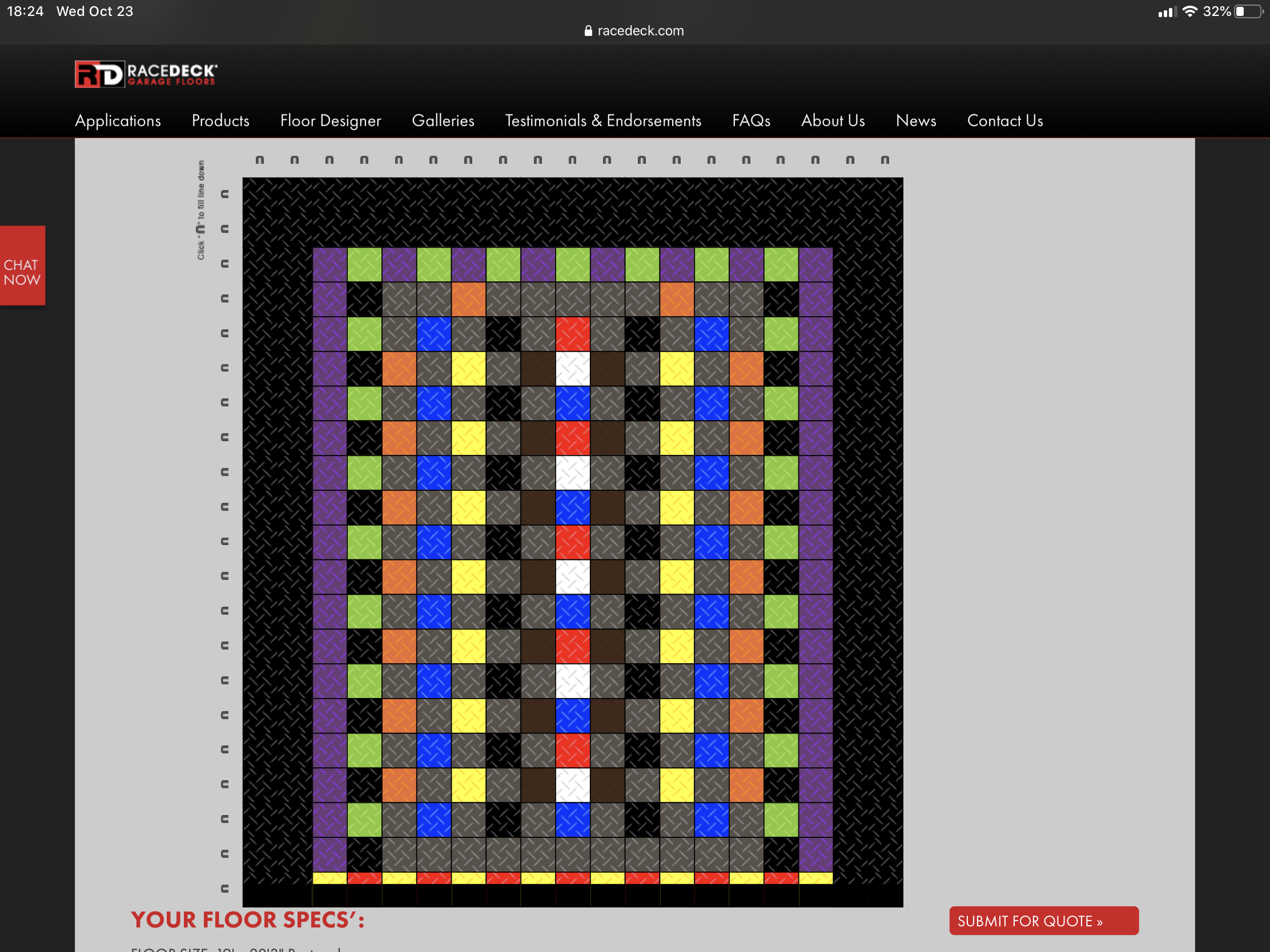

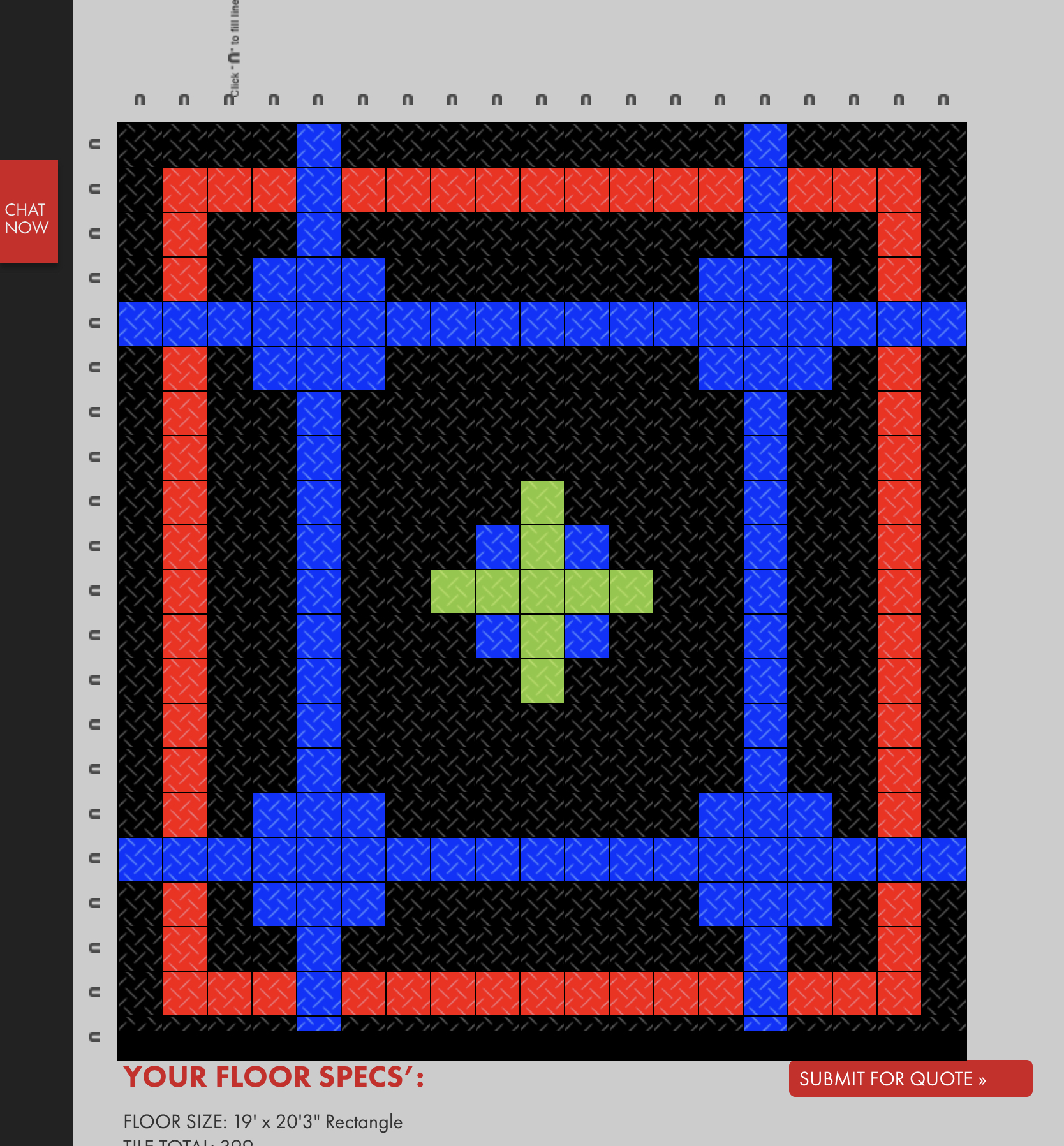

These are some of the whacky designs I started with......

Attachment 117341

Attachment 117340

Attachment 117342

Attachment 117343

Attachment 117362

Attachment 117364

Attachment 117363
11-10-2019, 07:06 PM
Robodent

I’m sold !!! After reading what everyone here had to say about this product and doing a little research on it. In the spring when my build is finished I’m going to gut my garage paint it and get the race deck. I’ve tossed and turned about epoxy saying I’ll just ruin it but the race deck looks durable and if needed you can replace a tile here and there not to mention it’s going to really look cool with my truck sitting on it.
11-10-2019, 08:22 PM
Aircontroller

Those tiles have a 20 warranty. As soon as I start laying them down I’ll post pics.

Also, you might wanna try to start inputting your dimensions on the RaceDeck design tool.

It took me forever to come up with a design. Just sayin’....lol:cool:

Quote:

Originally Posted by Robodent

I’m sold !!! After reading what everyone here had to say about this product and doing a little research on it. In the spring when my build is finished I’m going to gut my garage paint it and get the race deck. I’ve tossed and turned about epoxy saying I’ll just ruin it but the race deck looks durable and if needed you can replace a tile here and there not to mention it’s going to really look cool with my truck sitting on it.
11-11-2019, 06:55 AM
Fixit

Quote:

but the race deck looks durable and if needed you can replace a tile here and there

Another word of warning/tip:
A sharp-edged something, or something with a small "footprint" (read that cheapo jackstand(s), or a floorjack with small wheels,etc.) will dig in and dent/cut the tiles... ask me how I know.
Solution:
I went to our local Discount Metals outfit and got a 1/2-dozen squares of about 14" x 14" aluminum plate, 1/8" thick, from their scrap bin. Paid $2 a pound for them. Now it's just a matter of habit to toss those under the car before using the floorjack and setting the jackstands.

Quote:

Also found they aren't as good where you're actually working. The ridges aren't very nice to your knees or whatever.

Next time you're at the Garden Center, pick up one of those vinyl-coated foam rubber kneeling pads. I keep two around the shop just for this reason.
11-11-2019, 07:26 AM
edwardb

Quote:

Originally Posted by Fixit

Next time you're at the Garden Center, pick up one of those vinyl-coated foam rubber kneeling pads. I keep two around the shop just for this reason.

Have 'em and use them frequently. Also actual knee pads, that I use mainly during DIY projects around the house. So agree there are workarounds. Just pointing it out. IMO no reason to use the free flow tiles in areas where they're not actually needed.
11-11-2019, 07:55 AM
Olli

The RaceDeck tiles look great. For kneeling or laying on my back I've found nothing better than either the Husky Liner mat or the very similar BedRug "Track Mat". I have both.
https://www.huskyliners.com/Garage-Mat
https://bedrug.com/bedrug-trackmat

Olli
11-11-2019, 08:20 AM
Drezx6r

How easily does a creeper or rolling stool go across these tiles?
11-11-2019, 06:59 PM
Topfuelhydro

Quote:

Originally Posted by Drezx6r

How easily does a creeper or rolling stool go across these tiles?

Creeper rolls great but I don't even use a creeper any more because my shirt and pants slide across the tiles pretty easily. I just grab under the car and pull myself underneath.

Steven
11-13-2019, 05:53 AM
Aircontroller

Excellent recommendation! Thank you! Will look into that.:cool:

Quote:

Originally Posted by Fixit

Another word of warning/tip:
A sharp-edged something, or something with a small "footprint" (read that cheapo jackstand(s), or a floorjack with small wheels,etc.) will dig in and dent/cut the tiles... ask me how I know.
Solution:
I went to our local Discount Metals outfit and got a 1/2-dozen squares of about 14" x 14" aluminum plate, 1/8" thick, from their scrap bin. Paid $2 a pound for them. Now it's just a matter of habit to toss those under the car before using the floorjack and setting the jackstands.

Next time you're at the Garden Center, pick up one of those vinyl-coated foam rubber kneeling pads. I keep two around the shop just for this reason.
11-13-2019, 06:14 PM
Aircontroller

1 Attachment(s)

Aaaaalrighty then.....garage tile delivery?.....

https://thefactoryfiveforum.com/atta...3&d=1573685331

CHECK!
11-13-2019, 07:06 PM
Fixit

Let the fun begin!!<br><br>Hint: Stomping those down is a great stress reliever - and a way to get the better 1/2 involved in garage projects. My wife had a great time installing our floor!
11-13-2019, 07:49 PM
Aircontroller

Looking forward to it. I’m gonna field a few recommendations posted here.

Quote:

Originally Posted by Fixit

Let the fun begin!!<br><br>Hint: Stomping those down is a great stress reliever - and a way to get the better 1/2 involved in garage projects. My wife had a great time installing our floor!
11-14-2019, 05:55 AM
Aircontroller

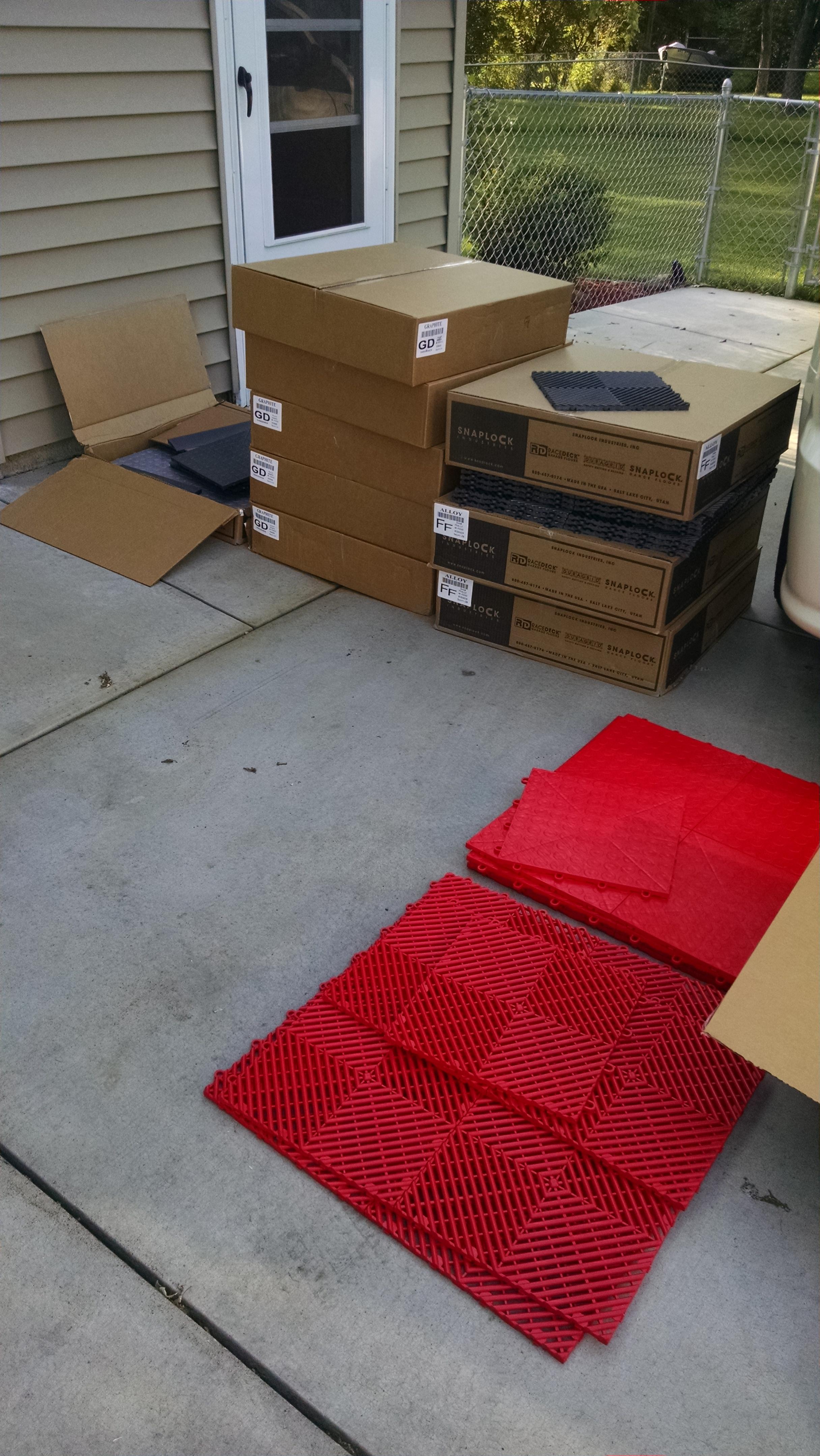

Unboxing

First impressions are that the colors are really sharp. Haven’t had the chance to do an inventory count yet. I think I better start figuring out what layout to pick.:confused::confused::confused:

Oh yeah and emptying the garage......Now that’s gonna go well at the house.....gonna have to spread out everything that’s packed in there already. Yikes!!!:eek:

https://thefactoryfiveforum.com/atta...5&d=1573728373

https://thefactoryfiveforum.com/atta...6&d=1573728373

https://thefactoryfiveforum.com/atta...7&d=1573728373
11-15-2019, 05:45 AM
Aircontroller

1 Attachment(s)

Went to Lowe's yesterday evening and got some tile matched paint samples. Gotta see how these match on the garage wall.

Attachment 117620
11-17-2019, 09:30 PM
Aircontroller

3 Attachment(s)

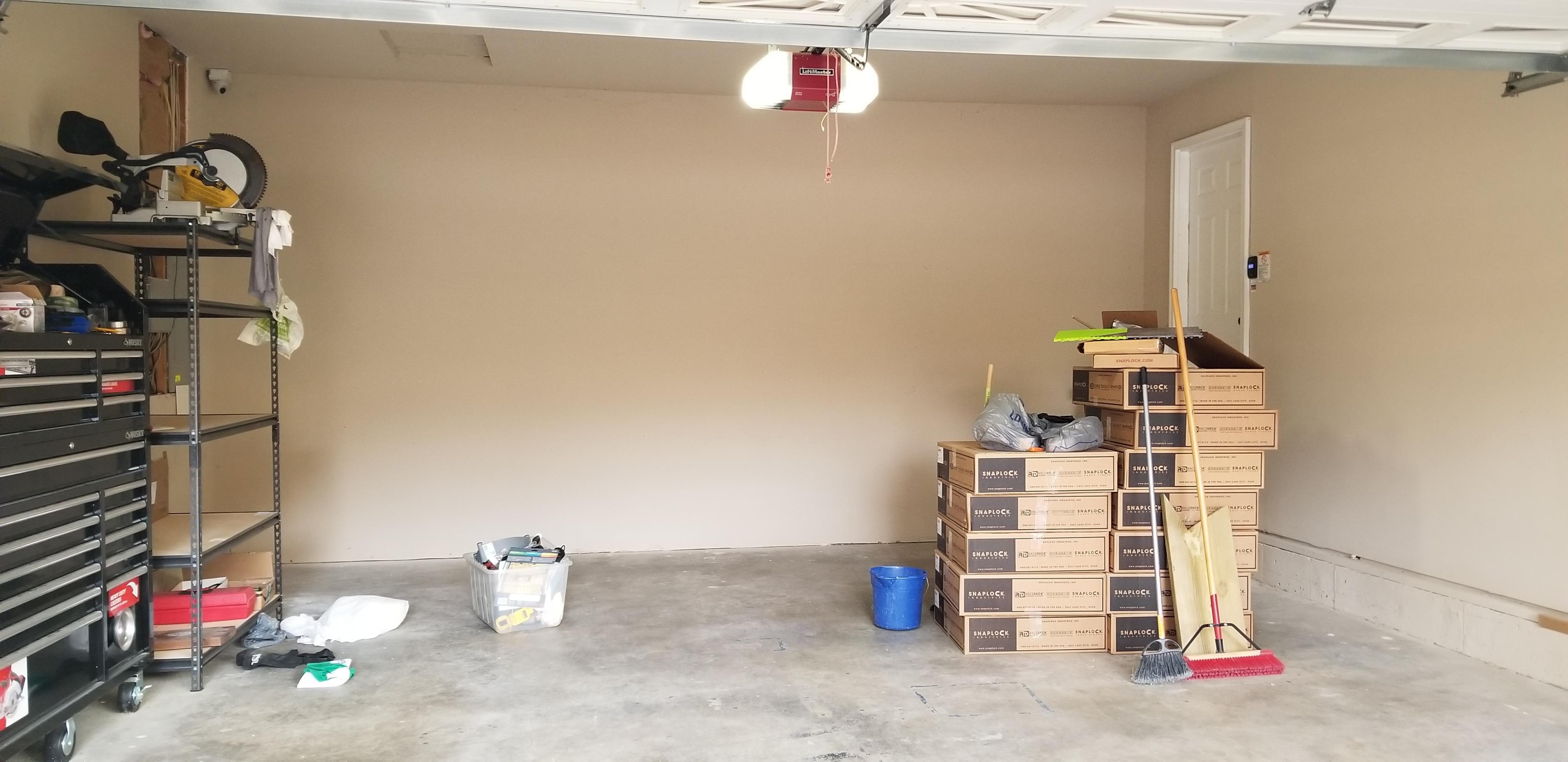

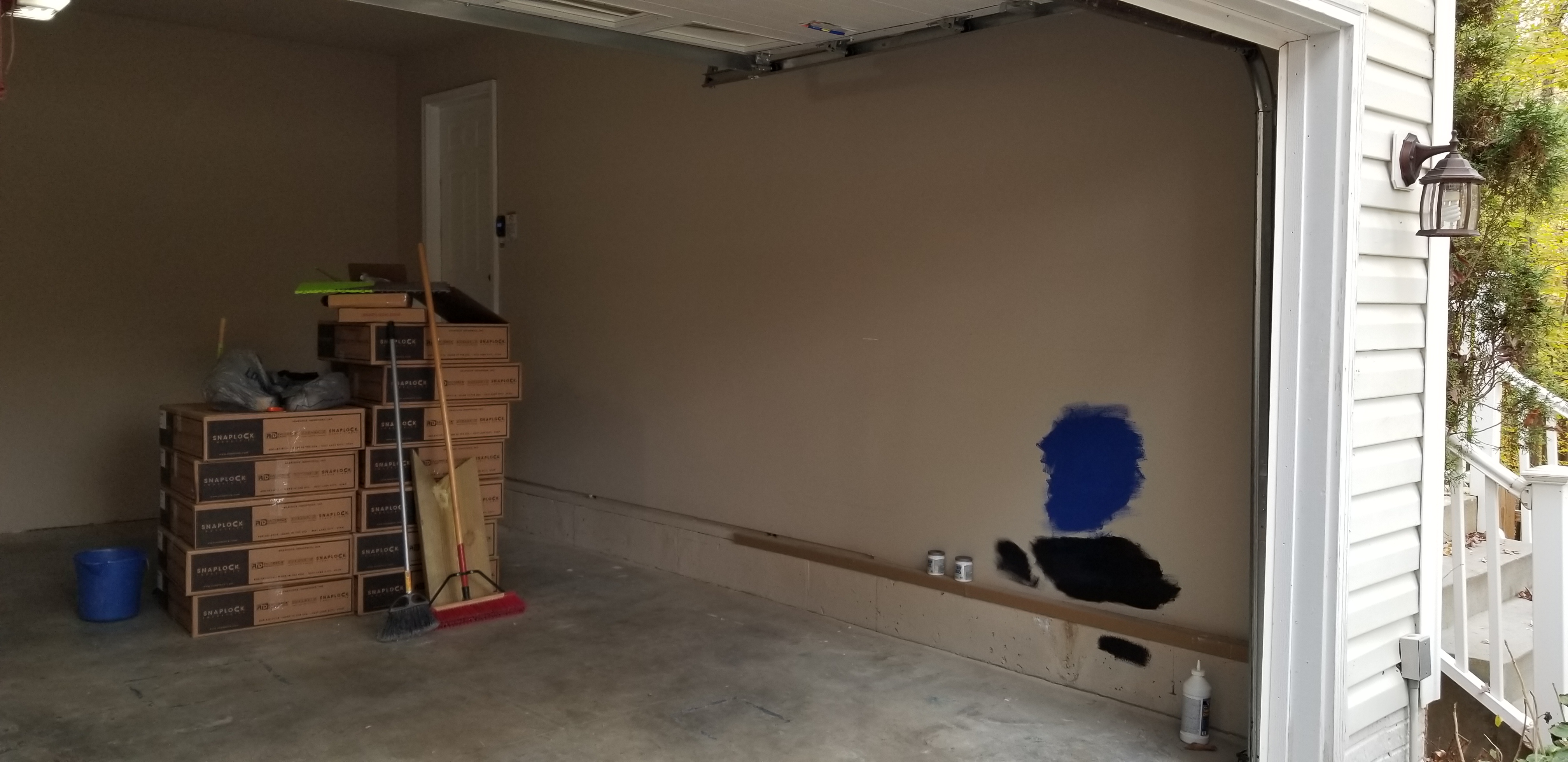

Ok....I emptied everything I had in the garage as per racedeck recommendations.

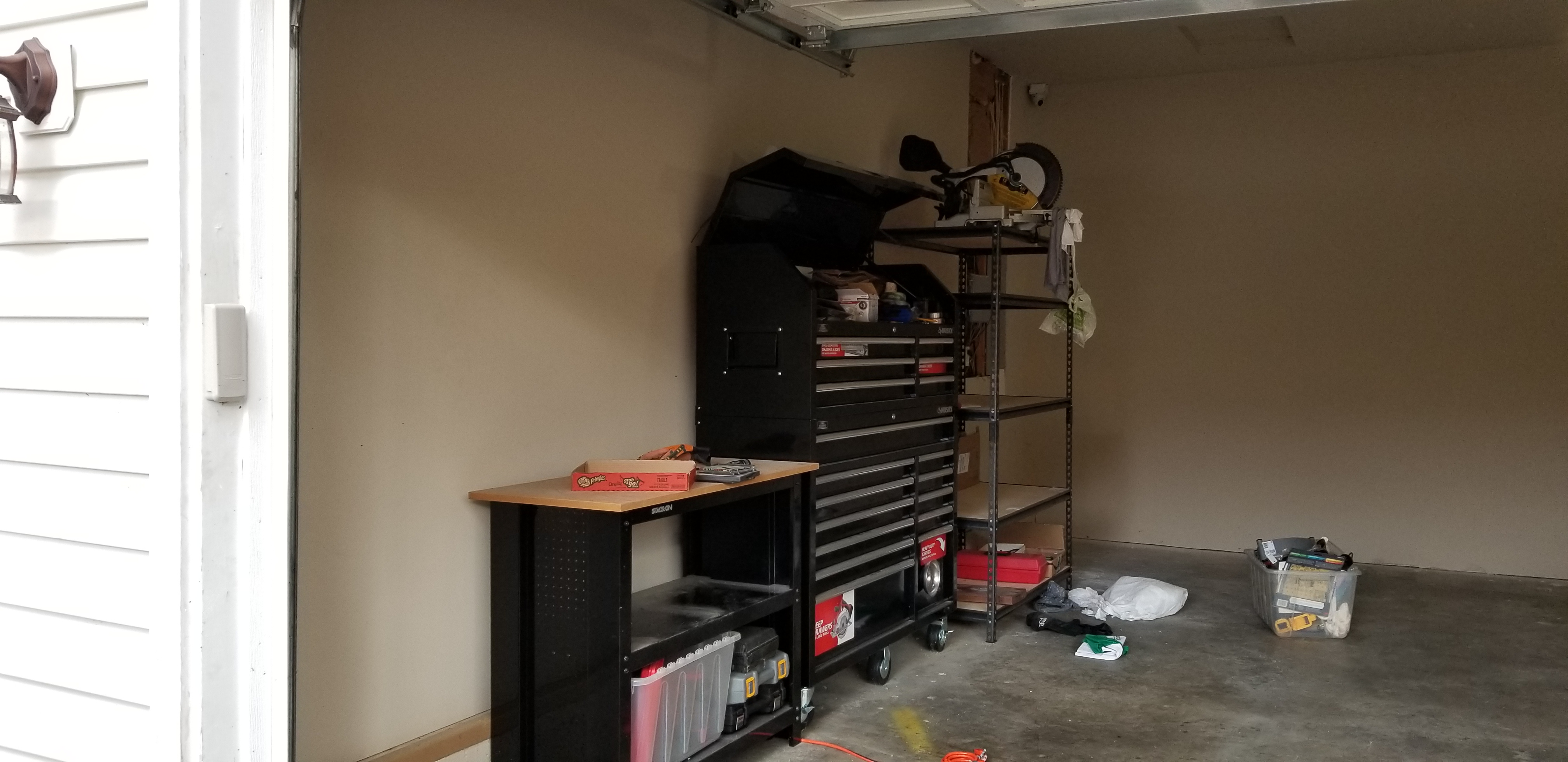

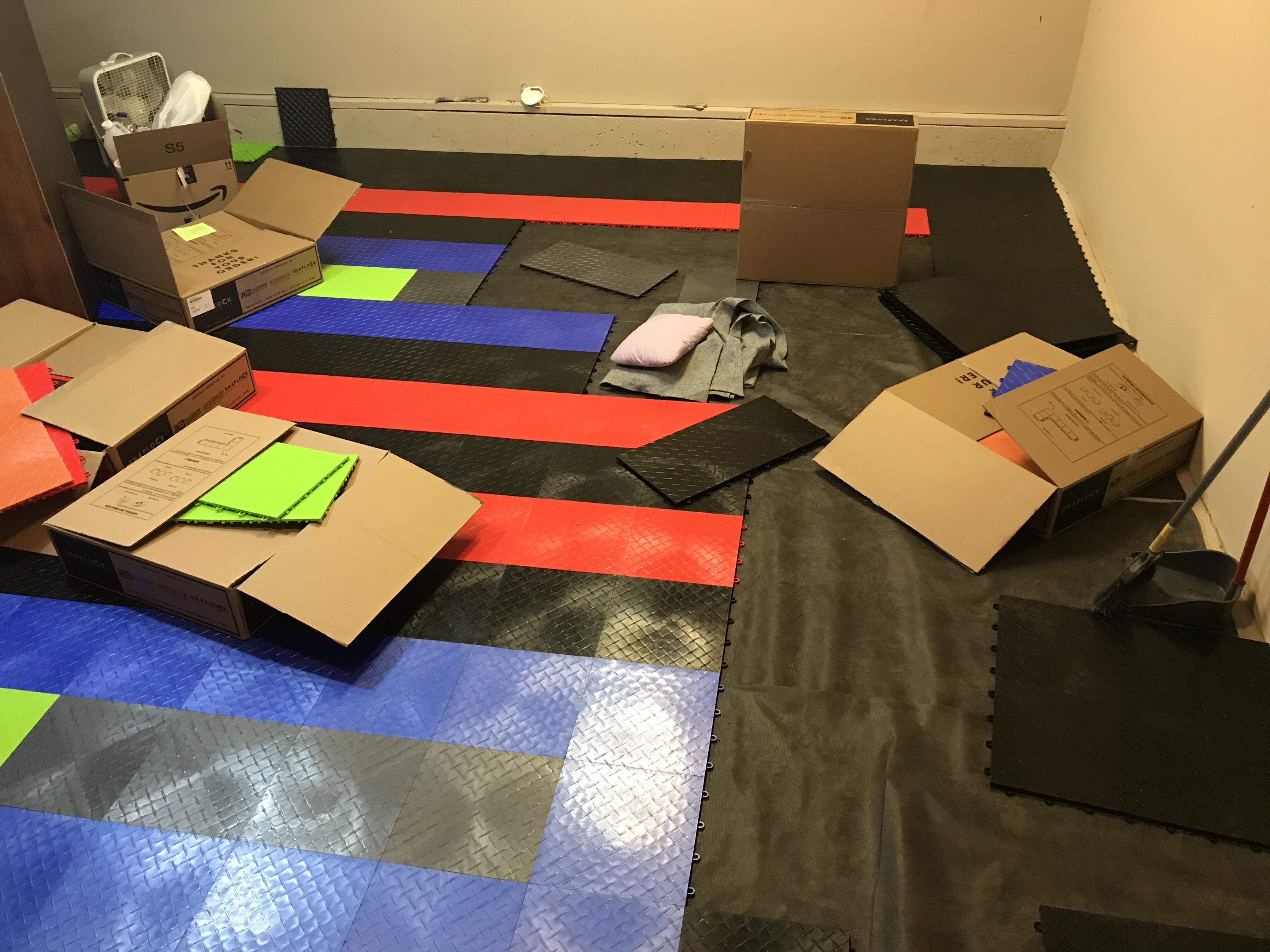

Here are my baseline and progress pics...

Attachment 117693

Attachment 117694

Attachment 117695
11-17-2019, 09:34 PM
Aircontroller

4 Attachment(s)

More pics....

I fielded a recommendation mentioned above.

Attachment 117696

Attachment 117697

Attachment 117698

Attachment 117699
11-18-2019, 05:17 AM
Aircontroller

Feedback on installation:

1. There was no way I could lay down those tiles without my rubber mallet or a flathead screwdriver.

a. That part of the video where you could just step on it didn’t work for me at all. If you did step on it, you would be at risk of the “tooth” that locks to just get jammed when joining to the other tile and then get a gap. Sometimes, that same tooth would let the tile go down so I would use a flathead screwdriver to move it into its place.

2. This was work for a day plus.

a. I emptied my entire garage and had to put a lot of the stuff inside the house. In my case I started at about noon and I still haven’t finished around 9pm. Laying the tiles has not been as easy as dropping and stepping on it.
11-18-2019, 05:18 AM
Aircontroller

3 Attachment(s)

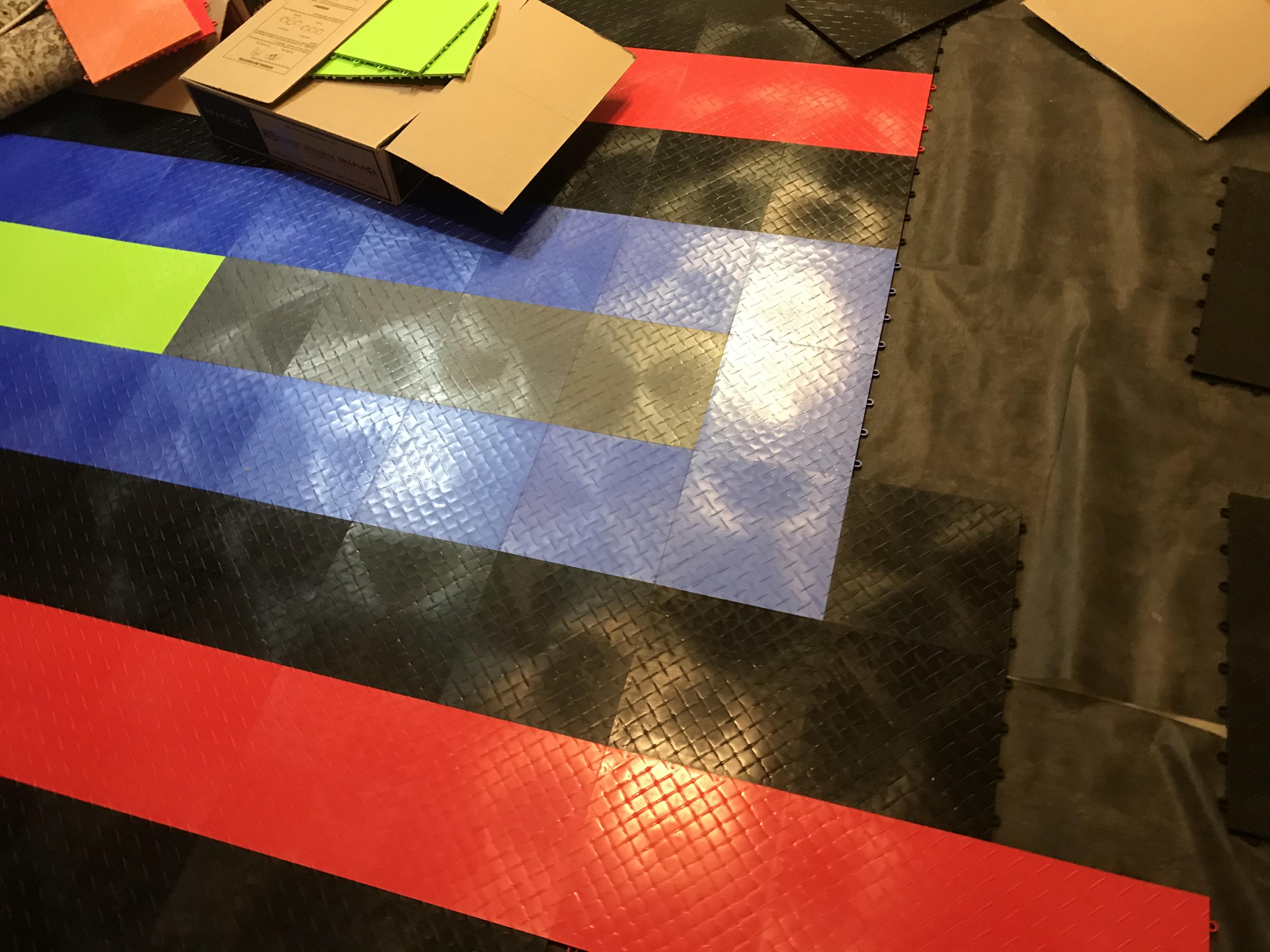

A few more pics:

Attachment 117720

Attachment 117721

Attachment 117722
11-28-2019, 12:34 PM
Aircontroller

1 Attachment(s)

Attachment 118175
12-06-2019, 10:52 PM
TheBish

They are on Amazon for $1.99 a tile (same brand) but looks like only one color.
12-06-2019, 10:55 PM
TheBish

That will be cool to tie in the walls. Very creative.
