How to connect Smith's tachometer to dash harness

Hi everybody!

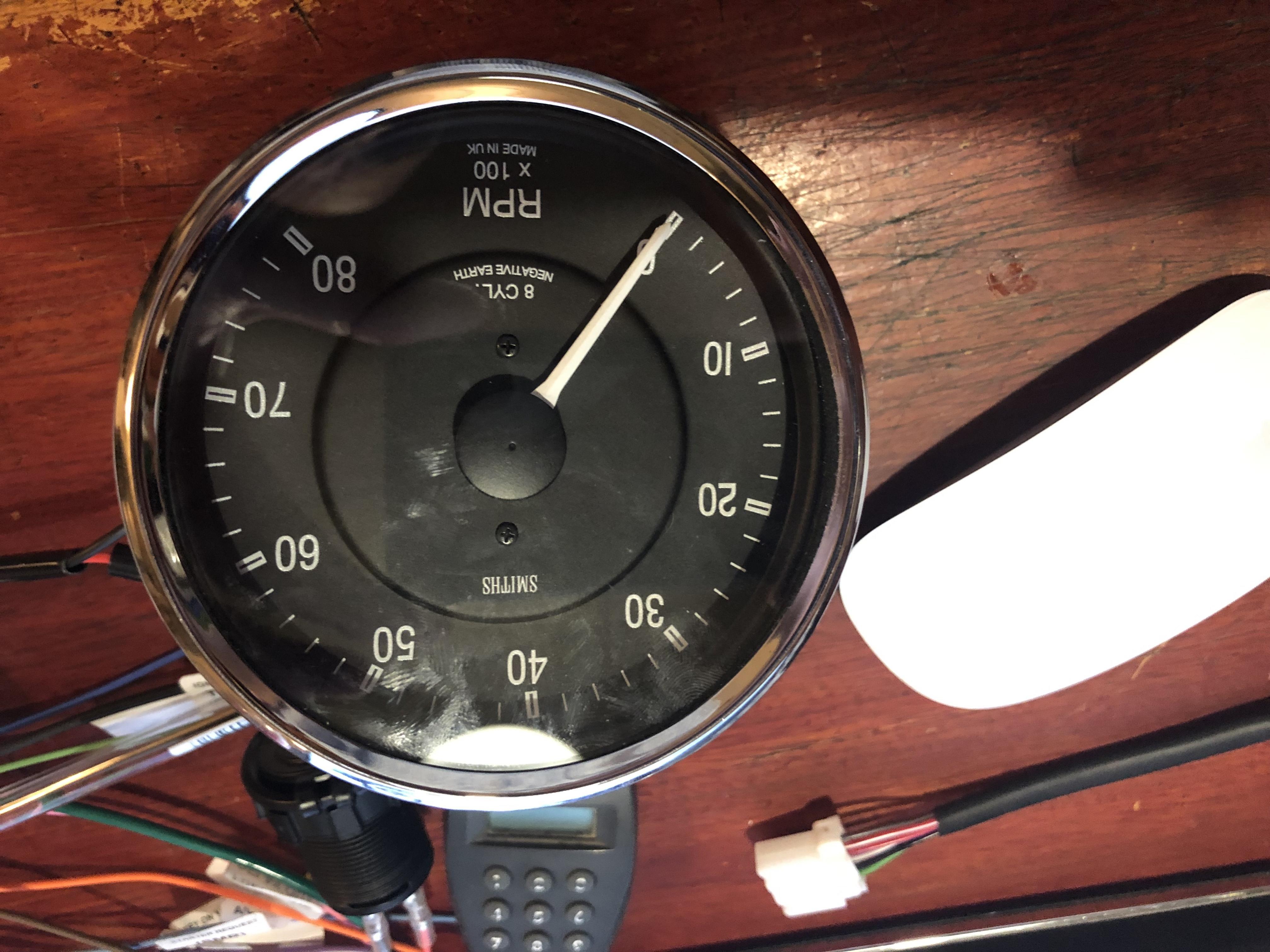

I have Smith's tachometer RVC281600 (negative earth) and have no idea how to connect the cables with dash harness and/or maybe somewere else.
I have MKIV with Coyote 5.0 engine and TKO600. (still in progress :) )
I didn't find any post about it. Please help :)

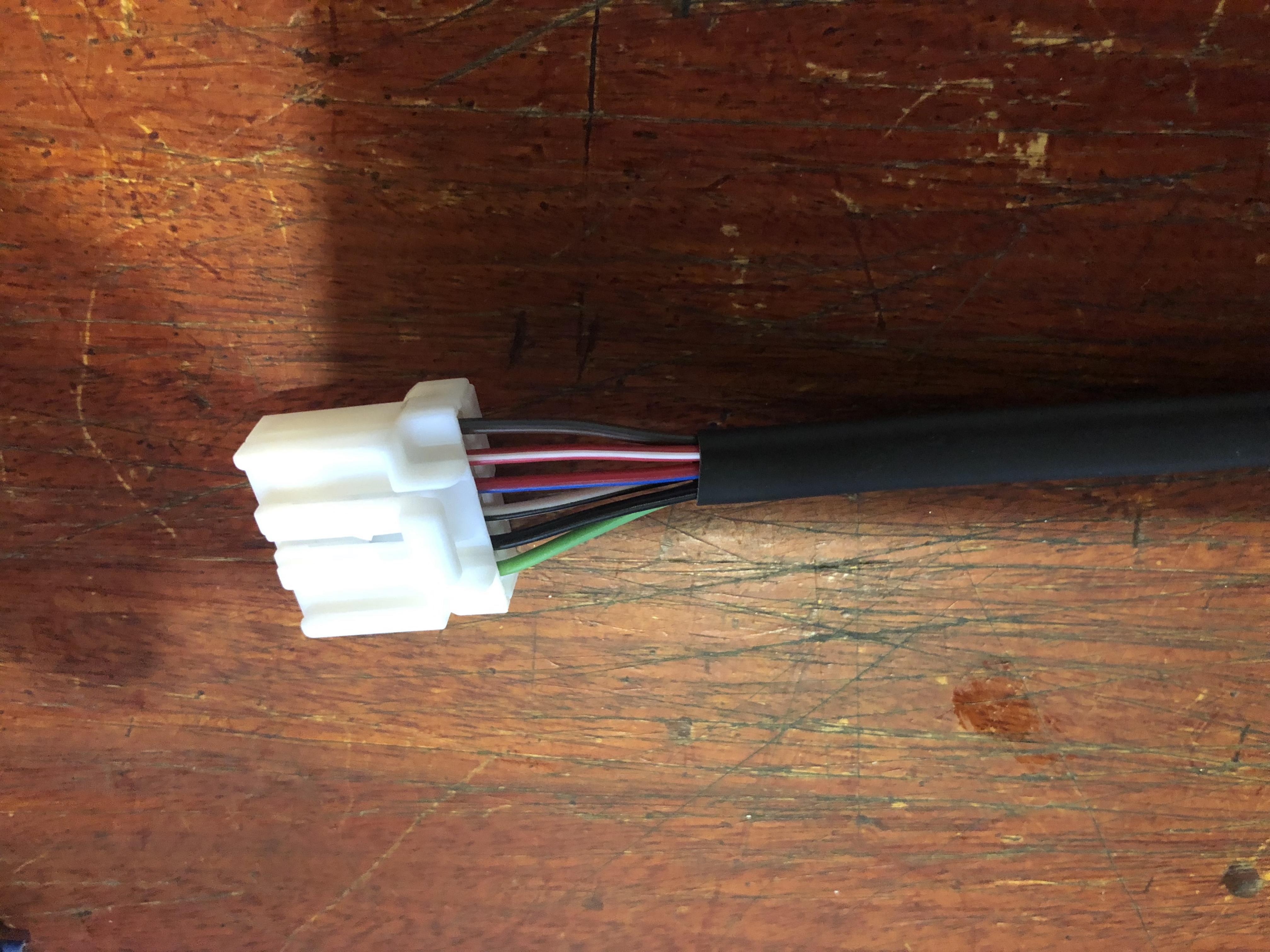

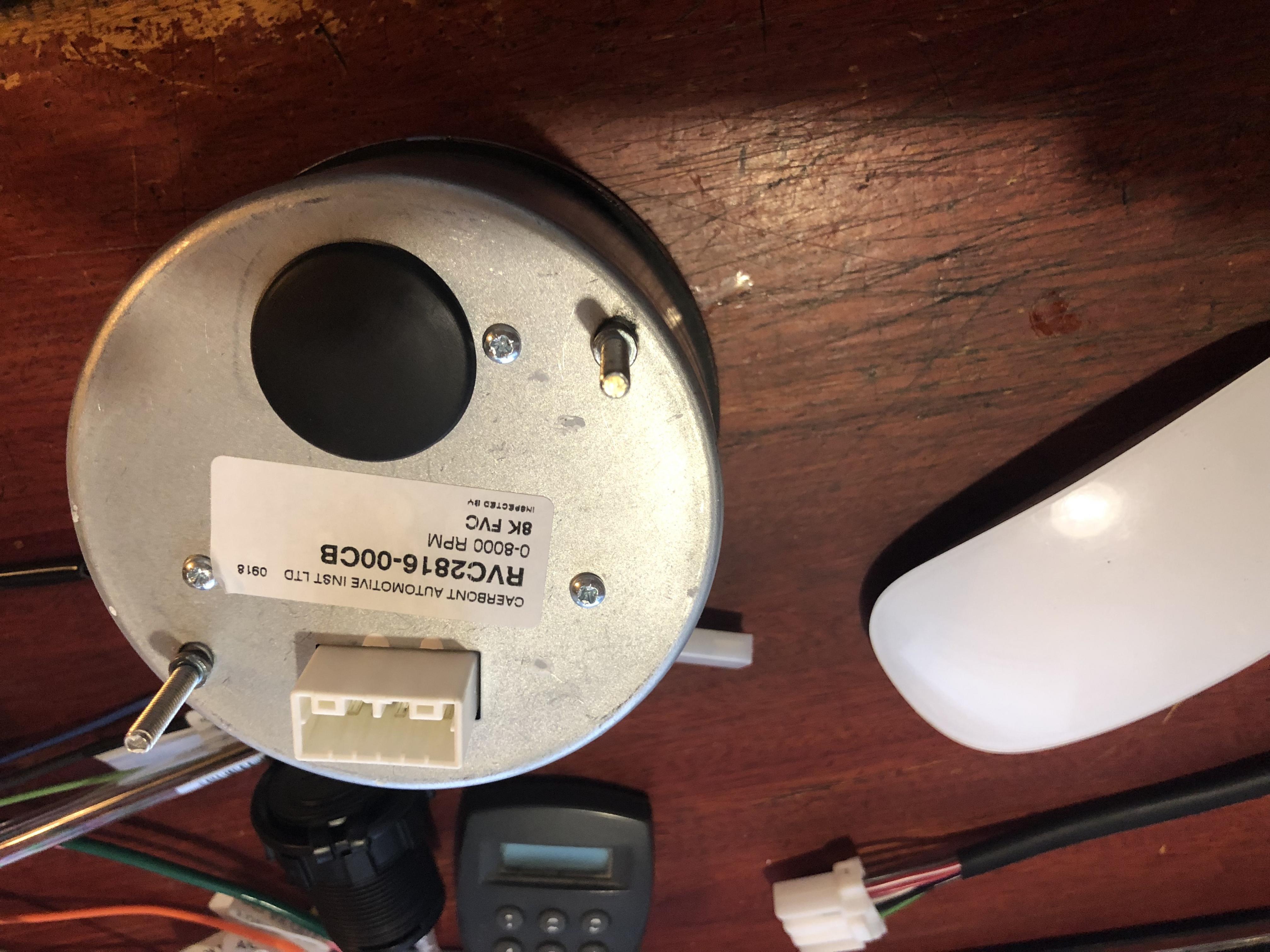

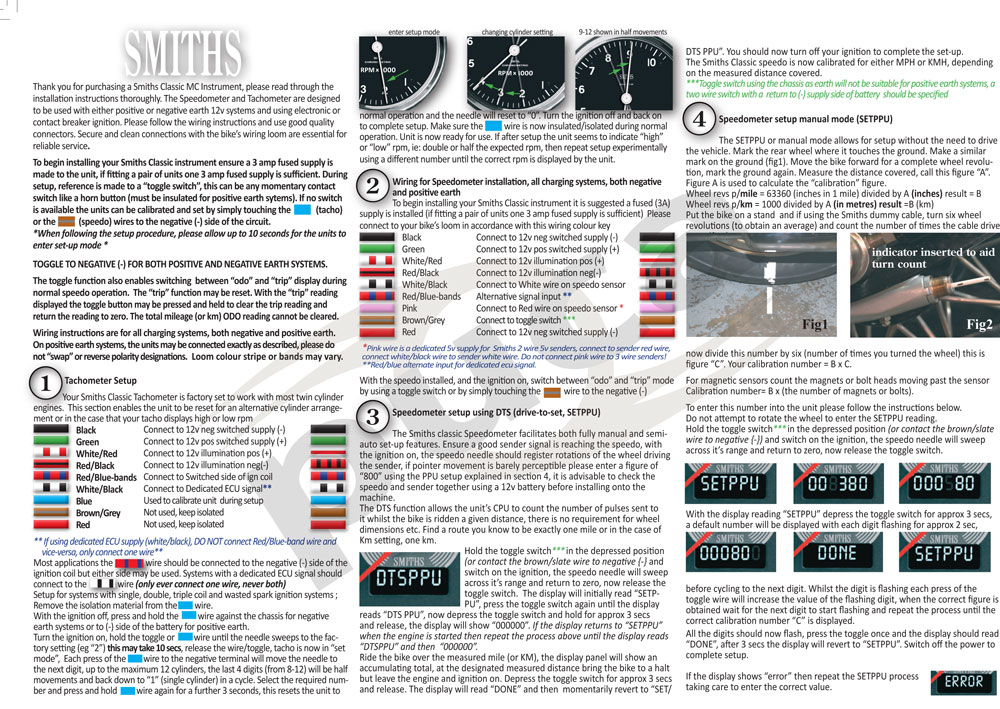

Attachment 109550

Attachment 109551

Attachment 109552

Attachment 109553

Attachment 109554
06-29-2019, 11:49 AM
GTBradley

1 Attachment(s)

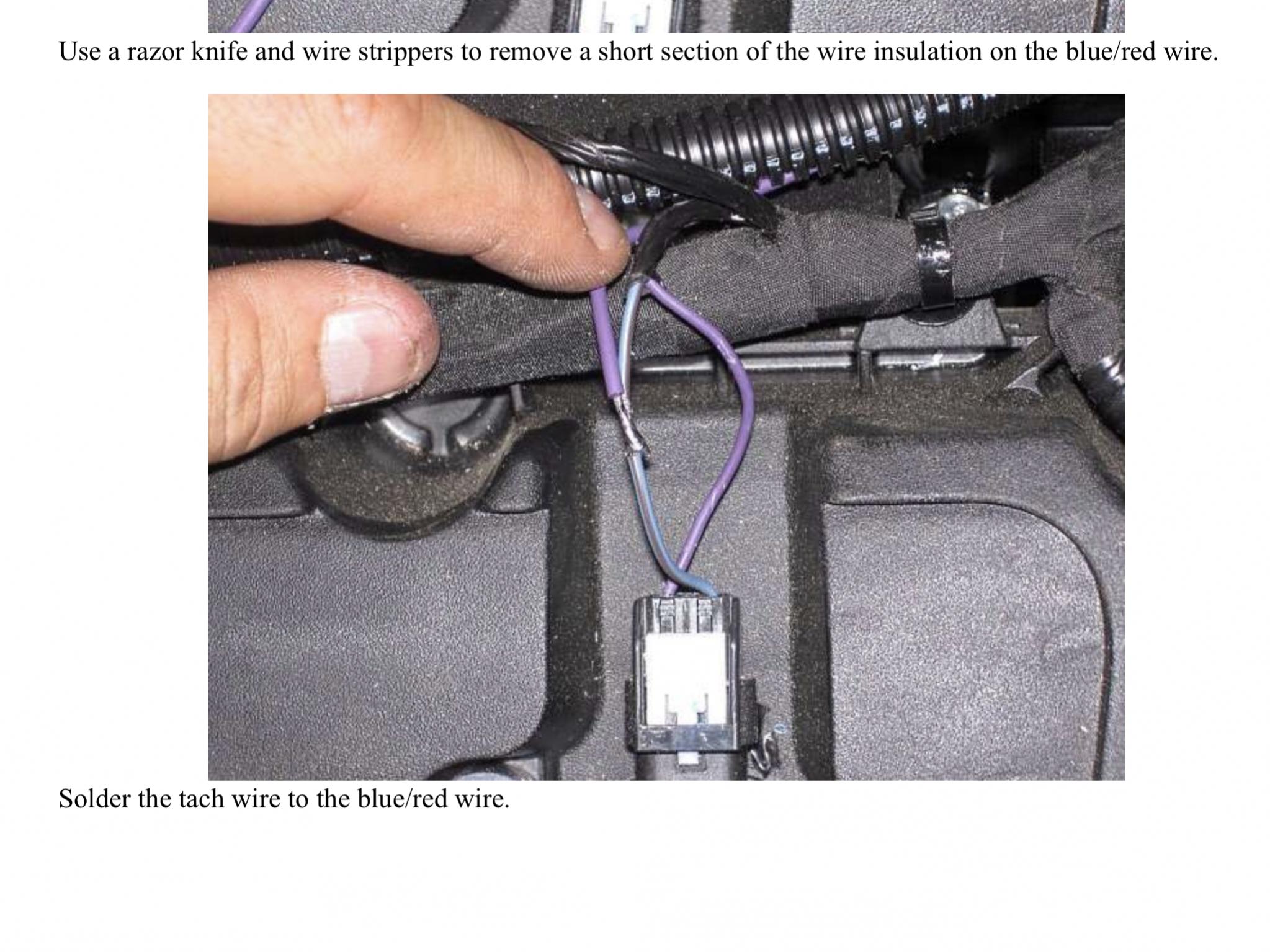

Not an expert, but it looks just like the vintage gauge setup from FFR. Look in your Coyote fitment manual as it looks like your red/blue wire connects to the coil wire the same way.

Attachment 109736
