Well...I tried Rust-o-leum "Professional" undercoating: "splash, thin, watery, watery' to quote a shampoo comercial (if you are old enough to remember). So...what do you guys use? Especially in the wheelwells and elephant ears.
Appreciate your comments,
Jeff
Look at Herculiner or Duplicolor roll-on bed liner. I used Herculiner and like the finished product, but it stinks really bad when using it so be sure to work in a well ventilated area. The Duplicolor product is very similar from what I've read, but doesn't come with the odor. These cure to a very hard, but flexible and durable finish. They can be rolled or brushed. Others have used more of a traditional rubberized undercoating, but I couldn't offer any experience with those.
Dave
Any roll on bed liner, like Herculiner, is the easiest because no spraying is necessary.
A nicer, more durable solution is U-Pol Raptor which can be tinted if desired.
Good Luck From The Dark Dart Side & I Hope This Video Helps:
https://youtu.be/saw4S1wxF8Q
I chose to use Rustoleum Truck Bed Liner to coat the panels that were exposed to the elements, and in the passenger compartment. It doesn't stick to the "as supplied" panels, you have to rough 'em up a bit - but two coats puts a nice finish to it.
I found this video on YouTube that I found interesting on spray on bed liner.
https://youtu.be/NWFIwJUSo6c
The body shop I'm going with recommended this:
Attachment 105020
Second time this week I'm recommending this stuff.
https://live.staticflickr.com/7828/4...71753684_b.jpgflex_seal_black_liquid_rubber_spray by i.e.427, on Flickr
Looks good, and noy to $$Quote:
Originally Posted by GoDadGo
3M Rubberized Undercoat is what I use. Bed Liner is great stuff....unless you need to do a repair. Grinding Bed Liner off is a hateful job and toxic as all get out (and if "I'M" pissing about being toxic you know it has to be bad). It's better to undercoat after paint so you don't have overspray on it...da Bat
Quote:
Originally Posted by i.e.427
FRANK !!! THERE IS NOTHING ON THAT CAN THAT SAYS "COBRA REPLICA"......how dare you!....HOW DARE YOU !!!!!.....maybe you should contact them and have them add it to the label .then I would be comfortable using it...da Bat... I WAS WRONG !!!! We fall under he "and so much more". Makes sense, cause, we are SO MUCH MORE !!!!
How many cans of spray on liner or rubberized coating is needed? And for those recommending under coating after paint, don't you worry about scratching the paint job?
any how much roll on liner (herculiner) do you need to complete the underbody job?Quote:
Originally Posted by egchewy79
I used just over 2 gallons of Duplicolor bed liner total to undercoat the body and all road-facing panels.
If you use Duplicolor, don't bother with the bed liner kit; just get the gallon of goop. The kit includes a tiny pour out tray, and a roller that doesn't really work. You're better off with a box of 79 cent chip brushes.
John
two quick questions:
1. do you recommend applying bedliner to the entire underside, or just the wheel wells?
2. what kind of prep should be done on the underside of the body before application? (I'm wondering how much sanding can/should be done)
Al,Quote:
Originally Posted by Al_C
If you're going to do this please call me first so that we can save both of us (well, mostly me ;)) some grief.
Jeff
I applied about 3/4 of a gallon of Duplicolor bed liner under the whole body. I just put one basic coat on all surfaces, and then put 3 nice heavy thick coats inside the wheelwells. Took a long time for the heavy coats to fully cure.
For prep, I just washed it good with soap and water, scuffed any smooth spots with a wire brush on an electric drill... cleaned it with a rag and some no-name wax remover (or was it thinner? don't recall now), and then spread it with a cheap 2" disposable brush from HomeDepot. The kit roller is a waste of time/money for trying to spread under the body.

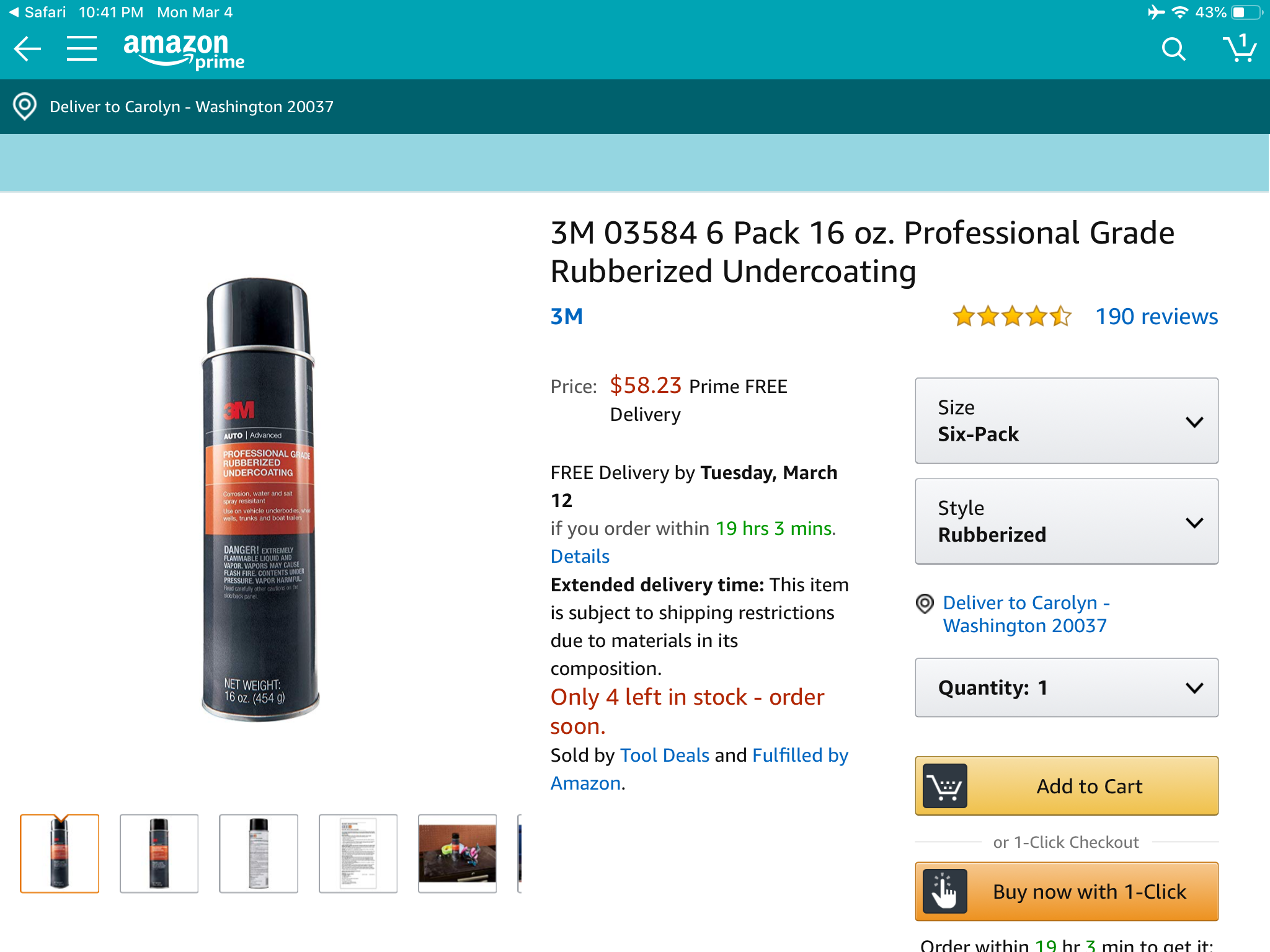

Bat, Is this what you use? How many cans do I need?Quote:
Originally Posted by j.miller
Thanks
https://www.amazon.com/3M-Profession...gateway&sr=8-3
It is not what I use ….my stuff comes in quart cans and uses a special application gun (because I do it all the time). What you are showing is a great product and 6 cans should do the wheel wells and engine compartment . I don't do the whole body because it is a waste. The thought that some guys have about seeing through the body is incorrect. You only need to do what can be seen when car is together plus wheel wells. Bed liner is bed liner made for "Lining Beds" not undercoating a body. I know a lot of guys do it and I don't want to start a whizzing match but if you ever got on the other end where you have to deal with it in a repair situation you would understand. Second thought I would get the case . That will give you enough to thicken up the wheel wells and do the aluminum splash gaurds if you so desire. Cheers...da BatQuote:
Originally Posted by bluse
OK, a follow up to doing the undercoating. Here are a couple of "after" photos. I used the Dupli-color Bed Armor DIY kit. Jeff recommended it because it cleans up with soap and water. My comments: cleanup was a non-issue. I used two 2 inch brushes - one for each coat. They were trashed by the end of it, so I threw them out. The roller they provide in the kit is a waste of time. The brush does a better job. (that was an editorial comment. Your experience may vary.)
I tried to avoid the edges (by Jeff Kleiner's request). I think it came out OK. It took the better part of the afternoon: wash the underside, sand the underside (I used 40 grit sandpaper), blow it all off with compressed air, paint, let it dry for an hour, 2nd coat, let it dry for 2 hours, done. I'll recommend the Dupli-color option.
https://thefactoryfiveforum.com/atta...9&d=1557883913
https://thefactoryfiveforum.com/atta...0&d=1557883926
