I am building a 383 to go in my 33 Hot Rod arriving in march. I was wondering if anyone had any clearance issues with the aftermarket serpentine belt systems like March 21100 (or 21110) and the frame rails. Is anyone running this? Is anyone running with the belt tensioner 21119?
Thanks in advance for the advice.
Mike

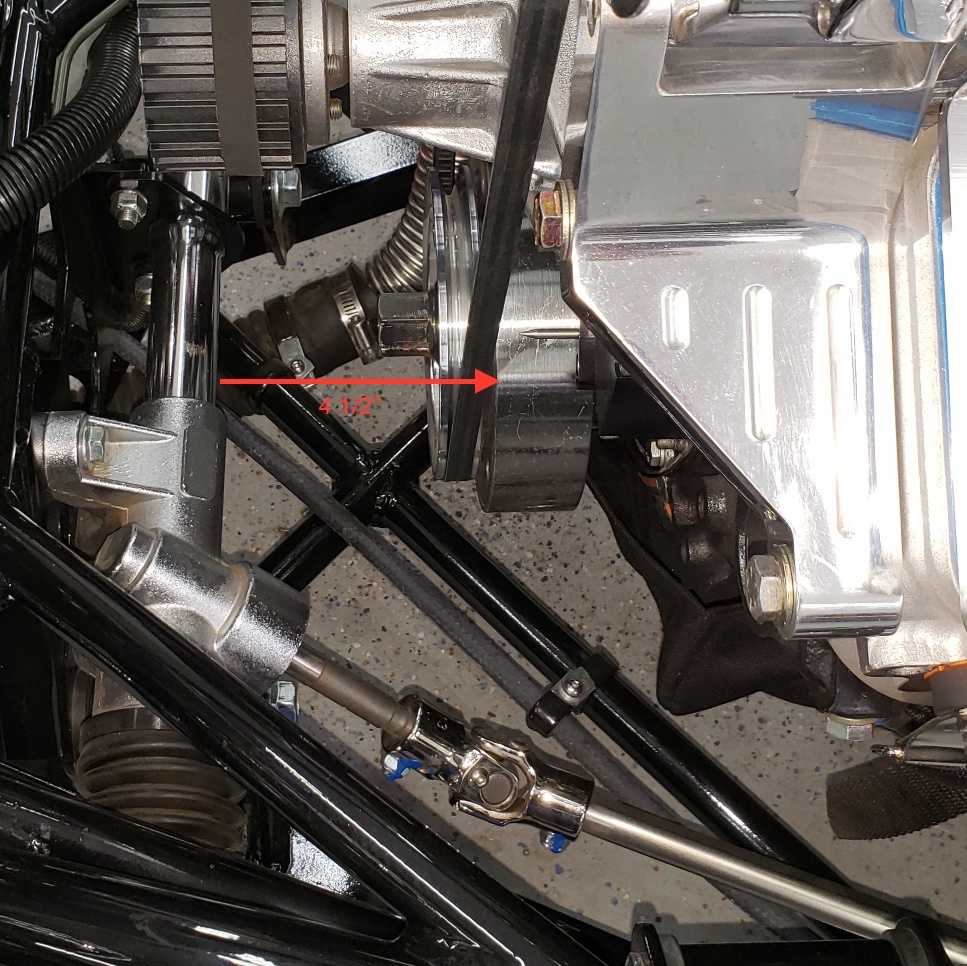

Doesn't look like anyone is running that combo. Here's some dimensions for what it's worth. I set my SBC engine back about as far as practical and have 4 1/2" from the face of the damper to the steering rack. My damper is not stock GM but I'm guessing it's similar in thickness.
Attachment 101497
Well Hell..... I wanted to go with a single ribbed belt,,, only have a pump and alternator,,, OR long water pump with v belt so I would have a nicer option for alternator mount location. But F5 told me NO, had to go with SHORT water pump, v belt and now I will have alternator in a place I really don't want it. I probably should have been braver at exploring my options. Will also run hood and sides so won't be visable all the time anyway.
I'm running a 100A alternator so I can get away with a single v-belt. The alternator is mounted high on the driver side where it tucks in out of the way. I think this was my third iteration and I'm toying with the idea of using one of those smaller diameter alternators for more valve cover clearance. I'm also running my short water pump with an electric motor so I had to get creative with the alternator drive -- no one makes what I needed so had to fab my own. Seems to be a common theme on this car -- everything has to be custom built to make it fit the small package. It would have been so much easier if I had of went with a Camaro or a Chevelle -- I'd have had plenty of room and most of the parts would have been off the shelf. Like they say -- if it was easy everyone would be doing it.
I have a BluePrint SBC 400 with the Mach 21100. Had to move the engine back about 1/2 inch to clear the steering rack.
how did you move the engine back? did you relocate the motor mounts on the frame?
im running an after market balancer as well. maybe ill stick with the v belt.

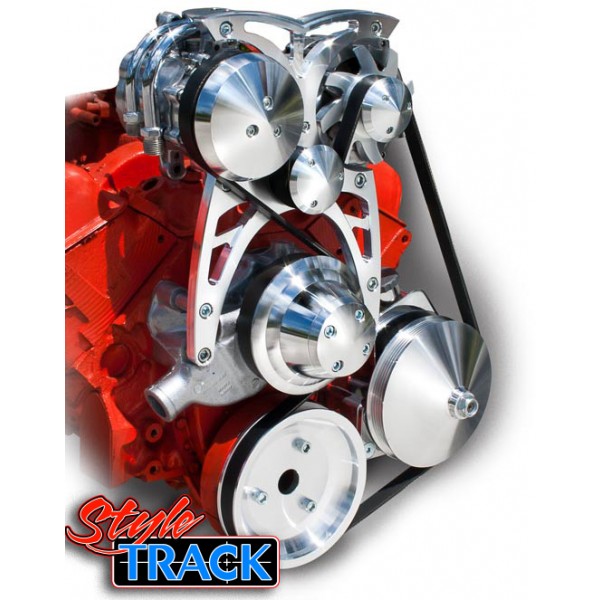

Attachment 101507
or this
Higgi56, you simply use spacers between the motor mounts and the FFR supplied mounting plates to move your engine.
The photo of the drive on your last post may not fit the HR chassis -- what looks like a power steering pump mounted low on the driver side will likely pose a problem. I looked at running one of those small diameter alternators low on the driver side and there's not enough room. It's very tight in this area as the chassis is tapered and narrows significantly near the front of the engine. Make sure to get dimensions on any drive you are considering before pulling the trigger. You'll want to make sure you have room for the configuration you select.
Higgi56
Look at this link it shows the spacer I used, picked it up at ACE Hardware.
https://thefactoryfiveforum.com/show...894#post328894
Higgi,
Take a look at this thread, I installed a SBC with a serp belt, AC/Alt/Water using a march pulley system and don't have any clearance issues (except needing a high clearance hood)
https://thefactoryfiveforum.com/show...034#post265034

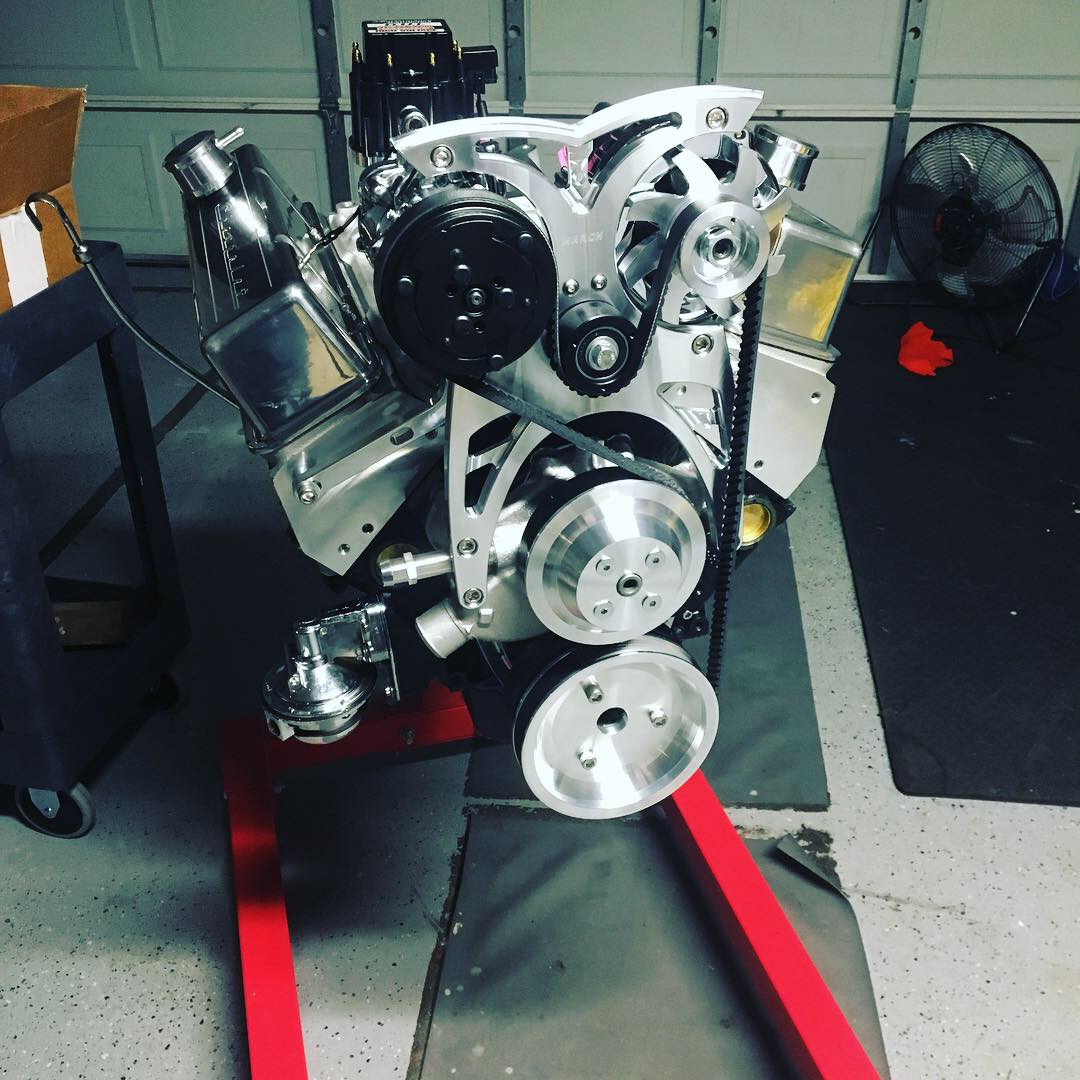

Attachment 102154
test fit on engine. wouldn't you know it, had to space the system since the water pump wasn't clearing the timing chain cover. thanks for all the advice guys.
Nice looking system.
