Now I remember why I stopped working on this for a while. Not really, but here is what I have to figure (re-figure) out: Gen 2 Coupe, IRS - and battery box.
See the problem?
Attachment 69951
Obstruction removed:
Attachment 69952
So now I figure I need to move the battery to the front, at the passenger side.
This should work, right? I have a 302 and T5. Should be do-able, others have done this - right?

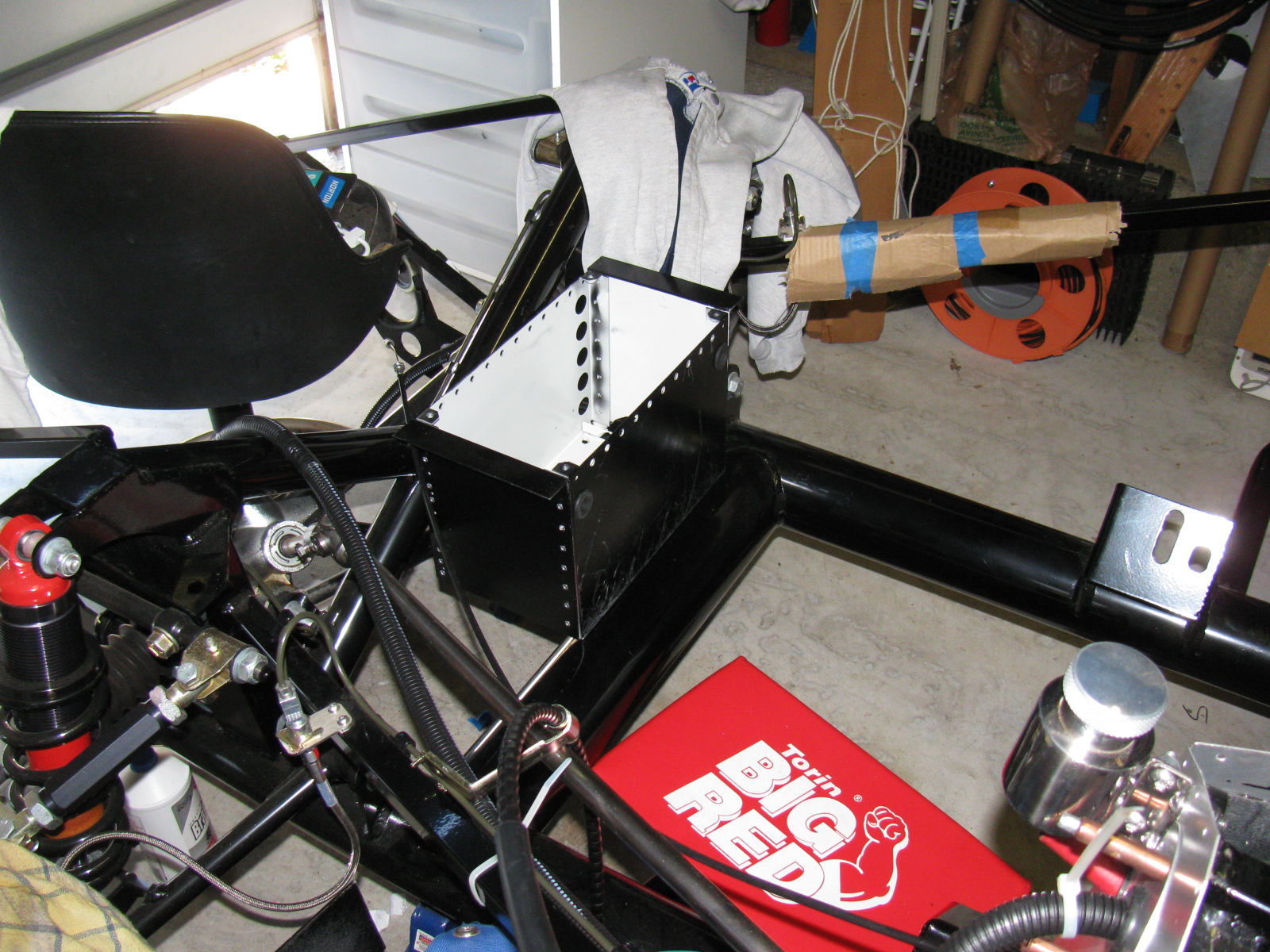

Attachment 69953
Talk to Mark at Breeze and see if his front mount battery tray will work for you. I suspect it will.
Mike
And if that doesn't work, check out the box I built for a group 51 battery. It is about the last post in my build thread. You could bond together something similar with Lord Fusor, rather than tig weld it. My box ended up flush with the bottom of the frame rails. If needed, I would build one for you.
Wayne,
That's where I have mine as well. Not a problem.
Good to see you back at it. Less time on LinkedIn, more time in the garage! LOL
John
John -
Yeah. I hope so!
Jacob -
Thanks for your kind offer, I may take you up on that if I run into trouble. But - I think I have a solution and will build a battery box "frame" and mount a Group 51 battery in the front. I visited the local Pep Boys and that battery looks perfect for our cars.
-wayne
Not sure where you are running into a fitment issue. I have a gen II coupe with the new IRS and I mounted a FFMetals battery box into the same location. You can access the drain plugs from the under side. To fill I used a section of hose to get me far enough away to pour from the bottle. Don't give up on the rear placement...IT FITS. It gets even tighter with the fuel cell and fuel line components. Enjoy!

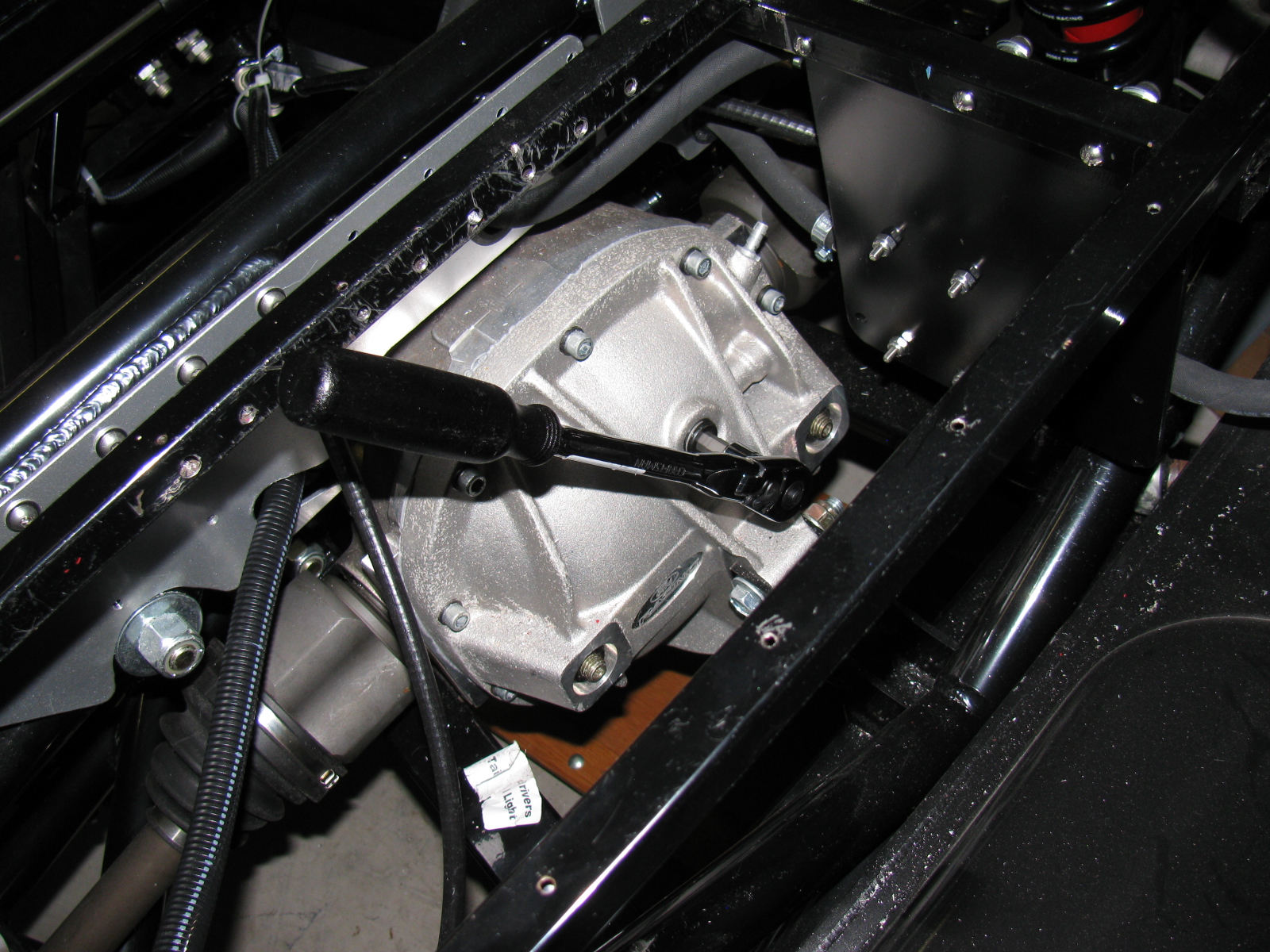

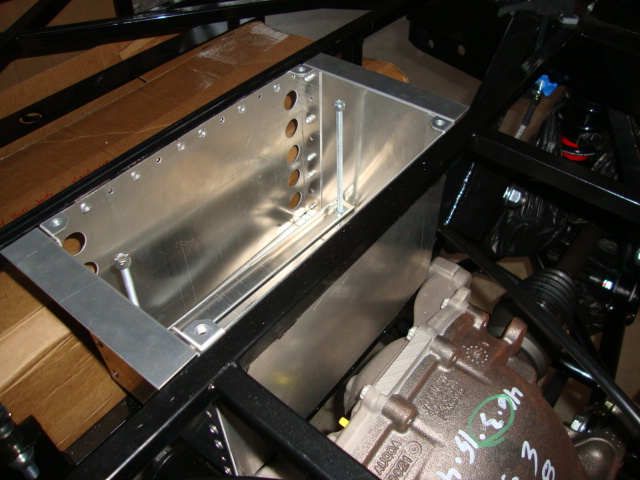

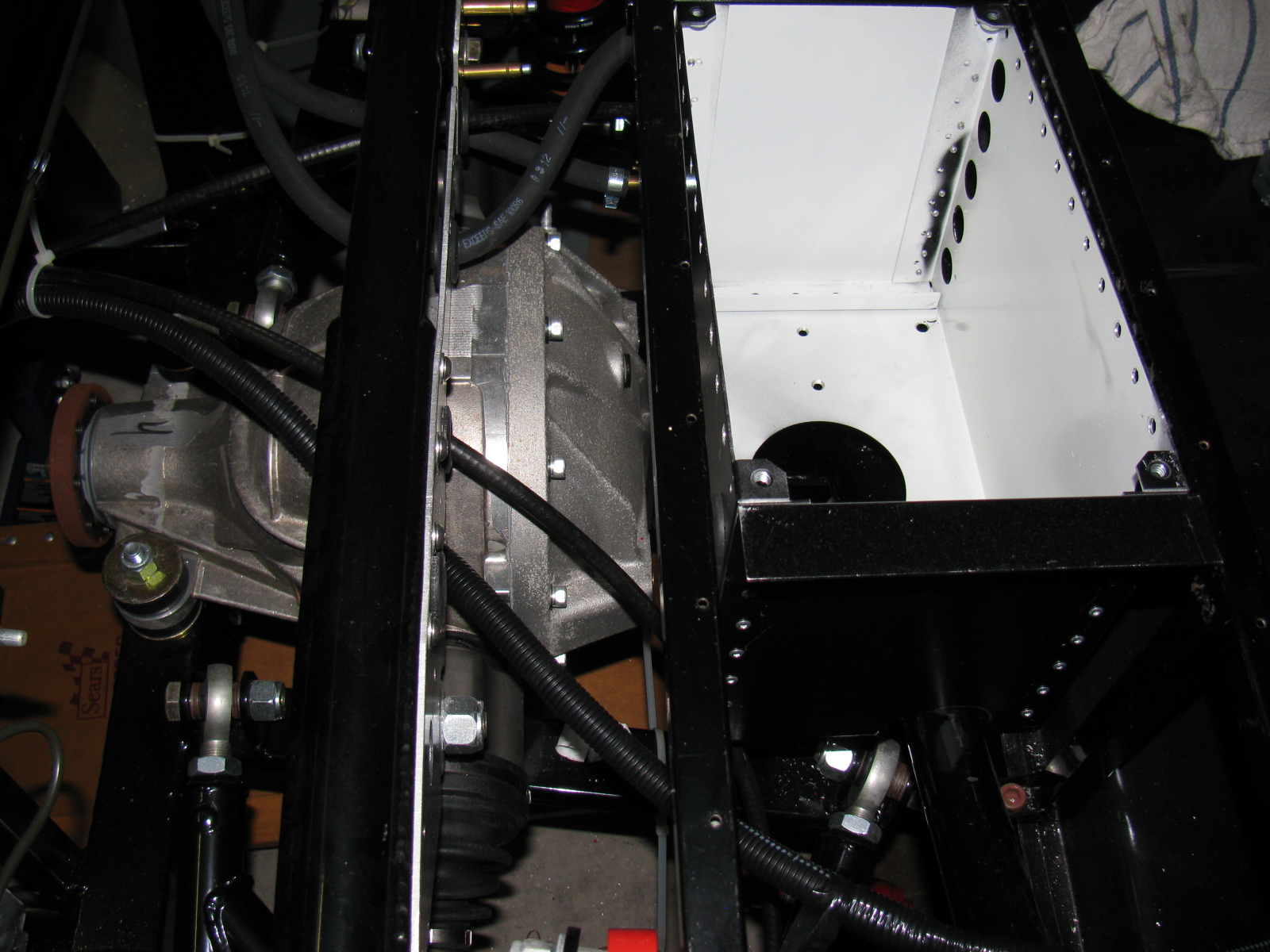

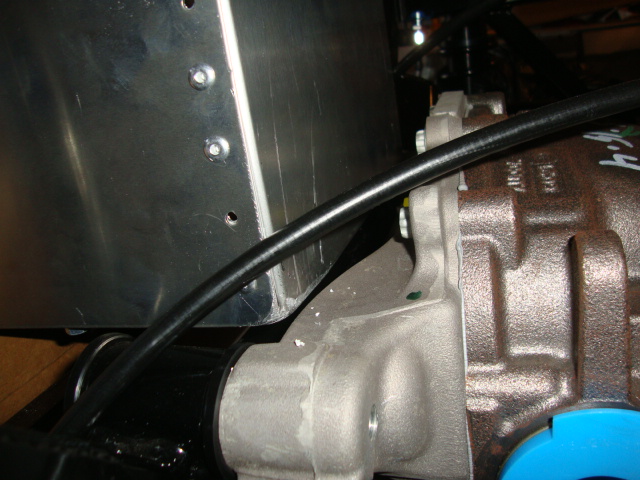

Attachment 71065
Attachment 71066
Attachment 71067
OK -thanks for the encouraging words. My original plan was to keep the engine bay as clean as possible. I will take another look. I may expand on your hose to fill idea: Maybe add a fitting going into the fill port, connect it to a hose, and add a fill port on the rear deck. Interesting, eh? This way my existing battery box will not have to go to the scrap or recycle bin.
Quote:
Originally Posted by ricobrafan
The engineering we do to solve problems is both the best thing and the worst thing we have to do. Tackle one thing at a time and you will surely get it completed.
