Thank you BluePrint Engines!
Hello folks-
As some of you know, I recently won the engine in the contest sponsored by the folks at BluePrint Engines. I have been working with the team there to select the right engine for my project. They have been awesome to work with, and have helped me to select a great engine and transmission combination.
The contest offered a well sorted 302 package that was terrific. However, I have been planning on a 351 based engine from the beginning of my build plan. When I shared that information with the team at BluePrint, they were happy to allow me to upgrade my engine choice to what you see here. What I ended up with was a very, very nice 408W, engine dress kit, and transmission package with the specifications outlined below. Although the engine was delivered a short time ago, I have waited until my boys were able to be with me to make my post about the engine. I really wanted them to see the engine before you all did. I hope you understand!

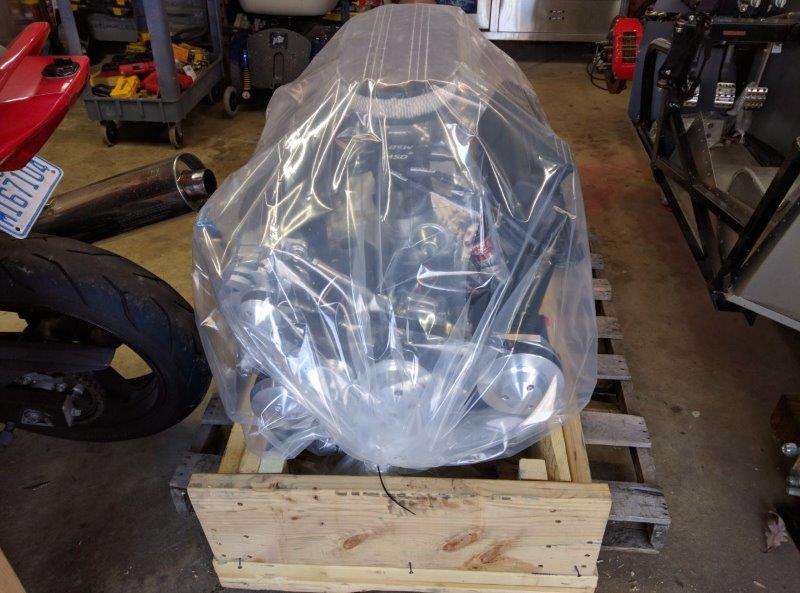

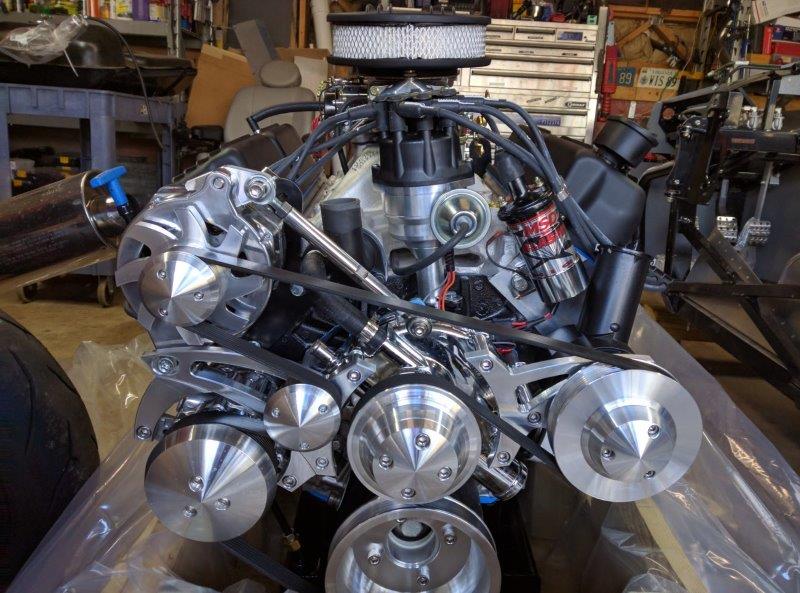

I have enclosed a couple of pictures of the engine, and one picture of my boys and me with the engine. They were both home together for Christmas, which is a fairly rare event at our house. I also have posted a link to the engine dyno for those who are interested.
I am truly overjoyed to have this engine, and am grateful to the folks at BluePrint Engines that made this happen. I can't wait until first start, first go cart, and when she is all done. I know this engine is going to make her scoot! Here are some of the details on the engine package I received:
Engine specifications:
Predicted HP & Torque: 425 HP / 455 FT LBS
Actual HP & Torque: 446 HP / 496 FT LBS
Compression Ratio: 9.7:1
Aluminum Heads
Hypereutectic Pistons
Roller Cam
Cast Steel Crank
Block:
Hand picked 2 bolt main seasoned 351 Windsor block bored .040 over
Square and parallel decked
Align honed main bearing bore
Rotating assembly:
New cast steel crankshaft
New I-beam rods
Hypereutectic pistons
Hastings Moly rings
Rotating assembly balanced to within 2 grams
Melling high volume oil pump
Hydraulic roller camshaft
Cloyes double roller timing chain
Camshaft degreed for maximum horsepower
Cylinder Heads:
BluePrint Performance Aluminum
Hardened retainers and springs
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
BP Aluminum Head Part #: HP9008
Cam Specs:
Roller
.543 Intake / .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation
Additional bits:
Valve covers
Harmonic balancer
Water pump
Air cleaner
Spark plugs & wires
Timing cover
Painted oil pan
Brass freeze plugs
Polished Alternator
Power Steering
AC compressor
The transmission package also includes:
Mcleod Super Street Pro single disk clutch
Aluminum Bell Housing
Tremec HD Yoke
Flywheel “pro-comp”
VSS Harness
Reverse light harness
Pilot bushing
Clutch kit bolts
Bell housing to block bolt kit
Engine guard
Tuff Stuff starter
Flywheel bolts
Here is a link to the dyno video of my engine, so you can see her performance first hand:
https://www.youtube.com/watch?v=PCC7...ature=youtu.be
The engine arrived coupled to the transmission with everything in place. They even ground down the parts on the Tremec transmission. It was a complete turnkey set-up, and I could not be happier! I also cannot say enough good things about BluePrint Engines!
I thought you all might enjoy the update.
Attachment 62535 Attachment 62536 Attachment 62537 Attachment 62538 Attachment 62539
Many thanks to Kevin AKA Jazzman, for his help educating me (no small task!) so that I can install pictures.
Regards,
Steve
