10-11-2016, 01:33 PM
jharris

1 Attachment(s)

Wiring the MSD Atomic EFI System with Infinitybox

Guys,

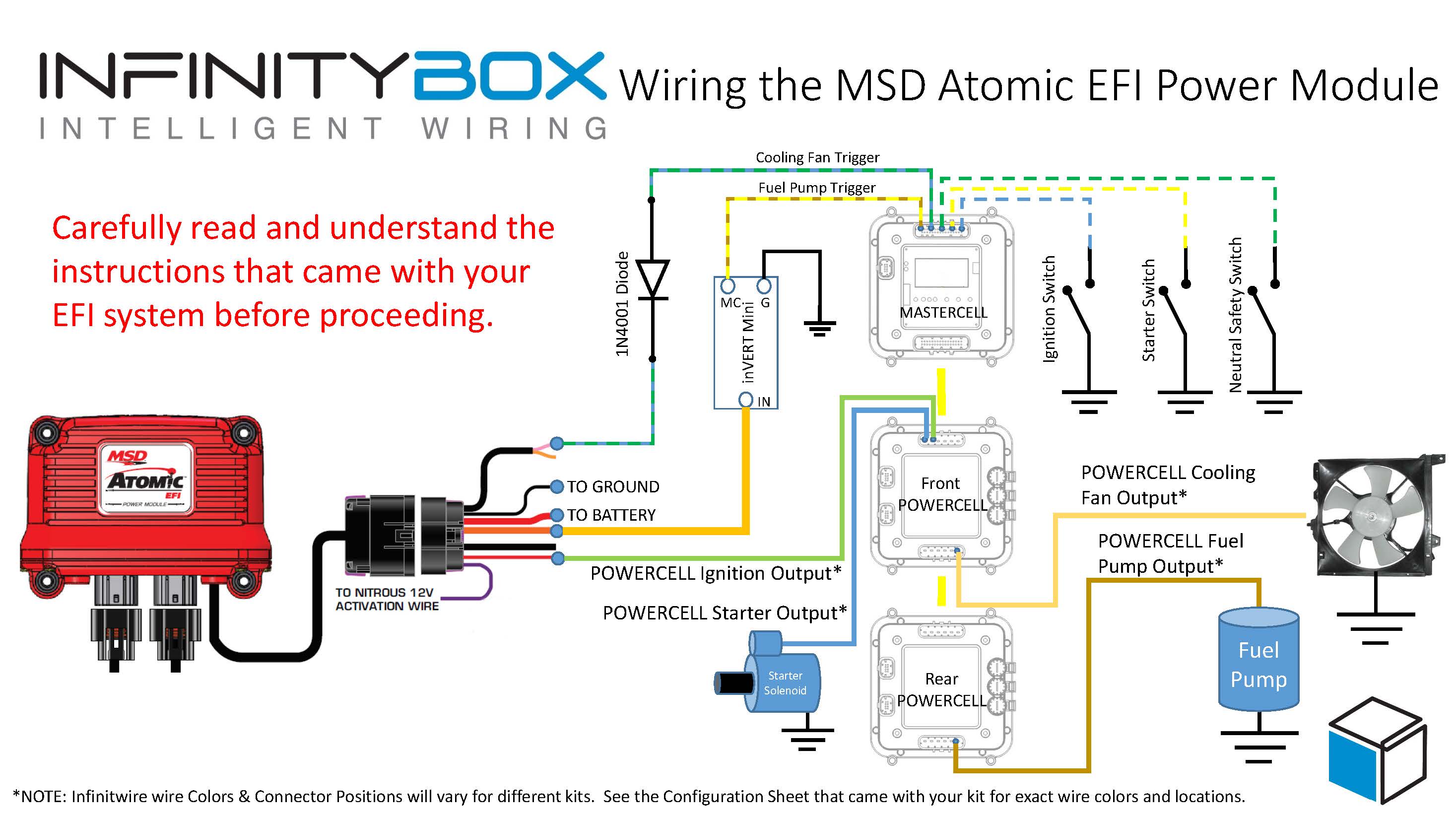

We just created this new wiring diagram for the MSD Atomic EFI system. It shows you how to connect the power, ground, ignition, cooling fan and fuel pump to the Infinitybox 20-Circuit harness Kit.

Attachment 59586

This blog post will take you through the steps, wire by wire.

http://infinitybox.com/wiring/atomic-efi/

Give our team a call with any questions.
10-18-2016, 12:29 PM
dmartinez

1 Attachment(s)

Hey everyone,

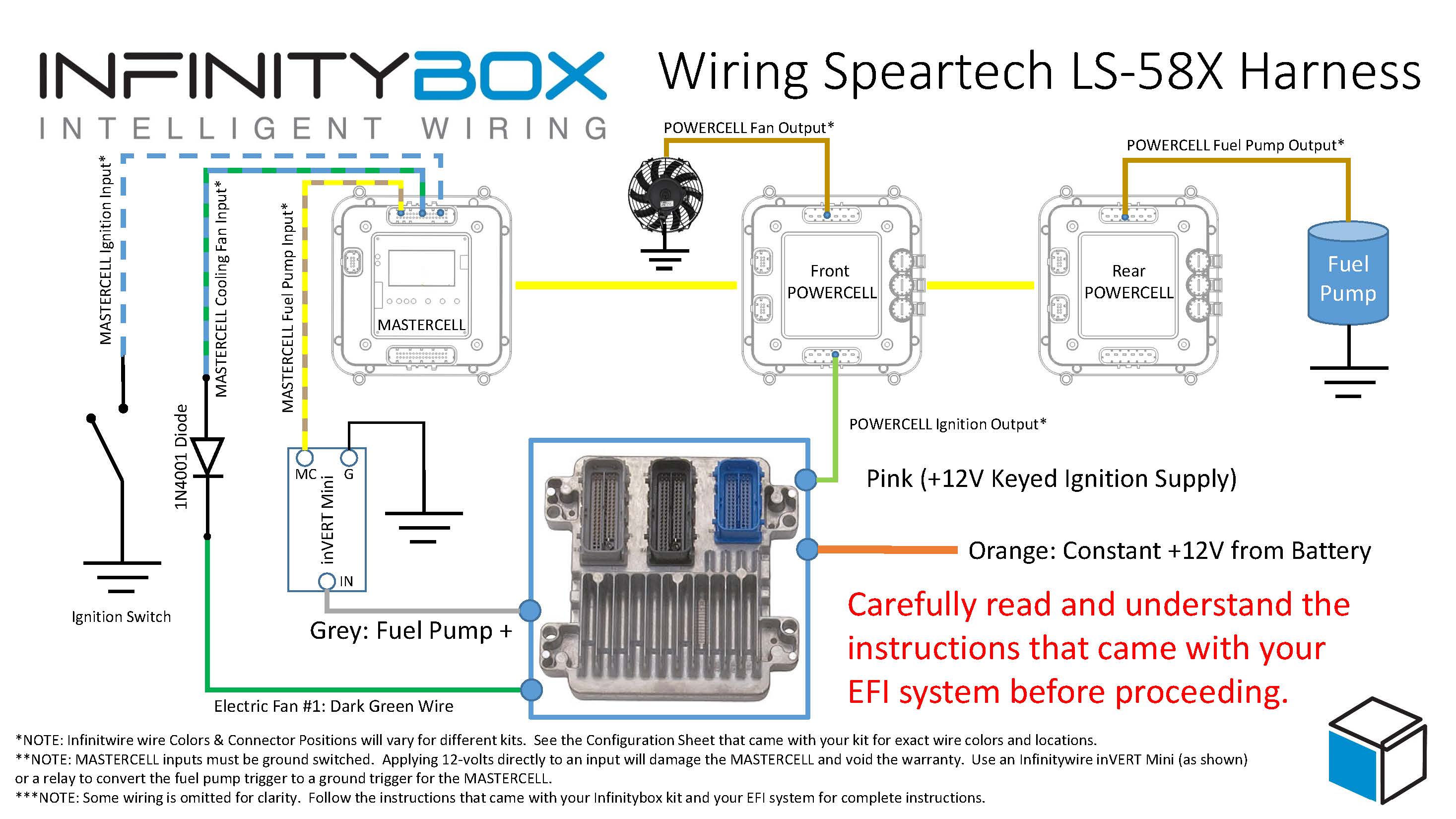

to add to Jay's message. A lot of our customers using a LS ECM have chosen a Speartech harness. We have a blog post dedicated to connecting to that as well. Here is a quick diagram.

Attachment 59909

You can get more detail at the blog post by clicking on this link.

Dan
