Infinitybox Wiring Diagram for Coyote ECU
Hey Guys,
We get asked a lot about how to wire the Infinitybox MASTERCELL inputs and POWERCELL outputs for the Coyote engine package. This is something that has been on our website for a long time but we thought that we'd put it up here so it was easily accessible.

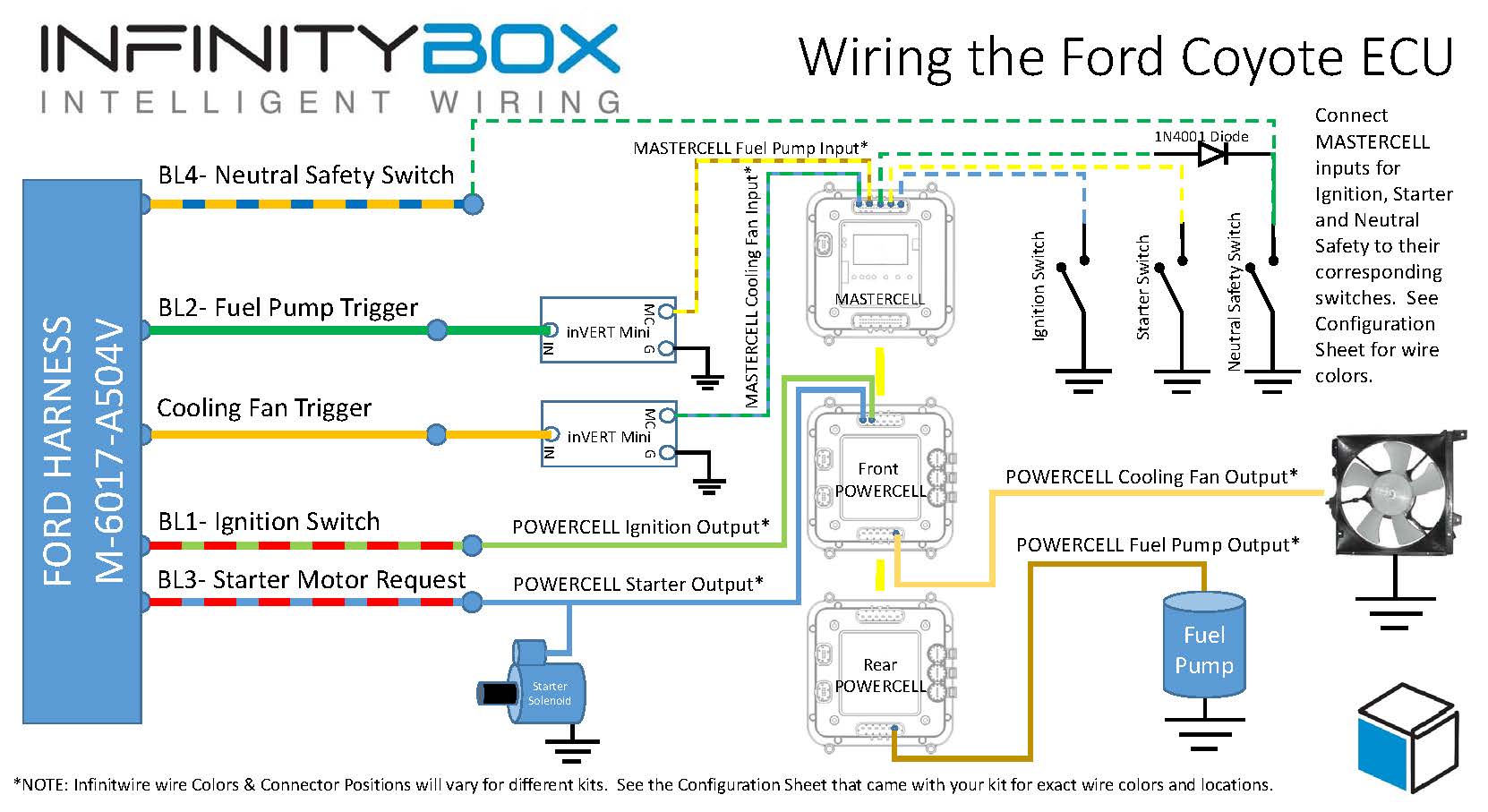

Specifically, this shows you how to connect key-on power to the ECU and how to use the ECU to trigger the cooling fan and fuel pump through MASTERCELL inputs.
Attachment 59394
You can also download a PDF of this wiring diagram by clicking this link.
Our website and blog are full of other wiring diagrams and application notes to help you get your car wired with our Infinitybox system.
Please let us know if you have questions about this or any other wiring topics with our Infinitybox system.
