has anyone else encountered an issue screwing the upper handle to the lower? I can only get the upper to screw in only about 3 threads, about 1/8" on. I have tried wd-40 and other lubricant, but it just stops as if it bottoming out... I don't want to strip the threads forcing it. Any thoughts?
Thanks in advance for your help.
Yes, I had the same problem, took the wire brush wheel on the bench grinder to it; polished it up, cleaned the threads, oiled the threads with regular motor oil then I was able to screw it all the way down. Previously I had the E-Brake parts powder coated so some of my problem was powder coating on the threads, worked ok after polishing threads.
Nevin
I just finished the installation with a brake assembly I just received last week and it all went on fine.
Did you by chance install both nylon white bushings? I went back and looked at my photos and the manual and I used only the 1 inch bushing.
I also extended the Rachet to Handle Mount bracket to allow running the cables above the crossmember.
The first photo shows the difference between the original and my bracket.
Attachment 19551

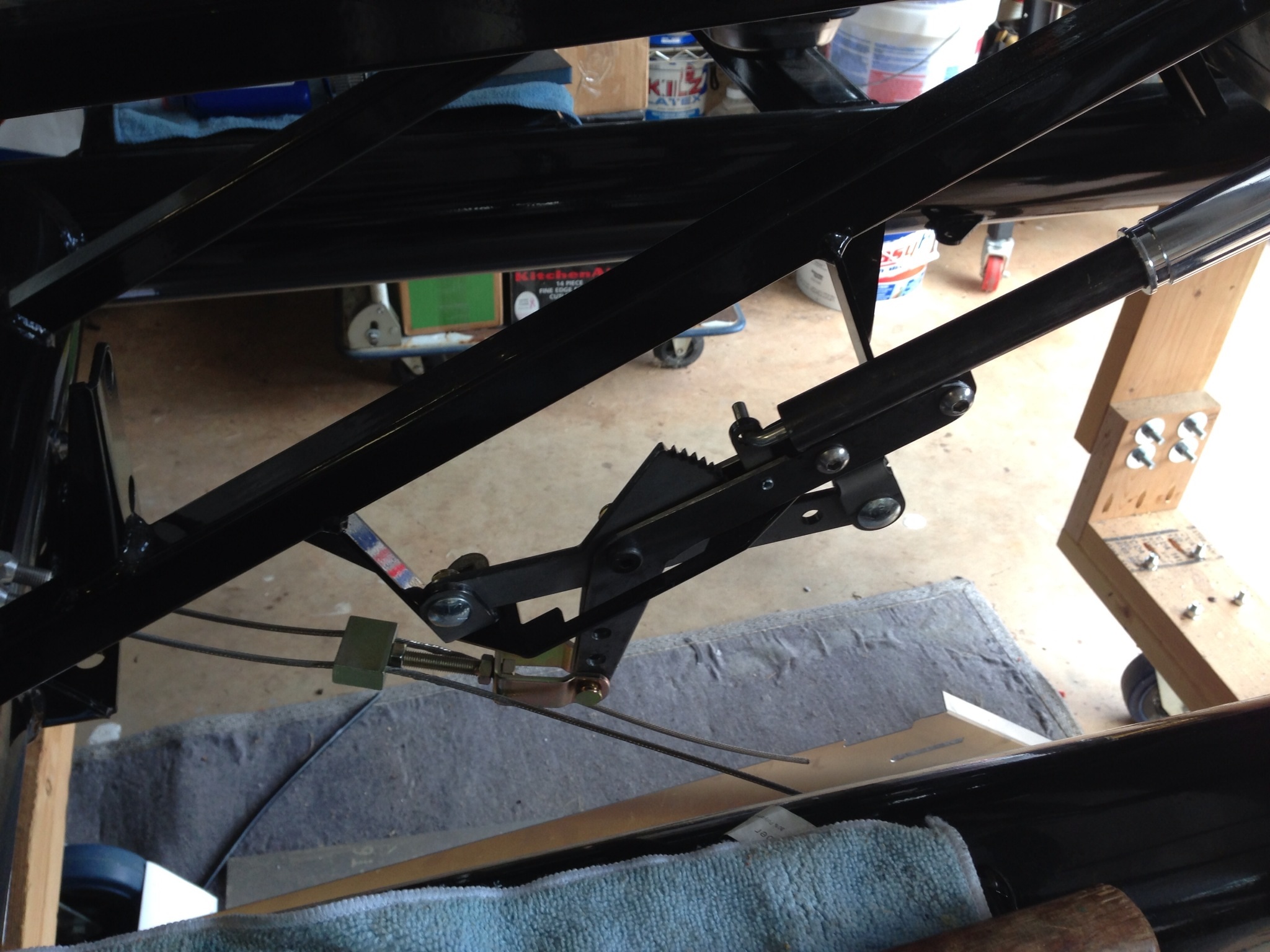

Installed Parking Brake Assembly
Attachment 19549

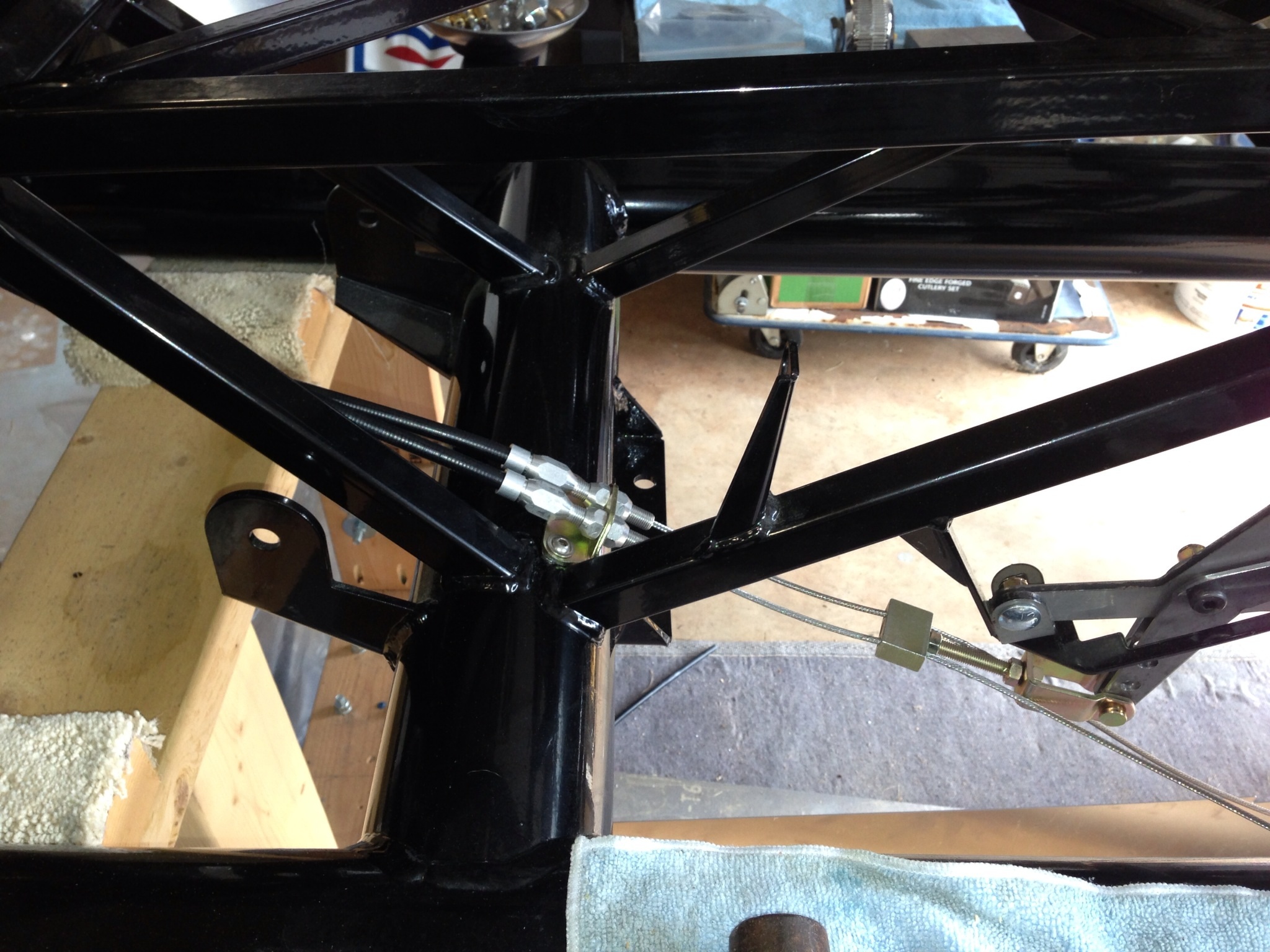

I utilized the Lokar cables which came with this nice adjustable transition piece
Attachment 19550
I am using FFR Wilwood brakes, the parking brake is fully engaged at 3 clicks with plenty of room for adjustment as the cable stretches.
Carl
Thanks for the wire brush suggestion. That worked like a charm! This site community is the best!
