Photo 4 of 22 from Bad To The Bone Hot Rod

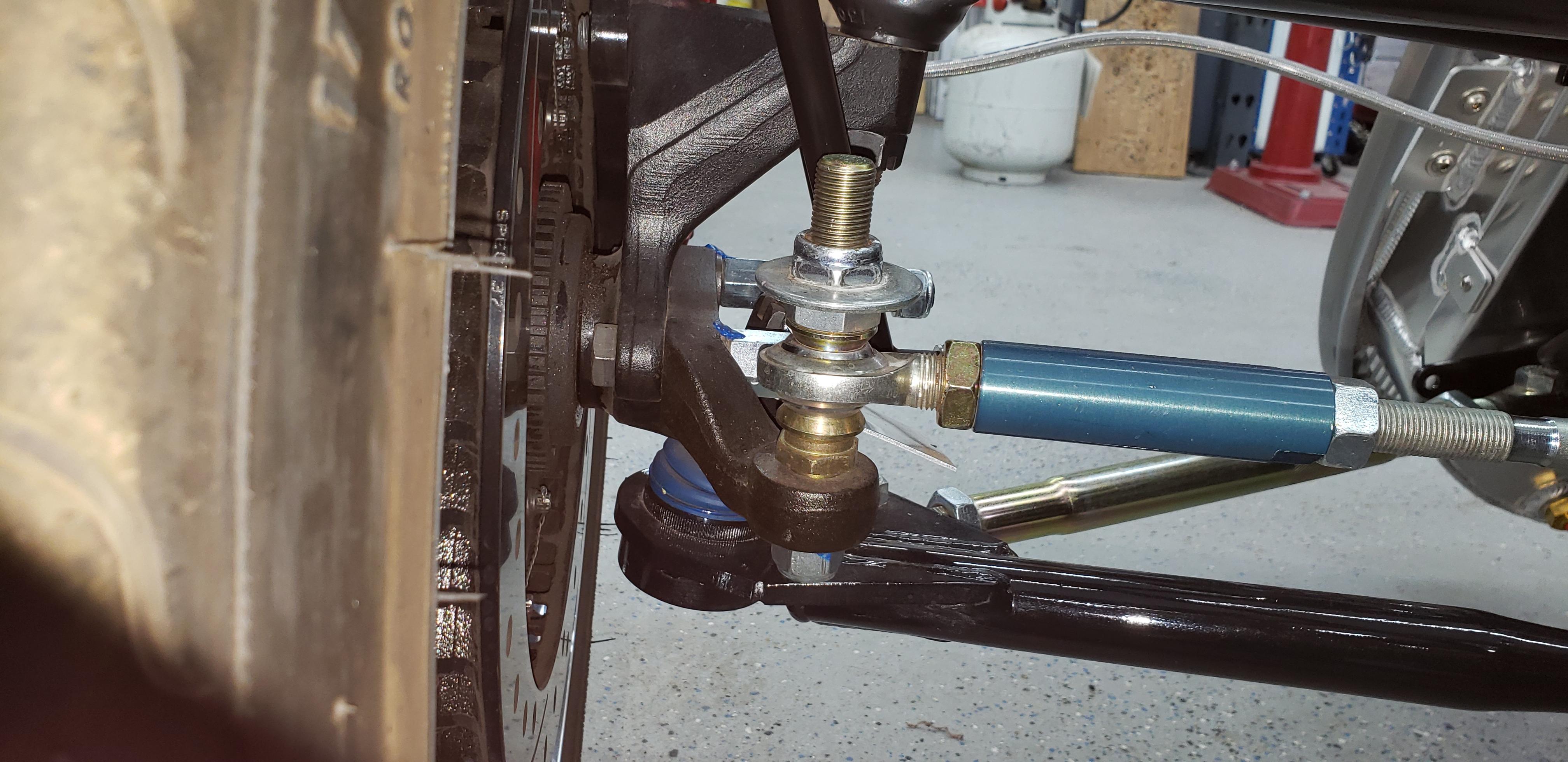

Modified FFR Bump Steer Kit #27593 with Adjustable Pinto 7-deg taper tie-rod to heim joint adapter #91636055-PINTO, 5/8" ID steel cone heim joint spacers from Speedway Motors. The taper style heim joint adapters are much more secure than the FFR non-tapered style.

Note the large diameter flat washer to prevent a failed heim joint from separating leading to loss of control. Many sanctioning bodies require this as does the NHRA.

Right click and select view image.

Photo Added: 04-15-2020, 03:54 PM
Album: Bad To The Bone Hot Rod
Added by: NAZ
