1. Aircontroller - 10-05-2019, 12:16 PM

   What lines are those for?
2. MSumners - 10-05-2019, 04:57 PM

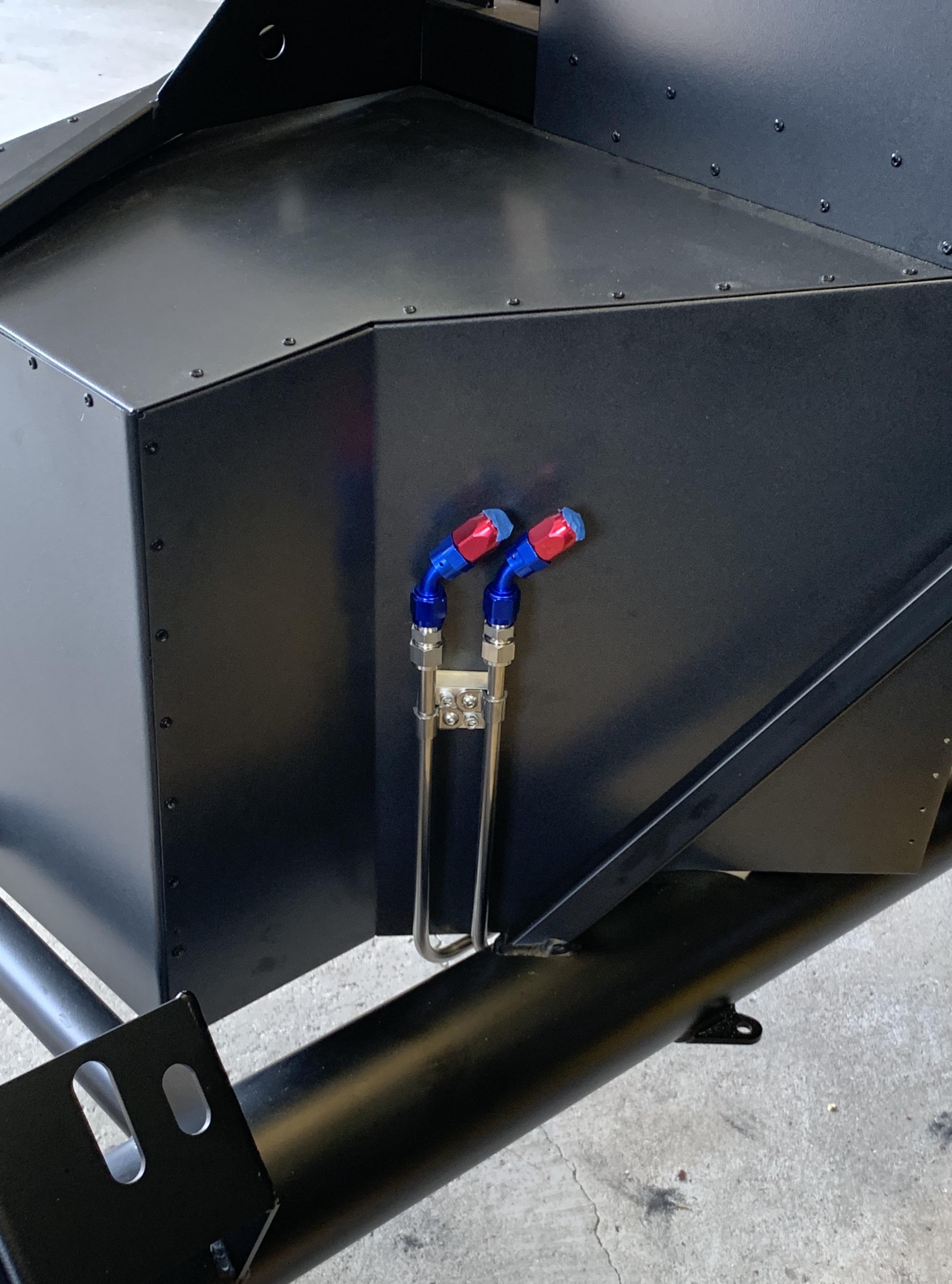

   Fuel send and return. Ended up using different fittings.
3. Aircontroller - 10-05-2019, 07:12 PM

   About those lines.....are they the same material included in the “complete kit” from FFR or did you purchase from a vendor?
4. MSumners - 10-05-2019, 07:56 PM

   They are not from the kit. I bought 10 ft sections of stainless steel 3/8 fuel line from a company called Inline Tube. I bent and fit them as in my build thread. Not needed but I like the look and wanted to keep full 3/8 on both runs.
5. Aircontroller - 10-05-2019, 09:53 PM

   NICE!!! Great choice! They look spiffy!

   How did you put that together? Did you use rivets to hold that one plate and then you used screws to hold the line clamp?
6. Aircontroller - 10-05-2019, 10:36 PM

   Found your build thread also.....thanks!
7. MSumners - 10-06-2019, 09:40 PM

   The block is aluminum I cut from stock I ordered from metals online. I tapped 10-32 holes for the line clamps. The two hex head screws that hold it to the aluminum go through the pedal box and secured on the other side with acorn nuts. Underneath the mount is a 1/8" rubber seal to allow for some vibration.
   Anytime,
   Mike S
