Photo 71 of 153 from Bad to the Bone 33HR

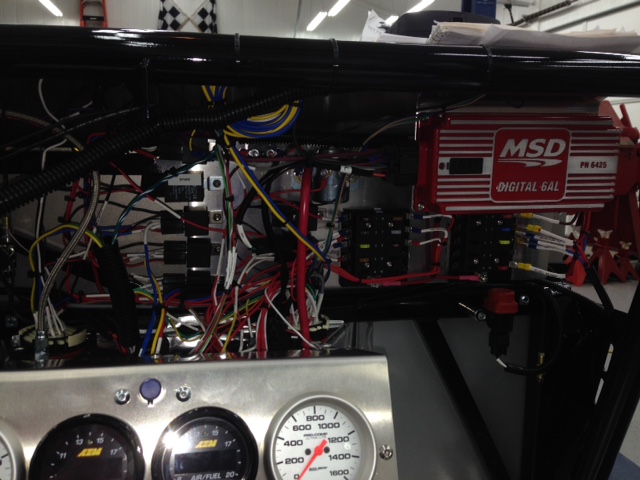

The fuse panels and relays mount to a removable backplane and were pre-wired prior to installation. Then the switch and gauge wiring was terminated after the switch & gauge panel was fabricated. The wiring is ~95% complete at this point and all done from scratch.

Photo Added: 10-18-2017, 07:40 PM
Album: Bad to the Bone 33HR
Added by: NAZ
