Photo 93 of 153 from Bad to the Bone 33HR

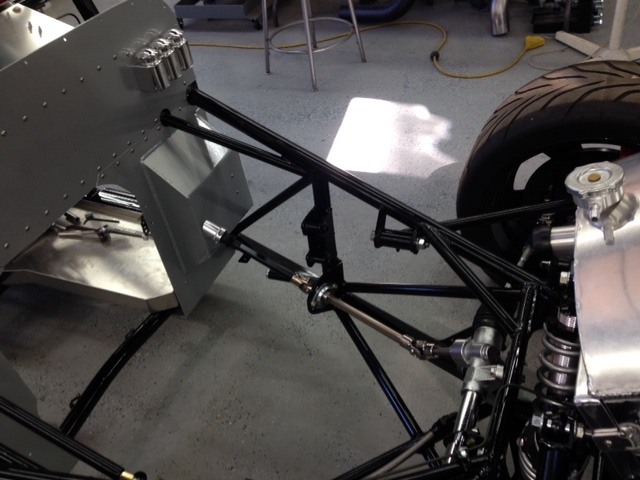

Marking and making the elliptical hole for the steering shaft was a challenge. Calculating a center-point in space with little spacial reference and then drilling a flat surface with a hole saw at an angle to make an elliptical shape took some doin'. That's where trigonometry and fabrication experience comes in handy.

Photo Added: 08-09-2017, 12:00 PM
Album: Bad to the Bone 33HR
Added by: NAZ
