Photo 97 of 153 from Bad to the Bone 33HR

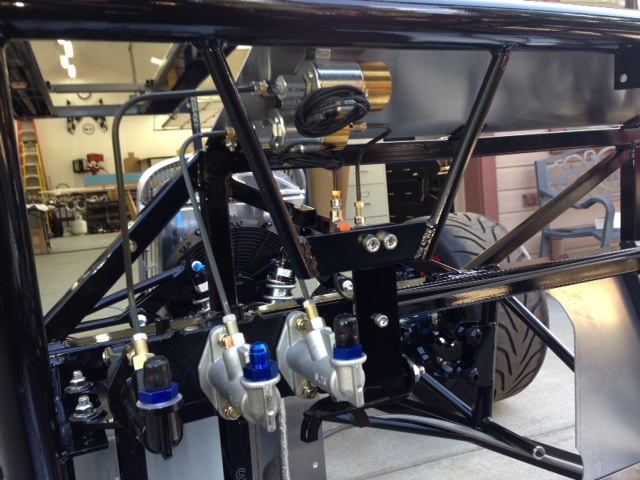

Now that the chassis is done and painted it's time to start assembling things. After getting it on its wheels so I can roll it around the shop I started on the brake system. In this photo you can barely make out the two 12VDC line lock solenoids. One is for the front brake and one is for the clutch. The clutch will be released by a delay box much like a trans brake in an auto trans car.

Photo Added: 08-07-2017, 12:24 PM
Album: Bad to the Bone 33HR
Added by: NAZ
